Xerox Phaser-6100 — каталог запчастей со схемами

Содержание

1. Parts List
2. Parts List
3. Parts List
4. Parts List
5. Parts List
6. Parts List
7. Parts List

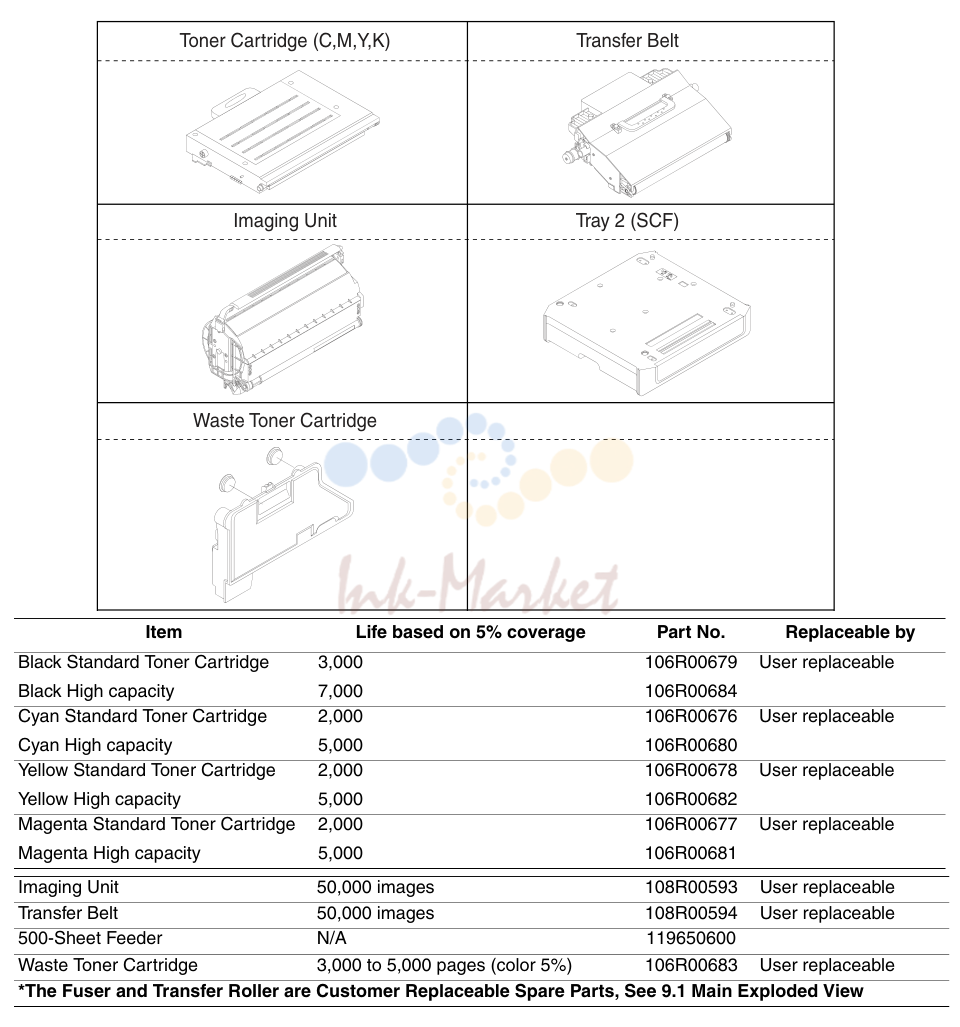

1. Parts List

№	Артикул	Описание
0		N/S Set_Xerox
1	108R00594 запросить цену →	1 Transfer Belt
2	108R00593 запросить цену →	1 Imaging Unit
3	106R00679 запросить цену →	1 Standard Capacity Black Toner Cartridge
4	106R00676 запросить цену →	1 Standard Capacity Cyan Toner Cartridge
5	106R00677 запросить цену →	1 Standard Capacity MagentaToner Cartridge
6	106R00678 запросить цену →	1 Standard Capacity Yellow Toner Cartridge
7	116-1850-00 запросить цену →	1 Main Drive ASM
8	116-1851-00 запросить цену →	1 DEVE Drive ASM
9	116-1579-00 запросить цену →	1 Fuser 230V (Customer Replaceable Spare)
10	116-1852-00 запросить цену →	1 Main Controller Board
11		1 Main Frame
12	116-1853-00 запросить цену →	1 Exit ASM
13	116-1928-00 запросить цену →	1 Duplex ASM
14	116-1854-00 запросить цену →	1 Paper Tray, Tray 1 (FCT)
15		1 Front Cover
16	116-1855-00 запросить цену →	1 Rear Cover ASM
16-1		1 Cover Rear
16-2		1 Cover Rear Deco
16-3		1 Cover Open Board
16-4		1 Label (P)-Rear
17	116-1856-00 запросить цену →	1 Top Cover ASM
18	116-1857-00 запросить цену →	1 DEVE Cover ASM
19	116-1859-00 запросить цену →	1 LVPS (SMPS) ASM, 230 V
19-1		1 LVPS (SMPS) V2-220V
1		LVPS (SMPS) V1-110V
19-2		1 Bracket LVPS (SMPS)
19-3		1 Shield - LVPS (SMPS)
20	116-1860-00 запросить цену →	1 HVPS
21	116-1861-00 запросить цену →	1 Laser Unit (LSU)
22		2 Plain Washer
23		P/O hardware kit 2 E-ring
24	116-1915-00 запросить цену →	1 Sheet ECU Board (Main Board Shield)
25		1 Ground Harness LIU
26		1 ICT-PIN ADF
27	116-1863-00 запросить цену →	1 Fuser Fan
28	116-1929-00 запросить цену →	1 CBF Harness-Main Laser (LSU)
29	116-1930-00 запросить цену →	1 CBF Harness-Main Panel (Control Panel)
30	116-1931-00 запросить цену →	1 CBF Harness-DEVE Motor
31	116-1932-00 запросить цену →	1 CBF Harness-Main Motor
32	116-1933-00 запросить цену →	1 Harness-Main LVPS (SMPS)
33	116-1934-00 запросить цену →	1 Clutch Cam Solenoid
34		1 Bushing 8/5
35	116-1864-00 запросить цену →	1 Sheet Cover Front OPE (Control Panel Cover)
36		1 HVPS Shield
37		1 LVPS (SMPS) Cover
38		1 OPC Drive Gear 2_Z40
39		1 Cam-T2 Engage
40		2 Shaft Cover Exit Hinge
41		1 Bracket Guide
42		1 Bracket Upper
43		1 Bracket Lower
43-1		1 Bracket Bracket Upper
43-2		1 Bracket Option
44	119-6506-00 запросить цену →	1 500-Sheet Feeder (SCF)
45		1 Cover Sensor Base
46		1 Harness C
47	116-1936-00 запросить цену →	1 Harness D
48		1 Cable Clamp
49	116-1868-00 запросить цену →	1 Laser (LSU) Cleaner ASM
49-1		1 Shutter Laser Cleaner
49-2		1 Shaft Laser Cleaner
49-3		1 E-Ring Laser Cleaner
49-4		1 Plate-Link Rear
49-5		1 Plate-Link Front
50		1 DEVE Open Link
51		1 DEVE Open Link Guide
52	116-1865-00 запросить цену →	1 Cover-LSU (Laser Cover)
53	116-1885-00 запросить цену →	1 Terminals
54	116-1566-00 запросить цену →	1 Transfer Roller (T2) (Customer Replaceable
55		1 Bracket LVPS (SMPS) Cover
56		1 Fuser Unit Duct
56-1		1 Fuser Duct Lower
56-2		1 Fuser Duct Upper
57		1 Waste Toner Cartridge
57-1		1 Waste Toner Cover Upper
57-2		1 Waste Toner Cover Lower
57-3		2 Toner Cap OPC
58	116-1910-00 запросить цену →	1 Main Drive Hardware Kit
0		1 Xerox Front Cover
1		1 Cover-Front Hinge F
2		2 Cover Front Hinge R
3	116-1917-00 запросить цену →	1 Waste Cartridge Lock
5	116-1937-00 запросить цену →	2 Front Cover Lock
6	116-1918-00 запросить цену →	1 Waste Cartridge Lock Spring
7		2 Strap
8	116-1938-00 запросить цену →	1 Front Cover Deco
9	116-1869-00 запросить цену →	1 Front Cover Inner
10	116-1870-00 запросить цену →	1 Front Cover
11	116-1871-00 запросить цену →	2 Front Cover Latch
12		1 Cover OPE Frame
13		1 OPE Key
14		1 OPE Key 1 Cap
15		1 OPE Key
16		1 OPE Key 2 Cap
17		1 Label(P) Front Inner
18		1 Sub-Panel Board
19	333-4414-00 запросить цену →	1 Front Panel Assembly (Control Panel)
0	116-1856-00 запросить цену →	1 Top Cover ASM
1		1 Cover Top
2		1 Spring-CS
3		1 Cover Top Button
5		2 Cover Top Opener
6		2 Cover Top Stacker
7		1 Stopper-Stacker F
8		1 Stopper-Stacker R
9		1 Lavel(P)-Top
0	116-1857-00 запросить цену →	1 DEVE Cover ASM (Door A)
1		1 Spring TS
2		1 Cover DEV Lock Bar
3		1 Label(P) DEVE Cover
4		1 Cover Dup Locker F
5		1 Cover Dup Locker R
6		1 Cover DEVE
7		1 Cover DEVE Inner
8		8 Cover DEV Spring CAp
9		1 Cover DEVE Hinge
10		1 Cover Duplex Handle
11		8 Spring CS
12		1 DEVE Open Link
0	116-1853-00 запросить цену →	1 Exit ASM
1		1 Cover Exit
2		1 C/Exit Lock Cover
3		1 Cover Exit Bar
4		1 Cover Dup Locker F
5		1 Cover Dup Locker R
6		2 Spring TS
7		1 Cover Exit Guide
8		1 Cover Exit F Cap
9		1 Cover Exit R Cap
10		1 Cover Exit Hinge
11	116-1939-00 запросить цену →	1 Exit Frame ASM
11-1		1 Guide Exit Upper
11-2		1 Roller Exit Drive
11-3		1 Bearing Large DP
11-4		1 Ground Exit
11-5		1 Bearing Large DP
11-6		1 Gear Duplex
11-7		P/O Hardware Kit 1 C-Ring
11-8		3 Gear-Dup Idle
11-9		P/O Hardware Kit 3 CS Ring
11-10		1 Brush Antistatic
11-11		1 Holder Ground Ball
11-12		1 Guide Exit Lower
11-13		4 Roller FD F
11-14		4 Roller FD R
11-15		4 Holder Exit
11-16		4 Spring ETC Exit Lower Idle
11-17		1 Roller Exit Idle
11-18		2 Roller Exit F_up
11-19		1 Ground Exit Plate
11-20		2 Unit-Terminal:L
11-21		3 Spring-ETC Clutch
11-22		1 Sheet-Exit Upper
12		1 Label(P)-Exit
13		1 Guide-Exit Rear

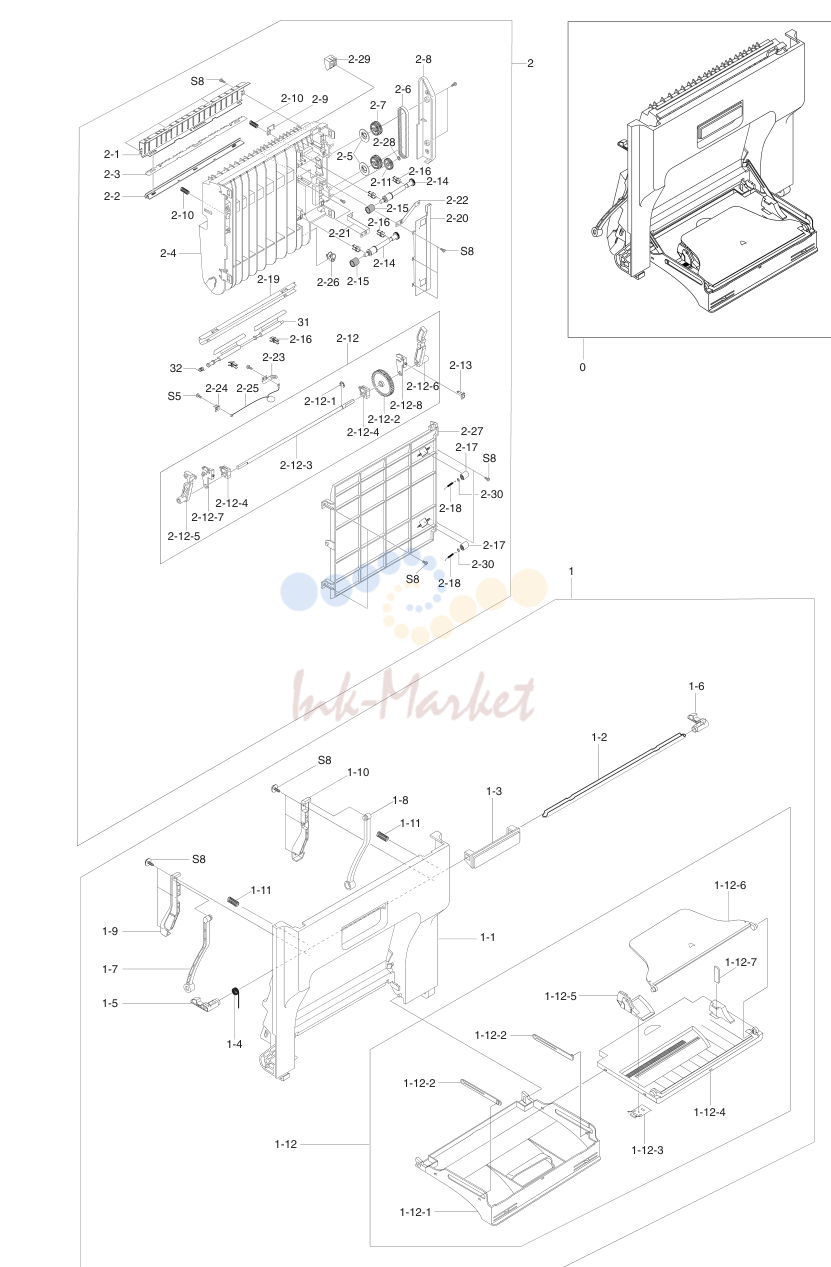

2. Parts List

№	Артикул	Описание
0	116-1928-00 запросить цену →	1 Duplex ASM
1		1 Cover Right
1-1		1 Cover Duplex
1-2		1 Cover Dup Lock Shaft
1-3		1 Cover Duplex Handle
1-4		1 Spring TS
1-5		1 Cover Dup Locker F
1-6		1 Cover Dup Locker R
1-7		1 Cover Duplex Link
1-8		1 Cover Duplex Link R
1-9		1 Cover Duplex Rail
1-10		1 Cover Duplex Rail R
1-11		2 Spring EX
1-12	116-1877-00 запросить цену →	1 MPT Tray ASM (Multi-Purpose Tray)
2	116-1878-00 запросить цену →	1 Duplex Unit
2-1		1 Bracket Guide A
2-2		1 Holder Saw
2-3		1 Plate Saw
2-4		1 Frame Duplex
2-5		2 Pulley Belt
2-6		1 Belt Timing
2-7		2 Gear-Duplex Idler_Z25
2-8		1 Cover Belt
2-9		1 Bracket Ground TR
2-10		2 Spring ES
2-11		1 Gear-MPT/Dup Drive
2-12		1 Unit-T2_Assy
2-13		1 Bracket Ground TR1
2-14		2 Shaft Dup Driver
2-15		2 Rubber Exit RPR
2-16		2 Bushing TX(B4)
2-17		2 Roller Exit
2-18		2 Fuser Exit Spring
2-19		1 Bracket Guide B
2-20		1 Bracket Guide Duplex
2-21		1 Bracket Ground B
2-22		1 Bracket Ground A
2-23		1 Bracket Ground D
2-24		1 Bracket Ground C
2-25		1 CBF-Harness Control Panel Ground (OPE)
2-26		1 Bushing Feed
2-27		1 Guide Lower Duplex
2-28		P/O Hardware Kit 1 Ring CS
2-29		1 Guide Feed
2-30		1 Poly Washer
0	116-1851-00 запросить цену →	1 DEVE Drive ASM
1		1 Bracket DEVE Front
2		4 Clutch Spring DEVE
3		4 Shaft DEVE Clutch
4		12 Bushing D6/L4
5		P/O Hardware Kit 12 E-ring
6		4 Shaft DEVE Drive
7		4 Washer plain
8		4 Gear DEVE DRive 2_Z20
9		1 Gear Idle Z51
10		1 Harness Guide
11		1 Gear ITB Clean RDCN
12		1 Gear DEVE RDCN
13		3 Gear DEVE Idle_Z41
14		1 Gear DEVE Idle_Z53
15		1 Bracket DEVE Rear
16	116-1880-00 запросить цену →	1 Motor BLDC-DEVE (DEVE Motor)
17		4 Washer Plain
18		12 PIN ADF
19		4 Gear DEVE Drive 1_Z25
20		4 Gear DEVE Clutch 2_Z33
0	116-1850-00 запросить цену →	1 Main Drive ASM
1	116-1880-00 запросить цену →	1 Motor BLDC-Main Drive (Main Motor)
2		1 Duplex Solenoid
3	116-1934-00 запросить цену →	1 Clutch Cam Solenoid
4		1 Clutch Electric Feed
5		3 Busing 8/5
6		6 Bushing D6/L4
7		P/O Hardware Kit 1 Spring ETC Solenoid DP
8		1 Gear Feed Drive_Z37
9		1 Gear Fuser Drive 1_Z47
10		1 Gear Fuser Drive 2_Z30
11		1 Gear Idle Z51
12		3 Gear Idle Z53
13		1 Gear ITB (Transfer Belt) Drive 1_Z90
14		1 Gear ITB Drive 2_Z30
15		1 Gear OPC Drive 1_Z120
16		1 Gear OPC RDCN_Z120/Z60
17		1 Gear RDCN Z110/Z37
18		1 Gear RDCN Z120/Z60
19		1 Gear Swing Drive
20		1 Gear T2 Drive Z_25
21		1 Shaft Feed Drive
22		1 Shaft Fuser Drive
23		1 Shaft ITB (Transfer Belt) Drive
24		1 Shaft OPC (Imaging Unit) Drive
25		1 Shaft T2 Cam
26		1 Shaft T2 Drive
27		1 Gear Exit/ U,ID
28		1 Bracket Main Front
29		1 Bracket Main Rear
30		1 Link Solenoid
31		1 Hub Clutch
32		1 Clutch
33		3 Washer Plain
34		3 Washer Plain
35		3 Washer Plain
36		P/O Hardware Kit 1 C-Ring
37		1 E-Ring
38		2 ICT-PIN ADF
0	119-1579-00 запросить цену →	1 230V Fuser Assembly
1		2 Roller-Heat
2		2 Bearing Fuser F
3		2 Bearing Fuser Gear
4		2 Gear Fuser Z35
5		2 Spring-ETC-PR
6		1 Fuser Upper
7		1 Fuser Lower
8		1 Ground Fuser
9		1 NPR Electrode AC Wire
12		2 Thermostat
13		1 NPR Electrode F
14		1 NPR Electrode PR
15		1 NPR Electrode AC Plate
16		1 Cover Thermostat
17		1 Cover Cleaning
18		1 Roller Exit Idle
19		2 Roller Exit F_Up
20		1 Guide DP Side
21		1 NPR Electrode Connector
22		1 Halogen Lamp 300w (110V/220V)
23		1 Halogen Lamp 500W (110V/220V)
24		1 Actuator Exit
25		1 Spring ETC Actuator
26		1 Guide Output
27		1 Thermistor NTC
28		4 Nut Hexagon
30		1 Guide Input
31		1 Label(P) Fuser 110V/220V
32		1 CBF Harness Fuser
33		1 Frame Drawer Connector
34		4 *Cover Dime Screw
35		2 Screw-Taptite
0	116-1854-00 запросить цену →	1 Paper Tray, Tray 1 (FCT)
1		1 Frame Cassette
2		1 Cover Cassette
3		1 Guide Side CST
4		1 Guide Front CST
5		1 Guide Rear
6		1 Plate K/UP
7		1 Finger
8		1 Spring Plate Guide
9		1 Guide Plate Paper
10		2 Spring
11		1 Spring Locker
12		1 Locker Plate
13		2 RPR Pad CST
14		1 Label(R)-Height Xerox
15		1 Label(P)-Instruction
0	116-1940-00 запросить цену →	1 Paper Tray, Tray 2 (SCT)
1		1 Frame Cassette
2		1 Cover Cassette
3		1 Guide Side CST
4		1 Guide Front CST
5		1 Guide Rear
6		1 Plate K/UP
7		1 Finger
8		1 Spring Plate Guide
9		1 Guide Plate Paper
10		4 Spring CS
11		1 Spring Locker Plate
12		1 Locker Plate
14		1 Side Guide
15		2 RPR Pad CST
16		1 Label(P) Instruction
17		1 Label(R)-Height CST
18		1 Label(P)-LTR/A4
19		1 Label(P)-Load CST
0	119-6506-00 запросить цену →	1 500-Sheet Feeder
1		1 HOU-Motor
1-1		1 Ground_Roller
1-2		P/O Hardware Kit 4 E-ring
1-3		1 Motor Step
1-4		1 Pick-up Solenoid
1-5		1 Gear P/UP DRV SCF
1-6		1 Gear idler Option
1-7		1 Gear idle Z30
1-8		1 Gear Idle SCF
1-9		1 Bracket Gear
2		1 Hou-Guide Lower SCF
2-1		1 Guide Lower Rail
2-2		2 Spring CS
2-3		2 Bushing Idle Roll-SCF-16
2-4		1 Holder Idle Roll-16
2-5		1 Cover Guide Lower
2-6		1 Guide Lower
2-7		1 Roller Idle
2-8		1 Label(P) Jam
3		1 HOU-Guide Upper SCF
3-1		1 E-ring
3-2		1 Spring Pickup
3-3		1 Gear-Pickup
3-4		1 Gear Feed
3-5		1 Actuator Empty
3-6		1 Shaft Pickup
3-7		1 Guide Upper
3-8		4 Bearing Shaft
3-9		1 Bushing P/U MPT
3-10		2 Rubber Pickup
3-11		1 Roller Feed
3-12		1 Board Sub SCF Cover Sensor
3-13		1 Board Sub SCF P_Empty Sensor
4		2 Foot ML80
5		1 Cam Catch
6		1 Plate Ground (A)
7		1 Plate Locker (L)
8		1 Plate Locker (R)
9		9 Base Deco
10		4 Unit Terminal TR L
11		1 Cover Top
12		1 Door Side
13		1 Frame Base
14		1 Cover Sensor
16		1 Harness Driver Ground
17		1 Harness SCF_8P
18		1 Board SUB-SCF

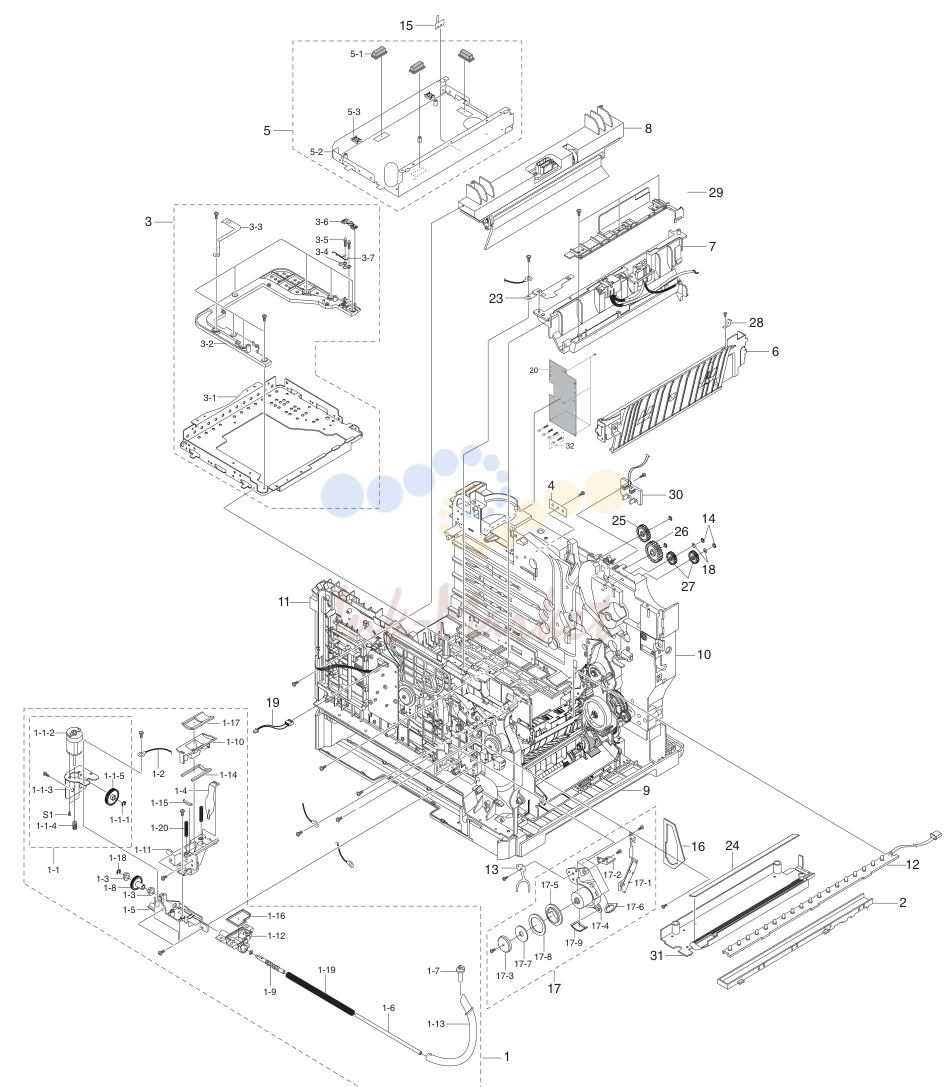

3. Parts List

№	Артикул	Описание
1	116-1872-00 запросить цену →	1 OPC Waste Toner Duct
1-1	116-1956-00 запросить цену →	1 Waste Toner Motor ASM
1-2		1 Harness Toner Ground
1-3		2 Bushing D6/L4
1-4		1 Vibrator Inlet Plate
1-5		1 Base M Waster Toner
1-6		1 Pipe Waste Bar
1-7		1 Cam M Waste Duct Outlet
1-8		1 Gear Worm Wheel Z35
1-9		1 Shaft M Waste Duct Inlet
1-10		1 Duct M Waste Lifter
1-11		1 Duct M Waste Toner Inlet
1-12		1 Duct M Waste Toner Inlet
1-13		1 Pipe Waste Transfer
1-14		1 Sponge Waste Lifter
1-15		1 Sponge Waste Lifter
1-16		1 Sponge Waste Duct OPC
1-17		1 Sponge Waste Cover
1-18	116-1957-00 запросить цену →	1 E-Ring (also in hardware kit)
1-19		1 Spring CS
1-20		2 Spring CS
2		1 Holder Eraser
3		1 LSU Guide Bracket
3-1		1 Bracket LSU
3-2		1 LSU Base
3-3		1 Ground LSU
3-4		2 IPR Plate OPC OEM
3-5	116-1885-00 запросить цену →	2 Unit Terminals
3-6		1 Cover OEM Upper
3-7	116-1950-00 запросить цену →	1 Harness Main OPC_OEM
4		1 Sheet HV Harness
5		1 Bracket HVPS
5-1		3 Guide HVPS Board
5-2		1 Bracket HVPS Lower
5-3		2 Cable Clamp
6		1 Guide paper T2
7		1 Fuser Base
8	116-1873-00 запросить цену →	1 ITB Cam ASM (Transfer Belt Cam)
9		1 Frame Base
10		1 Frame Rear
11		1 Frame Front
12	116-1874-00 запросить цену →	1 Erase Lamp
13		1 ShutterTension
14		P/O Hardware Kit 4 Ring CS
15		1 Cable Clamp
16	116-1919-00 запросить цену →	1 Dust Cover OPC
17	116-1920-00 запросить цену →	1 OPC Toner Housing
17-1		1 Vibration Plate Outlet
17-2		1 Bushing Waste Cam M
17-3		1 Cap Shutter Transfer Belt
17-4		1 Housing Transfer
17-5		1 Shutter Transfer OPC
17-6		1 Sponge Toner Cartridge
17-7		1 Sponge Cap Shutter
17-8		1 Sponge Duct Toner OPC
17-9		1 Sponge Tank Toner OPC
18		2 Spring Clutch
19	116-1949-00 запросить цену →	1 CBF Harness Waste Motor
20	116-1866-00 запросить цену →	1 SUB DEVE Drive Board
21		1 Harness Main FSR Roll
22	116-1941-00 запросить цену →	1 CBF Harness Main Eraser
23		1 Ground Fuser Frame
24		1 Sheet Eraser Lamp
25		1 Gear Fuser DRV Outer
26		1 Gear-DP Idle
27		2 Gear Exit Idle Z17
28		1 Ground Paper Guide
29		1 Cover Fuser Base
30		1 Cover Harness Fuser
31		1 Laser Shutter Cover
32	116-1885-00 запросить цену →	4 Terminals
33		1 Washer Plain
0		1 Frame Front
1	116-1879-00 запросить цену →	1 Waste Toner Sensor
1-1		P/O Hardware Kit 1 Ring CS
1-2		1 Holder M Waste Toner Sensor
1-3	116-1881-00 запросить цену →	1 Waste Toner Sensor Actuator
1-4		1 Sub Waste Sensor
2		1 Transfer Belt Lifter
2-1		1 Sponge Duct Toner Transfer Belt Lift
2-2		1 Duct Toner Transfer Belt Lifter
2-3		1 Sponge Transfer Belt Duct
3	116-1883-00 запросить цену →	1 Transfer Belt Waste Toner Housing
3-1		1 Housing M Waste Toner Transfer Belt
3-2		1 Sponge Duct Toner OPC
3-3		1 Cap Shutter Transfer Belt
3-4		1 Shutter Transfer Belt
3-5		1 Sponge Transfer Belt Tank Dust
3-6		1 Sponge Transfer Belt Tank Toner
3-7		1 Sponge Cap Shutter
4		P/O Hardware Kit 3 Ring CS
5	116-1875-00 запросить цену →	1 Exit Sensor
6		1 Plate Guide T2 Front
7		1 Bracket Laser F
8	116-1885-00 запросить цену →	12 Terminals
9		1 Ground HVPS Laser
10		1 Link Lock OPC F
11		1 Lever Transfer Belt Lock Front
12		1 Label(R) Color Bar
13		1 Harness Bushing Ground
14		1 Bracket Guide HVPS R
15		1 Bracket Exit Hinge F
16		1 Transfer Belt Hinge Ground
17		1 Transfer Belt Guide Tortion
18		1 OPC Guide Tortion
19		1 OPC/Transfer Belt Bround
20		1 OPC Lock Front
21		1 OPC/Laser Ground
22		1 Shutter Tortion
23		1 Frame Front
24		1 Cover Top Lever In
25		1 Cover Top Lever Out
26		1 DEVE Open Plate
27		1 DEVE Open Plate Guide
28	116-1921-00 запросить цену →	1 Spring CS (Belt)
29		1 Lock Transfer Belt Front
30		1 Lock Cover Front
31		1 Rack OPC
32		2 Spring CS
33		1 Guide Lock OPE F
34		1 Sponge Dust Transfer Belt Cover
35		1 Sponge Dust Imaging Unit Cover
36	116-1922-00 запросить цену →	1 DEVE OEM Board
37	116-1923-00 запросить цену →	2 Spring CS (Frame)

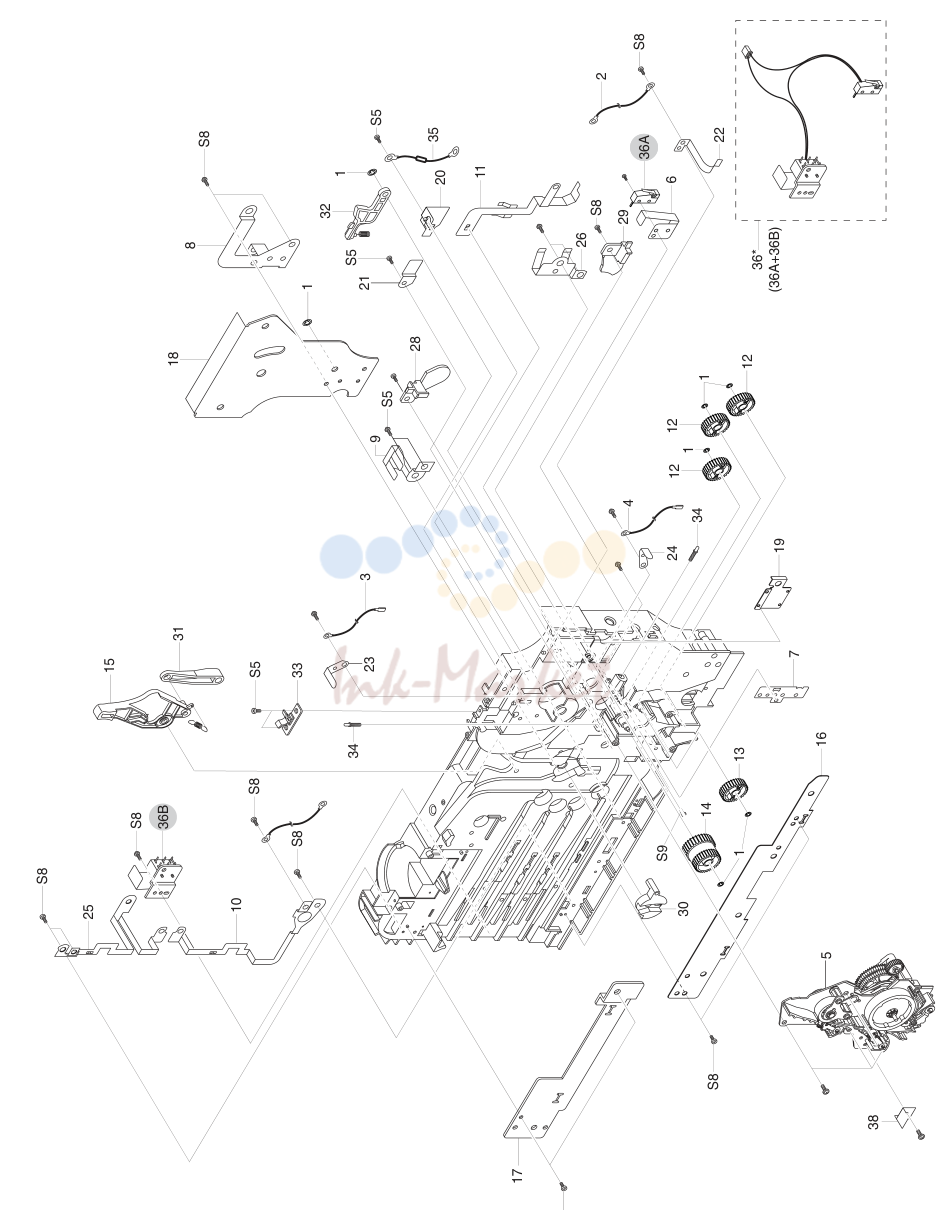

4. Parts List

№	Артикул	Описание
0		1 Frame Rear
1		P/O Hardware Kit 7 Ring CS
2	116-1942-00 запросить цену →	1 CBF Harness HVPS Charge
3	116-1943-00 запросить цену →	1 CBF Harness HVPS T1
4	116-1944-00 запросить цену →	1 CBF Harness HVPS T2
5		1 Feed Unit
6		1 Plate Switch Duplex
7		1 Plate Guide T2 Rear
8		1 Ground Main Transfer Belt Drive
9		1 Ground Laser DEVE Drive
10		1 Ground HVPS Laser Lower
11		1 Ground Exit Drive
12		1 Gear RDCN Feed Outer
13		1 Gear T2 Idle Z27
14		1 Gear T2 RDCN Z32/Z23
15		1 Lever Transfer Unit Lock Rear
16		1 Bracket Laser R
17		1 Bracket Guide HVPS F
18		1 Bracket Lock Transfer Belt
19		1 Bracket Exit Hinge R
20		1 Plate Fuser
21		1 Plate Lock Transfer Belt
22		1 Plate OPC HV
23		1 Plate T1
24		1 Plate T2
25		1 Ground HVPS
26		1 Ground Main
27		1 Frame Rear
28		1 Cover T1 HV
29		1 Cover T2 HV
30		1 Guide Lock Imaging Unit
31		1 Link Lock Imaging Unit
32		1 Lock Transfer Belt
33	116-1884-00 запросить цену →	1 Holder Guide Exit
34	116-1885-00 запросить цену →	2 Terminals
35	116-1886-00 запросить цену →	1 Harness 100M Ground
36	116-1887-00 запросить цену →	1 Cover Open Sensor ASM

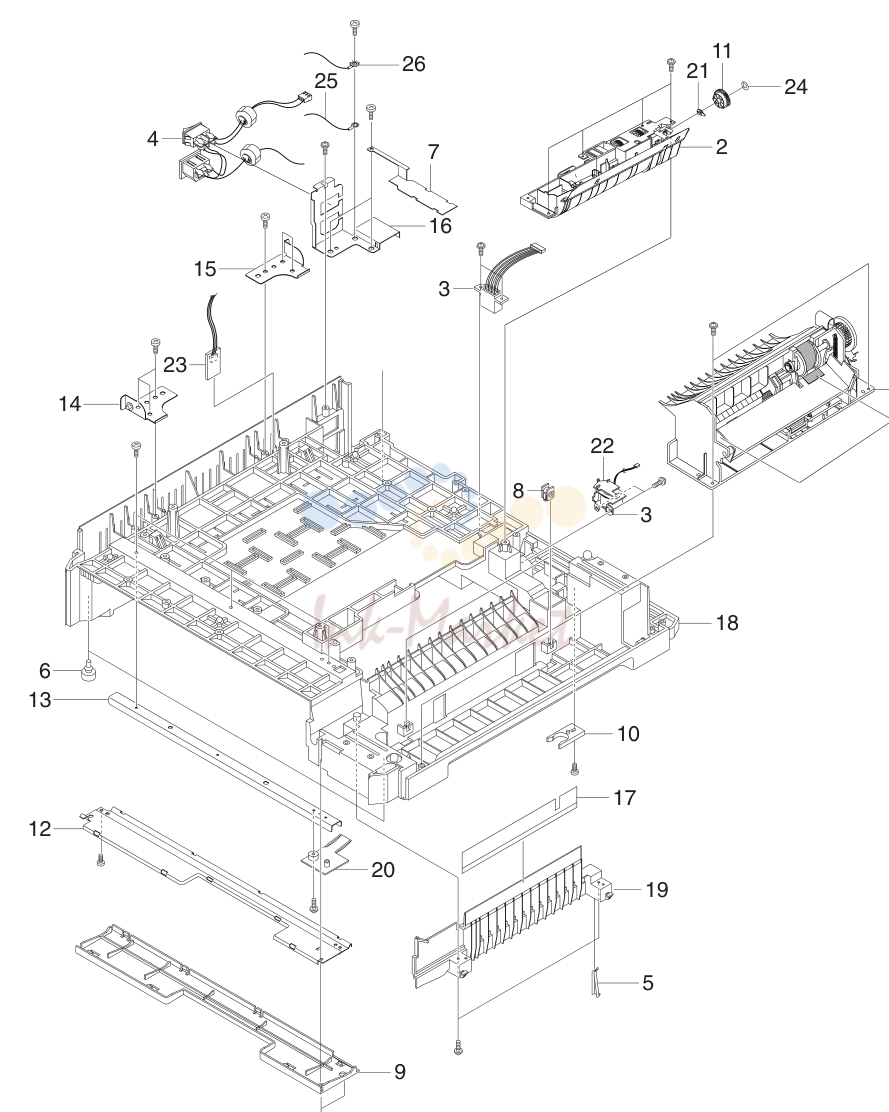

5. Parts List

№	Артикул	Описание
0	116-1925-00 запросить цену →	1 Base Frame
1	116-1889-00 запросить цену →	1 MPT Pickup ASM
2	116-1890-00 запросить цену →	1 Tray 1 Pickup ASM
3	116-1891-00 запросить цену →	1 Harness SCF
4	116-1926-00 запросить цену →	1 Assembly, AC Switch
5		1 Guide Rail
6		2 Foot ML80
7		1 Ground Tray 2 (SCF)
8		2 Screw Cover Locking Cap
9		1 Cover M Base Bar
10		1 Cam Catch
11		1 Gear-Pickup
12		1 Bracket Base Bar
13		1 Channel Frame Base
14		1 Bracket DEVE Hinge F
15		1 Bracket DEVE Hinge R
16		1 Bracket Power
17		1 Sheet Guide Paper
18		1 Frame Base
19		1 Guide Tray 2 (SCF) Paper
20		1 Paper Guide
21	116-1959-00 запросить цену →	1 Bearing
22	116-1892-00 запросить цену →	1 Solenoid Pickup
23	116-1893-00 запросить цену →	1 Temp Sensor
24		1 Washer Plain
25		1 Laser Harness Ground
26		1 Washer

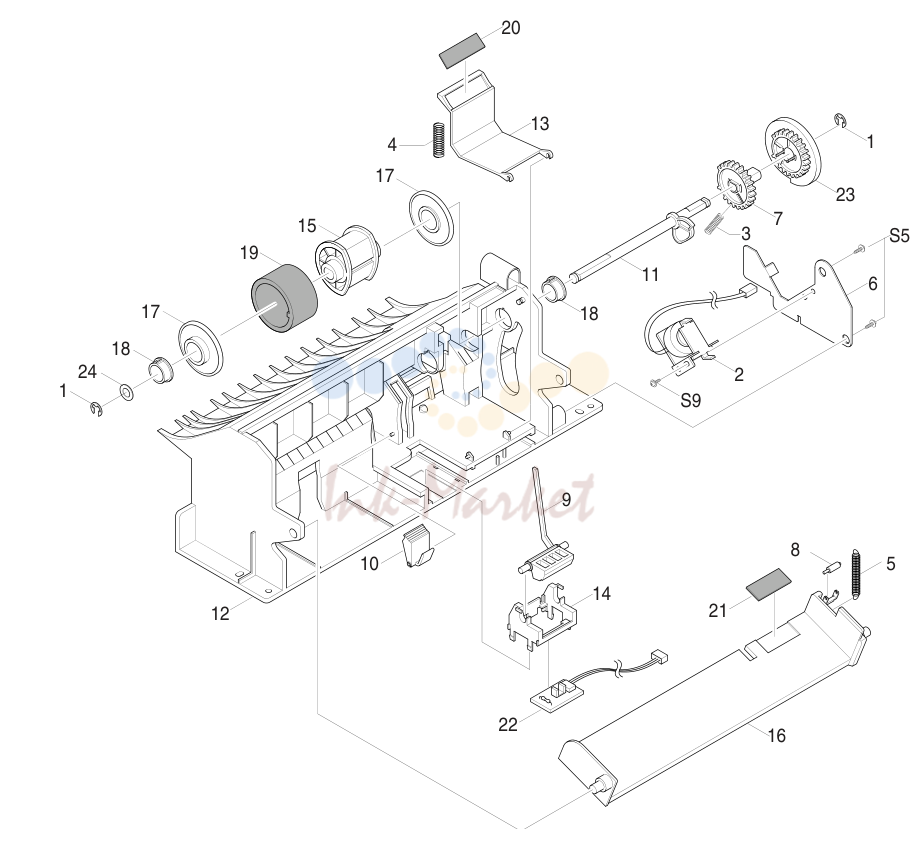

6. Parts List

№	Артикул	Описание
0	116-1889-00 запросить цену →	1 MPT Pickup ASM
1		P/O Hardware Kit 2 E Ring
2	116-1894-00 запросить цену →	1 MPT Solenoid
3		1 Spring Cam MPT
4		1 Spring Pickup MPT
5		1 Spring MPT
6		1 Bracket Solenoid
7		1 Holer Cam MPT
8		1 Roller Cam MPT
9	116-1895-00 запросить цену →	1 Actuator, MPT Empty
10		1 MPT Adjuster
11		1 MPT Cam Pickup
12		1 MPT Frame
13		1 MPT Holder Pad
14		1 MPT Holder Sensor
15	116-1945-00 запросить цену →	1 PMO-Housing Pickup MPT
16	116-1946-00 запросить цену →	1 PMO-Lift Plate, MPT
17		2 MPT Idle Pickup
18	116-1947-00 запросить цену →	2 Bushing
19	116-1948-00 запросить цену →	1 Pick Roller, MPT
20		1 Pad MPT (PLUS)
21		1 Pad Lift Up MPT
22	116-1896-00 запросить цену →	1 MPT Empty Sensor
23		1 Gear P/U MPT
24		1 Washer Plain
0	116-1890-00 запросить цену →	1 Tray 1 Pickup ASM
1		1 Pickup Spring
2		1 Ground Feed
3		1 Guide Input
4		1 Cap Connector L
5		1 Cap Connector U
6	116-1897-00 запросить цену →	1 Actuator Tray 1 Empty
7		1 Pickup Shaft
8		1 Guide Paper
9	116-1898-00 запросить цену →	1 Tray 1 Empty Sensor
10		1 Bearing Shaft
11	116-1947-00 запросить цену →	1 Bushing
12	116-1951-00 запросить цену →	2 Pick Rollers Tray
0		1 Feed Unit
1		1 Holder Pinch C3
1-1		1 Holder Pinch C3
1-2		1 Roller Feed L
1-3		1 Feed Idler Shaft
2		1 Holder Pinch C5
2-1		1 Holder Pinch C5
2-2		1 Roller Feed L
2-3		1 Feed Idler Shaft
3		1 Holder Pinch M
3-1		1 Holder Pinch M
3-2		1 Roller Feed L
3-3		1 Holder Feed
3-4		1 Roller Feed S
3-5		2 Feed Idler Shaft
4		1 Frame Feed
5		P/O Hardware Kit 4 E Ring
6		1 Bushing Feed Mid
7		1 Bracket Feed Mid
8		6 Washer Plain
9	116-1890-00 запросить цену →	1 Roller Feed Mid
10		1 Shaft Feed Mid
11		3 Bushing Pickup MPT
12		1 Ground Pickup Plate
13	116-1900-00 запросить цену →	1 Roller Feed
14		1 Shaft Feed
15		1 Gear MPT/DUP Drive
16		1 Pulley Feed L
17		1 Gelt Timing Gear
18		1 Gear Feed
19		1 Pulley Feed S
20		1 Bracket Feed
21		1 Pulley Idle
22		P/O Hardware Kit 1 Ring CS
23		1 Spring Feed MID
24		1 Spring Feed MID A
25		1 Spring Feed MPT
0		1 Paper Guide
1	116-1901-00 запросить цену →	1 Feed Sensor Cover
2	116-1902-00 запросить цену →	1 Feed Sensor
3	116-1903-00 запросить цену →	1 Feed Sensor Actuator
4		1 Paper Guide Bracket
5	116-1952-00 запросить цену →	2 Sheet - Paper Guide
6	116-1953-00 запросить цену →	1 Guide Paper Path
7		1 Actuator Spring

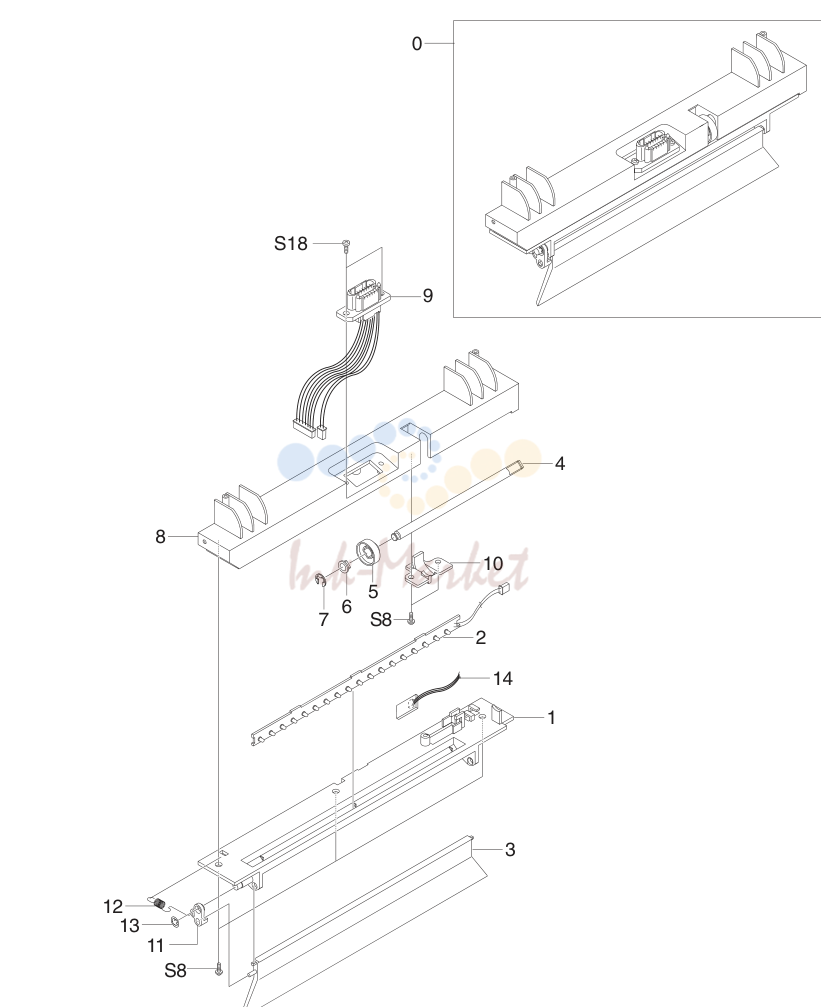

7. Parts List

№	Артикул	Описание
0	116-1873-00 запросить цену →	1 ITB Cam ASM (Transfer Belt Cam)
1		1 Transfer Belt Cam Lower
2	116-1904-00 запросить цену →	1 PTL SensorUpper Erase Lamp (PTL)
3	116-1905-00 запросить цену →	1 PTL Path
4		1 Shaft Transfer Belt Cleaning Cam
5		1 Transfer Belt Cleaning Cam
6		1 Bushing D6/L4
7		P/O Hardware Kit 1 E Ring
8		1 Transfer Belt Cam Upper
9		1 Harness Set Drawer
10		1 Cover Cam Shaft
11		1 Guide Erase Lamp Spring
12		P/O Hardware Kit 1 Erase Lamp Spring
13		P/O Hardware Kit 1 Ring CS
14	116-1955-00 запросить цену →	1 Temp Sensor
0		1 Fuser Base
1		1 Fuser Base
2	116-1907-00 запросить цену →	1 Housing Switch AC
3	116-1906-00 запросить цену →	1 Switch AC

Источник: Инк-Маркет.ру.

← Все статьи
