Xerox Phaser-6000 6010 WC6015 — каталог запчастей со схемами

Содержание

• 1. Parts List
• 2. Parts List
• 3. Parts List
• 4. Parts List
• 5. Parts List
• 6. Parts List
• 7. Parts List
• 8. Parts List
• 9. Parts List
• 10. Parts List
• 11. Parts List
• 12. Parts List
• 13. Parts List
• 14. Parts List

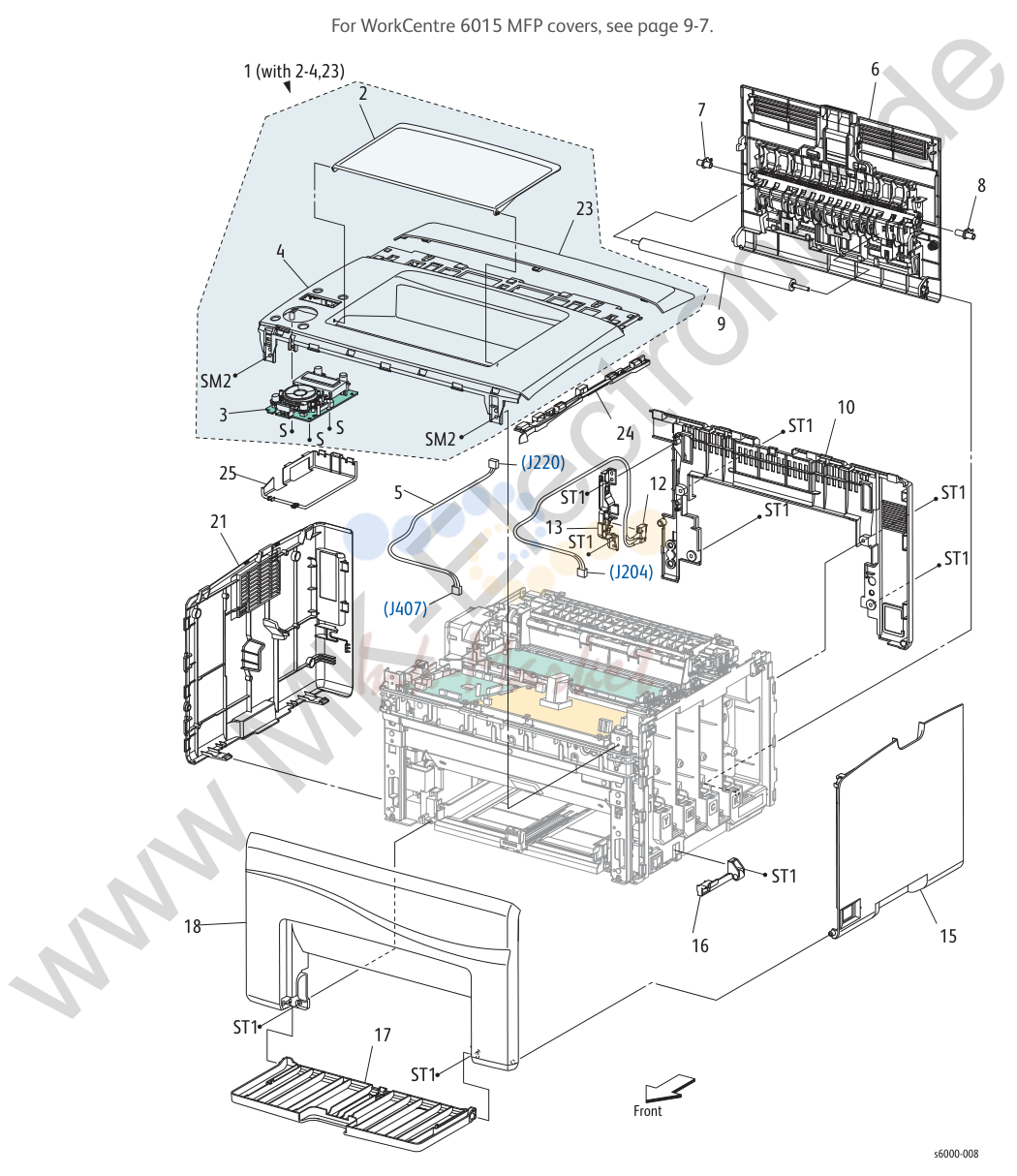

1. Parts List

№	Артикул	Альт. артикул	Описание
2			Tray Extension (Output Tray Extension) 086S
5			Control Panel Harness o
6			Cover Assy Rear (Rear Door) 848K
7			Left Transfer Roller Bearing 013E
8			Right Transfer cRoller Bearing 013E
9			Roll Assembly BTR (Transfer Roller) 059K
10			Cover Inner Rear (Inner Rear Cover) 675K
12	676K12440 запросить цену →		Switch I/L (Rear Cover Interlock Switch)
13			Holder IL Rear
15			Cover Window TNR (Toner Door) 848E
16			Hinge CVR SFP (Hinge Cover) 803E
17			Cover (Main Paper Tray Cover) 675K
18			Cover Front Lower (Front Cover) 675K
21			Cover Side L (Left Side Cover) 848E
23			Cover Top Rear (Top Rear Cover) 848E
24			Cover Inner Top (inner Top Cover) 848E
25			Cover Opp
9-6			Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
33			(with 23-25)
23			34 (with 23,24,26)
32			(with 30,31)
38			(with 18,35-37)
2			Cover Extension (Output Tray Extension) e
4			Cover Top (Top Cover) 848E
6			Cover Assy Rear (Rear Door) 848K
7			Left Transfer Roller Bearing 013E
8			Right Transfer Roller Bearing 013E
9			Roll Assembly BTR (Transfer Roller) i059K
12			Switch I/L (Rearc Cover Interlock Switch) 676K
13			Holder IL Rear
15			Cover lWindow TNR (Toner Door) 848E
16			Hinge Cover
17			Cover (Main Paper Tray Cover) 676K
18			Lower Front Cover
21			Cover Side L (Left Side Cover) 848E
23			Spring IIT
24			Arm IIT
25			Holder Arm L
26			Holder Arm R
27			Output Tray Extension
30			Bracket Assembly Wi-Fi (Wireless Board)
31			Harness Assembly Wi-Fi LT (Wireless Harness)
32			Package Assembly Wi-Fi (with 30, 31) 101K
33			Holder Assembly Arm L (Left Scanner Arm) 019K
34			Holder Assembly Arm R (Right Scanner Arm) 019K
9-8			Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
35			Upper Front Cover
36			Inner Front Cover
37			Latch
38			Cover Front (18, 35, and 37)(Front Cover) 604K
98			Kit Cover Extension Assembly (2, and 27) 604K

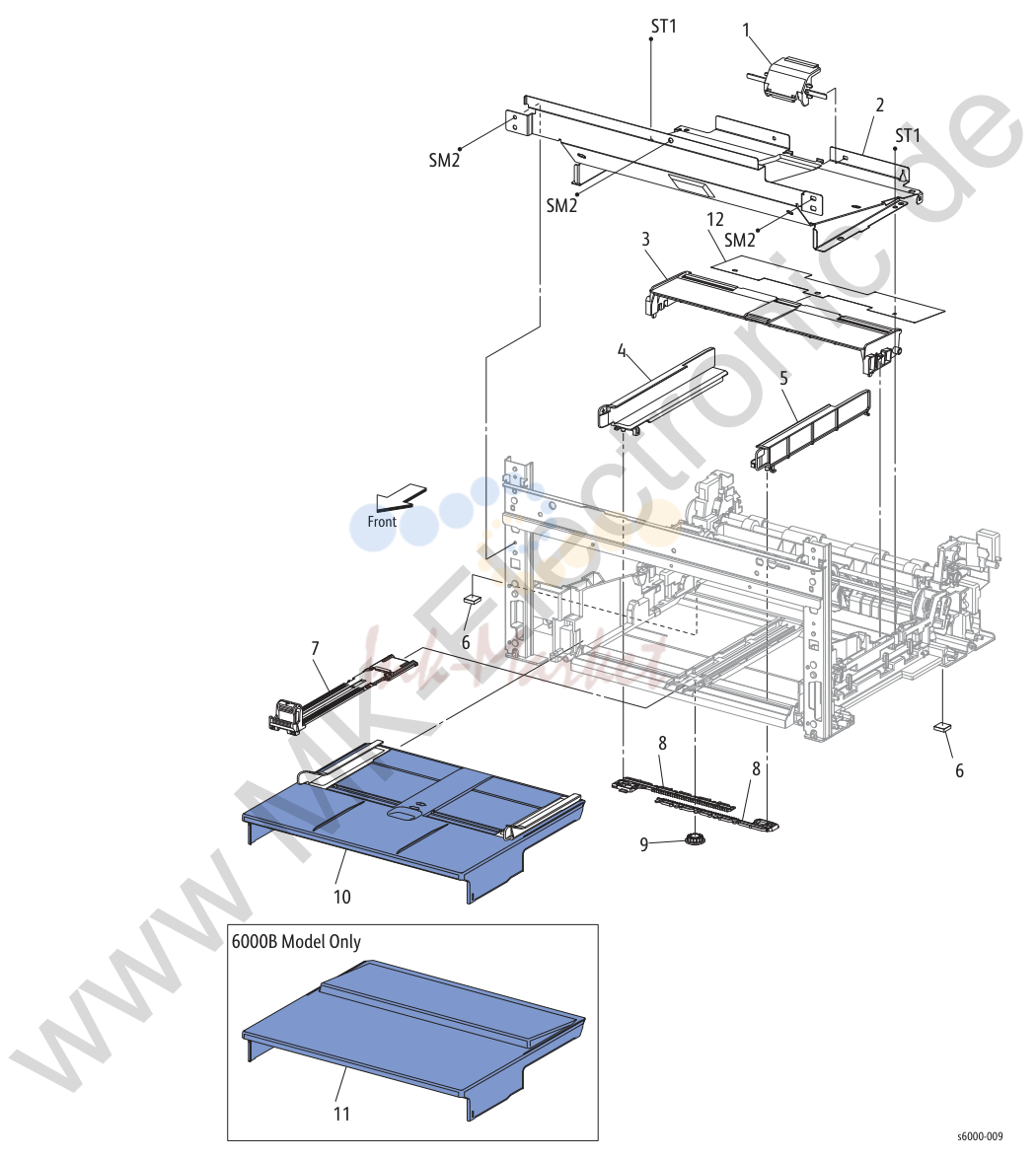

2. Parts List

№	Артикул	Альт. артикул	Описание
1			Cover Feed
2			Plate Lower e
3			Tray Bypass Base
4			Guide Side L
5			Guide Side R
6			Foot Assy
7			Tray Assy Extension (Main Tray Extension) i050K
8			Rack Guide Side
9			Gear Pinion
10			Tray Assembly Bypass Cover (Bypass Tray) (6010N and 050K
11			Cover Dust (Dust Covert) (6000B only)
12			Guide Paper Bypass (Paper Guide) (6010N and 038E
9-12			Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
1			(with 2-7)
9			(with 27,28)
11			(with 29-31)
1			Feed Assy (with 2-7) (Feed Roller Assembly)
2			CAM R (Right Feed Roller Cam) 008E e97492
3			Roll Core
4			Roll Assy Feed (Feed Roller) 059K
5			Holder Feed
6			Feed Shaft
7			CAM L (Left Feed Roller Cam) i008E
8			Holder BTM R
9			Plate Assembly Bottom (With 27-28) (Bottom Plate)
10			Holder BTM L
11			Holder Assy Separator (With 29-31) (Separator Pad 019K
12			Spring Separator (Separator Spring) 809E
13			Follower R (Right Follower) 008E
14			Follower L (Left Follower) 008E
21			Actuator No Paper (No Paper Actuator) 120E
22			Cover No Paper (No Paper Cover) (Phaser 6010N and 848E
23			Sensor Photo (No Paper Sensor) (Phaser 6010N and 930W
24			Arm R (Right Follower Arm) 031E
25			Harness Assembly RKN SNS (J12-J120,J121,J122)
26			Harness Assembly RK SNS (J12-J120,J122) (6000B
27			Plate Bottom
28			Pad Main Paper Tray
29			Clutch Assy Friction
30			Roll Assy Separator
31			Holder Separator
9-14			Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP

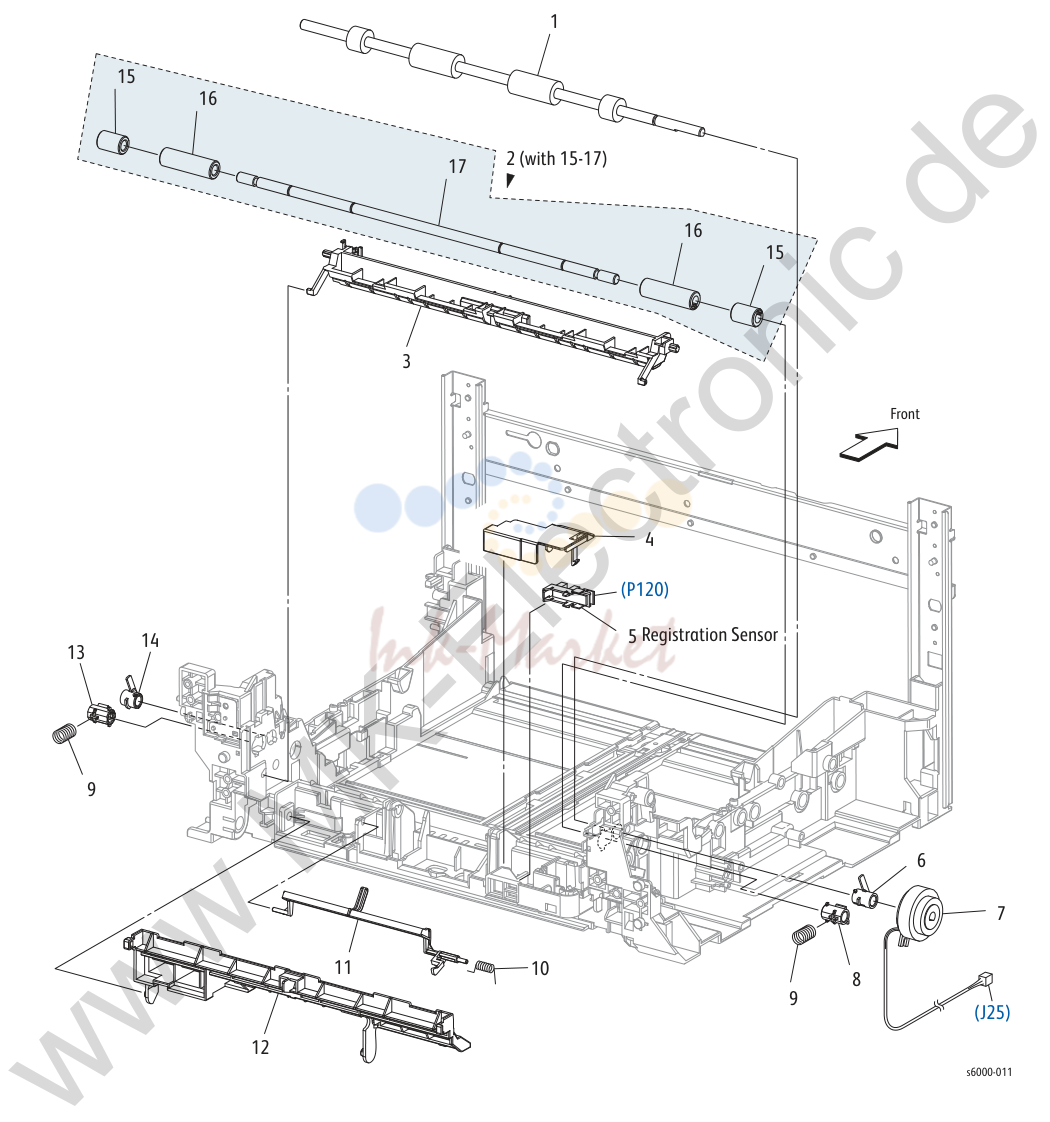

3. Parts List

№	Артикул	Альт. артикул	Описание
1			Roll Regi (Registration Roller) 059E
2			Roll Assy Pinch Regi (With 15-17) (Registration Pinch 059K 6e7751
3			Chute (Main Paper Tray Chute) d054E
4			Cover Sensor
5			Sensor Photo (Regi Sensor) (Registration Sensocr) 930W
6			Bearing Regi
7			Clutch Regi (Registration Clutch) n121K
8			Bearing Regi Metal
9			Spring Regi
10			Spring Act Regi (Registratiorn Spring Actuator) 809E
11			Actuator Regi (Registrattion Actuator) 120E
12			Chute Low
13			Bearing Regi Metal Earth
14			Bearing Regi Earth
15			Roll Pinch Regi
16			Roll Pinch Regi
9-16			Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP

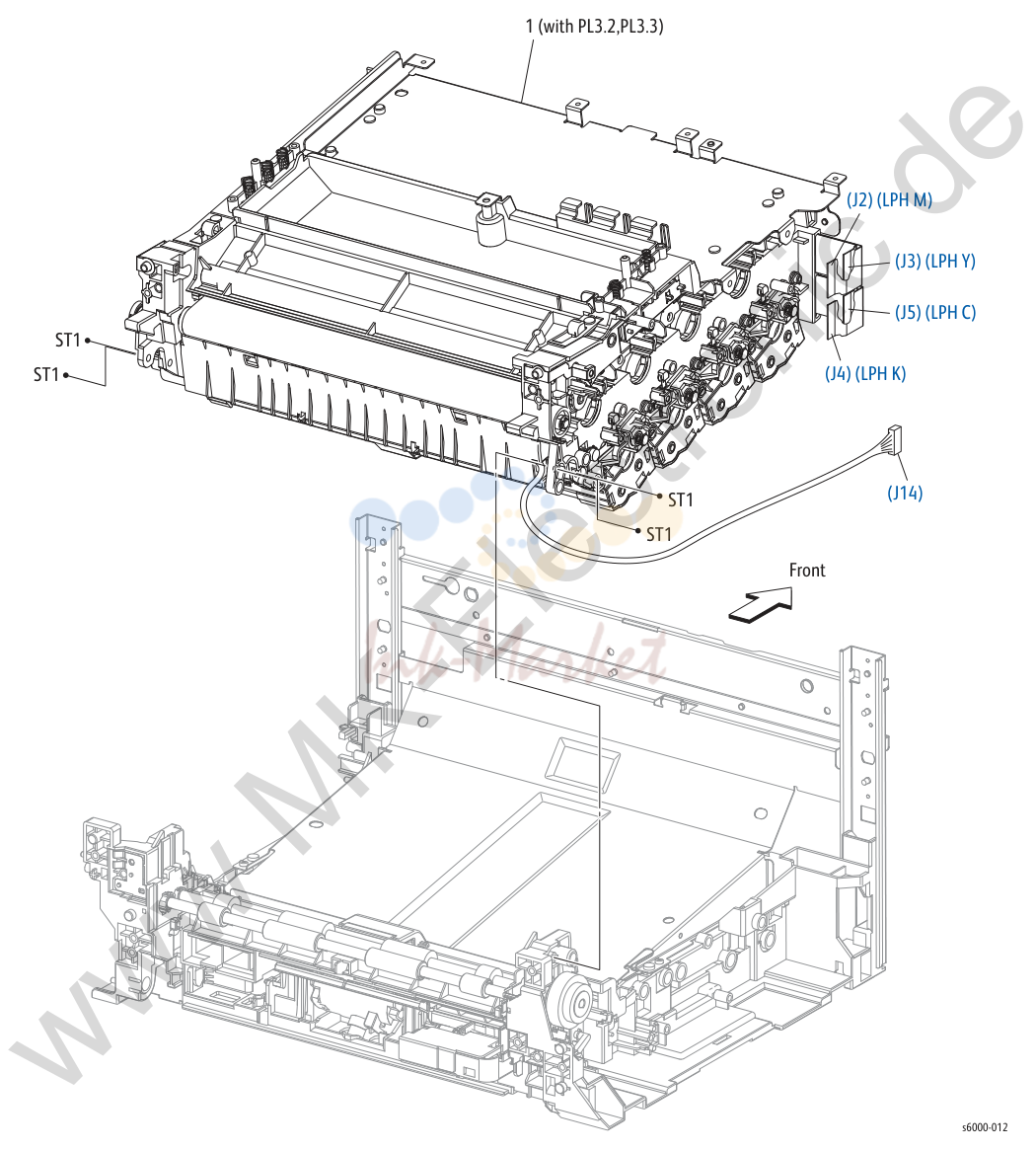

4. Parts List

№	Артикул	Альт. артикул	Описание
1			Shaft drum
2			Plate Earth Dl e
3			Guide Ffc Lph
4			Housing Assy Transfer B
5			Spring Deve D
6			Housing Assy Deve Y
7			Housing Assy Deve M i
8			Housing Assy Deve C
9			Housing Assy Deve K
10			Spring Deve Ad
9-20			Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP

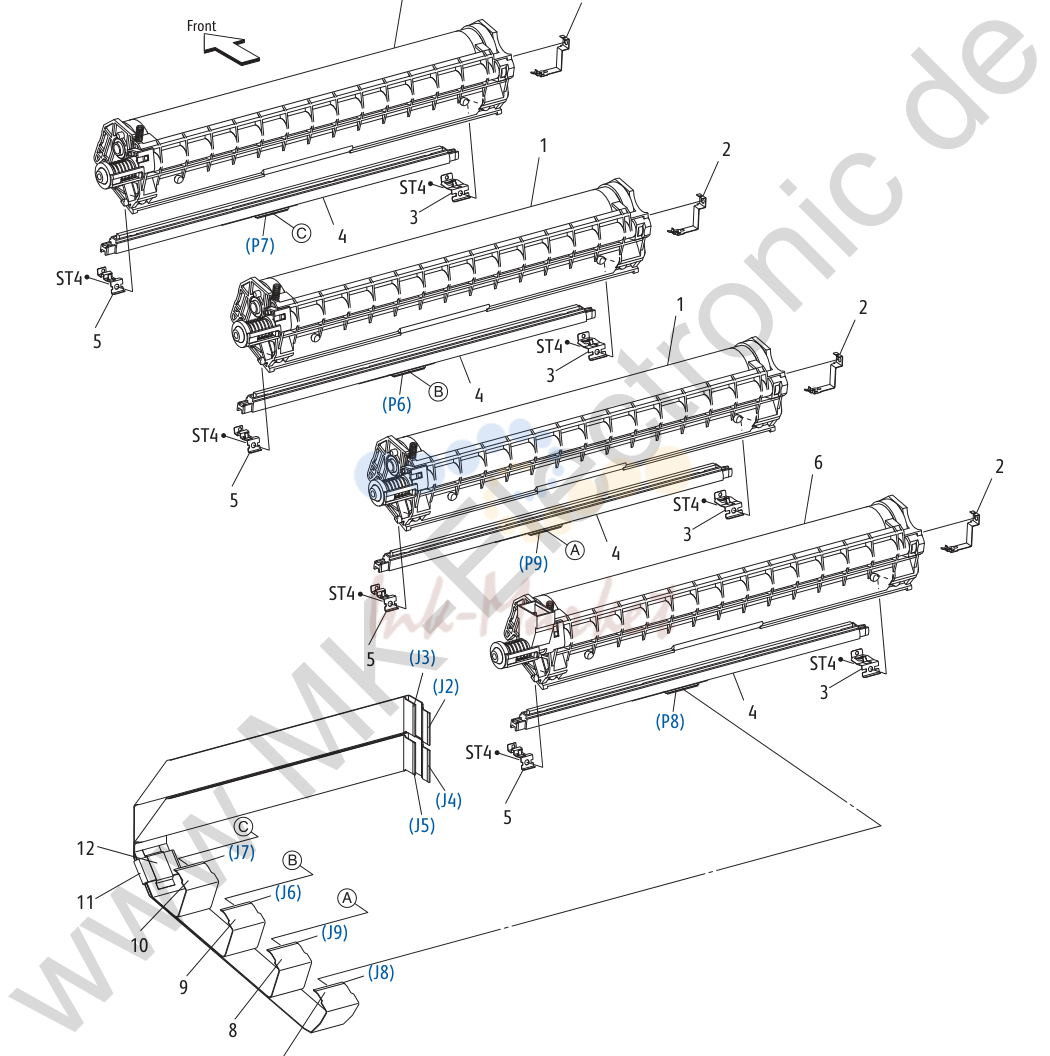

5. Parts List

№	Артикул	Альт. артикул	Описание
1			Housing Assy Xero High
2			Spring-FG Part2 e
3			Spring LPH D PART2
4			Head Assembly-K
5			Spring LPH Ad Part2
6			Housing Assy Xero High K
7			Cable-FFC-K,KRN i
8			Cable-FFC-C,KRN
9			Cable-FFC-M,KRN
10			Cable-FFC-Y,KRN
11			Core Ferrite
12			Tape
9-22			Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP

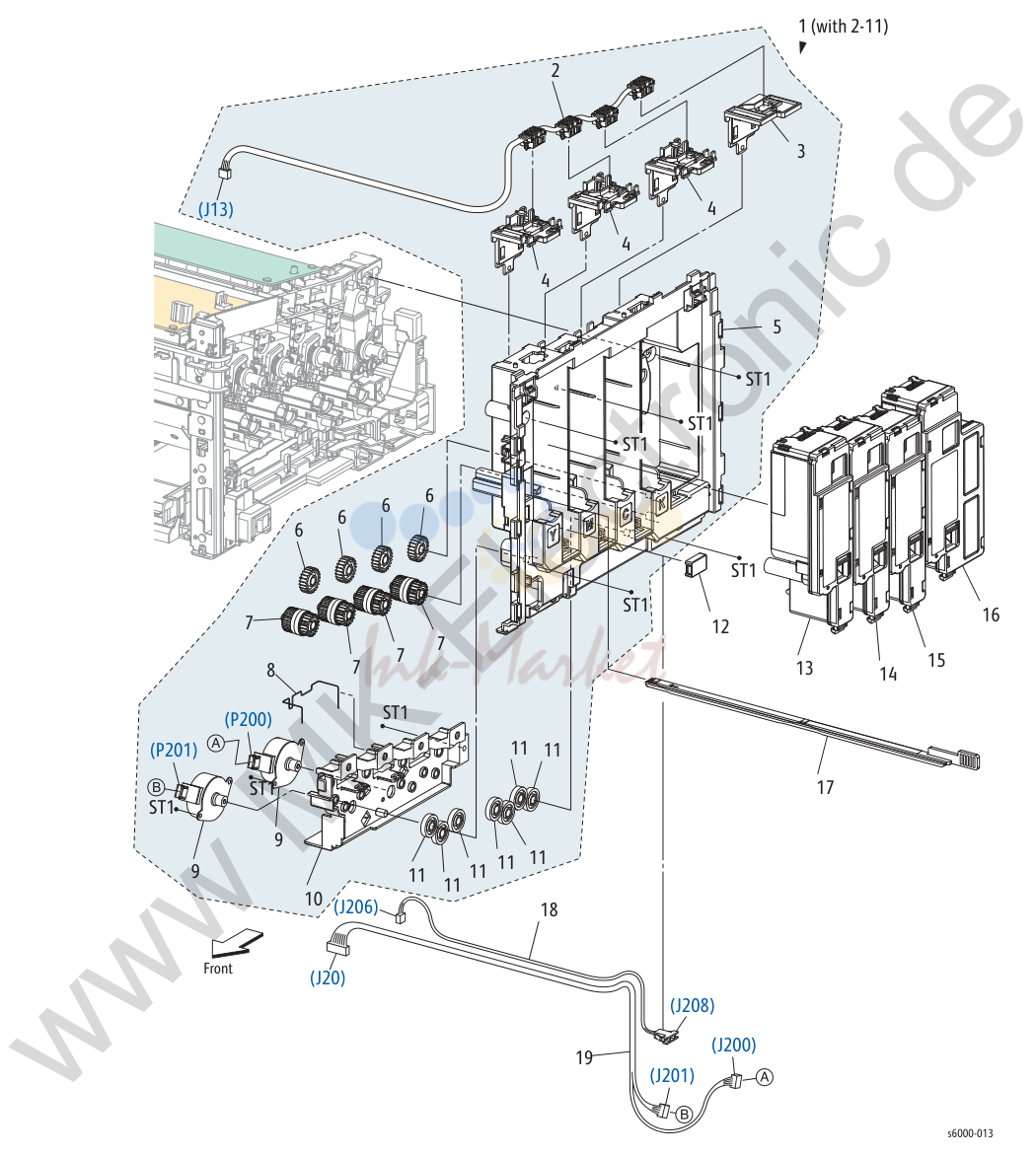

6. Parts List

№	Артикул	Альт. артикул	Описание
1			Dispenser Assy (With 2-11)
2			Harness Assembly DCKR (J13-toner CRUM Y,M,C,K) e
3			Key-HW K
4			Key HW YMC
5			Frame Disp
6			Gear Idler 23 (Idler 23 Gear) 807E
7			Clutch Assembly Oneway (Oneway Clutch i005K
8			Conductor GND MOT
9			Motor Assy Disp (Toner Motor) 127K
10			Frame Motor r
11			Gear Idler 34 (Idler 34 tGear) 807E
12			Cover Connector (Connector Cover) 848E
19			Harness Assembly Dispense MOT (J20-J200, J201)
9-24			Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP

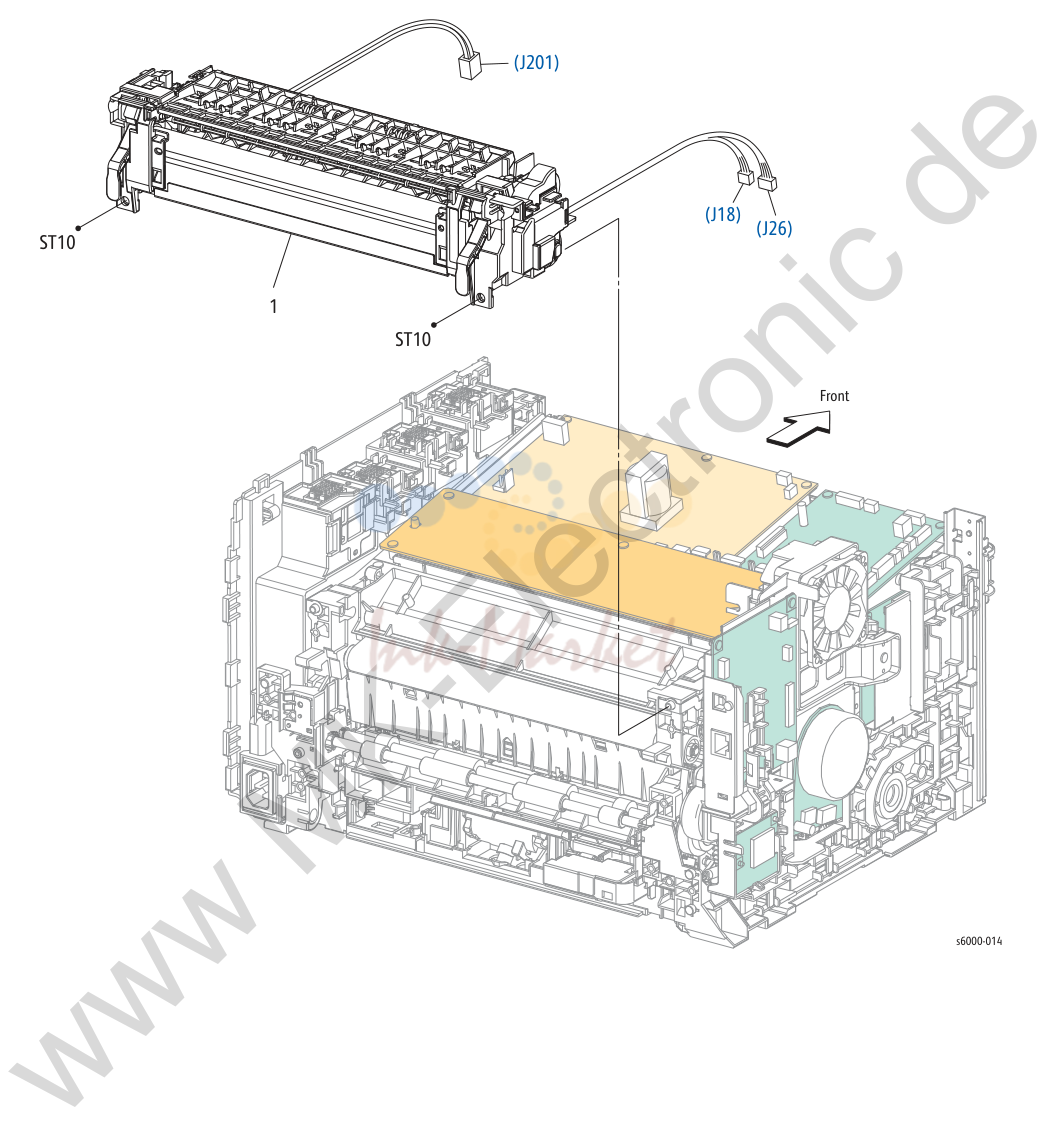

7. Parts List

№	Артикул	Альт. артикул	Описание
1			WorkCentre 6015 MFP
1			Phaser 6000/6010
9-26			Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP

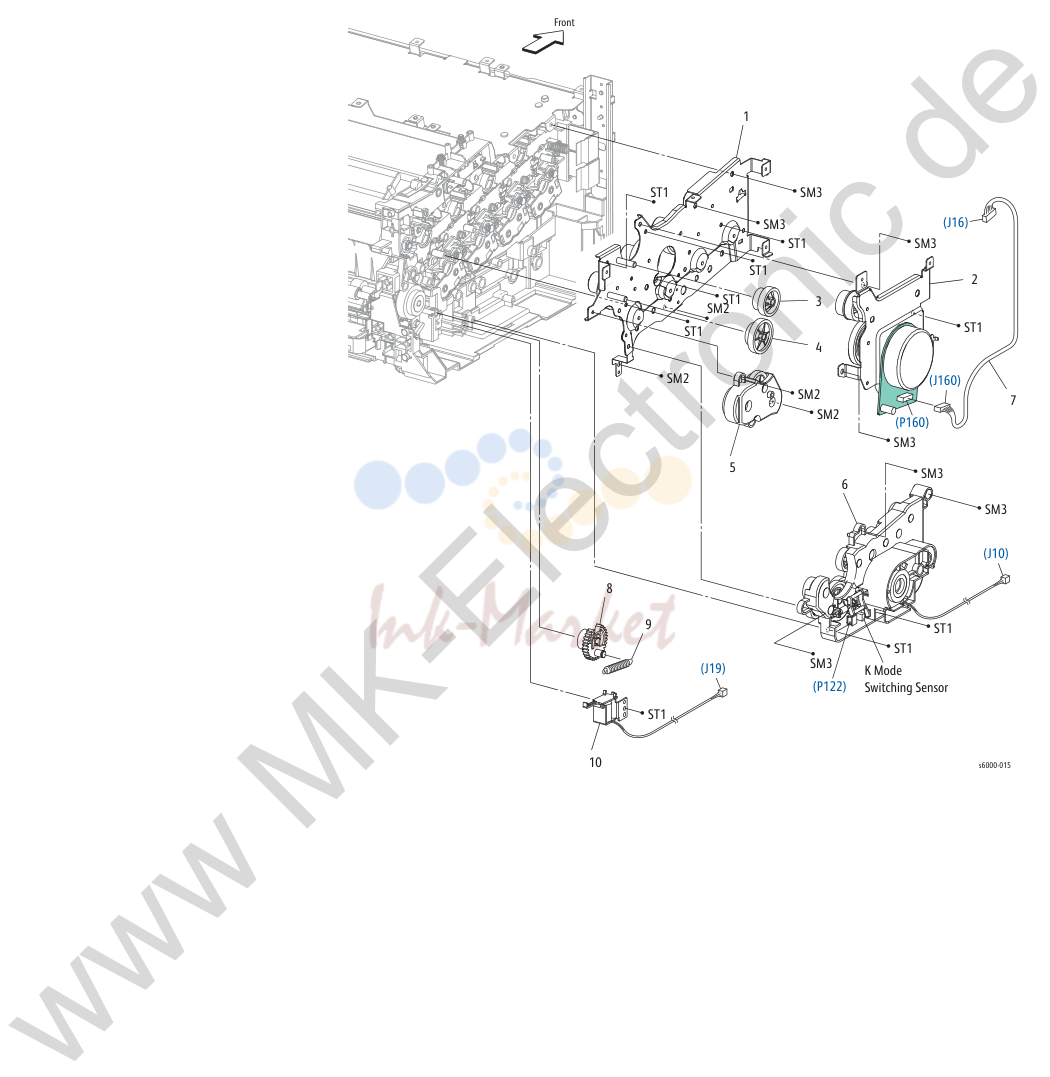

8. Parts List

№	Артикул	Альт. артикул	Описание
1			Drive Assembly MU
2			Drive Assembly MOT (Main Drive Assembly) 007K 1e7072
3			Gear F3 (F3 Drive Gear) 807E
4			Gear PH3 (PH3 Drive Gear) 807E
5			Drive Assembly PH (Feed Drive Assembly) 007K
6			Drive Assy Deve (Developer Drive Assembly) 007K
7			Harness Assembly Main MOT (J16-J160) i
8			Gear Feed
9			Spring Feed
10			Solenoid Feed (Feed Solenoid) 121E
99			Drive Assembly Mot (With 2, 3, 4, and 5) (Main Drive 604K
9-28			Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP

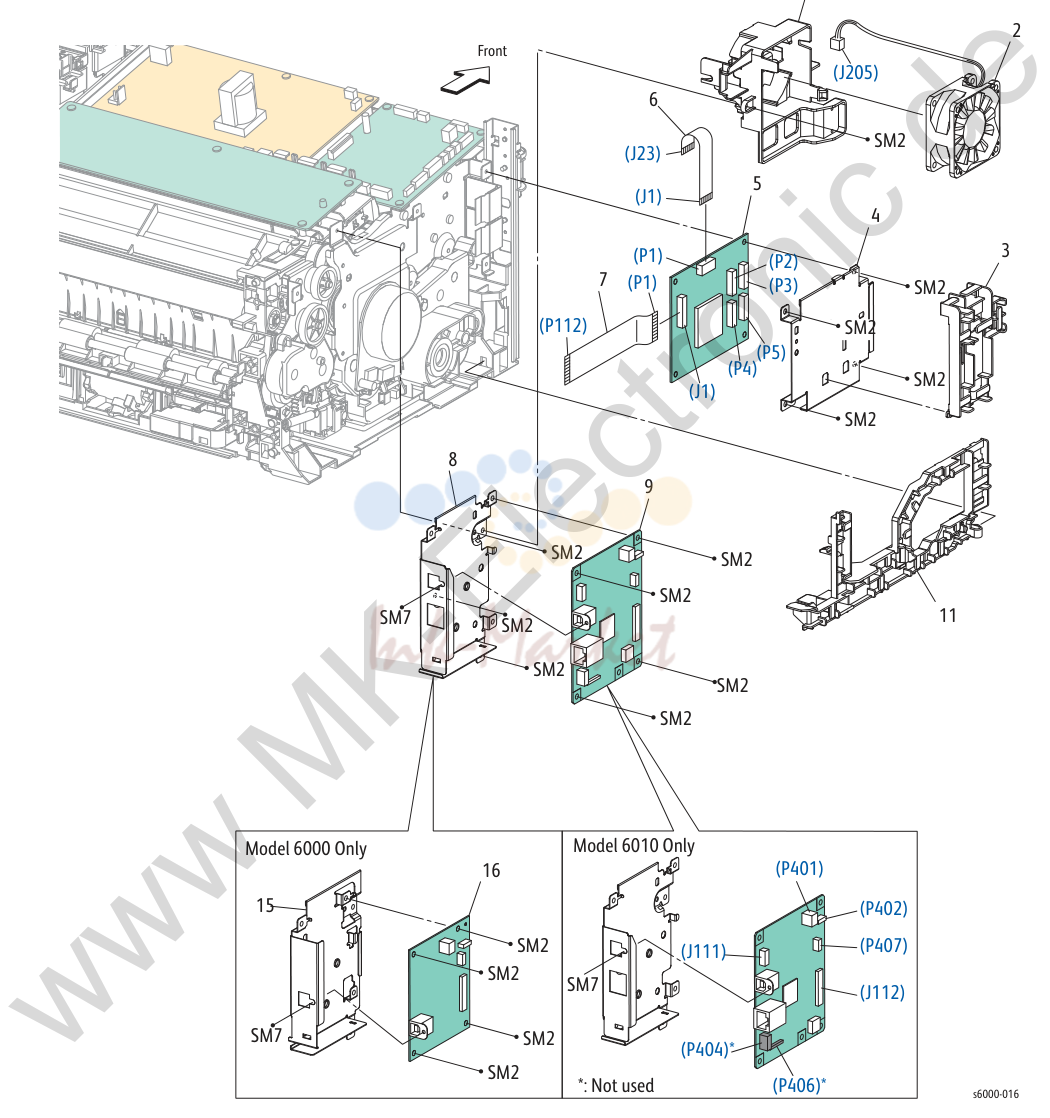

9. Parts List

№	Артикул	Альт. артикул	Описание
1			Duct Fan
2			Fan Main (Fan) 127E 8e6170
3			Guide Harness Drive (Drive Harness Guide)
4			Plate Bitz
5			PWB Assy TOKI (LED Driver Board) 960K
6			FFC Assy Light Biz (LED/MCU Cable) 962K
8			PLATE ESS IOT
9			PWBA ESS (6010N model) (IP Board) 676K
11			Guide Harness Main Paper Tray (Main Paper Tray
15			EPlate ESS IOT LT (6000B model)
16			PWBA ESS LT (6000B model) (IP Board) 676K
9-30			Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP

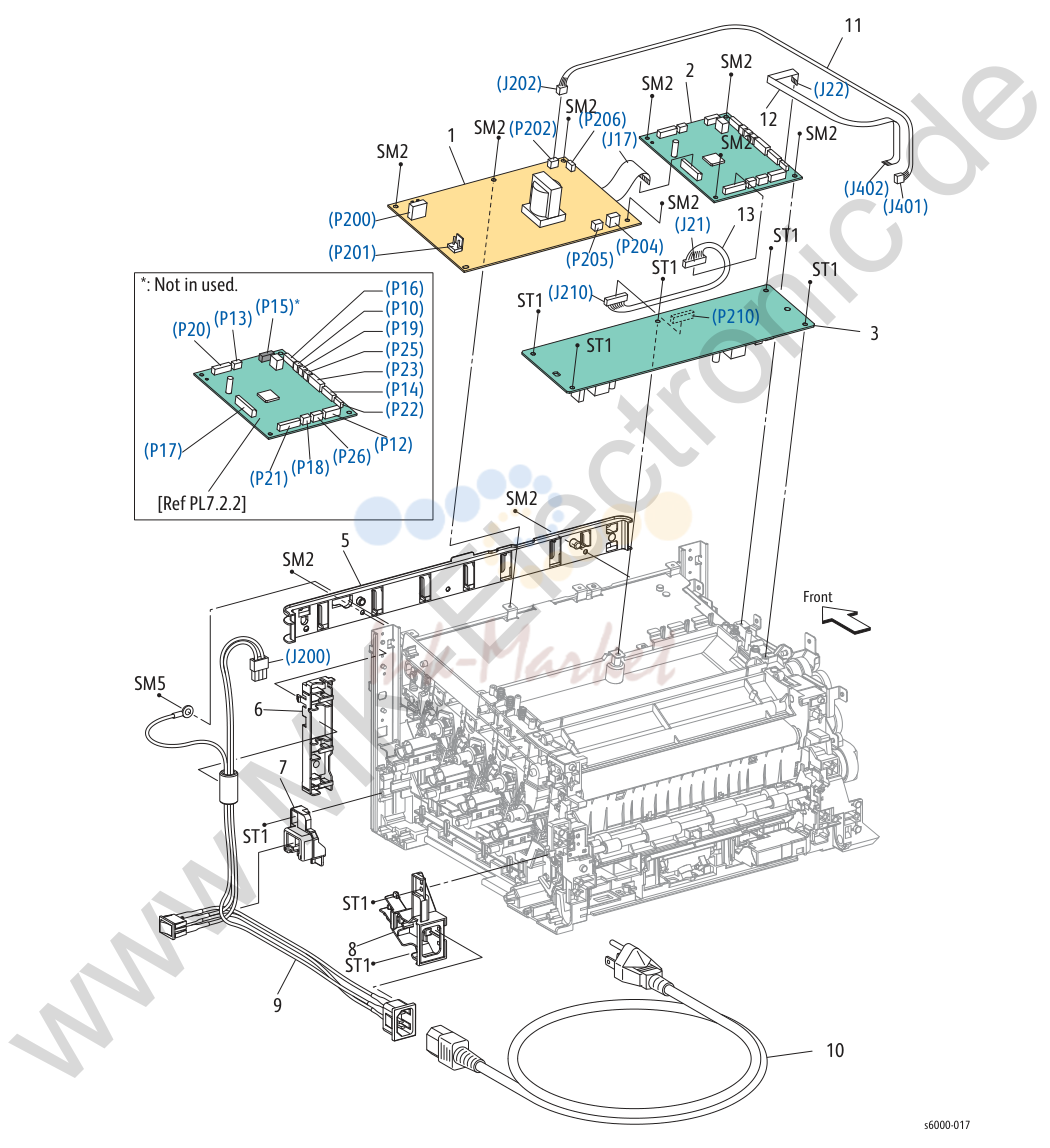

10. Parts List

№	Артикул	Альт. артикул	Описание
2			MCU Board 960K
3			HVPS 105K
5			Guide Harness Front
6			Guide Harness AC i
7			Holder SW SFP
8			Guide Harness Inlet
9			Harness Assembly Inlet SFP (AC INLET-MAIN SW, 962K
11			Harness Asesy Lves
12			FFC Assembly ESS (Image Processor Harness) 962K
13			EHarness Assy HVPS (J21-J210)
9-32			Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP

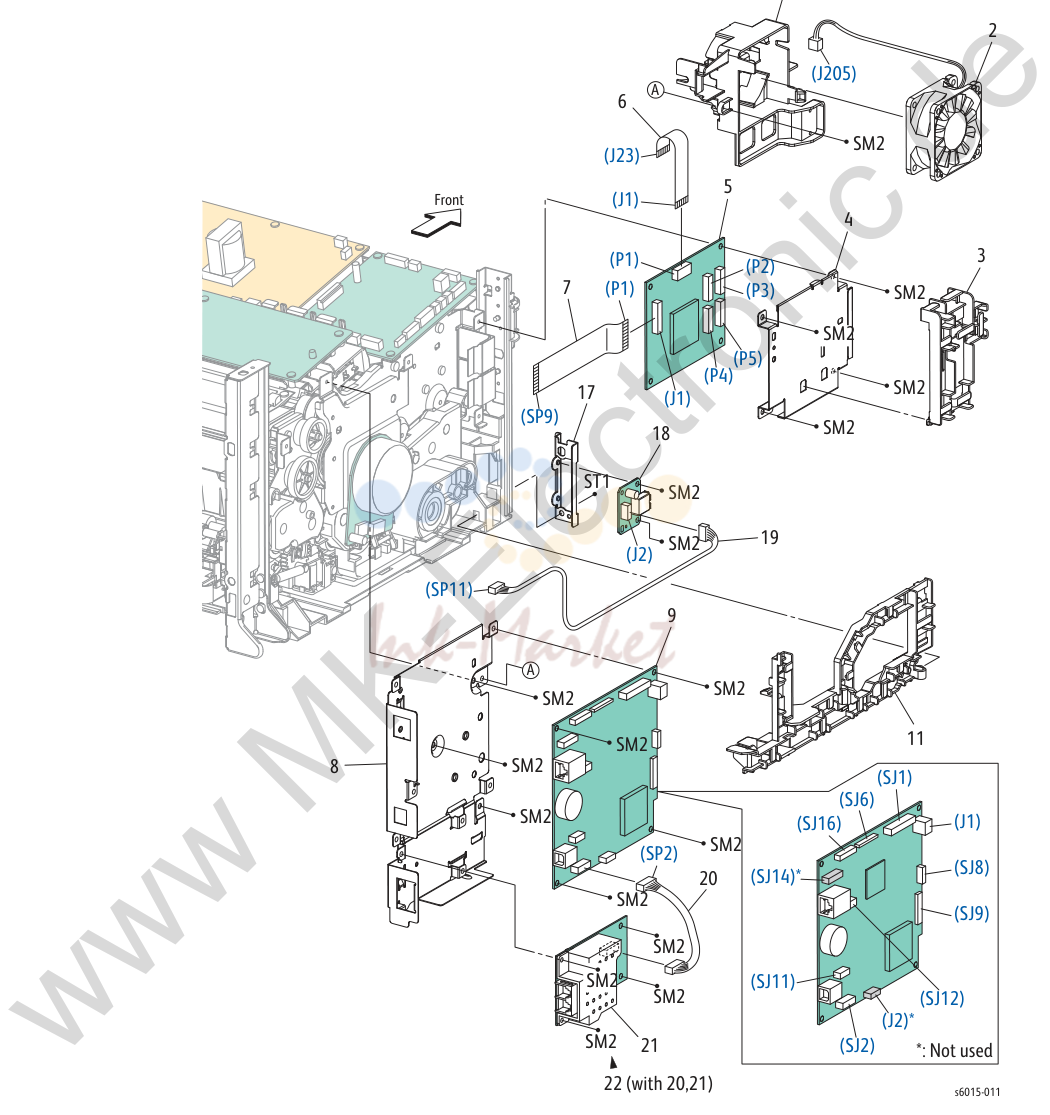

11. Parts List

№	Артикул	Альт. артикул	Описание
1			Duct Fan
2			Fan Main (Fan) 127E 8e6170
3			Guide Harness Drive (Drive Harness Guide)
4			Plate Bitz
5			PWB Assy TOKI (LED Driver Board) 960K
6			LED/MCU Cable
7			Harness Assembly TOKI (6010N model) (LEiD Driver 962K
8			PLATE ESS IOT
11			Main Paper Tray Harness Guide
17			Bracket Front USB
18			PWB Assembly USB Front (USB Board) 960K
21			PWBA Swift FAX (FAX Board)
9-34			Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP

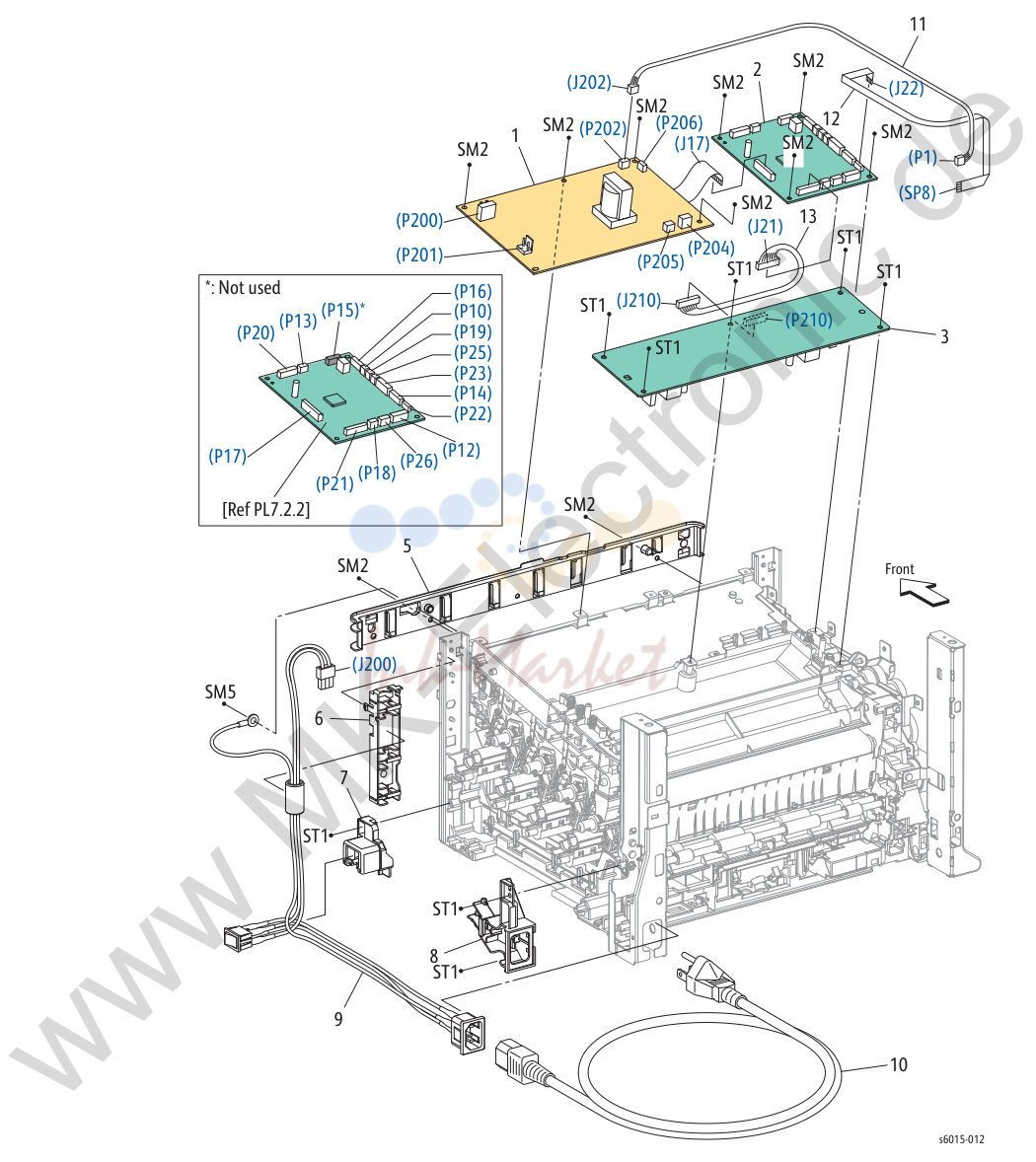

12. Parts List

№	Артикул	Альт. артикул	Описание
2			MCU Board 960K
3			HVPS 105K
5			Guide Harness Front
6			Guide Harness AC i
7			Holder SW
8			Inlet Harness Guide
9			Harness Assembly Inlet A10 (AC INLET-MAIN SW,
11			Harness Assembly LVPS
12			FFC Assy ESS (Image Processor Harness)
13			Harness Assy HVPS (J21-J210)
9-36			Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP

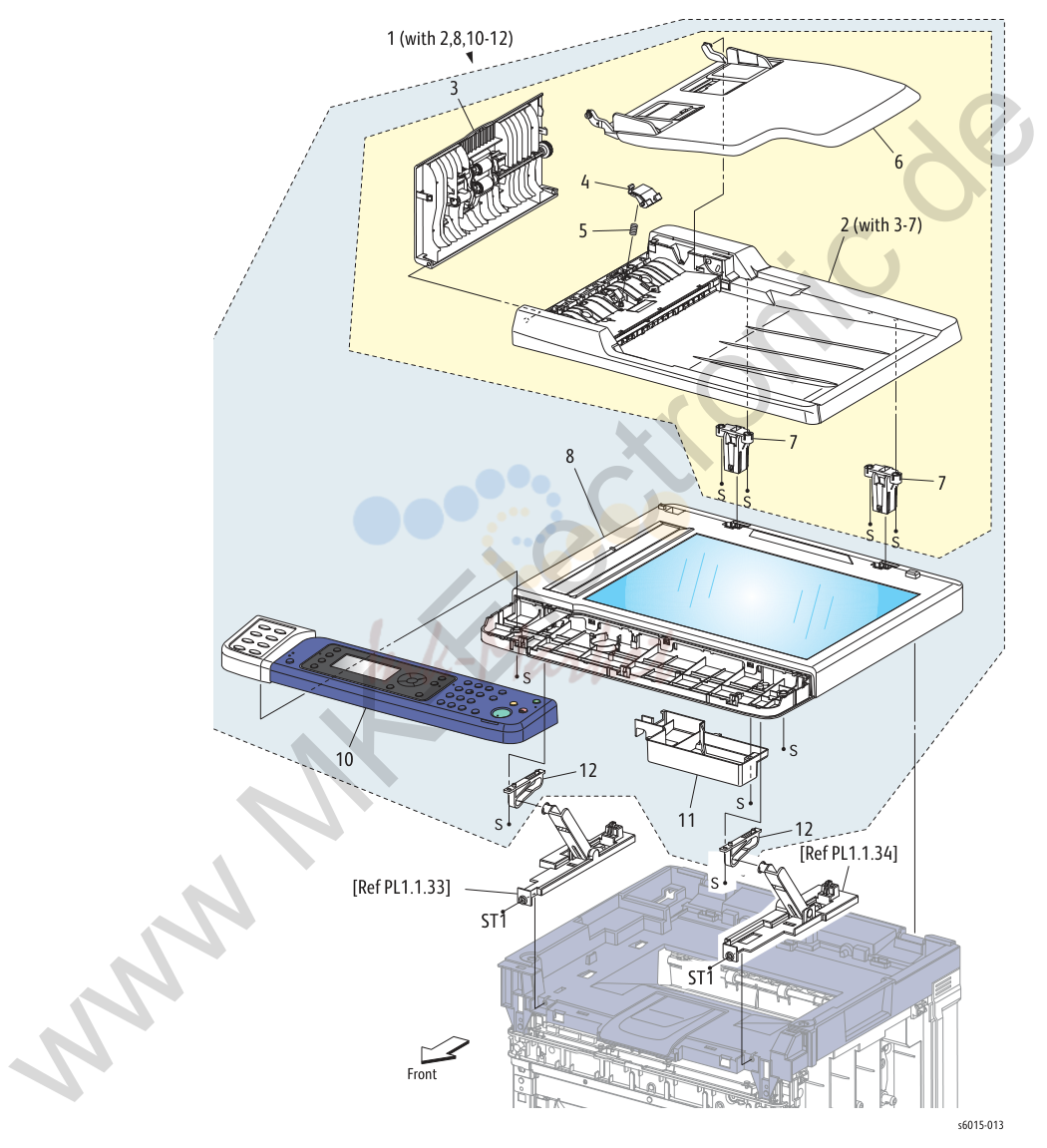

13. Parts List

№	Артикул	Альт. артикул	Описание
1			Scanner Assembly 4In1 604K
2			ADF Assembly (with 3-7) (ADF) e
3	604K65550 запросить цену →		Cover Assembly Top ADF (ADF Cover)
4	604K65560 запросить цену →		ADF Separator Pad (with 5)
5			Spring Separator
6	604K65530 запросить цену →		Tray Assembly Input ADF (ADF Input Tray)
7			ADF Hinge Assembly iTBD
8			IIT Assembly 3IN VB
14			below) r
11			SSB Cover t
12			Rail IIT FB
13			Control Panel Board TBD
14			LCD TBD
96	897E82971 запросить цену →		Label FAX
9-38			Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP

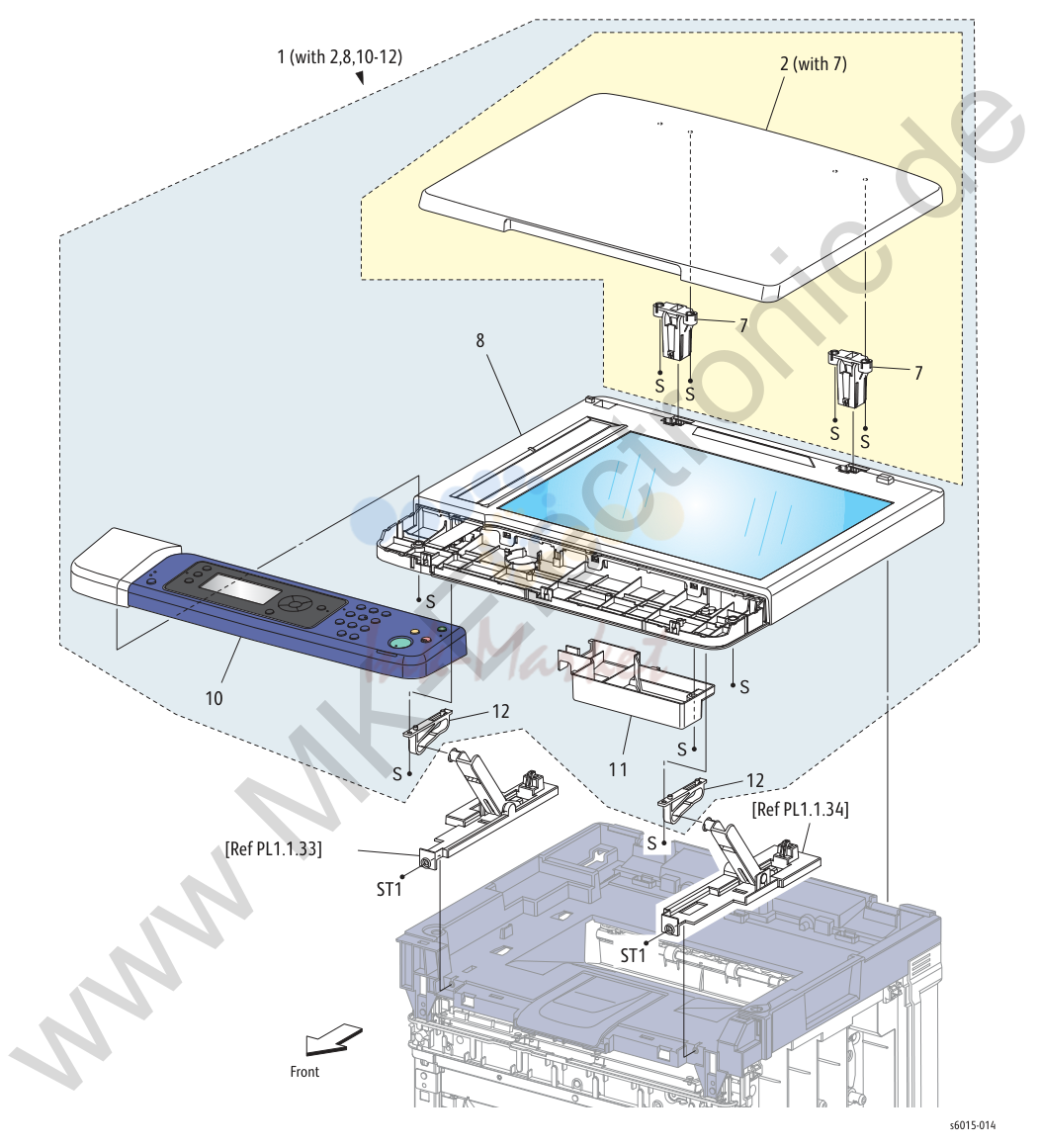

14. Parts List

№	Артикул	Альт. артикул	Описание
2			Cover Assembly Platen e
7			Hinge Assembly iTBD
10			Console Assembly (Control Panel) (See 13 and
11			SSB Cover t
12			Rail IIT FB
13			Control Panel Board TBD
14			LCD TBD
98			ADF Top Cover Kit
9-40			Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
