Xerox Phaser-6000 6010 — каталог запчастей со схемами

Содержание

№	Артикул	Альт. артикул	Описание

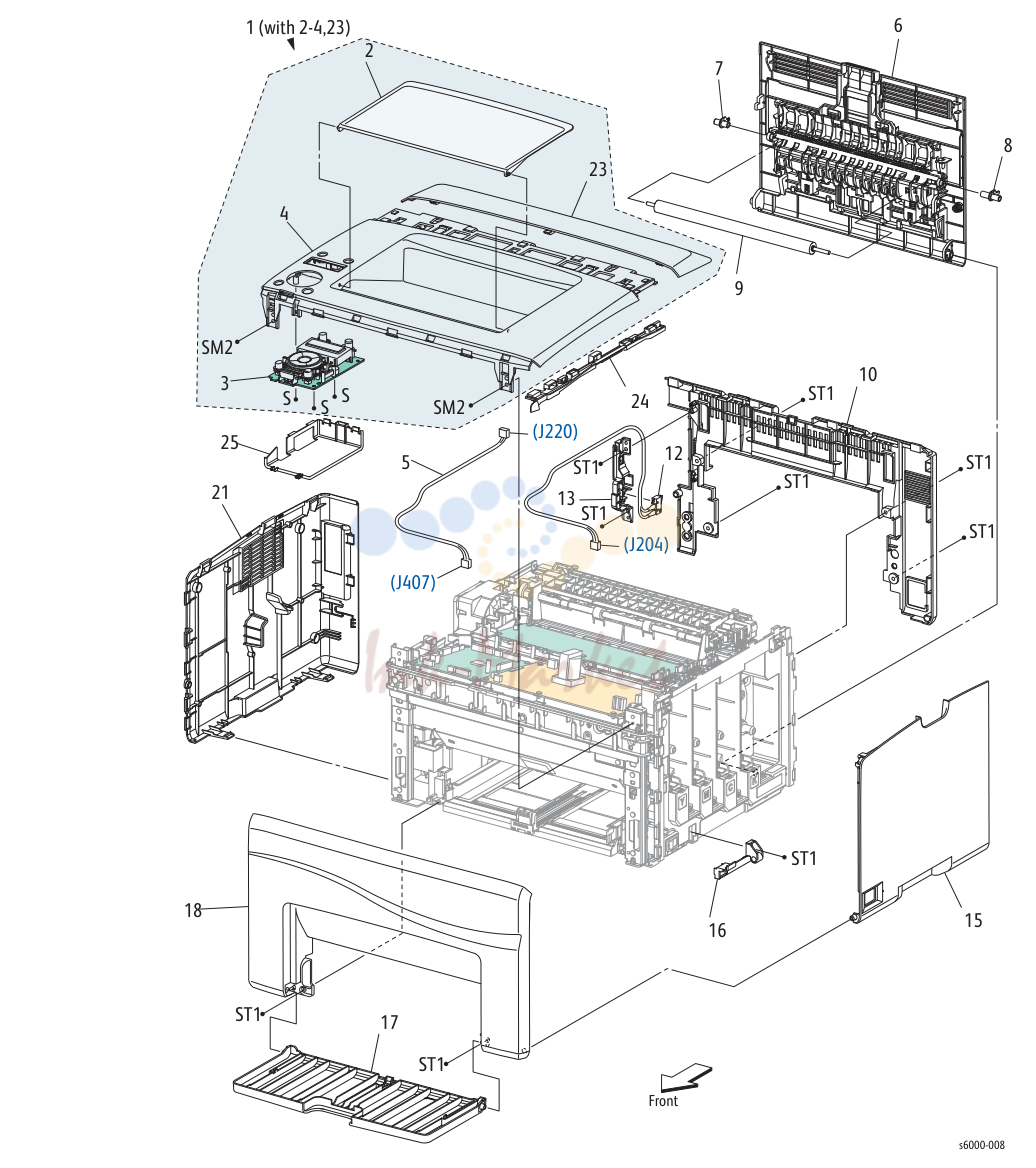

2			Tray Extension (Output Tray Extension) 086S
5			Control panel harness
6			Cover Assy Rear (Rear Door) 848K
7			Left Transfer Roller Bearing 013E
8			Right Transfer Roller Bearing 013E
9			Roll Assy BTR (Transfer Roller) 059K
10			Kit Cover Inner Rear (Inner Rear Cover) 675K
12			Switch I/L (Rear Cover Interlock Switch) 110K
13			Holder IL Rear
15			Cover Window TNR (Toner Door) 848E
16			Hinge CVR SFP (Hinge Cover) 803E
17			Cover (Main Paper Tray Cover) 675K
18			Cover Front (Front Cover) 675K
21			Cover Side L (Left Side Cover) 848E
23			Cover Top Rear (Top Rear Cover) 848E
24			Cover Inner Top (Inner Top Cover) 848E
25			Cover Opp

№	Артикул	Альт. артикул	Описание

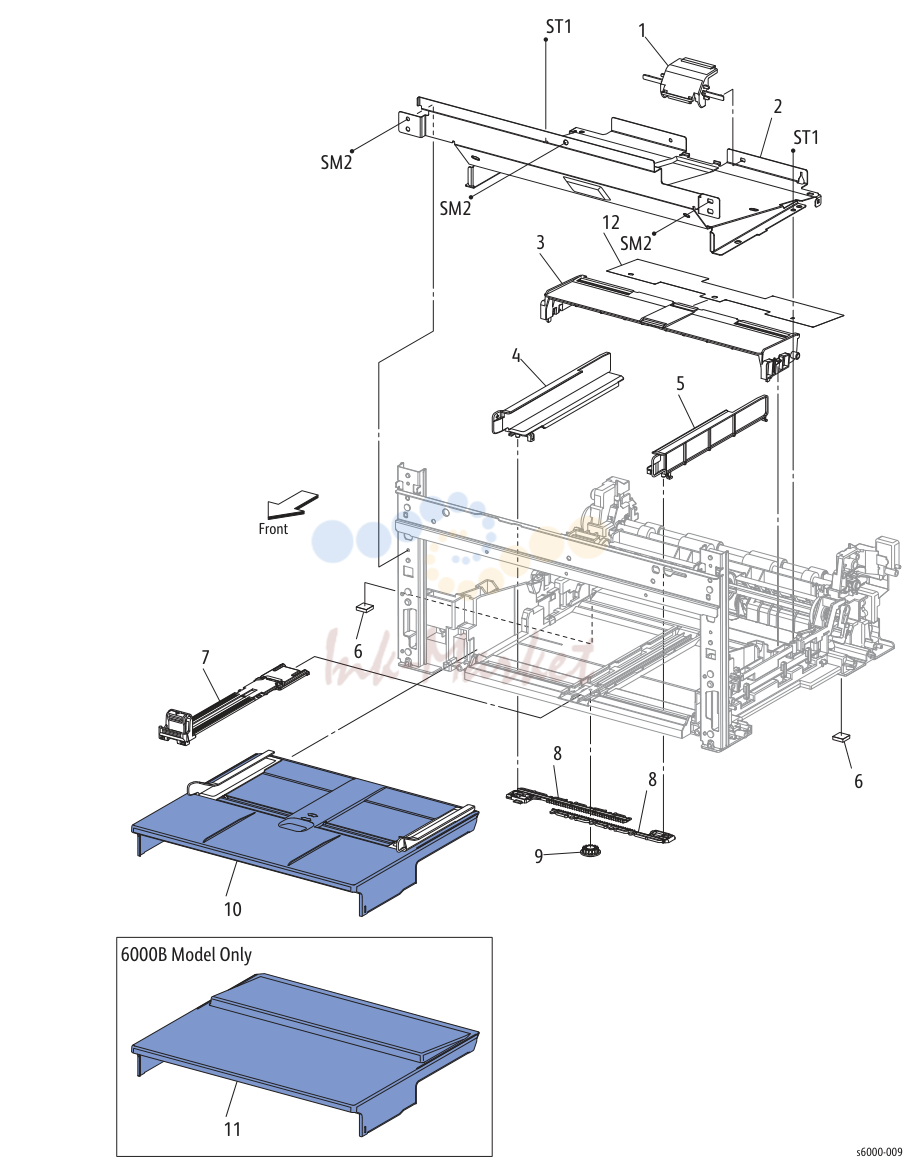

1			Cover Feed
2			Plate Lower
3			Tray Bypass Base
4			Guide Side L
5			Guide Side R
6			Foot Assy
7			Tray Assy Extension (Main Tray Extension) 050K
8			Rack Guide Side
9			Gear Pinion
10			Tray Assy Bypass Cover (6010N Only) (Bypass Tray) 050K
11			Cover Dust (6000B Only) (Dust Cover) 848E
12			Guide Paper Bypass (Paper Guide) 038E
1			(with 2-7)
9			(with 27,28)
11			(with 29-31)
9-8			Xerox Internal Use Only Phaser 6000/6010 Printer Service Manual
1			Feed Assy (with 2-7) (Feed Roller Assembly)
2			CAM R (Right Feed Roller Cam) 008E
3			Roll Core
4			Roll Assy Feed (Feed Roller) 059K
5			Holder Feed
6			Shaft Feed (Feed Shaft)
7			CAM L (Left Feed Roller Cam) 008E
8			Holder BTM R
9			Plate Assy Bottom (With 27,28) (Bottom Plate)
10			Holder BTM L
11			Holder Assy Separator (With 29-31) (Separator Pad 019K
12			Spring Separator (Separator Spring) 809E
13			Follower R (Right Follower) 008E
14			Follower L (Left Follower) 008E
17			Arm L (Left Follower Arm) 031E
18			Spring NF (NF Spring) 809E
20			Spring ACT REGI (No Paper Spring Actuator) 809E
21			Actuator No Paper (6010N Only) (No Paper Actuator) 120E
22			Cover No Paper (No Paper Cover) 848E
23			Sensor Photo (6010N Only) (No Paper Sensor) 930W
24			Arm R (Right Follower Arm) 031E
25			Harness Assy RKN SNS (J12-J120,J121,J122)
26			Harness Assy RK SNS (J12-J120,J122) (6000B only)
27			Plate Bottom
28			Pad Main Paper Tray
29			Clutch Assy Friction
30			Roll Assy Separator
31			Holder Separator

№	Артикул	Альт. артикул	Описание

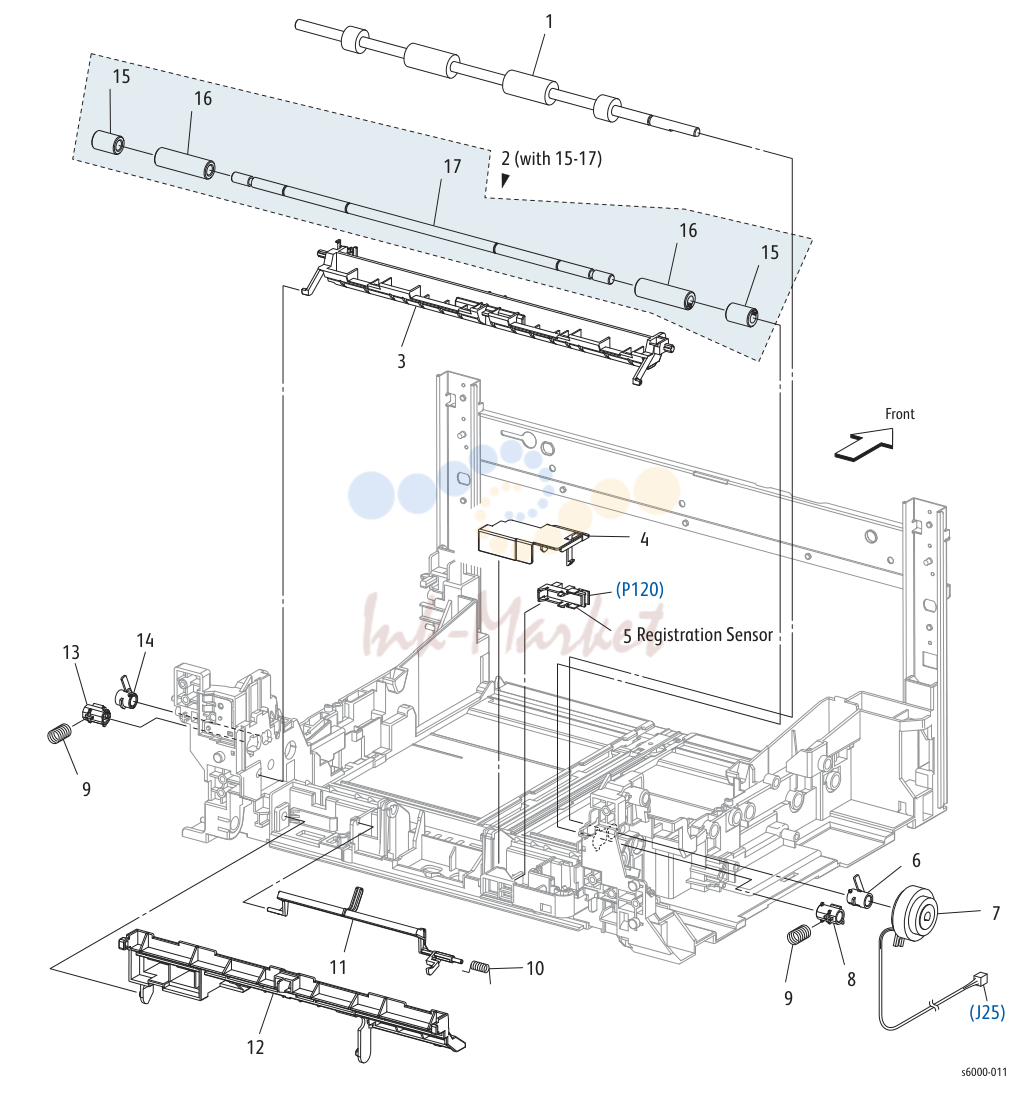

1			Roll Regi (Registration Roller) 059E
2			Roll Assy Pinch Regi (With 15-17) (Registration Pinch 059K
3			Chute (Main Paper Tray Chute) 054E
4			Cover Sensor
5			Sensor Photo (Regi Sensor) (Registration Sensor) 930W
6			Bearing Regi
7			Clutch Regi (Registration Clutch) 121K
8			Bearing Regi Metal
9			Spring Regi
10			Spring Act Regi (Registration Spring Actuator) 809E
11			Actuator Regi (Registration Actuator) 120E
12			Chute Low
13			Bearing Regi Metal Earth
14			Bearing Regi Earth
15			Roll Pinch Regi
16			Roll Pinch Regi
17			Shaft Pinch Regi

№	Артикул	Альт. артикул	Описание

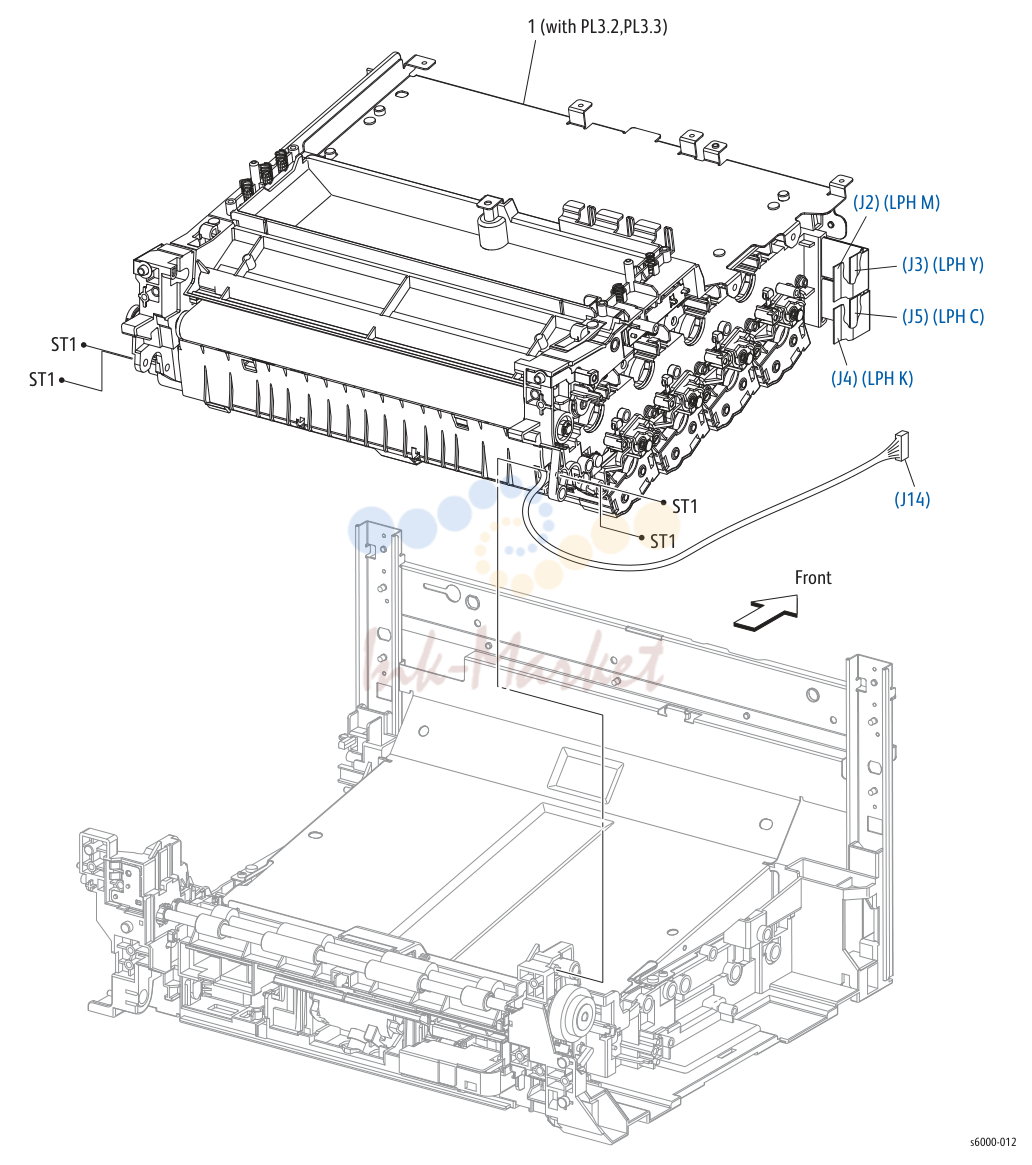

1			Shaft drum
2			Plate Earth Dl
3			Guide Ffc Lph
4			Housing Assy Transfer B
5			Spring Deve D
6			Housing Assy Deve Y
7			Housing Assy Deve M
8			Housing Assy Deve C
9			Housing Assy Deve K
10			Spring Deve Ad

№	Артикул	Альт. артикул	Описание

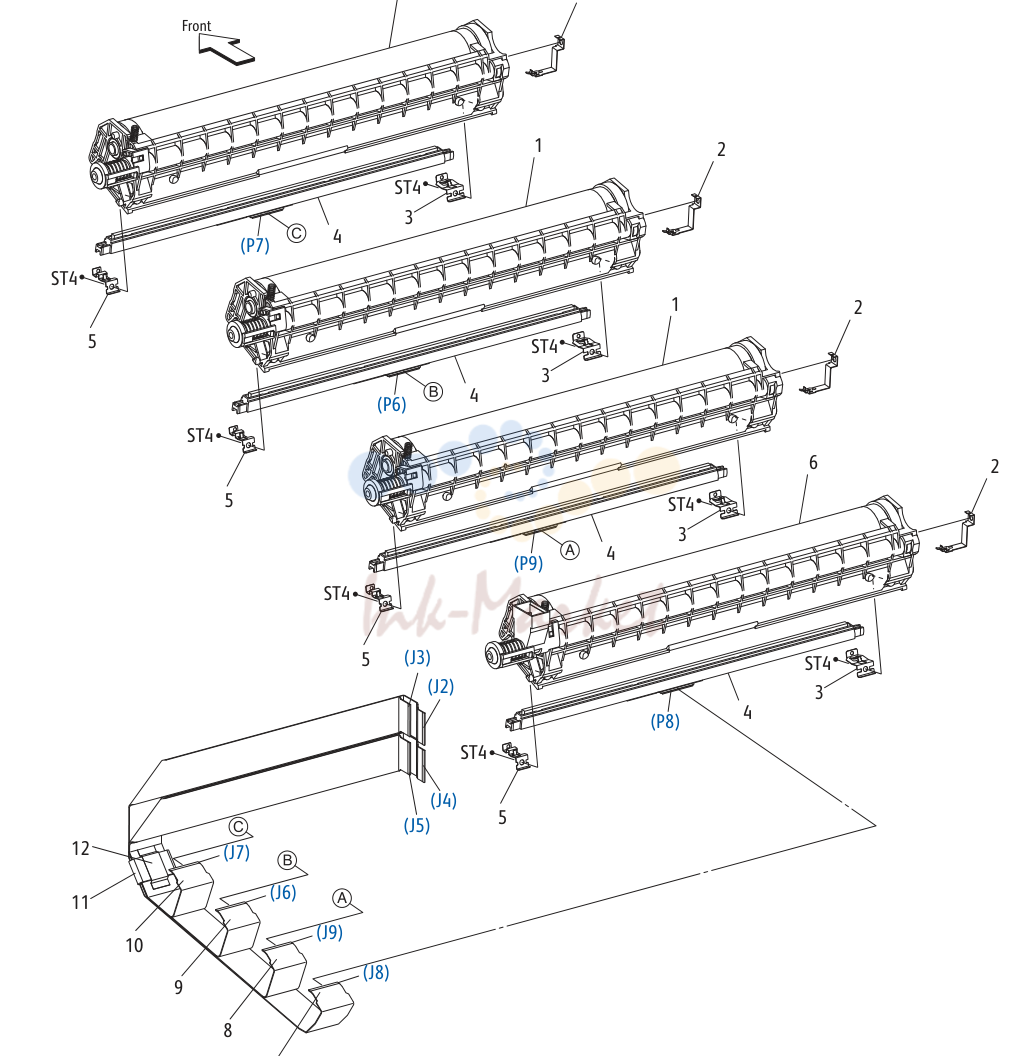

1			Housing Assy Xero High
2			Spring-FG Part2
3			Spring LPH D PART2
4			Head Assy-K
5			Spring LPH Ad Part2
6			Housing Assy Xero High K
7			Cable-FFC-K,KRN
8			Cable-FFC-C,KRN
9			Cable-FFC-M,KRN
10			Cable-FFC-Y,KRN
11			Core Ferrite
12			Tape

№	Артикул	Альт. артикул	Описание

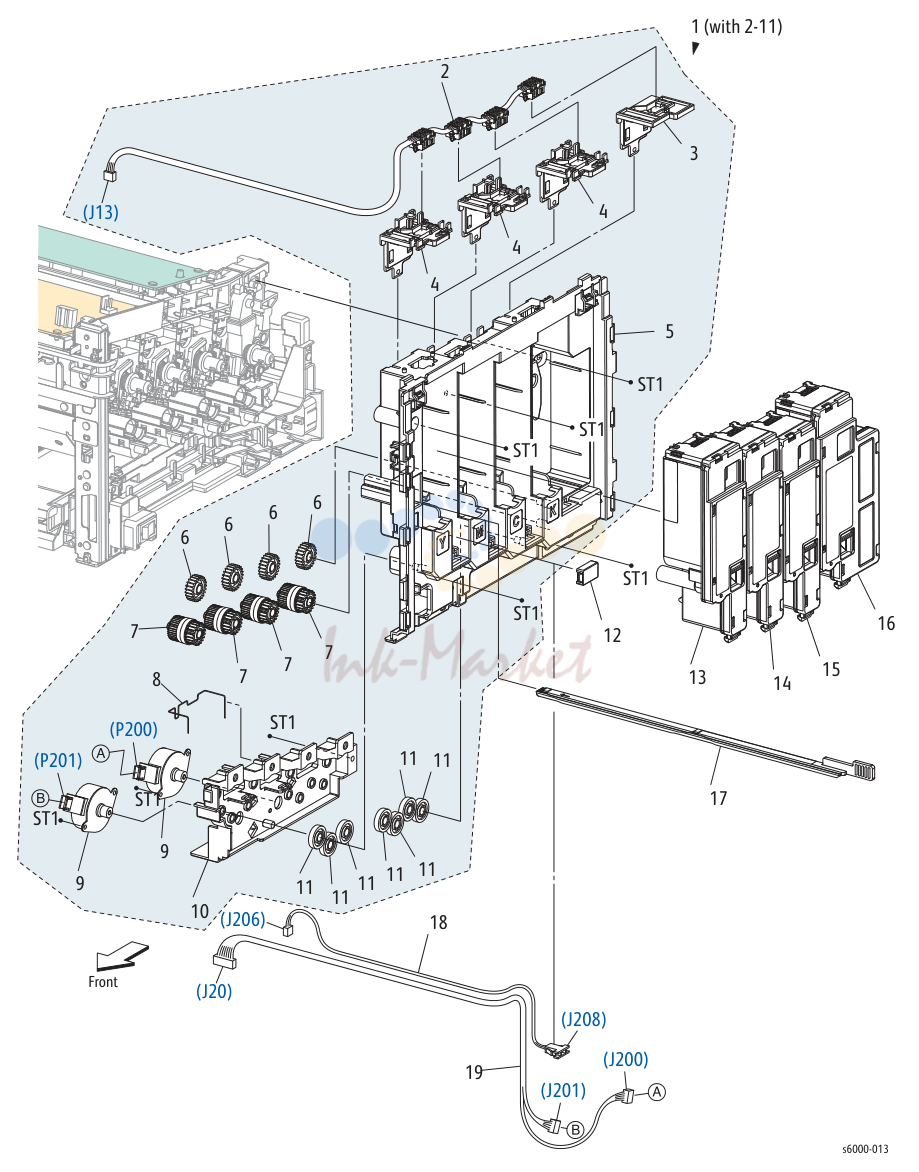

1			Dispenser Assy (With 2-11)
2			Harness Assy Dckr (J13-toner CRUM Y,M,C,K)
3			Key-HW K
4			Key HW YMC
5			Frame Disp
6			Gear Idler 23 (Idler 23 Gear) 807E
7			Clutch Assy Oneway (Oneway Clutch Assembly) 005K
8			Conductor GND MOT
9			Motor Assy Disp (Toner Motor) 127K
10			Frame Motor
11			Gear Idler 34 (Idler 34 Gear) 807E
12			Cover Connector (Connector Cover) 848E
13			Toner Cartridge (Y) (Y Toner Cartridge) CT201607 (US/EU)
14			Toner Cartridge (M) (M Toner Cartridge) CT201606 (US/EU)
15			Toner Cartridge (C) (C Toner Cartridge) CT201605 (US/EU)
16			Toner Cartridge (K) (K Toner Cartridge) CT201604 (US/EU)
17			Cleaner Assy (Cleaner Assembly) 042K
18			Harness Assy FSR Test (J206-J208)
19			Harness Assy Dispense MOT (J20-J200, J201)

№	Артикул	Альт. артикул	Описание
1			Drive Assy MU
2			Drive Assy MOT (Main Drive Assembly) 007K
3			Gear F3 (F3 Drive Gear) 807E
4			Gear PH3 (PH3 Drive Gear) 807E
5			Drive Assy PH (Feed Drive Assembly) 007K
6			Drive Assy Deve (Developer Drive Assembly) 007K
7			Harness Assy Main MOT (J16-J160)
8			Gear Feed
9			Spring Feed
10			Solenoid Feed (Feed Solenoid) 121E
99			Drive Assy Mot (With 2, 3, 4, and 5) (Main Drive 604K

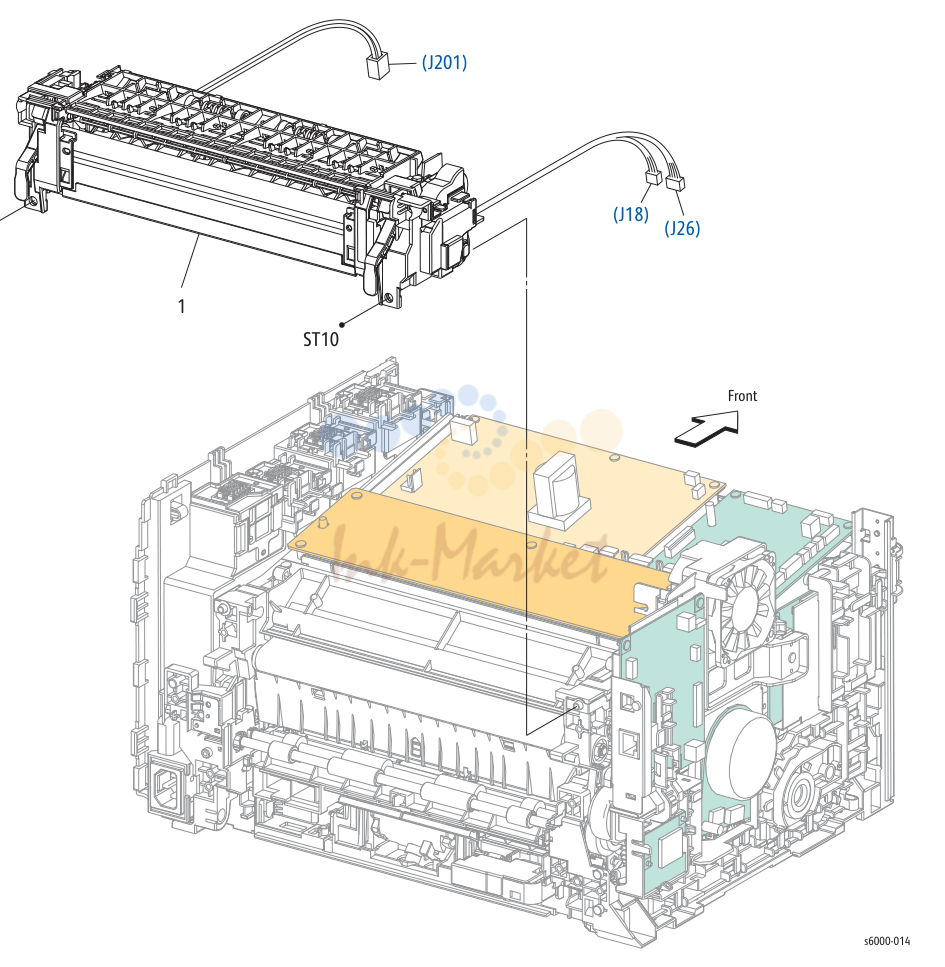

№	Артикул	Альт. артикул	Описание

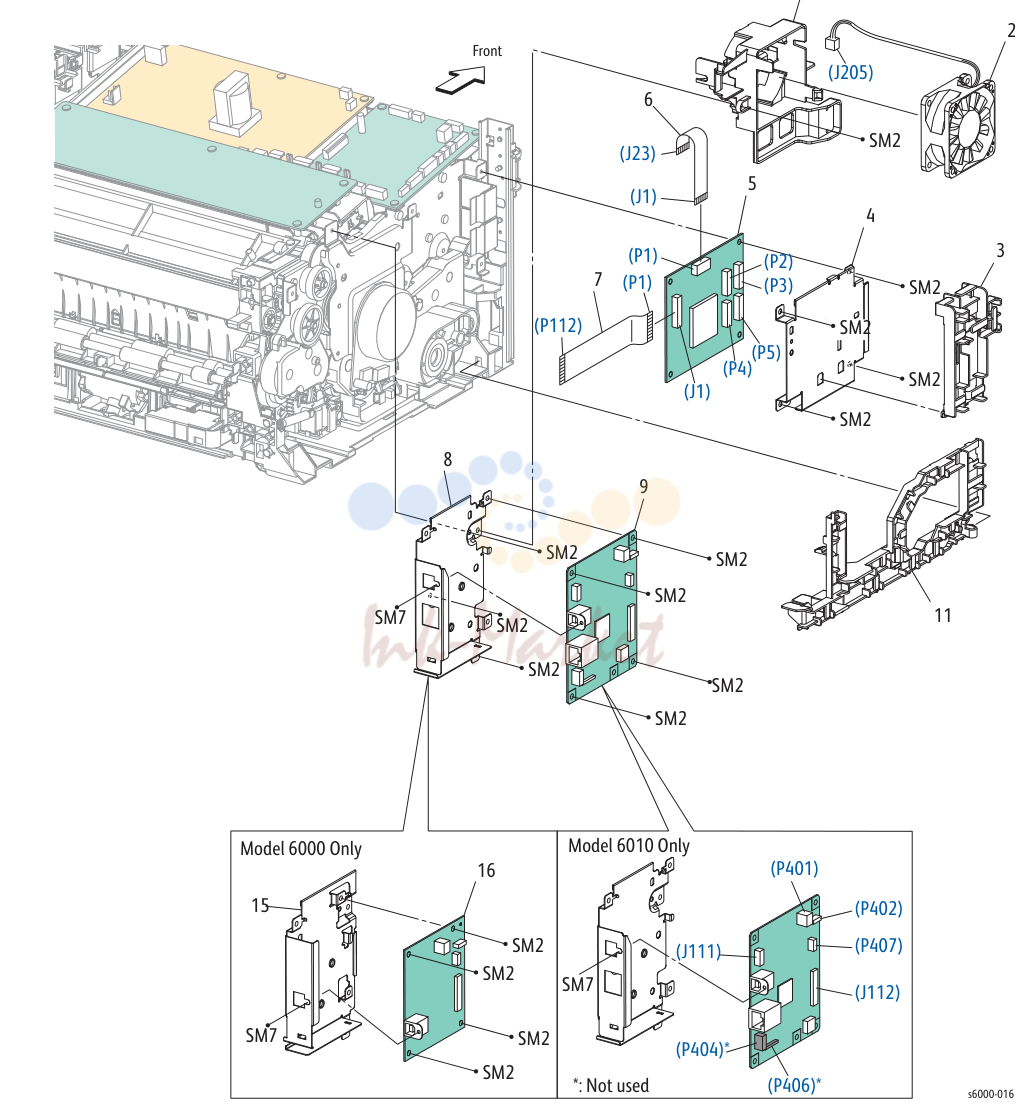

1			Duct Fan
2			Fan Main (Fan) 127E
3			Guide Harness Drive (Drive Harness Guide)
4			Plate Bitz
5			PWB Assy TOKI (LED Driver Board) 960K
6			FFC Assy Light Biz (LED/MCU Cable) 962K
8			PLATE ESS IOT
9			PWBA ESS (6010N model) (IP Board) 960K
11			Guide Harness Main Paper Tray (Main Paper Tray
15			Plate ESS IOT LT (6000B model)
16			PWBA ESS LT (6000B model) (IP Board) 960K

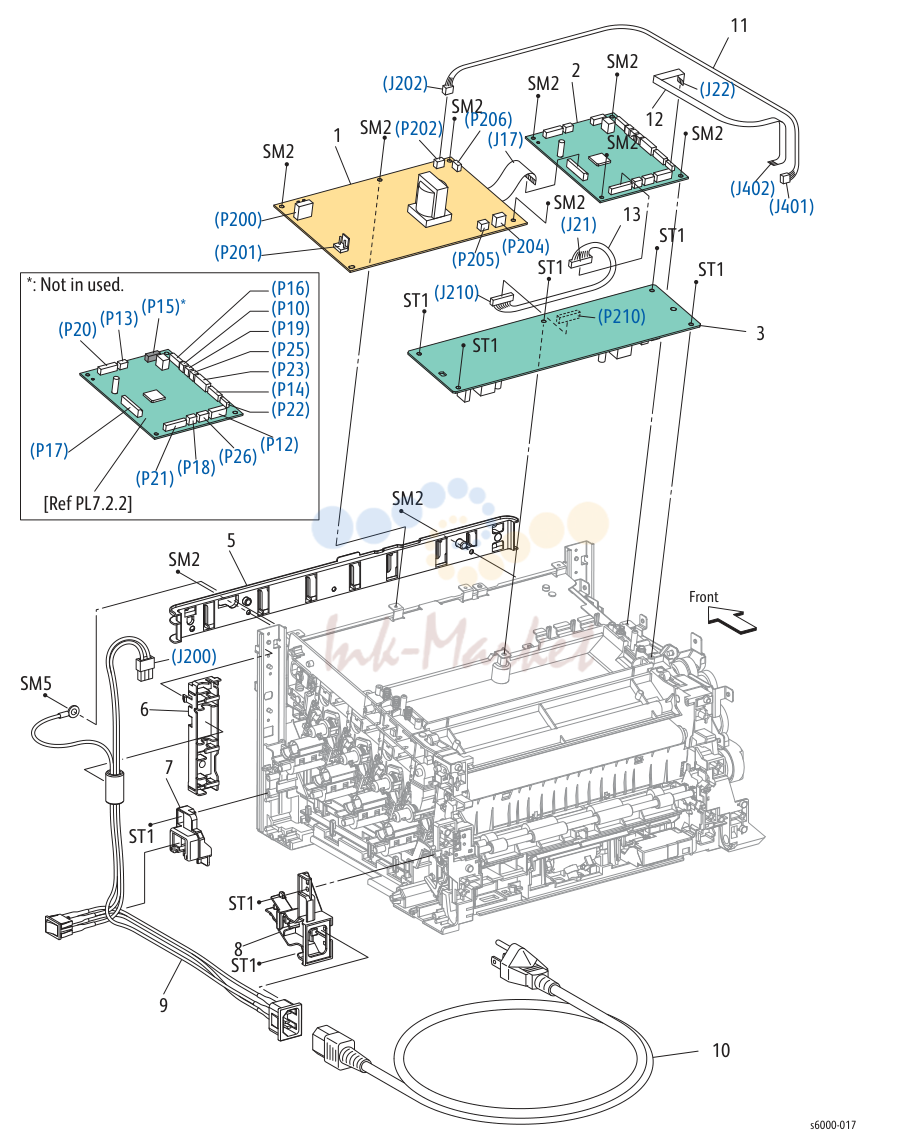

№	Артикул	Альт. артикул	Описание
2			MCU Board 960K
3			HVPS 105K
5			Guide Harness Front
6			Guide Harness AC
7			Holder SW SFP
8			Guide Harness Inlet
9			Harness Assy Inlet SFP (AC INLET-MAIN SW,J200) (AC 962K
11			Harness Assy Lves
12			FFC Assy ESS (Image Processor Harness) 962K
13			Harness Assy HVPS (J21-J210)
