Xerox Phaser-5335 — каталог запчастей со схемами

Содержание

1. Chapter 5 Parts List
2. Chapter 5 Parts List
3. Chapter 5 Parts List
4. Chapter 5 Parts List
5. Chapter 5 Parts List
6. Chapter 5 Parts List
7. Chapter 5 Parts List
8. Chapter 5 Parts List
9. Chapter 5 Parts List
10. Chapter 5 Parts List
11. Chapter 5 Parts List
12. Chapter 5 Parts List
13. Chapter 5 Parts List
14. Chapter 5 Parts List

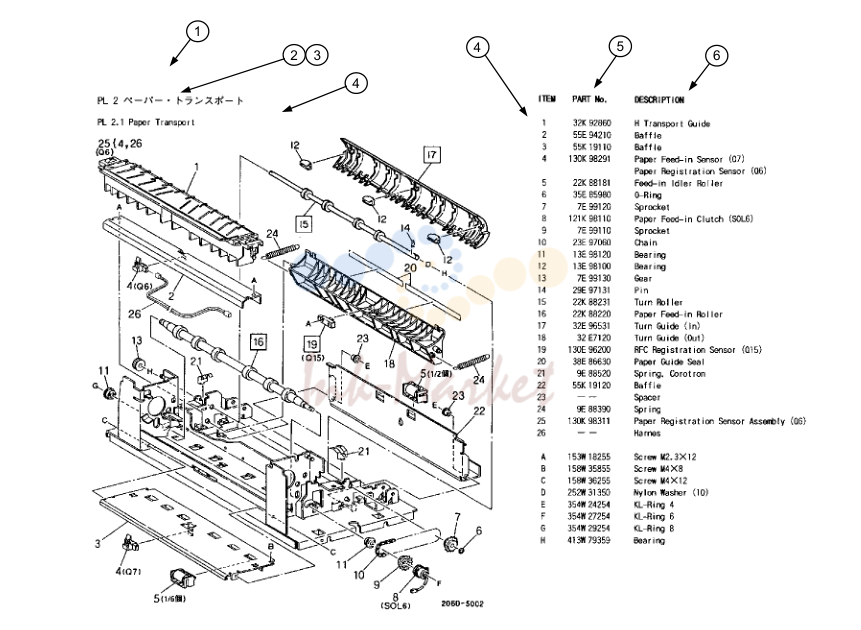

1. Chapter 5 Parts List

№	Артикул	Описание
2	848---228 запросить цену →	COVER TOP ASSY 32A2
4		848E 02492 COVER STACK 32A4
5		-- HARNESS ASSY PUI 32A5
6		848E 02510 COVER STACK A3 32A6
7	848E--888 запросить цену →	COVER REAR 32A7
8		604K 39430 KIT COVER MIDDLE 32A8
9		848 ---3 COVER RIGHT SIDE 32A9
10		848E --37 COVER RIGHT FRONT 32B0
11		604K 39411 KIT COVER FRONT L DUP 32B1
12		029E 45210 PIN CVR FRONT 32B2
13		848E --39 COVER LEFT FRONT 32B3
14	848E--241 запросить цену →	COVER LEFT SIDE 32B4

2. Chapter 5 Parts List

№	Артикул	Альт. артикул	Описание
1			032K 04850 GUIDE ASSY CST 250 (with 2-13, 15-18) 50E1
2			059K 53474 (SCC) FEEDER ASSY SUB (with 3-9, 18) 50E2
3			130E 89320 (SCC) TRAY NO PAPER SENSOR 50E3
4			-- ROLL ASSY FEED
5			005E 16941 CLUTCH ONE WAY FEED 50E4
6			005E 16951 CLUTCH ONE WAY NUDGER 50E5
7			-- HOLDER NO PAPER L 50E6
8			120E 26903 ACTUATOR NO PAPER 50E7
9			-- HOLDER NO PAPER R 50E8
10			-- PLATE ASSY HINGE 50E9
11			068K 53612 BRACKET ASSY FDR 250 50F0
12			017E 98680 RUBBER FOOT3 FH 50F1
13			110E 10500 (SCC) SIZE SWITCH 50F2
14			848E 06900 (SCC) COVER CST 50F3
15			962K 55631 (SCC) HARNESS ASSY SW 50F4
16			848E 06920 (SCC) COVER SW 250 50F5
17			962K 54230 (SCC) HARNESS ASSY FEEDER 1 50F6
18			962K 54101 (SCC) HARNESS ASSY PH 50F7
99			604K 11192 KIT ROLL ASSY FEED (with 4, PL2.2.19) 50F8
1			(with 2-37)
5			(with 6-13,29,30)
31			(with 32-37)
28			23 (with 24,25)
1			050K 60640 CASSETTE ASSY 250 IBG (with 2-37) 50G1
2			038K 88730 GUIDE AS SD R 250 A3 50G2
3			-- GEAR PINION 50G3
4			038K 86533 GUIDE AS SD L 250 A3 50G4
5			015K 75420 PLATE ASSY BTM SP (with 6-13, 29, 30) 50G5
6			-- DAMPER BTM 50G6
7			-- GEAR PB L 50G7
8			-- GEAR BTM DMP ONEWAY 50G8
9			-- SHAFT PB 50G9
10			019E 54180 PAD PB 50H0
11			-- PLATE BTM A3 50H1
12			-- GEAR BTM LOCK ONEWAY 50H2
13			-- STOPPER PB 50H3
14			809E 38673 SPRING BTM UP 250 50H4
15			054E 29142 CHUTE RETARD CST 50H5
16			809E 37500 SPRING RETARD 50H6
17			019K 98186 HOLDER ASSY RETARD (with 18, 19) 50H7
18			-- CLUTCH FRICTION 50H8
19			-- ROLL ASSY FEED (PL2.1 Item99) 50H9
20			-- HOUSING EXIT CST 250 50I0
21			032K 05050 GUIDE ASSY END 250 50I1
22			-- HOUSING BASE CST 250 50I2
23			604K 39480 KIT PLATE GEAR LOCK 250 (with 24, 25) 50I3
24			-- PLATE GEAR LOCK 250 50I4
25			-- PLATE GEAR LOCK 250 L 50I5
26			-- LOCK EXT A4 50I6
27			003E 74461 HANDLE CST 250 50I7
28			020K 15630 WHEEL SIZE ASSY 50I8
29			-- GEAR PB R 50I9
30			-- ROLL PB 50J0
31			604K 39470 KIT LEVER BTM LOCK 250 (with 32-37) 50J1
32			-- COVER BTM UP 250 50J2
33			-- RACK BTM LOCK 250 50J3
34			-- SPRING BTM LOCK 50J4
35			-- GEAR BTM LOCK PINION 50J5
36			-- LEVER BTM LOCK 50J6
37			-- GEAR LEVER BTM LOCK 50J7

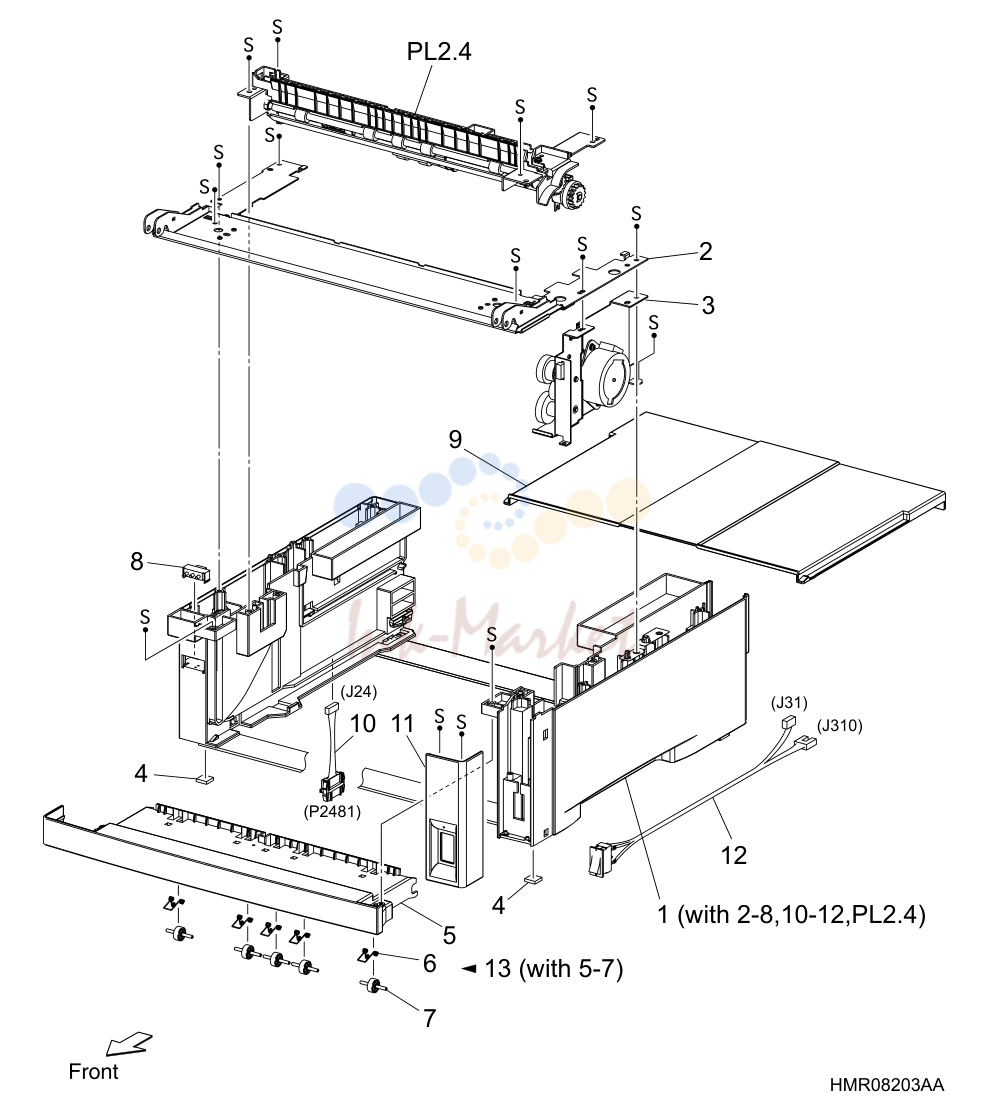

3. Chapter 5 Parts List

№	Артикул	Описание
1	032K--487 запросить цену →	GUIDE ASSY CST 550 (with 2-8, 10-12, PL2.4) 50K1
2		-- PLATE ASSY HINGE 50K2
3		068K 53623 BRACKET ASSY FDR 550 50K3
4	017E--868 запросить цену →	RUBBER FOOT3 FH 50K4
5		-- CHUTE TURN 50K5
6		-- SPRING PINCH 50K6
7		-- ROLL PINCH TURN 50K7
8		110E 10500 (SCC) SIZE SWITCH 50K8
9	848E--690 запросить цену →	(SCC) COVER CST 50K9
10	962K--423 запросить цену →	(SCC) HARNESS ASSY FEEDER 1 50L0
11	848E--694 запросить цену →	(SCC) COVER SW 550 50L1
12		962K 55632 (SCC) HARNESS ASSY SW 50L2
13		054K 33742 CHUTE TURN ASSY IOT 550 (with 5-7) 50L3

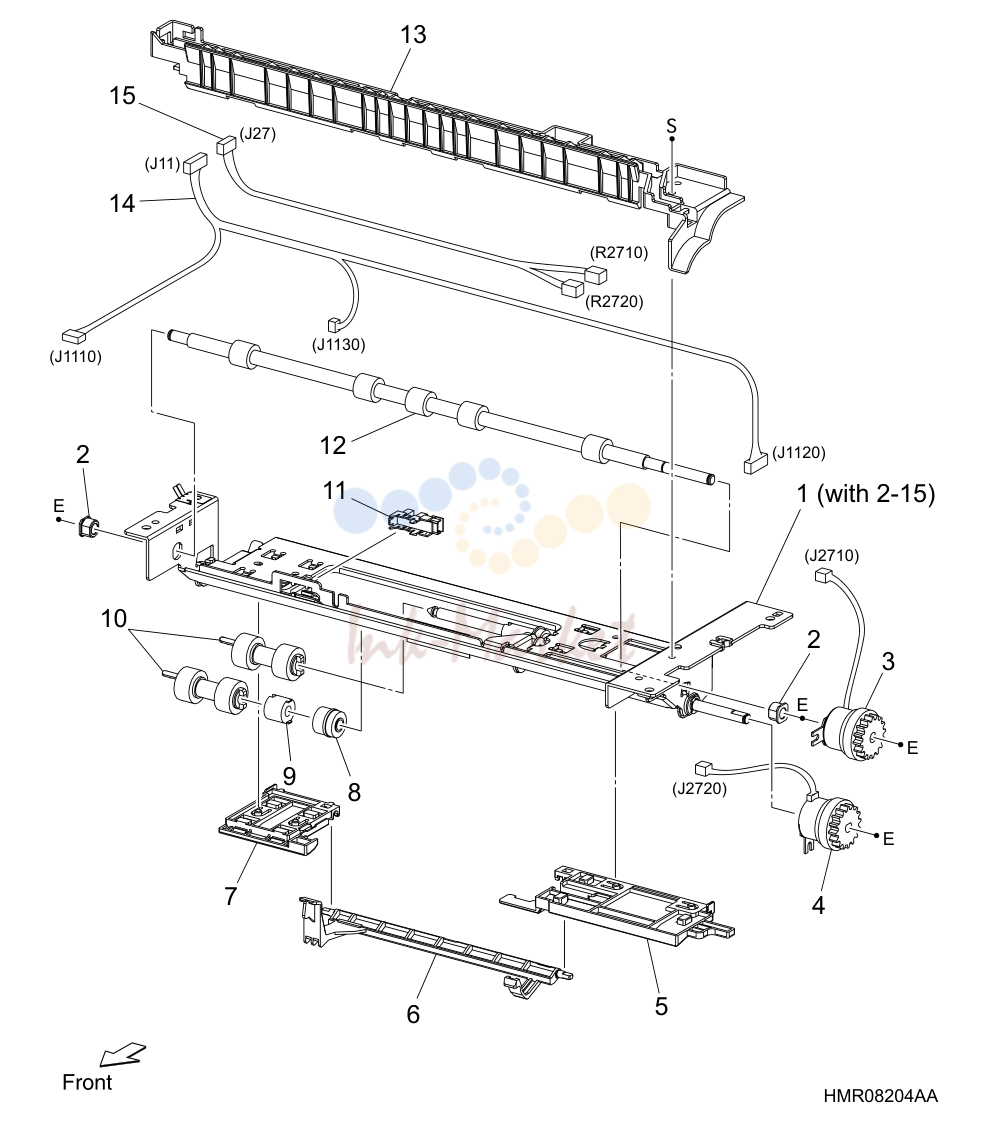

4. Chapter 5 Parts List

№	Артикул	Описание
1		059K 53485 (SCC) FEEDER ASSY SUB 550 (with 2-15) 50L4
2		-- BEARING EARTH 50L5
3	121K--004 запросить цену →	(SCC) TURN CLUTCH 50L6
4	121K--003 запросить цену →	(SCC) FEED CLUCTH 50L7
5		-- HOLDER NO PAPER R 50L8
6	120E--690 запросить цену →	ACTUATOR NO PAPER 50L9
7		-- HOLDER NO PAPER L 50M0
8	005E--695 запросить цену →	CLUTCH ONE WAY NUDGER 50M1
9		005E 16941 CLUTCH ONE WAY FEED 50M2
10		-- ROLL ASSY FEED 50M3
11	130E--932 запросить цену →	(SCC) TRAY NO PAPER SENSOR 50M4
12	059K--728 запросить цену →	ROLL ASSY TURN 50M5
13	054E--268 запросить цену →	CHUTE FDR IOT 550 50M6
14	962K--410 запросить цену →	(SCC) HARNESS ASSY PH 50M7
15		-- (SCC) HARNESS ASSY CLUTCH 50M8
99		604K 11192 KIT ROLL ASSY FEED (with 10, PL2.5.19) 50N0
1		(with 2-46)
5		(with 6-13,37,38)
39		(with 40-46)
25		(with 26,27)
29		(with 30-33)
1		050K 62820 CASSETTE ASSY 550 (with 2-46) 50P1
2	038K--960 запросить цену →	GUIDE ASSY SD R 550 A3 50P2
3		-- GEAR PINION 50P3
4	038K--911 запросить цену →	GUIDE ASSY SD L 550 A3 50P4
5	015K--542 запросить цену →	PLATE ASSY BTM SP (with 6-13, 37, 38) 50P5
6		-- DAMPER BTM 50P6
7		-- GEAR PB L 50P7
8		-- GEAR BTM DMP ONEWAY 50P8
9		-- SHAFT PB 50P9
10		019E 54180 PAD PB 50Q0
11		-- PLATE BTM A3 50Q1
12		-- GEAR BTM LOCK ONEWAY 50Q2
13		-- STOPPER PB 50Q3
14	809E--866 запросить цену →	SPRING BTM UP 550 50Q4
15	054E--914 запросить цену →	CHUTE RETARD CST 50Q5
16	809E--750 запросить цену →	SPRING RETARD 50Q6
17		019K 09100 HOLDER ASSY RETARD (with 18, 19) 50Q7
18		-- CLUTCH FRICTION 50Q8
19		-- ROLL ASSY FEED (PL2.4 Item99) 50Q9
20	032K--506 запросить цену →	GUIDE ASSY END 550 50R0
21		-- RACK GUIDE END 550 50R1
22		-- SPRING RACK GD 50R2
23		-- HOUSING EXIT CST 550 50R3
24		-- HOUSING BASE CST550 50R4
25	604K--949 запросить цену →	KIT PLATE GEAR LOCK L 550 (with 26, 27) 50R5
26		-- PLATE GEAR LOCK 550 50R6
27		-- PLATE GEAR LOCK L 550 50R7
28		-- COVER EXIT CST 50R8
29	604K--945 запросить цену →	KIT EXT CST 550 (with 30-33) 50R9
30		-- LOCK EXT A4 50S0
31		-- PIN LOCK RACK 50S1
32		-- LINK PLATE BTM CST 550 50S2
33		-- SPRING LINK LOCK 50S3
34		-- LINK LOCK EXIT 50S4
35	003E--4471 запросить цену →	HANDLE CST 550 50S5
36	020K--5630 запросить цену →	WHEEL SIZE ASSY IBG 50S6
37		-- GEAR PB R 50S7
38		-- ROLL PB 50S8
39	604K--9460 запросить цену →	KIT LEVER BTM LOCK 550 (with 40-46) 50S9
40		-- GEAR BTM LOCK PINION 50T0
41		-- GEAR 40 BTM LOCK 50T1
42		-- GEAR LEVER BTM LOCK 50T2
43		-- COVER BTM UP 550 50T3
44		-- RACK BTM LOCK 550 50T4
45		-- SPRING BTM LOCK 50T5
46		-- LEVER BTM LOCK 50T6
2		(with 3,4)
9		7 (with 8-12)
15		8 (with 9,10)
20		(with 17,21)
1		121E 92901 (SCC) MSI FEED SOLENOID 5BA1
2		604K 39380 KIT GEAR MSI (with 3, 4) 5BA2
3		-- SPRING FEED MSI 5BA3
4		-- GEAR MSI 5BA4
5		-- BEARING EARTH 5BA5
6		-- SHAFT HINGE TRAY 5BA6
7		054K 33780 CHUTE ASSY DUP (with 8-12) 5BA7
8	604K--939 запросить цену →	KIT ACTUATOR NO PAPER MSI (with 9, 10) 5BA8
9		809 --394 SPRING NO PAPER MSI 5BA9
10		120 --807 ACTUATOR NO PAPER MSI 5BB0
11		130E 89320 (SCC) MSI NO PAPER SENSOR 5BB1
12		-- CHUTE DUP 5BB2
13		-- COVER ROLL FEED 5BB3
14		-- CAM MSI 5BB4
15		-- PIN MSI 5BB5
16		-- SHAFT ASSY MSI 5BB6
17		-- MSI FEED ROLL 5BB7
18		-- ROLL CORE MSI 5BB8
19		-- KIT FRAME RETARD BASE 5BB9
20		604K 39500 KIT ROLL MSI (with 17, 21) 5BC0
21		-- HOLDER ASSY RETARD 5BC1
22		050K 62840 TRAY ASSY MSI 5BC2
23		-- DRIVE ASSY FRONT B 5BC3
24	005K08640 запросить цену →	CLUTCH ASSY LIMIT 5BC4
25		-- DRIVE ASSY FRONT A 5BC5
26		-- COLLAR MSI 5BC6

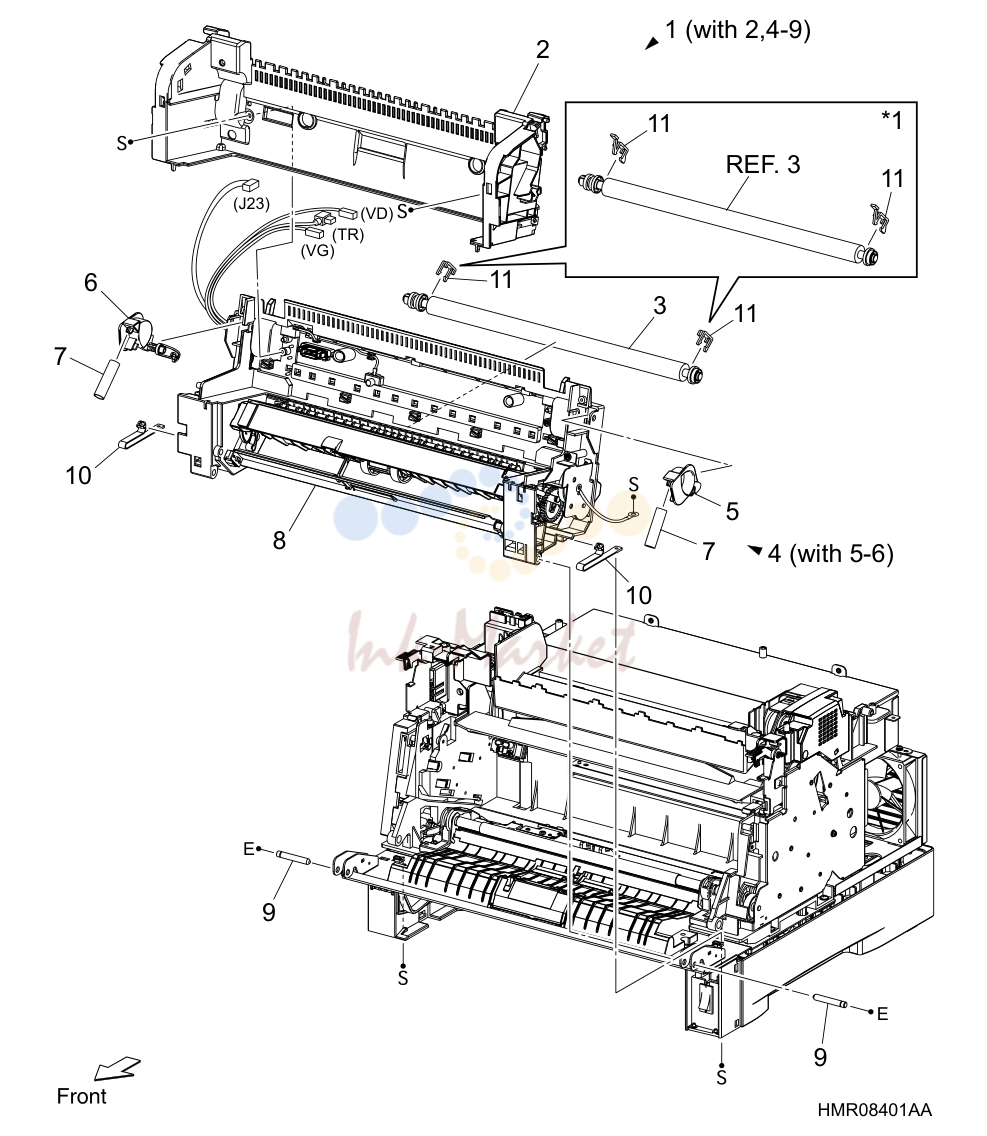

5. Chapter 5 Parts List

№	Артикул	Описание
1		604K 39348 KIT FRAME FRONT (with 2, 4-9) 13A0
2		-- COVER ASSY FRAME FRONT 13A1
3	059K53670 запросить цену →	BTR 13A2
4		-- KIT LEVER FRONT (with 5, 6) 13A3
5		-- LEVER FRONT RIGHT 13A4
6		-- LEVER FRONT LEFT 13A5
7		-- SPRING LEVER FRONT 13A6
8		-- FRAME FRONT BASE ASSY 13A7
9		-- PIVOT FRONT 13A8
10		849E 92751 STRAP FRONT 13A9

6. Chapter 5 Parts List

№	Артикул	Альт. артикул	Описание
1			604K 39242 KIT REGIST 13B1
2			121K 39362 (SCC) REGI CLUTCH 13B2
3			120K 92330 ACTUATOR ASSY REGI 13B3
4			130E 89320 (SCC) REGI SENSOR 13B4

7. Chapter 5 Parts List

№	Артикул	Альт. артикул	Описание
1			-- KIT LEVER FUSER (with 2-6) 43A1
2			-- LEVER CRU FSR LH 43A2
3			-- COVER SAFETY LH 43A3
4			-- SPRING PRB 43A4
5			-- COVER SAFETY RH 43A5
6			-- LEVER CRU FSR RH 43A6
7			-- BRACKET FSR RH 43A7
8			-- KIT BRACKET FSR LH (with 9, 10) 43A8
9			-- BRACKET FSR LH 43A9
10			-- HARNESS ASSY FSR 43B0
12			-- (SCC) HARNESS ASSY PR 43B1

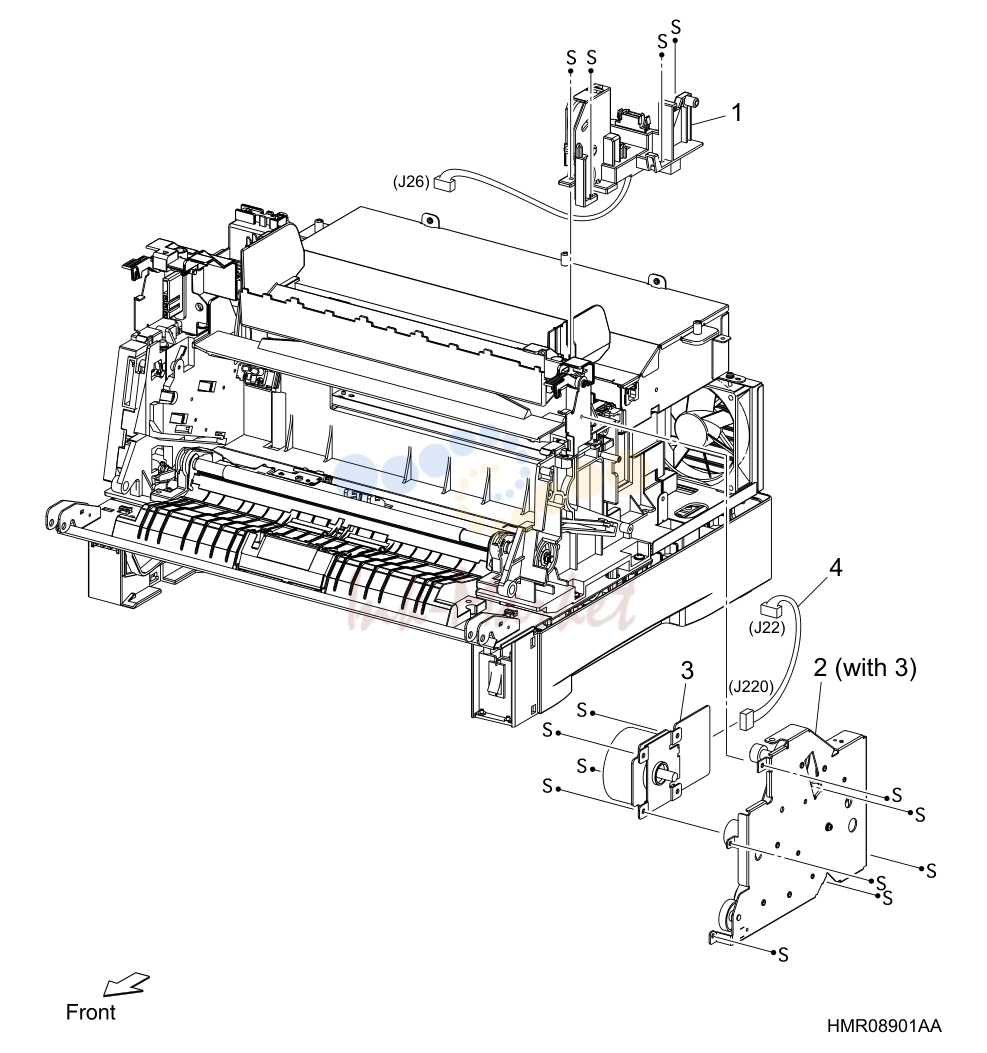

8. Chapter 5 Parts List

№	Артикул	Описание
1		-- DUCT ASSY FAN MIDDLE (with 2) 30A5
2		127E 85330 (SCC) MIDDLE FAN 30A6
3		-- DUCT FAN REAR 30A7
4	127E85310 запросить цену →	REAR FAN 30A8
5		127E 85321 SIDE FAN 30A9
6		-- HARNESS ASSY SIDE FAN 30B0

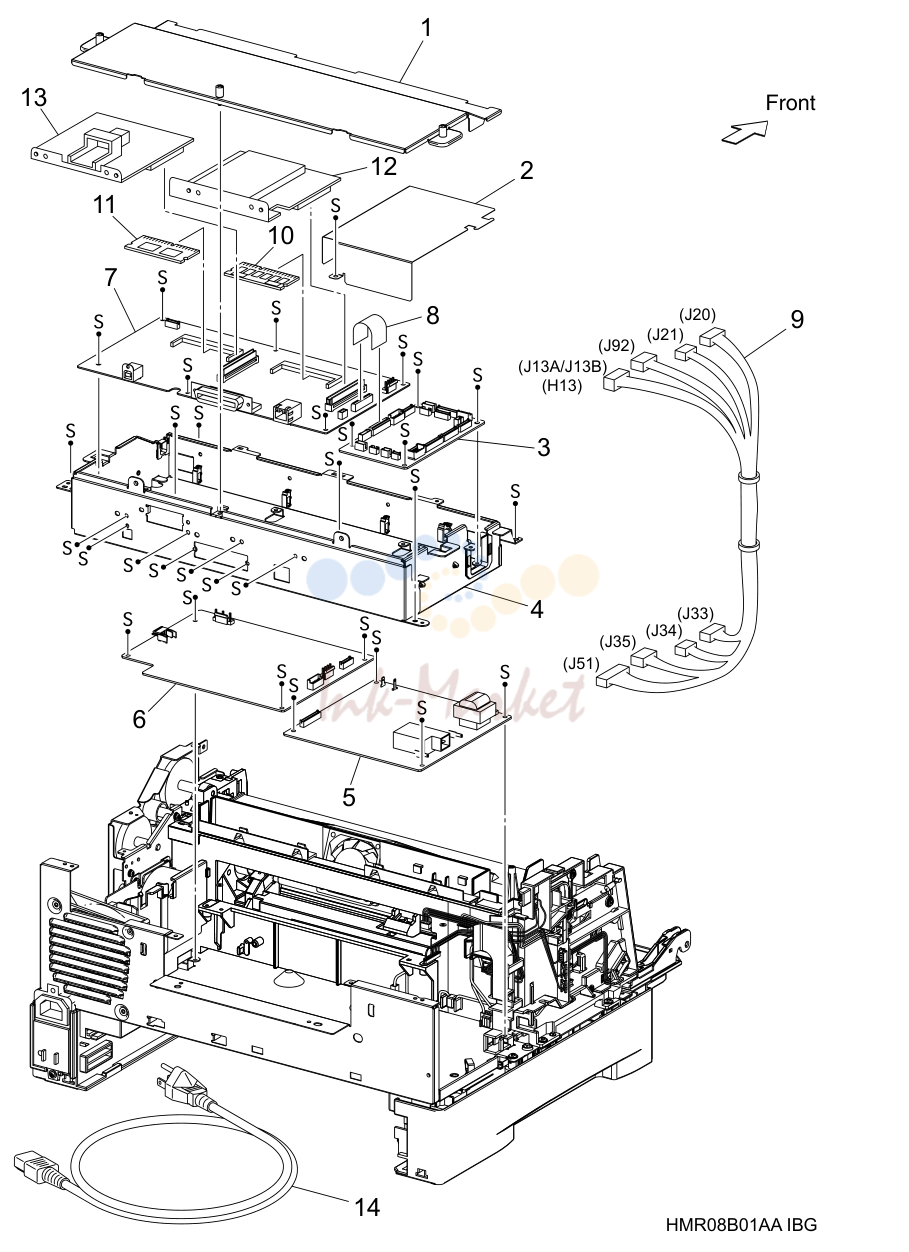

9. Chapter 5 Parts List

№	Артикул	Описание
1		-- SHIELD ASSY ESS 70A1
2		-- COVER MCU 70A2
4		-- CHASSIS ESS 70A4
6	105K22710 запросить цену →	(SCC) POWER SUPPLY ASSY LV 200V 70A5
8		-- FFC VIDEO 70A7
9		- HARNESS ASSY PS 70A8
12		-- (ISC) (SCC) HDD Assy (Option)
1		(with 3,4,6,25)
25		(with 5,7-9,12-14)
17		(with 18-20)
11		2 (with 10,11,23)
1		604K 39310 KIT BASE ASSY INTERLOCK (with 3, 4, 6, 25) 44A1
2		-- KIT ARM SHUTTER (with 10, 11, 23) 44A2
3		-- HARNESS ASSY MAIN FRM 44A3
4		-- HARNESS ASSY INTERLOCK 44A4
5		-- HOLDER INTERLOCK SW 44A5
6		-- HARNESS ASSY SNR REGI 44A6
7		-- LEVER INTERLOCK TOP 44A7
8		-- SPRING INTERLOCK TOP 44A8
9		-- BASE INTERLOCK 44A9
10		-- SPRING ARM SHUTTER 44B0
11		-- ARM SHUTTER B 44B1
12		-- LEVER INTERLOCK FRONT 44B2
13		-- LEVER INTERLOCK SW 44B3
14		-- SPRING INTERLOCK FRONT 44B4
15		-- HARNESS ASSY CR 44B5
16		-- HARNESS ASSY DB 44B6
17		-- BRACKET ASSY CRUM SP (with 18-20) 44B7
18		-- BRACKET CRUM CONN 44B8
19		-- SCREW SHOULDER CRUM 44B9
20		-- HARNESS ASSY CRU 44C0
21		-- FRAME ASSY MAIN SUB 44C1
22		-- FRAME ASSY BASE 44C2
23		-- ARM SHUTTER A 44C3
24		908W 01201 BREAKER 44C4
25		-- BASE ASSY-INTERLOCK (with 5, 7-9, 12-14) 44C5
26		-- (SCC) HARNESS ASSY PE 44C6

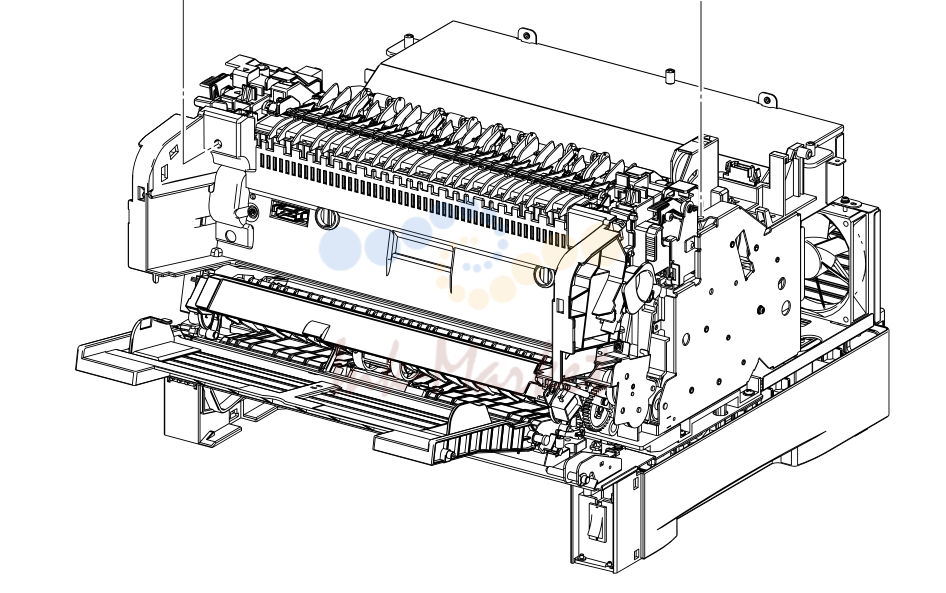

10. Chapter 5 Parts List

№	Артикул	Альт. артикул	Описание
1			-- ROLL DUP 5AA3
2			-- SPRING PINCH 5AA4
3			-- ROLL PINCH 5AA5
4			-- KIT ACTUATOR DUP (with 5, 6)
5			-- ACTUATOR DUP 5AA7
6			-- SPRING ACTUATOR 5AA8
7			-- (SCC) SENSOR PHOTO 5AA9
8			-- FRAME DUP 5AB0
9			-- BEARING DUP 5AB1
10			-- GEAR ROLL 35 5AB2
11			-- GEAR 37 5AB3
12			-- GEAR 23-34 5AB4
13			-- (SCC) DUP MOTOR 5AB5
14			-- DAMPER ASSY MOTOR 5AB6
15			-- BRACKET MOTOR 5AB7
16			-- COVER R 5AB8
17			-- SCREW 5AB9
18			-- CHUTE COVER 5AC0
19			-- COVER L 5AC1
20			-- BRACKET PWB 5AC2
21			-- DUP PWB 5AC3
22			-- (SCC) HARNESS ASSY DUP 5AC4
23			-- CHUTE UNDER 5AC5
24			-- COVER REAR 5AC6
25			-- PLATE FG 5AC7
26			-- HARNESS ASSY SNR DUP 5AC8
27			-- HARNESS ASSY COVER DUP 5AD9

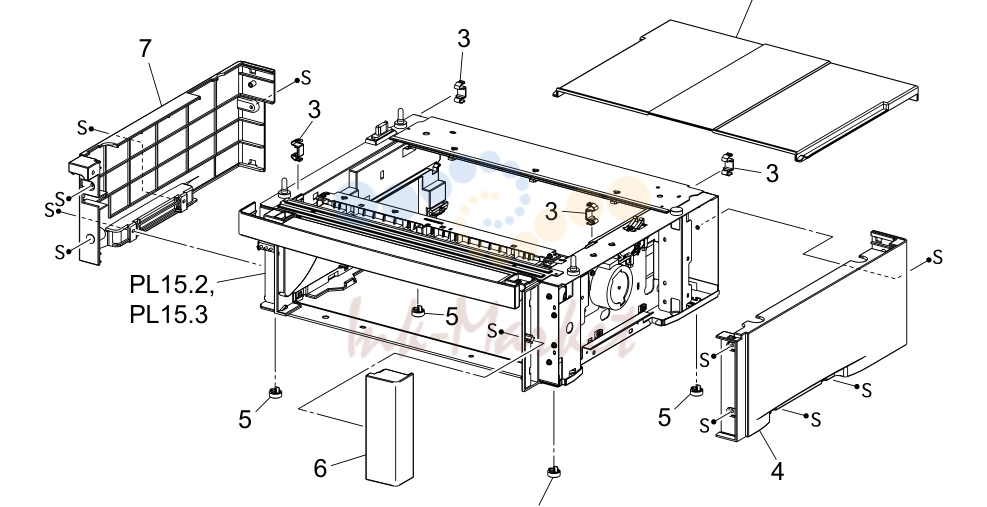

11. Chapter 5 Parts List

№	Артикул	Альт. артикул	Описание
1			059K 53497 FEEDER ASSY 250 (with 2-7, PL14.2, PL14.3) 57A1
2			848E 06900 (SCC) COVER CST 57A2
3			113E 36900 JOINT FEEDER 57A3
4			848E 07301 (SCC) COVER FDR 250 R 57A4
5			017E 94972 FOOT 57A5
6			848E 07320 (SCC) COVER FDR FRONT R250 57A6
7			848E 07280 (SCC) COVER FDR 250 L 57A7
1			(with 2-4,22, PL14.3)
7			(with 8-14)
12			(with 13,14)
1			059K 53640 FEEDER ASSY SUB SP (with 2-4, 22, PL14.3) 57A8
2			-- PLATE CHUTE 57A9
3			-- BRACKET SENSOR 57B0
4			130E 89320 (SCC) PAPER EDGE SENSOR 57B1
5			809E 64101 SPRING EATH 57B2
6			007K 97851 DRIVE ASSY OPTION 57B3
7			054K 33301 CHUTE ASSY TURN OPT 57B4
8			-- CHUTE TURN 57B5
9			-- SPRING PINCH 57B6
10			-- ROLL PINCH TURN 57B7
11			-- HOLDER ACTUATOR 57B8
12			604K 39510 KIT ACTUATOR EDGE OPTFDR (with 13, 14) 57B9
13			-- ACTUATOR EDGE OPTFDR 57C0
14			-- SPRING SNSR OPTFDR 57C1
15			032K 04950 KIT GUIDE CST R250 57C2
16			032K 04990 KIT GUIDE CST L250 57C3
17			110E 10500 (SCC) SIZE SWITCH 57C4
18			960K 29530 (SCC) FDR PWB 250 57C5
19			962K 54340 (SCC) HARNESS ASSY FEEDER3 (DRAWER LOW) 57C6
20			962K 54331 (SCC) HARNESS ASSY FEEDER2 (DRAWER UP) 57C7
21			962K 54350 (SCC) HARNESS ASSY SIZE FDR 57C8
22			962K 54360 (SCC) HARNESS ASSY EDGE FDR 57C9
23			962K 54381 (SCC) HARNESS ASSY PH FDR 57D0

12. Chapter 5 Parts List

№	Артикул	Альт. артикул	Описание
1			-- FEEDER ASSY SUB (with 2-13) 57D1
2			-- BEARING EARTH 57D2
3			121K 40041 (SCC) TURN CLUTCH 57D3
4			121K 40031 (SCC) FEED CLUCTH 57D4
5			-- HOLDER NO PAPER R 57D5
6			120E 26903 ACTUATOR NO PAPER 57D6
7			-- HOLDER NO PAPER L 57D7
8			005E 16951 CLUTCH ONE WAY NUDGER 57D8
9			005E 16941 CLUTCH ONE WAY FEED 57D9
10			-- ROLL ASSY FEED 57E0
11			130E 89320 (SCC) TRAY NO PAPER SENSOR 57E1
12			059K 47280 ROLL ASSY TURN 57E2
13			962K 54371 (SCC) HARNESS ASSY NO PAPER FDR 57E3

13. Chapter 5 Parts List

№	Артикул	Альт. артикул	Описание
1			-- FEEDER ASSY 550 (with 2-7, PL15.2, PL15.3) 57F1
2			-- COVER CST 57F2
3			-- JOINT FEEDER 57F3
4			-- (SCC) COVER FDR 550 R 57F4
5			-- FOOT 57F5
6			-- (SCC) COVER FDR FRONT R550 57F6
7			-- (SCC) COVER FDR 550 L 57F7
1			(with 2-4,22, PL15.3)
9			7 (with 8-14)
12			(with 13,14)
1			-- FEEDER ASSY SUB SP (with 2-4, 22, PL15.3) 57F8
2			-- PLATE CHUTE 57F9
3			-- BRACKET SENSOR 57G0
4			-- (SCC) PAPER EDGE SENSOR 57G1
5			-- SPRING EATH 57G2
6			-- DRIVE ASSY OPTION 57G3
7			-- CHUTE ASSY TURN OPT 57G4
8			-- CHUTE TURN 57G5
9			-- SPRING PINCH 57G6
10			-- ROLL PINCH TURN 57G7
11			-- HOLDER ACTUATOR 57G8
12			-- KIT ACTUATOR EDGE OPTFDR (with 13, 14) 57G9
13			-- ACTUATOR EDGE OPTFDR 57H0
14			-- SPRING SNSR OPTFDR 57H1
15			-- KIT GUIDE CST R550 57H2
16			-- KIT GUIDE CST L550 57H3
17			-- (SCC) SIZE SWITCH 57H4
18			-- FDR PWB 550 57H5
19			-- (SCC) HARNESS ASSY FEEDER3 (DRAWER LOW) 57H6
20			-- (SCC) HARNESS ASSY FEEDER2 (DRAWER UP) 57H7
21			-- (SCC) HARNESS ASSY SIZE FDR 57H8
22			-- (SCC) HARNESS ASSY EDGE FDR 57H9
23			-- (SCC) HARNESS ASSY PH FDR 57I0

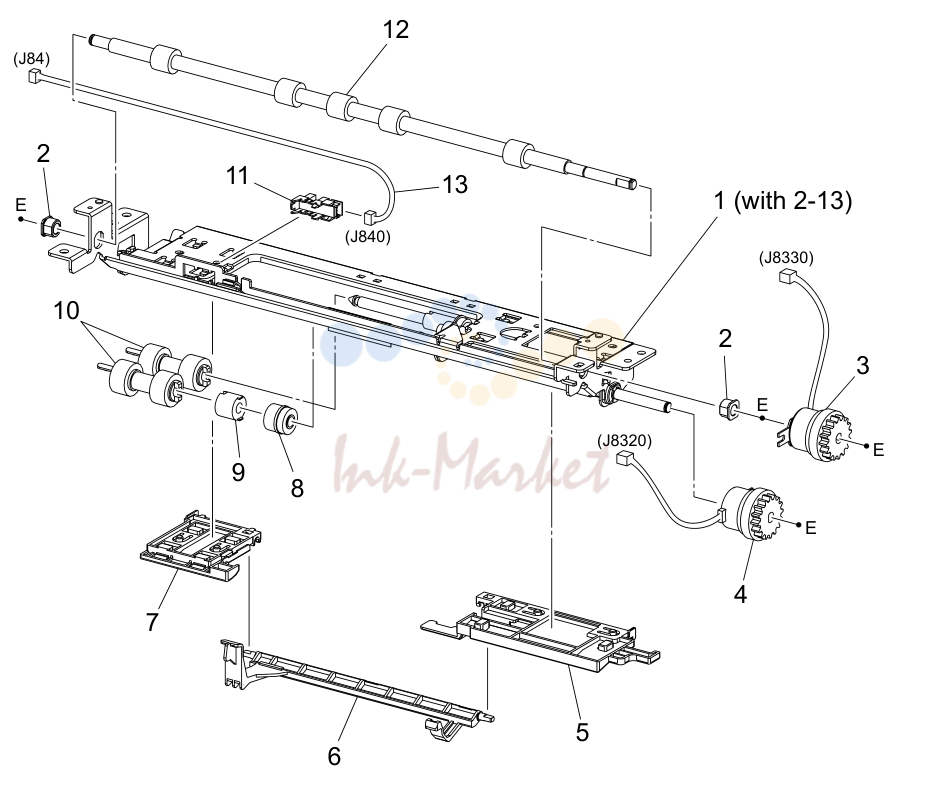

14. Chapter 5 Parts List

№	Артикул	Альт. артикул	Описание
1			-- FEEDER ASSY SUB (with 2-13) 57I1
2			-- BEARING EARTH 57I2
3			-- (SCC) TURN CLUTCH 57I3
4			-- (SCC) FEED CLUCTH 57I4
5			-- HOLDER NO PAPER R 57I5
6			-- ACTUATOR NO PAPER 57I6
7			-- HOLDER NO PAPER L 57I7
8			-- CLUTCH ONE WAY NUDGER 57I8
9			-- CLUTCH ONE WAY FEED 57I9
10			-- ROLL ASSY FEED 57J0
11			-- (SCC) TRAY NO PAPER SENSOR 57J1
12			-- ROLL ASSY TURN 57J2
13			-- (SCC) HARNESS ASSY NO PAPER FDR 57J3

Источник: Инк-Маркет.ру.

← Все статьи
