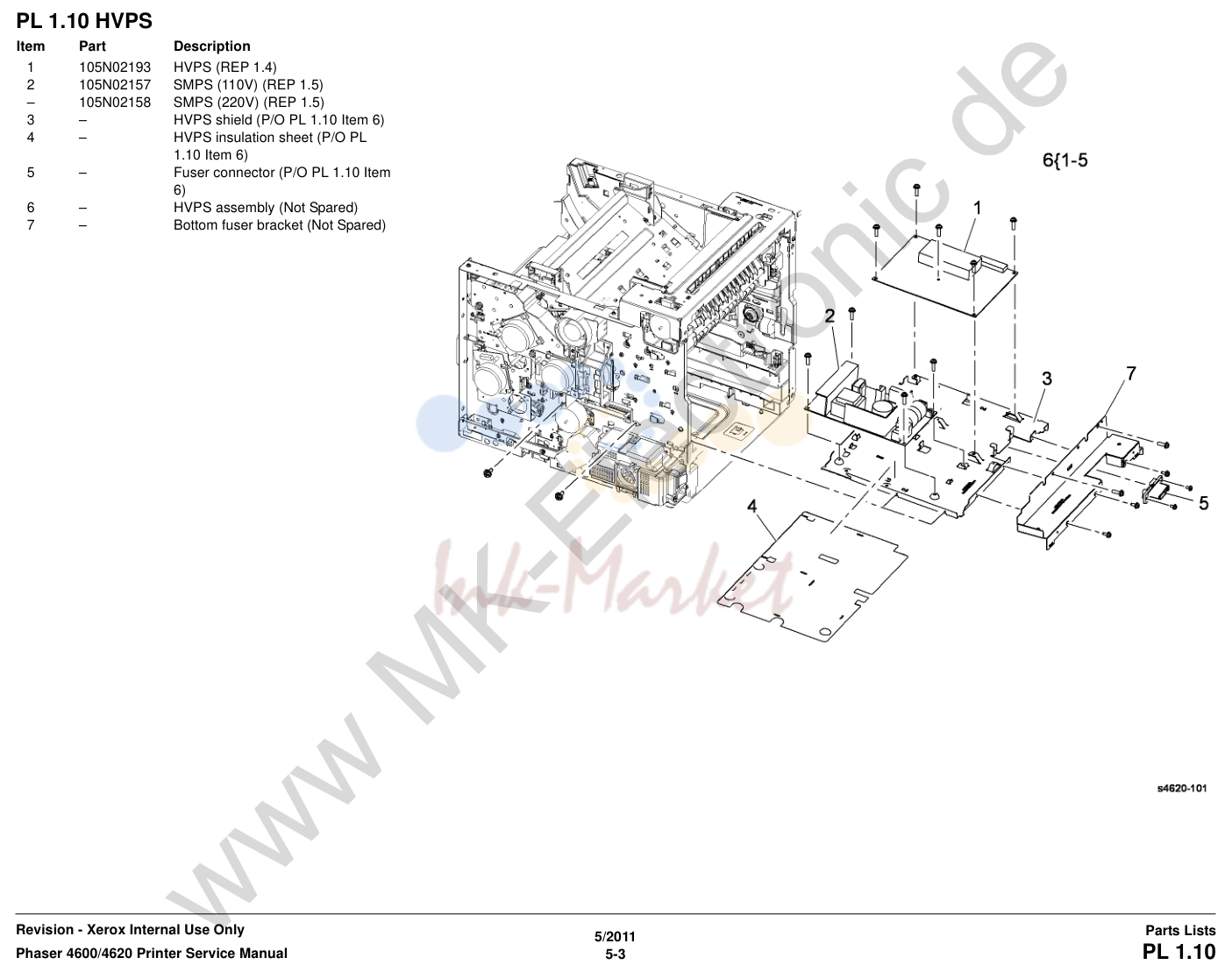

1. PL 1.10 HVPS
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 105N02193 запросить цену → | HVPS (REP 1.4) | |
| 2 | 105N02157 запросить цену → | SMPS (110V) (REP 1.5) | |
| 3 | - HVPS shield (P/O PL 1.10 Item 6) | ||
| 4 | - HVPS insulation sheet (P/O PL | ||
| 5 | - Fuser connector (P/O PL 1.10 Item i | ||
| 6 | - HVPS assembly (Not Spared) | ||
| 7 | - Bottom fuser bracket (Not Spared) | ||
| 1 | - Fuser drive cover (P/O PL 1.15 | ||
| 2 | 140N63472 запросить цену → | Fuser drive board (110V) (REP 1.2) | |
| 3 | - Back cover (P/O PL 1.15 Item 8) | ||
| 4 | - Main power switch (P/O PL 1.15 c | ||
| 5 | - Main power socket (P/O PL 1.15 i | ||
| 6 | 127N07668 запросить цену → | SMPS fan (MOT09-500) (REP 1.7) | |
| 7 | - Fan duct (Not Spared) | ||
| 8 | 001N00525 запросить цену → | Fuser drive board assembly (110V) o | |
| 9 | 127N07584 запросить цену → | Fan-DC | |
| 1 | 002N02990 запросить цену → | Control panel assembly (4600) | |
| 2 | - Decoration cover (P/O PL 2.10 Item | ||
| 3 | - Top cover housing (P/O PL 2.10 | ||
| 4 | - UI top cover (P/O PL 2.10 Item 1) | ||
| 5 | - Help key (P/O PL 2.10 Item 1) | ||
| 6 | - Power key (P/O PL 2.10 Item 1) | ||
| 7 | - Stop key (P/O PL 2.10 Item 1) o | ||
| 8 | 140N63466 запросить цену → | Main board (REP 2.2) | |
| 9 | - Lower cover (P/O PL 2.10 Item 1) | ||
| 10 | - LCD screen housing (P/O PL 2.10 r | ||
| 11 | - LCD ground (P/O PL 2.10 Item 1) | ||
| 12 | - LCD screen (P/O PL 2.10 Item 1) c | ||
| 13 | - Rubber stop (P/O PL 2.10 Item 1) | ||
| 14 | - Number keys (P/O PL 2.10 Item 1) | ||
| 1 | - IP board cage (Not Spared) (REP | ||
| 2 | 109N00709 запросить цену → | IP board (4600) (REP 3.6) | |
| 3 | 140N63467 запросить цену → | MCU board (REP 3.4) | |
| 4 | - MCU board bracket (Not Spared) c | ||
| 5 | - Lower option connector (Not i | ||
| 6 | - Configuration card (Not Spared) | ||
| 7 | 113N01312 запросить цену → | Configuration card holder | |
| 8 | 128K01770 запросить цену → | Memory card (512 Mb) o | |
| 9 | 007N01651 запросить цену → | 160Gb | Hard disk |
| 10 | see note Tray 2 size switch (Not Spared) | ||
| 11 | 117N01902 запросить цену → | Ribbon cable r | |
| 1 | 007N01663 запросить цену → | Main drive assembly (REP 4.1) | |
| 2 | 127N07590 запросить цену → | Right side chassis fan (MOT06- | |
| 3 | 007N01664 запросить цену → | Fuser release drive assembly (REP | |
| 4 | 007N01659 запросить цену → | Fuser drive assembly (REP 10.8) c | |
| 5 | 007N01661 запросить цену → | Duplex drive assembly (REP 10.9) | |
| 6 | 007N01662 запросить цену → | Feed drive assembly (REP 4.4) i | |
| 7 | 005N01128 запросить цену → | Registration clutch (CL08- | |
| 8 | - Registration clutch bracket (Not o | ||
| 9 | - Not Used | ||
| 10 | - Feed clutch bracket (Not Spared) r | ||
| 11 | 127N07488 запросить цену → | Tray 2 lift motor (REP 7.7) | |
| 12 | 007N01665 запросить цену → | Tray 2 lift gear (REP 7.8) | |
| 13 | - Lift motor housing (Not Spared) c | ||
| 14 | - Spring (Not Spared) | ||
| 15 | 007N01658 запросить цену → | Pick-up drive |
2. PL 6.10 Laser Unit
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | - Front cover (P/O PL 7.10 Item 23) | ||
| 2 | - Tray frame (P/O PL 7.10 Item 23) | ||
| 3 | - Tray lift plate (P/O PL 7.10 Item 23) | ||
| 4 | - Left width paper guide (P/O PL 7.10 | ||
| 5 | - Right width paper guide (P/O PL i | ||
| 6 | - Seperator roller (P/O PL 7.10 Item | ||
| 7 | - Seperator clutch (P/O PL 7.10 Item o | ||
| 8 | - Roller (P/O PL 7.10 Item 23) | ||
| 9 | - Shaft (P/O PL 7.10 Item 23) | ||
| 10 | - Bearing (P/O PL 7.10 Item 23) t | ||
| 11 | - Idle shaft (P/O PL 7.10 Item 23) | ||
| 12 | - Lift plate shaft (P/O PL 7.10 Item | ||
| 13 | - Lift shaft plate (P/O PL 7.10 Item e | ||
| 14 | - Pad (P/O PL 7.10 Item 23) | ||
| 15 | - Pick-up mounting bracket (P/O PL | ||
| 16 | - Rack guide (P/O PL 7.10 Item 23) | ||
| 17 | - Rack drive gear (P/O PL 7.10 Item | ||
| 18 | - Sector gear (P/O PL 7.10 Item 23) | ||
| 19 | - Pick-up gear (P/O PL 7.10 Item 23) K | ||
| 20 | - Pick-up idle gear (P/O PL 7.10 Item | ||
| 21 | - Tray guide roller (P/O PL 7.10M Item | ||
| 22 | - Media level indicator (P/O PL 7.10 | ||
| 23 | 050N00562 запросить цену → | Tray assembly | |
| 1 | - Left cover (Not Spared) (REP 7.26) | ||
| 2 | - Left side frame (Not Spared) (REP | ||
| 3 | - Front cover (Not Spared) (REP | ||
| 4 | - Rear tray cover (Not Spared) c | ||
| 5 | - Rear cover (Not Spared) (REP | ||
| 6 | - Right side frame (Not Spared) (REP | ||
| 7 | - Right cover (Not Spared) (REP | ||
| 8 | - Clutch cover (Not Spared) | ||
| 1 | - Paper feed assembly (Not Spared) | ||
| 2 | - Rear cover (Not Spared) (REP | ||
| 3 | - Right cover (Not Spared) (REP | ||
| 4 | - Front cover assembly (Not Spared) c | ||
| 5 | - Left cover (Not Spared) (REP 7.40) | ||
| 6 | 002N02988 запросить цену → | Front cover dummy i | |
| 7 | - Retard cover (Not Spared) | ||
| 1 | - Base unit (P/O PL 7.25 Item 26) | ||
| 2 | 017N00295 запросить цену → | Caster (REP 7.41) | |
| 3 | 017N00294 запросить цену → | Locking caster | |
| 4 | - Sensor bracket (P/O PL 7.25 Item | ||
| 5 | 110K14300 запросить цену → | Size 1 sensor / Size 2 sensor / Size c | |
| 3 | sensor (see NOTE) | ||
| 6 | - Safety cover (P/O PL 7.25 Item 26) i | ||
| 7 | 007N01669 запросить цену → | Reduction gear assembly (REP | |
| 8 | - Lift plate housing (P/O PL 7.25 Item | ||
| 9 | - Left side plate (P/O PL 7.25 Item | ||
| 10 | 022N02481 запросить цену → | Paper feeder r | |
| 11 | - Lift plate (lower) (P/O PL 7.25 Item | ||
| 12 | - Lift plate (upper) (P/O PL 7.25 Item c | ||
| 13 | - Top plate (P/O PL 7.25 Item 26) | ||
| 14 | - Harness mount (P/O PL 7.25 Item | ||
| 15 | - Harness (P/O PL 7.25 Item 26) E | ||
| 16 | - Rear plate (P/O PL 7.25 Item 26) | ||
| 17 | - Right side plate (P/O PL 7.25 Item | ||
| 18 | 140N63469 запросить цену → | HCF control board (REP 7.44) | |
| 19 | 127N07669 запросить цену → | Lift motor (REP 7.45) (see NOTE) K | |
| 20 | 127N07588 запросить цену → | Feed motor (REP 7.48) (see | |
| 21 | - Feed motor gear bracket (P/O PL | ||
| 22 | - Clutch bracket assembly (P/O PL | ||
| 23 | - Bearing (P/O PL 7.25 Item 27) | ||
| 24 | 121N01206 запросить цену → | Feed clutch (REP 7.46) (see | |
| 25 | - Clutch shaft (P/O PL 7.25 Item 27) | ||
| 26 | 059K77920 запросить цену → | HCF assembly | |
| 27 | 121N01205 запросить цену → | Clutch assembly | |
| 28 | 007N01667 запросить цену → | Feed drive assembly (REP 7.47) | |
| 29 | 110N01452 запросить цену → | Front door interlock switch (REP | |
| 30 | 140N6339w5 запросить цену → | Jumper board | |
| 31 | - Feed sensor (P/O ) (see NOTE) | ||
| 1 | - Bottom frame (P/O PL 8.10 Item | ||
| 2 | - Top frame (P/O PL 8.10 Item 14) | ||
| 3 | 022N02480 запросить цену → | Pick assembly (REP 7.3) | |
| 4 | 022N02479 ✓ в наличии | Seperator roller assembly (REP | |
| 5 | - Envelope guide (P/O PL 8.10 Item | ||
| 6 | - Release guide (P/O PL 8.10 Item | ||
| 7 | - Top ground (P/O PL 8.10 Item 14) | ||
| 8 | - Ground (P/O PL 8.10 Item 14) o | ||
| 9 | - Release ground (P/O PL 8.10 Item | ||
| 10 | 130N01628 запросить цену → | No paper sensor (Q07-110) (REP r | |
| 11 | - Feed clutch (CL08-810) (P/O PL | ||
| 12 | - Bearing (P/O PL 8.10 Item 14) | ||
| 13 | - Actuator arm (P/O PL 8.10 Item 14) | ||
| 14 | 038N00539 запросить цену → | Tray 1 feeder assembly (REP 7.0) | |
| 1 | - Baseplate (P/O PL 8.15 Item 21) | ||
| 2 | - Holder (P/O PL 8.15 Item 21) | ||
| 3 | - Housing (P/O PL 8.15 Item 21) | ||
| 4 | - No paper sensor actuator (P/O PL | ||
| 5 | - Duplex feed sensor actuator (P/O c | ||
| 6 | - Drive gear (P/O PL 8.15 Item 21) i | ||
| 7 | - Paper guide (P/O PL 8.15 Item 21) | ||
| 8 | - Shaft (P/O PL 8.15 Item 21) | ||
| 9 | - Static eliminator (P/O PL 8.15 Item | ||
| 10 | 022N02232 ✓ в наличии | Feed roller | |
| 11 | - Idle forward roller (P/O PL 8.15 | ||
| 12 | - One way gear (P/O PL 8.15 Item | ||
| 13 | - Feed idle gear (P/O PL 8.15 Item c | ||
| 14 | - Feed joint gear (P/O PL 8.15 Item | ||
| 15 | - Spring (P/O PL 8.15 Item 21) | ||
| 16 | - Bearing (P/O PL 8.15 Item 21) l | ||
| 17 | - Bearing (P/O PL 8.15 Item 21) E | ||
| 18 | - Tray up limit switch (P/O PL 8.15 | ||
| 19 | 130N01628 запросить цену → | Duplex feed sensor (Q08-700)/ | |
| 20 | - Not Used | ||
| 21 | 001N00527 запросить цену → | Feed assembly | |
| 1 | - Feed roll frame (P/O PL 8.20 Item | ||
| 2 | 130N01628 запросить цену → | Tray 3 no paper sensor (Q07-310), | |
| 3 | level sensor (Q07-350), Tray 4 i | ||
| 3 | - No paper sensor actuator (P/O PL | ||
| 4 | 022N02232 ✓ в наличии | Feed roller (1 each) | |
| 5 | - Idle gear (P/O PL 8.20 Item 17) t | ||
| 6 | - One way gear (P/O PL 8.20 Item | ||
| 7 | - Bearing (P/O PL 8.20 Item 17) | ||
| 8 | - Feed roll shaft (P/O PL 8.20 Item e | ||
| 9 | - Static eliminator (P/O PL 8.20 Item | ||
| 10 | - Ground strip (P/O PL 8.20 Item 17) E | ||
| 11 | - Feed joint gear (P/O PL 8.20 Item | ||
| 12 | - Idle gear (P/O PL 8.20 Item 17) - | ||
| 13 | - Not used | ||
| 14 | - Housing (P/O PL 8.20 Item 17) K | ||
| 15 | - Tray up limit switch (P/O PL 8.20 | ||
| 16 | - Bearing (P/O PL 8.20 Item 17M) | ||
| 17 | - Feed assembly | ||
| 1 | - Feed roll frame (P/O PL 8.25 Item | ||
| 2 | 130N01628 запросить цену → | No paper sensor (A)(REP 8.50)/ | |
| 3 | - No paper sensor actuator (P/O PL c | ||
| 4 | 022N02232 ✓ в наличии | Feed roller i | |
| 5 | - Idle gear (P/O PL 8.25 Item 16) | ||
| 6 | - One way gear (P/O PL 8.25 Item | ||
| 7 | - Bearing (P/O PL 8.25 Item 16) o | ||
| 8 | - Feed roll shaft (P/O PL 8.25 Item | ||
| 9 | - Static eliminator (P/O PL 8.25 Item r | ||
| 10 | - Ground strip (P/O PL 8.25 Item 16) | ||
| 11 | - Feed joint gear (P/O PL 8.25 Item c | ||
| 12 | - Idle gear (P/O PL 8.25 Item 16) | ||
| 13 | - Housing (P/O PL 8.25 Item 16) | ||
| 14 | - Tray up limit switch (P/O PL 8.25 | ||
| 15 | - Bearing (P/O PL 8.25 Item 16) E | ||
| 16 | - Feed assembly (REP 8.47) | ||
| 1 | 007N01666 запросить цену → | Feed drive assembly (REP 8.42) | |
| 2 | 005N01116 запросить цену → | Tray 3 feed clutch (CL08-830), Tray | |
| 4 | feed clutch (CL08-840), Tray | ||
| 3 | - Bracket (Not Spared) | ||
| 4 | - Bearing (Not Spared) i | ||
| 5 | 005N01085 запросить цену → | Take away clutch (REP 8.40) (see | |
| 6 | - Bracket (Not Spared) | ||
| 7 | 140N63468 запросить цену → | Feeder board (REP 7.28) o | |
| 8 | - Take away roller (Not Spared) (REP | ||
| 9 | - Size switch (Not Spared) (REP r | ||
| 10 | - Upper option harness (Not Spared) | ||
| 11 | - Lower option harness (Not Spared) | ||
| 1 | 120N00537 запросить цену → | Lift motor (REP 7.29) (see NOTE) | |
| 2 | - Lift motor bracket (Not Spared) | ||
| 3 | - Swing housing (Not Spared) | ||
| 4 | - Lift gear (Not Spared) | ||
| 1 | - Feed guide frame (P/O PL 8.40 | ||
| 2 | - Idle roller assembly (P/O PL 8.40 | ||
| 3 | - Feed guide plate (P/O PL 8.40 Item | ||
| 4 | - Paper guide plate (P/O PL 8.40 i | ||
| 5 | - Mylar guide (P/O PL 8.40 Item 10) | ||
| 6 | - Ground strip (P/O PL 8.40 Item 10) | ||
| 7 | 130N01628 запросить цену → | Tray 3 take away sensor (Q08- o | |
| 8 | - Spring (P/O PL 8.40 Item 10) | ||
| 9 | - Take away sensor actuator (P/O PL | ||
| 10 | - Feed assembly (Not Spared) (REP | ||
| 1 | - Registration drive roller (P/O PL | ||
| 2 | - Registration idle roller (P/O PL 8.45 | ||
| 3 | - Not Used | ||
| 4 | - Right registration bracket (P/O PL c | ||
| 5 | - Left registration bracket (P/O PL i | ||
| 6 | - Spring (P/O PL 8.45 Item 12) | ||
| 7 | - Not Used | ||
| 8 | - Not Used o | ||
| 9 | - Spring (P/O PL 8.45 Item 12) | ||
| 10 | - Bearing (P/O PL 8.45 Item 12) | ||
| 11 | - Bearing (bronze) (P/O PL 8.45 Item r | ||
| 12 | 105N02192 запросить цену → | Registration roller assembly (REP | |
| 1 | - Base frame (P/O PL 8.50 Item 28) | ||
| 2 | - Actuator frame (P/O PL 8.50 Item | ||
| 3 | - Connector board (P/O PL 8.50 Item | ||
| 4 | - Rear transfer ground (P/O PL 8.50 c | ||
| 5 | - Saw side ground (P/O PL 8.50 Item i | ||
| 6 | - Earth ground (P/O PL 8.50 Item 28) | ||
| 7 | - Spring (P/O PL 8.50 Item 28) | ||
| 8 | - Ground (P/O PL 8.50 Item 28) o | ||
| 9 | - ADC sensor holder (P/O PL 8.50 | ||
| 10 | - Guide plate (P/O PL 8.50 Item 28) r | ||
| 11 | - Shaft (P/O PL 8.50 Item 28) | ||
| 12 | - PMO Bearing (P/O PL 8.50 Item | ||
| 13 | - Exit gear (P/O PL 8.50 Item 28) | ||
| 14 | - Rear transfer guide (P/O PL 8.50 | ||
| 15 | 001N00526 запросить цену → | Shaft frame assembly (REP 8.16) | |
| 16 | - Feed sheet (P/O PL 8.50 Item 28) l | ||
| 17 | - Registration ground (P/O PL 8.50 E | ||
| 18 | - Take away roller (P/O PL 8.50 Item | ||
| 19 | - Bearing (P/O PL 8.50 Item 28) | ||
| 20 | - Feed frame assembly (P/O PL 8.50 K | ||
| 21 | - Feed gear (P/O PL 8.50 Item 28) | ||
| 22 | - Drum cartridge CRUM connector | ||
| 23 | - Actuator cover (P/O PL 8.50 Item | ||
| 24 | - Harness connector (P/O PL 8.50 | ||
| 25 | 130N01628 запросить цену → | Registration sewnsor (Q08- | |
| 26 | - Feed sensor actuator (P/O PL 8.50 | ||
| 27 | - Registration sensor actuator (P/O | ||
| 28 | - wMiddle frame assembly (Not | ||
| 29 | - ADC sensor (REP 9.2) (Not | ||
| 1 | - Lower LSU frame | ||
| 2 | - Upper fuser frame (P/O PL 8.55 | ||
| 3 | - Left registration bracket (P/O PL | ||
| 4 | - Right registration bracket (P/O PL c | ||
| 5 | - LED holder (P/O PL 8.55 Item 9) i | ||
| 6 | - Eraser board (P/O PL 8.55 Item 9) | ||
| 7 | - Slide B roller (P/O PL 8.55 Item 9) | ||
| 8 | - Spring (P/O PL 8.55 Item 9) | ||
| 9 | - Upper frame assembly (Not o | ||
| 1 | 113R00762 ✓ в наличии | Drum cartridge | |
| 2 | 022N02478 ✓ в наличии | Transfer roller (REP 9.1) | |
| 3 | - Holder (Not Spared) | ||
| 4 | - Spring (Not Spared) | ||
| 5 | - Retaining clip (Not Spared) | ||
| 6 | 106R01533 запросить цену → | NA/XE std toner cartridge (13K) c | |
| 1 | - Bias contact cover (Not Spared) | ||
| 2 | 001N00528 запросить цену → | Pipe assembly (REP 9.7) | |
| 3 | 127N07668 запросить цену → | Left side chassis fan (MOT04-120) | |
| 4 | 093N01732 запросить цену → | Waste toner cartridge | |
| 5 | - Waste toner full sensor (Not c | ||
| 6 | 130N01628 запросить цену → | Waste toner cartridge detect sensor i | |
| 7 | 140N63465 запросить цену → | Joint board (REP 9.8) | |
| 8 | - Environmental sensor (Not Spared) | ||
| 9 | - Sensor holder (Not Spared) |
3. PL 10.10 Fuser Assembly (1 of 2)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | - Lower bracket (P/O PL 10.10 Item | ||
| 2 | - Cleaning roller assembly (P/O PL | ||
| 3 | 022N02476 запросить цену → | Pressure roller (REP 10.16) | |
| 4 | 013N13847 запросить цену → | Roller bearing c | |
| 5 | - Right bracket (P/O PL 10.10 Item 1) | ||
| 6 | - Left bracket (P/O PL 10.10 Item 1) i | ||
| 7 | - Cam shaft assembly (P/O PL 10.10 | ||
| 8 | - Bush (P/O PL 10.10 Item 1) | ||
| 9 | - Release cam (P/O PL 10.10 Item 1) o | ||
| 10 | - Shaft holder (P/O PL 10.10 Item 1) | ||
| 11 | - Spring (P/O PL 10.10 Item 1) | ||
| 12 | 022N02477 запросить цену → | Heat roller (REP 10.15) r | |
| 13 | 013N13929 запросить цену → | Heat roller bearing (REP 10.15) | |
| 14 | 007N01657 запросить цену → | Fuser gear (REP 10.14) | |
| 15 | - Spring clamp (P/O PL 10.10 Item 1) c | ||
| 16 | - Upper fuser bracket assembly | ||
| 17 | 122N00290 запросить цену → | Heat lamp (110V) (REP 10.13) | |
| 18 | - Lamp bracket (P/O PL 10.10 Item l | ||
| 19 | - Gear bracket (P/O PL 10.10 Item 1) | ||
| 20 | - Upper exit guide (P/O PL 10.10 | ||
| 21 | - AC harness holder (P/O PL 10.10 | ||
| 22 | - Sub AC harness holder (P/O PL | ||
| 23 | - Right cover (P/O PL 10.10 Item 1) | ||
| 24 | - Left cover (P/O PL 10.10 Item 1) | ||
| 25 | - Duplex cover (P/O PL 10.10 Item 1) | ||
| 26 | - Upper cover (P/O PL 10.10 Item 1) | ||
| 27 | - Input guide (P/O PL 10.10 Item 1) | ||
| 28 | - Lower fuser exit guide assembly | ||
| 29 | - Connector (P/O PL 10.10 Item 1) | ||
| 30 | 130N01628 запросить цену → | Fuser exit sensor (Q08-600)/ Fuser | |
| 1 | - Upper bracket (Not Spared) | ||
| 2 | - Thermostat holder (Not Spared) | ||
| 3 | 130N01531 запросить цену → | Thermistor NTC (REP 10.11) | |
| 4 | - Thermostat (Not Spared) (REP | ||
| 5 | 130N01615 запросить цену → | Thermistor NTC (side) | |
| 6 | 130N01614 запросить цену → | Thermistor NTC (center) i | |
| 1 | - Lower exit guide (Not Spared) | ||
| 2 | - Clip (Not Spared) | ||
| 3 | - Spring (Not Spared) | ||
| 4 | - Rear lever (Not Spared) | ||
| 5 | - Actuator holder (Not Spared) | ||
| 6 | - Fuser exit sensor actuator (Not | ||
| 7 | - Actuator spring (Not Spared) n | ||
| 8 | - Upper fuser exit roller (Not Spared) | ||
| 9 | - Duplex exit gear (Not Spared) | ||
| 1 | - Duplex lower frame (P/O PL 10.25 | ||
| 2 | - Duplex upper frame (P/O PL 10.25 | ||
| 3 | - Duplex align guide (P/O PL 10.25 | ||
| 4 | - Bottom duplex ground (P/O PL | ||
| 5 | - Duplex feed brush ground (P/O PL | ||
| 6 | - Duplex gasket ground (P/O PL | ||
| 7 | - PTT label (P/O PL 10.25 Item 26) | ||
| 8 | - Information label (P/O PL 10.25 | ||
| 9 | - Cassette cover (P/O PL 10.25 Item | ||
| 10 | - Tension spring (P/O PL 10.25 Item c | ||
| 11 | 023N01051 запросить цену → | Timing belt (REP 10.19) | |
| 12 | - M-feed bush (P/O PL 10.25 Item | ||
| 13 | - Conductive gasket (P/O PL 10.25 l | ||
| 14 | - P terminal ground (P/O PL 10.25 | ||
| 15 | - Exit F gear (P/O PL 10.25 Item 26) | ||
| 16 | - Idle roll shaft (P/O PL 10.25 Item | ||
| 17 | - Pulley-18 (P/O PL 10.25 Item 26) | ||
| 18 | - Pulley-M-18-dummy (P/O PL 10.25 | ||
| 19 | - Idle roller (P/O PL 10.25 Item 26) | ||
| 20 | - Static eliminator (P/O PL 10.25 Item | ||
| 21 | - Paper guide stud (P/O PL 10.25 | ||
| 22 | - Sponge cover (wP/O PL 10.25 Item | ||
| 23 | - ELA unit roller 1 (P/O PL 10.25 Item | ||
| 24 | - ELA unit roller 2 (P/O PL 10.25 Item | ||
| 25 | 130N01628 запросить цену → | Duplex unit detect sensor (REP | |
| 26 | 022N02484 запросить цену → | Duplex unit assembly (REP 10.1) | |
| 1 | - Exit frame (P/O PL 10.30 Item 25) | ||
| 2 | - Exit chute (P/O PL 10.30 Item 25) | ||
| 3 | - Stacking lever (P/O PL 10.30 Item | ||
| 4 | - Deflector guide (P/O PL 10.30 Item | ||
| 5 | - Exit roller ground (P/O PL 10.30 | ||
| 6 | - Exit ground (P/O PL 10.30 Item 25) | ||
| 7 | - Upper exit roller (P/O PL 10.30 Item | ||
| 8 | - Lower exit roller (P/O PL 10.30 Item o | ||
| 9 | 130N01628 запросить цену → | Stack full sensor (Q08-720) (REP | |
| 10 | - Spring (P/O PL 10.30 Item 25) | ||
| 11 | - Bearing (P/O PL 10.30 Item 25) | ||
| 12 | - Bearing (P/O PL 10.30 Item 25) c | ||
| 13 | - Bearing (P/O PL 10.30 Item 25) | ||
| 14 | - Rear bracket (P/O PL 10.30 Item | ||
| 15 | - Damper pad (P/O PL 10.30 Item | ||
| 16 | - Duplex exit gear (P/O PL 10.30 E | ||
| 17 | - Upper exit gear (P/O PL 10.30 Item | ||
| 18 | - Lower exit gear (P/O PL 10.30 Item | ||
| 19 | - Static eliminator (P/O PL 10.30 Item | ||
| 20 | - Stacking lever sponge (P/O PL | ||
| 21 | - Exit roller cap (P/O PL 10.30 Item | ||
| 22 | - Duplex roller (P/O PL 10.30 Item | ||
| 23 | 007N01660 запросить цену → | Exit drive assemwbly (REP 10.32) | |
| 24 | - Upper option connector (Not | ||
| 25 | 022N02483 запросить цену → | Exit assembly (REP 10.6) | |
| 1 | - Left cover (Not Spared) (REP 11.2) | ||
| 2 | - Right cover (Not Spared) (REP | ||
| 3 | - Top cover (Not Spared) | ||
| 4 | - Output tray assembly (Not Spared) | ||
| 5 | - Rear door (Not Spared) (REP 11.4) | ||
| 6 | - Connector cover (Not Spared) i | ||
| 7 | - Base plate (Not Spared) | ||
| 1 | 140N63470 запросить цену → | Control board (REP 11.5) | |
| 2 | - Control board bracket (Not Spared) | ||
| 3 | - Mounting bracket (Not Spared) | ||
| 4 | - Mailbox option harness (Not | ||
| 1 | 127N07670 запросить цену → | Transport motor (MOT12-120) | |
| 2 | - Grounding strip (Not Spared) | ||
| 3 | - Motor bracket (Not Spared) | ||
| 4 | 023N01282 запросить цену → | Primary drive belt (REP 11.6) | |
| 5 | 023N01281 запросить цену → | Drive belt (REP 11.6) c | |
| 1 | 127N07671 запросить цену → | Upper diverter drive assembly | |
| 2 | - Upper diverter home position | ||
| 3 | - Not used i | ||
| 4 | - Cam gear (Not Spared) | ||
| 5 | - Exit gate cam follower (Not Spared) | ||
| 6 | - Exit gate actuator (Not Spared) o | ||
| 7 | - Mounting bracket (Not Spared) | ||
| 8 | - Bearing (Not Spared) r | ||
| 9 | - Cam follower spring (Not Spared) | ||
| 1 | - Harness cover assembly (Not | ||
| 2 | - Harness cover (Not Spared) | ||
| 3 | - Magnet (Not Spared) | ||
| 4 | - Rear door interlock switch (S12- | ||
| 5 | - Top stacker shield (Not Spared) i | ||
| 6 | - Static eliminator (Not Spared) n | ||
| 7 | - Stacker full actuator (Not Spared) | ||
| 8 | - Idle feed roll assembly (Not Spared) | ||
| 9 | - Idle feed roll (Not Spared) o | ||
| 10 | - Pin (Not Spared) | ||
| 11 | - Spring (Not Spared) | ||
| 12 | - Stack full sensor assembly (Not | ||
| 13 | - Output tray 1 stack full sensor | ||
| 14 | - Sensor bracket (Not Spared) e | ||
| 1 | - Stacker shield (Not Spared) | ||
| 2 | - Tray 1 stacker empty sensor (Q12- | ||
| 3 | stacker full sensor (Q12-930), n | ||
| 3 | - Actuator shaft (Not Spared) o | ||
| 4 | - Spring (Not Spared) | ||
| 5 | - Stacker empty actuator (Not | ||
| 6 | - Exit feed actuator (Not Spared) t | ||
| 7 | - Spring (Not Spared) | ||
| 8 | - Stacker sensor bracket (Not | ||
| 9 | - Idle feed roll assembly (Not Spared) e | ||
| 10 | - Idle feed shaft (Not Spared) | ||
| 11 | - Idle feed roll (Not Spared) | ||
| 12 | - Spring guide (Not Spared) | ||
| 13 | - Feed guide (Not Spared) E | ||
| 14 | - Static eliminator (Not Spared) | ||
| 15 | - Stacker full actuator (Not Spared) | ||
| 16 | - Harness (Not Spared) - | ||
| 1 | - Bottom shield (Not Spared) | ||
| 2 | - Entrance feed sensor (Q12-905)/ | ||
| 3 | - Entrance actuator assembly (Not | ||
| 4 | - Shaft (Not Spared) | ||
| 5 | - Entrance feed actuator (Not i | ||
| 6 | - Spring (Not Spared) | ||
| 7 | - Stacker actuator shaft (Not Spared) | ||
| 8 | - Spring (tray empty) (Not Spared) o | ||
| 9 | - Stacker empty actuator (Not | ||
| 10 | - Exit feed actuator (Not Spared) r | ||
| 11 | - Spring (paper path) (Not Spared) | ||
| 12 | - Harness (Not Spared) | ||
| 1 | - Left cover (Not Spared) (REP 12.1) | ||
| 2 | - Right cover (Not Spared) (REP | ||
| 3 | - Option connector cover (Not | ||
| 4 | - Rear door (Not Spared) (REP c | ||
| 5 | - Bearing (Not Spared) i | ||
| 6 | - Top cover (Not Spared) (REP | ||
| 1 | - Control board bracket (Not Spared) | ||
| 2 | 140N63471 запросить цену → | Control board (REP 12.2) | |
| 3 | - Stacker full sensor (Q12-845) (Not | ||
| 1 | 050N00559 запросить цену → | Stacker shield assembly (REP | |
| 2 | - Stacker tray (P/O PL 12.20 Item 1) | ||
| 3 | - Left guide (P/O PL 12.20 Item 1) | ||
| 4 | - Right guide (P/O PL 12.20 Item 1) | ||
| 5 | - Bearing (P/O PL 12.20 Item 1) | ||
| 6 | - Gear (P/O PL 12.20 Item 1) i | ||
| 7 | - Shaft (P/O PL 12.20 Item 1) n | ||
| 8 | - Guide roll (P/O PL 12.20 Item 1) | ||
| 1 | 007N01668 запросить цену → | Stacker drive assembly (REP | |
| 2 | - Bearing (P/O PL 12.25 Item 1) | ||
| 3 | - Collar (P/O PL 12.25 Item 1) | ||
| 4 | - Shaft (P/O PL 12.25 Item 1) | ||
| 5 | - Mounting bracket (P/O PL 12.25 | ||
| 6 | - Idle shaft (P/O PL 12.25 Item 1) n | ||
| 7 | - Idle gear (P/O PL 12.25 Item 1) | ||
| 8 | - Transport motor (P/O PL 12.25 | ||
| 9 | - Drive gear (P/O PL 12.25 Item 1) | ||
| 10 | - Drive belt (P/O PL 12.25 Item 1) | ||
| 11 | - Securing bracket (P/O PL 12.25 | ||
| 1 | - Extension tray assembly (Not | ||
| 2 | - Clip (P/O PL 12.30 Item 1) | ||
| 3 | - Tray (P/O PL 12.30 Item 1) | ||
| 4 | - Right bracket (P/O PL 12.30 Item 1) | ||
| 5 | - Roller (P/O PL 12.30 Item 1) | ||
| 6 | - Link arm (P/O PL 12.30 Item 1) i | ||
| 7 | - Idle gear (P/O PL 12.30 Item 1) n | ||
| 8 | - Drive belt (P/O PL 12.30 Item 1) | ||
| 9 | - Drive gear (P/O PL 12.30 Item 1) | ||
| 10 | - Actuator (P/O PL 12.30 Item 1) o | ||
| 11 | - Mounting plate (P/O PL 12.30 Item | ||
| 12 | - Drive motor (MOT12-400) (P/O PL | ||
| 13 | - Left bracket (P/O PL 12.30 Item 1) | ||
| 14 | - Support finger home sensor (Q12- | ||
| 1 | 022N02482 запросить цену → | Compile tray assembly (REP | |
| 2 | - Left guide (P/O PL 12.35 Item 1) | ||
| 3 | - Right guide (P/O PL 12.35 Item 1) | ||
| 4 | - Mylar guide (P/O PL 12.35 Item 1) | ||
| 5 | - Left rack (P/O PL 12.35 Item 1) | ||
| 6 | - Right rack (P/O PL 12.35 Item 1) i | ||
| 7 | - Static eliminator (P/O PL 12.35 Item n | ||
| 8 | - Compile tray (P/O PL 12.35 Item 1) | ||
| 9 | - Idle roll (P/O PL 12.35 Item 1) o | ||
| 10 | - Left tamper home position sensor | ||
| 11 | - Exit sensor actuator (P/O PL 12.35 | ||
| 12 | - Spring (P/O PL 12.35 Item 1) | ||
| 13 | - Drive gear (P/O PL 12.35 Item 1) | ||
| 14 | - Not used | ||
| 15 | - Tamper link arm (P/O PL 12.35 E | ||
| 16 | - Shaft (P/O PL 12.35 Item 1) | ||
| 17 | - Not used - | ||
| 18 | - Mounting bracket (P/O PL 12.35 | ||
| 19 | - Right tamper motor (MOT12-300)/ | ||
| 1 | - Transport drive assembly (Not | ||
| 2 | - Front frame (P/O PL 12.40 Item 1) | ||
| 3 | - Rear frame (P/O PL 12.40 Item 1) | ||
| 4 | - Feed roll 1 (P/O PL 12.40 Item 1) | ||
| 5 | - Feed roll 2 (P/O PL 12.40 Item 1) | ||
| 6 | - Feed roll 3 (P/O PL 12.40 Item 1) i | ||
| 7 | - Feed roll 4 (P/O PL 12.40 Item 1) n | ||
| 8 | - Transport motor (MOT12-110) (P/O | ||
| 9 | - Bracket (P/O PL 12.40 Item 1) o | ||
| 10 | - Entrance motor (MOT12-100) (P/O | ||
| 11 | - Bearing (P/O PL 12.40 Item 1) | ||
| 12 | - Drive gear (P/O PL 12.40 Item 1) t | ||
| 13 | - Idle pulley (P/O PL 12.40 Item 1) | ||
| 14 | - Idle gear (P/O PL 12.40 Item 1) | ||
| 15 | - Motor bracket (P/O PL 12.40 Item | ||
| 16 | 023N01283 запросить цену → | Entrance drive belt (REP 12.8) | |
| 17 | - Transport drive belt (P/O PL 12.40 | ||
| 18 | - Exit gate sensor (Q12-900)()/ E | ||
| 19 | - Exit gate sensor actuator (P/O PL - | ||
| 20 | - Actuator bearing (P/O PL 12.40 K | ||
| 21 | - Plastic washer (P/O PL 12.40 Item | ||
| 22 | - Lower drive gear (P/O PL 12.40 | ||
| 23 | - Bearing (P/O PL 12.40 Item 1) | ||
| 24 | - Lower idle gear (P/O PL 1 2.40 Item | ||
| 25 | - Exit gate cam shaft (P/O PL 12.40 | ||
| 26 | - Cam (P/O PL 12.40 Item 1) | ||
| 27 | - Sprinwg (P/O PL 12.40 Item 1) | ||
| 28 | - Lower frame (P/O PL 12.40 Item 1) | ||
| 29 | - Entrance sensor actuator (P/O PL | ||
| 30 | - Inner rear cover (P/O PL 12.40 Item | ||
| 31 | 023N01284 запросить цену → | Rear drive belt | |
| 32 | - Ground strip (P/O PL 12.40 Item 1) | ||
| 1 | 029N00417 запросить цену → | Stapler assembly (REP 12.14) | |
| 2 | - Stapler bracket (P/O PL 12.45 Item | ||
| 3 | - Stapler (P/O PL 12.45 Item 1) | ||
| 4 | - Staple cartridge door interlock | ||
| 5 | - Staple interlock switch (S12-890) i | ||
| 1 | 002N02984 запросить цену → | Left cover (REP 28.3) | |
| 2 | 002N03024 запросить цену → | Waste toner box cover | |
| 3 | 002N02996 запросить цену → | Rear door assembly (REP 28.1) | |
| 4 | 002N02986 запросить цену → | Right cover (REP 28.2) | |
| 5 | 002N02995 запросить цену → | Front cover assembly (REF: PL | |
| 6 | 002N02985 запросить цену → | IP board cover (REP 28.1) | |
| 7 | - Top cover (REF: PL 28.15 Item 9) i | ||
| 8 | - Right fan cover (Not Spared) | ||
| 9 | - Option cover (Not Spared) | ||
| 10 | 035N00428 запросить цену → | Right seal filter o | |
| 11 | - Rear support bracket (Not Spared) | ||
| 1 | 002N02981 запросить цену → | Top cover | |
| 2 | 130N01399 запросить цену → | Top door interlock switch (Q01-100) | |
| 3 | - Hinge stopper (P/O PL 28.15 Item | ||
| 4 | - Harness cover (P/O PL 28.15 Item c | ||
| 5 | - Control panel assembly (REF: PL i | ||
| 6 | - Top door (P/O PL 28.15 Item 9) | ||
| 7 | - Exit gate actuator (P/O PL 28.15 | ||
| 8 | - Stacker guide (P/O PL 28.15 Item | ||
| 9 | 002N02982 запросить цену → | Top cover assembly r | |
| 1 | - Front cover assembly (REF: ) (REP | ||
| 2 | - Front cover (P/O ) | ||
| 3 | - Tray 1 cover (P/O PL 28.20 Item 1) | ||
| 4 | - Tray 1 paper guide asembly (P/O | ||
| 5 | 002N02991 запросить цену → | Tray 1 stacker | |
| 6 | - Tray 1 extension tray (P/O PL 28.20 i | ||
| 7 | - USB host holder (P/O PL 28.20 | ||
| 8 | 140N63464 запросить цену → | USB host board (REP 28.9) o | |
| 1 | 002N02996 запросить цену → | Rear door assembly (REP 28.5) | |
| 2 | - Rear cover (P/O ) | ||
| 3 | - Rear guide (P/O PL 28.15 Item 1) | ||
| 4 | - Exit guide (P/O PL 28.15 Item 1) | ||
| 5 | - Rear left locker (P/O PL 28.15 Item | ||
| 6 | - Rear right locker (P/O PL 28.15 | ||
| 7 | - Spring (P/O PL 28.15 Item 1) | ||
| 8 | - Handle bracket (P/O PL 28.15 Item | ||
| 9 | - Rear cover handle (P/O PL 28.15 o | ||
| 10 | - Handle sponge (P/O PL 28.15 Item | ||
| 11 | - Locker handle (P/O PL 28.15 Item | ||
| 12 | - Not used c | ||
| 13 | 127N07668 запросить цену → | Rear door fan (MOT10-500) (REP | |
| 14 | - Tension spring (P/O PL 28.15 Item | ||
| 15 | - Roller (P/O PL 28.15 Item 1) l | ||
| 16 | - Idle shaft (P/O PL 28.15 Item 1) E | ||
| 17 | - Damper pad (P/O PL 28.15 Item 1) | ||
| 18 | - Female bracket (P/O PL 28.15 Item | ||
| 19 | - Rear door switch (Q01-300) (P/O |
