Xerox Phaser-4500 — каталог запчастей со схемами

Содержание

1. Print Engine Parts
2. Parts List 2.1 150-Sheet Paper Cassette
3. Parts List 4.1 550-Sheet Paper Cassette
4. Parts List 5.1 150-Sheet Paper Feeder
5. Parts List 7.1 550-Sheet Paper Feeder
6. Parts List 8.1 Xerographics
7. Parts List 10.1 Paper Exit (1/2)
8. Parts List 10.2 Paper Exit (2/2)
9. Parts List 11.1 Frame and Drive
10. Parts List 12.1 Electrical
11. Options
12. Parts List 20.2 550-Sheet Paper Feeder (2/2)
13. Parts List 21.1 Duplex Unit
14. Parts List 23.1 Stacker

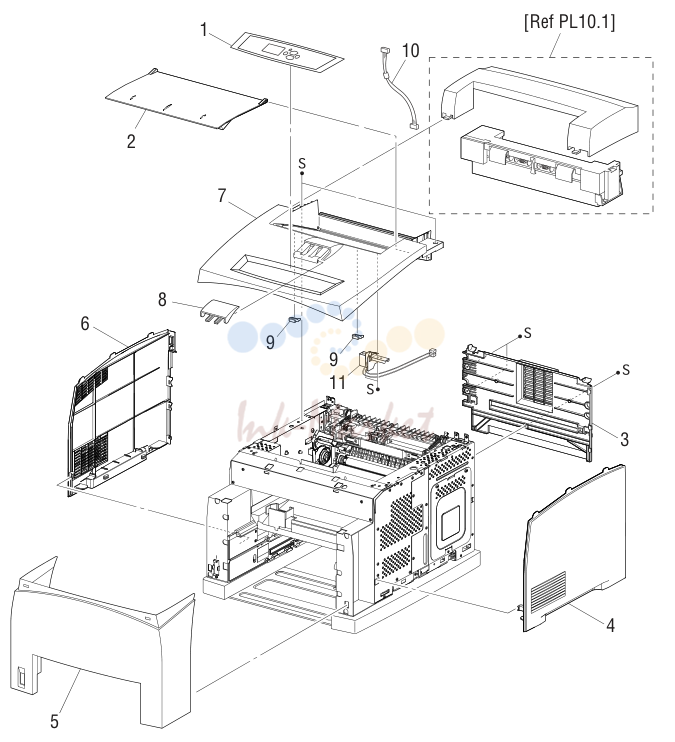

1. Print Engine Parts

№	Артикул	Альт. артикул	Описание
1			OPERATION PANEL (Front Panel) 802K60111
2			COVER OPEN (Top Cover) 802E47284
3			COVER REAR 604K16460
4			COVER RIGHT 802E49522
5			COVER FRONT 802E63801
6			COVER LEFT 802E49491
7			COVER TOP ASSY
8			COVER STOPPER 802E61862
9			STOPPER OPEN
10			HARNESS ASSY PANEL 962K22731
11			SWITCH I/L ASSY (J144, J411) 110K11894
99			KIT TOP COVER (with 7, 9) 604K15381

2. Parts List 2.1 150-Sheet Paper Cassette

№	Артикул	Описание
50		(with 1-13,15-39)
51		(with 2-5)
9-6	Phaser4500 запросить цену →	Service Manual
1		COVER CST 802E47191
2		ROLL ASSY RETARD (p/o Item 99)
3		FRICTION CLUTCH
4		SHAFT RETARD
5		HOLDER RETARD
6		SPRING RETARD 809E37500
7		GEAR PB L
8		GEAR BTM ONEWAY
9		SHAFT PB
10		PLATE ASSY BTM (with 14)
11		GUIDE ASSY SD L150
12		GEAR PINION
13		GUIDE ASSY SD R150
15		GEAR LOCK ONEWAY
16		HOUSING TOP
17		LOCK EXTENSION
18		SPRING BTM UP
19		PLATE GEAR LOCK
20		GEAR PB R
21		RACK BTM LOCK
22		COVER BTM UP
23		GEAR BOTTOM LOCK PINION
24		SPRING BTM LOCK
25		GEAR LEVER LOCK
26		LEVER BTM LOCK
27		SPRING STOPPER GEAR
28		STOPPER GEAR
29		PLATE SUPPORT
30		COVER EXTENSION
31		GEAR SECTOR
32		RACK SIZE
33		HANDLE EXTENSION
34		HOUSING EXTENSION
35		GUIDE END
36		HOUSING BASE
37		LINK SW SIZE1-150
38		LINK SW SIZE2-150
39		LINK SW SIZE3-150
50		150 PAPER CASSETTE (with 1-13, 15-39) 084K15350
51		HOLDER ASSY RETARD (with 2-5) 019K98186
99		Roller Kit (Item 2, Qty. 3) 604K11192
9-8	Phaser4500 запросить цену →	Service Manual

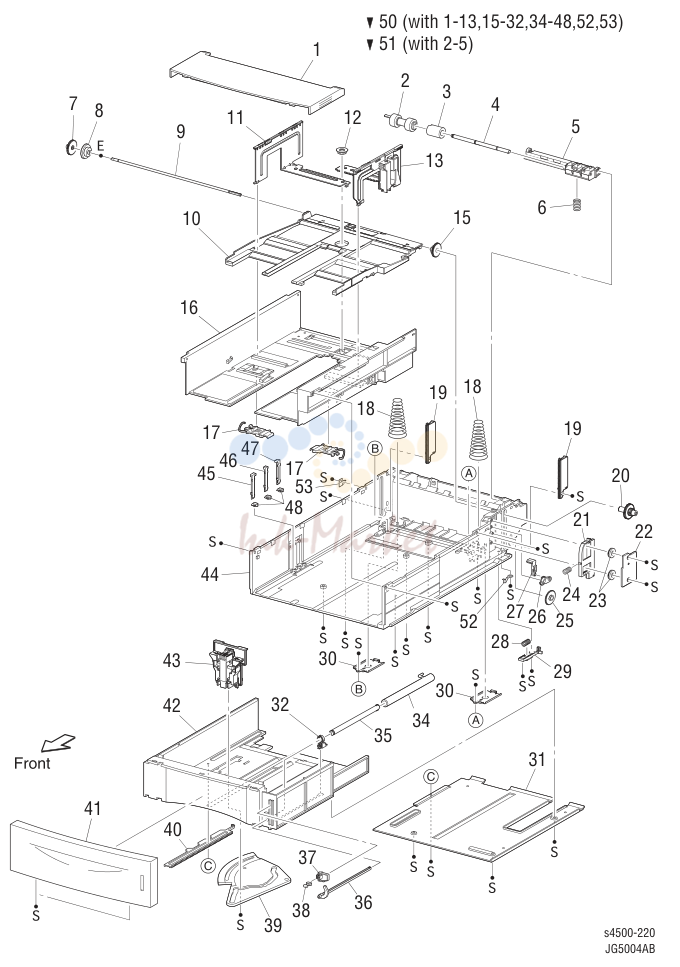

3. Parts List 4.1 550-Sheet Paper Cassette

№	Артикул	Описание
1		COVER CST 802E47191
2		ROLL ASSY RETARD (p/o Item 99)
3		FRICTION CLUTCH
4		SHAFT RETARD
5		HOLDER RETARD
6		SPRING RETARD 809E37500
7		GEAR PB L
8		GEAR BTM ONEWAY
9		SHAFT PB
10		PLATE ASSY BTM
11		GUIDE ASSY SD L550
12		GEAR PINION
13		GUIDE ASSY SD R550
15		GEAR LOCK ONEWAY
16		HOUSING TOP
17		LOCK EXTENSION
18		SPRING BTM UP
19		PLATE GEAR LOCK
20		GEAR PB R
21		RACK BTM LOCK
22		COVER BTM UP
23		GEAR LOCK PINION
24		SPRING BTM LOCK
25		GEAR BTM LOCK
26		GEAR LEVER LOCK
27		LEVER BTM LOCK
28		SPRING STOPPER GEAR
29		STOPPER GEAR
30		PLATE SUPPORT
31		COVER EXTENSION
32		SUPPORT GUIDE IND
34		GUIDE INDICATOR
9-10	Phaser4500 запросить цену →	Service Manual
35		GUIDE INDICATOR
36		GUIDE INDICATOR
37		LOW INDICATOR
38		LOW IND FRONT
39		GEAR SECTOR
40		RACK SIZE
41		HANDLE EXTENSION
42		HOUSING EXTENSION
43		GUIDE END
44		HOUSING BASE
45		LINK SW SIZE1-550
46		LINK SW SIZE2-550
47		LINK SW SIZE3-550
48		LINK SW SIZE LOW
50		550 PAPER CASSETTE (with 1-13, 15-32, 34-48, 51-53) 084K15411
51		HOLDER ASSY RETARD (with 2-5) 019K98186
52		STOPPER BASE R
53		STOPPER BASE L
99		Roller Kit (Item 2, Qty. 3) 604K11192

4. Parts List 5.1 150-Sheet Paper Feeder

№	Артикул	Описание
1		(with 4-12,14-23,25-35,
2		(with 4-10,12,14-20,22,25-28
3		(Reference Only)
17		1615 45 (with 46-50)
9-12	Phaser4500 запросить цену →	Service Manual
1		150 FEEDER ASSY (with 4-12, 14-23, 25-35, 37-44, 46-51) 604K16682
2		FDR1 AS SUB 150 A4 (with 4-10, 12, 14-20, 22, 25-28, 31-35, 40-42,
3		CHUTE ASSY FDR 1 (Reference Only) (with 4-10,14-20,40-42)
4		SUPPORT NUDGER
5		HOLDER LEFT
6		ACTUATOR NO PAPER
7		GEAR IDLER NUDGER
8		HOLDER RIGHT
9		SHAFT NUDGER
10		GEAR NUDGER 059K25270
11		ROLL ASSY NUDGER (part of item 97)
12		ROLL REGI RUBBER
14		COVER ACTUATOR
15		ACTUATOR A (part of Registration Actuator)
16		SPRING REGI SNR B
17		ACTUATOR B (part of Registration Actuator)
18		SPRING REGI SNR A
19		CHUTE BTM ASSY
20		BEARING NUDGER
21		CLUTCH ASSY PH (J242) (Feed Clutch Assembly) 121K28511
22		BEARING REGI LEFT
23		CLUTCH REGI (J243) 121K28511
25		CHUTE REGI
26		VARISTER
27		EARTH PLATE BASE
28		EARTH PLATE MID
29		COVER SENSOR
30		SENSOR REGI (J241) 130E81970
31		SPRING REGI 809E41093
32		BEARING REGI RIGHT
33		GEAR REGI 807E01290
34		ROLL REGI METAL
35		CHUTE EARTH REGI
37		HARNESS ASSY TRAY1 (J245-J240,J241,J242,J243,J244)
38		SENSOR NO PAPER (P240) 130E81970
39		COVER HARNESS R
40		CHUTE TOP ASSY
41		SHAFT FEED
42		CLUTCH ONEWAY NUDGER
43		CLUTCH ONEWAY FEED 005E16941
44		ROLL ASSY FEED (part of item 97)
45		SENSOR TONER ASSEMBLY (with 46-50) 130K63601
46		SENSOR TONER (J220)
47		HOLDER-D (part of item 46)
48		SPRING TONER (part of item 46)
49		SPRING (part of item 46)
50		HARNESS ASSY TONER 1 (J220-P221)
51		GEAR REGI METAL (WHITE)
97		Roller Kit (with 11 or 44, Qty. 3) 604K11192
98		KIT CHUTE REGI (with 25-28)
99		KIT CHUTE BTM (with 14-19)
9-14	Phaser4500 запросить цену →	Service Manual

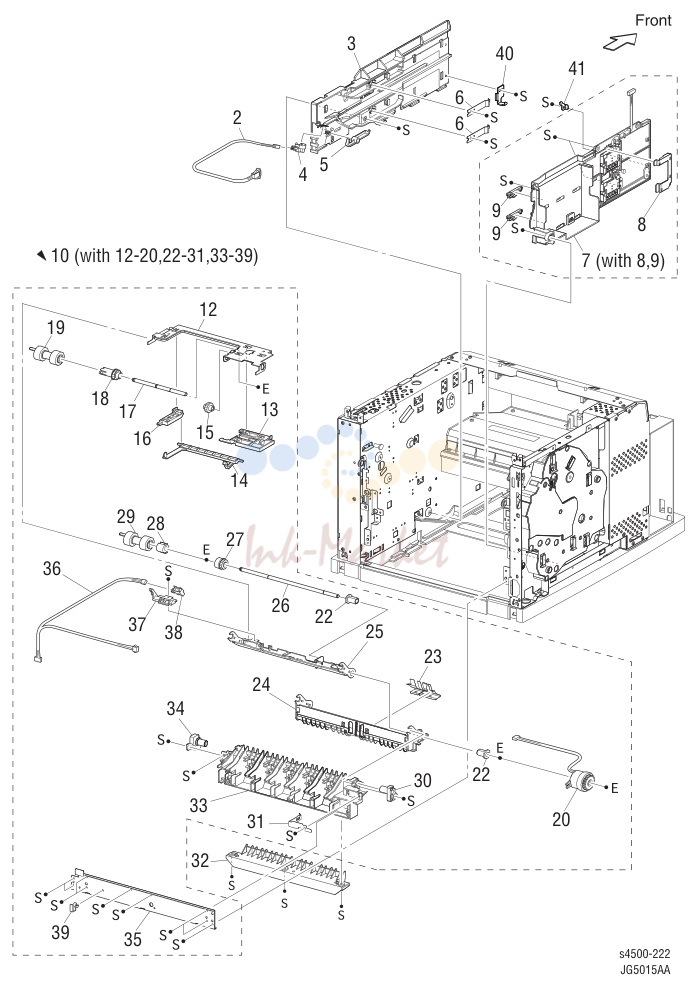

5. Parts List 7.1 550-Sheet Paper Feeder

№	Артикул	Описание
2		HARNESS ASSY LOW1 (J26-P260)
3		GUIDE TRAY RIGHT 032E18795
4		SENSOR LOW PAPER (J260) 130E81970
5		ACTUATOR 120E21311
6		PLATE CST LOCK
7		GUIDE TRAY LEFT (with 8,9) 032K96836
8		COVER HARNESS SIZE
9		LOCK CST L 003E59231
10		550 FEEDER ASSY (with 12-20, 22-31, 33-39) 022K66964
12		SUPPORT NUDGER
13		HOLDER LEFT
14		ACTUATOR NO PAPER
15		GEAR IDLER NUDGER
16		HOLDER RIGHT
17		SHAFT NUDGER
18		GEAR NUDGER 059K25270
19		ROLL ASSY NUDGER (part of item 99)
20		CLUTCH ASSY PH (J247) 121K28511
22		BEARING NUDGER
23		COVER ACTUATOR
24		CHUTE BTM
25		CHUTE TOP ASSY
26		SHAFT FEED
27		CLUTCH ONEWAY NUDGER 005E16951
28		CLUTCH ONEWAY FEED 005E16941
29		ROLL ASSY FEED (Part of item 99)
30		HOLDER PIVOT LEFT
31		EARTH PLATE
32		CHUTE 550 LOWER
33		CHUTE OUT
34		HOLDER PIVOT RIGHT
9-16	Phaser4500 запросить цену →	Service Manual
35		PLATE TIE
36		HARNESS ASSY TRAY2 (J248-J246, P247)
37		COVER HARNESS R
38		SENSOR NO PAPER (P246) 130E81970*
40		STOPPER TRAY R
41		STOPPER TRAY L
99		FEED ROLLER KIT (with 19 or 29, qty. 3) 604K11192

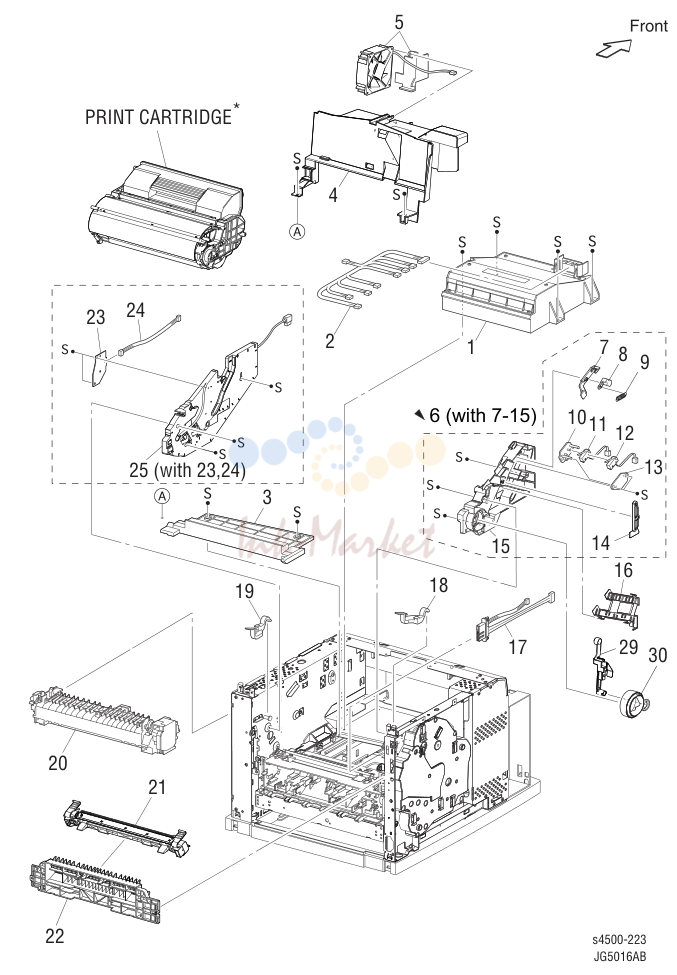

6. Parts List 8.1 Xerographics

№	Артикул	Альт. артикул	Описание
1			ROS ASSY (Laser Unit) (J131,J140,J160,J170) 084K13151
2			HARNESS ASSY ROS (J13, J14, J16, J17-P131, P140, P141, P160,
3			SHIELD PLATE ROS
4			DUCT FRONT
5			FAN SUB (J270) 127K39390
6			GUIDE ASSY CRU L (with 7-15) 032K97110
7			GUIDE SL (part of item 6)
8			SPACER SS (part of item 6)
9			SPRING SL (part of item 6)
10			HOLDER I/L SW1 (part of item 6)
11			INTERLOCK S/W 24 V (J45) (part of item 6)
12			INTERLOCK S/W 5 V (part of item 6)
13			HOLDER I/L SW2 (part of item 6)
14			LEVER GUIDE (Guide Lever) (part of item 6)
15			GUIDE CRU LEFT (part of item 6)
16			COVER GUIDE CRU
17			HARNESS ASSY FUSER 110V (J4647-J46, J47) 962K08241
18			LEVER FUSER LH 011E13362
19			LEVER FUSER RH 011E13373
20			FUSER ASSY 110V 604K14921
21			BTR ASSY (Transfer Roller Assembly) 802K49746
22			CHUTE TRANSFER 054E26070
23			PWBA ASSY ANT (P150) (part of item 25)
24			HARNESS ASSY ANT (J15-J150) (part of item 25)
25			GUIDE ASSY CRU R (J31) (with 23, 24) 032K97011
29			LEVER LINK 012K94351
30			LINK GEAR 3 012E10561

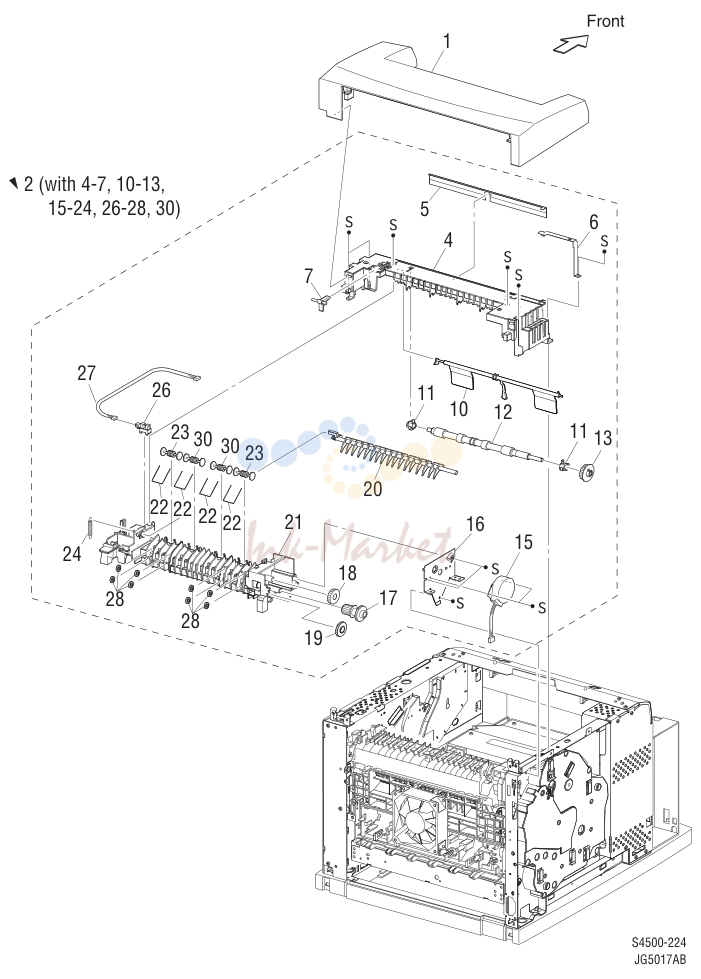

7. Parts List 10.1 Paper Exit (1/2)

№	Артикул	Альт. артикул	Описание
1			COVER EXIT 500 604K16590
2			500 EXIT ASSY (with 4-7, 10-13, 15-24, 26-28, 30) 084K18470
4			CHUTE UP EXIT
5			ELIMINATOR EXIT
6			EARTH PLATE EXIT
7			LINK GATE OCT (Stacker Gate Link)
10			ACTUATOR FULL STACK 604K15560
11			BEARING EXIT
12			ROLL EXIT
13			GEAR
15			MOTOR ASSY EXIT (J103) 127K36930
16			BRACKET MOTOR EXIT
17			GEAR 16/49
18			GEAR 25-2
19			GEAR 25-1
20			GATE OCT EXIT (Stacker Exit Gate)
21			CHUTE LOW EXIT
22			SPRING PINCH EXIT
23			ROLLER PINCH EXIT
24			SPRING GATE OCT (Stacker Gate Spring)
26			SENSOR FULL STACK (P290) 130E81970
27			HARNESS ASSY EXIT SNR (J29-J290)
28			ROLLER EXIT
30			ROLL PINCH EXIT OCT (Stacker Exit Pinch Roller)

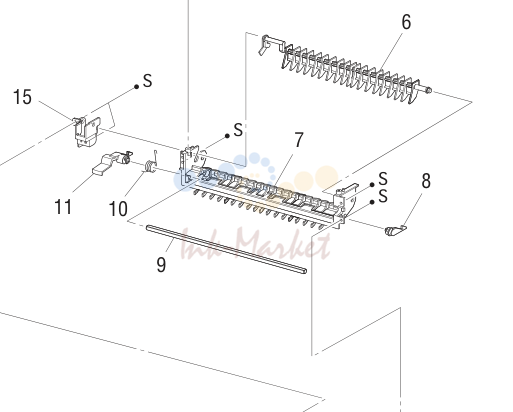

8. Parts List 10.2 Paper Exit (2/2)

№	Артикул	Альт. артикул	Описание
2			CHUTE UP FU
6			GATE FU
7			CHUTE LOW FU
8			LEVER LATCH LEFT
9			PIPE LATCH LEFT
10			SPRING LATCH FU
11			LEVER LATCH RIGHT
15			LEVER GATE HOLDER
20			EARTH PLATE FU
21			COVER REAR
22			COVER DUP 802E48402
23			STOPPER FSR
99			COVER REAR 500 (with 2-22) 084K18451

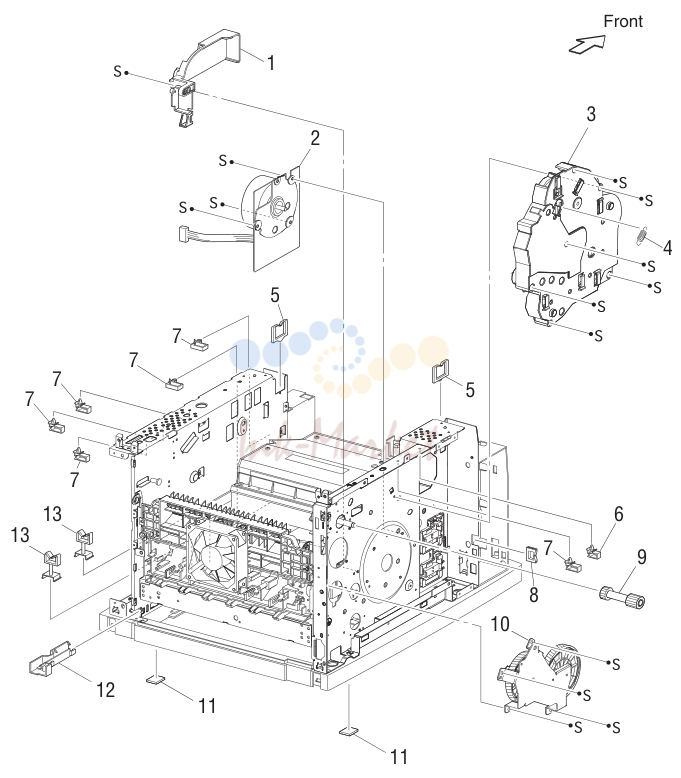

9. Parts List 11.1 Frame and Drive

№	Артикул	Альт. артикул	Описание
1			MOTOR COVER
2			MAIN MOTOR (J43) 127K36822
3			GEAR ASSY HOUSING (with 4) 604K16670
4			SPRING RELEASE (part of item 3)
5			CLAMP EDGE
8			CLAMP-EDGE
9			GEAR 9 807E02560
10			GEAR ASSY PLATE 007K87753
11			FOOT
12			GUIDE HARNESS R
13			CLAMP-RWSH

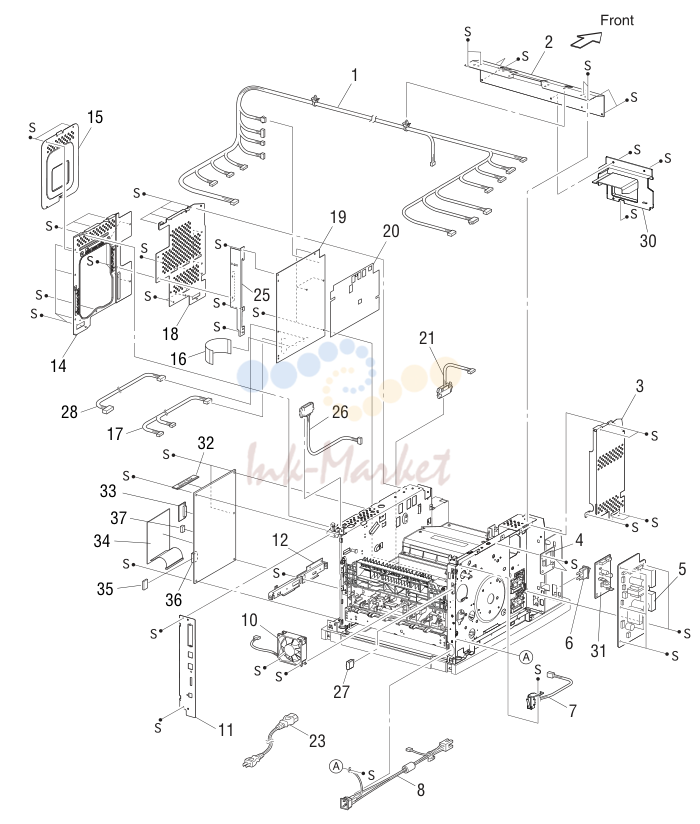

10. Parts List 12.1 Electrical

№	Артикул	Описание
1		HARNESS ASSY LVPS (J10, J11, J18, J27, CNPOW, J141-J42, J41,
2		PLATE TIE FRONT
3		SHIELD PLATE LVPS
4		PWBA EXIT MOTOR 160K91991
5		LVPS 110 V 105K20392
6		POWER SWITCH 110K11570
7		INTERLOCK S/W REAR (J44) 110K11623
10		FAN MAIN (J244) 127E83610
11		PANEL REAR
12		BRACKET HANDLE R
13		I/P PWBA (ESS) 671-5321-80
14		SHIELD ASSY ESS
15		SHIELD ASSY WINDOW
16		FFC ASSY ESS (P28-CNVD) 962K13460
17		HARNESS ASSY CHUTE (J24-P245, P248)
18		SHIELD PLATE HVPS
19		HVPS/MCU 110 V 675K05541
20		MYLAR HVPS
21		HARNESS ASSY FDR1 (J20-P2083) (Feeder Harness 1)
23		POWER CORD 110 V 675K04670
25		BRACKET SHIELD HVPS
26		HARNESS ASSY OCT 1 (J30-P3070) (Stacker Harness 1)
27		CAP CONNECTOR-DRAWER
28		HARNESS ASSY TONER 2 (J22-P221)
30		DUCT (Upper Duct) 054E23162
31		DC-DC Converter 105K20440
32		64 MB RAM DIMM 156-4838-00
128		MB RAM DIMM 156-4837-00
256		MB RAM DIMM 156-4663-00
33		FLASH DIMM 671-5325-0A
34		HARD DRIVE ASSY 650-4309-00
35		CONFIG CARD B TO N 163-1505-00
36		CONFIG CARD BASE 163-1513-00
37		NVRAM DEVICE 163-1459-00
9-28	Phaser4500 запросить цену →	Service Manual

11. Options

№	Артикул	Описание
1		COVER RIGHT PLATE
2		COVER FRONT
3		COVER LEFT PLATE
4		EARTH PLATE
5		HARNESS ASSY FDR2 (J83-JD2083) (Feeder Harness 2)
6		SPRING EARTH TOP
7		FRAME TOP ASSY
8		DRIVE ASSY OPT FDR (with 9-17) 007K87654
9		BRACKET ASSY DRIVE
10		GEAR OPT FDR2
11		GEAR OPT FDR3
12		GEAR OPT FDR4
13		GEAR OPT FDR5
14		GEAR OPT FDR6
15		PLATE FEEDER DRIVE
17		MOTOR FEEDER (J820)
18		OPT ASSY SIZE (J802) (Paper Size Switch Assembly) 110K11634
19		HARNESS ASSY SIZE FDR1 (P802-J801)
20		PLATE EARTH
21		FRAME CVR L550
22		FOOT
23		FRAME BASE FRONT
25		COVER RE550
26		HARNESS ASSY FDR5 (J84-PD8483) (Feeder Harness 5)
27		PLATE CST LOCK
28		FRAME CVR R550
29		HLD LOW PAPER ASSY (P810) (with 30-33) 019K98503
30		SENSOR LOW PAPER (P810)
31		ACTUATOR LOW PAPER
32		HOLDER LOW PAPER
33		HARNESS LOW PAPER (J81-J810)
9-30	Phaser4500 запросить цену →	Service Manual
34		PWBA FEEDER 550 160K86723
35		HARNESS ASSY SIZE FDR2 (J80-J801)
36		HARNESS ASSY CLSNR2 (J85-P855)
37		HARNESS ASSY FDR MOT (J82-P820)
38		JOINT FEEDER 113E36900
39		LOCK CST L 003E59231
40		HARNESS ASSYSIZE FDR3 (J802-J800)
41		STOPPER TRAY L
42		STOPPER TRAY R
99		550 DECK ASSY (ENTIRE) 084K13412

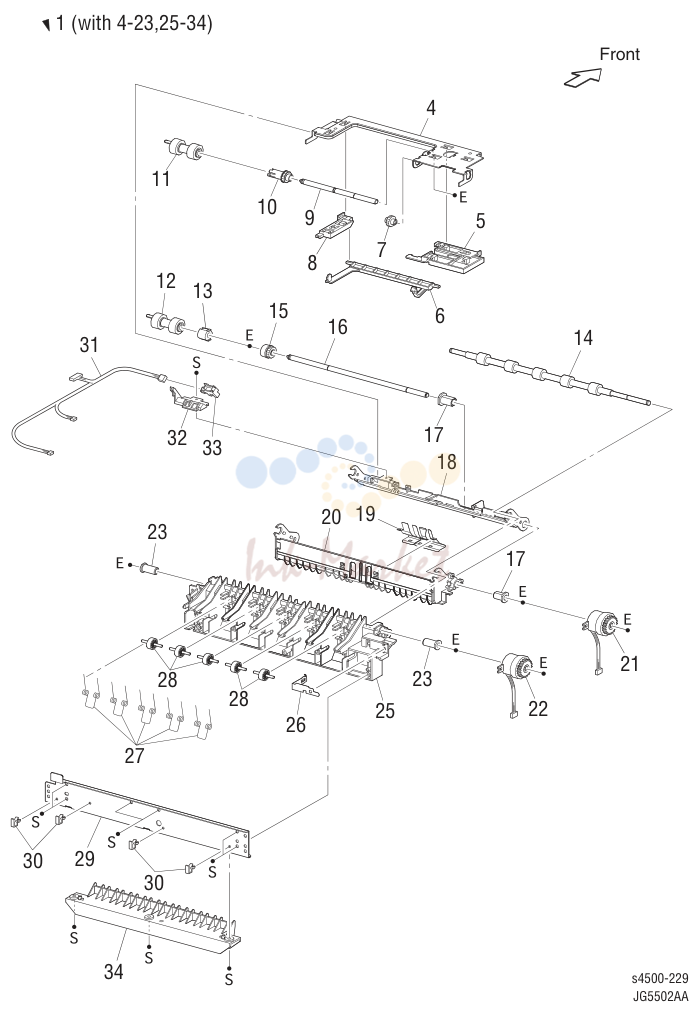

12. Parts List 20.2 550-Sheet Paper Feeder (2/2)

№	Артикул	Описание
1		550 FEEDER OPTION (with 4-23, 25-34) 022K66124
4		SUPPORT NUDGER
5		HOLDER LEFT
6		ACTUATOR NO PAPER
7		GEAR IDLER NUDGER
8		HOLDER RIGHT
9		SHAFT NUDGER
10		GEAR NUDGER 059K25270
11		ROLL ASSY NUDGER (part of 99)
12		ROLL ASSY FEED (part of 99)
13		CLUTCH ONEWAY FEED 005E16941
14		ROLL ASSY TURN
15		CLUTCH ONEWAY NUDGER 005E16951
16		SHAFT FEED
17		BEARING NUDGER 013E22571
18		CHUTE TOP ASSY
19		COVER ACTUATOR
20		CHUTE BTM
21		CLUTCH ASSY PH (J853) (Feed Clutch) 121K28511
22		CLUTCH PR-REGI (J854) (Turn Roller Clutch) 121K28511
23		BEARING FEEDER
25		CHUTE OUT
26		SPRING EARTH (Ground Spring)
27		SPRING PINCH TURN
28		ROLL PINCH TURN
29		PLATE TIE
31		HARNESS ASSY CLSNR1 (J855-J852, P853, P854)
32		COVER HARNESS R
33		SENSOR NO PAPER (P852) 130E81970
34		CHUTE 550 LOWER
99		Roller Kit (with 11 or 12, qty. 3) 604K11192
50		(with 1-13,15-32,34-48,52,53)
1		51 (with 2-5)
9-34	Phaser4500 запросить цену →	Service Manual
1		COVER CST 802E47191
2		ROLL ASSY RETARD (part of 99)
3		FRICTION CLUTCH
4		SHAFT RETARD
5		HOLDER RETARD
6		SPRING RETARD 809E37500
7		GEAR PB L
8		GEAR BTM ONEWAY
9		SHAFT PB
10		PLATE ASSY BTM
11		GUIDE ASSY SD L550
12		GEAR PINION
13		GUIDE ASSY SD R550
15		GEAR LOCK ONEWAY
16		HOUSING TOP
17		LOCK EXTENSION
18		SPRING BTM UP
19		PLATE GEAR LOCK
20		GEAR PB R
21		RACK BTM LOCK
22		COVER BTM UP
23		GEAR LOCK PINION
24		SPRING BTM LOCK
25		GEAR BTM LOCK
26		GEAR LEVER LOCK
27		LEVER BTM LOCK
28		SPRING STOPPER GEAR
29		STOPPER GEAR
30		PLATE SUPPORT
31		COVER EXTENSION
32		SUPPORT GUIDE IND
34		GUIDE INDICATOR
35		GUIDE INDICATOR
36		GUIDE INDICATOR
37		LOW INDICATOR
38		LOW IND FRONT
39		GEAR SECTOR
40		RACK SIZE
41		HANDLE EXTENSION
42		HOUSING EXTENSION
43		GUIDE END
44		HOUSING BASE
45		LINK SW SIZE1-550
46		LINK SW SIZE2-550
47		LINK SW SIZE3-550
48		LINK SW SIZE LOW
50		550 PAPER CASSETTE (with 1-13, 15-32, 34-48, 51-53) 084K15411
51		HLDER ASSY RETARD (with 2-5) 019K98186
52		STOPPER BASE R
53		STOPPER BASE L
99		Roller Kit (with 2, qty. 3) 604K11192
9-36	Phaser4500 запросить цену →	Service Manual

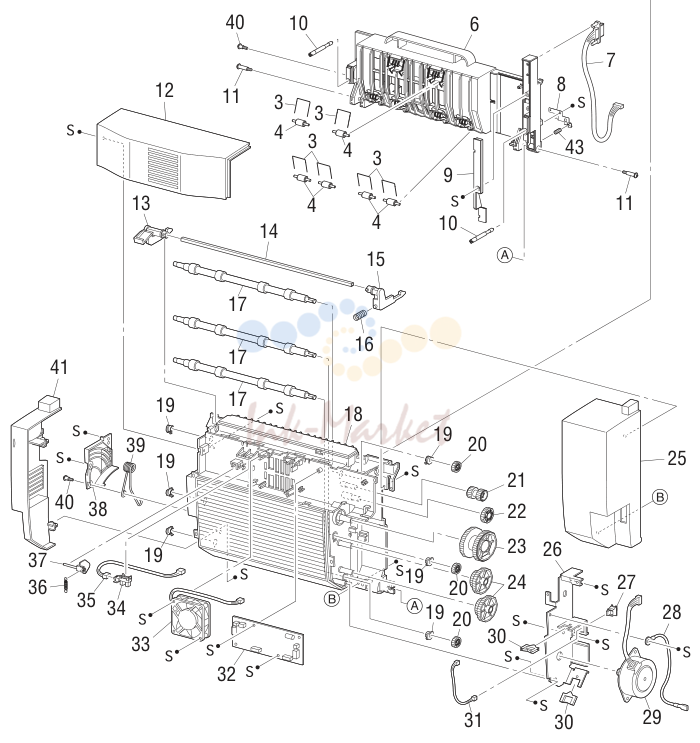

13. Parts List 21.1 Duplex Unit

№	Артикул	Описание
1		HSG UPPER ASSY (with2-4) 802K46801
2		HSG UPPER DUP
3		SPRING PINCH 809E37140
4		ROLL PINCH 059E97500
6		HSG LOWER DUP
7		HARNESS ASSY DUP (J50-JD2750)
8		EARTH ASSY PLATE
9		COVER HARNESS
10		SCREW THUMB
11		SCREW HINGE
12		COVER TOP
13		LEVER LATCH RIGHT
14		SHAFT LATCH
15		LEVER LATCH LEFT
16		SPRING LATCH
17		ROLLER DUP 059E97811
18		COVER HSG DUP
19		BEARING DUP 013E22671
20		GEAR ROLLER
21		GEAR IDLE29
22		GEAR IDLE47
23		GEAR IDLE77
24		GEAR IDLE57/37
25		COVER LEFT
26		BRACKET MOTOR
27		SWITCH DUPLEX (P520) 110E10200
28		HARNESS ASSY DUP EARTH (J56-JD560)
29		MOTOR DUPLEX (J51) 127E83201
30		CLAMP EDGE
31		HARNESS ASSY DUP COVER (J52-J520)
32		PWBA DUPLEX 160K86756
33		FAN DUPLEX (J54) 127E83210
9-38	Phaser4500 запросить цену →	Service Manual
34		SENSOR DUP (P530) 130E82740
35		HARNESS ASSY DUP SNR (J53-J530)
36		SPRING ACTUATOR 809E50961
37		ACTUATOR DUP 604K16750
38		COVER DAMPER
39		SPRING DAMPER
40		SCREW TAPPING
41		COVER RIGHT
43		SPRING Frame Ground DUP
99		DUPLEX ASSY (ENTIRE UNIT) 084K18292

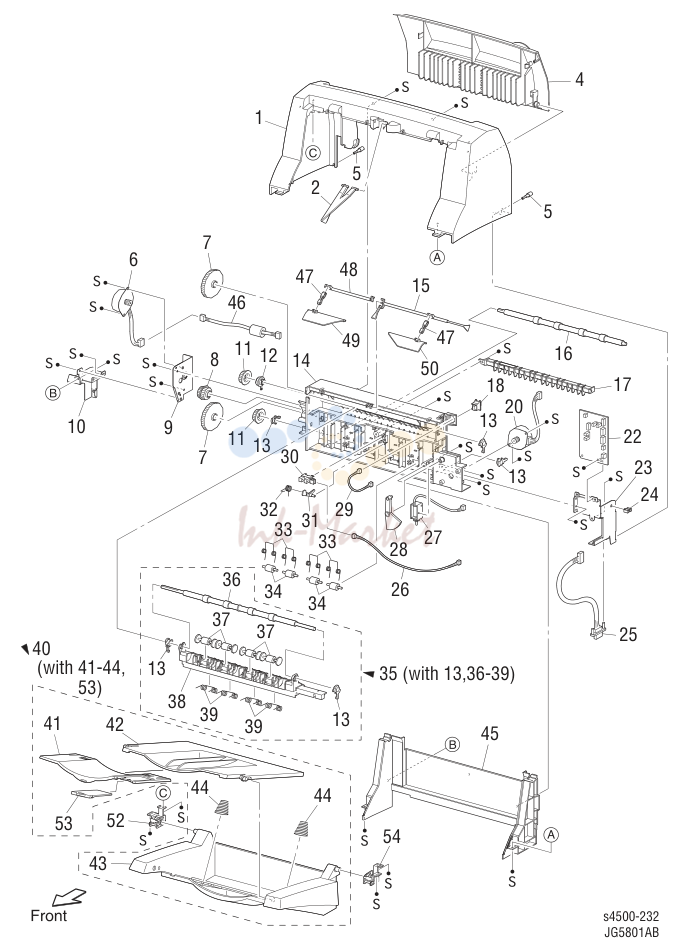

14. Parts List 23.1 Stacker

№	Артикул	Описание
1		COVER OCT (with 3) (Stacker Cover)
2		WEIGHT 036E91551
3		ELIMINATOR ASSY
4		COVER REAR
5		SCREW THUMB
6		MOTOR ASSY OCT (J71) (Stacker Motor Assembly) 127K36291
7		GEAR 45 007E74830
8		GEAR 19/37 007E74840
9		BRACKET MOTOR OCT (Stacker Motor Bracket)
10		SUPPORT OCT LEFT (Left Stacker Support)
11		GEAR 19 007E74821
12		BEARING OFFSET 013E22030
13		BEARING ROLL 013E22021
14		HOUSING OCT (Stacker Housing)
15		ACTUATOR FULL STACK 120E21663
16		ROLL OCT LOWER (Lower Stacker Roller) 059K25121
17		CHUTE INLET
18		S/W REAR COVER (P740) 110E10200
20		MOTOR ASSY OFFSET (J72) 127K39340
22		PWBA OCT (Stacker PWBA) 160K86744
23		SUPPORT OCT RIGHT (Right Stacker Support)
24		CLAMP MINI
25		HARNESS ASSY OCT 2 (J70-JD3070) (Stacker Harness 2)
26		HARNESS ASSY OCT SNR (J73-J730) (Stacker Sensor Harness)
27		SOLENOID ASSY GATE (J75) 121K28671
28		GEAR CAM 007E74810
29		HARNESS ASSY REAR COVER (J74-J740)
30		SENSOR OCT (P730) (Stacker Sensor) 130E81970
31		ACTUATOR OCT (Stacker Actuator) 120E21270
32		SPRING ACTUATOR 809E37332
33		SPRING PINCH 809E37341
34		ROLL PINCH 059E97541
35		CHUTE OFFSET ASSY (with 13, 36-39) 054K23313
36		ROLL OCT UPPER (Upper Stacker Roller)
37		ROLL PINCH OCT (Stacker Pinch Roller)
38		CHUTE OFFSET
39		SPRING PINCH EXIT
40		TRAY ASSY OCT (with41-44, 53) (Stacker Tray Assembly) 050K49264
41		TRAY EXTENSION
42		TRAY EXIT
43		TRAY BASE
44		SPRING TRAY
45		COVER FRONT
46		HARNESS ASSY OCT MOT (J71-P710) (Stacker Motor Harness)
47		LINK
48		SHAFT FULL STACK 006E79380
49		FLAPPER ASSY L (with 47) 036K91582
50		FLAPPER ASSY R (with 47) 036K91592
51		SPRING
52		DAMPER ASSY TRAY L 004K02070
53		STOPPER
54		DAMPER ASSY TRAY R 004K02080
99		STACKER ASSY (ENTIRE UNIT) 084K18114
9-42	Phaser4500 запросить цену →	Service Manual
64		MB Memory Option 097S03122
128		MB Memory Option 097S03123
256		MB Memory Option 097S03124
9-44	Phaser4500 запросить цену →	Service Manual

Источник: Инк-Маркет.ру.

← Все статьи
