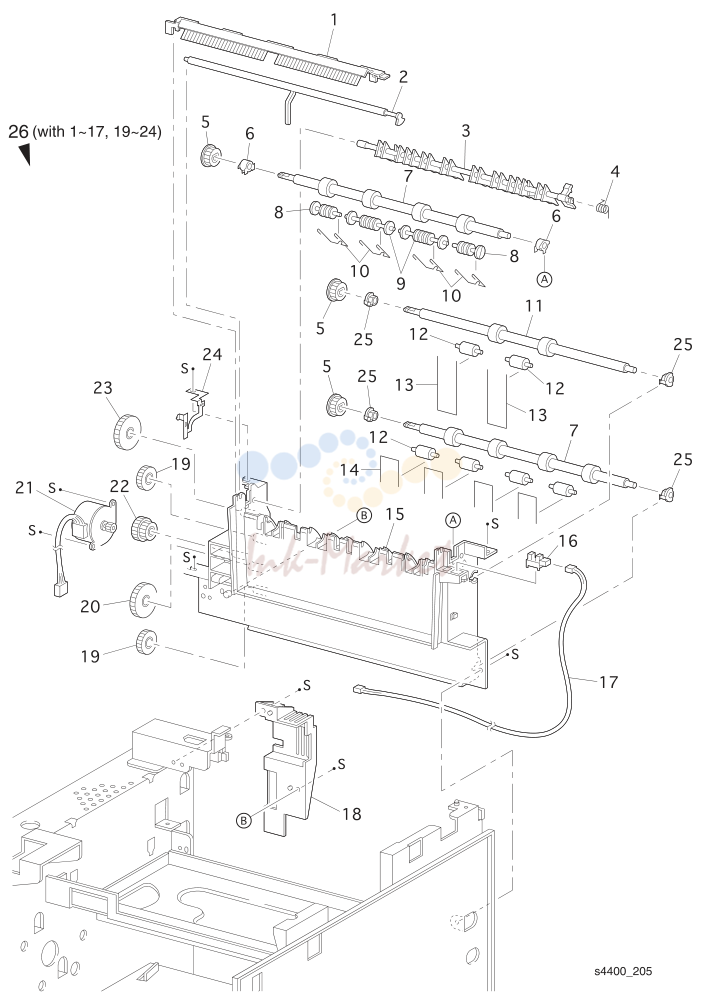

- 10. PL 7.1 Exit - Exploded View

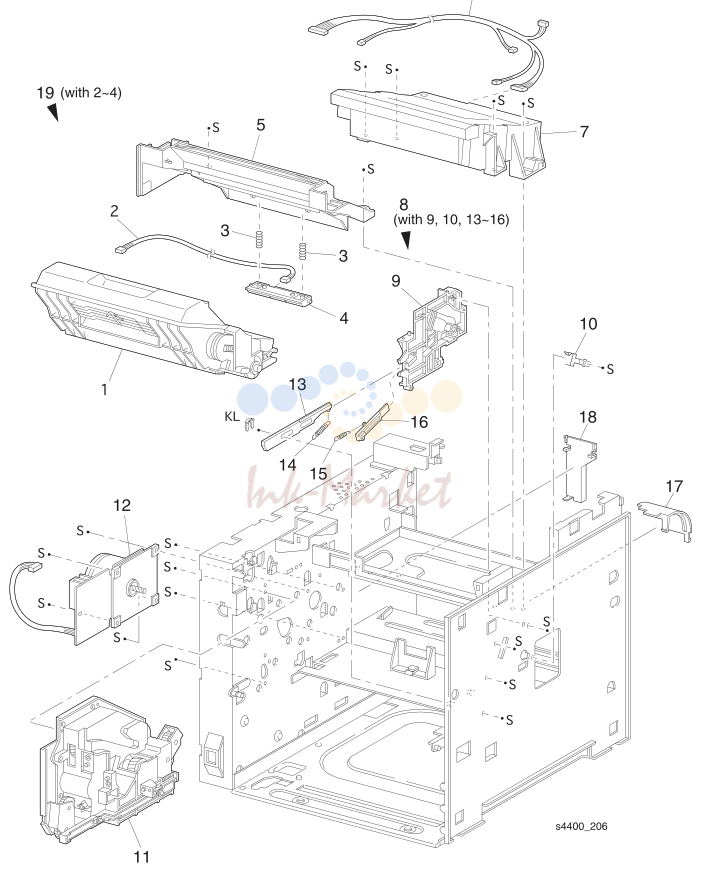

- 11. PL 8.1 Drive and Xerographics - Exploded View

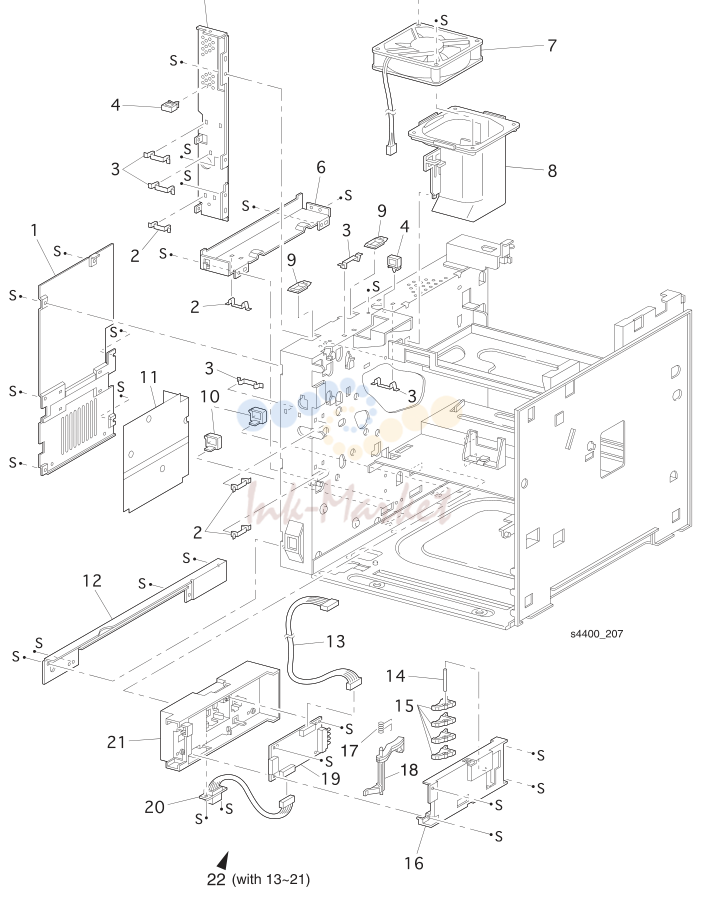

- 12. PL 9.1 Frame and Size Sensor - Exploded View

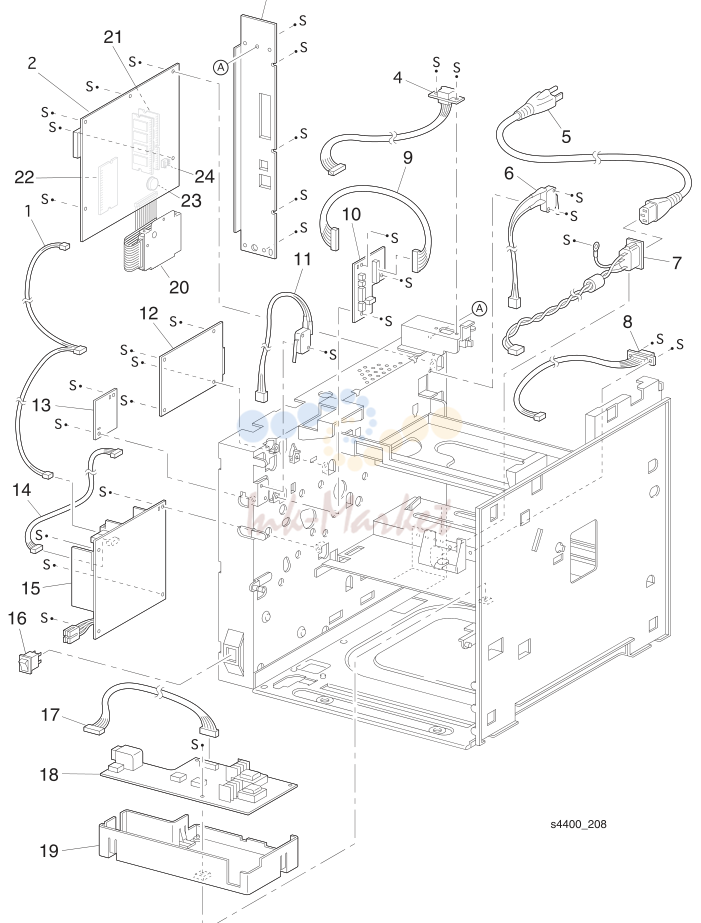

- 13. PL 10.1 Electrical - Exploded View

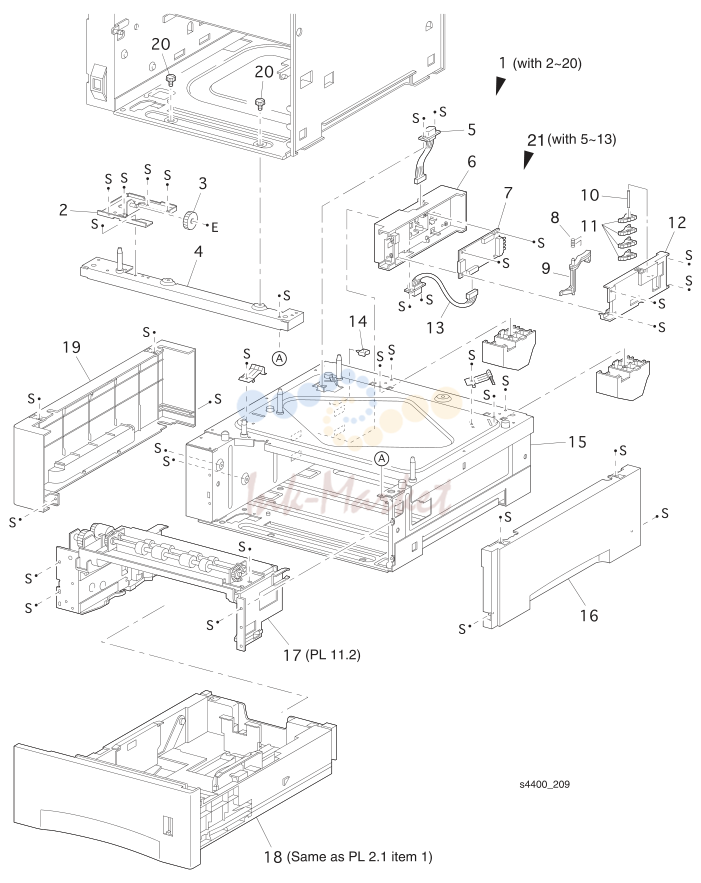

- 14. PL 11.1 550-Sheet Feeder (1 of 2) - Exploded View

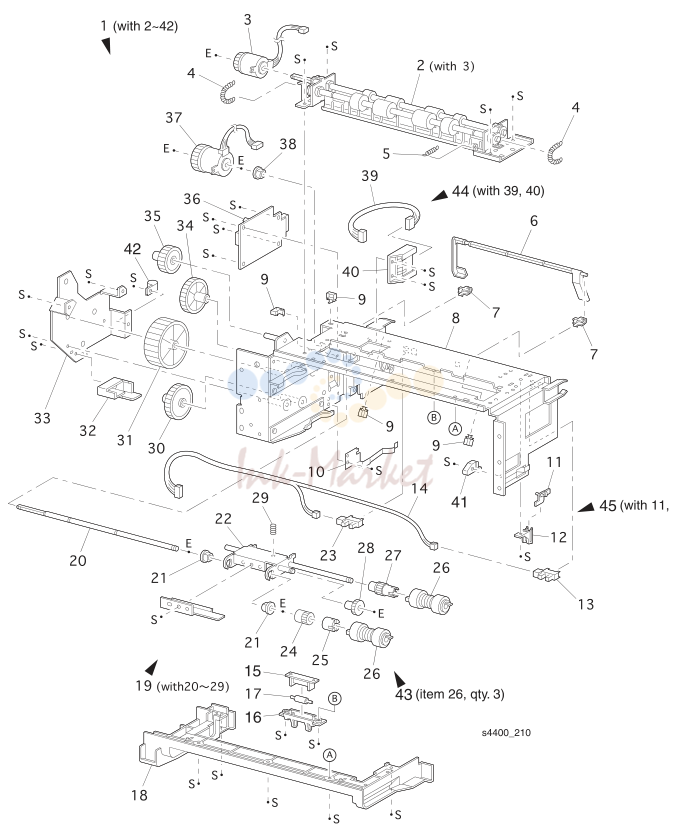

- 15. PL 11.2 550-Sheet Feeder (2 of 2) - Exploded View
- 16. PL 12.1 Envelope Feeder (1 of 2) - Exploded View

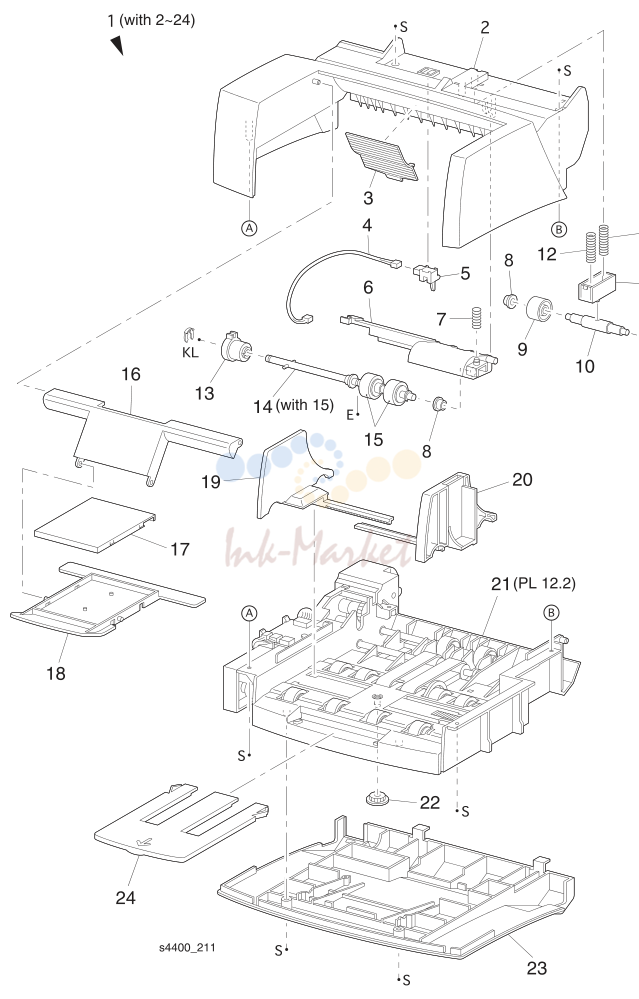

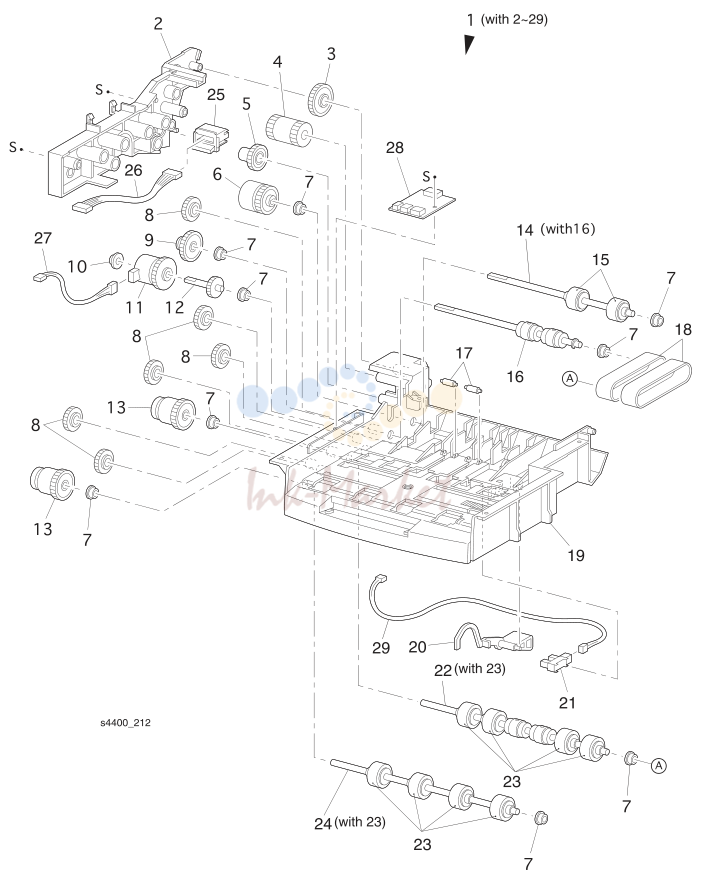

- 17. PL 12.2 Envelope Feeder (2 of 2) - Exploded View

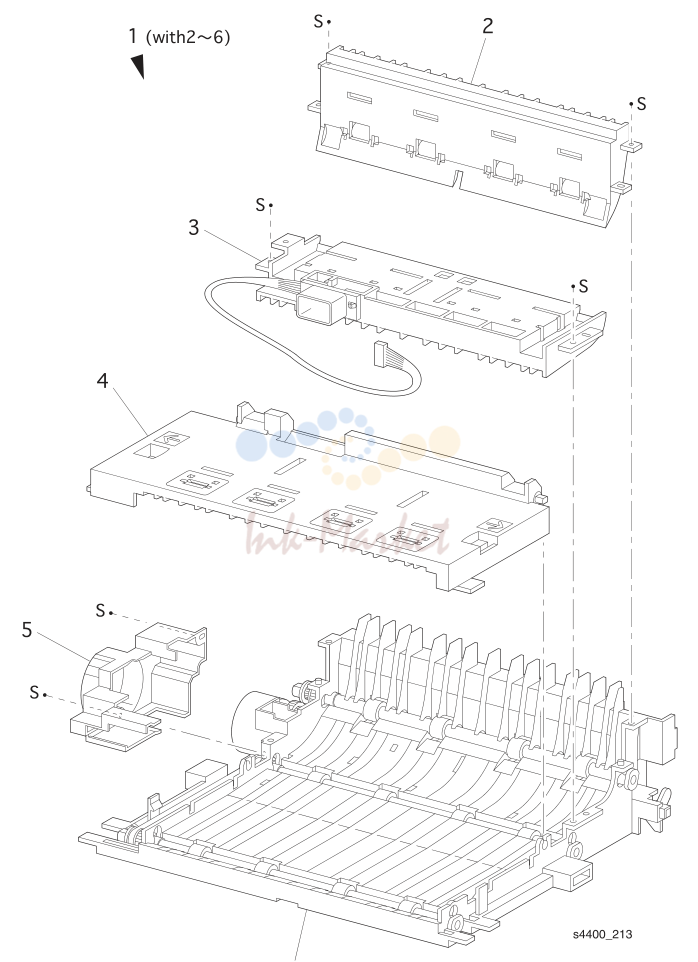

- 18. PL 13.1 Duplex (1 of 2) - Exploded View

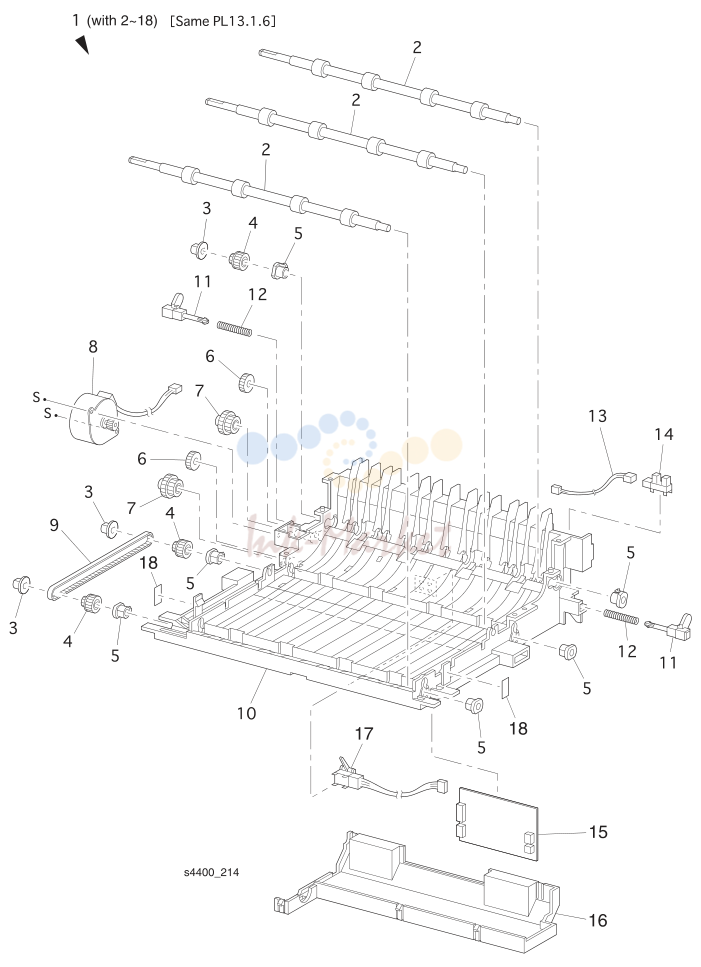

- 19. PL 13.2 Duplex (2 of 2) - Exploded View

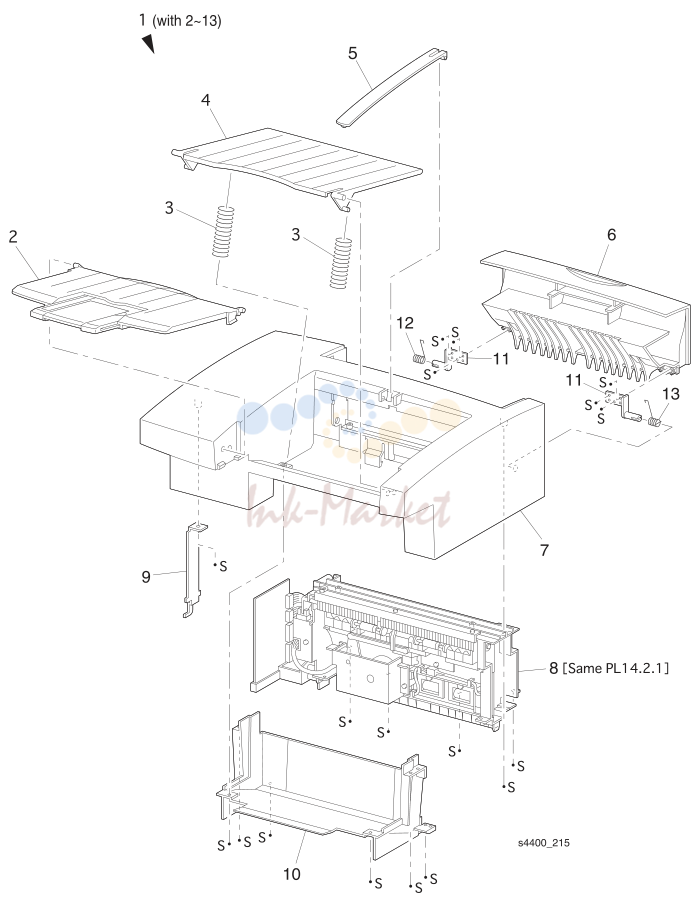

- 20. PL 14.1 Stacker (1 of 2) - Exploded View
1. Covers (1 of 2)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 48E64591 запросить цену → | Left Cover | |
| 2 | 802K11331 запросить цену → | Left Interface Cover | |
| 3 | 48E64642 запросить цену → | Option Cover | |
| 4 | 48K76455 запросить цену → | Top Cover Assembly | |
| 5 | 101K38280 запросить цену → | Front Panel Assembly | |
| 6 | 962K09691 запросить цену → | Front Panel Harness Assembly | |
| 7 | 48E64612 запросить цену → | Right Cover | |
| 8 | 802K36773 запросить цену → | Front Cover Assembly (with 9-12, 14-16, 18, 19, 26) | |
| 9 | - - - - - Front Cover (P/O item 8) | ||
| 10 | - - - - - Left Latch Assembly (P/O item 8) | ||
| 11 | - - - - - Lever (P/O item 8) | ||
| 12 | - - - - - Right Latch Assembly (P/O item 8) | ||
| 13 | 3E48991 запросить цену → | Cover Stopper | |
| 14 | - - - - - Envelope Chute | ||
| 15 | 3E43880 запросить цену → | Tray Stopper | |
| 16 | 50K47271 запросить цену → | MPT Tray Assembly | |
| 17 | 802K44310 запросить цену → | Left Front Cover | |
| 18 | - - - - - MPT Chute (P/O item 21) | ||
| 19 | - - - - - MPT Cleaning Pad Assy. (P/O item 21) | ||
| 20 | Not used Not used | ||
| 21 | 604K04790 запросить цену → | MPT Cleaning Kit (with 18, 19, and PL 4.1 item 5) | |
| 22 | - - - - - Spring joint | ||
| 23 | - - - - - Front cover spring | ||
| 24 | - - - - - Env gear cover | ||
| 25 | - - - - - Exit 2 grounding spring | ||
| 26 | - - - - - Clip | ||
| 7-2 | Phaser 4400 Laser Printer Service Manual |

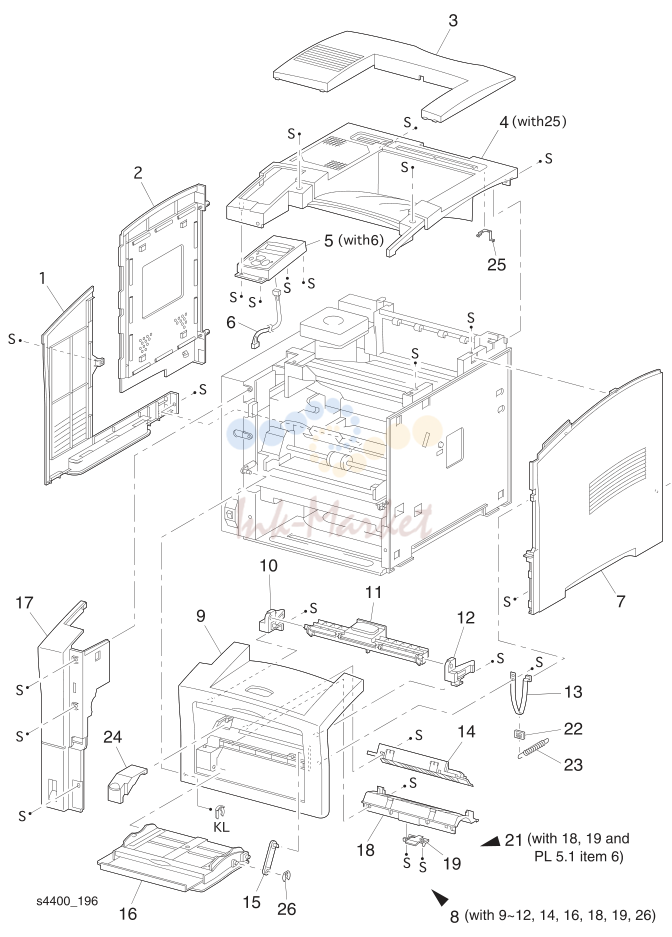

2. PL 1.1 Covers (1 of 2) - Exploded View
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | - - - - - Latch Spring | ||
| 2 | - - - - - Left Latch | ||
| 3 | - - - - - Right Latch | ||
| 4 | - - - - - Latch Cover | ||
| 5 | - - - - - Rear Cover | ||
| 6 | - - - - - Direction Arm | ||
| 7 | 600K83121 запросить цену → | Cap Kit (quantity 2) | |
| 8 | 54K14992 запросить цену → | Face Up Chute Assembly | |
| 9 | - - - - - Right Pivot Stopper | ||
| 10 | 3E46120 запросить цену → | Stopper | |
| 11 | 32E12671 запросить цену → | Duplex Guide Rail-Left | |
| 12 | 32E12681 запросить цену → | Duplex Guide Rail-Right | |
| 13 | 802K10013 запросить цену → | Rear Cover Assembly (with 1-9) | |
| 7-4 | Phaser 4400 Laser Printer Service Manual |

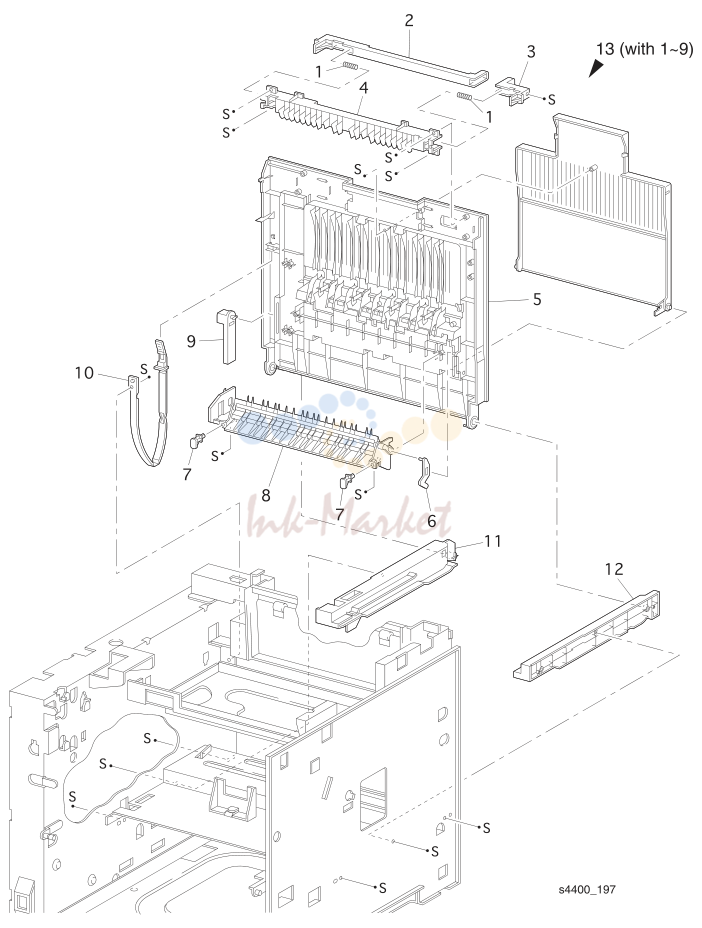

3. PL 1.2 Covers (2 of 2) - Exploded View
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 109R00448 запросить цену → | Cassette Assembly (with 2-20 and PL 2.2) | |
| 2 | - - - - - Bottom Plate Assembly | ||
| 3 | - - - - - End Guide Assembly | ||
| 4 | - - - - - Extension Housing | ||
| 5 | - - - - - Rack Slide | ||
| 6 | - - - - - Extension Spring | ||
| 7 | - - - - - Latch Spring | ||
| 8 | - - - - - Size Plate | ||
| 9 | - - - - - Base Extension | ||
| 10 | - - - - - Left Side Guide Assembly | ||
| 11 | - - - - - Right Side Guide Assembly | ||
| 12 | - - - - - Link | ||
| 13 | - - - - - Tray 1 Base | ||
| 14 | - - - - - Rack | ||
| 15 | - - - - - Pinion | ||
| 16 | - - - - - Cassette Sub-Assembly (PL 2.2) | ||
| 17 | - - - - - Tray 1 Actuator | ||
| 18 | - - - - - Actuator Cover | ||
| 7-6 | Phaser 4400 Laser Printer Service Manual |

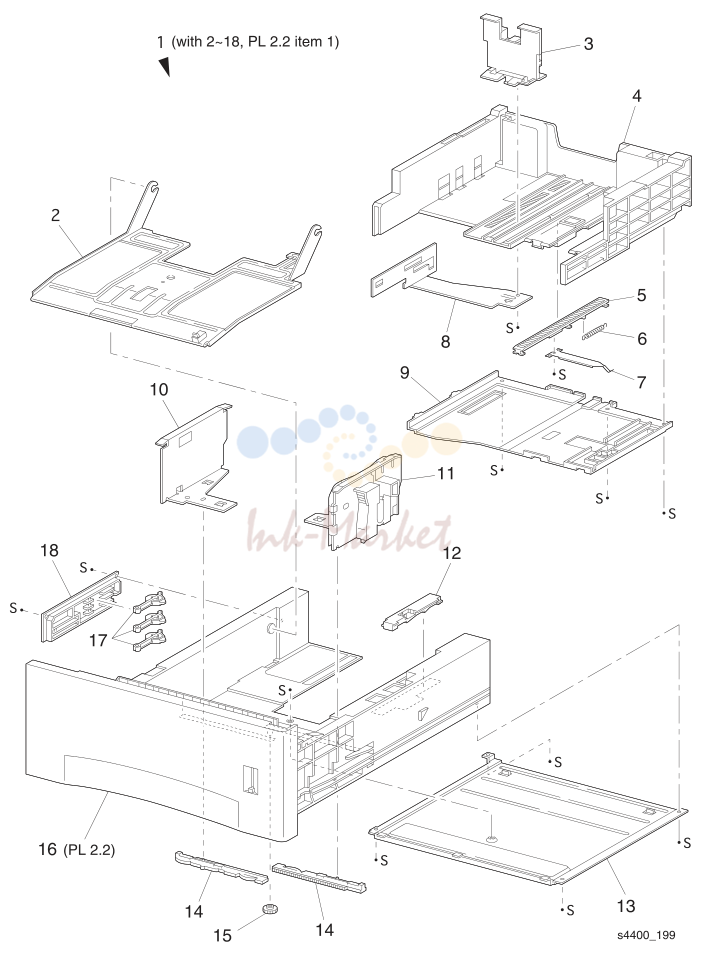

4. PL 2.1 Tray 1 (1 of 2) - Exploded View
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | - - - - - Cassette Assembly (with 2-27) (P/O PL 2.1 Item 1) | ||
| 2 | - - - - - Retard Cap | ||
| 3 | - - - - - Retard Chute Base - Left | ||
| 4 | - - - - - Retard Chute | ||
| 5 | - - - - - Retard Chute Base - Right | ||
| 6 | - - - - - Retard Shaft Assembly | ||
| 7 | 5K82890 запросить цену → | Friction Clutch Assembly | |
| 8 | 600K79550 запросить цену → | Roller Assembly Kit | |
| 9 | - - - - - Retard Bracket | ||
| 10 | 809E11830 запросить цену → | Retard Spring | |
| 11 | - - - - - Tongue Plate | ||
| 12 | - - - - - Tongue Shaft Assembly | ||
| 13 | - - - - - Lift Up Shaft Holder | ||
| 14 | - - - - - Bearing | ||
| 15 | - - - - - Lift Up Ground Spring | ||
| 16 | - - - - - Cassette Housing | ||
| 17 | - - - - - Lever | ||
| 18 | - - - - - Cassette Handle Assembly | ||
| 19 | - - - - - Motor Spring | ||
| 20 | - - - - - Right Holder | ||
| 21 | - - - - - Left Holder | ||
| 22 | 127K24682 запросить цену → | Motor Assembly | |
| 23 | - - - - - Motor Holder Assembly | ||
| 24 | 114E11680 запросить цену → | Connector | |
| 25 | - - - - - Spring | ||
| 26 | - - - - - Socket Guide | ||
| 7-8 | Phaser 4400 Laser Printer Service Manual |

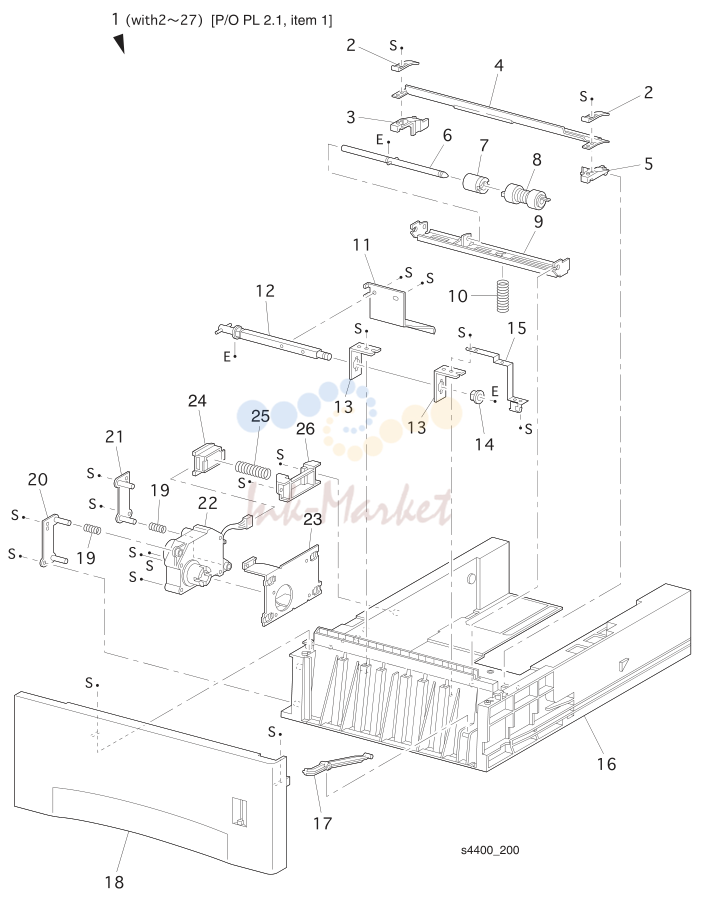

5. PL 2.2 Tray 1 (2 of 2) - Exploded View
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 22K51531 запросить цену → | Turn Roller Assembly 25 - - - - - O/W Clutch | |
| 2 | 121K20151 запросить цену → | Turn Clutch Assembly 26 - - - - - Roller Assembly (P/O | |
| 3 | - - - - - Extension Spring 27 - - - - - Gear 25T (P/O item 19) | ||
| 4 | 809E11630 запросить цену → | Chute Spring 28 - - - - - Gear 31T (P/O item 19) | |
| 5 | - - - - - Feed CST Cover 29 809E11610 Nudger Spring | ||
| 6 | 120E16960 запросить цену → | No Paper Actuator 30 - - - - - Gear | |
| 7 | 830E18132 запросить цену → | Actuator Support 31 - - - - - Gear | |
| 8 | - - - - - Feeder Frame Assembly 32 - - - - - Gear Cover | ||
| 9 | - - - - - Clamp 33 - - - - - Bracket | ||
| 10 | - - - - - Left Latch Spring 34 - - - - - Gear | ||
| 11 | - - - - - Low Paper Actuator (P/O 35 - - - - - Gear | ||
| 12 | - - - - - Low Paper Actuator 36 160K52781 Feeder PWB | ||
| 13 | 130E81970 запросить цену → | Low Paper Sensor 37 121K19010 Feed Clutch Assembly | |
| 14 | 162K47211 запросить цену → | No Paper Sensor 38 - - - - - Bearing | |
| 15 | - - - - - Roller 7 support 39 - - - - - N/MOT Harness | ||
| 16 | - - - - - Turn Chute 40 - - - - - Socket | ||
| 17 | - - - - - Roller 7 41 - - - - - CST Stopper | ||
| 18 | - - - - - Feeder Cover 42 - - - - - Clamp | ||
| 19 | 600K79320 запросить цену → | Feed Head Assembly 43 600K79640 Socket & Harness Kit | |
| 20 | - - - - - Feed Shaft (P/O item 19) 44 600K79652 Actuator & Support Kit | ||
| 21 | - - - - - Bearing (P/O item 19) 45 22K56902 Feeder Assembly 1 Kit | ||
| 22 | - - - - - Nudger Support 46 600K79550 Feed Roller Kit (item 26- | ||
| 23 | 130E81970 запросить цену → | Stack Height Sensor (P/O S 600K79660 Hardware Kit (includes | |
| 24 | - - - - - Gear Clutch (P/O item 19) | ||
| 7-10 | Phaser 4400 Laser Printer Service Manual |
6. PL 3.1 Paper Feeder - Exploded View
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 54K22391 запросить цену → | MPT Chute Assembly (with 2-24) | |
| 2 | - - - - - MPT Shaft Assembly | ||
| 3 | - - - - - MPT Pick-up CAM | ||
| 4 | - - - - - Core | ||
| 5 | 22K50815 запросить цену → | MPT Roller Assembly | |
| 6 | - - - - - MPT (Left) Cam Pick-up | ||
| 7 | - - - - - Guide Roller | ||
| 8 | - - - - - Bearing | ||
| 9 | - - - - - Tray Bottom | ||
| 10 | 120E17121 запросить цену → | MPT No Paper Actuator | |
| 11 | - - - - - MPT Bottom Spring Tray | ||
| 12 | - - - - - Exit Bearing | ||
| 13 | 19K94573 запросить цену → | Retard Pad Assembly | |
| 14 | 130E81970 запросить цену → | Paper Set Sensor | |
| 15 | - - - - - MPT Ground Plate | ||
| 16 | - - - - - MPT Chute Assembly | ||
| 17 | 121E85920 запросить цену → | Pick Up Solenoid | |
| 18 | 809E20171 запросить цену → | MPT Spring | |
| 19 | 7E54661 запросить цену → | Gear Pick Up | |
| 20 | - - - - - Envelope Connector Plate | ||
| 21 | 113K82141 запросить цену → | Envelope Connector Assembly | |
| 22 | 162K47021 запросить цену → | MPT No Paper Harness Assembly (J45-J451) | |
| 23 | 19K96830 запросить цену → | Pick Up Pad Assembly | |
| 24 | 604K04790 запросить цену → | MPT Cleaning Kit (with 5, and 18 and 19 from | |
| 7-12 | Phaser 4400 Laser Printer Service Manual |
7. PL 4.1 MPT Chute - Exploded View
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | - - - - - Toner Sensor 21 - - - - - Left Bearing | ||
| 2 | - - - - - Toner Sensor Harness 22 162K47011 Registration Harness | ||
| 3 | - - - - - TNS Cushion 23 - - - - - Clamp | ||
| 4 | - - - - - Toner Sensor Holder 24 7E54650 Gear | ||
| 5 | - - - - - Toner Sensor Spring 25 6E60981 Shaft | ||
| 6 | 600K79381 запросить цену → | Toner Sensor Kit (with 26 - - - - - Upper Chute Bottom | |
| 7 | - - - - - Metal Registration Roller 27 - - - - - Right Bearing | ||
| 8 | - - - - - Torsion Spring 28 809E22950 Registration Spring - | ||
| 9 | - - - - - Upper Chute Assembly 29 7E54671 Registration Gear (Metal | ||
| 10 | - - - - - Chute Inlet 30 - - - - - Right Bearing | ||
| 11 | - - - - - Lever Handle 31 7E54681 Registration Gear | ||
| 12 | - - - - - Chute Inlet Cap 32 - - - - - Ground Spring - Right | ||
| 13 | 59K11910 запросить цену → | Rubber Registration 33 - - - - - Ground Spring - Center | |
| 14 | - - - - - Ground Spring - Bottom 34 - - - - - Ground Screw | ||
| 15 | 120E13331 запросить цену → | Registration Actuator 35 - - - - - Left Spring | |
| 16 | 809E19722 запросить цену → | Registration Sensor 36 - - - - - Baffle Resistor | |
| 17 | 130E81970 запросить цену → | Registration Sensor 37 - - - - - Lower Chute Bottom | |
| 18 | 809E19030 запросить цену → | Registration Spring Left 38 - - - - - CST Chute | |
| 19 | - - - - - Bearing 39 54K14986 Paper Handler Assembly | ||
| 20 | 121E85820 запросить цену → | Registration Clutch S 600K79660 Hardware Kit (Includes | |
| 7-14 | Phaser 4400 Laser Printer Service Manual |

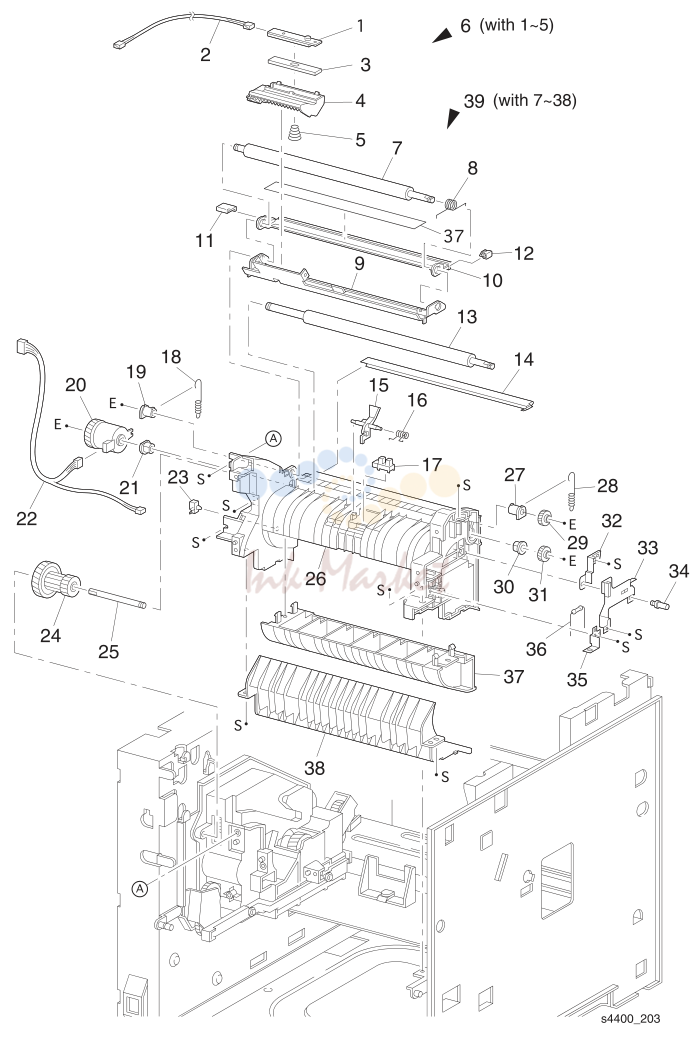

8. PL 5.1 Paper Handler Assembly - Exploded View
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 22K55010 запросить цену → | Transfer Roller Assembly | |
| 2 | 54K15000 запросить цену → | Transfer Chute Assembly (with 3-5) | |
| 3 | - - - - - Bearing Transfer Roller SUP | ||
| 4 | - - - - - Spring Transfer Roller | ||
| 5 | - - - - - Transport Chute | ||
| 6 | 126K14933 запросить цену → | Fuser Assembly (120 V) (with 10, 11) | |
| 7 | - - - - - DTS Wire Assembly | ||
| 8 | - - - - - TR Wire Assembly | ||
| 9 | 962K06300 запросить цену → | Fuser Harness Assembly (120 V) (J271, | |
| 10 | 802K10003 запросить цену → | Fuser Upper Cover Assembly | |
| 11 | 126K08411 запросить цену → | Heat Rod (120 V) | |
| 12 | - - - - - Thumb Screw | ||
| 13 | 108R00497 запросить цену → | Maintenance Kit (120 V) (with Fuser, | |
| 7-16 | Phaser 4400 Laser Printer Service Manual |
9. PL 6.1 Chute Transport and Fuser - Exploded View
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 105K14904 запросить цену → | Static Eliminator Assembly | |
| 2 | 120E13350 запросить цену → | Stack Full Actuator | |
| 3 | - - - - - Exit Gate | ||
| 4 | - - - - - Exit Spring | ||
| 5 | - - - - - Exit Gear | ||
| 6 | - - - - - Exit Bearing (P/O item 25) | ||
| 7 | 59K11950 запросить цену → | MID-1-3 | Roller Assembly |
| 8 | - - - - - Out Exit Pinch Roller | ||
| 9 | - - - - - Exit Pinch Roller | ||
| 10 | - - - - - Exit Pinch Spring | ||
| 11 | 59K11960 запросить цену → | MID-2 | Roller Assembly |
| 12 | - - - - - Pinch Roller | ||
| 13 | - - - - - MID Pinch Spring | ||
| 14 | - - - - - Pinch Spring | ||
| 15 | - - - - - Exit Chute | ||
| 16 | 130E81970 запросить цену → | Exit Photo Sensor | |
| 17 | 162K46981 запросить цену → | Stack Full Sensor Harness Assembly (J30-J301) | |
| 18 | - - - - - Interlock Cover | ||
| 19 | - - - - - Exit Gear | ||
| 20 | - - - - - Exit Gear | ||
| 21 | 127K35830 запросить цену → | Exit Motor Assembly | |
| 22 | - - - - - Exit Gear 17/47 | ||
| 23 | - - - - - Exit Gear | ||
| 24 | - - - - - Exit Ground Spring | ||
| 25 | 600K79540 запросить цену → | Bearing Kit (quantity 6 of item 6) | |
| 26 | 54K15893 запросить цену → | Exit Chute Assembly (with 1-17, 19-24) | |
| 7-18 | Phaser 4400 Laser Printer Service Manual |
10. PL 7.1 Exit - Exploded View
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 113R00627 запросить цену → | Print Cartridge (10K) | |
| 2 | - - - - - Print Cartridge Sensor Harness Assembly | ||
| 3 | - - - - - Spring (P/O item 19) | ||
| 4 | - - - - - Print Cartridge Sensor Assembly (P/O item 19) | ||
| 5 | 32K94111 запросить цену → | Print Cartridge Top Guide Assembly | |
| 6 | 162K46922 запросить цену → | Laser Harness Assembly (J21-J211, J212, J213) | |
| 7 | 62K11210 запросить цену → | Laser Assembly | |
| 8 | - - - - - Print Cartridge Side Guide Assembly-R (with 9, 10, | ||
| 9 | - - - - - Print Cartridge Side Guide | ||
| 10 | - - - - - Spring Clip | ||
| 11 | 7K87580 запросить цену → | Drive Gear Assembly | |
| 12 | 127K35701 запросить цену → | Main Motor Assembly | |
| 13 | - - - - - Guide Arm A | ||
| 14 | - - - - - Guide Spring A | ||
| 15 | - - - - - Guide Spring B | ||
| 16 | - - - - - Guide Arm B | ||
| 17 | - - - - - ROS Duct | ||
| 18 | - - - - - Fuser Duct | ||
| 19 | 32K03720 запросить цену → | Print Cartridge Sensor Kit (with 2-4) | |
| 7-20 | Phaser 4400 Laser Printer Service Manual |
11. PL 8.1 Drive and Xerographics - Exploded View
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | - - - - - Left Plate | ||
| 2 | - - - - - Clamp Press | ||
| 3 | - - - - - Left Clamp Press | ||
| 4 | - - - - - Interface Clamp | ||
| 5 | - - - - - Lower B Elec Box | ||
| 6 | - - - - - Lower A Elec Box | ||
| 7 | 127E13840 запросить цену → | Fan Assembly | |
| 8 | - - - - - Duct | ||
| 9 | - - - - - Edge Saddle H | ||
| 10 | - - - - - AC Clamp | ||
| 11 | - - - - - Insulator Plate | ||
| 12 | - - - - - Plate Handle | ||
| 13 | 162K47001 запросить цену → | Feeder Harness Assembly (J33-J331) | |
| 14 | - - - - - CAM Shaft | ||
| 15 | - - - - - Size Sensor Actuators | ||
| 16 | - - - - - Cover Size Sensor | ||
| 17 | - - - - - Spring CAM | ||
| 18 | - - - - - Lever CAM | ||
| 19 | 160K52771 запросить цену → | Tray 1 Size PWB | |
| 20 | 162K48420 запросить цену → | Size Harness Assembly (J51-J52) | |
| 21 | - - - - - Size Sensor Housing | ||
| 22 | 802K09970 запросить цену → | Size Sensor 1 Kit (with 13-21) | |
| 7-22 | Phaser 4400 Laser Printer Service Manual |
12. PL 9.1 Frame and Size Sensor - Exploded View
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 162K47201 запросить цену → | Image Processor 18 105K19750 HVPS PWB | |
| 2 | 671-5270-00 запросить цену → | Image Processor Board 19 - - - - - HVPS Housing | |
| 3 | - - - - - Back Panel 20 650-4263-00 Hard Disk Drive | ||
| 4 | 162K49271 запросить цену → | Stacker Harness 97S02917 20 MB Hard Drive Kit | |
| 5 | - - - - - Power Cord 21 156-4850-00 32 MB DIMM | ||
| 6 | 110K08571 запросить цену → | Rear Interlock Switch 97S02923 32 MB DIMM Kit | |
| 7 | - - - - - AC Wire Assembly 156-4838-00 64 MB DIMM | ||
| 8 | 162K46991 запросить цену → | Duplex Harness 97S02912 64 MB DIMM Kit | |
| 9 | 162K46941 запросить цену → | Connector Harness 156-4837-00 128 MB DIMM | |
| 10 | 160K52761 запросить цену → | Connector PWB 97S02913 128 MB DIMM Kit | |
| 11 | 110K08561 запросить цену → | Front Interlock Switch 22 671-5274-00 16 MB Flash DIMM | |
| 12 | 160K85653 запросить цену → | Engine Logic Board 97S02914 16 MB Flash DIMM Kit | |
| 13 | 105K15402 запросить цену → | 5 VDC PWB 23 98S04703 4400 Network Upgrade | |
| 14 | 162K46972 запросить цену → | LVPS Harness Assembly 163-1485-00 Configuration Upgrade | |
| 15 | 105K19850 запросить цену → | LVPS PWB (120V) 163-1486-00 Base Configuration Chip | |
| 16 | 110E94430 запросить цену → | Main Switch 24 163-1459-00 NVRAM | |
| 17 | 162K46962 запросить цену → | HVPS Harness S 600K79660 Hardware Kit (Includes | |
| 7-24 | Phaser 4400 Laser Printer Service Manual |
13. PL 10.1 Electrical - Exploded View
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | - - - - Option Feeder Assembly (with 2-20) | ||
| 2 | - - - - Gear OPT Bracket Assembly | ||
| 3 | 7E54920 запросить цену → | Gear OPT I | |
| 4 | - - - - Top Plate | ||
| 5 | 162K48431 запросить цену → | Option Size Harness Assembly | |
| 6 | - - - - Size Sensor Housing | ||
| 7 | 160K53061 запросить цену → | Size Option PWB | |
| 8 | - - - - CAM Spring | ||
| 9 | - - - - CAM Lever | ||
| 10 | - - - - CAM Shaft | ||
| 11 | - - - - CAM SW | ||
| 12 | - - - - Cover Size Sensor | ||
| 13 | 162K48420 запросить цену → | Size Harness Assembly | |
| 14 | - - - - Clamp | ||
| 15 | - - - - Main Frame Assembly | ||
| 16 | 802E04931 запросить цену → | Right Side Cover | |
| 17 | 22K56912 запросить цену → | Feeder Assembly | |
| 18 | 109R00448 запросить цену → | Cassette Assembly (Same as PL 2.1 item 1) | |
| 19 | 802E04920 запросить цену → | Left Side Cover | |
| 20 | 600K79670 запросить цену → | Screw Kit (quantity 3) | |
| 21 | 802K09980 запросить цену → | Size Sensor Housing Assembly (with 5-13) | |
| 7-26 | Phaser 4400 Laser Printer Service Manual |
14. PL 11.1 550-Sheet Feeder (1 of 2) - Exploded View
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 22K56912 запросить цену → | Feeder Assembly 2 Kit 26 - - - - Roller Assembly (P/O | |
| 2 | 22K55001 запросить цену → | Turn Roller Assembly 27 - - - - Gear 25T | |
| 3 | 121K20151 запросить цену → | Turn Clutch Assembly 28 - - - - Gear 31T | |
| 4 | - - - - Spring Extension 29 809E11610 Nudger Spring | ||
| 5 | 809E11630 запросить цену → | Chute Spring 30 - - - - Gear | |
| 6 | 120E16960 запросить цену → | No Paper Actuator 31 - - - - Gear | |
| 7 | 830E18132 запросить цену → | Actuator Support 32 - - - - Gear Cover | |
| 8 | - - - - Feeder Frame Assembly 33 - - - - Bracket | ||
| 9 | - - - - Clamp 34 - - - - Gear | ||
| 10 | - - - - Left Latch Spring 35 - - - - OPT Gear | ||
| 11 | - - - - Low Paper Actuator (P/O 36 160K52781 Feeder PWB | ||
| 12 | - - - - Low Paper Support 37 121K19010 Feed Clutch Assembly | ||
| 13 | 130E81970 запросить цену → | Low Paper Sensor 38 - - - - Bearing | |
| 14 | 162K47211 запросить цену → | N/Sensor Harness 39 - - - - N/Motor Harness | |
| 15 | - - - - Roller 7 Support 40 - - - - Socket | ||
| 16 | - - - - Turn Chute 41 - - - - Paper Tray Stopper | ||
| 17 | - - - - Roller 7 42 - - - - Clamp | ||
| 18 | - - - - Feeder Cover 43 600K79550 Feed Roller Kit (item 26- | ||
| 19 | 600K79320 запросить цену → | Feeder Assembly (with 44 600K79640 Socket & Harness Kit | |
| 20 | - - - - Feed Shaft 45 600K79652 Actuator & Support Kit | ||
| 21 | - - - - Bearing S 600K79660 Hardware Kit (Includes | ||
| 22 | - - - - Nudger Support | ||
| 23 | 130E81970 запросить цену → | Stack Height Sensor | |
| 24 | - - - - Gear Clutch | ||
| 25 | - - - - O/W Clutch Assembly | ||
| 7-28 | Phaser 4400 Laser Printer Service Manual |
15. PL 11.2 550-Sheet Feeder (2 of 2) - Exploded View
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | - - - - Envelope Feeder Assembly (with 2-24) | ||
| 2 | 54E14453 запросить цену → | Top Chute | |
| 3 | Chute Plate | ||
| 4 | - - - - Sensor Harness Assembly | ||
| 5 | 130K60390 запросить цену → | Exit Sensor Assembly | |
| 6 | - - - - Retard Holder | ||
| 7 | - - - - Retard Spring | ||
| 8 | - - - - Feeder Bearing | ||
| 9 | 59E93940 запросить цену → | Exit Pinch Roller | |
| 10 | - - - - Pinch Roller Shaft | ||
| 11 | - - - - Pinch Cap | ||
| 12 | - - - - Pinch Spring | ||
| 13 | - - - - Torque 29 Clutch Assembly | ||
| 14 | 600K79310 запросить цену → | Retard Roller Assembly (with 15) | |
| 15 | - - - - Retard Roller (P/O item 14) | ||
| 16 | 31E93291 запросить цену → | Weight Arm | |
| 17 | - - - - Weight Cover | ||
| 18 | - - - - Weight Holder | ||
| 19 | - - - - Envelope Left Side Guide | ||
| 20 | - - - - Envelope Right Side Guide | ||
| 21 | - - - - Envelope Feeder Sub Assembly | ||
| 22 | - - - - Pinion Gear | ||
| 23 | - - - - Bottom Cover | ||
| 24 | - - - - Tray Extension | ||
| 7-30 | Phaser 4400 Laser Printer Service Manual |
16. PL 12.1 Envelope Feeder (1 of 2) - Exploded View
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | - - - - Envelope Feeder Sub Assembly (with 2-31) | ||
| 2 | - - - - Gear Cover | ||
| 3 | 7E27420 запросить цену → | Gear | |
| 4 | - - - - Gear Drive | ||
| 5 | 7E36080 запросить цену → | Gear | |
| 6 | 121K87180 запросить цену → | Torque 25 Clutch Assembly | |
| 7 | - - - - Feeder Bearing | ||
| 8 | 7E28780 запросить цену → | Idler 21 Gear | |
| 9 | 121K87201 запросить цену → | One Way 26 Clutch Assembly | |
| 10 | - - - - Elec Clutch Bearing | ||
| 11 | 121K87190 запросить цену → | Feed Clutch | |
| 12 | 6E47120 запросить цену → | Clutch Shaft | |
| 13 | 121K87210 запросить цену → | One Way Clutch Assembly | |
| 14 | - - - - Transport Roller Assembly (with 16) | ||
| 15 | - - - - Transport Roller | ||
| 16 | - - - - Bottom Roller Assembly | ||
| 17 | - - - - Envelope Pinch Roller | ||
| 18 | - - - - Feed Belt | ||
| 19 | - - - - Main Chassis | ||
| 20 | - - - - No Paper Actuator | ||
| 21 | 130E81970 запросить цену → | No Paper Sensor | |
| 22 | - - - - Feed Roller Assembly 1 (with 23) | ||
| 23 | - - - - Feeder Roller | ||
| 24 | - - - - Feed Roller Assembly 2 (with 23) | ||
| 25 | - - - - Envelope Connector | ||
| 26 | - - - - Main Harness Assembly | ||
| 27 | - - - - Clutch Harness Assembly | ||
| 28 | - - - - Envelope PWB | ||
| 29 | - - - - No Paper Harness Assembly | ||
| 7-32 | Phaser 4400 Laser Printer Service Manual |
17. PL 12.2 Envelope Feeder (2 of 2) - Exploded View
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | - - - - Duplex Assembly (with 2-6) | ||
| 2 | - - - - Turn Chute Assembly | ||
| 3 | - - - - Chute Assembly Connector | ||
| 4 | 54K15061 запросить цену → | Upper Chute Assembly | |
| 5 | - - - - Duplex Drive Cover | ||
| 6 | - - - - Lower Duplex Chute Assembly | ||
| 7-34 | Phaser 4400 Laser Printer Service Manual |
18. PL 13.1 Duplex (1 of 2) - Exploded View
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | - - - - Lower Duplex Chute Assembly (with 2-18) | ||
| 2 | 59K12151 запросить цену → | Duplex Roller Assembly | |
| 3 | 3E47580 запросить цену → | Duplex Bearing | |
| 4 | - - - - Duplex Gear 17/Pulley | ||
| 5 | - - - - Duplex Bearing | ||
| 6 | - - - - Duplex Gear | ||
| 7 | - - - - Duplex Gear 17/39 | ||
| 8 | 127K36520 запросить цену → | Motor Assembly | |
| 9 | 423W15455 запросить цену → | Synchronous Belt | |
| 10 | - - - - Lower Duplex Chute | ||
| 11 | - - - - Duplex Latch | ||
| 12 | - - - - Duplex Latch Spring | ||
| 13 | - - - - Duplex Sensor Harness | ||
| 14 | 130E81970 запросить цену → | Duplex Home Sensor | |
| 15 | 160K53051 запросить цену → | Duplex PWB | |
| 16 | - - - - Duplex Cover | ||
| 17 | 130K83310 запросить цену → | Duplex Sensor | |
| 18 | - - - - Duplex Handle Label | ||
| 7-36 | Phaser 4400 Laser Printer Service Manual |
19. PL 13.2 Duplex (2 of 2) - Exploded View
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | - - - - Stacker Assembly (with 2-13) | ||
| 2 | 50K38632 запросить цену → | Exit Tray Assembly | |
| 3 | - - - - Tray Spring | ||
| 4 | 50E89161 запросить цену → | Exit Tray | |
| 5 | 12E09550 запросить цену → | Weight Link | |
| 6 | 802E02773 запросить цену → | Rear Cover | |
| 7 | 802E02755 запросить цену → | Stacker Cover | |
| 8 | 54K22380 запросить цену → | Inner Exit Chute Assembly | |
| 9 | - - - - Hook Cover | ||
| 10 | - - - - Lower Cover | ||
| 11 | - - - - Cover Hinge | ||
| 12 | - - - - Left Cover Spring | ||
| 13 | - - - - Right Cover Spring | ||
| 7-38 | Phaser 4400 Laser Printer Service Manual |
20. PL 14.1 Stacker (1 of 2) - Exploded View
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 54K22380 запросить цену → | Inner Exit Chute 26 - - - - Stacker Guide | |
| 2 | - - - - Stacker Harness 27 - - - - Stacker Holder | ||
| 3 | - - - - PWB Holder 28 - - - - Exit Shaft | ||
| 4 | 160K88240 запросить цену → | Stacker PWB 29 - - - - Mid Roller Assembly | |
| 5 | - - - - Ground Plate 30 - - - - Stacker Pinch Roller | ||
| 6 | 127K28640 запросить цену → | Drive Motor Assembly 31 - - - - Mid Pinch Spring | |
| 7 | - - - - Gear Exit 20 32 54E14431 Inner Exit Chute | ||
| 8 | - - - - Exit Bearing 33 802K05770 Offset Assembly (with | ||
| 9 | - - - - Gear 27 34 - - - - Offset Motor Assembly | ||
| 10 | - - - - Gear 26 35 - - - - Offset Housing | ||
| 11 | - - - - Gear 47W 36 130E81970 Stacker Home Sensor | ||
| 12 | - - - - Gear Exit 37 - - - - Offset Lever | ||
| 13 | - - - - Static Eliminator 38 - - - - Core Gear | ||
| 14 | - - - - Gear Housing 39 - - - - Ferrite Core | ||
| 15 | 121K20551 запросить цену → | Direction Solenoid 40 - - - - Stacker Wire Assembly | |
| 16 | 11E09450 запросить цену → | Solenoid Lever 41 - - - - Sensor Bracket | |
| 17 | - - - - Solenoid Pin 42 - - - - Saddle Edge | ||
| 18 | 130K84220 запросить цену → | Exit Sensor Assembly 43 - - - - Exit Pinch Spring | |
| 19 | 120E17191 запросить цену → | Stack Full Actuator S 600K79660 Hardware Kit (Includes | |
| 20 | 130E81970 запросить цену → | Stack Full Sensor | |
| 21 | - - - - Stacker Sensor Harness | ||
| 22 | - - - - Offset Roller Assembly | ||
| 23 | - - - - Exit Roller Assembly | ||
| 24 | - - - - Exit Pinch Roller | ||
| 25 | - - - - Offset Bearing | ||
| 7-40 | Phaser 4400 Laser Printer Service Manual |
