Xerox Phaser-3635MFP — каталог запчастей со схемами

Содержание

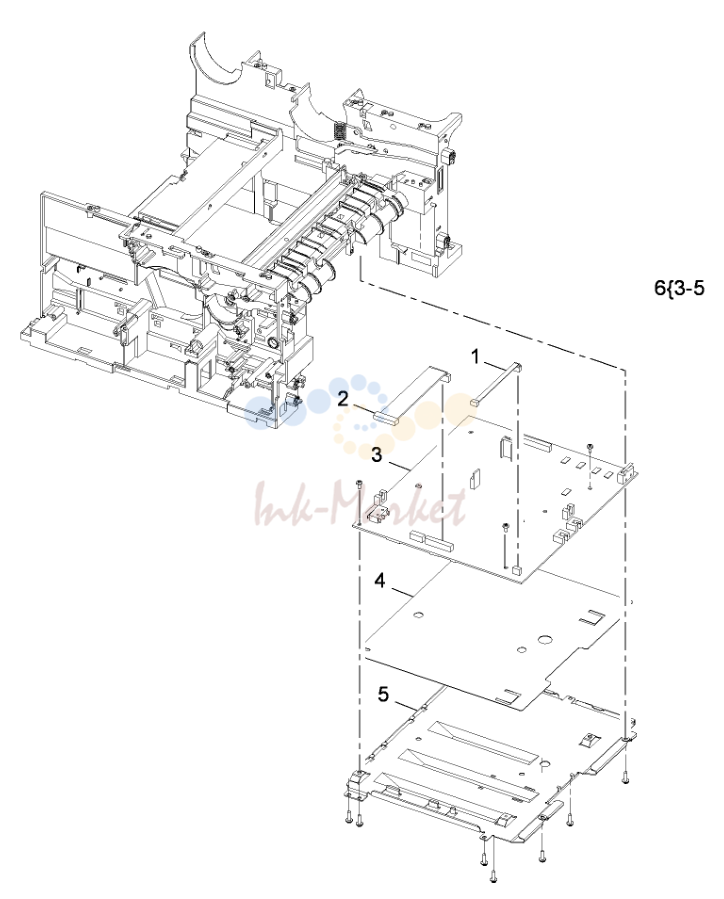

1. PL 1.10 HVPS
2. Item Part Description
3. PL 10.10 Fuser Assembly (1 of 3)

1. PL 1.10 HVPS

№	Артикул	Описание
1		- Tray 1 paper empty sensor harness
2		- HVPS harness (Not Spared)
3	105N02141 ✓ в наличии	HVPS (REP 1.2)
4		- HVPS insulation sheet (Not
5		- HVPS shield (Not Spared)
6		- HVPS assembly (Not Spared)
1	127N07354 запросить цену →	SMPS fan
2		- SMPS cover (Not Spared)
3	105N02119 запросить цену →	SMPS (110V) (REP 1.1)
4		- SMPS harness (Not Spared)
5		- SMPS insulation sheet (Not
6		- Main power socket (Not Spared)
7		- SMPS shield (Not Spared)
8		- SMPS assembly (Not Spared)
9	127N07559 запросить цену →	Main fan
5-4		Phaser 3635MFP
1	140N63296 запросить цену →	Front cover panel
2		- Key harness (P/O PL 2.10 Item 27)
3		- Sub-key harness (P/O PL 2.10 Item
4	091N80272 запросить цену →	Start button label (English)
5		- Housing (P/O PL 2.10 Item 27)
6	029N00384 запросить цену →	Language key
7	029N00385 запросить цену →	Machine status key
8	029N00386 запросить цену →	Login/out key
9	029N00387 запросить цену →	Help key
10	029N00388 запросить цену →	Numerical keys
11	029N00389 запросить цену →	Power key
12	029N00390 запросить цену →	Power key holder
13	029N00391 запросить цену →	Interrupt key
14	029N00392 запросить цену →	Job interrupt key
15	029N00393 запросить цену →	Stop key
16	029N00394 запросить цену →	Start key
17	029N00396 запросить цену →	Rubber key mat (left hand side)
18	029N00397 запросить цену →	Rubber key mat (right hand side)
19	140N63295 запросить цену →	Right keys PWB
20		- Left keys PWB (P/O PL 2.10 Item
21	091N80273 запросить цену →	Services label (English)
22	091N80274 запросить цену →	Numeric key pad label (English)
23	015N00618 запросить цену →	Name label
24	140N63294 запросить цену →	UI PWB (REP 2.2)
25	123N00250 запросить цену →	Touch screen (REP 2.2)
26		- Touchscreen housing (P/O PL 2.10
27	123N00251 запросить цену →	UI assembly (Complete) (REP 2.1)
1		- Main drive assembly (REF: PL 4.10
2	130N01532 запросить цену →	Speaker
3	140N63305 запросить цену →	FAX PWB (Serial)
4		- FAX harness (Not Spared)
5		- FAX cover (Not Spared)
6	140N63297 запросить цену →	Main PWB (REP 3.1)
7		- Foreign device interface PWB
8	113N01308 запросить цену →	SIM card holder
9		- Main PWB bracket (Not Spared)
10	140N63298 запросить цену →	Memory DIMM
11	140N63299 запросить цену →	USB host PWB (REP 3.2)
12		- Ground strip (Not Spared)
13	117N01789 запросить цену →	USB harness (REP 3.2)
14		- MSOK (Not Spared)
15		- Hard drive cover (Not Spared)
16	007N01596 запросить цену →	Hard disk drive
17	140N63303 запросить цену →	Connection PWB
5-6		Phaser 3635MFP
1	127N07557 запросить цену →	Main BLDC motor (MOT04-100)
2		- Gear bracket (P/O PL 4.10 Item 7)
3		- Motor bracket (P/O PL 4.10 Item 7)
4		- Gear (92/61) (P/O PL 4.10 Item 7)
5		- Gear (113/33) (P/O PL 4.10 Item 7)
6		- Gear (55/18) (P/O PL 4.10 Item 7)
7	007N01591 ✓ в наличии	Main drive assembly (REP 4.1)
1	101N01421 запросить цену →	DADF (Complete)
2		- DADF lower cover assembly (P/O
3		- DADF door assembly (REF: PL
4		- Feed assembly (REF: PL 5.30 Item
5		- Drive assembly (REF: PL 5.40 Item
6		- Transport assembly (REF: PL 5.35
7	003N01031 запросить цену →	Left counterbalance
8	003N01018 ✓ в наличии	Right counterbalance
9		- Rear cover (P/O PL 5.10 Item 1)
10		- Front cover (P/O PL 5.10 Item 1)
11	002N02720 запросить цену →	Connector cover
12	152N11751 запросить цену →	DADF harness
5-8		Phaser 3635MFP
1		- Lower cover (P/O PL 5.10 Item 1)
2		- Input tray assembly (REF: PL 5.20
3		- Solenoid damper (P/O PL 5.10 Item
4	121N01160 запросить цену →	DADF lift solenoid (SOL05-320)
5		- Tray extension (P/O PL 5.10 Item
6		- Ground strip (P/O PL 5.10 Item 1)
7	095N00340 запросить цену →	Document pad
8		- Registration roll idler (P/O PL 5.10
9		- Scan idler (P/O PL 5.10 Item 1)
10		- Scan idler spring (P/O PL 5.10 Item
11		- Registration roll shaft (P/O PL 5.10
12		- Nip release lever (P/O PL 5.10 Item
13		- Nip release lever spring (P/O PL
14		- CVT pad (P/O PL 5.10 Item 1)
15		- Lifting exit lever (P/O PL 5.10 Item
16	140N63301 ✓ в наличии	DADF PWB
17		- DADF PWB harness (P/O PL 5.10
1		- Input tray (P/O PL 5.20 Item 13)
2		- Document guide (rear) (P/O PL
3		- Document guide (front) (P/O PL
4		- Document guide rack (P/O PL 5.20
5		- Pinion gear (P/O PL 5.20 Item 13)
6		- Guide rack cover (P/O PL 5.20 Item
7		- Document guide (P/O PL 5.20 Item
8		- Document guide wire (P/O PL 5.20
9		- DADF paper length sensor actuator
10		- DADF paper length sensor spring
11	130N01274 запросить цену →	DADF paper length sensor (Q05-
12		- Sensor assembly cover (P/O PL
13	002N02741 запросить цену →	Input tray assembly (Complete)
5-10		Phaser 3635MFP
1		- DADF door assembly (Complete)
2	130N01533 ✓ в наличии	Pickup roll assembly (REP 5.7)
3		- Bush (P/O PL 5.10 Item 1)
4		- Document gate (P/O PL 5.10 Item
5		- DADF door (P/O PL 5.10 Item 1)
6		- Guide fingers (P/O PL 5.10 Item 1)
7		- Pickup spring (P/O PL 5.10 Item 1)
8		- Pickup damper (P/O PL 5.10 Item
1	022N02359 запросить цену →	Feed assembly (Complete) (REP
2	003N01030 запросить цену →	Retard pad assembly
3		- Retard pad spring (P/O PL 5.30
4		- Feed roll idler (P/O PL 5.30 Item 1)
5		- Upper cover (P/O PL 5.30 Item 1)
6		- Mylar (P/O PL 5.30 Item 1)
7		- Exit idler spring (P/O PL 5.30 Item
8		- Exit idler (P/O PL 5.30 Item 1)
9		- Exit idler shaft (P/O PL 5.30 Item 1)
10		- Exit idler lifting bracket (P/O PL
11		- Upper damper (P/O PL 5.30 Item 1)
12		- Static eliminator (P/O PL 5.30 Item
13		- Lower cover (P/O PL 5.30 Item 1)
14		- Ground strip (P/O PL 5.30 Item 1)
15		- Ground strip (P/O PL 5.30 Item 1)
16		- Document detect sensor harness
17	130N01274 запросить цену →	Document detect sensor (Q05-100)
18		- Document detect sensor actuator
19		- Document detect sensor actuator
5-12		Phaser 3635MFP
1		- Transport assembly frame (P/O PL
2		- White bar plate (P/O PL 5.35 Item
3		- White bar plate spring (P/O PL 5.35
4		- Bearing (P/O PL 5.35 Item 14)
5		- Ground strip (P/O PL 5.35 Item 14)
6		- Scan sensor actuator (P/O PL 5.35
7	130N01274 запросить цену →	Registration sensor (Q05-130)
8		- Exit roll (P/O PL 5.35 Item 14)
9		- Registration roll (P/O PL 5.35 Item
10		- Registration sensor actuator (P/O
11		- Registration sensor actuator spring
12		- Scan roll (P/O PL 5.35 Item 14)
13		- Upper cover (P/O PL 5.35 Item 14)
14	022N02360 запросить цену →	Transport assembly (Complete)
1	007N01595 запросить цену →	Drive assembly (Complete) (REP
2	127N07562 запросить цену →	Scan motor (MOT05-200) (REP
3	121N01161 ✓ в наличии	Registration solenoid (SOL05-310)
4		- Pickup idler gear (P/O PL 5.40 Item
5		- Swing bracket (P/O PL 5.40 Item 1)
6		- Swing bracket feed gear idler (P/O
7		- Swing bracket pickup gear idler (P/
8		- Feed gear idler (P/O PL 5.40 Item
9		- Lower pickup gear idler (P/O PL
10		- Pickup collar (P/O PL 5.40 Item 1)
11		- Spring (P/O PL 5.40 Item 1)
12		- Upper pickup gear idler (P/O PL
13		- DADF door open sensor (Q05-160)
14		- Motor harness (P/O PL 5.40 Item 1)
15		- Drive bracket (P/O PL 5.40 Item 1)
5-14		Phaser 3635MFP

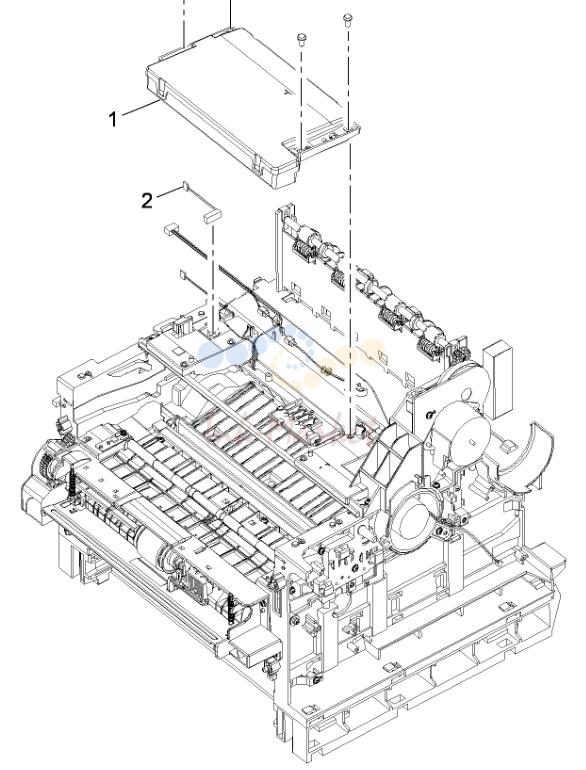

2. Item Part Description

№	Артикул	Описание
1	130N01274 запросить цену →	Bypass paper empty sensor (Q07-
2		- Clutch spring (P/O PL 7.10 Item 29)
3		- Baffle lift spring (P/O PL 7.10 Item
4		- Bypass feed solenoid (SOL08-500)
5		- Bypass paper empty sensor
6		- Bush (P/O PL 7.10 Item 29)
7		- Locking collar (P/O PL 7.10 Item
8		- Retard pad holder (P/O PL 7.10
9		- Sensor bracket (P/O PL 7.10 Item
10		- Baffle (P/O PL 7.10 Item 29)
11		- Pickup bracket (P/O PL 7.10 Item
12		- Frame (P/O PL 7.10 Item 29)
13		- Spring (P/O PL 7.10 Item 29)
14		- Guide mylar (P/O PL 7.10 Item 29)
15		- Idler gear (P/O PL 7.10 Item 29)
16		- Pickup shaft (P/O PL 7.10 Item 29)
17		- Clutch (rear) (P/O PL 7.10 Item 29)
18		- Clutch (front) (P/O PL 7.10 Item 29)
19		- Pickup cam (P/O PL 7.10 Item 29)
20		- Cam roll (P/O PL 7.10 Item 29)
21		- Pickup idler (P/O PL 7.10 Item 29)
22		- Bypass paper empty sensor
23		- Lower retard pad (P/O PL 7.10 Item
24		- Pickup rubber outer shaft (P/O PL
25		- Pickup rubber inner shaft (P/O PL
26	130N01534 ✓ в наличии	Pickup rubber
27		- Retard pad (P/O PL 7.10 Item 29)
28		- Bypass pickup roll assembly (P/O
29	050N00520 запросить цену →	Bypass feed assembly (Complete)
5-16		Phaser 3635MFP
1		- Feed idler holder (P/O PL 7.10 Item
2		- Lower exit idler spring (P/O PL 7.10
3		- Feed idler shaft (P/O PL 7.10 Item
4		- Feed idler shaft holder (P/O PL
5		- Feed idler cover (P/O PL 7.10 Item
6		- Feed roll idler (P/O PL 7.10 Item
7		- Bypass feed assembly (REF: PL
1		- Front cover (P/O PL 7.15 Item 15)
2		- Lower bypass tray cover (P/O PL
3		- Front document guide (P/O PL 7.15
4		- Rear document guide (P/O PL 7.15
5		- Release latch (P/O PL 7.15 Item
6		- Link arm (P/O PL 7.15 Item 15)
7		- Upper bypass tray cover (P/O PL
8		- Tray extension (P/O PL 7.15 Item
9		- Front catch (P/O PL 7.15 Item 15)
10		- Rear catch (P/O PL 7.15 Item 15)
11		- Pinion gear (P/O PL 7.15 Item 15)
12		- Front catch spring (P/O PL 7.15
13		- Rear catch spring (P/O PL 7.15
14		- Bypass tray (P/O PL 7.15 Item 15)
15	002N02718 запросить цену →	Front cover assembly (Complete)
5-18		Phaser 3635MFP
1	050N00518 запросить цену →	Paper tray (Complete)
2		- Tray empty indicator (P/O PL 8.10
3		- Right width paper guide (P/O PL
4		- Right width paper guide lock
5		- Right tray down lever (P/O PL 8.10
6		- Tray down lever spring (P/O PL
7		- Tray frame (P/O PL 8.10 Item 1)
8		- Paper length guide spring (P/O PL
9		- Paper length guide (P/O PL 8.10
10		- Paper length guide lower lock (P/O
11		- Paper length guide spring (P/O PL
12		- Paper length guide upper lock (P/O
13		- Tray extension (P/O PL 8.10 Item
14		- Tray extension bracket (P/O PL
15		- Left tray down lever spring (P/O PL
16		- Lift plate actuator spring (P/O PL
17		- Pinion gear (P/O PL 8.10 Item 1)
18		- Left width paper guide (P/O PL 8.10
19		- Lift plate actuator (P/O PL 8.10
20	019N00947 ✓ в наличии	Retard pad assembly
21		- Retard pad holder spring (P/O PL
22		- Retard pad holder housing (P/O PL
23		- Ground strip (P/O PL 8.10 Item 1)
24		- Paper exit frame (P/O PL 8.10 Item
25	055N00297 запросить цену →	Lead edge guide
26	009N01604 запросить цену →	Lead edge guide spring
27		- Lift plate spring (P/O PL 8.10 Item
28		- Lift plate (P/O PL 8.10 Item 1)
29		- Pad (P/O PL 8.10 Item 1)
30		- Label (P/O PL 8.10 Item 1)
31		- Front cover (P/O PL 8.10 Item 1)
1		- Front cover (P/O PL 8.15 Item 1)
2		- Bottom cross bar (P/O PL 8.15 Item
3		- Feed roll idler (P/O PL 8.15 Item 1)
4		- Feed roll idler spring (P/O PL 8.15
5		- Left cover (P/O PL 8.15 Item 1)
6		- Left lower noise insulation (P/O PL
7		- Left cover noise insulation (P/O PL
8		- Ground strip (P/O PL 8.15 Item 1)
9		- Tray 2 connector (P/O PL 8.15 Item
10		- Tray 2 connector holder (P/O PL
11		- Tray 2 paper empty sensor cover
12		- Rear noise insulation cover (P/O PL
13		- Rear noise insulation (P/O PL 8.15
14		- Rear cover (P/O PL 8.15 Item 1)
15		- Catch (P/O PL 8.15 Item 1)
16		- Right cover (P/O PL 8.15 Item 1)
17		- Right lower noise insulation (P/O
18		- Idler gear 1 (P/O PL 8.15 Item 27)
19		- Idler gear clip (P/O PL 8.15 Item
20		- Drive assembly bracket (P/O PL
21		- Idler gear 2 (P/O PL 8.15 Item 27)
22		- Idler gear 3 (P/O PL 8.15 Item 27)
23		- Tray 2 feed motor (MOT07-210) (P/
24		- Tray 2 feed motor bracket (P/O PL
25		- Idler gear 4 (P/O PL 8.15 Item 27)
26		- Idler gear 5 (P/O PL 8.15 Item 27)
27	127N07563 запросить цену →	Tray 2 drive assembly
28	050N00519 запросить цену →	Tray 2 assembly (Complete)
5-20		Phaser 3635MFP
1	130N01274 запросить цену →	Tray 2 paper empty sensor (Q07-
2		- Tray 2 paper empty sensor actuator
3		- Static eliminator fixing (P/O PL 8.15
4		- Left underside cover (P/O PL 8.15
5		- Right underside cover (P/O PL 8.15
6		- Pickup idler (P/O PL 8.17 Item 31)
7		- Pickup rubber (P/O PL 8.17 Item
8		- Pickup roll shaft (P/O PL 8.15 Item
9		- Static eliminator (P/O PL 8.15 Item
10		- Pickup roll (P/O PL 8.17 Item 31)
11		- Feed roll holder (P/O PL 8.15 Item
12		- Feed roll (P/O PL 8.15 Item 28)
13		- KL-clip (P/O PL 8.15 Item 28)
14		- Bearing (P/O PL 8.15 Item 28)
15		- Pickup roll cam (P/O PL 8.15 Item
16		- Ground strip (P/O PL 8.15 Item 28)
17		- Feed shaft (P/O PL 8.15 Item 28)
18		- Feed gear (P/O PL 8.15 Item 28)
19		- Snap on washer (P/O PL 8.15 Item
20		- Outer pickup gear spring (P/O PL
21		- Pickup cam spring (P/O PL 8.15
22		- Outer pickup gear (P/O PL 8.17
23		- Inner pickup gear (P/O PL 8.17
24	121N01164 запросить цену →	Tray 2 pickup solenoid (SOL08-
25	140N63300 запросить цену →	Tray 2 PWB
26		- PWB cover (P/O PL 8.15 Item 28)
27		- Pickup cam (P/O PL 8.15 Item 28)
28		- Pick up gear core (P/O PL 8.15
29	152N11752 запросить цену →	Tray 2 harness
30	007N01593 ✓ в наличии	Clutch assembly
31	022N02345 запросить цену →	Pickup roll assembly (NOTE)
1		- Magnet (P/O PL 8.20 Item 11)
2		- Rear cover (P/O PL 8.20 Item 11)
3		- Sub panel cover (P/O PL 8.20 Item
4		- Magnet catch (P/O PL 8.20 Item
5		- Face up cover (P/O PL 8.20 Item
6		- Label (P/O PL 8.20 Item 11)
7		- Fuser output guide (P/O PL 8.20
8		- Rear stacker (P/O PL 8.20 Item 11)
9		- Duplex gate (P/O PL 8.20 Item 11)
10		- Idler (P/O PL 8.20 Item 11)
11	002N02716 запросить цену →	Rear cover assembly (Complete)
5-22		Phaser 3635MFP
1		- Grounding plate (Not Spared)
2		- Grounding plate block (Not Spared)
3		- Registration roll (Not Spared)
4		- Feed roll holder (Not Spared)
5		- Rear feed roll holder (Not Spared)
6		- Front feed roll holder (Not Spared)
7		- Feed roll spring (Not Spared)
8		- Idler roll securing bracket (Not
9		- Release latch (Not Spared)
10		- Ground strip (Not Spared)
11		- Feed sensor actuator (Not Spared)
12		- Feed sensor actuator housing (Not
13		- Duplex jam 1 sensor actuator (Not
14		- Registration sensor actuator (Not
15		- Actuator spring (Not Spared)
16		- Actuator housing (Not Spared)
17		- Registration roll idler (Not Spared)
18	121N01162 ✓ в наличии	Registration solenoid (SOL08-850)
19	121N01163 запросить цену →	Tray 1 pickup solenoid (SOL08-
20		- Feed bracket (Not Spared)
21	005N01031 ✓ в наличии	Registration roll clutch (REP 8.1)
22		- Tray 2 connector (Not Spared)
23		- Thermistor 2 (Not Spared) (NOTE)
1		- Print cartridge (Not Spared)
2	002N02628 запросить цену →	Transfer roll (NOTE)
3		- Spring contacts (Not Spared)
4		- Print cartridge power strip (Supply,
5		- Print cartridge power strip (MHV)
6		- Terminal cover (Not Spared) (REP
7	140N63302 запросить цену →	CRUM PWB
5-24		Phaser 3635MFP

3. PL 10.10 Fuser Assembly (1 of 3)

№	Артикул	Описание
1		- Upper cover (P/O PL 10.10 Item 1)
2		- Left lamp cap (P/O PL 10.10 Item
3		- Right lamp cap (P/O PL 10.10 Item
4		- Stripper finger spring (P/O PL 10.10
5		- Static eliminator (P/O PL 10.10 Item
6		- Fuser exit roll (P/O PL 10.10 Item
7		- Exit gear (P/O PL 10.10 Item 1)
8		- Exit roll holder (P/O PL 10.12 Item
9		- Fuser exit sensor actuator (P/O PL
10		- Release latch (P/O PL 10.12 Item
11		- Release latch spring (P/O PL 10.12
12		- Fuser door (P/O PL 10.12 Item 19)
13		- Stripper finger (P/O PL 10.10 Item
14		- Ground strip (P/O PL 10.10 Item 1)
15		- Fuser connector (P/O PL 10.10
16	130N01489 запросить цену →	Thermistor
17		- Idler (P/O PL 10.10 Item 1)
18	130N01490 запросить цену →	Thermostat
19	126N00292 запросить цену →	Fuser door (Complete)
5-26		Phaser 3635MFP
1		- Heat roll (P/O PL 10.10 Item 1)
2		- Pressure roll 1 (P/O PL 10.10 Item
3		- Pressure roll 2 (P/O PL 10.10 Item
4		- Fuser idler gear (P/O PL 10.10 Item
5		- Link jam lever (P/O PL 10.10 Item
6		- Input guide (P/O PL 10.10 Item 1)
7		- Pressure roll securing block (P/O
8		- Outer bearing (P/O PL 10.10 Item
9		- Inner bearing (P/O PL 10.10 Item 1)
10		- Pressure roll gear bracket (P/O PL
11		- Fuser frame (P/O PL 10.10 Item 1)
12	122N00260 запросить цену →	Heat lamp (110V) (REP 10.6)
13		- Fuser gear (P/O PL 10.10 Item 1)
14		- Fuser nip release handle (P/O PL
1	127N07558 запросить цену →	Duplex motor (MOT04-300) (REP
2	127N07485 запросить цену →	Fuser fan
3		- Duplex motor bracket (P/O PL
4	127N07560 запросить цену →	Exit motor (MOT04-200) (REP
5		- Exit motor bracket (P/O PL 10.20
6		- Exit motor gear idler (P/O PL 10.20
7		- Exit motor clutch (P/O PL 10.20
8		- Exit motor clutch gear (P/O PL
9		- Fuser connection gear (P/O PL
10		- Exit motor intermediate gear (P/O
11	007N01594 запросить цену →	Exit drive assembly (REP 10.2)
12		- Duplex drive gear (P/O PL 10.20
13	007N01592 запросить цену →	Duplex drive assembly (REP 10.1)
5-28		Phaser 3635MFP
1	130N01274 запросить цену →	Tray 1 paper empty sensor (Q07-
2		- KL-clip (P/O PL 10.22 Item 15)
3		- Front duplex guide (P/O PL 10.22
4		- Sheet guide (P/O PL 10.22 Item 15)
5		- Static eliminator (P/O PL 10.22 Item
6		- Duplex assembly clamp (P/O PL
7		- Cam (P/O PL 10.22 Item 15)
8		- Pickup shaft (P/O PL 10.22 Item
9		- Feed roll (P/O PL 10.22 Item 15)
10		- Tray 1 paper empty sensor actuator
11		- Static eliminator (P/O PL 10.22 Item
12		- Feed roll holder (P/O PL 10.22 Item
13		- Bearing (P/O PL 10.22 Item 15)
14	022N02343 запросить цену →	Tray 1 pickup roll (NOTE)
15	032N00490 запросить цену →	Front duplex guide assembly
1		- Duplex frame (P/O PL 10.23 Item
2		- Idler spring (P/O PL 10.23 Item 18)
3		- Bush (P/O PL 10.23 Item 18)
4		- Upper guide (P/O PL 10.23 Item
5		- Alignment bracket (P/O PL 10.23
6		- Spring assembly (P/O PL 10.23
7		- Exit gear (P/O PL 10.23 Item 18)
8		- Idler shaft (P/O PL 10.23 Item 18)
9		- Duplex roll idler (P/O PL 10.23 Item
10		- Pulley (P/O PL 10.23 Item 18)
11		- Snap on washer (P/O PL 10.23
12		- Drive drive belt (P/O PL 10.23 Item
13		- Rear duplex roll (P/O PL 10.23 Item
14		- Front duplex roll (P/O PL 10.23
15		- Static eliminator (P/O PL 10.23 Item
16		- Noise insulation (P/O PL 10.23 Item
17		- Noise insulation cover (P/O PL
18	101N01420 запросить цену →	Duplex assembly (Complete)
5-30		Phaser 3635MFP
1		- Exit idler spring (P/O PL 10.25 Item
2		- Exit idler holder (P/O PL 10.25 Item
3		- Primary exit idler (P/O PL 10.25
4		- Secondary exit idler (P/O PL 10.25
5		- Thermistor (Not Spared) (NOTE)
6		- Thermistor harness (Not Spared)
7		- CRUM PWB (REF: PL 9.10 Item 7)
8	152N11754 запросить цену →	Fuser terminal (REP 10.5)
9		- Ground strip (Not Spared)
10		- Ground strip (Not Spared)
11		- LSU support plate (Not Spared)
12		- Exit roll holder (Not Spared)
13		- Transport roll idler holder (Not
14		- Transport roll idler spring (Not
15		- Transport roll idler (Not Spared)
16		- Transport roll idler shaft (Not
17		- Document path idler roll (Not
18		- Exit roll gear (Not Spared)
19		- Main housing (Not Spared)
20		- Housing spring (Not Spared)
21	130N01531 запросить цену →	Idler assembly (REP 10.4)
22	022N02344 ✓ в наличии	Exit roll (REP 10.4)
1		- Exit cover (P/O PL 10.30 Item 12)
2	130N01274 запросить цену →	Out bin full sensor (Q08-720)
3		- Out bin full sensor harness (P/O PL
4	120N00517 запросить цену →	Out bin full sensor actuator
5		- Transport roll holder (P/O PL 10.30
6		- Transport roll (P/O PL 10.30 Item
7		- Transport roll idler gear (P/O PL
8		- Transport roll gear (P/O PL 10.30
9		- Ground strip (P/O PL 10.30 Item
10	125N00094 запросить цену →	Static eliminator
11		- Damper (P/O PL 10.30 Item 12)
12	002N02714 запросить цену →	Exit cover assembly (Complete)
5-32		Phaser 3635MFP
1		- Stapler housing bracket (Not
2		- Stapler door interlock switch (Not
3	029N00395 запросить цену →	Stapler
4		- Stapler assembly (Complete) (Not
5		- Stapler harness (Not Spared)
1		- Scanner base (P/O PL 14.10 Item
2		- UI base (P/O PL 14.10 Item 26)
3		- LCD support (P/O PL 14.10 Item
4	130N01274 запросить цену →	CCD home sensor (A), Platen
5		- Ferrite (P/O PL 14.10 Item 26)
6	127N07564 запросить цену →	Scan motor drive assembly
7		- Ground strip (P/O PL 14.10 Item
8	133N23230 ✓ в наличии	CCD module (REP 14.2)
9		- Ground strip (P/O PL 14.10 Item
10	127N07561 запросить цену →	Scan motor
11		- Platen cover sensor actuator (P/O
12		- Platen cover sensor actuator spring
13	152N11750 запросить цену →	DADF connector
14		- Drive belt spring (P/O PL 14.10
15		- Pulley shaft (P/O PL 14.10 Item 26)
16		- Pulley (lower) (P/O PL 14.10 Item
17	109N00542 запросить цену →	CCD module belt
18		- Pulley (upper) (P/O PL 14.10 Item
19		- CCD module guide rail (P/O PL
20	002N02719 запросить цену →	Scanner cover (REP 14.2)
21		- Scanner lock bracket (P/O PL
22		- Scanner lock (P/O PL 14.10 Item
23	117N01788 ✓ в наличии	CCD module cable
24		- Left trim (P/O PL 14.10 Item 26)
25		- Right trim (P/O PL 14.10 Item 26)
26	109N00688 запросить цену →	Scanner assembly (Complete)
5-34		Phaser 3635MFP
1	002N02713 запросить цену →	Right cover (REP 28.1)
2		- Exit cover assembly (REF: PL
3		- Out-bin assembly (Not Spared)
4	002N02715 запросить цену →	Left cover (REP 28.1)
5		- Rear cover assembly (REF: PL
6	002N02717 запросить цену →	Front mid cover (REP 28.3)
7		- Front cover assembly (Not Spared)
8		- Front cover interlock switch
9		- Stapler door (Not Spared)
10		- Main PWB bracket (REF: PL 3.10
11		- DIMM cover (Not Spared) (REP
12		- Left cover assembly (Not Spared)

Источник: Инк-Маркет.ру.

← Все статьи
