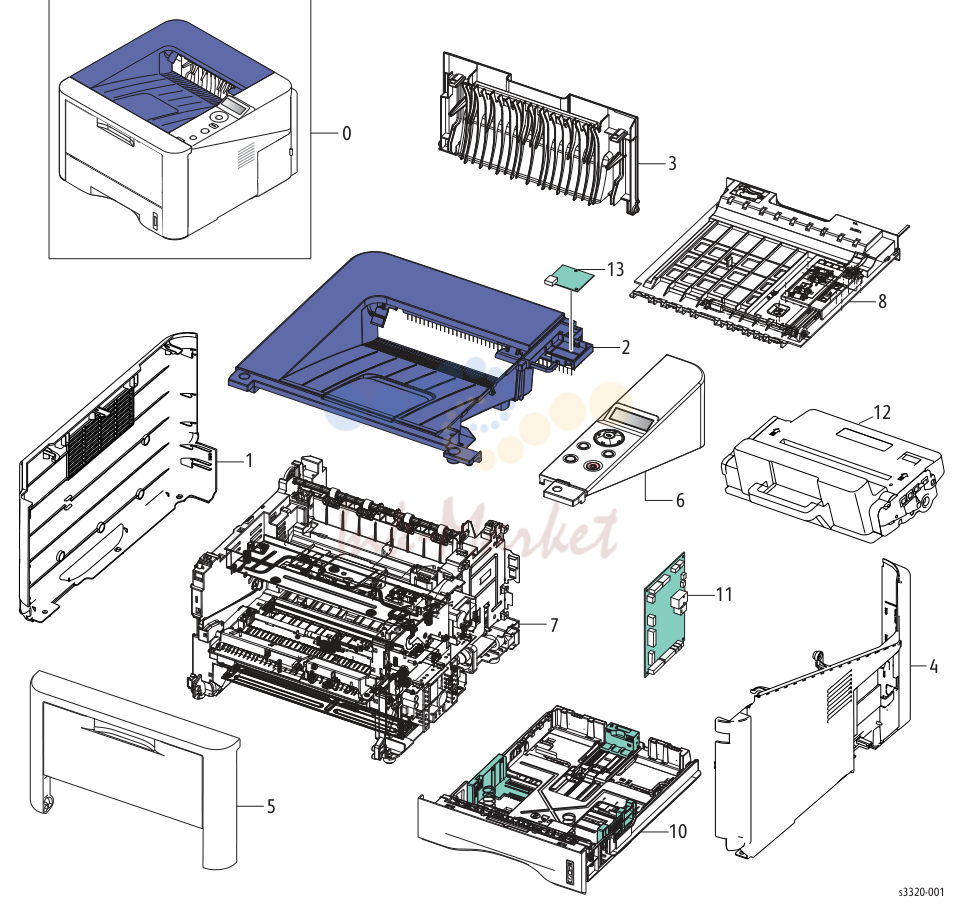

1. Parts Lists
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 0 | Phaser | ||
| 1 | Left Cover 002N03055 | ||
| 2 | Top Cover 002N03056 | ||
| 3 | Rear Cover 095N00415 | ||
| 4 | Right Cover 002N03057 | ||
| 5 | Front Cover 002N03058 | ||
| 6 | Control Panel See Parts List 2.1 Phaser | ||
| 7 | Main Frame Parts List 3.1 Frame | ||
| 8 | Duplex Assembly 022N02676 | ||
| 9 | Duplex Rear Cover | ||
| 10 | Tray 1 050N00650 | ||
| 11 | Main Board (Wireless) 140N63637 | ||
| 12 | Print Cartridge See Consumables and | ||
| 13 | Wireless Board 140N63633 |

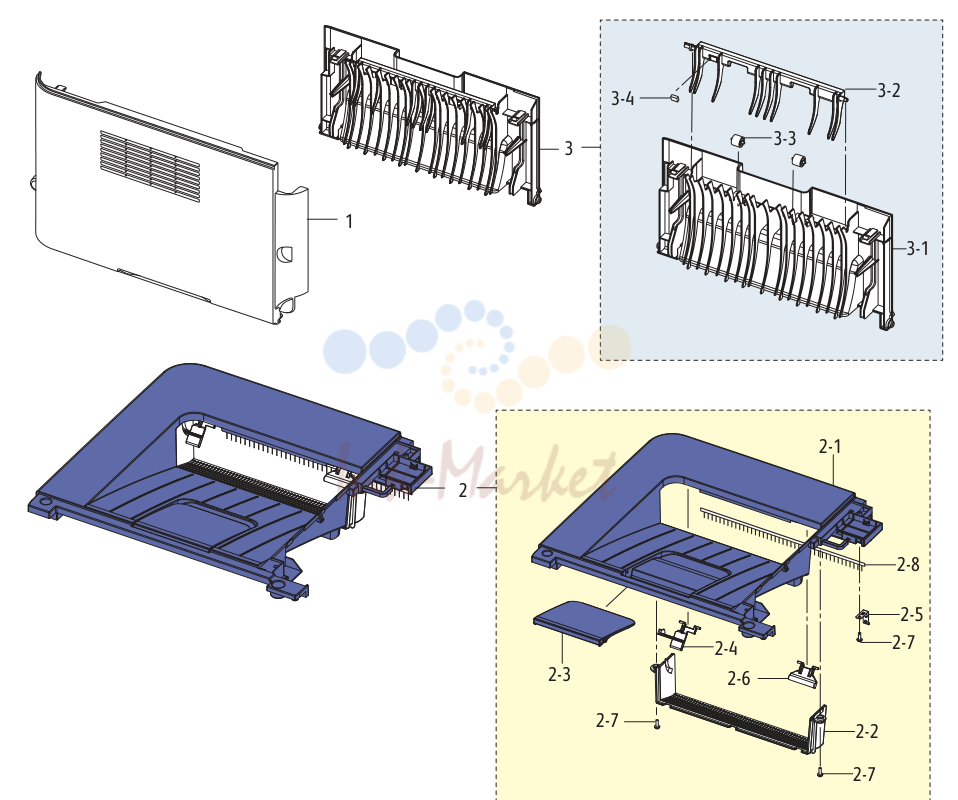

2. Parts Lists
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Left Cover 002N03055 | ||
| 2 | Top Cover Assembly 002N03056 | ||
| 3 | Rear Door Assembly |

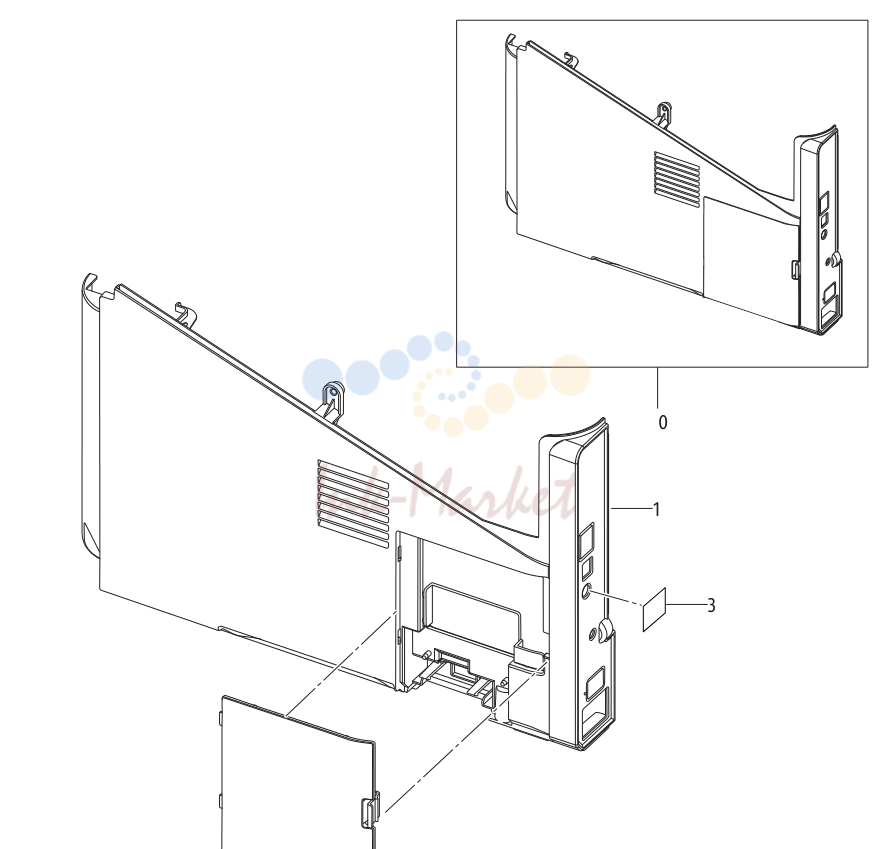

3. Parts Lists
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 0 | Front Cover 002N03058 | ||
| 1 | Front Cover | ||
| 2 | Cover MPLink | ||
| 3 | Front Locker | ||
| 4 | CS Spring | ||
| 5 | Taptype Screw | ||
| 6 | Front Door |

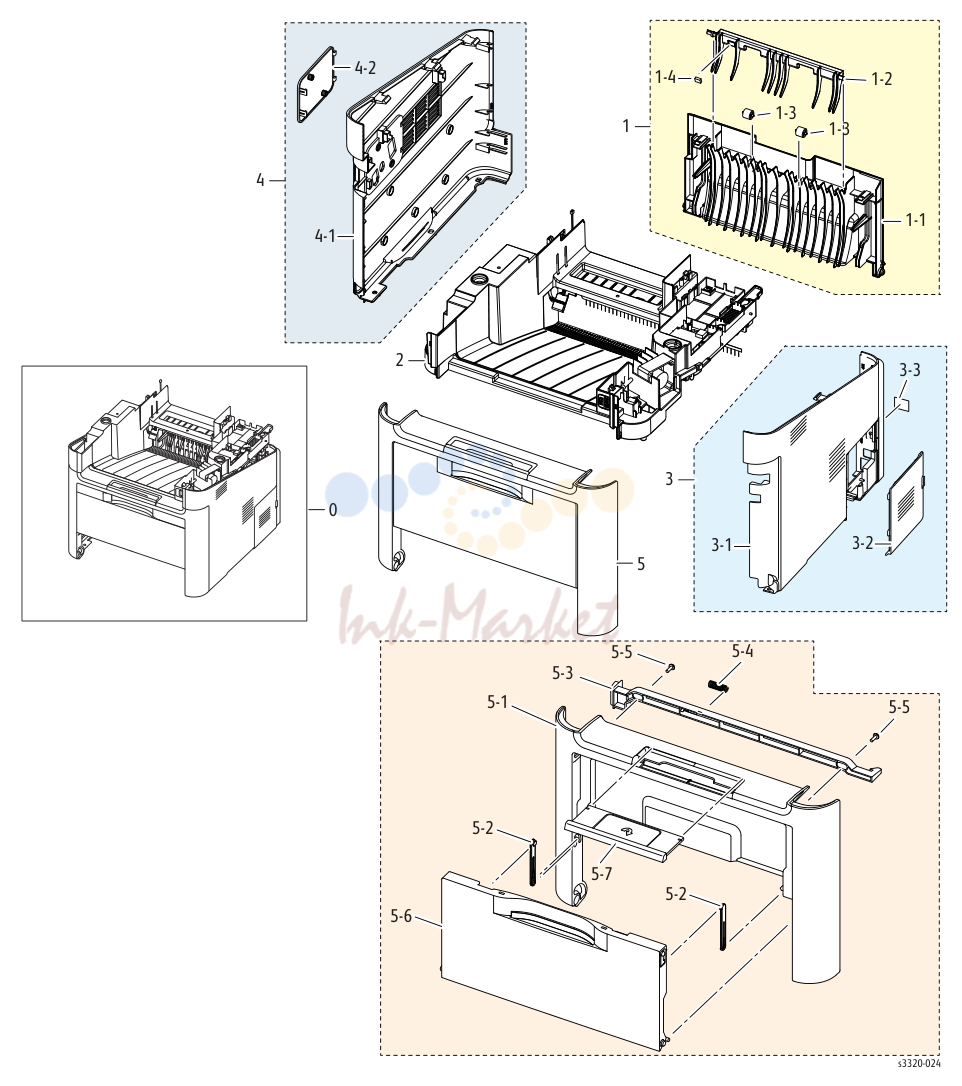

4. Parts Lists
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Rear Door Assembly (Rear Door) | ||
| 1-1 | Rear Cover 095N00415 | ||
| 1-2 | Change Dup Guide | ||
| 1-3 | Idle Roller | ||
| 1-4 | Dup Change Guide Sponge | ||
| 2 | Middle Cover 095N00413 | ||
| 3 | Right Cover Assembly (Right Cover) | ||
| 3-1 | Right Cover 095N00417 | ||
| 3-2 | DIMM Cover | ||
| 4 | Left Cover Assembly (Left Cover) | ||
| 4-1 | Left Cover 095N00418 | ||
| 4-2 | Left Dummy Cover | ||
| 4-3 | Handset Dummy Cover | ||
| 5 | Front Cover | ||
| 5-1 | Front Cover 095N00419 | ||
| 5-2 | Cover MP Link | ||
| 5-3 | Front Locker | ||
| 5-4 | CS Spring | ||
| 5-5 | Taptype Screw | ||
| 5-6 | Tray MP Guide | ||
| 5-7 | Exit Guide |

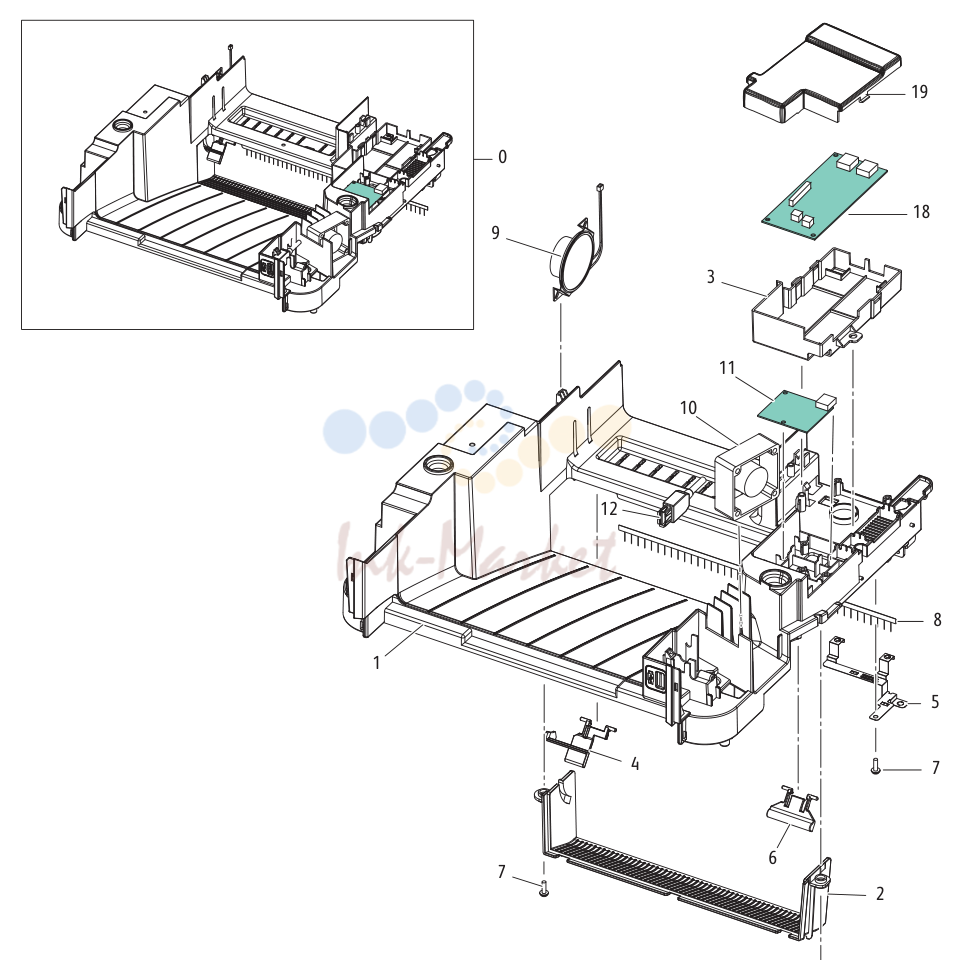

5. Parts Lists
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 0 | Middle Cover Assembly (Middle Cover) | ||
| 1 | Middle Cover 095N00416 | ||
| 2 | Exit Cover | ||
| 3 | L Fax Board Cover | ||
| 4 | Bin Full Stacker | ||
| 5 | Fax Ground | ||
| 6 | Sub M Stacker PMO | ||
| 7 | Taptype Screw | ||
| 8 | 531P Antistatic Brush | ||
| 9 | Speaker 130N01532 | ||
| 10 | Middle Cover Fan | ||
| 11 | Wireless Board 140N63633 | ||
| 12 | USB Host Harness | ||
| 13 | Extension Spk Harness | ||
| 14 | Middle Fan Harness | ||
| 15 | H Extension Spk Harness | ||
| 16 | WLAN Harness | ||
| 17 | Exit Ground | ||
| 18 | PBA Sub-Modem 140N63646 |

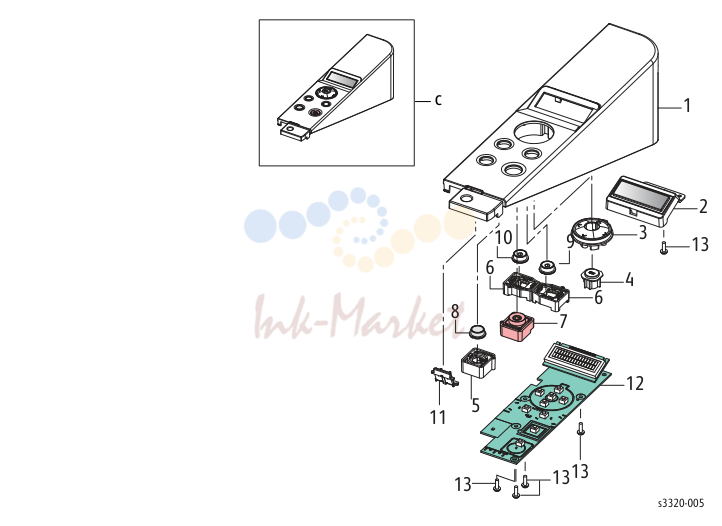

6. Parts Lists
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 0 | Control Panel | ||
| 1 | Phaser 3320DN Control Panel Cover 101N01465 | ||
| 2 | LCD Window Cap | ||
| 3 | Menu Key | ||
| 4 | OK Key | ||
| 5 | Power Key Holder | ||
| 6 | Body Key | ||
| 7 | Stop Key | ||
| 8 | Power Key | ||
| 9 | Economy Key | ||
| 10 | WPS Key | ||
| 11 | Status Lens | ||
| 12 | Phaser 3320DN Control Panel Board 140N63638 | ||
| 13 | Taptype Screw |
7. Parts Lists
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 0 | Main Frame | ||
| 1 | Taptype Screw | ||
| 2 | Taptype Screw | ||
| 3 | Taptype Screw | ||
| 4 | Clutch and Sensor MP Harness | ||
| 5 | Phaser 3320/WorkCentre | ||
| 6 | Electric Clutch (Bypass Tray Clutch) 121N01219 | ||
| 7 | Clutch Spacer | ||
| 8 | Regi Feed Shaft | ||
| 9 | MP (Bypass Tray) 130N01676 | ||
| 10 | Fuser (110V), shown in Parts List 3.3 Fuser 126N00410 | ||
| 11 | Drive 007N01711 | ||
| 12 | Feed Drive 022N02679 | ||
| 13 | Rear Frame | ||
| 14 | ETC Frame | ||
| 15 | Graphite Grease | ||
| 16 | Bearing Grease | ||
| 17 | Bearing Grease | ||
| 18 | Photo Interrupter 130N01574 | ||
| 19 | Thermistor NTC Assy, shown in Parts List 3.3 Fuser 130N01668 | ||
| 20 | Taptype Screw | ||
| 21 | Taptype Screw | ||
| 22 | Taptype Screw | ||
| 23 | Taptype Screw | ||
| 24 | CS Ring | ||
| 25 | TS Spring 009N01653 | ||
| 26 | CS Spring | ||
| 27 | TS Spring | ||
| 28 | Cable Clamp | ||
| 29 | Cable Clamp | ||
| 30 | LVPS Fan (110V printers only) 127N07782 | ||
| 31 | Exhaust Fan | ||
| 32 | Sensor Harness | ||
| 33 | Clutch Motor Harness | ||
| 34 | Air Temp Harness | ||
| 35 | Exit Harness | ||
| 36 | Rear Cover & Bin Full Sensor Harness | ||
| 37 | HVPS Harness | ||
| 38 | LVPS (Signal) Harness | ||
| 39 | Flat Cable | ||
| 40 | Therm Fuser Harness | ||
| 41 | Power LVPS Harness | ||
| 42 | Inlet-2 запросить цену → | AC Harness | |
| 43 | Bias Fuser Harness | ||
| 44 | HVPS 105N02248 | ||
| 45 | Electric Clutch (Registration Clutch) 121N01219 | ||
| 46 | Electric Clutch (Pick Up Clutch) 121N01220 | ||
| 47 | TR(KOR) ETC Spring | ||
| 48 | 4 Bush | ||
| 49 | Idle Feed M Bush | ||
| 50 | L TR M Bush | ||
| 51 | SAW P Plate | ||
| 52 | Bushing Push P Plate | ||
| 53 | 4PI Ring M E Fixer | ||
| 54 | Swing Collar | ||
| 55 | Swing Bracket | ||
| 56 | Regi | ||
| 57 | Transfer Earth Plate | ||
| 58 | TR L Bush | ||
| 59 | Path EX Duplex Frame | ||
| 60 | Exit Shaft Bush | ||
| 61 | Base Frame | ||
| 62 | Ground Paper Bracket | ||
| 63 | LSU Bracket | ||
| 64 | Duplex Frame Guide | ||
| 65 | Exit Sensor Holder 130N01669 | ||
| 5-20 | Phaser 3320 and WorkCentre 3315/3325 Xerox Internal Use Only | ||
| 66 | TR Holder | ||
| 67 | Bottom Frame Plate | ||
| 68 | TR Guide | ||
| 69 | RIB TR Guide | ||
| 70 | ML80 Foot | ||
| 71 | Deve Guide ETC Spring | ||
| 72 | TR ETC Spring | ||
| 73 | LVPS Insulation | ||
| 74 | Guide TR Ground | ||
| 75 | Paper BRKT Ground | ||
| 76 | Gear BRKT Ground | ||
| 77 | HVPS Ground | ||
| 78 | LSU Bracket Ground | ||
| 79 | Bottom L Plate Ground | ||
| 80 | SCF Ground | ||
| 81 | Varistor Ground | ||
| 82 | Controller Shield | ||
| 83 | LVPS L Shield | ||
| 84 | Path Duplex Sheet | ||
| 85 | TR Terminal | ||
| 86 | PR Fuser Terminal | ||
| 87 | Idle Feed Shaft | ||
| 88 | P One Way Clutch | ||
| 89 | SCF M Idle Roller | ||
| 90 | 28 DR Duplex Gear | ||
| 91 | 23/23 RDCN Gear 007N01706 | ||
| 92 | DUP Roller Shaft | ||
| 93 | Empty Actuator | ||
| 94 | Regi Actuator | ||
| 95 | Feed Actuator | ||
| 96 | Holder L OPC Lever | ||
| 97 | Holder R OPC Lever | ||
| 98 | Bar Coupling Lever 005N01146 | ||
| 99 | 96 Idle Exit Gear 007N01707 | ||
| 100 | 65 Exit Gear | ||
| 101 | 29 Idle Feed Gear 007N01708 | ||
| 102 | 20 Feed Gear 022N02672 | ||
| 103 | Feed Roller 022N02673 | ||
| 104 | Pick Up Shaft | ||
| 105 | REGI Feed Roller | ||
| 106 | Transfer Roller 022N02674 | ||
| 107 | Sensor BINFULL Damper | ||
| 108 | Harness Cap | ||
| 109 | Pick Brush | ||
| 110 | Hot Caution Label | ||
| 111 | Feed Bushing PMO | ||
| 112 | CST Locker PMO | ||
| 113 | DEVE L Guide Plate PMO | ||
| 114 | DEVE R Guide Plate PMO | ||
| 115 | Shaft Bearing PMO | ||
| 116 | Pick Up Roller Bushing | ||
| 117 | Pick Up Roller (with 118 and 119) 130N01677 | ||
| 118 | Pick Up Housing 130N01670 | ||
| 119 | Pick Up Rubber 130N01671 | ||
| 120 | Exit Roller Frame (with 121 and 122) 022N02678 | ||
| 121 | F Down Exit Shaft | ||
| 122 | F Down Exit Rubber | ||
| 123 | Decurl Roller Frame | ||
| 124 | CS Spring | ||
| 125 | Exit Roller Holder | ||
| 126 | Main Exit M Roller | ||
| 127 | FR Exit M Roller | ||
| 128 | Decurl Roller Frame | ||
| 129 | CS Spring | ||
| 130 | F/Down Exit M Holder | ||
| 131 | Main Exit M Roller | ||
| 132 | FR Exit M Roller | ||
| 133 | CRUM Upper Frame | ||
| 134 | CRUM Harness | ||
| 135 | CRUM Lower Holder 019N01076 | ||
| 136 | CRUM Upper Holder 019N01077 | ||
| 137 | CRUM Terminal 116N00276 | ||
| 5-22 | Phaser 3320 and WorkCentre 3315/3325 Xerox Internal Use Only | ||
| 138 | L TR Terminal ELA Unit | ||
| 139 | Large HV ETC Spring | ||
| 140 | Large HV Shaft ICT | ||
| 141 | Swing ELA Unit | ||
| 142 | Bearing Grease | ||
| 143 | Plain Washer | ||
| 144 | CS Ring | ||
| 145 | Duplex Swing Bracket | ||
| 146 | 19 DR Swing Gear 007N01705 | ||
| 147 | LSU (Laser Unit) 130N01678 | ||
| 148 | Duplex Assembly 022N02676 | ||
| 149 | USB M Shield |

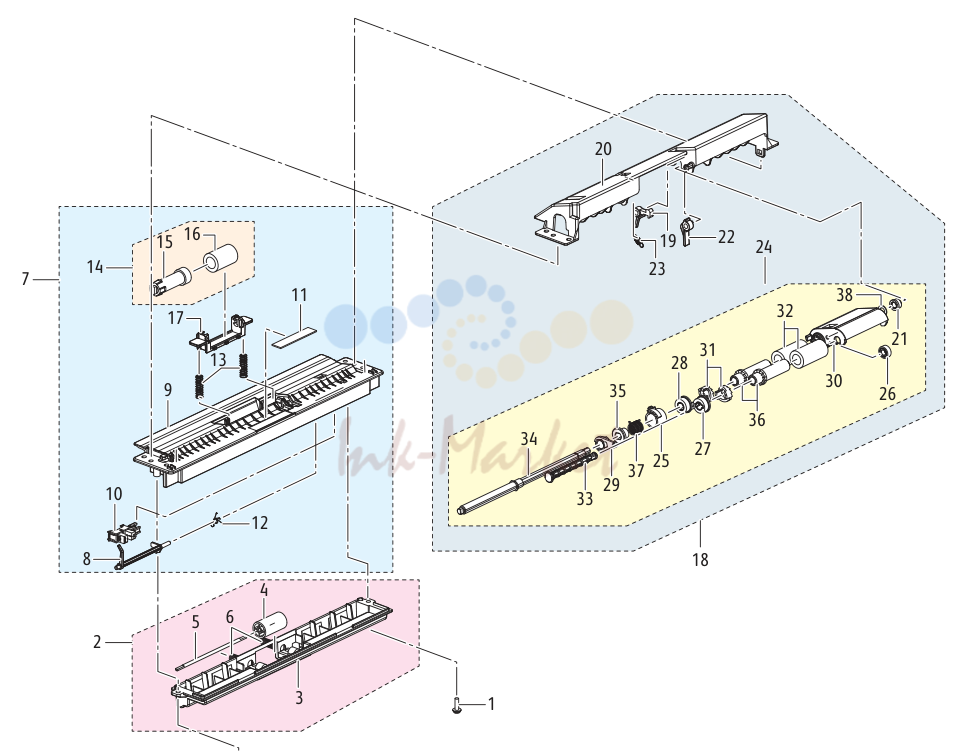

8. Parts Lists
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 0 | Bypass Tray 130N01676 | ||
| 1 | Taptype Screw | ||
| 2 | Idle Holder MP | ||
| 3 | Roller Cover | ||
| 4 | Idle Roller | ||
| 5 | ETC Pin | ||
| 6 | CS Spring | ||
| 7 | Lower MP | ||
| 8 | Empty MP Actuator | ||
| 9 | Lower MP Guide | ||
| 10 | Bypass Tray Paper Empty Sensor 130N01574 | ||
| 11 | Cassette Pad RPR | ||
| 12 | TS Spring | ||
| 13 | CS Spring | ||
| 14 | Retard Roller Cassette (Retard Roller) (includes 15, 16) 022N02677 | ||
| 15 | Torque Limiter Coupler | ||
| 16 | TL Rubber | ||
| 17 | Retard Shaft Holder 006N01347 | ||
| 18 | Upper MP | ||
| 19 | Arm MP Actuator | ||
| 20 | Upper MP Guide | ||
| 21 | Bush PMO | ||
| 22 | MP Stopper | ||
| 23 | ES Spring | ||
| 24 | Pick Up MP (Bypass Tray Pick Up Assembly) 130N01675 | ||
| 25 | MP Collar | ||
| 26 | Idle Pick Up Gear | ||
| 27 | Joint Gear | ||
| 28 | Joint2 запросить цену → | MP Gear | |
| 29 | Shaft Holder | ||
| 30 | Pick Up MP Housing | ||
| 31 | Pick Up Clutch Sub PMO | ||
| 32 | Pick Up Rubber | ||
| 33 | Pick Up Sub Shaft | ||
| 34 | Pick Up MP Shaft | ||
| 35 | MP Clutch Sleeve | ||
| 36 | MP Sleeve | ||
| 37 | TS Spring | ||
| 38 | Plain Washer |

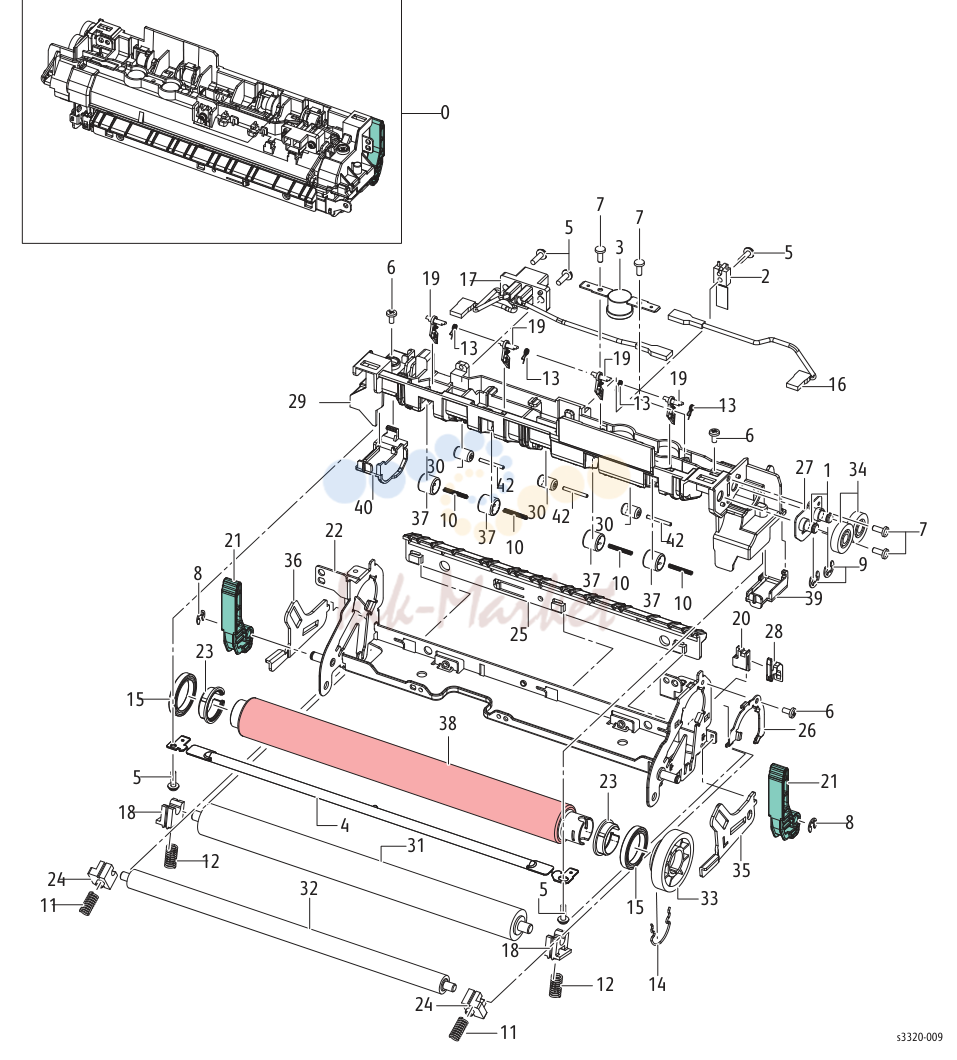

9. Parts Lists
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 0 | 110V Fuser 126N00410 | ||
| 2 | NTC Assy Thermistor 130N01668 | ||
| 3 | Thermostat | ||
| 4 | Halogen Lamp (110V/220V) | ||
| 5 | Taptype Screw | ||
| 6 | Taptype Screw | ||
| 7 | Taptype Screw | ||
| 8 | E Ring | ||
| 9 | E Ring | ||
| 10 | ETC Spring | ||
| 11 | CS Spring | ||
| 12 | CS Spring | ||
| 13 | ETC Spring | ||
| 14 | ETC Spring | ||
| 15 | Ball Bearing | ||
| 16 | Joint Fuser Harness | ||
| 17 | Con Fuser Harness | ||
| 18 | PR 1st Bush | ||
| 19 | Claw Guide | ||
| 20 | Ground PR Guide | ||
| 21 | Jam Holder | ||
| 22 | Fuser Frame | ||
| 23 | HR Bush | ||
| 24 | 2nd PR Bush | ||
| 25 | Input Guide | ||
| 26 | Bearing Bracket | ||
| 27 | Gear Bracket | ||
| 28 | PR M Ground | ||
| 29 | Fuser Cover | ||
| 30 | Idle Roller | ||
| 31 | Pressure Roller | ||
| 32 | 2nd Pressure Roller | ||
| 33 | Fuser Gear | ||
| 34 | Exit Idle Gear | ||
| 35 | L Jam Link Lever | ||
| 36 | R Jam Link Lever | ||
| 37 | Exit Idle Roller | ||
| 38 | Heat Roller | ||
| 39 | L Lamp Cap | ||
| 40 | R Lamp Cap | ||
| 41 | Caution Label | ||
| 42 | F/UP Idle Shaft IEX |

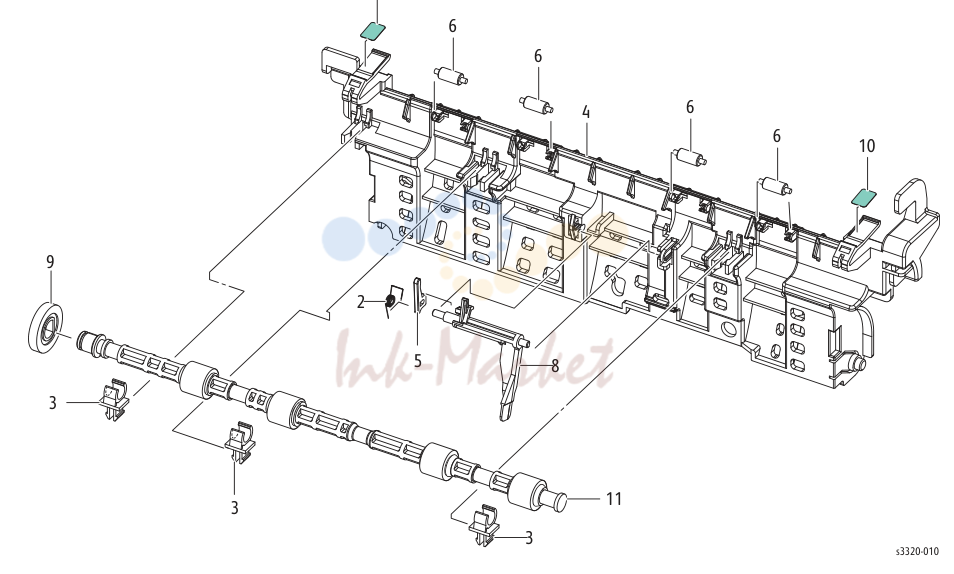

10. Parts Lists
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 0 | Rear Frame 001N00534 | ||
| 2 | ETC Spring | ||
| 3 | TX Bush | ||
| 4 | Rear Guide | ||
| 5 | Actuator Holder | ||
| 6 | Idle Exit Roller | ||
| 7 | Exit F/UP Shaft | ||
| 8 | Exit Actuator | ||
| 9 | Exit Z19 Gear | ||
| 10 | One Touch Label | ||
| 11 | Exit F/UP Shaft (Exit Roller) (with x4 rubber rolls) 022N02675 |

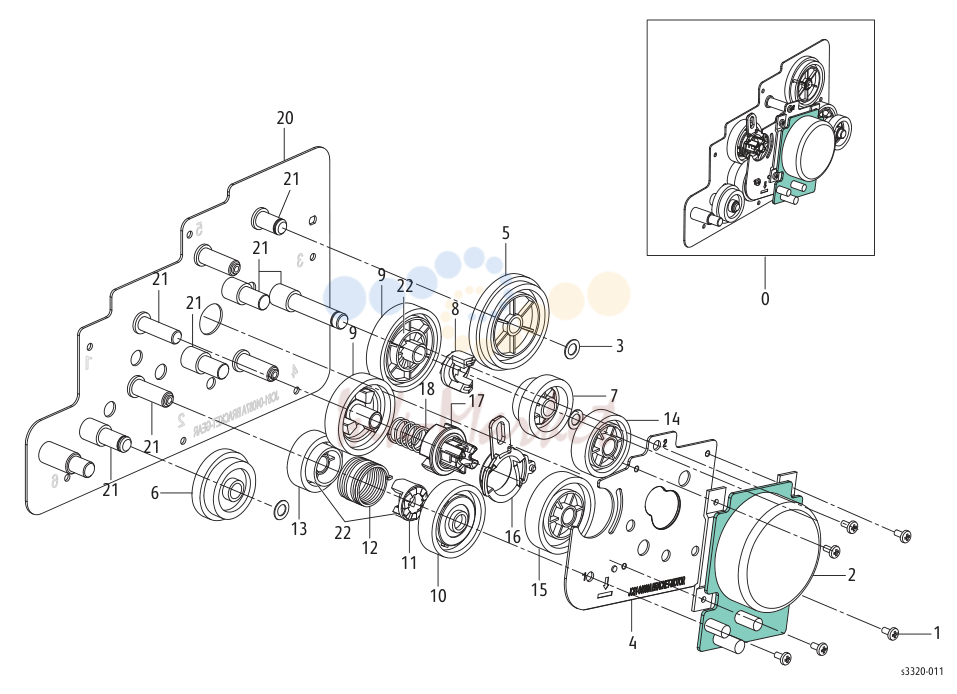

11. Parts Lists
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 0 | Drive | ||
| 1 | Taptype Screw | ||
| 2 | BLDC Motor (Main Drive Motor) 127N07780 | ||
| 3 | Plain Washer | ||
| 4 | Motor Bracket | ||
| 5 | 95-81 запросить цену → | Exit Gear | |
| 6 | 65-28 запросить цену → | Feed Gear | |
| 7 | 29 DR Fuser Gear | ||
| 8 | Clutch Hub Gear | ||
| 9 | 79 IN DR Fuser Gear | ||
| 10 | 69 IN DR OPC Gear | ||
| 11 | Clutch Hub | ||
| 12 | TS Spring | ||
| 13 | 53 Out DR OPC Gear | ||
| 14 | 59 Idle Gear | ||
| 15 | 73 Idle Gear | ||
| 16 | Cam Coupler | ||
| 17 | Coupler | ||
| 18 | CS Spring | ||
| 19 | 73 Coupler Gear | ||
| 20 | Gear Bracket | ||
| 21 | Bearing Grease | ||
| 22 | Bearing Grease |

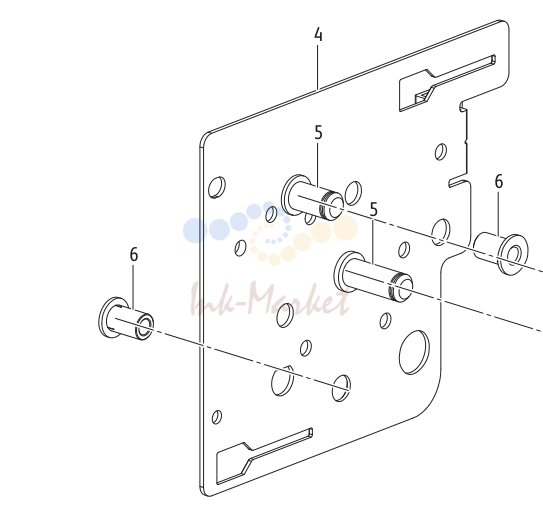

12. Parts Lists
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 0 | Feed Drive | ||
| 1 | Plain Washer | ||
| 2 | 44-29 запросить цену → | Feed Gear 022N02671 | |
| 3 | 19 Idle MP Gear 007N01709 | ||
| 4 | Feed Bracket | ||
| 5 | Bearing Grease | ||
| 6 | Shaft Bush |

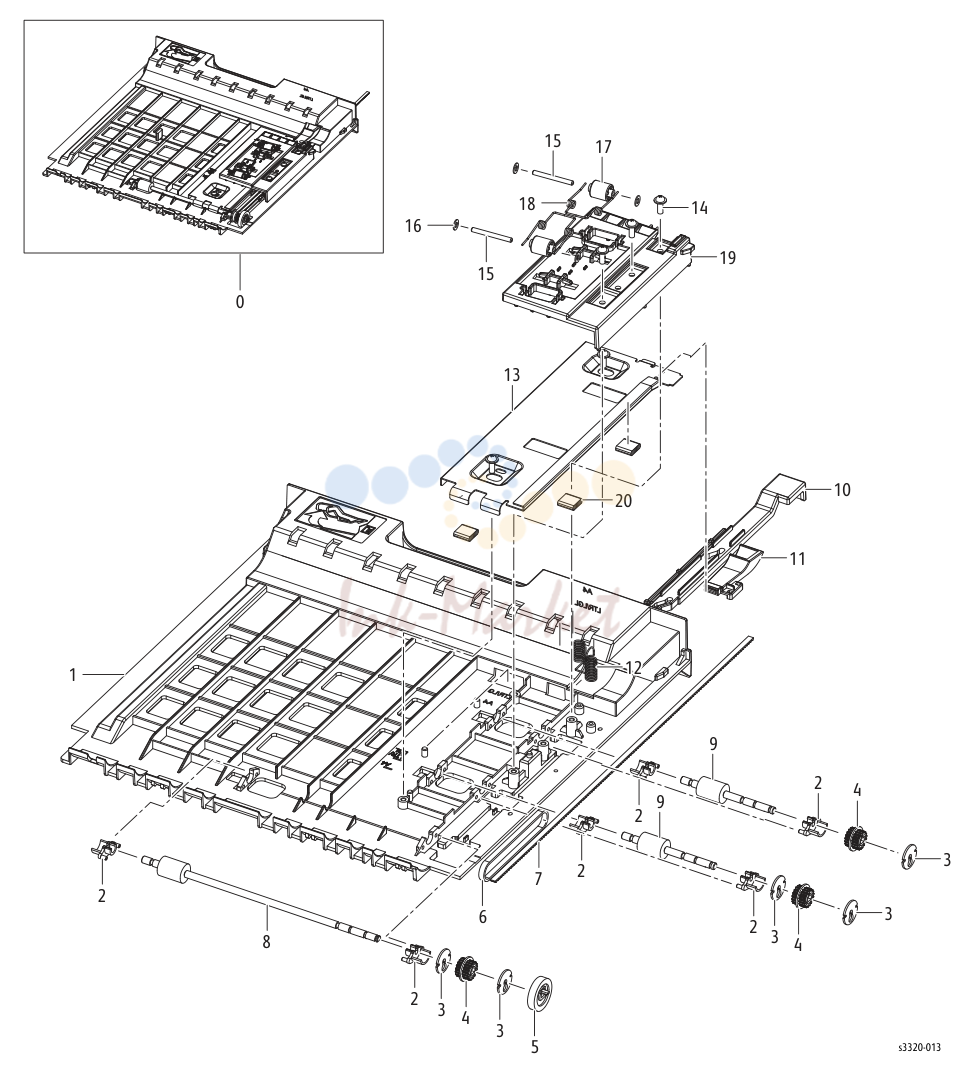

13. Parts Lists
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 0 | Duplex Assembly 022N02676 | ||
| 1 | Duplex Base Frame | ||
| 2 | Dup Feed M Bush | ||
| 3 | Dummy Dup 18 M Pulley | ||
| 4 | 18 Dup Pulley | ||
| 5 | F/Down Exit Gear | ||
| 6 | Gear Timing Belt | ||
| 7 | Timing Belt | ||
| 8 | Feed DUP2 Roller | ||
| 9 | Feed Dup Roller | ||
| 10 | Align Duplex Lever | ||
| 11 | Paper Duplex Guide | ||
| 12 | Duplex GND Terminal | ||
| 13 | Duplex Align Bracket | ||
| 14 | Tapping Screw | ||
| 15 | Dup Roll Idle Shaft | ||
| 16 | Washer Silp PCT | ||
| 17 | Idle Dup M Roller | ||
| 18 | TS Spring | ||
| 19 | Duplex Upper Guide | ||
| 20 | Duplex Gasket |

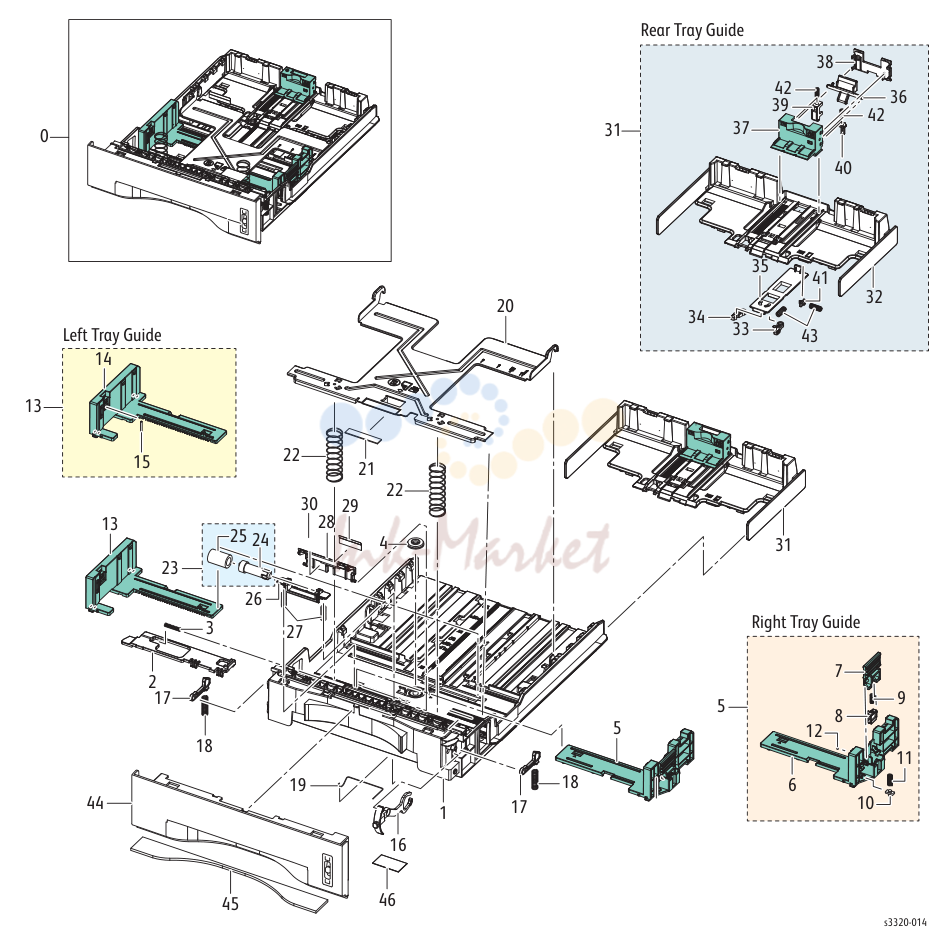

14. Parts Lists
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 0 | Cassette (Tray 1) 050N00650 | ||
| 2 | Cassette Frame | ||
| 3 | Locker Plate Spring ETC | ||
| 4 | Pinion Gear | ||
| 5 | Right Cassette Guide | ||
| 6 | Right Side Guide | ||
| 7 | Right Side Lever | ||
| 8 | Right Side Stopper | ||
| 9 | CS Spring | ||
| 10 | Rear Guide Knob | ||
| 11 | Pad Spring ETC | ||
| 12 | F/UP Idle Shaft IEX | ||
| 13 | Left Guide Cassette | ||
| 14 | Left Side Guide | ||
| 15 | F/UP Idle Shaft IEX | ||
| 16 | Paper Indicator | ||
| 17 | Cassette Locker | ||
| 18 | CS Spring | ||
| 19 | Cassette Ground | ||
| 20 | Knock Up Plate P | ||
| 21 | Cassette Pad RPR (Base Plate Pad) 050N00646 | ||
| 22 | CS Spring | ||
| 23 | Retard Roller Cassette 050N00649 | ||
| 24 | Torque Limiter Coupler | ||
| 25 | TL Rubber | ||
| 26 | Retard Shaft Holder | ||
| 27 | CS Spring | ||
| 28 | Cassette Cover | ||
| 29 | Retard Sheet | ||
| 30 | Cassette Sheet | ||
| 31 | Rear Guide Cassette | ||
| 32 | Rear Paper Guide | ||
| 33 | Right Guide Locker | ||
| 34 | Left Guide Locker | ||
| 35 | Slide Guide Locker | ||
| 36 | Rear Guide Lever | ||
| 37 | Upper Rear Adjust | ||
| 38 | Lower Rear Adjust | ||
| 39 | Rear Adjust Locker | ||
| 40 | Lock Guide Support | ||
| 41 | Guide Rear Knob | ||
| 42 | CS Spring | ||
| 43 | Pad Spring ETC | ||
| 44 | Cassette Handle | ||
| 45 | Bottom CST Absorber | ||
| 46 | Printing Caution Label |

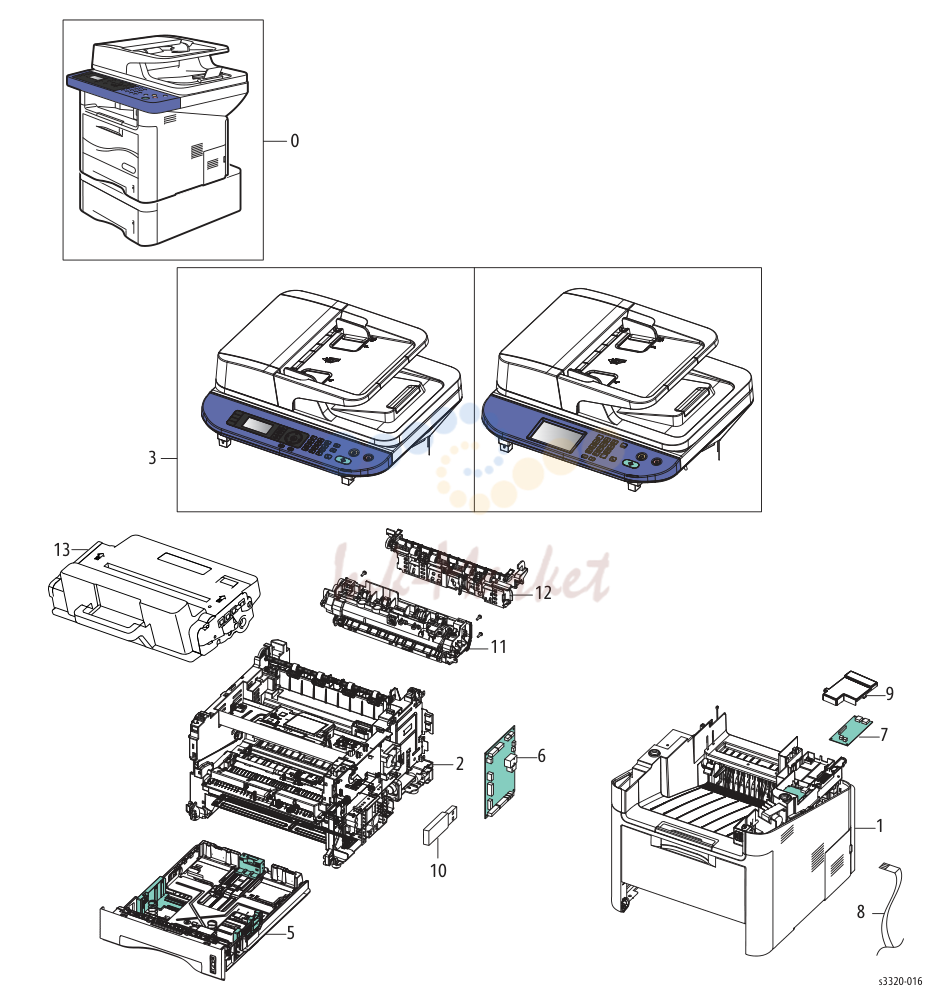

15. Parts Lists
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 0 | WorkCentre 3315, 4 in 1 ADF See Parts List 7.1 WorkCentre | ||
| 0 | WorkCentre 3325DN 4 in 1 DADF See Parts List 8.1 WorkCentre | ||
| 0 | WorkCentre 3325DNI 4 in 1 DADF See Parts List 8.1 WorkCentre | ||
| 1 | Cover | ||
| 2 | Frame Main | ||
| 3 | ADF/DADF | ||
| 5 | Cassette 050N00650 | ||
| 6 | Phaser 3320, Main Board 140N63636 | ||
| 7 | PBA SUB-Modem (Fax Board) 140N63646 | ||
| 8 | Modem Cable (Modem Interface Cable) 117N01937 | ||
| 9 | Cover-H Fax Board | ||
| 10 | Memory Card See Options | ||
| 11 | Fuser (110V) 126N00410 | ||
| 12 | Frame-Rear | ||
| 13 | Print Cartridge See Consumables and |

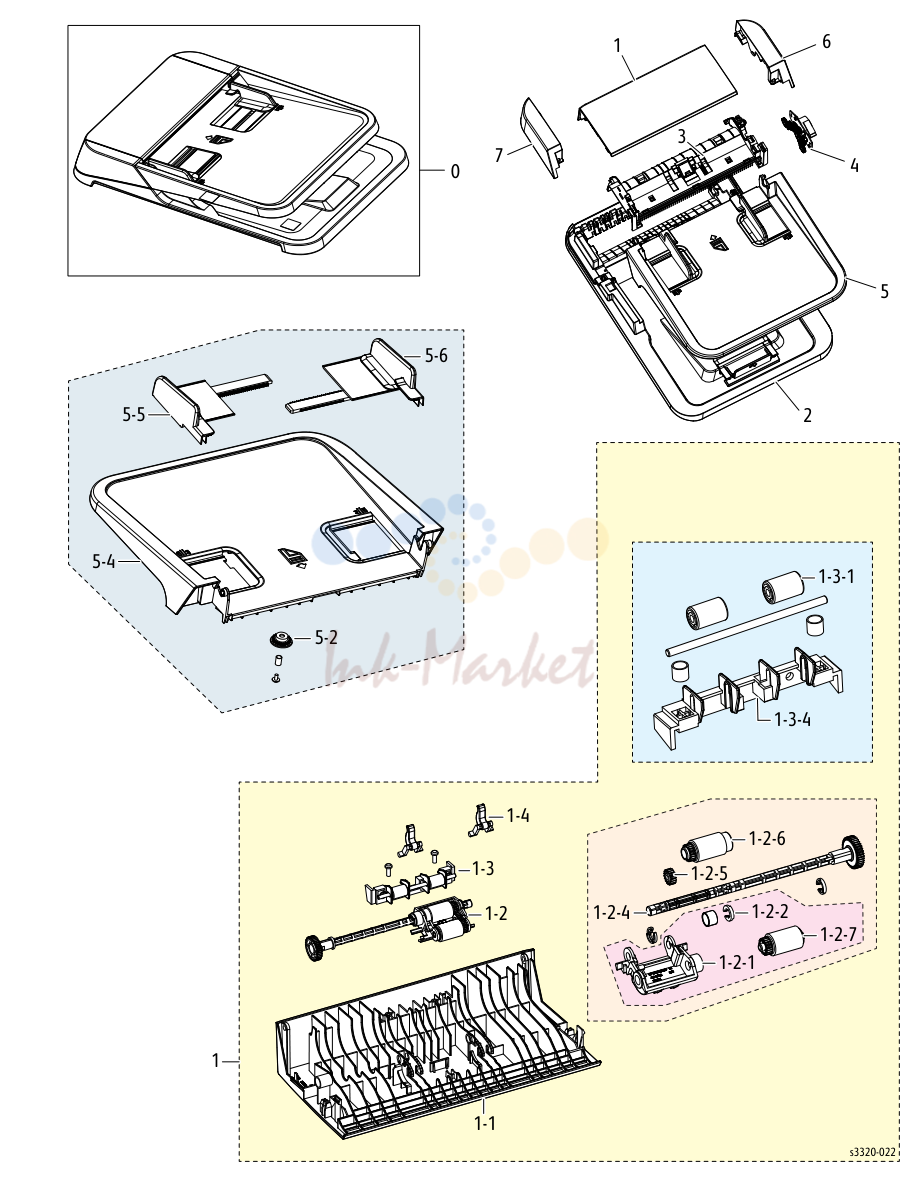

16. Parts Lists
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 0 | ADF 022N02680 | ||
| 1 | ADF Top Cover | ||
| 2 | ADF Base Frame See page5-43 | ||
| 3 | Paper Path Assembly See page5-43 | ||
| 4 | ADF Motor 127N07781 | ||
| 5 | Input Tray | ||
| 6 | Rear ADF Cover CSP | ||
| 7 | Front ADF Cover CSP |

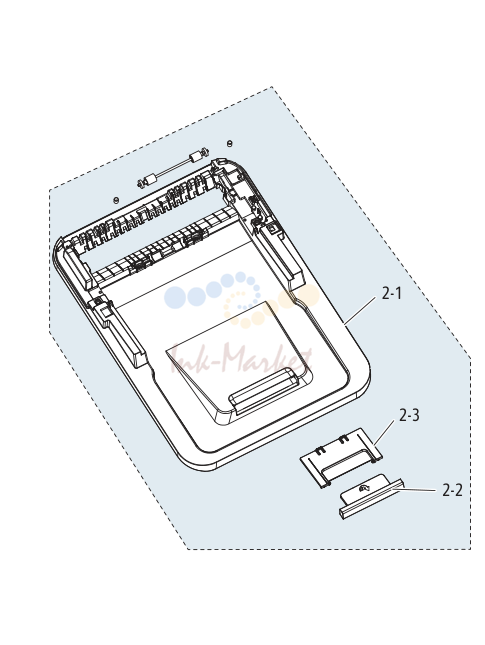

17. Parts Lists
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 0 | DADF 022N02682 | ||
| 2 | Platen DADF | ||
| 3 | Lower DADF | ||
| 4 | Upper DADF | ||
| 5 | DADF Drive 007N01712 | ||
| 6 | GND1 CBF Harness | ||
| 7 | Zener GND CBF Harness | ||
| 8 | DADF PBA (DADF Board) 140N63301 | ||
| 9 | DADF Harness | ||
| 10 | DADF Rear Cover | ||
| 11 | DADF Front Cover | ||
| 12 | DADF Open Cover 002N03064 | ||
| 13 | DADF Stacker | ||
| 14 | DADF Hinge MEA Unit | ||
| 15 | Hinge Unit MEA | ||
| 16 | Taptype Screw | ||
| 17 | Machine Screw |

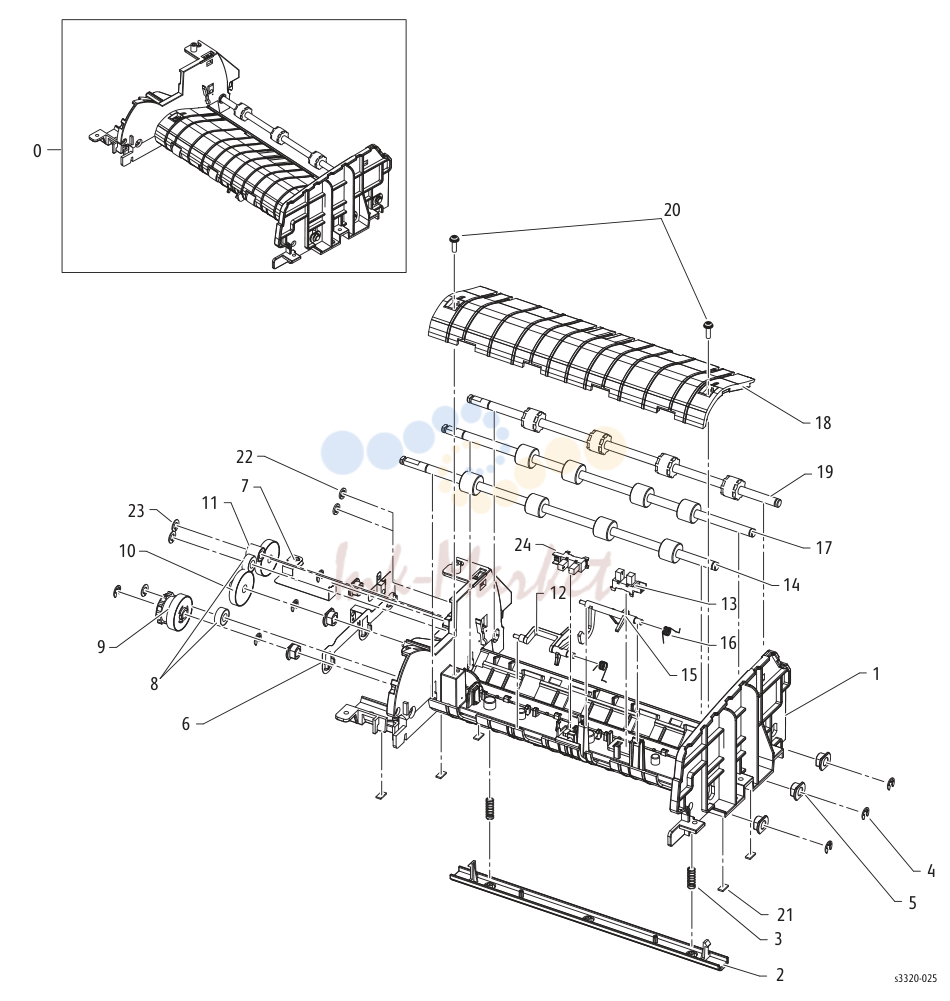

18. Parts Lists
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 0 | Lower DADF | ||
| 1 | DADF Lower Cover | ||
| 2 | White Bar Plate 025N00105 | ||
| 3 | P/UP Separate ETC Spring | ||
| 4 | E Ring | ||
| 5 | 6 D Bush | ||
| 6 | Exit Feed Ground | ||
| 7 | DADF Ground | ||
| 8 | D Idle Feed Gear | ||
| 9 | Feed Gear MEA | ||
| 10 | Exit Gear | ||
| 11 | C Idle Feed Gear | ||
| 12 | Feed Actuator | ||
| 13 | DADF Registration Sensor | ||
| 14 | Feed Roller 022N02681 | ||
| 15 | Regi Actuator | ||
| 16 | Doc Torsion Etc Spring | ||
| 17 | Middle Roller | ||
| 18 | DADF Middle Roller | ||
| 19 | Exit Roller | ||
| 20 | Taptype Screw | ||
| 21 | Upper DADF Damper | ||
| 22 | CS Ring | ||
| 23 | Plain Washer | ||
| 24 | DADF Feed Sensor |

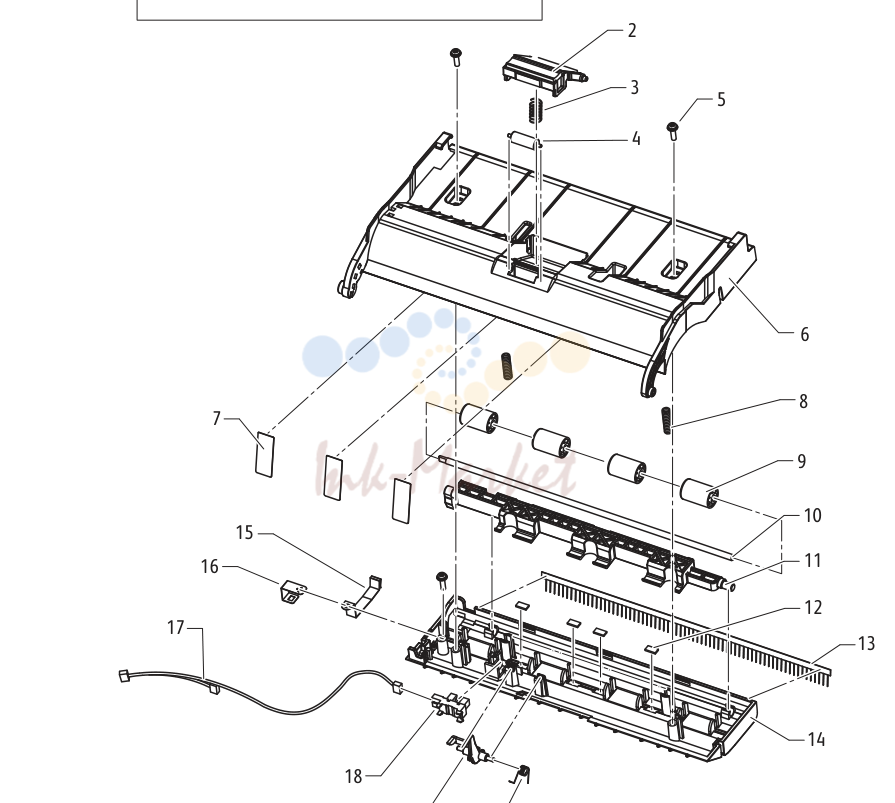

19. Parts Lists
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 0 | Upper DADF | ||
| 2 | Rubber DADF MEA Unit (Separator Pad) 003N01042 | ||
| 3 | Pad ETC Spring | ||
| 4 | Idle ADF M Roller | ||
| 5 | Taptype Screw | ||
| 6 | Top DADF Upper Cover | ||
| 7 | Path Sheet | ||
| 8 | Exit ETC Spring | ||
| 9 | SCF M Idle Roller | ||
| 10 | Idle Feed Shaft | ||
| 11 | Lifting Idle Holder | ||
| 12 | Upper DADF Damper | ||
| 13 | Antistatic Brush MEC | ||
| 14 | BT DADF Upper Cover | ||
| 15 | Ground Brush | ||
| 16 | Upper DADF Ground | ||
| 17 | DADF Sensor 2 Harness | ||
| 18 | Paper Empty Sensor | ||
| 19 | Paper Empty Actuator | ||
| 20 | Torsion Doc (CC2-F) Sprint ETC | ||
| 21 | Scan GND CBF Harness |

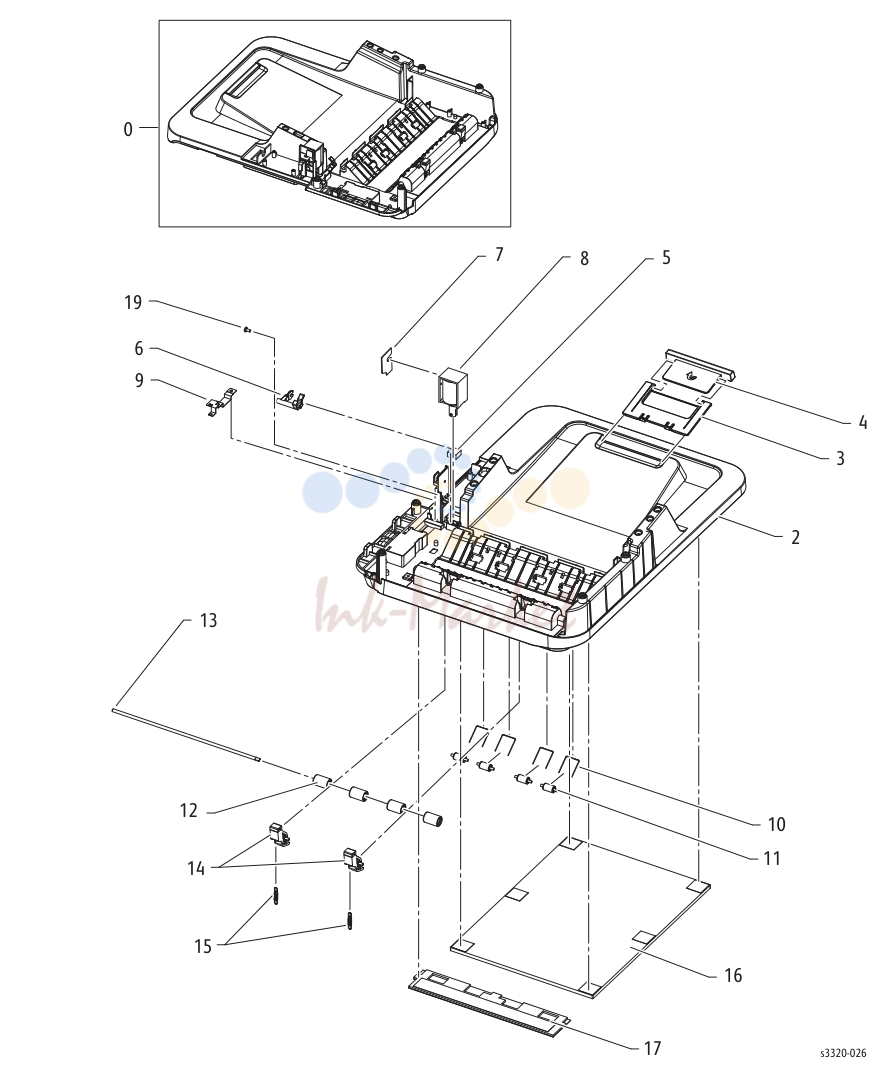

20. Parts Lists
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 0 | Platen DADF | ||
| 2 | Platen Cover | ||
| 3 | Extension L Guide | ||
| 4 | Extension S Guide | ||
| 5 | Lifting DADF Sponge | ||
| 6 | Lifting Exit Lever | ||
| 7 | Solenoid Pad | ||
| 8 | Lifting Solenoid 121N01160 | ||
| 9 | Platen Ground | ||
| 10 | Idle Mid ETC Spring | ||
| 11 | Idle Roller | ||
| 12 | SCF M Idle Roller | ||
| 13 | Idle Feed Shaft | ||
| 14 | Jam Feed Lever | ||
| 15 | ES Spring | ||
| 16 | Sponge White Sheet | ||
| 17 | Platen DADF Sponge | ||
| 18 | Platen Damper | ||
| 19 | Machine Screw |

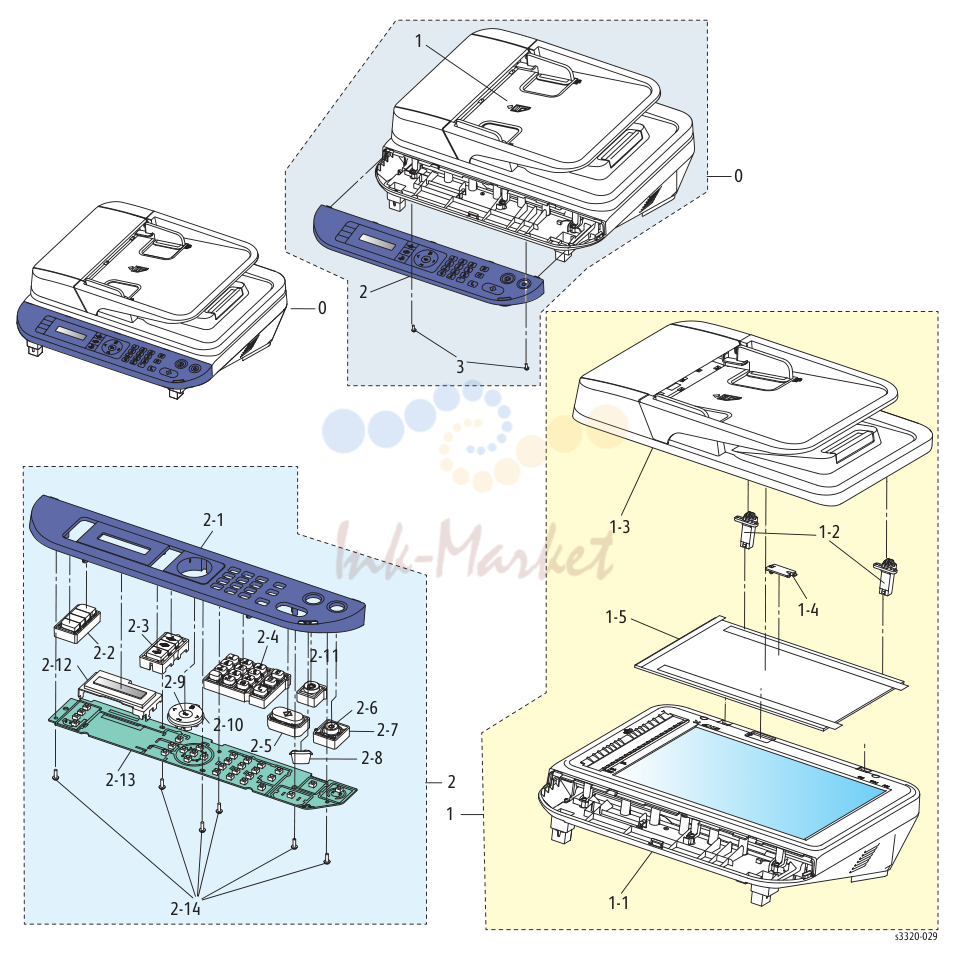

21. Parts Lists
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 0 | MFA | ||
| 1 | Scanner | ||
| 2 | Control Panel Assembly | ||
| 3 | Taptype Screw |

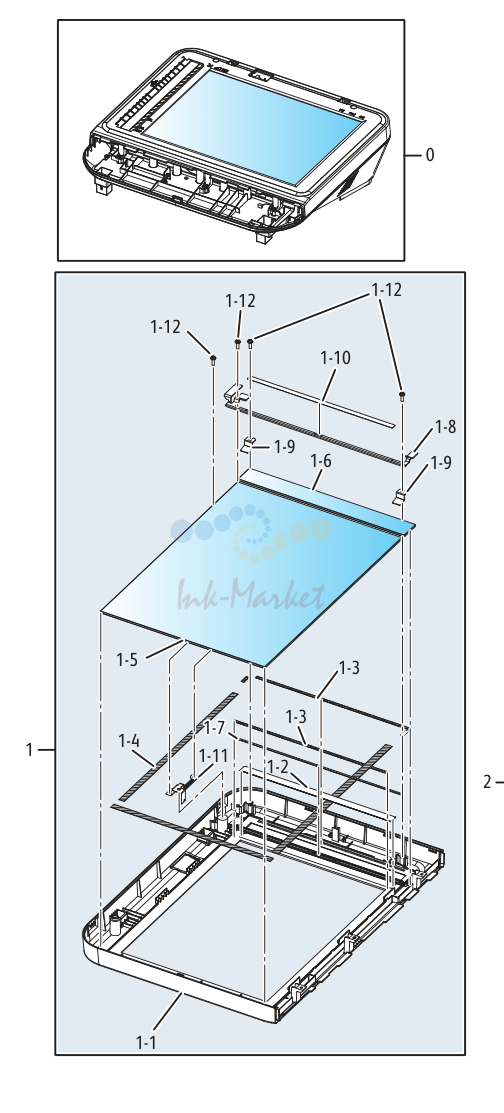

22. Parts Lists
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 0 | Platen 090N00173 | ||
| 1 | Upper Platen 090N00171 | ||
| 2 | Lower Platen 090N00174 | ||
| 3 | Taptype Screw |

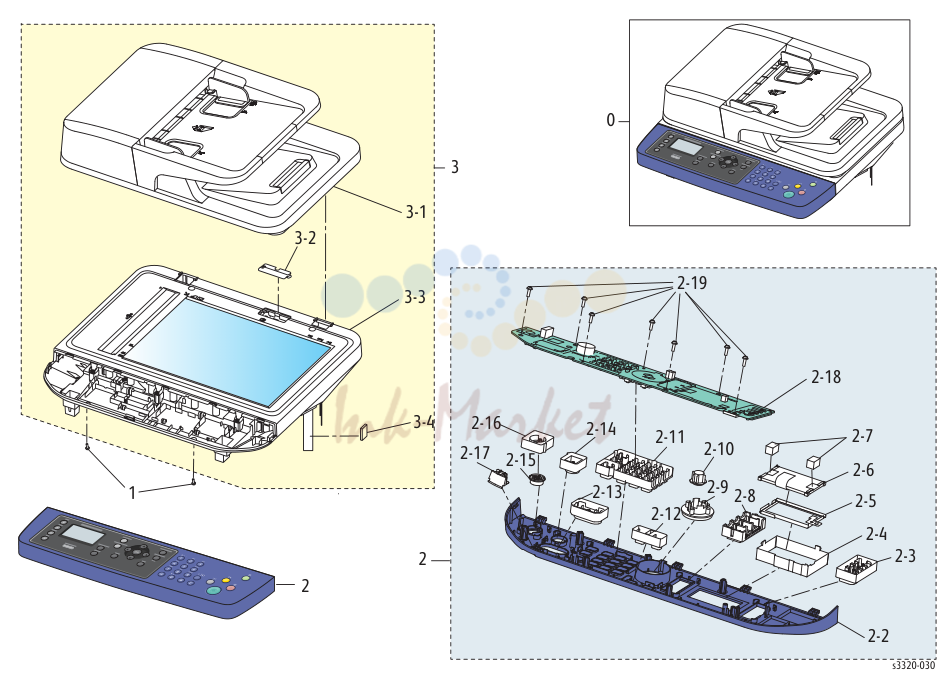

23. Parts Lists
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 0 | MFA | ||
| 1 | Taptype Screw | ||
| 2 | Control Panel | ||
| 3 | Scanner |

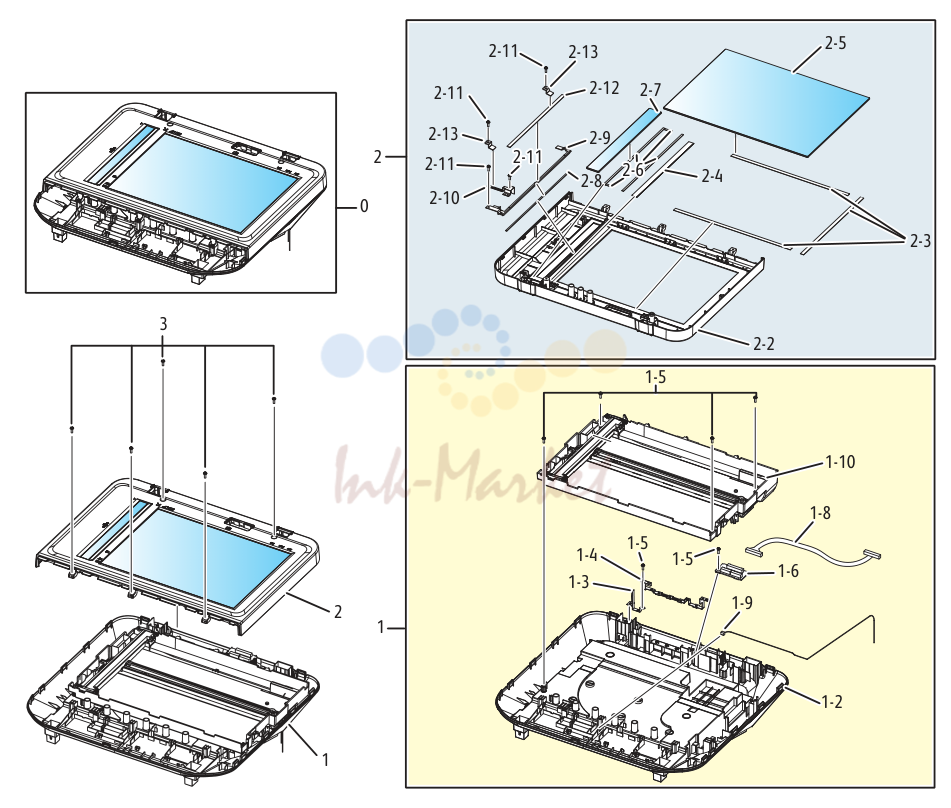

24. Parts Lists
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 0 | Platen 090N00178 | ||
| 1 | Lower Platen 090N00176 | ||
| 2 | Upper Platen 090N00175 | ||
| 3 | Taptype Screw |

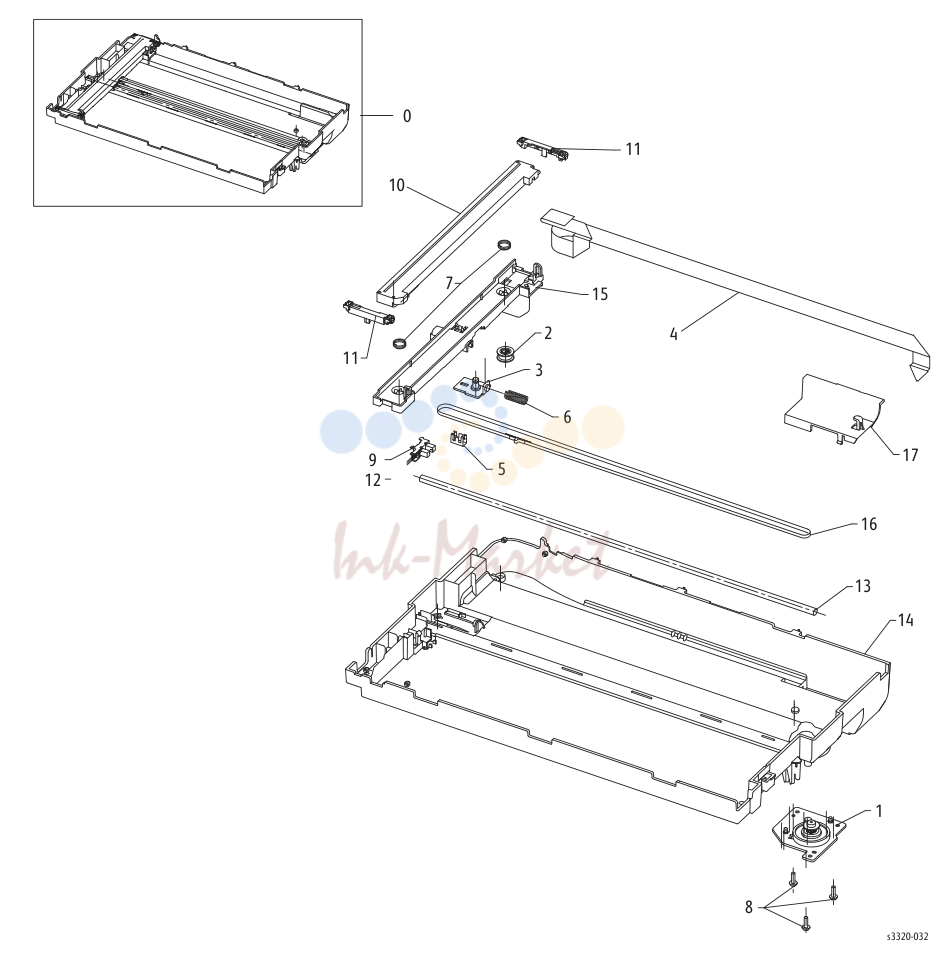

25. Parts Lists
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 0 | Middle Platen 3315 090N00172 | ||
| 1 | Scan Drive ELA Unit (Scan Motor) 007N01629 | ||
| 2 | M Idle Pulley | ||
| 3 | Pulley Scan Bracket | ||
| 4 | Flat Cable | ||
| 5 | Belt P Clip | ||
| 6 | CS Spring | ||
| 7 | CS Spring | ||
| 8 | Taptype Screw | ||
| 9 | Home Position Sensor 130N01601 | ||
| 10 | Contact Image Sensor (WorkCentre 3315) 130N01667 | ||
| 11 | CIS Guide | ||
| 12 | Home Scan Harness | ||
| 13 | Scan Shaft | ||
| 14 | Lower Scan Frame | ||
| 15 | CIS Bracket | ||
| 16 | Gear Timing Belt 007N01704 | ||
| 17 | FFC Cover |

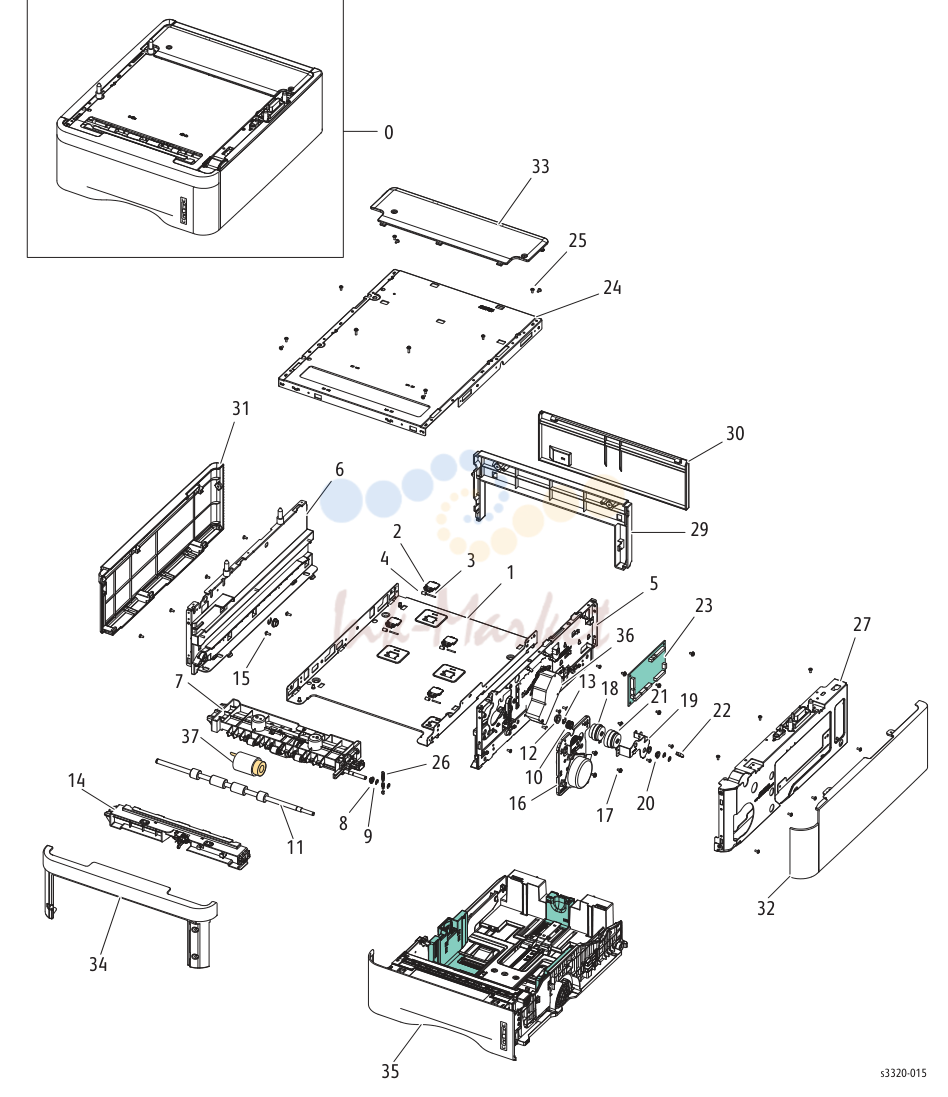

26. Parts Lists
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 0 | Optional Tray 497N01412 | ||
| 1 | Bottom Frame | ||
| 2 | Roller CST Holder | ||
| 3 | F/UP Idle Shaft IEX | ||
| 4 | Bottom CST Roller | ||
| 5 | Right Frame ELA Unit | ||
| 6 | Left Frame ELA Unit | ||
| 7 | Pick Up Unit A/S Assy 130N01674 | ||
| 8 | D6/L4 Bush | ||
| 9 | E Ring | ||
| 10 | Up Pick Drv Gear | ||
| 11 | Regi Roller SCF CSP | ||
| 12 | 8/5 Bush | ||
| 13 | E (ID5) Ring | ||
| 14 | Feed Unit Con A/S | ||
| 15 | Tapping Screw (M3XL8) | ||
| 16 | Drive Unit A/S Assy 007N01666 | ||
| 17 | Hex Screw (M3XL6) | ||
| 18 | Electric Clutch 121N01219 | ||
| 19 | Regi (M) Clutch Brkt SCF CSP | ||
| 20 | D6/L4 Bush | ||
| 21 | Electric Clutch 121N01220 | ||
| 22 | Cable Clamp | ||
| 23 | Main SCF PBA A/S Assy (Optional Tray Feeder Board) 140N63640 | ||
| 24 | Top Frame | ||
| 25 | Taptype Screw (M3XL6) | ||
| 26 | ES Spring | ||
| 27 | Dummy Right MEA Unit | ||
| 28 | Tapping Screw (M3XL8) | ||
| 29 | Dummy Rear Cover | ||
| 30 | Cassette Cover | ||
| 31 | Left Cover CSP 002N03061 | ||
| 32 | Right Cover CSP 002N03062 | ||
| 33 | Top Dummy Cover CSP 002N03060 | ||
| 34 | Front Dummy Cover CSP 002N03063 | ||
| 35 | Cassette A/S Assy 050N00647 | ||
| 36 | AS Unit Lift 120N00537 | ||
| 37 | Unit Pick up Roller 002N02232 |
