Xerox Phaser-3150 — каталог запчастей со схемами

Содержание

1. Parts List
2. Parts List
3. Parts List
4. Parts List
5. Parts List
6. Parts List

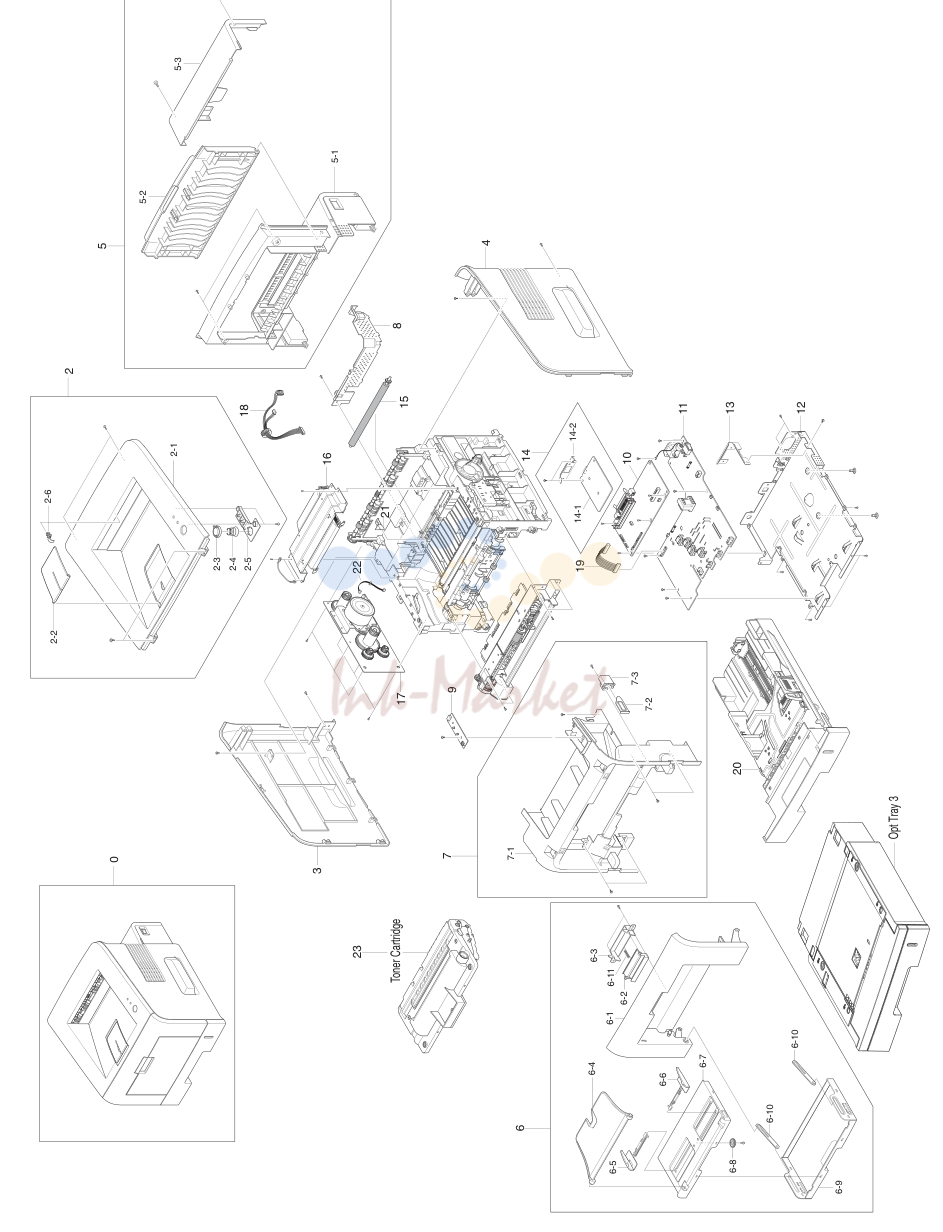

1. Parts List

№	Артикул	Альт. артикул	Описание
0			SET
1			ELA HOU-FRAME-220V, HB2
1			ELA HOU-FRAME-110V, HB2
2			MEA UNIT-COVER TOP 1 002N02314
2-1			COVER-M-TOP
2-2			PMO-STACKER RX
2-3			KEY-M-ON LINE
2-4			SPRING-CS
2-5			LENS LED-M-LED
2-6			BUSH-M-F/DOWN
3			COVER-M-SIDE L 1 002N02317
4			COVER-M-SIDE R 1 002N02318
5			MEA UNIT-COVER REAR 1 002N02319
5-1			COVER-M-REAR
5-2			COVER-FACE UP
5-3			COVER-M-REAR OPEN
6			MEA UNIT-COVER FRONT 1 002N02316
6-1			COVER-M-FRONT
6-2			KNOB-M-LOCKER
6-3			HOLDER-M-LOCKER
6-4			TRAY-EXIT-MP
6-5			ADJUST-M-MP L
6-6			ADJUST-M-MP R
6-7			TRAY-M-COVER-MP
6-8			GEAR-PINION
6-9			TRAY-M-CASE-MP
6-10			TRAY-M-LINK-MP
6-11			SPRING-CIS(C2)
7			MEA UNIT-COVER MID 1 002N02315
7-1			COVER-M-MIDDLE
7-2			PMO-M-SUB ACTUATOR
7-3			CAP-M-SUB ACTUATOR
8			COVER-M-SMPS REAR
9			PBA MAIN-PANEL 1 101N01330
10			PBA MAIN-CONTROLLER 1 140N62926
12			MEA UNIT-SHIELD
13			BRACKET-P-INLET
14			NETWORK OPTION (ELA HOU-NPC3_PRT ) 1 097N01438
14-1			BRACKET-NPC
14-2			PBA SUB-NPC3_PRT
14			ELA HOU-WLAN NPC
15			MEA ETC-TR 1 022N02079
16			UNIT-LSU 1 122N00235
17			ELA UNIT-RX-DRIVE 1 007N01270
18			CBF HARNESS-LSU 1 152N02010
19			CBF HARNESS-ENGINE 1 152N02012
20			MEA UNIT-CASSETTE (PAPER TRAY) 1 109R00749
21			PLATE CHANNEL
22			MOTOR HARNESS-DRIVE 1 152N11566
23			TONER CARTRIDGE 3.5k STANDARD CAP 1 109R00746
23			TONER CARTRIDGE 5k HIGH CAPACITY 1 109R00747

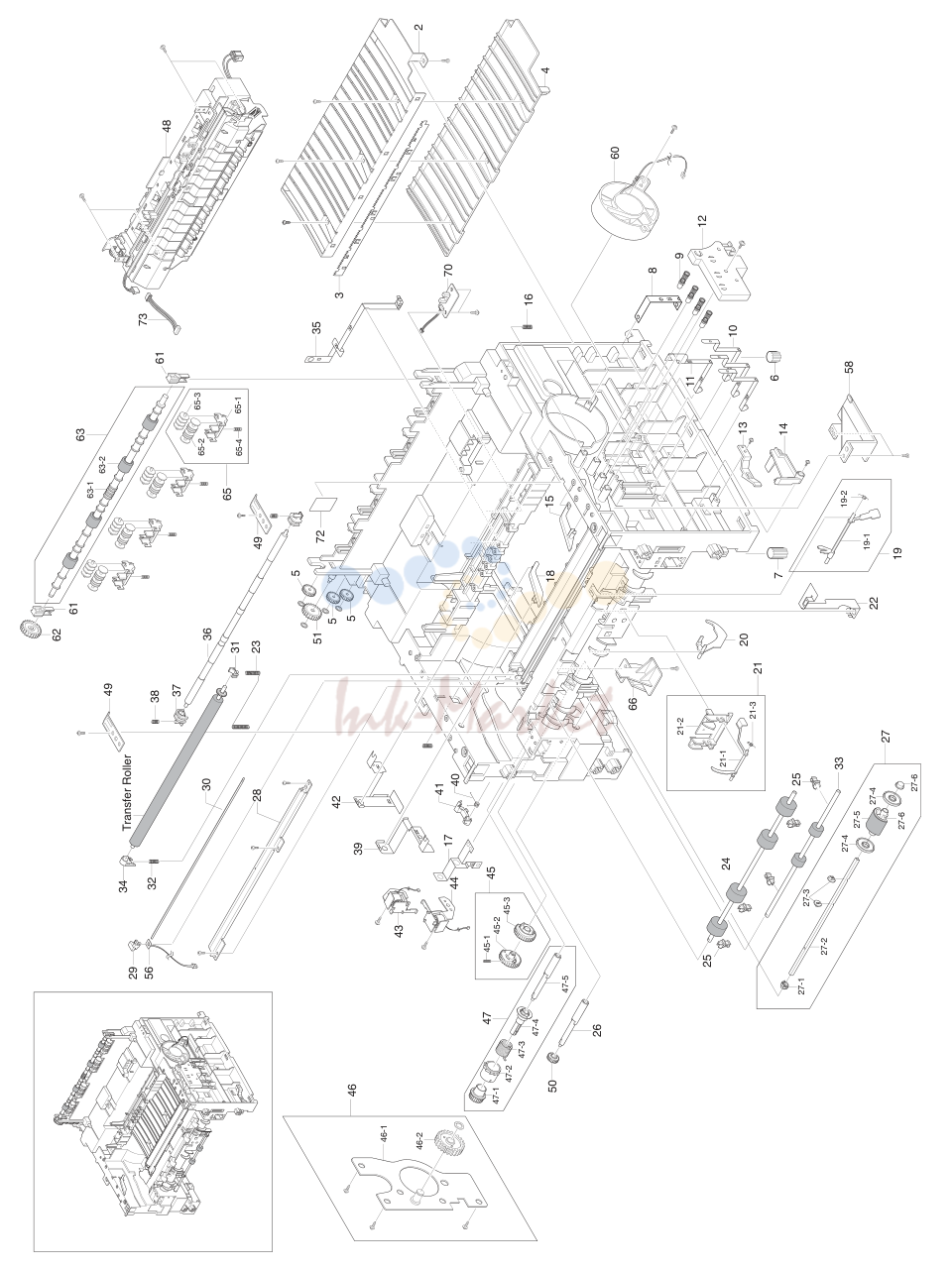

2. Parts List

№	Артикул	Описание
0		ELA UNIT-FRAME 110V 1 110V
1		FRAME-BASE R2
2		GUIDE-P-TR 1 038N00407
3		PLATE-P-SAW
4		GUIDE-M-TR RIB 1 038N00408
6		FOOT-BACK
7		FOOT-FRONT
8		GROUND-GUDIE TR R2
9		MEC-TERMINAL
10		PLATE-TERMINAL CON R2
11		PLATE-TERMINAL CR R2
12		HOUSING-TERMINAL R2 1 002N02320
13		PMO-LOCKER CST 2 120N00427
14		PMO-ACTUATOR CVR OPEN 1 120N00423
15		PMO-PLATE GUIDE DEVE_R 1 032N00390
16		SPRING ETC-GUIDE DEVE
17		GROUND-PUSH BUSHING
18		PMO-PLATE GUIDE DEVE_L 1 032N00391
19		MEA UNIT-ACT FEED
19-1		PMO-ACT FEED R2 1 120N00444
19-2		SPRING-TS
20		PMO-ACTUATOR EMPTY 1 120N00425
21		MEA UNIT-ACT MANUAL
21-1		PMO-ACT MANUAL R2 1 120N00446
21-2		HOLDER-ACT MANUAL R2
21-3		SPRING-TS
22		GROUND-EARTH TR R2
23		GROUND-TERMINAL TR
24		ROLLER-FEED ROLLER 1 1 022N02080
25		PMO-BUSHING FEED 5 016N00274
26		SHAFT-FEED
27		MEA UNIT-PICKUP 1 022N02084
27-1		BUSH-M-PICK_UP L
27-2		SHAFT-P-PICK_UP
27-3		STOPPER-PICK UP_R2
27-4		PMO-IDLE PICK_UP
27-5		SPONGE-ROLLER PICK_UP
27-6		BUSH-M-PICK_UP R
27-7		HOUSING-PICK UP_R2
27-8		HOUSING-PICK UP2_R2
27-9		SHAFT-CORE
28		IPR-P-EARTH TRANSFER 1 117N01616
29		HOLDER-PTL R2
30		LENS-PTL 1 062N00246
31		PMO-BUSHING_TR(L)
32		SPRING ETC-TR L HAWK
33		ROLLER-FEED 1 022N01607
34		BUSH-M-TR L
35		GROUND-FUSER R2
36		SHAFT-FEED IDLE
37		BUSH-M-FEED IDLE
38		SPRING ETC-TR
40		SPRING-TS
41		CAM-M-PICK_UP 1 008N01738
42		GROUND-DRIVE R2
43		SOLENOID-FEED ROCKY2 1 121N01074
44		SOLENOID-HB (MANUAL) 1 700N00094
45		MEA UNIT-GEAR PICKUP 1 007N01271
45-1		GEAR-PICK UP B_R2
45-2		GEAR-PICK UP A_R2
45-3		SPRING-CS
46		MEA UNIT-BRACKET FEED 1 030N00690
46-1		BRACKET-FEED R2
46-2	GEAR-Z35 запросить цену →	IDLE
47		MEA UNIT-CLUTCH 1 022N01609
47-1		GEAR-FEED
47-2		PMO-COLLAR_SPRING
47-3		SPRING-TS
47-4		PMO-HUB CLUTCH
47-5		SHAFT-FEED
48		ELA HOU-FUSER 110V 1 126N00229 110V
49		PLATE-PUSH BUSHING
50		GEAR-FEED
51		GEAR-IDLE
52		SPRING-TS
54		IPR-P-TERMINAL DEVE KEY
56		PBA SUB -PTL
58		HOLDER-TERMINAL R2
60		FAN-DC 1 127N07328
61		MEC-BEARING,EXIT
62		GEAR-EXIT F/DOWN
63		ROLLER-EXIT F/DOWN
64		RMO-RUBBER EXIT
65		MEA RACK-EXIT ROLLER 4 022N02081
65-1		PMO-HOLDER EXIT ROLL
65-2		PMO-ROLLER FD F
65-3		PMO-ROLLER FD R
65-4		SPRING ETC-EXIT ROLL FD
66		GUIDE-SUB FRONT
70		PBA SUB-EXIT SENSOR 1 130N01360
72		LABEL(R)-HOT CAUTION,KME
73		HARNESS-FUSER

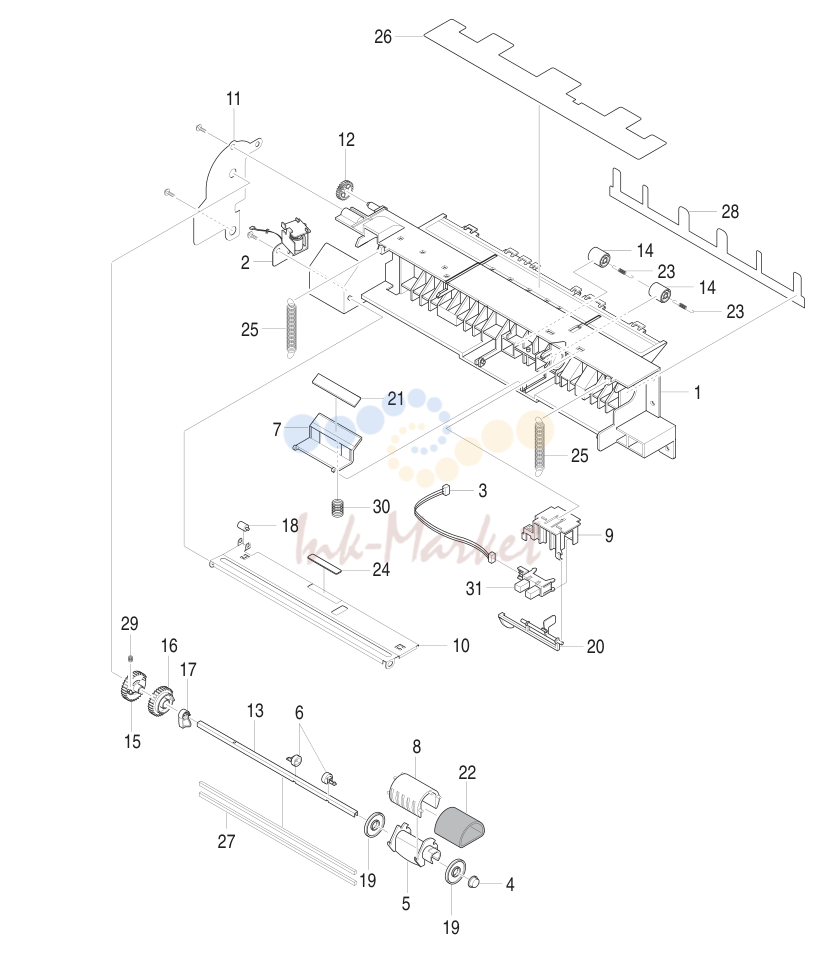

3. Parts List

№	Артикул	Альт. артикул	Описание
0			ELA UNIT-MP 1 022N02085
2			SOLENOID-MP 1 121N01075
3			CBF HARNESS-MPF SEN
4			BUSH-M-PICK-UP R
5			HOUSING-M-PICK UP2_R2
6			STOPPER-M-PICK UP_R2
7			HOLDER-M-PAD_MP
8			HOUSING-M-PICK UP_MP
9			HOLDER-M-SENSOR_MP
10			PLATE-P-KNOCK UP_MP
11			BRACKET-P-PICK UP_MP
12			GEAR-IDLE
13			SHAFT-P-PICK_UP
14			ROLLER-M-IDLE FEED
15			GEAR-M-PICK UP_MP
16			GEAR-M-HOLDER_MP
17			CAM-M-PICK UP_MP
18			PMO-ROLLER CAM_MP
19			PMO-IDLE PICK UP
20			PMO-M-ACT EMPTY MP
21			RPR-FRICTION PAD 1 019N00742
22			RUBBER-PICK UP_MP
23			SPRING-ETC-EXIT ROLL FD
24			RPR-PAD CASSETTE
25			SPRING-ES
26			SHEET GUIDE PAPER R2
27			SHAFT-P-CORE
28			SHEET GUIDE MP
29			SPRING-CS
30			SPRING-ES
31			PHOTO INTERRUPTER

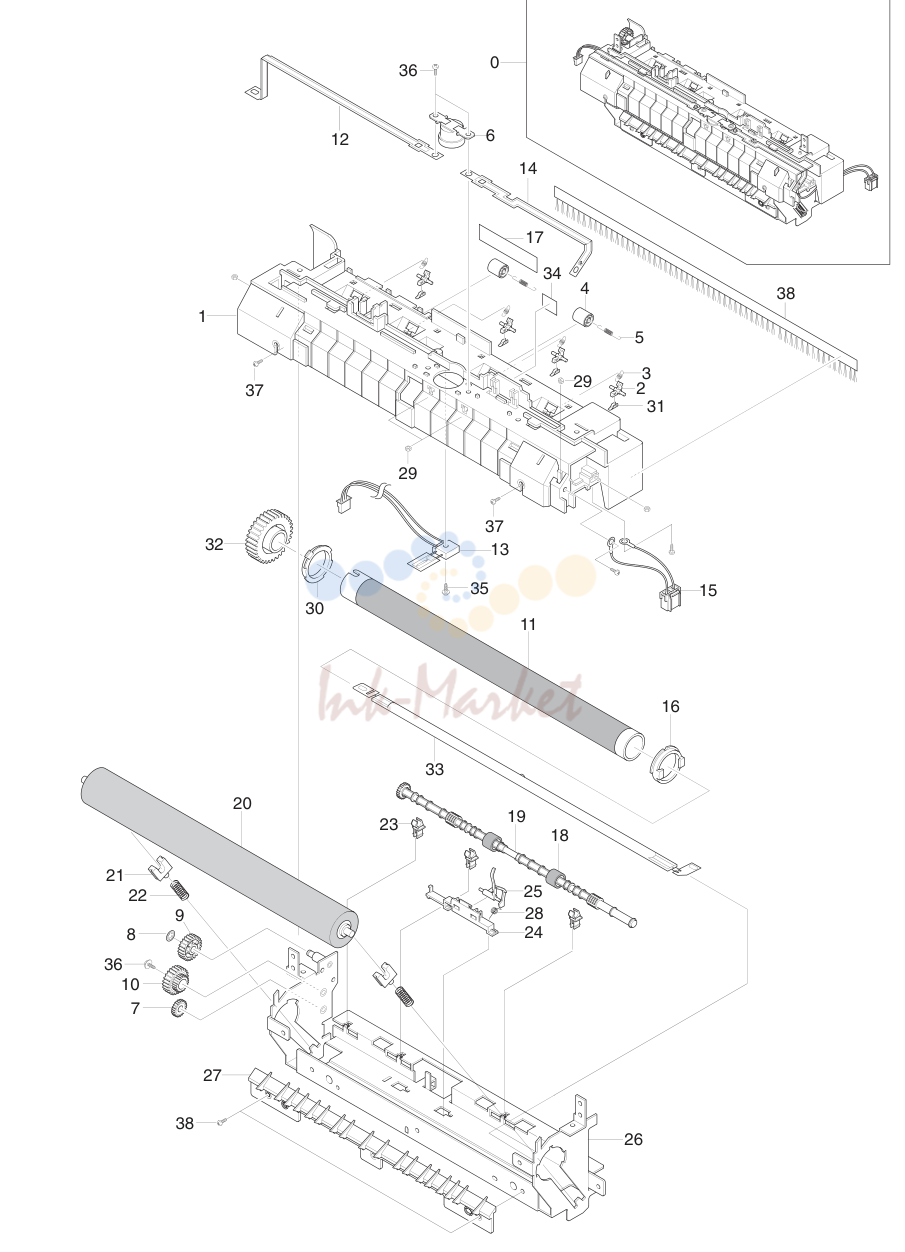

4. Parts List

№	Артикул	Альт. артикул	Описание
0			ELA HOU-FUSER 110V 1 126N00229 110V
0			ELA HOU-FUSER 220V 1 126N00230 220V
1			COVER-FUSER R2
2			HOLDER-PLATE CLAW R2
3			SPRING ETC-CLAW
4			PMO-ROLLER_EXIT
5			SPRING ETC-FUSER EXIT
8			GEAR-IDLE
9			RING-E
10			GEAR-RDCN 25/15
11			ROLLER-HEATER
12			ELECTRODE-LFET R2
13			THERMISTOR-NTC 1 130N01266
14			ELECTRODE-RIGHT R2
15			CBF HARNESS-FUSER 110V 1 WHITE
16			BUSH-HR R_R2
17			LABEL(P)-CAUTION, HOT_FUSER
18			RMO-RUBBER_EXIT
19			ROLLER-M-EXIT F/UP
20			ROLLER-PRESSURE
21			BEARING-PRESSURE/R
22			SPRING-CS
23			PMO-BUSHING TX
24			HOLDER-ACTUATOR
25			PMO-ACTUATOR EXIT R2
26			FRAME-FUSER R2
27			GUIDE-INPUT R2
28			SPRING-TS
29			NUT-HEXAGON
30			BUSH-HR L_R2
31			PLATE-P-CLAW
32			GEAR-FUSER R2
33			LAMP-HALOGEN 110V 1 122N00231 110V
34			LABEL(R)-HV FUSER
35			SCREW-TAPTIEE
36			SCREW-ASS'Y MACH
37			SCREW-TAPTIEE
38			BRUSH-ANTISTAIC
0			ELA UNIT- DRIVE 1 007N01270
1			BRACKET-GEAR MAIN X
2			GEAR-RDCN 53/26
3			GEAR-RDCN 113/33
4			GEAR-RDCN 57/18
5			WASHER-PLAIN
6			BRACKET-MOTOR MAIN
7			GEAR-RDCN
8			GEAR-RDCN
9			MOTOR STEP-HUMMINGBIRD

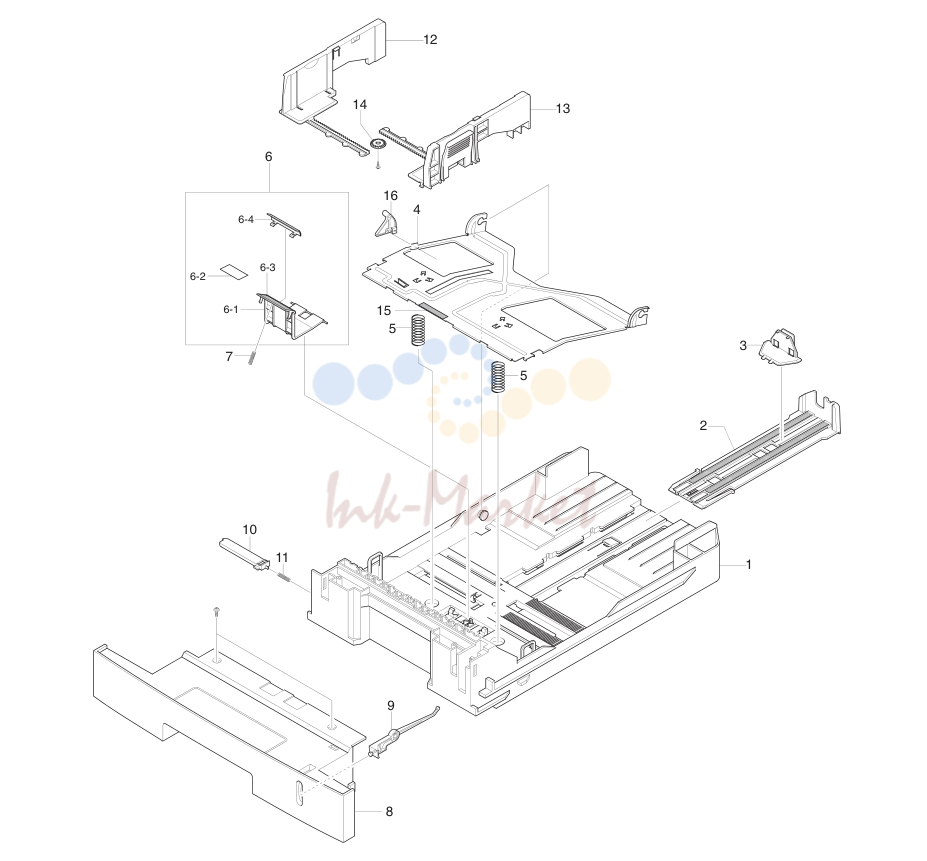

5. Parts List

№	Артикул	Альт. артикул	Описание
0			MEA UNIT-CASSETTE, USA 1 109R00749
1			FRAME-M-CASSETTE
2			GUIDE-M-EXTENSION LARGE
3			GUIDE-EXTENSION SMALL
4			PLATE-P-KNOCK_UP
5			SPRING-CS
6			MEA UNIT-HOLDER PAD
6-1			HOLDER-M-PAD
6-2			SHEET-HOLDER PAD R2
6-3			RPR-FRICTION PAD 1 019N00742
6-4			IPR-PLATE PAD
7			SPRING ETC-EXIT ROLL FD
8			COVER-SUB CASSETTE R2
9			INDICATOR-M-CST PAPER
10			PMO-PLATE_LOCKER
11			SPRING ETC-LOCKER,PLATE
12			ADJUST-M-CASSETTE_L
13			ADJUST-M-CASSETTE_R
14			GEAR-PINION
15			RPR-PAD CASSETTE
16			CAM-KNOCK UP

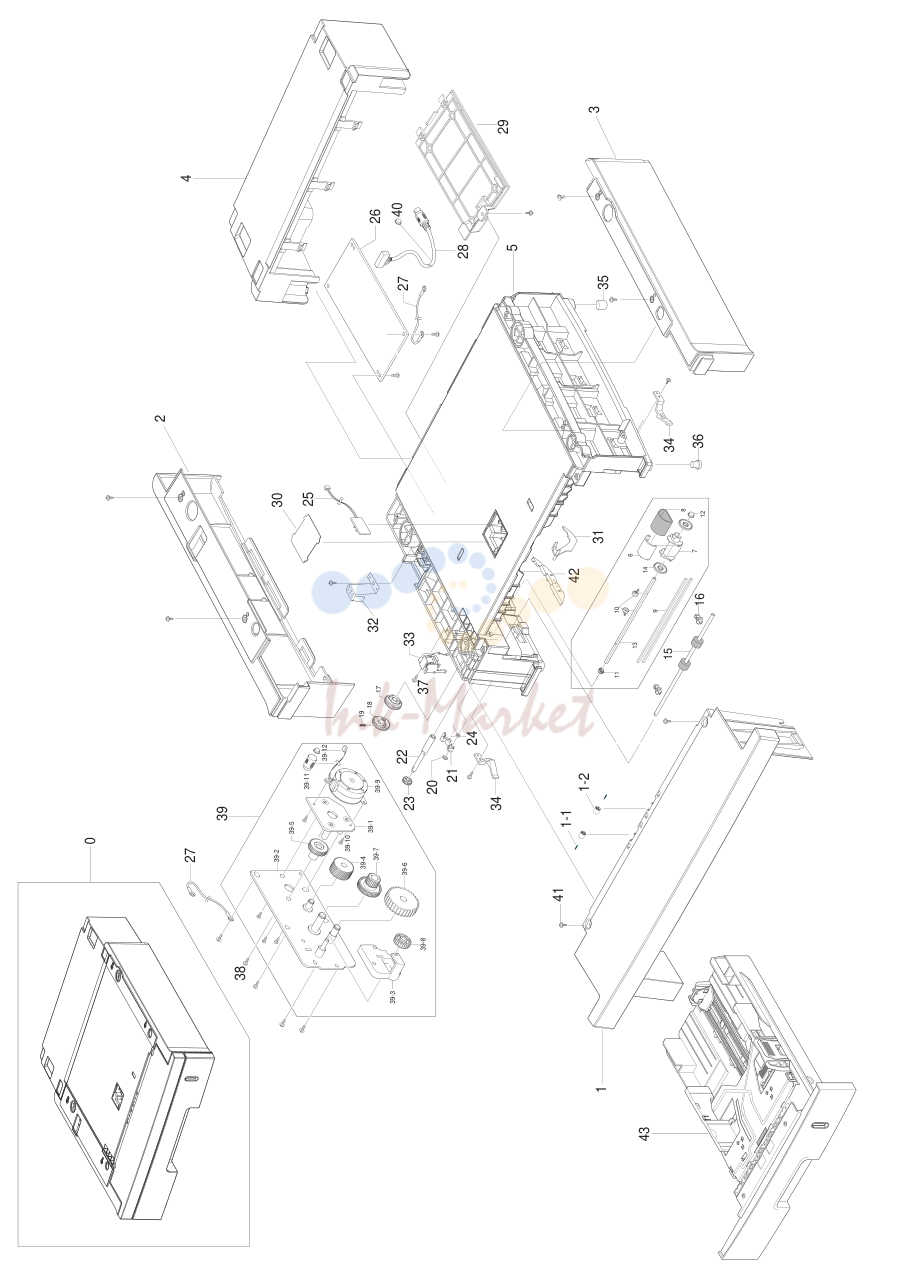

6. Parts List

№	Артикул	Альт. артикул	Описание
0			ELA HOU-SCF H2 1 097N01439
1			COVER-M-FRONT SCF H2
1-1			SPRING-ES
1-2			ROLLER-IDLE FEED
2			COVER-M-LEFT SCF H2
3			COVER-M-RIGHT SCF H2
4			COVER-M-REAR SCF H2
5			FRAME-M-SCF
6			HOUSING-M-PICKUP _R2
8			SPONGE-ROLLER PICK_UP
9			SHAFT-P-CORE
11			BUSHING-PICK_UP L
12			BUSHING-PICK_UP R
13			SHAFT-P-PICK_UP
14			PMO-IDLE PICK_UP
15			ROLLER-FEED
16			PMO-BUSHING FEED
17			PMO-GEAR PICK_UP A
18			PMO-GEAR PICK_UP B
19			SPRING-CS
20			RING-CS
21			CAM-M-PICK_UP
22			SHAFT-FEED
23			GEAR-FEED
24			SPRING-TS
25			PCB-SENSOR
26			PBASUB-SCF
27			CBF HARNESS-SCF GND
28			CBF HARNESS-SCF
29			COVER-M-SIMM R2
30			SHEET-COVER SENSOR
31			PMO-ACTUATOR EMPTY
32			IPR-GND TOP
33			SOLENOID-HB (MANUAL)
34			PMO-LOCKER CST
35			FOOT-BACK
36			FOOT-FRONT
37			SCREW-ASS'Y TAPT
38			SCREW-TAPTITE
39			ELAHOU-MOTOR SCF
39-1			BRKT-P-MOTOR SCF
39-2			BRKT-P-GEAR SCF
39-3			BRKT-M-FEED SCF
39-4			GEAR 61/47 IDLE
39-5			GEAR 59 IDLE
39-6			GEAR 35 IDLE
39-7			GEAR-RDCN 57/18
39-8			GEAR-IDLE
39-9			MOTOR STEP(SCF)
39-10			SCREW-MACHINE
39-11			CORE-FERRITE
39-12			CABLE TIE
40			BUSH CABLE
41			SCREW-TAPTITE
42			GUIDE-M-KNOCKUP
43			MEA UNIT-CASSETTE 1 109R00749
