Содержание
- 1. PL 1.1 EXTERIOR
- 2. PL 1.1 EXTERIOR
- 3. PL 2.1 OPERATION PANEL UNIT
- 4. PL 3.1A PLATEN COVER (940)
- 5. PL 3.1B PLATEN COVER (950)
- 6. PL 3.2A SCANNER (940)
- 7. PL 3.2B SCANNER (950)
- 8. PL 3.3A SET DOCUMENT FEEDER (950) (1 OF 2)
- 9. PL 3.3B SET DOCUMENT FEEDER (950) (2 OF 2)
- 10. PL 4.1 REAR FRAME UNIT
- 11. PL 4.2 PAPER GUIDE
- 12. PL 5.1 MAIN CHASSIS UNIT (1 OF 2)
- 13. PL 5.2 MAIN CHASSIS UNIT (2 OF 2)

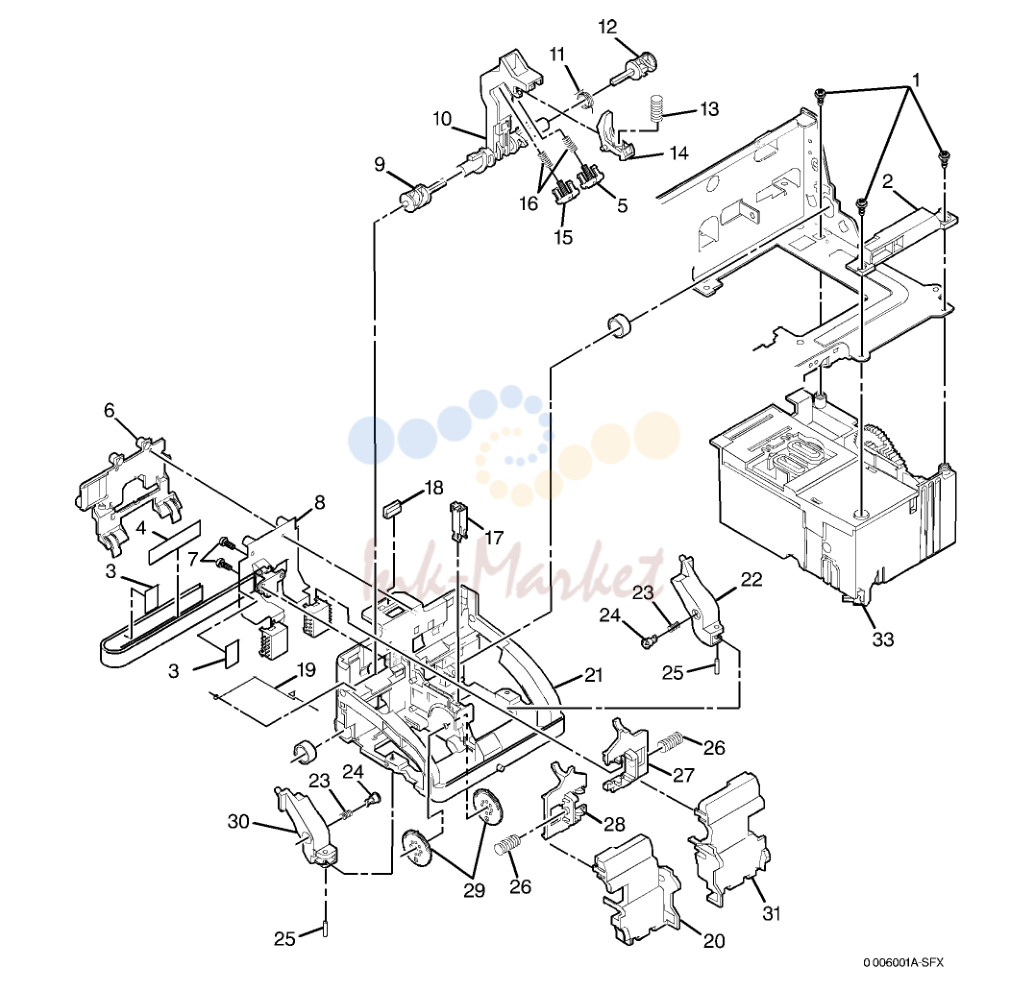

- 14. PL 6.1 CARRIAGE UNIT
- 15. PL 7.1 FEED ROLLER, DELIVERY ROLLER UNIT
- 16. PL 8.1 MAIN FRAME UNIT (1 OF 2)

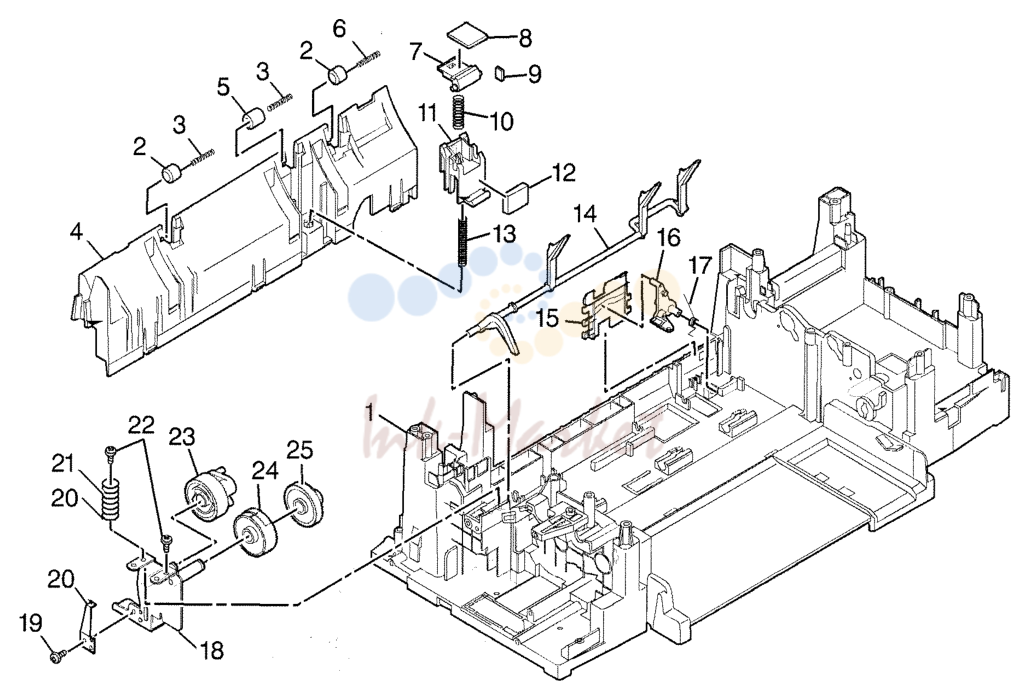

- 17. PL 8.2 MAIN FRAME UNIT (2 OF 2)
- 18. PL 9.1 TRAY UNIT

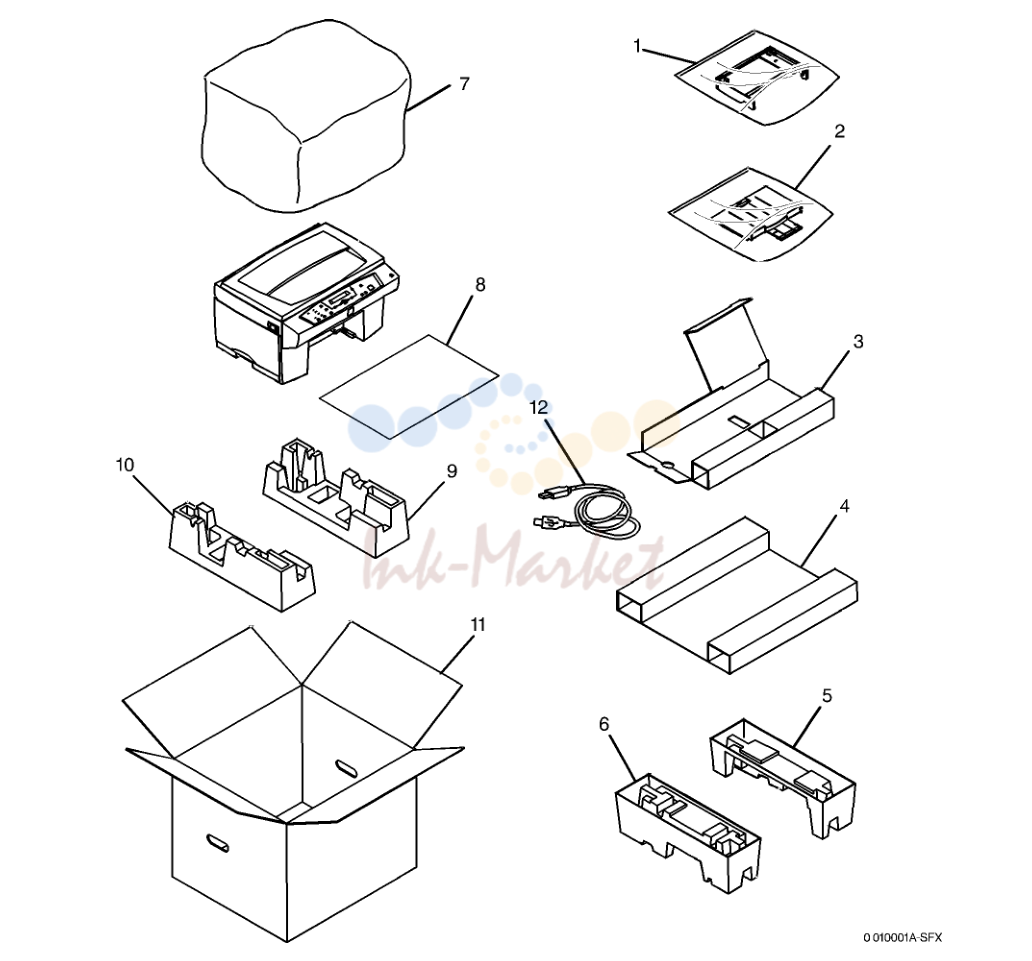

- 19. PL 10.1 PACKING & ACCESSORIES (1 OF 2)
- 20. PL 10.2 PACKING & ACCESSORIES (2 OF 2)
- 21. PL 10.3 PACKING & ACCESSORIES (3 OF 4)

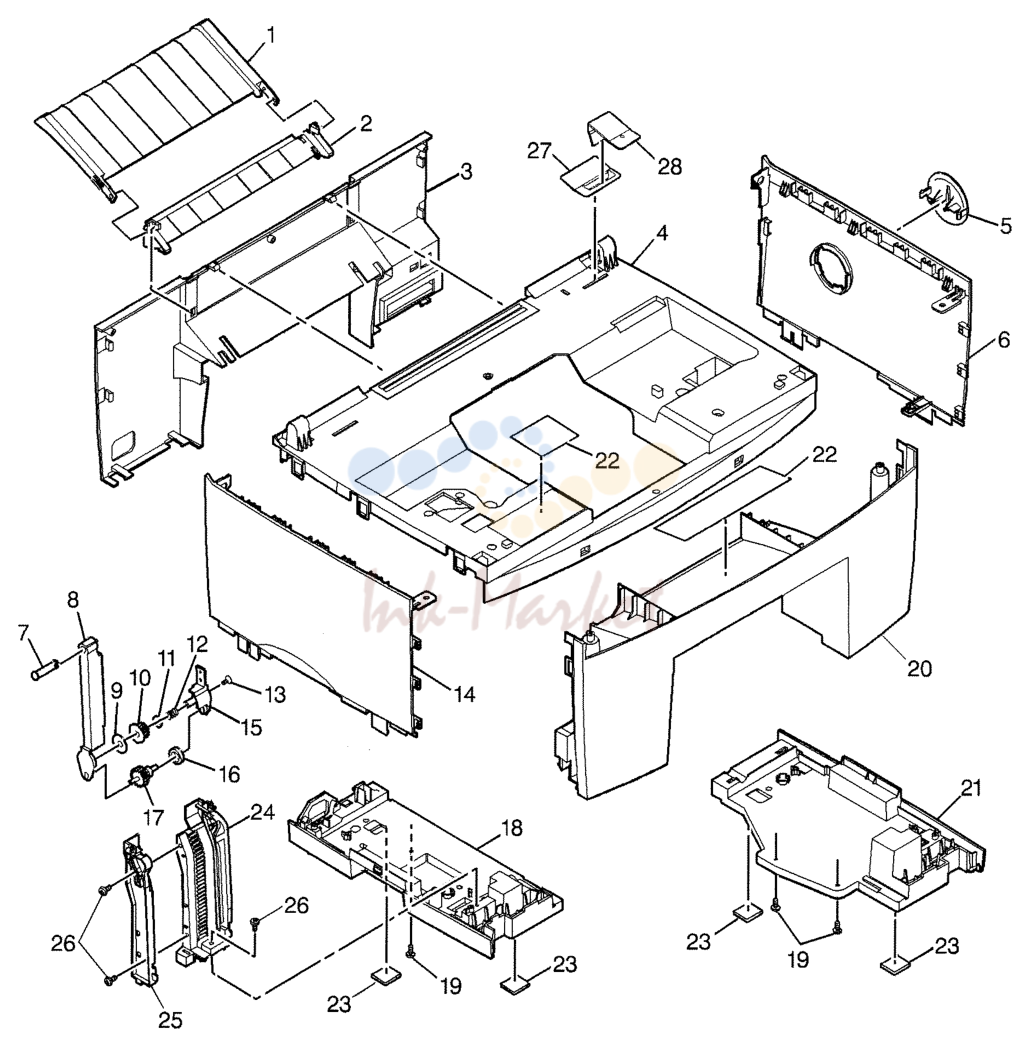

1. PL 1.1 EXTERIOR
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 050N00372 запросить цену → | Bypass Guide BX (REP 3.1) | |
| 2 | 050N00371 запросить цену → | Bypass Guide AX (REP 3.1) | |
| 3 | 002N01685 запросить цену → | Rear Cover (REP 3.2) | |
| 4 | 002N01684 запросить цену → | Upper Cover (M940) (REP 3.2) | |
| 5 | - Knob (Not Spared) | ||
| 6 | 002N01687 запросить цену → | Right Cover (REP 3.2) | |
| 7 | - Arm Pin (Not Spared) | ||
| 8 | - Arm (Not Spared) (REP 1.9) | ||
| 9 | - Abrasion Pad (Not Spared) | ||
| 10 | - Clutch Gear (Not Spared) | ||
| 11 | - Washer (Not Spared) | ||
| 12 | - Arm Spring (Not Spared) | ||
| 13 | - Screw (Not Spared) (3x10) | ||
| 14 | 002N01688 запросить цену → | Left Cover (REP 3.2) | |
| 15 | - Arm Cover (Not Spared) | ||
| 16 | - Arm Cushion (Not Spared) | ||
| 17 | - Arm Gear (Not Spared) | ||
| 18 | - Left Base Cover (Not Spared) | ||
| 19 | - Screw (Not Spared) (3x10) | ||
| 20 | 002N01686 запросить цену → | Front Cover (REP 3.2) | |
| 21 | - Right Base Cover (Not Spared) | ||
| 22 | - Change Ink Label (Not Spared) | ||
| 23 | - Rubber Foot (Not Spared) | ||
| 24 | - Rack Gear Guide (Not Spared) | ||
| 25 | - Arm Guide (Not Spared) | ||
| 26 | - Screw (Not Spared) (3x10) | ||
| 27 | - Rear Scanner Ground Plate (Not Spared) | ||
| 28 | - Front Scanner Earth Plate (Not Spared) |
2. PL 1.1 EXTERIOR
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | - Screw (Not Spared) (3x8) | ||
| 2 | - Washer (Not Spared) | ||
| 3 | - C-Key Cover (Not Spared) | ||
| 4 | - Start Key (Not Spared) | ||
| 5 | - Stop Key (Not Spared) | ||
| 6 | - Key (Not Spared) | ||
| 7 | - Four Key Direction (Not Spared) | ||
| 8 | - Key Two (Not Spared) | ||
| 9 | 140N05565 запросить цену → | Operator Control PWB (REP 1.4) | |
| 10 | - Operation Panel Harness (Not Spared) | ||
| 11 | - Power Key Harness (Not Spared) | ||
| 12 | - Screw (Not Spared) (3x8) | ||
| 13 | - Power Key (Not Spared) | ||
| 14 | 140N05566 запросить цену → | Power Key PWB (REP 1.5) | |
| 15 | 002N01721 запросить цену → | Decoration Panel (M940) (NASG) | |
| 16 | 002N01722 запросить цену → | LCD Panel (M940) (NASG) | |
| 17 | 002N01689 запросить цену → | Panel Cover (REP 1.2) | |
| 18 | - Badge (Not Spared) | ||
| 19 | - Core (Not Spared) |

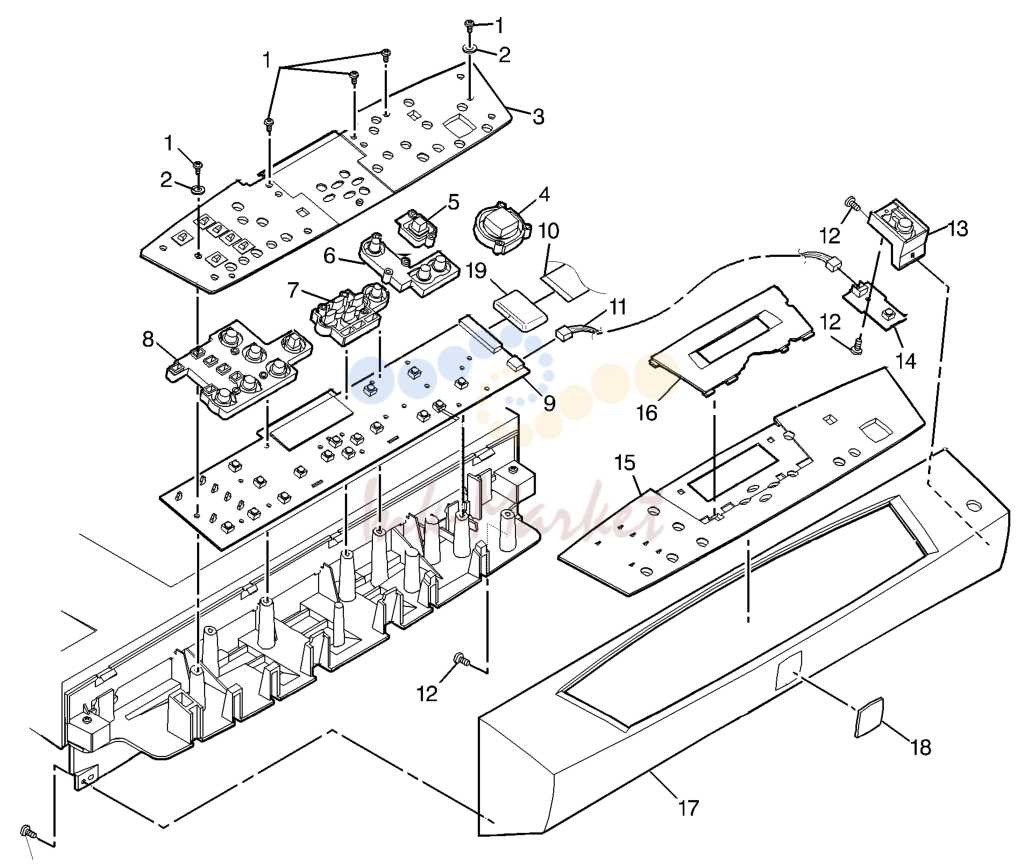

3. PL 2.1 OPERATION PANEL UNIT
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 002N01692 запросить цену → | Cover Stacker | |
| 2 | 003N00741 запросить цену → | Cover Hinge | |
| 3 | 002N01691 запросить цену → | Cover | |
| 4 | 004N00217 запросить цену → | Mat | |
| 5 | - Screw (Not Spared) (3x10) | ||
| 6 | 002N01690 запросить цену → | Scanner Upper Cover (REP 1.1) | |
| 7 | - Scanner Latch Cover (Not Spared) | ||
| 8 | - Glass Holding Tape B (Not Spared) | ||
| 9 | - Cabinet Holding Tape (Not Spared) | ||
| 10 | - Glass Holding Tape (Not Spared) | ||
| 11 | - Shading Sheet (Not Spared) | ||
| 12 | 090N00149 запросить цену → | Document Glass |

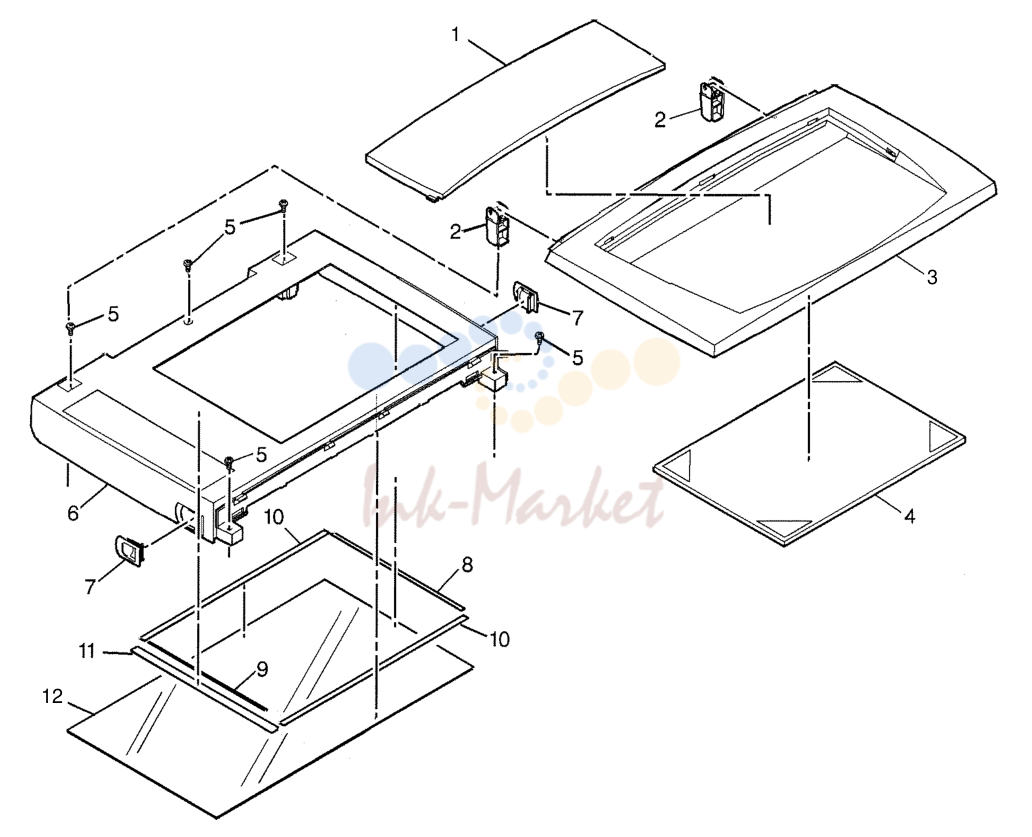

4. PL 3.1A PLATEN COVER (940)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | - Glass Protect Sheet F (Not Spared) | ||
| 2 | - Logo Plate (Not Spared) | ||
| 3 | 022N01350 запросить цену → | SDF Unit | |
| 4 | - Mat (Not Spared) | ||
| 5 | 026E64160 запросить цену → | Screw | |
| 6 | 002N01893 запросить цену → | Scanner Upper Cover (REP 1.1) | |
| 7 | - Scanner Latch Cover (Not Spared) | ||
| 8 | - Glass Holding Tape B (Not Spared) | ||
| 9 | - Cabinet Holding Tape (Not Spared) | ||
| 10 | - Glass Holding Tape A (Not Spared) | ||
| 11 | - Shading Sheet (Not Spared) | ||
| 12 | 090N00150 запросить цену → | Document Glass | |
| 13 | - Glass Fixing Plate (Not Spared) | ||
| 14 | 004N00214 запросить цену → | Glass Protect Sheet | |
| 15 | - Screw (Not Spared) |

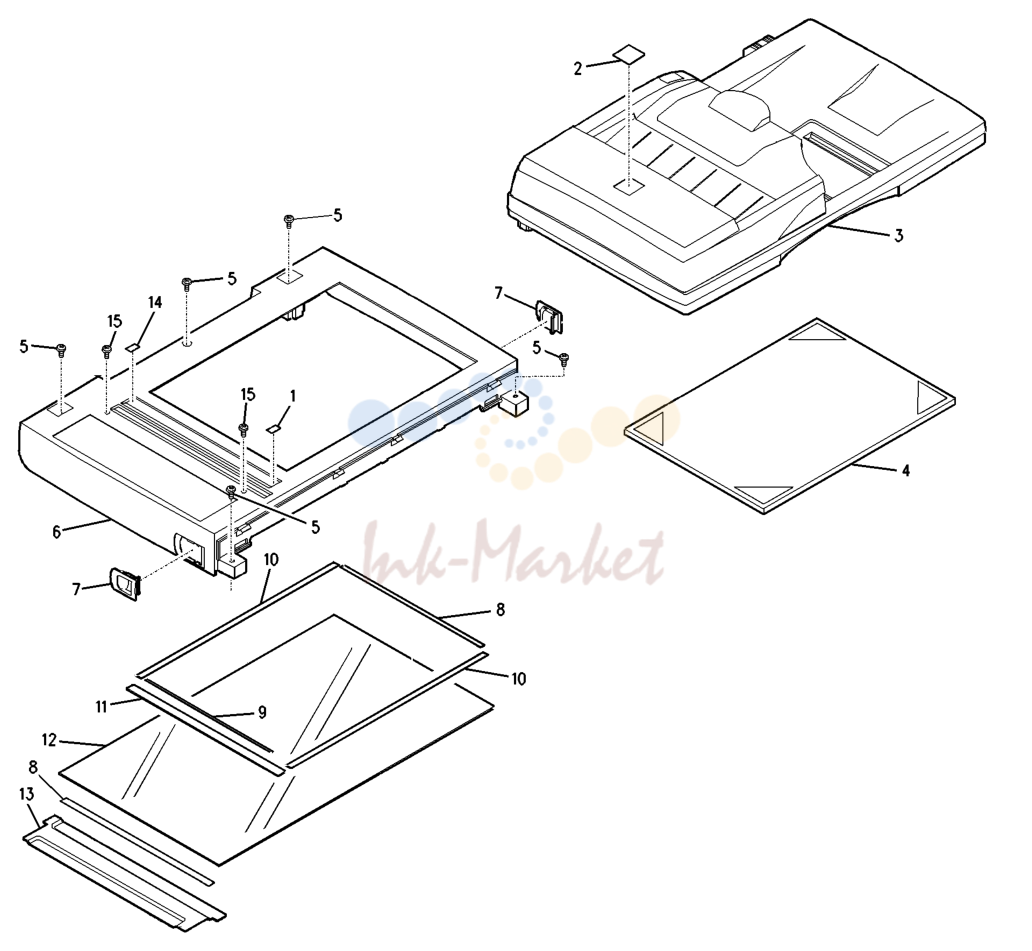

5. PL 3.1B PLATEN COVER (950)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | - Ground Harness 2 (Not Spared) | ||
| 2 | - Sensor Sheet (Not Spared) | ||
| 3 | - Core (Not Spared) | ||
| 4 | - Core (Not Spared) | ||
| 5 | - Screw (Not Spared) (3x4) | ||
| 6 | - Ground Harness (Not Spared) | ||
| 7 | - FFC Sheet A (Not Spared) | ||
| 8 | - Scanner PWB Shield (Not Spared) | ||
| 9 | - Lever (Not Spared) | ||
| 10 | - Scanner Latch (Not Spared) | ||
| 11 | - Scanner Latch Spring (Not Spared) | ||
| 12 | - Scanner Lower Cover (Not Spared) | ||
| 13 | 041N00215 запросить цену → | CCD Assembly (REP 1.6) | |
| 14 | - Scanner Rail (Not Spared) | ||
| 15 | - Screw (Not Spared) (3x8) | ||
| 16 | 127N01159 запросить цену → | Scanner Motor (Mot 4) (REP 1.7) | |
| 17 | - Motor Fixing Plate (Not Spared) | ||
| 18 | - Gear Ring (Not Spared) | ||
| 19 | 023N00780 запросить цену → | Scanner Drive Belt (REP 1.8) | |
| 20 | - Drive Pulley Gear (Not Spared) | ||
| 21 | - Idle Pulley (Not Spared) | ||
| 22 | - Idle Pulley Base (Not Spared) | ||
| 23 | - Idle Tension Spring (Not Spared) | ||
| 24 | - CCD Harness (Not Spared) | ||
| 25 | - Scanner Motor Harness (Not Spared) | ||
| 26 | - Operator Panel Harness (Not Spared) | ||
| 27 | - Harness 2 (Not Spared) | ||
| 28 | - Harness 1 (Not Spared) | ||
| 29 | 140N05568 запросить цену → | Copy Control PWB (REP 1.3) | |
| 30 | - Screw (Not Spared) (3x6) |

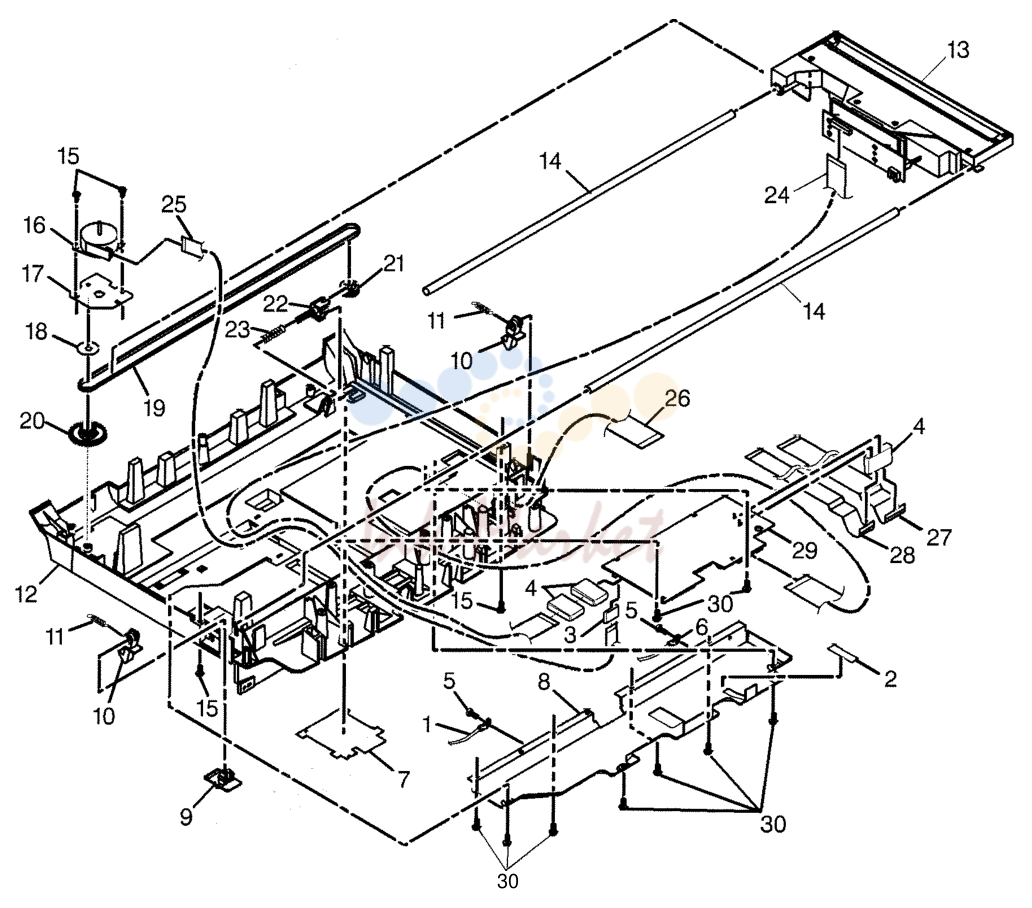

6. PL 3.2A SCANNER (940)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 041N00215 запросить цену → | CCD Assembly (REP 1.6) | |
| 2 | - Scanner Rail (Not Spared) | ||
| 3 | 026E64130 запросить цену → | Screw | |
| 4 | 127N01159 запросить цену → | Scanner Motor (MOT4) (REP 1.7) | |
| 5 | - Motor Fixing Plate (Not Spared) | ||
| 6 | - Gear Ring (Not Spared) | ||
| 7 | 023N00780 запросить цену → | Scanner Belt (REP 1.8) | |
| 8 | - Drive Pulley Gear (Not Spared) | ||
| 9 | - Idle Pulley (Not Spared) | ||
| 10 | - Idle Pulley Base (Not Spared) | ||
| 11 | - Idle Tension Spring (Not Spared) | ||
| 12 | - CCD Harness (Not Spared) | ||
| 13 | - Scanner Motor Harness (Not Spared) | ||
| 14 | - Operation Panel Harness (Not Spared) | ||
| 15 | - IOT Harness 2 (Not Spared) | ||
| 16 | - IOT Harness 1 (Not Spared) | ||
| 17 | 140N05891 запросить цену → | Copy Control PWB (REP 1.3) | |
| 18 | - Screw (Not Spared) | ||
| 19 | - Scanner Rower Cabinet (Not Spared) | ||
| 20 | - Scanner Rock Spring (Not Spared) | ||
| 21 | - Scanner Rock Lever (Not Spared) | ||
| 22 | - Rock Lever (Not Spared) | ||
| 23 | - Control PWB Shield Plate (Not Spared) | ||
| 24 | - FFC Sheet A (Not Spared) | ||
| 25 | - Ground Harness (Not Spared) | ||
| 26 | - Screw (Not Spared) | ||
| 27 | - Core (Not Spared) | ||
| 28 | - Core (Not Spared) | ||
| 29 | - Sensor Sheet (Not Spared) | ||
| 30 | - CCD PWB Shield (Not Spared) | ||
| 31 | - Rock Label (Not Spared) | ||
| 32 | - Unlock Tag (Not Spared) | ||
| 33 | - Spring Earth Shaft (Not Spared) | ||
| 34 | 140N05792 запросить цену → | SDF Driver PWB (REP 4.8) | |
| 35 | - Connector Cover (Not Spared) | ||
| 36 | - SDF Interface Harness (Not Spared) | ||
| 37 | - Sheet PWB Inxulator (Not Spared) | ||
| 38 | - Shield Plate Scanner (Not Spared) | ||
| 39 | - Sheet Motor Core (Not Spared) | ||
| 40 | - FCC Shield Plate (Not Spared) | ||
| 41 | - Crib Earth (Not Spared) | ||
| 42 | - SDF Earth Interface (Not Spared) | ||
| 43 | - Ground (Not Spared) |

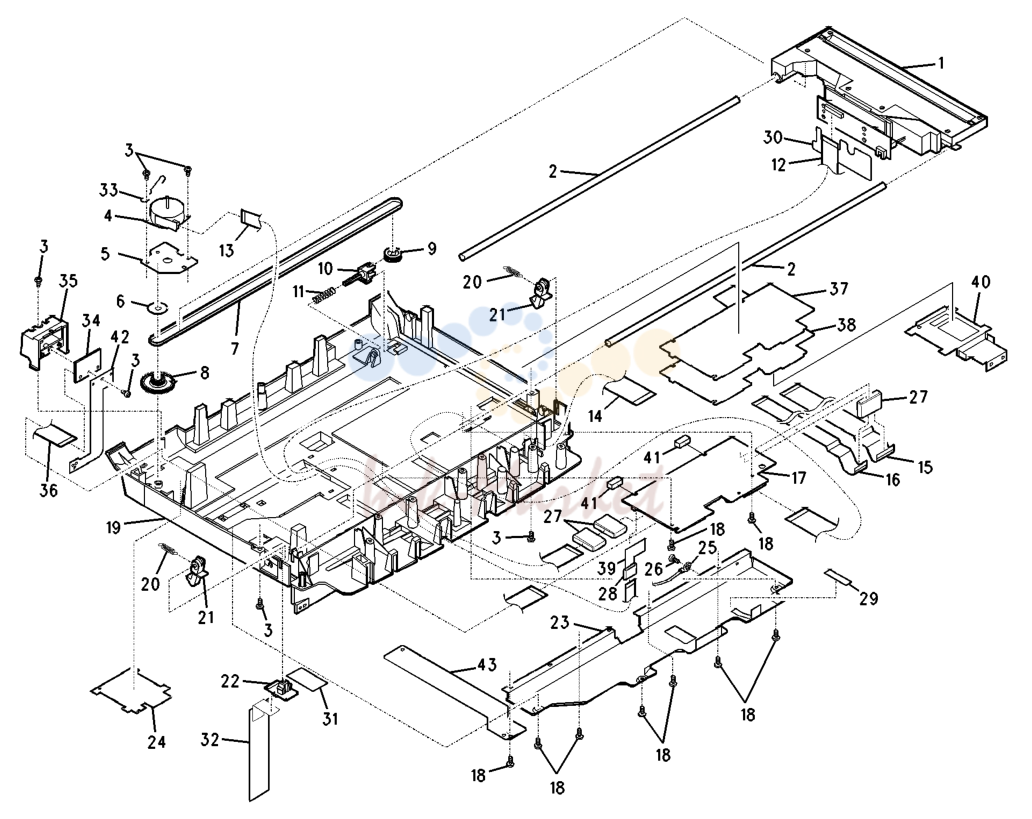

7. PL 3.2B SCANNER (950)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | - SDF Cover (Not Spared) (REP 4.1) | ||
| 2 | 050N00307 запросить цену → | Delivery Tray | |
| 3 | - Release Lever (Not Spared) (REP 4.1) | ||
| 4 | 026N00646 запросить цену → | Screw (2 Places) | |
| 5 | 009N01336 запросить цену → | Transport Fixing Spring - Front | |
| 6 | 009N01337 запросить цену → | Transport Fixing Screw - Rear | |
| 7 | - SDF Transport Assembly (Not Spared) (REP 4.2) | ||
| 8 | - SDF Connector (Not Spared) | ||
| 9 | - SDF Cable (Not Spared) | ||
| 10 | - SDF Base Tray (Not Spared) | ||
| 11 | 003N00817 запросить цену → | Left Hinge | |
| 12 | 003N00818 запросить цену → | Right Hinge | |
| 13 | - Retard Pad | ||
| 14 | - SDF Closed Sensor |

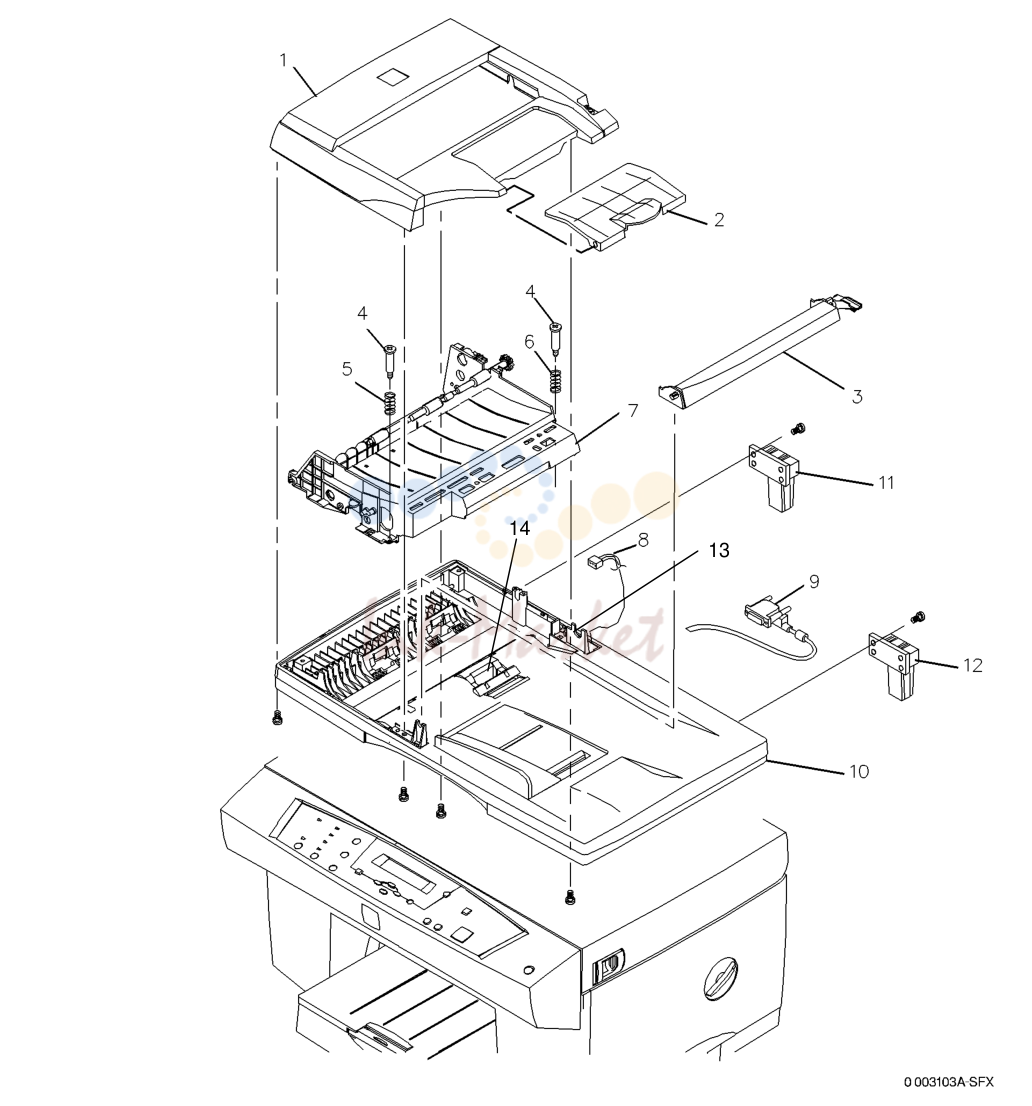

8. PL 3.3A SET DOCUMENT FEEDER (950) (1 OF 2)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 127N01293 запросить цену → | SDF Drive Motor (REP 4.9) | |
| 2 | 007N01044 запросить цену → | 41/17T Gear | |
| 3 | - Bearing (Not Spared) | ||
| 4 | 007N01043 запросить цену → | 30T Gear | |
| 5 | - Pulley (Not Spared) | ||
| 6 | 140N05791 запросить цену → | SDF PWB (REP 4.8) | |
| 7 | - Document Feed Unit | ||
| 8 | - Exit Rollers | ||
| 9 | - Drive Belt |

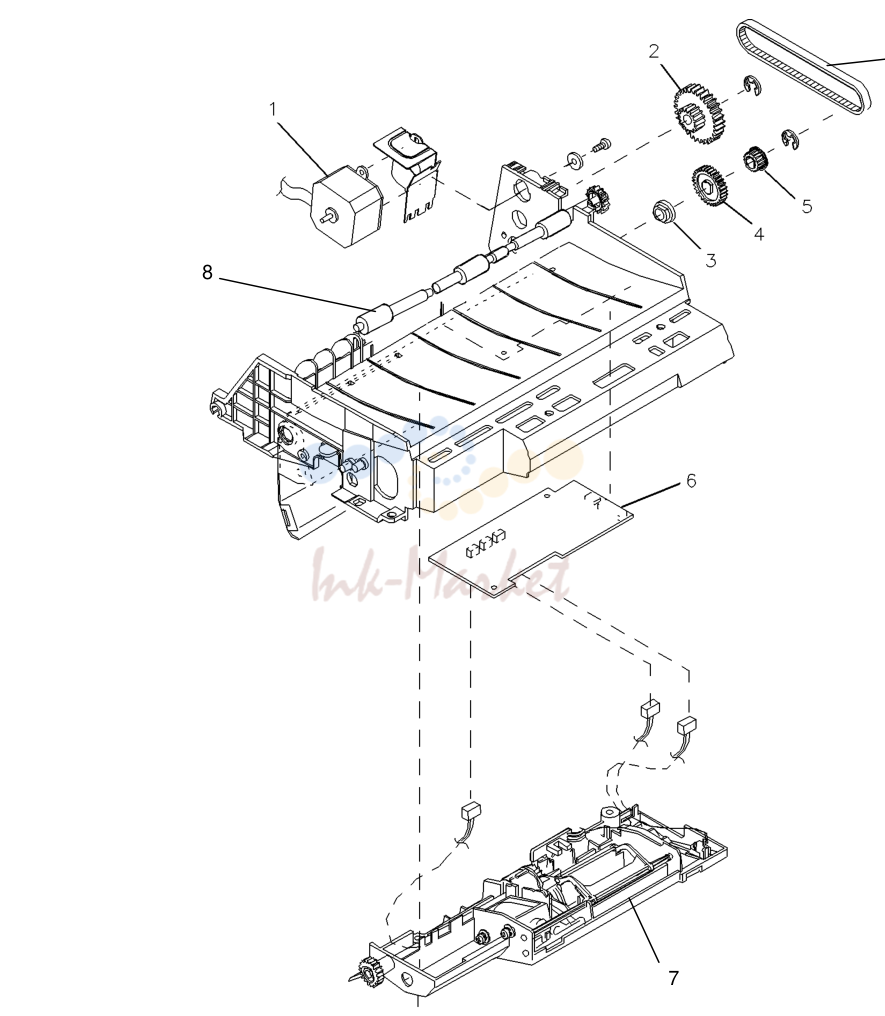

9. PL 3.3B SET DOCUMENT FEEDER (950) (2 OF 2)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | - PS Encloser (Not Spared) | ||
| 2 | 105N01330 запросить цену → | Power Supply PWB (EP 2.3) | |
| 3 | - Power Supply Shield Plate (Not Spared) | ||
| 4 | 140N05825 запросить цену → | Interface PWB (REP 2.2) | |
| 5 | - Screw (Not Spared) | ||
| 6 | - Screw (Not Spared) (3x10) | ||
| 7 | - AC Inlet (Not Spared) | ||
| 8 | - Ground Harness 2 (Not Spared) | ||
| 9 | - Ground Harness (Not Spared) | ||
| 10 | - Screw (Not Spared) (3x1 0) | ||
| 11 | - Core (Not Spared) | ||
| 12 | - Ground Harness 2 (Not Spared) | ||
| 13 | - Ground Plate (Not Spared) | ||
| 14 | - Screw (Not Spared) (3x8) | ||
| 15 | - In Rubber (Not Spared) | ||
| 16 | - Screw (Not Spared) (3x6) | ||
| 17 | - Screw (Not Spared) (3x6) | ||
| 18 | - Shield (Not Spared) | ||
| 19 | 140N05867 запросить цену → | IOT Control PWB (REP 2.1) | |
| 20 | Shield (Not Spared) |

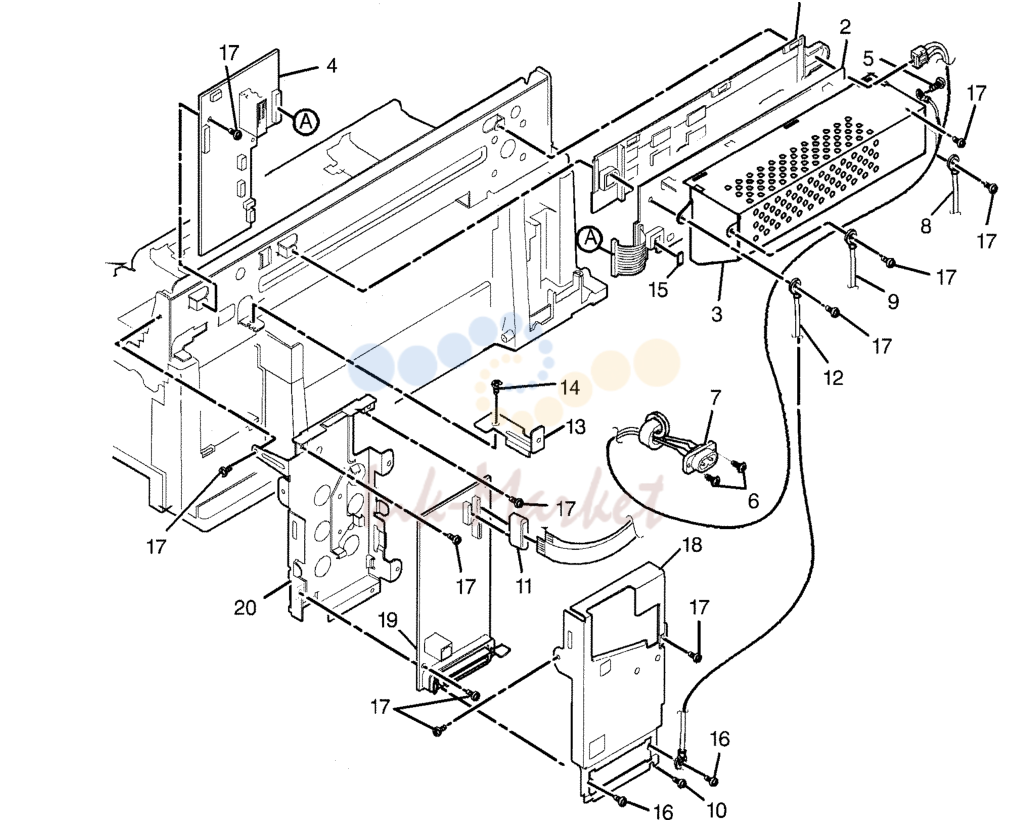

10. PL 4.1 REAR FRAME UNIT
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | - U Paper Guide (Not Spared) | ||
| 2 | - U Paper Guide Cover (Not Spared) | ||
| 3 | - U Lock Spring (Not Spared) | ||
| 4 | - U Lock Arm Right (Not Spared) | ||
| 5 | - U Lock Lever (Not Spared) | ||
| 6 | - U Lock Arm Left (Not Spared) | ||
| 7 | - U Paper Guide (Not Spared) | ||
| 8 | - U Support Roller (Not Spared) | ||
| 9 | - U Support Roller Spring (Not Spared) |

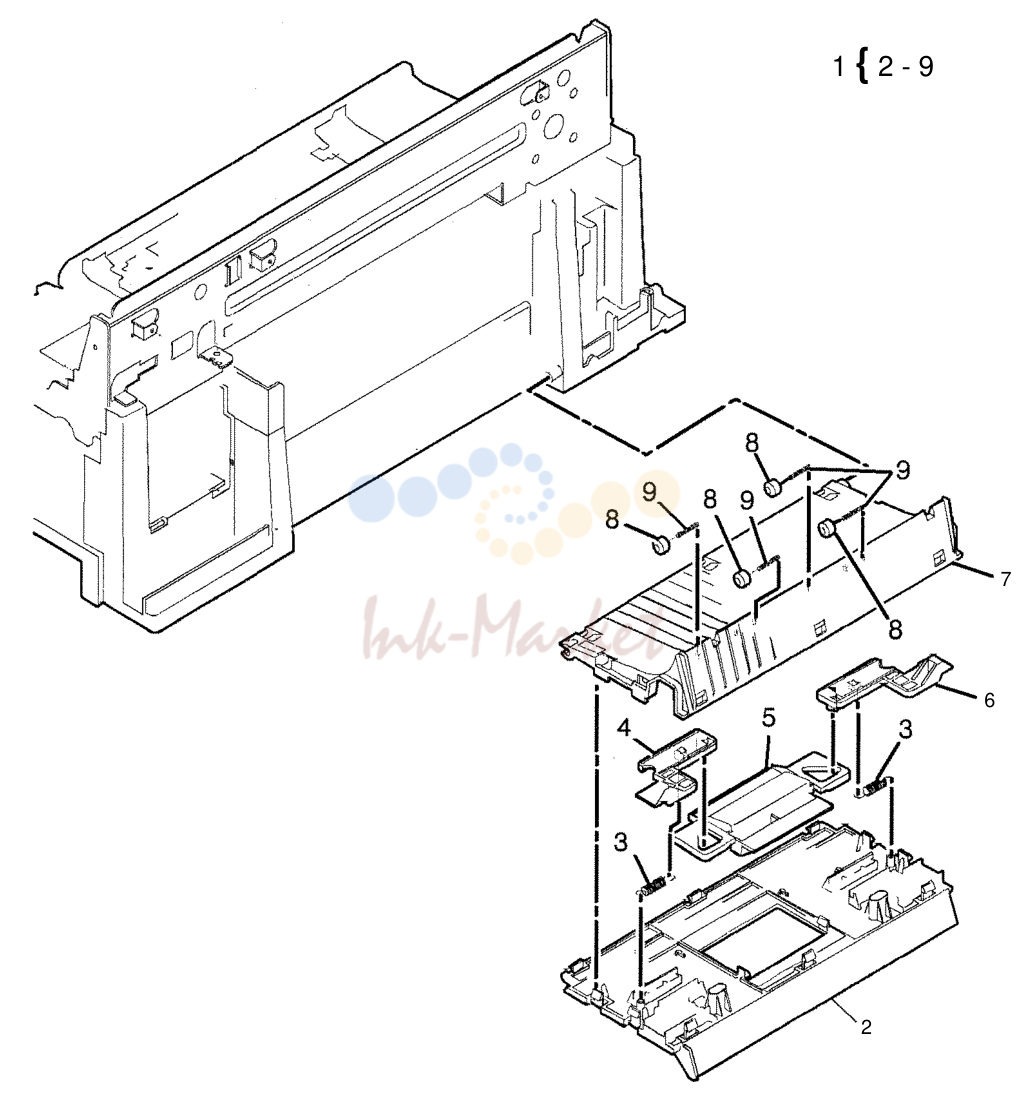

11. PL 4.2 PAPER GUIDE
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | - Main Chassis (Not Spared) | ||
| 2 | - Guide (Not Spared) | ||
| 3 | - Paper Delivery Guide (Not Spared) | ||
| 4 | - Screw (Not Spared) (3x8) | ||
| 5 | - Screw (Not Spared) (3x6) | ||
| 6 | - ILS Cover (Not Spared) | ||
| 7 | - Star Spring (Not Spared) | ||
| 8 | - Star Roller (Not Spared) | ||
| 9 | - Star Holder (Not Spared) | ||
| 10 | - Star Roller Shaft (Not Spared) | ||
| 11 | - ILS PWB (P/O PL 5.1 Item 13) (REP 2.4) | ||
| 12 | - ILS Bracket (P/O PL 5.1 Item 13) | ||
| 13 | 140N05510 запросить цену → | ILS Unit |

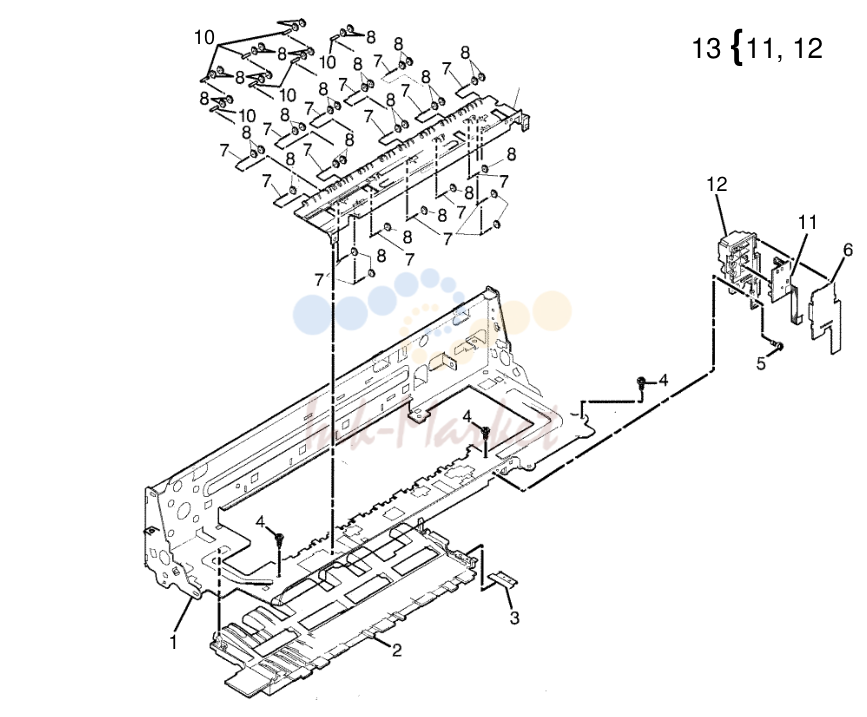

12. PL 5.1 MAIN CHASSIS UNIT (1 OF 2)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | - Main Chassis (Not Spared) | ||
| 2 | - Actuator (Not Spared) | ||
| 3 | - Actuator Lever Spring (Not Spared) | ||
| 4 | - Pinch Roll Spring (Not Spared) | ||
| 5 | - Pinch Holder (Not Spared) | ||
| 6 | - Pinch Roll (Not Spared) | ||
| 7 | - Paper Guide (Not Spared) | ||
| 8 | - Carriage Mylar (Not Spared) | ||
| 9 | - Belt Spring Cover (Not Spared) | ||
| 10 | - Belt Spring (Not Spared) | ||
| 11 | - Belt Lever (Not Spared) | ||
| 12 | - Belt Pulley (Not Spared) | ||
| 13 | 023N00757 запросить цену → | Carriage Drive Belt (REP 3.3) | |
| 14 | - Adjust Lever Spring (Not Spared) | ||
| 15 | - Adjust Lever (Not Spared) | ||
| 16 | - Shaft Bearing (Not Spared) | ||
| 17 | - Shaft Spring (Not Spared) | ||
| 18 | - Screw (Not Spared) (3x6) | ||
| 19 | - Adjust Cam (Not Spared) | ||
| 20 | - Slide Shaft (Not Spared) | ||
| 21 | - Nut (Not Spared) (M3) | ||
| 22 | - Protection Rubber (Not Spared) | ||
| 23 | 127N01118 запросить цену → | Carriage Motor (Mot 1) (REP 3.4) | |
| 24 | - Washer (Not Spared) | ||
| 25 | - Screw (Not Spared) (3x1 0) | ||
| 26 | 001N00314 запросить цену → | Encoder Tape (REP 3.5) | |
| 27 | - Encoder Tape Spring (Not Spared) | ||
| 28 | - Holder (Not Spared) | ||
| 29 | - Aluminum Tape (Not Spared) | ||
| 30 | - Maintenance Station (Not Spared) (REP 3.6) |

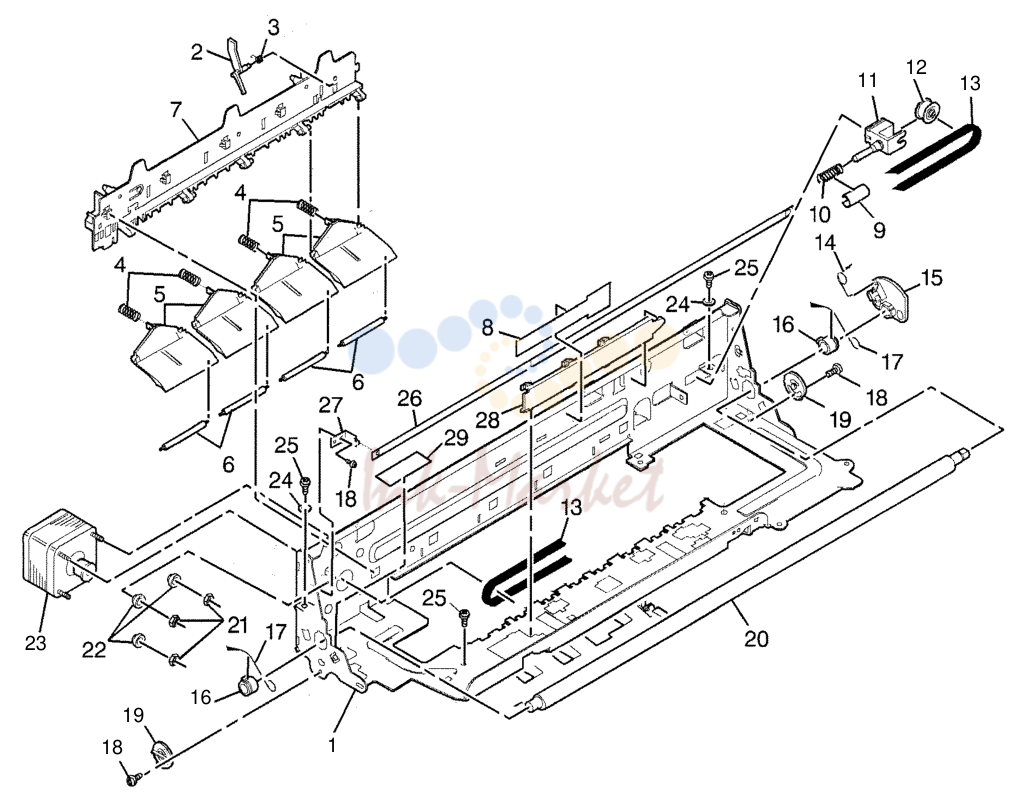

13. PL 5.2 MAIN CHASSIS UNIT (2 OF 2)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | - Screw (Not Spared) (3x8) | ||
| 2 | - MS Guide (Not Spared) | ||
| 3 | - Carriage Aluminum Tape (Not Spared) | ||
| 4 | - Carriage Aluminum Tape (Not Spared) | ||
| 5 | - BC Guide C (Not Spared) | ||
| 6 | - Holder (Not Spared) | ||
| 7 | - Screw (Not Spared) (2x6) | ||
| 8 | - Carriage FPC (Not Spared) | ||
| 9 | - Latch Lever Cam Black (Not Spared) | ||
| 10 | - Latch Lever (Not Spared) | ||
| 11 | - Lever Release Spring (Not Spared) | ||
| 12 | - Latch Lever Cam Color (Not Spared) | ||
| 13 | - Lock Lever Spring (Not Spared) | ||
| 14 | - Lock Lever (Not Spared) | ||
| 15 | - Guide (Not Spared) | ||
| 16 | - Spring (Not Spared) | ||
| 17 | - Adjust Spring (Not Spared) | ||
| 18 | - Slider Upper (Not Spared) | ||
| 19 | - Ground Wire (Not Spared) | ||
| 20 | - Carriage Guide (Not Spared) | ||
| 21 | - Carriage Base (Not Spared) | ||
| 22 | - Guide (Not Spared) | ||
| 23 | - Spring (Not Spared) | ||
| 24 | - Guide (Not Spared) | ||
| 25 | - Guide Pin (Not Spared) | ||
| 26 | - Connector Spring (Not Spared) | ||
| 27 | - Connector Plate Color (Not Spared) | ||
| 28 | - Connector Plate Black (Not Spared) | ||
| 29 | - Adjust Plate (Not Spared) | ||
| 30 | - Guide (Not Spared) | ||
| 31 | - Carriage Guide Color (Not Spared) | ||
| 32 | - Carriage Guide Black (Not Spared) |
14. PL 6.1 CARRIAGE UNIT
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | - Eject Gear (Not Spared) | ||
| 2 | - Eject Roller Bearing (Not Spared) | ||
| 3 | - Eject Slider Spring (Not Spared) | ||
| 4 | - Eject Slider (Not Spared) | ||
| 5 | - Eject Roller (Not Spared) | ||
| 6 | - Eject Change Spring (Not Spared) | ||
| 7 | - Eject Guide Roller (Not Spared) | ||
| 8 | - Eject Guide Belt (Not Spared) | ||
| 9 | - Eject Guide (Not Spared) | ||
| 10 | - Eject Clutch Gear (Not Spared) | ||
| 11 | - Eject Clutch Roller (Not Spared) | ||
| 12 | - Eject Clutch Spring (Not Spared) | ||
| 13 | - Eject Clutch Shaft (Not Spared) | ||
| 14 | - Eject Arm (Not Spared) | ||
| 15 | - Eject Roller Bearing (Not Spared) | ||
| 16 | - Feed Roller Bearing (Not Spared) | ||
| 17 | - Ground Wire (Not Spared) | ||
| 18 | - U Roller Unit Assembly (Not Spared) | ||
| 19 | - U Clutch Sleeve (Not Spared) | ||
| 20 | - U Main Gear (Not Spared) | ||
| 21 | - E Ring (Not Spared) | ||
| 22 | - U Bearing (Not Spared) | ||
| 23 | - U Clutch Spring (Not Spared) | ||
| 24 | 022N01105 запросить цену → | Feed Roller Unit Assembly (REP 3.7) | |
| 25 | - Spring (Not Spared) | ||
| 26 | - Feed Roller Bearing (Not Spared) | ||
| 27 | - Feed Gear (Not Spared) | ||
| 28 | - Change Slider (Not Spared) | ||
| 29 | - Change Gear (Not Spared) |

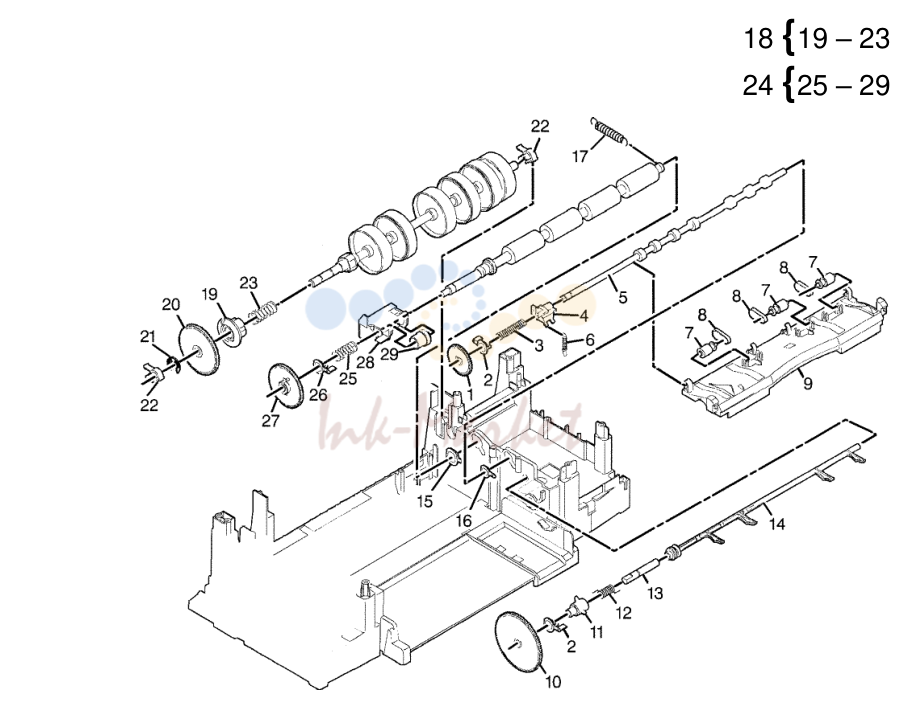

15. PL 7.1 FEED ROLLER, DELIVERY ROLLER UNIT
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | - Frame (Not Spared) | ||
| 2 | - Rubber Sheet (Not Spared) | ||
| 3 | - Paper Guide Spring (Not Spared) | ||
| 4 | - Tube Holder (Not Spared) | ||
| 5 | 019N00466 запросить цену → | Waste Pad (REP 3.8) | |
| 6 | - Pad Tray (Not Spared) | ||
| 7 | - Tube Cover (Not Spared) | ||
| 8 | - Stopper Cushion (Not Spared) | ||
| 9 | 127N01119 запросить цену → | Paper Transport/Pump Motor (Mot 2) (REP 3.9) | |
| 10 | - Spacer Cushion (Not Spared) | ||
| 11 | - Washer (Not Spared) | ||
| 12 | - Screw (Not Spared) (3x8) | ||
| 13 | - Washer Cushion (Not Spared) | ||
| 14 | - Washer (Not Spared) | ||
| 15 | - Nut (Not Spared) | ||
| 16 | - Gear (Not Spared) | ||
| 17 | - Plate (Not Spared) | ||
| 18 | - Spacer (Not Spared) |

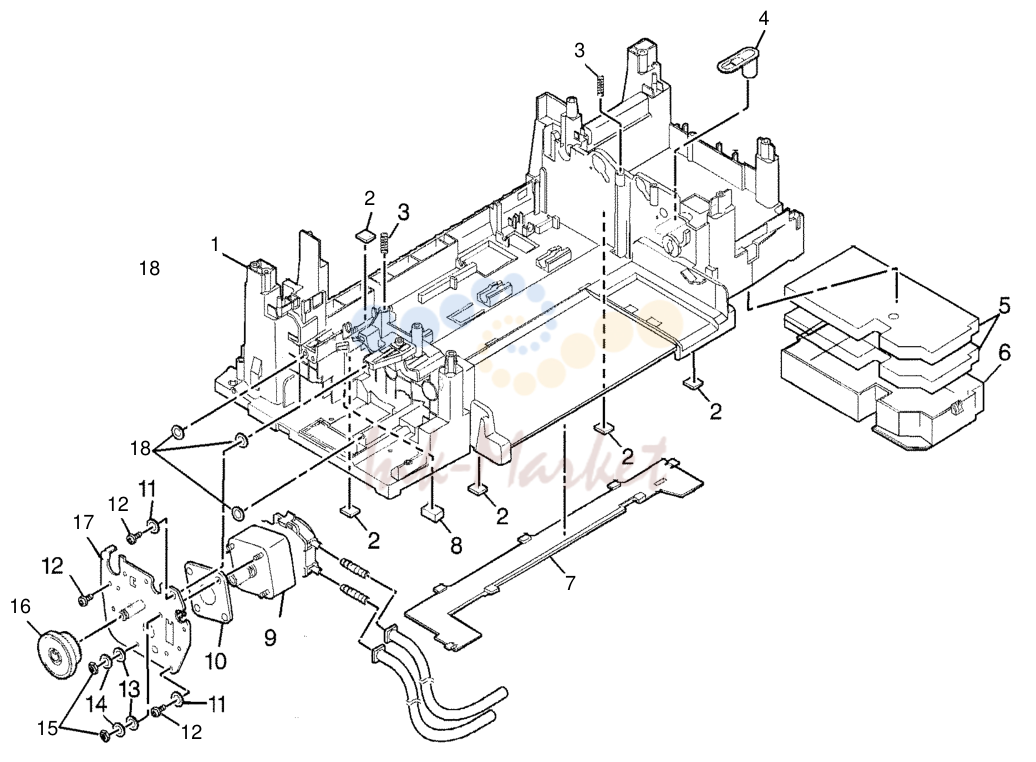

16. PL 8.1 MAIN FRAME UNIT (1 OF 2)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | - Frame (Not Spared) | ||
| 2 | - Support Roller (Not Spared) | ||
| 3 | - Support Roller Spring (Not Spared) | ||
| 4 | - Pick Up Guide (Not Spared) | ||
| 5 | - Support Roller (Not Spared) | ||
| 6 | - Support Roller Spring (Not Spared) | ||
| 7 | - Pick Up Plate (Not Spared) | ||
| 8 | - Pick Up Sheet (Not Spared) | ||
| 9 | - Noise Buffer Sheet (Not Spared) | ||
| 10 | - Pick Up Plate Spring (Not Spared) | ||
| 11 | - Pick Up Arm (Not Spared) | ||
| 12 | - Pick Up Arm Sheet (Not Spared) | ||
| 13 | - Pick Up Spring (Not Spared) | ||
| 14 | - Return Arm (Not Spared) | ||
| 15 | - Stopper (Not Spared) | ||
| 16 | - Stopper Arm (Not Spared) | ||
| 17 | - Stopper Spring (Not Spared) | ||
| 18 | - Left Plate (Not Spared) | ||
| 19 | - Screw (Not Spared) (3x6) | ||
| 20 | - Cam Spring (Not Spared) | ||
| 21 | - Ground Wire (Not Spared) | ||
| 22 | - Screw (Not Spared) (3x8) | ||
| 23 | - Cam Gear (Not Spared) | ||
| 24 | - Gear (Not Spared) | ||
| 25 | - Drive Gear (Not Spared) |
17. PL 8.2 MAIN FRAME UNIT (2 OF 2)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | - Cam Unit (Not Spared) | ||
| 2 | - Arm Lever (Not Spared) | ||
| 3 | - Rotary Spring (Not Spared) | ||
| 4 | - Rotary Arm (Not Spared) | ||
| 5 | - Rotary Plate (Not Spared) | ||
| 6 | - Friction Sheet (Not Spared) | ||
| 7 | - Delivery Tray (P/O PL 9.1 Item 17) | ||
| 8 | - Extension Tray (P/O PL 9.1 Item 17) | ||
| 9 | - Eject Stopper (P/O PL 9.1 Item 17) | ||
| 10 | - Supply Tray (P/O PL 9.1 Item 18) | ||
| 11 | - Front Panel (P/O PL 9.1 Item 18) | ||
| 12 | - Card Guard (P/O PL 9.1 Item 18) | ||
| 13 | - Length Guide (P/O PL 9.1 Item 18) | ||
| 14 | - Length Guide Spring (P/O PL 9.1 Item 18) | ||
| 15 | - Width Guide (Not Spared) | ||
| 16 | - Rotary Plate Cushion (Not Spared) | ||
| 17 | 050N00312 запросить цену → | Eject Tray Assembly | |
| 18 | 050N00309 запросить цену → | Supply Tray Assembly |

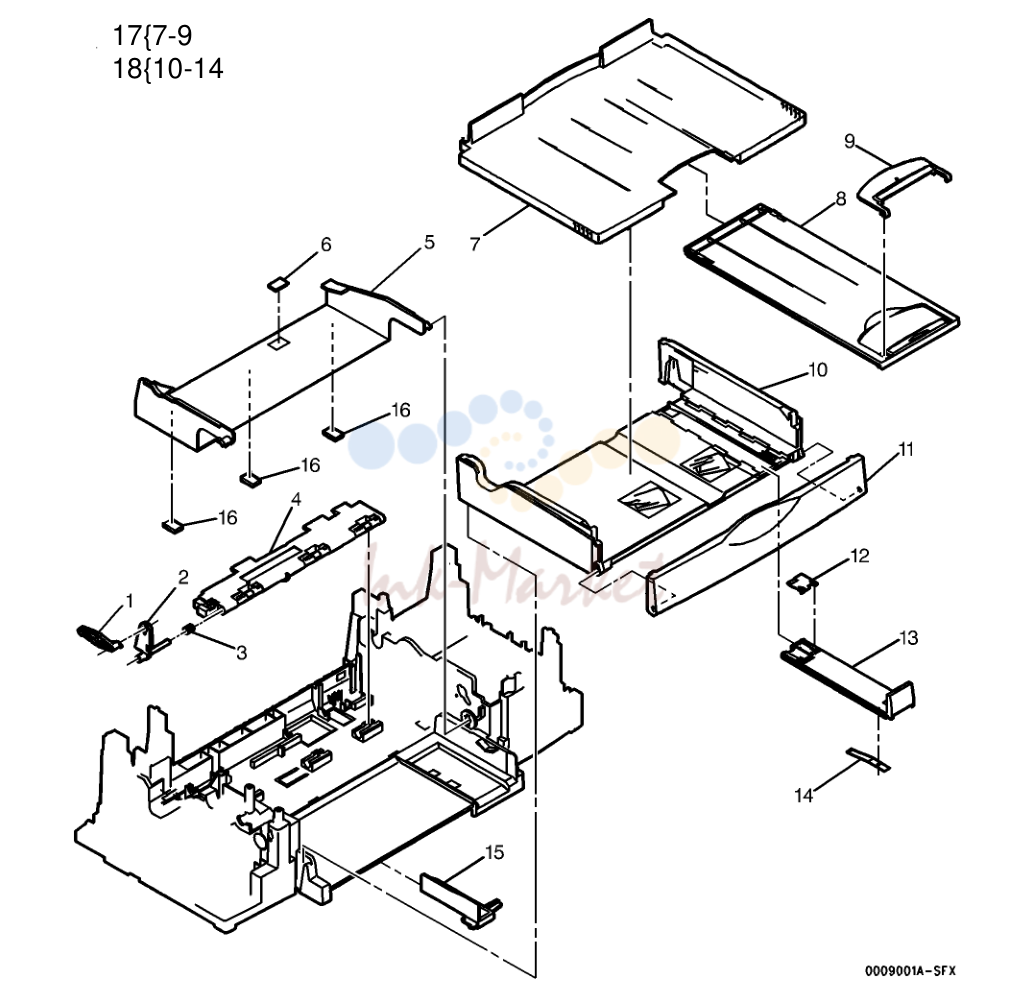

18. PL 9.1 TRAY UNIT
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 050N00309 запросить цену → | Supply Tray Assembly | |
| 2 | 050N00312 запросить цену → | Eject Tray Assembly | |
| 3 | - Accessories Case (Not Spared) | ||
| 4 | - Accessories Sleeve (Not Spared) | ||
| 5 | - Add A Right (Not Spared) | ||
| 6 | - Add B Left (Not Spared) | ||
| 7 | - Vinyl Bag (Not Spared) | ||
| 8 | - Cover Protect Sheet (Not Spared) | ||
| 9 | - Add B Right (Not Spared) | ||
| 10 | - Add B Left (Not Spared) | ||
| 11 | - Packing Case (Not Spared) | ||
| 12 | 117E23420 запросить цену → | USB Cable |
19. PL 10.1 PACKING & ACCESSORIES (1 OF 2)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 050N00309 запросить цену → | Supply Tray Assembly | |
| 2 | 050N00312 запросить цену → | Eject Tray Assembly | |
| 3 | - Accessories Case (Not Spared) | ||
| 4 | 117N01393 запросить цену → | AC Cord | |
| 5 | - Control Panel Bezel (Not spared as assy.) | ||
| 6 | - Accessories Spacer (Not Spared) | ||
| 7 | - Packing DA (Not Spared) | ||
| 8 | - Vinyl Bag (Not Spared) | ||
| 9 | - Cover Protect Sheet (Not Spared) | ||
| 10 | - Packing DB (Not Spared) | ||
| 11 | 695E84680 запросить цену → | Packing Case (XE) (M940) | |
| 12 | 117E23420 запросить цену → | USB Cable |

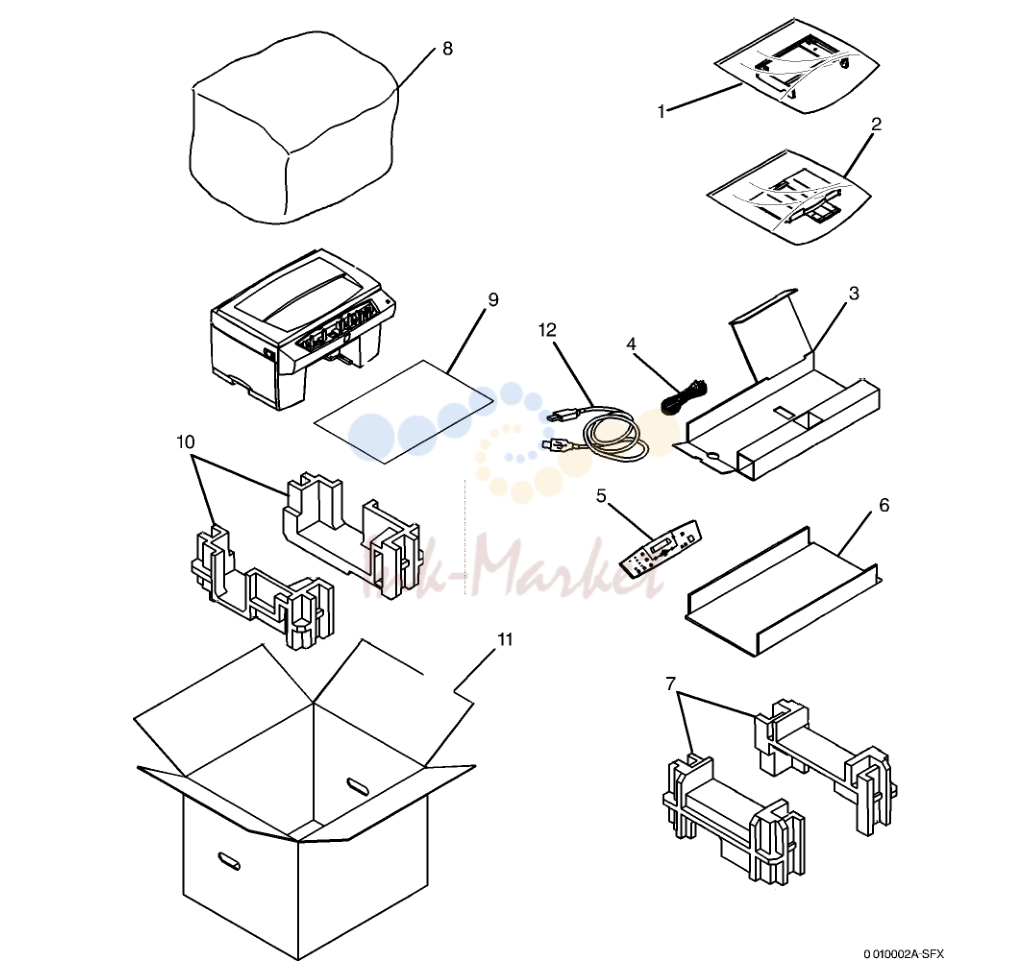

20. PL 10.2 PACKING & ACCESSORIES (2 OF 2)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | - Packing B (Not Spared) | ||
| 2 | - Packing A (Not Spared) | ||
| 3 | - Vinyl Bag (Not Spared) | ||
| 4 | 050N00309 запросить цену → | Paper Feed Tray Assembly | |
| 5 | 050N00312 запросить цену → | Delivery Tray Assembly | |
| 6 | - Accessories Case (Not Spared) | ||
| 7 | --- Vinyl Bag (Not Spared) | ||
| 8 | 117N01393 запросить цену → | AC Cord | |
| 9 | 002N01721 запросить цену → | Decoration Panel | |
| 10 | - Accessories Spacer (Not Spared) | ||
| 11 | - Original Cover Protect Sheet (Not Spared) | ||
| 12 | - Packing Case (Not Spared) | ||
| 13 | 117E23420 запросить цену → | USB Cable | |
| 14 | --- Carriage Fixing Packing B (Not Spared) | ||
| 15 | --- Jam Cover Spacer (Not Spared) |

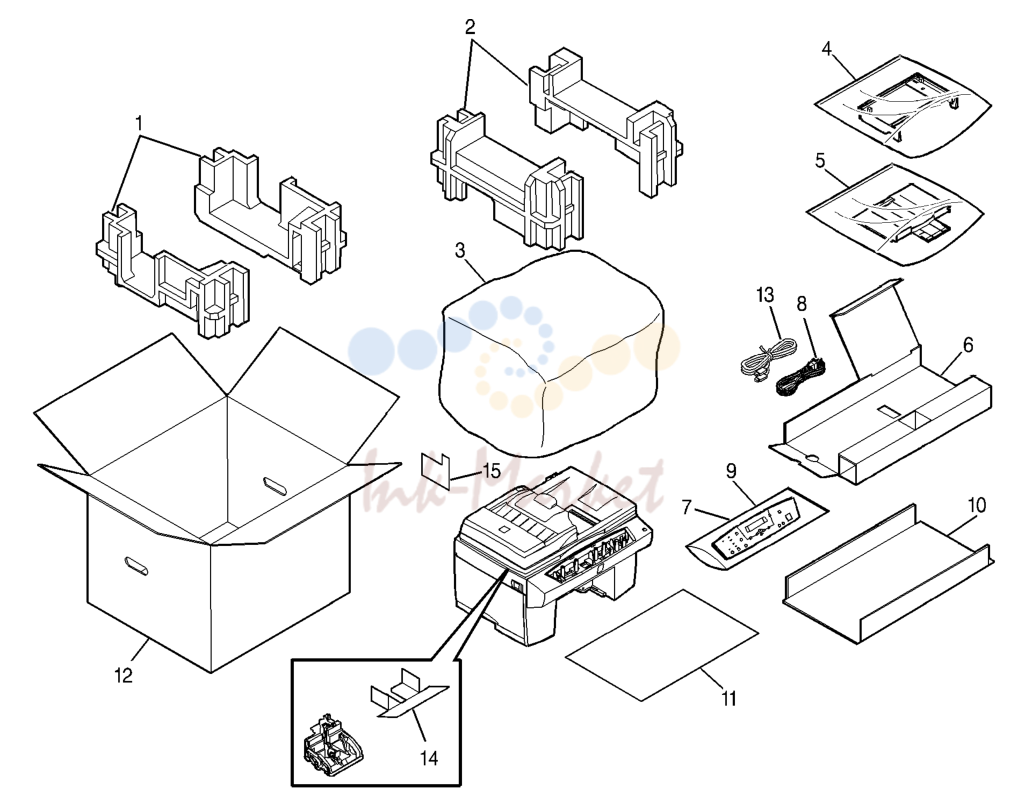

21. PL 10.3 PACKING & ACCESSORIES (3 OF 4)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | - Packing B Left (Not Spared) | ||
| 2 | - Packing B Right (Not Spared) | ||
| 3 | - Vinyl Bag (Not Spared) | ||
| 4 | 050N00309 запросить цену → | Paper Feed Tray Assembly | |
| 5 | 050N00312 запросить цену → | Delivery Tray Assembly | |
| 6 | - Accessories Case (Not Spared) | ||
| 7 | --- Packing B Left (Not Spared) | ||
| 8 | --- Packing A Right (Not Spared) | ||
| 9 | - Accessories Spacer (Not Spared) | ||
| 10 | --- Protect Case (Not Spared) | ||
| 11 | - Original Cover Protect Sheet (Not Spared) | ||
| 12 | --- Carriage Fixing Packing B (Not Spared) | ||
| 13 | --- Jam Cover Spacer (Not Spared) | ||
| 14 | 695E84700 запросить цену → | Packing Case (Not Spared) |
