Содержание
- 1. Section 5
- 2. PL 1.2 REAR FRAME ASSEMBLY
- 3. PL 1.3 MAIN CHASSIS ASSEMBLY
- 4. PL 1.4 CARRIAGE ASSEMBLY
- 5. PL 1.5 FEED ROLLER ASSEMBLY
- 6. PL 1.6 MAIN FRAME ASSEMBLY
- 7. PL 1.7 TRAY ASSEMBLY

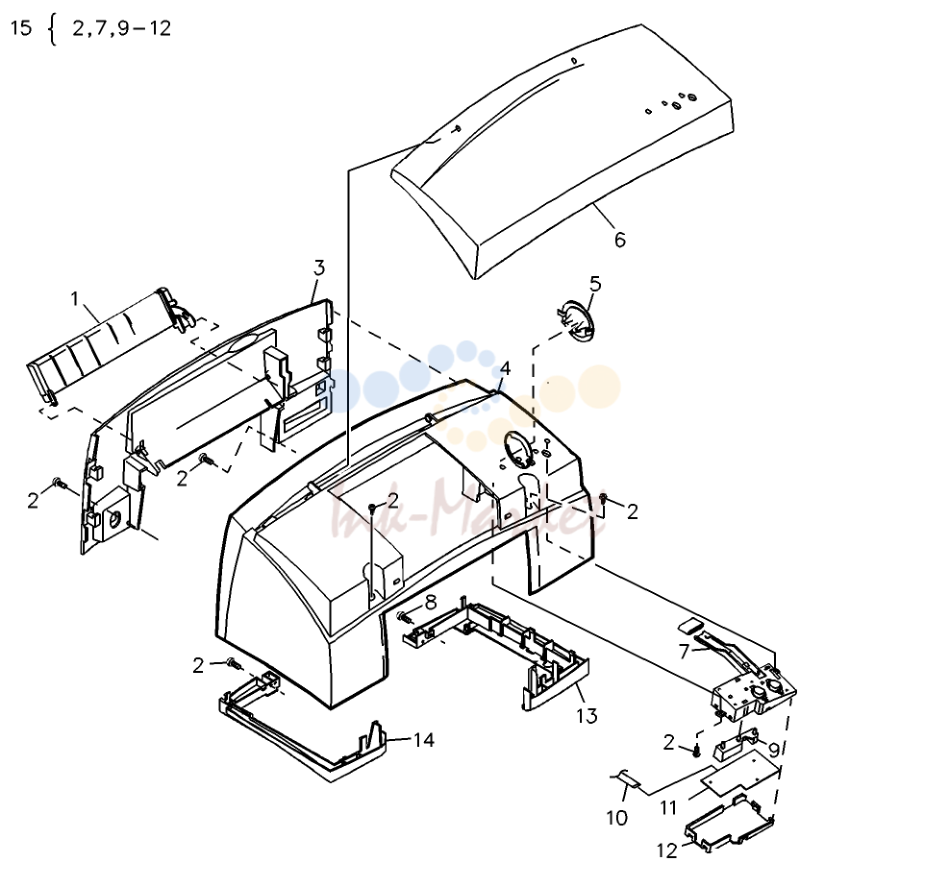

1. Section 5
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 050N00308 запросить цену → | Bypass Tray (REP 1.3) | |
| 2 | ----- Screw (3x10) (Not Spared) | ||
| 3 | ----- Rear Cover (Not Spared) (REP 1.1) | ||
| 4 | ----- Main Cover (Not Spared) (REP 1.2) | ||
| 5 | ----- Knob (Not Spared) | ||
| 6 | 002N01660 запросить цену → | Top Cover (M750) (REP 1.0) | |
| 6 | 002N01661 запросить цену → | Top Cover (M760) (REP 1.0) | |
| 7 | ----- Panel Frame (Not Spared) | ||
| 8 | ----- Screw (3x12) (Not Spared) | ||
| 9 | ----- LED Lens (Not Spared) | ||
| 10 | ----- Panel FFC (Not Spared) | ||
| 11 | ----- Panel PWB Unit (Not Spared) | ||
| 12 | ----- PWB Cover (Not Spared) | ||
| 13 | ----- Attachment R (Not Spared) | ||
| 14 | ----- Attachment L (Not Spared) | ||
| 15 | ----- Panel Frame Assembly (Not Spared) |

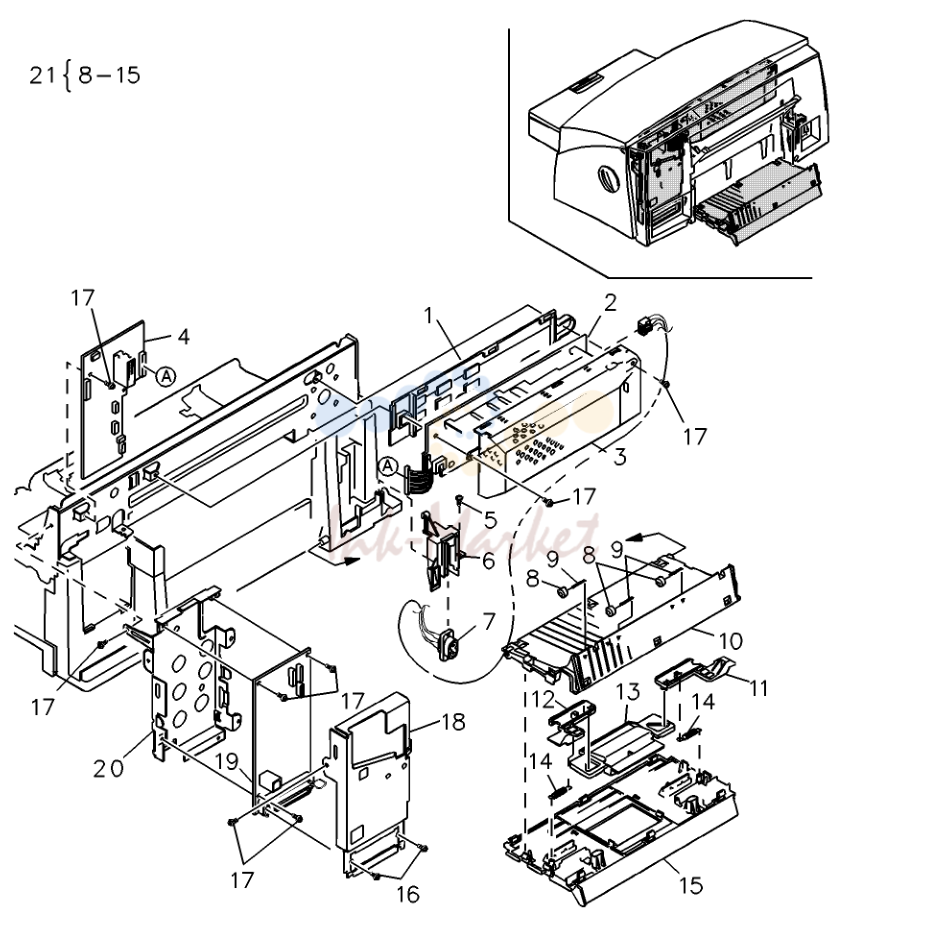

2. PL 1.2 REAR FRAME ASSEMBLY
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | ----- PS Encloser (Not Spared) | ||
| 2 | 105N01321 запросить цену → | Power Supply (PS1) (REP 2.1) | |
| 3 | ----- Shield Box (Not Spared) | ||
| 4 | 140N05511 запросить цену → | Interface PWB (REP 2.2) | |
| 5 | ----- Screw (Not Spared) | ||
| 6 | ----- AC Inlet Cover (Not Spared) | ||
| 7 | ----- AC Inlet Harness (Not Spared) | ||
| 8 | ----- U Support Roller (Not Spared) | ||
| 9 | ----- U Support Roller Spring (Not Spared) | ||
| 10 | ----- U Turn Paper Guide (Not Spared) (REP 1.1) | ||
| 11 | ----- U Rock Arm L (Not Spared) | ||
| 12 | ----- U Rock Arm R (Not Spared) | ||
| 13 | ----- U Rock Reverse (Not Spared) | ||
| 14 | ----- U Rock Spring (Not Spared) | ||
| 15 | ----- U-PG Cover (Not Spared) | ||
| 17 | ----- Screw (3x6) (Not Spared) | ||
| 18 | ----- Shield Box R (Not Spared) | ||
| 19 | 140N05512 запросить цену → | Control PWB (M750) (REP 2.2) | |
| 19 | 140N05513 запросить цену → | Control PWB (M760) (REP 2.2) | |
| 20 | ----- Shield Box L (Not Spared) | ||
| 21 | ----- U Paper Guide Assembly (Not Spared) |

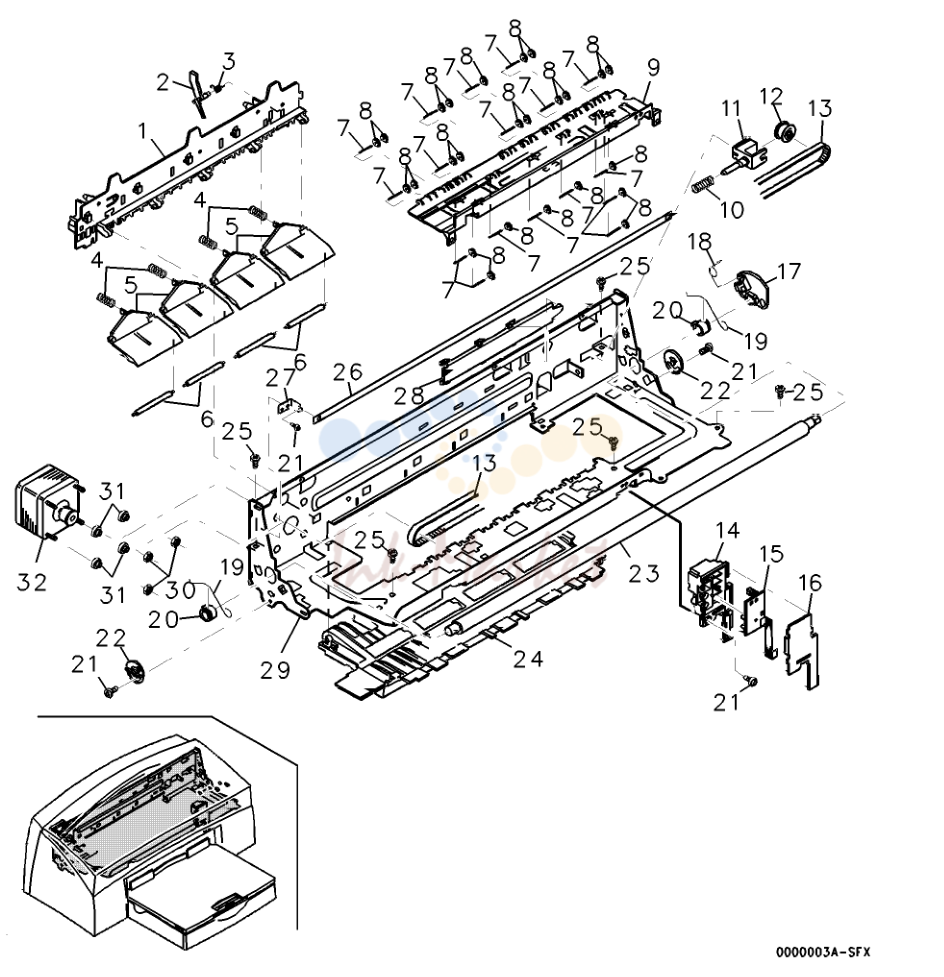

3. PL 1.3 MAIN CHASSIS ASSEMBLY
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | ----- Paper Guide (Not Spared) | ||
| 2 | ----- Actuator Lever (Not Spared) | ||
| 3 | ----- Actuator Lever Spring (Not Spared) | ||
| 4 | ----- Pinch Roller Spring (Not Spared) | ||
| 5 | ----- Pinch Holder (Not Spared) | ||
| 6 | ----- Pinch Roller (Not Spared) | ||
| 7 | ----- Star Spring (Not Spared) | ||
| 8 | ----- Star Roller (Not Spared) | ||
| 9 | ----- Star Holder (Not Spared) | ||
| 10 | ----- Belt Spring (Not Spared) | ||
| 11 | ----- Belt Reverse (Not Spared) | ||
| 12 | ----- Belt Pulley (Not Spared) | ||
| 13 | 023N00757 запросить цену → | Carriage Belt (REP 3.1) | |
| 14 | ----- ILS Case (Not Spared) | ||
| 15 | 140N05510 запросить цену → | ILS PWB (REP 3.4) | |
| 16 | ----- ILS Cover (Not Spared) | ||
| 17 | ----- Adjust Lever (Not Spared) | ||
| 18 | ----- Adjust Lever Spring (Not Spared) | ||
| 19 | ----- Shaft Spring (Not Spared) | ||
| 20 | ----- Shaft Bearing (Not Spared) | ||
| 21 | ----- Screw (3x6) (Not Spared) | ||
| 22 | ----- Adjust Cam (Not Spared) | ||
| 23 | ----- Slide Shaft (Not Spared) | ||
| 24 | ----- Platen (Not Spared) | ||
| 25 | ----- Screw (Not Spared) | ||
| 26 | 001N00314 запросить цену → | Encoder Tape (REP 3.3) | |
| 27 | ----- Fence Spring (Not Spared) | ||
| 28 | ----- FFC Holder (Not Spared) | ||
| 29 | ----- Main Chassis (Not Spared) | ||
| 30 | ----- Nut (M3) (Not Spared) | ||
| 31 | ----- Protection Rubber (Not Spared) | ||
| 32 | 127N01118 запросить цену → | Carriage Motor (MOT 1) (REP 3.2) |

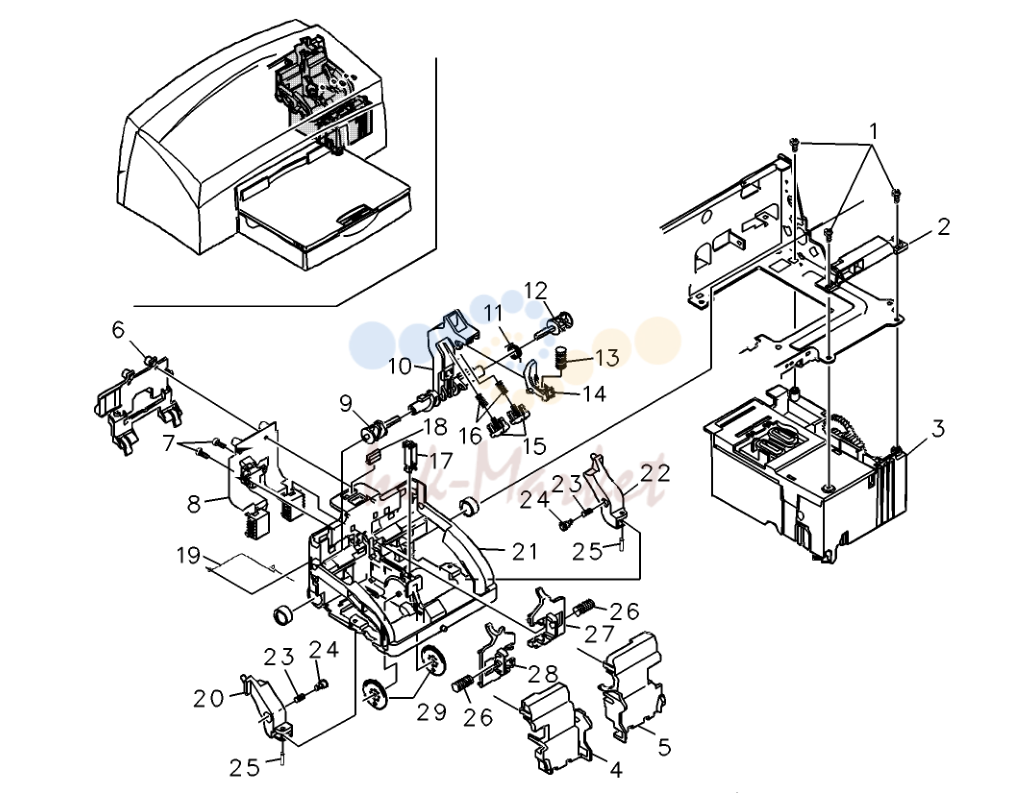

4. PL 1.4 CARRIAGE ASSEMBLY
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | ----- Screw (3x8) (Not Spared) | ||
| 2 | ----- MS Guide (Not Spared) | ||
| 3 | 094K04340 запросить цену → | Maintenance Station (REP 4.1) | |
| 4 | ----- Carriage Guide K (Not Spared) | ||
| 5 | ----- Carriage Guide C (Not Spared) | ||
| 6 | ----- FPC Holder (Not Spared) | ||
| 7 | ----- Screw (2x6) (Not Spared) | ||
| 8 | ----- Carriage Sensor | ||
| 9 | ----- Ratch Reverse Cam K (Not Spared) | ||
| 10 | ----- Ratch Reverse (Not Spared) | ||
| 11 | ----- Reverse Release Spring (Not Spared) | ||
| 12 | ----- Ratch Reverse Cam C (Not Spared) | ||
| 13 | ----- Rock Lever Spring (Not Spared) | ||
| 14 | ----- Rock Lever (Not Spared) | ||
| 15 | ----- BC Guide (Not Spared) | ||
| 16 | ----- BC Spring (Not Spared) | ||
| 17 | ----- Adjust Spring (Not Spared) | ||
| 18 | ----- Slider Upper (Not Spared) | ||
| 19 | ----- Ground Wire (Not Spared) | ||
| 20 | ----- A Guide K (Not Spared) | ||
| 21 | ----- Carriage Base (Not Spared) | ||
| 22 | ----- A Guide C (Not Spared) | ||
| 23 | ----- A Spring (Not Spared) | ||
| 24 | ----- A Guide (Not Spared) | ||
| 25 | ----- A Guide Pin (Not Spared) | ||
| 26 | ----- Connector Spring (Not Spared) | ||
| 27 | ----- Connector Plate C (Not Spared) | ||
| 28 | ----- Connector Plate K (Not Spared) | ||
| 29 | ----- Adjust Plate (Not Spared) |

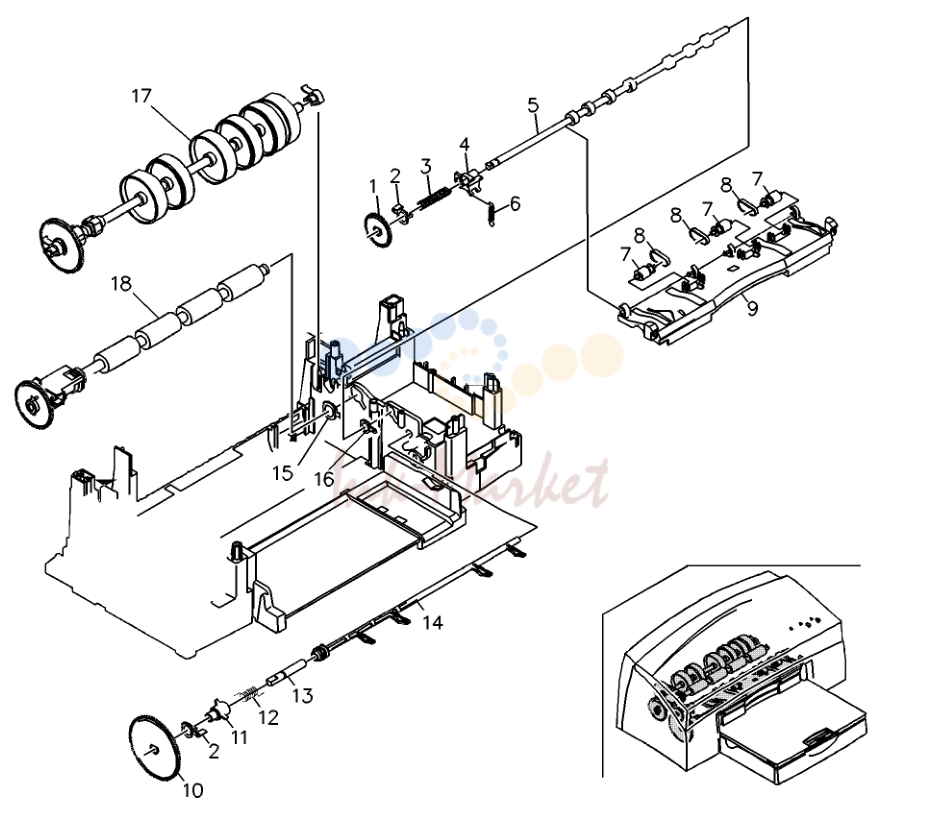

5. PL 1.5 FEED ROLLER ASSEMBLY
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | ----- Eject Gear (Not Spared) | ||
| 2 | ----- E Roller Bearing (Not Spared) | ||
| 3 | ----- E Slider Spring (Not Spared) | ||
| 4 | ----- E Slider (Not Spared) | ||
| 5 | ----- Eject Roller (Not Spared) | ||
| 6 | ----- E Change Spring (Not Spared) | ||
| 7 | ----- E Guide Roller (Not Spared) | ||
| 8 | ----- E Guide R Belt (Not Spared) | ||
| 9 | ----- E Guide (Not Spared) | ||
| 10 | ----- E Clutch Gear (Not Spared) | ||
| 11 | ----- E Clutch Roller (Not Spared) | ||
| 12 | ----- E Clutch Spring (Not Spared) | ||
| 13 | ----- E Clutch Shaft (Not Spared) | ||
| 14 | ----- E Arm (Not Spared) | ||
| 15 | ----- E Roller Bearing R (Not Spared) | ||
| 16 | ----- F Roller Bearing R (Not Spared) | ||
| 17 | ----- U Roller (Not Spared) | ||
| 18 | 022N01105 запросить цену → | Feed Roller (REP 5.1) |

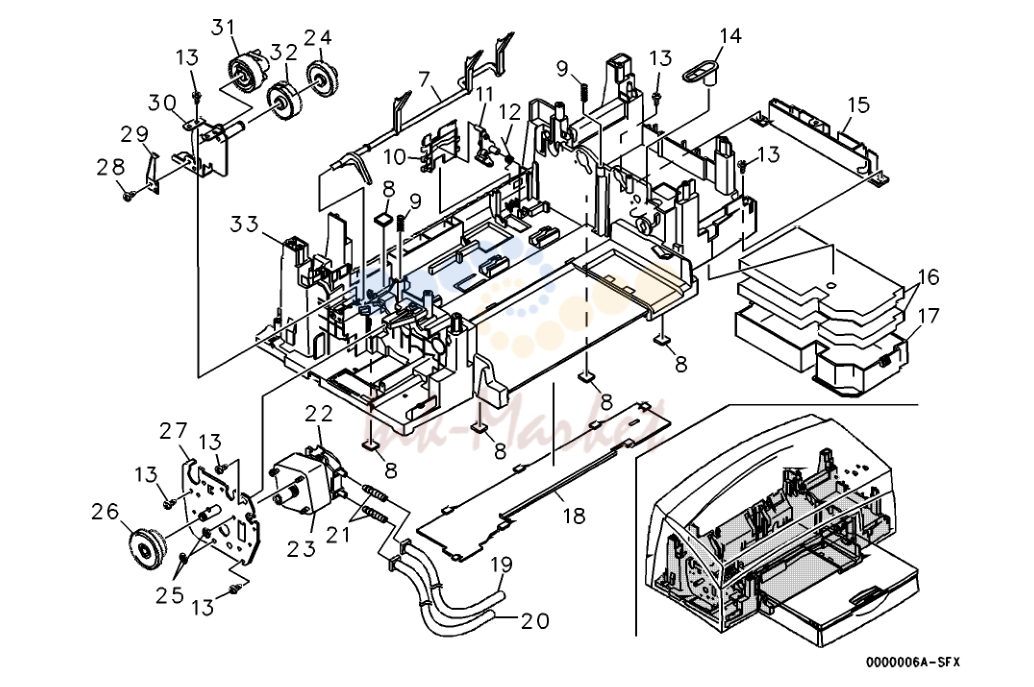

6. PL 1.6 MAIN FRAME ASSEMBLY
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | ----- U Pick Up Guide (Not Spared) | ||
| 2 | ----- U Support Roller (Not Spared) | ||
| 3 | ----- U Support Roller Spring (Not Spared) | ||
| 4 | ----- U Pick Up Arm (Not Spared) | ||
| 5 | ----- U Pick Up Sheet (Not Spared) | ||
| 6 | ----- U Pick Up Spring (Not Spared) | ||
| 7 | ----- U Return Arm (Not Spared) | ||
| 8 | ----- Rubber Sheet (Not Spared) | ||
| 9 | ----- Paper Guide Spring (Not Spared) | ||
| 10 | ----- U Stopper (Not Spared) | ||
| 11 | ----- U Stopper Arm (Not Spared) | ||
| 12 | ----- U Stopper Spring (Not Spared) | ||
| 13 | ----- Screw (3x8) (Not Spared) | ||
| 14 | ----- Tube Holder (Not Spared) | ||
| 15 | ----- Bracket (Not Spared) | ||
| 16 | 019N00466 запросить цену → | Waste Pad (REP 6.1) | |
| 17 | ----- Pad Tray (Not Spared) | ||
| 18 | ----- Tube Cover (Not Spared) | ||
| 19 | ----- Tube (Not Spared) | ||
| 20 | ----- Tube B (Not Spared) | ||
| 21 | ----- Joint (Not Spared) | ||
| 22 | ----- Pump (Not Spared) | ||
| 23 | 127N01119 запросить цену → | Paper Transport/Pump Motor (MOT 2) (REP 6.2) | |
| 24 | ----- U Drive Gear (Not Spared) | ||
| 25 | ----- Nut (M3) (Not Spared) | ||
| 26 | ----- Y Gear (Not Spared) | ||
| 27 | ----- Y Plate (Not Spared) | ||
| 28 | ----- Screw (3x6) (Not Spared) | ||
| 29 | ----- U Cam Spring (Not Spared) | ||
| 30 | ----- U Left Plate (Not Spared) | ||
| 31 | ----- U Cam Gear (Not Spared) | ||
| 32 | ----- U-W Gear (Not Spared) | ||
| 33 | ----- U Frame (Not Spared) |

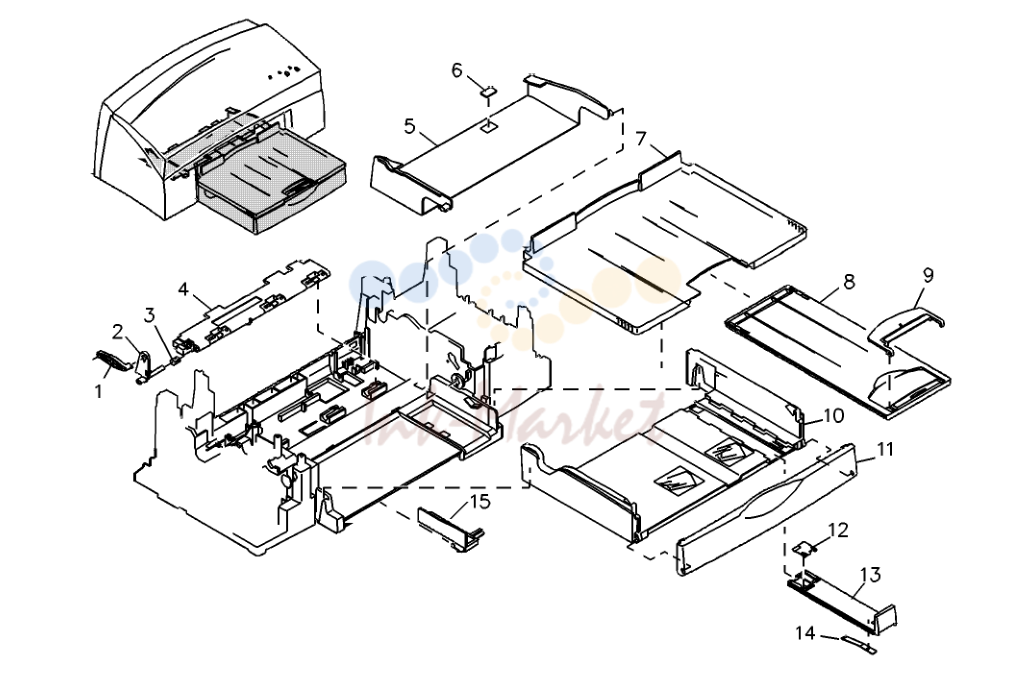

7. PL 1.7 TRAY ASSEMBLY
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | ----- U Cam Crank (Not Spared) | ||
| 2 | ----- U Arm Lever (Not Spared) | ||
| 3 | ----- U Rotary Spring (Not Spared) | ||
| 4 | ----- U Rotary P Arm (Not Spared) | ||
| 5 | ----- U Rotary Plate (Not Spared) | ||
| 6 | ----- U Cushion Sheet (Not Spared) | ||
| 7 | ----- U Delivery Tray (P/O Item 16) | ||
| 8 | ----- U Extension Tray (P/O Item 16) | ||
| 9 | ----- U Delivery Stopper (P/O Item 16) | ||
| 10 | ----- U Paper Feed Tray (P/O Item 17) | ||
| 11 | ----- U Front Panel (P/O Item 17) | ||
| 12 | ----- U Card Guide (P/O Item 17) | ||
| 13 | ----- U Paper Range Lever (P/O Item 17) | ||
| 14 | ----- U Paper Range Spring (P/O Item 17) | ||
| 15 | ----- U Wide Lever (Not Spared) | ||
| 16 | 050N00309 запросить цену → | Paper Supply Assembly (M750) | |
| 16 | 050N00311 запросить цену → | Paper Supply Assembly (M760) | |
| 17 | 050N00310 запросить цену → | Eject Tray Assembly (M750) | |
| 17 | 050N00312 запросить цену → | Eject Tray Assembly (M760) |
