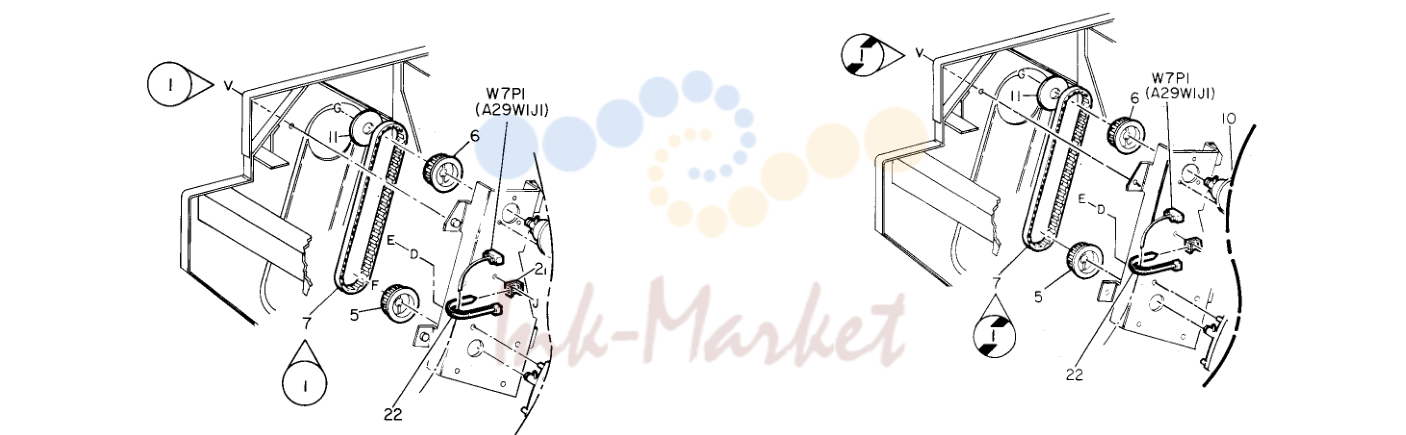

- 1. Symbology A Tag number within a circle having a shaded bar and pointing to an item number shows that
- 2. PL 2.1 Tray, Feeder 1/2 Assembly

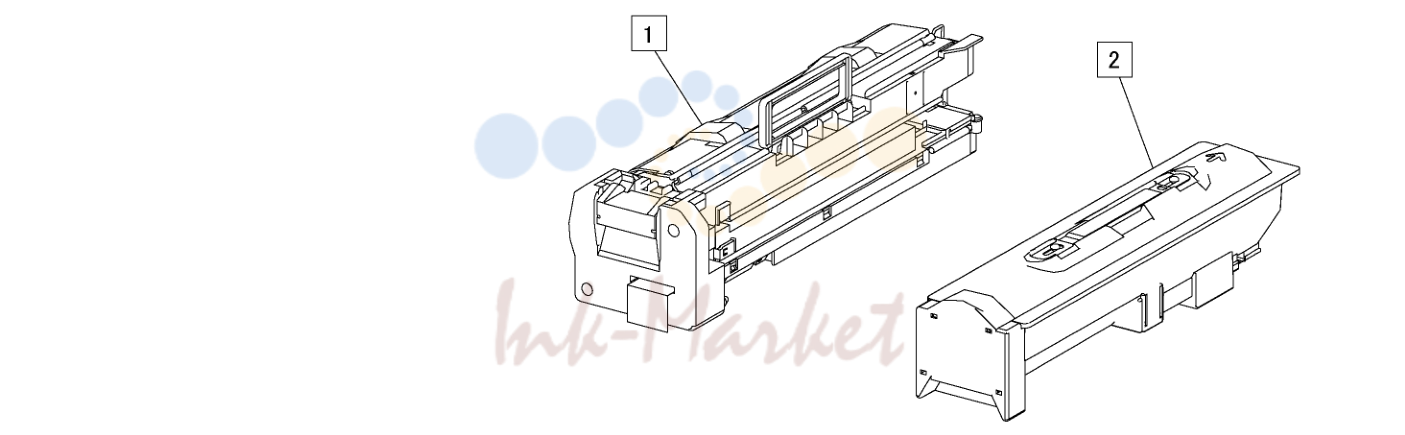

- 3. PL 4.1 CRU, Toner Cartridge
1. Symbology A Tag number within a circle having a shaded bar and pointing to an item number shows that
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | - Collar (23/28CPM Model)(P/O PL | ||
| 2 | - Gear (23/28CPM Model)(21/21T) | ||
| 3 | - Gear (18T) (P/O PL 1.1 Item 10) | ||
| 4 | - Gear (28T) (P/O PL 1.1 Item 10) | ||
| 5 | - Belt (P/O PL 1.1 Item 10) | ||
| 6 | 007K88583 запросить цену → | Main Drive Unit | |
| 7 | - Main Drive Assembly (REP 1.1.1) | ||
| 8 | - Pulley (P/O PL 1.1 Item 6, PL 1.1 | ||
| 9 | 005E17860 запросить цену → | Flange | |
| 10 | 604K20500 запросить цену → | Drive Gear Kit | |
| 11 | 127K45361 запросить цену → | Takeaway Motor Assembly | |
| 12 | - Takeaway Motor (P/O PL 1.1 Item | ||
| 13 | - Gear (19T)(P/O PL 1.1 Item 11) | ||
| 14 | 013E26090 запросить цену → | Bearing(33CPM Model) | |
| 15 | 807E08690 запросить цену → | Gear (29T/19T)(33CPM Model) |

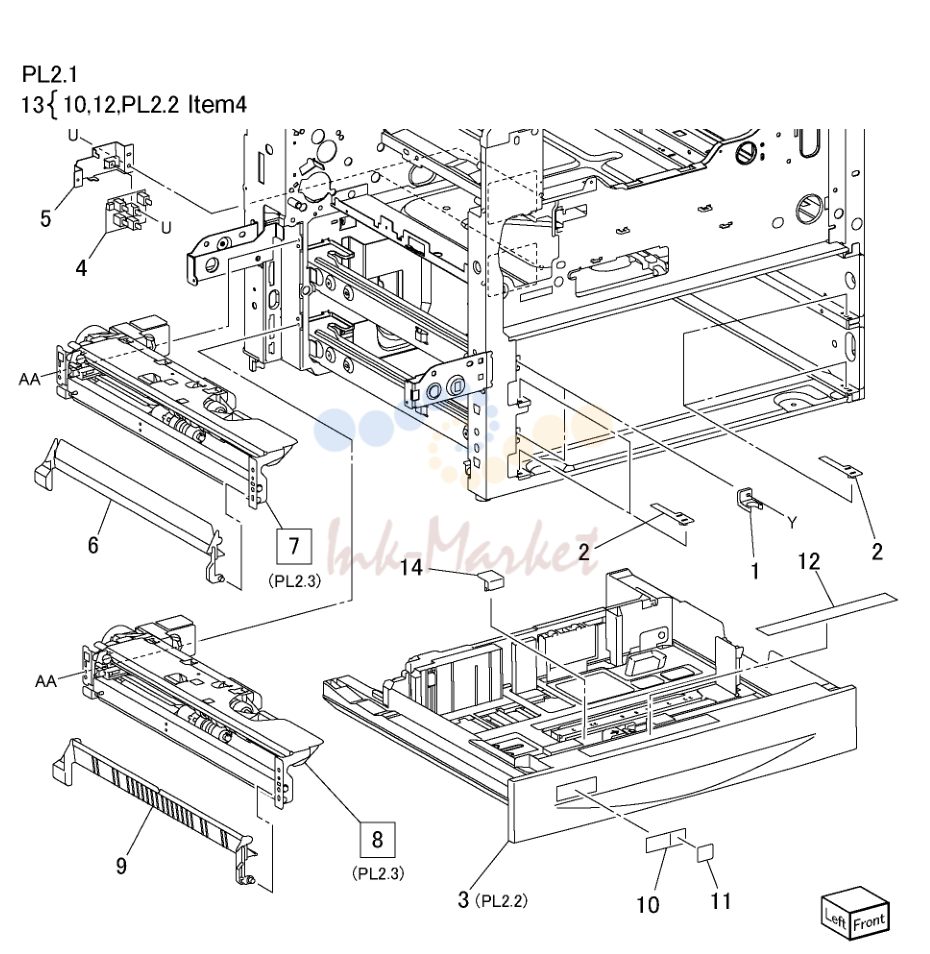

2. PL 2.1 Tray, Feeder 1/2 Assembly
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 003E58700 запросить цену → | Stopper | |
| 2 | 014E44710 запросить цену → | Spacer | |
| 3 | 050K49840 запросить цену → | Tray Assembly (PL 2.2) | |
| 4 | 110K11680 ✓ в наличии | Tray 1 Paper Size Switch | |
| 5 | - Bracket (Not Spared) | ||
| 6 | 054K24090 запросить цену → | Feed Out Chute | |
| 7 | 059K26953 запросить цену → | Feeder 1 Assembly (23/28CPM | |
| 8 | 059K26953 запросить цену → | Feeder 2 Assembly(23/28CPM | |
| 9 | 054K27050 запросить цену → | Feed Out Chute | |
| 10 | - Label Tray No1 (P/O PL 2.1 Item | ||
| 11 | - Label Size (Not Spared) | ||
| 12 | - Label (Instruction) (P/O PL 2.1 Item | ||
| 13 | 604K20550 запросить цену → | Tray Label Kit | |
| 14 | - Slide Look (Not Spared) | ||
| 1 | - Stopper (P/O PL 2.1 Item 3) | ||
| 2 | - Tray Cover (P/O PL 2.1 Item 3) | ||
| 3 | - Seal (P/O PL 2.1 Item 3) | ||
| 4 | - Label (Max) (P/O PL 2.1 Item 13) | ||
| 5 | - Bottom Pad (P/O PL 2.1 Item 3) | ||
| 6 | - Front Side Guide (P/O PL 2.1 Item | ||
| 7 | 604K20540 запросить цену → | Tray Gear Kit | |
| 8 | - Tray Pad (P/O PL 2.1 Item 3) | ||
| 9 | - Rear Side Guide (P/O PL 2.1 Item | ||
| 10 | - Bottom Plate (P/O PL 2.1 Item 3) | ||
| 11 | - Tray (P/O PL 2.1 Item 3) | ||
| 12 | - Side Guide Actuator (P/O PL 2.1 | ||
| 13 | - Guide Actuator (P/O PL 2.1 Item 3) | ||
| 14 | - Spring (P/O PL 2.1 Item 3) | ||
| 15 | - Pinion Gear (P/O PL 2.1 Item 3) | ||
| 16 | - End Guide (P/O PL 2.1 Item 3) | ||
| 17 | - Spring (P/O PL 2.1 Item 3) | ||
| 18 | - End Guide Actuator (P/O PL 2.1 | ||
| 19 | - Link (P/O PL 2.1 Item 3) | ||
| 20 | - Coupling Gear (13T) (P/O PL 2.2 | ||
| 21 | - Gear (13T/60T) (P/O PL 2.2 Item 7) | ||
| 22 | - Sector Gear (60T) (P/O PL 2.2 Item | ||
| 23 | - Bracket (P/O PL 2.1 Item 3) | ||
| 24 | - Lift Up Shaft (P/O PL 2.1 Item 3) | ||
| 1 | - Upper Frame (P/O PL 2.1 Item 7) | ||
| 2 | 127 38170 Tray 1/2 Feed/Lift Up Motor | ||
| 3 | - Bracket (P/O PL 2.1 Item 7) | ||
| 4 | - Spacer (P/O PL 2.1 Item 7) | ||
| 5 | - Gear (31T) (P/O PL 2.1 Item 7) | ||
| 6 | - Spring (P/O PL 2.1 Item 7) | ||
| 7 | - Oneway Clutch (P/O PL 2.1 Item 7) | ||
| 8 | - Oneway Gear (P/O PL 2.1 Item 7) | ||
| 9 | - Gear (13T) (P/O PL 2.1 Item 7) | ||
| 10 | - Bearing (P/O PL 2.1 Item 7) | ||
| 11 | - Shaft (P/O PL 2.1 Item 7) | ||
| 12 | - Front Chute (P/O PL 2.1 Item 7) | ||
| 13 | 120E22481 запросить цену → | Actuator | |
| 14 | 930W00113 запросить цену → | Tray 1/2 Level Sensor | |
| 15 | 930W00113 запросить цену → | Tray 1/2 No Paper Sensor | |
| 16 | 962K19691 запросить цену → | Wire Harness (23/28CPM Model) | |
| 17 | - Gear (28T/21T) (P/O PL 2.1 Item 7) | ||
| 18 | - Gear (29T) (P/O PL 2.1 Item 7) | ||
| 19 | - Spring (P/O PL 2.1 Item 7) | ||
| 20 | - Feed Roll (REP 2.3.1) (P/O PL 2.3 | ||
| 21 | 005K05890 ✓ в наличии | Oneway Clutch | |
| 22 | 005K06760 запросить цену → | Oneway Gear (22T) | |
| 23 | - Shaft (P/O PL 2.1 Item 7) | ||
| 24 | - Chute (P/O PL 2.1 Item 7) | ||
| 25 | - Spring (P/O PL 2.1 Item 7) | ||
| 26 | 005K07010 запросить цену → | Friction Clutch | |
| 27 | - Support Assembly (P/O PL 2.1 Item | ||
| 28 | - Retard Roll (REP 2.3.1) (P/O PL | ||
| 29 | - Spacer (P/O PL 2.1 Item 7) | ||
| 30 | - Gear (33T) (P/O PL 2.1 Item 7) | ||
| 31 | - Support Assembly (P/O PL 2.1 Item | ||
| 32 | - Nudger Roll (REP 2.3.1) (P/O PL | ||
| 33 | - Gear (25T) (P/O PL 2.1 Item 7) | ||
| 34 | - Lower Frame (P/O PL 2.1 Item 7) | ||
| 35 | - Bearing (P/O PL 2.1 Item 7) | ||
| 36 | - Gear (34T) (P/O PL 2.1 Item 7) | ||
| 37 | - Lever (P/O PL 2.1 Item 7) | ||
| 38 | - Bearing (P/O PL 2.1 Item 7) | ||
| 39 | - Washer (P/O PL 2.1 Item 7) | ||
| 40 | 604K20530 запросить цену → | Tray Feed Roller Kit | |
| 41 | - Screw (P/O PL 2.1 Item 7) | ||
| 42 | 930W00211 запросить цену → | Tray1/2 Pre Feed Sensor (33CPM | |
| 43 | - Harness Holder(CTR)(23/28CPM | ||
| 1 | 054E23910 запросить цену → | Chute | |
| 2 | 013E26760 запросить цену → | Bearing | |
| 3 | 054E23940 запросить цену → | Registration Chute | |
| 4 | 059E98590 ✓ в наличии | Idler Roll | |
| 5 | 059K31021 ✓ в наличии | Registration Roll | |
| 6 | 121K32660 запросить цену → | Registration Clutch | |
| 7 | 130K64270 ✓ в наличии | Registration Sensor | |
| 8 | - Earth Plate (Not Spared) | ||
| 9 | - Bracket (23/28CPM Model)(Not | ||
| 10 | 054K23940 ✓ в наличии | Chute Assembly | |
| 11 | 013E26060 запросить цену → | Bearing (23/28CPM Model) | |
| 12 | 013E26090 запросить цену → | Bearing (23/28CPM Model) | |
| 13 | - Shaft (23/28CPM Model)(Not | ||
| 14 | 121K31640 запросить цену → | Takeaway Roll Clutch (23/28CPM | |
| 15 | 007E79320 запросить цену → | Gear (19T) (23/28CPM Model) | |
| 16 | 162K56100 запросить цену → | Wire Harness (33CPM Model) | |
| 17 | 930W00211 запросить цену → | Tray2 | Feed Out Sensor (33CPM |
| 1 | 015K61010 ✓ в наличии | Gear Assembly | |
| 2 | - Bracket Assembly (P/O PL 2.5 Item | ||
| 3 | - L/H Lower Cover Interlock Switch | ||
| 4 | - Rivet (Not Spared) | ||
| 5 | - Lower Chute (Not Spared) | ||
| 6 | 059K26840 запросить цену → | Takeaway Roll (REP 2.5.1) | |
| 7 | - Handle (Not Spared) | ||
| 8 | - Bracket (Not Spared) | ||
| 9 | - Bearing (Not Spared) | ||
| 10 | - Bearing (Not Spared) | ||
| 11 | 059E98370 запросить цену → | Pinch Roller | |
| 12 | 130K64261 запросить цену → | Tray2 | Feed Out Sensor (23/28CPM |
| 13 | - Spring (Not Spared) | ||
| 14 | - Spring (Not Spared) | ||
| 15 | 962K23460 запросить цену → | Wire Harness (23/28CPM Model) | |
| 16 | - Earth Plate (Not Spared) | ||
| 17 | 802E55701 запросить цену → | L/H Lower Cover | |
| 18 | - Spring (Not Spared) | ||
| 19 | 007E79270 запросить цену → | Gear (18T) | |
| 20 | 013E26990 запросить цену → | Bearing | |
| 21 | 413W11860 запросить цену → | Bearing | |
| 22 | - Gear (21T) (P/O PL 2.5 Item 1) | ||
| 23 | - Gear (23T) (P/O PL 2.5 Item 1) | ||
| 24 | - Gear (22T) (P/O PL 2.5 Item 1) | ||
| 25 | - Gear (31T) (P/O PL 2.5 Item 1) | ||
| 1 | 012K94341 ✓ в наличии | Link Assembly | |
| 2 | 802K56093 запросить цену → | BTR Roll Assembly | |
| 3 | - Lever (Rear) (P/O PL 2.6 Item 2) | ||
| 4 | - Lever (Front) (P/O PL 2.6 Item 2) | ||
| 5 | - Bearing (P/O PL 2.6 Item 2) | ||
| 6 | - BTR Roll (REP 2.6.1) (P/O PL 2.6 | ||
| 7 | - Housing (P/O PL 2.6 Item 2) | ||
| 8 | - Spring (P/O PL 2.6 Item 2) | ||
| 9 | - Spring (P/O PL 2.6 Item 2) | ||
| 10 | 054K24051 запросить цену → | L/H Upper Chute Assembly (PL | |
| 11 | 802K58260 запросить цену → | L/H Upper Cover Assembly (PL | |
| 12 | - Stud (Not Spared) | ||
| 13 | - Bracket (Not Spared) | ||
| 14 | 802K49240 запросить цену → | Wire Assembly | |
| 15 | 110E94770 запросить цену → | L/H Cover Inter lock Switch | |
| 16 | - Label 220V (Not Spared) | ||
| 17 | - Label 110V (Not Spared) | ||
| 18 | - Screw (Not Spared) | ||
| 1 | - Bearing (P/O PL 2.6 Item 10) | ||
| 2 | - Earth Plate (P/O PL 2.6 Item 10) | ||
| 3 | - Guide (P/O PL 2.6 Item 10) | ||
| 4 | - L/H Chute (P/O PL 2.6 Item 10) | ||
| 5 | - Eliminator (P/O PL 2.6 Item 10) | ||
| 6 | - Spring Contact DTS (P/O PL 2.6 | ||
| 7 | - Spring Chute (P/O PL 2.6 Item 10) | ||
| 8 | - Pinch Roll (P/O PL 2.6 Item 10) | ||
| 9 | - Spring (P/O PL 2.6 Item 10) | ||
| 10 | - Spring (P/O PL 2.6 Item 10) | ||
| 11 | - Plate (P/O PL 2.6 Item 10) | ||
| 12 | - Guide (P/O PL 2.6 Item 10) | ||
| 1 | 003E59832 запросить цену → | Handle | |
| 2 | - XERO/Developer Cartridge Shutter | ||
| 3 | - Handle Guide (P/O PL 2.6 Item 11) | ||
| 4 | 054E23950 запросить цену → | L/H Cover Chute | |
| 5 | 054K24060 запросить цену → | Chute Assembly | |
| 6 | - Frame Assembly (P/O PL 2.6 Item | ||
| 7 | 802K65582 запросить цену → | L/H Upper Cover | |
| 8 | - Spring (P/O PL 2.6 Item 11) | ||
| 9 | 849E13981 запросить цену → | Support | |
| 1 | 062K13580 ✓ в наличии | ROS Unit (REP 3.1.1) | |
| 2 | 927W00111 запросить цену → | ROS Fan | |
| 3 | - Bracket (Not Spared) | ||
| 4 | - Connector (Not Spared) |
