Содержание
- 1. 97 Top Cover Assembly
- 2. 98 Font Cover
- 3. 99 Rear, Left, and Right Covers
- 4. 100 Tray Unit - Paper Stack
- 5. 101 Tray Unit - End Guide
- 6. 102 Tray Unit - Paper Stack (Custom)
- 7. 103 Tray Unit - End Guide (Custom)
- 8. 104 Tray Interface - Tray 1
- 9. 105 Paper Pick Up - Tray 1
- 10. 106 Retard and Take Away - Tray 1
- 11. 107 Tray Interface - Tray 2
- 12. 108 Paper Pick Up - Tray 2
- 13. 109 Retard and Take Away - Tray 2

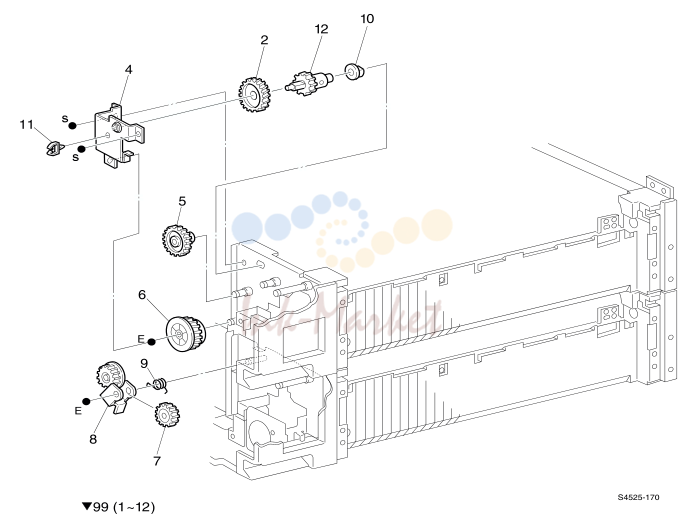

- 14. 110 Feed Drive Transmission

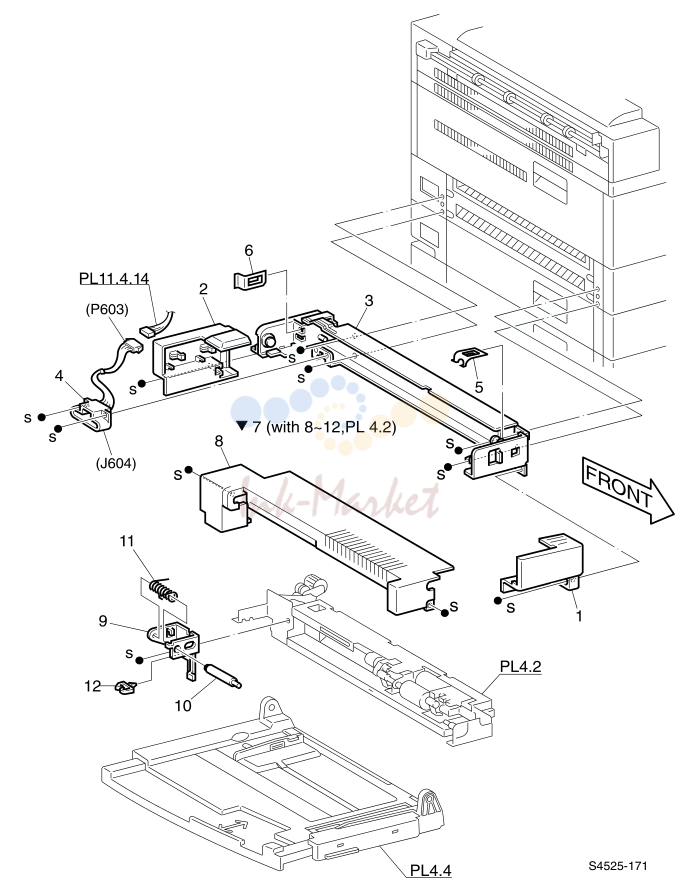

- 15. 111 Multi-sheet Bypass Feeder and Duplex Support

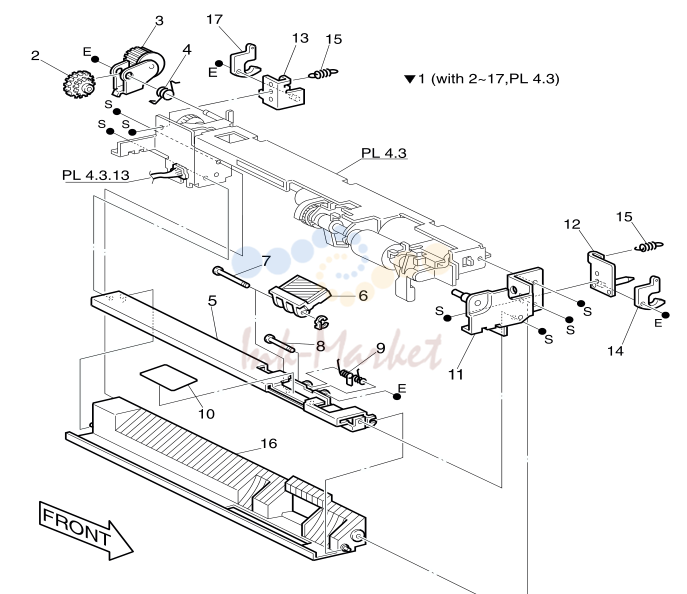

- 16. 112 Multi-sheet Bypass Feeder Assembly (MBF)

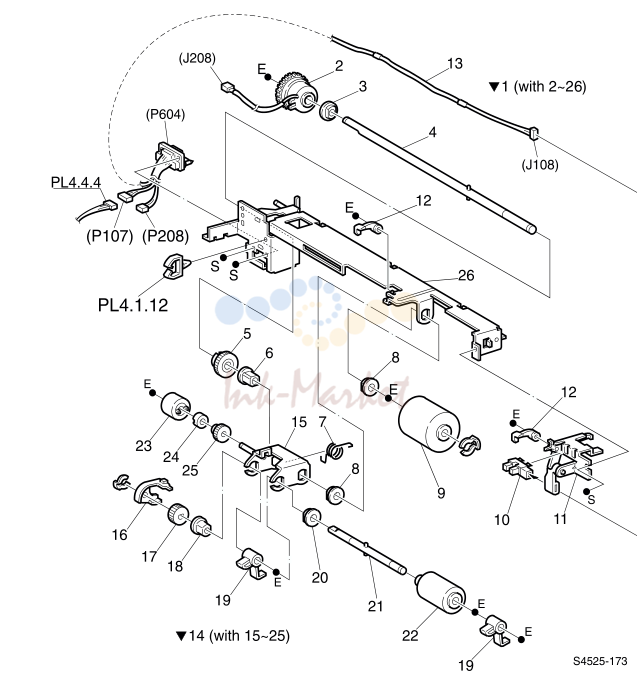

- 17. 113 Upper Feeder Assembly

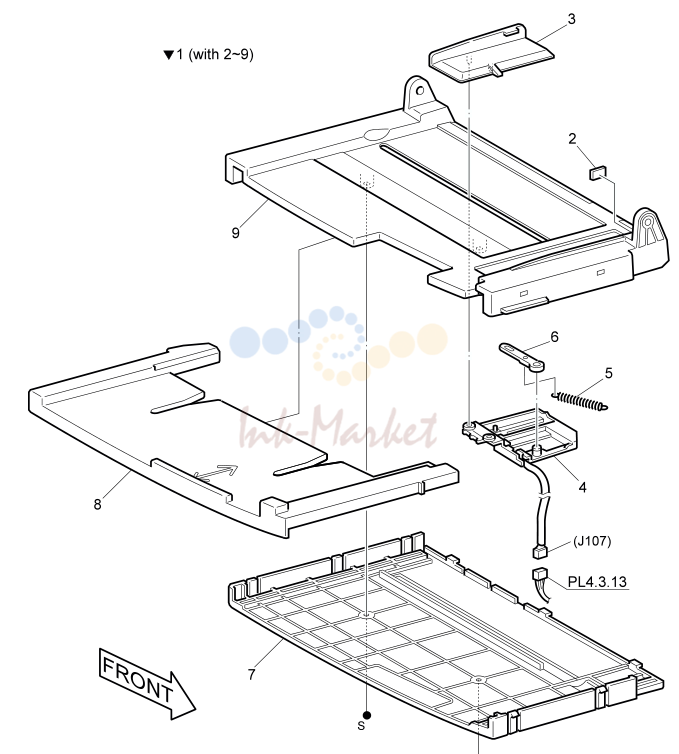

- 18. 114 Multi-sheet Bypass Feeder Tray Assembly

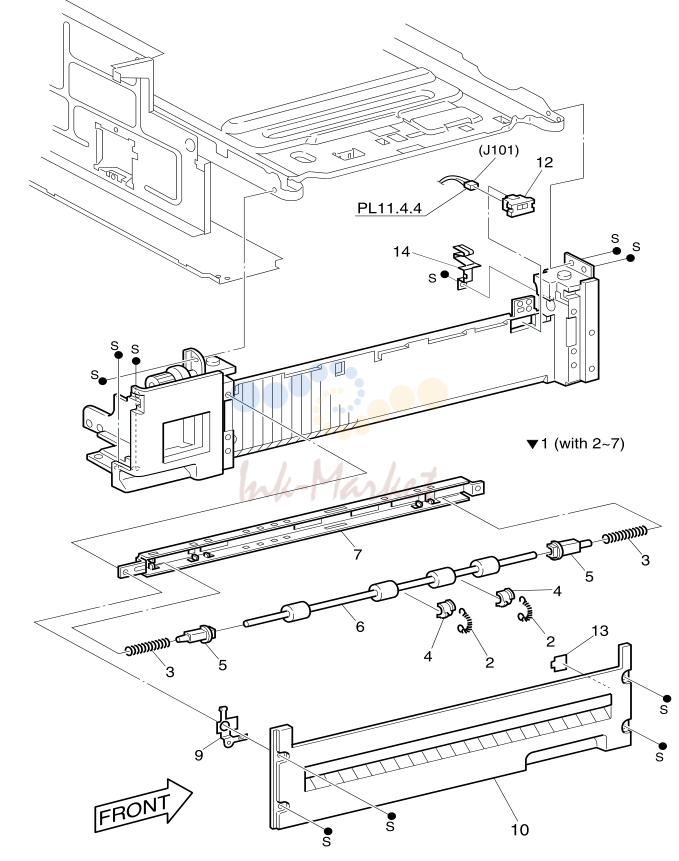

- 19. 115 Tray 1 Frame and Left Cover

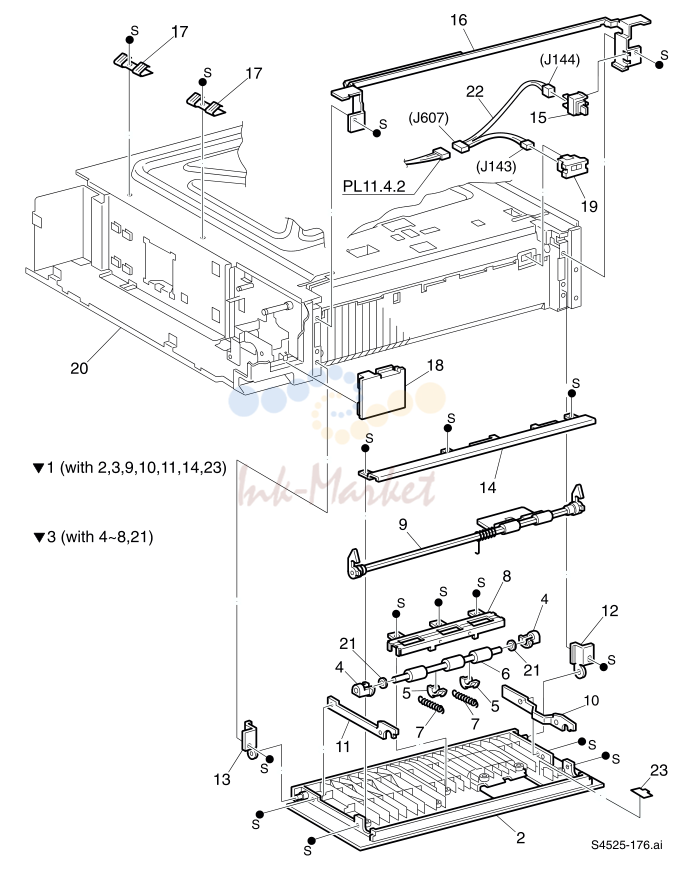

- 20. 116 Tray 2 Frame and Left Cover

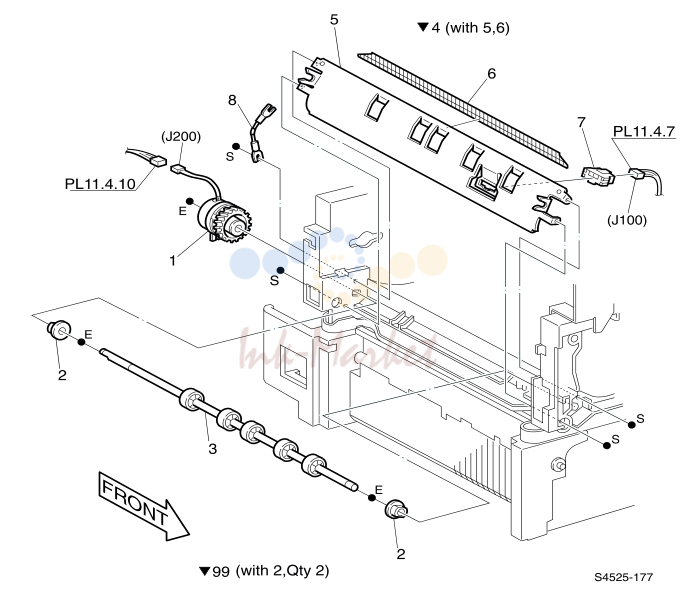

- 21. 117 Registration

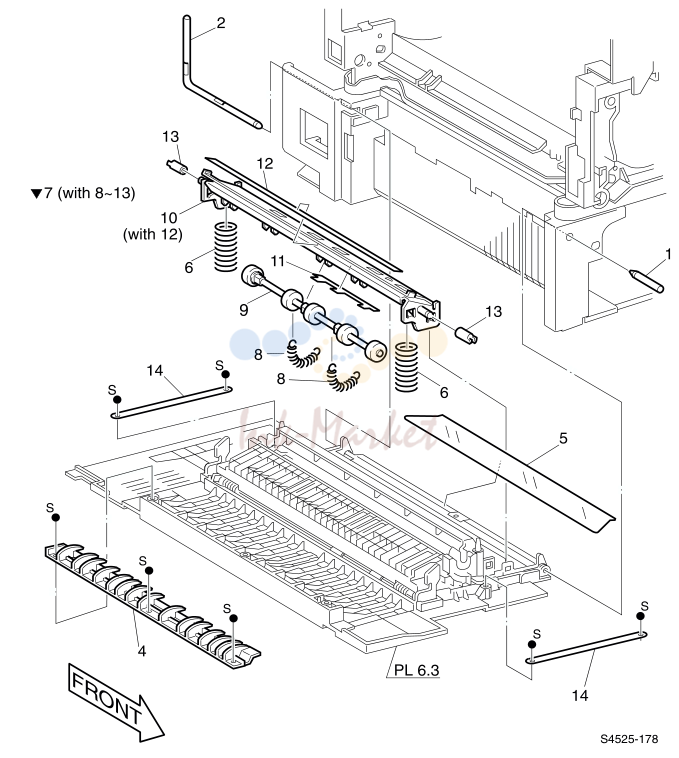

- 22. 118 Left Upper Cover Assembly

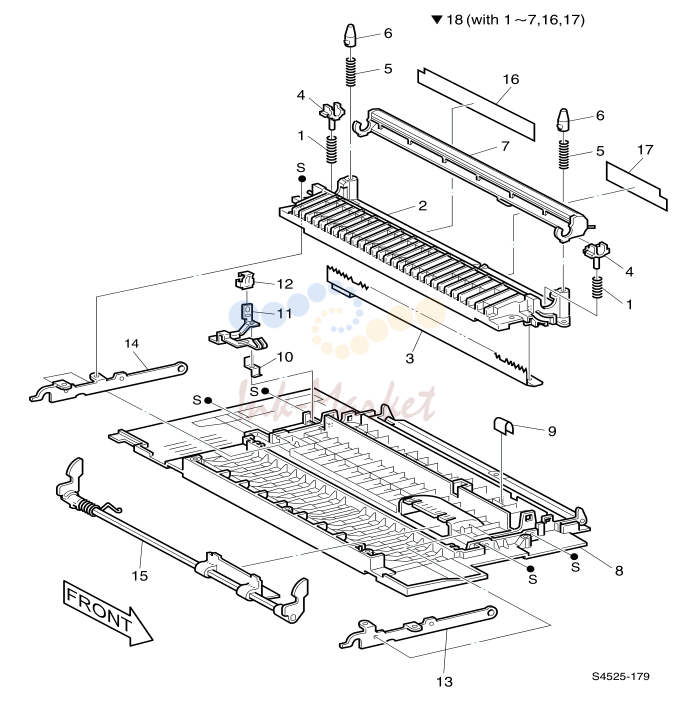

- 23. 119 Transport Chute Assembly

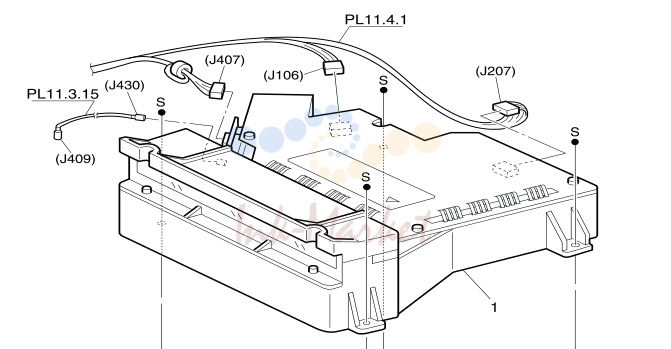

- 24. 120 Laser Scanner

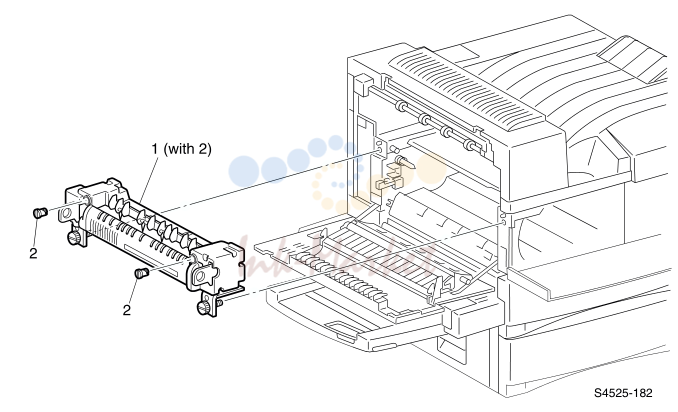

- 25. 122 Fuser Assembly

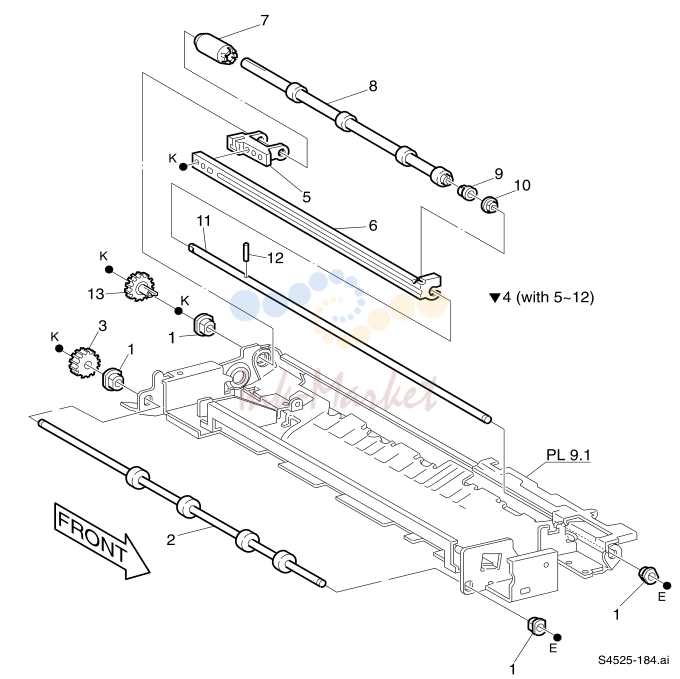

- 26. 124 Offset Roller Assembly

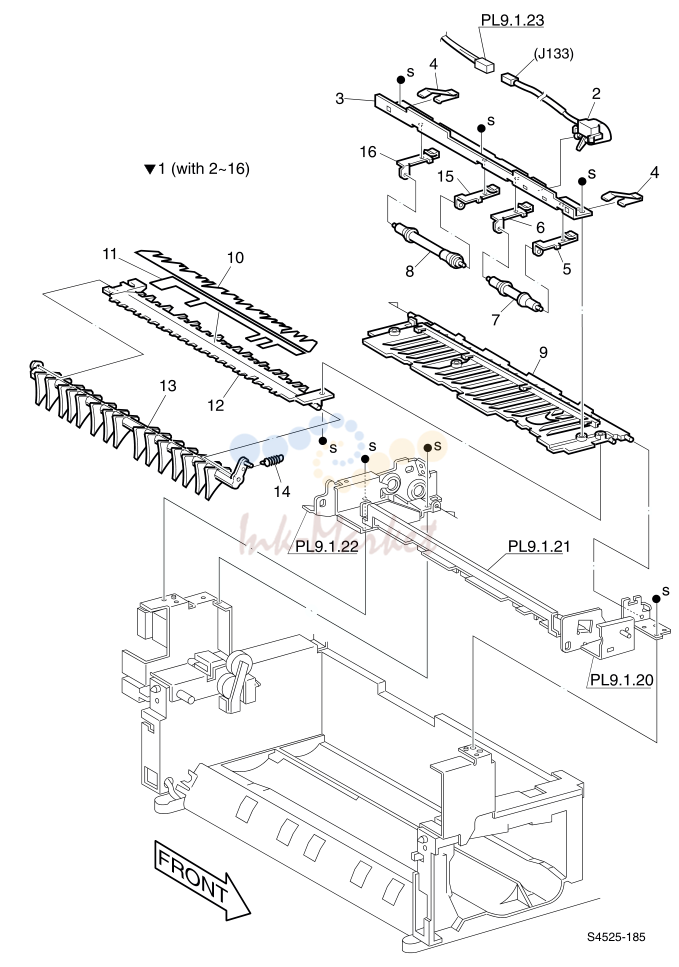

- 27. 125 Upper Exit Chute Assembly

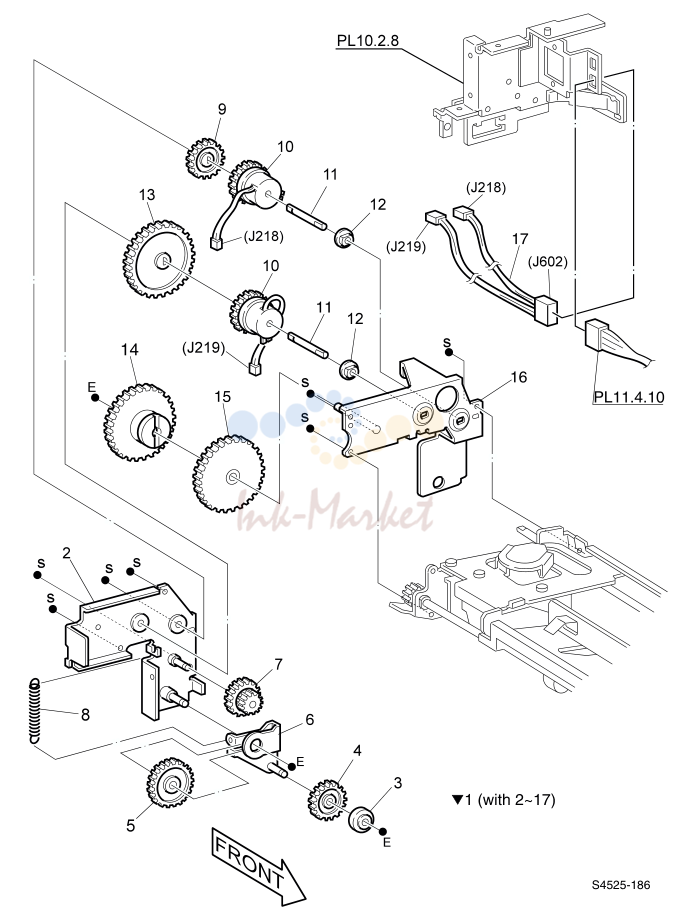

- 28. 126 Exit Drive Assembly

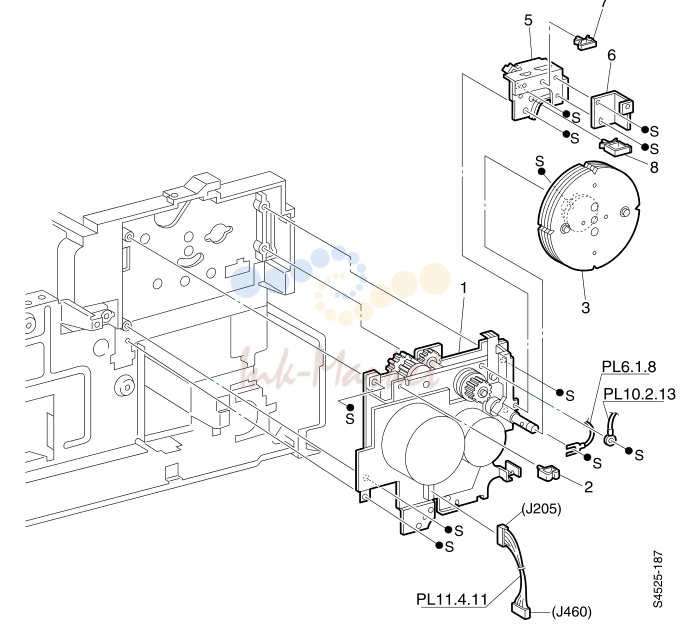

- 29. 127 Main Drive Assembly

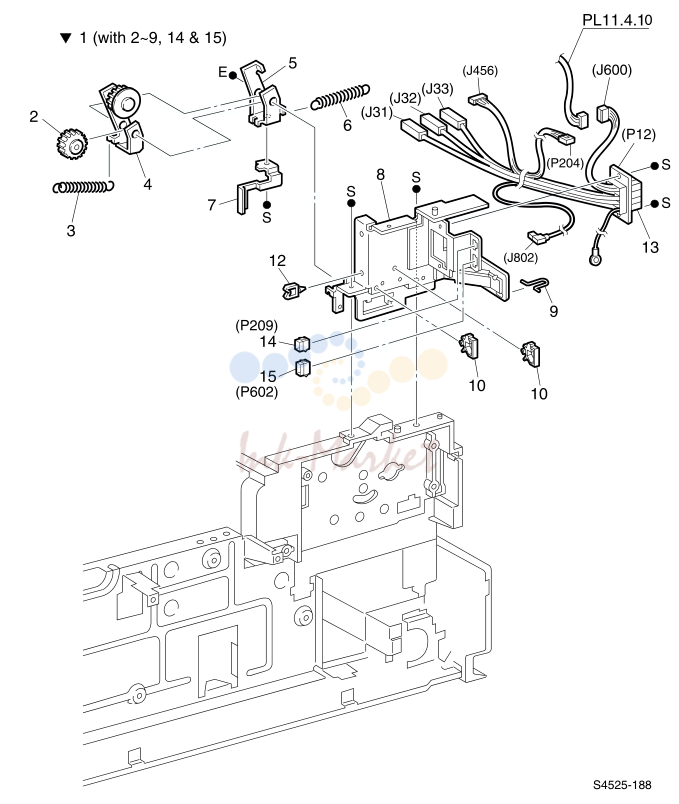

- 30. 128 Fuser Drive Assembly

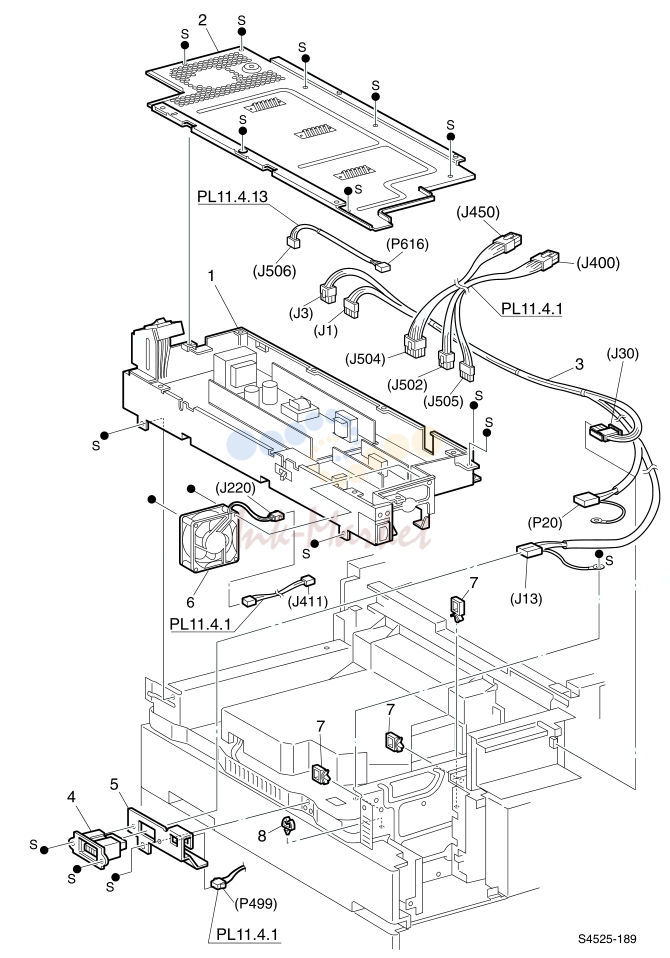

- 31. 129 Power Unit

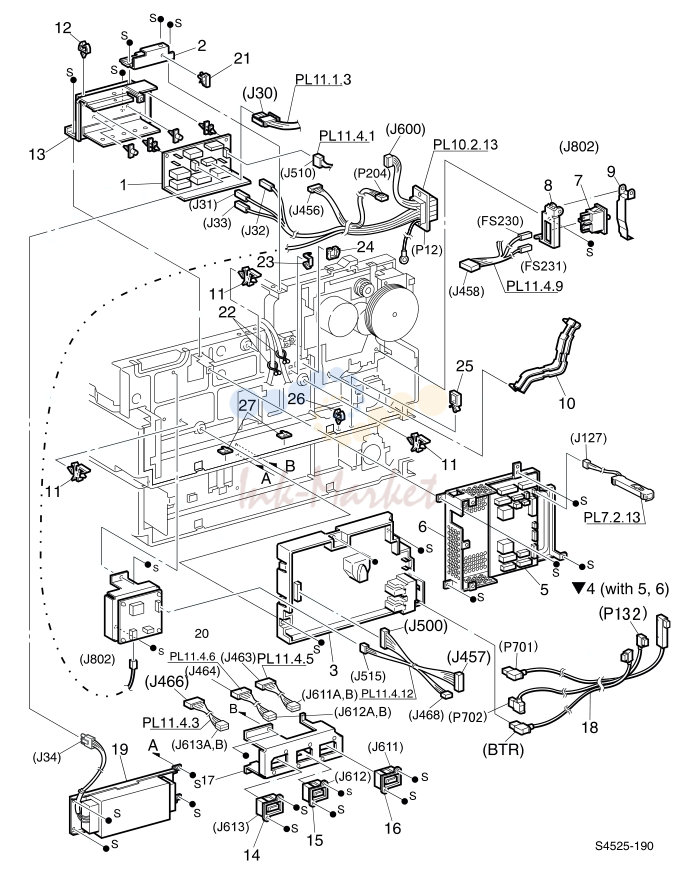

- 32. 130 High Voltage Power Supply and Input/Output Board

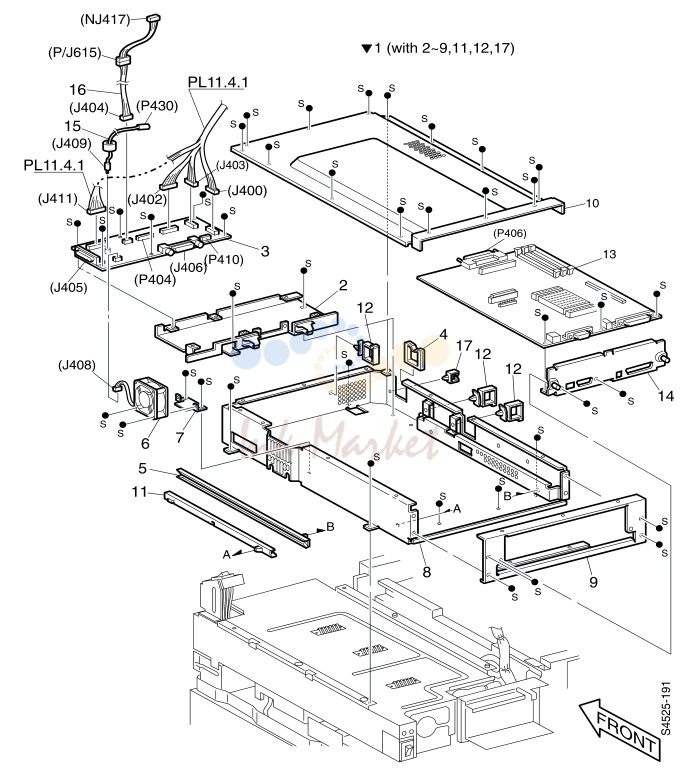

- 33. 131 System Controller Assembly

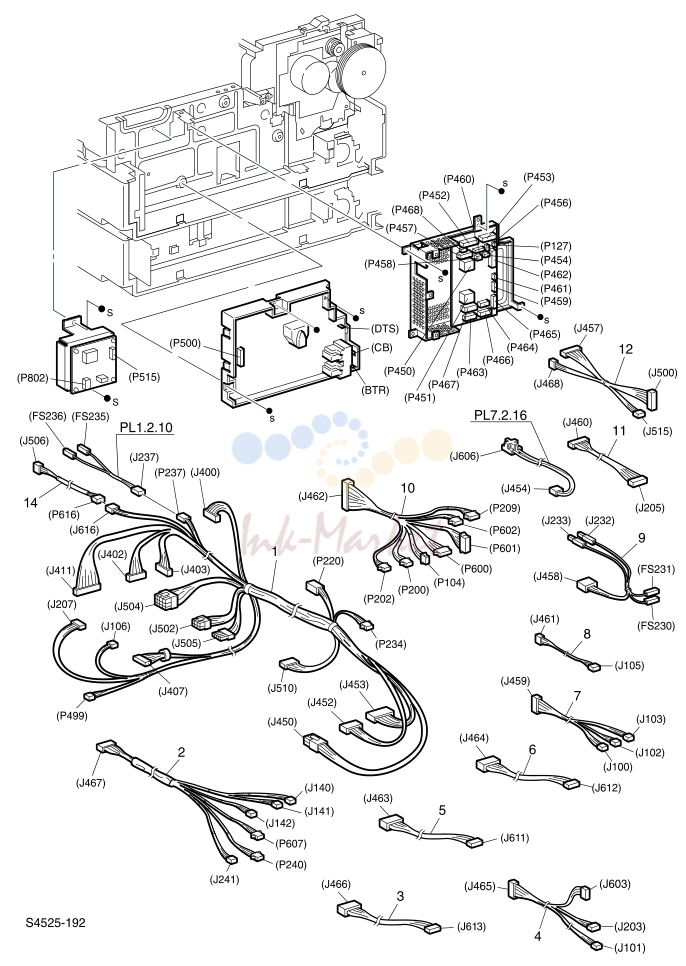

- 34. 132 Wiring Harness

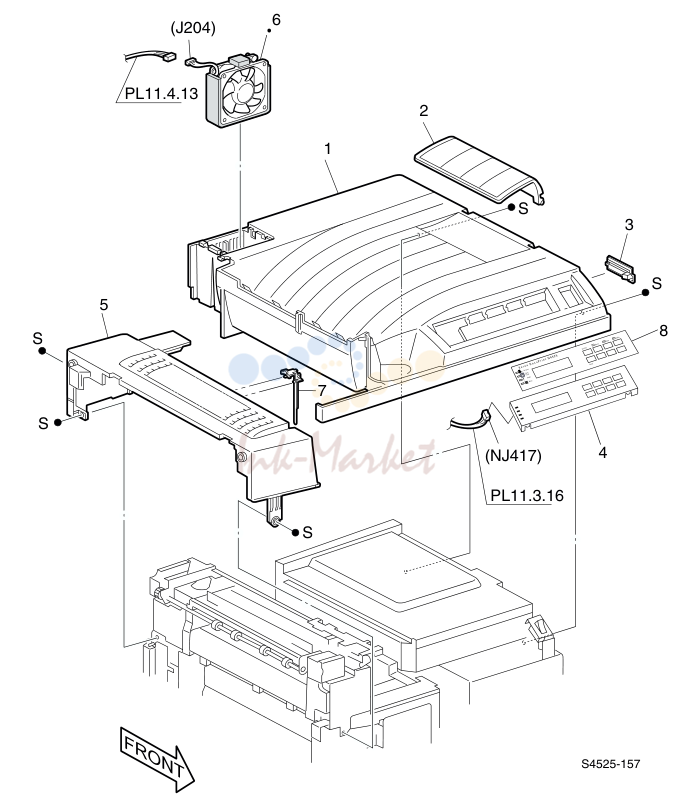

1. 97 Top Cover Assembly
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 802E25441 запросить цену → | 1 Cover, Top | |
| 2 | 003E52030 запросить цену → | 1 Stopper | |
| 3 | 802E08700 запросить цену → | 1 Cover, Connector | |
| 4 | 802K18182 запросить цену → | 1 Assembly, Control Panel | |
| 5 | 802E08760 запросить цену → | 1 Cover, Fuser | |
| 6 | 127K19110 запросить цену → | 1 Assembly, Fuser Fan | |
| 7 | 004K01730 запросить цену → | 1 Damper Assembly, Paper | |
| 8 | 892E38280 запросить цену → | 1 Overlay, Control Panel, English |

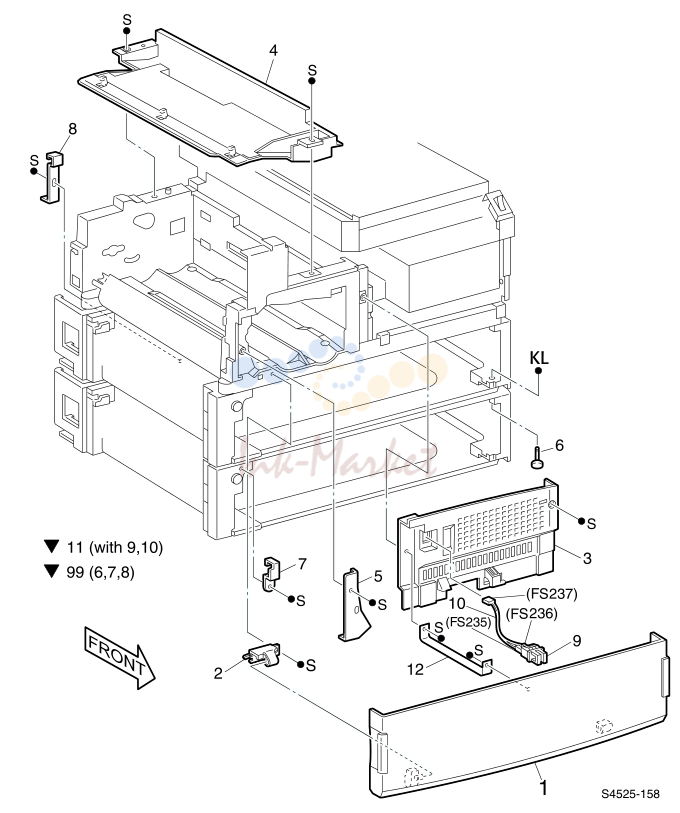

2. 98 Font Cover
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 802K25941 запросить цену → | 1 Assembly, Front Cover | |
| 2 | 830E44250 запросить цену → | 1 Hinge | |
| 3 | 802E08421 запросить цену → | 1 Cover, Inner Front | |
| 4 | 054K15471 запросить цену → | 1 Assembly, Duct | |
| 5 | 1 Plate, Cover | ||
| 6 | 1 Stud, Docking (part of 99) | ||
| 7 | 1 Bracket, Left Docking (part of 99) | ||
| 8 | 1 Bracket, Rear Docking (part of 99) | ||
| 9 | 1 Switch, Front Cover Interlock (part of 11) | ||
| 10 | 1 Harness Assembly, Front Interlock (part of 11) [FS237 | ||
| 11 | 110K10630 запросить цену → | 1 Switch Assembly, Interlock (with 9~10) | |
| 12 | 830E44240 запросить цену → | 1 Support, Cover | |
| 99 | 600K85070 запросить цену → | 1 Kit, Tray 2 Mounting (with 6~8) |

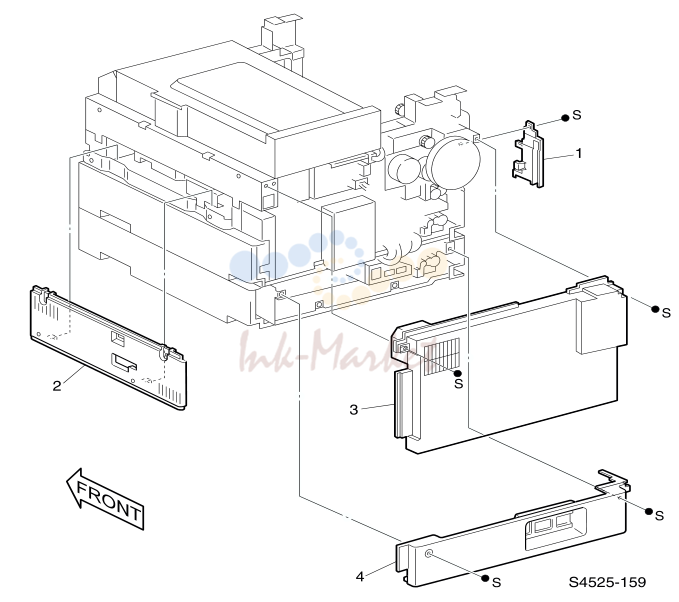

3. 99 Rear, Left, and Right Covers
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 802E08370 запросить цену → | 1 Cover, Inner Left Hand | |
| 2 | 802E08581 запросить цену → | 1 Cover, Right Hand | |
| 3 | 802K10221 запросить цену → | 1 Cover Assembly, Rear | |
| 4 | 048E37410 запросить цену → | 1 Cover, Rear Bottom |

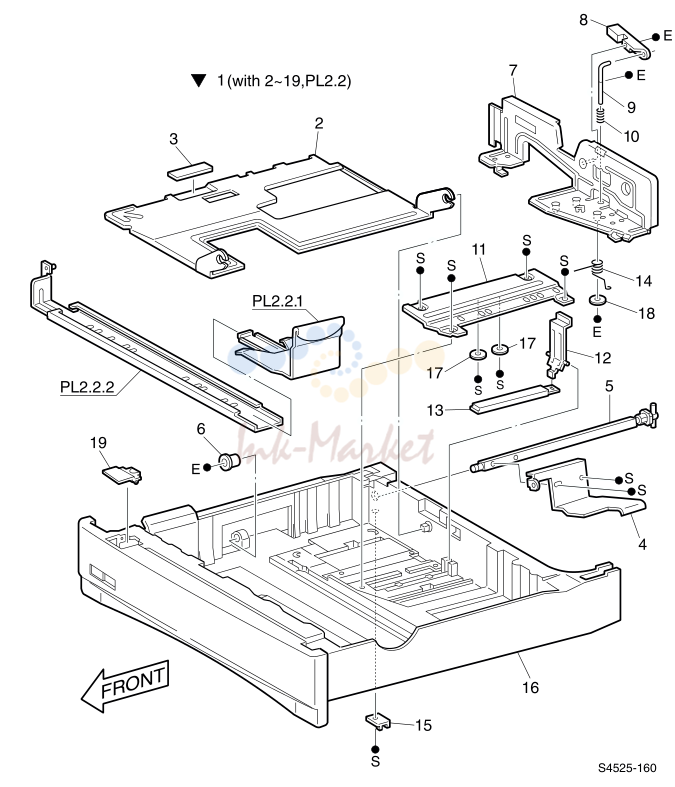

4. 100 Tray Unit - Paper Stack
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 109R00504 запросить цену → | 1 Tray Assembly (with 2~19 & PL 2.2) | |
| 2 | 1 Plate, Bottom (part of 1) | ||
| 3 | 1 Pad, Bottom (part of 1) | ||
| 4 | 1 Plate, Tongue (part of 1) | ||
| 5 | 1 Shaft Assembly, Tongue (part of 1) | ||
| 6 | 1 Bearing (part of 1) | ||
| 7 | 1 Guide Assembly, Side (part of 1) | ||
| 8 | 1 Lever (part of 1) | ||
| 9 | 1 Shaft (part of 1) | ||
| 10 | 1 Spring, Compression (part of 1) | ||
| 11 | 1 Plate, Side (part of 1) | ||
| 12 | 1 Actuator (part of 1) | ||
| 13 | 1 Link (part of 1) | ||
| 14 | 1 Spring, Torsion (part of 1) | ||
| 15 | 1 Stopper, Left Hand (part of 1) | ||
| 16 | 1 Housing, Tray (part of 1) | ||
| 17 | 2 Washer (part of 1) | ||
| 18 | 1 Washer (part of 1) | ||
| 19 | 1 Cap, Tray (part of 1) |

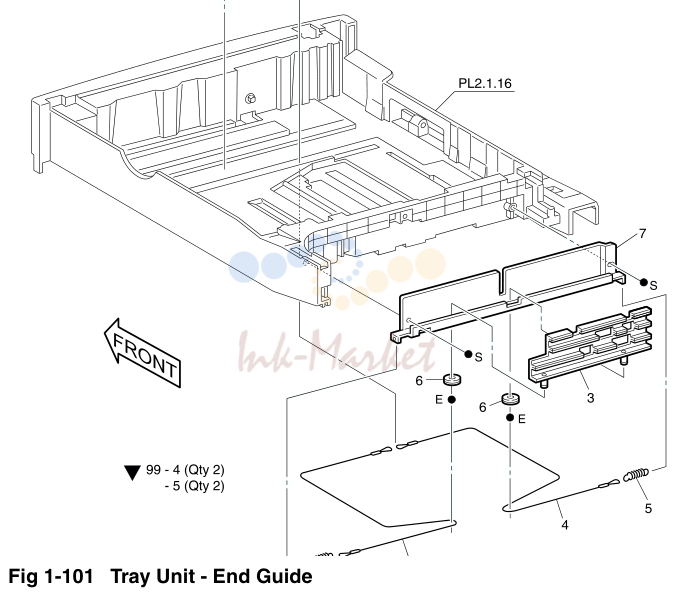

5. 101 Tray Unit - End Guide
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 1 Guide Assembly, End (part of PL 2.1, item 1) | ||
| 2 | 1 Plate Assembly, End (part of PL 2.1, item 1) | ||
| 3 | 1 Assembly, Actuator (part of PL 2.1, item 1) | ||
| 4 | 2 Assembly, Cable (part of PL2.1, item 1) | ||
| 5 | 2 Spring, Tension (part of PL 2.1, item 1) | ||
| 6 | 2 Pulley (part of PL 2.1, item 1) | ||
| 7 | 1 Actuator, Guide (part of PL 2.1, item 1) | ||
| 99 | 600K61610 запросить цену → | 1 Kit, Tray Cables |

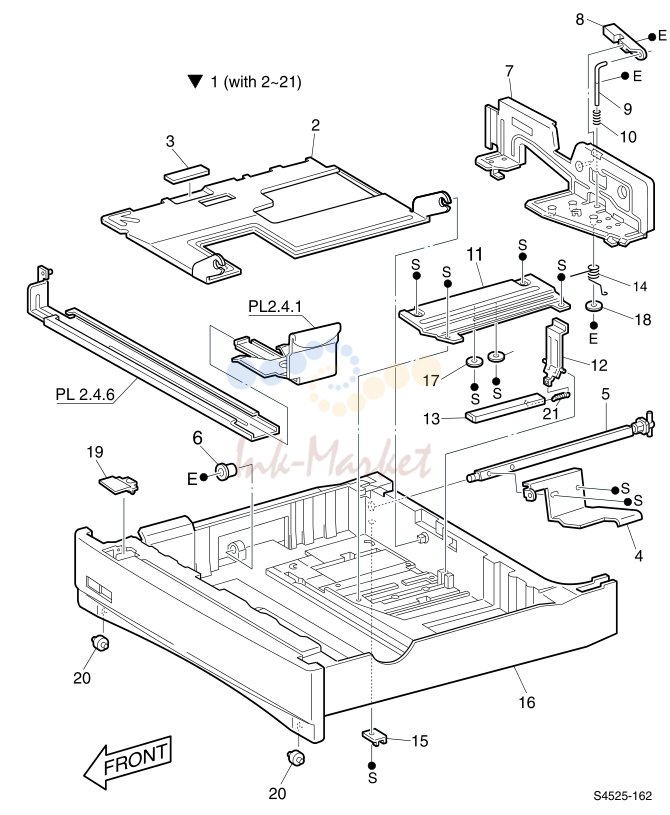

6. 102 Tray Unit - Paper Stack (Custom)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 097S02562 запросить цену → | 1 Tray Assembly (Custom - with 2~21 & PL 2.4) | |
| 2 | 1 Plate, Bottom (part of 1) | ||
| 3 | 1 Pad, Bottom (part of 1) | ||
| 4 | 1 Plate, Tongue (part of 1) | ||
| 5 | 1 Shaft Assembly, Tongue (part of 1) | ||
| 6 | 1 Bearing (part of 1) | ||
| 7 | 1 Guide Assembly, Side (Custom) (part of 1) | ||
| 8 | 1 Lever (part of 1) | ||
| 9 | 1 Shaft (part of 1) | ||
| 10 | 1 Spring, Compression (part of 1) | ||
| 11 | 1 Plate, Side (part of 1) | ||
| 12 | 1 Actuator (part of 1) | ||
| 13 | 1 Link (part of 1) | ||
| 14 | 1 Spring, Torsion (part of 1) | ||
| 15 | 1 Stopper, Left Hand (part of 1) | ||
| 16 | 1 Housing, Tray (part of 1) | ||
| 17 | 2 Washer (part of 1) | ||
| 18 | 1 Washer, Side Guide (part of 1) | ||
| 19 | 1 Cap, Tray (part of 1) | ||
| 20 | 2 Roller, Tray (part of 1) | ||
| 21 | 1 Spring, Tray (Custom) (part of 1) |

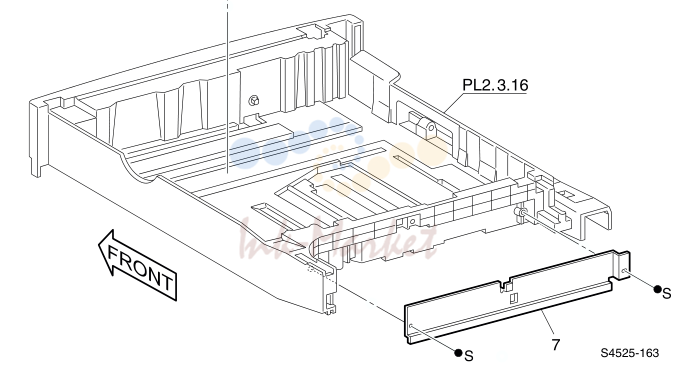

7. 103 Tray Unit - End Guide (Custom)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 1 Guide, Paper End (part of PL 2.3, item 1) | ||
| 2 | 1 Label, End-Guide (part of PL 2.3, item 1) | ||
| 3 | 1 Washer, Nylon (part of PL 2.3, item 1) | ||
| 4 | 1 Pinslide (Custom) (part of PL 2.3, item 1) | ||
| 5 | 1 Spring, Torsion (part of PL 2.3, item 1) | ||
| 6 | 1 Plate Assembly, End (part of PL 2.3, item 1) | ||
| 7 | 1 Guide, Actuator (part of PL 2.3, item 1) |

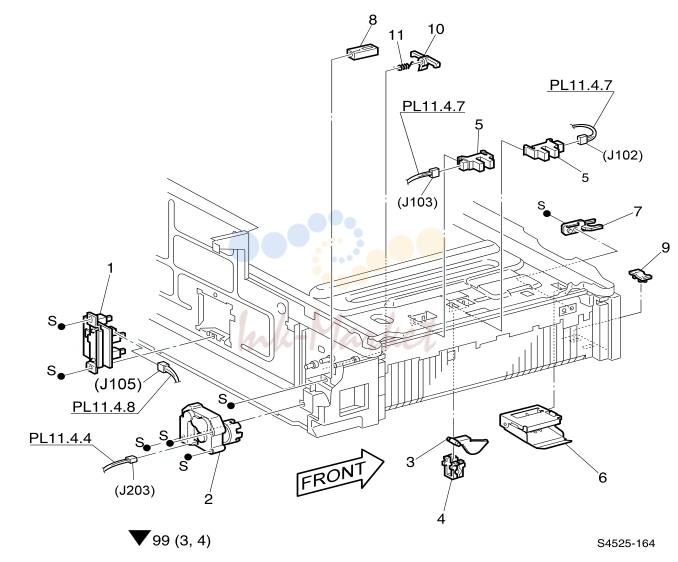

8. 104 Tray Interface - Tray 1
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 110K07740 запросить цену → | 1 Switch Assembly, Paper Size | |
| 2 | 127K20662 запросить цену → | 1 Motor Assembly | |
| 3 | 1 Actuator, Sensor (part of 99) | ||
| 4 | 1 Support, Actuator (part of 99) | ||
| 5 | 107E08680 запросить цену → | 2 Sensor, Photo Interrupter | |
| 6 | 054K09020 запросить цену → | 1 Chute Assembly, Front, (for Tray 1 only) | |
| 7 | 003E23672 запросить цену → | 1 Stopper, Tray, Front | |
| 8 | 003E23690 запросить цену → | 1 Stopper, Tray, Rear | |
| 9 | 1 Spacer, Left | ||
| 10 | 023E13230 запросить цену → | 1 Link, Stopper (Tray 1 only) | |
| 11 | 809E05870 запросить цену → | 1 Spring, Torsion | |
| 99 | 600K56730 запросить цену → | 1 Kit, Actuator Sensor Assembly (with 3~4) |

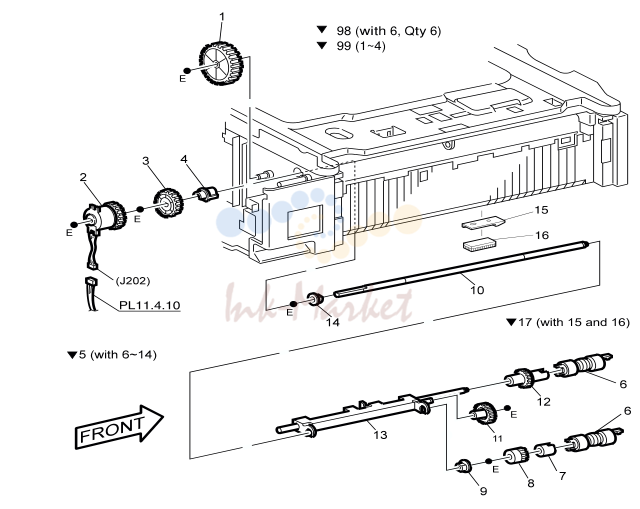

9. 105 Paper Pick Up - Tray 1
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 1 Gear, 46T (part of 99) | ||
| 2 | 1 Clutch Assembly (part of 99) | ||
| 3 | 1 Gear, 28T (part of 99) [for Tray 1 only] | ||
| 4 | 1 Clutch, One-Way (part of 99) [for Tray 1 only] | ||
| 5 | 050K43520 запросить цену → | 1 Feeder Assembly (with 6~14) | |
| 6 | 2 Roller Assembly (part of 5) | ||
| 7 | 1 Clutch Assembly, One-Way (part of 5) | ||
| 8 | 1 Clutch Gear, 25T (part of 5) | ||
| 9 | 1 Bearing (part of 5) | ||
| 10 | 1 Shaft, Feed (part of 5) | ||
| 11 | 1 Gear, 31T (part of 5) | ||
| 12 | 1 Gear, 25T (part of 5) | ||
| 13 | 1 Support Assembly, Pick (part of 5) | ||
| 14 | 1 Bearing (part of 5) | ||
| 15 | 1 Support, Brush | ||
| 16 | 1 Web, Feed | ||
| 17 | 1 Brush Assembly, Feed (with items 15 & 16) | ||
| 98 | 604K01130 запросить цену → | 1 Kit, Feed Roller (with item 6, Qty. 6) | |
| 99 | 600K85080 запросить цену → | 1 Kit, Tray 1 Clutch (with 1~4) |

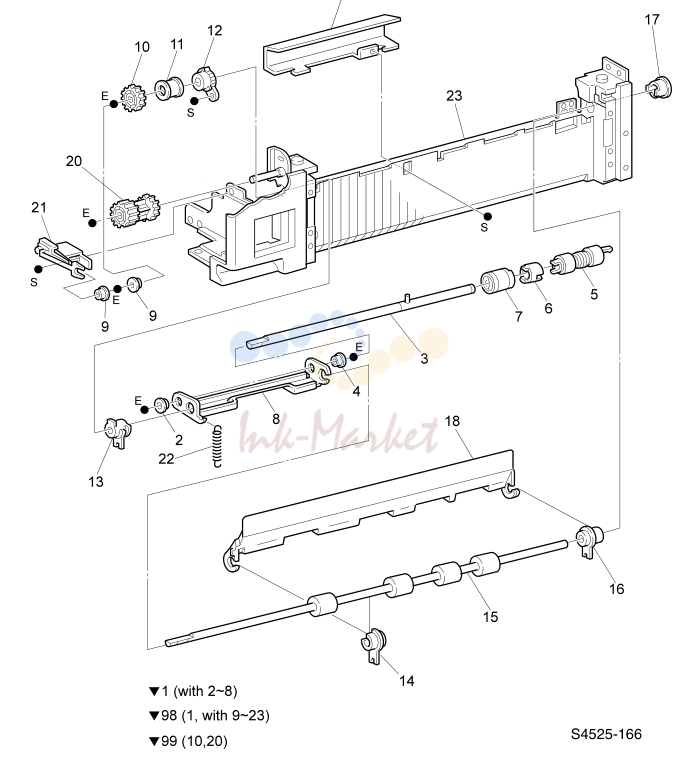

10. 106 Retard and Take Away - Tray 1
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 1 Retard Assembly, (with 2~8) {part of 98} | ||
| 2 | 1 Spacer, Retard {part of 1} | ||
| 3 | 1 Shaft Assembly, Retard (part of item 1) | ||
| 4 | 1 Bearing (part of item 1) | ||
| 5 | 1 Roller Assembly (part of item 1) | ||
| 6 | 1 Spacer (part of item 1) | ||
| 7 | 1 Clutch Assembly, Friction | ||
| 8 | 1 Support, Retard (part of item 1) | ||
| 9 | 2 Bearing {part of 98} | ||
| 10 | 1 Gear, 22T {part of 98} {part of 99} | ||
| 11 | 1 Spacer {part of 98} | ||
| 12 | 1 Gear Stopper {part of 98} | ||
| 13 | 1 Bearing, {part of 98} | ||
| 14 | 1 Bearing, {part of 98} | ||
| 15 | 1 Roller Assembly {part of 98} | ||
| 16 | 1 Bearing {part of 98} | ||
| 17 | 1 Bearing {part of 98} | ||
| 18 | 054K88590 запросить цену → | 1 Chute Assembly, Feed, Out {part of 98} | |
| 19 | 1 Chute, Feed In {part of 98} | ||
| 20 | 1 Gear, 22/20T {part of 98} {part of 99} | ||
| 21 | 074K92500 запросить цену → | 1 Support Assembly, Spring {part of 98} | |
| 22 | 809E27440 запросить цену → | 1 Spring {part of 98} | |
| 23 | 1 Retard Frame {part of 98} | ||
| 98 | 604K01160 запросить цену → | 1 Retard Assembly, Tray 1 High (with 1~23) | |
| 99 | 604K01860 запросить цену → | 1 Kit, Take Away Gear, Tray 1 (with 10 & 20) |

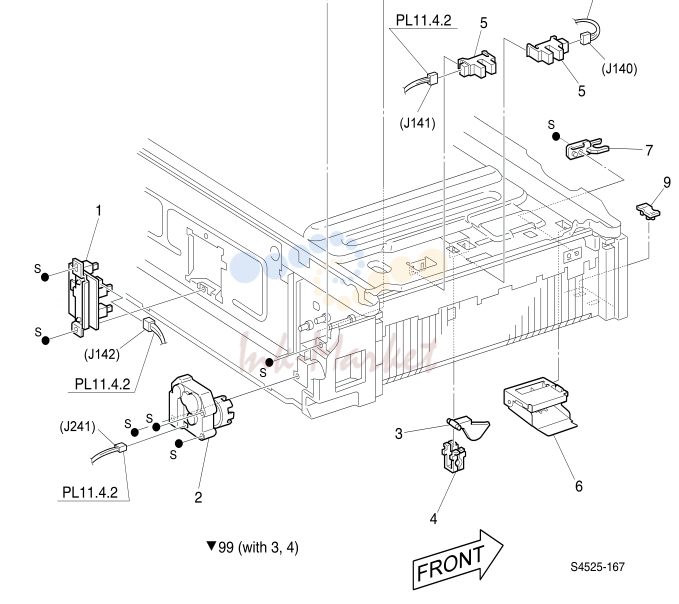

11. 107 Tray Interface - Tray 2
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 110K07740 запросить цену → | 1 Switch Assembly, Paper Size | |
| 2 | 127K20662 запросить цену → | 1 Motor Assembly | |
| 3 | 1 Actuator, Sensor (part of item 99) | ||
| 4 | 1 Support, Actuator (part of item 99) | ||
| 5 | 107E08680 запросить цену → | 2 Photo Interrupter (No Paper Sensor / Lift Up Sensor) | |
| 6 | 054K09030 запросить цену → | 1 Chute Assembly, Front, (for Tray 2 only) | |
| 7 | 003E23672 запросить цену → | 1 Stopper, Tray, Front | |
| 8 | 003E23690 запросить цену → | 1 Stopper, Tray, Rear | |
| 9 | 1 Spacer, Left | ||
| 10 | 023E08660 запросить цену → | 1 Link, Stopper | |
| 11 | 809E05870 запросить цену → | 1 Spring, Torsion | |
| 99 | 600K56730 запросить цену → | 1 Kit, Actuator Sensor (with 3 & 4) |

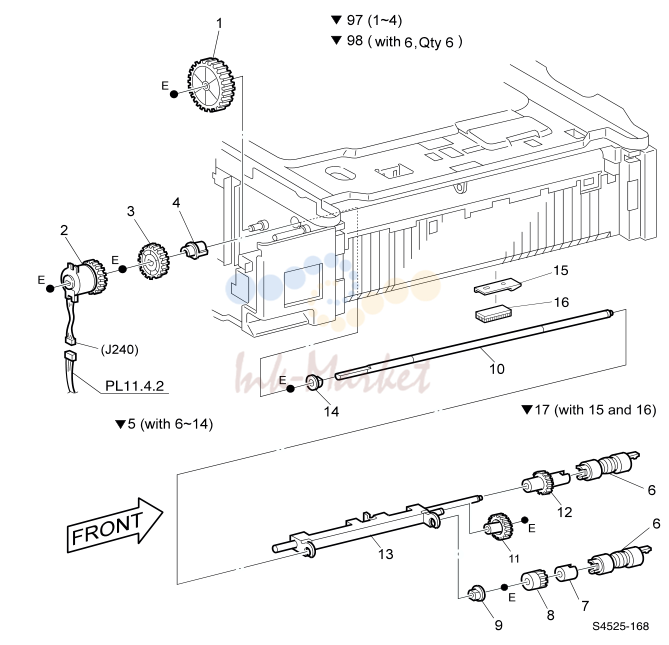

12. 108 Paper Pick Up - Tray 2
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 1 Gear, 46T {part of 97} | ||
| 2 | 1 Clutch Assembly {part of 97} | ||
| 3 | 1 Gear, 28T (for Tray 2 only) {part of 97} | ||
| 4 | 013E86260 запросить цену → | 1 Bearing, Feeder (for Tray 2 and High Capacity Feeder | |
| 5 | 050K43520 запросить цену → | 1 Feeder Assembly (with 6-14) | |
| 6 | 2 Roller Assembly {part of item 5} | ||
| 7 | 1 Clutch Assembly, One-Way {part of item 5} | ||
| 8 | 1 Clutch Gear, 25T {part of item 5} | ||
| 9 | 1 Bearing {part of item 5} | ||
| 10 | 1 Shaft, Feed {part of item 5} | ||
| 11 | 1 Gear, 31T {part of item 5} | ||
| 12 | 1 Gear, 25T {part of item 5} | ||
| 13 | 1 Support Assembly, Pick {part of item 5} | ||
| 14 | 1 Bearing {part of item 5} | ||
| 15 | 1 Support, Brush | ||
| 16 | 1 Web, Feed | ||
| 17 | 1 Brush Assembly, Feed (with items 15 & 16) | ||
| 97 | 600K65470 запросить цену → | 1 Kit, Tray 2 Clutch (with 1-4) | |
| 98 | 604K01130 запросить цену → | 1 Kit, Feed Roller (with 6, Qty. 6) |

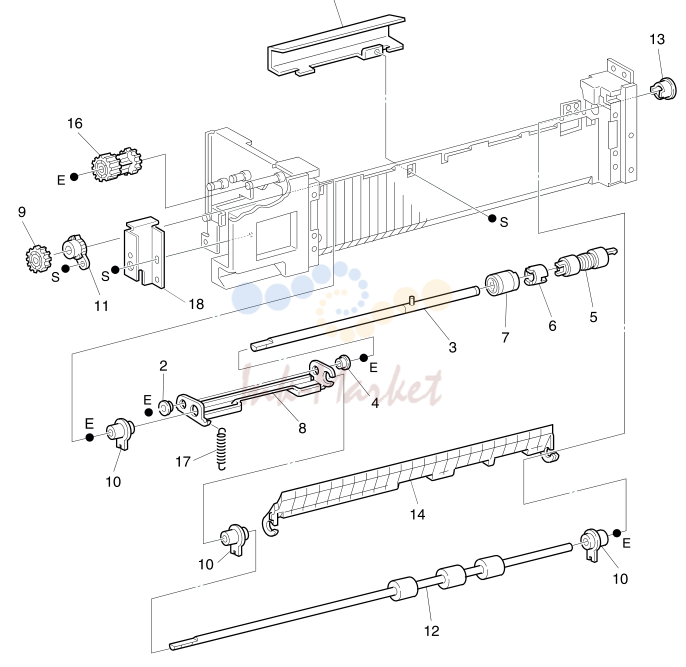

13. 109 Retard and Take Away - Tray 2
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 1 Retard Assembly, (with 2~8), {part of item 98} | ||
| 2 | 1 Gear, 22T {part of item 1}, {part of item 99} | ||
| 3 | 1 Shaft Assembly, Retard {part of item 1} | ||
| 4 | 2 Bearing {part of item 1} | ||
| 5 | 1 Roller Assembly {part of item 1} | ||
| 6 | 1 Spacer {part of item 1} | ||
| 7 | 1 Clutch Assembly, Friction {part of item 1} | ||
| 8 | 1 Support, Retard {part of item 1} | ||
| 9 | 1 Gear, 22T {part of item 98}, {part of item 99} | ||
| 10 | 3 Bearing {part of item 98} | ||
| 11 | 1 Gear Stopper {part of item 98} | ||
| 12 | 1 Roller Assembly {part of item 98} | ||
| 13 | 1 Bearing {part of item 98} | ||
| 14 | 054E08680 запросить цену → | 1 Chute, Feed Out {part of item 98} | |
| 15 | 1 Chute, Feed In | ||
| 16 | 1 Gear, 22/20 {part of item 99} | ||
| 17 | 809E27440 запросить цену → | 1 Spring | |
| 18 | 1 Bracket, Stopper | ||
| 98 | 600K85160 запросить цену → | 1 Retard Assembly, Tray 2 High (with 1, 9~15 & 17) | |
| 99 | 600K85090 запросить цену → | 1 Kit, Take Away Gear, Tray 2 (with 9 & 16) |
14. 110 Feed Drive Transmission
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 2 | 1 Gear, 30T {part of item 99} | ||
| 4 | 1 Support Assembly {part of item 99} | ||
| 5 | 1 Gear, 31T {part of item 99} | ||
| 6 | 1 Gear, 33T {part of item 99} | ||
| 7 | 1 Gear. 16/22T {part of item 99} | ||
| 8 | 1 Link Assembly {part of item 99} | ||
| 9 | 1 Spring, Torsion {part of item 99} | ||
| 10 | 1 Bearing, {part of item 99} | ||
| 11 | 1 Harness Clamp {part of item 99} | ||
| 12 | 1 Shaft/Gear 16T Assembly | ||
| 99 | 600K85100 запросить цену → | 1 Kit, Feed Drive Repair (2, 4~12) |
15. 111 Multi-sheet Bypass Feeder and Duplex Support
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 048E37370 запросить цену → | 1 Cover, Front | |
| 2 | 048K58760 запросить цену → | 1 Cover, Rear Assembly | |
| 3 | 068K11630 запросить цену → | 1 Support Assembly, Multi-Sheet Bypass Feeder / | |
| 4 | 162K20380 запросить цену → | 1 Harness Assembly, Drawer (J603<>J604) | |
| 5 | 1 Spring, Front Damper | ||
| 6 | 1 Spring, Rear Damper | ||
| 7 | 059K14753 запросить цену → | 1 Feeder Assembly, Multi-sheet Bypass (with 8 - 12 & | |
| 8 | 048E37401 запросить цену → | 1 Cover, Top {part of item 7} | |
| 9 | 1 Bracket Spring {part of item 7} | ||
| 10 | 1 Stud {part of item 7} | ||
| 11 | 1 Spring, Torsion {part of item 7} | ||
| 12 | 1 Clamp, Cable {part of item 7} |
16. 112 Multi-sheet Bypass Feeder Assembly (MBF)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 1 Feeder Assembly, Multi-sheet Bypass (with 2 - 17 & | ||
| 2 | 1 Gear, 16/22 {part of item 1 & PL 4.1} | ||
| 3 | 1 Link Assembly {part of item 1 & PL 4.1} | ||
| 4 | 1 Spring, Torsion {part of item 1 & PL 4.1} | ||
| 5 | 1 Plate, Tie {part of item 1 & PL 4.1} | ||
| 6 | 019K92810 запросить цену → | 1 Pad Assembly, Multi-sheet Bypass Feeder {part of item | |
| 7 | 1 Pin, Retard {part of item 1 & PL 4.1} | ||
| 8 | 1 Shaft, Multi-sheet Bypass Feeder Pad {part of item 1 & | ||
| 9 | 1 Spring, Multi-sheet Bypass Feeder Pad {part of item | ||
| 10 | 1 Guide, Paper {part of item 1 & PL 4.1} | ||
| 11 | 1 Bracket, Frame, Front {part of item 1 & PL 4.1} | ||
| 12 | 1 Latch Assembly, Front {part of item 1 & PL 4.1} | ||
| 13 | 1 Latch Assembly, Rear {part of item 1 & PL 4.1} | ||
| 14 | 1 Latch, Front {part of item 1 & PL 4.1} | ||
| 15 | 2 Spring, Latch {part of item 1 & PL 4.1} | ||
| 16 | 1 Support, Retard {part of item 1 & PL 4.1} | ||
| 17 | 1 Latch, Rear {part of item 1 & PL 4.1} |
17. 113 Upper Feeder Assembly
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 1 Feeder Assembly, Upper (with 2~26) {part of PL 4.2, | ||
| 2 | 121K82880 запросить цену → | 1 Clutch Assembly {part of item 1} | |
| 3 | 1 Bearing {part of item 1} | ||
| 4 | 1 Shaft Assembly, Feed {part of item 1} | ||
| 5 | 1 Gear, Spur, 40T {part of item 1} | ||
| 6 | 1 Bearing {part of item 1} | ||
| 7 | 1 Spring, Torsion {part of item 1} | ||
| 8 | 2 Bearing {part of item 1} | ||
| 9 | 022K57020 запросить цену → | 1 Roller, Feed, Multi-sheet Bypass Feeder {part of item | |
| 10 | 107E08680 запросить цену → | 1 Interrupter, Photo {part of item 1} | |
| 11 | 1 Bracket Assembly {part of item 1} | ||
| 12 | 2 Gate, Reset {part of item 1} | ||
| 13 | 1 Harness Assembly, Multi-sheet Bypass Feeder | ||
| 14 | 059K14760 запросить цену → | 1 Roller Assembly, Pick (with 15 - 25) {part of item 1} | |
| 15 | 1 Support Assembly, Pick Roller {part of item 1} {part of | ||
| 16 | 1 Cover, Gear {part of item 1} {part of item 14} | ||
| 17 | 1 Gear, Spur, 30T {part of item 1} {part of item 14} | ||
| 18 | 1 Bearing {part of item 1} {part of item 14} | ||
| 19 | 2 Gate, Multi-sheet Bypass Feeder {part of item 1} {part | ||
| 20 | 20 Bearing {part of item 1} {part of item 14} | ||
| 21 | 1 Shaft Assembly, Pick Roller {part of item 1} {part of | ||
| 22 | 059K14560 запросить цену → | 1 Roller, Pick {part of item 1} {part of item 14} | |
| 23 | 005K80880 запросить цену → | 1 Clutch, Friction {part of item 1} {part of item 14} | |
| 24 | 1 Spacer {part of item 1} {part of item 14} | ||
| 25 | 1 Gear, Spur {part of item 1} {part of item 14} | ||
| 26 | 1 Chute Assembly, Upper {part of item 1} |
18. 114 Multi-sheet Bypass Feeder Tray Assembly
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 050K42631 запросить цену → | 1 Tray Assembly, Multi-sheet Bypass Feeder (with 2~9) | |
| 2 | 1 Pad {part of item 1} | ||
| 3 | 1 Guide, Side {part of item 1} | ||
| 4 | 130K83360 запросить цену → | 1 Size Sensor Assembly, Multi-sheet Bypass Feeder | |
| 5 | 1 Spring, Sensor {part of item 1} | ||
| 6 | 1 Link, Sensor {part of item 1} | ||
| 7 | 1 Tray, Cover {part of item 1} | ||
| 8 | 1 Tray, Low {part of item 1} | ||
| 9 | 1 Tray, Multi-sheet Bypass Feeder {part of item 1} |
19. 115 Tray 1 Frame and Left Cover
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 068K79283 запросить цену → | 1 Bracket Assembly, Pinch (with 2 - 7) | |
| 2 | 2 Spring, Exit {part of item 1} | ||
| 3 | 2 Spring, Compression {part of item 1} | ||
| 4 | 2 Bearing, In {part of item 1} | ||
| 5 | 2 Bearing {part of item 1} | ||
| 6 | 1 Roller Assembly, Pinch {part of item 1} | ||
| 7 | 1 Bracket, Pinch {part of item 1} | ||
| 8 | 802K18130 запросить цену → | 1 Cover Assembly, Left Hand, Low (with 9, 10 and 13) | |
| 9 | 1 Spring, Earth {part of item 8} | ||
| 10 | 1 Cover, Left, Low {part of item 8} | ||
| 11 | 1 Feeder Assembly | ||
| 12 | 130E81311 запросить цену → | 1 Sensor, Tray 2 Take Away | |
| 13 | 1 Pad, {part of item 8} | ||
| 14 | 1 Spring, Front, Electro-Magnetic Emission |
20. 116 Tray 2 Frame and Left Cover
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 048K55751 запросить цену → | 1 Cover Assembly, Left Hand (with 2, 3, 9~11, 14 and 23) | |
| 2 | 1 Cover, Left Hand {part of item 1} | ||
| 3 | 068K83512 запросить цену → | 1 Bracket Assembly, Pinch (with 4~8 and 21) {part of | |
| 4 | 2 Bearing, Out {part of item 3} | ||
| 5 | 2 Bearing, In {part of item 3} | ||
| 6 | 1 Roller Assembly, Pinch {part of item 3} | ||
| 7 | 2 Spring, Exit {part of item 3} | ||
| 8 | 1 Bracket, Pinch {part of item 3} | ||
| 9 | 1 Handle Assembly, Left Hand {part of item 1} | ||
| 10 | 1 Support, Cover, Outboard {part of item 1} | ||
| 11 | 1 Support, Cover, Inboard {part of item 1} | ||
| 12 | 1 Hinge, Cover, Outboard | ||
| 13 | 1 Hinge, Cover, Inboard | ||
| 14 | 1 Support, Cover {part of item 1} | ||
| 15 | 110E93440 запросить цену → | 1 Switch, Interlock | |
| 16 | 1 Chute Assembly, Upper | ||
| 17 | 2 Spring, Electro-Magnetic Emission | ||
| 18 | 1 Cap | ||
| 19 | 130E81311 запросить цену → | 1 Sensor‘, Take Away | |
| 20 | 1 Support, Rear | ||
| 21 | 2 Washer, Nylon {part of item 3} | ||
| 22 | 1 Harness Assembly, Left Hand (J607<>J143/J144) | ||
| 23 | 1 Pad {part of item 1} |
21. 117 Registration
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 121K83190 запросить цену → | 1 Clutch Assembly, Registration | |
| 2 | 2 Bearing | ||
| 3 | 022K33900 запросить цену → | 1 Roller Assembly, Registration | |
| 4 | 054K17501 запросить цену → | 1 Chute Assembly, Registration (with 5 & 6) | |
| 5 | 1 Chute, Registration {part of item 4} | ||
| 6 | 1 Eliminator, Static {part of item 4} | ||
| 7 | 130E81311 запросить цену → | 1 Sensor, Registration | |
| 8 | 103K80192 запросить цену → | 1 Assembly, Resistor/Capacitor (R/C) | |
| 99 | 600K65500 запросить цену → | 1 Kit, Bearing (with 2 (qty. 2) |
22. 118 Left Upper Cover Assembly
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 1 Shaft, Hinge | ||
| 2 | 1 Shaft, Hinge Rear | ||
| 3 | 802K10631 запросить цену → | 1 Cover Assembly, Left Hand (with 4~14 and PL 6.3) | |
| 4 | 1 Chute, Lower {part of item 3} | ||
| 5 | 1 Guide, Paper {part of item 3} | ||
| 6 | 2 Spring, Compression {part of item 3} | ||
| 7 | 054K88605 запросить цену → | 1 Chute Assembly, Left Hand (with 8 - 13) | |
| 8 | 2 Spring, Extension {part of item 3} {part of item 7} | ||
| 9 | 1 Roller Assembly, Registration, Left Hand {part of item | ||
| 10 | 1 Chute Assembly, Registration, Left Hand (with 12) {part | ||
| 11 | 1 Guide, Paper {part of item 3} {part of item 7} | ||
| 12 | 1 Guide, Paper {part of item 3} {part of item 7} {part of | ||
| 13 | 2 Pulley {part of item 3} {part of item 7} | ||
| 14 | 074E91101 запросить цену → | 2 Support, Left Hand Cover {part of item 3} |
23. 119 Transport Chute Assembly
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 1 Spring, Bias Transfer Roller, In {part of item 18} | ||
| 2 | 1 Chute, Transport {part of item 18} | ||
| 3 | 1 Plate, Eliminator {part of item 18} | ||
| 4 | 2 Sleeve, Bias Transfer Roller {part of item 18} | ||
| 5 | 2 Spring, Rod {part of item 18} | ||
| 6 | 2 Rod, {part of item 18} | ||
| 7 | 1 Chute Assembly, Inlet {part of item 18} | ||
| 8 | 1 Cover Assembly, Left Hand | ||
| 9 | 1 Pad | ||
| 10 | 1 Bracket, Left Hand | ||
| 11 | 1 Plate, Contact, Left Hand | ||
| 12 | 1 Plate, Contact, Left Hand | ||
| 13 | 1 Frame, Left Hand, Front | ||
| 14 | 1 Frame, Left Hand, Rear | ||
| 15 | 1 Handle Assembly, Left Hand | ||
| 16 | 1 Shield, Bias Transfer Roller {part of item 18} | ||
| 17 | 1 Shield, Bias Transfer Roller {part of item 18} | ||
| 18 | 1 Chute Assembly, Transport (with 1~7, 16 and 17) {part |
24. 120 Laser Scanner
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 022K57070 запросить цену → | 1 Roller Assembly, Bias Transfer (with 2 - 6) | |
| 2 | 1 Lever, Bias Transfer Roller, OUT {part of item 1} | ||
| 3 | 2 Roller, Tracking, Bias Transfer Roller {part of item 1} | ||
| 4 | 1 Roller, Bias Transfer Roller {part of item 1} | ||
| 5 | 1 Spacer, Bias Transfer Roller {part of item 1} | ||
| 6 | 1 Lever, Bias Transfer Roller, IN {part of item 1} | ||
| 7 | 038K81662 запросить цену → | 1 Guide, Assembly, IN (with 8 - 10) | |
| 8 | 1 Guide, Bias Transfer Roller, IN {part of item 7} | ||
| 9 | 12 Plate, Bias {part of item 7} | ||
| 10 | 1 Plate, Contact {part of item 7} | ||
| 11 | 024K92312 запросить цену → | 1 Rod Assembly, Exit | |
| 12 | 1 Spring, Rod Exit | ||
| 13 | 130K55770 запросить цену → | 1 Sensor Assembly, Toner Empty | |
| 14 | 009E55260 запросить цену → | 2 Spring, Sensor | |
| 15 | 162K55360 запросить цену → | 1 Harness Assembly (with 16 - 19) | |
| 16 | 1 Harness, Laser Print Cartridge Memory (J454<>J606) | ||
| 17 | 1 Bracket, Connector {part of item 15} | ||
| 18 | 2 Spring, Compression {part of item 15} | ||
| 19 | 2 Stud, Screw {part of item 15} | ||
| 20 | 1 Guide, Bias Transfer Roller, OUT | ||
| 21 | 019K93342 запросить цену → | 1 Holder Assembly, Charge Bias | |
| 22 | 110K98770 запросить цену → | 1 Switch Assembly, Interlock (with 23 and 24) | |
| 23 | 1 Bracket, Interlock Switch {part of item 22} | ||
| 24 | 1 Switch Assembly, Interlock {part of item 22} | ||
| 25 | 1 Clamp Guide, Bias Transfer Roller | ||
| 26 | 015E50040 запросить цену → | 1 Plate, Contact | |
| 27 | 015E50050 запросить цену → | 1 Plate, Contact | |
| 28 | 113R00195 запросить цену → | 1 Laser Print (EP) Cartridge, |
25. 122 Fuser Assembly
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 022K61824 запросить цену → | 1 Offset/Exit Assembly (with 2~22, PL 9.2, PL 9.3 and PL | |
| 2 | 121K82870 запросить цену → | 1 Solenoid Assembly {part of item 1} | |
| 3 | 1 Link, Solenoid {part of item 1} | ||
| 4 | 1 Spring {part of item 1} | ||
| 5 | 127K18861 запросить цену → | 1 Motor Assembly, Offset {part of item 1} | |
| 6 | 1 Lower Assembly, Chute, Offset (with 7 - 15) {part of | ||
| 7 | 1 Spring, Pinch {part of item 6} {part of item 1} | ||
| 8 | 1 Spring, Pinch {part of item 6} {part of item 1} | ||
| 9 | 1 Spring, Pinch {part of item 6} {part of item 1} | ||
| 10 | 1 Roller, Pinch {part of item 6} {part of item 1} | ||
| 11 | 1 Roller, Pinch {part of item 6} {part of item 1} | ||
| 12 | 110K94632 запросить цену → | 1 Switch Assembly, Fuser Exit Sensor {part of item 6} | |
| 13 | 1 Chute, Lower {part of item 6} {part of item 1} | ||
| 14 | 1 Eliminator, Static {part of item 6} {part of item 1} | ||
| 15 | 1 Spring, Pinch {part of item 6} {part of item 1} | ||
| 20 | 1 Frame Assembly, Front {part of item 1} | ||
| 21 | 1 Chute, Lower {part of item 1} | ||
| 22 | 1 Bracket Assembly, Drive {part of item 1} | ||
| 23 | 1 Harness Assembly, Face Up Tray | ||
| 99 | 600K87660 запросить цену → | 1 Switch Assembly, Stack Full Sensor |
26. 124 Offset Roller Assembly
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 4 Bearing {part of PL 9.1, item 1} | ||
| 2 | 022K35430 запросить цену → | 1 Roller Assembly, Face Up Tray Exit {part of PL 9.1, | |
| 3 | 1 Gear, 19T {part of PL 9.1, item 1} | ||
| 4 | 022K57200 запросить цену → | 1 Roller Assembly, Offset (with 5 - 12) {part of PL 9.1, | |
| 5 | 1 Rack, Offset {part of item 4} {part of PL 9.1, item 1} | ||
| 6 | 1 Bracket, Offset {part of item 4} {part of PL 9.1, item 1} | ||
| 7 | 1 Sleeve, Offset {part of item 4} {part of PL 9.1, item 1} | ||
| 8 | 1 Roller Assembly {part of item 4} {part of PL 9.1, item 1} | ||
| 9 | 1 Bearing, IN {part of item 4} {part of PL 9.1, item 1} | ||
| 10 | 1 Bearing, OUT {part of item 4} {part of PL 9.1, item 1} | ||
| 11 | 1 Shaft, Offset {part of item 4} {part of PL 9.1, item 1} | ||
| 12 | 1 Pin {part of item 4} {part of PL 9.1, item 1} | ||
| 13 | 1 Gear, 19T {part of PL 9.1, item 1} |
27. 125 Upper Exit Chute Assembly
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 054K08504 запросить цену → | 1 Chute Assembly, Upper (with 2~16) {part of PL 9.1, | |
| 2 | 110K94651 запросить цену → | 1 Switch Assembly, Face Up Exit Sensor {part of item 1} | |
| 3 | 1 Plate, Tie {part of item 1} | ||
| 4 | 1 Spring, Plate {part of item 1} | ||
| 5 | 1 Spring Assembly, Pinch {part of item 1} | ||
| 6 | 1 Spring Assembly, Pinch {part of item 1} | ||
| 7 | 1 Roller, Pinch {part of item 1} | ||
| 8 | 1 Roller, Pinch {part of item 1} | ||
| 9 | 1 Chute, Upper {part of item 1} | ||
| 10 | 1 Guide, Paper {part of item 1} | ||
| 11 | 1 Guide, Paper {part of item 1} | ||
| 12 | 1 Chute, Middle {part of item 1} | ||
| 13 | 1 Gate, Exit {part of item 1} | ||
| 14 | 1 Spring, Exit {part of item 1} | ||
| 15 | 1 Spring Assembly, Pinch {part of item 1} | ||
| 16 | 1 Spring Assembly, Pinch {part of item 1} |
28. 126 Exit Drive Assembly
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 068K20660 запросить цену → | 1 Bracket Assembly, Drive (with 2 - 17) {part of PL 9.1, | |
| 2 | 1 Support, Exit Drive {part of item 1} | ||
| 3 | 1 Pulley, Exit Drive Idler {part of item 1} | ||
| 4 | 1 Gear, Exit 1 {part of item 1} | ||
| 5 | 1 Gear, Exit 2 {part of item 1} | ||
| 6 | 1 Bracket, Exit Gear 2 {part of item 1} | ||
| 7 | 1 Gear, Exit Idler {part of item 1} | ||
| 8 | 1 Spring, Exit Ratchet {part of item 1} | ||
| 9 | 1 Gear, 25T {part of item 1} | ||
| 10 | 121K84520. запросить цену → | 2 Gear/Clutch Assembly, Electric {part of item 1} | |
| 11 | 2 Shaft, Clutch {part of item 1} | ||
| 12 | 2 Bearing {part of item 1} | ||
| 13 | 1 Gear, 42T {part of item 1} | ||
| 14 | 1 Gear/Clutch Assembly, Friction {part of item 1} | ||
| 15 | 1 Gear, 42T {part of item 1} | ||
| 16 | 1 Bracket, Inverter {part of item 1} | ||
| 17 | 1 Harness Assembly {part of item 1} (J602<>J218/J219) |
29. 127 Main Drive Assembly
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 007K85362 запросить цену → | 1 Drive Assembly, Main | |
| 2 | 1 Clamp, Harness | ||
| 3 | 020K98171 запросить цену → | 1 Flywheel Assembly | |
| 4 | 1 Flange, Flywheel | ||
| 5 | 1 Support, Harness | ||
| 6 | 1 Bracket | ||
| 7 | 1 Clamp, Harness | ||
| 8 | 1 Clamp, Harness |
30. 128 Fuser Drive Assembly
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 068K18272 запросить цену → | 1 Frame Assembly, Rear Exit (with 2- 9, 14 & 15) | |
| 2 | 1 Gear, 22T {part of item 1} | ||
| 3 | 1 Spring {part of item 1} | ||
| 4 | 1 Bracket Assembly {part of item 1} | ||
| 5 | 1 Bracket {part of item 1} | ||
| 6 | 1 Spring, Exit {part of item 1} | ||
| 7 | 1 Bracket {part of item 1} | ||
| 8 | 1 Frame Assembly, Exit, Rear {part of item 1} | ||
| 9 | 1 Holder {part of item 1} | ||
| 10 | 1 Clamp, Harness, | ||
| 11 | 1 Clamp, Harness, | ||
| 12 | 1 Clamp, Harness, | ||
| 13 | 162K53843 запросить цену → | 1 Connector, Fuser (P12<>J31/J32/J33/J600) | |
| 14 | 1 Connector (P104) | ||
| 15 | 1 Connector (P602) |
31. 129 Power Unit
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 105K15540 запросить цену → | 1 Power Unit (110 VAC), with | |
| 2 | 1 Cover Assembly, Low Voltage Power Supply | ||
| 3 | 1 Harness Assembly, AC Main (J3, J1<>J13, J30, P20) | ||
| 4 | 1 Connector, Outlet | ||
| 5 | 1 Bracket, Finisher | ||
| 6 | 127K21460 запросить цену → | 1 Fan, Power Unit | |
| 7 | 3 Clamp | ||
| 8 | 1 Clamp |
32. 130 High Voltage Power Supply and Input/Output Board
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 160K62830 запросить цену → | 1 Board, AC, Driver, 220 VAC | |
| 2 | 1 Bracket, System Controller, Rear | ||
| 3 | 105K15631 запросить цену → | 1 High Voltage Power Supply, R1 | |
| 4 | 101K35030 запросить цену → | 1 Chassis Assembly, Input/Output (Input/Output) (with | |
| 5 | 1 Board, Input/Output {part of item 4} | ||
| 6 | 1 Bracket, Board {part of item 4} | ||
| 7 | 110E93460 запросить цену → | 1 Switch, Interlock | |
| 8 | 1 Bracket, Switch | ||
| 9 | 1 Lever, Switch | ||
| 10 | 1 Support, Harness | ||
| 11 | 3 Support, Board | ||
| 12 | 1 Clamp, Mini-Saddle | ||
| 13 | 1 Bracket Assembly, AC Driver | ||
| 14 | 1 Harness, Tray | ||
| 15 | 1 Harness, Output | ||
| 16 | 1 Harness, Duplex | ||
| 17 | 1 Bracket, Connector | ||
| 18 | 1 Harness Assembly, Exit | ||
| 19 | 105E09921 запросить цену → | 1 Transformer (220 VAC version only) | |
| 20 | 105E09290 запросить цену → | 1 High Voltage Power Supply, R2 |
33. 131 System Controller Assembly
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 101K37191 запросить цену → | 1 Assembly, System Controller (with 2 - 9, 11, 12, and | |
| 2 | 1 Bracket Assembly, Board {part of item 1} | ||
| 3 | 160K74034 запросить цену → | 1 Board Assembly, Print Engine Controller 110 VAC | |
| 4 | 1 Saddle, Bush {part of item 1} | ||
| 5 | 1 Guide {part of item 1} | ||
| 6 | 127K20030 запросить цену → | 1 Fan Assembly {part of item 1} | |
| 7 | 1 Bracket, Fan {part of item 1} | ||
| 8 | 1 Box Assembly, System Controller {part of item 1} | ||
| 9 | 1 Panel, Rear {part of item 1} | ||
| 10 | 1 Cover, System Controller | ||
| 11 | 1 Rail, {part of item 1} | ||
| 12 | 3 Clamp {part of item 1} | ||
| 13 | 160K80181 запросить цену → | 1 Board, System Controller (with item 14) | |
| 14 | 1 Panel, System Controller Drawer {part of item 13} | ||
| 15 | 1 Harness Assembly, Laser Scanner (J409<>P430) | ||
| 16 | 162K52990 запросить цену → | 1 Harness Assembly, Console (NJ417<>J401) | |
| 17 | 1 Clamp {part of item 1} |
34. 132 Wiring Harness
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 1 Harness Assembly, DC Main | ||
| 2 | 1 Harness Assembly, 1TM, Rear | ||
| 3 | 1 Harness Assembly, Tray (J466<>J613A/B) | ||
| 4 | 1 Harness Assembly, Bottom (J465<>J101/J203//J603) | ||
| 5 | 1 Harness Assembly, Duplex (J463)<>J611A/B) | ||
| 6 | 1 Harness Assembly, Output (J464<>J612A/B) | ||
| 7 | 1 Harness Assembly (J459<>J100/J102/J103) | ||
| 8 | 1 Harness Assembly (J461<>J105) | ||
| 9 | 1 Harness Assembly, Interlock Switch | ||
| 10 | 1 Harness Assembly, DC, Rear, | ||
| 11 | 1 Harness Assembly, Motor (J460<>J205) | ||
| 12 | 1 Harness Assembly, High Voltage Power Supply | ||
| 13 | 1 Harness Assembly, Fuser Fan (J456<>J204) |
