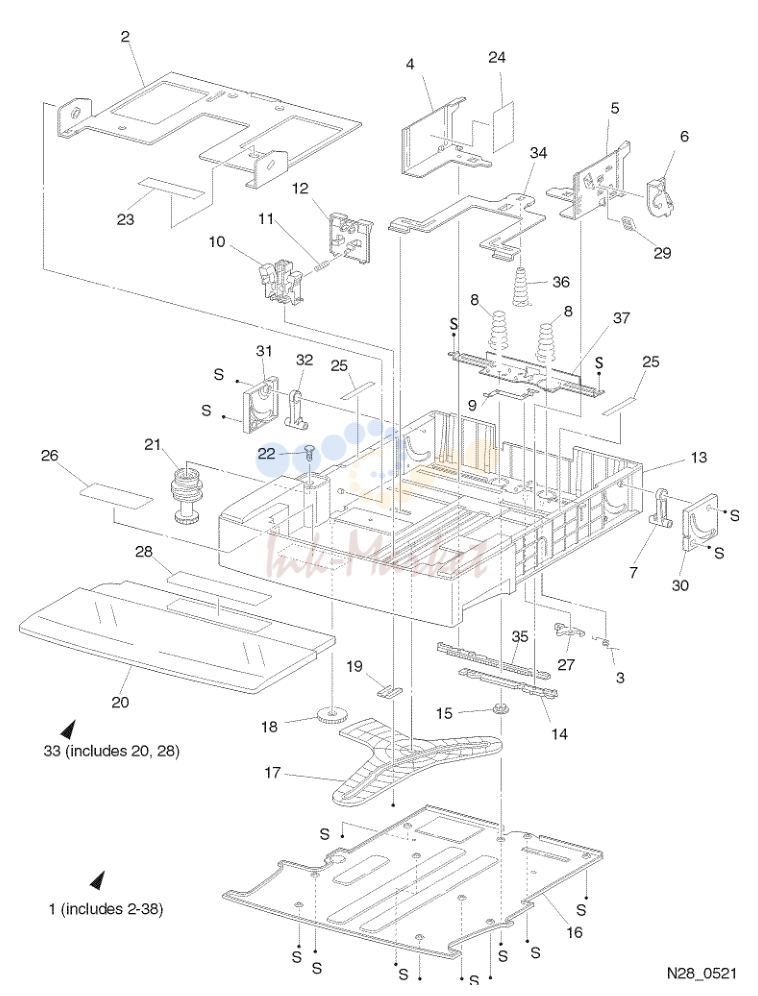

| 1 | 109R00484 запросить цену → | | Tray Assembly (A3/Ledger) |
| 2 | | | - - - - - Bottom |
| 3 | | | - - - - - Latch Spring |
| 4 | | | - - - - - Side Guide Plate (left) |
| 5 | | | - - - - - Side Guide Plate (right) |
| 6 | | | - - - - - Side Lever (right) |
| 7 | | | - - - - - Latch Assembly (right) |
| 8 | | | - - - - - Spring Long |
| 9 | | | - - - - - Ground Spring |
| 10 | | | - - - - - End Guide |
| 11 | | | - - - - - Plate End Guide Spring |
| 12 | | | - - - - - End Plate Guide |
| 13 | | | - - - - - Tray 1 Long Housing |
| 14 | | | - - - - - Rack |
| 15 | | | - - - - - Pinion |
| 16 | | | - - - - - Bottom Cover (Long) |
| 17 | | | - - - - - Sector Gear (Long) |
| 18 | | | - - - - - Idler Gear |
| 19 | | | - - - - - End Guide Lock |
| 20 | | | - - - - - Tray 1 Cover |
| 21 | | | - - - - - Size Cam (Long) |
| 22 | | | - - - - - Pin Lock |
| 23 | | | - - - - - Long Side Label |
| 24 | | | - - - - - Max Paper Label |
| 25 | | | - - - - - Hold Here Label |
| 26 | | | - - - - - Paper Set Label |
| 27 | | | - - - - - Latch |
| 28 | | | - - - - - Tray Set Label |
| 29 | | | - - - - - Side Cap (right) |
| 30 | | | - - - - - Latch Cover (right) |
| 31 | | | - - - - - Latch Cover (left) |
| 32 | | | - - - - - Latch Assembly (left) |
| 33 | 802K05701 запросить цену → | | Tray Cover Assembly (with 20, 28) |
| 34 | | | - - - - - Mini Bottom Plate |
| 35 | | | - - - - - Rack (left) |
| 36 | | | - - - - - N/F Center Spring |
| 37 | | | - - - - - Tray Plate |
| 1 | 109R00485 запросить цену → | | Tray Assembly (Short) (includes 2- |
| 2 | | | - - - - - Bottom Plate Assembly |
| 3 | | | - - - - - Latch Spring |
| 4 | | | - - - - - Side Guide Plate (left) |
| 5 | | | - - - - - Side Guide Plate (right) |
| 6 | | | - - - - - Side Lever (right) |
| 7 | | | - - - - - Latch Assembly (right) |
| 8 | | | - - - - - Spring |
| 9 | | | - - - - - Ground Spring |
| 10 | | | - - - - - End Guide |
| 11 | | | - - - - - Spring Plate End Guide |
| 12 | | | - - - - - End Plate Guide |
| 13 | | | - - - - - Tray 1 Short Housing |
| 14 | | | - - - - - Rack |
| 15 | | | - - - - - Pinion |
| 16 | | | - - - - - Bottom Cover (Short) |
| 17 | | | - - - - - Sector Gear (Short) |
| 18 | | | - - - - - Idler Gear |
| 19 | | | - - - - - End Guide Lock |
| 20 | | | - - - - - Size Cam (A4/Letter) |
| 21 | | | - - - - - Pin Lock |
| 22 | | | - - - - - Short Side Label |
| 23 | | | - - - - - Max Paper Label |
| 24 | | | - - - - - Set Paper Label |
| 25 | | | - - - - - Latch |
| 26 | | | - - - - - Latch Cover (right) |
| 27 | | | - - - - - Latch Cove (left) |
| 28 | | | - - - - - Latch Assembly (left) |
| 29 | | | - - - - - Side Cap (right) |
| 30 | | | - - - - - Handle Cover |
| 31 | | | - - - - - Mini Bottom Plate |
| 32 | | | - - - - - Rack (left) |
| 33 | | | - - - - - N/F Center Spring |
| 34 | | | - - - - - Tray Plate |
| 5-6 | | | DocuPrint N2025/N2825 |
| 1 | 54K13043 запросить цену → | | Rear Chute Assembly (includes 2- |
| 2 | | | - - - - - Chute (Rear) |
| 3 | | | - - - - - Pinch Roll |
| 4 | | | - - - - - Pinch Spring |
| 5 | | | - - - - - Rod GG (P/O item 16) |
| 6 | | | - - - - - Collar GG (P/O item 16) |
| 7 | | | - - - - - Tray 1 Guide Assembly (with |
| 8 | 54K13055 запросить цену → | | Retard Chute Assembly (includes |
| 9 | | | - - - - - Retard Chute (P/O item 8) |
| 10 | | | - - - - - Turn Roll Assembly (left) (P/O item |
| 11 | | | - - - - - Bearing Support (P/O item 8) |
| 12 | | | - - - - - Bearing ES8 (P/O item 8) |
| 13 | 19K94613 запросить цену → | | Retard Holder Assembly (P/O item |
| 14 | | | - - - - - Retard Arm (P/O item 8) |
| 15 | | | - - - - - Turn Gear (left) (P/O item 8) |
| 16 | 600K72189 запросить цену → | | Tray 1 Guide Assembly (right) |
| 17 | | | - - - - - Tray 1 Guide (right) (P/O item 16) |
| 18 | | | - - - - - GG Actuator |
| 19 | | | - - - - - GG Spring |
| 20 | 32K93788 запросить цену → | | Tray 1 Guide Assembly (left) |
| 21 | | | - - - - - Tray 1 Guide (left) |
| 22 | | | - - - - - Size Actuator |
| 23 | 110E98320 запросить цену → | | Paper Size Switch |
| 24 | 162K42630 запросить цену → | | Sensor Harness Assembly (J20- |
| 25 | | | - - - - - Low Paper Sensor Harness |
| 26 | 130E82030 запросить цену → | | MBF Home Switch |
| 27 | | | MBF Actuator |
| 28 | 130E81970 запросить цену → | | Tray 1 Low Paper Sensor |
| 29 | | | - - - - - Low Paper Actuator |
| 30 | | | - - - - - Low Paper Spring |
| 31 | | | - - - - - Retard Lever (P/O item 8) |
| 32 | | | - - - - - Release Spring (P/O item 8) |
| 33 | | | - - - - - Ground Clip |
| 1 | 59K15221 запросить цену → | | MBF Assembly [includes 2, 5-11, |
| 2 | | | - - - - - Tray Assembly |
| 3 | 3K8552 запросить цену → | | Latch Assembly (left) |
| 4 | | | - - - - - Upper Guide |
| 5 | 809E15350 запросить цену → | | MBF Spring |
| 6 | | | - - - - - Pick Up Gear |
| 7 | | | - - - - - Pick Up Cam |
| 8 | | | - - - - - Core Roll |
| 9 | | | - - - - - MBF Feed Roll (P/O item 26) |
| 10 | | | - - - - - Pick Up Shaft |
| 11 | | | - - - - - Bearing #8 |
| 12 | 3K85941 запросить цену → | | Latch Assembly (right) |
| 13 | 121K20060 запросить цену → | | Tray 1 Turn Roll Clutch |
| 14 | 59K13064 запросить цену → | | Turn Roll Assembly -Tray |
| 15 | | | - - - - - Bracket |
| 16 | | | - - - - - Tray 1 Pick Up Gear |
| 17 | | | - - - - - MBF Idle Gear |
| 18 | | | - - - - - Tray 1 Core Roll |
| 19 | 59K11930 запросить цену → | | Envelope Feed Roll (P/O item 27) |
| 20 | | | - - - - - Core Bearing #8 |
| 21 | 809E15350 запросить цену → | | Spring |
| 22 | 59K14640 запросить цену → | | Tray 1 Feed Roll |
| 23 | | | - - - - - MBF Turn Roll Shaft |
| 24 | | | - - - - - Label |
| 25 | 600K72223 запросить цену → | | Gear Kit (includes 6, 16, 17 & PL |
| 26 | 600K73122 запросить цену → | | Feed Roll Assembly Kit (contains 2) |
| 27 | 600K73132 запросить цену → | | Envelope Feed Roll Kit (includes 2) |
| 5-8 | | | DocuPrint N2025/N2825 |
| 1 | 600K72192 запросить цену → | | Retard Holder Assembly (includes |
| 2 | | | - - - - - NIP Spring (P/O item 1) |
| 3 | | | - - - - - Retard Holder (P/O item 1) |
| 4 | | | - - - - - Retard Pad (P/O item 1) |
| 5 | | | - - - - - N/F Spring |
| 6 | 600K72223 запросить цену → | | Gear Kit [includes 6,16, 17 (PL |
| 7 | | | - - - - - Clamp |
| 8 | | | - - - - - Idler Pin |
| 9 | 19K94921 запросить цену → | | No/Low Paper Sensor |
| 10 | | | - - - - - Chute |
| 11 | | | - - - - - Lower Cover |
| 12 | 600K72200 запросить цену → | | Tray 1 Sensor Assembly |
| 13 | | | - - - - - Tray 1 No Paper Actuator |
| 14 | 19K94931 запросить цену → | | No Paper Sensor |
| 15 | | | - - - - - Tray 1 Sensor Holder |
| 16 | 50E89012 запросить цену → | | MBF Door |
| 17 | 600K72210 запросить цену → | | MBF Lo/No Paper Sensor (includes |
| 18 | | | - - - - - No/Low Sensor Spring (P/O item |
| 19 | | | - - - - - MBF No/Low Paper Actuator (P/O |
| 20 | | | - - - - - Sensor Holder (P/O item 17) |
| 21 | 121K18800 запросить цену → | | MBF Feed Solenoid (P/O item 17) |
| 22 | 121K18810 запросить цену → | | Tray 1 Feed Solenoid |
| 23 | | | - - - - - MBF In Gear |
| 24 | | | - - - - - MBF Idle Gear |
| 25 | | | - - - - - MBF Gear Cover |
| 26 | | | - - - - - Lower Chute |
| 27 | 162K42620 запросить цену → | | MBF Combo Harness (P121-P122, |
| 28 | | | - - - - - Front Cover |
| 29 | | | - - - - - Lower Ground Plate |
| 30 | | | - - - - - Ground Plate |
| 31 | | | - - - - - Retard Pad Holder |
| 1 | 54K14698 запросить цену → | | Paper Transport Assembly |
| 2 | | | - - - - - Chute Transport |
| 3 | | | - - - - - BTR Bearing |
| 4 | | | - - - - - BTR Spring |
| 5 | | | - - - - - Registration Actuator |
| 6 | | | - - - - - Sensor Spring |
| 7 | | | - - - - - Registration Spring |
| 8 | | | - - - - - Registration Gear (Rubber) |
| 9 | | | - - - - - Right Bearing (Rubber) |
| 10 | | | - - - - - Registration Gear (Metal) |
| 11 | | | - - - - - Metal Bearing |
| 12 | | | - - - - - Registration Roll (Rubber) |
| 13 | | | - - - - - Registration Roll (Metal) |
| 14 | | | - - - - - Left Bearing (Rubber) |
| 15 | 121E84300 запросить цену → | | Registration Clutch |
| 16 | 130E82740 запросить цену → | | Registration Sensor |
| 17 | 600K72231 запросить цену → | | Actuator Kit (includes items 5 & 6) |
| 18 | 22K54452 запросить цену → | | Bias Transfer Roll |
| 5-10 | | | DocuPrint N2025/N2825 |
| 1 | 802K04575 запросить цену → | | Rear Cover Assembly (includes 2- |
| 2 | | | - - - - - Cover Gate Gear Assembly |
| 3 | | | - - - - - Z20/20 Gear |
| 4 | | | - - - - - Cover Gate Spring Gear |
| 5 | | | - - - - - Z37 Gear |
| 6 | | | - - - - - Z27 Gear |
| 7 | | | - - - - - Exit Bearing |
| 8 | | | - - - - - Z15 Gear |
| 9 | | | - - - - - Z22/15 Gear |
| 10 | | | - - - - - Exit Drive Plate Assembly |
| 11 | | | - - - - - Top Exit Cover |
| 12 | | | - - - - - Gate Cover |
| 13 | 162K43690 запросить цену → | | Direction Solenoid Harness |
| 14 | | | - - - - - Duplex Bearing |
| 15 | | | - - - - - Full Stack Sensor Holder (P/O item |
| 16 | | | - - - - - Full Stack Sensor (P/O item 31) |
| 17 | | | - - - - - Full Stack Actuator (P/O item 31) |
| 18 | 162K43700 запросить цену → | | Full Stack Sensor Harness |
| 19 | | | - - - - - Exit Gate Spring |
| 20 | | | - - - - - Exit Gate |
| 21 | 59K11892 запросить цену → | | Rear Cover Roll Shaft |
| 22 | | | - - - - - Upper Exit Chute |
| 23 | | | - - - - - Magnetic Holder (left) |
| 24 | | | - - - - - Magnetic Plate |
| 25 | | | - - - - - Exit Magnet |
| 26 | | | - - - - - Magnetic Holder (right) |
| 27 | | | - - - - - Exit Pinch Spring |
| 28 | | | - - - - - Exit Pinch Roll-0 |
| 29 | | | - - - - - Pre-Exit Pinch Roll |
| 30 | | | - - - - - Exit Pinch Roll-1 |
| 31 | 600K72253 запросить цену → | | Stack Full Sensor Assembly (with |
| 32 | | | - - - - - Lower Exit Chute |
| 33 | | | - - - - - Exit Flapper |
| 1 | 802K04575 запросить цену → | | Rear Cover Assembly |
| 2 | | | - - - - - Exit Strap Kit (2 pieces) |
| 3 | | | - - - - - Exit Spring Ground |
| 4 | | | - - - - - Exit Plate Ground |
| 5 | 109R00481 запросить цену → | | Fuser Assembly 110V (customer |
| 6 | 11E07992 запросить цену → | | Fuser Latch Handle |
| 5-12 | | | DocuPrint N2025/N2825 |
| 1 | | | - - - - - Laser Cover |
| 2 | | | - - - - - OCT Bracket (left) |
| 3 | | | - - - - - Lower Rear Cover (reference only) |
| 4 | 809E10940 запросить цену → | | Main Drive Motor Spring Kit (P/O |
| 5 | | | - - - - - Clamp |
| 6 | | | - - - - - Laser Clamp |
| 7 | | | - - - - - Clamp |
| 8 | | | - - - - - Clamp |
| 9 | | | - - - - - Clamp |
| 10 | | | - - - - - Drive Gear Assembly (includes 4, |
| 11 | 7K84845 запросить цену → | | Motor Assembly (includes19, 20,) |
| 12 | | | - - - - - Main Drive Motor Gear Assembly |
| 13 | | | - - - - - OCT Bush Harness |
| 14 | | | - - - - - HV Bush |
| 15 | | | - - - - - OCT Bracket (right) |
| 16 | 3E46230 запросить цену → | | Duplex Stopper (left) |
| 17 | 3E46240 запросить цену → | | Duplex Stopper (right) |
| 18 | 48E65001 запросить цену → | | HVPS Cover |
| 19 | | | - - - - - Motor (reference only) (P/O item |
| 20 | | | - - - - - Main Drive Motor Controller PWB |
| 21 | | | - - - - - Drawer Cover |
| 1 | 113R00443 ✓ в наличии | | Print Cartridge |
| 2 | 62K99106 запросить цену → | | Laser Assembly (with 3,4 22) |
| 3 | | | - - - - - Laser Harness Assembly (J115-1- |
| 4 | | | - - - - - Laser (reference only) |
| 5 | 32K93933 запросить цену → | | Print Cartridge Guide Assembly R |
| 6 | 162K43601 запросить цену → | | Interlock Harness Assembly (J162- |
| 7 | | | - - - - - Developer Wire Assembly (P/O |
| 8 | | | - - - - - Xerographic Wire Assembly (P/O |
| 9 | | | - - - - - Guide Seal (P/O item 5) |
| 10 | | | - - - - - Developer Plate (P/O item 5) |
| 11 | | | - - - - - Xerographic Plate (P/O item 5) |
| 12 | | | - - - - - Print Cartridge Guide (Right) (P/O |
| 13 | 29E29870 запросить цену → | | Hinge Pivot Pin (P/O item 21) |
| 14 | 12K93720 запросить цену → | | Access Cover Support Arm R (P/O |
| 15 | 110E98290 запросить цену → | | Top Cover Interlock Switch (P/O |
| 16 | 130K57891 запросить цену → | | Toner Sensor Assembly |
| 17 | 130K59790 запросить цену → | | Print Cartridge Key Sensor |
| 18 | | | - - - - - Laser Label |
| 19 | 12K93731 запросить цену → | | Access Cover Support Arm L (P/O |
| 20 | 32E12382 запросить цену → | | Print Cartridge Guide (Left) |
| 21 | 600K72261 запросить цену → | | Link Kit (includes 13 x 2, 14, 19) |
| 22 | 162K42750 запросить цену → | | Toner Sensor Harness |
| 23 | 162K42730 запросить цену → | | Print Cartridge Sensor Harness |
| 5-14 | | | DocuPrint N2025/N2825 |
| 1 | 160K5440 запросить цену → | | System Controller PWB |
| 2 | | | - - - - - I/F Assembly (includes 3-6) |
| 3 | | | - - - - - Cover Shield |
| 4 | | | - - - - - Thumb Screws |
| 5 | | | - - - - - MCU Cover |
| 6 | | | - - - - - Rear Panel |
| 7 | 105K14750 запросить цену → | | 5V Power Supply PWB |
| 8 | 105K14821 запросить цену → | | High Voltage Power Supply |
| 9 | 160K52260 запросить цену → | | Duplex I/F PWB |
| 10 | 162K43530 запросить цену → | | Harness Assembly Full Dup-1 |
| 11 | 162K43690 запросить цену → | | Harness Assembly Flap-1 (J505- |
| 12 | 127E81380 запросить цену → | | Fuser Fan |
| 13 | 55E33041 запросить цену → | | Fuser Fan Cover |
| 14 | 162K43542 запросить цену → | | Harness Assembly STK-1 (J504- |
| 15 | 162K42610 запросить цену → | | Harness Assembly P/H (J12-J121, |
| 16 | 162K42640 запросить цену → | | Feeder Harness Assembly Tray 2/3 |
| 17 | 162K42820 запросить цену → | | System Controller PWB to User |
| 18 | 162K42880 запросить цену → | | Harness Assembly Laser NS (J11- |
| 19 | | | - - - - - Harness Assembly |
| 20 | 162K42740 запросить цену → | | Harness Assembly Reg (J22-J222) |
| 21 | 162K43521 запросить цену → | | Harness Assembly Dup-I/F (J19- |
| 22 | 162K42720 запросить цену → | | Harness Assembly HVPS (J18- |
| 23 | 160K59073 запросить цену → | | Print Engine Controller PWB |
| 24 | 733W14695 запросить цену → | | 16 MB Dimm Card |
| 25 | 160K71520 запросить цену → | | Serial PWB |
| 26 | | | - - - - - Hard Drive |
| 1 | 162K42681 запросить цену → | | Harness Assembly LVPS (J161- |
| 2 | 105K14972 запросить цену → | | Low Voltage Power Supply 110V |
| 3 | 162K42691 запросить цену → | | System Controller Harness |
| 4 | 162K42800 запросить цену → | | System Controller Harness |
| 5 | 127E81781 запросить цену → | | LVPS Exhaust Fan |
| 6 | | | - - - - - Inlet Assembly (includes 11, 12, 13) |
| 7 | 177K99110 запросить цену → | | Power Cord (US) |
| 8 | | | - - - - - Fuse |
| 9 | 110E98300 запросить цену → | | Rear Cover/Fuser Interlock Switch |
| 10 | 162K42711 запросить цену → | | Fuser Harness Assembly 100V |
| 11 | | | - - - - - Inlet (reference only) (P/O item 6) |
| 12 | | | - - - - - PWB (reference only) (P/O item 6) |
| 13 | | | - - - - - Cover (P/O item 6) |
| 5-16 | | | DocuPrint N2025/N2825 |
| 1 | | | - - - - - OCT Assembly (includes 2-12) |
| 2 | 48E64791 запросить цену → | | Top Cover |
| 3 | 3E47341 запросить цену → | | Paper Weight |
| 4 | 48K76362 запросить цену → | | Rear Cover Assembly (includes 5- |
| 5 | | | - - - - - Rear Cover |
| 6 | | | - - - - - Holder Magnet |
| 7 | | | - - - - - Turn Pinch Roll |
| 8 | | | - - - - - OCT Pinch Spring |
| 9 | 1E39851 запросить цену → | | Strap |
| 10 | | | - - - - - OCT Sub Assembly (same as PL |
| 11 | 48E65422 запросить цену → | | Front Cover |
| 12 | 50E88851 запросить цену → | | OCT Tray |
| 13 | 48E64831 запросить цену → | | Gate Cover |
| 14 | 121K18871 запросить цену → | | Exit Gate Solenoid Assembly |
| 15 | | | - - - - - OCT Flapper |
| 1 | 48K76356 запросить цену → | | OCT Assembly (with 2-32) |
| 2 | | | - - - - - Eliminator Assembly (with 3, 4) |
| 3 | | | - - - - - Stack Full Bracket |
| 4 | | | - - - - - Eliminator (Left) |
| 5 | 162K43580 запросить цену → | | Stack Full Sensor Harness |
| 6 | 130K86500 запросить цену → | | OCT Stack Full Sensor |
| 7 | 120E16940 запросить цену → | | Stack Full Actuator |
| 8 | | | - - - - - Offset Arm Guide |
| 9 | 130K86500 запросить цену → | | OCT Sensor |
| 10 | | | - - - - - Offset Assembly (includes 11-14) |
| 11 | | | - - - - - Offset Chute Assembly |
| 12 | | | - - - - - Exit Bearing |
| 13 | | | - - - - - Offset Roll |
| 14 | | | - - - - - Offset Shaft |
| 15 | | | - - - - - OCT Chute |
| 16 | 162K47140 запросить цену → | | OCT Motor Harness Assembly |
| 17 | 127K24581 запросить цену → | | Offset Motor Assembly |
| 18 | | | - - - - - Spring Screw |
| 19 | | | - - - - - Side Frame (Right) |
| 20 | | | - - - - - Right Support |
| 21 | | | - - - - - Inlet Roll |
| 22 | 162K43560 запросить цену → | STK-0 | Harness Assembly (J514- |
| 23 | | | - - - - - Left Support |
| 24 | 127K24560 запросить цену → | | OCT Motor Assembly |
| 25 | | | - - - - - Offset Gear |
| 26 | | | - - - - - Gear |
| 27 | | | - - - - - Idler Gear 14/23 |
| 28 | | | - - - - - Side Frame Assembly (Left) |
| 29 | 162K43601 запросить цену → | | OP STK COV Harness Assembly |
| 30 | 110E93440 запросить цену → | | Rear Cover Interlock Switch |
| 31 | | | - - - - - Clamp |
| 32 | | | - - - - - OCT PWB |
| 5-18 | | | DocuPrint N2025/N2825 |
| 1 | | | - - - - - Complete Feeder Assembly |
| 2 | 802K11761 запросить цену → | | Rear Cover Assembly (includes 3- |
| 3 | | | - - - - - Latch (P/O item 2) |
| 4 | 802E03102 запросить цену → | | Front Cover (P/O item 2) |
| 5 | 802E03081 запросить цену → | | Left Cover (P/O item 2) |
| 6 | | | - - - - - Rear Cover (P/O item 2) |
| 7 | 19K94731 запросить цену → | | Pinch Roll Assembly (includes 8- |
| 8 | | | - - - - - Holder (P/O item 2) (P/O item 7) |
| 9 | | | - - - - - Torsion Spring (P/O item 2) (P/O |
| 10 | | | - - - - - Pinch Roll (P/O item 2) (P/O item 7) |
| 11 | 802E03091 запросить цену → | | Right Cover |
| 12 | | | - - - - - Label |
| 1 | | | - - - - - Complete Feeder Assembly |
| 2 | 15K39480 запросить цену → | | Gear Bracket Assembly |
| 3 | | | - - - - - Feeder Sub Assembly (same as PL |
| 4 | 54K14725 запросить цену → | | Feed Head Assembly (includes 5- |
| 5 | | | - - - - - Turn Gear |
| 6 | | | - - - - - Bearing |
| 7 | | | - - - - - Turn Roll Assembly |
| 8 | 130K60371 запросить цену → | | Pre Registration Sensor |
| 9 | | | - - - - - Feeder Chute |
| 10 | | | No Paper Sensor (P/O item 34) |
| 11 | | | - - - - - No Paper Actuator (P/O item 34) |
| 12 | | | - - - - - Ground Plate |
| 13 | 600K73122 запросить цену → | | Feed Roll Assembly (includes 14- |
| 14 | 600K73132 запросить цену → | | Envelope Feed Roll Assembly |
| 15 | 59K14640 запросить цену → | | Feed Roll |
| 16 | | | - - - - - Core Roll |
| 17 | | | - - - - - Pick Up Shaft |
| 18 | | | - - - - - Pick Up Gear |
| 19 | 809E15350 запросить цену → | | Pick Up Spring |
| 20 | 121K18810 запросить цену → | | Feed Solenoid |
| 21 | | | - - - - - Gear |
| 22 | | | - - - - - Gear Shaft |
| 23 | 162K47400 запросить цену → | | Harness Assembly, Tray 2/3 J134 |
| 24 | 162K47410 запросить цену → | | Harness Assembly J136 (P131- |
| 25 | 15K39480 запросить цену → | | Gear |
| 26 | 160K53242 запросить цену → | | Feeder PWB |
| 27 | | | - - - - - Gear |
| 28 | 162K47380 запросить цену → | | Harness Assembly J131 (J131- |
| 29 | | | - - - - - Drive Bracket Assembly |
| 30 | | | - - - - - Connector (reference only) |
| 31 | | | - - - - - Shaft Plate |
| 32 | 15K39471 запросить цену → | | Drive Assembly (with 33-36) |
| 33 | | | - - - - - Motor Assembly |
| 34 | 600K72200 запросить цену → | | No Paper Sensor Kit |
| 5-20 | | | DocuPrint N2025/N2825 |
| 1 | | | - - - - - Complete Feeder Assembly |
| 2 | | | - - - - - Frame Assembly |
| 3 | | | - - - - - GG Rod |
| 4 | | | - - - - - GG Collar Assembly (includes 5, 6) |
| 5 | | | - - - - - Retard Lever (P/O Item 4) |
| 6 | | | - - - - - Release Spring (P/O Item 4) |
| 7 | 54K13055 запросить цену → | | Retard Chute Assembly (includes |
| 8 | | | - - - - - Retard Chute (P/O Item 7) |
| 9 | | | - - - - - Turn Roll Assembly (P/O Item 7) |
| 10 | | | - - - - - Support Bearing (P/O Item 7) |
| 11 | | | - - - - - Bearing 8 (P/O Item 7) |
| 12 | 19K94613 запросить цену → | | Retard Holder Assembly (P/O Item |
| 13 | | | - - - - - Retard Arm (P/O Item 7) |
| 14 | | | - - - - - Turn Gear (Left) (P/O Item 7) |
| 15 | 600K72189 запросить цену → | | Guide Assembly (Right) (includes |
| 16 | | | - - - - - Guide (Right) |
| 17 | | | - - - - - Paper Level Actuator |
| 18 | | | - - - - - Paper Level Spring |
| 19 | 32K93788 запросить цену → | | Guide Assembly (Left) (includes |
| 20 | | | - - - - - Guide (Left) |
| 21 | | | - - - - - Size Actuator |
| 22 | 110E98320 запросить цену → | | Paper Size Switch |
| 23 | | | - - - - - Low Paper Sensor |
| 24 | | | - - - - - L/P Actuator |
| 25 | | | - - - - - Spring |
| 26 | 162K47420 запросить цену → | | Harness Assembly J138 (J138- |
| 27 | 162K47390 запросить цену → | | Harness Assembly J133 (J133- |
| 28 | | | - - - - - Tray 1 Spring |
| 29 | | | - - - - - Tray 1 Arm R |
| 30 | | | - - - - - Tray 1 Arm L |
| 31 | | | - - - - - Tray 1 Cap |
| 32 | | | - - - - - Saddle Edge |
| 1 | | | - - - - - Assembly (with 2-11) |
| 2 | 48K77441 запросить цену → | | Left Side Cover Assembly. |
| 3 | | | - - - - - 2000 Sheet Feeder R/H Cover |
| 4 | | | - - - - - Folder Magnet |
| 5 | 48K77533 запросить цену → | | 2000 Sheet Feeder Rear Cover/ |
| 6 | 802K05400 запросить цену → | | Rear Bottom Cover |
| 7 | 48K77451 запросить цену → | | Right Side Cover Assembly. |
| 8 | 48K69591 запросить цену → | | Front Cover |
| 9 | | | - - - - - 2000 Sheet Feeder Frame & Drive |
| 10 | | | - - - - - 2000 Sheet Feeder Tray Assembly |
| 11 | | | - - - - - Screw |
| 12 | | | - - - - - Foot |
| 5-22 | | | DocuPrint N2025/N2825 |
| 1 | | | - - - - - 2000 Sheet Feeder Frame & Drive |
| 2 | | | - - - - - Bushing |
| 3 | 160K53033 запросить цену → | | 2000 Sheet Feeder PWB |
| 4 | 162K47560 запросить цену → | | 2000 Sheet Feeder SW Harness |
| 5 | | | - - - - - Clamp |
| 6 | 127K24971 запросить цену → | | Tray Lift Motor Assembly |
| 7 | | | - - - - - 2000 Sheet Feeder PWB Bracket |
| 8 | | | - - - - - Tray Guide |
| 9 | 110E93440 запросить цену → | | A4 Paper Sensor |
| 10 | | | - - - - - Clamp |
| 11 | 17E91980 запросить цену → | | Caster |
| 12 | 17E91970 запросить цену → | | Locking Caster |
| 13 | 600K78420 запросить цену → | | Roller Kit |
| 14 | 162K43610 запросить цену → | | 2000 Sheet Feeder-1 Harness |
| 15 | 162K43590 запросить цену → | | 2000 Sheet Feeder Tray Feed |
| 16 | 7K85142 запросить цену → | | 2000 Sheet Feeder Drive Assembly |
| 17 | 54K14725 запросить цену → | | Chute Feed Out Assembly |
| 18 | | | - - - - - Saddle Edge |
| 19 | 110E93440 запросить цену → | | Drawer In Interlock Switch |
| 20 | 110E93440 запросить цену → | | Rear Cover Interlock Switch |
| 1 | 50K33810 запросить цену → | | 2000 Sheet Feeder Retard |
| 2 | | | - - - - - Roll Assembly (see kit) (P/O Item 1) |
| 3 | | | - - - - - Spacer (P/O Item 1) |
| 4 | | | - - - - - Friction Clutch Assy (P/O Item 1) |
| 5 | | | - - - - - Retard Shaft Assy (P/O Item 1) |
| 6 | | | - - - - - Bearing S6 (P/O Item 1) |
| 7 | | | - - - - - Retard Support (P/O Item 1) |
| 8 | 809E20551 запросить цену → | | Retard Spring |
| 9 | | | - - - - - Retard Support Assembly |
| 10 | 130E82740 запросить цену → | | Paper Height Sensor |
| 11 | 162K47550 запросить цену → | | 2000 Sheet Feeder FRDY Harness |
| 12 | | | - - - - - Stopper Gear |
| 13 | | | - - - - - 2000 Sheet Feeder Feed Bearing |
| 14 | | | - - - - - Gear 50T (P/O Item 35) |
| 15 | | | - - - - - Gear 22T (P/O Item 35) |
| 16 | | | - - - - - Gear 47T (P/O Item 35) |
| 17 | 127K24911 запросить цену → | | Feed Motor Assembly |
| 18 | 162K47530 запросить цену → | | 2000 Sheet Feeder Feed Motor |
| 19 | 600K78440 запросить цену → | | Link Stopper / Spring Kit |
| 20 | | | - - - - - Stopper Link (P/O item 19) |
| 21 | | | - - - - - Actuator Support (P/O Item 34) |
| 22 | | | - - - - - Actuator (P/O Item 34) |
| 23 | 162K47540 запросить цену → | | 2000 Sheet Feeder No Paper |
| 24 | 130E82740 запросить цену → | | No Paper Sensor |
| 25 | 54K08820 запросить цену → | | Front Chute Assembly |
| 26 | 50K36761 запросить цену → | | 2000 Sheet Feeder Assembly (with |
| 27 | | | - - - - - 2000 Sheet Feeder Feed Shaft |
| 28 | | | - - - - - Nudger Support Assembly |
| 29 | | | - - - - - Gear 25T |
| 30 | | | - - - - - Gear 31T |
| 31 | | | - - - - - O.W. Clutch Assembly |
| 32 | | | - - - - - Gear 25T Clutch |
| 33 | | | - - - - - Bearing |
| 34 | 600K78450 запросить цену → | | No Paper Actuator Kit (includes 21, |
| 35 | 600K78430 запросить цену → | | 2000 Sheet Feeder Gear Kit |
| 5-24 | | | DocuPrint N2025/N2825 |
| 1 | | | - - - - - 2000 Sheet Feeder Tray Assembly |
| 2 | | | 2000 Sheet Feeder Housing |
| 3 | | | - - - - - Left Side Guide (P/O item 26) |
| 4 | 19K94630 запросить цену → | | Brake Assembly |
| 5 | | | - - - - - Right Side Guide (P/O item 26) |
| 6 | | | - - - - - Pulley (P/O item 27) |
| 7 | | | - - - - - Wire Guide (P/O item 27) |
| 8 | | | - - - - - Wire 2 (P/O item 28) |
| 9 | | | - - - - - Wire 1 (P/O item 28) |
| 10 | | | - - - - - Bottom Plate Assembly (with 11,12) |
| 11 | | | - - - - - Bottom Plate |
| 12 | 19E19780 запросить цену → | | Bottom Pad |
| 13 | | | - - - - - Shaft Cover Assembly |
| 14 | | | - - - - - Drive Shaft Assembly (P/O item 30) |
| 15 | 7E55100 запросить цену → | | Bevel Gear (P/O item 30) |
| 16 | | | - - - - - Bearing (P/O item 30) |
| 17 | | | - - - - - Gear Bracket |
| 18 | | | - - - - - Elevator Shaft Assembly (P/O item |
| 19 | | | - - - - - Cable Pulley (P/O item 29) |
| 20 | | | - - - - - Gear 33 (P/O item 29) |
| 21 | 3E48202 запросить цену → | | Side Guide Latch |
| 22 | | | - - - - - Wire Cover |
| 23 | 600K78500 запросить цену → | | Spacer Kit |
| 24 | 3E23671 запросить цену → | | Drawer Latch |
| 25 | 17K92370 запросить цену → | | Tray Caster Assembly |
| 26 | 600K78470 запросить цену → | | 2000 Sheet Feeder Tray Side |
| 27 | 600K78480 запросить цену → | | Elevator Wire Guide Kit (includes |
| 28 | 600K78490 запросить цену → | | Elevator Wire Kit (includes items |
| 29 | 600K78520 запросить цену → | | 2000 Sheet Feeder Elevator Shaft |
| 30 | 600K78510 запросить цену → | | Drive Gear Kit (includes 14, 15, 16) |
| 1 | | | - - - - - Duplex Assembly (includes 2-27) |
| 2 | | | - - - - - Exit Motor Assembly |
| 3 | | | - - - - - Duplex Motor Cover |
| 4 | | | - - - - - Duplex Motor Case |
| 5 | | | - - - - - Duplex Gear |
| 6 | | | - - - - - Clamp |
| 7 | | | - - - - - Duplex Bracket (Left) |
| 8 | | | - - - - - Gear Z15 |
| 9 | | | - - - - - Duplex Bearing |
| 10 | | | - - - - - Gear Z16 |
| 11 | | | - - - - - Gear Z45/17 |
| 12 | | | - - - - - Duplex Pinch Roll (P/O item 28) |
| 13 | | | - - - - - Duplex Pinch Spring |
| 14 | | | - - - - - Duplex Roll Assembly (Upper) (P/O |
| 15 | | | - - - - - Duplex Top Bracket |
| 16 | | | - - - - - Duplex Bracket (Right) |
| 17 | | | - - - - - Exit Bearing |
| 18 | | | - - - - - Synchronous Pulley |
| 19 | | | - - - - - Collar |
| 20 | 23E15680 запросить цену → | | Duplex Drive Belt |
| 21 | | | - - - - - Duplex Frame |
| 22 | 130K59671 запросить цену → | | Duplex Sensor Assembly |
| 23 | | | - - - - - Duplex Sensor Harness Assembly |
| 24 | | | - - - - - Duplex Roll Assembly (Lower) (P/O |
| 25 | | | - - - - - Duplex Pinch Holder |
| 26 | | | - - - - - Duplex PWB |
| 27 | | | - - - - - Duplex Motor Assembly |
| 28 | 600K72270 запросить цену → | | Kit (includes item 12 x 6 pieces, 14, |
| 5-26 | | | DocuPrint N2025/N2825 |
