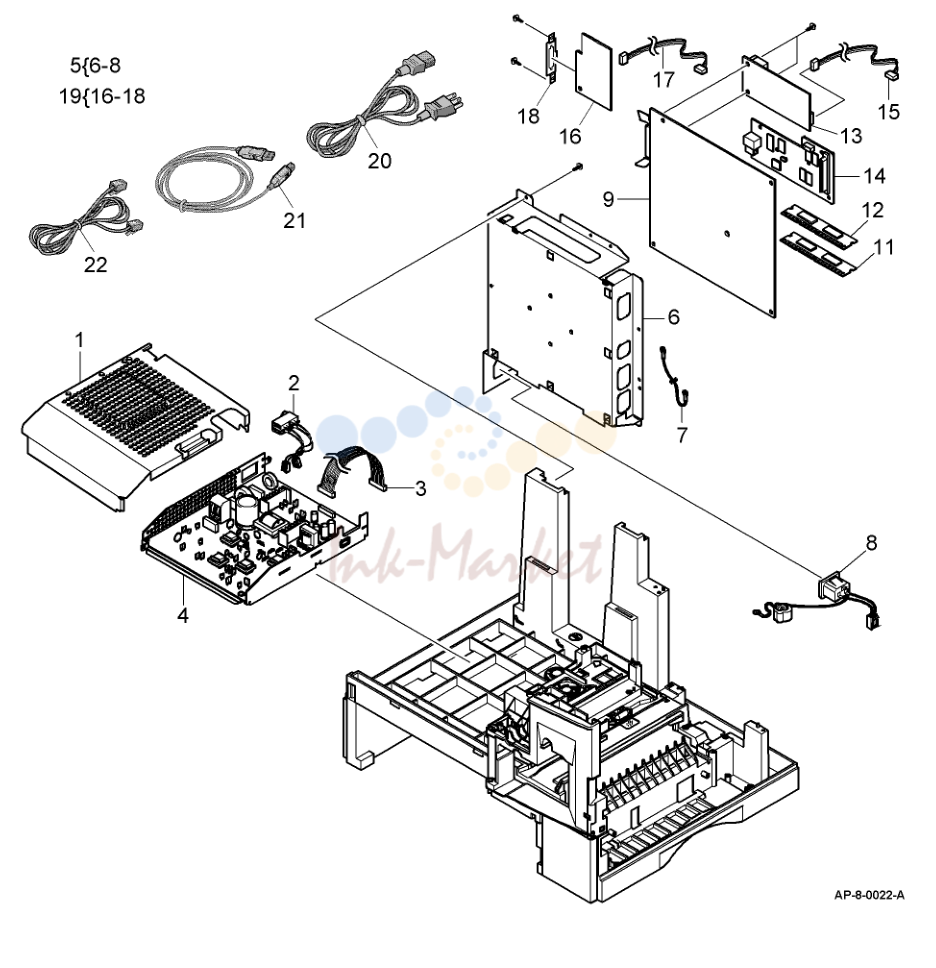

| 1 | | | - IPR - Shield SMPS Upper (Not |
| 2 | 152N11548 запросить цену → | | CBF Power Switch Grey |
| 3 | 152N11550 запросить цену → | | CBF Harness - Power + HVPS |
| 4 | 140N62860 запросить цену → | | SMPS + HVPS (XE) (REP 1.1) |
| 5 | | | - ELA HOU - Shield Main Lower (Not |
| 6 | | | - Shield - P Main Lower (P/O PL 1.10 |
| 7 | | | - CBF Harness - LIU GND (P/O PL |
| 8 | | | - CBF Harness - Inlet (P/O PL 1.10 |
| 9 | 140N62862 запросить цену → | | PBA MAIN (C20, M20) (REP 1.2) |
| 10 | | | - Not Used |
| 11 | 140N62864 запросить цену → | | PBA ETC - PS- DIMM |
| 12 | 144N00128 запросить цену → | | SDRAM - DIMM (32MB) (C20, |
| 13 | | | - PBA LIU (see below for variants) |
| 14 | 140N62863 запросить цену → | | PBA SUB - NPC3 - MFP (REP 1.2) |
| 15 | 152N11551 запросить цену → | | CBF Harness LIU |
| 16 | 140N62875 запросить цену → | | PBA Foreign Device Interface |
| 17 | 152N11557 запросить цену → | | PBA Foreign Device Interface |
| 18 | | | - PBA Foreign Device Interface |
| 19 | | | - Foreign Device Interface Kit (REF: |
| 20 | 117N01602 запросить цену → | | AC Power Cord (NASG/XCL) |
| 21 | 117N01313 запросить цену → | | USB Cable |
| 22 | 117N01620 запросить цену → | | Telephone Line Cord (NASG/XCL) |
| 1 | | | - ELA HOU OPE Assembly (Not |
| 2 | | | - Window LCD (Not Spared) |
| 3 | 091N80194 запросить цену → | | Sheet Overlay Center (A) (C20, |
| 4 | | | - Panel OPE Front (Not Spared) |
| 5 | 091N80196 запросить цену → | | Sheet Name Plate (C20) |
| 6 | | | - Sheet Numerical (Not Spared) |
| 7 | 002N02281 запросить цену → | | ELA HOU E-mail Option Unit |
| 8 | 700N00097 запросить цену → | | Sheet Email (EU) |
| 9 | | | - Cover E-mail (P/O PL 2.10 Item 7) |
| 10 | | | - E-mail Keypad (P/O PL 2.10 Item |
| 11 | | | - Key Plate (P/O PL 2.10 Item 7) |
| 12 | | | - PBA SUB E-mail (P/O PL 2.10 Item |
| 13 | 002N02283 запросить цену → | | Cover Dummy E-mail (C20, M20) |
| 14 | | | - Cover M OPE (REF: PL 2.11 Item |
| 1 | 002N02282 запросить цену → | | Cover M OPE |
| 2 | 018N00193 запросить цену → | | Indicator (REP 2.1) |
| 3 | 029N00355 запросить цену → | | Rubber Scroll (A) (REP 2.1) |
| 4 | 029N00345 запросить цену → | | Key M Copy (REP 2.1) |
| 5 | 029N00356 запросить цену → | | Rubber Numerical (REP 2.1) |
| 6 | 029N00346 запросить цену → | | Key M E-mail (REP 2.1) |
| 7 | 029N00354 запросить цену → | | Rubber Copy (A) (REP 2.1) |
| 8 | 029N00347 запросить цену → | | Key M Navigator (REP 2.1) |
| 9 | 140N62866 запросить цену → | | PBA SUB - OPE Joint (REP 2.1) |
| 10 | 140N62865 запросить цену → | | PBA SUB - OPE (REP 2.1) |
| 11 | 029N00348 запросить цену → | | Key M Job Status (REP 2.1) |
| 12 | 029N00349 запросить цену → | | Key M Manual (REP 2.1) |
| 13 | 029N00350 запросить цену → | | Key M Numerical (REP 2.1) |
| 14 | 018N00194 запросить цену → | | Indicator M Job Interrupt (REP 2.1) |
| 15 | 029N00351 запросить цену → | | Key M Job Interrupt (REP 2.1) |
| 16 | 029N00352 запросить цену → | | Key M Stop (REP 2.1) |
| 17 | 029N00353 запросить цену → | | Key M Start (REP 2.1) |
| 18 | | | - CBF Signal - OPE FFC (Not |
| 1 | | | - ELA HOU - Base Frame (Not |
| 2 | | | - Screw - Taptite (REF: PL 31.10 |
| 3 | | | - Screw - Taptite (REF: PL 31.10 |
| 4 | 009N01467 запросить цену → | | Spring ETC - Torsion |
| 5 | 017N00212 запросить цену → | | Foot |
| 6 | | | - Holder Catch CST MC2 (Not |
| 7 | | | - IPR - Channel Base Frame (Not |
| 8 | 015N00440 запросить цену → | | IPR - Ground Plate A (OPC) |
| 9 | 015N00441 запросить цену → | | IPR - Ground Plate B (Base) |
| 10 | | | - PMO - Base Frame (Not Spared) |
| 11 | | | - PMO - Bracket Push DEV (Not |
| 12 | 030N00606 запросить цену → | | PMO - Bracket Side Open |
| 13 | | | - PMO - Cover Front Dummy (Not |
| 14 | 130N01213 запросить цену → | | ELA M/M - AUD Speaker |
| 15 | | | - Spring ETC - DEVE Rear (Not |
| 16 | | | - CBF Harness - OPC GND (Not |
| 17 | 127N07300 запросить цену → | | Fan - DC (Cardinal) |
| 18 | | | - Spring ETC - DEV Front (Not |
| 19 | | | - Holder - M Roller (Not Spared) |
| 20 | | | - Shaft DEV (Not Spared) |
| 21 | | | - IPR - Ground Plate SCF (Not |
| 22 | 152N01991 запросить цену → | | CBF - Harness-SCF |
| 23 | 140N62870 запросить цену → | | PBA Air Temperature |
| 24 | | | - Screw - Taptite (REF: PL 31.10 |
| 25 | 022N01486 ✓ в наличии | | Solenoid - Pickup |
| 1 | 002N02279 запросить цену → | | ELA HOU - Frame Main Assembly |
| 2 | | | - PMO - Housing Terminal MC2 (P/O |
| 3 | | | - IPR - Terminal Blade (P/O PL 4.15 |
| 4 | | | - IPR - Terminal Supply (P/O PL 4.15 |
| 5 | | | - IPR - Terminal TR (P/O PL 4.15 |
| 6 | 140N62873 запросить цену → | | PBA SUB Terminal |
| 7 | | | - Holder Terminal (P/O PL 4.15 Item |
| 8 | | | - CBF - Harness - Blade + Supply + |
| 9 | | | - CBF - Harness - Main - THV Wire |
| 10 | | | - CBF - Harness - Main - MHV Wire |
| 11 | | | - PMO - Frame Main (P/O PL 4.15 |
| 12 | | | - PMO - Lens Toner Sensor (P/O PL |
| 13 | | | - IPR - GND Exit (P/O PL 4.15 Item |
| 14 | | | - Ring - CS (P/O PL 4.15 Item 1) |
| 15 | | | - IPR - GND OPC Base (P/O PL 4.15 |
| 16 | | | - IPR - Ground Fuser MC2 (P/O PL |
| 17 | | | - IPR - Guard C/O S/W (P/O PL 4.15 |
| 18 | | | - IPR - GND Terminal (P/O PL 4.15 |
| 19 | 152N11556 запросить цену → | | CBF Harness - AC Wire |
| 20 | 110N01041 запросить цену → | | CBF - Harness; Switch - Micro |
| 21 | | | - CBF - Harness Motor (P/O PL 4.15 |
| 22 | 130N01205 запросить цену → | | PBA SUB - Exit Sensor |
| 23 | 130N01208 запросить цену → | | PBA SUB - Toner RX |
| 24 | | | - Gear - Exit / U, ID (P/O PL 4.15 |
| 25 | | | - Gear - Exit, Idle (Z17) (P/O PL 4.15 |
| 26 | 011N00463 запросить цену → | | CBF - Harness Thermistor Joint |
| 27 | | | - PMO - Housing Terminal (P/O PL |
| 28 | | | - IPR - Terminal Fuser (P/O PL 4.15 |
| 29 | 113N00364 запросить цену → | | PMO - CAP Connector L |
| 30 | 113N00365 запросить цену → | | PMO - CAP Connector U |
| 31 | | | - Spring - Clutch (P/O PL 4.15 Item |
| 1 | 002N02289 запросить цену → | | ELA HOU - Drive Assembly (REP |
| 2 | 127N07298 запросить цену → | | Motor Step - MCK2 (Main) |
| 3 | 152N11554 запросить цену → | | CBF Harness - Fuser Motor |
| 4 | 127N07299 запросить цену → | | Motor DC - MCK2 (BLDC) |
| 5 | 152N11555 запросить цену → | | CBF Harness - Feed Motor |
| 6 | | | - Gear - Exit/U (P/O PL 4.20 Item 1) |
| 7 | | | - Ring - C (P/O PL 4.20 Item 1) |
| 8 | | | - IPR - Link Duplex (P/O PL 4.20 |
| 9 | | | - Gear - Swing DRV (34/17) (P/O PL |
| 10 | | | - Gear - 31/19 (P/O PL 4.20 Item 1) |
| 11 | | | - Gear - 71/23 (P/O PL 4.20 Item 1) |
| 12 | | | - Gear - DEV DRV (P/O PL 4.20 Item |
| 13 | | | - PMO - DEV/Coupling (P/O PL 4.20 |
| 14 | | | - Gear - 86/23 (P/O PL 4.20 Item 1) |
| 15 | | | - Gear - RDCN Feed Inner (P/O PL |
| 16 | | | - Gear - Hub Clutch (P/O PL 4.20 |
| 17 | | | - Gear - RDCN Feed Outer (P/O PL |
| 18 | | | - Gear - Feed DRV (P/O PL 4.20 |
| 19 | | | - Gear - OPC 53/37 (P/O PL 4.20 |
| 20 | | | - Gear - OPC DRV (P/O PL 4.20 Item |
| 21 | | | - Gear - OPC (P/O PL 4.20 Item 1) |
| 22 | | | - IPR - BRKT - Break (P/O PL 4.20 |
| 23 | | | - Gear - Fuser DRV Outer (P/O PL |
| 24 | | | - Gear - Fuser DRV Inner (P/O PL |
| 25 | | | - Ring - E (REF: PL 31.10 Item 6) |
| 26 | | | - MEC - Brake Gear (P/O PL 4.20 |
| 27 | | | - Fan (P/O PL 4.20 Item 1) |
| 28 | | | - IPR - BRKT Motor (P/O PL 4.20 |
| 29 | | | - ELA HOU - Duct Fan (P/O PL 4.20 |
| 30 | | | - PMO - Duct Fan (P/O PL 4.20 Item |
| 31 | 127N01375 запросить цену → | | Fan - DC (P/O PL 4.20 Item 29) |
| 32 | | | - CBF Harness - LIU GND (Not |
| 1 | 002N02107 запросить цену → | | MEA Unit - Cover PA Exit Assembly |
| 2 | 050N00392 запросить цену → | | PMO - Tray Extension MP NE |
| 3 | | | - PMO - Cover Paper Exit (P/O PL |
| 4 | | | - PMO - Connect Paper MFP (C20, |
| 5 | 002N02009 запросить цену → | | PMO Cover Exit Rear (REP 4.3) |
| 6 | 002N02161 запросить цену → | | MEA Unit - Cover Front Assembly |
| 7 | | | - Plate - Badge (XRX) (P/O PL 4.25 |
| 8 | | | - Cover - M - Front (P/O PL 4.25 Item |
| 9 | 091N00699 запросить цену → | | IPR - Badge (XRX) |
| 10 | 001N00384 запросить цену → | | MEA Unit Guide CST PA Assembly |
| 11 | | | - PMO - Sheet Guide Paper (P/O PL |
| 12 | | | - Mylar Strip (P/O PL 4.25 Item 10) |
| 13 | | | - PMO - Guide Cassette Rail (P/O PL |
| 14 | 001N00451 запросить цену → | | PMO - Dummy Base Frame |
| 15 | | | - ELA HOU - Base Frame Assembly |
| 16 | | | - PMO - Cover Feed (Not Spared) |
| 17 | 002N02280 запросить цену → | | MEA Unit - Rear Cover (REP 4.2) |
| 18 | | | - Cover Rear Dummy (P/O PL 4.25 |
| 19 | | | - Cover - Main - Rear (P/O PL 4.25 |
| 20 | 002N02017 запросить цену → | | Cover Bracket Motor |
| 21 | 011N00465 запросить цену → | | PMO - Lever Jam Remove |
| 22 | 011N00464 запросить цену → | | PMO - CAM Jam Remove |
| 23 | | | - Special Screw (Panel MFP) (Not |
| 24 | | | - ELA HOU - Frame Main Assembly |
| 25 | 038N00371 запросить цену → | | PMO - Guide Paper Out |
| 26 | | | - Label - Guide DIMM (P/O PL 4.25 |
| 27 | | | - IPR - Guide CST Paper (P/O PL |
| 1 | 002N02275 запросить цену → | | ELA HOU - DADF |
| 2 | 002N02288 запросить цену → | | MEA Unit - Cover Open (REP 5.1) |
| 3 | | | - Cover - M Open (P/O PL 5.10 Item |
| 4 | | | - PMO Stopper Exit (P/O PL 5.10 |
| 5 | | | - Gear - DADF 24 (A) (P/O PL 5.10 |
| 6 | | | - Roller - REGI (P/O PL 5.10 Item 2) |
| 7 | | | - PMO - Lever Open (P/O PL 5.10 |
| 8 | | | - Spring ETC - Knockup, MP (P/O PL |
| 9 | 140N62869 запросить цену → | | PBA SUB - REGI |
| 10 | | | - PMO - Actuator REGI (P/O PL 5.10 |
| 11 | | | - Cover - M Sensor (P/O PL 5.10 |
| 12 | | | - Spring ETC - Torsion DOC (P/O PL |
| 13 | | | - Bush - 6D (P/O PL 5.10 Item 2) |
| 14 | | | - Ring - E (REF: PL 31.10 Item 6) |
| 15 | | | - CBF Harness - LIU GND (P/O PL |
| 16 | | | - Ground - P Duplex (P/O PL 5.10 |
| 17 | | | - Cover - M - Harness (P/O PL 5.10 |
| 18 | 050N00443 запросить цену → | | MEA Unit - TX Stacker (REP 5.1) |
| 19 | | | - PMO - TX Stacker (P/O PL 5.10 |
| 20 | | | - Guide - M DOC Left (P/O PL 5.10 |
| 21 | | | - Guide - M DOC Right (P/O PL 5.10 |
| 22 | | | - IPR - Washer Spring CU (P/O PL |
| 23 | | | - PMO - Gear Pinion (P/O PL 5.10 |
| 24 | 140N62867 запросить цену → | | PBA SUB - Length |
| 25 | 120N00438 запросить цену → | | PMO - Actuator Length |
| 26 | | | - PMO - TX Stacker Lower (P/O PL |
| 27 | | | - Spring ETC - Torsion DOC (CC-F) |
| 28 | | | - ELA Unit - Platen Cover (REF: PL |
| 29 | 002N02286 запросить цену → | | Front Cover |
| 30 | 002N02287 запросить цену → | | Rear Cover |
| 31 | 002N02291 запросить цену → | | ELA HOU - DADF SUB (P/O PL |
| 1 | | | - Guide - M SCAN (P/O PL 5.10 Item |
| 2 | | | - Ground - P SCAN Roller (P/O PL |
| 3 | | | - Ground - P Exit Roller (P/O PL 5.10 |
| 4 | | | - PBA SUB - Sensor IF (P/O PL 5.10 |
| 5 | | | - IPR - BRKT White Bar (P/O PL 5.10 |
| 6 | | | - Spring ETC - White Bar (P/O PL |
| 7 | | | - Sheet - Guide Paper (P/O PL 5.10 |
| 8 | | | - Bush - 6D (P/O PL 5.10 Item 31) |
| 9 | | | - Bracket - P - Duplex Motor (P/O PL |
| 10 | | | - ELA HOU - Duplex Motor (P/O PL |
| 11 | | | - ELA HOU - Cover Open Switch (P/ |
| 12 | | | - Gear - DADF 24 (A) (P/O PL 5.10 |
| 13 | | | - IPR - Guard C/O S/W (P/O PL 5.10 |
| 14 | | | - MEC - Clutch Small (Registration) |
| 15 | | | - Motor Step - DADF (P/O PL 5.11 |
| 16 | | | - Bracket - P - DADF Motor (P/O PL |
| 17 | | | - Cover - P Gear (P/O PL 5.10 Item |
| 18 | | | - Sheet - Guide Paper (P/O PL 5.10 |
| 19 | | | - PBA SUB - DADF (P/O PL 5.10 |
| 20 | | | - PMO - Actuator (P/O PL 5.10 Item |
| 21 | | | - PMO - Actuator Duplex (P/O PL |
| 22 | | | - CBF Harness - Clutch IF (P/O PL |
| 23 | | | - CBF Harness - DSUB (P/O PL 5.10 |
| 24 | | | - CBF Harness DADF GND (P/O PL |
| 25 | | | - Shaft Gate Duplex (P/O PL 5.10 |
| 26 | | | - Motor Step - Duplex (P/O PL 5.11 |
| 27 | | | - ELA HOU - DADF Motor (P/O PL |
| 1 | | | - MEA Unit - Cover Exit Assembly (P/ |
| 2 | | | - Cover M Exit (P/O PL 5.12 Item 1) |
| 3 | | | - Spring ETC - White BAR (P/O PL |
| 4 | | | - PMO - Roller Idle Scan (P/O PL |
| 5 | | | - Shaft - Exit Idle (P/O PL 5.12 Item |
| 6 | | | - MEC - Brush Antistatic (P/O PL |
| 7 | | | - Ground - P - Exit Cover (P/O PL |
| 8 | | | - Roller - Exit (P/O PL 5.10 Item 31) |
| 9 | | | - Gear (P/O PL 5.10 Item 31) |
| 10 | | | - Label - Cover - Exit (P/O PL 5.12 |
| 11 | | | - Guide - M Duplex Lower (P/O PL |
| 12 | | | - Guide - M Duplex Inner (P/O PL |
| 13 | | | - Gear - M Scan Roller (P/O PL 5.10 |
| 14 | | | - PMO - Bushing Holder (P/O PL |
| 15 | | | - Roller - SCAN (P/O PL 5.10 Item |
| 16 | | | - Spring ETC Clutch (P/O PL 5.10 |
| 17 | | | - Roller - Duplex (P/O PL 5.10 Item |
| 18 | | | - MEC - Clutch Small (Duplex) (P/O |
| 19 | | | - Bush - 6 D (P/O PL 5.10 Item 31) |
| 20 | | | - Bush - 10 - D (P/O PL 5.10 Item 31) |
| 21 | | | - MEA Unit Guide Duplex (P/O PL |
| 22 | | | - Bush - 6D (L) (P/O PL 5.10 Item 31) |
| 1 | | | - MEA Unit Support Pickup |
| 2 | | | - Pickup Support (P/O PL 5.13 Item |
| 3 | | | - Decurler (P/O PL 5.13 Item 1) |
| 4 | | | - Spring (P/O PL 5.13 Item 1) |
| 5 | | | - MEA Unit Guide Pickup Assembly |
| 6 | | | - Guide - M Pickup Upper (P/O PL |
| 7 | 019N00795 запросить цену → | | MEA Unit - Holder DADF Rubber |
| 8 | | | - Guide - M Pickup Lower (P/O PL |
| 9 | | | - Spring ETC - Torsion DOC (CC2 - |
| 10 | | | - PBA SUB - DOC Width (P/O PL |
| 11 | | | - PBA SUB - Exit Open (P/O PL 5.13 |
| 12 | | | - PMO - Actuator DOC (P/O PL 5.13 |
| 13 | | | - Spring ETC - Clutch (P/O PL 5.10 |
| 14 | | | - Bush - 10 - D (P/O PL 5.10 Item 31) |
| 15 | | | - MEC - Clutch Small (Feed) (P/O PL |
| 16 | | | - Bush 6 D (P/O PL 5.10 Item 31) |
| 17 | | | - MEA Unit - Pickup (P/O PL 5.10 |
| 18 | | | - Roller Feed (P/O PL 5.10 Item 31) |
| 19 | | | - PMO - Bushing Holder (P/O PL |
| 20 | | | - Bush - M Feed Roller (P/O PL 5.10 |
| 1 | 002N02285 запросить цену → | | ELA Unit - Platen Cover (REF: PL |
| 2 | | | - PMO - Cover Platen (C) (P/O PL |
| 3 | | | - PMO - Extension Platen (P/O PL |
| 4 | | | - Guide - M Extension (P/O PL 5.14 |
| 5 | 025N00081 запросить цену → | | DADF Document Cushion |
| 6 | | | - IPR - P Pinch (Scan) (P/O PL 5.14 |
| 7 | 006N01241 запросить цену → | | Shaft - Pinch |
| 8 | 022N01511 запросить цену → | | PMO - Roll Pinch |
| 9 | 130N01201 запросить цену → | | PMO - Actuator Sensor SCAN |
| 10 | 140N62868 запросить цену → | | PBA SUB - GATE |
| 11 | 003N00939 запросить цену → | | MEA Unit - Hinge Assembly |
| 12 | | | - Plate - P - Dummy Platen (P/O PL |
| 13 | | | - Spring ETC - Charge (P/O PL 5.14 |
| 14 | | | - Spring ETC - Torsion DOC (P/O PL |
| 1 | 122N00234 запросить цену → | | Unit - LSU (REP 6.1) |
| 2 | 152N11549 запросить цену → | | CBF Harness - LSU |
| 3 | | | - Fan DC (Cardinal) (REF: PL 4.10 |
| 1 | 050N00442 ✓ в наличии | | Mec - Cassette Assembly (A4) |
| 2 | | | - Plate Guide Paper (P/O PL 7.10 |
| 3 | | | - IPR - Plate K/UP (P/O PL 7.10 Item |
| 4 | | | - IPR Finger Right (P/O PL 7.10 Item |
| 5 | | | - PMO - Cover Cassette (P/O PL |
| 6 | | | - PMO - Frame Cassette (P/O PL |
| 7 | | | - Guide Front CST Plus (P/O PL 7.10 |
| 8 | | | - PMO - Guide Rear (P/O PL 7.10 |
| 9 | | | - Guide Side CST (P/O PL 7.10 Item |
| 10 | | | - PMO - Locker Plate (P/O PL 7.10 |
| 11 | | | - Pad - CST Plus (P/O PL 7.10 Item |
| 12 | | | - Spring - Locker Plate (P/O PL 7.10 |
| 13 | 009N01465 запросить цену → | | Spring CS RE |
| 14 | 009N01466 запросить цену → | | Spring CS FR |
| 15 | 091N80204 запросить цену → | | Label (R) - Instruction CST Plus |
| 16 | 091N80205 запросить цену → | | Label (R) - Height CST |
| 17 | | | - Guide Side Handle (P/O PL 7.10 |
| 18 | | | - IPR Finger Left (P/O PL 7.10 Item |
| 19 | | | - PMO - Bushing Finger F (P/O PL |
| 20 | | | - Washer Plain (REF: PL 31.10 Item |
| 21 | | | - Spring White Bar (P/O PL 7.10 Item |
| 22 | | | - Guide Sub Wall (P/O PL 7.10 Item |
| 1 | | | - ELA Unit - SCF (MC2) (REF: PL |
| 2 | | | - PMO - Cover Top SCF (Not |
| 3 | | | - ELA HOU - Upper SCF2 (Not |
| 4 | | | - PMO - Guide Paper Upper SCF |
| 5 | | | - Shaft - Pickup CST (Not Spared) |
| 6 | | | - Shaft - Pickup SUB (Not Spared) |
| 7 | | | - PMO - Bearing Shaft (Not Spared) |
| 8 | | | - Gear - Pickup (Not Spared) |
| 9 | 022N01600 запросить цену → | | Rubber - Roller Pickup |
| 10 | 130N01337 запросить цену → | | Rubber - Roller Pickup S |
| 11 | | | - PMO - Bushing P/U MP (Not |
| 12 | 120N00393 запросить цену → | | PMO - M - Actuator No Paper |
| 13 | | | - Housing - M - Pickup Large (Not |
| 14 | | | - Housing - M - Pickup Small (Not |
| 15 | | | - Gear - Feed (SCF) (Not Spared) |
| 16 | | | - Ring - E ID4 (REF: PL 31.10 Item |
| 17 | | | - RING - E ID5 (REF: PL 31.10 Item |
| 18 | | | - Feed Roller SCF MC2 (Not Spared) |
| 19 | | | - ICT - Pin ADF (Not Spared) |
| 20 | | | - Ground Plate SCF (Not Spared) |
| 21 | | | - CBF Harness GND Star Wheel (Not |
| 22 | | | - PBA SUB - Exit SEN (Not Spared) |
| 23 | | | - PMO - Base Frame - SCF (REF: PL |
| 1 | | | - ELA HOU - Frame - SCF (MC2) |
| 2 | | | - PMO - Base Frame - SCF (Not |
| 3 | 140N62874 запросить цену → | | PBA SCF |
| 4 | 152N01992 запросить цену → | | CBF Harness - SCF 8P |
| 5 | | | - CAM Catch (Not Spared) |
| 6 | 006N01184 запросить цену → | | ICT - Shaft HV Large |
| 7 | 009N01410 запросить цену → | | Spring ETC - HV Large |
| 8 | 015N00486 запросить цену → | | IPR - Plate Ground (A) |
| 9 | | | - Foot (Not Spared) |
| 10 | | | - MEA Unit - Lower SCF2 (Not |
| 11 | | | - PMO - Guide Paper Lower (Not |
| 12 | | | - PMO - Holder Idle Roll 16 (Not |
| 13 | | | - PMO - Roller Idle (SCF) (Not |
| 14 | | | - PMO - Bush Idle Roll - SCF16 (Not |
| 15 | | | - Spring ETC - Pad (Not Spared) |
| 16 | | | - MEA Unite-Cassette (Not Spared) |
| 17 | | | - ELA HOU - Solenoid SCF2 (Not |
| 18 | | | - Solenoid Pickup (Not Spared) |
| 19 | | | - Bracket Clutch SCF (Not Spared) |
| 20 | | | - ELA HOU - Motor SCF2 (Not |
| 21 | | | - Bracket SCF Motor (Not Spared) |
| 22 | | | - SCF Gear 41/23 (Not Spared) |
| 23 | | | - OPC Gear 53/37 (Not Spared) |
| 24 | | | - SCF Gear 53/31 (Not Spared) |
| 25 | | | - Motor Step - SCF (2K) (Not Spared) |
| 26 | | | - Ring - E (REF: PL 31.10 Item 6) |
| 27 | | | - CBF Harness SCF (Not Spared) |
| 28 | | | - CBF Harness - GND (Not Spared) |
| 1 | | | - ELA HOU - Side Cover Assembly |
| 2 | 022N02057 запросить цену → | | MEA Unit - Duplex Assembly (REP |
| 3 | | | - Ring - CS (REF: PL 31.10 Item 6) |
| 4 | | | - Gear - Dup Idler 17 (see NOTE 2) |
| 5 | | | - Gear - MP/DUP DRV (see NOTE 2) |
| 6 | | | - Spring Feed (see NOTE 2) |
| 7 | | | - PMO - Bushing Feed (see NOTE 2) |
| 8 | | | - PMO - Bushing TX(B4) (see NOTE |
| 9 | | | - PMO - Shaft DUP Driver (see |
| 10 | | | - RPR - Rubber Exit (see NOTE 2) |
| 11 | | | - IPR - BRKT G DUP (see NOTE 2) |
| 12 | | | - PMO - Roller Exit (see NOTE 2) |
| 13 | | | - Spring Fuser Exit (see NOTE 2) |
| 14 | | | - PMO - GP Lower DP (see NOTE 2) |
| 15 | | | - PMO - Feed Frame (see NOTE 2) |
| 16 | | | - IPR - Bracket Guide B (see NOTE |
| 17 | | | - CBF Harness - OPE GND (see |
| 18 | | | - IPR - BRKT Ground B (see NOTE |
| 19 | | | - IPR - BRKT Ground A (see NOTE |
| 20 | | | - IPR - BRKT Ground TR (see NOTE |
| 21 | | | - PMO - Holder Saw (see NOTE 2) |
| 22 | | | - IPR - Plate saw (see NOTE 2) |
| 23 | | | - IPR - BRKT Guide A (see NOTE 2) |
| 24 | 009N01363 запросить цену → | | MEA Unit - Hold Gear |
| 25 | | | - PMO - Bush (P/O PL 8.10 Item 24) |
| 26 | | | - Spring ETC - TRR (P/O PL 8.10 |
| 27 | | | - PMO - Holder Gear TR (P/O PL |
| 28 | | | - MEA Unit - Hold TR GND (Not |
| 29 | | | - PMO - Bush (P/O PL 8.10 Item 28) |
| 30 | | | - Spring ECT - TR (P/O PL 8.10 Item |
| 31 | | | - Spring ETC - Plate TR (P/O PL |
| 32 | | | - PMO - Holder GND TR (P/O PL |
| 33 | 022N01475 запросить цену → | | Transfer Roller |
| 34 | 007N01114 запросить цену → | | Gear Transfer |
| 1 | 050N00445 ✓ в наличии | | MEA Unit - Side SUB Assembly |
| 2 | | | - PMO - Guide DP Side (P/O PL 8.11 |
| 3 | | | - Guide Side Push (P/O PL 8.11 Item |
| 4 | | | - PMO - Locker Open (P/O PL 8.11 |
| 5 | | | - PMO - Locker Side R (P/O PL 8.11 |
| 6 | | | - Spring - Locker Torsion (P/O PL |
| 7 | | | - PMO - Tie Stopper (P/O PL 8.11 |
| 8 | | | - MEA Unit - Tray Assembly (P/O PL |
| 9 | | | - PMO - Tray Case, MP (P/O PL 8.11 |
| 10 | | | - PMO - Side Exit, MP (P/O PL 8.11 |
| 11 | | | - PMO - Side Guide, MP (P/O PL |
| 12 | | | - PMO - Tray Cover, MP (P/O PL |
| 13 | | | - IPR - Guide Latch, MP (P/O PL |
| 14 | | | - PMO - Tray Link, MP (P/O PL 8.11 |
| 15 | | | - Label (R) - Height, MP (P/O PL 8.11 |
| 1 | 022N02056 ✓ в наличии | | MEA Unit - Feed Roller Assembly |
| 2 | | | - PMO - Frame Feed (P/O PL 8.15 |
| 3 | | | - Gear - Feed (P/O PL 8.15 Item 1) |
| 4 | | | - Gear - MP/DUP DRV (P/O PL 8.15 |
| 5 | | | - ICT - Shaft Feed (P/O PL 8.15 Item |
| 6 | | | - PMO - Bushing P/U, MP (P/O PL |
| 7 | | | - Ring - E (P/O PL 8.15 Item 1) |
| 8 | | | - Ring - CS (P/O PL 8.15 Item 1) |
| 9 | | | - PMO - BRKT Feed (P/O PL 8.15 |
| 10 | 022N01470 запросить цену → | | PMO - Roller Feed |
| 11 | | | - PMO - Holder Pinch C (P/O PL 8.15 |
| 12 | | | - PMO - Holder Pinch SUB (P/O PL |
| 13 | | | - PMO - Roller Feed L (P/O PL 8.15 |
| 14 | | | - Holder Push Feed CST (P/O PL |
| 15 | | | - PMO - Holder Pinch M (P/O PL |
| 16 | | | - PMO - SUB Holder Feed (P/O PL |
| 17 | | | - Washer - Plain (P/O PL 8.15 Item |
| 18 | | | - PMO - Roller Feed S (P/O PL 8.15 |
| 19 | | | - IPR - Shaft Feed Idler (P/O PL 8.15 |
| 20 | | | - Sheet Feed (P/O PL 8.15 Item 1) |
| 21 | | | - Spring - Feed MP Feed (P/O PL |
| 22 | | | - PMO Roller Pinch Feed (P/O PL |
| 23 | | | - E - Clip (P/O PL 8.15 Item 1) |
| 1 | 600N01741 запросить цену → | | ELA HOU - MP Assembly (REP |
| 2 | 013N00515 запросить цену → | | PMO - Bushing Pickup, MP |
| 3 | | | - Ring - E (REF: PL 31.10 Item 6) |
| 4 | | | - Solenoid - MP (P/O PL 8.20 Item 1) |
| 5 | 009N01364 запросить цену → | | Spring - Cam MP |
| 6 | | | - Spring - Pickup, MP (P/O PL 8.20 |
| 7 | 009N01365 запросить цену → | | Spring - Knockup, MP |
| 8 | | | - IPR - Bracket Solenoid (P/O PL |
| 9 | | | - PMO - Holder Cam (P/O PL 8.20 |
| 10 | | | - PMO - Gear P/U MPF (P/O PL 8.20 |
| 11 | | | - PMO - Roller Cam, MP (P/O PL |
| 12 | 120N00392 запросить цену → | | PMO - Actuator, MP |
| 13 | 022N01479 запросить цену → | | PMO - Adjuster, MP |
| 14 | | | - PMO - Cam Pickup, MP |
| 15 | | | - PMO - Frame, MP (P/O PL 8.20 |
| 16 | 019N00613 запросить цену → | | PMO - Holder Pad, MP |
| 17 | 130N01206 запросить цену → | | PMO - Holder Sensor, MP |
| 18 | | | - PMO - Housing Pickup, MP (P/O |
| 19 | | | - PMO - Plate Knockup, MP (P/O PL |
| 20 | 013N00516 запросить цену → | | PMO - Idle Pickup, MP |
| 21 | 130N01338 запросить цену → | | RPR - Rubber Pickup, MP |
| 22 | 019N00612 запросить цену → | | RPR - RCT - Pad Pickup, MP |
| 23 | 019N00796 запросить цену → | | RPR - Pad MP Plus |
| 24 | 130N01203 запросить цену → | | PBA SUB - MP SEN |
| 25 | | | - Screw - Taptite (REF: PL 31.10 |
| 26 | | | - Screw - Taptite (REF: PL 31.10 |
| 27 | 022N01483 запросить цену → | | A/S Material-Pickup, MP |
| 1 | 002N02276 запросить цену → | | ELA HOU - Pickup Assembly (REP |
| 2 | | | - IPR - GND Feed (P/O PL 8.25 Item |
| 3 | | | - IPR - GND Input (P/O PL 8.25 Item |
| 4 | | | - IPR - Guide Input (P/O PL 8.25 |
| 5 | 130N01207 запросить цену → | | PBA SUB - Toner TX |
| 6 | 140N05940 запросить цену → | | PBA Sub - PTL |
| 7 | | | - PMO - Actuator Feed Sensor (P/O |
| 8 | | | - PMO - Guide Paper (P/O PL 8.25 |
| 9 | | | - PMO - Holder Sensor Feed (P/O |
| 10 | | | - PMO - Lens Toner Sensor (P/O PL |
| 11 | | | - PMO - PTL Path (P/O PL 8.25 Item |
| 12 | 130N01204 запросить цену → | | PBA SUB - Feed & P.EMP SEN |
| 13 | | | - PMO - Bushing P/U,MP (P/O PL |
| 14 | | | - Housing - Pickup Large (P/O PL |
| 15 | | | - Housing - Pickup Small (P/O PL |
| 16 | 022N01600 запросить цену → | | RPR Rubber Pickup |
| 17 | 130N01337 запросить цену → | | Rubber Pickup Small |
| 18 | | | - Shaft - Pickup CST (P/O PL 8.25 |
| 19 | | | - Shaft Pin ADF (P/O PL 8.25 Item 1) |
| 20 | | | - Sheet - PTL Path (P/O PL 8.25 Item |
| 21 | | | - Shaft - SUB - Pickup (P/O PL 8.25 |
| 22 | | | - Ring - E ID4 (REF: PL 31.10 Item |
| 23 | | | - Ring - E ID5 (REF: PL 31.10 Item |
| 24 | | | - PMO - Bearing Shaft (Not Spared) |
| 25 | 120N00393 запросить цену → | | PMO - Actuator No Paper |
| 26 | 007N01193 запросить цену → | | Gear Pickup |
| 1 | 113R00671 ✓ в наличии | | ELA Unit - OPE Drum Set |
| 2 | 106R01048 ✓ в наличии | | ELA - Toner Unit Set (XE) |
| 3 | 007N01118 запросить цену → | | PMO Lock Drive |
| 4 | 002N02278 запросить цену → | | ELA HOU - Fuser Assembly (XE) |
| 5 | | | - ELA HOU - Drives Assembly (REF: |
| 6 | | | - PBA Bias (Not Spared) |
| 7 | | | - Cover Sheet Connector (Not |
| 1 | 600N01736 запросить цену → | | MEC - Exit Assembly (REP 10.2) |
| 2 | | | - PMO - Guide - Exit Upper (P/O PL |
| 3 | | | - PMO - Guide - Exit Lower (P/O PL |
| 4 | | | - PMO - Guide - Jam Remove (P/O |
| 5 | 007N01115 запросить цену → | | MEC - Roller Exit Drive |
| 6 | 022N01474 запросить цену → | | PMO - Roller Decurl |
| 7 | 020N00768 запросить цену → | | PMO - Pulley Duplex |
| 8 | 023N01051 запросить цену → | | Belt - Timing Gear |
| 9 | 007N01261 запросить цену → | | Gear - Duplex |
| 10 | 013N00514 запросить цену → | | PMO - Bearing Large DP |
| 11 | | | - IPR - Ground - Exit (P/O PL 10.10 |
| 12 | | | - ICT - Shaft - Exit Lower ID (P/O PL |
| 13 | | | - PMO - Roller Exit (P/O PL 10.10 |
| 14 | | | - Spring - Exit Roll FD (P/O PL 10.10 |
| 15 | | | - PMO - Holder Exit Roll (P/O PL |
| 16 | | | - PMO - Roller FD F (P/O PL 10.10 |
| 17 | | | - PMO - Roller FD R (P/O PL 10.10 |
| 18 | | | - Spring - Exit Lower Idle (P/O PL |
| 19 | 115N00354 запросить цену → | | MEC - Brush Antistatic |
| 20 | | | - PBA SUB - Bin Full Sensor (P/O PL |
| 21 | | | - Actuator SUB - Bin Full Sensor (P/ |
| 22 | | | - E - Clip (REF: PL 31.10 Item 6) |
| 1 | 002N02274 запросить цену → | | ELA HOU - Scanner Assembly |
| 2 | 002N02284 запросить цену → | | ELA HOU SCAN Upper Assembly |
| 3 | 019N00797 запросить цену → | | A/S Material Dummy Upper |
| 4 | | | - MCT Glass DADF (P/O PL 14.10 |
| 5 | | | - Label (L) Registration Edge (L) (P/ |
| 6 | | | - PMO Dummy Upper (P/O PL 14.10 |
| 7 | | | - Sheet Dummy Upper (P/O PL |
| 8 | | | - PPR Registration Edge (F) (P/O PL |
| 9 | | | - PMO Cover Scan Upper (P/O PL |
| 10 | | | - IPR Holder Glass (P/O PL 14.10 |
| 11 | | | - Label (P) Sheet Shading (P/O PL |
| 12 | | | - MCT Glass Scanner (Legal) (P/O |
| 1 | | | - Shaft CCD (UMAX) (Not Spared) |
| 2 | 023N00954 запросить цену → | | Belt - Timing Gear (REP 14.1) |
| 3 | 023N00955 запросить цену → | | Spring ETC - Belt |
| 4 | | | - Ring - E (REF: PL 31.10 Item 6) |
| 5 | 140N62872 запросить цену → | | PBA SUB - D SUB (REP 14.1) |
| 6 | | | - PMO Pulley (Not Spared) |
| 7 | | | - Washer Plain (Not Spared) |
| 8 | | | - ICT - Insert Shaft (Not Spared) |
| 9 | | | - CBF Harness- Driver GND (Not |
| 10 | | | - Not Used (Not Spared) |
| 11 | 140N05936 запросить цену → | | IPR - BRK Scan BD |
| 12 | 011N00473 запросить цену → | | PMO Lever Sensor |
| 13 | | | - Spring ETC - Exit (Not Spared) |
| 14 | 152N11552 запросить цену → | | CBF Harness - Scan Motor |
| 15 | | | - Cover M CCD Cable (Not Spared) |
| 16 | 002N02166 запросить цену → | | ELA HOU - CCD Module (REP |
| 17 | 117N01605 запросить цену → | | CBF Signal - CCD FFC (P/O PL |
| 18 | 152N11553 запросить цену → | | CBF Harness - OPE |
| 19 | | | - PMO - Cover Dummy Lower (Not |
| 20 | | | - Holder M CCD (UMAX) (Not |
| 21 | | | - IPR - Channel Base Frame (Not |
| 22 | | | - Cover - Scan Lower (UMAX) (Not |
| 23 | 002N02290 запросить цену → | | ELA HOU - Scan Motor (REP 14.1) |
| 24 | | | - Bracket - Motor - Platen (P/O PL |
| 25 | | | - Motor Step - Scan (P/O PL 14.11 |
| 26 | | | - Gear Idle (P/O PL 14.11 Item 23) |
| 27 | | | - PMO - Holder Belt (P/O PL 14.11 |
| 28 | | | - Gear - Timing (P/O PL 14.11 Item |
| 29 | | | - Ring - E (REF: PL 31.10 Item 6) |
| 30 | | | - Gear Reduction 73/37 (P/O PL |
| 31 | | | - ELA HOU - Scan Lower (P/O PL |
| 1 | | | - Foreign Interface Device Kit (see |
| 2 | 497N00184 запросить цену → | | Network Accessory Kit |
| 3 | 498N00364 запросить цену → | | 2nd Paper Tray |
| 4 | 098N01724 запросить цену → | | Stand |
| 5 | | | - Repackaging Kit (see NOTE 2) |
| 6 | | | - Common Hardware Kit (see NOTE |
