Xerox C 118/M 118 — каталог запчастей со схемами

Содержание

1. Symbology A Tag number within a circle having a shaded bar and pointing to an item number shows that
2. PL 4.1 XERO/Developer

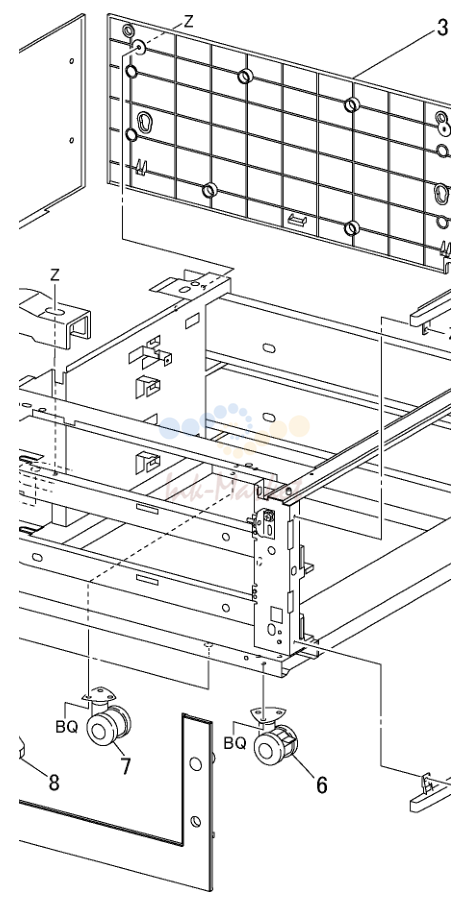

3. Parts List Initial Issue

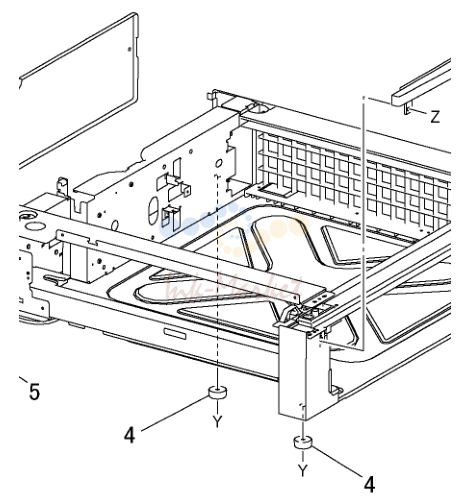

4. Parts List Initial Issue

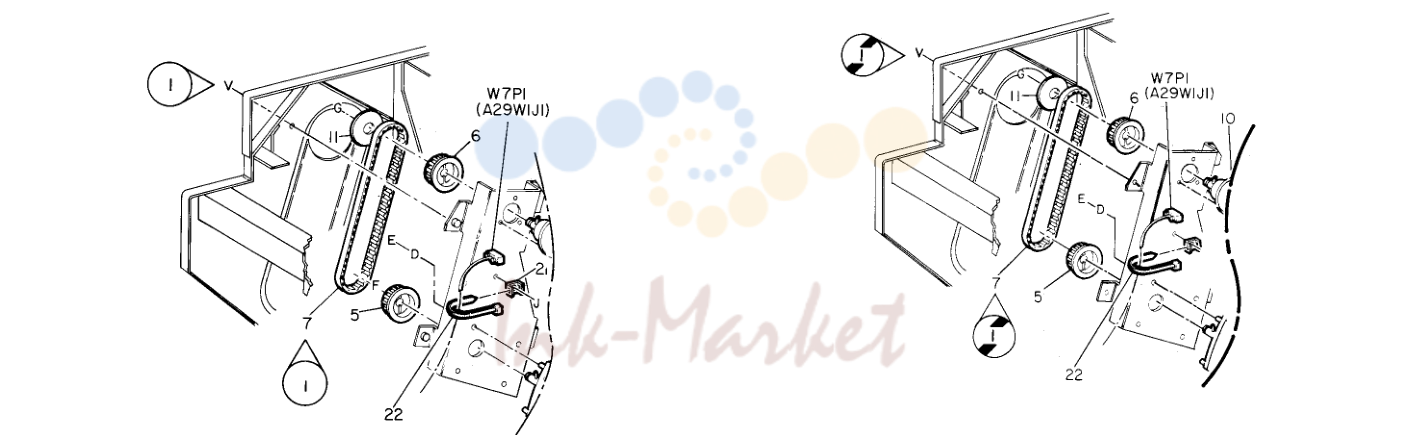

1. Symbology A Tag number within a circle having a shaded bar and pointing to an item number shows that

№	Артикул	Альт. артикул	Описание
1			- Collar (P/O PL 1.1 Item 8)
2			- Gear (21T/21T) (P/O PL 1.1 Item 8)
3			- Gear (18T) (P/O PL 1.1 Item 8)
4			- Gear (28T) (T/A) (P/O PL 1.1 Item
5	007E79140 запросить цену →		Gear (28T) (Feeder)
6	007E79150 запросить цену →		Gear (19T/32T) (Feeder)
7	007K88574 запросить цену →		Main Drive Assembly (REP 1.1.1)
8	604K20500 запросить цену →		Drive Gear Kit
1	050K50150 запросить цену →		Tray 1 (PL 2.2)
2	003E60950 запросить цену →		Front Tray Stopper
3	014E45350 запросить цену →		Spacer
4	893E16030 запросить цену →		Tray 1 Label (P/O PL 2.1 Item 14)
5	893E23040 запросить цену →		Size Label
6	930W00103 запросить цену →	Tray1	No Paper Sensor
7	120E23790 запросить цену →		Actuator
8			- Holder (Not Spared)
9	110K11680 ✓ в наличии	Tray1	Paper Size Switch
10			- Bracket (Not Spared)
11	054K26190 запросить цену →		Paper Chute Assembly
12			- Cap (Not Spared)
13			- Label (Instruction) (Not Spared) (P/
14	604K20550 запросить цену →		Tray Label Kit
1			- Cassette (P/O PL 2.1 Item 1)
2	019E57700 запросить цену →		Pad
3			- Pivot (P/O PL 2.1 Item 1)
4			- Bottom Plate (P/O PL 2.1 Item 1)
5			- Spring (P/O PL 2.1 Item 1)
6			- Knob (P/O PL 2.1 Item 1)
7			- Spring (P/O PL 2.1 Item 1)
8			- Side Guide (Front) (P/O PL 2.1 Item
9			- Label (Max) (P/O PL 2.1 Item 14)
10			- Side Guide (Rear) (P/O PL 2.1 Item
11			- Slide (P/O PL 2.1 Item 1)
12	809E27650 запросить цену →		Spring
13			- Pin (P/O PL 2.1 Item 1)
14			- Spring (P/O PL 2.1 Item 1)
15			- Actuator (P/O PL 2.1 Item 1)
16			- Actuator (P/O PL 2.1 Item 1)
17			- Spring (P/O PL 2.1 Item 1)
18			- Cassette Cover (P/O PL 2.1 Item 1)
19			- Bearing (P/O PL 2.1 Item 1)
20			- Link (P/O PL 2.1 Item 1)
21	059K32772 запросить цену →		Feed Roll
22	806E04191 запросить цену →		Shaft
23			- Bearing (P/O PL 2.1 Item 1)
24			- End Guide (P/O PL 2.1 Item 1)
25			- Cover (P/O PL 2.1 Item 1)
26			- Earth Plate (P/O PL 2.1 Item 1)
27			- Spring (P/O PL 2.1 Item 1)
28			- Stopper (P/O PL 2.1 Item 1)
29			- Actuator (P/O PL 2.1 Item 1)
30			- Pinion Gear (P/O PL 2.1 Item 1)
31	019K98722 запросить цену →		Retard Pad (REP 2.2.1)
32			- Shaft (P/O PL 2.1 Item 1)
1			- Bearing (Not Spared)
2			- Shaft (Not Spared)
3			- Shaft (Not Spared)
4	121K32581 ✓ в наличии	Tray1	Feed Clutch
5			- Bearing (Not Spared)
6			- Gear (75T) (Not Spared)
7			- Bracket (Not Spared)
8			- Spring (Not Spared)
9			- Coupling (Not Spared)
10			- Gear (18T) (Not Spared)
11			- Bearing (Not Spared)
1			- Gear (29-26-19T) (Not Spared)
2			- Gear (31T) (Not Spared)
3			- Bracket (Not Spared)
4			- Bearing (Not Spared)
5	054E23940 запросить цену →		Registration Chute
6			- Idler Roll (Not Spared)
7	059K31021 ✓ в наличии		Registration Roll
8	121K32660 запросить цену →		Registration Clutch
9	130K64270 ✓ в наличии		Registration Sensor
10			- Earth Plate (Not Spared)
11	054K23940 ✓ в наличии		Chute Assembly
1			- Link Assembly (Not Spared)
2	802K49240 запросить цену →		Wire Harness
3			- Bracket (Not Spared)
4	110E94770 запросить цену →		Left Cover Interlock Switch
5			- Stud (Not Spared)
6	802K56094 запросить цену →		BTR Assembly
7			- Lever (Rear) (P/O PL 2.5 Item 6)
8			- Lever (Front) (P/O PL 2.5 Item 6)
9			- Bearing (P/O PL 2.5 Item 6)
10			- BTR (REP 2.5.2) (P/O PL 2.5 Item
11			- BTR Housing (P/O PL 2.5 Item 6)
12			- Spring (P/O PL 2.5 Item 6)
13			- Spring (P/O PL 2.5 Item 6)
14	054K24051 запросить цену →		Chute Assembly (PL 2.6)
15	802K63590 запросить цену →		Left Cover Assembly (PL 2.7)
1			- Pinch Bearing (P/O PL 2.5 Item 14)
2			- Guide (P/O PL 2.5 Item 14)
3			- Guide (P/O PL 2.5 Item 14)
4			- Chute (P/O PL 2.5 Item 14)
5			- Eliminator (P/O PL 2.5 Item 14)
6			- Spring (P/O PL 2.5 Item 14)
7			- Spring (P/O PL 2.5 Item 14)
8			- Pinch Roll (P/O PL 2.5 Item 14)
9			- Spring (P/O PL 2.5 Item 14)
10			- Spring (P/O PL 2.5 Item 14)
11			- Plate (P/O PL 2.5 Item 14)
12			- Earth Plate (P/O PL 2.5 Item 14)
1			- Handle (P/O PL 2.5 Item 15)
2			- XERO/Developer Cartridge Shutter
3			- Handle Guide (P/O PL 2.5 Item 15)
4			- Chute (P/O PL 2.5 Item 15)
5	054K24060 запросить цену →		Chute Assembly
6	054K26150 запросить цену →		Exit Chute Assembly
7			- Frame Assembly (P/O PL 2.5 Item
8			- Left Cover (P/O PL 2.5 Item 15)
9			- Spring (P/O PL 2.5 Item 15)
10	849E13981 запросить цену →		Support
1	604K20910 запросить цену →		ROS Kit
2			- Attachment (P/O PL 3.1 Item 1)
3			- ROS Unit (REP 3.1.1 ) (P/O PL 3.1

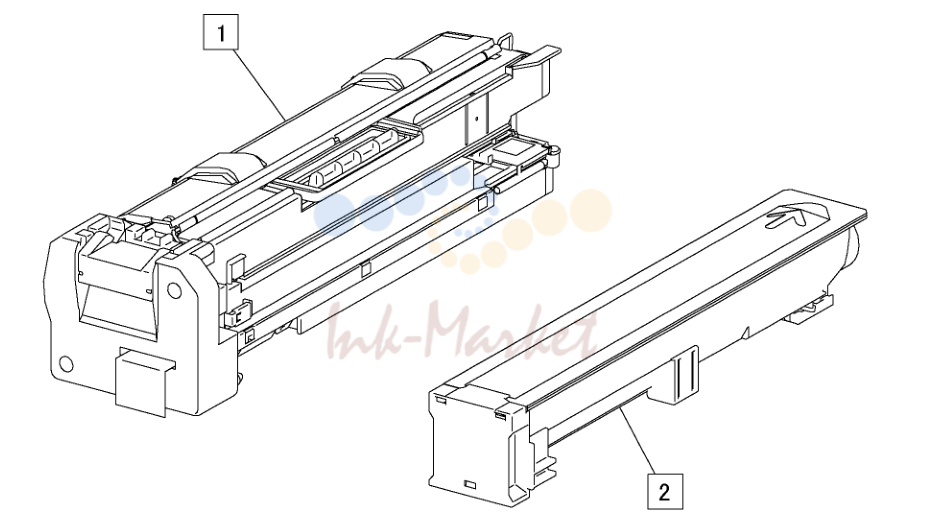

2. PL 4.1 XERO/Developer

№	Артикул	Альт. артикул	Описание
1			- Block (Not Spared)
2			- Screw (Not Spared)
3			- Guide Assembly (Not Spared)
4	110K11810 запросить цену →		Xero Interlock Switch
5	130K61530 запросить цену →		Hum and Temp Sensor
6			- Interlock Switch Plate (Not Spared)
7	032K96921 запросить цену →		Toner Guide Assembly
8			- Toner Stopper (P/O PL 4.2 Item 7)
9			- Drive Shaft (P/O PL 4.2 Item 7)
10			- Toner Housing (P/O PL 4.2 Item 7)
11			- Dispense Assembly (REP 4.2.1) (P/
12			- Gear (13T) (P/O PL 4.2 Item 7)
13			- Support (P/O PL 4.2 Item 7)
14	127K39470 запросить цену →		Dispense Motor (REP 4.2.1)
15	160K95830 запросить цену →		Toner CRUM PWB
16			- Fuser Duct (Not Spared)
17	127K39430 запросить цену →		Fuser Fan
18			- Housing (Not Spared)
19			- ROS Cover (Not Spared)
20			- Harness J403-J610 (Not Spared)
21	160K95830 запросить цену →		XERO CRUM PWB
1			- Actuator Shaft (P/O PL 5.1 Item 8)
2			- Insulator (P/O PL 5.1 Item 8)
3	120E22121 запросить цену →		Exit Actuator
4	130E82740 запросить цену →		Fuser Exit Sensor
5	809E42201 запросить цену →		Actuator Spring
6			- Exit Sensor Bracket (P/O PL 5.1
7	126K16451 запросить цену →		Fuser Assembly (120V) (REP
8			- Fuser Exit Sensor Assembly
1	059K33550 запросить цену →		Exit Assembly (PL 6.2)
2			- Stopper (Not Spared)
3			- Stopper (Not Spared)
1			- Offset Gear (P/O PL 6.1 Item 1)
2			- Gear Pulley (P/O PL 6.1 Item 1)
3			- Gear (24T) (P/O PL 6.1 Item 1)
4			- Bearing (P/O PL 6.1 Item 1)
5			- Bearing (P/O PL 6.1 Item 1)
6			- Bearing (P/O PL 6.1 Item 1)
7			- Lower Chute (P/O PL 6.1 Item 1)
8			- OCT Chute (P/O PL 6.1 Item 1)
9			- Pinch Roll (P/O PL 6.1 Item 1)
10			- OCT Roll (P/O PL 6.1 Item 1)
11	127K37961 запросить цену →		Exit Motor
12			- Frame (P/O PL 6.1 Item 1)
13			- Earth Plate (P/O PL 6.1 Item 1)
14			- Bracket (P/O PL 6.1 Item 1)
15			- Spring (P/O PL 6.1 Item 1)
16			- Motor Cover (P/O PL 6.1 Item 1)
17			- Belt (P/O PL 6.1 Item 1)
1			- OCT Roll (P/O PL 6.1 Item 1)
2			- Bearing (P/O PL 6.1 Item 1)
3			- OCT Chute (P/O PL 6.1 Item 1)
4			- Pinch Roll (P/O PL 6.1 Item 1)
5			- Spring (P/O PL 6.1 Item 1)
6			- Bearing (P/O PL 6.1 Item 1)
7			- Gear (24T) (P/O PL 6.1 Item 1)
8	127K39460 запросить цену →		Offset Motor
9			- Bearing (P/O PL 6.1 Item 1)
10			- Earth Plate (P/O PL 6.1 Item 1)
11			- Offset Gear (P/O PL 6.1 Item 1)
12	930W00103 запросить цену →		Offset Home Sensor
13			- Bracket (P/O PL 6.1 Item 1)
14			- Earth Plate (P/O PL 6.1 Item 1)
15			- Lower Chute (P/O PL 6.1 Item 1)
16	127K37961 запросить цену →		Exit Motor
17			- Belt (P/O PL 6.1 Item 1)
18			- Bracket (P/O PL 6.1 Item 1)
19			- Gear Pulley (P/O PL 6.1 Item 1)
20			- Motor Cover (P/O PL 6.1 Item 1)
1			- Label (Not Spared)
2			- Label (Max) (Not Spared)
3			- Upper Frame (Not Spared)
4			- Gear Assembly (Not Spared)
5	050K49741 запросить цену →		MPT Tray Assembly (PL 7.3)
6	962K13120 запросить цену →		Wire Harness
7			- Pinch Chute (Not Spared)
8			- Shaft (Not Spared)
9			- Spacer (Not Spared)
10			- Guide (Not Spared)
11			- Pinch Roll (Not Spared)
12			- Spring (Not Spared)
13			- Actuator (Not Spared)
14	801K05762 запросить цену →		Lower Frame Assembly (PL 7.2)
15	809E38160 запросить цену →		MPT Spring
16	930W00103 запросить цену →		MPT No Paper Sensor
17	802E55770 запросить цену →		MPT Front Cover
18	802E55211 запросить цену →		MPT Rear Cover
1	801K05762 запросить цену →		Lower Frame Assembly
2			- Lower Frame (P/O PL 7.2 Item 1)
3			- Stopper Lever (P/O PL 7.2 Item 1)
4			- Collar (P/O PL 7.2 Item 1)
5			- Shaft (P/O PL 7.2 Item 1)
6			- Pick Up Gear (P/O PL 7.2 Item 1)
7	007E79710 запросить цену →		Gear (18T) (P/O PL 7.2 Item 1)
8	011E15150 запросить цену →		Gear Lever (P/O PL 7.2 Item 1)
9			- Bearing (8) (P/O PL 7.2 Item 1)
10	019E56551 запросить цену →		Bottom Pad
11			- Bottom Plate (P/O PL 7.2 Item 1)
12	019K98722 запросить цену →		MPT Retard Pad (REP 7.2.1) (P/O
13	032E21060 запросить цену →		MPT Paper Guide (P/O PL 7.2 Item
14	059K27141 запросить цену →		Drive Roll Assembly
15	121E92780 запросить цену →		MPT Feed Solenoid
16			- Pick Up Shaft Assembly (P/O PL
17			- Pick Up Cam (Rear) (P/O PL 7.2
18			- Pick Up Cam (Front) (P/O PL 7.2
19			- Roll Core (P/O PL 7.2 Item 1)
20	059K27150 запросить цену →		MPT Feed Roll
21			- Sleeve Bearing (P/O PL 7.2 Item 1)
22			- Cam Gear (P/O PL 7.2 Item 1)
23			- Lever Gear Spring (P/O PL 7.2 Item
24			- Pad Spring (P/O PL 7.2 Item 1)
25			- Spring (P/O PL 7.2 Item 1)
26			- Gear Cam Spring (P/O PL 7.2 Item
27			- Earth Plate (P/O PL 7.2 Item 1)
28			- Earth Plate (P/O PL 7.2 Item 1)
29			- Lower Chute (Not Spared)
1			- Pinion (P/O PL 7.1 Item 5)
2			- Front Rack (P/O PL 7.1 Item 5)
3			- Rear Rack (P/O PL 7.1 Item 5)
4			- Link (P/O PL 7.1 Item 5)
5			- Front Guide (P/O PL 7.1 Item 5)
6			- Rear Guide (P/O PL 7.1 Item 5)
7			- MPT Tray (P/O PL 7.1 Item 5)
8			- Exit Tray (P/O PL 7.1 Item 5)
9			- MPT Paper Size Sensor (P/O PL
10			- Tray Cover (P/O PL 7.1 Item 5)
11			- Spring (P/O PL 7.1 Item 5)
12			- Wire Harness (P/O PL 7.1 Item 5)
1	059K33023 запросить цену →		Duplex Assembly
2			- Gear (31T) (P/O PL 8.1 Item 1)
3			- Gear (30/74T) (P/O PL 8.1 Item 1)
4			- Gear (30T) (P/O PL 8.1 Item 1)
5			- Gear (45T) (P/O PL 8.1 Item 1)
6	011E14582 запросить цену →		Latch Lever (Rear) (P/O PL 8.1
7	011E14590 запросить цену →		Latch Lever (Front) (P/O PL 8.1
8			- Lower Chute (P/O PL 8.1 Item 1)
9	110E93440 запросить цену →		Duplex Open Switch
10	120E21261 запросить цену →		Actuator
11	127K37970 запросить цену →		Duplex Motor
12	160K94225 запросить цену →		Duplex PWB
13	802E55172 запросить цену →		Duplex Cover (P/O PL 8.1 Item 1)
14	809E37170 запросить цену →		Spring (P/O PL 8.1 Item 1)
15			- Spring (P/O PL 8.1 Item 1)
16			- Bracket (P/O PL 8.1 Item 1)
17			- Latch Plate (P/O PL 8.1 Item 1)
18	930W00103 запросить цену →		Duplex Sensor
19			- Wire Harness (Sensor) (P/O PL 8.1
20			- Wire Harness (Motor) (P/O PL 8.1
21			- Wire Harness (P/O PL 8.1 Item 1)
22			- Chute Assembly (PL 8.2) (P/O PL
1			- Stopper (P/O PL 8.1 Item 22)
2			- Lock (P/O PL 8.1 Item 22)
3			- Bearing (P/O PL 8.1 Item 22)
4			- Pin (P/O PL 8.1 Item 22)
5			- Outer Chute (P/O PL 8.1 Item 22)
6			- Inner Chute (P/O PL 8.1 Item 22)
7			- Roll (P/O PL 8.1 Item 22)
8			- Roll (P/O PL 8.1 Item 22)
9			- Pinch Roll (P/O PL 8.2 Item 11)
10			- Spring (P/O PL 8.2 Item 12)
11	604K20460 запросить цену →		Kit 4 Roller
12	604K20470 запросить цену →		Kit 4 Spring
1	104E94080 запросить цену →		Choke Coil
2	105E11410 ✓ в наличии		HVPS
3	110E11320 запросить цену →		Power Switch
4	110E94770 запросить цену →		Front Cover Interlock Switch
5	160K95827 запросить цену →		MCU PWB (REP 9.1.1)
6	117E23870 запросить цену →		110V Power Cord (US/Canada/etc.)
7			- MCU Bracket (Not Spared)
8			- MCU Strain Bracket (Not Spared)
9			- EP ROM(XC) (Not Spared)
10	105E11660 запросить цену →		Power Unit 110V
11	101K45550 запросить цену →		Chassis Assembly GFI 110V
12			- Screw (P/O PL 9.1 Item 11)
13			- Bracket GFI (P/O PL 9.1 Item 11)
14			- GFI Breaker (P/O PL 9.1 Item 11)
15			- Wire Harness FG (P/O PL 9.1 Item
16			- Wire Harness J50-J11 (P/O PL 9.1
17			- Bracket (P/O PL 9.1 Item 11)
18			- Bracket (P/O PL 9.1 Item 11)
19			- Holder (P/O PL 9.1 Item 11)
20			- Screw (P/O PL 9.1 Item 11)
1	160K99145 запросить цену →		ESS PWB (REP 9.2.1)
2	537K68431 запросить цену →		PS G1 PS-DIMM
3			- ESS Cover
4	133K23850 запросить цену →		DDR DIMM 128MB (DUMMY)
1			- ADC PWB (P/O PL 9.3 Item 10)
2			- Bracket (P/O PL 9.3 Item 10)
3			- Speaker (P/O PL 9.3 Item 10)
4			- Fax Cover (P/O PL 9.3 Item 11)
5			- Fax PWB (P/O PL 9.3 Item 11)
6	960K02580 запросить цену →		Fax PWB Assembly
7			- Wire Harness (P/O PL 9.3 Item 11)
8			- N TEL PWB (P/O PL 9.3 Item 11)
9			- Bracket (P/O PL 9.3 Item 11)
10	960K02590 запросить цену →		ADC Bracket Assembly
11	101K46120 запросить цену →		Chassis Assembly FAX (XC)
12	537K68980 запросить цену →		Compact Flash (XC/EU) G1
13	962K30590 запросить цену →		Flat Cable (P/O PL 9.3 Item 11)
14			- Clamp (P/O PL 9.3 Item 11)
15			- Wire Harness (P/O PL 9.3 Item 11)
16			- Bracket (Not Spared)
1	962K18940 запросить цену →		Wire Harness J1-J56
2	962K15270 запросить цену →		Wire Harness J406-J409
3	962K15350 запросить цену →		Wire Harness J414-J126
4	962K15300 запросить цену →		Wire Harness J412-J109
5	962K15290 запросить цену →		Wire Harness J421-J125
6	962K15321 запросить цену →		Wire Harness J216-J720
7	962K19000 запросить цену →		Wire Harness J6-J600
8	962K15280 запросить цену →		Wire Harness J408-J214
9	962K15311 запросить цену →		Wire Harness J411-P605
1	802K56160 запросить цену →		Front Cover Assembly
2			- Front Cover (P/O PL 10.1 Item 1)
3			- Magnet (P/O PL 10.1 Item 1)
4			- Strap (P/O PL 10.1 Item 1)
5	802K56170 запросить цену →		Inner Cover Assembly
6			- Inner Cover (P/L PL 10.1 Item 5)
7			- Cap (Not Spared)
8			- Plate (P/L PL 10.1 Item 5)
9			- Front Left Cover (Not Spared)
10			- Exit Cover (Not Spared)
11			- Top Rear Cover (Not Spared)
12	802K64860 запросить цену →		Top Cover (REP 10.1.1)
13			- Star Label (Not Spared)
14	802K62050 запросить цену →		Logo Label (XC)
15			- Label (XERO/Developer Cartridge)
16			- Eliminator (Not Spared)
1	802E62590 запросить цену →		Cover
2	802E55815 запросить цену →		Rear Cover (REP 10.2.1)
3	802E55780 запросить цену →		Right Upper Cover
4	802E55820 запросить цену →		Cover
5	802E55800 запросить цену →		ESS Cover
6	802E55731 запросить цену →		Right Top Cover
7	802E55791 запросить цену →		Right Lower Cover
8			- Foot (Not Spared)
9			- Foot (Not Spared)
10			- Label (Not Spared)
11			- Label (Not Spared)
12			- Memory Cover (Not Spared)
1	062K15270 запросить цену →		IIT Unit (PL 11.2)
2	802K66230 запросить цену →		Control Panel (DC) (English) (PL
3	068K24540 запросить цену →		MFC and EXT PWB Box (PL 11.6)
4			- IIT Front Cover (Not Spared)
5	105E12930 запросить цену →		Battery
6	802K66240 запросить цену →		Platen Cover (Sheet)
7	893E17540 запросить цену →		Label (COPY CENTRE C118)
1	802K71880 запросить цену →		IIT Upper Cover (with Item2-4)
2	090E02380 запросить цену →		DADF Platen Glass
3	090E91720 запросить цену →		Sheet Platen Glass
4	815E08650 запросить цену →		White Reference
5			- Sleeve (P/O PL 11.1 Item 1)
6			- Carriage Lock (P/O PL 11.1 Item 1)
7	041K94690 запросить цену →		IIT Carriage Assembly (PL 11.4)
8			- Cable Spring (P/O PL 11.1 Item 1)
9			- Cable Bracket (P/O PL 11.1 Item 1)
10	962K28290 запросить цену →		Flexible Print Cable
11			- Flexible Print Cable Cover (P/O PL
12			- NBCR-Host Cable (REP 11.2.2 )
13			- NBCR-Power Cable (REP 11.2.2 )
14	110E11560 запросить цену →		Platen Angle Sensor
15	130E87050 запросить цену →		APS Sensor
16			- Wire Harness (P/O PL 11.1 Item 1)
17			- IIT Under Assembly (PL 11.3) (P/O
1			- IIT Under Cover (P/O PL 11.2 Item
2	001E66190 запросить цену →		IIT Front Rail (P/O PL 11.2 Item 17)
3			- Box (P/O PL 11.2 Item 17)
4			- Plate (P/O PL 11.2 Item 17)
5			- EME Spring Plate (P/O PL 11.2
6			- EME Spring Plate (P/O PL 11.2
7			- EME Spring Plate (P/O PL 11.1
8			- Left Plate (P/O PL 11.2 Item 17)
9			- Plate (P/O PL 11.2 Item 17)
10			- Right Plate (P/O PL 11.2 Item 17)
11	806E04920 запросить цену →		IIT Rear Rail (P/O PL 11.2 Item 17)
12			- Left Rail Bracket (P/O PL 11.2 Item
13			- Right Rail Bracket (P/O PL 11.2
14			- Left Rail FG Bracket (P/O PL 11.2
15			- Right Rail FG Bracket (P/O PL 11.2
16			- Shield (P/O PL 11.2 Item 17)
17	110E11550 запросить цену →		Platen Open Switch
18			- Flat Cable (Control Panel) (P/O PL
19			- Wire Harness (Platen Open Switch)
20			- Adjust Screw (P/O PL 11.2 Item 17)
21			- Lock Bracket (Inventory Location)
1			- Mirror Damper (3) (P/O PL 11.2
2			- Mirror Damper (2) (P/O PL 11.2
3			- Front Mirror Frame (P/O PL 11.2
4			- Rear Mirror Frame (P/O PL 11.2
5			- Mirror (1) (P/O PL 11.2 Item 7)
6			- Mirror (2) (P/O PL 11.2 Item 7)
7			- Mirror (3) (P/O PL 11.2 Item 7)
8			- Front Mirror Clip (P/O PL 11.2 Item
9			- Rear Mirror Clip (P/O PL 11.2 Item
10			- Front Lamp Holder (P/O PL 11.2
11			- Rear Lamp Holder (P/O PL 11.2
12			- Sensor Plate (P/O PL 11.2 Item 7)
13			- Rail Contact (P/O PL 11.2 Item 7)
14			- IIT Carriage Cover (P/O PL 11.2
15			- Reflector (P/O PL 11.2 Item 7)
16			- Reflector Cover (P/O PL 11.2 Item
17	127K40070 запросить цену →		Carriage Motor
18	130E87070 запросить цену →		Carriage Sensor
19	019E58440 запросить цену →		Exposure Lamp (REP 11.4.1)
20			- Center Plate Assembly (PL 11.5)
21			- Plate Spring (P/O PL 11.2 Item 7)
1			- Center Plate (P/O PL 11.4 Item 20)
2			- Mirror Frame (P/O PL 11.4 Item 20)
3			- Mirror (4) (P/O PL 11.4 Item 20)
4			- Front Mirror Clip (P/O PL 11.4 Item
5			- Rear Mirror Clip (P/O PL 11.4 Item
6			- Lens Assembly (P/O PL 11.4 Item
7			- Shaft Slider (P/O PL 11.4 Item 20)
8			- Shaft Contact (P/O PL 11.4 Item
9			- Side Slider (P/O PL 11.4 Item 20)
10			- Top Slider (P/O PL 11.4 Item 20)
11			- Front Slider (P/O PL 11.4 Item 20)
12			- Gear (P/O PL 11.4 Item 20)
13			- Gear (P/O PL 11.4 Item 20)
14			- IIT Drum (P/O PL 11.4 Item 20)
15			- Pulley (P/O PL 11.4 Item 20)
16			- Hook (P/O PL 11.4 Item 20)
17			- NSC Bracket (1) (P/O PL 11.4 Item
18			- NSC Bracket (2) (P/O PL 11.4 Item
19			- NBCR Bracket (P/O PL 11.4 Item
20			- INV Bracket (1) (P/O PL 11.4 Item
21			- Bracket (P/O PL 11.4 Item 20)
22			- INV Bracket (2) (P/O PL 11.4 Item
23	177E91820 запросить цену →		Front Carriage Cable (REP 11.5.1)
24	177E91830 запросить цену →		Rear Carriage Cable (REP 11.5.1)
25			- NBCR PWB (REP 11.5.2) (P/O PL
26			- NSC PWB (REP 11.5.2) (P/O PL
27			- INV PWB (REP 11.5.3) (P/O PL
28			- Wire Harness (P/O PL 11.4 Item
29			- Bearing (P/O PL 11.4 Item 20)
30			- Bracket (P/O PL 11.4 Item 20)
1			- PWB Box (P/O PL 11.1 Item 3)
2			- Connector Bracket (P/O PL 11.1
3			- EP SV Connector Bracket (P/O PL
4			- Shield (P/O PL 11.1 Item 3)
5	960K05230 запросить цену →		MFC PWB (XC/EU) GI (REP
6	960K02720 запросить цену →		EXT PWB (G1)(REP 11.6.1)
7			- EXT-Lattice Wire Harness (P/O PL
8			- EXT-EP SV Wire Harness (P/O PL
9			- MCU-EXT Wire Harness (P/O PL
10	960K08770 запросить цену →		64M Memory
1	802K66570 запросить цену →		Control Panel Case (Eng) (P/O PL
2			- Ten key (P/O PL 11.1 Item 2)
3			- Function Key (P/O PL 11.1 Item 2)
4			- Stop Key (P/O PL 11.1 Item 2)
5			- Power Save Key (P/O PL 11.1 Item
6			- Reset Key (P/O PL 11.1 Item 2)
7			- Start Key (P/O PL 11.1 Item 2)
8			- Alarm Cover (P/O PL 11.1 Item 2)
9			- LCD Panel (P/O PL 11.1 Item 2)
10			- LED Lens (P/O PL 11.1 Item 2)
11			- Right Contact Rubber (P/O PL 11.1
12			- Center Contact Rubber (P/O PL
13			- Panel Support (P/O PL 11.1 Item 2)
14			- Upper LCD Shield (P/O PL 11.1
15			- Under LCD Shield (P/O PL 11.1
16			- Tapping Screw (P/O PL 11.1 Item
17	960K02730 запросить цену →		Control Panel PWB
18			- LCD (P/O PL 11.1 Item 2)
19	802E68620 запросить цену →		LCD Cover DC (Eng) (P/O PL 11.1
20			- Clip Tray (P/O PL 11.1 Item 2)
21	802K64640 запросить цену →		One Touch Panel (PL 11.8)
22			- Core (P/O PL 11.1 Item 2)
1			- Fax Unit Control Panel Case (P/O
2			- Copy/Fax/E-Mail Key (P/O PL 11.7
3			- Option Key (P/O PL 11.7 Item 21)
4			- LED Lens (P/O PL 11.7 Item 21)
5			- Right Flip Card (P/O PL 11.7 Item
6			- Left Flip Card (P/O PL 11.7 Item
7			- One Touch Sheet (10-18) (P/O PL
8			- One Touch Sheet (19-27) (P/O PL
9			- One Touch Sheet (28-36) (P/O PL
10			- One Touch Sheet (37-45) (P/O PL
11			- One Touch Panel (P/O PL 11.7 Item
12			- Contact Rubber (P/O PL 11.7 Item
13			- Flip Shaft (P/O PL 11.7 Item 21)
14			- Earth Plate (P/O PL 11.7 Item 21)
15			- Tapping Screw (P/O PL 11.7 Item
16			- FAX Unit Control Panel PWB (P/O
1	050K49840 запросить цену →		Tray 3/4 Assembly (PL 12.2)
2			- Label (No.3) (P/O PL 12.1 Item 11)
3	110K11680 ✓ в наличии		Tray 3/4 Paper Size Switch
4	014E51110 запросить цену →		Tray Spacer
5	003E61510 запросить цену →		Tray Stopper
6	059K29553 запросить цену →		Tray 3 Feeder (REP 12.1.1)
7	059K29553 запросить цену →		Tray 4 Feeder (REP 12.1.2)
8	054E22622 запросить цену →		Feed Out Chute
9			- Sensor Cover (Not Spared)
10			- Cover (Not Spared)
11	604K20550 запросить цену →		Tray Label Kit
1			- Tray Assembly (P/O PL 12.1 Item 1)
2			- Tray Cover (P/O PL 12.1 Item 1)
3			- Label (Instruction) (P/O PL 12.2
4			- Label (Max) (P/O PL 12.2 Item 27)
5			- Bottom Plate (P/O PL 12.2 Item 1)
6			- Bottom Pad (P/O PL 12.2 Item 1)
7			- Front Side Guide (P/O PL 12.2 Item
8			- Tray Pad (P/O PL 12.2 Item 1)
9			- Rear Side Guide (P/O PL 12.2 Item
10			- Side Guide Actuator (P/O PL 12.2
11			- Guide Actuator (P/O PL 12.2 Item
12			- Spring (P/O PL 12.2 Item 1)
13			- Pinion Gear (P/O PL 12.2 Item 1)
14			- End Guide (P/O PL 12.2 Item 1)
15			- Spring (P/O PL 12.2 Item 1)
16			- End Guide Actuator (P/O PL 12.2
17			- Link (P/O PL 12.2 Item 1)
18			- Coupling Gear (13T) (P/O PL 12.2
19			- Gear (13T/60T) (P/O PL 12.2 Item
20			- Sector Gear (60T) (P/O PL 12.2
21			- Bracket (P/O PL 12.2 Item 1)
22			- Lift Up Shaft (P/O PL 12.2 Item 1)
23			- Stopper (P/O PL 12.2 Item 1)
24			- Seal (P/O PL 12.2 Item 1)
25			- Tray (P/O PL 12.2 Item 1)
26	010E93341 запросить цену →		Slide Lock
27	604K20550 запросить цену →		Tray Label Kit
28	604K20540 запросить цену →		Tray Gear Kit
30			- Gear (13T) (P/O PL 12.1 Item 6, PL 12.1 Item 7)
31			- Support Assembly (P/O PL 12.1 Item 6, PL 12.1 Item 7)
1			- Upper Frame (P/O PL 12.1 Item 6, 32 - Nudger Roll (REP 12.3.1) (P/O PL 12.3 Item 42)
2	127K38170 запросить цену →		Tray 3/4 Feed/Lift Up Motor 34 - Bearing (P/O PL 12.1 Item 6, PL 12.1 Item 7)
3			- Bracket (P/O PL 12.1 Item 6, PL 35 - Gear (34T) (P/O PL 12.1 Item 6, PL 12.1 Item 7)
4	014E44770 запросить цену →		Spacer (P/O PL 12.1 Item 6, PL 37 - Bearing (P/O PL 12.1 Item 6, PL 12.1 Item 7)
5			- Gear (31T) (P/O PL 12.1 Item 6, PL 39 - Lower Frame (P/O PL 12.1 Item 6, PL 12.1 Item 7)
6			- Spring (P/O PL 12.1 Item 6, PL 41 - Spring (P/O PL 12.1 Item 6, PL 12.1 Item 7)
7			- One way Clutch (P/O PL 12.1 Item 43 059K29553 Screw
8			- One way Gear (P/O PL 12.1 Item 6)
9			- Gear (33T) (P/O PL 12.1 Item 6, PL
10			- Bearing (P/O PL 12.1 Item 6, PL
11			- Shaft (P/O PL 12.1 Item 6, PL 12.1
12			- Front Chute (P/O PL 12.1 Item 6,
13	120E22481 запросить цену →		Actuator (P/O PL 12.1 Item 6, PL
14	930W00103 запросить цену →		Tray 3/4 Level Sensor
15	930W00103 запросить цену →		Tray 3/4 No Paper Sensor
16	962K19692 запросить цену →		Wire Harness (P/O PL 12.1 Item 6,
17			- Gear (28T/21T) (P/O PL 12.1 Item
18			- Gear (29T) (P/O PL 12.1 Item 6, PL
19			- Spring (P/O PL 12.1 Item 6, PL
20			- Feed Roll (REP 12.3.1) (P/O PL
21	005K05890 ✓ в наличии		Oneway Clutch
22	005K06760 запросить цену →		Oneway Gear (22T)
23			- Shaft (P/O PL 12.1 Item 6, PL 12.1
24			- Chute (P/O PL 12.1 Item 6, PL 12.1
25			- Spring (P/O PL 12.1 Item 6, PL
26	005K05890 ✓ в наличии		Friction Clutch
27			- Support Assembly (P/O PL 12.1
28			- Retard Roll (REP 12.3.1) (P/O PL
1	802K53505 запросить цену →		Cover Assembly LH 2TM
2			- Latch (P/O PL 12.4 Item 1)
3			- Hook (P/O PL 12.4 Item 1)
4			- Handle (P/O PL 12.4 Item 1)
5			- Left Cover (P/O PL 12.4 Item 1)
6			- Chute (P/O PL 12.4 Item 1)
7			- Actuator (P/O PL 12.4 Item 1)
8			- Spring (P/O PL 12.4 Item 1)
9			- Bracket (P/O PL 12.4 Item 1)
10			- Spring (P/O PL 12.4 Item 1)
11			- Bearing (P/O PL 12.4 Item 1)
12			- Bearing (P/O PL 12.4 Item 1)
13	059E98190 запросить цену →		Pinch Roll
14	830E45710 запросить цену →		Support
15	110E10620 запросить цену →	2Tray	Module Left Cover Switch
16			- Bracket Assembly (Not Spared)
17			- Bracket (Not Spared)
1			- Chute (Not Spared)
2			- Cover (Not Spared)
3	130K64121 запросить цену →		Tray 3 Feed Out Sensor
4	962K18171 запросить цену →		Wire Harness
5			- Chute (Not Spared)
6	130K64471 запросить цену →		Tray 4 Feed Out Sensor
7	962K18900 запросить цену →		Wire Harness
8	059K26250 запросить цену →		Takeaway Roll Assembly
9			- Bearing (P/O PL 12.5 Item 10)
10	604K20720 запросить цену →		2TM Bearing Kit (4pcs)
1	160K97490 запросить цену →		PWB Assembly TM
2	121K31530 запросить цену →	2Tray	Module Takeaway Roll Clutch
3			- Bracket (Not Spared)
4			- Shaft (Not Spared)
5			- Bearing (Not Spared)
6			- Gear (38T) (Not Spared)
7	007K88721 запросить цену →	2Tray	Module Takeaway Motor
8			- Gear (22T/40T) (Not Spared)
9			- Gear (126T) (Not Spared)
10			- Gear (60T) (Not Spared)
11			- Gear (37T) (Not Spared)
12			- Gear (32T) (Not Spared)
13			- Wire Harness (Not Spared)
14			- Gasket (Not Spared)
15			- Bearing (P/O PL 12.6 Item 16)
16	604K20720 запросить цену →		2TM Bearing Kit (4pcs)
1			- Top Cover (Not Spared)
2			- Foot Cover (Not Spared)
3	802E54750 запросить цену →		Right Cover
4	802E54762 запросить цену →		Left Lower Cover (REP 12.7.1)
5	802E54771 запросить цену →		Rear Cover
6			- Caster (Stopper) (Not Spared)
7			- Caster (Not Spared)
8			- Foot (Not Spared)
9			- Foot Cover (Not Spared)

3. Parts List Initial Issue

№	Артикул	Описание
1	050K49840 запросить цену →	Tray Assembly (PL 13.2)
2	893E20820 запросить цену →	Label (No.2)
3	110K11680 ✓ в наличии	Tray 2 Paper Size Switch
4	014E51110 запросить цену →	Tray Spacer
5	003E61510 запросить цену →	Tray Stopper
6	059K29553 запросить цену →	Tray 2 Feeder (REP 13.1.1)
7	054E22621 запросить цену →	Feed Out Chute
1		- Tray Assembly (P/O PL 13.2 Item 1)
2		- Tray Cover (P/O PL 13.2 Item 1)
3		- Label (Instruction) (P/O PL 13.2
4		- Label (Max) (P/O PL 13.2 Item 27)
5		- Bottom Plate (P/O PL 13.2 Item 1)
6		- Bottom Pad (P/O PL 13.2 Item 1)
7		- Front Side Guide (P/O PL 13.2 Item
8		- Tray Pad (P/O PL 13.2 Item 1)
9		- Rear Side Guide (P/O PL 13.2 Item
10		- Side Guide Actuator (P/O PL 13.2
11		- Guide Actuator (P/O PL 13.2 Item
12		- Spring (P/O PL 13.2 Item 1)
13		- Pinion Gear (P/O PL 13.2 Item 1)
14		- End Guide (P/O PL 13.2 Item 1)
15		- Spring (P/O PL 13.2 Item 1)
16		- End Guide Actuator (P/O PL 13.2
17		- Link (P/O PL 13.2 Item 1)
18		- Coupling Gear (13T) (P/O PL 13.2
19		- Gear (13T/60T) (P/O PL 13.2 Item
20		- Sector Gear (60T) (P/O PL 13.2
21		- Bracket (P/O PL 13.2 Item 1)
22		- Lift Up Shaft (P/O PL 13.2 Item 1)
23		- Stopper (P/O PL 13.2 Item 1)
24		- Seal (P/O PL 13.2 Item 1)
25		- Tray (P/O PL 13.2 Item 1)
26	010E93341 запросить цену →	Slide Lock
27	604K20550 запросить цену →	Tray Label Kit
28	604K20540 запросить цену →	Tray Gear Kit
1	059K26293 запросить цену →	Feeder Assembly (Item 2-41)
2	127K38170 запросить цену →	Tray 2 Feed/Lift Up Motor
3		- Bracket (P/O PL 13.1 Item 6)
4	014E44770 запросить цену →	Spacer
5		- Gear (31T) (P/O PL 13.1 Item 6)
6		- Spring (P/O PL 13.1 Item 6)
7		- Oneway Clutch (P/O PL 13.3 Item
8		- Oneway Gear (P/O PL 13.3 Item 1)
9		- Gear (33T) (P/O PL 13.1 Item 6)
10		- Bearing (P/O PL 13.1 Item 6)
11		- Shaft (P/O PL 13.1 Item 6)
12		- Front Chute (P/O PL 13.1 Item 6)
13		- Actuator (P/O PL 13.1 Item 6)
14	930W00103 запросить цену →	Tray 2 Level Sensor
15	930W00103 запросить цену →	Tray 2 No Paper Sensor
16	962K19691 запросить цену →	Wire Harness
17		- Gear (28T/21T) (P/O PL 13.1 Item
18		- Gear (29T) (P/O PL 13.1 Item 6)
19		- Spring (P/O PL 13.1 Item 6)
20		- Feed Roll (REP 13.3.1 ) (P/O PL
21	005K05890 ✓ в наличии	One way Clutch
22	005K06760 запросить цену →	One way Gear (22T)
23		- Shaft (P/O PL 13.1 Item 6)
24		- Chute (P/O PL 13.1 Item 6)
25		- Spring (P/O PL 13.1 Item 6)
26	005K07010 запросить цену →	Friction Clutch
27		- Support Assembly (P/O PL 13.1
28		- Retard Roll (REP 13.3.1 ) (P/O PL
29		- Spacer (P/O PL 13.1 Item 6)
30		- Gear (13T) (P/O PL 13.1 Item 6)
31		- Support Assembly (P/O PL 13.1
32		- Nudger Roll (REP 13.3.1 ) (P/O PL
33		- Gear (25T) (P/O PL 13.1 Item 6)
34		- Bearing (P/O PL 13.1 Item 6)
35		- Gear (34T) (P/O PL 13.1 Item 6)
36		- Lever (P/O PL 13.1 Item 6)
37		- Bearing (P/O PL 13.1 Item 6)
38		- Washer (P/O PL 13.1 Item 6)
39		- Lower Frame (P/O PL 13.1 Item 6)
40		- Holder (P/O PL 13.1 Item 6)
41		- Spring (P/O PL 13.1 Item 6)
42	604K20530 запросить цену →	Tray Feed Roller Kit
1	802K57023 запросить цену →	Cover Assembly LH STM
2		- Latch (P/O PL 13.4 Item 1)
3		- Hook (P/O PL 13.4 Item 1)
4		- Handle (P/O PL 13.4 Item 1)
5		- Left Cover (P/O PL 13.4 Item 1)
6		- Chute (P/O PL 13.4 Item 1)
7		- Actuator (P/O PL 13.4 Item 1)
8		- Spring (P/O PL 13.4 Item 1)
9		- Bracket (P/O PL 13.4 Item 1)
10		- Spring (P/O PL 13.4 Item 1)
11		- Bearing (P/O PL 13.4 Item 1)
12		- Bearing (P/O PL 13.4 Item 1)
13		- Pinch Roll (P/O PL 13.4 Item 1)
14	110E10620 запросить цену →	Single Tray Module Left Cover Switch
15		- Bracket Assembly (Not Spared)
1		- Chute (Not Spared)
2		- Cover (Not Spared)
3	130K64121 запросить цену →	Tray 2 Feed Out Sensor
4		- Wire Harness
5	059K26250 запросить цену →	Takeaway Roll Assembly
6		- Bearing (P/O PL 12.5 Item 10)
1	960K07500 запросить цену →	PWBA Entry STM
2	121K31530 запросить цену →	Single Tray Module Takeaway Roll Clutch
3		- Bracket (Not Spared)
4		- Shaft (Not Spared)
5		- Bearing (Not Spared)
6		- Gear (Not Spared)
7	007K88711 запросить цену →	Gear Assembly Main STM
8		- Gear (Not Spared)
9		- Gear (Not Spared)
10		- Gear (Not Spared)
11		- Wire Harness
12		- Gasket
13		- Docking Bracket (Not Spared)
14		- Bearing (P/O PL 12.6 Item 16)
1		- Top Cover (Not Spared)
2		- Left Cover (Not Spared)
3		- Rear Cover (Not Spared)
4		- Foot (Not Spared)
5		- Foot Rear (Not Spared)

4. Parts List Initial Issue

№	Артикул	Описание
1		- Front Cover (Not Spared)
2		- Magnet (Not Spared)
3		- Left Cover (Not Spared)
4		- Rear Cover (Not Spared)
5		- Right Cover (Not Spared)
6		- Bracket (Not Spared)
7		- Caster (s) (Not Spared)
8		- Caster (Not Spared)
9		- Upper Hinge (Not Spared)
10		- Lower Hinge (Not Spared)
11		- Foot (Not Spared)
12		- Foot Cover (Not Spared)
13		- Stopper (Not Spared)
1	022K67680 запросить цену →	DADF Assembly (with Item 2) (REP
2	004E14200 запросить цену →	Platen Cushion (REP 15.1.2)
3		- Label (Instruction) (Not Spared)
1	059K33880 запросить цену →	DADF Feeder Assembly (PL 15.4)
2	802E68630 запросить цену →	Rear Cover (REP 15.2.4)
3	802E68640 запросить цену →	Front Cover (REP 15.2.3)
4	050K51140 запросить цену →	Document Tray Assembly (PL
5		- Front Blind Cover (P/O PL 15.1
6		- Rear Blind Cover (P/O PL 15.1 Item
7		- Support Bracket (P/O PL 15.1 Item
8	801K15460 запросить цену →	Base Cover Assembly (PL 15.3)
9		- Label
1	960K02740 запросить цену →	DADF/ADF PWB (REP 15.3.1 )
2		- Bracket
3	962K25030 запросить цену →	DADF/ADF - IIT Cable
4		- Exit Chute (P/O PL 15.3 Item 20)
5		- Stamp Cover (P/O PL 15.3 Item 20)
6		- Exit Chute Spring (Coil) (P/O PL
7		- Read In Pinch Roller (P/O PL 15.1
8		- Spring Plate (Read In) (P/O PL
9		- Exit Pinch Roller (P/O PL 15.1 Item
10		- Bush (P/O PL 15.3 Item 8)
11		- Base Cover Assembly (With 20) (P/
12	003K13550 запросить цену →	Right Counter Balance (REP
13	003K13560 запросить цену →	Left Counter Balance (REP 15.3.2)
14		- Pinch Roll Bracket (P/O PL 15.3
15		- Read Out Pinch Roller (P/O PL
16		- Spring Plate (Read Out) (P/O PL
17		- Interlock Magnet (P/O PL 15.3 Item
18		- Bottom Plate (P/O PL 15.3 Item 8)
19		- DADF Earth Spring (P/O PL 15.3
20		- Exit Assembly (P/O PL 15.1 Item 1)
1	059K35890 запросить цену →	Upper Feeder Assembly (PL 15.9)
2	802E68680 запросить цену →	Top Cover (REP 15.4.1)
3	059K35910 запросить цену →	DADF Lower Feeder Assembly (PL
4		- Pin (P/O PL 15.2 Item 1)
1	127K40110 запросить цену →	Document Read Motor
2		- Bracket (P/O PL 15.4 Item 3)
3		- Bearing (Oil less) (P/O PL 15.5
4		- Gear (101T-16T) (P/O PL 15.4 Item
5		- Gear (22T) (P/O PL 15.4 Item 3)
6		- Gear (20T) (P/O PL 15.4 Item 3)
7		- Bracket (P/O PL 15.4 Item 3)
8	121K34450 запросить цену →	Exit Reverse Solenoid (DADF Only)
9		- DADF Lower Feeder Assembly (PL
10	121K34460 запросить цену →	Document Registration Clutch
11		- Gear (51T-17T) (P/O PL 15.4 Item
12		- Bearing (Oil less) (P/O PL 15.4
13		- Gear (39T) (P/O PL 15.4 Item 3)
14	005K07190 запросить цену →	Torque Limiter (DADF Only)
15		- Gear (24T) (ADF Only) (P/O PL
16		- Bracket (P/O PL 15.5 Item 29)
17		- Damper (P/O PL 15.5 Item 29)
18	127K40120 запросить цену →	Document Drive Motor
19		- Bracket (P/O PL 15.4 Item 3)
20	121K34460 запросить цену →	Exit Reverse Clutch (DADF Only)
21		- Bearing (Oil less) (P/O PL 15.4
22		- Gear (23T) (P/O PL 15.4 Item 3)
23		- Gear (23T) (DADF Only) (P/O PL
24		- Gear (39T) (P/O PL 15.4 Item 3)
25		- Gear (29T) (P/O PL 15.4 Item 3)
26		- Gear (60T-27T) (P/O PL 15.4 Item
27		- Gear (29T) (P/O PL 15.4 Item 3)
28		- Bearing (Oil less) (ADF Only) (P/O
29		- DADF Document Drive Motor
1	059K35940 запросить цену →	Retard Roll Assembly (with 2,3) (PL
2		- Registration Mylar (P/O PL 15.5
3		- Retard Mylar (P/O PL 15.5 Item 9)
4		- Base Lower Feeder Assembly (PL
5		- Arm Pin (P/O PL 15.5 Item 9)
6		- Solenoid Arm (P/O PL 15.5 Item 9)
7		- Shaft (P/O PL 15.5 Item 9)
8		- Paper Guide Plate (P/O PL 15.5
9		- Bearing (Oil less) (P/O PL 15.5
10		- Gear (15T) (P/O PL 15.5 Item 9)
11		- Lift Shaft (P/O PL 15.5 Item 9)
12		- Lift (DADF Only) (P/O PL 15.5 Item
1		- Bottom Chute (with Item 18) (P/O
2		- White Sheet (P/O PL 15.6 Item 4)
3		- Bottom Sheet (P/O PL 15.6 Item 4)
4		- Base Frame (P/O PL 15.6 Item 4)
5		- Read In/Out Roller (P/O PL 15.6
6		- Bearing (Oil less) (P/O PL 15.6
7		- Registration Roller (P/O PL 15.6
8		- Front Bracket (P/O PL 15.6 Item 4)
9		- Rear Bracket (P/O PL 15.6 Item 4)
10		- DADF Invert Gate (P/O PL 15.6
11		- Sensor Holder (P/O PL 15.7 Item
12		- Invert Sensor (DADF Only) (P/O PL
13		- Invert Sensor Actuator (DADF
14		- Spring (DADF Only) (P/O PL 15.7
15		- Document Lead Edge Sensor (P/O
16		- Document Lead Edge Sensor
17		- Spring (P/O PL 15.7 Item 19)
18		- Seal (P/O PL 15.6 Item 4)
19		- Registration Sensor Assembly
1		- Plate (P/O PL 15.8 Item 25)
2		- Gear (18T) (P/O PL 15.8 Item 25)
3		- Bearing (P/O PL 15.8 Item 25)
4		- Lift Arm (DADF Only) (P/O PL 15.8
5		- Exit Roller (P/O PL 15.8 Item 25)
6		- Rear Exit Arm (P/O PL 15.8 Item
7		- Spring (Coil) (P/O PL 15.8 Item 25)
8		- Rear Release Arm (P/O PL 15.8
9		- Front Exit Arm (P/O PL 15.8 Item
10		- Spring (Coil) (P/O PL 15.8 Item 25)
11		- Gear (18T) (P/O PL 15.8 Item 25)
12		- Exit Roll Drive Shaft (P/O PL 15.8
13		- Release Shaft (P/O PL 15.8 Item
14		- Front Release Arm (P/O PL 15.8
15		- Spring Plate (P/O PL 15.8 Item 25)
16		- Spring Plate (P/O PL 15.8 Item 25)
17		- Plate (P/O PL 15.6 Item 1)
18		- Retard Roll Chute (REP 15.8.1 ) (P/
19		- Retard Roll Drive Shaft (P/O PL
20		- Bush (P/O PL 15.6 Item 1)
21		- Bush (P/O PL 15.6 Item 1)
22		- Spring (Coil) (P/O PL 15.6 Item 1)
23		- Retard Roll (REP 15.8.1 ) (P/O PL
24		- Gear (20T) (P/O PL 15.6 Item 1)
25		- Exit Roll Assembly (DADF Only) (P/
1		- Lock Lever (P/O PL 15.4 Item 1)
2		- Spring (P/O PL 15.4 Item 1)
3		- Main Shaft (P/O PL 15.4 Item 1)
4		- Bearing (P/O PL 15.4 Item 1)
5		- Pickup Roll (REP 15.9.1) (P/O PL
6		- Pickup Roll Shaft (P/O PL 15.4 Item
7		- Housing (P/O PL 15.4 Item 1)
8		- Gear (18T-22T) (P/O PL 15.4 Item
9		- Feed Roll (REP 15.9.1) (P/O PL
10		- Gear (22T) (P/O PL 15.4 Item 1)
11		- Plate (P/O PL 15.4 Item 1)
12		- Spring Box (P/O PL 15.4 Item 1)
13		- Spring (Coil) (P/O PL 15.4 Item 1)
14		- Spring Housing (P/O PL 15.4 Item
15		- Front Lock Arm (P/O PL 15.4 Item
16		- Top Frame (P/O PL 15.4 Item 1)
17		- Rear Lock Arm (P/O PL 15.4 Item
18		- Sensor Holder (P/O PL 15.9 Item
19		- Document Set Sensor Actuator (P/
20		- Document Feeder Width Sensor
21		- Document Feeder Width Sensor (P/
22		- Document Set Sensor (P/O PL 15.9
23		- Sensor Holder (P/O PL 15.9 Item
24		- Document Feed Sensor (P/O PL
25		- Document Feed Sensor Actuator
26		- Spring (P/O PL 15.9 Item 37)
27		- Bearing (One Way) (P/O PL 15.4
28		- Shaft (P/O PL 15.4 Item 1)
29		- Registration Pinch Roller (P/O PL
30		- Plate (P/O PL 15.4 Item 1)
31		- DADF/ADF Top Cover Switch (P/O
32		- Bearing (P/O PL 15.4 Item 1)
33	121K34460 запросить цену →	Document Feed Clutch
34		- Gear (20T) (P/O PL 15.4 Item 1)
35		- Adjust Plate (P/O PL 15.4 Item 1)
36		- Spring (P/O PL 15.4 Item 1)
37		- Read Sensor Assembly (P/O PL
38		- Document Set Sensor Assembly
1		- Upper Document Tray (P/O PL
2		- Front Side Guide (P/O PL 15.10
3		- Rear Side Guide (P/O PL 15.10
4		- Width Sensor Actuator (P/O PL
5		- Eliminator (P/O PL 15.10 Item 16)
6		- Pinion Gear (P/O PL 15.10 Item 16)
7		- Pinion Spring (P/O PL 15.10 Item
8		- Clear Cover (P/O PL 15.10 Item 16)
9		- Lower Document Tray (P/O PL
10		- Document Tray Width Sensor 1 (P/
11		- Document Tray Width Sensor 2 (P/
12		- Document Tray Length Sensor 1 (P/
13		- Document Tray Length Sensor 2 (P/
14		- Wire Harness (P/O PL 15.10 Item
15		- Earth Plate (P/O PL 15.10 Item 16)
16	050K51140 запросить цену →	Document Tray Assembly

Источник: Инк-Маркет.ру.

← Все статьи
