Sharp mxm266-316-356 pg — каталог запчастей со схемами

Содержание

1. cover
2. 外装(Exteriors)
3. 操作ﾊﾟﾈﾙ(Operation Panel)
4. ｽｷｬﾅﾕﾆｯﾄ1(Scanner Unit 1)
5. ｽｷｬﾅﾕﾆｯﾄ2(Scanner Unit 2)
6. ﾗﾝﾌﾟﾕﾆｯﾄ (Lamp unit)
7. 原稿検知部・ｵﾘｼﾞﾅﾙｶﾊﾞｰ (Original detect section・Original Cover)
8. RSPF 外装ﾕﾆｯﾄ(Exteriors section)

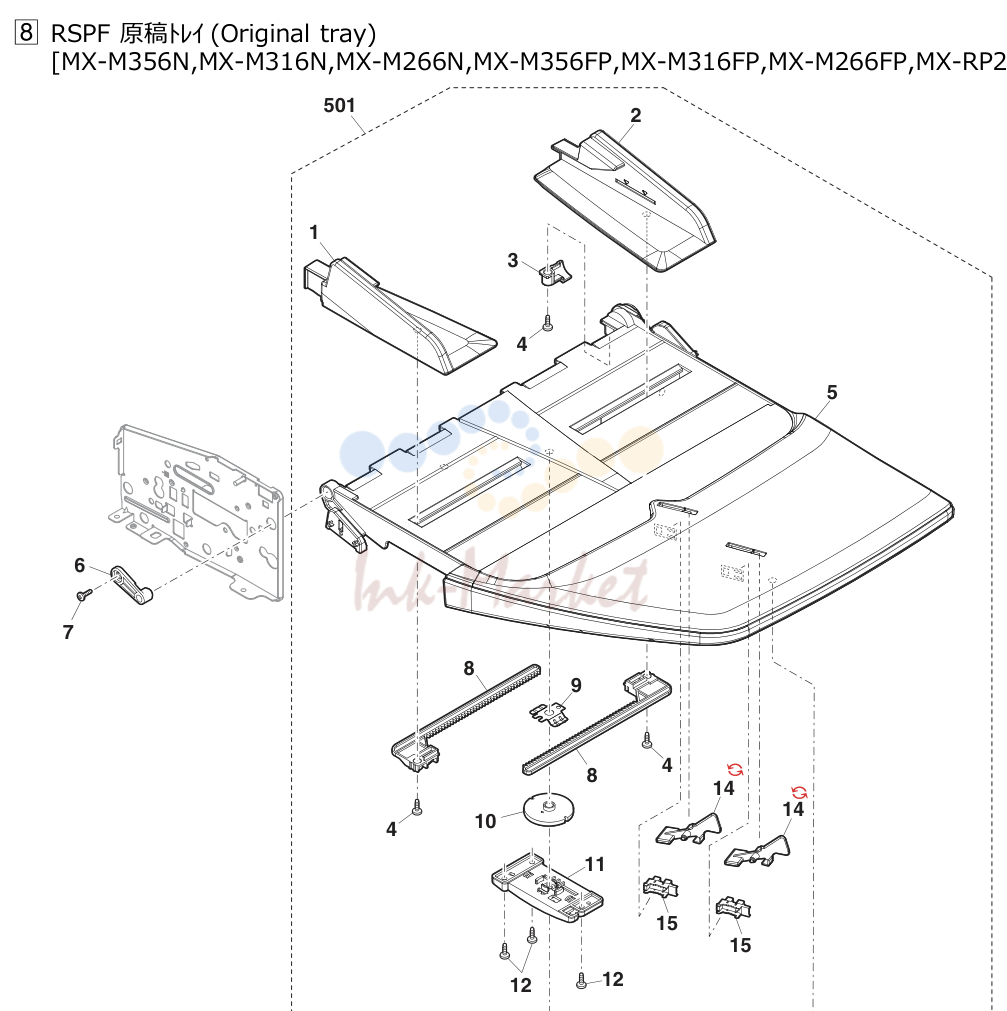

9. RSPF 原稿ﾄﾚｲ(Original tray)

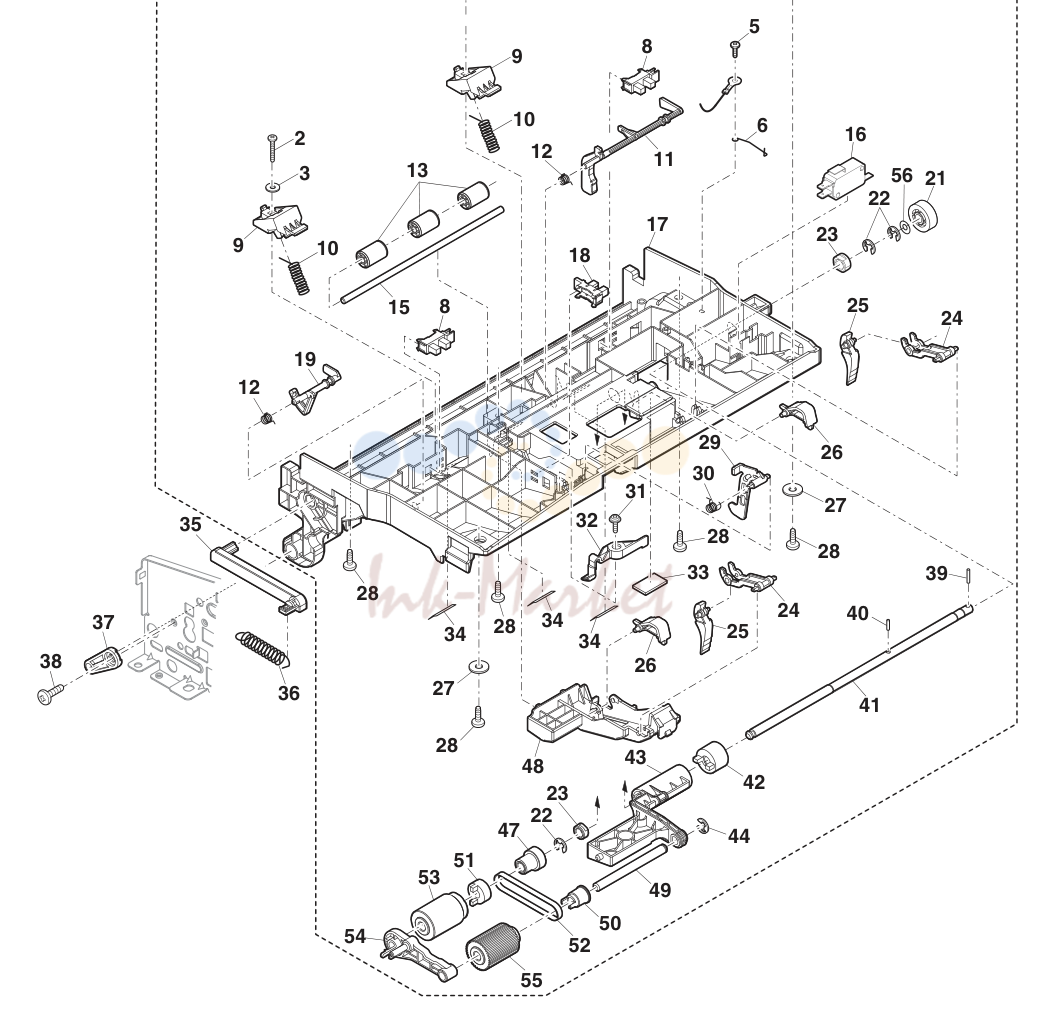

10. RSPF 給紙部(Paper feed section)

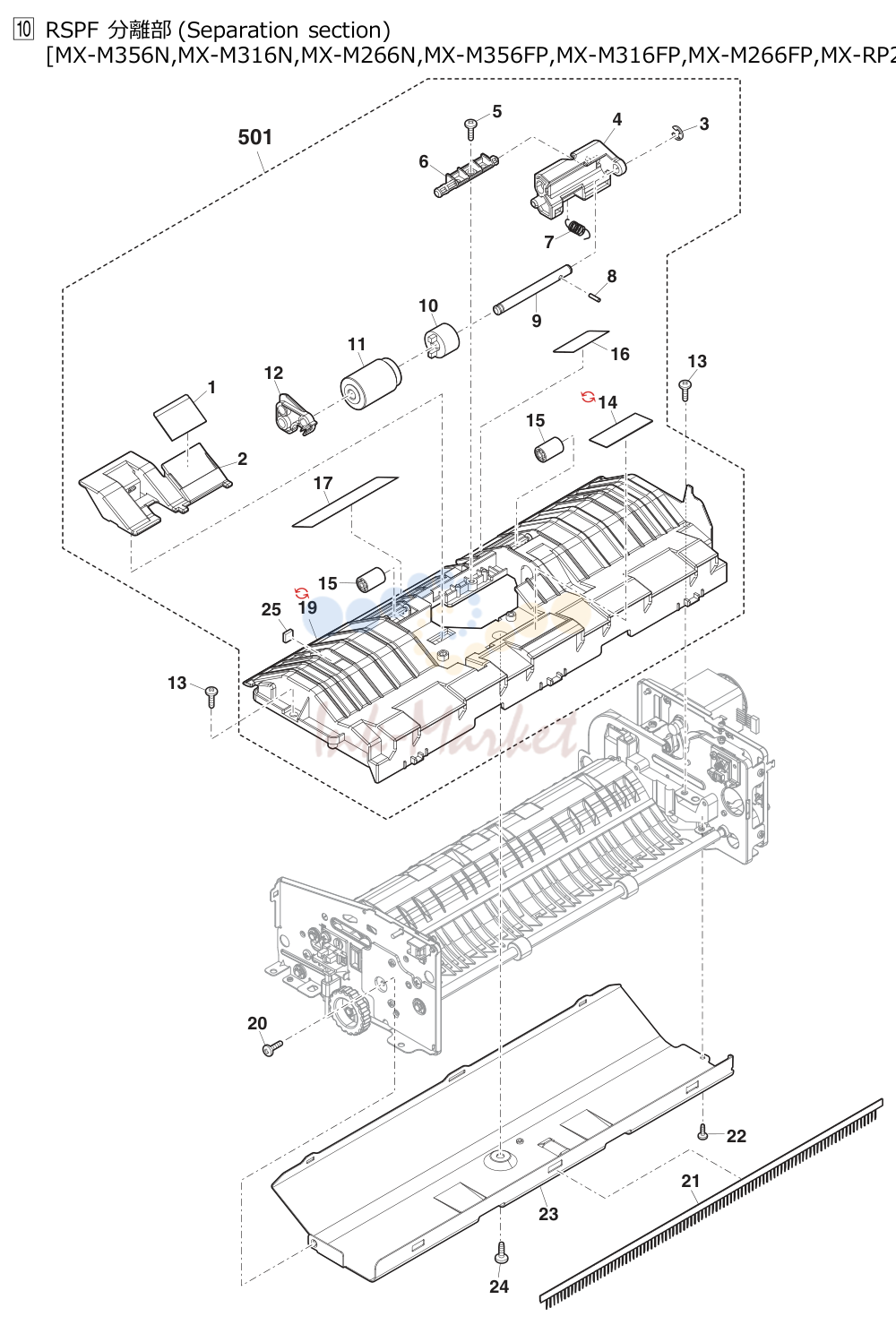

11. RSPF 分離部(Separation section)

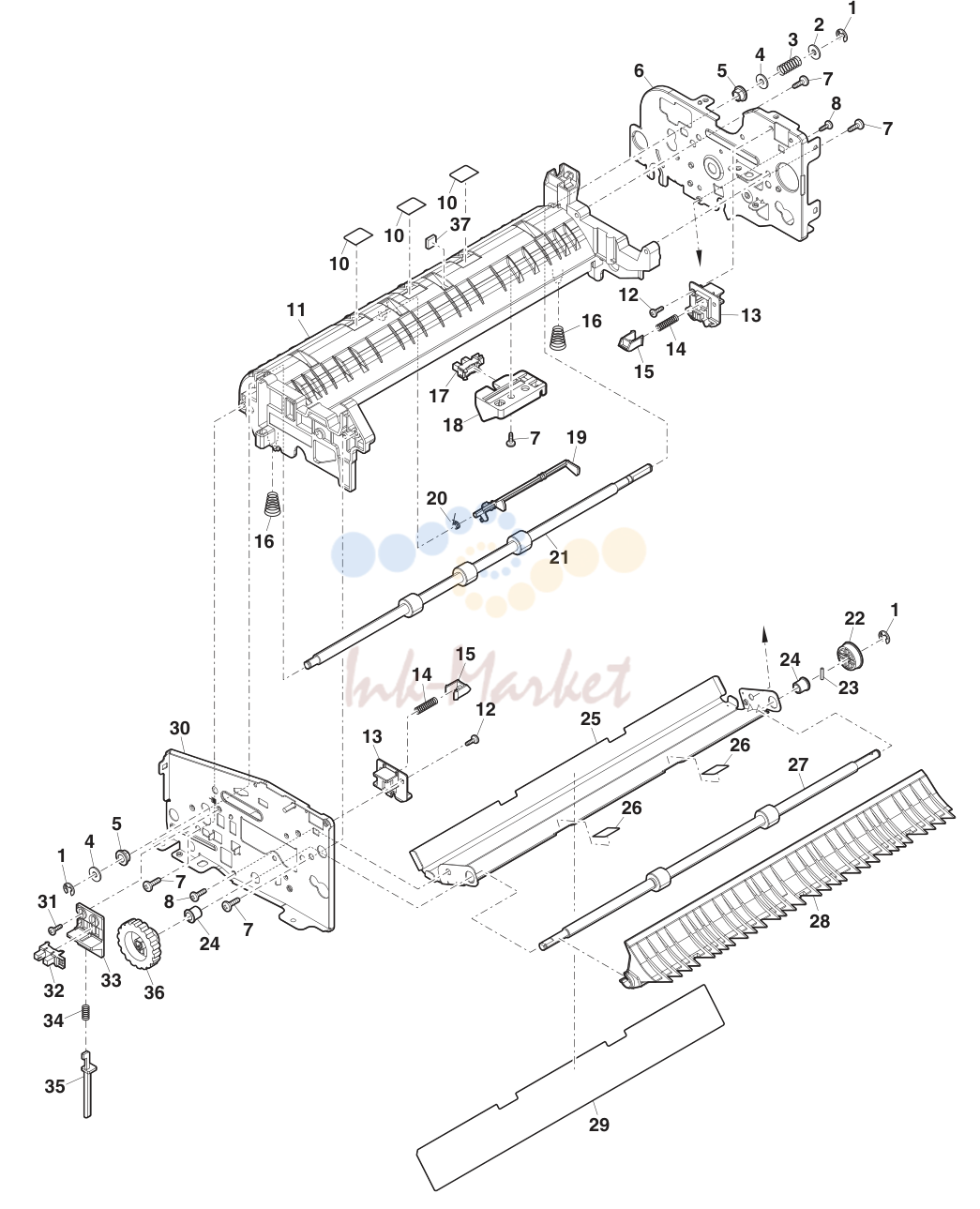

12. RSPF 搬送部1(Transport section 1)

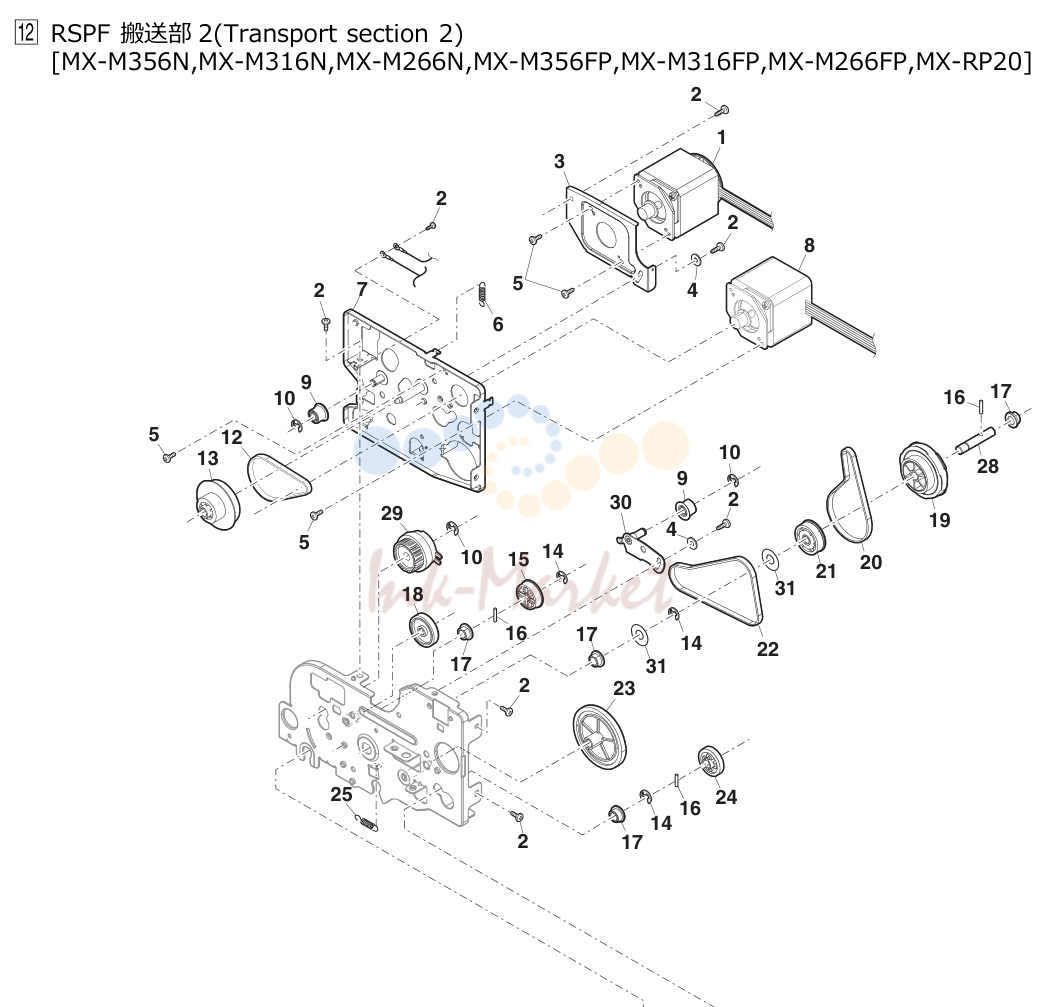

13. RSPF 搬送部2(Transport section 2)

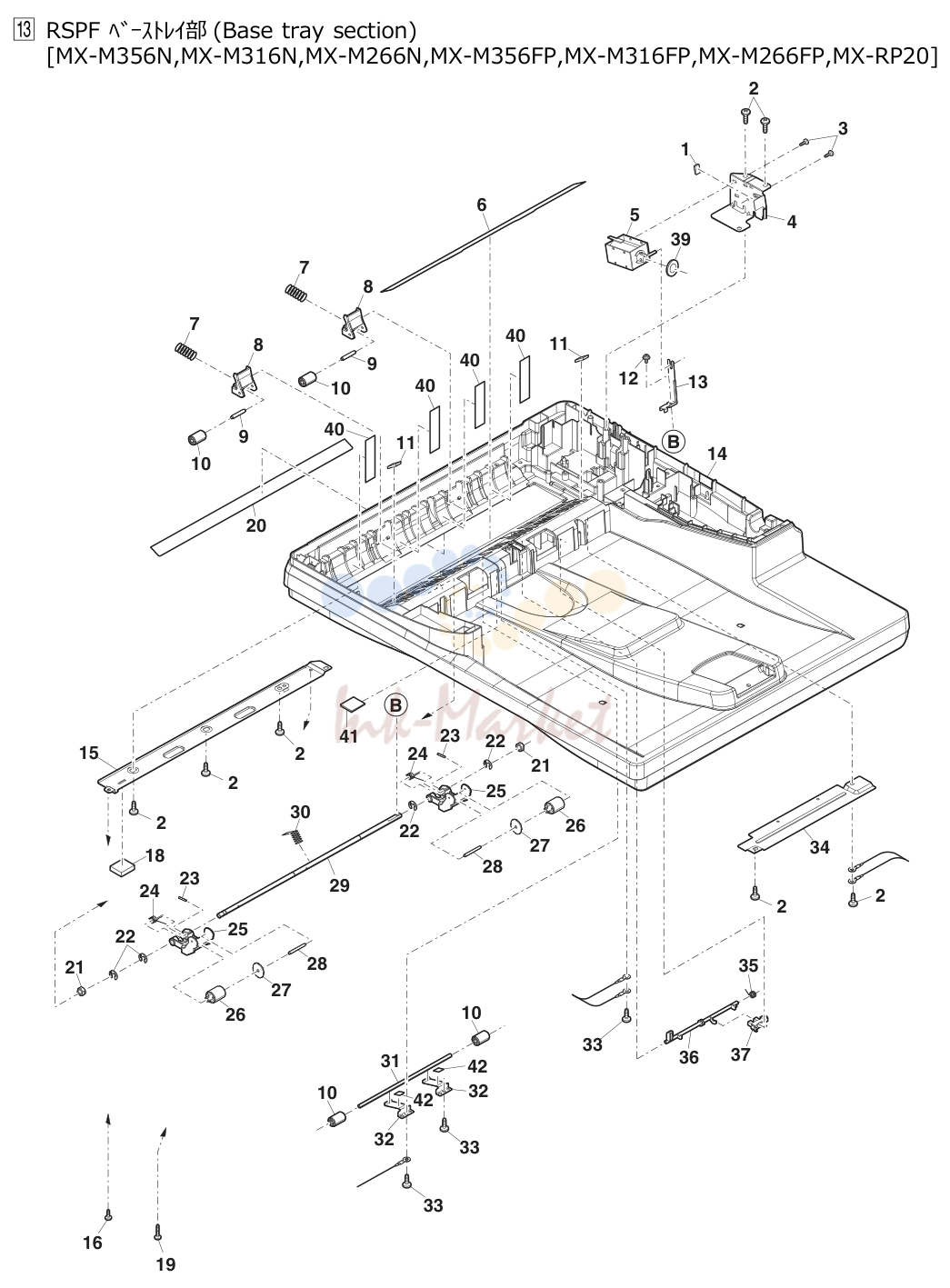

14. RSPF ﾍﾞｰｽﾄﾚｲ部(Base tray section)

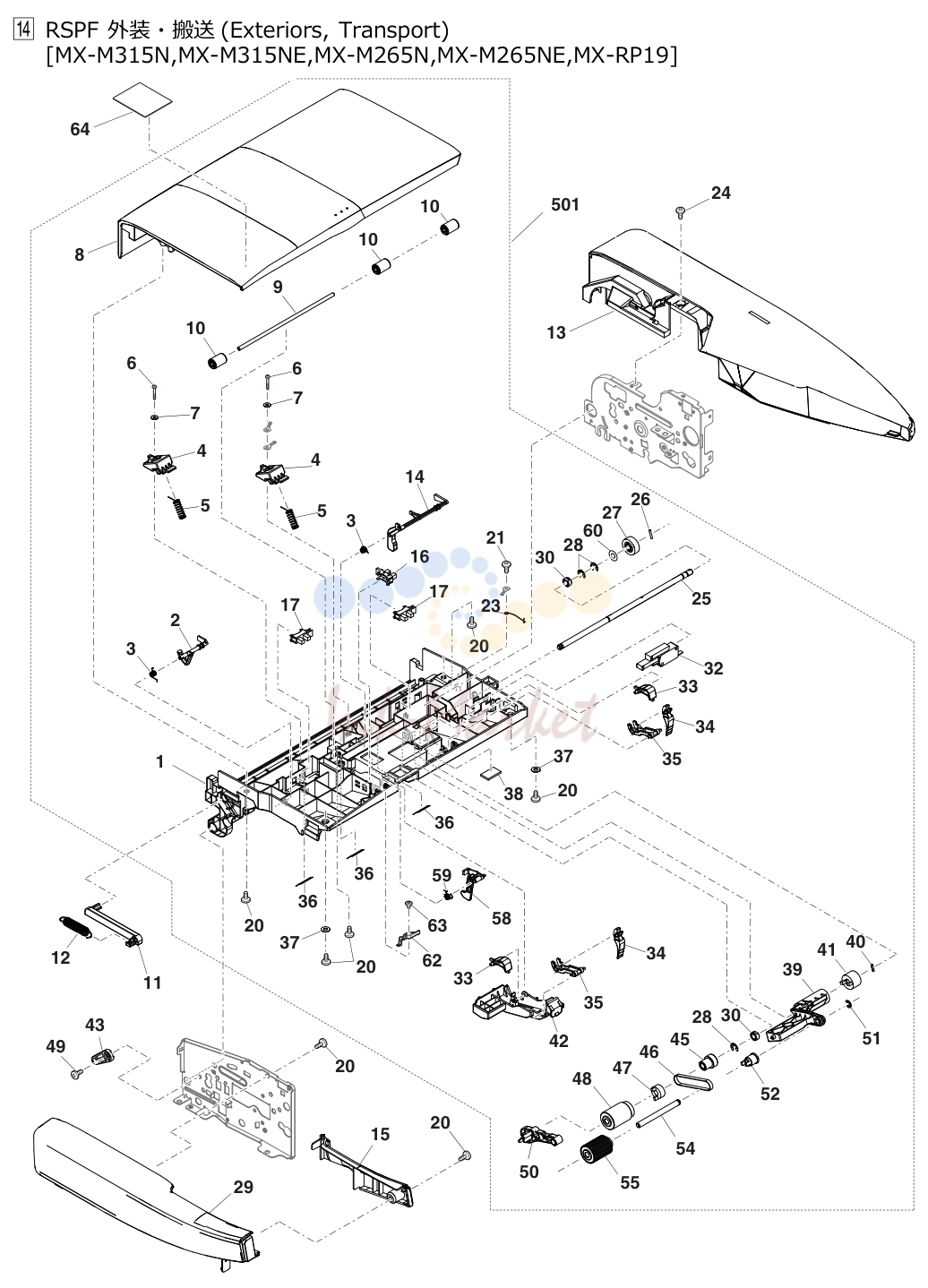

15. RSPF 外装・搬送(Exteriors, Transport)

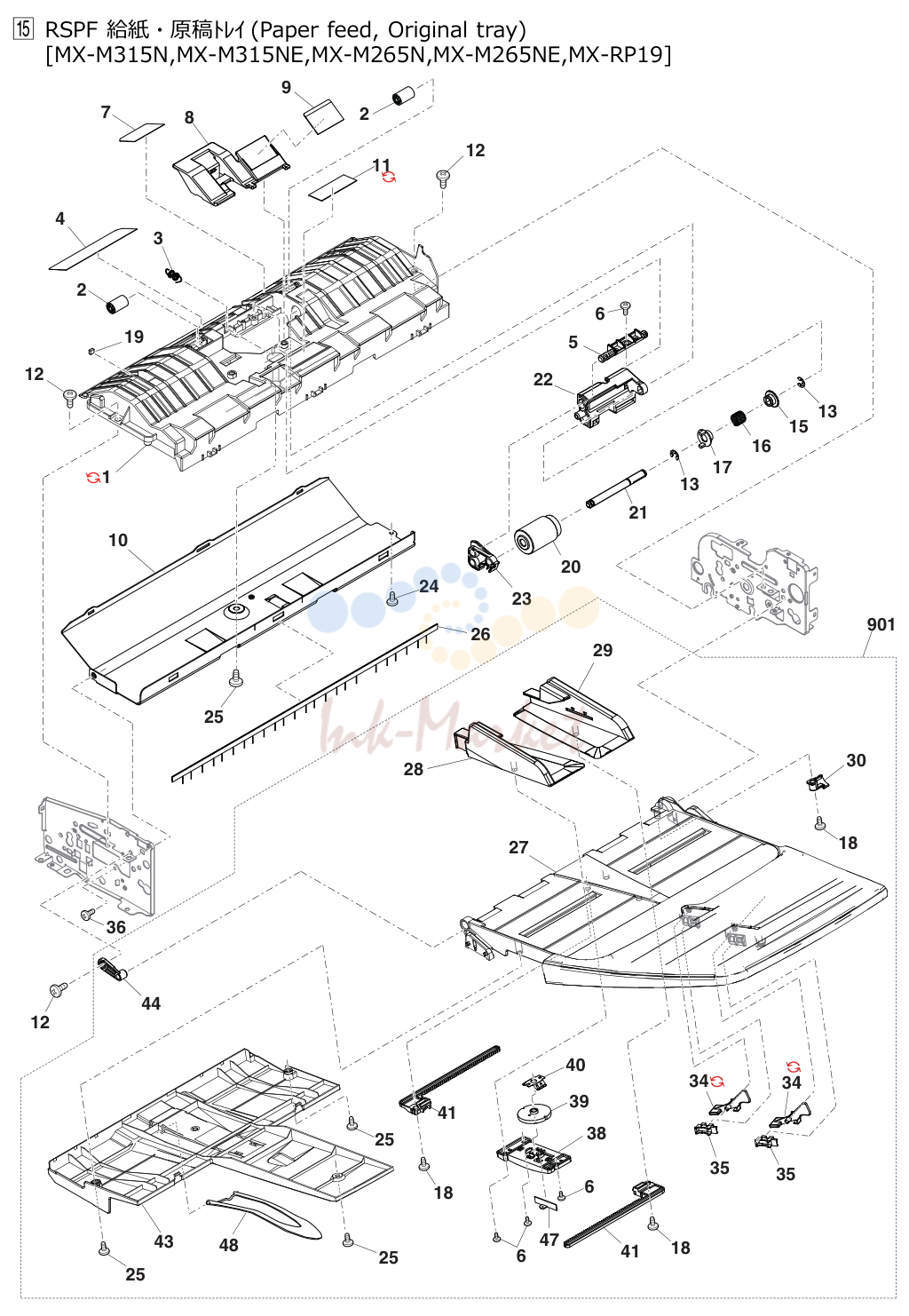

16. RSPF 給紙・原稿ﾄﾚｲ(Paper feed, Original tray)

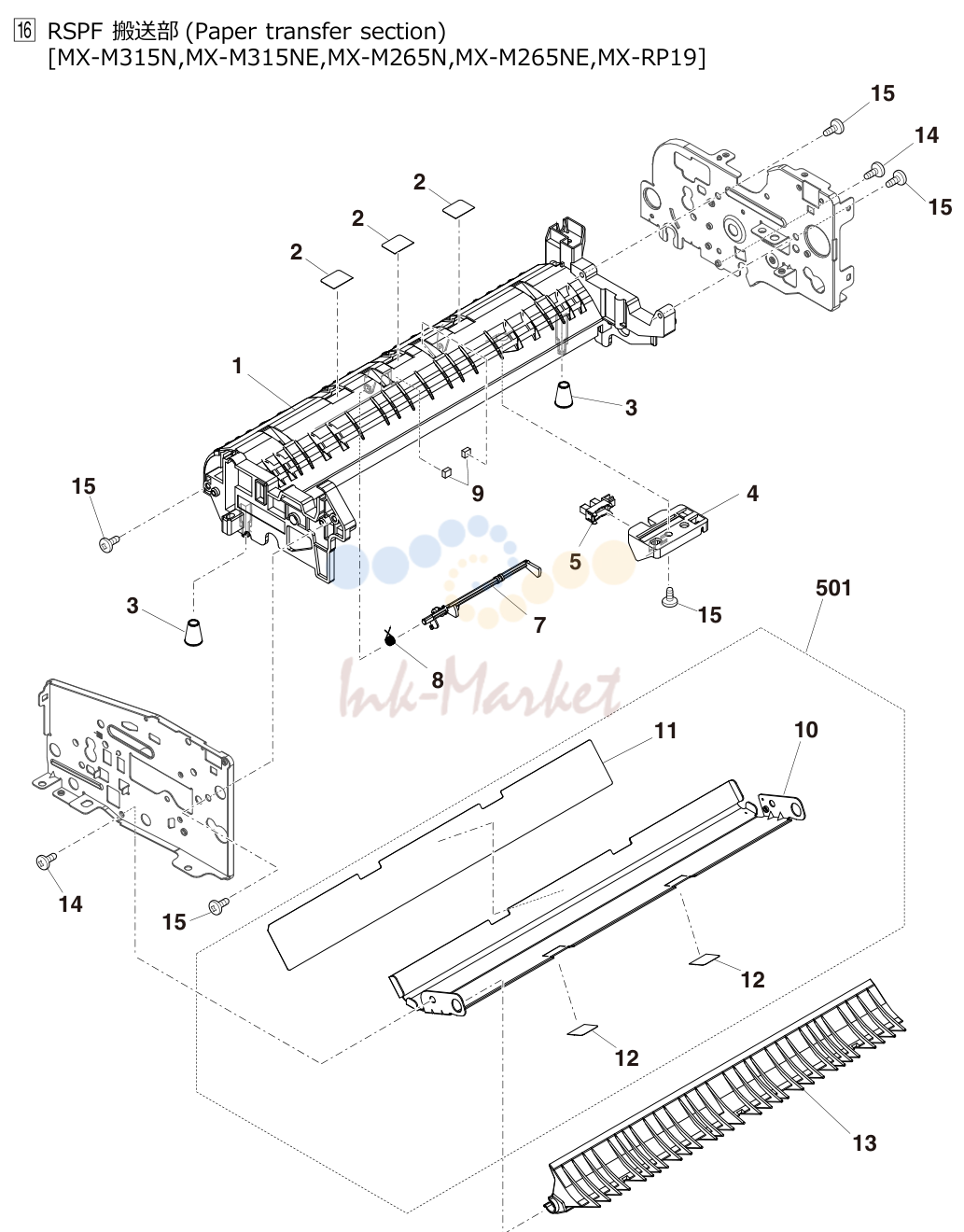

17. RSPF 搬送部 (Paper transfer section)

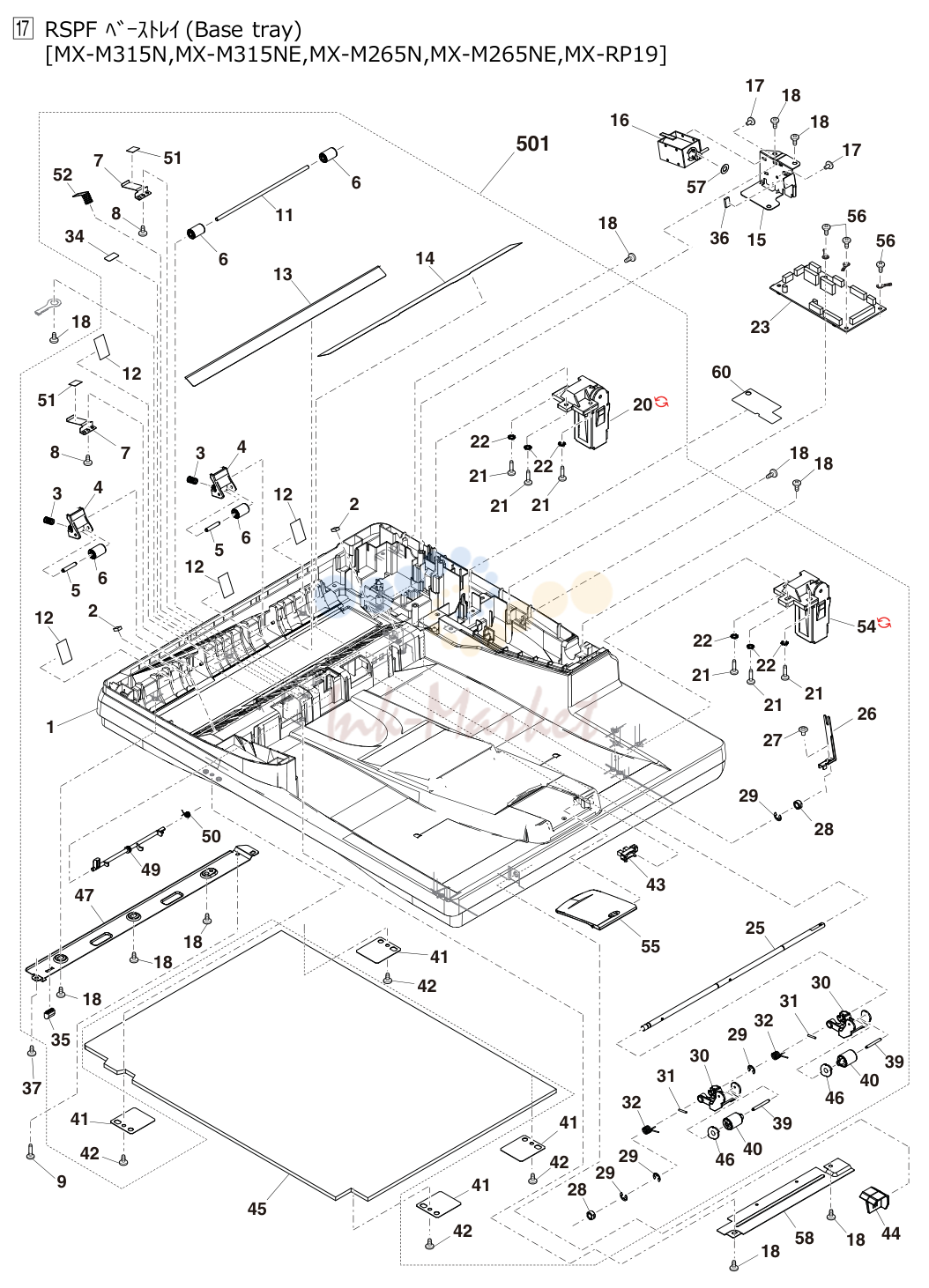

18. RSPF ﾍﾞｰｽﾄﾚｲ(Base tray)

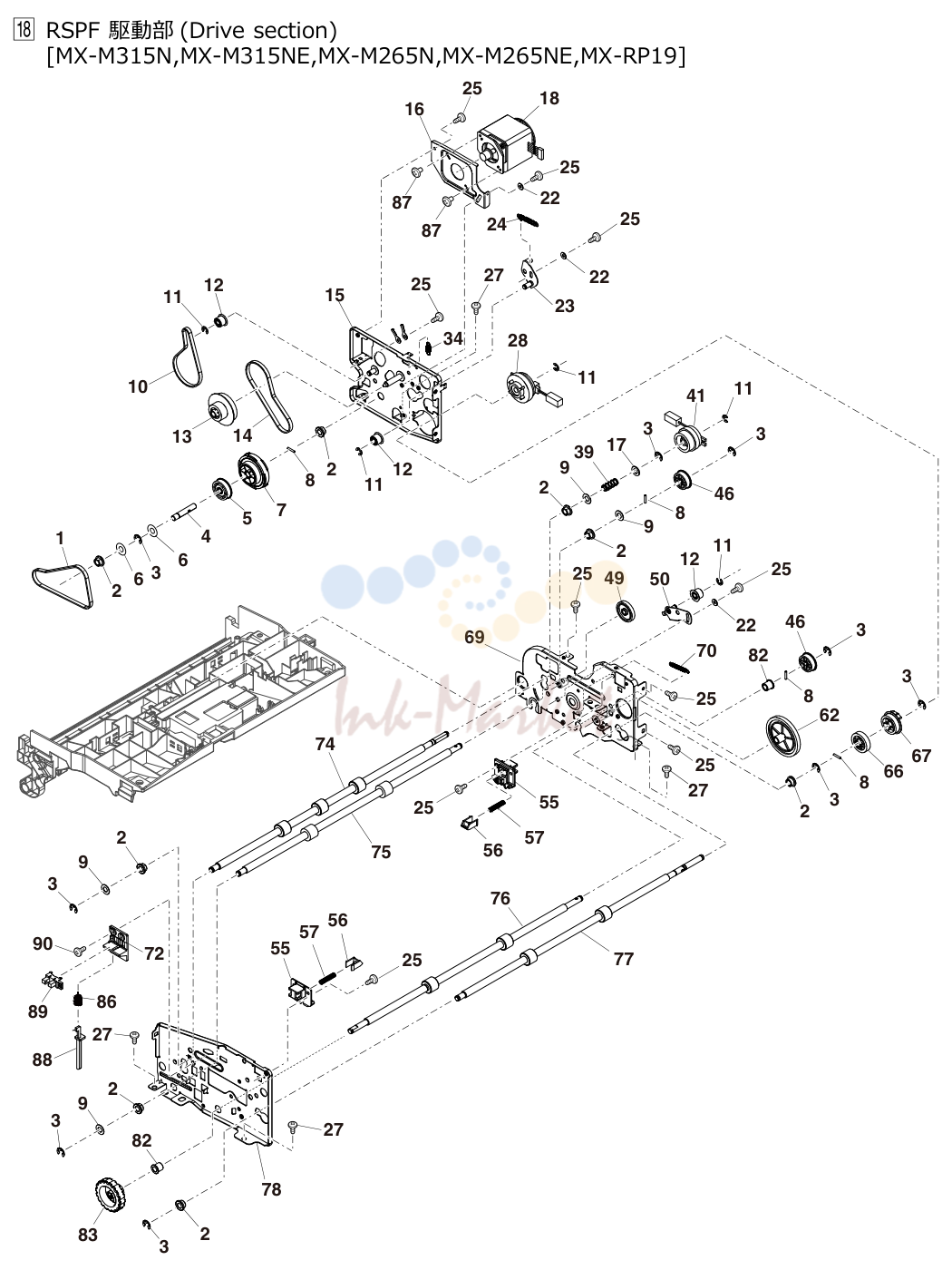

19. RSPF 駆動部(Drive section)

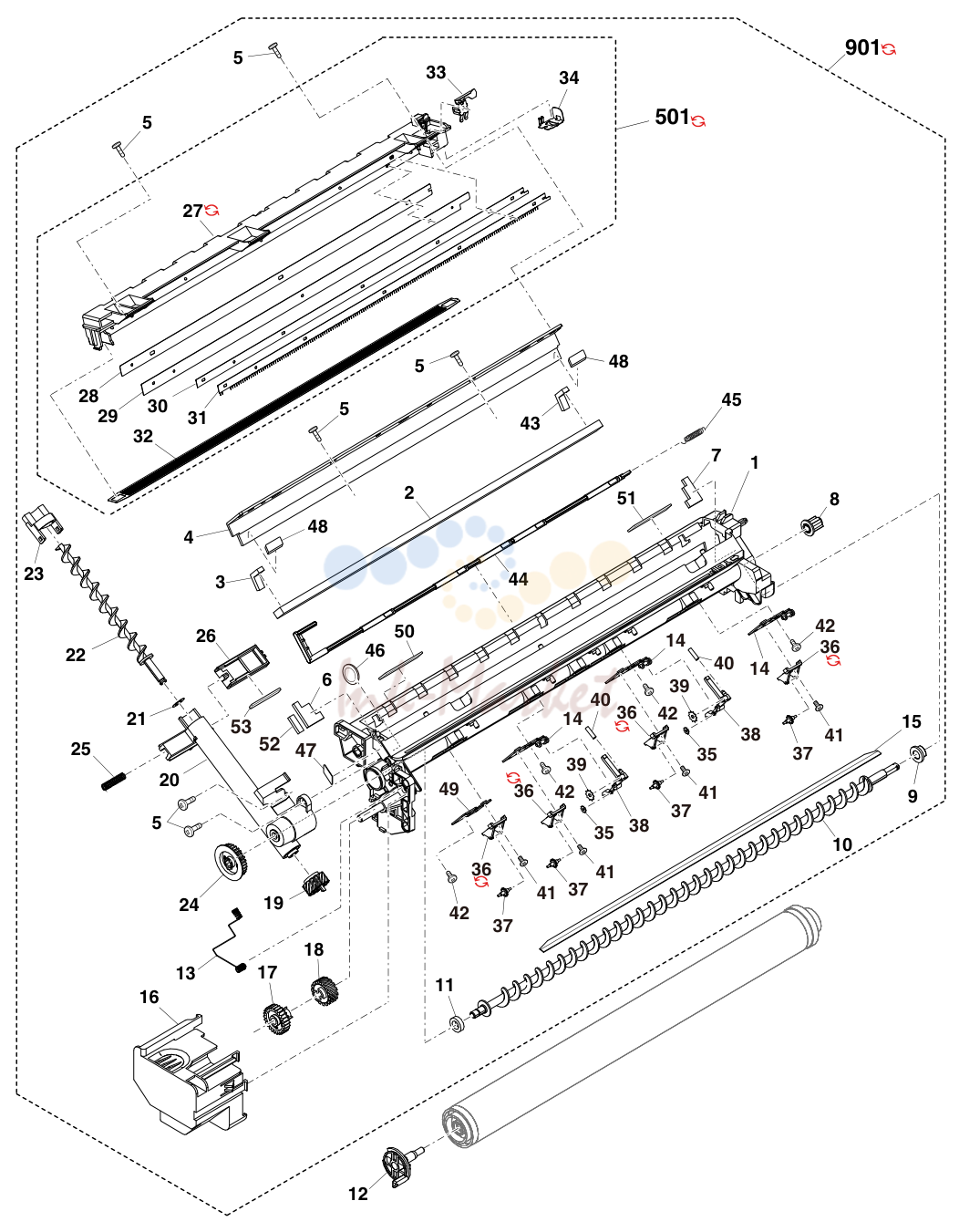

20. ﾌﾟﾛｾｽﾕﾆｯﾄ(Process unit)

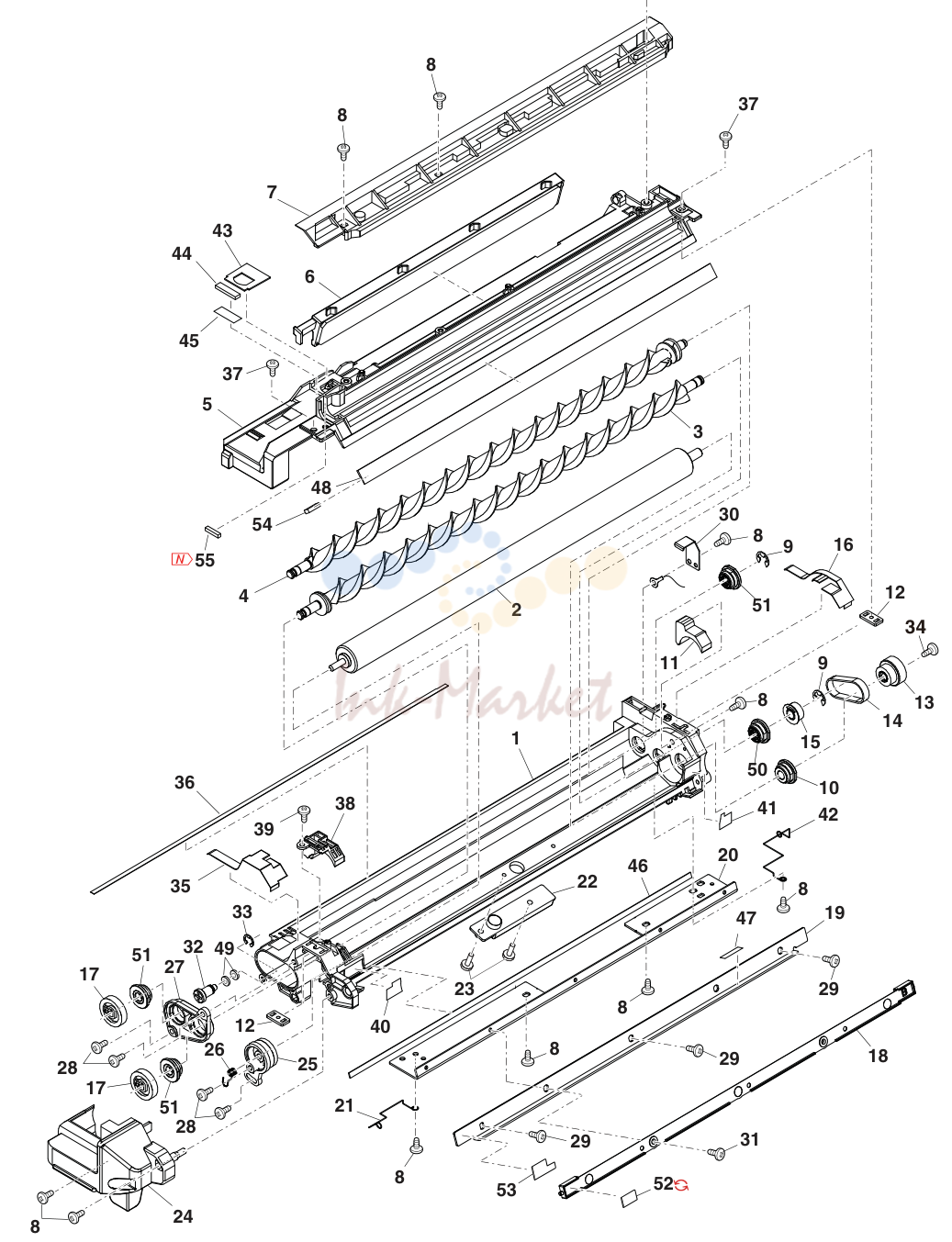

21. DV ﾕﾆｯﾄ(DV unit)

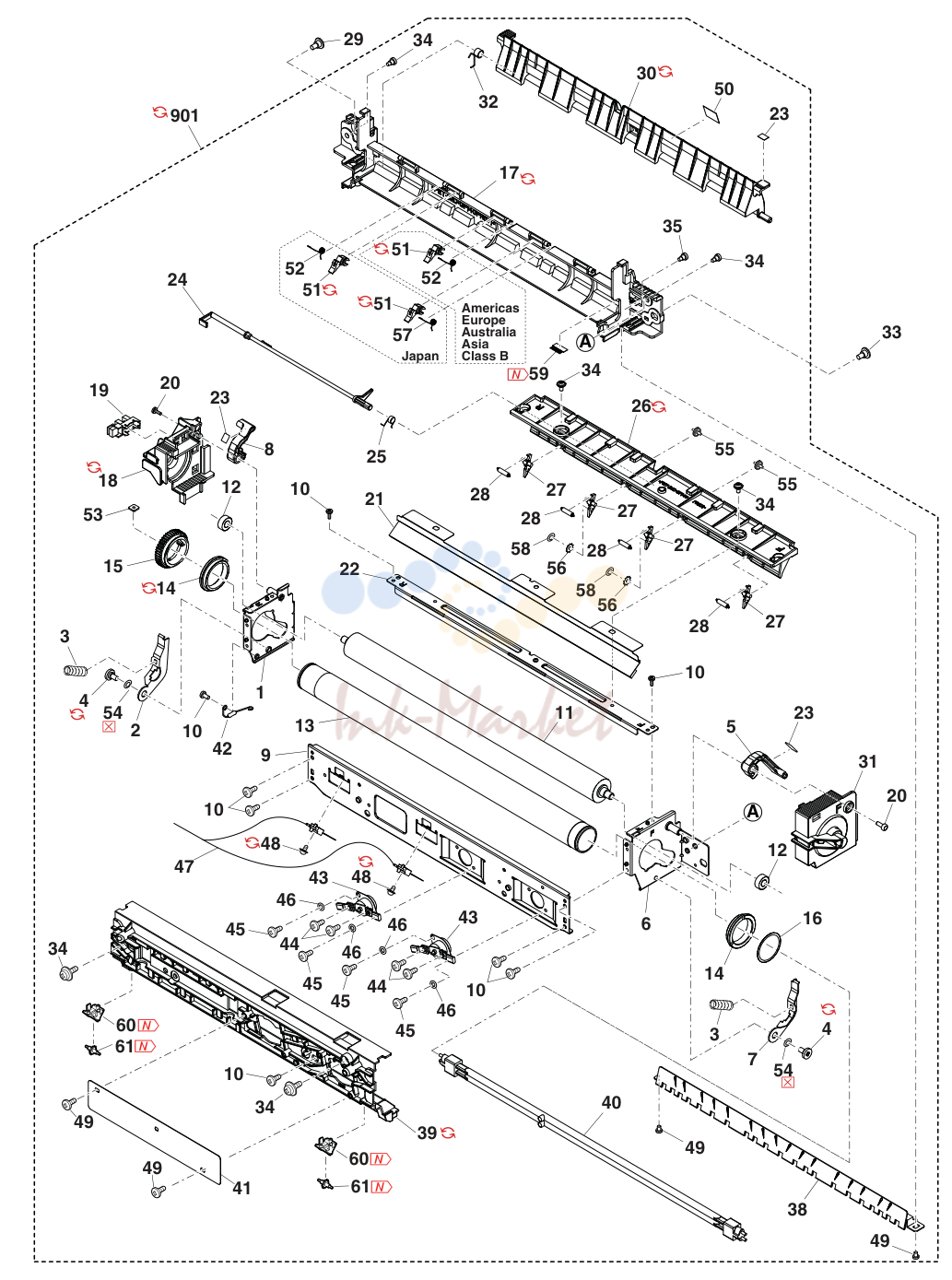

22. 定着ﾕﾆｯﾄ (Fusing unit)

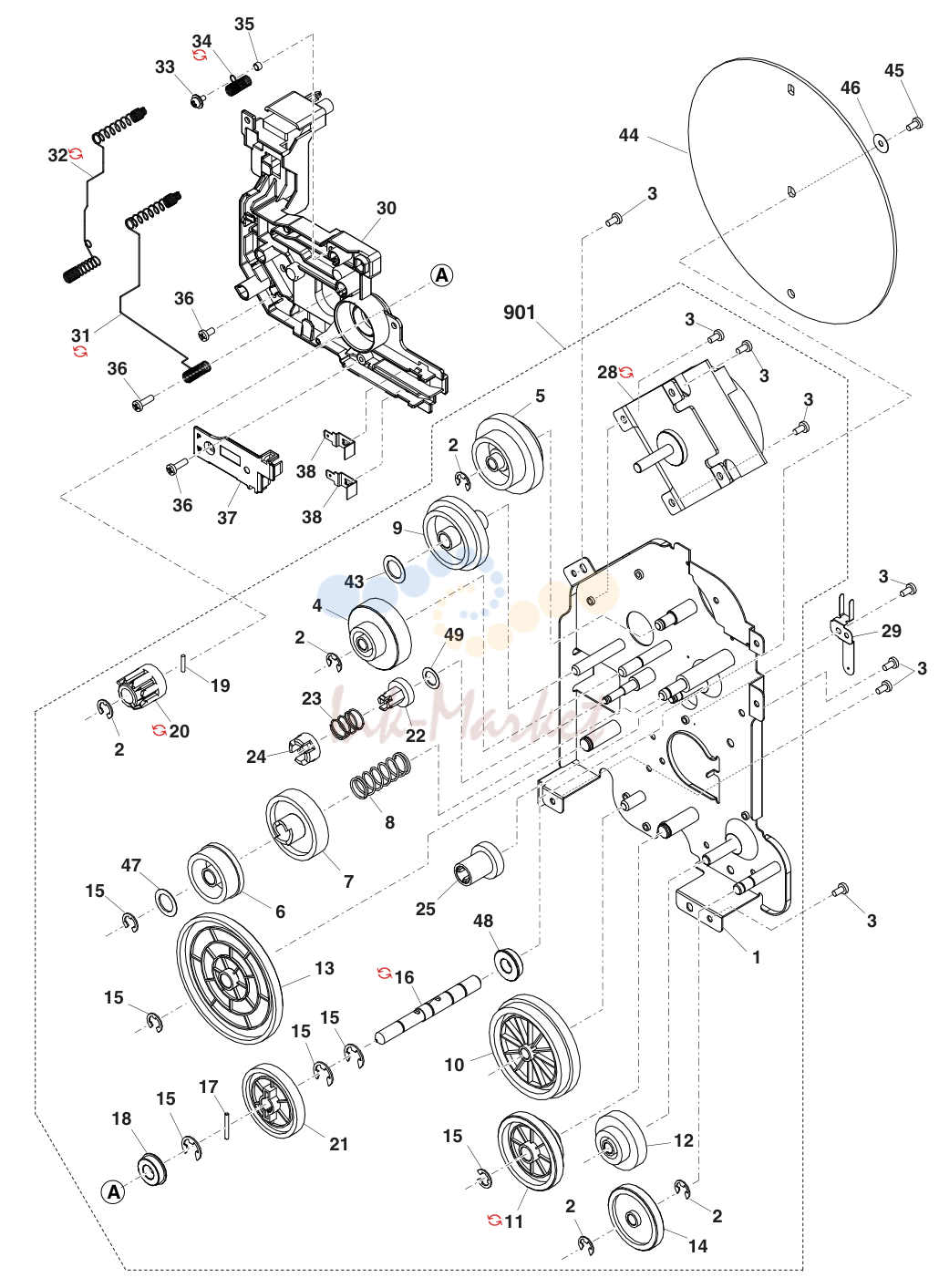

23. ﾒｲﾝ駆動ﾕﾆｯﾄ (Main drive unit)

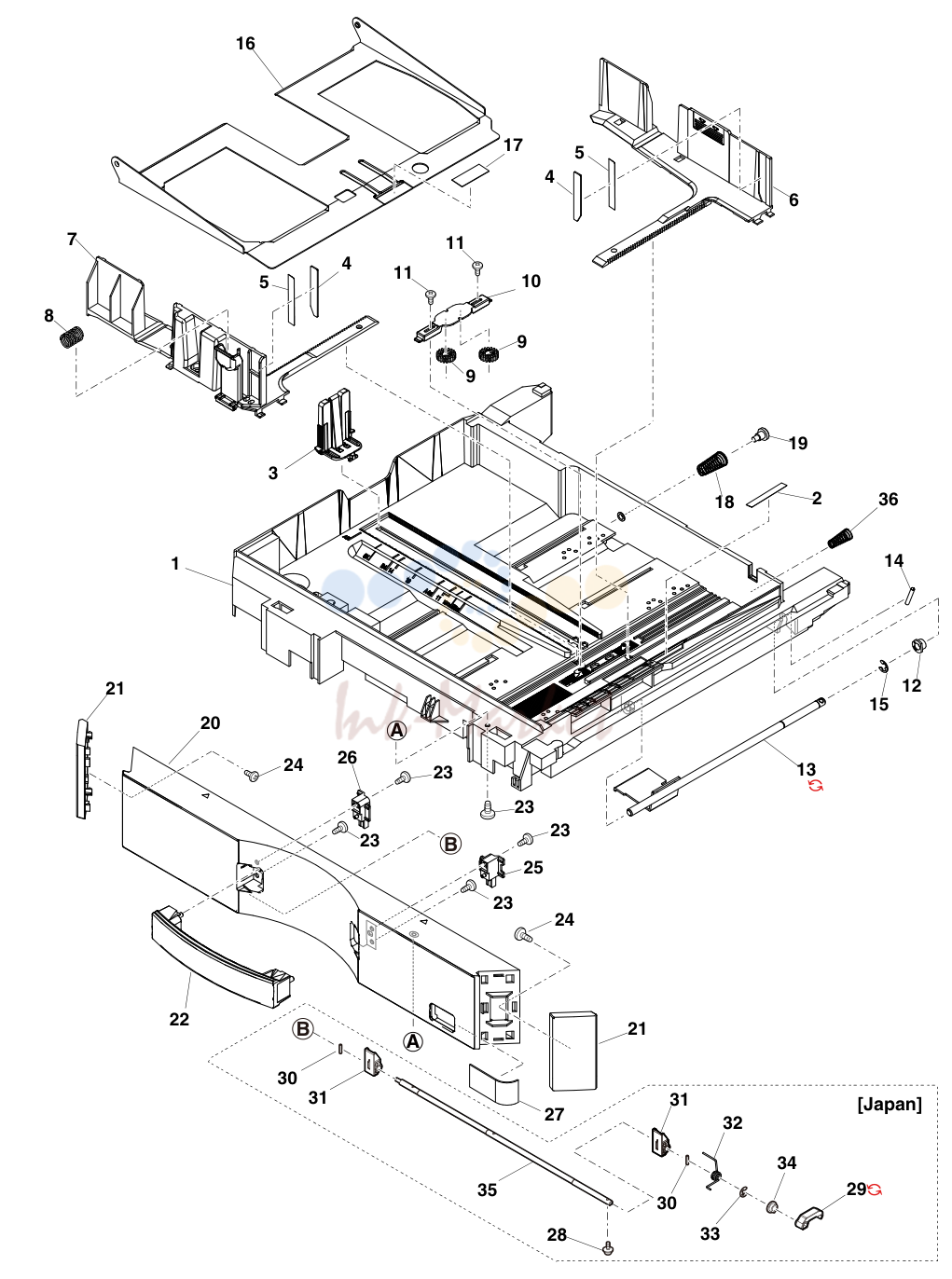

24. 500枚ﾄﾚｲﾕﾆｯﾄ(500 paper tray unit)

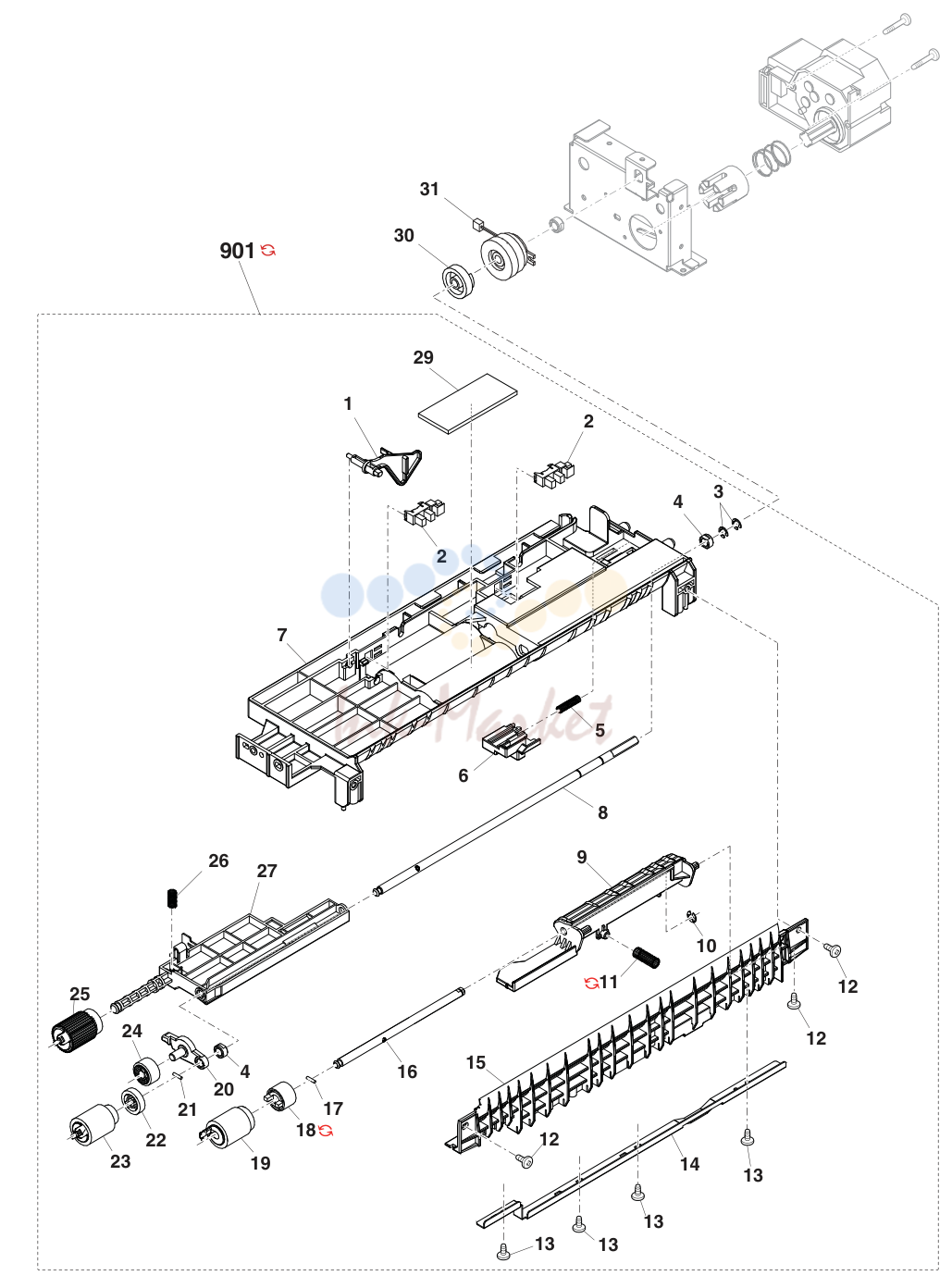

25. 給紙ﾕﾆｯﾄ(Paper Feed Unit)

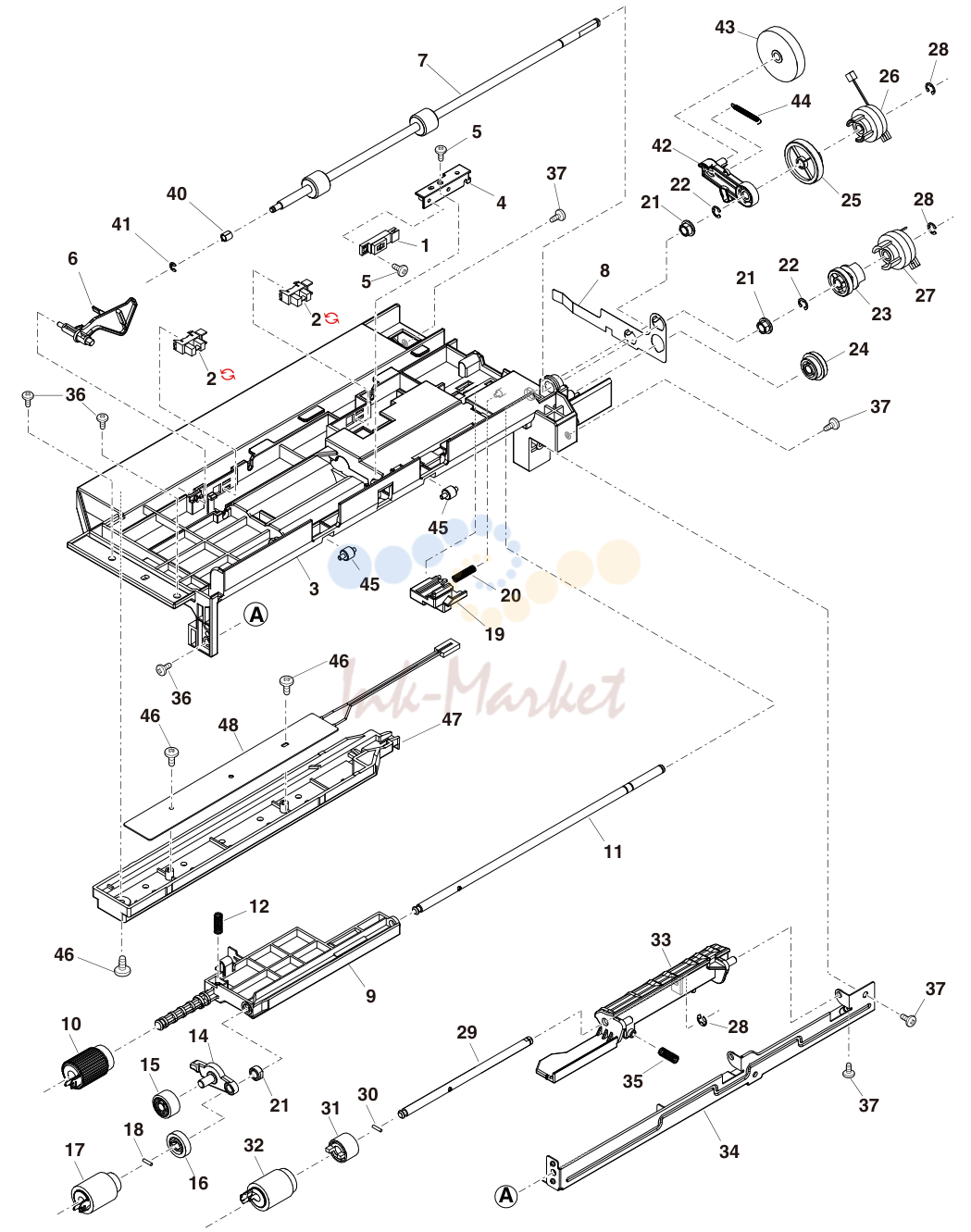

26. 2nd給紙ﾕﾆｯﾄ(2nd paper Feed Unit)[MX-M356N,MX-M316N,MX-M266N,MX-M315N,

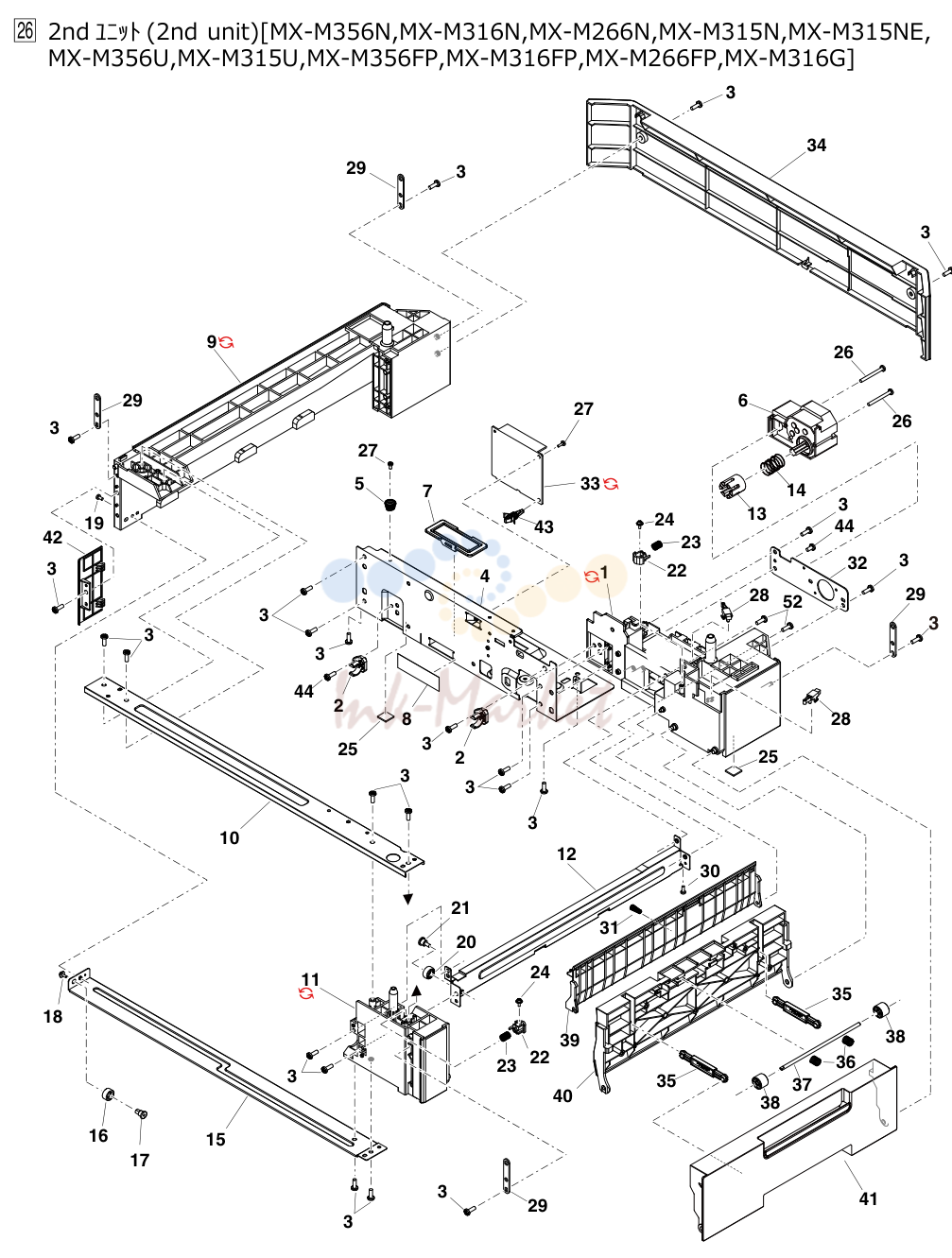

27. 2ndﾕﾆｯﾄ(2nd unit)[MX-M356N,MX-M316N,MX-M266N,MX-M315N,MX-M315NE,

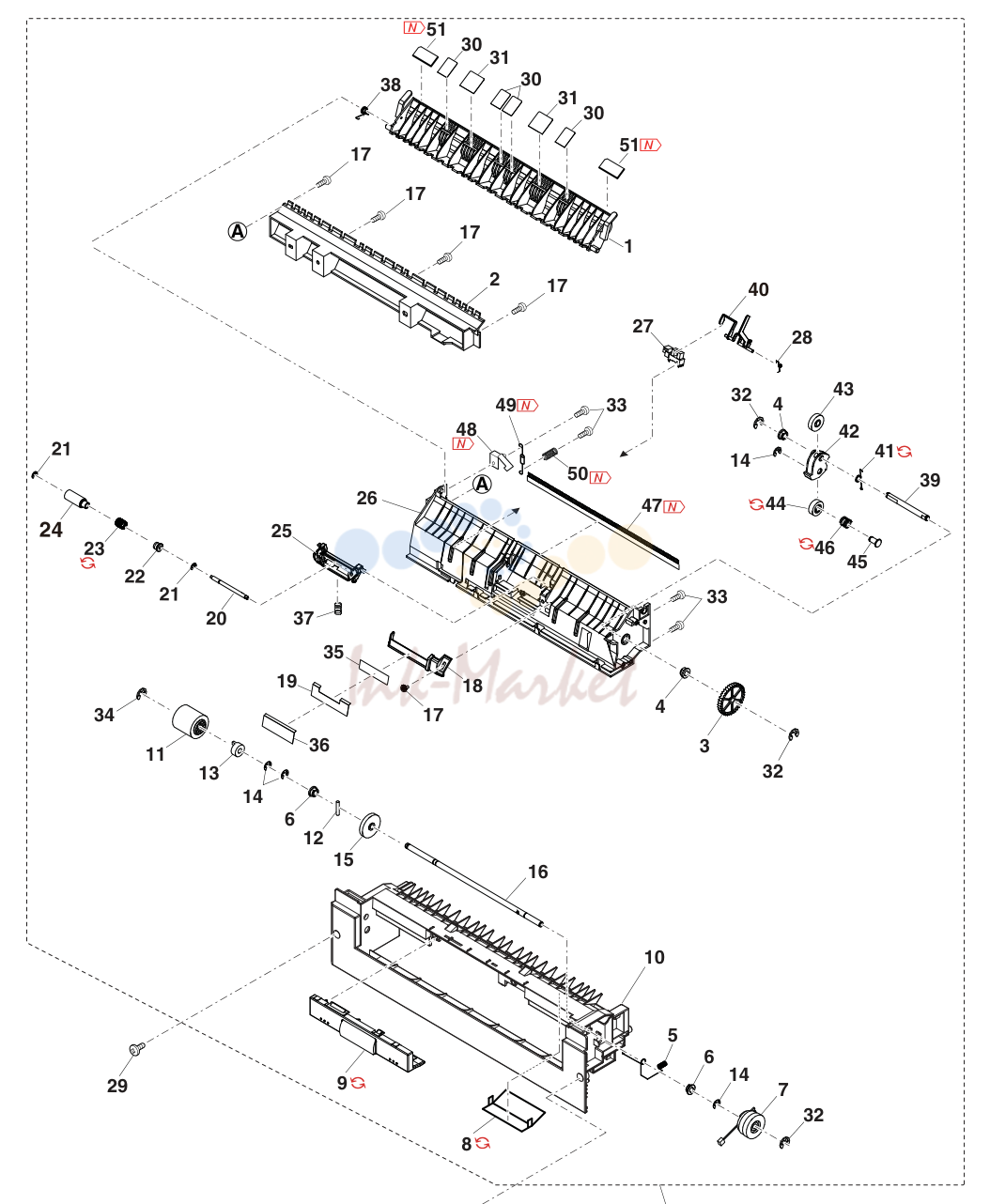

28. ⼿差しﾏﾙﾁ給紙ﾕﾆｯﾄ(Manual paper feed unit)

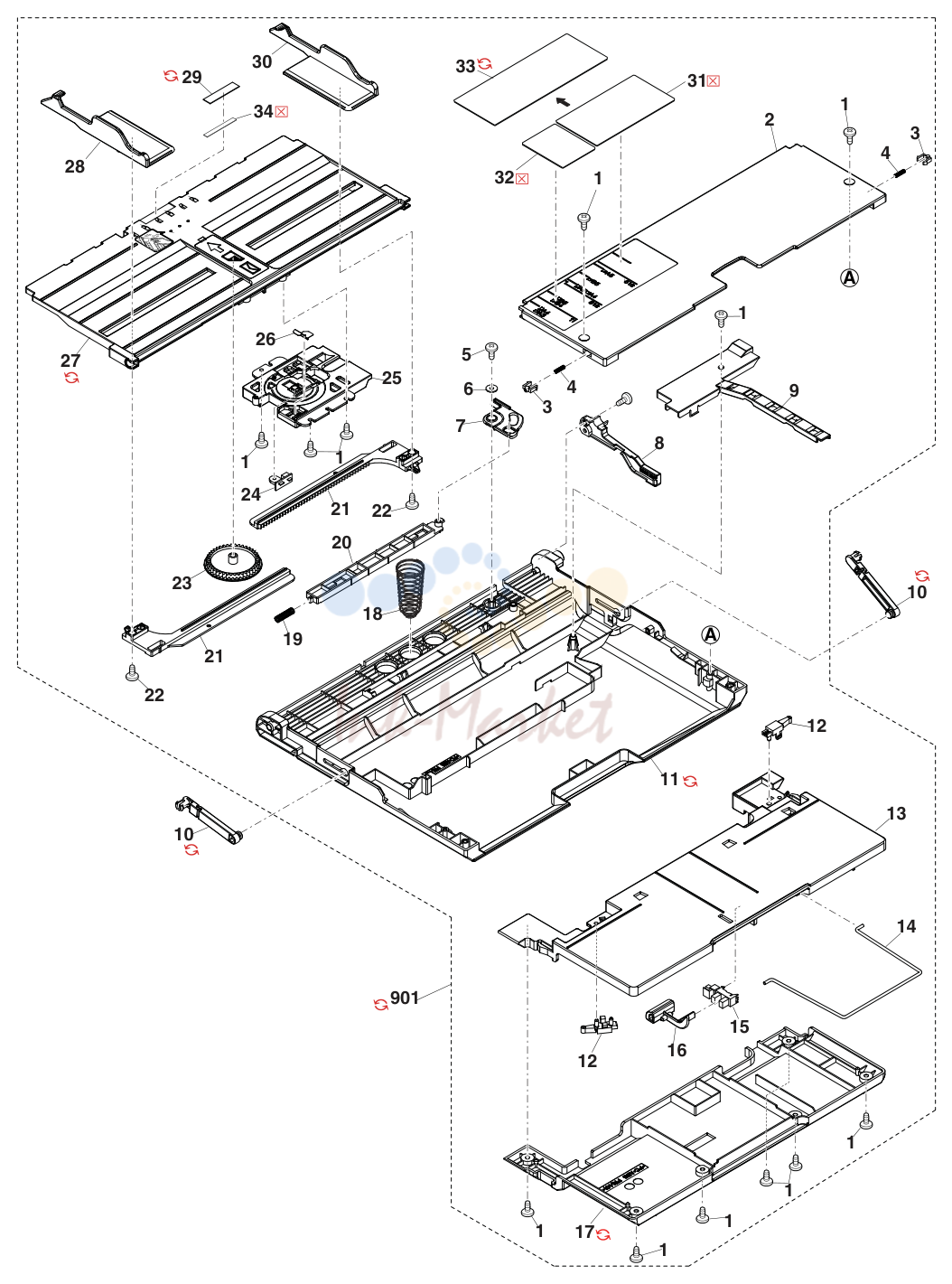

29. ⼿差しﾏﾙﾁ給紙ﾄﾚｲﾕﾆｯﾄ (Manual paper feed tray unit)

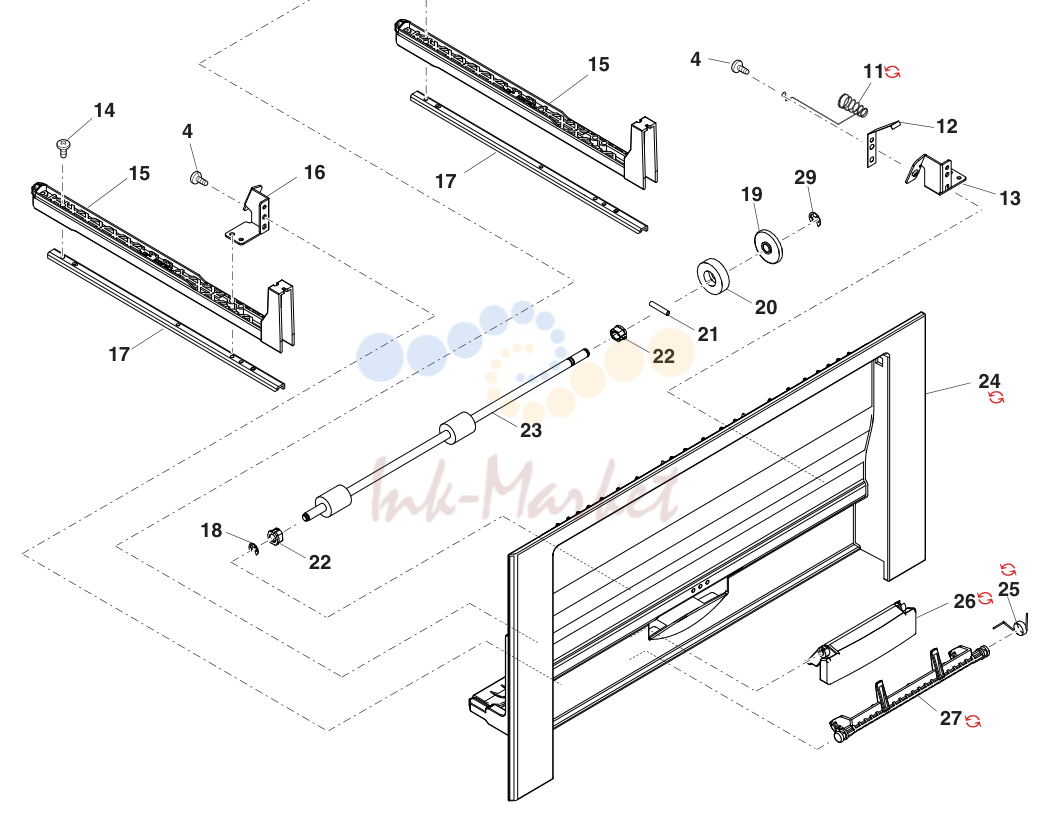

30. ｻｲﾄﾞﾄﾞｱﾕﾆｯﾄ (Side door unit)

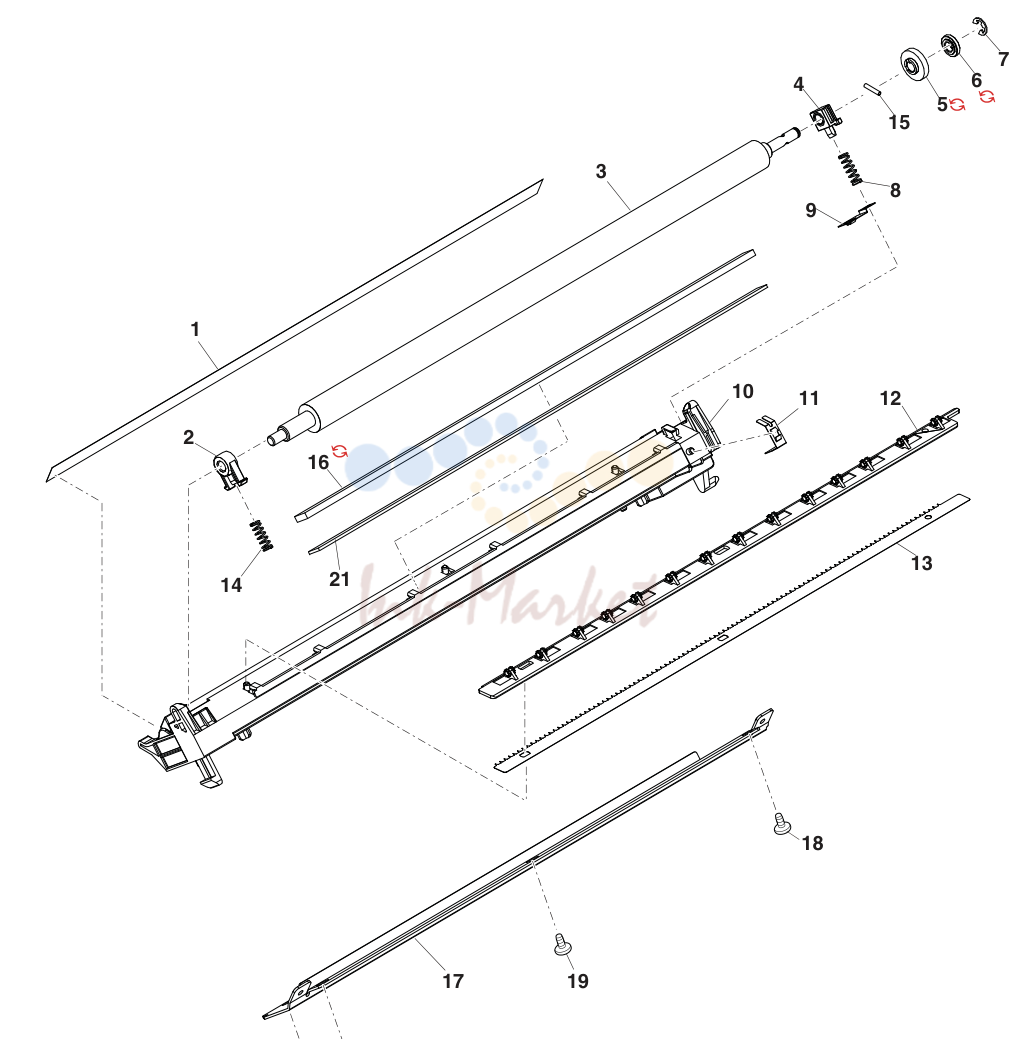

31. 転写ﾛｰﾗｰﾕﾆｯﾄ(Transfer roller unit)

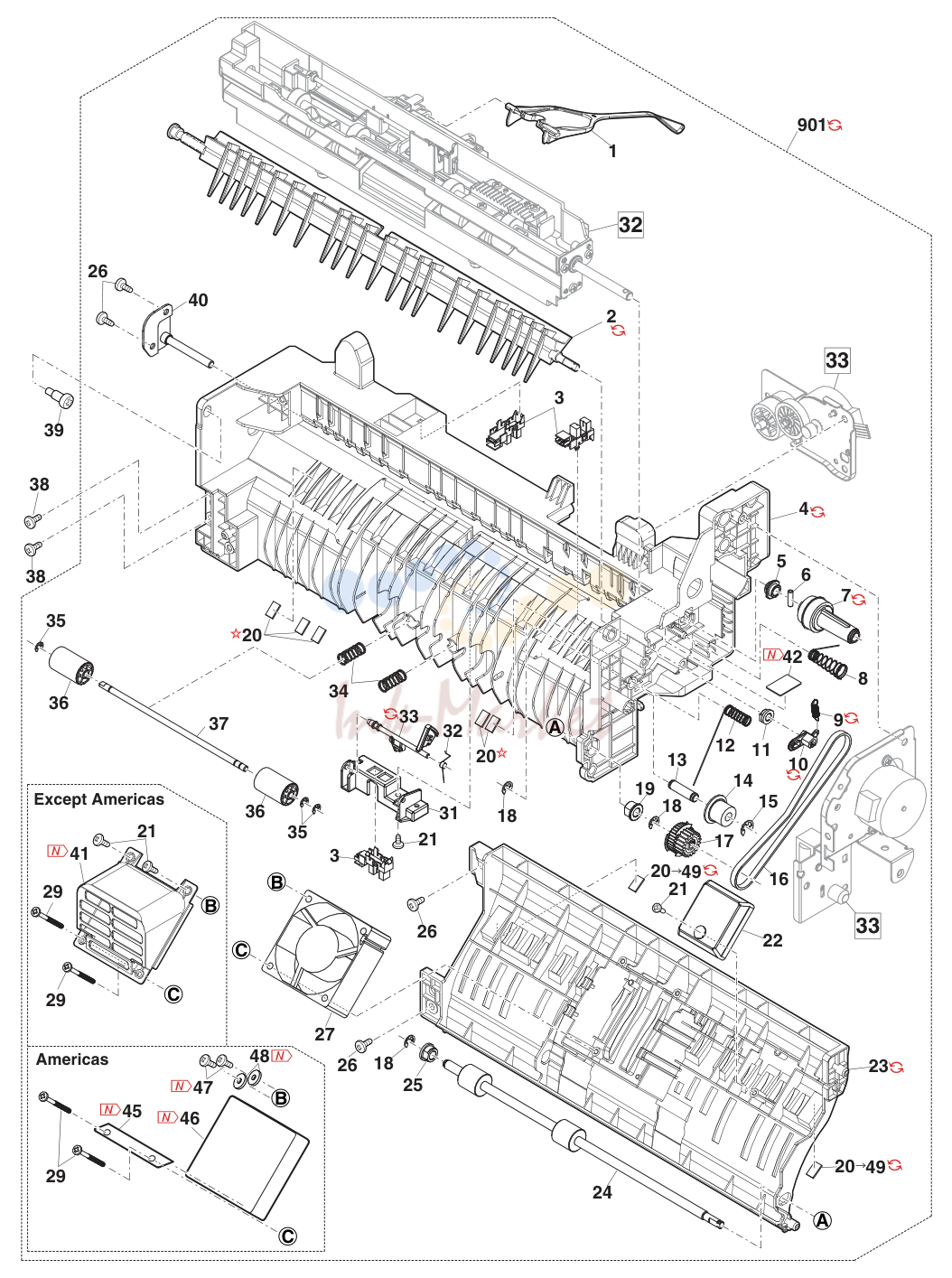

32. 排紙ﾌﾚｰﾑ (Delivery unit)

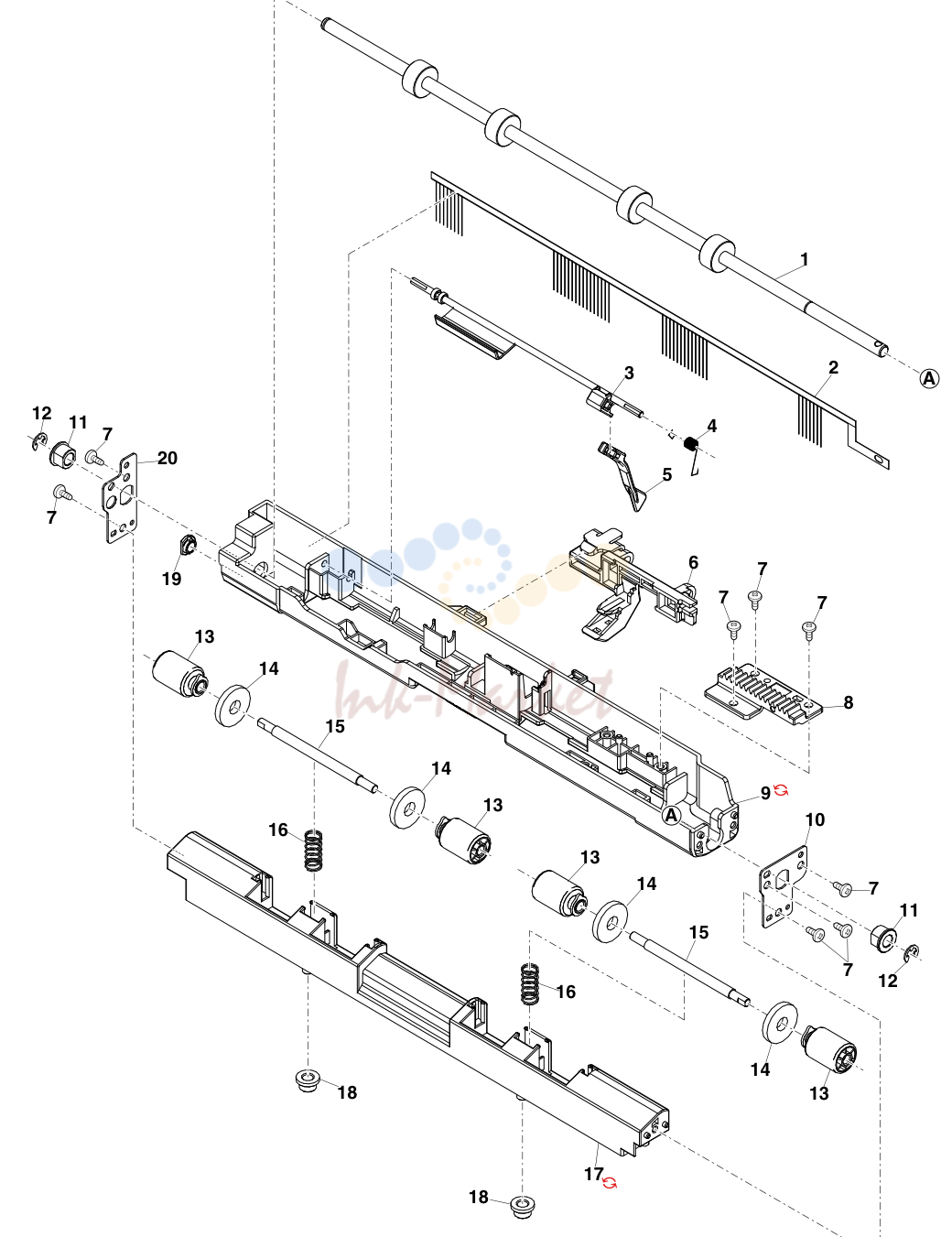

33. ｼﾌﾀｰﾕﾆｯﾄ(Shifter unit)

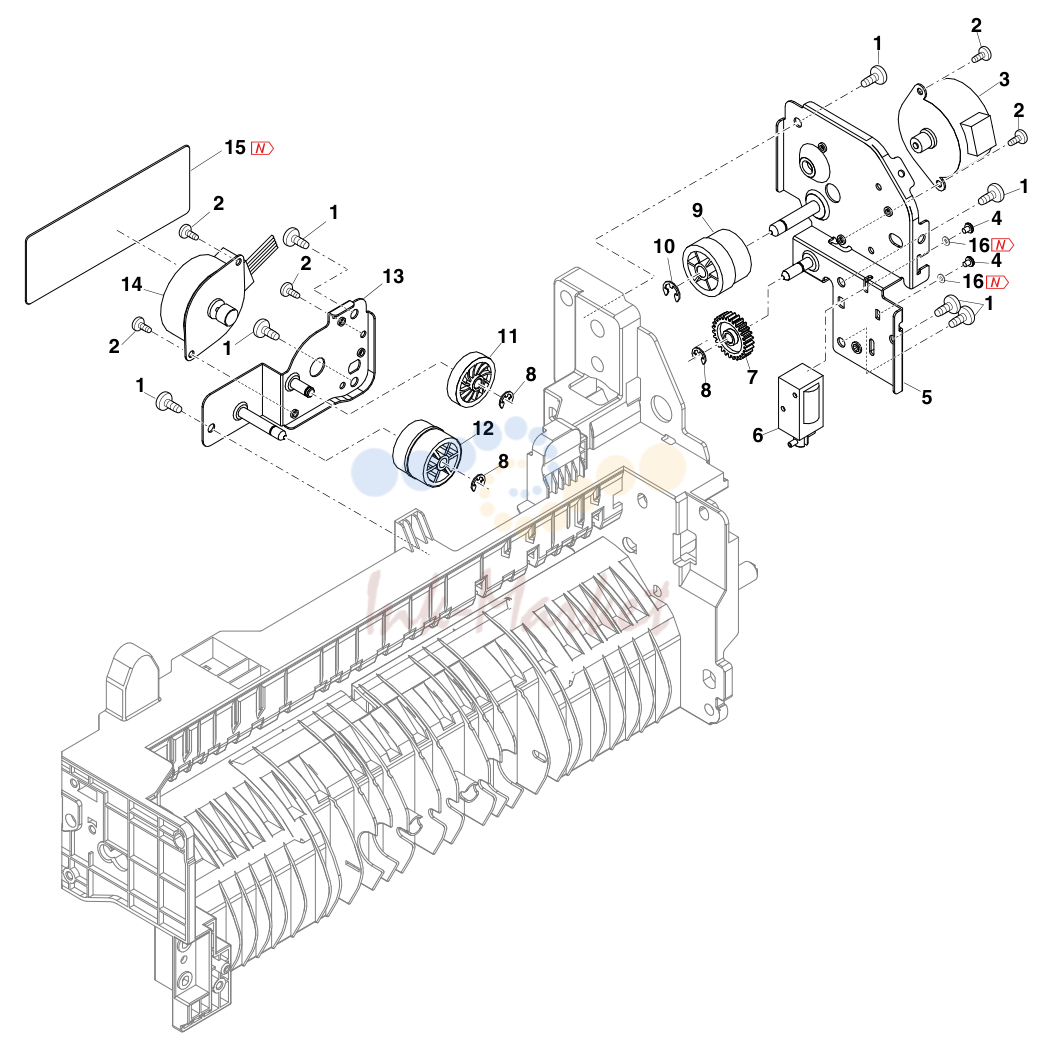

34. 排紙駆動ﾕﾆｯﾄ・ｼﾌﾄ駆動ﾕﾆｯﾄ(Delivery drive unit・Shift drive unit)

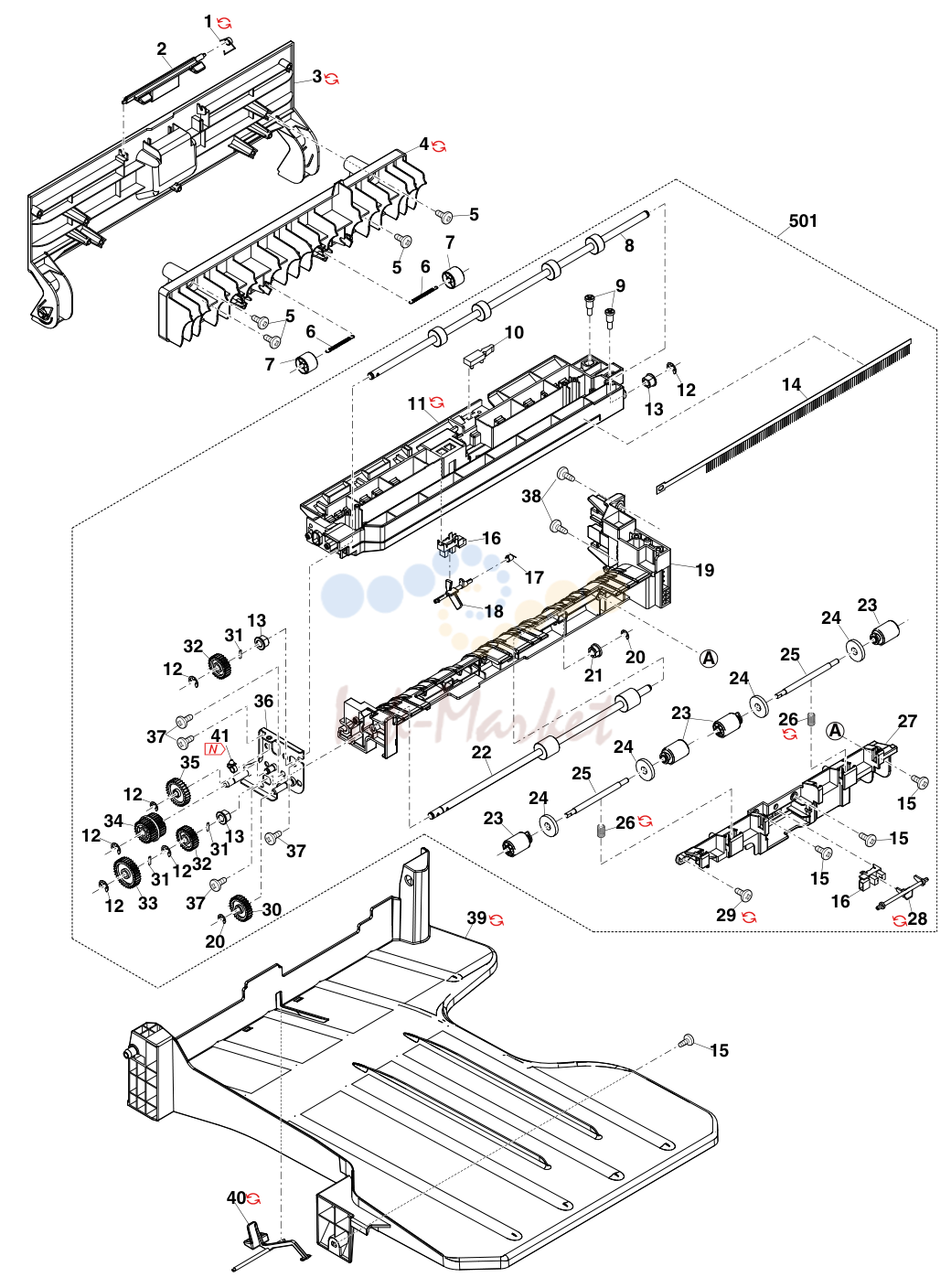

35. ｼﾞｮﾌﾞｾﾊﾟﾚｰﾀｰ(Job separator)[MX-M356FP,MX-M316FP,MX-M266FP,MX-TR18]

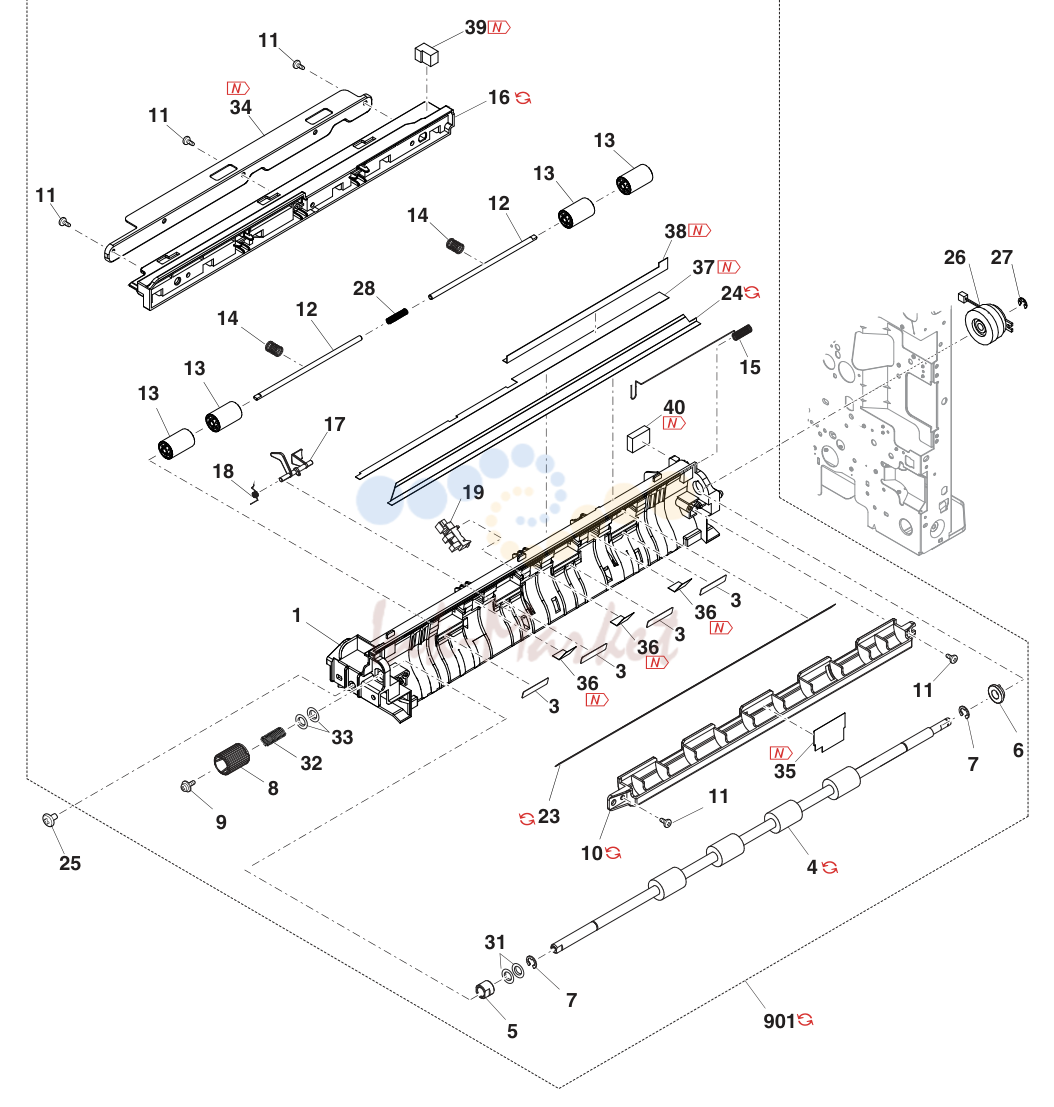

36. PS ﾕﾆｯﾄ(PS unit)

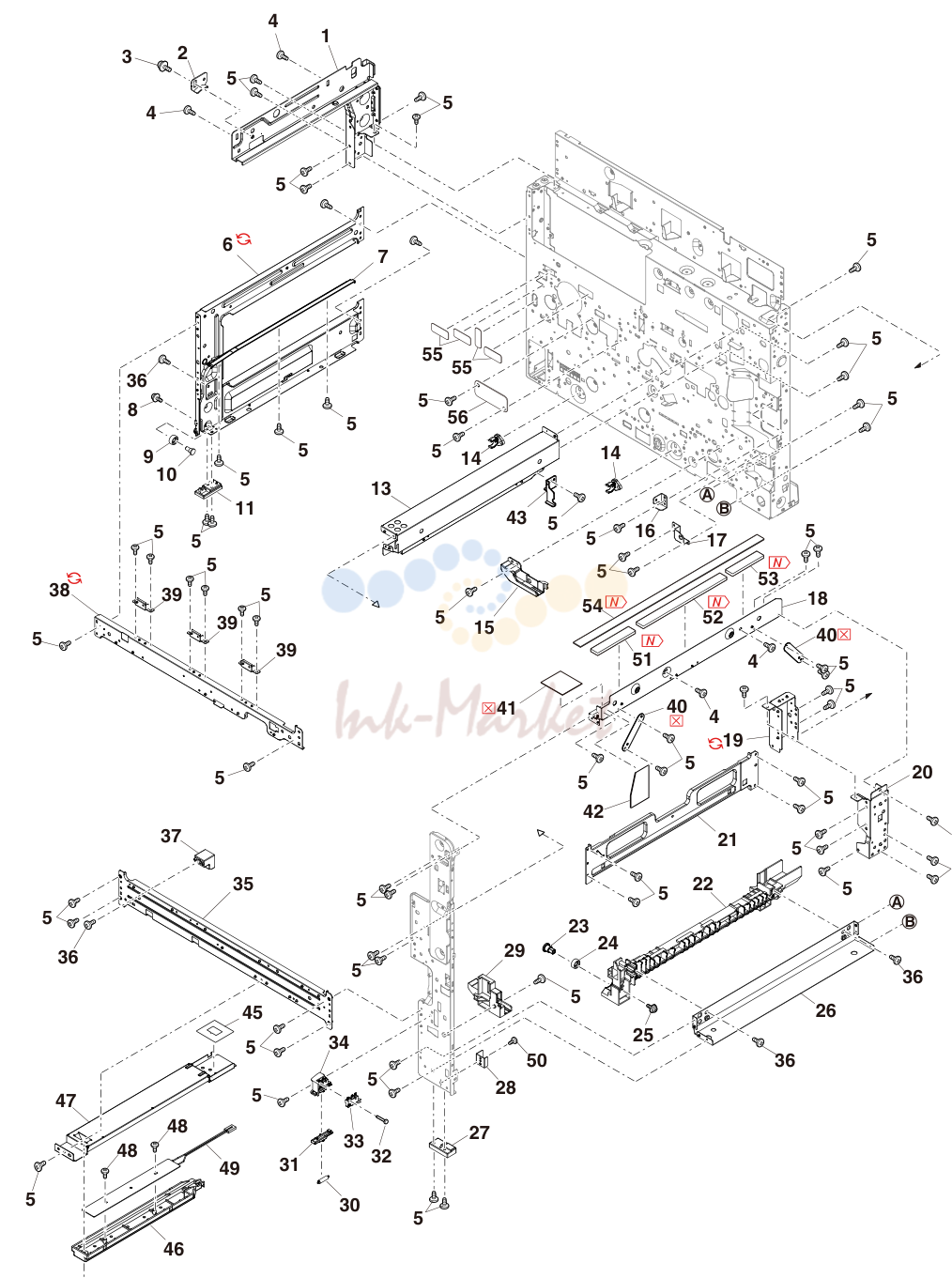

37. ﾌﾚｰﾑｾｸｼｮﾝ1(Frame section 1)

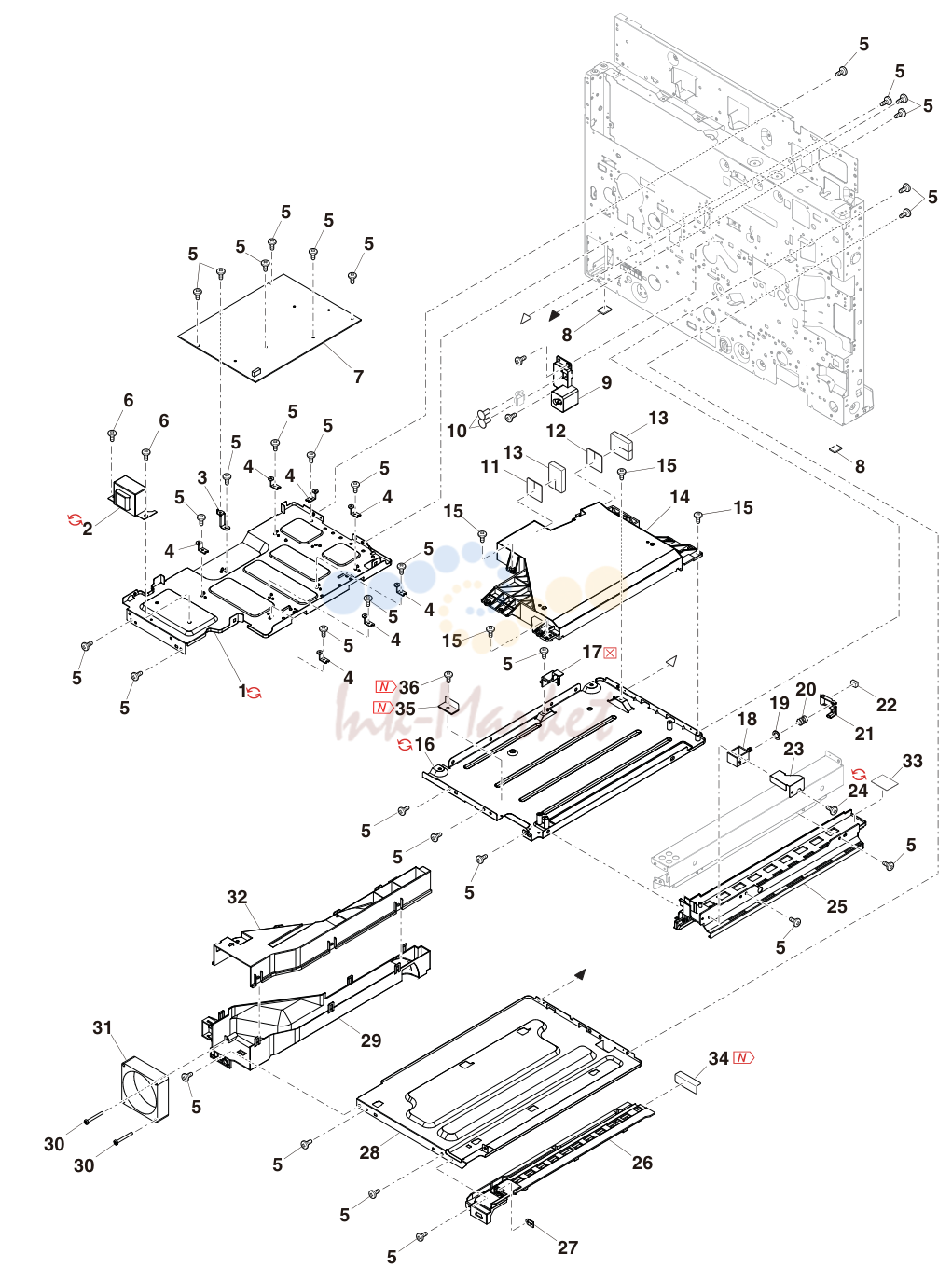

38. ﾌﾚｰﾑｾｸｼｮﾝ2(Frame section 2)

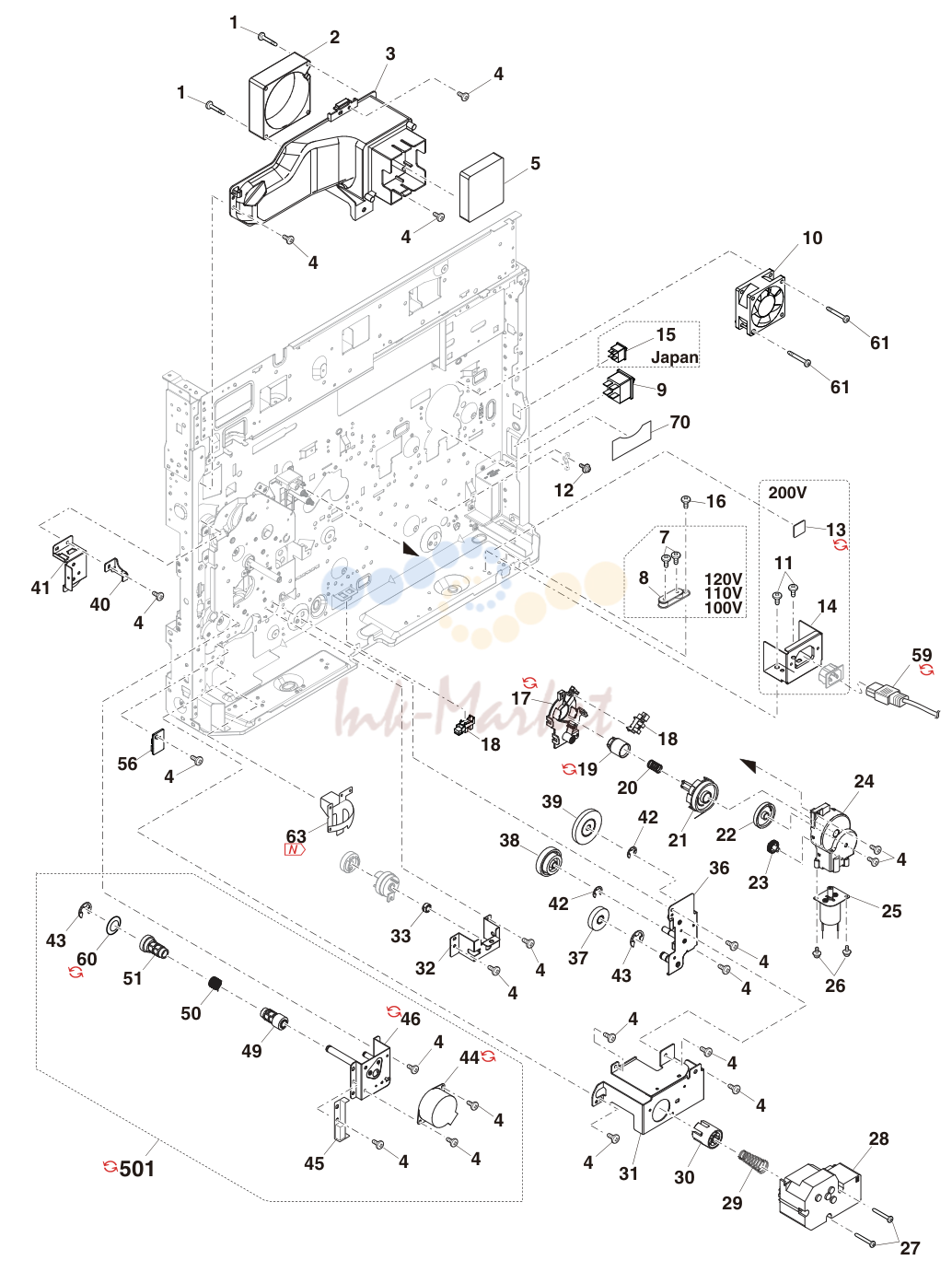

39. ﾌﾚｰﾑｾｸｼｮﾝ3(Frame section 3)

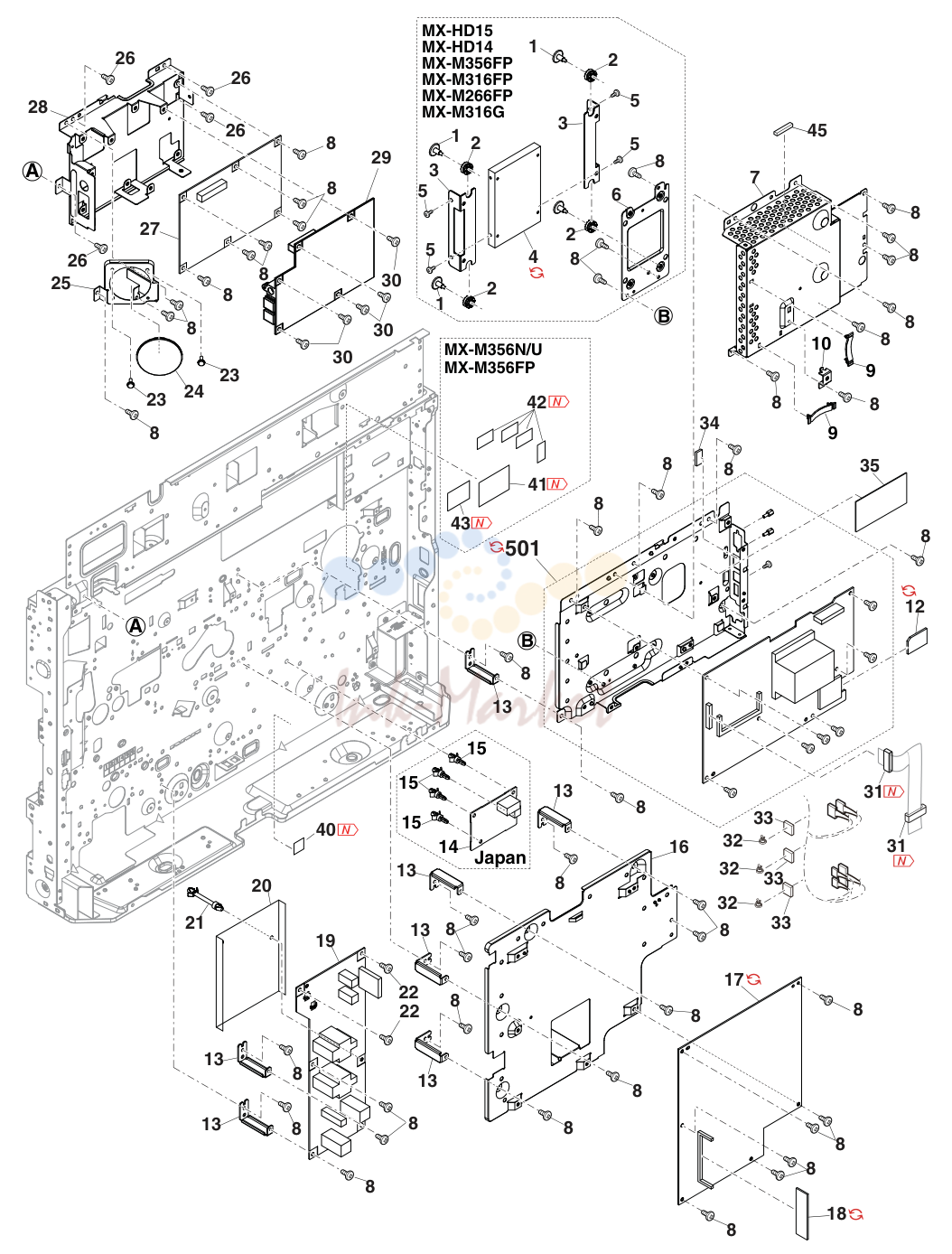

40. ﾌﾚｰﾑｾｸｼｮﾝ4(Frame section 4)

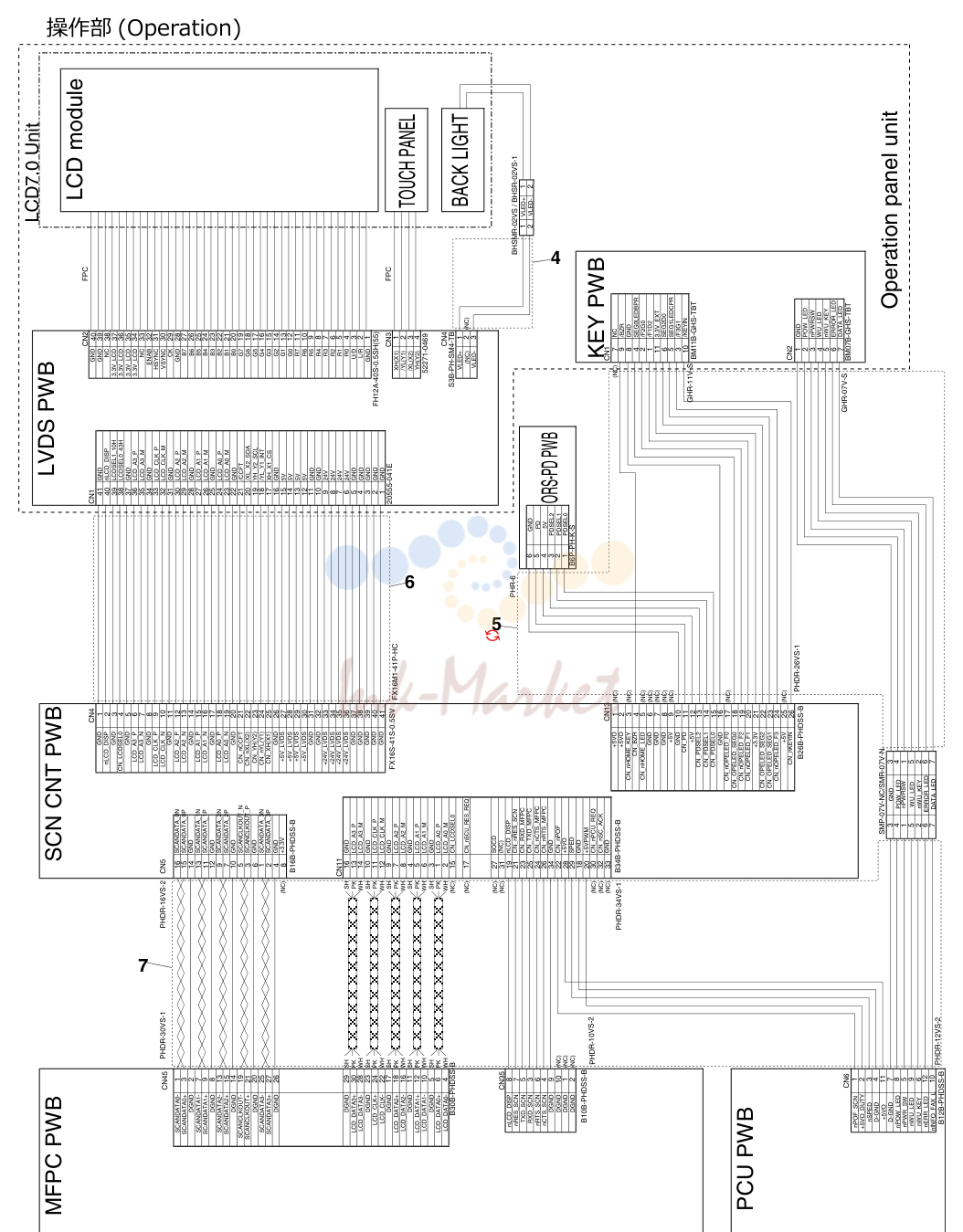

41. ﾊｰﾈｽ部(Harness section)

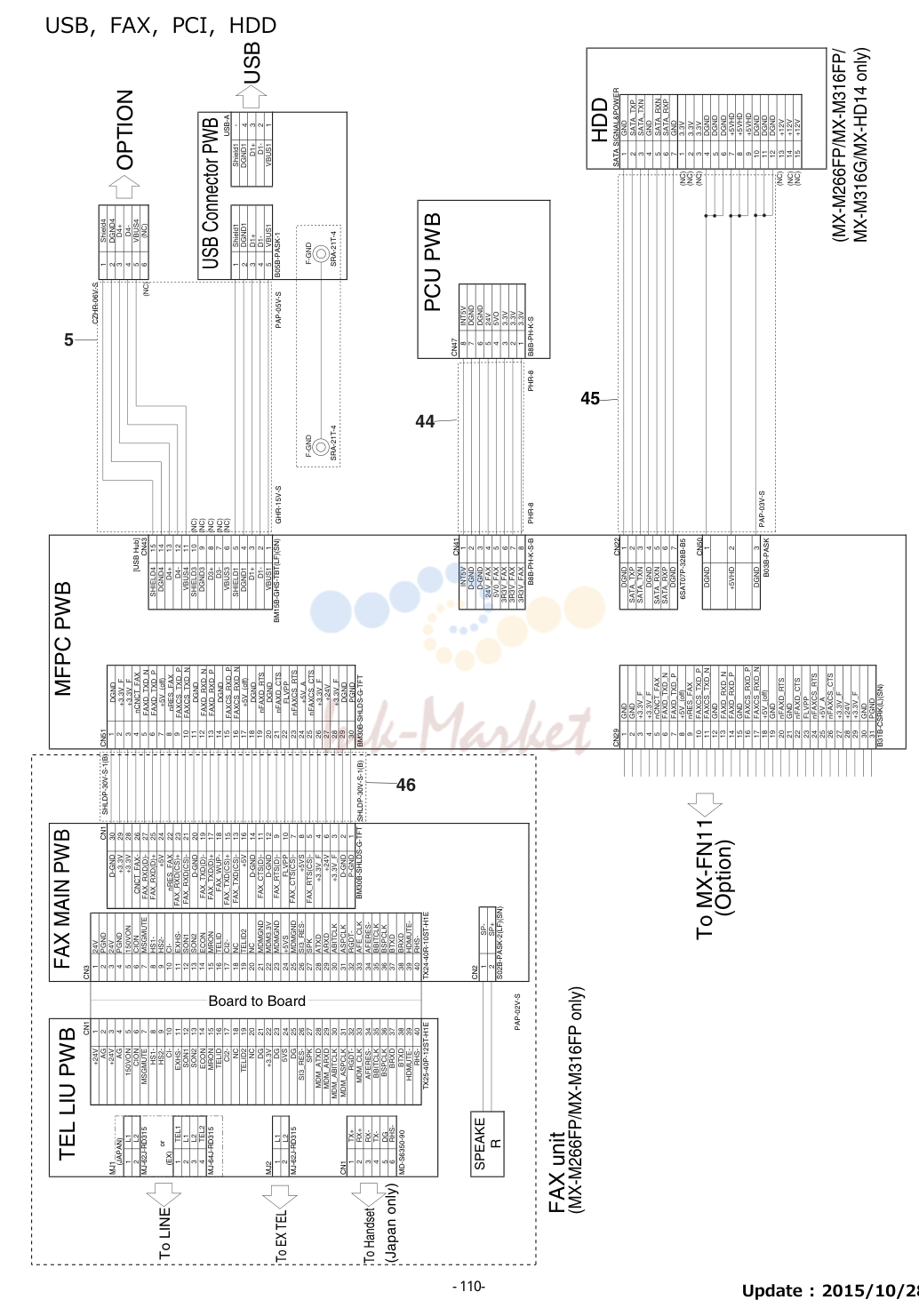

42. ﾊｰﾈｽ部(Harness section)

1. cover

№	Артикул	Альт. артикул	Описание
1			外装(Exteriors) N RSPF 駆動部(Drive section)
2			操作ﾊﾟﾈﾙ(Operation Panel) [MX-M315N,MX-M315NE,MX-M265N,MX-M265NE,
3			4 5 6 7 ﾗ原ｽｽ R [ ﾝｷｷ M S 稿ﾌｬｬ P X ﾟﾅﾅ F 検ﾕﾕﾕ - ﾆﾆﾆ M 外ｯｯｯ知 3 ﾄﾄﾄ装 5 部 ( 1 2 6 L ﾕ ( ( ・ N a S S ﾆ m ｯ c c , ｵ M ﾄ a a ﾘ p ｼ n n ( X ﾞ E n n u - ﾅ x M e e n ﾙ t r r i ｶ e 3 t ﾊ ) U U r 1 ﾞ io n n 6 ｰ r i i N t t ( s , O 1 2 M s r ) ) e i X g c - i t M n io a 2 n l 6 ) d 6 e N te ,M ct X s - e M c 3 ti 5 o 6 n F ・ P, Original Cover) O P Q R S ﾌ 5 ﾒ D 定 M ﾟｲ 0 V ﾛﾝ X 着 0 ｾ駆 - ﾕｽﾕ R 枚ﾆﾕ動ﾆｯ P ﾆｯﾄﾄ 1 ｯﾕﾄﾚ ( ﾄﾆ 9 ｲ ( D ｯﾕ ] F ( ﾄﾆ V P u ｯ ( r s ﾄ u M o in n c ( a g e 5 i i t n s 0 ) u s 0 n d u r i p t n i ) v a i e p t) e u r n t i r t a ) y unit)
8			RSPF 原稿ﾄﾚｲ(Original tray) U 2nd給紙ﾕﾆｯﾄ(2nd paper Feed Unit)
9			RSPF 給紙部(Paper feed section) MX-M316FP,MX-M266FP,MX-M316G]
1			Interchangeable.
2			Current type can be used in place of new type. New type cannot be used in place of current type.
3			Current type cannot be used in place of new type. New type can be used in place of current type.
4			Not interchangeable.
5			Interchangeable if replaced with same types of releted parts in use.
6			Others
2			AA DD C Screw(4×8) ﾋﾞｽ
4			AC DD C Screw(3×6) ﾋﾞｽ
5			BC GJ D Main rear cover(Refer to Matrix) ﾒｲﾝ後ｶﾊﾞｰ
3			AU FG N D Right cover 右ｶﾊﾞｰ
12			AN EQ D Delivery tray right 排紙ﾄﾚｲ右
13			AK DX D Front cabinet right 前ｷｬﾋﾞ右
14			AV FG C Front inner frame 前ｲﾝﾅｰﾌﾚｰﾑ
17			AK DX D Front cabinet left 前ｷｬﾋﾞ左
18			AQ EQ D Main front cabinet left ﾒｲﾝ前ｷｬﾋﾞ左
19			AT EQ D Front cabinet badge 前ｷｬﾋﾞﾊﾞｯｼﾞ
20			AV FG D Scanner front cover right ｽｷｬﾅ前ｶﾊﾞｰ右
21			AA DD C Screw（3ｘ6）ﾋﾞｽ
23			AF DS D Operation cabinet cover 操作部ｷｬﾋﾞ蓋
24			AY FQ D Left cover 左ｶﾊﾞｰ
25			AA DD C Screw(4×10) ﾋﾞｽ
27			AG DX D Delivery rear cabinet support plate 排紙後ｷｬﾋﾞ補助板
28			AW FG D Delivery rear cabinet 排紙後ｷｬﾋﾞ
29			AC DJ C MX-M315N,MX-M315NE,MX-M265N, SPFｶﾞﾗｽ固定ｼｰﾄR
30			AD DJ C MX-M315N,MX-M315NE,MX-M265N, SPFｶﾞﾗｽ固定ｼｰﾄL
31			AA DJ C MX-M315N,MX-M315NE,MX-M265N, SPFｶﾞﾗｽｼｰﾄ
33			AA DJ C Table glass gum ﾃｰﾌﾞﾙｶﾞﾗｽｺﾞﾑ
34			BB GD C MX-M315N,MX-M315NE,MX-M265N, SPFｽﾘｯﾄｶﾞﾗｽ
36			AD DD C Dust proof molt 防塵ﾓﾙﾄ
37			BC GJ D Delivery tray 排紙ﾄﾚｲ
38			AC DJ C Earth terminal base ｱｰｽ端⼦台
39			AT EZ D Scanner left cover ｽｷｬﾅ左ｶﾊﾞｰ
41			BB GD E Table glass(Refer to Matrix) ﾃｰﾌﾞﾙｶﾞﾗｽ
43			AA DD C Screw(4×6) ﾋﾞｽ
44			AD DJ D Service caution label ｻｰﾋﾞｽ注意ﾗﾍﾞﾙ
49			AC DD C Screw(3×8) ﾋﾞｽ
50			AN EG D MOE ﾗﾍﾞﾙ
51			AE DS D FAXﾗﾍﾞﾙ
501			AY FQ E MX-M315N,MX-M315NE,MX-M265N, SPFｶﾞﾗｽﾕﾆｯﾄ

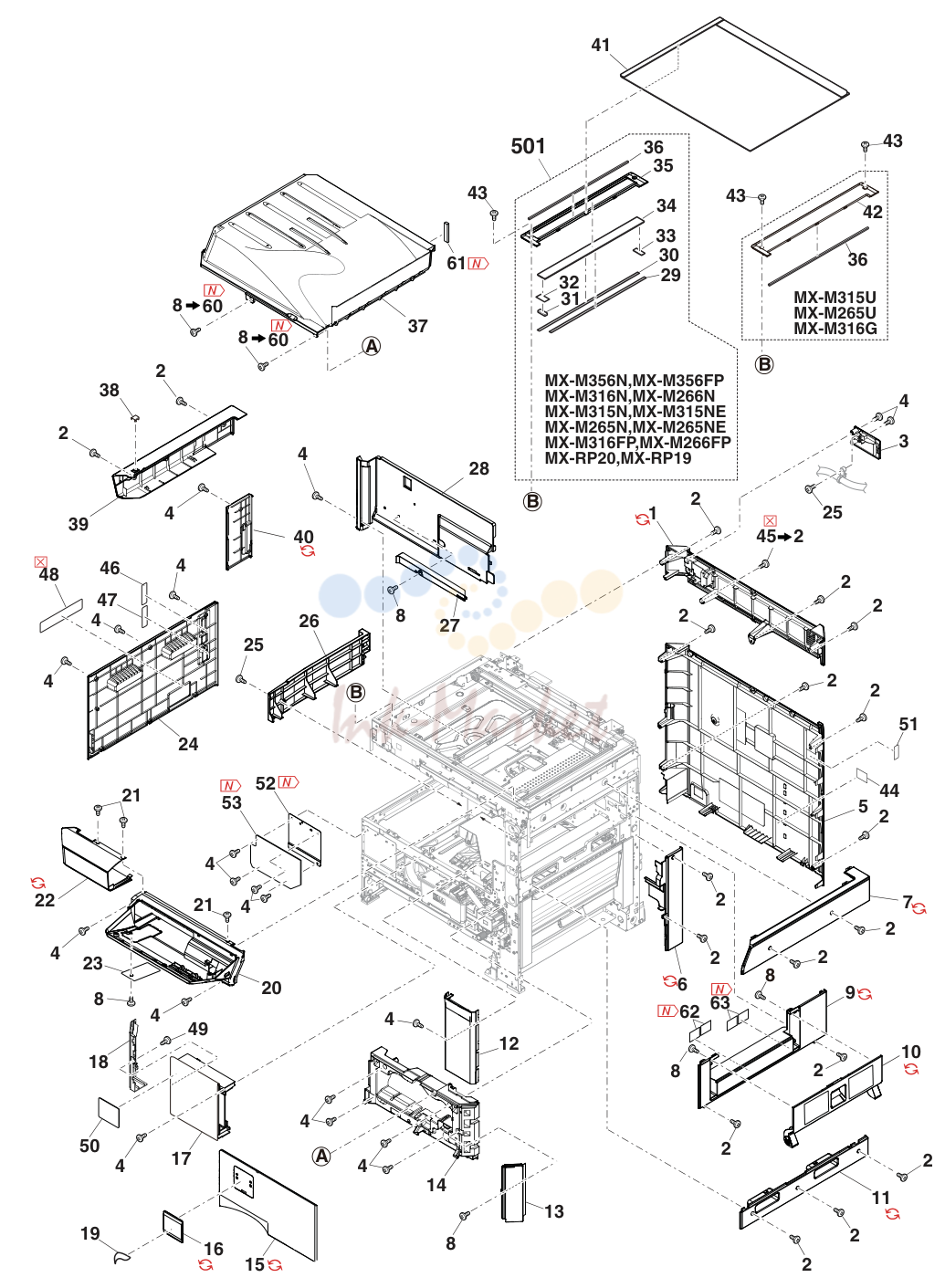

2. 外装(Exteriors)

№	Артикул	Альт. артикул	Описание
2			AC DJ B PS key lens 電源ｷｰﾚﾝｽﾞ
3			AG DX C Power supply key G 電源ｷｰG
4			AN EG C Power save switch 節電ｷｰ
5			AC DD C Screw(3×8) ﾋﾞｽ
6			AC DD C Screw holder ﾋﾞｽﾎﾙﾀﾞｰ
7			AD DD C Lens B ﾚﾝｽﾞB
8			AD DJ C Panel holder A ﾊﾟﾈﾙﾎﾙﾀﾞｰA
9			AT EZ D Mode key ﾓｰﾄﾞｷｰ
10			AK DX C 10 key ﾃﾝｷｰ
12			AG DX C Stop key ｽﾄｯﾌﾟｷｰ
13			AE DS D Information lamp lens 状態表⽰⽤ﾚﾝｽﾞ
14			AN EG D Start key assy ｽﾀｰﾄｷｰｱｯｾﾝ
15			AD DJ C Start key frame ｽﾀｰﾄｷｰ枠
17			AS EQ E USB connector PWB unit USBｺﾈｸﾀｰ基板ﾕﾆｯﾄ
18			AE DJ D Touch pen holder ﾀｯﾁﾍﾟﾝ⽤ﾎﾙﾀﾞｰ
20			AD DJ C LCD earth plate LCD⽤ｱｰｽ板
22			BT NE B LCD(7inch) LCD
23			AH DX C LCD holder A LCDﾎﾙﾀﾞｰA
26			BF GN B Touch panel ﾀｯﾁﾊﾟﾈﾙ
27			AD DJ C Panel holder B ﾊﾟﾈﾙﾎﾙﾀﾞｰB
901			BZ TF E Operation unit(Refer to Matrix) 操作ﾕﾆｯﾄ

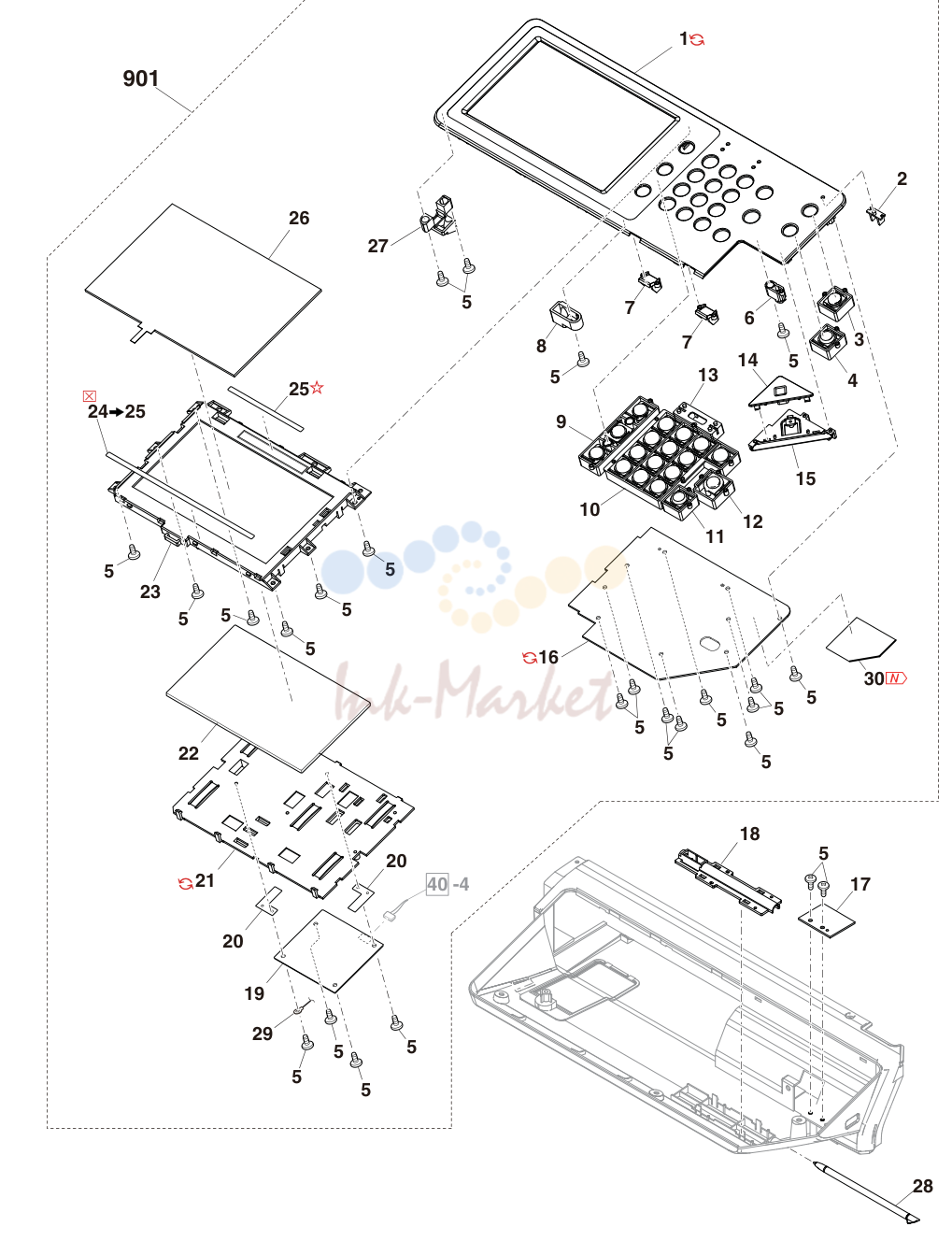

3. 操作ﾊﾟﾈﾙ(Operation Panel)

№	Артикул	Альт. артикул	Описание
1			AF DS D OP FFC cover OP FFCｶﾊﾞｰ
2			AG DS D FFC cover FFCｶﾊﾞｰ
3			BV RB B Lens unit ﾚﾝｽﾞﾕﾆｯﾄ
4			AL EB D Dark box 暗箱
5			AD DJ C Harness fixture ﾊｰﾈｽ押え
6			AE DJ D Harness fixing base ﾊｰﾈｽ押えﾍﾞｰｽ
7			AC DJ C Mirror motor spring ﾐﾗｰﾓｰﾀｰｽﾌﾟﾘﾝｸﾞ
8			AA DJ C Table glass gum ﾃｰﾌﾞﾙｶﾞﾗｽｺﾞﾑ
9			AC DJ C Scanner right sheet ｽｷｬﾅｰ右ﾏｲﾗｰ
10			AC DD C Molt B ﾓﾙﾄ B
11			AA DJ C Screw protect sheet ﾋﾞｽ保護ｼｰﾄ
12			AC DD C CCD molt CCDﾓﾙﾄ
13			AL EB D Glass fixing plate right ｶﾞﾗｽ押え右
14			AA DD C Screw(4×6) ﾋﾞｽ
15			AC DD C Molt A ﾓﾙﾄ A
16			AA DD C Screw(4×6) ﾋﾞｽ
17			AB DD C Screw(4×6) ﾋﾞｽ
18			AY FQ E ORS PWB 受光基板
19			AC DJ C FFC protect mylar FFC保護ﾏｲﾗｰ
21			AA DJ C Optical bottom sheet 光学底ﾏｲﾗｰ
22			AB DJ C Table glass gum ﾃｰﾌﾞﾙｶﾞﾗｽｺﾞﾑ
23			AC DD C Optical sheet A 光学ﾏｲﾗｰA
24			AA DJ C T glass lower molt Tｶﾞﾗｽ下ﾓﾙﾄ
25			AB DJ C Rail molt ﾚｰﾙﾓﾙﾄ
26			AA DD C Screw(3×4) ﾋﾞｽ
27			AC DD C Screw(3×8KS) ﾋﾞｽ
28			AB DJ C OP harness mylar OPﾊｰﾈｽｼｰﾄ
29			AC DD C OP harness sheet R OPﾊｰﾈｽｼｰﾄR
30			AB DD C OP FFC protect sheet OP FFCﾎｺﾞｼｰﾄ
39			AK DX C FFCｶﾊﾞｰｱｰｽｼｰﾄ
42			AF DS C ﾗﾝﾌﾟFFC保護ﾏｲﾗｰ

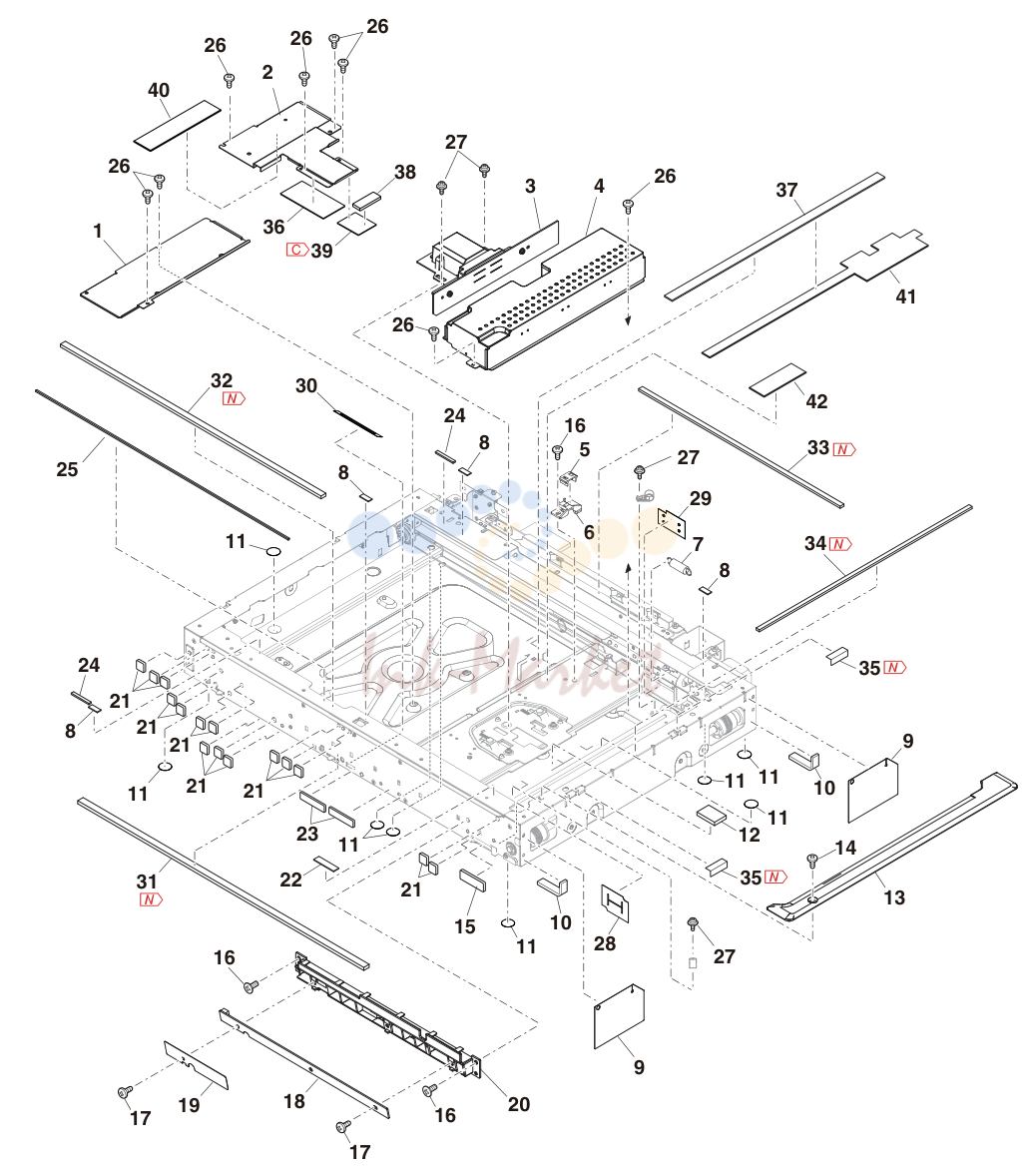

4. ｽｷｬﾅﾕﾆｯﾄ1(Scanner Unit 1)

№	Артикул	Альт. артикул	Описание
1			AN EQ C MB wire F MBﾜｲﾔｰF
2			AG DX C Pulley 定ﾌﾟｰﾘｰ
3			AD DJ C L pulley Lﾌﾟｰﾘｰ
4			AA DD C E type ring(E4) Eﾘﾝｸﾞ
5			BB GD E 2nd/3rd mirror unit 第2/第3ﾐﾗｰﾕﾆｯﾄ
6			AC DJ C CL guide CLｶﾞｲﾄﾞ
7			AN EQ C MB wire R MBﾜｲﾔｰR
8			AM EG B Photo sensor(LG217L-5A) ﾌｫﾄｾﾝｻｰ
9			AB DD C Screw(4×14) ﾋﾞｽ
10			AC DD C Screw(3×6) ﾋﾞｽ
11			AF DS C Hinge guide fixing plate R ﾋﾝｼﾞｶﾞｲﾄﾞ固定板R
12			AA DD C Screw(3×4) ﾋﾞｽ
13			AB DD C FFC protect sheet FFC保護ｼｰﾄ
14			AC DJ C Open/close sensor fixing plate 開閉ｾﾝｻｰ取付板
15			AF DS B Photo sensor(LG248NL1) ﾌｫﾄｾﾝｻｰ
16			AF DS C Hinge guide fixing plate L ﾋﾝｼﾞｶﾞｲﾄﾞ固定板L
17			BF GN B Scanner motor ｽｷｬﾅｰﾓｰﾀｰ
18			AH DX C SCN PWB fixing plate SCN基板取付板
20			AF DS B Mirror motor fixing plate ﾐﾗｰﾓｰﾀｰ取付板
21			AE DJ C Mirror motor idle gear ﾐﾗｰﾓｰﾀｰｱｲﾄﾞﾙｷﾞｱ
22			AS EQ C Winder drive belt 巻取り駆動ﾍﾞﾙﾄ
23			AC DD C Washer ﾜｯｼｬｰ
24			AA DD C E type ring(E7) Eﾘﾝｸﾞ
25			AK DX B Bearing(φ8-16) 軸受
26			AA DJ C Optical bottom sheet 光学底ﾏｲﾗｰ
27			AC DD C Optical sheet B 光学ﾏｲﾗｰB
28			AC DD C Molt A ﾓﾙﾄ A
29			BB GD C Pulley(50T) ﾌﾟｰﾘｰ
30			AB DD C Screw(4×6) ﾋﾞｽ
31			AL EB C Winder pulley 巻取りﾌﾟｰﾘｰ
32			AB DD C Screw(2×4) ﾋﾞｽ
33			AY FQ C Winder drive shaft 巻取り駆動軸
34			AC DD C Molt C ﾓﾙﾄ C
35			AF DS C OP harness plate OPﾊｰﾈｽ取付板
36			AB DD C Red screw(3×6) ⾚ﾋﾞｽ
37			AN EQ C MB-B rail F MB-BﾚｰﾙF
38			AN EQ C MB-B rail R MB-BﾚｰﾙR
39			AC DD C Harness sheet ﾊｰﾈｽｼｰﾄ

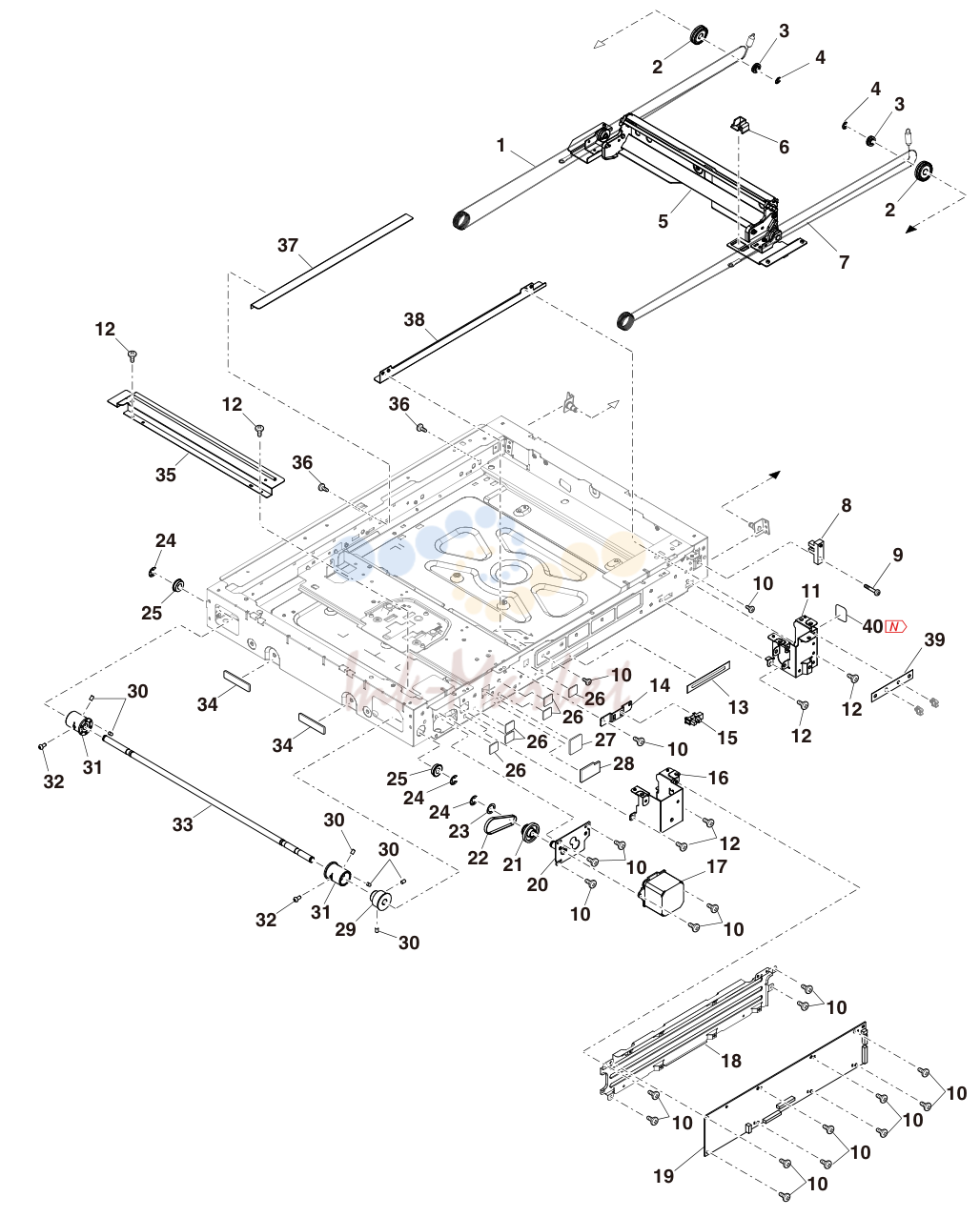

5. ｽｷｬﾅﾕﾆｯﾄ2(Scanner Unit 2)

№	Артикул	Альт. артикул	Описание
1			AQ EQ C Waveguide stick 導光棒
2			AC DD C Reflection sheet 反射ｼｰﾄ
3			AS EZ E LED PWB unit LED基板ﾕﾆｯﾄ
4			AG DS C Thermal sheet 放熱ｼｰﾄ
6			AC DD C Screw(3×8) ﾋﾞｽ
7			AA DD C Screw(3×6) ﾋﾞｽ
10			AM EG B 1st mirror 第1ﾐﾗｰ
11			AE DJ C Mirror spring LED ﾐﾗｰｽﾌﾟﾘﾝｸﾞLED
12			AC DD C Screw(3×6) ﾋﾞｽ
13			AC DJ C CL lead harness fixture CLﾘｰﾄﾞﾊｰﾈｽ押え
15			AQ EQ C Lamp base ﾗﾝﾌﾟﾍﾞｰｽ
16			AE DJ C Slider 滑り材
17			AA DJ C Rail cushion ﾚｰﾙｸｯｼｮﾝ
18			AL EB C Driver PWB sheet ﾄﾞﾗｲﾊﾞｰ基板ｼｰﾄ
19			AC DJ C Mirror cushion N ﾐﾗｰｸｯｼｮﾝN
20			AC DJ C Wire holder ﾜｲﾔｰﾎﾙﾀﾞｰ
21			AA DD C Screw(4×6) ﾋﾞｽ
901			BH HC N E Lamp unit(Refer to Matrix) ﾗﾝﾌﾟﾕﾆｯﾄ

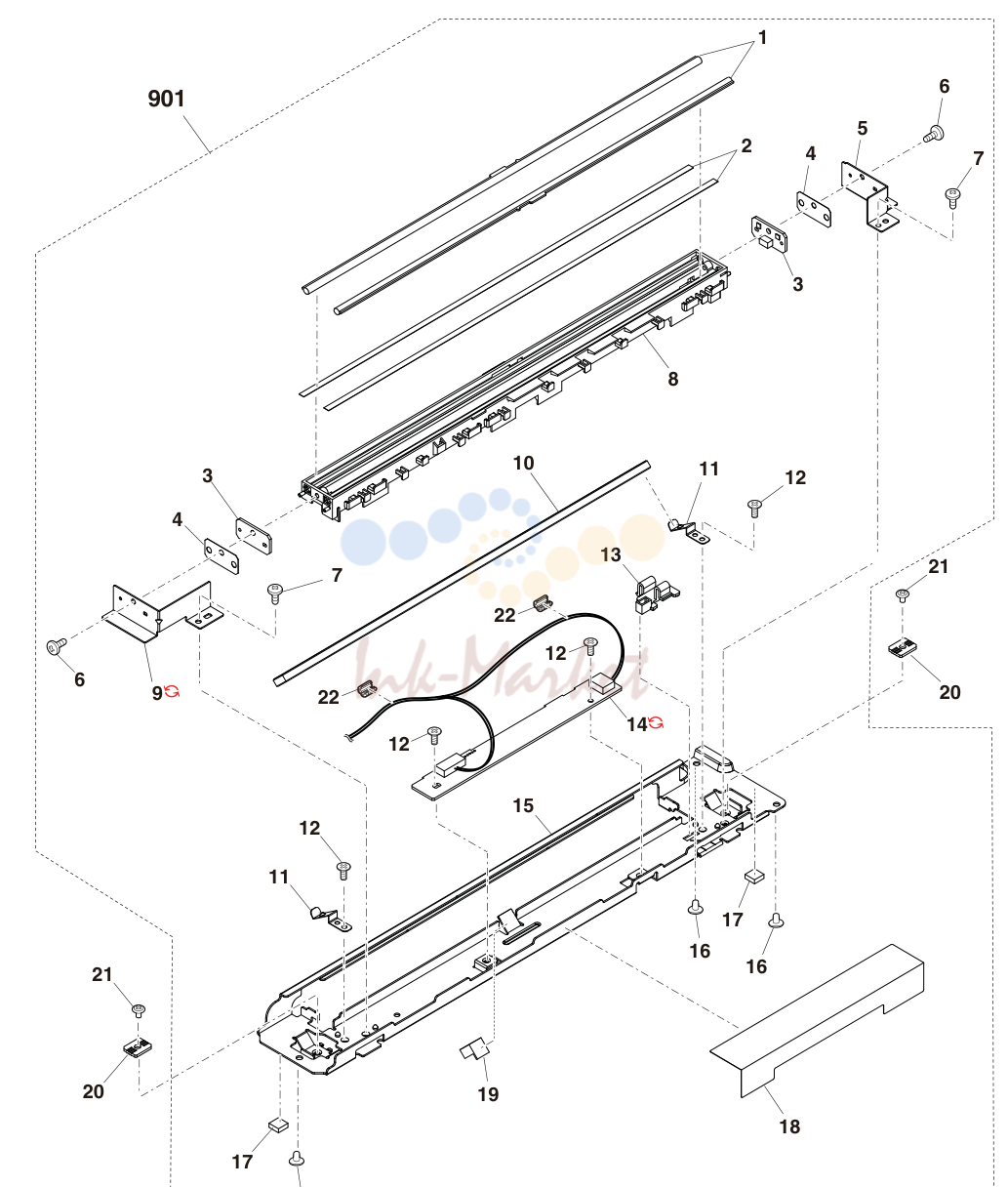

6. ﾗﾝﾌﾟﾕﾆｯﾄ (Lamp unit)

№	Артикул	Альт. артикул	Описание
1			AE DJ C Document detect fulcrum holder
2			AW FG E Original detect emission PWB 原稿検知発光基板
3			AB DJ C Original detect bush 原稿検知ﾌﾞｯｼｭ
4			AK DX C Original detect arm lower 原稿検知ｱｰﾑ下
5			AA DD C Screw(3×5) ﾋﾞｽ
6			AD DJ C Original detect fulcrum shaft 原稿検知⽀点軸
7			AE DS C Original detect spring 原稿検知ｽﾌﾟﾘﾝｸﾞ
8			AB DD C Screw(3×6K) ﾋﾞｽ
9			AK DX C Original detect arm upper 原稿検知ｱｰﾑ上
10			AC DJ C Original detect shade plate 原稿検知遮光板
11			AU EZ D Upper cabinet rear cover 上ｷｬﾋﾞ後ｶﾊﾞｰ
12			AC DD C Screw(3×8) ﾋﾞｽ
13			AC DD C Screw(3×6) ﾋﾞｽ
14			AA DD C Screw(4×8) ﾋﾞｽ
15			AB DJ C Rail molt ﾚｰﾙﾓﾙﾄ
20			AC DD C Hinge sheet ﾋﾝｼﾞﾏｲﾗｰ

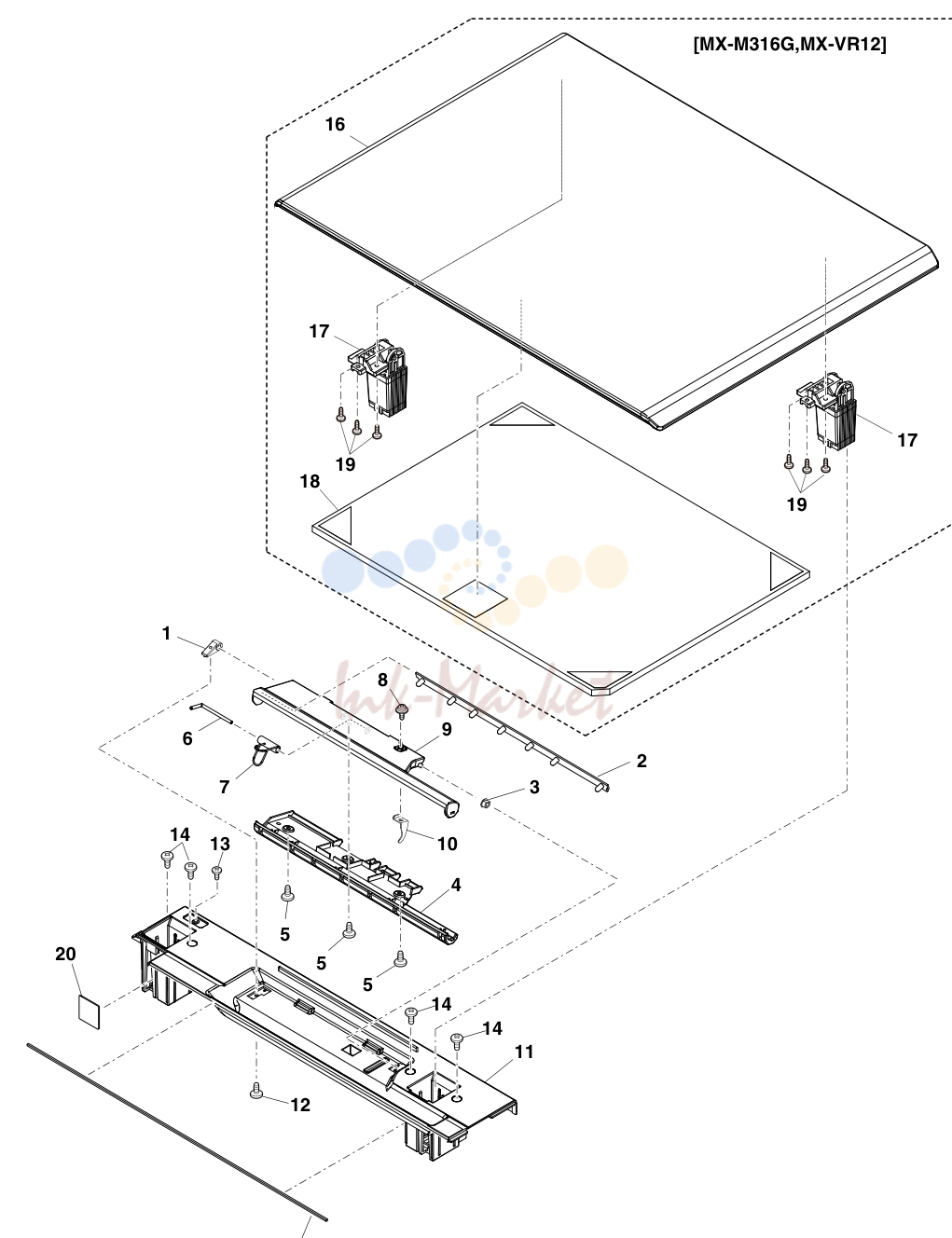

7. 原稿検知部・ｵﾘｼﾞﾅﾙｶﾊﾞｰ (Original detect section・Original Cover)

№	Артикул	Альт. артикул	Описание
1			AR EQ D SPF rear cabinet SPF後ｷｬﾋﾞ
2			AB DD C Screw(3×8) ﾋﾞｽ
3			AA DD C Screw(4×10) ﾋﾞｽ
4			AC DD C Screw(3×6) ﾋﾞｽ
7			AC DD C Screw(3×10) ﾋﾞｽ
11			AE DJ C SPF PWB fixing plate SPF基板取付板
13			AD DJ C Delivery extension tray 排紙延⻑ﾄﾚｲ
15			AA DD C Washer(M4) ﾜｯｼｬｰ
16			AB DD C Screw(4×14) ﾋﾞｽ
18			AC DJ C OC positioning sheet OC位置決めｼｰﾄ
19			AA DD C Screw(4×8) ﾋﾞｽ
20			AF DS D F cabinet cover Fｷｬﾋﾞｶﾊﾞｰ
21			AK DX D SPF front cabinet SPF前ｷｬﾋﾞ
22			AM EG E SPF glass cleaner SPFｶﾞﾗｽｸﾘｰﾅｰ
23			AR EQ D OC mat OCﾏｯﾄ
501			BR LP E SPF base tray unit SPFﾍﾞｰｽﾄﾚｲﾕﾆｯﾄ

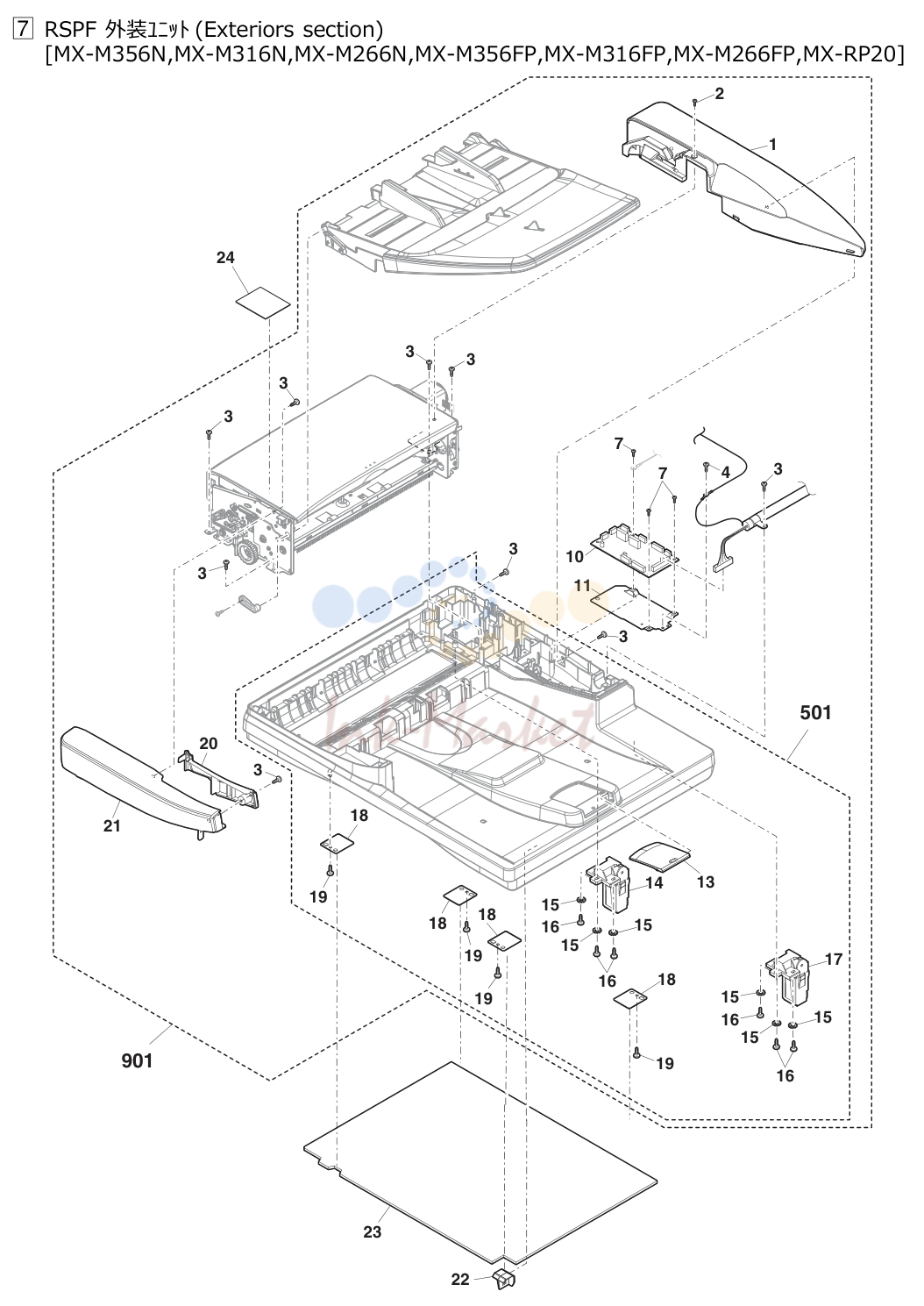

8. RSPF 外装ﾕﾆｯﾄ(Exteriors section)

№	Артикул	Альт. артикул	Описание
1			AG DX C RSPF regulation plate F RSPF規制板F
2			AF DS C RSPF regulation plate R RSPF規制板R
3			AC DJ D Original tray fulcrum cover 原稿ﾄﾚｲ⽀点ｶﾊﾞｰ
4			AA DD C Screw(3×8X) ﾋﾞｽ
5			AZ FQ D Original tray upper 原稿ﾄﾚｲ上
6			AC DJ C Paper feed PG holder 給紙PGﾎﾙﾀﾞｰ
7			AA DD C Screw(4×8) ﾋﾞｽ
8			AE DS C Width detect rack 幅検知ﾗｯｸ
9			AD DJ C Regulation plate spring TLPD
10			AD DJ C Width detect pinion gear(36T) 幅検知ﾋﾟﾆｵﾝｷﾞﾔ
11			AE DS C Width detect sensor fixing plate 幅検知ｾﾝｻｰ取付板
12			AC DD C Screw(3×8) ﾋﾞｽ
13			AS EQ E SPF VR PWB LF SPF VR基板LF
15			AF DS B Photo sensor(SG2A141) ﾌｫﾄｾﾝｻｰ
17			AS EZ D Original tray lower 原稿ﾄﾚｲ下
18			AA DD C Screw(4×10) ﾋﾞｽ
19			AD DJ C Paper fixing arm ⽤紙押えｱｰﾑ
501			BF GN E Original tray unit 原稿ﾄﾚｲﾕﾆｯﾄ

9. RSPF 原稿ﾄﾚｲ(Original tray)

№	Артикул	Альт. артикул	Описание
1			AX FG C Upper cover 上ｶﾊﾞｰ
2			AA DD C Screw(3×16) ﾋﾞｽ
3			AA DD C Washer(M3) ﾜｯｼｬｰ
5			AC DD C Screw(3×8) ﾋﾞｽ
6			AC DJ C Paper feed shaft earth spring 給紙軸ｱｰｽｽﾌﾟﾘﾝｸﾞ
8			AF DS B Photo sensor(LG248NL1) ﾌｫﾄｾﾝｻｰ
9			AC DJ C PS pressure holder PS圧接ﾎﾙﾀﾞｰ
10			AC DJ C PS pressure spring PS圧接ｽﾌﾟﾘﾝｸﾞ
11			AC DJ C PS front actuator PS前ｱｸﾁｭｴｰﾀｰ
12			AB DJ C Paper enter detect return spring
13			AA DJ C Transport follower roller RSPF 搬送従動ﾛｰﾗｰRSPF
15			AL EB C Transport follower shaft 搬送従動軸
16			AH DX B Door switch(AM51632C531) ﾄﾞｱｽｲｯﾁ
17			AT EZ C Paper feed upper paper guide
18			AF DS B Photo sensor(SG2A141) ﾌｫﾄｾﾝｻｰ
19			AC DJ C Paper enter detect actuator ⼊紙検知ｱｸﾁｭｴｰﾀｰ
21			AD DJ C Pick up roller gear(18T) ﾋﾟｯｸｱｯﾌﾟﾛｰﾗｰｷﾞﾔ
22			AA DD C E type ring(E5) Eﾘﾝｸﾞ
23			AC DD C Mirror bearing N ﾐﾗｰ軸受 N
24			AC DJ C Lock release arm ﾛｯｸ解除ｱｰﾑ
25			AC DJ C Paper lock arm ⽤紙ﾛｯｸｱｰﾑ
26			AB DJ C Lock arm ﾛｯｸｱｰﾑ
27			AA DD C Washer ﾜｯｼｬｰ
28			AA DD C Screw(4×10) ﾋﾞｽ
29			AC DJ C PE actuator PEｱｸﾁｭｴｰﾀｰ
30			AB DJ C PE return spring PE復帰ｽﾌﾟﾘﾝｸﾞ
31			AA DD C Screw(3×8X) ﾋﾞｽ
32			BC GJ C Change lever 切替ﾚﾊﾞｰ
33			AC DJ C Pick up damper molt N 呼込消⾳ﾓﾙﾄN
34			AA DJ C PS guide sheet PS案内ﾏｲﾗｰ
35			AC DJ C Upper PG link arm 上PGﾘﾝｸｱｰﾑ
36			AC DJ C Link arm return spring
37			AC DJ C Paper feed PG holder 給紙PGﾎﾙﾀﾞｰ
38			AA DD C Screw(4×8) ﾋﾞｽ
39			AA DD C SP pin(f2-10) ｽﾌﾟﾘﾝｸﾞﾋﾟﾝ
40			AA DD C Spring pin ｽﾌﾟﾘﾝｸﾞﾋﾟﾝ
41			AF DS C Paper feed shaft 給紙軸
42			BE GN A Pick up torque limiter 呼込ﾄﾙｸﾘﾐｯﾀｰ
43			AD DJ C Pick up roller holder 呼込ﾛｰﾗｰﾎﾙﾀﾞｰ
44			AA DD C E type ring(E4) Eﾘﾝｸﾞ
47			AT EZ C Paper feed pulley RSPF 給紙ﾌﾟｰﾘｰRSPF
48			AD DD C Upper transport support paper guide
49			AM EG C Pick up shaft 呼込軸
50			AC DJ C Pick up pulley(18P) 呼込ﾌﾟｰﾘｰ
51			AH DX B One way coupling ﾜﾝｳｪｲｶｯﾌﾟﾘﾝｸﾞ
52			AD DJ B Belt(132) ﾍﾞﾙﾄ
53			AG DX A Paper feed separate roller 給紙分離ﾛｰﾗｰ
54			AC DJ C Holder guide ﾎﾙﾀﾞｰｶﾞｲﾄﾞ
55			AH DX A Pick up roller 呼び込みﾛｰﾗｰ
56			AA DD C Poly slider ﾎﾟﾘｽﾗｲﾀﾞｰ
501			BL HL E Paper feed unit 給紙ﾕﾆｯﾄ

10. RSPF 給紙部(Paper feed section)

№	Артикул	Альт. артикул	Описание
1			AD DJ C Front separate sheet 前捌きｼｰﾄ
2			AC DD D Separation roller cover 分離ﾛｰﾗｰｶﾊﾞｰ
3			AA DD C E type ring(E4) Eﾘﾝｸﾞ
4			AD DJ C Separate holder R 分離軸ﾎﾙﾀﾞｰR
5			AC DD C Screw(3×8) ﾋﾞｽ
6			AC DJ C Separate fulcrum shaft 分離⽀点軸
7			AC DJ C Separate pressure spring 分離圧接ｽﾌﾟﾘﾝｸﾞ
8			AA DD C Spring pin ｽﾌﾟﾘﾝｸﾞﾋﾟﾝ
9			AE DJ C Separate shaft 分離軸
10			BE GN A Torque limiter SPF ﾄﾙｸﾘﾐｯﾀｰSPF
11			AG DX A Paper feed separate roller 給紙分離ﾛｰﾗｰ
12			AC DJ C Separate shaft holder F 分離軸ﾎﾙﾀﾞｰF
13			AA DD C Screw(4×8) ﾋﾞｽ
15			AC DJ C U-turn collar Uﾀｰﾝｺﾛ
16			AB DD C Separate guide sheet R 分離ｶﾞｲﾄﾞｼｰﾄR
17			AB DD C Separate guide sheet F 分離ｶﾞｲﾄﾞｼｰﾄF
20			AB DD C Screw (4×12) ﾋﾞｽ
21			AH DX B Discharger brush N 除電ﾌﾞﾗｼN
22			AC DD C Screw(3×6) ﾋﾞｽ
23			AL EB C Transport upper paper guide
24			AA DD C Screw(4×10) ﾋﾞｽ
25			AD DJ C Actuator damper molt ｱｸﾁｭｴｰﾀ消⾳ﾓﾙﾄ
501			BD GN E Separate PG unit 分離PGﾕﾆｯﾄ

11. RSPF 分離部(Separation section)

№	Артикул	Альт. артикул	Описание
1			AA DD C E type ring(E5) Eﾘﾝｸﾞ
2			AA DD C Washer ﾜｯｼｬｰ
3			AC DJ C Brake spring ﾌﾞﾚｰｷｽﾌﾟﾘﾝｸﾞ
4			AB DD C Poly slider(6×12×0.5) ﾎﾟﾘｽﾗｲﾀﾞｰ
5			AB DJ C Bearing N(f6) 軸受N
6			AL EB D R frame Rﾌﾚｰﾑ
7			AA DD C Screw(4×10) ﾋﾞｽ
8			AB DD C Screw(3×8) ﾋﾞｽ
10			AA DJ C PS guide sheet PS案内ﾏｲﾗｰ
11			AT EZ C Transport paper guide 搬送ﾍﾟｰﾊﾟｰｶﾞｲﾄﾞ
12			AC DD C Screw(3×6) ﾋﾞｽ
13			AC DJ C Stopper holder ｽﾄｯﾊﾟｰﾎﾙﾀﾞｰ
14			AA DJ C Lock spring ﾛｯｸｽﾌﾟﾘﾝｸﾞ
15			AC DJ C Open/close lock pawl 開閉ﾛｯｸ⽖
16			AB DJ C Reading plate assembly spring
17			AF DS B Photo sensor(LG248NL1) ﾌｫﾄｾﾝｻｰ
18			AD DJ C Sensor fixing plate ｾﾝｻｰ取付板
19			AC DD C Reading front actuator 読取前ｱｸﾁｭｴｰﾀｰ
20			AC DJ C Reading front actuator spring
21			AV FG C PS roller PSﾛｰﾗｰ
22			AD DD C Gear(32P) ｷﾞﾔ
23			AA DD C SP pin(f2-10) ｽﾌﾟﾘﾝｸﾞﾋﾟﾝ
24			AC DJ C Bearing(B-F6-10) ﾍﾞｱﾘﾝｸﾞ
25			AK DX C Reading plate 読取板
26			AA DJ C Paper feed rear sheet 2 給紙後ﾏｲﾗｰ2
27			AU EZ C Reading rear roller 読取後ﾛｰﾗｰ
28			AN EG C Reverse gate 反転ｹﾞｰﾄ
29			AD DJ C White sheet ⽩ﾏｲﾗｰ
30			AG DX D F frame Fﾌﾚｰﾑ
31			AA DD C Screw(4×8) ﾋﾞｽ
32			AF DS B Photo sensor(SG2A141) ﾌｫﾄｾﾝｻｰ
33			AD DJ C Book sensor fixing plate ﾌﾞｯｸｾﾝｻｰ取付板
34			AB DJ C Book sensor spring ﾌﾞｯｸｾﾝｻｰｽﾌﾟﾘﾝｸﾞ
35			AD DJ C Book sensor actuator ﾌﾞｯｸｾﾝｻｰｱｸﾁｭｴｰﾀｰ
36			AD DJ C JAM release pulley JAM解ﾌﾟｰﾘｰ
37			AD DJ C Actuator damper molt ｱｸﾁｭｴｰﾀ消⾳ﾓﾙﾄ

12. RSPF 搬送部1(Transport section 1)

№	Артикул	Альт. артикул	Описание
1			BD GN B RSPF transport motor RSPF搬送ﾓｰﾀｰ
2			AC DD C Screw(3×6) ﾋﾞｽ
3			AE DJ C Transport motor tension holder RSPF
4			AA DD C Washer(M3) ﾜｯｼｬｰ
5			AA DD C Screw ﾋﾞｽ
6			AC DJ C Transport motor tension spring
7			AH DX D Drive frame 駆動ﾌﾚｰﾑ
8			BG GT B Paper feeding reversal motor 給紙反転ﾓｰﾀｰ
9			AB DJ C Tension collar ﾃﾝｼｮﾝｺﾛ
10			AA DD C E type ring(E4) Eﾘﾝｸﾞ
12			AF DS B Belt(40S2M152) ﾍﾞﾙﾄ
13			AD DJ C Paper feed gear(54P/18T) 給紙ｷﾞﾔ
14			AA DD C E type ring(E5) Eﾘﾝｸﾞ
15			AD DD C Gear(32P) ｷﾞﾔ
16			AA DD C SP pin(f2-10) ｽﾌﾟﾘﾝｸﾞﾋﾟﾝ
17			AB DJ C Bearing N(f6) 軸受N
18			AC DJ C Gear(33T) ｷﾞﾔ
19			AD DJ C Gear(37T/64P) ｷﾞﾔ
20			AS EQ B Belt(40S2M190) ﾍﾞﾙﾄ
21			AH DX C Pulley(1WAY) ﾌﾟｰﾘｰ
22			BA FX B Belt(40S2M236) ﾍﾞﾙﾄ
23			AC DJ C Gear(67T) ｷﾞﾔ
24			AC DJ C Gear(32T) ｷﾞﾔ
25			AC DJ C Tension spring ﾃﾝｼｮﾝｽﾌﾟﾘﾝｸﾞ
26			AM EG C Reading front roller 読取前ﾛｰﾗｰ
27			AV FG C RSPF delivery roller RSPF排紙ﾛｰﾗｰ
28			AD DJ C Transport shaft 搬送軸
29			AX FG B PS clutch PSｸﾗｯﾁ
30			AE DJ C Tension plate R ﾃﾝｼｮﾝﾌﾟﾚｰﾄR
31			AA DD C Poly slider ﾎﾟﾘｽﾗｲﾀﾞｰ

13. RSPF 搬送部2(Transport section 2)

№	Артикул	Альт. артикул	Описание
1			AA DJ C Pressure release damper molt 圧解消⾳ﾓﾙﾄ
2			AA DD C Screw(4×10) ﾋﾞｽ
3			AA DD C Screw ﾋﾞｽ
4			AE DJ C Solenoid fixing plate ｿﾚﾉｲﾄﾞ取付板
5			AR EQ B Reverse solenoid 反転ｿﾚﾉｲﾄﾞ
6			AD DJ C Reading rear sheet 読取後ｼｰﾄ
7			AB DJ C Open/close lock spring 開閉ﾛｯｸｽﾌﾟﾘﾝｸﾞ
8			AC DJ C Reading front follower holder 読取前従動ﾎﾙﾀﾞｰ
9			AC DJ C Reading front follower shaft 読取前従動軸
10			AA DJ C Transport follower roller RSPF 搬送従動ﾛｰﾗｰRSPF
11			AA DJ C Gate damper cushion ｹﾞｰﾄ消⾳ﾓﾙﾄ
12			AA DD C Screw ﾋﾞｽ
13			AE DJ C Pressure release lever TLPD 圧解ﾚﾊﾞｰTLPD
14			BH GX C Base tray ﾍﾞｰｽﾄﾚｲ
15			AG DX C Follower roller cover 従動ﾛｰﾗｰｶﾊﾞｰ
16			AC DD C Screw(3×6) ﾋﾞｽ
18			AE DS C Gasket FL ｶﾞｽｹｯﾄFL
19			AA DD C Screw(3×18) ﾋﾞｽ
20			AD DJ C Reading front sheet AR 読取前ｼｰﾄAR
21			AC DD C Mirror bearing N ﾐﾗｰ軸受 N
22			AB DD C Screw(4×14) ﾋﾞｽ
23			AB DD C Pin(φ2-12) 平⾏ﾋﾟﾝ
24			AD DJ C Delivery follower spring 排紙従動ｽﾌﾟﾘﾝｸﾞ
25			AC DJ C Pressure release hodler 圧解ﾎﾙﾀﾞｰ
26			AD DJ C Delivery follower roller 排紙従動ﾛｰﾗｰ
27			AC DJ C Delivery sponge B1A
28			AC DJ C Delivery follower shaft 排紙従動軸
29			AR EQ C Pressure release shaft 圧⼒解除軸
30			AD DJ C Transport follower earth spring
31			AL EB C Transport follower shaft 搬送従動軸
32			AD DJ C Transport follower spring 搬送従動ｽﾌﾟﾘﾝｸﾞ
33			AC DD C Screw(3×8) ﾋﾞｽ
34			AE DS D Sensor cover ｾﾝｻｰｶﾊﾞｰ
35			AC DJ C Reading front actuator spring
36			AC DD C Reverse front actuator 反転前ｱｸﾁｭｴｰﾀｰ
37			AF DS B Photo sensor(LG248NL1) ﾌｫﾄｾﾝｻｰ
39			AB DJ C Pressure release damper sponge 圧解消⾳ｽﾎﾟﾝｼﾞ
40			AA DJ C Reading front damper sheet 読取前消⾳ｼｰﾄ
41			AA DD C Damper molt 反転消⾳ﾓﾙﾄ
42			AA DJ C Follower SP sheet 従動SPｼｰﾄ

14. RSPF ﾍﾞｰｽﾄﾚｲ部(Base tray section)

№	Артикул	Альт. артикул	Описание
1			AT EZ C Paper feed upper paper guide
2			AC DJ C Paper enter detect actuator ⼊紙検知ｱｸﾁｭｴｰﾀｰ
3			AB DJ C Paper enter detect actuator return spring
4			AC DJ C PS pressure holder PS圧接ﾎﾙﾀﾞｰ
5			AC DJ C PS pressure spring PS圧接ｽﾌﾟﾘﾝｸﾞ
6			AA DD C Screw(3×16) ﾋﾞｽ
7			AA DD C Washer(M3) ﾜｯｼｬｰ
8			AX FG C Upper cover 上ｶﾊﾞｰ
9			AL EB C Transport follower shaft 搬送従動軸
10			AA DJ C Transport follower roller 搬送従動ﾛｰﾗｰ
11			AC DJ C Upper guide link arm 上ｶﾞｲﾄﾞﾘﾝｸｱｰﾑ
12			AC DJ C Link arm return spring
13			AR EQ D SPF rear cabinet SPF後ｷｬﾋﾞ
14			AC DJ C PS front actuator PS前ｱｸﾁｭｴｰﾀｰ
15			AF DS D F cabinet cover Fｷｬﾋﾞｶﾊﾞｰ
16			AF DS B Photo sensor(SG2A141) ﾌｫﾄｾﾝｻｰ
17			AF DS B Photo sensor(LG248NL1) ﾌｫﾄｾﾝｻｰ
20			AA DD C Screw(4×10) ﾋﾞｽ
21			AC DD C Screw(3×8) ﾋﾞｽ
23			AC DJ C Paper feed shaft earth spring 給紙軸ｱｰｽｽﾌﾟﾘﾝｸﾞ
24			AB DD C Screw(3×8) ﾋﾞｽ
25			AF DS C Paper feed shaft 給紙軸
26			AA DD C Spring pin(2-10) ｽﾌﾟﾘﾝｸﾞﾋﾟﾝ
27			AD DJ C Pick up roller gear(18T) ﾋﾟｯｸｱｯﾌﾟﾛｰﾗｰｷﾞﾔ
28			AA DD C E type ring(E5) Eﾘﾝｸﾞ
29			AK DX D SPF front cabinet SPF前ｷｬﾋﾞ
30			AC DD C Mirror bearing N ﾐﾗｰ軸受 N
32			AH DX B Door switch(AM51632C531) ﾄﾞｱｽｲｯﾁ
33			AB DJ C Lock arm ﾛｯｸｱｰﾑ
34			AC DJ C Paper lock arm ⽤紙ﾛｯｸｱｰﾑ
35			AC DJ C Lock release arm ﾛｯｸ解除ｱｰﾑ
36			AA DJ C PS guide mylar PS案内ﾏｲﾗｰ
37			AA DD C Washer ﾜｯｼｬｰ
38			AC DJ C Pickup damper cushion N 呼込み消⾳ﾓﾙﾄN
39			AD DJ C Pickup roller holder 呼込ﾛｰﾗｰﾎﾙﾀﾞｰ
40			AA DD C Spring pin ｽﾌﾟﾘﾝｸﾞﾋﾟﾝ
41			BE GN A Pickup torque limiter 呼込みﾄﾙｸﾘﾐｯﾀｰ
42			AD DD C Upper transport support paper guide
43			AC DJ C Paper feed guide holder 給紙ｶﾞｲﾄﾞﾎﾙﾀﾞｰ
45			AT EZ C Paper feed pulley 給紙ﾌﾟｰﾘｰ
46			AD DJ B Belt(132) ﾍﾞﾙﾄ
47			AH DX B One way coupling ﾜﾝｳｪｲｶｯﾌﾟﾘﾝｸﾞ
48			AG DX A Paper feed separate roller 給紙分離ﾛｰﾗｰ
49			AA DD C Screw(4×8) ﾋﾞｽ
50			AC DJ D Holder guide ﾎﾙﾀﾞｰｶﾞｲﾄﾞ
51			AA DD C E type ring(E4) Eﾘﾝｸﾞ
52			AC DJ C Pickup pulley 18P 呼込みﾌﾟｰﾘｰ18P
54			AM EG C Pickup shaft 呼込み軸
55			AH DX C Pick up roller 呼び込みﾛｰﾗｰ
58			AC DJ C PE actuator PEｱｸﾁｭｴｰﾀｰ
59			AB DJ C PE return spring PE復帰ｽﾌﾟﾘﾝｸﾞ
60			AA DD C Poly slider ﾎﾟﾘｽﾗｲﾀﾞｰ
62			BC GJ C Change lever 切替ﾚﾊﾞｰ
63			AA DD C Screw(3×8X) ﾋﾞｽ
501			BL HL E Paper feed unit 給紙ﾕﾆｯﾄ
901			CC UB E RSPF unit RSPFﾕﾆｯﾄ

15. RSPF 外装・搬送(Exteriors, Transport)

№	Артикул	Альт. артикул	Описание
2			AC DJ C U-turn collar Uﾀｰﾝｺﾛ
3			AC DJ C Separate pressure spring 分離圧接ｽﾌﾟﾘﾝｸﾞ
4			AB DD C Separate guide sheet F 分離ｶﾞｲﾄﾞｼｰﾄF
5			AC DJ C Separate fulcrum shaft 分離⽀点軸
6			AC DD C Screw(3×8) ﾋﾞｽ
7			AB DD C Separate guide sheet R 分離ｶﾞｲﾄﾞｼｰﾄR
8			AC DD D Separation roller cover 分離ﾛｰﾗｰｶﾊﾞｰ
9			AD DJ C Front separate sheet 前捌きｼｰﾄ
10			AL EB C Transport upper paper guide
12			AA DD C Screw(4×8) ﾋﾞｽ
13			AA DD C E type ring(E4) Eﾘﾝｸﾞ
15			AC DD C SPF torque limiter fixer SPFﾄﾙｸﾘﾐｯﾀｰ押え
16			AD DJ C SPF torque limiter spring
17			AC DD C SPF separate coupling SPF分離ｶｯﾌﾟﾘﾝｸﾞ
18			AA DD C Screw(3×8X) ﾋﾞｽ
19			AD DJ C Actuator damper cushion ｱｸﾁｭｴｰﾀｰ消⾳ﾓﾙﾄ
20			AG DX A Paper feed separate roller 給紙分離ﾛｰﾗｰ
21			AE DS C SPF separate shaft SPF分離軸
22			AD DJ C Separate shaft holder R 分離軸ﾎﾙﾀﾞｰR
23			AC DJ C Separate shaft holder F 分離軸ﾎﾙﾀﾞｰF
24			AC DD C Screw(3×6) ﾋﾞｽ
25			AA DD C Screw(4×10) ﾋﾞｽ
26			AH DX B Discharger brush N 除電ﾌﾞﾗｼN
27			AZ FQ D Original tray upper 原稿ﾄﾚｲ上
28			AG DX C RSPF regulation plate F RSPF規制板F
29			AF DS C RSPF regulation plate R RSPF規制板R
30			AC DJ D Original tray fulcrum cover 原稿ﾄﾚｲ⽀点ｶﾊﾞｰ
35			AF DS B Photo sensor(SG2A141) ﾌｫﾄｾﾝｻｰ
36			AB DD C Screw(4×12) ﾋﾞｽ
38			AE DS C Width detect sensor fixing plate 幅検知ｾﾝｻｰ取付板
39			AD DJ C Width detect pinion gear 36T
40			AD DJ C Regulation plate spring 規制板ｽﾌﾟﾘﾝｸﾞ
41			AE DS C SPF VR PWB LF rack SPF VR基板LFﾗｯｸ
43			AS EZ D Original tray lower 原稿ﾄﾚｲ下
44			AC DJ C Paper feed guide holder 給紙ｶﾞｲﾄﾞﾎﾙﾀﾞｰ
47			AS EQ E SPF VR PWB LF SPF VR基板LF
48			AD DJ C Paper fixing arm ⽤紙押えｱｰﾑ
901			BF GN E Original tray unit 原稿ﾄﾚｲﾕﾆｯﾄ

16. RSPF 給紙・原稿ﾄﾚｲ(Paper feed, Original tray)

№	Артикул	Альт. артикул	Описание
1			AT EZ C Transport paper guide 搬送ﾍﾟｰﾊﾟｰｶﾞｲﾄﾞ
2			AA DJ C PS guide mylar PS案内ﾏｲﾗｰ
3			AB DJ C Read plate pressure spring
4			AD DJ C Sensor fixing plate ｾﾝｻｰ取付板
5			AF DS B Photo sensor(LG248NL1) ﾌｫﾄｾﾝｻｰ
7			AC DD C Read front actuator 読取前ｱｸﾁｭｴｰﾀｰ
8			AC DJ C Read front actuator spring
9			AD DJ C Actuator damper cushion ｱｸﾁｭｴｰﾀｰ消⾳ﾓﾙﾄ
10			AK DX C Reading plate 読取板
11			AD DJ C White sheet ⽩ﾏｲﾗｰ
12			AA DJ C Paper feed rear mylar 2 給紙後ﾏｲﾗｰ2
13			AN EG C Reverse gate 反転ｹﾞｰﾄ
14			AB DD C Screw(3×8) ﾋﾞｽ
15			AA DD C Screw(4×10) ﾋﾞｽ
501			AT EZ E Reading plate unit 読取板ﾕﾆｯﾄ

17. RSPF 搬送部 (Paper transfer section)

№	Артикул	Альт. артикул	Описание
1			BH GX D Base tray ﾍﾞｰｽﾄﾚｲ
2			AA DJ C Gate damper cushion ｹﾞｰﾄ消⾳ﾓﾙﾄ
3			AB DJ C Open/close look spring 開閉ﾛｯｸｽﾌﾟﾘﾝｸﾞ
4			AC DJ C Read front follower holder 読取前従動ﾎﾙﾀﾞｰ
5			AC DJ C Read front follower shaft 読取前従動軸
6			AA DJ C Transport follower roller 搬送従動ﾛｰﾗｰ
7			AD DJ C Transport follower spring 搬送従動ｽﾌﾟﾘﾝｸﾞ
8			AC DD C Screw(3×8) ﾋﾞｽ
9			AA DD C Screw(3×18) ﾋﾞｽ
11			AL EB C Transport follower shaft 搬送従動軸
12			AA DJ C Reading front damper sheet 読取前消⾳ｼｰﾄ
13			AD DJ C Read front sheet 読取前ｼｰﾄ
14			AD DJ C Reading rear sheet 読取後ｼｰﾄ
15			AE DJ C Solenoid fixing plate ｿﾚﾉｲﾄﾞ取付板
16			AR EQ B Reverse solenoid 反転ｿﾚﾉｲﾄﾞ
17			AA DD C Screw(3×4) ﾋﾞｽ
18			AA DD C Screw(4×10) ﾋﾞｽ
21			AB DD C Screw(4×14) ﾋﾞｽ
22			AA DD C Washer(M4) 菊ﾜｯｼｬｰ
23			BB GD E RSPF driver PWB RSPFﾄﾞﾗｲﾊﾞｰ基板
25			AR EQ C Pressure release shaft 圧⼒解除軸
26			AE DJ C Pressure release lever 圧解ﾚﾊﾞｰ
27			AA DD C Screw ﾋﾞｽ
28			AC DD C Mirror bearing N ﾐﾗｰ軸受 N
29			AA DD C E type ring(E5) Eﾘﾝｸﾞ
30			AC DJ C Pressure release hodler 圧解ﾎﾙﾀﾞｰ
31			AB DD C Pin(φ2-12) 平⾏ﾋﾟﾝ
32			AD DJ C Delivery follower spring 排紙従動ｽﾌﾟﾘﾝｸﾞ
34			AA DD C Reversal Act damper cushion 反転Act消⾳ﾓﾙﾄ
35			AE DS C Gasket FL ｶﾞｽｹｯﾄFL
36			AA DJ C Pressure release damper molt 圧解消⾳ﾓﾙﾄ
37			AC DD C Screw(3×6) ﾋﾞｽ
39			AC DJ C Delivery follower shaft 排紙従動軸
40			AD DJ C Delivery follower roller 排紙従動ﾛｰﾗｰ
41			AC DJ C OC position sheet OC位置決めｼｰﾄ
42			AA DD C Screw(4×6) ﾋﾞｽ
43			AF DS B Photo sensor(LG248NL1) ﾌｫﾄｾﾝｻｰ
44			AM EG E SPF glass cleaner SPFｶﾞﾗｽｸﾘｰﾅｰ
45			AR EQ D OC mat OCﾏｯﾄ
46			AC DJ C Delivery sponge B1A
47			AG DX D Follower roller cover 従動ﾛｰﾗｰｶﾊﾞｰ
49			AC DD C Reverse front actuator 反転前ｱｸﾁｭｴｰﾀｰ
50			AC DJ C Read front actuator spring
51			AA DJ C Follower spring sheet 従動ｽﾌﾟﾘﾝｸﾞｼｰﾄ
52			AD DJ C Transport follower earth spring
55			AD DJ C Delivery extension tray 排紙延⻑ﾄﾚｲ
56			AC DD C Screw(3×10) ﾋﾞｽ
57			AB DJ C Pressure release damper sponge 圧解消⾳ｽﾎﾟﾝｼﾞ
58			AE DS D Sensor cover ｾﾝｻｰｶﾊﾞｰ
60			AC DD C RSPF sheet RSPFﾏｲﾗｰ
501			BR LP E SPF base tray unit SPFﾍﾞｰｽﾄﾚｲﾕﾆｯﾄ

18. RSPF ﾍﾞｰｽﾄﾚｲ(Base tray)

№	Артикул	Альт. артикул	Описание
1			BA FX B Belt(40S2M236) ﾍﾞﾙﾄ
2			AB DJ C Metal bearing ﾒﾀﾙ軸受
3			AA DD C E type ring(E5) Eﾘﾝｸﾞ
4			AD DJ C Transport shaft 搬送軸
5			AH DX C Pulley(37P)(1WAY) ﾌﾟｰﾘｰ
6			AA DD C Poly slider ﾎﾟﾘｽﾗｲﾀﾞｰ
7			AD DJ C Gear 37T/64P ｷﾞｱ37T/64P
8			AA DD C Spring pin(2-10) ｽﾌﾟﾘﾝｸﾞﾋﾟﾝ
9			AB DD C Poly slider(6×12×0.5) ﾎﾟﾘｽﾗｲﾀﾞｰ
10			AS EQ B Belt(40S2M190) ﾍﾞﾙﾄ
11			AA DD C E type ring(E4) Eﾘﾝｸﾞ
12			AB DJ C Tension collar ﾃﾝｼｮﾝｺﾛ
13			AD DJ C Paper feed gear(54P/18T) 給紙ｷﾞﾔ
14			AE DS B Belt(40S2M212BLT) ﾍﾞﾙﾄ
15			AH DX D Drive frame 駆動ﾌﾚｰﾑ
16			AE DJ C Transport motor tension holder
17			AA DD C Washer(φ6-11) ﾜｯｼｬｰ
18			BD GN B RSPF transport motor RSPF搬送ﾓｰﾀｰ
22			AA DD C Washer(M3) ﾜｯｼｬｰ
23			AF DS C Paper feed tension plate 給紙ﾃﾝｼｮﾝﾌﾟﾚｰﾄ
24			AD DD C Paper feed tension spring 給紙ﾃﾝｼｮﾝｽﾌﾟﾘﾝｸﾞ
25			AC DD C Screw(3×6) ﾋﾞｽ
27			AA DD C Screw(4×10) ﾋﾞｽ
28			AP EQ B SPF paper feeding clutch SPF給紙ｸﾗｯﾁ
34			AC DJ C Transport motor tension spring
39			AC DJ C Brake spring ﾌﾞﾚｰｷｽﾌﾟﾘﾝｸﾞ
41			AP EQ B Reversal clutch T 反転ｸﾗｯﾁT
46			AD DD C Gear(32P) ｷﾞﾔ
49			AC DJ C 33T gear 33Tｷﾞﾔ
50			AE DJ C Tension plate R ﾃﾝｼｮﾝﾌﾟﾚｰﾄR
55			AC DJ C Stopper holder ｽﾄｯﾊﾟｰﾎﾙﾀﾞｰ
56			AC DJ C Open/close lock pawl 開閉ﾛｯｸ⽖
57			AA DJ C Lock spring ﾛｯｸｽﾌﾟﾘﾝｸﾞ
62			AC DJ C 67T gear 67Tｷﾞﾔ
66			AC DJ C 32T gear 32Tｷﾞﾔ
67			AD DD C Paper feed coupling pulley(37P)
69			AL EB D R frame Rﾌﾚｰﾑ
70			AC DJ C Tension spring ﾃﾝｼｮﾝｽﾌﾟﾘﾝｸﾞ
72			AD DJ C Book sensor fixing plate ﾌﾞｯｸｾﾝｻｰ取付板
74			AV FG C PS roller PSﾛｰﾗｰ
75			AM EG C Read front roller 読取前ﾛｰﾗｰ
76			AU EZ C Reading rear roller 読取後ﾛｰﾗｰ
77			AS EQ A RSPF delivery roller RSPF排紙ﾛｰﾗｰ
78			AG DX D F frame Fﾌﾚｰﾑ
82			AC DJ C Bearing(B-F6-10) 軸受
83			AD DJ C JAM release pulley JAM解除ﾌﾟｰﾘｰ
86			AB DJ C Book sensor spring ﾌﾞｯｸｾﾝｻｰｽﾌﾟﾘﾝｸﾞ
87			AA DD C Screw(3×4) ﾋﾞｽ
88			AD DJ C Book sensor actuator ﾌﾞｯｸｾﾝｻｰｱｸﾁｭｴｰﾀｰ
89			AF DS B Photo sensor(SG2A141) ﾌｫﾄｾﾝｻｰ
90			AA DD C Screw(4×8) ﾋﾞｽ

19. RSPF 駆動部(Drive section)

№	Артикул	Альт. артикул	Описание
1			AT EZ C Process frame assy ﾌﾟﾛｾｽﾌﾚｰﾑｱｯｾﾝ
2			AD DJ A Blade side cushion ﾌﾞﾚｰﾄﾞｻｲﾄﾞﾓﾙﾄ
3			AD DD C Toner seal cushion F ﾄﾅｰ密封ﾓﾙﾄF
4			BD GN A Cleaning blade ｸﾘｰﾆﾝｸﾞﾌﾞﾚｰﾄﾞ
5			AC DD C Screw(3×10) ﾋﾞｽ
6			AF DS A Drum red cushion F ﾄﾞﾗﾑ⾚ﾓﾙﾄF
7			AF DS A Drum red cushion R ﾄﾞﾗﾑ⾚ﾓﾙﾄR
8			AC DJ C Screw coupling ｽｸﾘｭｰｶｯﾌﾟﾘﾝｸﾞ
9			AD DJ C CL bearing CL軸受
10			AK DX C Waste toner transport screw 廃ﾄﾅｰ搬送ｽｸﾘｭｰ
11			AC DJ C Transport screw cushion 搬送ｽｸﾘｭｰﾓﾙﾄ
13			AE DJ C Blade earth spring ﾌﾞﾚｰﾄﾞｱｰｽｽﾌﾟﾘﾝｸﾞ
14			AE DS C Separate holder assy 剥離ﾎﾙﾀﾞｰｱｯｾﾝ
15			AE DS C Drum cleaner sheet ﾄﾞﾗﾑｸﾘｰﾅｰｼｰﾄ
16			AG DX C Process gear cover ﾌﾟﾛｾｽｷﾞﾔｶﾊﾞｰ
17			AC DJ C Idle gear(26T) ｱｲﾄﾞﾙｷﾞﾔ
18			AC DJ C Transport pipe gear(15T) 搬送ﾊﾟｲﾌﾟｷﾞﾔ
19			AE DS B Transport pipe gear(14T) 搬送ﾊﾟｲﾌﾟｷﾞｱ
20			AF DS C Waste toner pipe 廃ﾄﾅｰﾊﾟｲﾌﾟ
21			AC DJ C P cap spacer Pｷｬｯﾌﾟｽﾍﾟｰｻｰ
22			AE DJ C Transport pipe screw 搬送ﾊﾟｲﾌﾟｽｸﾘｭｰ
23			AC DD C Waste toner cap 廃ﾄﾅｰｷｬｯﾌﾟ
24			AC DJ C Transport screw gear(30T) 搬送ｽｸﾘｭｰｷﾞﾔ
25			AC DJ C Toner pipe spring ﾄﾅｰﾊﾟｲﾌﾟｽﾌﾟﾘﾝｸﾞ
26			AD DD C Waste toner shutter 廃ﾄﾅｰｼｬｯﾀｰ
1			AL EB N C MC frame MCﾌﾚｰﾑ
28			AD DD C MC case tape MCｹｰｽﾃｰﾌﾟ
29			AE DJ C MC case MCｹｰｽ
30			AG DJ C Saw blade tape ﾉｺ⻭ﾃｰﾌﾟ
31			AK DX C Saw blade ﾉｺ⻭
32			AG DS A Grid ｸﾞﾘｯﾄﾞ
33			AC DD C Saw blade terminal ﾉｺ⻭端⼦
34			AC DD C Grid terminal ｸﾞﾘｯﾄﾞ端⼦
35			AB DD A Star ring ｽﾀｰﾘﾝｸﾞ
37			AC DJ C Starling ｽﾀ-ﾘﾝｸﾞ
38			AK DX C Separator pawl 剥離⽖
39			AB DD C Washer ﾜｯｼｬｰ
40			AB DD C Separation pawl spring 剥離⽖ｽﾌﾟﾘﾝｸﾞ
41			AA DD C Screw(3×4) ﾋﾞｽ
42			AC DD C Screw(3×8) ﾋﾞｽ
43			AD DD C Toner seal cushion R ﾄﾅｰ密封ﾓﾙﾄR
44			AG DX C Separation pawl lever 剥離⽖ﾚﾊﾞｰ
45			AB DJ C Lever spring ﾚﾊﾞｰｽﾌﾟﾘﾝｸﾞ
46			AD DJ C Flange cushion ﾌﾗﾝｼﾞﾓﾙﾄ
47			AC DD C Lever damper cushion ﾚﾊﾞｰ消⾳ﾓﾙﾄ
48			AB DD C TH cushion R THﾓﾙﾄR
49			AE DS C Holder support plate ﾎﾙﾀﾞｰ保持板
50			AC DD C Scattering prevention sheet F ⾶散防⽌ｼｰﾄF
51			AC DD C Scattering prevention sheet R ⾶散防⽌ｼｰﾄR
52			AB DD C Scattering prevention cushion F ⾶散防⽌ﾓﾙﾄF
53			AD DJ N C Process shutter seal cushion
1			BK HC N E Process unit ﾌﾟﾛｾｽﾕﾆｯﾄ

20. ﾌﾟﾛｾｽﾕﾆｯﾄ(Process unit)

№	Артикул	Альт. артикул	Описание
1			AM EG C DV BOX DVﾎﾞｯｸｽ
2			BT NE B MG roller MGﾛｰﾗｰ
3			AS EQ C MX roller R MXﾛｰﾗｰR
4			AS EQ C MX roller L MXﾛｰﾗｰL
5			AQ EQ C Cartridge guide lower ｶｰﾄﾘｯｼﾞｶﾞｲﾄﾞ下
6			AP EQ A Filter holder unit ﾌｨﾙﾀｰﾎﾙﾀﾞｰﾕﾆｯﾄ
7			AG DX C Cartridge guide upper ｶｰﾄﾘｯｼﾞｶﾞｲﾄﾞ上
8			AC DD C Screw(3×8) ﾋﾞｽ
9			AA DD C E type ring(E4) Eﾘﾝｸﾞ
10			AH DX C DMX bearing(6/14) DMXﾍﾞｱﾘﾝｸﾞ
11			AC DJ C DV block R DVﾌﾞﾛｯｸR
12			AC DJ C DV box fixing plate 現像槽固定板
13			AC DJ C MG pulley MGﾌﾟｰﾘｰ
14			AD DJ B DV belt B N DVﾍﾞﾙﾄB N
15			AC DJ C MX pulley MXﾌﾟｰﾘｰ
16			AB DJ C DV side cushion R DVｻｲﾄﾞﾓﾙﾄR
17			AC DJ C DMX gear(24T) DMXｷﾞﾔ
18			AE DJ C Doctor cover ﾄﾞｸﾀｰｶﾊﾞｰ
19			AK EB C DV doctor DVﾄﾞｸﾀｰ
20			AQ EQ C Doctor reinforce plate ﾄﾞｸﾀｰ補強板
21			AE DJ C DV high voltage spring F DV⾼圧ｽﾌﾟﾘﾝｸﾞF
22			AY FQ B ATC sensor ATCｾﾝｻｰ
23			AA DD C Screw(3×8) ﾋﾞｽ
24			AH DX D DV cover F DVｶﾊﾞｰF
25			AC DJ C MG holder MGﾎﾙﾀﾞｰ
26			AC DD C Bias spring ﾊﾞｲｱｽｽﾌﾟﾘﾝｸﾞ
27			AC DJ C DV holder F DVﾎﾙﾀﾞｰF
28			AC DD C Screw(3×10) ﾋﾞｽ
29			AB DD C Screw(3×3) ﾋﾞｽ
30			AD DJ C DV high voltage terminal DV⾼圧端⼦
31			AC DD C Screw(3×6) ﾋﾞｽ
32			AD DJ C Process fixing screw ﾌﾟﾛｾｽ固定ﾋﾞｽ
33			AA DD C E type ring(E5) Eﾘﾝｸﾞ
34			AB DD C Screw(3×6K) ﾋﾞｽ
35			AB DJ C DV side cushion F DVｻｲﾄﾞﾓﾙﾄF
36			AC DJ C DV guide cushion N DVｶﾞｲﾄﾞﾓﾙﾄN
37			AC DD C Blue screw(3×6) ⻘ﾋﾞｽ
38			AC DJ C Scraper holder ｽｸﾚｰﾊﾟｰﾎﾙﾀﾞｰ
39			AA DD C Screw(3×6) ﾋﾞｽ
40			AA DJ A DV side sheet R DVｻｲﾄﾞｼｰﾄR
41			AA DJ A DV side sheet F DVｻｲﾄﾞｼｰﾄF
42			AE DS C DV high voltage spring R DV⾼圧ｽﾌﾟﾘﾝｸﾞR
43			AC DJ C Pipe cushion N ﾊﾟｲﾌﾟﾓﾙﾄN
44			AC DJ C Pipe cover cushion N ﾊﾟｲﾌﾟｶﾊﾞｰﾓﾙﾄN
45			AA DJ C Cover upper seal ｶﾊﾞｰ上ｼｰﾙ
46			AC DJ C DV TH cushion DV TH ﾓﾙﾄ
47			AB DJ C Doctor cover seal ﾄﾞｸﾀｰｶﾊﾞｰｼｰﾙ
48			AE DJ A DV blade seal DVﾌﾞﾚｰﾄﾞｼｰﾙ
49			AC DJ C DV Washer DV ﾜｯｼｬ
50			AQ EB C MG bearing MGﾍﾞｱﾘﾝｸﾞ
51			AH DX C Bearing ﾍﾞｱﾘﾝｸﾞ
53			AC DD C DV seal F DVｼｰﾙF
54			AB DD C TN guide lower seal TNｶﾞｲﾄﾞ下ｼｰﾙ
901			BR LX E DV unit DVﾕﾆｯﾄ

21. DV ﾕﾆｯﾄ(DV unit)

№	Артикул	Альт. артикул	Описание
1			AL EB C Fusing frame R 定着ﾌﾚｰﾑR
2			AD DJ C Pressure lever R 加圧ﾚﾊﾞｰR
3			AD DD C Fusing pressure spring 定着加圧ｽﾌﾟﾘﾝｸﾞ
5			AD DJ C Pressure release lever F 圧解除ﾚﾊﾞｰF
6			AL EB C Fusing frame F 定着ﾌﾚｰﾑF
7			AD DJ C Pressure lever F 加圧ﾚﾊﾞｰF
8			AD DJ C Pressure release lever R 圧解除ﾚﾊﾞｰR
9			AN EG C Fusing upper frame stay 定着上ﾌﾚｰﾑｽﾃｲ
10			AC DD C Screw(3×6) ﾋﾞｽ
11			BF GN C Pressure roller 加圧ﾛｰﾗｰ
12			AL EB A FU pressure bearing FU加圧軸受
13			BB FX A Heat roller(TL) ﾋｰﾄﾛｰﾗｰ
15			AR EQ A Fusing gear(TL)(38T) 定着ｷﾞﾔ
16			AA DD C Roller stopper ﾛｰﾗｰｽﾄｯﾊﾟｰ
19			AF DS B Photo sensor(SG2A141) ﾌｫﾄｾﾝｻｰ
20			AA DD C Screw(3×8) ﾋﾞｽ
21			AT EZ C Fusing cleaner plate 定着ｸﾘｰﾅｰ板
22			AG DX C Fusing upper plate 定着上板
23			AA DJ D Fusing green label 定着ｸﾞﾘｰﾝﾗﾍﾞﾙ
24			AG DX C Fusing rear paper detect lever
25			AC DJ C Fusing ACT return spring
27			AE DS A Upper separator pawl 上剥離⽖
28			AB DJ C Upper pawl pressure spring 上⽖加圧ｽﾌﾟﾘﾝｸﾞ
29			AA DD C Screw(4×10 Blue) ﾋﾞｽ
31			AG DX C Lamp fixing plate F ﾗﾝﾌﾟ取付板F
32			AC DJ C Fusing rear lower PG return spring
33			AC DD C Joint plate fixing step screw
34			AC DD C Step screw 段ﾋﾞｽ
35			AC DD C Step screw(M3) 段ﾋﾞｽ
38			AQ EQ C Fusing front paper guide
41			AD DJ C Thermostat cover ｻｰﾓｽﾀｯﾄｶﾊﾞｰ
42			AD DJ C Resistor(500MΩ) 抵抗
43			AM EG B Upper thermostat 上ｻｰﾓｽﾀｯﾄ
44			AB DD C Screw(3×6) ﾋﾞｽ
46			AA DD C Washer(M3) ﾜｯｼｬｰ
47			AT EZ B Thermistor TL ｻｰﾐｽﾀTL
3			AB DD C Thermistor screw ｻｰﾐｽﾀｰﾋﾞｽ
49			AC DD C Screw(3×8) ﾋﾞｽ
52			AC DJ C Lower pawl separate spring R
53			AB DJ C Gear key ｷﾞﾔｷｰ
55			AB DJ C Delivery guide collar 排紙ｶﾞｲﾄﾞｺﾛ
56			AC DD C Separator pawl washer 剥離⽖ﾜｯｼｬｰ
58			AC DJ N C Fusing Washer 定着ﾜｯｼｬｰ

22. 定着ﾕﾆｯﾄ (Fusing unit)

№	Артикул	Альт. артикул	Описание
1			BA FX C Motor drive plate assy ﾓｰﾀｰ駆動板ｱｯｾﾝ
2			AA DD C E type ring(E5) Eﾘﾝｸﾞ
3			AC DD C Screw(3×6) ﾋﾞｽ
4			AF DS C Gear(69-35T) ｷﾞﾔ
5			AE DS C Gear(81-43/44T) ｷﾞﾔ
6			AL EB C Fusing drive gear 26T 定着駆動ｷﾞﾔ26T
7			AD DJ C Fusing drive front gear(52T) 定着駆動前ｷﾞﾔ
8			AC DD C HT ratchet spring HTﾗﾁｪｯﾄｽﾌﾟﾘﾝｸﾞ
10			AD DJ C Paper feed drive gear 50T 給紙駆動ｷﾞﾔ50T
12			AD DJ C Gear(30-18T) ｷﾞﾔ
13			AE DS C Gear(138-28T) ｷﾞﾔ
14			AD DJ C Manual paper feed drive gear(35T) ⼿差し駆動ｷﾞﾔ
15			AA DD C E type ring(E7) Eﾘﾝｸﾞ
17			AB DJ C Spring pin(φ2-16) ｽﾌﾟﾘﾝｸﾞﾋﾟﾝ
18			AE DS C Bearing(φ8-16) 軸受
19			AC DJ C Spring pin(φ2-10) ｽﾌﾟﾘﾝｸﾞﾋﾟﾝ
21			AF DS C Drum drive gear(75T) ﾄﾞﾗﾑ駆動ｷﾞﾔ
23			AC DJ C MG spring MGｽﾌﾟﾘﾝｸﾞ
24			AC DJ C MG coupling MGｶｯﾌﾟﾘﾝｸﾞ
29			AD DJ C Drum earth plate ﾄﾞﾗﾑｱｰｽ板
30			AK EB C High voltage holder ⾼圧ﾎﾙﾀﾞｰ
1			AG DX C GB high voltage spring GB⾼圧ｽﾌﾟﾘﾝｸﾞ
33			AB DD C Screw(3×8KS) ﾋﾞｽ
35			AC DJ C High voltage spacer ⾼圧ｽﾍﾟｰｻｰ
36			AC DD C Screw(3×8) ﾋﾞｽ
37			AD DJ C High voltage protect cover ⾼圧保護ｶﾊﾞｰ
38			AC DD C TC high voltage plate spring TC⾼圧板ﾊﾞﾈ
43			AA DD C Washer ﾜｯｼｬｰ
44			AW FG C Fly wheel ﾌﾗｲﾎｲｰﾙ
45			AD DJ C Screw(3X8) ﾋﾞｽ
46			AA DD C Paper exit roller washer 排出ﾛｰﾗｰﾜｯｼｬｰ
47			AB DD C Poly slider ﾎﾟﾘｽﾗｲﾀﾞｰ
48			AK DX B Bearing(φ8-16) 軸受
49			AB DD C Poly slider(φ8.4) ﾎﾟﾘｽﾗｲﾀﾞｰ

23. ﾒｲﾝ駆動ﾕﾆｯﾄ (Main drive unit)

№	Артикул	Альт. артикул	Описание
2			AD DJ C 2nd cassette guide sheet 2ndｶｾｯﾄｶﾞｲﾄﾞｼｰﾄ
3			AG DX C 500 cassette rear edge plate 500ｶｾｯﾄ後端板
4			AB DJ C Regulation plate 規制板ﾌﾟﾚｰﾄ
5			AA DJ C Side plate tape R 側板ﾃｰﾌﾟR
6			AN EG C 500 cassette guide R 500ｶｾｯﾄｶﾞｲﾄﾞ R
7			AP EQ C 500 cassette guide F 500ｶｾｯﾄｶﾞｲﾄﾞ F
8			AE DS C Regulation plate lock spring 規制板ﾛｯｸSP
9			AC DJ B Gear(18T) ｷﾞｱ
10			AE DJ C Cassette OC adjust plate ｶｾｯﾄOC調整板
11			AA DD C Screw(3×6) ﾋﾞｽ
12			AC DJ C CG bearing CG軸受
14			AA DD C Spring pin(φ4-25) ｽﾌﾟﾘﾝｸﾞﾋﾟﾝ
15			AA DD C E type ring(E7) Eﾘﾝｸﾞ
16			AX FG C 500 cassette plate 500ｶｾｯﾄ板
17			AC DJ C Rotation plate sheet 回転板ｼｰﾄ
18			AD DD C 500 cassette earth spring
19			AC DD C Rotation plate step screw 回転板⽤段ﾋﾞｽ
22			AK EB D Cassette handle ｶｾｯﾄ取⼿
24			AC DD C Screw(3×8) ﾋﾞｽ
28			AA DD C Screw ﾋﾞｽ
30			AC DJ C Spring pin(φ2-10) ｽﾌﾟﾘﾝｸﾞﾋﾟﾝ
31			AC DJ C U cassette release arm Uｶｾｯﾄ解除ｱｰﾑ
32			AD DJ C Cassette lock pawl spring ｶｾｯﾄﾛｯｸ⽖ｽﾌﾟﾘﾝｸﾞ
33			AA DD C E type ring(E5) Eﾘﾝｸﾞ
34			AE DJ C Bearing 軸受
35			AL EB C Cassette lock shaft 500 ｶｾｯﾄﾛｯｸｼｬﾌﾄ

24. 500枚ﾄﾚｲﾕﾆｯﾄ(500 paper tray unit)

№	Артикул	Альт. артикул	Описание
1			AE DJ C Desk PE actuator ﾃﾞｽｸPEｱｸﾁｭｴｰﾀｰ
2			AF DS B Photo sensor(SG2A141) ﾌｫﾄｾﾝｻｰ
3			AA DD C E type ring(E5) Eﾘﾝｸﾞ
4			AC DD C Mirror bearing N ﾐﾗｰ軸受 N
5			AC DJ C Pick up lever spring ﾋﾟｯｸｱｯﾌﾟﾚﾊﾞｰSP
6			AD DJ C 2nd paper feed release lever 2nd給紙解除ﾚﾊﾞｰ
7			AT EZ C 2nd paper feed frame 2nd給紙ﾌﾚｰﾑ
8			AK DX C Paper feed roller shaft 給紙ﾛｰﾗｰ軸
9			AG DX C 550 cassette separate holder 550ｶｾｯﾄ分離ﾎﾙﾀﾞ
10			AA DD C E type ring(E4) Eﾘﾝｸﾞ
12			AA DD C Screw(4×10) ﾋﾞｽ
13			AC DD C Screw(3×8) ﾋﾞｽ
14			AG DS C Right rail upper paper guide reinforce plate
15			AN EG C Right rail upper paper guide
16			AH DX C 550 cassette separate roller shaft
17			AA DD C Spring pin ｽﾌﾟﾘﾝｸﾞﾋﾟﾝ
19			AH DX A Separate roller FT 分離ﾛｰﾗｰ FT
20			AD DJ C Pick up holder 呼込ﾎﾙﾀﾞｰ
21			AC DJ C Spring pin(φ2-10) ｽﾌﾟﾘﾝｸﾞﾋﾟﾝ
22			AC DJ C Gear(22T) 22TｷﾞﾔMO8
23			AS EQ A Paper feed roller FT 給紙ﾛｰﾗｰ FT
24			AH DX C Pick up joint gear(21T) 呼込連結ｷﾞﾔ
25			AK EB A Pickup roller FT 呼込ﾛｰﾗｰ FT
26			AC DD C 2nd paper feed holder spring
27			AK DX C 2nd paper feed holder 2nd給紙ﾎﾙﾀﾞ
29			AD DD C Paper feed damper cushion 給紙消⾳ﾓﾙﾄ
30			AD DD C Paper feed clutch joint gear 給紙ｸﾗｯﾁ連結ｷﾞﾔ
31			AX FG C Paper feed clutch 給紙ｸﾗｯﾁ
901			C CFRM-0170RS53 3 BG GT N E Paper feed frame unit 給紙ﾌﾚｰﾑﾕﾆｯﾄ [ p I e m rf p o r r o m v a e n ce] 15/Aug

25. 給紙ﾕﾆｯﾄ(Paper Feed Unit)

№	Артикул	Альт. артикул	Описание
1			AP EQ B Reflection sensor(GP2A240L) 反射型ｾﾝｻｰ
3			AY FQ C 2nd paper feed frame 2nd給紙ﾌﾚｰﾑ
4			AD DJ C 2nd transport sensor holder 2nd搬送ｾﾝｻｰﾎﾙﾀﾞ
5			AC DD C Screw(3×8) ﾋﾞｽ
6			AE DJ C Desk PE actuator ﾃﾞｽｸPEｱｸﾁｭｴｰﾀｰ
7			AP EQ A 2nd transport roller 2nd搬送ﾛｰﾗｰ
8			AG DX C Clutch earth plate ｸﾗｯﾁｱｰｽ板
9			AK DX C 2nd paper feed holder 2nd給紙ﾎﾙﾀﾞ
10			AK EB A Pickup roller FT 呼込ﾛｰﾗｰ FT
11			AK DX C 2nd paper feed shaft 2nd給紙ｼｬﾌﾄ
12			AC DD C 2nd paper feed holder spring
14			AD DJ C Pick up holder 呼込ﾎﾙﾀﾞｰ
15			AH DX C Pick up joint gear(21T) 呼込連結ｷﾞﾔ
16			AC DJ C Gear(22T) 22TｷﾞﾔMO8
17			AS EQ A Paper feed roller FT 給紙ﾛｰﾗｰ FT
18			AC DJ C Spring pin(φ2-10) ｽﾌﾟﾘﾝｸﾞﾋﾟﾝ
19			AD DJ C 2nd paper feed release lever 2nd給紙解除ﾚﾊﾞｰ
20			AC DJ C Pick up lever spring ﾋﾟｯｸｱｯﾌﾟﾚﾊﾞｰSP
21			AC DD C Mirror bearing N ﾐﾗｰ軸受 N
22			AA DD C E type ring(E5) Eﾘﾝｸﾞ
23			AD DJ C Clutch gear(28T) ｸﾗｯﾁｷﾞﾔ
24			AD DJ C 2nd gear(27T/22T) 2ndｷﾞﾔ
25			AD DJ C Clutch gear(46T) ｸﾗｯﾁｷﾞﾔ
26			AX FG B Transport clutch 搬送ｸﾗｯﾁ
27			AT EZ B 2nd paper feed clutch 2nd給紙ｸﾗｯﾁ
28			AA DD C E type ring(E4) Eﾘﾝｸﾞ
29			AH DX C 500 cassette separate roller shaft
30			AA DD C Spring pin ｽﾌﾟﾘﾝｸﾞﾋﾟﾝ
31			AP EQ B Separate torque limiter 分離ﾄﾙｸﾘﾐｯﾀｰ
32			AH DX A Separate roller FT 分離ﾛｰﾗｰ FT
33			AG DS C 500 cassette separate holder 500ｶｾｯﾄ分離ﾎﾙﾀﾞ
34			AM EG C 2nd separate holder plate 2nd分離ﾎﾙﾀﾞ板
35			AH DX C Desk paper feed separation spring ﾃﾞｽｸ給紙分離SP
36			AA DD C Screw(4×8) ﾋﾞｽ
37			AA DD C Screw(4×12) ﾋﾞｽ
40			AC DJ C Transfer roller bearing 転写ﾛｰﾗｰ軸受
41			AA DD C E type ring(E3) Eﾘﾝｸﾞ
42			AD DJ C 2nd joint arm 2ND連結ｱｰﾑ
43			AF DS C 2nd joint gear(56T) 2ND連結ｷﾞｱ
44			AC DJ C 2nd joint arm spring 2ND連結ｱｰﾑSP
45			AD DJ C U-turn collar Uﾀｰﾝｺﾛ
46			AC DD C Screw(3×8) ﾋﾞｽ
901			BN HV C Paper feed frame unit 給紙ﾌﾚｰﾑﾕﾆｯﾄ

26. 2nd給紙ﾕﾆｯﾄ(2nd paper Feed Unit)[MX-M356N,MX-M316N,MX-M266N,MX-M315N,

№	Артикул	Альт. артикул	Описание
1			C LFRM-0168QSZ1 3 AY FQ C 2nd right rear frame 2nd右後ﾌﾚｰﾑ [ p I e m rf p o r r o m v a e n ce] 15/Mar RC
2			AC DJ C Cassette lock ｶｾｯﾄﾛｯｸ
3			AA DD C Screw(4×12) ﾋﾞｽ
4			AU EZ C 2nd rear reinforce plate 2nd後補強板
5			AC DJ C Cassette earth spring ｶｾｯﾄｱｰｽｽﾌﾟﾘﾝｸﾞ
6			AX FG B Lift motor A unit ﾘﾌﾄﾓｰﾀｰA UN
7			AE DS C Edge guard lower ｴｯｼﾞｶﾞｰﾄﾞ下
8			AD DD C 2nd PWB protect sheet 2nd基板保護ｼｰﾄ
10			AP EQ C 2nd front upper reinforce plate 2nd前上補強板
12			AP EQ C 2nd right rail plate 2nd右ﾚｰﾙ板
13			AH DX B Lift coupling ﾘﾌﾄｶｯﾌﾟﾘﾝｸﾞ
14			AC DJ C Lift up spring ﾘﾌﾄｱｯﾌﾟｽﾌﾟﾘﾝｸﾞ
15			AM EG C 2nd front lower reinforce plate 2nd前下補強板
16			AC DJ C Cassette guide collar ｶｾｯﾄｶﾞｲﾄﾞｺﾛ
17			AF DS C Cassette collar shaft ｶｾｯﾄｺﾛ軸
18			AB DD C Screw(3×8KS) ﾋﾞｽ
19			AC DD C Screw(3×6) ﾋﾞｽ
20			AE DS C Collar(φ16) ｺﾛ
21			AC DD C Collar step screw ｺﾛ段ﾋﾞｽ
22			AC DD C Transport paper guide lock
23			AB DJ C Lock spring ﾛｯｸｽﾌﾟﾘﾝｸﾞ
24			AA DD C Screw(3×8X) ﾋﾞｽ
25			AC DD C Rubber foot ｺﾞﾑ⾜
26			AK DX C Screw(3×35) ﾋﾞｽ
27			AB DD C Screw(3×8) ﾋﾞｽ
28			AF DS B Detect switch(D2X-G) 検知ｽｲｯﾁ
29			AC DJ C 2nd joint plate S 2nd連結板S
30			AA DD C Screw(3×8) ﾋﾞｽ
31			AC DD C 2nd rail guide PG push out spring
32			AF DS C 2nd lift up fixing plate 2ndﾘﾌﾄｱｯﾌﾟ取付板
34			AV FG D 2nd rear cover 2nd 後ｶﾊﾞｰ
35			AD DJ C 1st door arm 1stﾄﾞｱｱｰﾑ
36			AC DJ C Right lower door pressure spring
37			AE DS C 2nd Transport paper guide shaft
38			AF DS C U-turn roller Uﾀｰﾝﾛｰﾗｰ
39			AN EG C 2nd rail guide paper guide
40			AQ EQ C 2nd transport paper guide
41			AQ EQ D 2nd right door 2nd右ﾄﾞｱ
42			AG DX D 2nd left cover 2nd左ｶﾊﾞｰ
43			AB DJ C PWB supporter(LCBS-3) 基板ｻﾎﾟｰﾀｰ
44			AA DD C Screw(4×8) ﾋﾞｽ
52			AA DD C Screw(4×8) ﾋﾞｽ

27. 2ndﾕﾆｯﾄ(2nd unit)[MX-M356N,MX-M316N,MX-M266N,MX-M315N,MX-M315NE,

№	Артикул	Альт. артикул	Описание
1			AL EB C Manual paper feed guide paper guide
2			AL EB C Manual paper feed transport guide ⼿差し搬送ｶﾞｲﾄﾞ
3			AD DJ C Manual paper feed gear(37T) ⼿差しｷﾞﾔ
4			AE DJ C Bearing 軸受
5			AD DJ C Manual paper feed earth spring ⼿差しｱｰｽｽﾌﾟﾘﾝｸﾞ
6			AD DJ C Bearing 軸受
7			AR EQ B Clutch(3.5KG) ｸﾗｯﾁ
8			C PSHEZ0964QSAZ 3 AE DJ N C Manual paper feed sheet B ⼿差しﾏｲﾗｰB D D C C J E - - 8 9 4 3 2 2 / 15/May RC
11			AN EG A Paper feeding roller 給紙ﾛｰﾗｰ
12			AC DJ C Spring pin(φ2-10) ｽﾌﾟﾘﾝｸﾞﾋﾟﾝ
13			AH DX B One way coupling ﾜﾝｳｪｲｶｯﾌﾟﾘﾝｸﾞ
14			AA DD C E type ring(E5) Eﾘﾝｸﾞ
15			AC DD C Gear(27T) ｷﾞﾔ
16			AH DX C Paper feed shaft 給紙ｼｬﾌﾄ
17			AC DD C Screw(3×8) ﾋﾞｽ
18			AD DJ C SUS plate holder SUS板ﾎﾙﾀﾞｰ
19			AC DD C Pick up plate 呼び込みﾌﾟﾚｰﾄ
20			AE DS C Follower roller shaft 従動ﾛｰﾗｰ軸
21			AA DD C E type ring(E3) Eﾘﾝｸﾞ
22			AC DD C Torque limiter fixer ﾄﾙｸﾘﾐｯﾀｰ押え
24			AK DX A Separation roller 分離ﾛｰﾗｰ
25			AE DJ C MF separate roller holder MF分離ﾛｰﾗｰﾎﾙﾀﾞｰ
26			AQ EQ C Manual paper feed frame ⼿差しﾌﾚｰﾑ
27			AF DS B Photo sensor(SG2A141) ﾌｫﾄｾﾝｻｰ
28			AC DD C MF paper existence detect actuator spring
29			AC DD C Screw(3×6) ﾋﾞｽ
30			AC DD C MF guide sheet B MFｶﾞｲﾄﾞｼｰﾄ B
31			AC DD C MF guide sheet A MFｶﾞｲﾄﾞｼｰﾄ A
32			AA DD C E type ring(E4) Eﾘﾝｸﾞ
33			AA DD C Screw(4×8) ﾋﾞｽ
34			AC DJ C Stopper(E5) ｽﾄｯﾊﾟｰ
35			AC DD C Pick up plate sheet 呼び込みﾌﾟﾚｰﾄｼｰﾄ
36			AD DD C MF Paper feed front separate sheet MF給紙前ｻﾊﾞｷｼｰﾄ
37			AC DD C MF separate pressure spring
38			AC DD C Front frame return spring L
39			AE DS C Pressure release support shaft 圧解除補助ｼｬﾌﾄ
40			AD DJ C Paper existence detect lever 紙有無検知ﾚﾊﾞｰ
42			AD DJ C MF lock holder MFﾛｯｸﾎﾙﾀﾞｰ
43			AC DD C Separate gear(18T) 分離ｷﾞﾔ
3			AC DD N C MF16T gear MF16Tｷﾞﾔ
45			AD DJ C MF gear fulcrum shaft MFｷﾞﾔ⽀点軸
901			BG GT E Manual paper feed paper feed unit ⼿差し給紙ﾕﾆｯﾄ

28. ⼿差しﾏﾙﾁ給紙ﾕﾆｯﾄ(Manual paper feed unit)

№	Артикул	Альт. артикул	Описание
1			AC DD C Screw(3×8) ﾋﾞｽ
2			AN EQ C Tray cover ﾄﾚｲｶﾊﾞｰ
3			AD DJ C Tray lock pawl ﾄﾚｲﾛｯｸ⽖
4			AC DJ C Tray lock spring ﾄﾚｲﾛｯｸｽﾌﾟﾘﾝｸﾞ
5			AA DD C Screw(3×5) ﾋﾞｽ
6			AA DD C Washer ﾜｯｼｬ
7			AC DD C Rotation plate lock ST fixing plate
8			AD DJ C MF harness cover MFﾊｰﾈｽｶﾊﾞｰ
9			AE DJ C Harness holder ﾊｰﾈｽﾎﾙﾀﾞｰ
11			C LSOU-0079QSZ1 3 AW FG N C Manual paper feed tray ⼿差しﾄﾚｲ [ p I e m rf p o r r o m v a e n ce] 15/Feb
12			AF DS B Waste toner lock detect switch(D2X-G) 廃ﾄﾅｰﾛｯｸ検知ｽｲｯﾁ
13			AQ EQ D MF extension tray upper MF延⻑ﾄﾚｲ上
14			AF EQ D MF support guide MF補助ｶﾞｲﾄﾞ
15			AF DS B Photo sensor(SG2A141) ﾌｫﾄｾﾝｻｰ
16			AC DJ C MF paper detect actuator
18			AC DD C MF pick up spring
19			AC DD C MF rotation plate lock spring
20			AE DS C MF rotation plate lock MF回転板ﾛｯｸ
21			AD DJ C MF width detect rack MF幅検知ﾗｯｸ
22			AA DD C Screw(3×8X) ﾋﾞｽ
23			AD DJ C MF width detect pinion gear MF幅検知ﾋﾟﾆｵﾝｷﾞﾔ
24			AL EB E Volume PWB ﾎﾞﾘｭｰﾑ基板
25			AF DS C MF width detect fixing plate MF幅検知取付板
26			AB DJ C MF width detect plate spring
28			AE DS C MF regulation plate F MF規制板F
30			AE DS C MF regulation plate R MF規制板R

29. ⼿差しﾏﾙﾁ給紙ﾄﾚｲﾕﾆｯﾄ (Manual paper feed tray unit)

№	Артикул	Описание
1		C PGIDM0244QSZ1 3 AW FG N C Inner ｲﾝﾅｰ [ p I e m rf p o r r o m v a e n ce] 15/Apr RC
4		AC DD C Screw(3×8) ﾋﾞｽ
5		AA DD C Screw(3×16) ﾋﾞｽ
6		AD DJ C U-turn collar Uﾀｰﾝｺﾛ
7		AC DD C Right door follower spring 右ﾄﾞｱ従動ｽﾌﾟﾘﾝｸﾞ
8		AF DS C Right door follower shaft 右ﾄﾞｱ従動ｼｬﾌﾄ
9		AG DX C Transport follower roller(φ16) 搬送従動ﾛｰﾗｰ
10		AA DD C E type ring(E3) Eﾘﾝｸﾞ
12		AC DD C DUP roller earth plate DUPﾛｰﾗｰｱｰｽ板
13		AD DJ C Side door reinforce plate R ｻｲﾄﾞﾄﾞｱ補強板R
14		AD DD C Screw(3×10) ﾋﾞｽ
15		AF DS C Right door rail 右ﾄﾞｱｰﾚｰﾙ
16		AD DJ C Side door reinforce plate F ｻｲﾄﾞﾄﾞｱ補強板F
17		AF DS C Rail reinforce plate ﾚｰﾙ補強板
18		AA DD C E type ring(E4) Eﾘﾝｸﾞ
19		AC DD C DUP roller collar DUPﾛｰﾗｰｶﾗｰ
20		AD DJ C Gear(23T) ｷﾞﾔ
21		AC DJ C Spring pin(φ2-10) ｽﾌﾟﾘﾝｸﾞﾋﾟﾝ
22		AC DD C ADU bearing ADU軸受
23		AN EG A DUP roller DUPﾛｰﾗｰ
27		C MLEVP0202QSZZ 5 AF DS N C R [w ig it h h t N do o o .1 r , l 2 o 4 c , k 2 5 le , v 3 e 2 r ,33,BLK27-8,10] 右ﾄﾞｱﾛｯｸﾚﾊﾞｰ [ p I e m rf p o r r o m v a e n ce] 15/Jul
28	MSPRC0675QSZZ запросить цену →	Transfer pressure spring upper(Refer to 転写圧接
29		AA DD C E type ring(E5) Eﾘﾝｸﾞ
30		AC DD N C Transfer pressure spring middle
31		AC DD C Screw ﾋﾞｽ
33		Inner mylar B

30. ｻｲﾄﾞﾄﾞｱﾕﾆｯﾄ (Side door unit)

№	Артикул	Альт. артикул	Описание
1			AK DX C Transfer alupet 転写ｱﾙﾍﾟｯﾄ
2			AC DD C Transfer bearing F 転写軸受F
3			AX FG A Transfer roller 転写ﾛｰﾗｰ
6			C PCLR-0026QSZ2 3 AC DD N C Transfer roller collar(Refer to Matrix) 転写ﾛｰﾗｰｶﾗｰ [ p I e m rf p o r r o m v a e n ce] 15/Mar
7			AA DD C E type ring(E4) Eﾘﾝｸﾞ
8			AC DJ C Transfer roller spring R 転写ﾛｰﾗｰｽﾌﾟﾘﾝｸﾞR
9			AC DD C Transfer TC spring 転写TCﾊﾞﾈ
11			AC DD C Transfer BC spring 転写BCﾊﾞﾈ
12			AF DS C Discharge plate holder 除電板ﾎﾙﾀﾞｰ
13			AN EG C Discharge plate 除電板
14			AC DD C Transfer pressure spring 転写加圧ｽﾌﾟﾘﾝｸﾞ
15			AB DD C Spring pin ｽﾌﾟﾘﾝｸﾞﾋﾟﾝ
17			C LPLTM0890QSZ1 3 BA FX N C Transfer reinforce plate(Refer to Matrix) 転写補強板 [ p I e m rf p o r r o m v a e n ce] 15/Mar
18			AC DD C Screw(3×8) ﾋﾞｽ
19			AC DD C Screw(M3x6P) ﾋﾞｽ
20			AA DD C Washer for Earth ｱｰｽ⽤ﾜｯｼｬｰ
21			AF DS N C Transfer brush support plate 転写ﾌﾞﾗｼ⽀持板

31. 転写ﾛｰﾗｰﾕﾆｯﾄ(Transfer roller unit)

№	Артикул	Альт. артикул	Описание
1			AD DJ C Paper fixture ⽤紙押え
3			AF DS B Photo sensor(SG2A141) ﾌｫﾄｾﾝｻｰ
5			AD DJ C Bearing(φ6) 軸受
6			AB DJ C SP Pin(3×12) SPﾋﾟﾝ
3			AD DJ N C Shift gear pulley ｼﾌﾄｷﾞﾔﾌﾟｰﾘｰ
8			AD DD C Delivery roller earth spring
11			AC DJ C M bushing C MﾌﾞｯｼﾝｸﾞC
12			AC DD C Fusing rear roller earth spring
13			AD DJ C Tension shaft ﾃﾝｼｮﾝ軸
14			AG DS C Idler collar ｱｲﾄﾞﾗｰｺﾛ
15			AA DD C E type ring(E5) Eﾘﾝｸﾞ
16			AH DX C Belt(40S2M272) ﾍﾞﾙﾄ
17			AD DJ C DUP delivery gear(20/31T) DUP排紙ｷﾞﾔ
18			AA DD C E type ring(E4) Eﾘﾝｸﾞ
19			AD DJ C Bearing 軸受
21			AC DD C Screw(3×8) ﾋﾞｽ
22			AD DJ D Connector cover B ｺﾈｸﾀｰ蓋B
24			AN EG A Fusing rear roller 定着後ﾛｰﾗｰ
25			AE DJ C Belt idle bearing ﾍﾞﾙﾄｱｲﾄﾞﾙ軸受
26			AA DD C Screw(4×10) ﾋﾞｽ
27			AW FG B LSU fan LSUﾌｧﾝ
29			AB DD C Screw ﾋﾞｽ
31			AE DS C ADU paper enter/exit actuator holder
32			AD DD C ADU enter/exit paper actuator spring
34			AC DD C Fusing rear follower spring
35			AA DD C E type ring(E3) Eﾘﾝｸﾞ
36			AG DX C Transport follower roller(φ16) 搬送従動ﾛｰﾗｰ
37			AF DS C Fusing rear follower shaft 定着後従動軸
38			AC DD C Screw(3×6) ﾋﾞｽ
39			AC DD C Step screw 段ﾋﾞｽ
40			AK DX C Shifter unit support plate ｼﾌﾀｰ⽀持板
5			AC DJ C [Americas] OF押えﾌﾟﾚｰﾄ

32. 排紙ﾌﾚｰﾑ (Delivery unit)

№	Артикул	Альт. артикул	Описание
1			AP EQ C Shift drive roller ｼﾌﾄ駆動ﾛｰﾗｰ
2			AH DX B Upper delivery discharge brush 上段排紙除電ﾌﾞﾗｼ
3			AE DJ C Full detect arm 満杯検知ｱｰﾑ
4			AD DJ C Full detect return spring
5			AE DJ C Full detect actuator 満杯検知ｱｸﾁｭｴｰﾀｰ
6			AF DS C Paper fixing holder ⽤紙押えﾎﾙﾀﾞｰ
7			AC DD C Screw(3×8) ﾋﾞｽ
8			AD DD C Shifter unit rack gear ｼﾌﾀｰﾗｯｸｷﾞﾔ
10			AC DD C Shifter unit frame R ｼﾌﾀｰﾌﾚｰﾑR
11			AD DJ C Bearing 軸受
12			AA DD C E type ring(E4) Eﾘﾝｸﾞ
13			AE DJ C Delivery follower roller 排紙従動ﾛｰﾗｰ
14			AC DJ C Delivery sponge 蹴出ｽﾎﾟﾝｼﾞ
15			AF DS C Delivery follower roller shaft 排紙従動ﾛｰﾗｰ軸
16			AC DJ C Delivery follower roller pressure spring
18			AC DJ C FD slide collar FDｽﾗｲﾄﾞｶﾗｰ
19			AB DD C Bearing 軸受
20			AC DD C Shifter unit frame F ｼﾌﾀｰﾌﾚｰﾑF
901			BB GD E Shifter unit unit ｼﾌﾀｰﾕﾆｯﾄ

33. ｼﾌﾀｰﾕﾆｯﾄ(Shifter unit)

№	Артикул	Альт. артикул	Описание
1			AA DD C Screw(4×10) ﾋﾞｽ
2			AC DD C Screw(3×6) ﾋﾞｽ
3			BD GJ B DUP motor DUPﾓｰﾀｰ
4			AA DD C Screw(2.6×3) ﾋﾞｽ
5			AN EQ C Delivery motor fixing plate 排紙ﾓｰﾀｰ取付板
7			AC DD C Idle gear(27T) ｱｲﾄﾞﾙｷﾞﾔ
8			AA DD C E type ring(E4) Eﾘﾝｸﾞ
9			AD DJ C Delivery motor gear(49/32T) 排紙ﾓｰﾀｰｷﾞﾔ
10			AA DD C E type ring(E5) Eﾘﾝｸﾞ
11			AR EQ C Shifter idle gear(51T) ｼﾌﾀｰｱｲﾄﾞﾙｷﾞﾔ
12			AD DJ C Shift gear(24/50T) ｼﾌﾄｷﾞﾔ
13			AK DX C Shifter motor fixing plate ｼﾌﾀｰﾓｰﾀｰ取付板
14			BD GJ B Shifter motor ｼﾌﾀｰﾓｰﾀｰ

34. 排紙駆動ﾕﾆｯﾄ・ｼﾌﾄ駆動ﾕﾆｯﾄ(Delivery drive unit・Shift drive unit)

№	Артикул	Альт. артикул	Описание
2			AD DJ C Right cabinet lever 右ｷｬﾋﾞﾚﾊﾞｰ
5			AA DD C Screw(4×8) ﾋﾞｽ
6			AC DD C FU spring R FUｽﾌﾟﾘﾝｸﾞR
7			AF DS C U-turn roller Uﾀｰﾝﾛｰﾗｰ
8			AN EQ A Upper delivery roller 上段排紙ﾛｰﾗｰ
9			AC DD C Screw ﾋﾞｽ
10			AF DS B Waste toner lock detect switch(D2X-G) 廃ﾄﾅｰﾛｯｸ検知ｽｲｯﾁ
12			AA DD C E type ring(E5) Eﾘﾝｸﾞ
13			AD DJ C Bearing 軸受
14			AH DX B Upper delivery discharge brush 上段排紙除電ﾌﾞﾗｼ
15			AA DD C Screw(4×10) ﾋﾞｽ
16			AF DS B Photo sensor(SG2A141) ﾌｫﾄｾﾝｻｰ
17			AC DD C Upper delivery actuator spring
18			AD DJ C Upper delivery actuator 上段排紙ｱｸﾁｪｰﾀｰ
19			AV FG C Upper delivery PG 上排紙PG
20			AA DD C E type ring(E4) Eﾘﾝｸﾞ
21			AE DJ C Belt idle bearing ﾍﾞﾙﾄｱｲﾄﾞﾙ軸受
22			AN EG A Upper gate front roller 上段ｹﾞｰﾄ前ﾛｰﾗｰ
23			AE DJ C Delivery follower roller 排紙従動ﾛｰﾗｰ
24			AC DJ C Delivery sponge 蹴出ｽﾎﾟﾝｼﾞ
25			AF DS C Delivery follower roller shaft 排紙従動ﾛｰﾗｰ軸
27			AK DX C Follower holder 従動ﾎﾙﾀﾞｰ
30			AC DD C Idle gear(27T) ｱｲﾄﾞﾙｷﾞﾔ
31			AC DJ C Spring pin(φ2-10) ｽﾌﾟﾘﾝｸﾞﾋﾟﾝ
32			AC DD C Delivery drive gear(25T) 排紙駆動ｷﾞﾔ
33			AC DD C Delivery gear(32T) 排紙ｷﾞﾔ
34			AD DD C Joint gear(24T/25T) 連結ｷﾞﾔ
35			AC DJ C Idle gear C(29T) ｱｲﾄﾞﾙｷﾞﾔC
36			AN EQ C Delivery PG frame R AS 排紙PGﾌﾚｰﾑR AS
37			AA DD C Screw(4×8) ﾋﾞｽ
38			AA DD C Screw(4×8) ﾋﾞｽ
501			BF GN E 2nd paper exit unit 2nd排紙ﾕﾆｯﾄ

35. ｼﾞｮﾌﾞｾﾊﾟﾚｰﾀｰ(Job separator)[MX-M356FP,MX-M316FP,MX-M266FP,MX-TR18]

№	Артикул	Альт. артикул	Описание
1			AS EQ C PS frame PSﾌﾚｰﾑ
3			AC DD C PS guide sheet PSｶﾞｲﾄﾞｼｰﾄ
5			AD DJ C Bearing 軸受
6			AC DJ C Bearing(F8×12×5 16X) 軸受
7			AA DD C E type ring(E6) Eﾘﾝｸﾞ
8			AD DJ D PS knob PSﾉﾌﾞ
9			AB DD C Screw(3×10KS) ﾋﾞｽ
11			AC DD C Screw(3×8) ﾋﾞｽ
12			AF DS C PS follower shaft PS従動軸
3			AD DJ N C PS follower collar PS従動ｺﾛ
14			AC DD C PS follower spring PS従動ｽﾌﾟﾘﾝｸﾞ

Каталог очень большой (1343 позиций). Показана первая часть; полный список доступен по запросу.

Источник: Инк-Маркет.ру.

← Все статьи
