Содержание
- 1. DEFINITION
- 2. 1 Exteriors
- 3. 2 Caster section
- 4. 5 Alignment tray section
- 5. 6 Bundle exit mechanism section
- 6. 7 Paper exit/reverse guide section
- 7. 8 Lift tray section

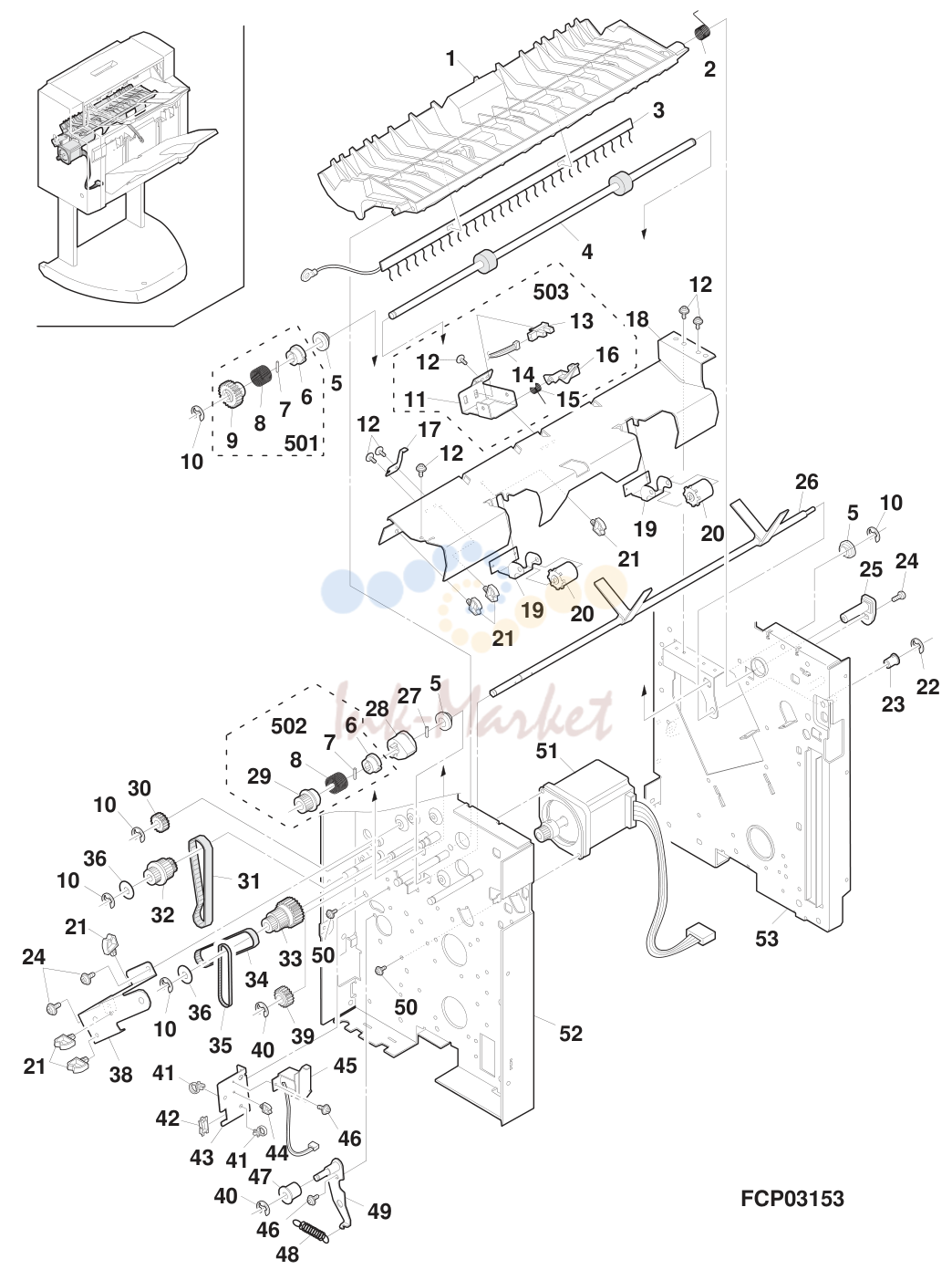

- 8. 9 Transport mechanism section 1

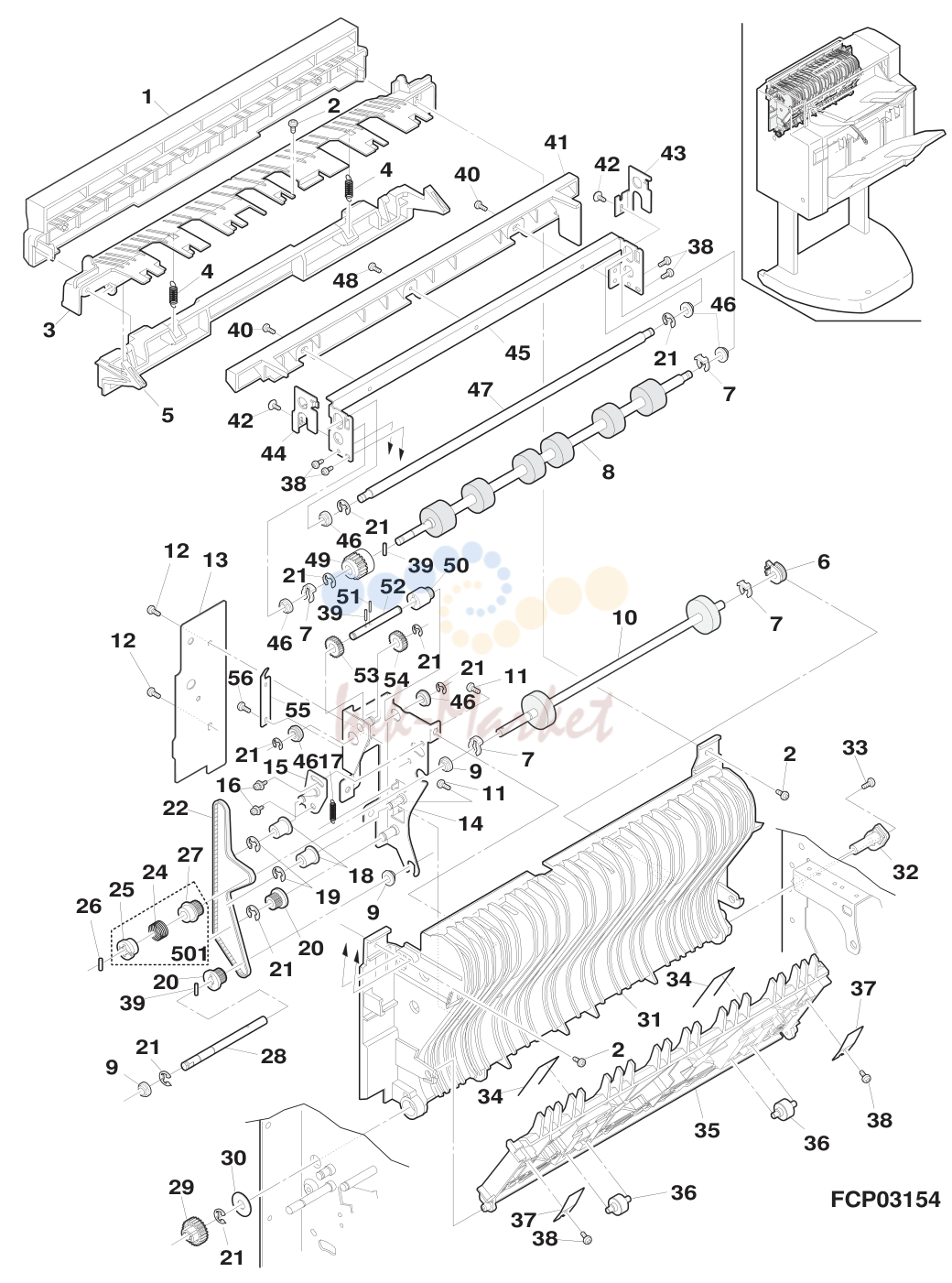

- 9. 10 Transport mechanism section 2

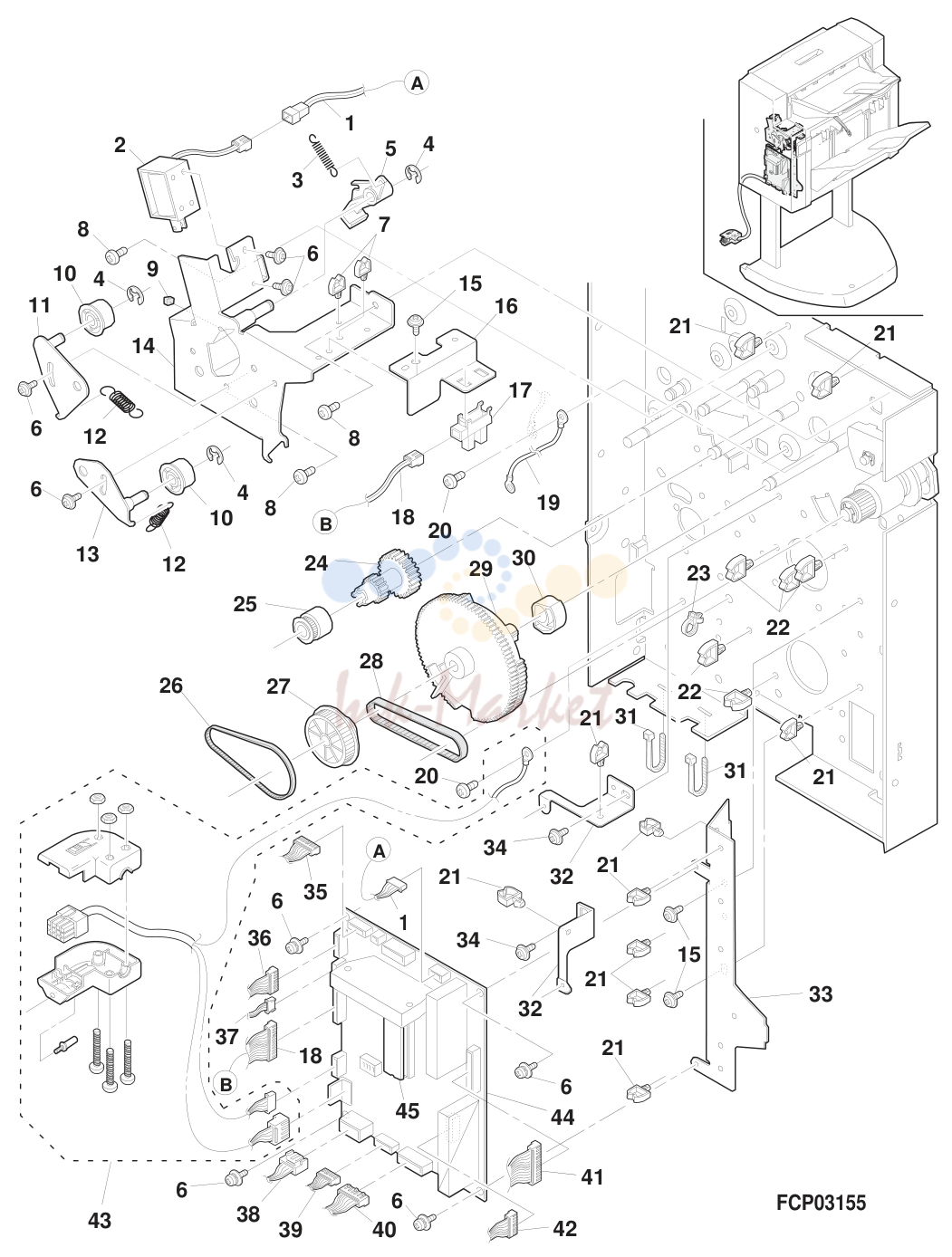

- 10. 11 Main drive section

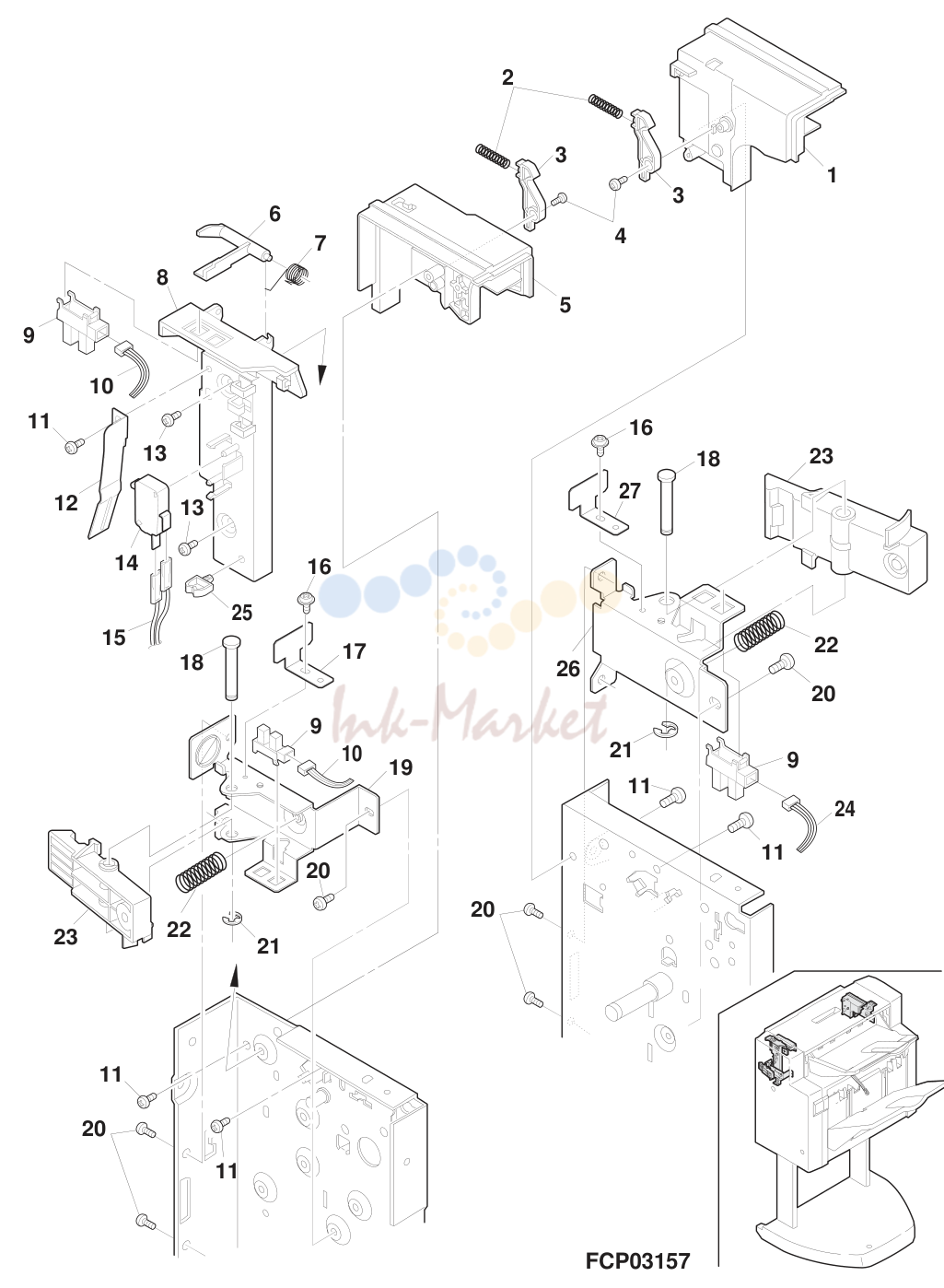

- 11. 13 Copier lock mechanism section

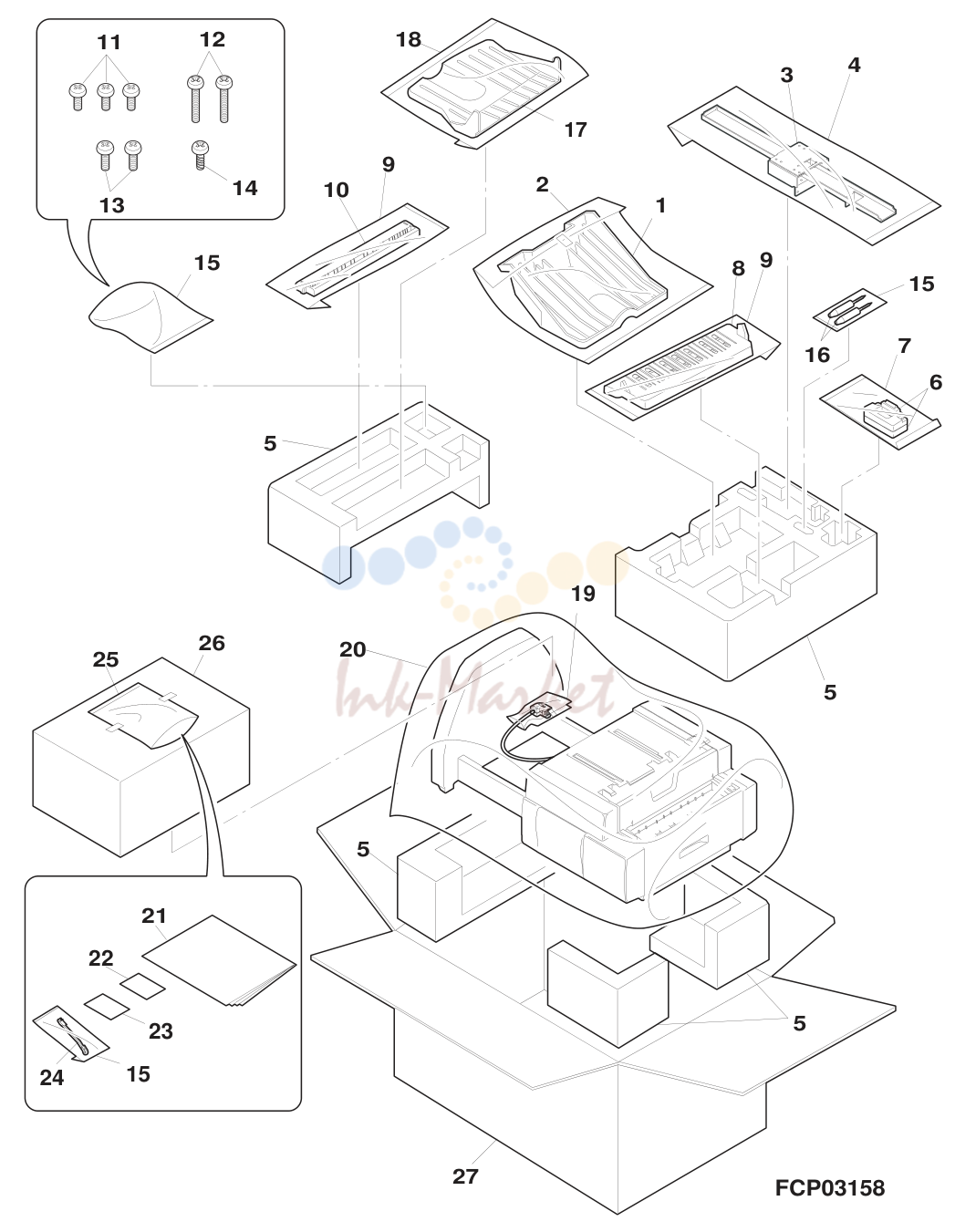

- 12. 14 Packing material & Accessories
1. DEFINITION
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Exteriors | ||
| 1 | 0CW4090P221// AS N D Open cover (stapler) | ||
| 2 | 0CW4090P220// BB N D Side cover F | ||
| 3 | 0CW040080FNBI запросить цену → | AA C Screw (4· 8) | |
| 4 | 0CWE120001392 запросить цену → | AP N B Miccro switch (AM51130C431) | |
| 5 | 0CW4090K221// AL N C ASM-SW-STP harness | ||
| 6 | 0CWE450000070 запросить цену → | AB C Wire clamp (NK-5N) | |
| 7 | 0CW040080FZBB запросить цену → | AB C Screw (4· 8) | |
| 8 | 0CW4025P073// AH N C K actuator | ||
| 10 | 0CW040080FZTP запросить цену → | AA C Screw (4· 8) | |
| 11 | 0CW4090P070// AQ N C IN-side cover | ||
| 12 | 0CW4090P219// BB N D Side cover R | ||
| 13 | CSOU-0168FC01 запросить цену → | BB D Delivery tray (Except Japan) | |
| 15 | 0CW4090P165// AY N D Tray U-D | ||
| 16 | 0CW4090P142// BC N D Base cover | ||
| 17 | 0CW4090P401// AD N C Spacer | ||
| 18 | 0CW040080FNBB запросить цену → | AB N C Screw (4· 8) |

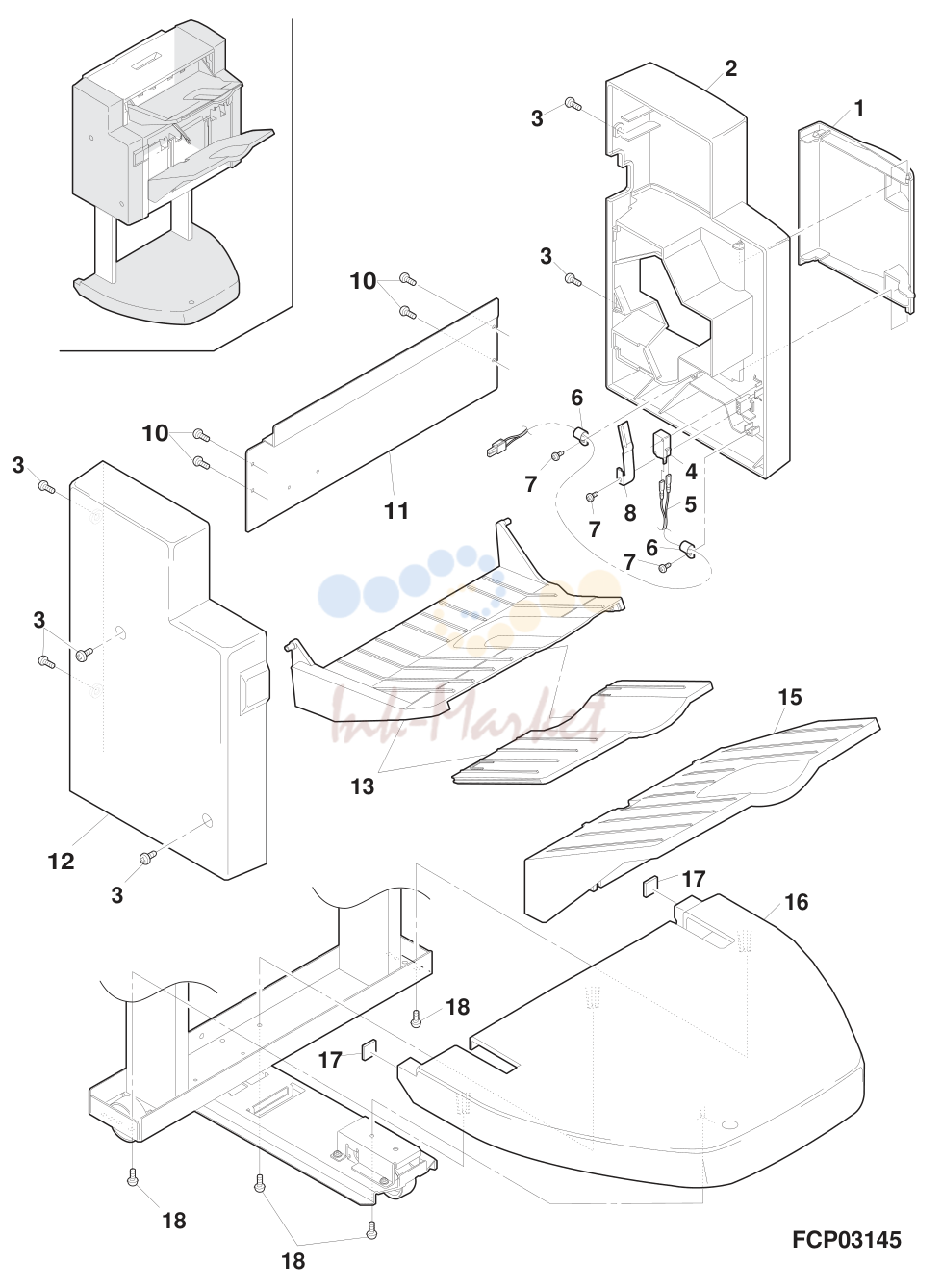

2. 1 Exteriors
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 2 | Caster section | ||
| 1 | 0CW4090P016// AX N C Bottom frame | ||
| 2 | 0CWE450000577 запросить цену → | AC C Wire clamp (UAMS-11-0) | |
| 3 | 0CWE450000379 запросить цену → | AC C Mini cramp (UAMS-05L-0) | |
| 4 | 0CW4090P001// BT N C Base plate | ||
| 5 | 0CW4090P315// AE N C Caster shaft | ||
| 6 | 0CW4048P268// AH N C Caster roller | ||
| 7 | 0CW4048P318// AG N C Caster bracket plate | ||
| 8 | 0CW030060FZTP запросить цену → | AA C Screw (3· 6) | |
| 9 | 0CWER040SKP// AB C E type ring | ||
| 10 | 0CW4048P061// AD N C Caster screw (M8) | ||
| 11 | 0CW4048P292// AQ N C Caster sub rail | ||
| 12 | 0CW4032P008// AF N C Caster shaft | ||
| 13 | 0CW4090P002// AU N C Caster rail | ||
| 14 | 0CW4090P429// AD N C Earth hold spring | ||
| 15 | 0CW4090P325// AH N C Slide shaft | ||
| 16 | 0CW2225P022// AF N C Slide collar (1STRJ-BW) | ||
| 17 | 0CW4090P047// AQ N C Holde bracket | ||
| 18 | 0CWE450000502 запросить цену → | AB C PWB supporter (KGPS-4S) | |
| 19 | 0CW4090P046// AU N C Slide stay | ||
| 20 | 0CW4090P045// AL N C Holde bracket | ||
| 21 | 0CW4090P326// AH N C Slide shaft | ||
| 22 | 0CW2225P021// AF N C Slide collar (1STRJ-AW) | ||
| 23 | 0CW4048P256// AK N C Caster adjusting plate | ||
| 24 | 0CW040080FZTP запросить цену → | AA C Screw (4· 8) | |
| 25 | 0CW4090K039// BF N C K-frame F | ||
| 26 | 0CW4090K037// BC N C K-frame R | ||
| 27 | 0CW040080FZBI запросить цену → | AA C Screw (4· 8) | |
| 501 | 0CW4090K110// BE N E Slide rail pack ass’y |

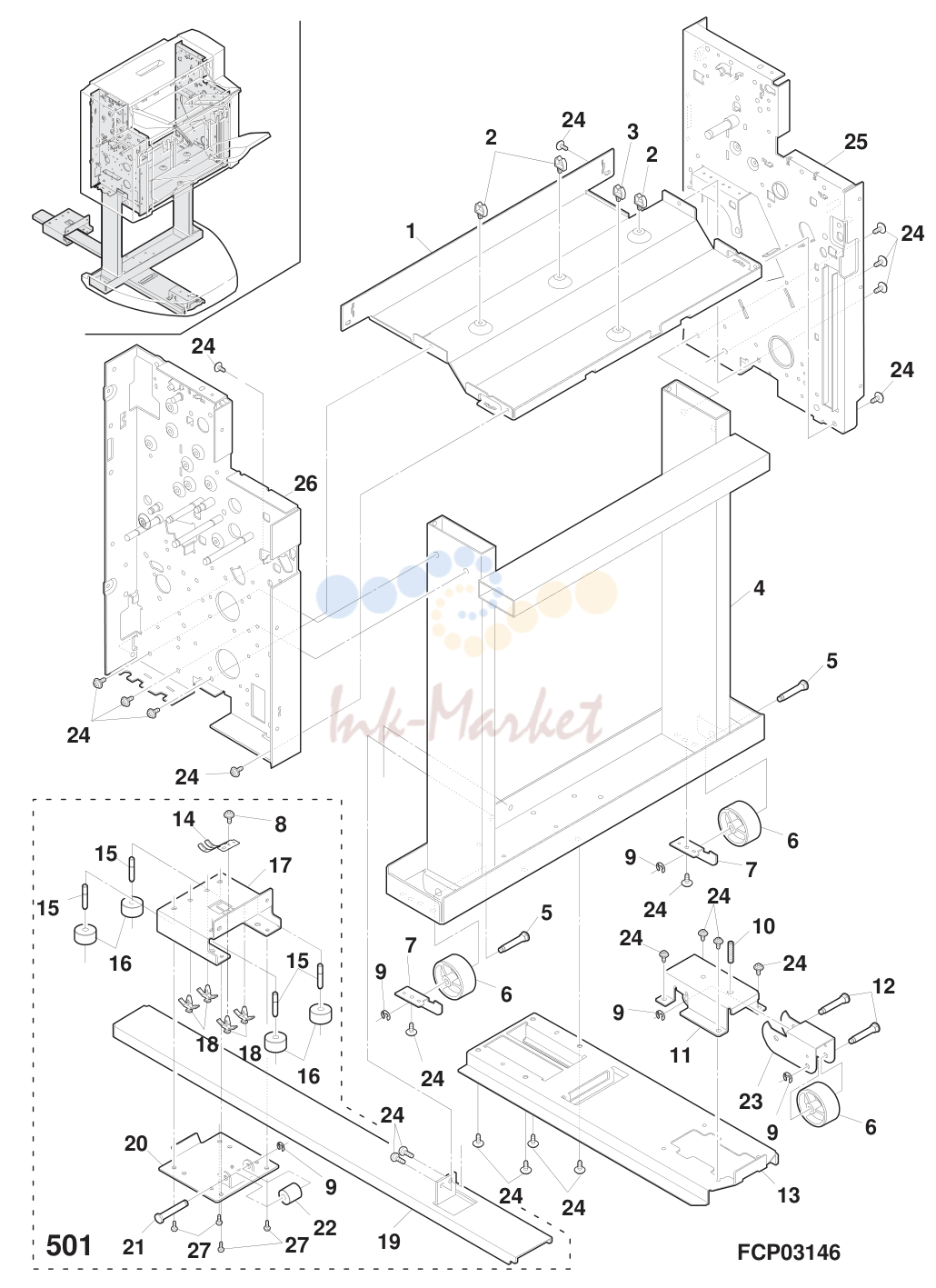

3. 2 Caster section
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 3 | Top cover section | ||
| 1 | 0CW4090P213// AY N C Top cover | ||
| 2 | 0CW030080FZBB запросить цену → | AB C Screw (3· 8) | |
| 3 | 0CW2144K126C/ AP E PBA sensor LD | ||
| 4 | 0CW4090P454// AD N C Solenoid cushion | ||
| 5 | 0CW4090P215// AG N C Inner sensor lever | ||
| 6 | 0CWE314000619 запросить цену → | AH B Photo sensor (TLP1241(C5)) | |
| 7 | 0CW4090P422// AC N C Spring | ||
| 9 | 0CW4090P212// AW N C Transport guide | ||
| 10 | 0CW040100FZBB запросить цену → | AB C Screw (4· 10) | |
| 11 | 0CW4090P214// AD N C Exit collar | ||
| 12 | 0CW4090P406// AU N B Exit discharge brush | ||
| 14 | 0CW4090P421// AD N C Sensor lever spring IN | ||
| 15 | 0CW4090P211// AY N C Exit cover | ||
| 16 | 0CW4090P217// AD N C Top cover plate | ||
| 17 | 0CW4090P234// AG N C Paper fixing lever | ||
| 18 | 0CW4054P370// AH C Collar L | ||
| 19 | 0CW4090K228// AG N C ASM-PIS harness | ||
| 20 | 0CW4090K230// AH N C ASM-PR-LD harness | ||
| 3 | Top cover section | ||
| 4 | Tray side cover section | ||
| 1 | 0CW030060FZBB запросить цену → | AB C Screw (3· 6) | |
| 2 | 0CW2142P171A/ AE C Cover shaft plate | ||
| 3 | 0CW4090P386// AE N C Paper detect lever spring | ||
| 4 | 0CW4090P152// AF N C Paper detect lever | ||
| 6 | 0CW4090P159// AP N C Paper detect lever | ||
| 7 | 0CWE314000619 запросить цену → | AH B Photo sensor (TLP1241(C5)) | |
| 8 | 0CW4090P141// AF N C Holde plate | ||
| 9 | 0CW4090P160// AY N C Tray side cover | ||
| 10 | 0CW4090K220// AH N C ASM-SNS5-harness | ||
| 11 | 0CW2205P362// AC N C M4 Screw 2.2 | ||
| 4 | Tray side cover section | ||
| 5 | Alignment tray section | ||
| 1 | 0CW4090P154// AH N C Set paper guide | ||
| 2 | 0CW4090P048// AE N C Set paper guide spring | ||
| 3 | 0CW4090P238// AG N C Set paper plate | ||
| 4 | 0CW4090P330// AP N C Set paper cushion | ||
| 5 | 0CW030060FZWS запросить цену → | AA C Screw (3· 6) | |
| 6 | 0CW4090P239// AE N C Stapler guide | ||
| 7 | 0CW030060FBBB запросить цену → | AB N C Screw (3· 6) | |
| 8 | 0CW2214P303// AD C Screw | ||
| 9 | 0CW4090P155// AT N D Tray | ||
| 10 | 0CW4090P247// AF N C Tray rack | ||
| 12 | 0CW4090P156// AE N C Tray out lever | ||
| 13 | 0CW4090P052// AH N C Tension plate spring | ||
| 14 | 0CW4090K213// AH N C ASM-SNS3-harness | ||
| 15 | 0CWE314000619 запросить цену → | AH B Photo sensor (TLP1241(C5)) | |
| 16 | 0CWER030SKP// AA C E type ring | ||
| 17 | 0CW4090P153// AE N C Pulley gear (PLY-GER-20S2M-Z26M1) | ||
| 18 | 0CW4090P447// AM N B Belt (BELTS2M056040-F) | ||
| 19 | 0CW4090K001// AP N C Set paper bracket ass’y | ||
| 20 | 0CW030080FBBB запросить цену → | AB C Screw (3· 8) | |
| 21 | 0CWE450000379 запросить цену → | AC C Mini cramp (UAMS-05L-0) | |
| 22 | 0CW4088P153// AK N C Pulley (PLT-S2M20-MOT) | ||
| 23 | 0CW4090K232// BE N B Alignment motor (MOT-KP54FP8-719) | ||
| 24 | 0CW040080FZSW запросить цену → | AA C Screw (4· 8) | |
| 25 | 0CW030060FB// AB N C Screw (3· 6) |

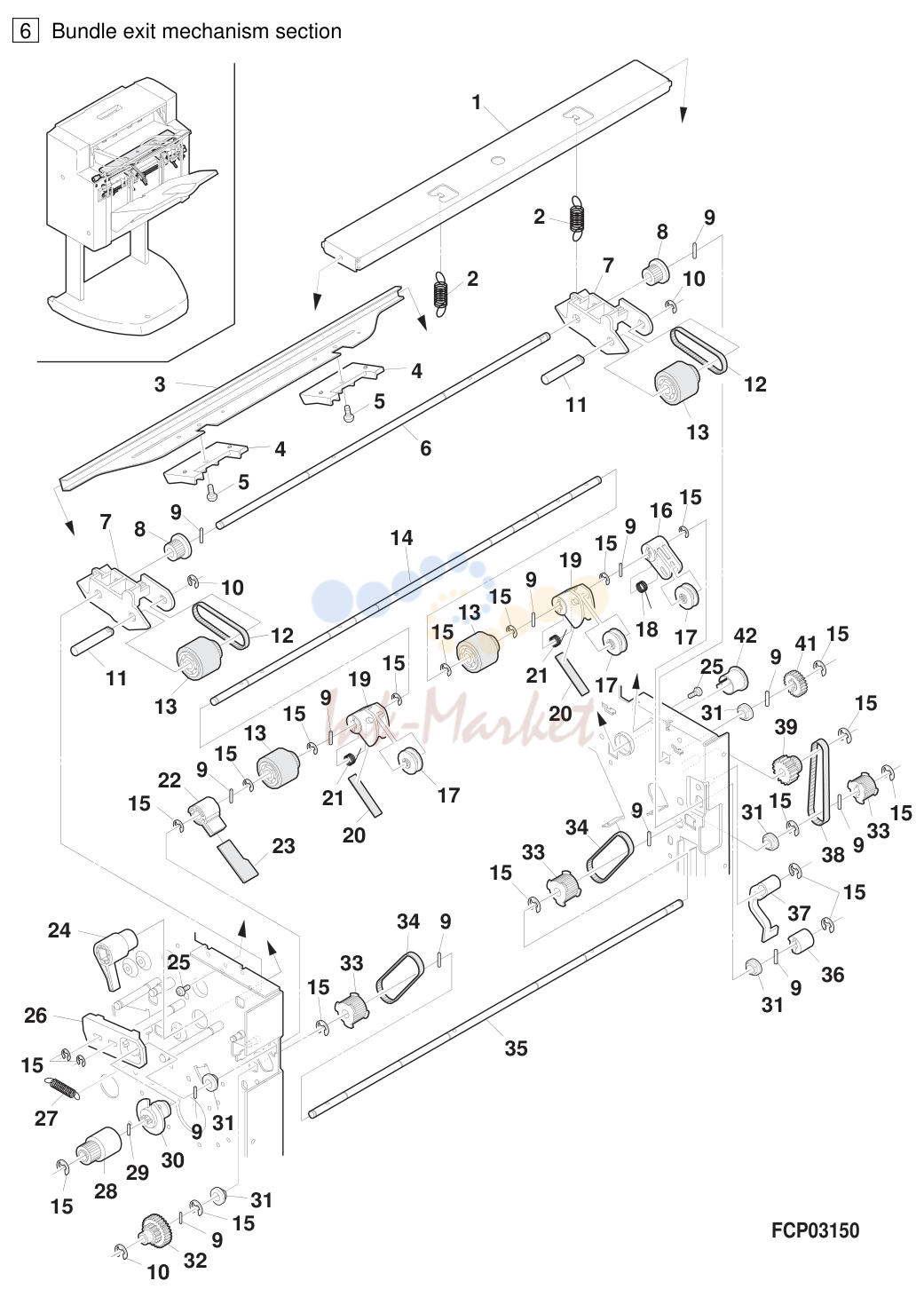

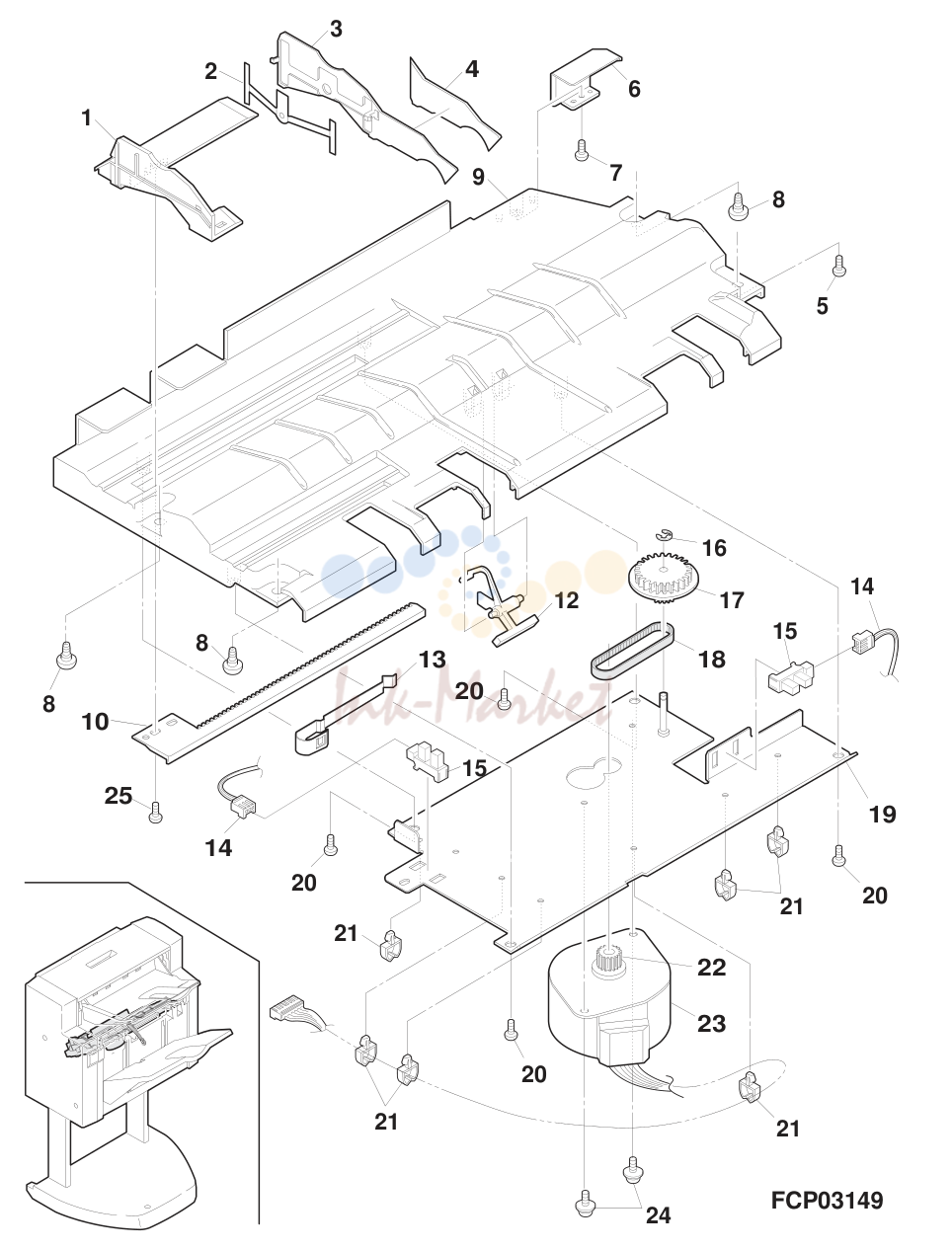

4. 5 Alignment tray section
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 6 | Bundle exit mechanism section | ||
| 1 | 0CW4090P017// AK N C TB side stay | ||
| 2 | 0CW4090P408// AD N C Bundle roller spring | ||
| 3 | 0CW4090P023// AP N C Bundle roller plate | ||
| 4 | 0CW4090P182// AE N C Guide lib | ||
| 5 | 0CW030060FNBI запросить цену → | AA C Screw (3· 6) | |
| 6 | 0CW4090P300// AR N C Bundle holder drive shaft | ||
| 7 | 0CW4090P181// AF N C Bundle roller hoder | ||
| 8 | 0CW4048P189// AE N C Pulley (PLY-S2M-20) | ||
| 9 | 0CWHP020100SC запросить цену → | AC C Pin (f 2-10) | |
| 10 | 0CWER040SKP// AB C E type ring | ||
| 11 | 0CW4090P298// AH N C Bundle roller shaft | ||
| 12 | 0CW4090P446// AM N B Belt (BELTS2M050040-F) | ||
| 13 | 0CW4090P394// AL N C Bundle roller | ||
| 14 | 0CW4090P301// AU N C BM shaft | ||
| 15 | 0CWER050SKP// AA C E type ring | ||
| 16 | 0CW4090P185// AE N C Fixing lever S | ||
| 17 | 0CW4090P184// AD N C Fixing roller | ||
| 18 | 0CW4090P395// AD N C Fixing roller spring (single) | ||
| 19 | 0CW4090P183// AF N C Fixing lever | ||
| 20 | 0CW4090P419// AG N C Paper fixing rubber (S) | ||
| 21 | 0CW4090P393// AD N C Fixing roller spring | ||
| 22 | 0CW4090P242// AE N C Fixing rubber holder | ||
| 23 | 0CW4090P420// AL N C Paper fixing rubber (L) | ||
| 24 | 0CW4090P176// AE N C Bundle roller arm | ||
| 25 | 0CW040080FZTP запросить цену → | AA C Screw (4· 8) | |
| 26 | 0CW4090P180// AF N C Bundle roller rotetion stopper | ||
| 27 | 0CW4090P409// AD N C Stopper spring | ||
| 28 | 0CW4090P430// AY N C Pulley (PLY-S2M24-TL-BM) | ||
| 29 | 0CWHP020180SC запросить цену → | AC N C Pin (f 2-18) | |
| 30 | 0CW4090P179// AE N C Dtection plate | ||
| 31 | 0CW2225P312// AD N C Bushing (6P) | ||
| 32 | 0CW4090P241// AE N C Gear (GER-0.8-16-28) | ||
| 33 | 0CW4090P206// AD N C Pulley (PLY-S2M26) | ||
| 34 | 0CW4090P448// AN N B Belt (BELTS2M059040-F) | ||
| 35 | 0CW4090P299// AS N C Bundle roller drive shaft | ||
| 36 | 0CW4090P151// AD N C Cam detection plate | ||
| 37 | 0CW4090P150// AE N C Cam detection lever | ||
| 38 | 0CW4090P449// AN N B Belt (BELTS2M076040-F) | ||
| 39 | 0CW4090P170// AD N C Gear pulley (GER-PLY20-20) | ||
| 41 | 0CW4051P034// AE C Gear (GER-0.8-20) | ||
| 42 | 0CW4090P175// AD N C Bush |
5. 6 Bundle exit mechanism section
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 7 | Paper exit/reverse guide section | ||
| 1 | 0CW4090P403// AX N C Flapper | ||
| 2 | 0CW4090P512// AX N B Solenoid (SOL-G-836-NS37) | ||
| 3 | 0CWER030SKP// AA C E type ring | ||
| 4 | 0CW4090P189// AE N C Flapper lever | ||
| 5 | 0CW4090K042// BA N C Solenoid bracket ass’y | ||
| 6 | 0CW030050FZWS запросить цену → | AA N C Screw (3· 5) | |
| 7 | 0CW040080FZTP запросить цену → | AA C Screw (4· 8) | |
| 8 | 0CWE450000379 запросить цену → | AC C Mini cramp (UAMS-05L-0) | |
| 9 | 0CW030060FNBI запросить цену → | AA C Screw (3· 6) | |
| 10 | 0CWKW030RN/// AB N C Washer (M3) | ||
| 11 | 0CW4090P404// AD N C Flapper spring | ||
| 12 | 0CW4090P202// AE N C Flapper arms | ||
| 13 | 0CW4090P028// AQ N C Reverse exit paper guide | ||
| 14 | 0CW030060FZBI запросить цену → | AA C Screw (3· 6) | |
| 15 | 0CW2144P013// AD N C Sensor holder | ||
| 16 | 0CW2144K127// AU N E Reverse taiming sensor | ||
| 17 | 0CWE450000871 запросить цену → | AB C Snap band (SG-110) | |
| 18 | 0CW4090P035// AG N C R-sensor bracket | ||
| 19 | 0CW4090P399// AH N C Sensor miller | ||
| 20 | 0CW040060FZBI запросить цену → | AA C Screw (4· 6) | |
| 21 | 0CWE450000577 запросить цену → | AC C Wire clamp (UAMS-11-0) | |
| 22 | 0CW4090P450// AN N B Belt (BELTS2M065040-F) | ||
| 23 | 0CW2164P340// AC C Screw (4· 7) | ||
| 24 | 0CW4090P014// AK N C Reverse motor bracket | ||
| 25 | 0CW4090K231// BE N B Reverse motor (MOT-KP54FP8-718) | ||
| 26 | 0CW040080FZTP запросить цену → | AA C Screw (4· 8) | |
| 27 | 0CWER050SKP// AA C E type ring | ||
| 28 | 0CW4090P163// AD N C Pulley (PLY-S2M20-TL) | ||
| 29 | 0CW4090P414// AH N C Torque limlter spring (reverse/exit) | ||
| 30 | 0CWHP020080SC запросить цену → | AC C Pin (f 2-8) | |
| 31 | 0CW2119P153// AG C Center arber | ||
| 32 | 0CW2225P312// AD N C Bushing (6P) | ||
| 33 | 0CW4090P390// AV N C Exit roller | ||
| 34 | 0CW4090P402// AE N C Sensor miller | ||
| 501 | 0CW4090K072// AR N E Reverse paddle torque limiter ass’y |

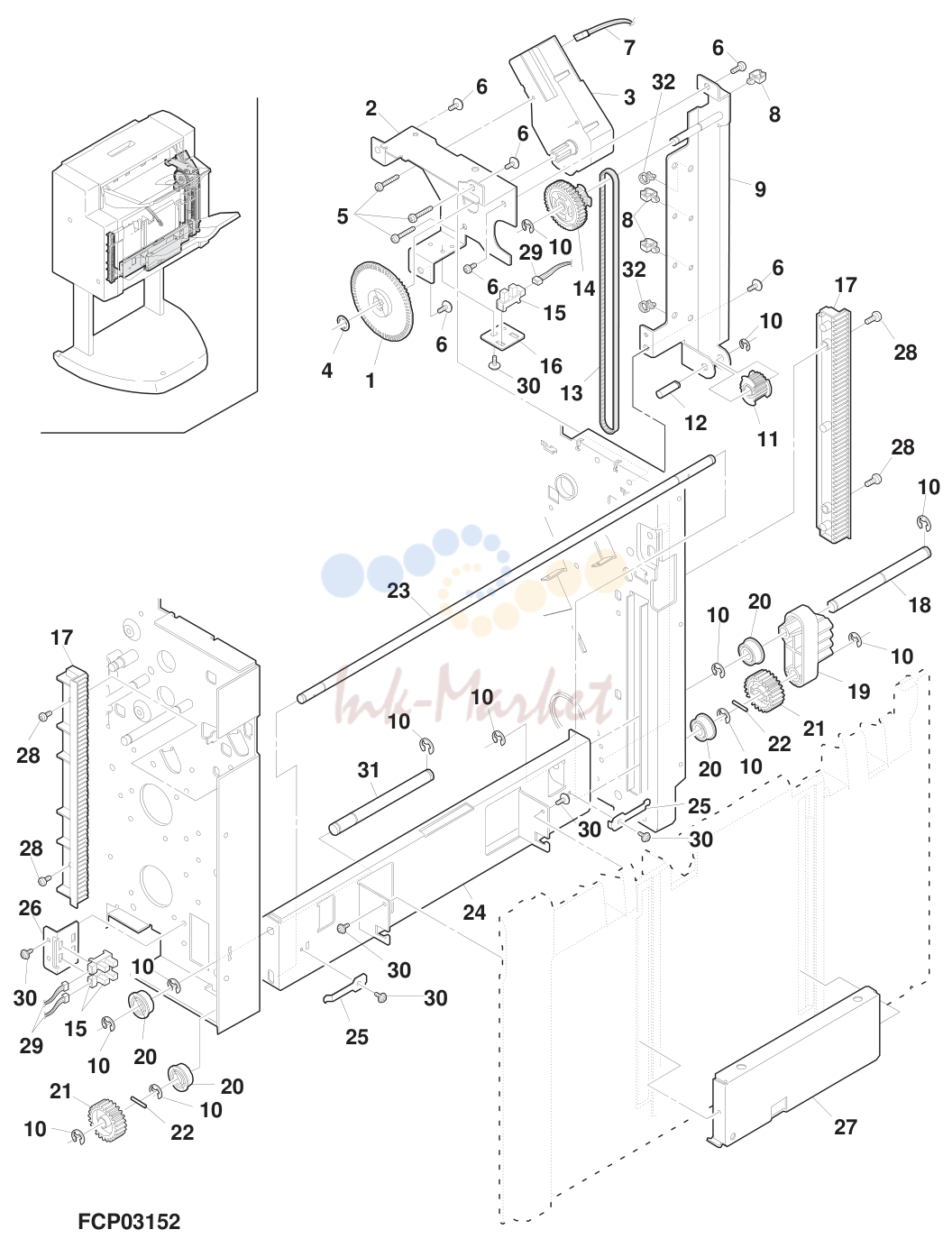

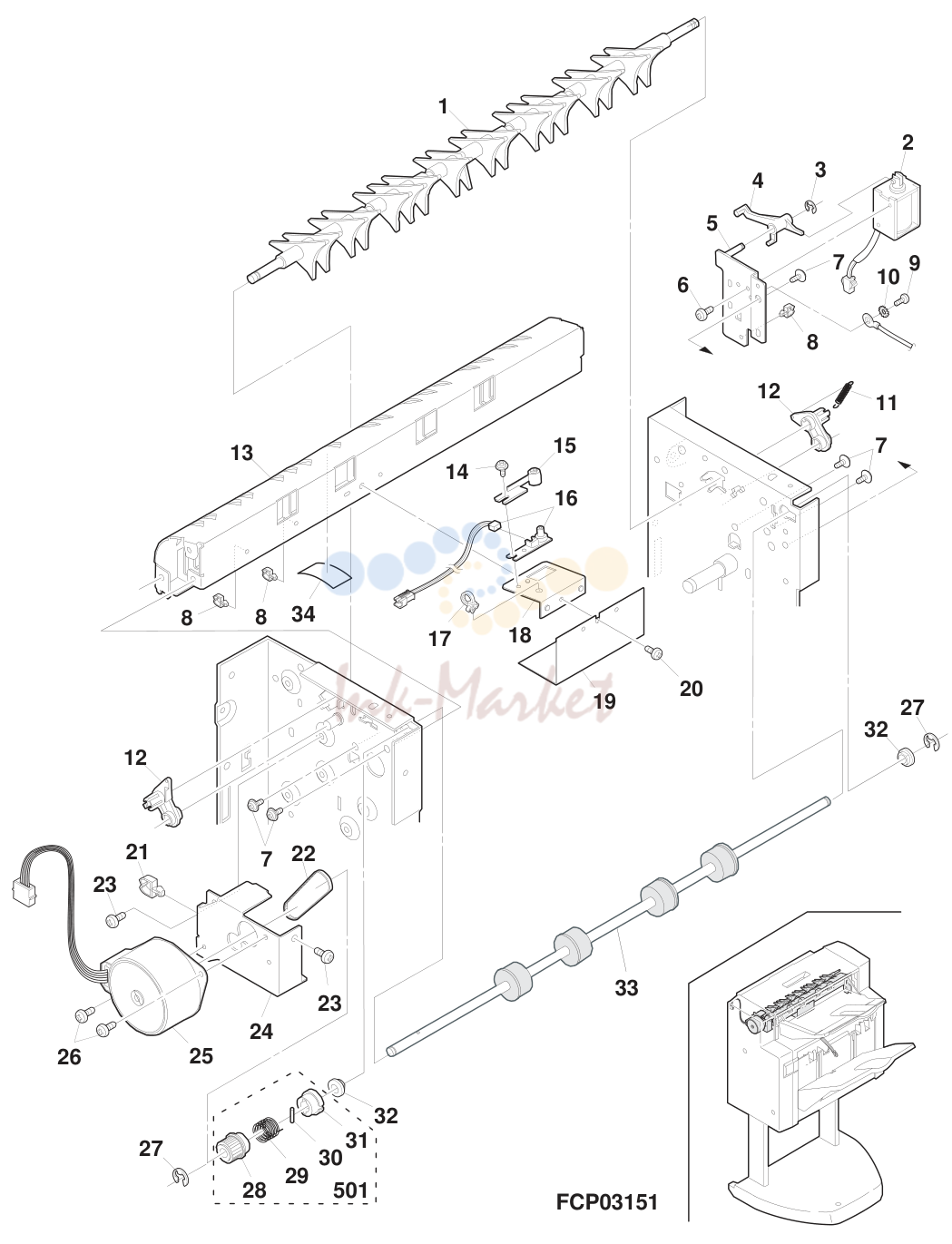

6. 7 Paper exit/reverse guide section
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 8 | Lift tray section | ||
| 1 | 0CW4090P148// AG N C Clock gear (GER-CLK-33-72) | ||
| 2 | 0CW4090P005// AL N C Motor bracket UD | ||
| 3 | 0CW4090P520// BG N B Motor (MOT-873600-0301) | ||
| 4 | 0CW4090P331// AC N C CA ring | ||
| 5 | 0CW040160FZBB запросить цену → | AC N C Screw (4· 16) | |
| 6 | 0CW2164P340// AC C Screw (4· 7) | ||
| 7 | 0CW4090K217// AL N C ASM-TEM-PRSL harness | ||
| 8 | 0CWE450000376 запросить цену → | AC C Mini cramp (UAMS-05-0) | |
| 9 | 0CW4090K107// AP N C Pulley bracket ass’y | ||
| 10 | 0CWER050SKP// AA C E type ring | ||
| 11 | 0CW4048P102// AD N C Pulley (PLY-S3M-19) | ||
| 12 | 0CW4090P313// AH N C Pulley shaft | ||
| 13 | 0CW4090P456// AR N B Belt (BELTS3M158060-F) | ||
| 14 | 0CW4090P146// AF N C Gear pulley (GER-PLY-42-20) | ||
| 15 | 0CWE314000619 запросить цену → | AH B Photo sensor (TLP1241(C5)) | |
| 16 | 0CW2210P122// AC N C Sensor clock bracket | ||
| 17 | 0CW4051P008// AL C Lifter guide rack | ||
| 18 | 0CW4090P283// AK N C Tray shaft-S | ||
| 19 | 0CW4090P145// AG N C Belt holder | ||
| 20 | 0CW4090P144// AD N C Idler roller | ||
| 21 | 0CW4090P240// AE N C Gear (GER-1.0-24) | ||
| 22 | 0CWHP020120SC запросить цену → | AC C Pin (f 2-12) | |
| 23 | 0CW4090P281// AR N C Tray shaft-L | ||
| 24 | 0CW4090P007// AR N C Lift bracket | ||
| 25 | 0CW4090P012// AC N C Earth spring | ||
| 26 | 0CW4090P026// AE N C Sensor W bracket | ||
| 27 | 0CW4090P008// AL N C Tray bracket | ||
| 28 | 0CW040080FZBI запросить цену → | AA C Screw (4· 8) | |
| 29 | 0CW4090K214// AM N C ASM-SNS4-harness | ||
| 30 | 0CW030060FZTP запросить цену → | AA C Screw (3· 6) | |
| 31 | 0CW4090P314// AK N C Lift tray shaft | ||
| 32 | 0CWE450000871 запросить цену → | AB C Snap band (SG-110) |
7. 8 Lift tray section
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 9 | Transport mechanism section | ||
| 1 | 0CW4090P162// AV N C Paddle upper guide | ||
| 2 | 0CW4090P432// AE N C Coil spring for guide paddle upper | ||
| 3 | 0CW4090P398// AU N B Discharge brush | ||
| 4 | 0CW4090P387// AS N C Tray exit roller | ||
| 5 | 0CW2225P312// AD N C Bushing (6P) | ||
| 6 | 0CW2119P153// AG C Center arber | ||
| 7 | 0CWHP020080SC запросить цену → | AC C Pin (f 2-8) | |
| 8 | 0CW4090P413// AH N C Torque limiter spring (exit) | ||
| 9 | 0CW4090P197// AD N C Gear (GER-0.8-24-TL) | ||
| 10 | 0CWER050SKP// AA C E type ring | ||
| 11 | 0CW4090P010// AG N C Tray sensor bracket | ||
| 12 | 0CW030060FZTP запросить цену → | AA C Screw (3· 6) | |
| 13 | 0CWE314000619 запросить цену → | AH B Photo sensor (TLP1241(C5)) | |
| 14 | 0CW4090K228// AG N C ASM-PIS harness | ||
| 15 | 0CW4090P417// AE N C Sensor lever spring | ||
| 16 | 0CW4090P157// AE N C Sensor lever | ||
| 17 | 0CW4090P053// AF N C Earth plate spring | ||
| 18 | 0CW4090P121// AS N C Paddle guide | ||
| 19 | 0CW4090P388// AF N C Exit collar plate spring | ||
| 20 | 0CW4090P158// AD N C Roller (ROL-14-3-W16) | ||
| 21 | 0CWE450000577 запросить цену → | AC C Wire clamp (UAMS-11-0) | |
| 22 | 0CWER030SKP// AA C E type ring | ||
| 23 | 0CW2160P332B/ AD B Bearing | ||
| 24 | 0CW2164P340// AC C Screw (4· 7) | ||
| 25 | 0CW4048P237// AE N C Rock pin | ||
| 26 | 0CW4090P389// AV N C Paddle | ||
| 27 | 0CWHP020100SC запросить цену → | AC C Pin (f 2-10) | |
| 28 | 0CW4090P177// AD N C Paddle stopper | ||
| 29 | 0CW4090P163// AD N C Pulley (PLY-S2M20-TL) | ||
| 30 | 0CW4051P034// AE C Gear (GER-0.8-20) | ||
| 31 | 0CWNSBLT00192 запросить цену → | AS N B Belt (BELTS2M071080) | |
| 32 | 0CW4090P208// AH N C Gear pulley (GER-PLY16-16-32) | ||
| 33 | 0CW4090P171// AE N C Gear pulley (GER-PLY25-16-17) | ||
| 34 | 0CW4090P452// AP N B Belt (BELTS2M067060-F) | ||
| 35 | 0CW4090P450// AN N B Belt (BELTS2M065040-F) | ||
| 36 | 0CW2147P032// AC N C Flange (RK17) | ||
| 38 | 0CW4090P043// AK N C Holde bracket | ||
| 39 | 0CW4090P168// AD N C Gear (GER-0.8-16) | ||
| 40 | 0CWER040SKP// AB C E type ring | ||
| 41 | 0CWE450000871 запросить цену → | AB C Snap band (SG-110) | |
| 42 | 0CWE450000433 запросить цену → | AB C Edge saddle 1 (EDS-1) | |
| 43 | 0CW4090P020// AG N C Paddle solenoid bracket | ||
| 44 | 0CWE450000376 запросить цену → | AC C Mini cramp (UAMS-05-0) | |
| 45 | 0CW4090P511// AV N B Solenoid (SOL-NSMG-5) | ||
| 46 | 0CW030050FZWS запросить цену → | AA N C Screw (3· 5) | |
| 47 | 0CW2205P023// AD N C Tension collar (10-5) | ||
| 48 | 0CW4090P433// AD N C Tension pulley MOT spring | ||
| 49 | 0CW4090K108// AG N C Tension plate ass’y | ||
| 50 | 0CW040060FZWS запросить цену → | AA C Screw (4· 6) | |
| 51 | 0CW4090K116// BR N B Main transport motor | ||
| 52 | 0CW4090K038// BE N C Rear frame ass’y | ||
| 53 | 0CW4090K040// BB N C Front frame ass’y | ||
| 501 | 0CW4090K073// AQ N E Exit torque limiter spring ass’y | ||
| 502 | 0CW4090K126// AQ N E Paddle torque limiter ass’y | ||
| 503 | 0CW4090K053// AS N E Tray sensor ass’y |
8. 9 Transport mechanism section 1
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 10 | Transport mechanism section | ||
| 1 | 0CW4090P192// AS N C Guide-IN sub cover | ||
| 2 | 0CW040100FZBB запросить цену → | AB C Screw (4· 10) | |
| 3 | 0CW4090P191// AT N C Guide-IN cover | ||
| 4 | 0CW4090P410// AD N C Guide lever spring | ||
| 5 | 0CW4090P193// AM N C Guide lever cover | ||
| 6 | 0CW4054P013B/ AD C One tuch bush | ||
| 7 | 0CW2166P034// AD C Crip (CL1P-5) | ||
| 8 | 0CW4090P481// BE N C De-curl roller | ||
| 9 | 0CW2225P312// AD N C Bushing (6P) | ||
| 10 | 0CW4090P396// AS N C Middle roller | ||
| 11 | 0CW040120FNBB запросить цену → | AB C Screw (4· 12) | |
| 12 | 0CW040080FNBP запросить цену → | AB N C Screw (4· 8) | |
| 13 | 0CW4090P040// AE N C Cover guide plate | ||
| 14 | 0CW4090K061// AP N C ARS tension plate | ||
| 15 | 0CW4090K006// AG N C Tension plate | ||
| 16 | 0CW030050FZWS запросить цену → | AA N C Screw (3· 5) | |
| 17 | 0CW4090P400// AD N C Tension cover spring | ||
| 18 | 0CW2205P023// AD N C Tension collar (10-5) | ||
| 19 | 0CWER040SKP// AB C E type ring | ||
| 20 | 0CW2171P119// AE N C Pulley (PLY-S2M-18-6) | ||
| 21 | 0CWER050SKP// AA C E type ring | ||
| 22 | 0CWNSBLT00194 запросить цену → | AN N B Belt (BELTS2M154040) | |
| 24 | 0CW4090P415// AH N C Torque limiter spring | ||
| 25 | 0CW2119P153// AG C Center arber | ||
| 26 | 0CWHP020080SC запросить цену → | AC C Pin (f 2-8) | |
| 27 | 0CW4090P186// AD N C Pulley (PLY-S2M18-TL) | ||
| 28 | 0CW4090P303// AM N C Guide cover shaft | ||
| 29 | 0CW4090P174// AD N C Gear (GER-M0.8-24) | ||
| 30 | 0CW2147P032// AC N C Flange (RK17) | ||
| 31 | 0CW4090P190// BA N C Guide cover | ||
| 32 | 0CW4048P237// AE N C Rock pin | ||
| 33 | 0CW2164P340// AC C Screw (4· 7) | ||
| 34 | 0CW4090P422// AC N C Spring | ||
| 35 | 0CW4090P205// AV N C Middle guide cover | ||
| 36 | 0CW4090P216// AD N C Transport collar | ||
| 37 | 0CW2205P129// AF N C Resist plate spring | ||
| 38 | 0CW030080FZBB запросить цену → | AB C Screw (3· 8) | |
| 39 | 0CWHP020100SC запросить цену → | AC C Pin (f 2-10) | |
| 40 | 0CW4090P550// AD N C Screw (M3-3.1-SR) | ||
| 41 | 0CW4090P250// AN N C De-curl guide DC | ||
| 42 | 0CW030060FZWS запросить цену → | AA C Screw (3· 6) | |
| 43 | 0CW4090P071// AG N C De-curl tension plate F | ||
| 44 | 0CW4090P073// AG N C De-curl tension plate R | ||
| 45 | 0CW4090P072// AP N C De-curl frame | ||
| 46 | 0CWNSBRG00016 запросить цену → | AT B Bearing | |
| 47 | 0CW4090P334// AQ N C De-curl shaft | ||
| 48 | 0CW4090P551// AB N C Screw (M3) | ||
| 49 | 0CW4090P251// AE N C De-curl gear (GER-0.8-15-DC) | ||
| 50 | 0CW4090P473// AY N C De-curl pulley (PLY-S2M22-TL-DC) | ||
| 51 | 0CWHP020180SC запросить цену → | AC N C Pin (f 2-18) | |
| 52 | 0CW4090P333// AK N C De-curl torque limiter shaft | ||
| 53 | 0CW4051P055// AF C Gear (GER-08-16) | ||
| 54 | 0CW4051P034// AE C Gear (GER-0.8-20) | ||
| 55 | 0CW4090P074// AE N C Earth plate (PLT-ARS) | ||
| 56 | 0CW030060FNBI запросить цену → | AA C Screw (3· 6) | |
| 501 | 0CW4090K075// AQ N E Middle roller torque limiter spring ass’y |
9. 10 Transport mechanism section 2
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 11 | Main drive section | ||
| 1 | 0CW4090K225// AH N C ASM-BSL harness | ||
| 2 | 0CW4090K119// AZ N C Solenoid | ||
| 3 | 0CW4090P405// AD N C Solenoid spring | ||
| 4 | 0CWER050SKP// AA C E type ring | ||
| 5 | 0CW4090P203// AE N C Solenoid lever | ||
| 6 | 0CW030050FZWS запросить цену → | AA N C Screw (3· 5) | |
| 7 | 0CWE450000379 запросить цену → | AC C Mini cramp (UAMS-05L-0) | |
| 8 | 0CW2164P340// AC C Screw (4· 7) | ||
| 9 | 0CW4090P454// AD N C Solenoid cushion | ||
| 10 | 0CW4025P028// AG C Pulley | ||
| 11 | 0CW4090K105// AF N C Tension bracket ass’y | ||
| 12 | 0CW4090P424// AD N C Tension spring | ||
| 13 | 0CW4090K106// AF N C Tension bracket ass’y | ||
| 14 | 0CW4090K104// AQ N C Drive gear bracket | ||
| 15 | 0CW040080FZTP запросить цену → | AA C Screw (4· 8) | |
| 16 | 0CW4090P025// AG N C Sensor bracket | ||
| 17 | 0CWE314000619 запросить цену → | AH B Photo sensor (TLP1241(C5)) | |
| 18 | 0CW4090K211// AP N C ASM-SNS1-harness | ||
| 19 | 0CW4090K233// AG N C ASM-FG-PAM harness | ||
| 20 | 0CW030060FNBI запросить цену → | AA C Screw (3· 6) | |
| 21 | 0CWE450000376 запросить цену → | AC C Mini cramp (UAMS-05-0) | |
| 22 | 0CWE450000577 запросить цену → | AC C Wire clamp (UAMS-11-0) | |
| 23 | 0CWE450000871 запросить цену → | AB C Snap band (SG-110) | |
| 24 | 0CW4090P169// AE N C Gear (GER-0.8-16-30) | ||
| 25 | 0CW4090P172// AE N C Pulley (PLY-S2M19) | ||
| 26 | 0CWNSBLT00071 запросить цену → | AN N B Belt (BELTS2M080040) | |
| 27 | 0CW4090P173// AE N C Pulley (PLY-S2M20-52) | ||
| 28 | 0CW4090P451// AP N B Belt (BELTS2M080060-F) | ||
| 29 | 0CW4090P166// AH N C Gear (GER-0.8-90-78) | ||
| 30 | 0CW4090P167// AD N C Gear cam | ||
| 31 | 0CWE450000006 запросить цену → | AA C Tight band (SKB-2M) | |
| 32 | 0CW4090P037// AG N C PWB fixing plate (S) | ||
| 33 | 0CW4090P032// AM N C PWB fixing plate (L) | ||
| 34 | 0CW040040FZIT запросить цену → | AA C Screw (4· 4) | |
| 35 | 0CW4090K213// AH N C ASM-SNS3-harness | ||
| 36 | 0CW4090K212// AH N C ASM-SNS2-harness | ||
| 37 | 0CW4090K215// AM N C ASM-SNS-PR harness | ||
| 38 | 0CW4090K216// AR N C ASM SW harness | ||
| 39 | 0CW4090K226// AL N C ASM-SNS6-harness | ||
| 40 | 0CW4090K222// AS N C ASM-STP harness | ||
| 41 | 0CW4090K219// AQ N C ASM-PAM-PRM harness | ||
| 42 | 0CW4090K214// AM N C ASM-SNS4-harness | ||
| 44 | 0CW4090K203// CA N E PBA control PWB (With ROM) | ||
| 45 | 0CW4090K204// AZ N B ROM ass’y |
10. 11 Main drive section
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 12 | Stapler section | ||
| 1 | 0CW030060FBWS запросить цену → | AA C Screw (3· 6) | |
| 2 | 0CW4059P349// AN C Cover (Stapler) | ||
| 4 | 0CW4090P491// CD N E Stapler (NU2016) | ||
| 5 | 0CWKW040RN/// AB C Washer (M4) | ||
| 6 | 0CW4090K229// AH N C ASM-FG-STP harness | ||
| 7 | 0CW030060FNBI запросить цену → | AA C Screw (3· 6) | |
| 8 | 0CW4090P461// AY N C Staple base | ||
| 9 | 0CW4090P013// AX N C ST-base bracket | ||
| 10 | 0CW030060FZBI запросить цену → | AA C Screw (3· 6) | |
| 12 | Stapler section | ||
| 7 | 5 FCP03156 | ||
| 13 | Copier lock mechanism section | ||
| 1 | 0CW4090P226// AK N C Mask cover F | ||
| 2 | 0CW4090P431// AC N C Lock spring top | ||
| 3 | 0CW4090P228// AE N C Lock lever top | ||
| 4 | 0CW2236P342// AC N C Screw | ||
| 5 | 0CW4090P227// AH N C Mask cover R | ||
| 6 | 0CW2235P016// AD C Open sensor lever | ||
| 7 | 0CW4090P426// AE N C Lever spring top | ||
| 8 | 0CW4090P218// AL N C Open sensor bracket top | ||
| 9 | 0CWE314000619 запросить цену → | AH B Photo sensor (TLP1241(C5)) | |
| 10 | 0CW4090K212// AH N C ASM-SNS2-harness | ||
| 11 | 0CW040080FZBB запросить цену → | AB C Screw (4· 8) | |
| 12 | 0CW4025P073// AH N C K actuator | ||
| 13 | 0CW2171P679// AB N C Screw (4· 9) | ||
| 14 | 0CWE120001392 запросить цену → | AP N B Miccro switch (AM51130C431) | |
| 15 | 0CW4090K216// AR N C ASM SW harness | ||
| 16 | 0CW030060FZTP запросить цену → | AA C Screw (3· 6) | |
| 17 | 0CW4090P067// AE N C Earth plate | ||
| 18 | 0CW4090P445// AE N C Lock lever shaft | ||
| 19 | 0CW4090P069// AM N C Lock bracket R | ||
| 20 | 0CW2164P340// AC C Screw (4· 7) | ||
| 21 | 0CWER050SKP// AA C E type ring | ||
| 22 | 0CW4090P427// AD N C Lock lever spring | ||
| 23 | 0CW4090P232// AH N C Lock lever | ||
| 24 | 0CW4090K211// AP N C ASM-SNS1-harness | ||
| 25 | 0CWE450000379 запросить цену → | AC C Mini cramp (UAMS-05L-0) | |
| 26 | 0CW4090P068// AL N C Lock bracket F | ||
| 27 | 0CW4090P066// AD N C Earth plte F |
11. 13 Copier lock mechanism section
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 14 | Packing material & Accessories | ||
| 1 | 0CW4090P165// AY N D Tray U-D | ||
| 2 | 0CW2214P358// AB D Vinyl bag 1 (500· 560mm) | ||
| 3 | 0CW4090K096// BD N E Hold stay ass’y | ||
| 4 | 0CW2216P524// AE N D Vinyl bag (470· 800mm) | ||
| 5 | 0CW4090K140// BM N E K-pad set | ||
| 6 | 0CW4090P230// AG N C Lock block | ||
| 7 | 0CW342690//// AA D Vinyl bag (100· 210mm) | ||
| 8 | 0CW4086P374// AT C Guide (Japan only) | ||
| 9 | 0CW636330//// AA D Vinyl bag for body stopper (150· 450mm)(Japan only) | ||
| 10 | 0CW4090P192// AS N C Inner sub guide (Japan only) | ||
| 11 | 0CW040080FNBI запросить цену → | AA C Screw (4· 8) | |
| 12 | 0CW040200FNBP запросить цену → | AB N C Screw (4· 20) | |
| 13 | 0CW4090P488// AC N C Screw (4· 12) | ||
| 14 | 0CW040100FBBB запросить цену → | AB N C Screw (4· 10)(Japan only) | |
| 15 | 0CW616371//// AA D Vinyl bag C (80· 120mm) | ||
| 16 | 0CW4090P324// AP N C Guide control pin | ||
| 17 | CSOU-0168FC01 запросить цену → | BB D Delivery tray (Except Japan) | |
| 18 | 0CW2214P358// AB D Vinyl bag 1 (500· 560mm)(Except Japan) | ||
| 19 | 0CW2158P380// AE D Harness vinyl bag (120· 150mm) | ||
| 20 | 0CW4043P140// AN N D Vinyl bag S for body (500· 600· 850mm) | ||
| 21 | 0CW4090P476// AN N D Doccument (ENG) (USA,Australia,U.Kingdom) | ||
| 22 | 0CW4086P055// AE C Label (ST-B) | ||
| 23 | 0CW4086P052// AE C Label (ST-D) | ||
| 24 | 0CW4090K138// AN N C Paper fixing lever ass’y | ||
| 25 | 0CW2111P021// AC D Vinyl bag A (230· 340mm) | ||
| 26 | 0CW4090P480// AP N D Power packing add | ||
| 27 | 0CW4090P443// BF N D Packing case (Except Japan) |
12. 14 Packing material & Accessories
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 15 | PBA-control PWB | ||
| 1 | 0CWE73495K103 запросить цену → | AB C Capacitor (GRM39B103K50PT) [C1~ 20,29,34,35,51,70~ 81,87,88,112,118] | |
| 2 | 0CWE73495K102 запросить цену → | AB C Capacitor (GRM39B102K50PT) [C21~ 28,30,89~ 111,114~ 117] | |
| 3 | 0CWE73303Z104 запросить цену → | AB C Capacitor (GRM40F104Z25PT) [C31~ 33,36~ 45,47~ 50,52,57,83~ 86] | |
| 4 | 0CWE73488M336 запросить цену → | AC N C Capacitor (SME50VB33MFC) [C53,54] | |
| 5 | 0CWE73388J101 запросить цену → | AB N C Capacitor (GRM39CH101J50PT) [C59~ 61] | |
| 6 | 0CWE73295Z155 запросить цену → | AD C Capacitor (GRM42-6F155Z16PT) [C113] | |
| 7 | 0CWE73328K224 запросить цену → | AC N C Capacitor (GRM40B224K16PT) [C62~ 64] | |
| 8 | 0CWE73492M107 запросить цену → | AF N C Capacitor (LXV50VB100MH20FC) [C65,66] | |
| 9 | 0CWE73488M106 запросить цену → | AC C Capacitor (SME50VB10MFC) [C67~ 69] | |
| 10 | 0CWE73303Z334 запросить цену → | AC C Capacitor (GRM40F344Z25PT) [C82] | |
| 11 | 0CWE73166K105 запросить цену → | AE N C Capacitor (GRM42-2B105K50PT) [C58] | |
| 12 | 0CWE74291WE04 запросить цену → | AC C Connector (53258-0420) [CN15] | |
| 13 | 0CWE74322WE05 запросить цену → | AB C Connector (53253-0510) [CN2] | |
| 14 | 0CWE74340WE02 запросить цену → | AC C Connector (173981-2) [CN7] | |
| 15 | 0CWE74340WE04 запросить цену → | AD C Connector (173981-4) [CN9,12] | |
| 16 | 0CWE74212WE07 запросить цену → | AE N C Connector (DF1B-7P-2.5DSA) [CN13] | |
| 17 | 0CWE74340WE12 запросить цену → | AF C Connector (1-173981-2) [CN3] | |
| 18 | 0CWE74212WE06 запросить цену → | AE C Connector (DF1B-6P-25DSA) [CN8] | |
| 19 | 0CWE74340WE13 запросить цену → | AF C Connector (1-173981-3) [CN10] | |
| 20 | 0CWE74071WE04 запросить цену → | AC C Connector (B4P-VH)(4pin) [CN1] | |
| 21 | 0CWE74322WE04 запросить цену → | AB C Connector (53253-0410) [CN4] | |
| 22 | 0CWE74340WE06 запросить цену → | AD C Connector (173981-6J) [CN6,14] | |
| 23 | 0CWE74340WE07 запросить цену → | AD C Connector (173981-7) [CN5] | |
| 24 | 0CWE74340WE09 запросить цену → | AE C Connector (173981-9) [CN11] | |
| 25 | 0CWE311001040 запросить цену → | AE N B Diode (SS16) [D1~ 3] | |
| 26 | 0CWE311000978 запросить цену → | AD B Diode (SB02-03Q) [D5] | |
| 27 | 0CWE311001019 запросить цену → | AD B Diode (S1G-G11) [D4] | |
| 28 | 0CWE311000984 запросить цену → | AD N B Diode array (MC2850) [DA1] | |
| 29 | 0CWE7700214A/ AG B IC (TC74HC14AF) [IC1] | ||
| 30 | 0CWE7702006// AG B IC (HD74LS06PF) [IC2] | ||
| 32 | 0CWPF4090P999 запросить цену → | BA N B LSI (LSI-LC22041B-MK5) [IC5] | |
| 33 | 0CWE321000687 запросить цену → | AY B IC (STK6711BMK4) [IC6,7] | |
| 34 | 0CWE321000320 запросить цену → | AK B IC (M51953BFP) [IC8] | |
| 35 | 0CWE74269BK28 запросить цену → | AD C IC socket (2-641605-3) [IC10] | |
| 36 | 0CWE321000645 запросить цену → | BB B IC (STK6713BMK4) [IC11] | |
| 37 | 0CWE323000342 запросить цену → | BB N B IC (UPD784031GC-8BT) [IC9] | |
| 38 | 0CWE314000337 запросить цену → | AB B LED (GL3PR8) [LED1] | |
| 39 | 0CWE240000384 запросить цену → | AE N B Noise filter (NFM839R02C101R101T1) [NF1] | |
| 40 | 0CWE250000170 запросить цену → | AF N B Crystal (CST11.0MTW020) [OSC1] | |
| 41 | 0CWE120000897 запросить цену → | AD B Push switch (SKHHPK) [PSW1] | |
| 42 | 0CWE240000351 запросить цену → | AH N B Photo coupler (PTH8L09AR150M3B550) [PTH1] | |
| 43 | 0CWE312001293 запросить цену → | AR B Transistor (2SJ265) [Q1~ 3] | |
| 44 | 0CWE312001081 запросить цену → | AB B Transistor (FA1L3N) [Q4~ 11] | |
| 45 | 0CWE312001282 запросить цену → | AH B Transistor (2SK1471) [Q12~ 16] | |
| 46 | 0CWE312001399 запросить цену → | AL B FET (2SJ485) [Q17,18] | |
| 47 | 0CWE312001241 запросить цену → | AM B Transistor (2SK1895) [Q19,20] | |
| 48 | 0CWE70228J102 запросить цену → | AA C Resistor (RK73K1JTD1KW J) [R19~ 28,31~ 33,97,101,112,115] | |
| 49 | 0CWE70228J101 запросить цену → | AA N C Resistor (RK73K1JTD100W J) [R34~ 36] | |
| 50 | 0CWE70226J391 запросить цену → | AA N C Resistor (RK73K2ESTD390J) [R37~ 48,106] | |
| 51 | 0CWE70228J133 запросить цену → | AA N C Resistor (RK73K1JTD13KJ) [R1~ 14,16~ 18,29,30,49~ 59,61~ 70,102~ 105,113,114] | |
| 52 | 0CWE70226J622 запросить цену → | AA N C Resistor (RK73K2ESTD6.2KJ) [R80~ 84] | |
| 53 | 0CWE70228J472 запросить цену → | AA C Resistor (RK73K1JTD4.7KW J) [R60,71,86,107] | |
| 54 | 0CWE70228J473 запросить цену → | AA N C Resistor (RK73K1JTD47KW J) [R88,90,93] | |
| 55 | 0CWE70226J221 запросить цену → | AA N C Resistor (RK73K2ESTD220W J) [R91] | |
| 56 | 0CWE70228J105 запросить цену → | AA N C Resistor (RK73K1JTD1MW J) [R95] | |
| 57 | 0CWE70231F392 запросить цену → | AA N C Resistor (RK73H1JTD3.9KF) [R87,94] | |
| 58 | 0CWE70231F823 запросить цену → | AA N C Resistor (RK73H1JTD82KF) [R89,92] | |
| 59 | 0CWE70226J472 запросить цену → | AA N C Resistor (RK73K2ESTD4.7KW J) [R72,74~ 79,108] | |
| 60 | 0CWE70106JR33 запросить цену → | AC N C Resistor (RSSX20.33J) [R99,100] | |
| 61 | 0CWE70231F223 запросить цену → | AA N C Resistor (RK73H1JTD22KF) [R15,73,98] | |
| 62 | 0CWE70228J221 запросить цену → | AA N C Resistor (RK73K1JTD220W J) [R96] | |
| 63 | 0CWE120001481 запросить цену → | AL N B Switch (ADE04A) [SW1] | |
| 64 | 0CWE240000311 запросить цену → | AK N B Switch (RXE075) [SW2] | |
| 65 | 0CWE76008H120 запросить цену → | AB B Zener diode (RD12MB2) [ZD3,4] | |
| 66 | 0CWE73295Z475 запросить цену → | AD N C Capacitor (GRM42-6F475Z16PT) [C55,56] | |
| 67 | 0CWE240000382 запросить цену → | AC N B Coil (BLM31A700ST) [L1~ 3,28] | |
| 68 | 0CWE76005B6R2 запросить цену → | AD B Zener diode (RD6.2FB) [ZD5] | |
| 69 | 0CWE70228JR00 запросить цену → | AA C Resistor (RK73K1JTD0J) [R116~ 127] | |
| 70 | 0CWE70231F302 запросить цену → | AA N C Resistor (RK73H1JD3SF) [R85] | |
| 71 | 0CWE76008H160 запросить цену → | AD B Diode (RD16MB2) [ZD1,2] | |
| 72 | 0CW4090K204// AZ N B ROM ass’y [IC10] | ||
| 901 | 0CW4090K203// CA N E PBA control PWB (With ROM) |
