Sharp AR 6020/ 6023/ 6031/ 6120/ 6131 — каталог запчастей со схемами

Содержание

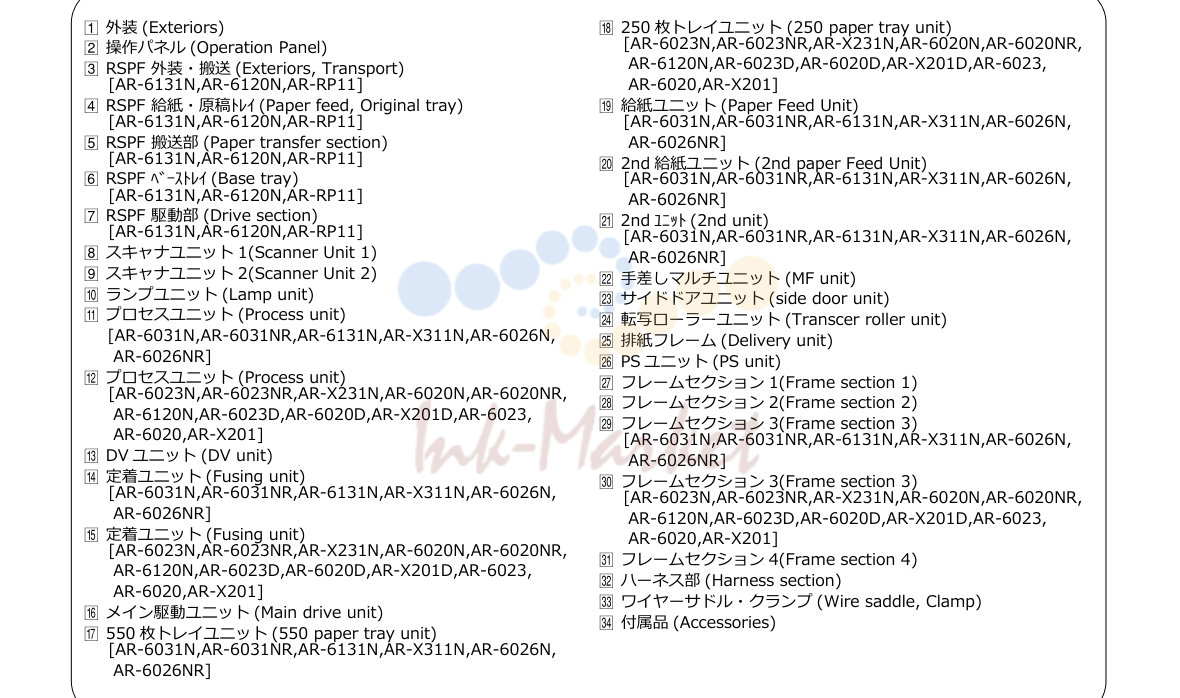

1. cover
2. 外装(Exteriors)
3. 操作パネル(Operation Panel)
4. RSPF 外装・搬送(Exteriors, Transport)[AR-6131N,AR-6120N,AR-RP11]
5. RSPF 給紙・原稿ﾄﾚｲ(Paper feed, Original tray)[AR-6131N,AR-6120N,AR-RP11]
6. RSPF 搬送部(Paper transfer section)[AR-6131N,AR-6120N,AR-RP11]
7. RSPF ﾍﾞｰｽﾄﾚｲ(Base tray)[AR-6131N,AR-6120N,AR-RP11]

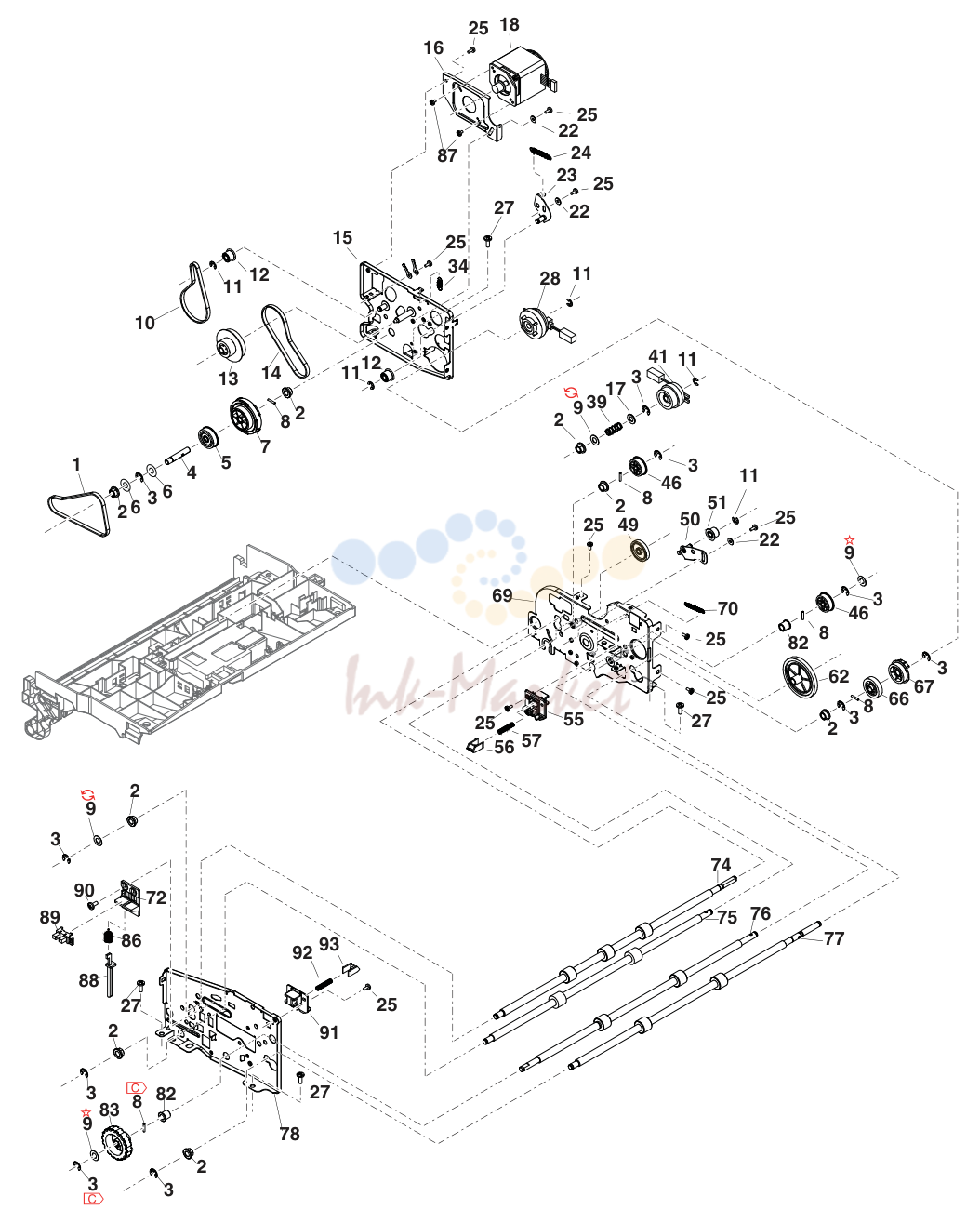

8. RSPF 駆動部 (Drive section)[AR-6131N,AR-6120N,AR-RP11]
9. スキャナユニット 1(Scanner Unit 1)
10. スキャナユニット 2(Scanner Unit 2)
11. ランプユニット (Lamp unit)

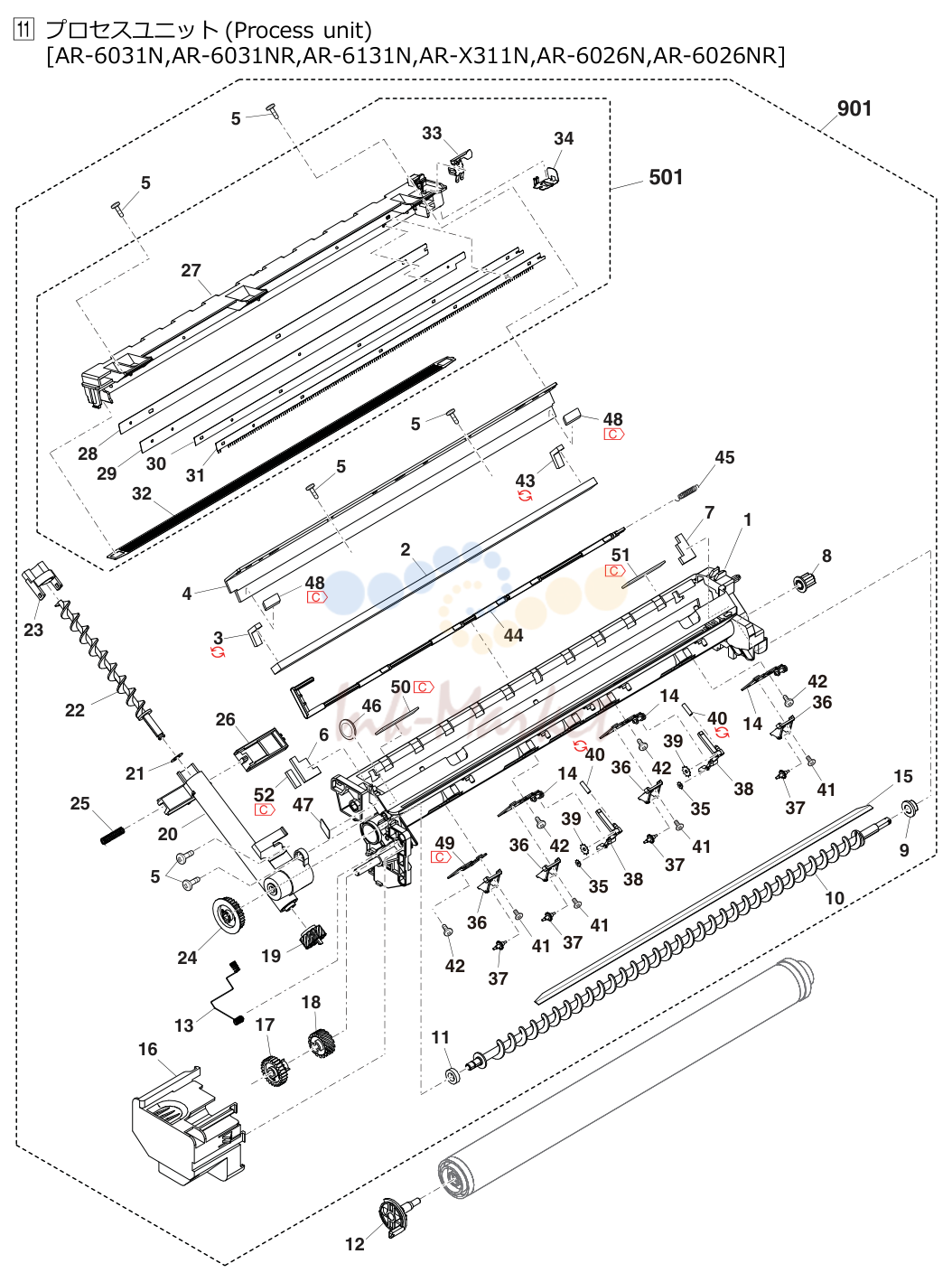

12. プロセスユニット (Process unit)
13. プロセスユニット(Process unit)[AR-6023N,AR-6023NR,AR-X231N,AR-6020N,

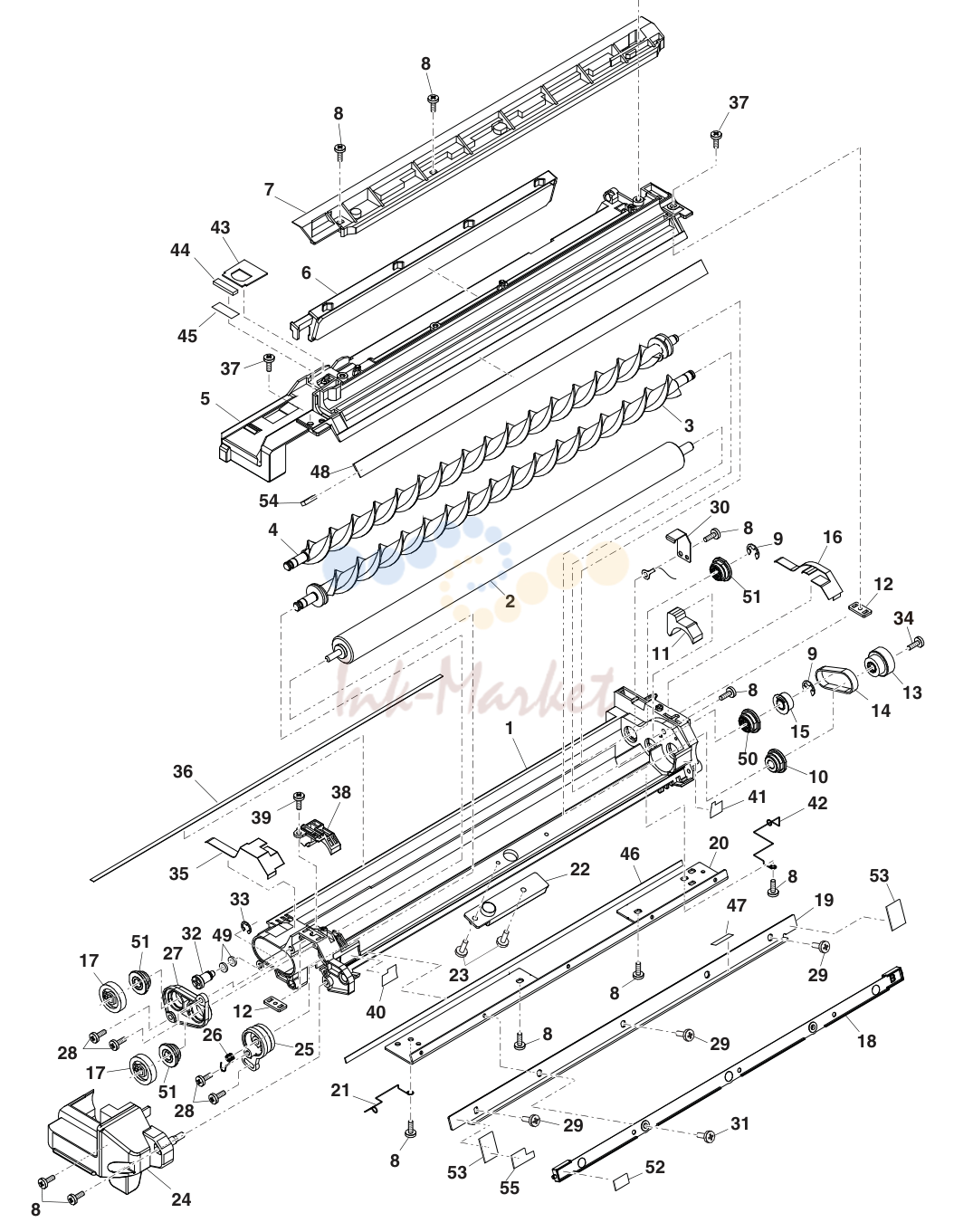

14. DV ユニット (DV unit)

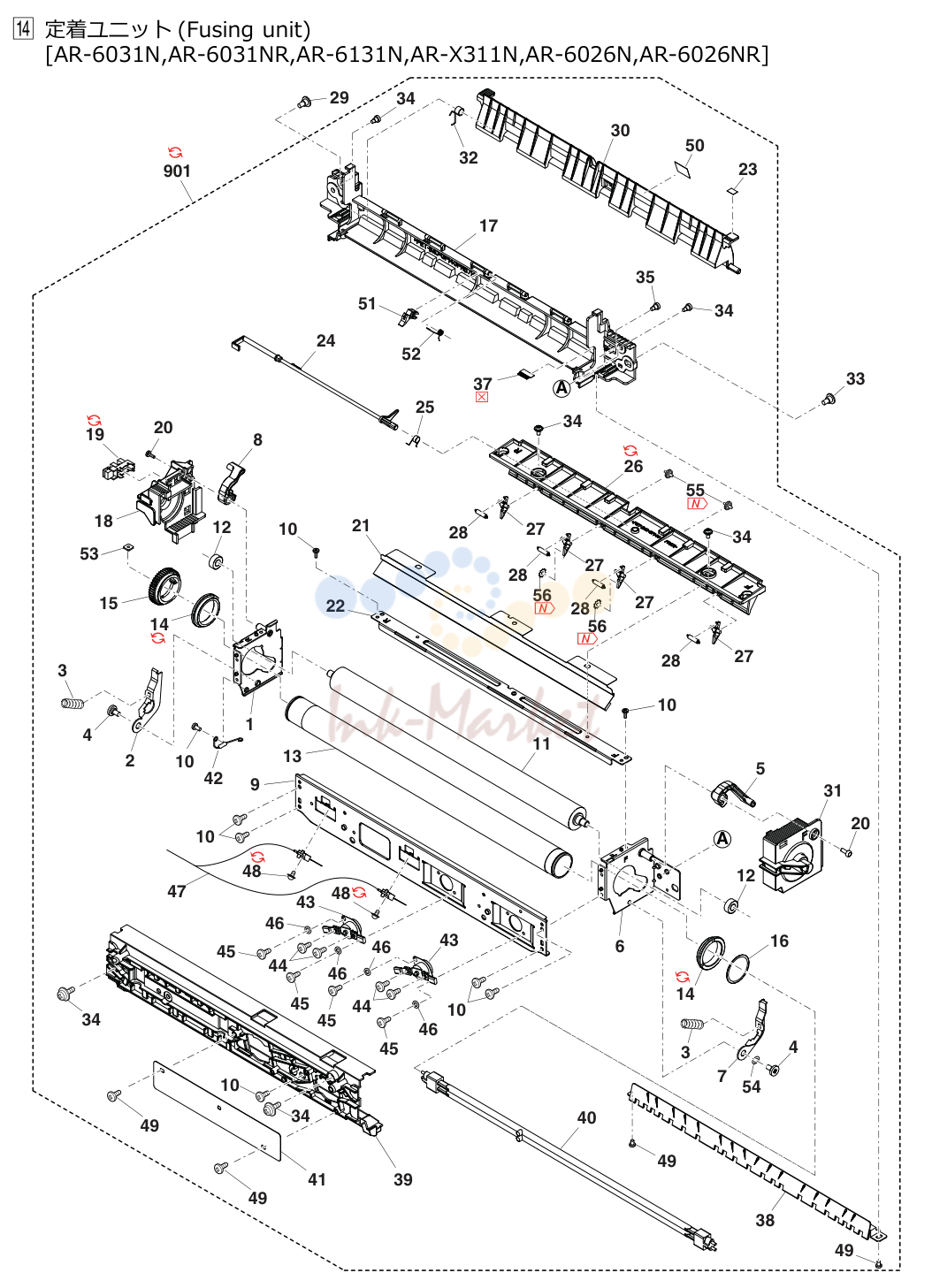

15. 定着ユニット(Fusing unit)

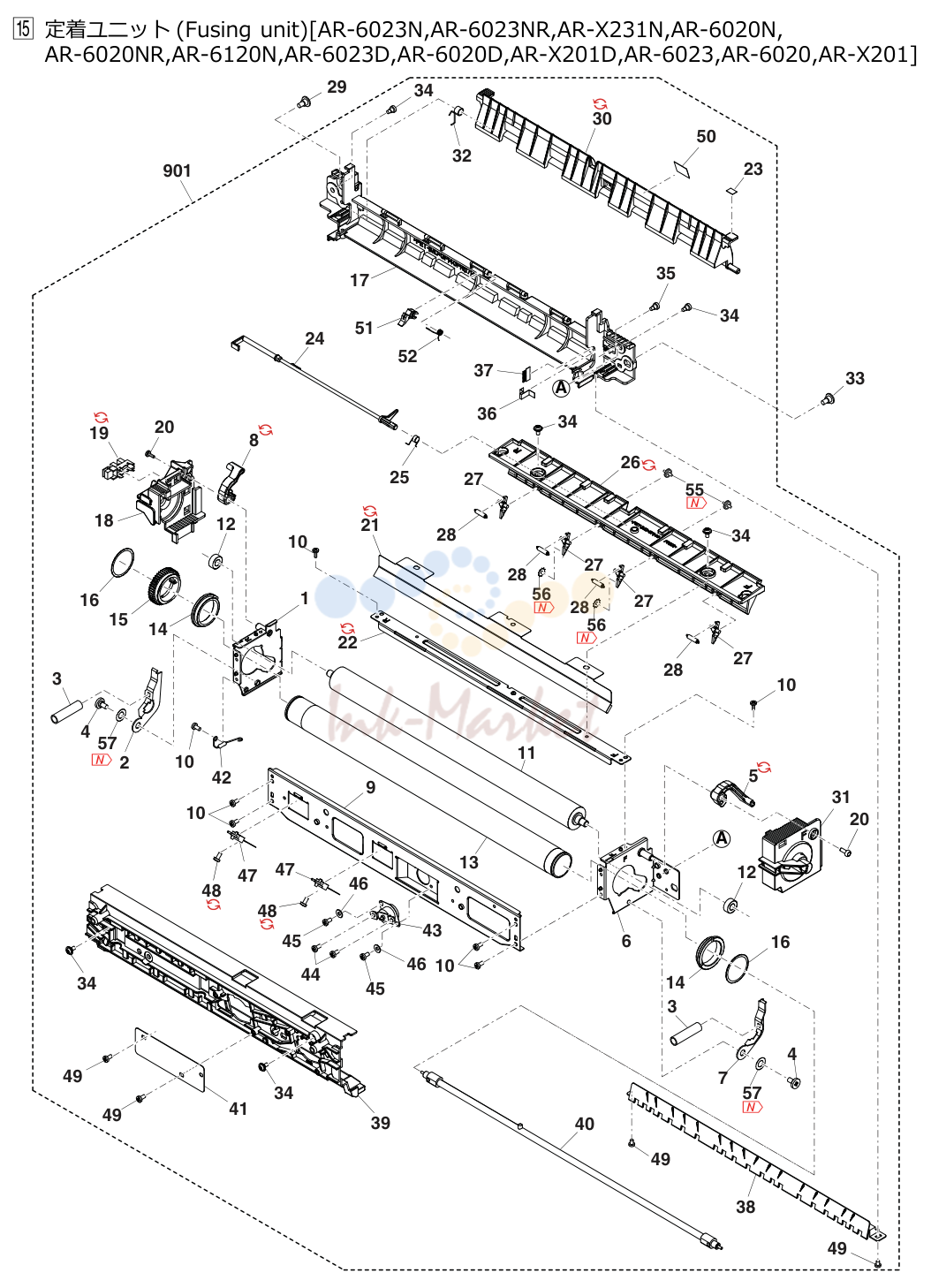

16. 定着ユニット(Fusing unit)[AR-6023N,AR-6023NR,AR-X231N,AR-6020N,

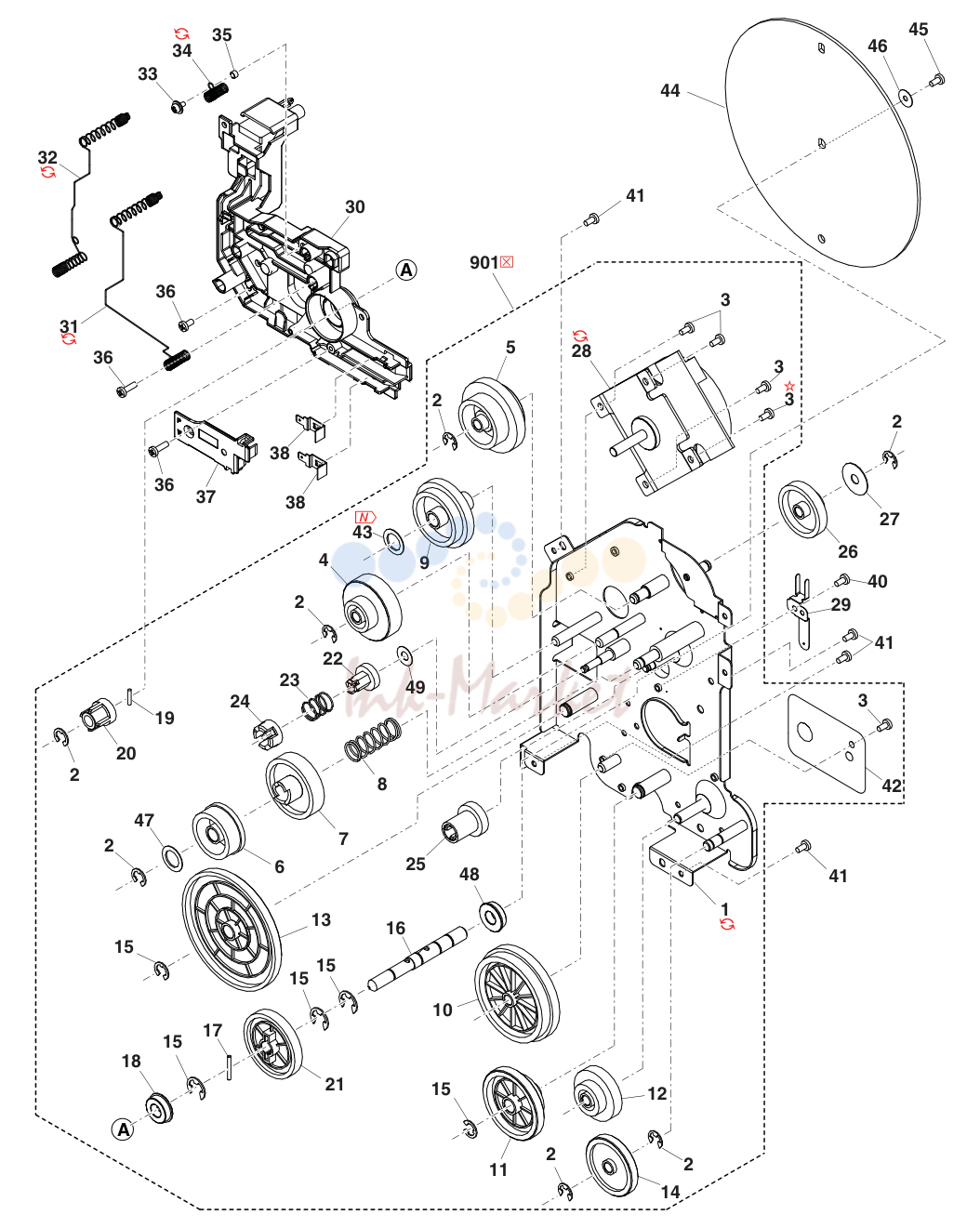

17. メイン駆動ユニット(Main drive unit)

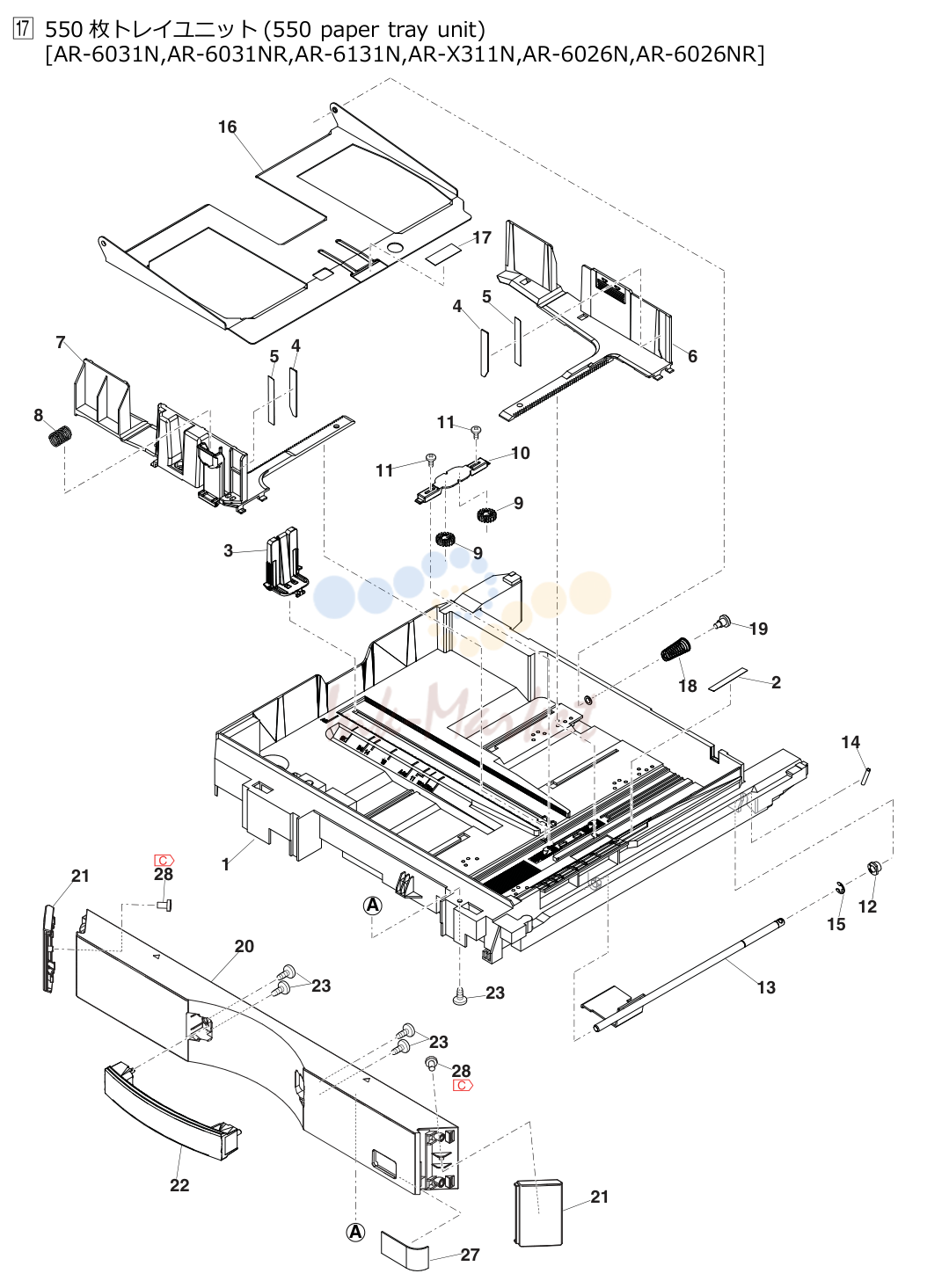

18. 550枚トレイユニット(550 paper tray unit)

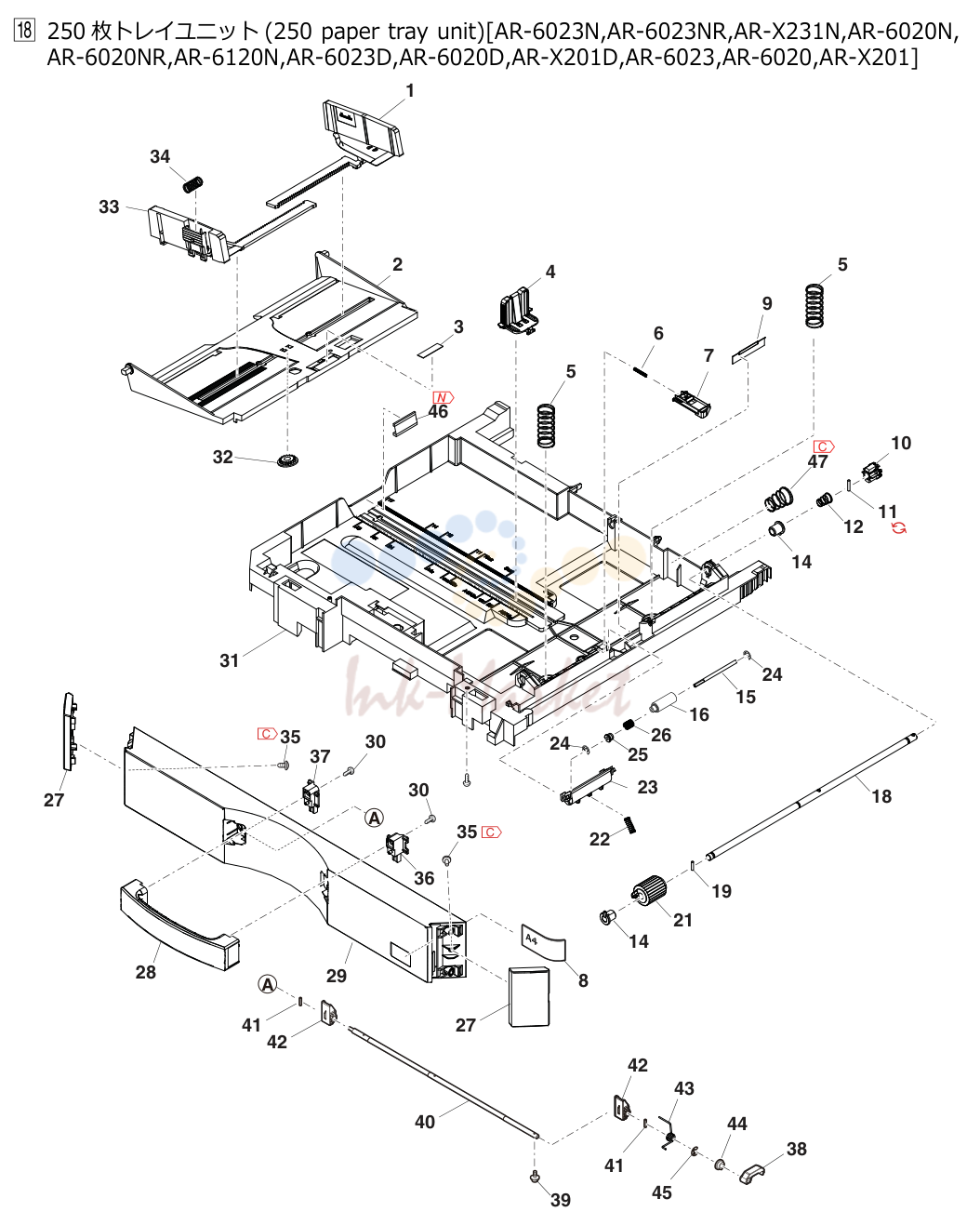

19. 250枚トレイユニット(250 paper tray unit)[AR-6023N,AR-6023NR,AR-X231N,AR-6020N,
20. 給紙ユニット (Paper Feed Unit)
21. 2nd 給紙ユニット (2nd paper Feed Unit)
22. 2nd ﾕﾆｯﾄ(2nd unit)

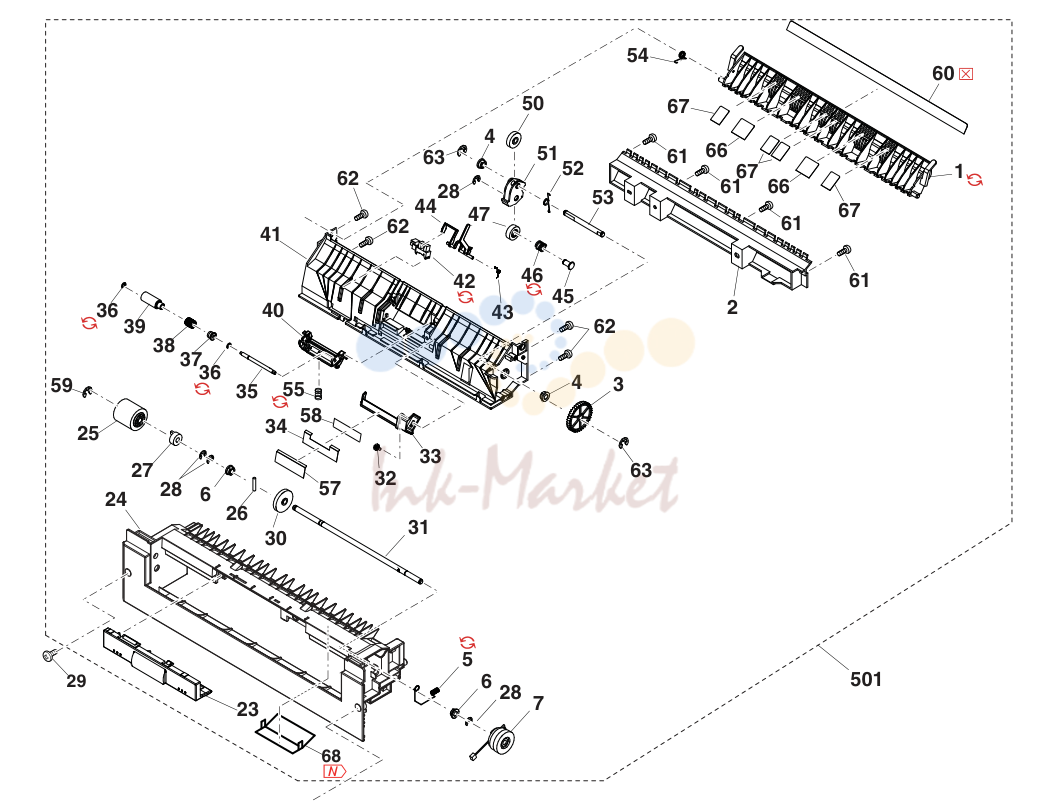

23. ⼿差しマルチユニット(MF unit)

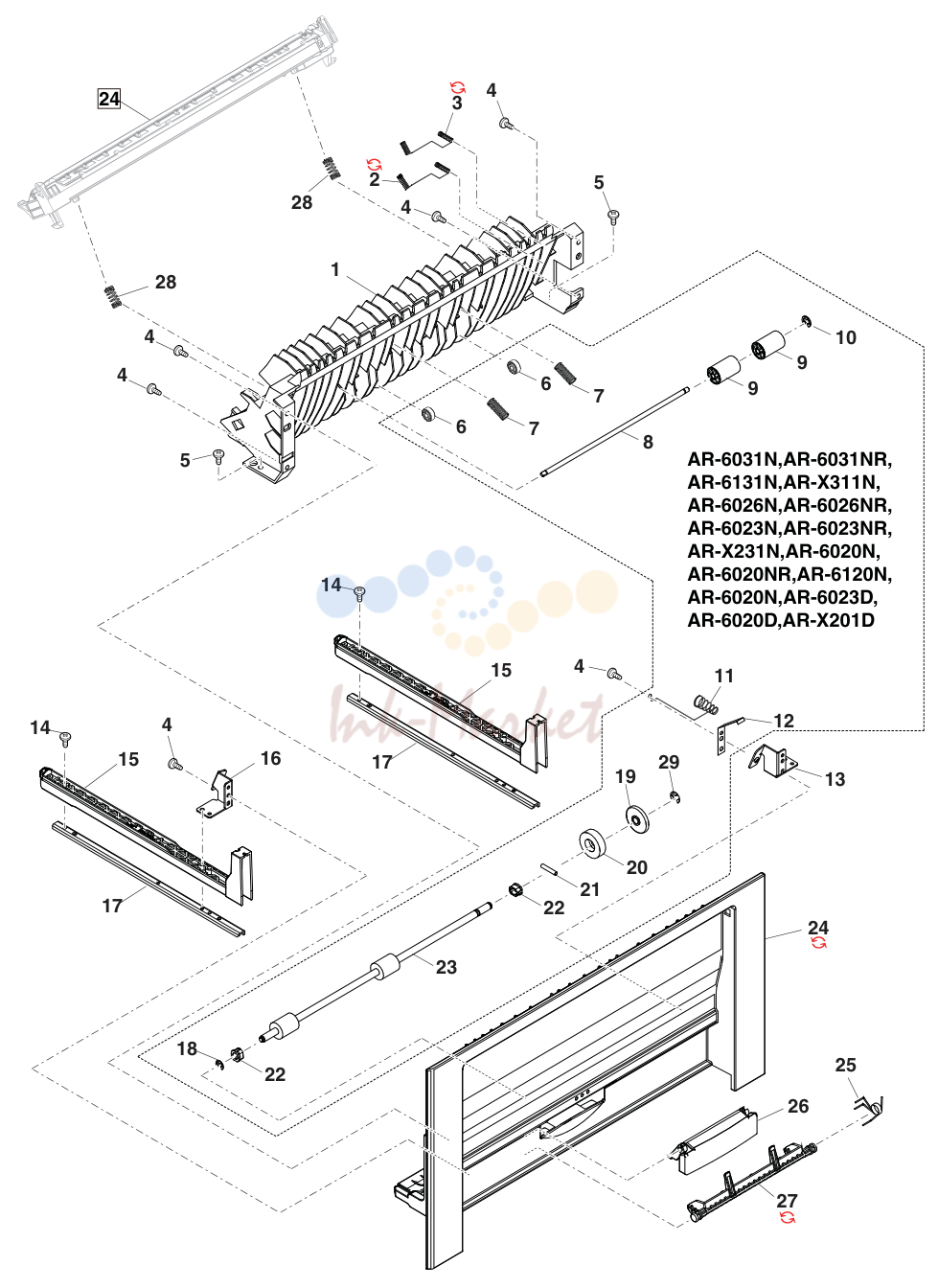

24. サイドドアユニット(side door unit)

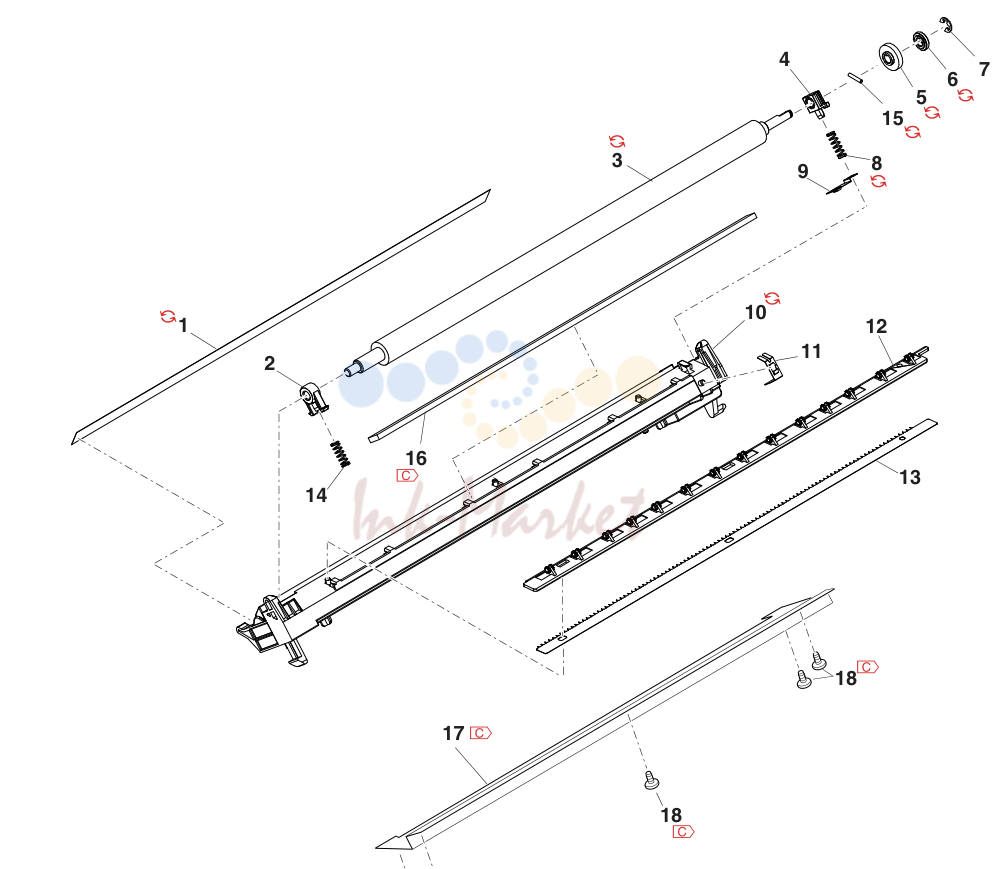

25. 転写ローラーユニット(Transcer roller unit)

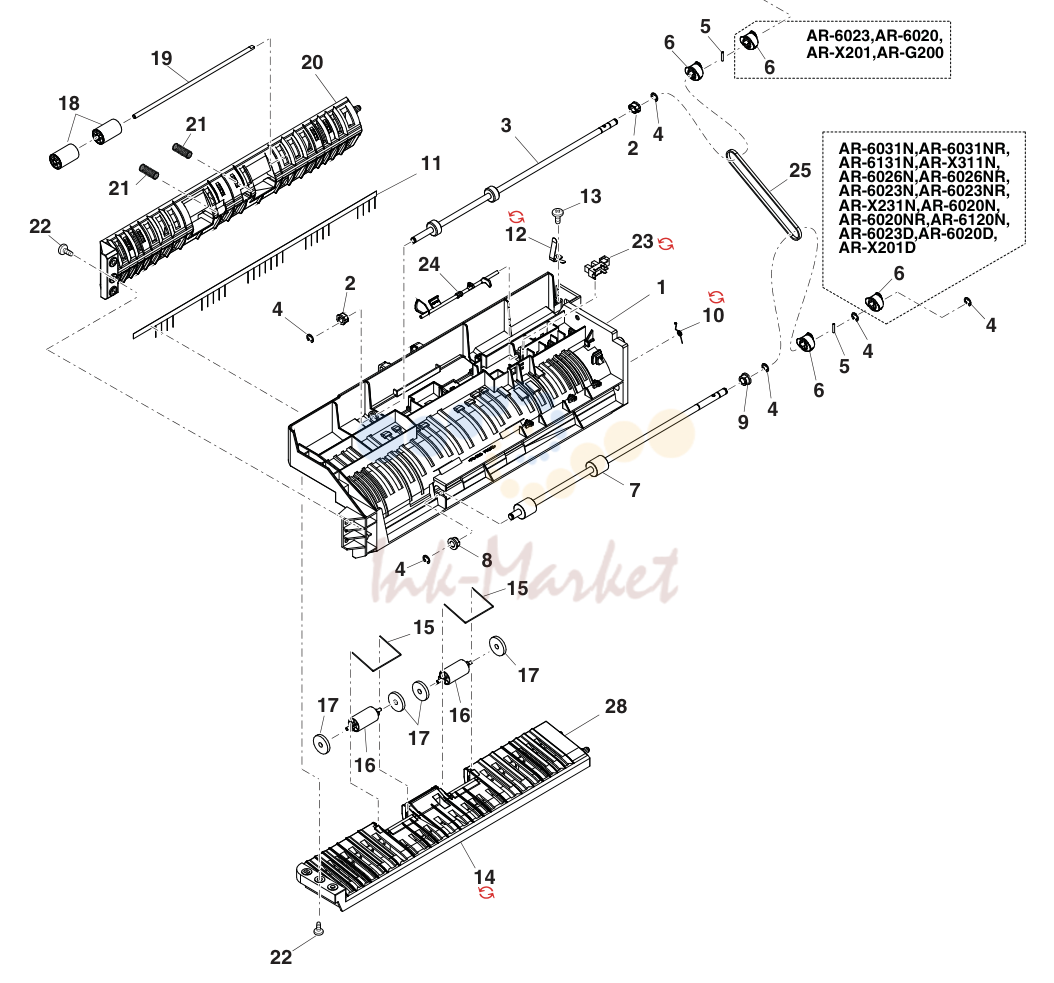

26. 排紙フレーム (Delivery unit)
27. PS ユニット(PS unit)

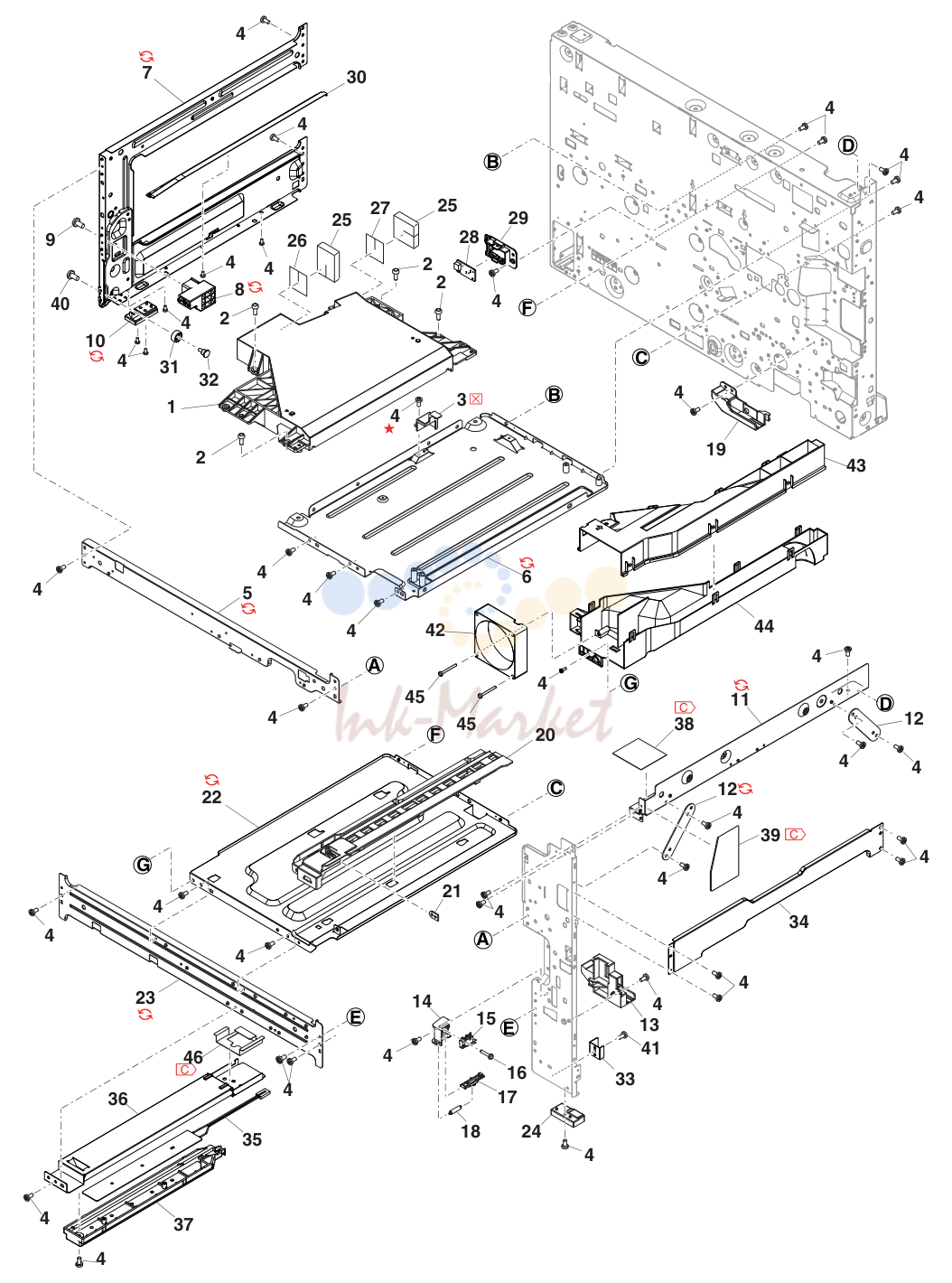

28. フレームセクション1(Frame section 1)

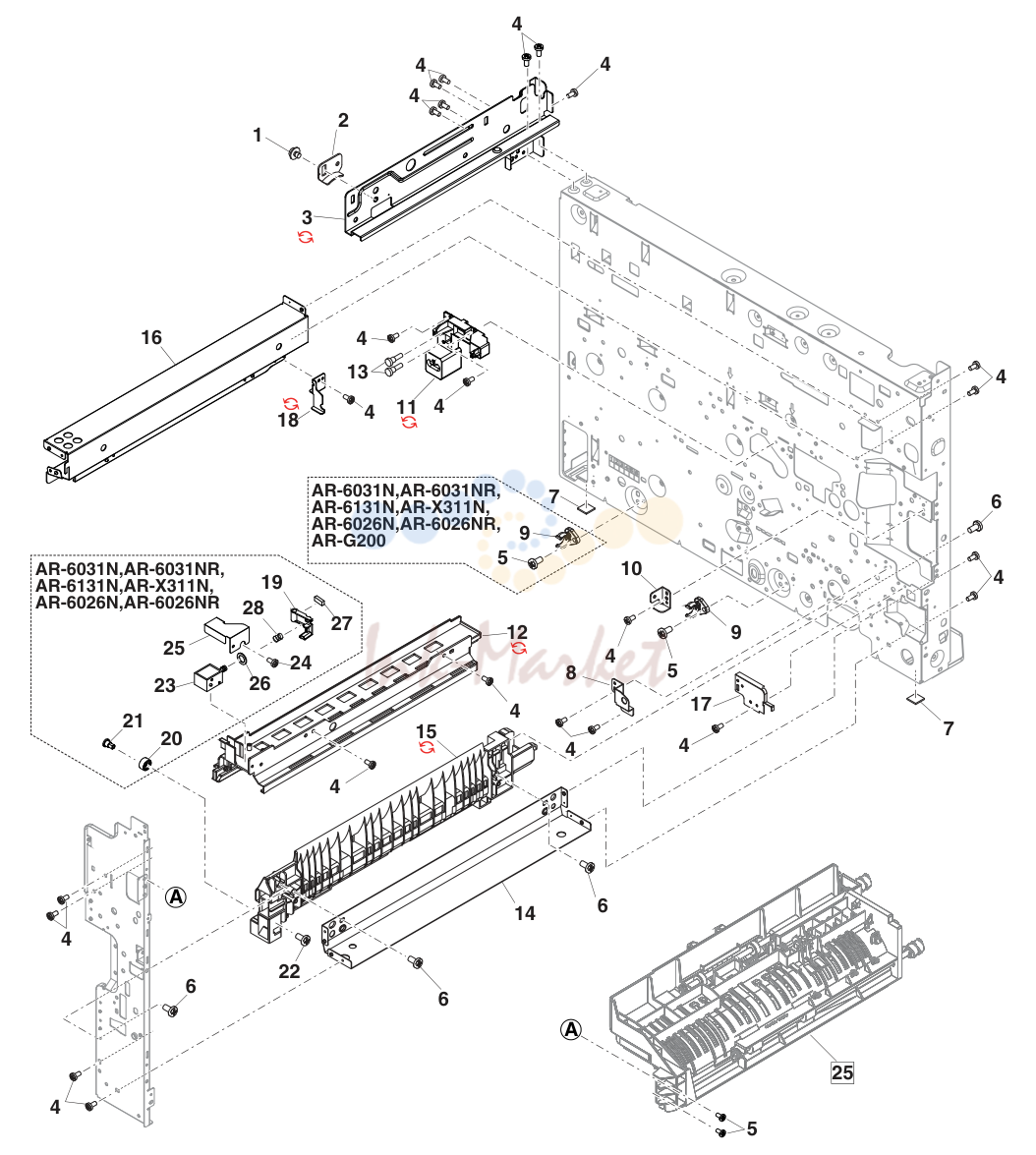

29. フレームセクション2(Frame section 2)

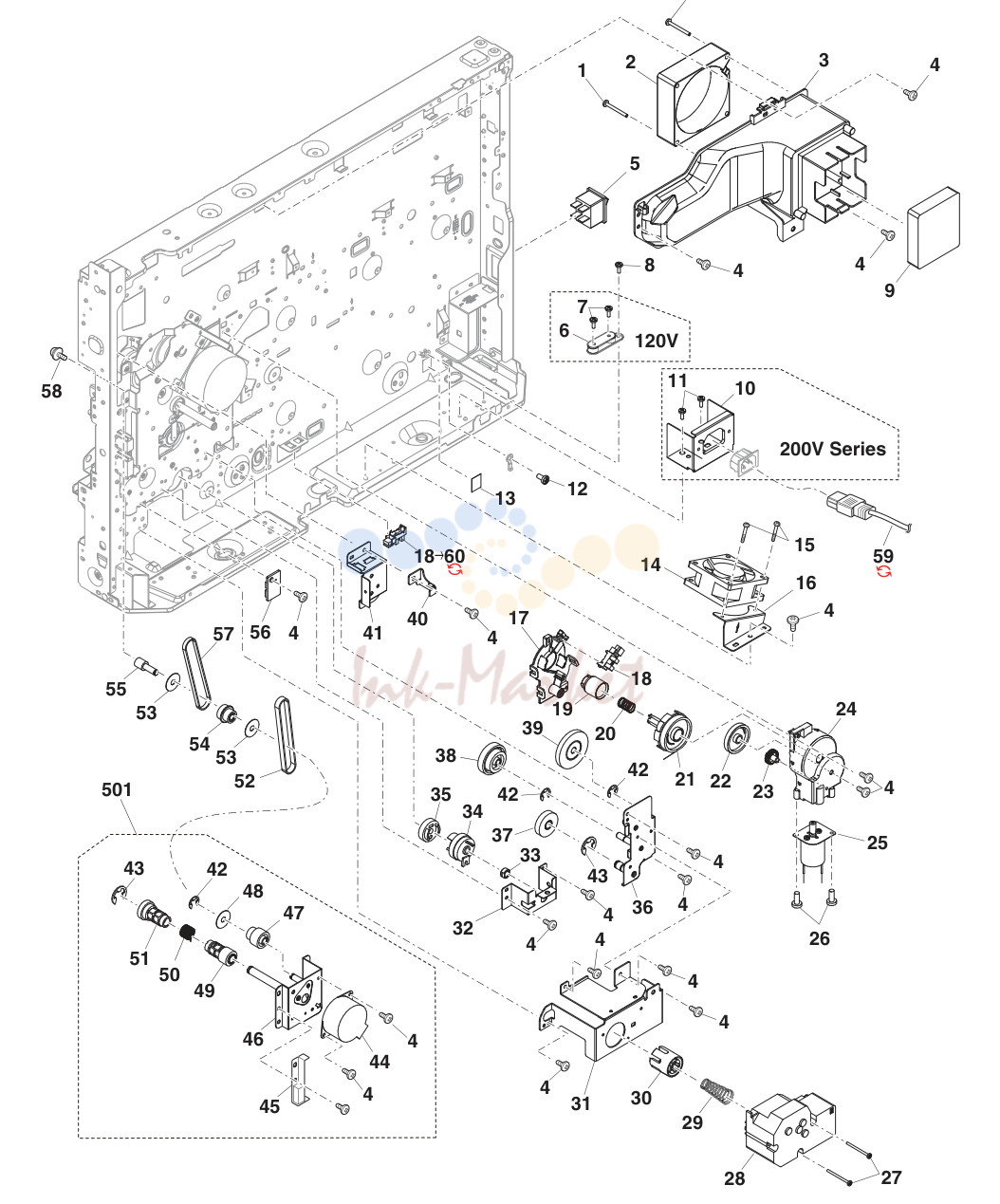

30. フレームセクション3(Frame section 3)

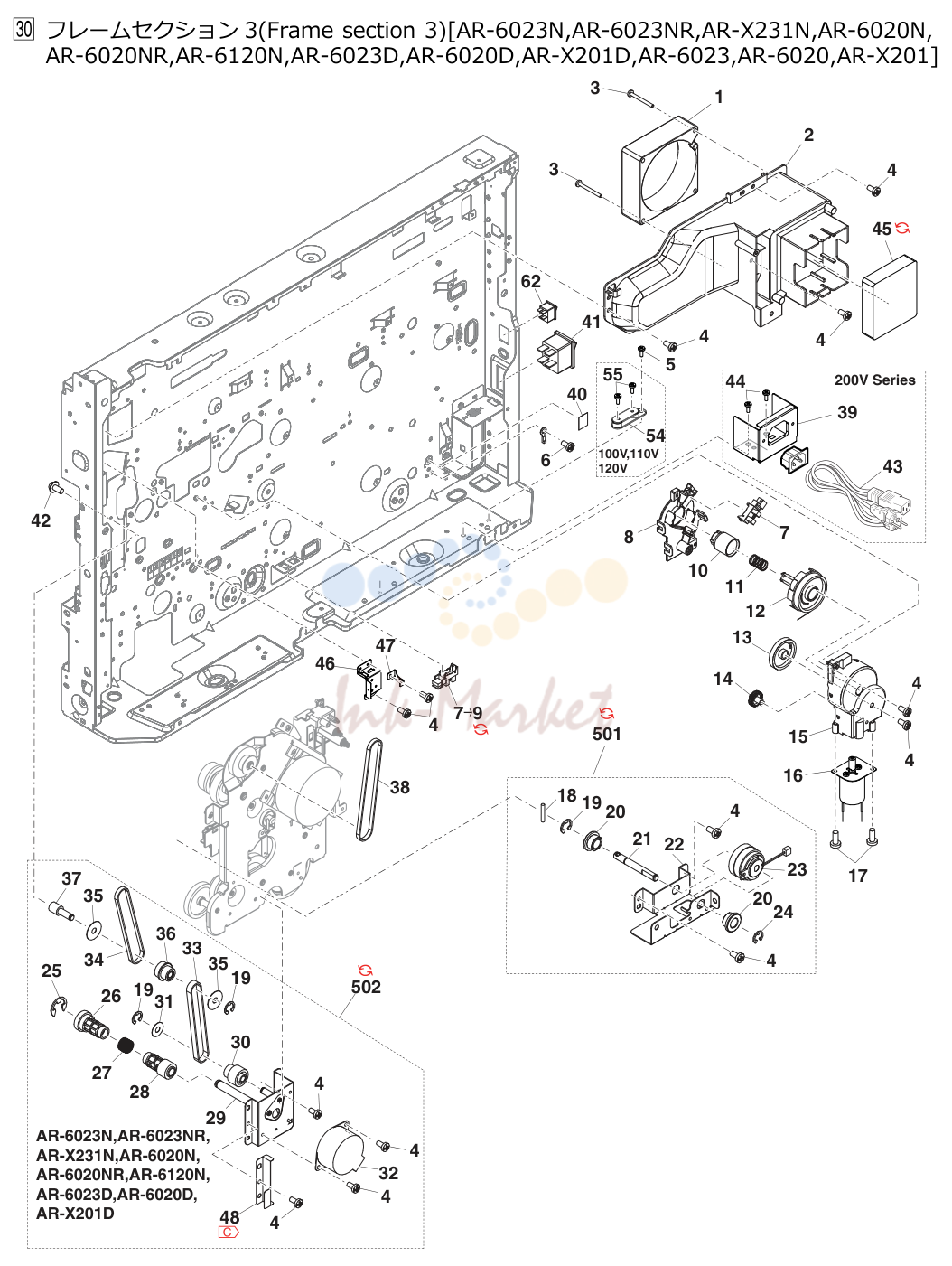

31. フレームセクション3(Frame section 3)[AR-6023N,AR-6023NR,AR-X231N,AR-6020N,

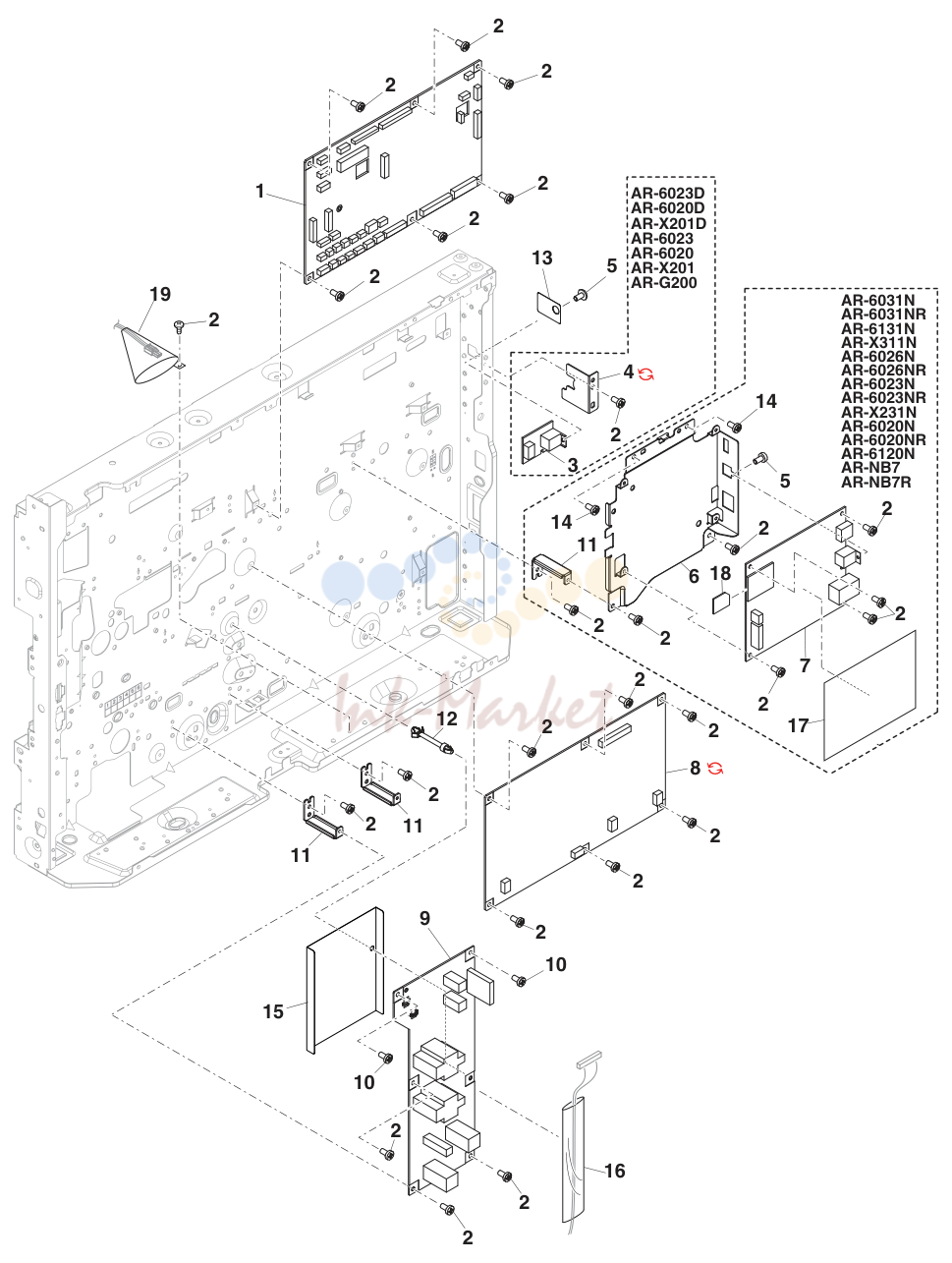

32. フレームセクション4(Frame section 4)
33. ハーネス部(Harness section)
34. ハーネス部(Harness section)

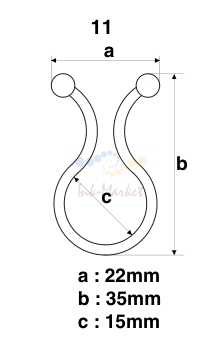

35. ワイヤーサドル・クランプ(Wire saddle, Clamp)

1. cover

№	Артикул	Альт. артикул	Описание
1			外装(Exteriors) N 250枚トレイユニット(250 paper tray unit)
2			操作パネル(Operation Panel) [AR-6023N,AR-6023NR,AR-X231N,AR-6020N,AR-6020NR,
3			RSPF 外装・搬送(Exteriors, Transport) AR-6120N,AR-6023D,AR-6020D,AR-X201D,AR-6023,
4			RSPF 給紙・原稿ﾄﾚｲ(Paper feed, Original tray) O 給紙ユニット(Paper Feed Unit)
5			RSPF 搬送部(Paper transfer section) AR-6026NR]
6			RSPF ﾍﾞｰｽﾄﾚｲ(Base tray) [AR-6031N,AR-6031NR,AR-6131N,AR-X311N,AR-6026N,
7			RSPF 駆動部(Drive section) Q 2ndﾕﾆｯﾄ(2nd unit)
8			スキャナユニット1(Scanner Unit 1) AR-6026NR]
9			スキャナユニット2(Scanner Unit 2) R ⼿差しマルチユニット(MF unit)
1			Interchangeable.
2			Current type can be used in place of new type. New type cannot be used in place of current type.
3			Current type cannot be used in place of new type. New type can be used in place of current type.
4			Not interchangeable.
5			Interchangeable if replaced with same types of releted parts in use.
6			Others
2			AA DD C Screw(4×8) ﾋﾞｽ
3			BB GD N D OC cover OCｶﾊﾞｰ
3			AT EZ N D OC hinge OCﾋﾝｼﾞ
5			AA DD C Screw(4×10) ﾋﾞｽ
6			AT EZ N D OC mat OCﾏｯﾄ
7			BC GD N E Table glass unit ﾃｰﾌﾞﾙｶﾞﾗｽﾕﾆｯﾄ
9			AL EB N D Glass fixing plate right ｶﾞﾗｽ押え右
10			C GCOVA0136QSZ9 3 BC GD N D Main rear cover(Refer to Matrix) ﾒｲﾝ後ｶﾊﾞｰ I p m er p fo ro rm ve a nce 14/Dec
11			AA DD C Screw(4×8) ﾋﾞｽ
12			C GCOVA0114QSZ1 - AX FG N D Right cover(Refer to Matrix) 右ｶﾊﾞｰ P co a r r r t e s c c t o io d n e 1st lot
13			AC DD C Screw(3×6) ﾋﾞｽ
14			AN EQ N D Right sub cabinet 右ｻﾌﾞｷｬﾋﾞ
15			AM EG N D Delivery tray right 排紙ﾄﾚｲ右
16			AK DX N D Front cabinet right 前ｷｬﾋﾞ右
17			C GCAB-0228QSZ1 3 AU EZ N D Main front cabinet right ﾒｲﾝ前ｷｬﾋﾞ右 S ch p a e n c g ifi e cation 14/Nov RC
20			AK DX N D Front cabinet left 前ｷｬﾋﾞ左
24			AS EQ N D Delivery rear cabinet 排紙後ｷｬﾋﾞ
25			AA DD C Screw(4×6) ﾋﾞｽ
26			AC DD C Screw(3×8) ﾋﾞｽ
27			AA DD C Screw(3×6) ﾋﾞｽ
28			AT EZ N D Upper cabinet rear 上ｷｬﾋﾞ後
30			AD DD C Dust proof molt 防塵ﾓﾙﾄ
31			AV FG N D Scanner front cover right ｽｷｬﾅ前ｶﾊﾞｰ右
33			AL EB N D Model name plate(Refer to Matrix) 機種名ﾌﾟﾚｰﾄ
34			AC DJ C Earth terminal base ｱｰｽ端⼦台
36			AC DD C Hinge sheet ﾋﾝｼﾞﾏｲﾗｰ
40			AK DX C Glass fixing plate left ｶﾞﾗｽ押え左
41			BB GD C SPF slit glass SPFｽﾘｯﾄｶﾞﾗｽ
42			AB DJ C White correction sheet ⽩補正ｼｰﾄ
43			AA DJ C SPF glass sheet SPFｶﾞﾗｽｼｰﾄ
44			AA DJ C Table glass gum ﾃｰﾌﾞﾙｶﾞﾗｽｺﾞﾑ
45			AC DJ C SPF glass fixing sheet R SPFｶﾞﾗｽ固定ｼｰﾄR
46			AD DJ C SPF glass fixing sheet L SPFｶﾞﾗｽ固定ｼｰﾄL
501			AY FQ E SPF glass unit SPFｶﾞﾗｽﾕﾆｯﾄ

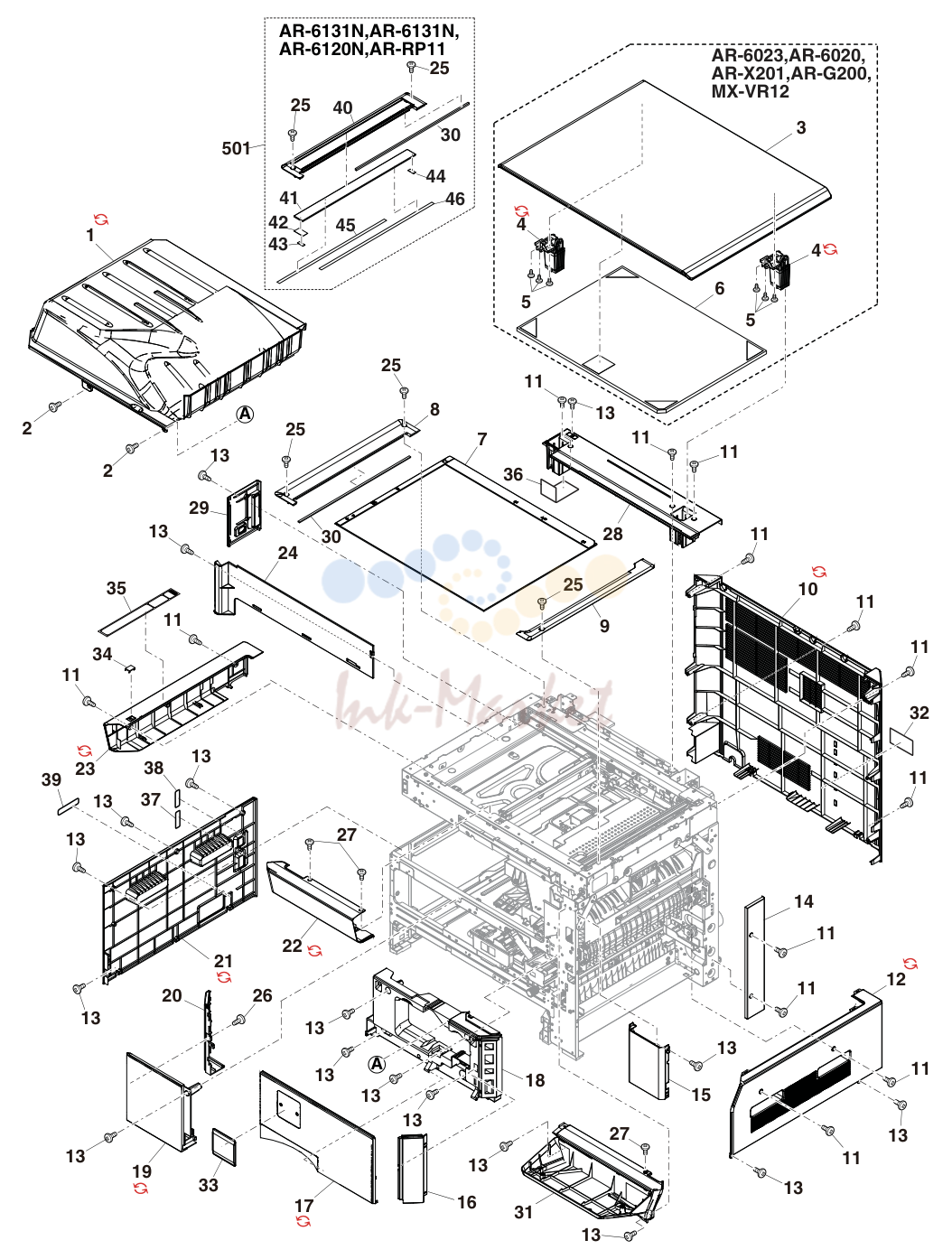

2. 外装(Exteriors)

№	Артикул	Альт. артикул	Описание
1			BG GT N E OPE PWB OPE基板
2			AC DD N C Screw holder ﾋﾞｽﾎﾙﾀﾞｰ
3			BE GN N C LCD LCD
4			AQ EQ N D Operation panel upper cover(Refer to Matrix) 操作ﾊﾟﾈﾙ上ｶﾊﾞｰ
5			BH HC N D Key sheet(Refer to Matrix) ｷｰｼｰﾄ
6			AD DD N C Lens B ﾚﾝｽﾞB
7			AC DJ B PS key lens 電源ｷｰﾚﾝｽﾞ
8			AF DS N D Key C ｷｰC
9			AC DD C Screw(3×8) ﾋﾞｽ
10			AF DS N D Key A ｷｰA
11			AG DS N D Key B ｷｰB
12			AE DS N D Interrupt key 割り込みｷｰ
13			AM EG N C 10 key ﾃﾝｷｰ
14			AN EG C Power save switch 節電ｷｰ
16			AN EG N D Start key assy ｽﾀｰﾄｷｰｱｯｾﾝ
17			AA DD C Screw(4×8) ﾋﾞｽ
18			AD DJ N C Start key frame ｽﾀｰﾄｷｰ枠
901			BS MJ N E Operation unit(Refer to Matrix) 操作ﾕﾆｯﾄ

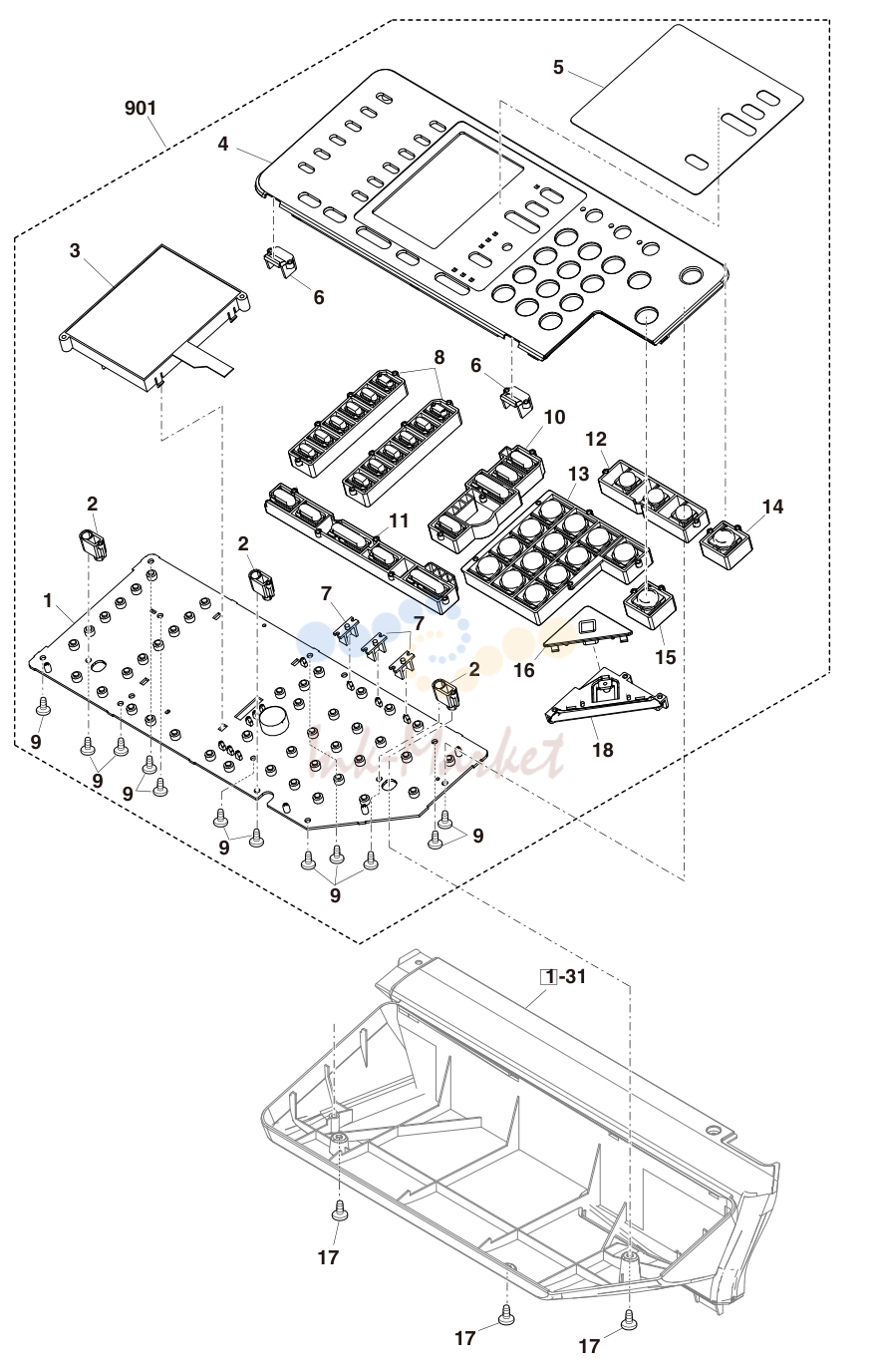

3. 操作パネル(Operation Panel)

№	Артикул	Альт. артикул	Описание
1			AT EZ N C Paper feed upper paper guide 給紙上ﾍﾟｰﾊﾟｰｶﾞｲﾄﾞ
2			AC DJ C Paper enter detect actuator ⼊紙検知ｱｸﾁｭｴｰﾀｰ
3			AB DJ C Paper enter detect actuator return spring
4			AC DJ C PS pressure holder PS圧接ﾎﾙﾀﾞｰ
5			AC DJ C PS pressure spring PS圧接ｽﾌﾟﾘﾝｸﾞ
6			AA DD C Screw(3×16) ﾋﾞｽ
7			AA DD C Washer(M3) ﾜｯｼｬｰ
9			AL EB C Transport follower shaft 搬送従動軸
10			AA DJ C Transport follower roller 搬送従動ﾛｰﾗｰ
11			AC DJ C Upper guide link arm 上ｶﾞｲﾄﾞﾘﾝｸｱｰﾑ
12			AC DJ C Link arm return spring ﾘﾝｸｱｰﾑ復帰ｽﾌﾟﾘﾝｸﾞ
13			AR EQ N D SPF rear cabinet SPF後ｷｬﾋﾞ
14			AC DJ C PS front actuator PS前ｱｸﾁｭｴｰﾀｰ
15			AF DS N D F cabinet cover Fｷｬﾋﾞｶﾊﾞｰ
16			AF DS B Photo sensor(SG2A141) ﾌｫﾄｾﾝｻｰ
17			AF DS B Photo sensor(LG248NL1) ﾌｫﾄｾﾝｻｰ
20			AA DD C Screw(4×10) ﾋﾞｽ
21			AC DD C Screw(3×8) ﾋﾞｽ
23			AC DJ C Paper feed shaft earth spring 給紙軸ｱｰｽｽﾌﾟﾘﾝｸﾞ
24			AB DD C Screw(3×8) ﾋﾞｽ
25			AF DS C Paper feed shaft 給紙軸
26			AA DD C Spring pin(2-10) ｽﾌﾟﾘﾝｸﾞﾋﾟﾝ
27			AD DJ C Pick up roller gear(18T) ﾋﾟｯｸｱｯﾌﾟﾛｰﾗｰｷﾞﾔ
28			AA DD C E type ring(E5) Eﾘﾝｸﾞ
29			AK DX D SPF front cabinet SPF前ｷｬﾋﾞ
30			AC DD C Mirror bearing N ﾐﾗｰ軸受 N
32			AH DX B Door switch(AM51632C531) ﾄﾞｱｽｲｯﾁ
33			AB DJ C Lock arm ﾛｯｸｱｰﾑ
34			AC DJ C Paper lock arm ⽤紙ﾛｯｸｱｰﾑ
35			AC DJ C Lock release arm ﾛｯｸ解除ｱｰﾑ
36			AA DJ C PS guide mylar PS案内ﾏｲﾗｰ
37			AA DD C Washer ﾜｯｼｬｰ
38			AC DJ C Pickup damper cushion N 呼込み消⾳ﾓﾙﾄN
39			AD DJ C Pickup roller holder 呼込ﾛｰﾗｰﾎﾙﾀﾞｰ
40			AA DD C Spring pin ｽﾌﾟﾘﾝｸﾞﾋﾟﾝ
41			BE GN A Pickup torque limiter 呼込みﾄﾙｸﾘﾐｯﾀｰ
42			AD DD C Upper transport support paper guide
43			AC DJ C Paper feed guide holder 給紙ｶﾞｲﾄﾞﾎﾙﾀﾞｰ
45			AT EZ C Paper feed pulley 給紙ﾌﾟｰﾘｰ
46			AD DJ B Belt(132) ﾍﾞﾙﾄ
47			AH DX B One way coupling ﾜﾝｳｪｲｶｯﾌﾟﾘﾝｸﾞ
48			AG DX N A Paper feed separate roller 給紙分離ﾛｰﾗｰ
49			AA DD C Screw(4×8) ﾋﾞｽ
50			AC DJ D Holder guide ﾎﾙﾀﾞｰｶﾞｲﾄﾞ
51			AA DD C E type ring(E4) Eﾘﾝｸﾞ
52			AC DJ C Pickup pulley(18P) 呼込みﾌﾟｰﾘｰ
54			AM EG C Pickup shaft 呼込み軸
58			AC DJ C PE actuator PEｱｸﾁｭｴｰﾀｰ
59			AB DJ C PE return spring PE復帰ｽﾌﾟﾘﾝｸﾞ
60			AA DD C Poly slider ﾎﾟﾘｽﾗｲﾀﾞｰ
501			BK HG N E Paper feed unit 給紙ﾕﾆｯﾄ
901			CD UB N E RSPF unit RSPFﾕﾆｯﾄ

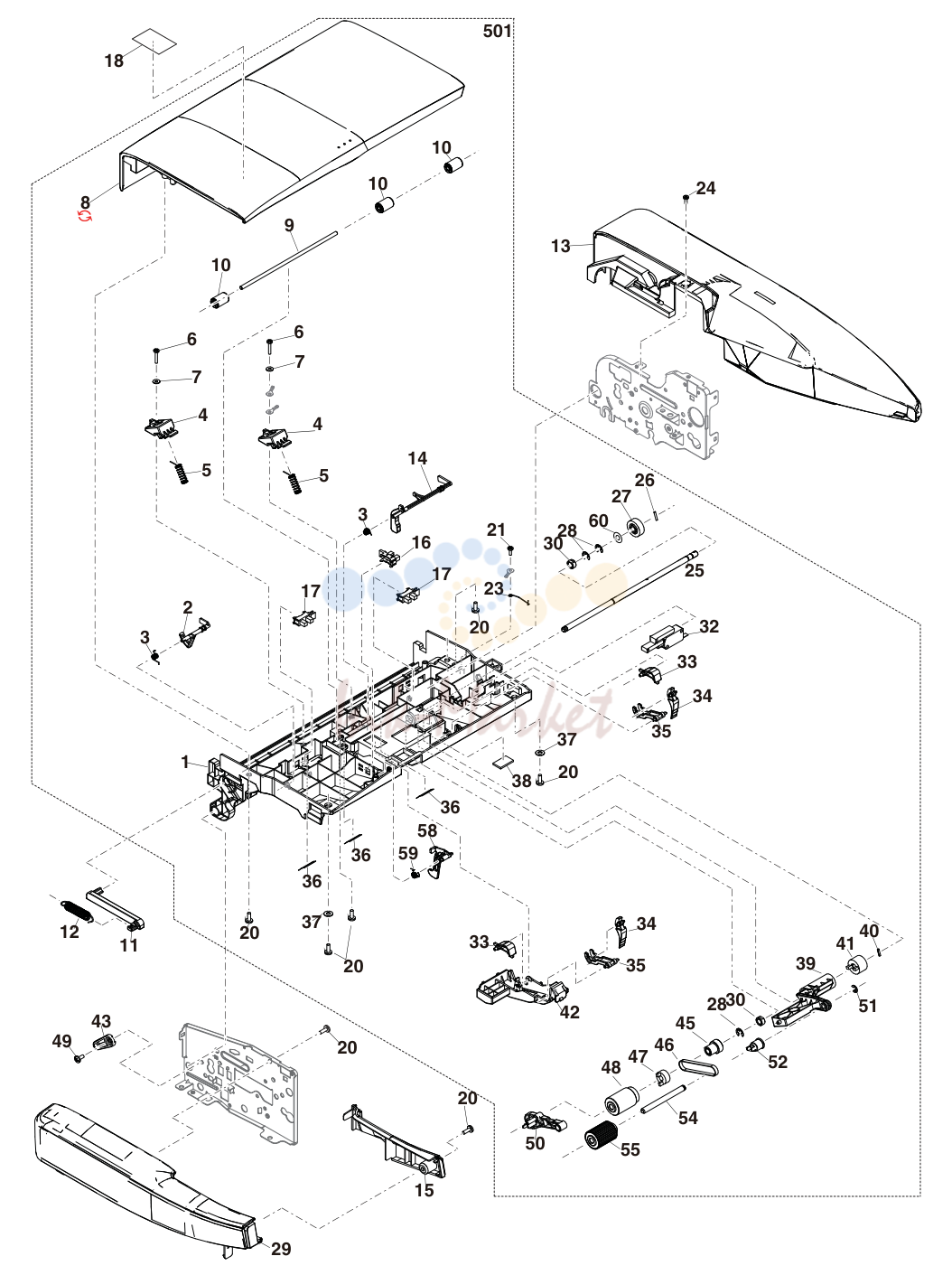

4. RSPF 外装・搬送(Exteriors, Transport)[AR-6131N,AR-6120N,AR-RP11]

№	Артикул	Альт. артикул	Описание
1			AP EQ C Separate paper guide 分離ﾍﾟｰﾊﾟｰｶﾞｲﾄﾞ
2			AC DJ C U-turn collar Uﾀｰﾝｺﾛ
3			AC DJ C Separate pressure spring 分離圧接ｽﾌﾟﾘﾝｸﾞ
4			AB DD C Separate guide sheet F 分離ｶﾞｲﾄﾞｼｰﾄF
5			AC DJ C Separate fulcrum shaft 分離⽀点軸
6			AC DD C Screw(3×8) ﾋﾞｽ
7			AB DD C Separate guide sheet R 分離ｶﾞｲﾄﾞｼｰﾄR
8			AC DD D Separation roller cover 分離ﾛｰﾗｰｶﾊﾞｰ
9			AD DJ C Front separate sheet 前捌きｼｰﾄ
10			AL EB C Transport upper paper guide 搬送上ﾍﾟｰﾊﾟｰｶﾞｲﾄﾞ
12			AA DD C Screw(4×8) ﾋﾞｽ
13			AA DD C E type ring(E4) Eﾘﾝｸﾞ
15			AC DD N C SPF torque limiter fixer SPFﾄﾙｸﾘﾐｯﾀｰ押え
16			AD DJ N C SPF torque limiter spring SPFﾄﾙｸﾘﾐｯﾀｰｽﾌﾟﾘﾝｸﾞ
17			AC DD N C SPF separate coupling SPF分離ｶｯﾌﾟﾘﾝｸﾞ
18			AA DD C Screw(3×8) ﾋﾞｽ
19			AD DJ C Actuator damper cushion ｱｸﾁｭｴｰﾀｰ消⾳ﾓﾙﾄ
20			AG DX N A Paper feed separate roller 給紙分離ﾛｰﾗｰ
21			AE DS N C SPF separate shaft SPF分離軸
22			AD DJ C Separate shaft holder R 分離軸ﾎﾙﾀﾞｰR
23			AC DJ C Separate shaft holder F 分離軸ﾎﾙﾀﾞｰF
24			AC DD C Screw(3×6) ﾋﾞｽ
25			AA DD C Screw(4×10) ﾋﾞｽ
26			AH DX B Discharger brush N 除電ﾌﾞﾗｼN
27			AZ FQ N D Original tray upper 原稿ﾄﾚｲ上
28			AG DX C RSPF regulation plate F RSPF規制板F
29			AF DS C RSPF regulation plate R RSPF規制板R
30			AC DJ D Original tray fulcrum cover 原稿ﾄﾚｲ⽀点ｶﾊﾞｰ
34			AC DD N C Original detect actuator 原稿検知ｱｸﾁｭｴｰﾀｰ
35			AF DS B Photo sensor(SG2A141) ﾌｫﾄｾﾝｻｰ
36			AB DD C Screw(4×12) ﾋﾞｽ
38			AE DS N C Width detect sensor fixing plate 幅検知ｾﾝｻｰ取付板
39			AD DJ C Width detect pinion gear(36T) 幅検知ﾋﾟﾆｵﾝｷﾞﾔ
40			AD DJ C Regulation plate spring 規制板ｽﾌﾟﾘﾝｸﾞ
41			AE DS C SPF VR PWB LF rack SPF VR基板LFﾗｯｸ
43			AS EZ N D Original tray lower 原稿ﾄﾚｲ下
44			AC DJ C Paper feed guide holder 給紙ｶﾞｲﾄﾞﾎﾙﾀﾞｰ
45			AC DD C Screw(3×8) ﾋﾞｽ
47			AS EQ E SPF VR PWB LF SPF VR基板LF
48			AD DJ C Paper fixing arm ⽤紙押えｱｰﾑ
901			BF GN N E Original tray unit 原稿ﾄﾚｲﾕﾆｯﾄ

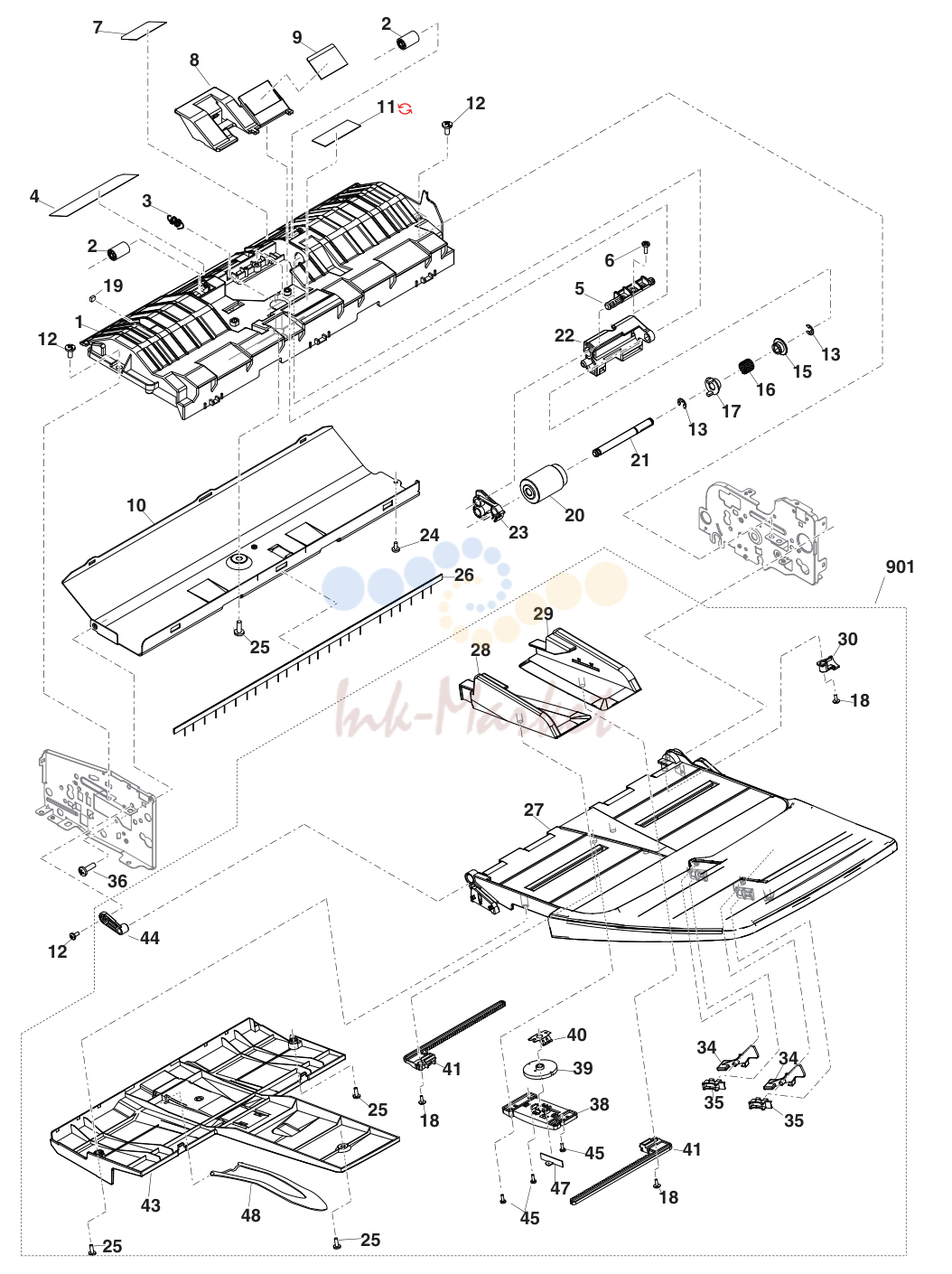

5. RSPF 給紙・原稿ﾄﾚｲ(Paper feed, Original tray)[AR-6131N,AR-6120N,AR-RP11]

№	Артикул	Альт. артикул	Описание
1			AT EZ N C Transport paper guide 搬送ﾍﾟｰﾊﾟｰｶﾞｲﾄﾞ
2			AA DJ C PS guide mylar PS案内ﾏｲﾗｰ
3			AB DJ C Read plate pressure spring 読取板圧接ｽﾌﾟﾘﾝｸﾞ
5			AF DS B Photo sensor(LG248NL1) ﾌｫﾄｾﾝｻｰ
6			AA DD C Screw(4×10) ﾋﾞｽ
7			AC DD C Read front actuator 読取前ｱｸﾁｭｴｰﾀｰ
8			AC DJ C Read front actuator spring
9			AD DJ C Actuator damper cushion ｱｸﾁｭｴｰﾀｰ消⾳ﾓﾙﾄ
10			AK DX C Reading plate 読取板
11			AD DJ C White sheet ⽩ﾏｲﾗｰ
12			AA DJ C Paper feed rear mylar 2 給紙後ﾏｲﾗｰ2
13			AN EG N C Reverse gate 反転ｹﾞｰﾄ
14			AB DD C Screw(3×8) ﾋﾞｽ
15			AA DD C Screw(4×10) ﾋﾞｽ
501			AT EZ E Reading plate unit 読取板ﾕﾆｯﾄ

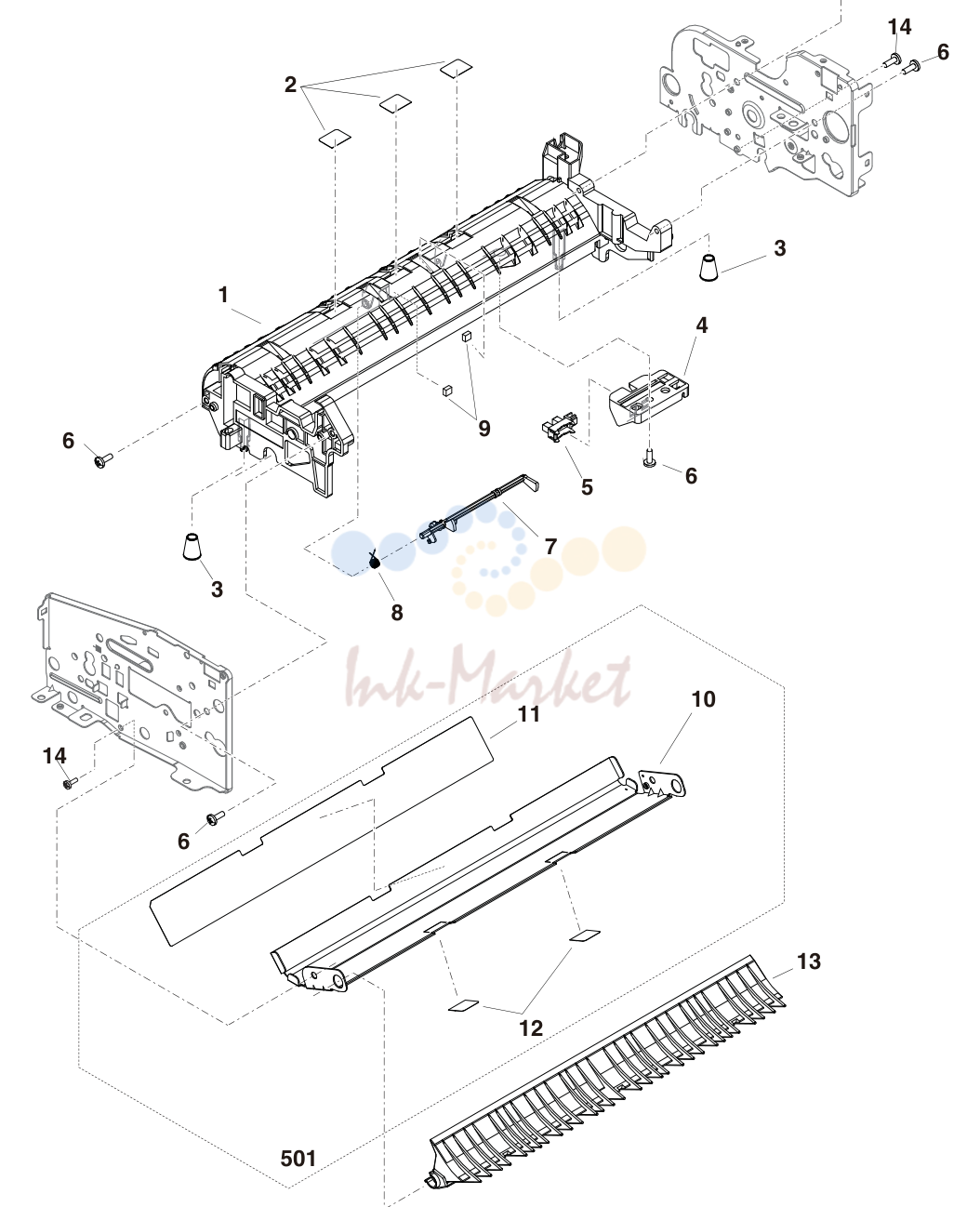

6. RSPF 搬送部(Paper transfer section)[AR-6131N,AR-6120N,AR-RP11]

№	Артикул	Альт. артикул	Описание
2			AA DJ C Gate damper cushion ｹﾞｰﾄ消⾳ﾓﾙﾄ
3			AB DJ C Open/close look spring 開閉ﾛｯｸｽﾌﾟﾘﾝｸﾞ
4			AC DJ C Read front follower holder 読取前従動ﾎﾙﾀﾞｰ
5			AC DJ C Read front follower shaft 読取前従動軸
6			AA DJ C Transport follower roller 搬送従動ﾛｰﾗｰ
7			AD DJ C Transport follower spring 搬送従動ｽﾌﾟﾘﾝｸﾞ
8			AC DD C Screw(3×8) ﾋﾞｽ
9			AA DD C Screw(3×18) ﾋﾞｽ
11			AL EB C Transport follower shaft 搬送従動軸
12			AA DJ C Reading front damper sheet 読取前消⾳ｼｰﾄ
13			AD DJ C Read front sheet 読取前ｼｰﾄ
14			AD DJ C Reading rear sheet 読取後ｼｰﾄ
15			AE DJ C Solenoid fixing plate ｿﾚﾉｲﾄﾞ取付板
16			AR EQ B Reverse solenoid 反転ｿﾚﾉｲﾄﾞ
17			AA DD C Screw(3×4) ﾋﾞｽ
18			AA DD C Screw(4×10) ﾋﾞｽ
20			BB GD C SPF hinge R SPFﾋﾝｼﾞR
21			AB DD C Screw(4×14) ﾋﾞｽ
22			AA DD C Washer(M4) 菊ﾜｯｼｬｰ
23			BB GD N E RSPF driver PWB RSPFﾄﾞﾗｲﾊﾞｰ基板
25			AR EQ C Pressure release shaft 圧⼒解除軸
26			AE DJ C Pressure release lever 圧解ﾚﾊﾞｰ
27			AA DD C Screw ﾋﾞｽ
28			AC DD C Mirror bearing N ﾐﾗｰ軸受 N
29			AA DD C E type ring(E5) Eﾘﾝｸﾞ
30			AC DJ C Pressure release hodler 圧解ﾎﾙﾀﾞｰ
31			AB DD C Pin(φ2-12) 平⾏ﾋﾟﾝ
32			AD DJ C Delivery follower spring 排紙従動ｽﾌﾟﾘﾝｸﾞ
34			AA DD C Reversal Act damper cushion 反転Act消⾳ﾓﾙﾄ
35			AE DS C Gasket FL ｶﾞｽｹｯﾄFL
36			AA DJ C Pressure release damper molt 圧解消⾳ﾓﾙﾄ
37			AC DD C Screw(3×6) ﾋﾞｽ
39			AC DJ C Delivery follower shaft 排紙従動軸
40			AD DJ C Delivery follower roller 排紙従動ﾛｰﾗｰ
41			AC DJ C OC position sheet OC位置決めｼｰﾄ
42			AA DD C Screw(4×6) ﾋﾞｽ
43			AF DS B Photo sensor(LG248NL1) ﾌｫﾄｾﾝｻｰ
44			AM EG N E SPF glass cleaner SPFｶﾞﾗｽｸﾘｰﾅｰ
45			AR EQ N D OC mat OCﾏｯﾄ
46			AC DJ C Delivery sponge 蹴り出しｽﾎﾟﾝｼﾞ
47			AG DX D Follower roller cover 従動ﾛｰﾗｰｶﾊﾞｰ
49			AC DD C Reverse front actuator 反転前ｱｸﾁｭｴｰﾀｰ
50			AC DJ C Read front actuator spring
51			AA DJ C Follower spring sheet 従動ｽﾌﾟﾘﾝｸﾞｼｰﾄ
52			AD DJ C Transport follower earth spring
54			BB GD C SPF hinge L SPFﾋﾝｼﾞL
55			AD DJ C Delivery extension tray 排紙延⻑ﾄﾚｲ
56			AC DD C Screw(3×10) ﾋﾞｽ
57			AB DJ C Pressure release damper sponge 圧解消⾳ｽﾎﾟﾝｼﾞ
501			BR LP N E SPF base tray unit SPFﾍﾞｰｽﾄﾚｲﾕﾆｯﾄ

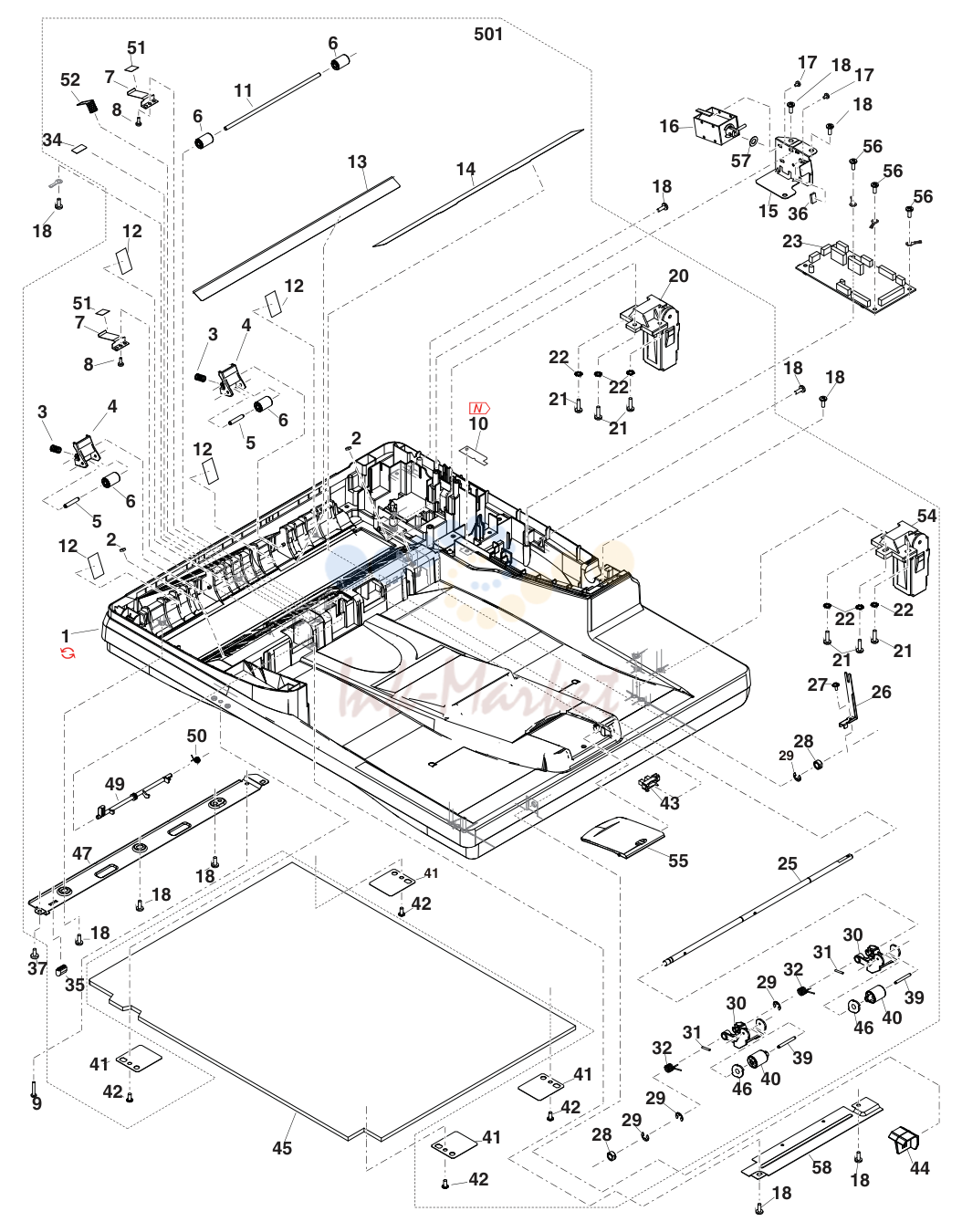

7. RSPF ﾍﾞｰｽﾄﾚｲ(Base tray)[AR-6131N,AR-6120N,AR-RP11]

№	Артикул	Альт. артикул	Описание
1			BA FX B Belt(40S2M236) ﾍﾞﾙﾄ
2			AB DJ C Metal bearing ﾒﾀﾙ軸受
3			AA DD C E type ring(E5) Eﾘﾝｸﾞ
4			AD DJ C Transport shaft 搬送軸
5			AH DX C Pulley(37P)(1WAY) ﾌﾟｰﾘｰ
6			AA DD C Poly slider ﾎﾟﾘｽﾗｲﾀﾞｰ
7			AD DJ C Gear 37T/64P ｷﾞｱ37T/64P
8			AA DD C Spring pin(2-10) ｽﾌﾟﾘﾝｸﾞﾋﾟﾝ
9			C LX-WZ0448FCZZ 3 AB DD C Poly slider(6×12×0.5) ﾎﾟﾘｽﾗｲﾀﾞｰ I p m er p fo ro rm ve a nce 14/Nov
11			AA DD C E type ring(E4) Eﾘﾝｸﾞ
12			AB DJ C Tension collar ﾃﾝｼｮﾝｺﾛ
13			AD DJ C Paper feed gear(54P/18T) 給紙ｷﾞﾔ
14			AE DS B Belt(40S2M212BLT) ﾍﾞﾙﾄ
15			AH DX D Drive frame 駆動ﾌﾚｰﾑ
16			AE DJ C Transport motor tension holder
17			AA DD C Washer(φ6-11) ﾜｯｼｬｰ
18			BD GN B RSPF transport motor RSPF搬送ﾓｰﾀｰ
22			AA DD C Washer(M3) ﾜｯｼｬｰ
23			AF DS N C Paper feed tension plate 給紙ﾃﾝｼｮﾝﾌﾟﾚｰﾄ
24			AD DD N C Paper feed tension spring 給紙ﾃﾝｼｮﾝｽﾌﾟﾘﾝｸﾞ
25			AC DD C Screw(3×6) ﾋﾞｽ
27			AA DD C Screw(4×10) ﾋﾞｽ
28			AP EQ B SPF paper feeding clutch SPF給紙ｸﾗｯﾁ
34			AC DJ C Transport motor tension spring
39			AC DJ C Brake spring ﾌﾞﾚｰｷｽﾌﾟﾘﾝｸﾞ
41			AP EQ B Reversal clutch T 反転ｸﾗｯﾁT
46			AD DD N C Gear(32P) ｷﾞﾔ
49			AC DJ C 33T gear 33Tｷﾞﾔ
50			AE DJ C Tension plate R ﾃﾝｼｮﾝﾌﾟﾚｰﾄR
51			AB DJ C Tension collar ﾃﾝｼｮﾝｺﾛ
55			AC DJ C Stopper holder ｽﾄｯﾊﾟｰﾎﾙﾀﾞｰ
56			AC DJ C Open/close lock pawl 開閉ﾛｯｸ⽖
57			AA DJ C Lock spring ﾛｯｸｽﾌﾟﾘﾝｸﾞ
62			AC DJ C 67T gear 67Tｷﾞﾔ
66			AC DJ C 32T gear 32Tｷﾞﾔ
67			AD DD N C Paper feed coupling pulley(37P) 給紙ｶｯﾌﾟﾘﾝｸﾞﾌﾟｰﾘｰ
69			AL EB D R frame Rﾌﾚｰﾑ
70			AC DJ C Tension spring ﾃﾝｼｮﾝｽﾌﾟﾘﾝｸﾞ
72			AD DJ N C Book sensor fixing plate ﾌﾞｯｸｾﾝｻｰ取付板
74			AV FG N C PS roller PSﾛｰﾗｰ
75			AM EG C Read front roller 読取前ﾛｰﾗｰ
76			AU EZ C Reading rear roller 読取後ﾛｰﾗｰ
77			AS EQ N A RSPF delivery roller RSPF排紙ﾛｰﾗｰ
78			AG DX D F frame Fﾌﾚｰﾑ
82			AC DJ C Bearing(B-F6-10) 軸受
83			AD DJ C JAM release pulley JAM解除ﾌﾟｰﾘｰ
86			AB DJ C Book sensor spring ﾌﾞｯｸｾﾝｻｰｽﾌﾟﾘﾝｸﾞ
87			AA DD C Screw(3×4) ﾋﾞｽ
88			AD DJ C Book sensor actuator ﾌﾞｯｸｾﾝｻｰｱｸﾁｭｴｰﾀｰ
89			AF DS B Photo sensor(SG2A141) ﾌｫﾄｾﾝｻｰ
90			AA DD C Screw(4×8) ﾋﾞｽ
91			AC DJ C Stopper holder ｽﾄｯﾊﾟｰﾎﾙﾀﾞｰ
92			AA DJ C Lock spring ﾛｯｸｽﾌﾟﾘﾝｸﾞ
93			AC DJ C Open/close lock pawl 開閉ﾛｯｸ⽖

8. RSPF 駆動部 (Drive section)[AR-6131N,AR-6120N,AR-RP11]

№	Артикул	Альт. артикул	Описание
1			AA DD Screw(4×10) ﾋﾞｽ
2			AB DJ C Rail molt ﾚｰﾙﾓﾙﾄ
3			AA DJ C Screw protect sheet ﾋﾞｽ保護ｼｰﾄ
4			AA DJ C T glass lower molt Tｶﾞﾗｽ下ﾓﾙﾄ
5			AA DJ C Table glass gum ﾃｰﾌﾞﾙｶﾞﾗｽｺﾞﾑ
6			AF DS B Photo sensor(SG2A141) ﾌｫﾄｾﾝｻｰ
7			AD DJ N C MHPS sensor fixing plate MHPSｾﾝｻｰ取付板
8			AC DD C Screw(3×6) ﾋﾞｽ
10			AF DS C Hinge guide fixing plate L ﾋﾝｼﾞｶﾞｲﾄﾞ固定板L
11			AC DD N C OPE harness fixing tape OPEﾊｰﾈｽ固定ﾃｰﾌﾟ
12			BM HR N E Lens unit ﾚﾝｽﾞﾕﾆｯﾄ
13			AN EG N C Dark box 暗箱
14			AC DD N C R side harness protect sheet R側ﾊｰﾈｽ保護ﾏｲﾗｰ
15			AG DS N C MHPS sensor harness protect sheet
16			AB DD N C CL FFC fixing tape CL FFC 固定ﾃｰﾌﾟ
19			AC DD C Screw(3×6KS) ﾋﾞｽ
20			AC DJ C Scanner right sheet ｽｷｬﾅｰ右ﾏｲﾗｰ
21			AA DJ C Core fixing tape ｺｱ固定ﾃｰﾌﾟ
22			AC DD N C OPE FFC protect sheet OPE FFC 保護ﾏｲﾗｰ
23			AB DJ C Table glass gum ﾃｰﾌﾞﾙｶﾞﾗｽｺﾞﾑ
24			AC DD N C CL lead holder CLﾘｰﾄﾞﾎﾙﾀﾞｰ
25			AC DD N C Optical cushion B 光学ﾓﾙﾄB
26			AC DD N C Optical cushion C 光学ﾓﾙﾄC
27			AD DJ N C FFC fixing tape FFC 固定ﾃｰﾌﾟ

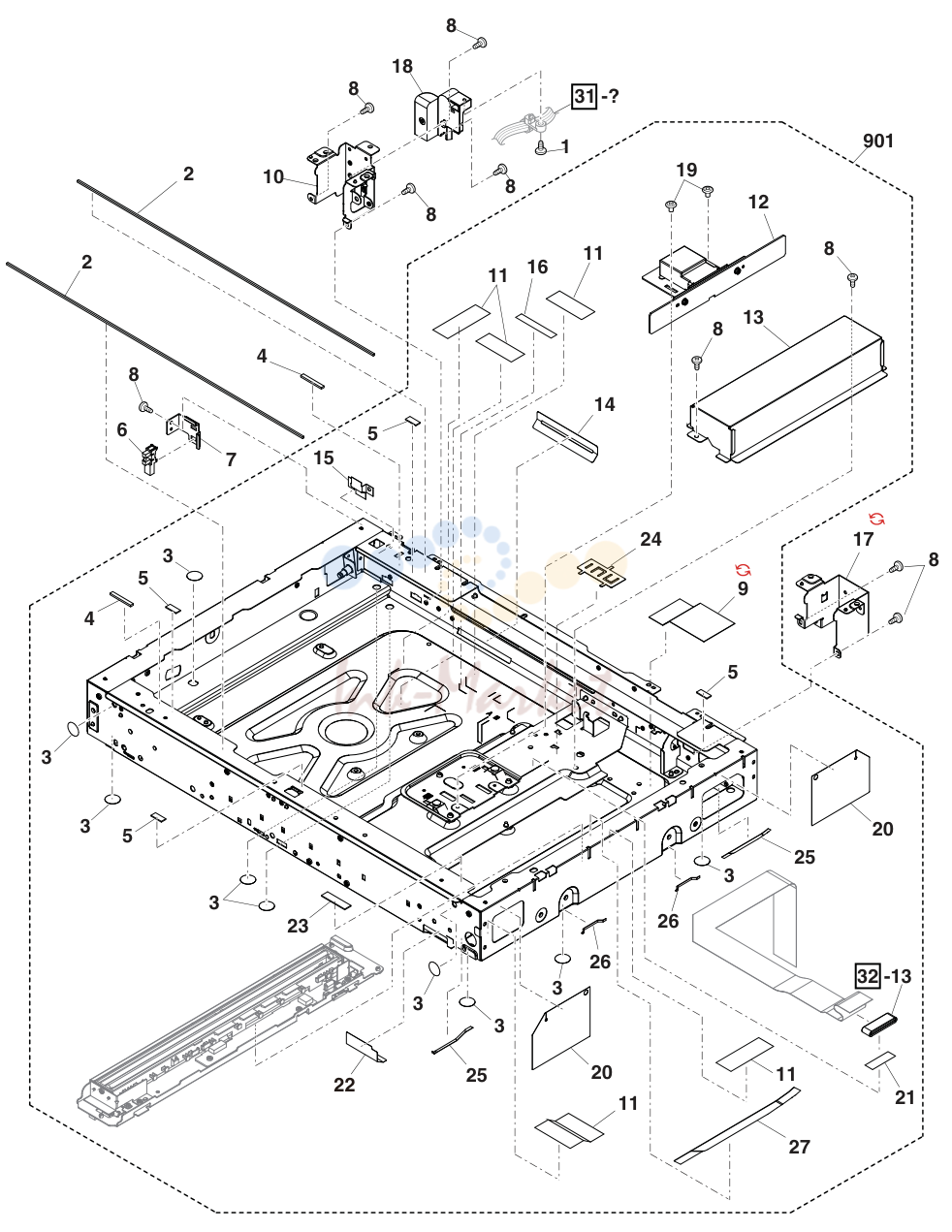

9. スキャナユニット 1(Scanner Unit 1)

№	Артикул	Альт. артикул	Описание
1			AN EQ C MB wire R MBﾜｲﾔｰR
2			AF DS C Constant pulley 定ﾌﾟｰﾘｰ
3			AD DJ C L pulley Lﾌﾟｰﾘｰ
4			AA DD C E type ring(E4) Eﾘﾝｸﾞ
5			AB DD C Red screw(3×6) ⾚ﾋﾞｽ
6			AC DD C Screw(3×6) ﾋﾞｽ
7			BB GD N B SCAN motor SCAN ﾓｰﾀｰ
8			AF DS B Mirror motor fixing plate ﾐﾗｰﾓｰﾀｰ取付板
9			AC DJ C Mirror motor spring ﾐﾗｰﾓｰﾀｰｽﾌﾟﾘﾝｸﾞ
10			AE DJ C Mirror motor idle gear ﾐﾗｰﾓｰﾀｰｱｲﾄﾞﾙｷﾞｱ
11			AS EQ C Winder drive belt 巻取り駆動ﾍﾞﾙﾄ
12			AC DD C Washer ﾜｯｼｬｰ
13			AA DD C E type ring(E7) Eﾘﾝｸﾞ
14			AQ EQ N C Winder drive shaft pulley 巻取り駆動軸ﾌﾟｰﾘｰ
15			AB DD C Spring pin(φ3-12) ｽﾌﾟﾘﾝｸﾞﾋﾟﾝ
16			AL EB C Winder pulley 巻取りﾌﾟｰﾘｰ
17			AP EQ N C Winder drive shaft 巻取り駆動軸
18			AB DD C Screw(2×4) ﾋﾞｽ
19			AB DD C Screw(4×6) ﾋﾞｽ
21			AN EQ C MB wire F MBﾜｲﾔｰF
22			AN EQ N C MB-B rail R MB-BﾚｰﾙR
23			AN EQ N C MB-B rail F MB-BﾚｰﾙF
24			BB GD N E 2nd,3rd Mirror unit 第2,3ﾐﾗｰﾕﾆｯﾄ
25			AC DJ C CL guide CLｶﾞｲﾄﾞ
26			AA DD C E type ring(E5) Eﾘﾝｸﾞ

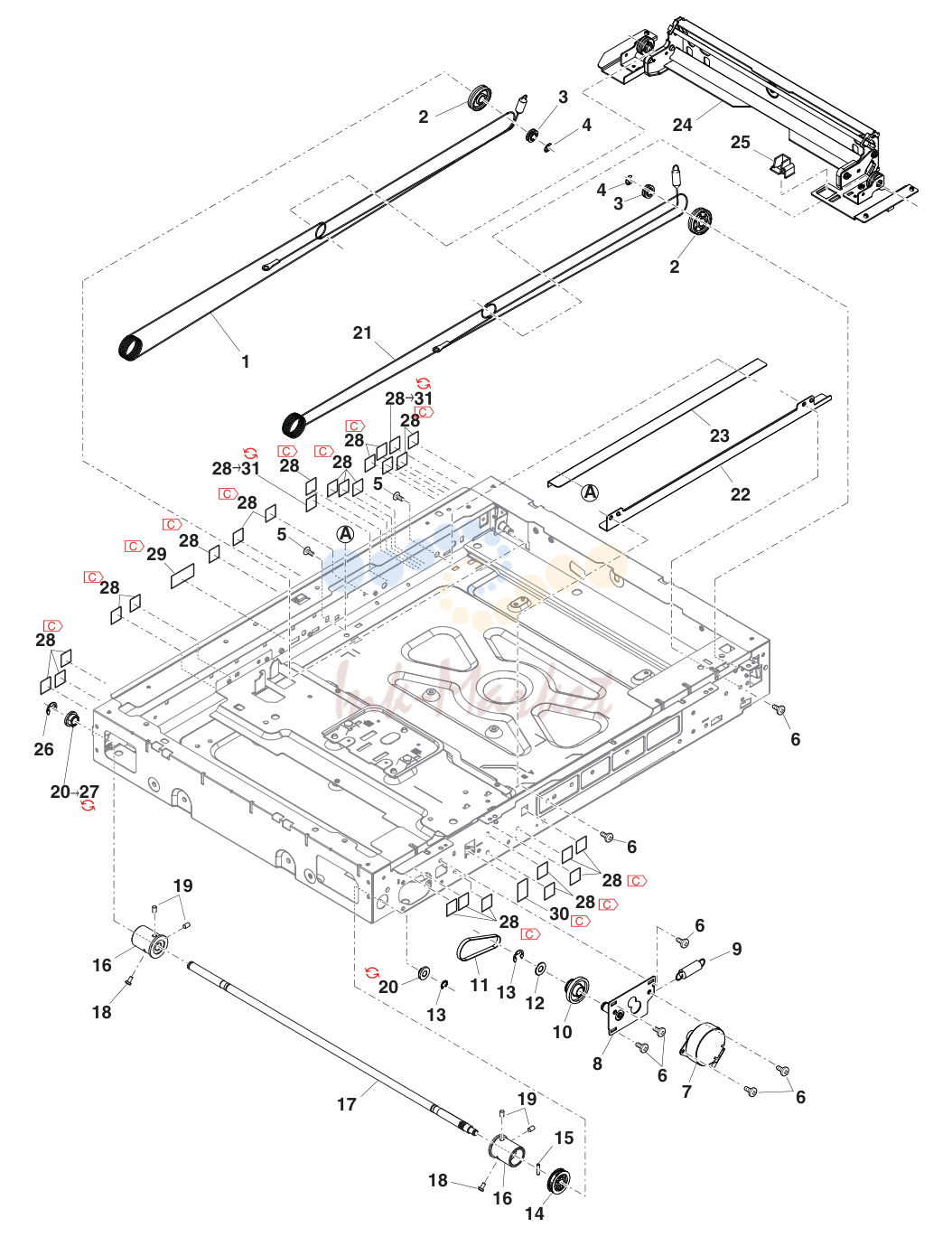

10. スキャナユニット 2(Scanner Unit 2)

№	Артикул	Альт. артикул	Описание
1			AK DX N C LED PWB guide LED基板ｶﾞｲﾄﾞ
2			AS EZ N E LED PWB unit LED基板ﾕﾆｯﾄ
3			AD DJ N C LED heat sink R LED放熱板R
4			AQ EQ N C Waveguide stick 導光棒
5			AC DD C Screw(3×8) ﾋﾞｽ
6			AC DD C Screw(3×6) ﾋﾞｽ
7			AM EG N B 1st mirror 第1ﾐﾗｰ
8			AX FQ N E LED driver PWB LEDﾄﾞﾗｲﾊﾞｰ基板
9			AC DJ C CL lead harness fixture CLﾘｰﾄﾞﾊｰﾈｽ押え
10			AQ EQ N C Lamp base ﾗﾝﾌﾟﾍﾞｰｽ
11			AC DD N C Reflection sheet 反射ｼｰﾄ
12			AG DS N C Thermal sheet 放熱ｼｰﾄ
13			AD DJ N C LED heat sink LED放熱板
14			AA DJ C Rail cushion ﾚｰﾙｸｯｼｮﾝ
15			AE DJ C Slider 滑り材
16			AC DJ C Mirror cushion N ﾐﾗｰｸｯｼｮﾝN
17			AE DJ C Mirror spring LED ﾐﾗｰｽﾌﾟﾘﾝｸﾞLED
18			AA DD C Screw(4×6) ﾋﾞｽ
19			AC DJ C Wire holder ﾜｲﾔｰﾎﾙﾀﾞｰ
20			AA DD C Screw(3×6) ﾋﾞｽ

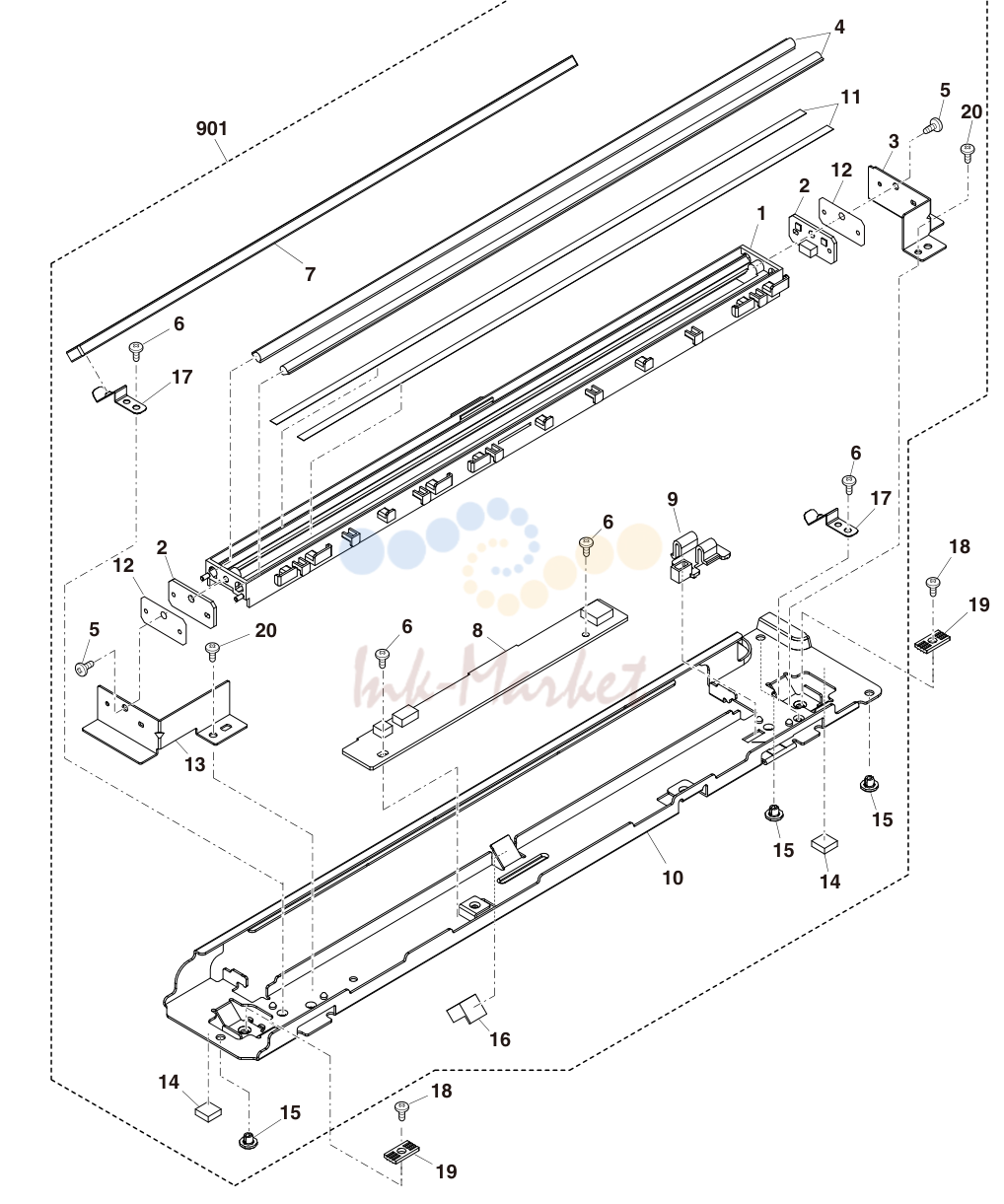

11. ランプユニット (Lamp unit)

№	Артикул	Альт. артикул	Описание
1			AT EZ C Process frame assy ﾌﾟﾛｾｽﾌﾚｰﾑｱｯｾﾝ
2			AD DJ A Blade side cushion ﾌﾞﾚｰﾄﾞｻｲﾄﾞﾓﾙﾄ
4			BD GN A Cleaning blade ｸﾘｰﾆﾝｸﾞﾌﾞﾚｰﾄﾞ
5			AC DD C Screw(3×10) ﾋﾞｽ
6			AF DS A Drum red cushion F ﾄﾞﾗﾑ⾚ﾓﾙﾄF
7			AF DS A Drum red cushion R ﾄﾞﾗﾑ⾚ﾓﾙﾄR
8			AC DJ C Screw coupling ｽｸﾘｭｰｶｯﾌﾟﾘﾝｸﾞ
9			AD DJ C CL bearing CL軸受
10			AK DX C Waste toner transport screw 廃ﾄﾅｰ搬送ｽｸﾘｭｰ
11			AC DJ C Transport screw cushion 搬送ｽｸﾘｭｰﾓﾙﾄ
13			AE DJ C Blade earth spring ﾌﾞﾚｰﾄﾞｱｰｽｽﾌﾟﾘﾝｸﾞ
14			AE DS C Separate holder assy 剥離ﾎﾙﾀﾞｰｱｯｾﾝ
15			AE DS C Drum cleaner sheet ﾄﾞﾗﾑｸﾘｰﾅｰｼｰﾄ
16			AG DX C Process gear cover ﾌﾟﾛｾｽｷﾞﾔｶﾊﾞｰ
17			AC DJ C Idle gear(26T) ｱｲﾄﾞﾙｷﾞﾔ
18			AC DJ C Transport pipe gear(15T) 搬送ﾊﾟｲﾌﾟｷﾞﾔ
19			AE DS B Transport pipe gear(14T) 搬送ﾊﾟｲﾌﾟｷﾞｱ
20			AF DS C Waste toner pipe 廃ﾄﾅｰﾊﾟｲﾌﾟ
21			AC DJ C P cap spacer Pｷｬｯﾌﾟｽﾍﾟｰｻｰ
22			AE DJ C Transport pipe screw 搬送ﾊﾟｲﾌﾟｽｸﾘｭｰ
23			AC DD C Waste toner cap 廃ﾄﾅｰｷｬｯﾌﾟ
24			AC DJ C Transport screw gear(30T) 搬送ｽｸﾘｭｰｷﾞﾔ
25			AC DJ C Toner pipe spring ﾄﾅｰﾊﾟｲﾌﾟｽﾌﾟﾘﾝｸﾞ
26			AD DD C Waste toner shutter 廃ﾄﾅｰｼｬｯﾀｰ
27			AL EB C MC frame MCﾌﾚｰﾑ
28			AD DD C MC case tape MCｹｰｽﾃｰﾌﾟ
29			AE DJ C MC case MCｹｰｽ
30			AG DJ C Saw blade tape ﾉｺ⻭ﾃｰﾌﾟ
31			AK DX N C Saw blade ﾉｺ⻭
32			AG DS A Grid ｸﾞﾘｯﾄﾞ
33			AC DD C Saw blade terminal ﾉｺ⻭端⼦
34			AC DD C Grid terminal ｸﾞﾘｯﾄﾞ端⼦
35			AB DD A Star ring ｽﾀｰﾘﾝｸﾞ
36			AC DD C Star ring holder ｽﾀｰﾘﾝｸﾞﾎﾙﾀﾞｰ
37			AC DJ C Starling ｽﾀ-ﾘﾝｸﾞ
38			AK DX C Separator pawl 剥離⽖
39			AB DD C Washer ﾜｯｼｬｰ
41			AA DD C Screw(3×4) ﾋﾞｽ
42			AC DD C Screw(3×8) ﾋﾞｽ
44			AG DX N C Separation pawl lever 剥離⽖ﾚﾊﾞｰ
45			AB DJ C Lever spring ﾚﾊﾞｰｽﾌﾟﾘﾝｸﾞ
46			AD DJ N C Flange cushion ﾌﾗﾝｼﾞﾓﾙﾄ
47			AC DD N C Lever damper cushion ﾚﾊﾞｰ消⾳ﾓﾙﾄ
501			AV FG E MC unit MCﾕﾆｯﾄ
901			BF GN E Process unit ﾌﾟﾛｾｽﾕﾆｯﾄ

12. プロセスユニット (Process unit)

№	Артикул	Альт. артикул	Описание
1			AT EZ N C Process frame assy ﾌﾟﾛｾｽﾌﾚｰﾑｱｯｾﾝ
2			AD DJ N A Blade side cushion ﾌﾞﾚｰﾄﾞｻｲﾄﾞﾓﾙﾄ
3			AC DD C Seal cushion F 密封ﾓﾙﾄF
4			BD GN A Cleaning blade ｸﾘｰﾆﾝｸﾞﾌﾞﾚｰﾄﾞ
5			AC DD C Screw(3×10) ﾋﾞｽ
6			AF DS N A Drum red cushion F ﾄﾞﾗﾑ⾚ﾓﾙﾄF
7			AF DS N A Drum red cushion R ﾄﾞﾗﾑ⾚ﾓﾙﾄR
8			AC DJ C Screw coupling ｽｸﾘｭｰｶｯﾌﾟﾘﾝｸﾞ
9			AD DJ C CL bearing CL軸受
10			AK DX N C Waste toner transport screw 廃ﾄﾅｰ搬送ｽｸﾘｭｰ
11			AC DJ C Transport screw cushion 搬送ｽｸﾘｭｰﾓﾙﾄ
13			AE DJ N C Blade earth spring ﾌﾞﾚｰﾄﾞｱｰｽｽﾌﾟﾘﾝｸﾞ
14			D CPLTM0833QS01 - AE DS N C Separate holder assy 剥離ﾎﾙﾀﾞｰｱｯｾﾝ I p m er p fo ro rm ve a nce 15/Jan
15			AE DS N C Drum cleaner sheet ﾄﾞﾗﾑｸﾘｰﾅｰｼｰﾄ
17			AC DJ C Idle gear(26T) ｱｲﾄﾞﾙｷﾞﾔ
18			AC DJ C Transport pipe gear(15T) 搬送ﾊﾟｲﾌﾟｷﾞﾔ
19			AE DS B Transport pipe gear(14T) 搬送ﾊﾟｲﾌﾟｷﾞｱ
20			AF DS N C Waste toner pipe 廃ﾄﾅｰﾊﾟｲﾌﾟ
21			AC DJ C P cap spacer Pｷｬｯﾌﾟｽﾍﾟｰｻｰ
22			AE DJ N C Transport pipe screw 搬送ﾊﾟｲﾌﾟｽｸﾘｭｰ
23			AC DD N C Waste toner cap 廃ﾄﾅｰｷｬｯﾌﾟ
24			AC DJ C Transport screw gear(30T) 搬送ｽｸﾘｭｰｷﾞﾔ
25			AC DJ C Toner pipe spring ﾄﾅｰﾊﾟｲﾌﾟｽﾌﾟﾘﾝｸﾞ
26			AD DD N C Waste toner shutter 廃ﾄﾅｰｼｬｯﾀｰ
27			AL EB N C MC frame MCﾌﾚｰﾑ
28			AD DD N C MC case tape MCｹｰｽﾃｰﾌﾟ
29			AE DJ N C MC case MCｹｰｽ
30			AG DJ C Saw blade tape ﾉｺ⻭ﾃｰﾌﾟ
32			AG DS A Grid ｸﾞﾘｯﾄﾞ
34			AC DD N C Grid terminal ｸﾞﾘｯﾄﾞ端⼦
35			AB DD A Star ring ｽﾀｰﾘﾝｸﾞ
37			AC DJ N C Starling ｽﾀ-ﾘﾝｸﾞ
40			C MSPRC4506QSZZ - AB DD N C Separation pawl spring 剥離⽖ｽﾌﾟﾘﾝｸﾞ P co a r r r t e s c c t o io d n e 1st lot
41			AA DD C Screw(3×4) ﾋﾞｽ
42			AC DD C Screw(3×8) ﾋﾞｽ
43			AC DD N C Seal cushion R 密封ﾓﾙﾄR
501			AV FG N E MC unit MCﾕﾆｯﾄ
3			BF GN N E Process unit ﾌﾟﾛｾｽﾕﾆｯﾄ

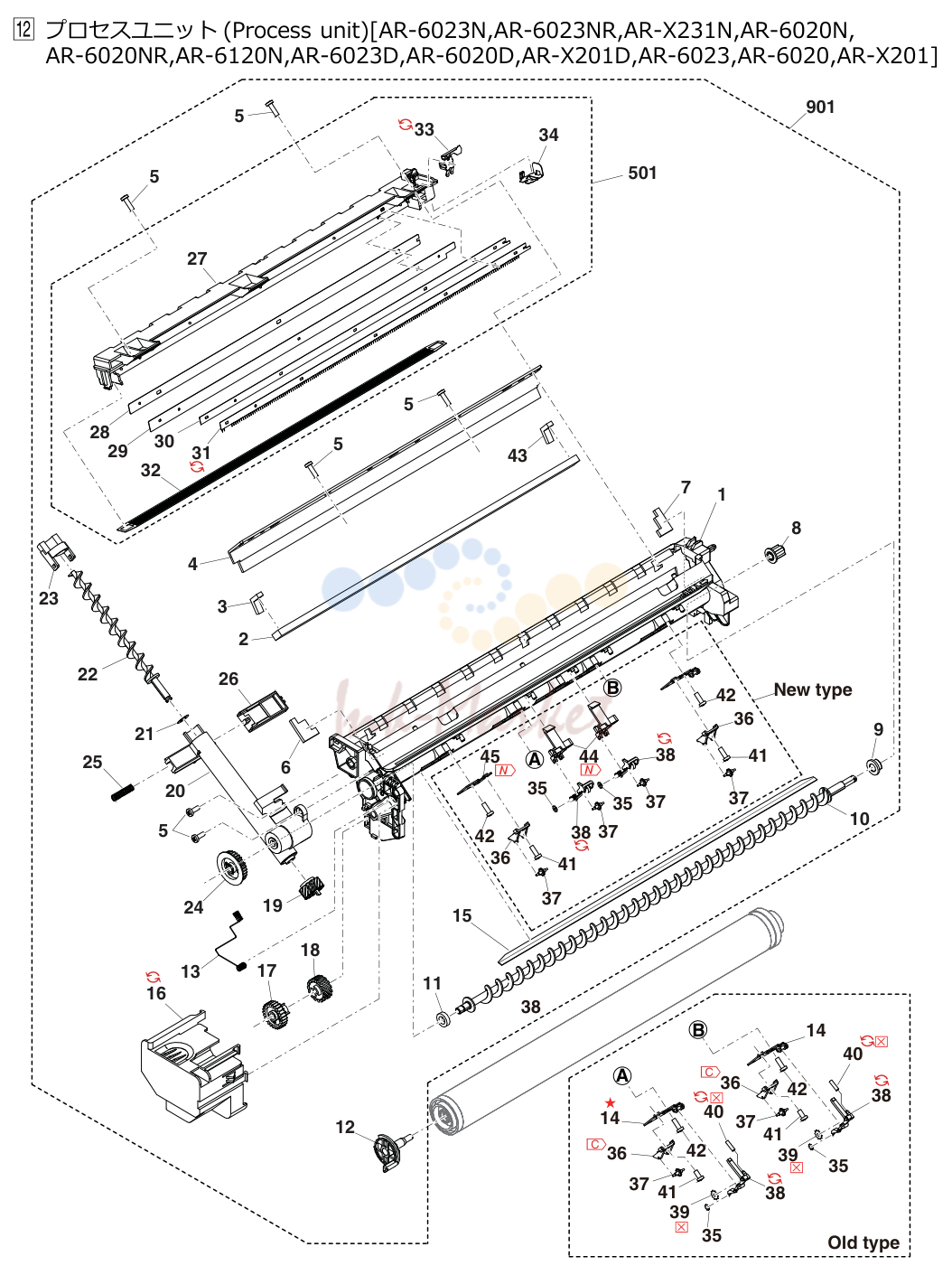

13. プロセスユニット(Process unit)[AR-6023N,AR-6023NR,AR-X231N,AR-6020N,

№	Артикул	Альт. артикул	Описание
1			AM EG C DV BOX DVﾎﾞｯｸｽ
2			BC GD B MG roller MGﾛｰﾗｰ
5			AQ EQ N C Cartridge guide lower ｶｰﾄﾘｯｼﾞｶﾞｲﾄﾞ下
6			AP EQ N A Filter holder unit ﾌｨﾙﾀｰﾎﾙﾀﾞｰﾕﾆｯﾄ
7			AG DX N C Cartridge guide upper ｶｰﾄﾘｯｼﾞｶﾞｲﾄﾞ上
8			AC DD C Screw(3×8) ﾋﾞｽ
9			AA DD C E type ring(E4) Eﾘﾝｸﾞ
10			AH DX C DMX bearing(6/14) DMXﾍﾞｱﾘﾝｸﾞ
11			AC DJ C DV block R DVﾌﾞﾛｯｸR
12			AC DJ C DV box fixing plate 現像槽固定板
13			AC DJ C MG pulley MGﾌﾟｰﾘｰ
14			AD DJ B DV belt B DVﾍﾞﾙﾄB
15			AC DJ C MX pulley MXﾌﾟｰﾘｰ
16			AB DJ C DV side cushion R DVｻｲﾄﾞﾓﾙﾄR
17			AC DJ C DMX gear(24T) DMXｷﾞﾔ
18			AE DJ C Doctor cover ﾄﾞｸﾀｰｶﾊﾞｰ
19			AK EB C DV doctor DVﾄﾞｸﾀｰ
20			AQ EQ N C Doctor reinforce plate ﾄﾞｸﾀｰ補強板
21			AE DJ N C DV high voltage spring F DV⾼圧ｽﾌﾟﾘﾝｸﾞF
22			AY FQ B ATC sensor ATCｾﾝｻｰ
23			AA DD C Screw(3×8) ﾋﾞｽ
25			AC DJ C MG holder MGﾎﾙﾀﾞｰ
26			AC DD C Bias spring ﾊﾞｲｱｽｽﾌﾟﾘﾝｸﾞ
27			AC DJ C DV holder F DVﾎﾙﾀﾞｰF
28			AC DD C Screw(3×10) ﾋﾞｽ
29			AB DD C Screw(3×3) ﾋﾞｽ
30			AD DJ N C DV high voltage terminal DV⾼圧端⼦
31			AC DD C Screw(3×6) ﾋﾞｽ
32			AD DJ C Process fixing screw ﾌﾟﾛｾｽ固定ﾋﾞｽ
33			AA DD C E type ring(E5) Eﾘﾝｸﾞ
34			AB DD C Screw(3×6K) ﾋﾞｽ
35			AB DJ C DV side cushion F DVｻｲﾄﾞﾓﾙﾄF
36			AC DJ C DV guide cushion N DVｶﾞｲﾄﾞﾓﾙﾄN
37			AC DD C Screw(3×6) ﾋﾞｽ
38			AC DJ C Scraper holder ｽｸﾚｰﾊﾟｰﾎﾙﾀﾞｰ
39			AA DD C Screw(3×6) ﾋﾞｽ
40			AA DJ A DV side sheet R DVｻｲﾄﾞｼｰﾄR
41			AA DJ A DV side sheet F DVｻｲﾄﾞｼｰﾄF
42			AE DS N C DV high voltage spring R DV⾼圧ｽﾌﾟﾘﾝｸﾞR
43			AC DJ C Pipe cushion N ﾊﾟｲﾌﾟﾓﾙﾄN
44			AC DJ C Pipe cover cushion N ﾊﾟｲﾌﾟｶﾊﾞｰﾓﾙﾄN
45			AA DJ C Cover upper seal ｶﾊﾞｰ上ｼｰﾙ
46			AC DJ C DV TH cushion DV TH ﾓﾙﾄ
47			AB DJ C Doctor cover seal ﾄﾞｸﾀｰｶﾊﾞｰｼｰﾙ
48			AE DJ A DV blade seal DVﾌﾞﾚｰﾄﾞｼｰﾙ

14. DV ユニット (DV unit)

№	Артикул	Альт. артикул	Описание
1			AL EB N C Fusing frame R 定着ﾌﾚｰﾑR
2			AD DJ C Pressure lever R 加圧ﾚﾊﾞｰR
3			AD DD N C Fusing pressure spring 定着加圧ｽﾌﾟﾘﾝｸﾞ
4			AC DD C Pressure plate fulcrum screw 圧接板⽀点ﾋﾞｽ
5			AD DJ N C Pressure release lever F 圧解除ﾚﾊﾞｰF
6			AL EB N C Fusing frame F 定着ﾌﾚｰﾑF
7			AD DJ C Pressure lever F 加圧ﾚﾊﾞｰF
8			AD DJ N C Pressure release lever R 圧解除ﾚﾊﾞｰR
9			AN EG N C Fusing upper frame stay 定着上ﾌﾚｰﾑｽﾃｲ
10			AC DD C Screw(3×6) ﾋﾞｽ
11			BF GN C Pressure roller 加圧ﾛｰﾗｰ
12			AL EB A FU pressure bearing FU加圧軸受
13			BB FX A Heat roller(TL) ﾋｰﾄﾛｰﾗｰ
15			AR EQ A Fusing gear(TL)(38T) 定着ｷﾞﾔ
16			AA DD C Roller stopper ﾛｰﾗｰｽﾄｯﾊﾟｰ
17			AQ EQ C Fusing lower frame 定着下ﾌﾚｰﾑ
18			AG DX N C Lamp fixing plate R ﾗﾝﾌﾟ取付板R
20			AA DD C Screw(3×8) ﾋﾞｽ
21			AT EZ N C Fusing cleaner plate 定着ｸﾘｰﾅｰ板
22			AG DX N C Fusing upper plate 定着上板
23			AA DJ D Fusing green label 定着ｸﾞﾘｰﾝﾗﾍﾞﾙ
24			AG DX N C Fusing rear paper detect lever
25			AC DJ C Fusing ACT return spring
27			AE DS A Upper separator pawl 上剥離⽖
28			AB DJ C Upper pawl pressure spring 上⽖加圧ｽﾌﾟﾘﾝｸﾞ
29			AA DD C Screw(4×10 Blue) ﾋﾞｽ
30			AP EQ C Fusing rear lower guide 定着後下ｶﾞｲﾄﾞ
31			AG DX N C Lamp fixing plate F ﾗﾝﾌﾟ取付板F
32			AC DJ C PG cleaner 定着後下PG拭き
33			AC DD C Joint plate fixing step screw
34			AC DD C Step screw 段ﾋﾞｽ
35			AC DD C Step screw(M3) 段ﾋﾞｽ
38			AQ EQ C Fusing front paper guide 定着前ﾍﾟｰﾊﾟｰｶﾞｲﾄﾞ
39			AQ EQ N C Fusing frame 定着ﾌﾚｰﾑ
40			BF GN N B Heater lamp(Refer to Matrix) ﾋｰﾀｰﾗﾝﾌﾟ
41			AD DJ C Thermostat cover ｻｰﾓｽﾀｯﾄｶﾊﾞｰ
42			AD DJ C Resistor(500MΩ) 抵抗
43			AM EG B Upper thermostat 上ｻｰﾓｽﾀｯﾄ
44			AB DD C Screw(3×6) ﾋﾞｽ
45			AB DD C Screw(3×4) ﾋﾞｽ
46			AA DD C Washer(M3) ﾜｯｼｬｰ
47			AT EZ B Thermistor TL ｻｰﾐｽﾀTL
49			AC DD C Screw(3×8) ﾋﾞｽ
51			AG DS C Under separator pawl 下剥離⽖
52			AC DJ C Under pawl SP 下⽖剥離SP
53			AB DJ C Gear key ｷﾞﾔｷｰ
54			AB DJ C Ring ｽﾗｲﾀﾞｰﾘﾝｸﾞ

15. 定着ユニット(Fusing unit)

№	Артикул	Альт. артикул	Описание
1			AL EB N C Fusing frame R 定着ﾌﾚｰﾑR
2			AD DJ N C Pressure lever R 加圧ﾚﾊﾞｰR
3			AD DD N C Fusing pressure spring 定着加圧ｽﾌﾟﾘﾝｸﾞ
4			AC DD C Pressure plate fulcrum screw 圧接板⽀点ﾋﾞｽ
5			C MLEVP0187QSZ1 - AD DJ N C Pressure release lever F 圧解除ﾚﾊﾞｰF P co a r r r t e s c c t o io d n e 1st lot
6			AL EB N C Fusing frame F 定着ﾌﾚｰﾑF
7			AD DJ N C Pressure lever F 加圧ﾚﾊﾞｰF
8			C MLEVP0188QSZ1 - AD DJ N C Pressure release lever R 圧解除ﾚﾊﾞｰR P co a r r r t e s c c t o io d n e 1st lot
9			AL EB N C Fusing upper frame stay 定着上ﾌﾚｰﾑｽﾃｲ
10			AC DD C Screw(3×6) ﾋﾞｽ
11			BF GN C Pressure roller 加圧ﾛｰﾗｰ
12			AL EB A FU pressure bearing FU加圧軸受
13			BA FX C Upper heat roller 上ﾋｰﾄﾛｰﾗｰ
14			AG DX A Fusing bearing 定着軸受
15			AF DS C Fusing gear 定着ｷﾞﾔ
16			AA DD C Roller stopper ﾛｰﾗｰｽﾄｯﾊﾟｰ
17			AQ EQ N C Fusing lower frame 定着下ﾌﾚｰﾑ
18			AH DX N C Lamp fixing plate R ﾗﾝﾌﾟ取付板R
20			AA DD C Screw(3×8) ﾋﾞｽ
23			AA DJ D Fusing green label 定着ｸﾞﾘｰﾝﾗﾍﾞﾙ
24			AF DS N C Fusing rear paper detect lever
25			AC DJ C Fusing ACT return spring
27			AE DS A Upper separator pawl 上剥離⽖
28			AB DJ C Upper pawl pressure spring 上⽖加圧ｽﾌﾟﾘﾝｸﾞ
29			AA DD C Screw(4×10 Blue) ﾋﾞｽ
31			AG DX N C Lamp fixing plate F ﾗﾝﾌﾟ取付板F
32			AC DJ C PG cleaner 定着後下PG拭き
33			AC DD C Joint plate fixing step screw
34			AC DD C Step screw 段ﾋﾞｽ
35			AC DD C Step screw(M3) 段ﾋﾞｽ
36			AC DD N C Fusing earth sheet 定着ｱｰｽｼｰﾄ
37			AC DD B Fusing lower discharge brush 定着下除電ﾌﾞﾗｼ
38			AQ EQ N C Fusing front paper guide 定着前ﾍﾟｰﾊﾟｰｶﾞｲﾄﾞ
39			C LFRM-0156QSZ1 3 AQ EQ N C Fusing frame 定着ﾌﾚｰﾑ I p m er p fo ro rm ve a nce 14/Nov
41			AE DJ N C Thermostat cover ｻｰﾓｽﾀｯﾄｶﾊﾞｰ
42			AD DJ C Resistor(500MΩ) 抵抗
43			AM EG N B Upper thermostat 上ｻｰﾓｽﾀｯﾄ
44			AB DD C Screw(3×6) ﾋﾞｽ
45			AB DD C Screw(3×4) ﾋﾞｽ
46			AA DD C Washer(M3) ﾜｯｼｬｰ
47			AT EZ B Thermistor TL ｻｰﾐｽﾀTL
3			AB DD C Screw(3×10KS) ﾋﾞｽ
49			AC DD C Screw(3×8) ﾋﾞｽ

16. 定着ユニット(Fusing unit)[AR-6023N,AR-6023NR,AR-X231N,AR-6020N,

№	Артикул	Альт. артикул	Описание
1			C CPLTM0760QS04 3 BA FX N C Motor drive plate assy(Refer to Matrix) ﾓｰﾀｰ駆動板ｱｯｾﾝ I p m er p fo ro rm ve a nce 14/Dec RC
2			AA DD C E type ring(E5) Eﾘﾝｸﾞ
4			AF DS N C Gear(69-35T) ｷﾞﾔ
7			AD DJ N C Fusing drive front gear(52T) 定着駆動前ｷﾞﾔ
8			AC DD N C HT ratchet spring HTﾗﾁｪｯﾄｽﾌﾟﾘﾝｸﾞ
10			Matrix)
11			AE DJ N C PS drive gear(27-42T) PS駆動ｷﾞﾔ
12			AD DJ N C Gear(30-18T) ｷﾞﾔ
13			AE DS N C Gear(138-28T) ｷﾞﾔ
14			AD DJ N C Manual paper feed drive gear(35T) ⼿差し駆動ｷﾞﾔ
15			AA DD C E type ring(E7) Eﾘﾝｸﾞ
16			AK DX C Drum drive shaft ﾄﾞﾗﾑ駆動ｼｬﾌﾄ
17			AB DJ C Spring pin(φ2-16) ｽﾌﾟﾘﾝｸﾞﾋﾟﾝ
18			AE DS C Bearing(φ8-16) 軸受
19			AC DJ C Spring pin(φ2-10) ｽﾌﾟﾘﾝｸﾞﾋﾟﾝ
20			AD DD C Drum coupling ﾄﾞﾗﾑｶｯﾌﾟﾘﾝｸﾞ
21			AF DS C Drum drive gear(75T) ﾄﾞﾗﾑ駆動ｷﾞﾔ
23			AC DJ C MG spring MGｽﾌﾟﾘﾝｸﾞ
24			AC DJ C MG coupling MGｶｯﾌﾟﾘﾝｸﾞ
25			AD DJ N C Waste toner drive gear(26T) 廃ﾄﾅｰ駆動ｷﾞﾔ
29			AD DJ C Drum earth plate ﾄﾞﾗﾑｱｰｽ板
30			AK EB N C High voltage holder ⾼圧ﾎﾙﾀﾞｰ
33			AB DD C Screw(3×8KS) ﾋﾞｽ
35			AC DJ C High voltage spacer ⾼圧ｽﾍﾟｰｻｰ
36			AC DD C Screw(3×6) ﾋﾞｽ
37			AD DJ N C High voltage protect cover ⾼圧保護ｶﾊﾞｰ
38			AC DD N C TC high voltage plate spring TC⾼圧板ﾊﾞﾈ
40			AC DD C Screw(3×6) ﾋﾞｽ
41			AC DD C Screw(3×6) ﾋﾞｽ
45			AD DJ C Screw(3X8) ﾋﾞｽ
46			AA DD C Paper exit roller 排出ﾛｰﾗｰ

17. メイン駆動ユニット(Main drive unit)

№	Артикул	Альт. артикул	Описание
1			BD GN C 550 cassette tray(Refer to Matrix) 550ｶｾｯﾄﾄﾚｲ
2			AD DJ C 2nd cassette guide sheet 2ndｶｾｯﾄｶﾞｲﾄﾞｼｰﾄ
3			AG DX C 550 cassette rear edge plate 550ｶｾｯﾄ後端板
4			AB DJ C Regulation plate 規制板ﾌﾟﾚｰﾄ
5			AA DJ C Side plate tape R 側板ﾃｰﾌﾟR
6			AN EG C 550 cassette guide R 550ｶｾｯﾄｶﾞｲﾄﾞ R
7			AP EQ C 550 cassette guide F 550ｶｾｯﾄｶﾞｲﾄﾞ F
8			AE DS C Regulation plate lock spring 規制板ﾛｯｸSP
9			AC DJ B Gear(18T) ｷﾞｱ
10			AE DJ C Cassette OC adjust plate ｶｾｯﾄOC調整板
11			AA DD C Screw(3×6) ﾋﾞｽ
12			AC DJ C CG bearing CG軸受
14			AA DD C Spring pin(φ4-25) ｽﾌﾟﾘﾝｸﾞﾋﾟﾝ
15			AA DD C E type ring(E7) Eﾘﾝｸﾞ
16			AX FG C 550 cassette plate 550ｶｾｯﾄ板
17			AC DJ C Rotation plate sheet 回転板ｼｰﾄ
19			AC DD C Rotation plate step screw 回転板⽤段ﾋﾞｽ
22			AK EB D Cassette handle ｶｾｯﾄ取⼿
23			AA DD C Screw(4×10) ﾋﾞｽ
27			AG DS D Size display label ｻｲｽﾞ表⽰ﾗﾍﾞﾙ

18. 550枚トレイユニット(550 paper tray unit)

№	Артикул	Альт. артикул	Описание
1			AG DX N C Cassette guide R ｶｾｯﾄｶﾞｲﾄﾞR
2			AR EQ N C Cassette rotation plate ｶｾｯﾄ回転板
3			AC DD N C Rotation plate sheet 回転板ｼｰﾄ
4			AF DS N C Cassette rear edge plate 250 ｶｾｯﾄ後端板250
5			AD DJ N C Rotation plate spring 回転板ｽﾌﾟﾘﾝｸﾞ
6			AA DD C Stopper spring ｽﾄｯﾊﾟｰｽﾌﾟﾘﾝｸﾞ
7			AD DD C Rotation plate lock 回転板ﾛｯｸ
8			AG DS N D Size display label ｻｲｽﾞ表⽰ﾗﾍﾞﾙ
9			AL EB N E Pick up plate assy 呼び込みﾌﾟﾚｰﾄｱｯｾﾝ
10			AC DD C Cassette joint gear ｶｾｯﾄ連結ｷﾞﾔ
12			AC DJ C Cassette joint gear spring
14			AC DD C Bearing R 軸受R
15			AE DS N C Separate roller shaft 分離ﾛｰﾗｰ軸
16			AH DX N A Separate roller 分離ﾛｰﾗｰ
18			AM EG N C Paper feed shaft 給紙軸
19			AB DD C Spring pin(φ3-12) ｽﾌﾟﾘﾝｸﾞﾋﾟﾝ
21			AK DX N A Paper feed roller 給紙ﾛｰﾗｰ
22			AB DD N C Separate pressure spring 分離加圧ｽﾌﾟﾘﾝｸﾞ
23			AE DJ N C Separate roller holder 分離ﾛｰﾗｰﾎﾙﾀﾞｰ
24			AA DD C E type ring(E3) Eﾘﾝｸﾞ
25			AC DD C Torque limiter fixer ﾄﾙｸﾘﾐｯﾀｰ押え
26			AF DS C Torque limiter spring ﾄﾙｸﾘﾐｯﾀｰｽﾌﾟﾘﾝｸﾞ
27			AG DS N C Cassette panel sub ｶｾｯﾄﾊﾟﾈﾙｻﾌﾞ
28			AK EB N D Cassette handle ｶｾｯﾄ取⼿
29			AV FG N D Cassette panel ｶｾｯﾄﾊﾟﾈﾙ
30			AA DD C Screw(4×10) ﾋﾞｽ
31			BA FX N C Cassette tray ｶｾｯﾄﾄﾚｲ
32			AB DD C Manual paper feed gear ⼿差しｷﾞﾔ
33			AH DX N C Cassette guide F ｶｾｯﾄｶﾞｲﾄﾞF
34			AC DD C Regulation plate spring 規制板ｽﾌﾟﾘﾝｸﾞ

19. 250枚トレイユニット(250 paper tray unit)[AR-6023N,AR-6023NR,AR-X231N,AR-6020N,

№	Артикул	Альт. артикул	Описание
1			AE DJ C Desk PE actuator ﾃﾞｽｸPEｱｸﾁｭｴｰﾀｰ
3			AA DD C E type ring(E5) Eﾘﾝｸﾞ
4			AC DD C Mirror bearing N ﾐﾗｰ軸受 N
5			AC DJ C Pick up lever spring ﾋﾟｯｸｱｯﾌﾟﾚﾊﾞｰSP
6			AD DJ C 2nd paper feed release lever 2nd給紙解除ﾚﾊﾞｰ
8			AK DX N C Paper feed roller shaft 給紙ﾛｰﾗｰ軸
9			AG DX C 550 cassette separate holder 550ｶｾｯﾄ分離ﾎﾙﾀﾞ
10			AA DD C E type ring(E4) Eﾘﾝｸﾞ
11			AH DX C Desk paper feed separation spring ﾃﾞｽｸ給紙分離SP
12			AA DD C Screw(4×10) ﾋﾞｽ
13			AC DD C Screw(3×8) ﾋﾞｽ
14			AG DS N C Right rail upper paper guide reinforce plate
15			AN EG N C Right rail upper paper guide
16			AH DX C 550 cassette separate roller shaft 550ｶｾｯﾄ分離ﾛｰﾗｰ軸
17			AA DD C Spring pin ｽﾌﾟﾘﾝｸﾞﾋﾟﾝ
18			AP EQ B Separate torque limiter 分離ﾄﾙｸﾘﾐｯﾀｰ
19			AH DX A Separate roller FT 分離ﾛｰﾗｰ FT
20			AD DJ C Pick up holder 呼込ﾎﾙﾀﾞｰ
21			AC DJ C Spring pin(φ2-10) ｽﾌﾟﾘﾝｸﾞﾋﾟﾝ
22			AC DJ C Gear(22T) ｷﾞﾔ
24			AH DX C Pick up joint gear(21T) 呼込連結ｷﾞﾔ
25			AK EB A Pickup roller 呼込ﾛｰﾗｰ
26			AC DD C 2nd paper feed holder spring
27			AK DX C 2nd paper feed holder 2nd給紙ﾎﾙﾀﾞ
29			AD DD C Paper feed damper cushion 給紙消⾳ﾓﾙﾄ
901			BF GN E Paper feed frame unit 給紙ﾌﾚｰﾑﾕﾆｯﾄ

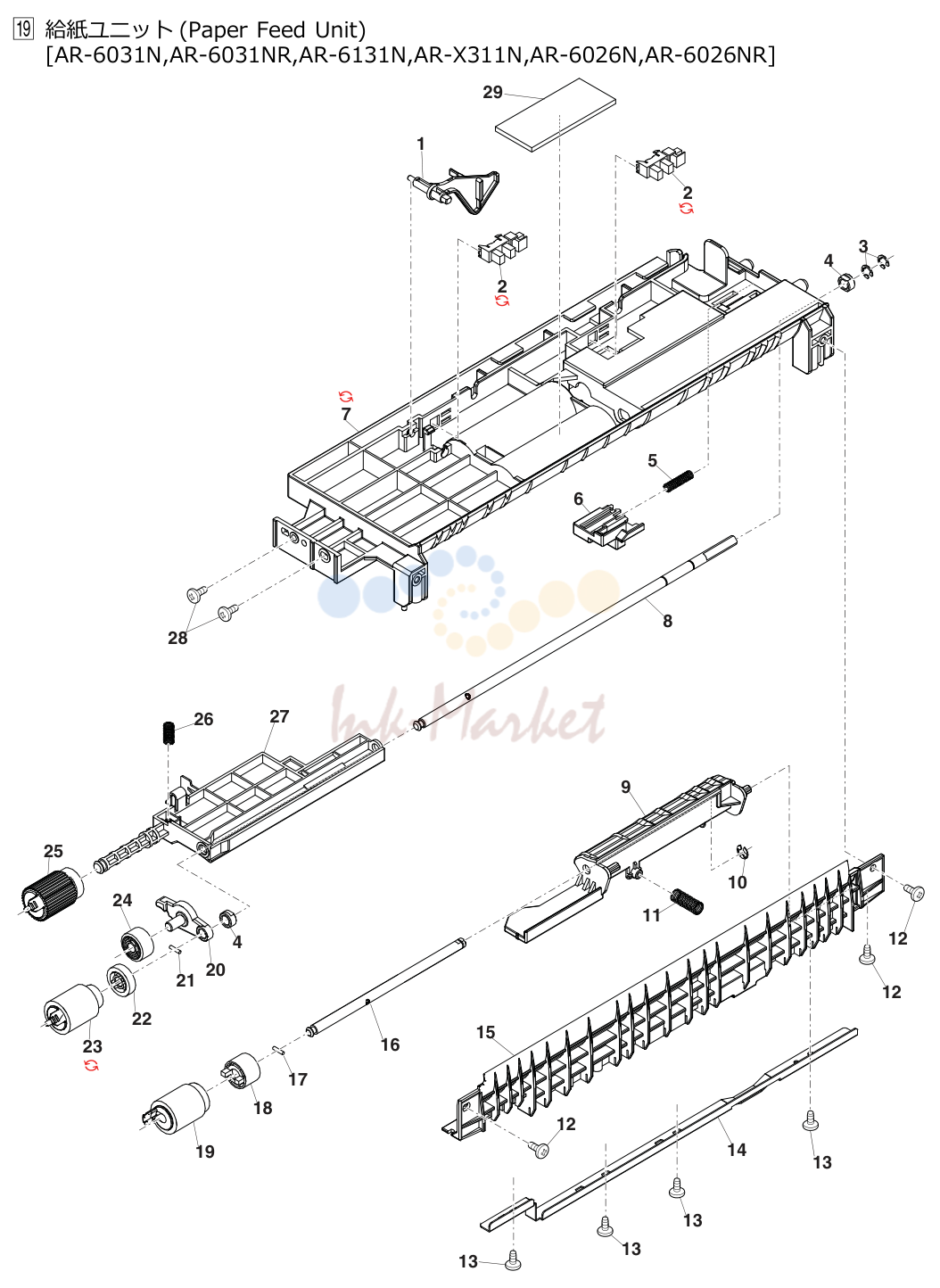

20. 給紙ユニット (Paper Feed Unit)

№	Артикул	Альт. артикул	Описание
1			AP EQ B Reflection sensor(GP2A240L) 反射型ｾﾝｻｰ
2			AF DS B Photo sensor(LG248NL1) ﾌｫﾄｾﾝｻｰ
3			AY FQ C 2nd paper feed frame 2nd給紙ﾌﾚｰﾑ
4			AD DJ C 2nd transport sensor holder 2nd搬送ｾﾝｻｰﾎﾙﾀﾞ
5			AC DD C Screw(3×8) ﾋﾞｽ
6			AE DJ C Desk PE actuator ﾃﾞｽｸPEｱｸﾁｭｴｰﾀｰ
8			AG DX C Clutch earth plate ｸﾗｯﾁｱｰｽ板
9			AK DX C 2nd paper feed holder 2nd給紙ﾎﾙﾀﾞ
10			AK EB A Pickup roller FT 呼込ﾛｰﾗｰ FT
11			AK DX C 2nd paper feed shaft 2nd給紙ｼｬﾌﾄ
12			AC DD C 2nd paper feed holder spring
14			AD DJ C Pick up holder 呼込ﾎﾙﾀﾞｰ
15			AH DX C Pick up joint gear(21T) 呼込連結ｷﾞﾔ
16			AC DJ C Gear(22T) 22TｷﾞﾔMO8
18			AC DJ C Spring pin(φ2-10) ｽﾌﾟﾘﾝｸﾞﾋﾟﾝ
19			AD DJ C 2nd paper feed release lever 2nd給紙解除ﾚﾊﾞｰ
20			AC DJ C Pick up lever spring ﾋﾟｯｸｱｯﾌﾟﾚﾊﾞｰSP
21			AC DD C Mirror bearing N ﾐﾗｰ軸受 N
22			AA DD C E type ring(E5) Eﾘﾝｸﾞ
23			AD DJ C Clutch gear(28T) ｸﾗｯﾁｷﾞﾔ
24			AD DJ C 2nd gear(27T/22T) 2ndｷﾞﾔ
25			AD DJ C Clutch gear(46T) ｸﾗｯﾁｷﾞﾔ
26			AX FG B Transport clutch 搬送ｸﾗｯﾁ
27			AT EZ B 2nd paper feed clutch 2nd給紙ｸﾗｯﾁ
28			AA DD C E type ring(E4) Eﾘﾝｸﾞ
29			AH DX C 550 cassette separate roller shaft 550ｶｾｯﾄ分離ﾛｰﾗｰ軸
30			AA DD C Spring pin ｽﾌﾟﾘﾝｸﾞﾋﾟﾝ
31			AP EQ B Separate torque limiter 分離ﾄﾙｸﾘﾐｯﾀｰ
32			AH DX A Separate roller FT 分離ﾛｰﾗｰ FT
33			AG DS C 550 cassette separate holder 550ｶｾｯﾄ分離ﾎﾙﾀﾞ
34			AM EG C 2nd separate holder plate 2nd分離ﾎﾙﾀﾞ板
35			AH DX C Desk paper feed separation spring ﾃﾞｽｸ給紙分離SP
36			AA DD C Screw(4×8) ﾋﾞｽ
37			AA DD C Screw(4×12) ﾋﾞｽ
40			AC DJ C Transfer roller bearing 転写ﾛｰﾗｰ軸受
41			AA DD C E type ring(E3) Eﾘﾝｸﾞ
42			AD DJ C 2nd joint arm 2ND連結ｱｰﾑ
43			AF DS C 2nd joint gear(56T) 2ND連結ｷﾞｱ
44			AC DJ C 2nd joint arm spring 2ND連結ｱｰﾑSP
45			AD DJ C U-turn collar Uﾀｰﾝｺﾛ
901			BN HV N C Paper feed frame unit 給紙ﾌﾚｰﾑﾕﾆｯﾄ

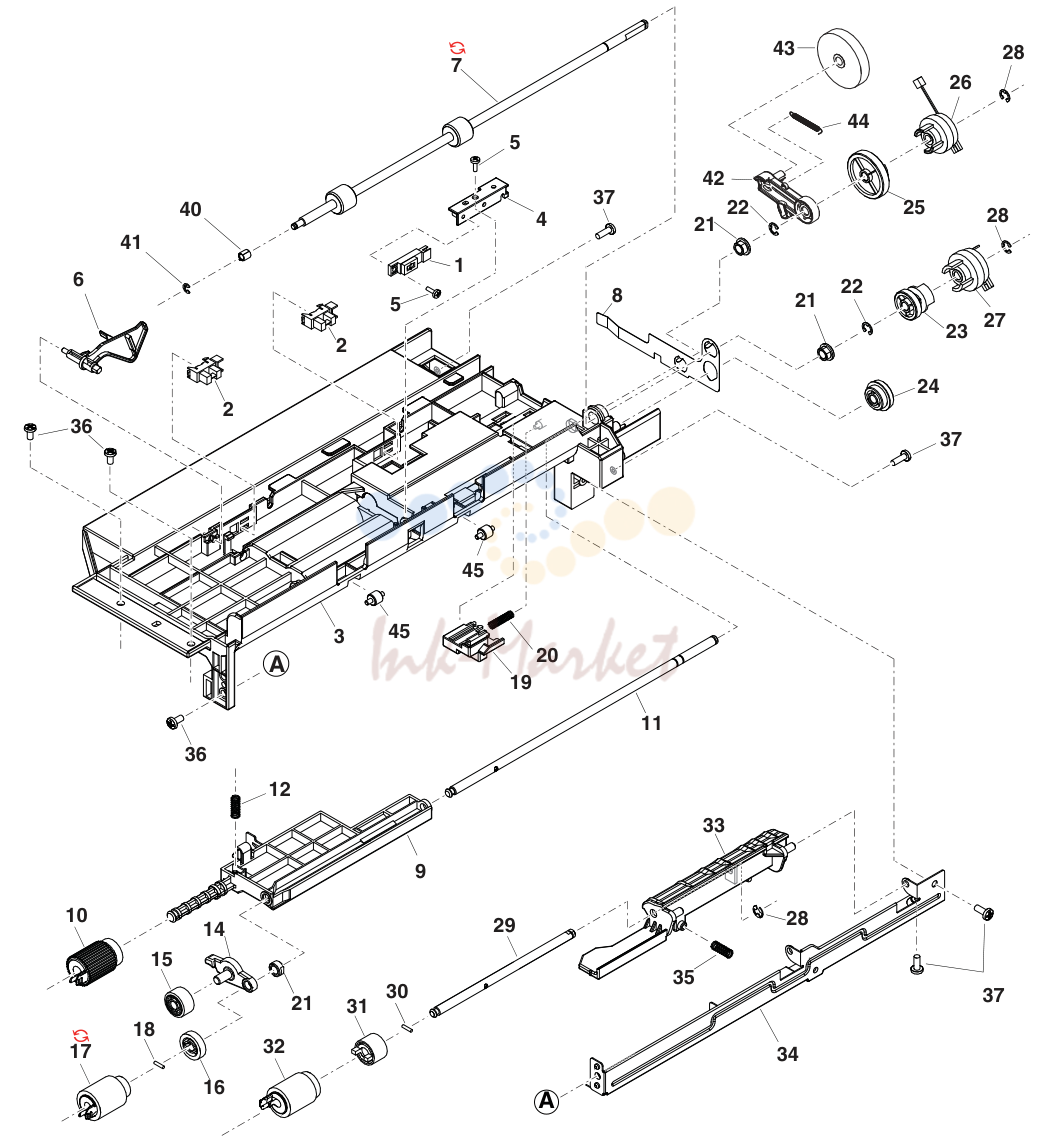

21. 2nd 給紙ユニット (2nd paper Feed Unit)

№	Артикул	Альт. артикул	Описание
2			AC DJ C Cassette lock ｶｾｯﾄﾛｯｸ
3			AA DD C Screw(4×12) ﾋﾞｽ
4			AU EZ C 2nd rear reinforce plate 2nd後補強板
5			AC DJ C Cassette earth spring ｶｾｯﾄｱｰｽｽﾌﾟﾘﾝｸﾞ
6			AX FG E Lift up unit ﾘﾌﾄｱｯﾌﾟﾕﾆｯﾄ
7			AE DS C Edge guard lower ｴｯｼﾞｶﾞｰﾄﾞ下
8			AD DD C 2nd PWB protect sheet 2nd基板保護ｼｰﾄ
10			AP EQ C 2nd front upper reinforce plate 2nd前上補強板
12			AP EQ C 2nd right rail plate 2nd右ﾚｰﾙ板
13			AH DX B Lift coupling ﾘﾌﾄｶｯﾌﾟﾘﾝｸﾞ
14			AC DJ C Lift up spring ﾘﾌﾄｱｯﾌﾟｽﾌﾟﾘﾝｸﾞ
15			AM EG C 2nd front lower reinforce plate 2nd前下補強板
16			AC DJ C Cassette guide collar ｶｾｯﾄｶﾞｲﾄﾞｺﾛ
17			AF DS C Cassette collar shaft ｶｾｯﾄｺﾛ軸
18			AB DD C Screw(3×8KS) ﾋﾞｽ
19			AC DD C Screw(3×6) ﾋﾞｽ
20			AE DS C Cassette rail collar ｶｾｯﾄﾚｰﾙｺﾛ
21			AC DD C Step screw 段ﾋﾞｽ
22			AC DD N C Transport paper guide lock
23			AB DJ C Lock spring ﾛｯｸｽﾌﾟﾘﾝｸﾞ
24			AA DD C Screw(3×8X) ﾋﾞｽ
25			AC DD C Rubber foot ｺﾞﾑ⾜
26			AK DX C Screw(3×35) ﾋﾞｽ
27			AB DD C Screw(3×8) ﾋﾞｽ
28			AF DS B Waste toner lock detect switch(D2X-G) 廃ﾄﾅｰﾛｯｸ検知ｽｲｯﾁ
29			AC DJ C Joint plate S 接合板S
30			AA DD C Screw(3×8) ﾋﾞｽ
31			AC DD C 2nd rail guide PG push out spring
32			AF DS C 2nd lift up fixing plate 2ndﾘﾌﾄｱｯﾌﾟ取付板
34			AV FG D 2nd rear cover 2nd 後ｶﾊﾞｰ
35			AD DJ C 1st door arm 1stﾄﾞｱｱｰﾑ
36			AC DJ C Right lower door pressure spring
37			AE DS C 2nd Transport paper guide shaft
38			AF DS C U-turn roller Uﾀｰﾝﾛｰﾗｰ
39			AN EG C 2nd rail guide paper guide
40			AQ EQ C 2nd transport paper guide
41			AQ EQ D 2nd right door 2nd右ﾄﾞｱ
42			AG DX D 2nd left cover 2nd左ｶﾊﾞｰ
43			AB DJ C PWB supporter(LCBS-3) 基板ｻﾎﾟｰﾀｰ
44			AA DD C Screw(4×8) ﾋﾞｽ
52			AA DD C Screw(4×8) ﾋﾞｽ

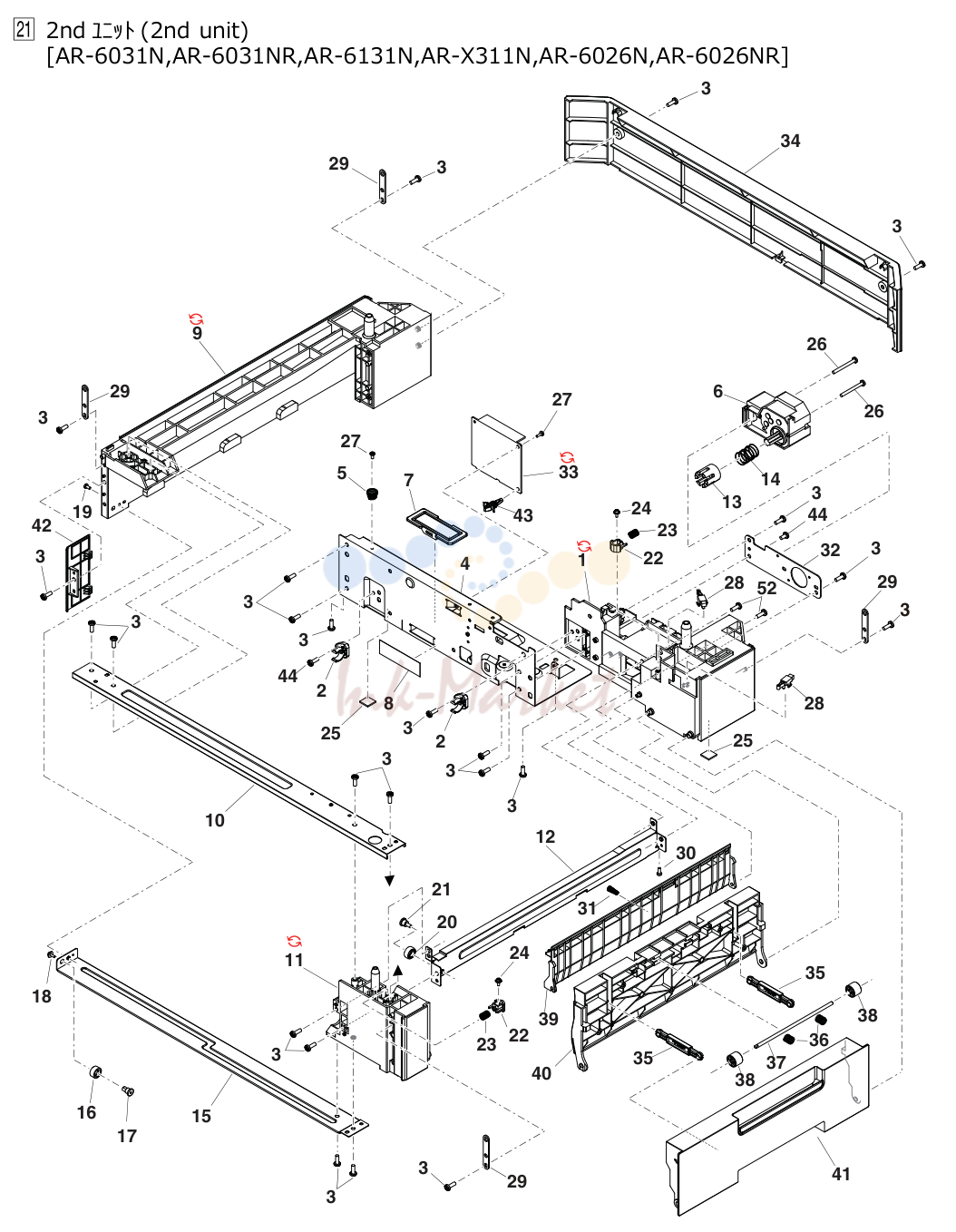

22. 2nd ﾕﾆｯﾄ(2nd unit)

№	Артикул	Альт. артикул	Описание
2			AL EB N C Manual paper feed transport guide ⼿差し搬送ｶﾞｲﾄﾞ
3			AD DJ N C Manual paper feed gear(37T) ⼿差しｷﾞﾔ
4			AE DJ C Bearing 軸受
6			AD DJ C Bearing 軸受
9			AC DD N C Rotation plate sheet 回転板ｼｰﾄ
10			AC DD N C Rotation plate lock ST fixing plate 回転板ﾛｯｸST押え板
11			AE DS C MF rotation plate lock MF回転板ﾛｯｸ
13			AD DJ C Manual paper feed gear ⼿差しｷﾞﾔ
15			AC DD C MF rotation plate lock spring
16			AA DD C Screw(3×5) ﾋﾞｽ
17			AA DD C Washer ﾜｯｼｬ
18			AD DJ C Tray arm ﾄﾚｲｱｰﾑ
19			AG DX N D MF extension tray MF延⻑ﾄﾚｲ
20			AU EZ N D MF tray MFﾄﾚｰ
21			AC DD N C MF pick up spring
23			AG DX N D Service cover cover ｻｰﾋﾞｽｶﾊﾞｰ
24			AV FG N D Manual paper feed cover ⼿差しｶﾊﾞｰ
25			AN EG A Paper feeding roller 給紙ﾛｰﾗｰ
26			AC DJ C Spring pin(φ2-10) ｽﾌﾟﾘﾝｸﾞﾋﾟﾝ
27			AH DX B One way coupling ﾜﾝｳｪｲｶｯﾌﾟﾘﾝｸﾞ
28			AA DD C E type ring(E5) Eﾘﾝｸﾞ
29			AC DD C Screw(3×6) ﾋﾞｽ
30			AC DD N C Gear(27T) ｷﾞﾔ
31			AH DX N C Paper feed shaft 給紙ｼｬﾌﾄ
32			AC DD C Screw(3×8) ﾋﾞｽ
33			AD DJ N C SUS plate holder SUS板ﾎﾙﾀﾞｰ
34			AC DD C Pick up plate 呼び込みﾌﾟﾚｰﾄ
35			AE DS C Follower roller shaft 従動ﾛｰﾗｰ軸
37			AC DD C Torque limiter fixer ﾄﾙｸﾘﾐｯﾀｰ押え
38			AF DS C MF torque limiter spring MFﾄﾙｸﾘﾐｯﾀｰｽﾌﾟﾘﾝｸﾞ
39			AK DX A Separation roller 分離ﾛｰﾗｰ
40			AE DJ C MF separate roller holder MF分離ﾛｰﾗｰﾎﾙﾀﾞｰ
41			AQ EQ N C Manual paper feed frame ⼿差しﾌﾚｰﾑ
43			AC DD C MF paper existence detect actuator spring
44			AD DJ N C Paper existence detect lever 紙有無検知ﾚﾊﾞｰ
45			AD DJ C MF gear fulcrum shaft MFｷﾞﾔ⽀点軸
47			AD DJ C MF gear MFｷﾞﾔ
50			AC DD N C Separate gear(18T) 分離ｷﾞﾔ
51			AD DJ C MF lock holder MFﾛｯｸﾎﾙﾀﾞｰ
52			AC DD N C MF drive joint spring
53			AE DS N C Pressure release support shaft 圧解除補助ｼｬﾌﾄ
54			AC DD N C Front frame return spring L
57			AD DD C MF Paper feed front separate sheet MF給紙前ｻﾊﾞｷｼｰﾄ
58			AC DD C Pick up plate sheet 呼び込みﾌﾟﾚｰﾄｼｰﾄ
59			AC DJ C Stopper(E5) ｽﾄｯﾊﾟｰ
61			AC DD C Screw(3×8) ﾋﾞｽ
62			AA DD C Screw(4×8) ﾋﾞｽ
63			AA DD C E type ring(E4) Eﾘﾝｸﾞ
66			AC DD C MF guide sheet A MFｶﾞｲﾄﾞｼｰﾄ A
67			AC DD C MF guide sheet A MFｶﾞｲﾄﾞｼｰﾄ A
502			BD GN N E Manual paper feed paper feed unit ⼿差しﾄﾚｲﾕﾆｯﾄ

23. ⼿差しマルチユニット(MF unit)

№	Артикул	Альт. артикул	Описание
1			AW FG N C Inner ｲﾝﾅｰ
4			AC DD C Screw(3×8) ﾋﾞｽ
5			AA DD C Screw(3×16) ﾋﾞｽ
6			AD DJ C U-turn collar Uﾀｰﾝｺﾛ
7			AC DD N C Right door follower spring 右ﾄﾞｱ従動ｽﾌﾟﾘﾝｸﾞ
8			AF DS N C Right door follower shaft 右ﾄﾞｱ従動ｼｬﾌﾄ
9			AG DX C Transport follower roller(φ16) 搬送従動ﾛｰﾗｰ
10			AA DD C E type ring(E3) Eﾘﾝｸﾞ
11			AD DJ N C TC case GND spring TCｹｰｽGNDｽﾌﾟﾘﾝｸﾞ
12			AC DD N C DUP roller earth plate DUPﾛｰﾗｰｱｰｽ板
13			AD DJ N C Side door reinforce plate R ｻｲﾄﾞﾄﾞｱ補強板R
14			AD DD C Screw(3×10) ﾋﾞｽ
15			AF DS C Right door rail 右ﾄﾞｱｰﾚｰﾙ
16			AD DJ N C Side door reinforce plate F ｻｲﾄﾞﾄﾞｱ補強板F
17			AF DS C Rail reinforce plate ﾚｰﾙ補強板
18			AA DD C E type ring(E4) Eﾘﾝｸﾞ
19			AC DD N C DUP roller collar DUPﾛｰﾗｰｶﾗｰ
20			AD DJ N C Gear(23T) ｷﾞﾔ
21			AC DJ C Spring pin(φ2-10) ｽﾌﾟﾘﾝｸﾞﾋﾟﾝ
22			AC DD C ADU bearing ADU軸受
23			AN EG N A DUP roller DUPﾛｰﾗｰ
25			AC DD N C Lock spring ﾛｯｸｽﾌﾟﾘﾝｸﾞ
26			AF DS N C Lock lever ﾛｯｸﾚﾊﾞｰ
28			AD DD N C TR pressure spring R TR圧接ｽﾌﾟﾘﾝｸﾞR
29			AA DD C E type ring(E5) Eﾘﾝｸﾞ

24. サイドドアユニット(side door unit)

№	Артикул	Альт. артикул	Описание
3			AK DX N C Transfer alupet(Refer to Matrix) 転写ｱﾙﾍﾟｯﾄ
2			AC DD N C Transfer bearing F 転写軸受F
4			AC DD N C Transfer bearing R 転写軸受R
7			AA DD C E type ring(E3) Eﾘﾝｸﾞ
9			AC DD N C Transfer TC spring 転写TCﾊﾞﾈ
10			C LHLDZ0249QSZ1 - AN EG C Transfer holder 転写ﾎﾙﾀﾞｰ P co a r r r t e s c c t o io d n e 1st lot
11			AC DD N C Transfer BC spring 転写BCﾊﾞﾈ
12			AF DS N C Discharge plate holder 除電板ﾎﾙﾀﾞｰ
13			AN EG N C Discharge plate 除電板
1			AB DD C Spring pin ｽﾌﾟﾘﾝｸﾞﾋﾟﾝ

25. 転写ローラーユニット(Transcer roller unit)

№	Артикул	Альт. артикул	Описание
1			AV FG N C Delivery upper frame 排紙上ﾌﾚｰﾑ
2			AH DX C ADU bearing ADU軸受
3			AM EG N A Delivery roller 排紙ﾛｰﾗｰ
4			AA DD C E type ring(E5) Eﾘﾝｸﾞ
5			AA DJ C Spring pin(2.5×9) ｽﾌﾟﾘﾝｸﾞﾋﾟﾝ
6			AD DD N C Delivery drive pulley(24T) 排紙駆動ﾌﾟｰﾘｰ
7			AP EQ N A DUP delivery roller DUP排紙ﾛｰﾗｰ
8			AE DJ C BLT idle bearing BLTｱｲﾄﾞﾙ軸受
9			AD DJ C Bearing 軸受
11			AG DS N A Discharge brush 除電ﾌﾞﾗｼ
13			AC DD C Screw(3×8) ﾋﾞｽ
14			C LFRM-0163QSZ1 - AP EQ N C Delivery lower frame 排紙下ﾌﾚｰﾑ P co a r r r t e s c c t o io d n e 1st lot
15			AC DD C Delivery follower spring 排紙従動ｽﾌﾟﾘﾝｸﾞ
16			AE DJ C Delivery follower roller 排紙従動ﾛｰﾗｰ
17			AF DS C Delivery sponge 蹴り出しｽﾎﾟﾝｼﾞ
18			AG DX C Transport follower roller(φ16) 搬送従動ﾛｰﾗｰ
19			AG DX C Right door follower shaft 右ﾄﾞｱ従動軸
20			AQ EQ N C Rear delivery lower paper guide
21			AC DD N C Right door follower spring 右ﾄﾞｱ従動ｽﾌﾟﾘﾝｸﾞ
22			AA DD C Screw(4×10) ﾋﾞｽ
24			AD DJ C Fusing rear actuator 定着後ｱｸﾁｭｴｰﾀｰ
25			AH DS B Delivery roller drive belt 排紙ﾛｰﾗｰ駆動ﾍﾞﾙﾄ
901			BF GN N E Delivery unit(Refer to Matrix) 排紙ﾕﾆｯﾄ

26. 排紙フレーム (Delivery unit)

№	Артикул	Альт. артикул	Описание
3			AC DD N C PS guide sheet PSｶﾞｲﾄﾞｼｰﾄ
4			BT NE N A PS roller(Refer to Matrix) PSﾛｰﾗｰ
5			AD DJ C Bearing 軸受
6			AC DJ C Bearing(F8×12×5 16X) 軸受
7			AA DD C E type ring(E6) Eﾘﾝｸﾞ
8			AD DJ N D PS knob PSﾉﾌﾞ
9			AB DD C Screw(3×10KS) ﾋﾞｽ
11			AC DD C Screw(3×8) ﾋﾞｽ
12			AF DS N C PS follower shaft PS従動軸
13			AC DD N C PS follower collar PS従動ｺﾛ
3			AE DJ C PS follower shaft earth PS従動軸ｱｰｽ
17			AD DD N C PIN actuator PINｱｸﾁｪｰﾀｰ
18			AC DD N C PIN- spring PIN-ｽﾌﾟﾘﾝｸﾞ
20			AF DS C Cassette paper existence holder ｶｾｯﾄ紙有無ﾎﾙﾀﾞｰ
21			AE DJ C Cassette paper existence detect lever
24			AG DS N C Toner protect sheet ﾄﾅｰ⾶散封⽌ﾏｲﾗｰ
25			AC DD C Screw(3×6) ﾋﾞｽ
26			AP EQ B Clutch N(2.5KG) ｸﾗｯﾁN
27			AA DD C E type ring(E4) Eﾘﾝｸﾞ
31			AA DD C Poly slider ﾎﾟﾘｽﾗｲﾀﾞｰ
32			AE DJ N C PS brake spring PSﾌﾞﾚｰｷｽﾌﾟﾘﾝｸﾞ
33			AA DD C Poly slider ﾎﾟﾘｽﾗｲﾀﾞｰ
901			BG GT N E PS fixing plate unit(Refer to Matrix) PS 固定板ﾕﾆｯﾄ

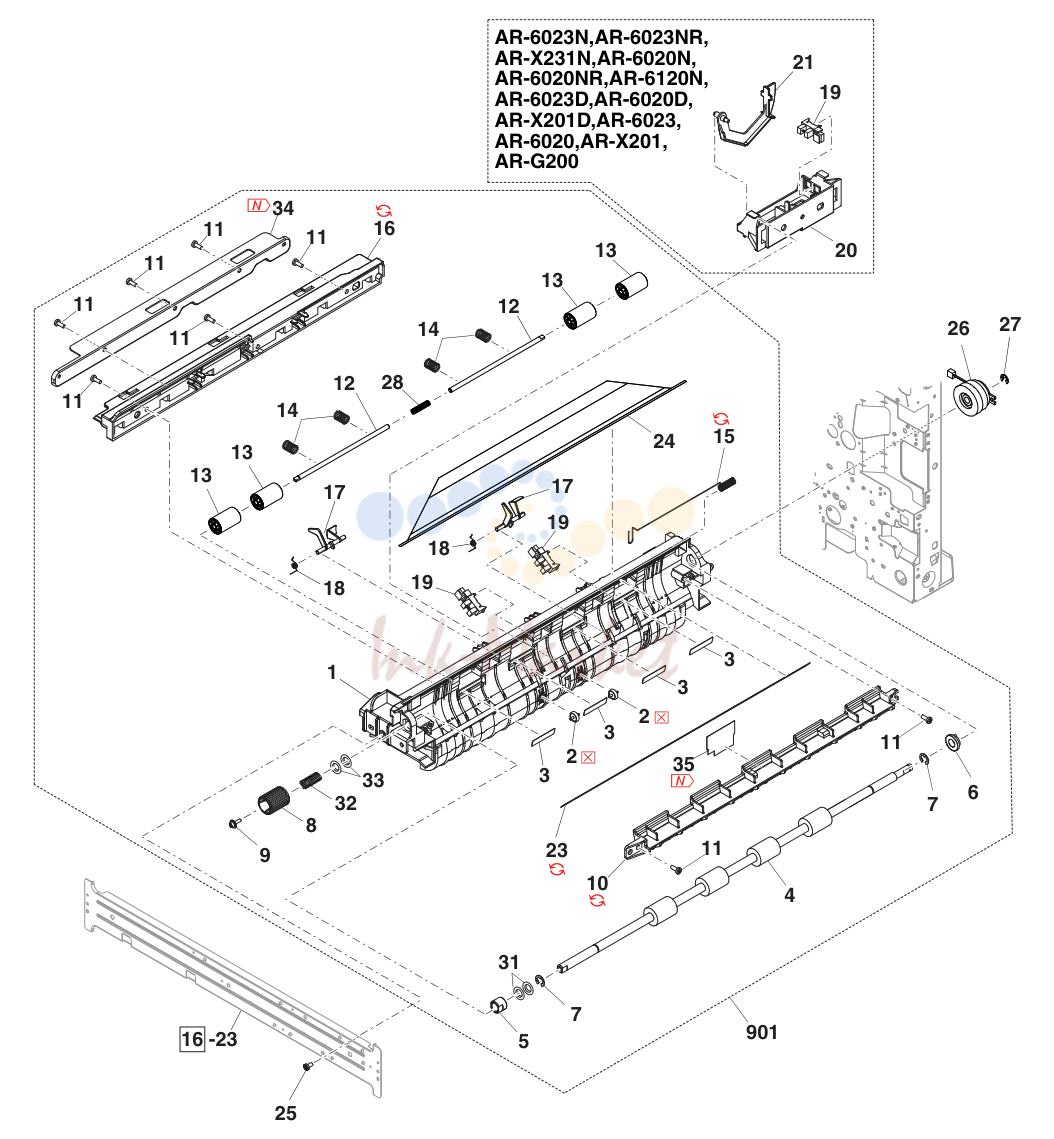

27. PS ユニット(PS unit)

№	Артикул	Альт. артикул	Описание
2			AB DD C Screw(3×10KS) ﾋﾞｽ
5			C LPLTM0748QSZ1 3 AN EG C Corner frame front upper ｺｰﾅｰﾌﾚｰﾑ前上 S ch p a e n c g ifi e cation 14/Nov
3			AY FQ C LSU fixing plate assy LSU固定板ｱｯｾﾝ
9			AA DD C Screw(4×8) ﾋﾞｽ
13			AF DS N C Side door rail F ｻｲﾄﾞﾄﾞｱﾚｰﾙF
14			AD DJ N C Side door switch holder ｻｲﾄﾞﾄﾞｱｽｲｯﾁﾎﾙﾀﾞｰ
16			AA DD C Screw(2.3×12) ﾋﾞｽ
17			AD DJ C ILSW lever ILSWﾚﾊﾞｰ
18			AB DJ C ILSW spring ILSWｽﾌﾟﾘﾝｸﾞ
19			AE DJ N C Side door rail R ｻｲﾄﾞﾄﾞｱﾚｰﾙR
20			AM EG N C DV guide DVｶﾞｲﾄﾞ
21			AC DJ C M4 plate N M4ﾌﾟﾚｰﾄN
24			AD DD N C Front corner foot 前⾓⾜
25			AC DJ C PG cushion PGﾓﾙﾄ
26			AB DD N C LSU sheet 1 LSUｼｰﾄ
27			AB DD N C LSU sheet 2 LSUｼｰﾄ
28			AL EB N B AR-6020N,AR-6020NR,AR-6120N, LSUｻｰﾐｽﾀﾕﾆｯﾄ
33			AC DD C Left front reinforce plate 左前補強板
34			AL EB C Right joint plate 右連結板
40			AB DD C Screw(3×6K) ﾋﾞｽ

28. フレームセクション1(Frame section 1)

№	Артикул	Альт. артикул	Описание
1			AB DD C Red screw(4×6S/SW) ⾚ﾋﾞｽ
2			AD DJ C Scanner adjustment plate ｽｷｬﾅｰ調整板
4			AC DD C Screw(3×6) ﾋﾞｽ
5			AA DD C Screw(4×8) ﾋﾞｽ
6			AA DD C Screw(4×8) ﾋﾞｽ
7			AC DD C Rubber foot ｺﾞﾑ⾜
8			AD DD N C DUPｷﾞｱ補強板
9			AC DJ C Cassette lock ｶｾｯﾄﾛｯｸ
10			AD DJ N C Fusing rear fixing plate 定着後固定板
13			AB DD C Step screw ﾄﾞﾛｱ段ﾋﾞｽ
14			AP EQ N C Corner frame right lower ｺｰﾅｰﾌﾚｰﾑ右下
16			AR EQ N C Fusing guide plate 定着ｶﾞｲﾄﾞ板
19			AD DJ N C Separation pawl arm 剥離⽖ｱｰﾑ
20			AC DJ C Cassette guide collar ｶｾｯﾄｶﾞｲﾄﾞｺﾛ
21			AF DS C Cassette collar shaft ｶｾｯﾄｺﾛ軸
22			AB DD C Screw(3×8KS) ﾋﾞｽ
23			AM EG B Pawl solenoid ⽖ｿﾚﾉｲﾄﾞ
24			AA DD C Screw(3×5) ﾋﾞｽ
25			AG DX N C Solenoid harness sheet ｿﾚﾉｲﾄﾞﾊｰﾈｽﾏｲﾗｰ
26			AC DD N C Solenoid damper cushion ｿﾚﾉｲﾄﾞ消⾳ﾓﾙﾄ
27			AB DD N C Separation pawl arm damper cushion 剥離⽖ｱｰﾑ消⾳ﾓﾙﾄ
28			AA DJ C Manual paper feed spring B ⼿差しｽﾌﾟﾘﾝｸﾞB

29. フレームセクション2(Frame section 2)

№	Артикул	Альт. артикул	Описание
1			AC DD C Fan fixing Screw ﾌｧﾝ固定ﾋﾞｽ
2			AW FG B Power supply fan 電源ﾌｧﾝ
3			AP EQ N C Fan duct outside ﾌｧﾝﾀﾞｸﾄ外
5			AL EB B Main power switch ﾒｲﾝ電源ｽｲｯﾁ
8			AA DD C Screw(4×8) ﾋﾞｽ
9			AU FG N A Ozone filter ｵｿﾞﾝﾌｨﾙﾀｰ
12			AA DD C Screw(4×6) ﾋﾞｽ
14			AP EQ B PS fan PSﾌｧﾝ
15			AC DD C Screw(3×32) ﾋﾞｽ
16			AF DS N C Power supply fan fixing plate 電源ﾌｧﾝ固定板
17			AE DS N C TN drive cover TN駆動ｶﾊﾞｰ
19			AD DD N C TN drive coupling TN駆動ｶｯﾌﾟﾘﾝｸﾞ
20			AC DD N C Drive spring 駆動ｽﾌﾟﾘﾝｸﾞ
21			AE DJ N C Gear(77T) ｷﾞﾔ
22			AD DJ N C Gear(79/20T) ｷﾞﾔ
23			AD DJ N C Gear(29/11T) ｷﾞﾔ
24			AF DS N C TN drive box TN駆動ﾎﾞｯｸｽ
25			AV FG N E TN motor unit TNﾓｰﾀｰﾕﾆｯﾄ
26			AC DD C Screw(3×8) ﾋﾞｽ
27			AK DX C Screw(3×35) ﾋﾞｽ
28			AX FG E Lift up unit ﾘﾌﾄｱｯﾌﾟﾕﾆｯﾄ
29			AC DJ C Lift up spring ﾘﾌﾄｱｯﾌﾟｽﾌﾟﾘﾝｸﾞ
30			AH DX B Lift coupling ﾘﾌﾄｶｯﾌﾟﾘﾝｸﾞ
31			AN EQ N C Lift fixing plate ﾘﾌﾄ取付板
32			AD DJ N C Paper feed roller shaft fixing plate 給紙ﾛｰﾗｰ軸固定板
33			AC DD C Mirror bearing N ﾐﾗｰ軸受 N
34			AX FG B Paper feed clutch(42T) 給紙ｸﾗｯﾁ
35			AD DD N C Paper feed clutch joint gear 給紙ｸﾗｯﾁ連結ｷﾞﾔ
36			AP EQ C 2nd joint drive plate assy
37			AF DS C 2nd Joint gear 2nd連結ｷﾞｱ
38			AD DJ C Joint front drive gear 連結前駆動ｷﾞﾔ
39			AE DJ C Gear(40T) ｷﾞｱ
40			AD DD C Fusing support plate 定着⽀持板
41			AE DJ N C Fusing connector fixing plate 定着ｺﾈｸﾀｰ取付板
42			AA DD C E type ring(E5) Eﾘﾝｸﾞ
43			AA DD C E type ring(E7) Eﾘﾝｸﾞ
44			AY FQ N B DUP motor DUPﾓｰﾀｰ
45			AH DX N C HT harness protect sheet HTﾊｰﾈｽ保護ｼｰﾄ
46			AM EG N C DUP drive plate assy DUP駆動板ｱｯｾﾝ
47			AD DJ N C Gear(35-22T) ｷﾞﾔ
48			AB DD C PO belt washer POﾍﾞﾙﾄﾜｯｼｬｰ
49			AD DJ N C DUP reduction gear(31T) DUP減速ｷﾞﾔ
50			AD DJ C Manual paper feed clutch spring A
51			AE DJ N C DUP reduction gear(22T) DUP減速ｷﾞﾔ
52			AR EQ B DV transmission belt CL DV伝達ﾍﾞﾙﾄCL
53			AC DD C Flange sheet(φ6-20) ﾌﾗﾝｼﾞﾏｲﾗｰ
54			AD DJ N C Delivery drive gear(26-22T) 排紙駆動ｷﾞﾔ
55			AF DS N C DUP drive shaft DUP駆動ｼｬﾌﾄ
56			AX FG B Temperature and humidity sensor 温湿度ｾﾝｻｰ
57			AF DS B DUP drive belt DUP駆動ﾍﾞﾙﾄ
58			AB DD C Screw(4×8K) ﾋﾞｽ

30. フレームセクション3(Frame section 3)

№	Артикул	Альт. артикул	Описание
1			AW FG B Power supply fan 電源ﾌｧﾝ
2			AP EQ N C Fan duct outside ﾌｧﾝﾀﾞｸﾄ外
3			AC DD C Fan fixing Screw ﾌｧﾝ固定ﾋﾞｽ
4			AC DD C Screw(3×6) ﾋﾞｽ
5			AA DD C Screw(4×8) ﾋﾞｽ
6			AA DD C Screw(4×6) ﾋﾞｽ
8			AE DS N C TN drive cover TN駆動ｶﾊﾞｰ
10			AD DD N C TN drive coupling TN駆動ｶｯﾌﾟﾘﾝｸﾞ
11			AC DD N C Drive spring 駆動ｽﾌﾟﾘﾝｸﾞ
12			AE DJ N C Gear(77T) ｷﾞﾔ
13			AD DJ N C Gear(79/20T) ｷﾞﾔ
14			AD DJ N C Gear(29/11T) ｷﾞﾔ
15			AF DS N C TN drive box TN駆動ﾎﾞｯｸｽ
16			AV FG N E TN motor unit TNﾓｰﾀｰﾕﾆｯﾄ
17			AC DD C Screw(3×8) ﾋﾞｽ
18			AB DD C Spring pin(φ3-18) ｽﾌﾟﾘﾝｸﾞﾋﾟﾝ
19			AA DD C E type ring(E5) Eﾘﾝｸﾞ
20			AB DJ C Bearing N(f6) 軸受N
22			AG DX N C Clutch fixing plate ｸﾗｯﾁ固定板
23			AP EQ B Clutch(2.5KG) ｸﾗｯﾁ
24			AA DD C E type ring(E4) Eﾘﾝｸﾞ
25			AA DD C E type ring(E7) Eﾘﾝｸﾞ
26			AE DJ N C DUP reduction gear(22T) DUP減速ｷﾞﾔ
27			AD DJ C Manual paper feed clutch spring A
28			AD DJ N C DUP reduction gear(31T) DUP減速ｷﾞﾔ
29			AM EG N C DUP drive plate assy DUP駆動板ｱｯｾﾝ
30			AD DJ N C Gear(35-22T) ｷﾞﾔ
31			AB DD C PO belt washer POﾍﾞﾙﾄﾜｯｼｬｰ
32			AY FQ N B DUP motor DUPﾓｰﾀｰ
33			AR EQ B DV transmission belt CL DV伝達ﾍﾞﾙﾄCL
34			AF DS B DUP drive belt DUP駆動ﾍﾞﾙﾄ
35			AC DD C Flange sheet(φ6-20) ﾌﾗﾝｼﾞﾏｲﾗｰ
36			AD DJ N C Delivery drive gear(26-22T) 排紙駆動ｷﾞﾔ
37			AF DS N C DUP drive shaft DUP駆動ｼｬﾌﾄ
41			AL EB B Main power switch ﾒｲﾝ電源ｽｲｯﾁ
42			AB DD C Screw(4×8K) ﾋﾞｽ
43			BL HL N B AC cord(Refer to Matrix) ACｺｰﾄﾞ
46			AE DJ N C Fusing connector fixing plate 定着ｺﾈｸﾀｰ取付板
47			AD DD C Fusing support plate 定着⽀持板
502			AZ FX N E DUP drive unit DUP駆動ﾕﾆｯﾄ

31. フレームセクション3(Frame section 3)[AR-6023N,AR-6023NR,AR-X231N,AR-6020N,

№	Артикул	Альт. артикул	Описание
2			AC DD C Screw(3×6) ﾋﾞｽ
3			AX FG N E USB interface PWB(Refer to Matrix) USB I/F基板
5			AA DD C Screw(3×6) ﾋﾞｽ
6			AN EG N C NNB PWB fixing plate NNB基板固定板⾦
9			BM HR N E High voltage PWB ⾼圧基板
10			AA DD C Screw(4×8) ﾋﾞｽ
11			AE DJ N C High voltage PWB support plate ⾼圧基板⽀持板
12			AE DJ N C Spacer ｽﾍﾟｰｻｰ
13			AH DX N C USBｶﾊﾞｰｼｰﾄ
14			AB DD C Screw(3×8) ﾋﾞｽ
15			AE DJ N C High Voltage PWB protect sheet ⾼圧基板保護ﾏｲﾗｰ
16			AE DJ N C 2nd harness protect sheet 2ndﾊｰﾈｽ保護ﾏｲﾗｰ
18			BF GN N E NNBﾌﾟﾛｸﾞﾗﾑROM

32. フレームセクション4(Frame section 4)

№	Артикул	Альт. артикул	Описание

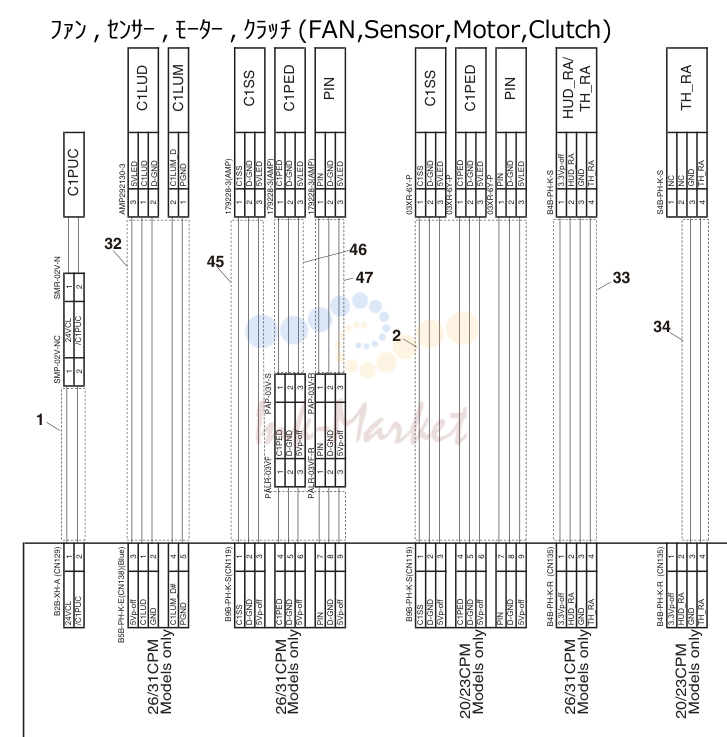

1			AF DS N C Paper feed clutch harness 給紙ｸﾗｯﾁﾊｰﾈｽ
2			AM EG N C P-IN sensor harness P-INｾﾝｻｰﾊｰﾈｽ
3			AL EB N C Main motor harness ﾒｲﾝﾓｰﾀｰﾊｰﾈｽ
4			AF DS N C PS clutch harness PSｸﾗｯﾁﾊｰﾈｽ
5			AG DX N C Paper width detection sensor harness 紙幅検知ｾﾝｻｰﾊｰﾈｽ
6			AG DS C Manual paper feed paper feed clutch harness
7			AG DX N C Manual paper feed detect sensor harness
8			AG DX N C Intake fan interface harness 吸気ﾌｧﾝ中継ﾊｰﾈｽ
9			AR EQ N C POUT interface harness POUT中継ﾊｰﾈｽ
11			AL EB N C MC high voltage harness assy MC⾼圧ﾊｰﾈｽｱｯｾﾝ
12			AG DX N C TC high voltage harness TC⾼圧ﾊｰﾈｽ
13			AG DX N C DHV harness DHVﾊｰﾈｽ
15			AK DX N C MCU TO HV harness MCU TO HVﾊｰﾈｽ
18			AL EB N C CRAM harness ｸﾗﾑﾊｰﾈｽ
19			AH DX N C LED harness LEDﾊｰﾈｽ
20			AG DX N C SCAN MOTOR harness
21			AG DS N C Original detect sensor harness 原稿検知ｾﾝｻｰﾊｰﾈｽ
22			AL EB N C CCD FFC CCD FFC
23			AG DS N C CL FFC harness CL FFC ﾊｰﾈｽ
24			AQ EQ N C HL harness HLﾊｰﾈｽ
26			AP EQ C AC-SW harness AC-SWﾊｰﾈｽ
27			AH DX N C USB-MCU harness USB-MCUﾊｰﾈｽ
28			AM EG N C NNB-MCU harness NNB-MCUﾊｰﾈｽ
29			AG DX N C NNB(USB)-MCU harness
30			AS EQ N C LSU harness LSUﾊｰﾈｽ
31			AQ EQ N C OPE FFC OPE FFC
32			AH DX N C Brush motor harness ﾌﾞﾗｼﾓｰﾀｰﾊｰﾈｽ
34			AG DS N C Temperature sensor harness 温度ｾﾝｻｰﾊｰﾈｽ
35			AL EB N C LSU fan interface harness LSUﾌｧﾝ中継ﾊｰﾈｽ
36			AH DX N C Power supply fan harness 電源ﾌｧﾝﾊｰﾈｽ
39			AW FG N C HEAT LAMP harness HEAT LAMP ﾊｰﾈｽ
41			AU EZ C Cassette sensor harness ｶｾｯﾄｾﾝｻｰﾊｰﾈｽ
42			AF DS C Cassette detect sensor harness ｶｾｯﾄ検知ｾﾝｻｰﾊｰﾈｽ
43			AF DS C LUM harness LUMﾊｰﾈｽ
44			AY FQ C Cassette harness ｶｾｯﾄﾊｰﾈｽ
45			AP EQ N C Cassette detect sensor harness ｶｾｯﾄ検知ｾﾝｻｰﾊｰﾈｽ
46			AG DX N C Paper detect sensor harness 紙検知ｾﾝｻｰﾊｰﾈｽ

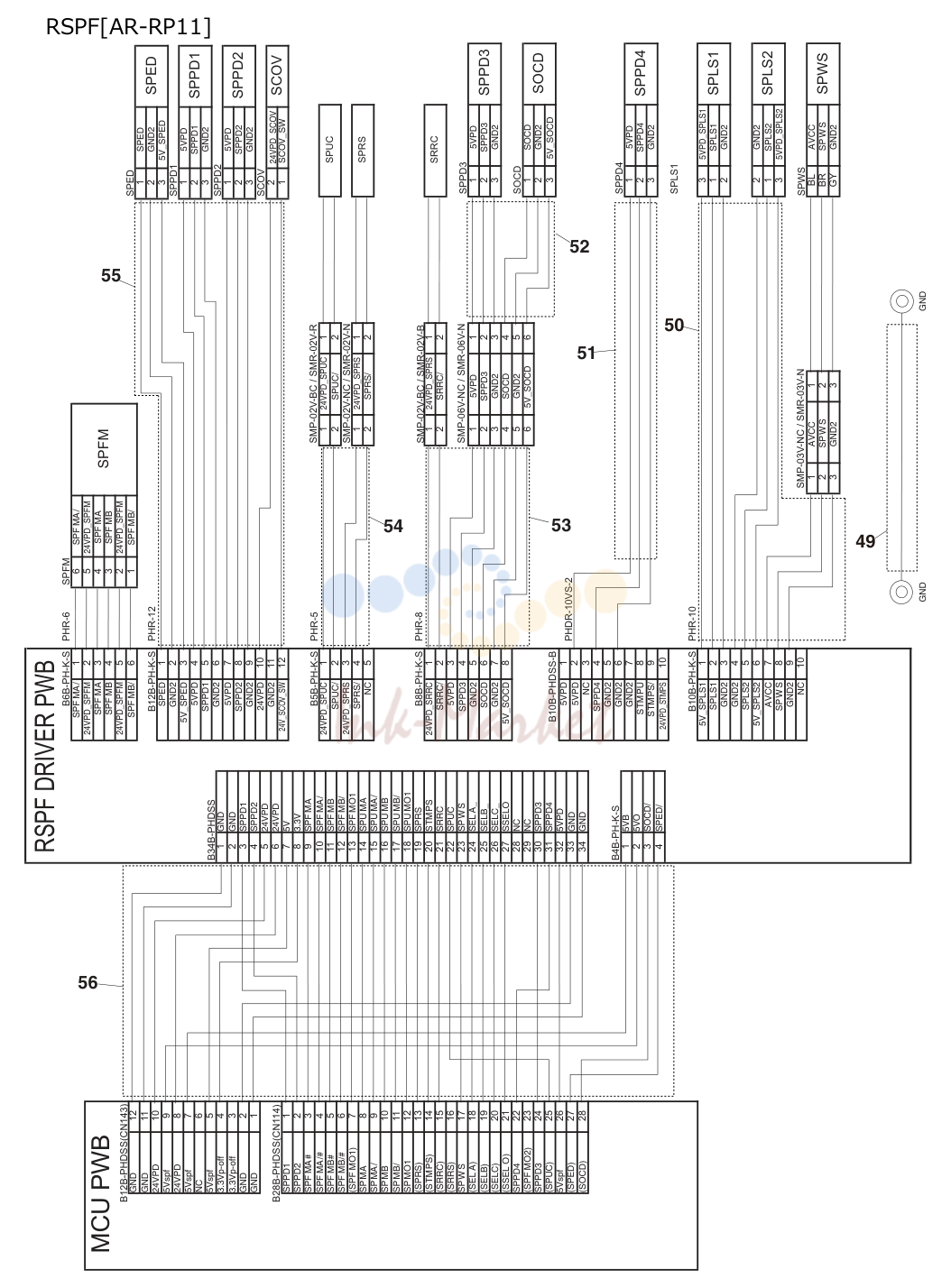

49			AC DJ C Read plate earth harness 読取板ｱｰｽﾊｰﾈｽ
50			BE GN C RSPF original tray harness RSPF原稿ﾄﾚｲﾊｰﾈｽ
51			AL EB N C RSPF SPPD4 harness RSPF SPPD4ﾊｰﾈｽ
52			AP EQ C SPF transport harness SPF搬送ﾊｰﾈｽ
53			BE GN C RSPF interface harness RSPF搬送中継ﾊｰﾈｽ
54			AH DX N C RSPF clutch solenoid interface harness
55			BE GN C RSPF paper feed harness RSPF給紙ﾊｰﾈｽ
56			BA FX N C RSPF interface harness RSPF中継ﾊｰﾈｽ

33. ハーネス部(Harness section)

№	Артикул	Альт. артикул	Описание
1			5V Tray 2 transport
2			PPD2 detector
1			5V Tray 2 upper limit
2			LUD2 detector
3			D-GND

34. ハーネス部(Harness section)

№	Артикул	Альт. артикул	Описание
1			AA DJ C Band(T18S) ﾊﾞﾝﾄﾞ
2			AC DJ C Band(RSG-100) ﾊﾞﾝﾄﾞ
3			AC DJ C Clamp(N-4) ﾅｲﾛﾝｸﾗﾝﾌﾟ
5			AC DJ C Edge holder(11U) ｴｯｼﾞﾎﾙﾀﾞｰ
6			AC DJ C Clamp(RMS-2) ｸﾗﾝﾌﾟ
7			AC DD C Edge saddle(EWSE-8.1-01) ｴｯｼﾞｻﾄﾞﾙ
8			AC DD C Wire saddle(GRBWS-1212E) ﾜｲﾔｰｻﾄﾞﾙ
9			AC DD C Wire saddle(GRBWS-1416E) ﾜｲﾔｰｻﾄﾞﾙ
10			AC DJ C Edge saddle(EH11) ｴｯｼﾞｻﾄﾞﾙ
11			AB DJ N C Harness ring(2×6) ﾊｰﾈｽﾘﾝｸﾞ
12			AC DJ C Wire saddle ﾜｲﾔｰｻﾄﾞﾙ
13			AR EQ C Ferrite core ﾌｪﾗｲﾄｺｱ
14			AC DJ C Clamp(RMS-1V0) ｸﾗﾝﾌﾟ
15			AH DX C Harness clamp(RMS-3V0) ﾊｰﾈｽｸﾗﾝﾌﾟ
16			AB DD C Wire saddle(LWS35) ﾜｲﾔｰｻﾄﾞﾙ
17			AC DJ C Edge saddle(EDS0607M) ｴｯｼﾞｻﾄﾞﾙ
18			AC DJ C Wire saddle ﾜｲﾔｰｻﾄﾞﾙ
19			AK DX C Core ｺｱ
20			AF DS N C Core(GSSC-40-12) ｺｱ

35. ワイヤーサドル・クランプ(Wire saddle, Clamp)

№	Артикул	Альт. артикул	Описание
1			AK DX N D CD-ROM(Driver)(Refer to Matrix) CD-ROM
3			AK EB N D CD-ROM
4			AH DX D CD-ROM

Источник: Инк-Маркет.ру.

← Все статьи
