Samsung ML-6040 6060 Xerox DP P1210 — каталог запчастей со схемами

Содержание

1. Exploded Views and Parts List
2. Exploded Views and Parts List
3. Exploded Views and Parts List
4. Exploded Views and Parts List
5. Exploded Views and Parts List
6. Exploded Views and Parts List
7. Exploded Views and Parts List
8. Exploded Views and Parts List
9. Exploded Views and Parts List
10. Exploded Views and Parts List

1. Exploded Views and Parts List

№	Артикул	Альт. артикул	Описание
5-1			Main Exploded View & Parts List
5-2			Cover Exploded View & Parts List
5-3			Frame Exploded View & Parts List
5-4			Exit Exploded View & Parts List
5-5			Fuser Exploded View & Parts List
5-6			Rack-MPF Exploded View & Parts List
5-7			Drive Exploded View & Parts List
5-8			Pick-Up Exploded View & Parts List
5-9			Cassette Exploded View & Parts List

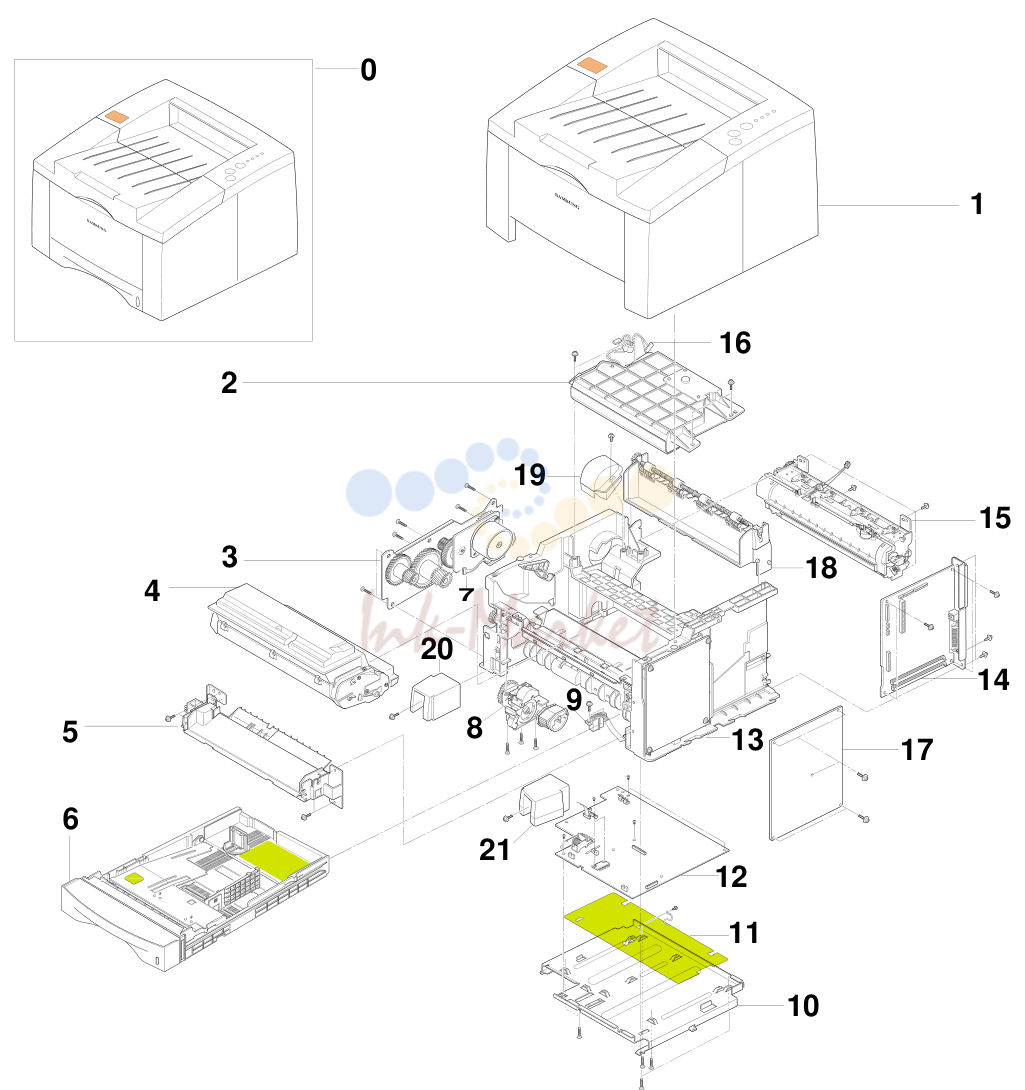

2. Exploded Views and Parts List

№	Артикул	Описание
1		ELAHOU TOP-HOUSING * 1 X
2	JC59-00004A запросить цену →	UNIT-LSU
3	JC96-01656A запросить цену →	ELAUNIT-MOTOR
4		ELAUNIT-DEVE * 1 X
5	JC96-01650A запросить цену →	ELAHOU-MPE
6	JC97-01371A запросить цену →	MEARACK-FEEDER CST
7		CBF-HARNESS-MOTOR * 1 X
8	JC97-01324A запросить цену →	MEAUNIT-FEEDER
9	JC72-00320A запросить цену →	PMO-CAPSENSOR
10	JC70-00080A запросить цену →	SHIELD-PCU
11	JC72-00334A запросить цену →	PCT-INSULATOR PCU
13	JC96-01641B запросить цену →	ELAUNIT-FRAME BASE
14	JC92-01258A запросить цену →	PBAMAIN CTRL-LOW
15	JC96-01778B запросить цену →	ELAUNIT-FUSER
15	JC96-01778C запросить цену →	ELAUNIT-FUSER
16		CBF HARNESS-LSU * 1 X
17	JC92-01175A запросить цену →	PBAPWR-HVPS_HAWK
18	JC97-01338A запросить цену →	MEARACK-HOU EXIT
19	JC72-00582A запросить цену →	PMO-DUCTFAN
20		PMO-DUMMYFACE MAIN(L) * 1 X
21		PMO-DUMMYFACE MAIN(R) * 1 X

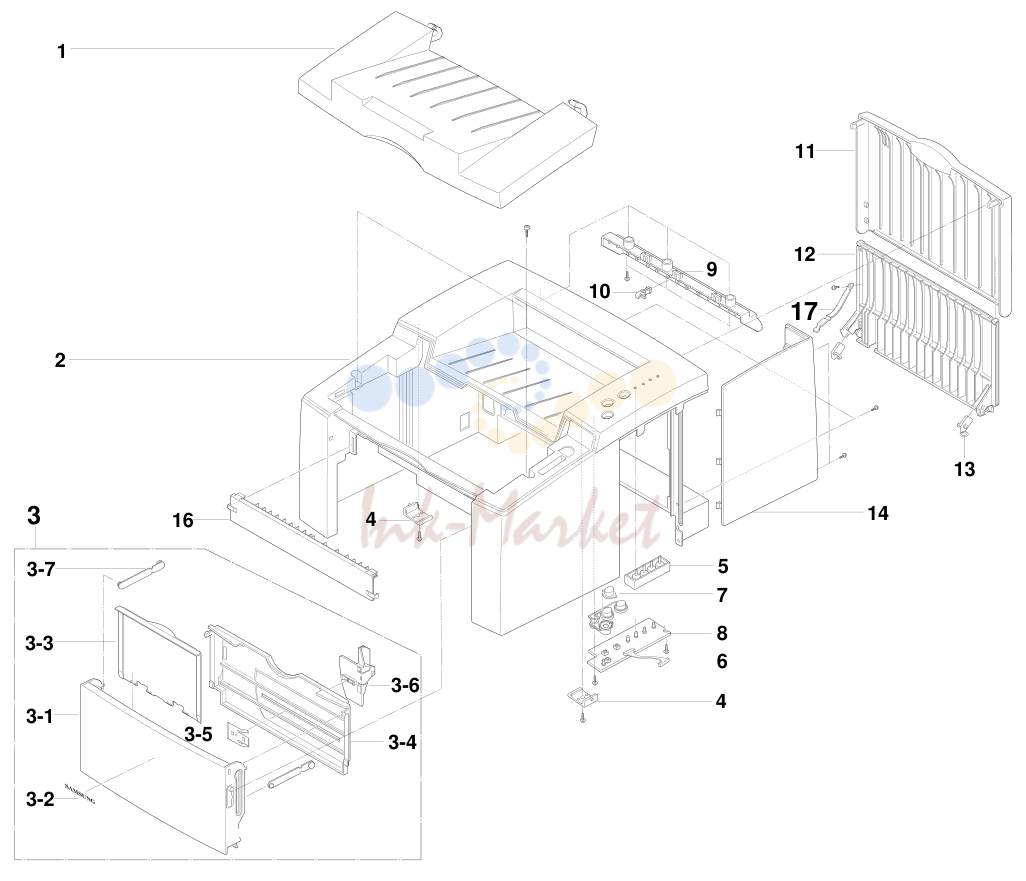

3. Exploded Views and Parts List

№	Артикул	Описание
0	JC96-01590B запросить цену →	ELACOVER-HOUSING
1		PMO-COVER OPEN * 1 X
2		PMO-COVER MAIN * 1 X
3	JC72-00349A запросить цену →	MEARACK-MPTRAY
3-1		PMO-COVER-MP * 1 X
3-2		NPR-BADGE (45) * 1 X
3-3		PMO-TRAYEXTENSION MP * 1 X
3-4		PMO-COVER MANUAL * 1 X
3-5		PMO-TRAYLINK MP * 1 X
4		STOPPER HINGE OPEN * 2 X
5		PMO-LENS LED * 1 X
6		PMO-KEYBUTTON * 1 X
7		PMO-KEYSAVE MODE * 1 X
8		PBALED PANEL-II * 1 X
9		PMO-GUIDE EXIT * 1 X
10		PMO-BUSHING F/DOWN * 1 X
11		PMO-COVER REAR * 1 X
12		PMO-STACKER REAR * 1 X
13		IPR-SPRING LOCKER REAR * 2 X
14	JC72-00358A запросить цену →	PMO-COVER CONTROLLER
15		PMO-CAPREAR * 1 X
16		PMO-SUPPONTMPTRAY * 1 X
17		PMO-STOPPER_EXIT,P * 1 X

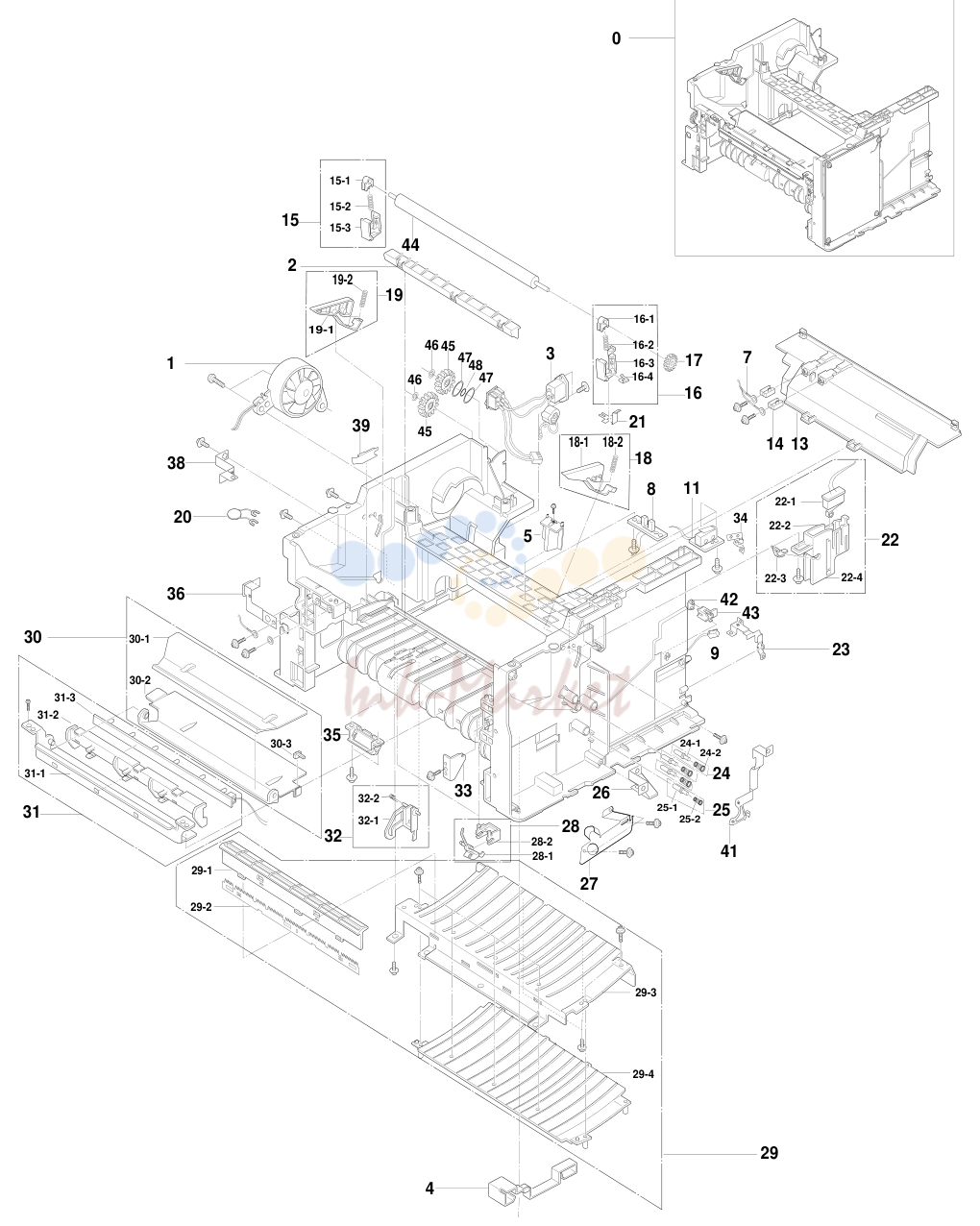

4. Exploded Views and Parts List

№	Артикул	Описание
0		ELAUNIT-FRAME BASE
1	JC31-00004A запросить цену →	FAN-DC-HAWK
2		PMO-GUIDE RIB * 1 X
3		CBF HARNESS-INLETASS’Y * 1 X
4		PMO-HOLDER WIRE * 1 X
5		KEYDEVE * 1 X
6		CBF HARNESS-ENGINE_CONTROL * 1 X
7		CBF-HARNESS_FUSER * 1 X
8		PBASUB-EXITSENSOR * 1 X
9		CBF-HARNESS-THERMISTOR JOINT * 1 X
11	JC92-01261B запросить цену →	PBASUB-FUSER_SW
13		PMO-FRAME COVER * 1 X
14		IPR-TERMINALFU * 2 X
15	JC96-01730A запросить цену →	ELA-UNIT-HOLDER TR L
15-1		PMO-BUSHING TR * 1 X
15-2		SPRING TR L * 1 X
15-3		PMO-TRANSFER HOLDER * 1 X
16	JC96-01729A запросить цену →	ELA-UNIT-HOLDER TR R
16-1		PMO-BUSHING TR * 1 X
16-2		SPRING TR R * 1 X
16-3		PMO-TRANSFER HOLDER * 1 X
16-4		IPR-PLATE TR * 1 X
17	JC66-00039A запросить цену →	GEAR-TR
18		ELAUNIT-GUIDE DEVE L * 1 X
18-1		PMO-GUIDE DEVE L * 1 X
18-2		SPRING GUIDE DEVE * 1 X
19		ELAUNIT-GUIDE DEVE R * 1 X
19-1		PMO-GUIDE DEVE R * 1 X
19-2		SPRING GUIDE DEVE * 1 X
20	JC96-01772A запросить цену →	ELAHOU-VARISTOR
21		IPR-TERMINALTR * 1 X
22		ELAUNIT-SENSOR DEVE * 1 X
22-1		PBASUB-SWITCH * 1 X
22-2		PMO-HOLDER ACTUATOR * 1 X
22-3		PMO-ACTUATOR DEVE * 1 X
23		GROUND FU * 1 X
24		ELAUNIT-TERMINALTR L * 3 X
24-1		ICT-SHAFTHV LARGE * 3 X
24-2		SPRING-HV LARGE * 3 X
25		ELAUNIT-TERMINALTR S * 1 X
25-1		ICT-SHAFTHV LARGE * 1 X
25-2		SPRING-HV SMALL * 1 X
26		GROUND-HVPS * 1 X
27	JC70-00139A запросить цену →	IPR-REMOVE KEY
28		ELAUNIT-ACTUATOR FEED * 1 X
28-1		PMO-ACTUATOR FEED * 2 X
28-2		PMO-HOLDER ACTUATOR * 2 X
29		ELAUNIT-GUIDE TRANSFER * 1 X
29-1		PMO-HADER SAW PLATE * 1 X
29-2		IPR-PLATE SAW * 1 X
29-3		IPR-GUIDE TRANSFER * 1 X
29-4		PMO-GUIDE RIB TR * 1 X
30	JC96-01653A запросить цену →	ELAUNIT-GUIDE FEED
30-1		PMO-GUIDE OPTIC * 1 X
30-2		GUIDE FEED * 1 X
30-3		PMO-HOLDER G/PAPER * 1 X
31		ELAUNIT-PTL * 1 X
31-1		GUIDE PLATE FEED * 1 X
31-2		PMO-HOLDER PTL * 1 X
31-3		PBASUB-PTL * 1 X
5-8		Samsung Electronics
32		ELAUNIT-EMPTYACT * 1 X
32-1		PMO-ACTUATOR EMPTYHAWK * 1 X
32-2		SPRING EMPTY * 1 X
33	JC72-00321A запросить цену →	PMO-HINGE GUIDE FEED
34		GND ICU * 1 X
35		PMO-CAPSENSOR * 1 X
36		GND MP * 1 X
39		IPR-GUIDE DUST * 1 X
41		IPR-OPC-HAWK * 1 X
42		CAPCONNECTOR L * 1 X
43		CAPCONNECTOR U * 1 X
44	JC75-10963B запросить цену →	MEC-ROLLER TRANSFER
45		GEAR IDLE Z27 * 2 X
46		RING-CS * 2 X
47		WASHER-PLAIN * 2 X
48		IPR-WASHER SPRING SU * 1 X

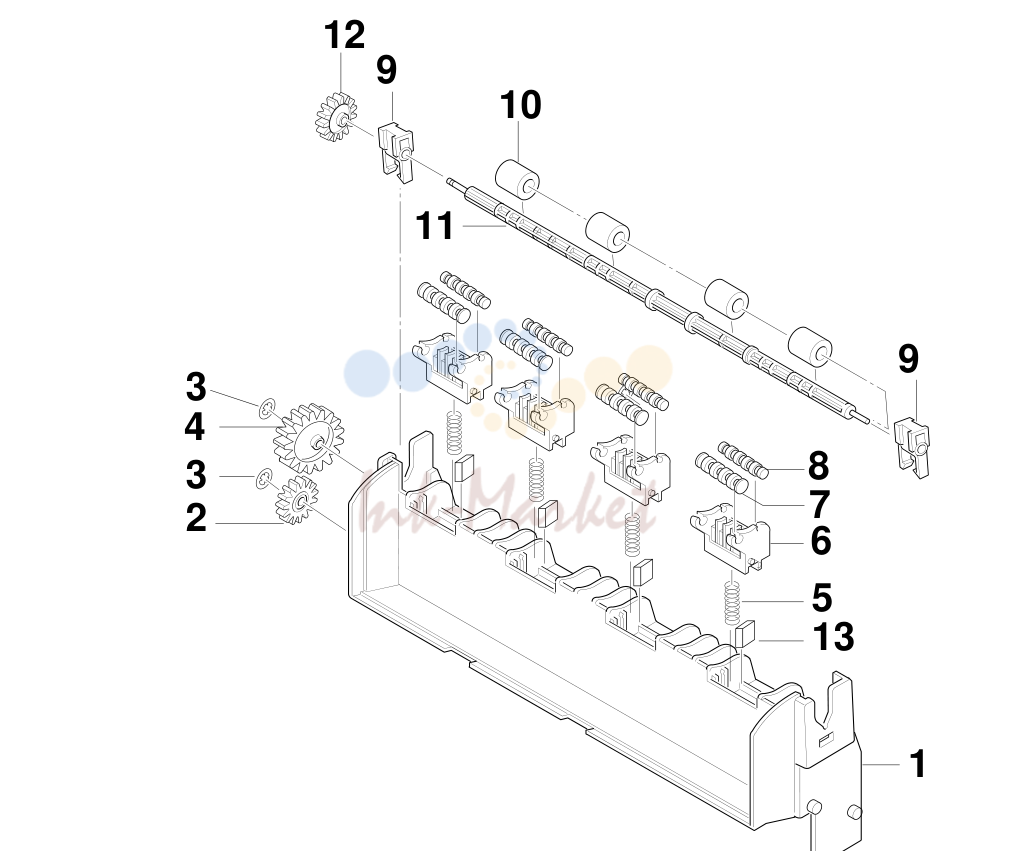

5. Exploded Views and Parts List

№	Артикул	Описание
0	JC97-01338A запросить цену →	MEARACK-HOU EXIT
1		PMO-FRAME REAR * 1 X
2		GEAR-IDLE 15 * 1 X
3		RING-CS * 2 X
4		GEAR-IDLE 25 * 1 X
5		SPRING-F/DOWN * 4 X
6		PMO-HOLDER EXIT_F/DOWN * 4 X
7		PMO-ROLLER-EXIT, MAIN * 4 X
8		PMO-ROLLER-EXIT, FR * 4 X
9		MEC-BEARING EXIT * 2 X
10		RMO-RUBBER EXIT * 4 X
11		PMO-SHAFTEXIT_F/DOWN * 1 X
12	JC66-40209A запросить цену →	GEAR-EXIT
13		RMP-RUBBER EXIT_F/UP * 4 X

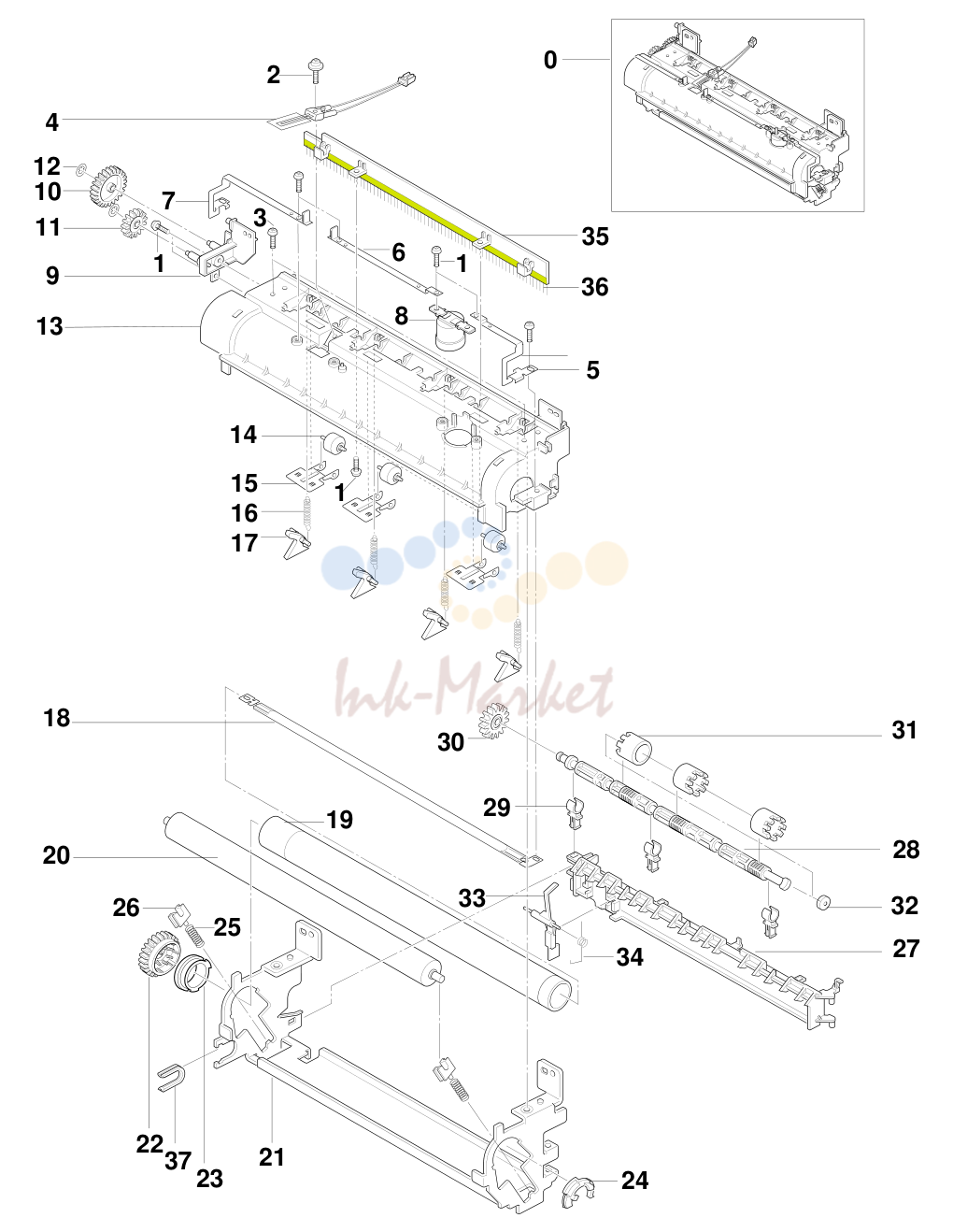

6. Exploded Views and Parts List

№	Артикул	Описание
0	JC96-01778B запросить цену →	ELAUNITFUSER (110V)
0	JC96-01778C запросить цену →	ELAUNITFUSER (220V)
1		SCREW TAPTITE M3 x 8, BH+ * 6 X
2		SCREW TAPTITE M3 x 10, FH+ * 1 X
3		SCREW MACHINE M3 x 6 * 2 X
4	JC14-00001A запросить цену →	THERMISTOR-FUSER
5		ELECTRODE FU R * 1 X
6		ELECTRODE FU M * 1 X
7		ELECTRODE FU L * 1 X
8		THERMOSTAT * 1 X
9		BRKTGEAR FUSER * 1 X
10		GEAR-IDLE 25 * 1 X
11		GEAR-IDLE 15 * 1 X
12		RING-CS * 2 X
13		COVER FUSER * 1 X
14		ROLLER EXIT_F/UP * 3 X
15		EXIT_F/UP(SPRING) * 3 X
16		SPRING-CLAW * 4 X
17		GUIDE-CLAW * 4 X
18	4713-001135 запросить цену →	LAMP-HALOGEN
18	4713-001136 запросить цену →	LAMP-HALOGEN
19	JC71-20901A запросить цену →	NEX-ROLLER-HEAT
20	JC75-10956A запросить цену →	MEC-ROLLER_PRESSORE
21		FRAME FUSER * 1 X
22		GEAR FUSER, Z32 * 1 X
23		BUSHING HR-L * 1 X
24		BUSHING HR-R * 1 X
25		SPRING-BEARING PR * 2 X
26		BUSHING PR * 2 X
27		GUIDE REAR * 1 X
28		SHAFTEXIT_F/UP * 1 X
29		BUSHING_TX * 3 X
30		GEAR-EXIT * 1 X
31		RUBBER EXIT * 3 X
32		RUBBER EXITF/UP * 1 X
33		ACTUATOR EXIT * 1 X
34		SPRING-ACTUATOR * 1 X
35		HOLDER BRUSH * 1 X
36		BRUSH ANTISTATIC * 1 X
37		HOLDER SHAFT * 1 X
38		SEREW TAPTITE M3X6,BH+ * 4 X

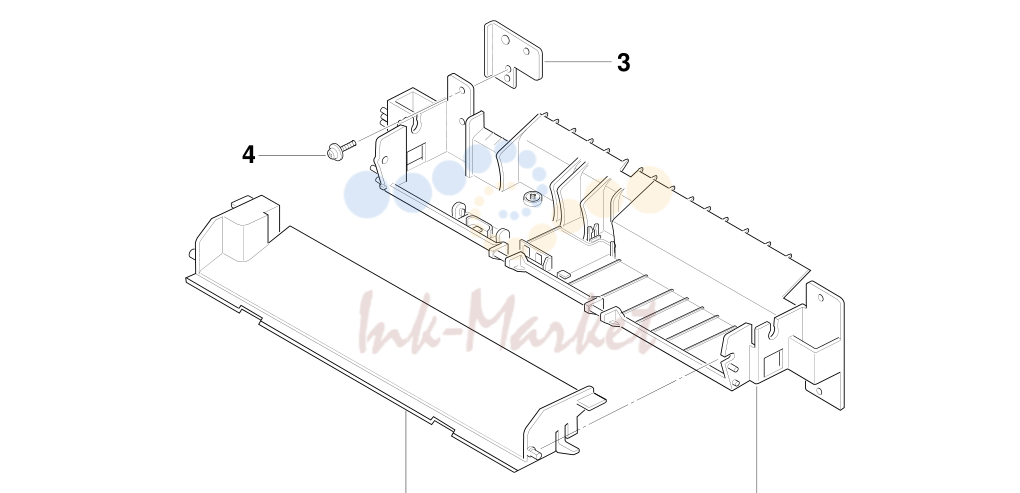

7. Exploded Views and Parts List

№	Артикул	Описание
0	JC97-01345A запросить цену →	ELAHOU-MPF
1		PMO-FRAME_MP * 1 X
2		PMO-PLATE MANUAL * 1 X
3		BRACKET-MANUAL * 1 X
4		SCREW TAPTITE * 1 X

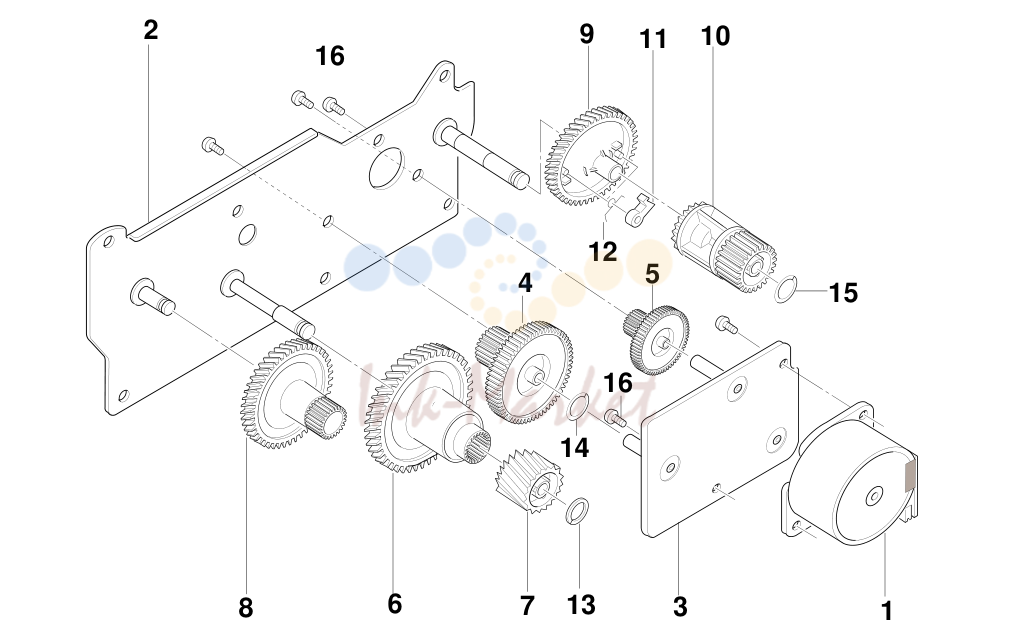

8. Exploded Views and Parts List

№	Артикул	Описание
0	JC96-01656A запросить цену →	ELAUNIT-MOTOR
1	JC31-00002A запросить цену →	MOTOR-STEP
2		IPR-BRKTGEAR * 1 X
3		IPR-BRKTMOTOR * 1 X
4		GEAR-RDCN 145-70 * 1 X
5		GEAR-RDCN 90-24 * 1 X
6		GEAR-OPC DRV 135 * 1 X
7		GEAR-OPC DRIVE2 * 1 X
8		GEAR-FEED DRV * 1 X
9		GEAR-CLUTCH 56 * 1 X
10		GEAR-FUSER DRV23 * 1 X
11		PMO-CLUTCH LEVER * 2 X
12		SPRING-CLUTCH * 2 X
13		WASHER-PLAIN * 1 X
14		MPR-POLYWASHER 8 * 1 X
15		WASHER-PLAIN * 1 X
16		SCREW-MACHINE * 5 X

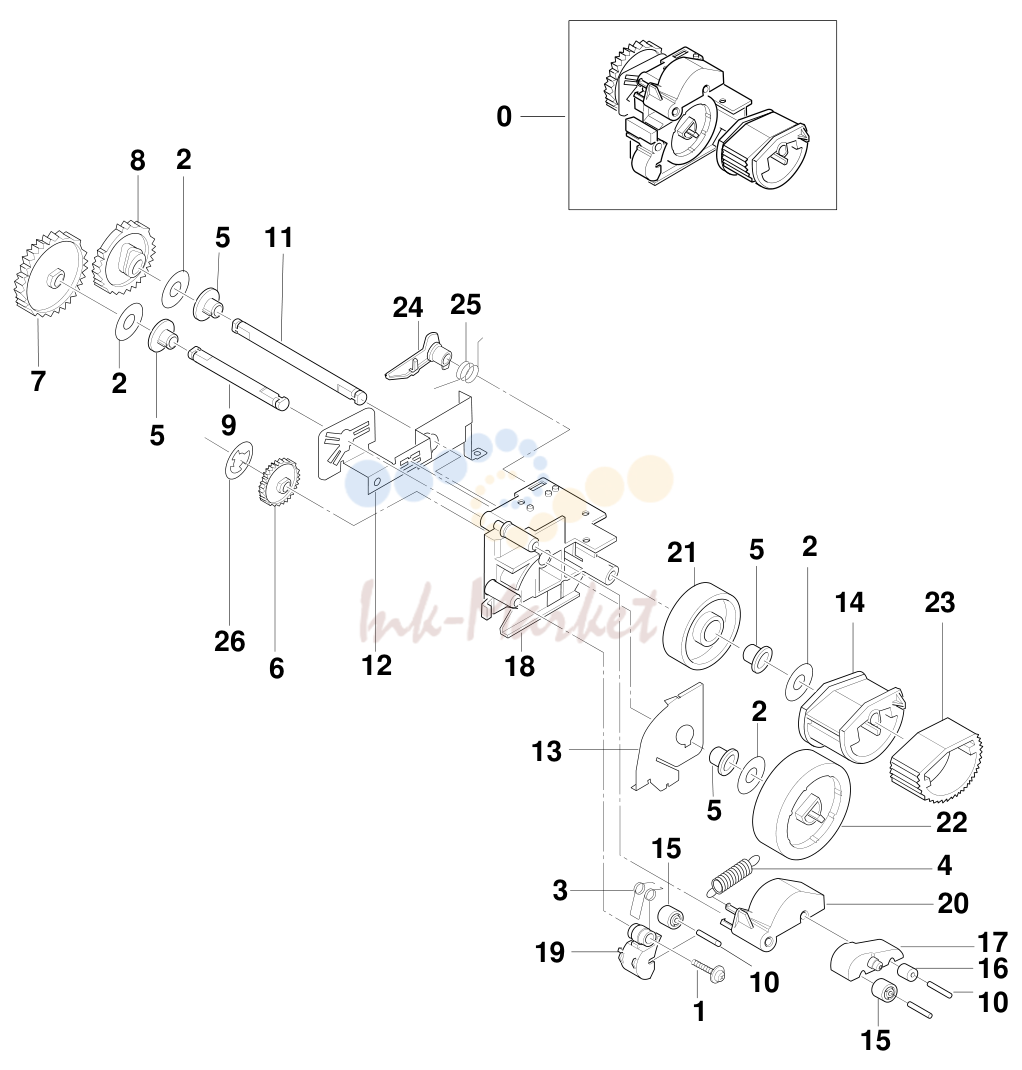

9. Exploded Views and Parts List

№	Артикул	Описание
0	JC97-01324A запросить цену →	MEARACK-FEEDER
1		SCREW-TAPTITE * 1 X
2		WASHER-PLAIN * 4 X
3		SPRING-FEED(1) * 1 X
4		SPRING-FEED(2) * 1 X
5		BEARING-PICK UP * 4 X
6		GEAR-P/UPDRIVE * 1 X
7		GEAR-FEED * 1 X
8		GEAR-PICK UP(12) * 1 X
9		IPR-SHAFTFEED * 1 X
10		IPR-SHAFTFEED IDLER * 3 X
11		IPR-SHAFTPICK UP * 1 X
12		GROUND_FEED * 1 X
13		IPR-GUIDE_FEED * 1 X
14		PMO-HOUSING P/UP * 1 X
15		PMO-ROLLER FEED L * 2 X
16		PMO-ROLLER FEED S * 1 X
17		PMO-SUB HOLDER FEED * 1 X
18		PMO-FRAME_FEED * 1 X
19		PMO-HOLDER FEED(1) * 1 X
20		PMO-HOLDER FEED(2) * 1 X
21		PMO-IDLE PICK_UP * 1 X
22		PMO-ROLL_FEED, DRV 12 * 1 X
23		RMO-RUBBER PICK_UP * 1 X
24		RMO-LEVER PICK_UP * 1 X
25		SPRING PICK UP(12) * 1 X
26		RING-CS * 1 X

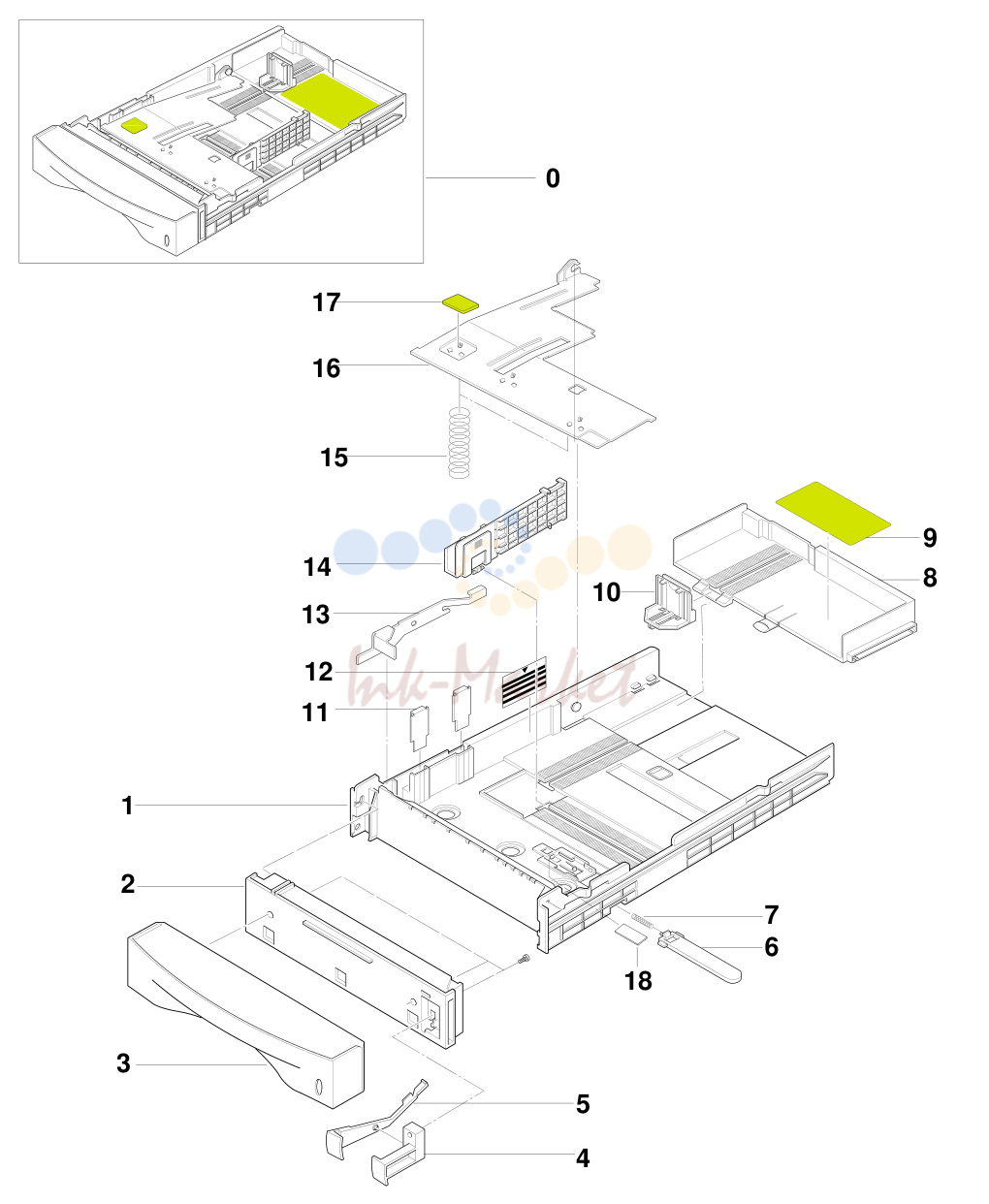

10. Exploded Views and Parts List

№	Артикул	Описание
0	JC97-01371A запросить цену →	MEARACK-FEEDER CST
1		PMO-FRAME CASSETTE * 1 X
2		PMO-GUIDE INNER,CAST * 1 X
3		PMO-GUIDE CASSETTE P * 1 X
4		PMO-HOLDER INDICATOR * 1 X
5		PMO-INDICATOR EMPTY * 1 X
6		PMO-LOCKER PLATE * 1 X
7		SPRING LOCKER PLATE * 1 X
8		PMO-FRAME LEGAL * 1 X
9		LABEL(R)-PLATE * 1 X
10		PMO-REAR GUIDE CST * 1 X
11		IPR-GUIDE PAPER * 2 X
12		LABEL(R)-HEIGHT * 1 X
13		IPR-FINGER * 1 X
14		PMO-SIDE GUIDE * 1 X
15		SPRING-KNOCK UP * 1 X
16		IPR-NOCK UPPLATE * 2 X
17		PAD KNOCK UP * 1 X
18		GUIDE-PAPER FILM * 1 X
