Samsung ML-1650 Phaser 3400 — каталог запчастей со схемами

Содержание

• 1. Exploded Views and Parts List
• 2. Exploded Views and Parts List
• 3. Exploded Views and Parts List
• 4. Exploded Views and Parts List
• 5. Exploded Views and Parts List
• 6. Exploded Views and Parts List
• 7. Exploded Views and Parts List
• 8. Exploded Views and Parts List
• 9. Exploded Views and Parts List
• 10. Exploded Views and Parts List

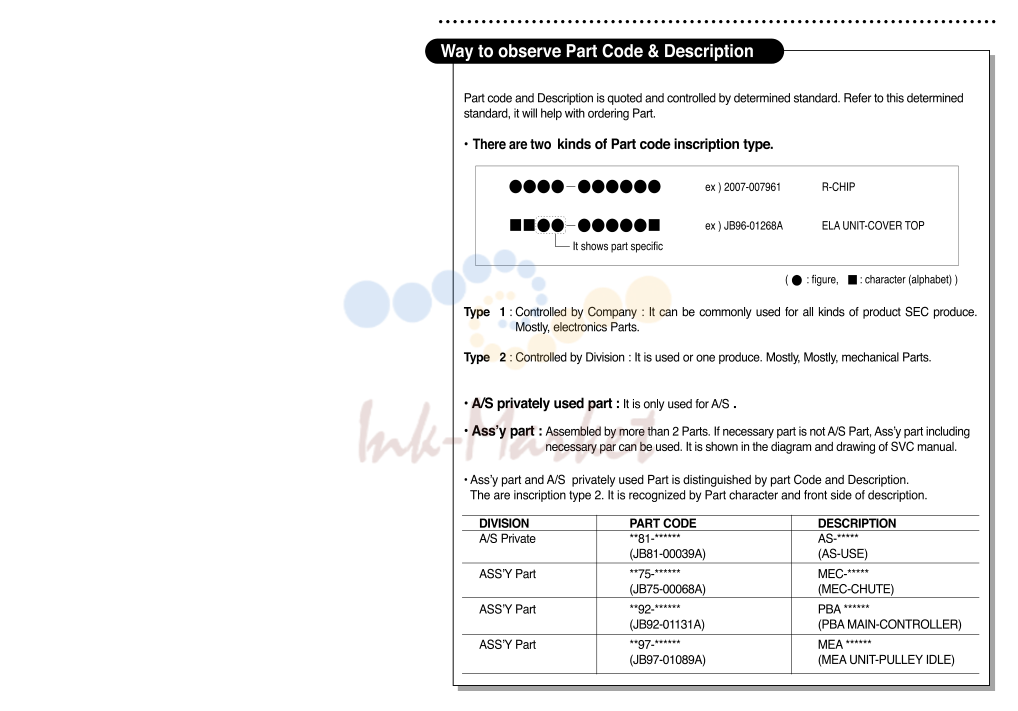

1. Exploded Views and Parts List

№	Артикул	Альт. артикул	Описание
5-1			Main Assembly Exploded view .................................................................................................................page(5-2)
5-2			Top Assembly Exploded view ...................................................................................................................page(5-4)
5-3			Frame Assembly Exploded view ..............................................................................................................page(5-6)
5-4			Exit Assembly Exploded view ..................................................................................................................page(5-9)
5-5			Fuser Assembly Exploded view ...............................................................................................................page(5-11)
5-6			Rack-MPF Assembly Exploded view .......................................................................................................page(5-13)
5-7			Drive Assembly Exploded view ................................................................................................................page(5-15)
5-8			Pick-Up Assembly Exploded view ............................................................................................................page(5-17)
5-9			Cassette Assembly Exploded view ..........................................................................................................page(5-19)

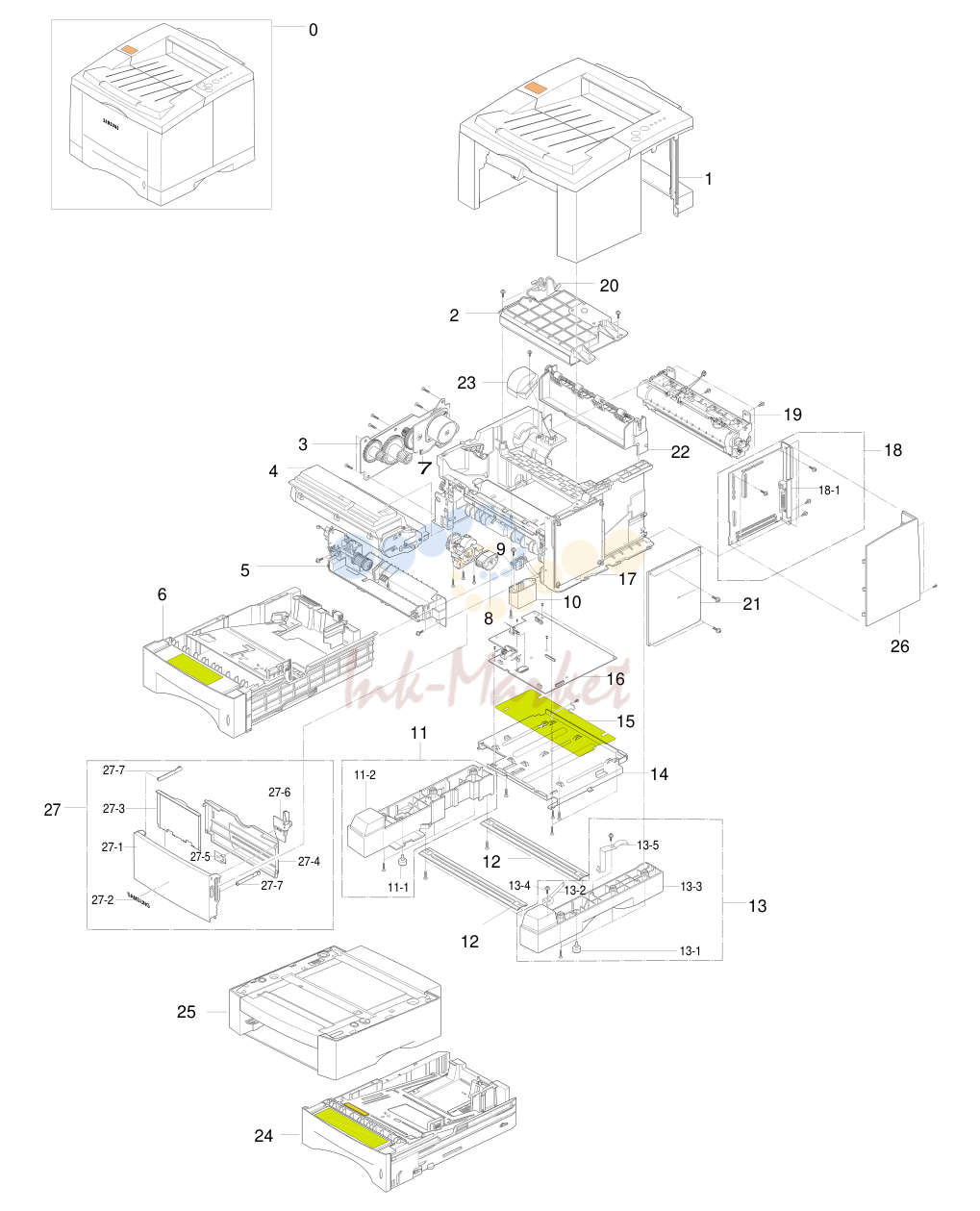

2. Exploded Views and Parts List

№	Артикул	Альт. артикул	Описание
1			ELAHOU-COVER MAIN <see page 5-5> 1 X
2	JC59-00004A запросить цену →		UNIT-LSU
3	JC96-02058A запросить цену →		ELAUNIT-MOTOR
4			ELAUNIT-DEVE * 1 X
5	JC96-01650B запросить цену →		ELAHOU-MPF
6	JC97-01323D запросить цену →		MEARACK-FEEDER CST
7			CBF-HARNESS-MOTOR * 1 X
8	JC97-01324A запросить цену →		MEAUNIT-FEEDER
9	JC39-00154A запросить цену →		CBF HARNESS-ENG SCF
10	JC72-00639A запросить цену →		PMO-SUPPORTSCF
11	JC97-01315A запросить цену →		MEAUNIT-BRKTBOTTOM(L)
11-1			FOOT-RUBBER * 1 X
11-2			PMO-BRKTBASE L * 1 X
12	JC70-00098A запросить цену →		IPR-BAR CROSS BOTTOM
13	JC97-01316A запросить цену →		MEAUNIT-BRKTBOTTOM(R)
13-1			FOOT-RUBBER * 1 X
13-2			IPR-PLATE CSTGUIDE * 1 X
13-3			PMO-BRKTBASE R * 1 X
13-4			SCREW-TAPTITE * 3 X
13-5			IPR-GROUND SCF BASE * 1 X
14	JC70-00080A запросить цену →		IPR-SHIELD PCU
15	JC72-00334A запросить цену →		PCT-INSULATOR PCU
16	JC92-01394A запросить цену →		PBAMAIN-ENGINE_V1(110V)
17	JC96-01641M запросить цену →		ELAUNIT-FRAME BASE_V1(110V)
18	JC96-02424A запросить цену →		ELAHOU-CONTROLLER
18-1	JC92-01393A запросить цену →		PBAMAIN CONTROLLER
19	JC81-00395B запросить цену →		AS-FUSER ASSY_V1(110V)
20			CBF HARNESS-LSU * 1 X
21	JC92-01313A запросить цену →		PBAPWR-HVPS
22	JC97-01338L запросить цену →		MEARACK-HOU EXIT
23	JC72-00582A запросить цену →		PMO-DUCTFAN
24			MEARACK-CAST,SCF * 1 X OPTIONAL
25			ELAHOU-SCF * 1 X OPTIONAL
26	JC72-00358A запросить цену →		PMO-COVER CONTROLLER
27	JC97-01325A запросить цену →		MEAUNIT-MPTRAY
27-1	JC72-00349A запросить цену →		PMO-COVER MP
27-2	JB71-00027A запросить цену →		NPR-BADGE BRAND
27-3	JC72-00354A запросить цену →		PMO-TRAYEXTENTION MP
27-4	JC72-00353A запросить цену →		PMO-TRAYHOLDER MP
27-5	JB70-10906A запросить цену →		IPR-GUIDE LATCH
27-6	JC72-00547E запросить цену →		PMO-SIDE GUIDE MP
27-7	JC72-00350A запросить цену →		PMO-TRAYLINK MP

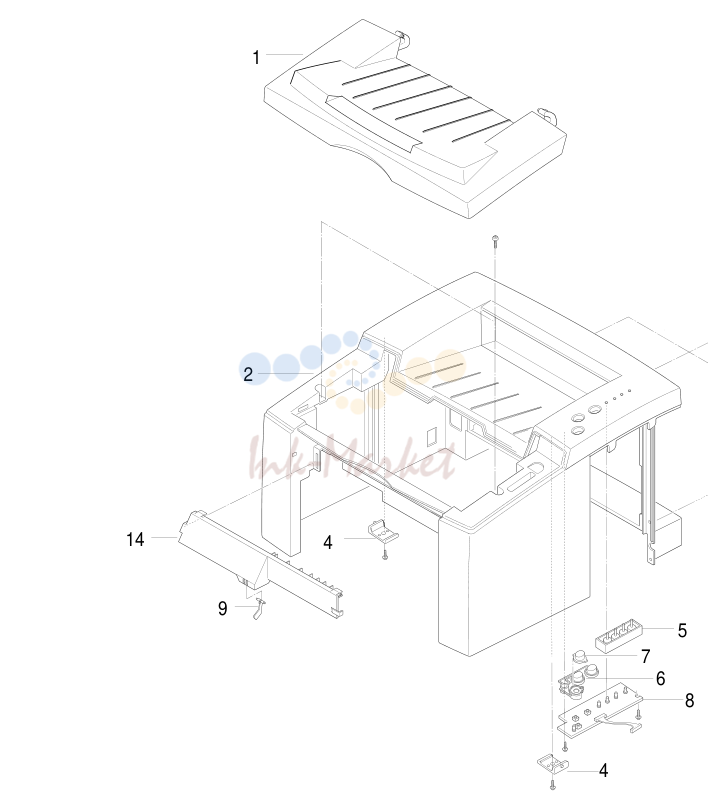

3. Exploded Views and Parts List

№	Артикул	Альт. артикул	Описание
0			ELA HOU-COVER MAIN < See below table > 1 O
1			PMO-COVER OPEN * 1 X
2			COVER-M-MAIN(14-ENG) * 1 X
3			PMO-CAPREAR * 1 X
4			PMO-STOPPER HINGE OPEN * 2 X
5			PMO-LENS LED * 1 X
6			PMO-KEYBUTTON * 1 X
7			PMO-KEYSAVE MODE * 1 X
8			PBASUB-PANEL_II * 1 X
9			PMO-LEVER_EMPTY,MP * 1 X
10			PMO-STOPPER_EXIT,P * 1 X
11			PMO-COVER REAR * 1 X
12			PMO-STACKER REAR * 1 X
13			IPR-SPRING LOCKER REAR * 2 X
14			PMO-SUPPORTMPTRAY * 1 X

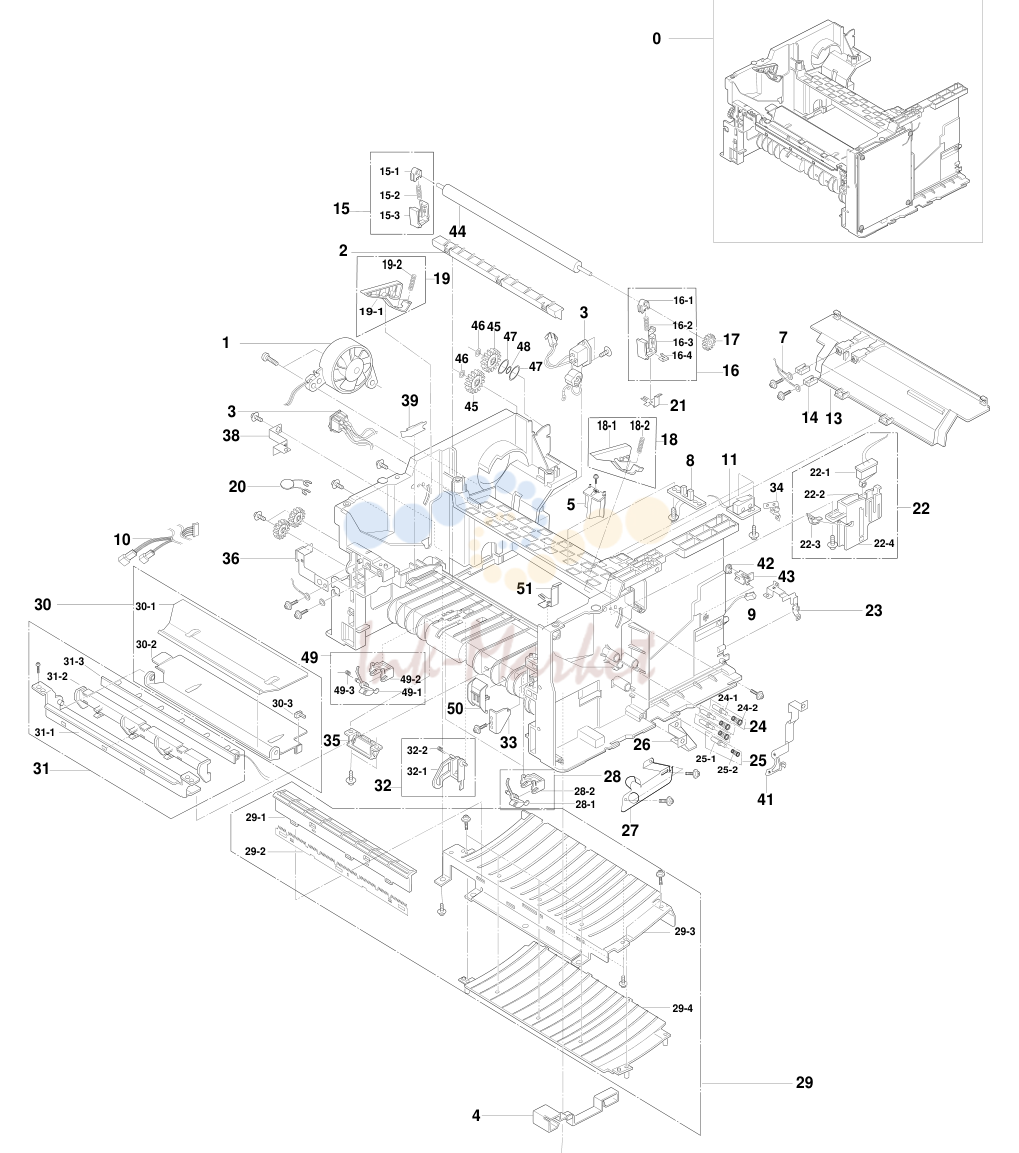

4. Exploded Views and Parts List

№	Артикул	Альт. артикул	Описание
0	JC96-01641M запросить цену →		ELAUNIT-FRAME BASE
1	JC31-00004A запросить цену →		FAN-DC-HAWK
2			PMO-GUIDE RIB * 1 X
3			CBF HARNESS-INLETASS’Y * 1 X
4			PMO-HOLDER WIRE * 1 X
5			KEYDEVE * 1 X
6			GEAR-EXIT/U ID * 1 X
7			CBF-HARNESS_FUSER * 1 X
8			PBASUB-EXITSENSOR * 1 X
9			CBF-HARNESS-THERMISTOR JOINT * 1 X
10			CBF-HARNESS-MP_CLUTCH ENG * 1 X
11	JC92-01261B запросить цену →		PBASUB-FUSER SW
13			PMO-FRAME COVER * 1 X
14			IPR-TERMINALFU * 2 X
15	JC96-01730A запросить цену →		ELA-UNIT-HOLDER TR L
15-1			PMO-BUSHING TR * 1 X
15-2			SPRING TR L * 1 X
15-3			PMO-TRANSFER HOLDER * 1 X
16	JC96-01729A запросить цену →		ELA-UNIT-HOLDER TR R
16-1			PMO-BUSHING TR * 1 X
16-2			SPRING TR R * 1 X
16-3			PMO-TRANSFER HOLDER * 1 X
16-4			IPR-PLATE TR * 1 X
17	JC66-00039A запросить цену →		GEAR-TR
18			ELAUNIT-GUIDE DEVE L * 1 X
18-1			PMO-GUIDE DEVE L * 1 X
18-2			SPRING GUIDE DEVE * 1 X
19			ELAUNIT-GUIDE DEVE R * 1 X
19-1			PMO-GUIDE DEVE R * 1 X
19-2			SPRING GUIDE DEVE * 1 X
20	JC96-01772A запросить цену →		ELAHOU-VARISTOR
21			IPR-TERMINALTR * 1 X
22			ELAUNIT-SENSOR DEVE * 1 X
22-1			PBASUB-SWITCH * 1 X
22-2			PMO-HOLDER ACTUATOR * 1 X
22-3			PMO-ACTUATOR DEVE * 1 X
23			GROUND FU * 1 X
24			ELAUNIT-TERMINALTR S * 3 X
24-1			ICT-SHAFTHV LARGE * 3 X
24-2			SPRING-HV LARGE * 3 X
25			ELAUNIT-TERMINALTR L * 1 X
25-1			ICT-SHAFTHV LARGE * 1 X
25-2			SPRING-HV SMALL * 1 X
26			GROUND-HVPS * 1 X
27	JC70-00139A запросить цену →		IPR-REMOVE KEY
28			ELAUNIT-ACTUATOR FEED * 1 X
28-1			PMO-ACTUATOR FEED * 1 X
28-2			PMO-HOLDER ACTUATOR * 1 X
29			ELAUNIT-GUIDE TRANSFER * 1 X
29-1			PMO-HADER SAW PLATE * 1 X
29-2			IPR-PLATE SAW * 1 X
29-3			IPR-GUIDE TRANSFER * 1 X
29-4			PMO-GUIDE RIB TR * 1 X
30	JC96-01653C запросить цену →		ELAUNIT-GUIDE FEED HAWK16
30-1			PMO-GUIDE OPTIC * 1 X
30-2			GUIDE FEED * 1 X
30-3			PMO-HOLDER G/PAPER * 1 X
31			ELAUNIT-PTL * 1 X
31-1			GUIDE PLATE FEED * 1 X
31-2			PMO-HOLDER PTL * 1 X
31-3			PBASUB-PTL * 1 X
32			ELAUNIT-EMPTYACT * 1 X
32-1			PMO-ACTUATOR EMPTYHAWK * 1 X
32-2			SPRING EMPTY * 1 X
33	JC72-00321A запросить цену →		PMO-HINGE GUIDE FEED
34	JC70-00150A запросить цену →		IPR-GND ICU
35			PMO-CAPSENSOR * 1 X
36			GND MP * 1 X
37	JC66-40219A запросить цену →		GEAR P/UPDRV
38			GROUND MOTOR * 1 X
39			IPR-GUIDE DUST * 1 X
41			IPR-OPC-HAWK * 1 X
42			CAPCONNECTOR L * 1 X
43			CAPCONNECTOR U * 1 X
44	JC75-10963B запросить цену →		MEC-ROLLER TRANSFER
45			GEAR IDLE Z27 * 1 X
46			RING-CS * 2 X
47			WASHER-PLAIN * 2 X
48			IPR-WASHER SPRING SU * 1 X
49			ELAUNIT-ACTUATOR FEED HAWK14 * 1 X
49-1			PMO-ACTUATOR FEED * 1 X
49-2			PMO-HOLDER ACTUATOR * 1 X
49-3			SPRING ETC-FEED HAWK14 * 1 X
50			PMO-GUIDE_SKEW(12) * 1 X
51			IPR-TERMINALTR HAWK * 1 X
5-8			Samsung Electronics

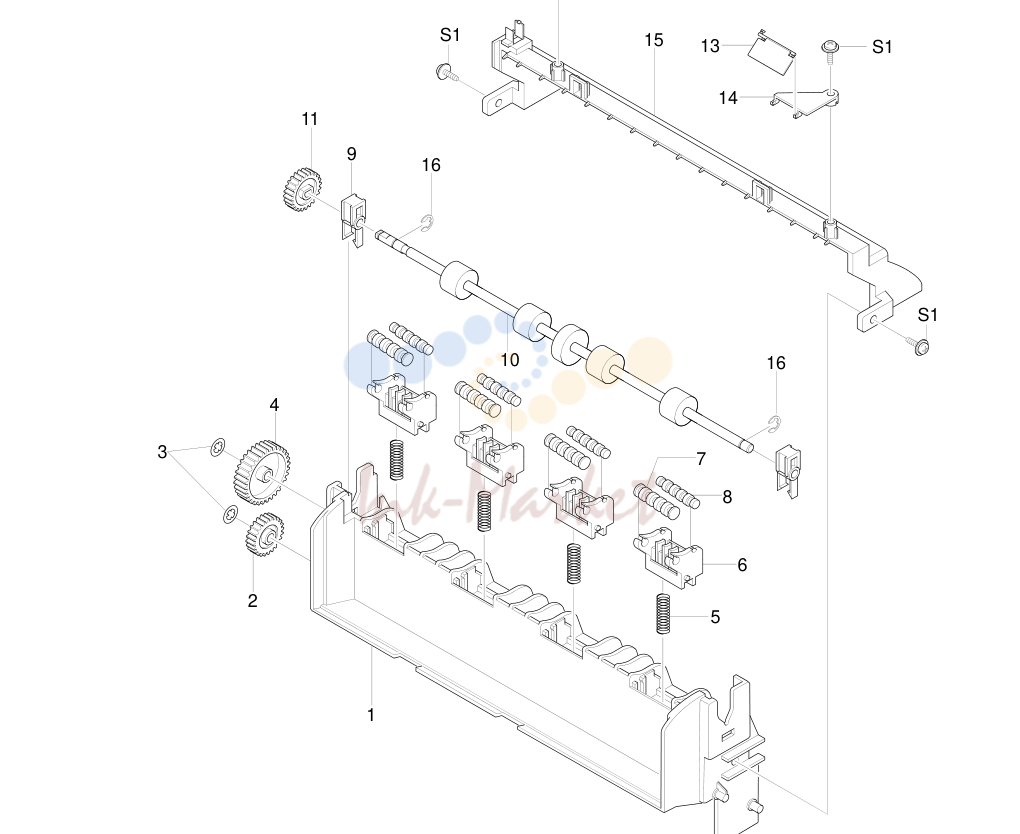

5. Exploded Views and Parts List

№	Артикул	Альт. артикул	Описание
0	JC97-01338L запросить цену →		MEARACK-HOU EXIT
1			PMO-FRAME REAR * 1 X
2			GEAR-EXIT/U, ID * 1 X
3			RING-CS * 2 X
4			GEAR-IDLE 25 * 1 X
5			SPRING-F/DOWN * 4 X
6			PMO-HOLDER EXIT_F/DOWN * 4 X
7			PMO-ROLLER-EXIT, MAIN * 4 X
8			PMO-ROLLER-EXIT, FR * 4 X
9			MEC-BEARING, EXITRING-C * 2 X
10			MEAUNIT-ROLLEXIT * 1 X
11			GEAR-EXIT * 1 X
12			MEC-BEARING, EXITRING-C * 2 X
13			HOLDER LEVER * 2 X
14			LEVER STACKING * 2 X
15			GUIDE EXIT * 1 X
16			RING-C * 2 X
5-10			Samsung Electronics

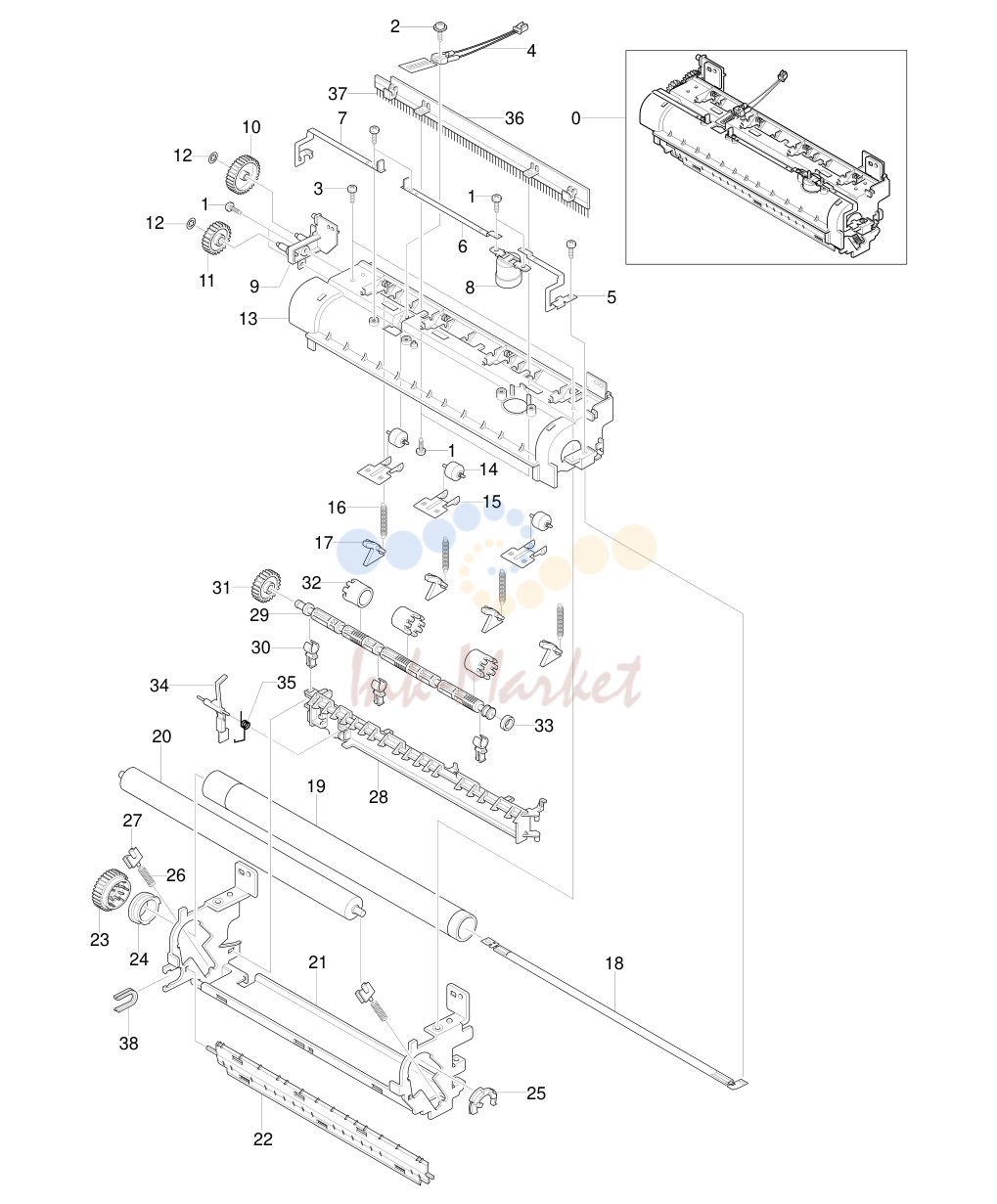

6. Exploded Views and Parts List

№	Артикул	Альт. артикул	Описание
0	JC81-00395B запросить цену →		AS-FUSER ASSY
1			SCREW TAPTITE M3 x 8, BH+ * 10 X
2			SCREW TAPTITE M3 x 10, FH+ * 1 X
3			SCREW MACHINE M3 x 6 * 2 X
4	JC14-00001A запросить цену →		THERMISTOR-FUSER
5			ELECTRODE FU R * 1 X
6			ELECTRODE FU M * 1 X
7			ELECTRODE FU L * 1 X
8			THERMOSTAT * 1 X
9			BRKTGEAR FUSER * 1 X
10			GEAR-IDLE 25 * 1 X
11			GEAR-IDLE 15 * 1 X
12			RING-CS * 2 X
13			COVER FUSER * 1 X
14			ROLLER EXIT_F/UP * 3 X
15			EXIT_F/UP(SPRING) * 3 X
16			SPRING-CLAW * 4 X
17			GUIDE-CLAW * 4 X
18	4713-001135 запросить цену →		LAMP-HALOGEN
19	JC71-20901A запросить цену →		NEX-ROLLER-HEAT
20	JC75-00114A запросить цену →		MEC-ROLLER PRESSURE
21			FRAME FUSER * 1 X
22			PMO-GUIDE INPUT * 1 x
23			GEAR FUSER, Z32 * 1 X
24			BUSHING HR-L * 1 X
25			BUSHING HR-R * 1 X
26			SPRING-BEARING PR * 2 X
27			BUSHING PR * 2 X
28			GUIDE REAR * 1 X
29			SHAFTEXIT_F/UP * 1 X
30			BUSHING_TX * 3 X
31			GEAR-EXIT * 1 X
32			RUBBER EXIT * 3 X
33			RUBBER EXITF/UP * 1 X
34			ACTUATOR EXIT * 1 X
35			SPRING-ACTUATOR * 1 X
36			HOLDER BRUSH * 1 X
37			BRUSH ANTISTATIC * 1 X
38			HOLDER SHAFT * 1 X
5-12			Samsung Electronics

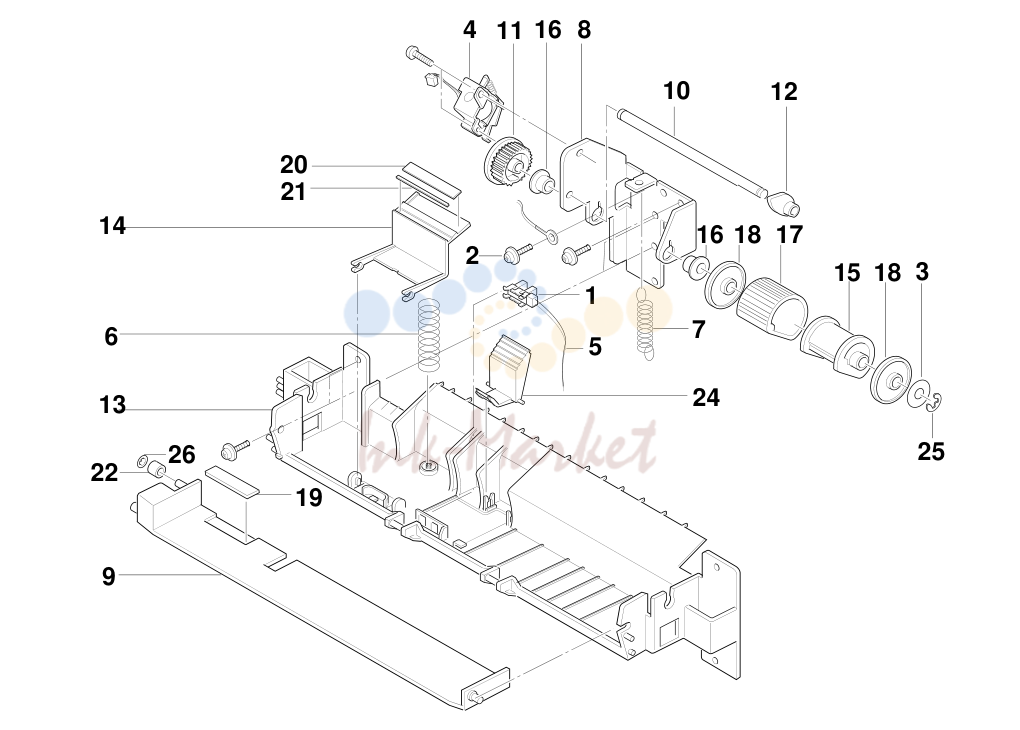

7. Exploded Views and Parts List

№	Артикул	Альт. артикул	Описание
0	JC96-01650B запросить цену →		ELAHOU-MPF
1	0604-001095 запросить цену →		PHOTO-INTERRUPTER
2			SCREW-TAPTITE * 2 X
3			WASHER-PLAIN * 1 X
4			SOLENOID * 1 X
5			CBF-HARNESS-MP_EMPTY * 1 X
6			SPRING KNOCK UP * 1 X
7			SPRING-PICK UP, MP * 1 X
8			BRACKET_MP * 1 X
9			PMO-PLTKNOCK_UP, MP * 1 X
10			ICT-SHAFT_P/U, MP * 1 X
11			PMO-GEAR P/U MP * 1 X
12			PMO-CAM PICK UPMP * 1 X
13			PMO-FRAME_MP * 1 X
14			PMO-HOLDER_P/U,MP * 1 X
15			PMO-HOUSING_P/U, MP * 1 X
16			PMO-BEARING-PICK UP * 2 X
17			RMO-RUBBER_P/U, MP * 1 X
18			PMO-IDLE PICK UP, MP * 2 X
19			RPR-PAD KNOCKUP, MP * 1 X
20			RCR-FRICTION PAD 1 MP * 1 X
21			RCR-FRICTION PAD 2 MP * 1 X
22			PMO-RING KNOCK UPMP * 1 X
23			SCREW TAPTITE * 2 X
24			PMO-ADJUSTEND MP * 1 X
25			RING-E * 1 X
26			RING-CS * 1 X
5-14			Samsung Electronics

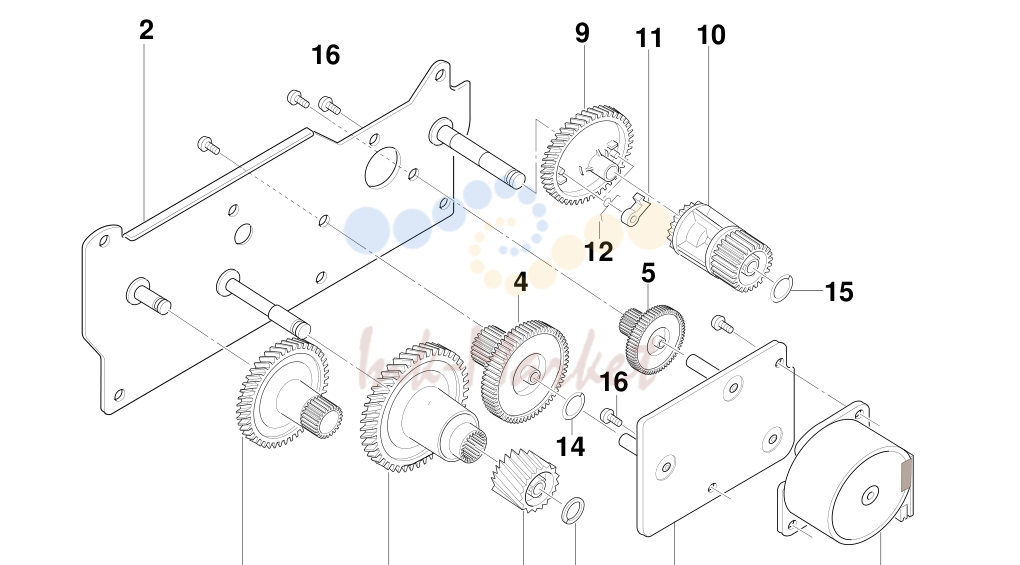

8. Exploded Views and Parts List

№	Артикул	Альт. артикул	Описание
0	JC96-02058A запросить цену →		ELAUNIT-MOTOR
1	JC31-00010A запросить цену →		MOTOR-STEP
2			IPR-BRKTGEAR * 1 X
3			IPR-BRKTMOTOR * 1 X
4			GEAR-RDCN 145-70 * 1 X
5			GEAR-RDCN 90-24 * 1 X
6			GEAR-OPC DRV 135 * 1 X
7			GEAR-OPC DRIVE2 * 1 X
8			GEAR-FEED DRV * 1 X
9			GEAR-CLUTCH 56 * 1 X
10			GEAR-FUSER DRV23 * 1 X
11			PMO-CLUTCH LEVER * 2 X
12			SPRING-CLUTCH * 2 X
13			WASHER-PLAIN * 1 X
14			MPR-POLYWASHER 8 * 1 X
15			WASHER-PLAIN * 1 X
16			SCREW-MACHINE * 5 X
5-16			Samsung Electronics

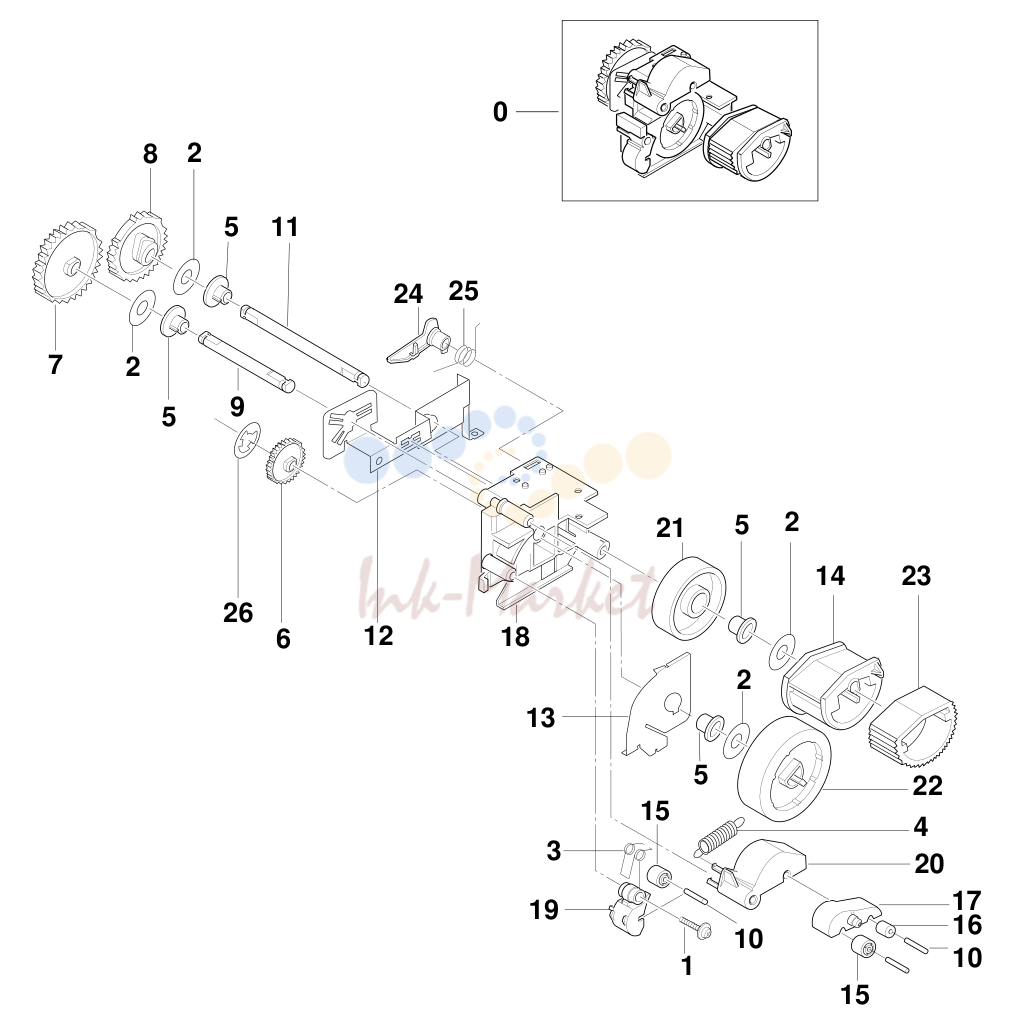

9. Exploded Views and Parts List

№	Артикул	Альт. артикул	Описание
0	JC97-01324A запросить цену →		MEAUNIT-FEEDER
1			SCREW-TAPTITE * 1 X
2			WASHER-PLAIN * 4 X
3			SPRING-FEED(1) * 1 X
4			SPRING-FEED(2) * 1 X
5			BEARING-PICK UP * 4 X
6			GEAR-P/UPDRIVE * 1 X
7			GEAR-FEED * 1 X
8			GEAR-PICK UP(12) * 1 X
9			IPR-SHAFTFEED * 1 X
10			IPR-SHAFTFEED IDLER * 3 X
11			IPR-SHAFTPICK UP * 1 X
12			GROUND_FEED * 1 X
13			IPR-GUIDE_FEED * 1 X
14			PMO-HOUSING P/UP * 1 X
15			PMO-ROLLER FEED L * 2 X
16			PMO-ROLLER FEED S * 1 X
17			PMO-SUB HOLDER FEED * 1 X
18			PMO-FRAME_FEED * 1 X
19			PMO-HOLDER FEED(1) * 1 X
20			PMO-HOLDER FEED(2) * 1 X
21			PMO-IDLE PICK_UP * 1 X
22			PMO-ROLL_FEED, DRV 12 * 1 X
23			RMO-RUBBER PICK_UP * 1 X
24			RMO-LEVER PICK_UP * 1 X
25			SPRING PICK UP(12) * 1 X
26			RING-CS * 1 X
5-18			Samsung Electronics

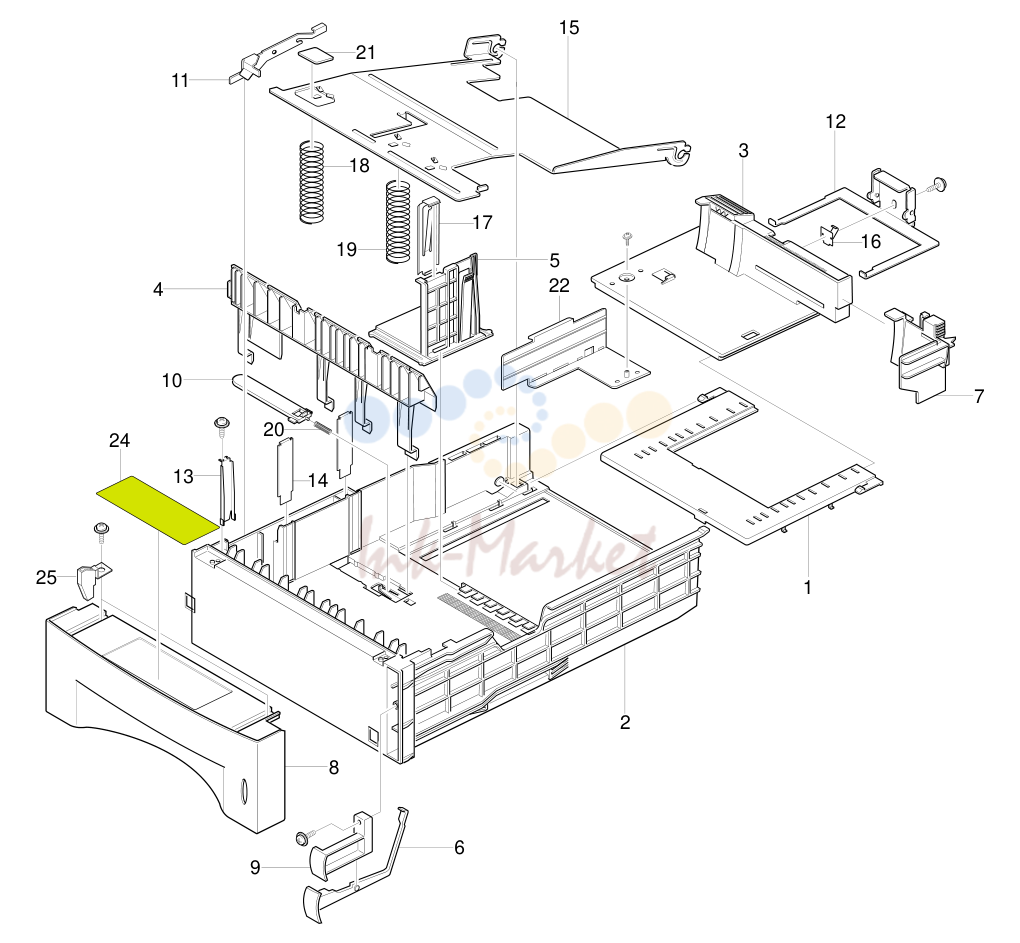

10. Exploded Views and Parts List

№	Артикул	Альт. артикул	Описание
0	JC97-01323D запросить цену →		MEAUNITFEEDER CST(500)
1			PMO-COVER GUIDE EXT * 1 X
2			PMO-FRAME CASSETTE * 1 X
3			PMO-GUIDE EXTCST * 1 X
4			PMO-GUIDE PAPER * 1 X
5			PMO-GUIDE SIDE CST * 1 X
6			PMO-INDICATOR EMPTY * 1 X
7			PMO-SIDE GUIDE EXT * 1 X
8			PMO-SUB GUIDE CAST * 1 X
9			PMO-HOLDER_INDICATOR * 1 X
10			PMO-LOCKER PLATE * 1 X
11			IPR-FINGER * 1 X
12			IPR-GUIDE EXTLOCK * 1 X
13			IPR-GUIDE PAPER SCF * 1 X
14			IPR-GUIDE PLTPAPER * 2 X
15			IPR-PLATE KNOCK UP * 1 X
16			IPR-PLATE SPR LOCK * 1 X
17			IPR-SPR PLTG/SIDE * 1 X
18			SPRING PLATE K/UP1 * 1 X
19			SPRING PLATE K/UP2 * 1 X
20			SPRING LOCKER,PLATE * 1 X
21			RPR-PAD CST * 1 X
22			PMO GUIDE PAPER SIZE * 1 X
23			SCREW TAPTITE M3 x 10 NI * 7 X
24			LABEL(R)-CASSETTE * 1 X
25			GUIDE PAPER DUMMY * 1 X
5-20			Samsung Electronics
