Samsung CLP500 Phaser6100 — каталог запчастей со схемами

Содержание

• 1. Exploded View & Parts List
• 2. Exploded View & Parts List
• 3. Exploded View & Parts List
• 4. Exploded View & Parts List
• 5. Exploded View & Parts List
• 6. Exploded View & Parts List
• 7. Exploded View & Parts List
• 8. Exploded View & Parts List
• 9. Exploded View & Parts List
• 10. Exploded View & Parts List

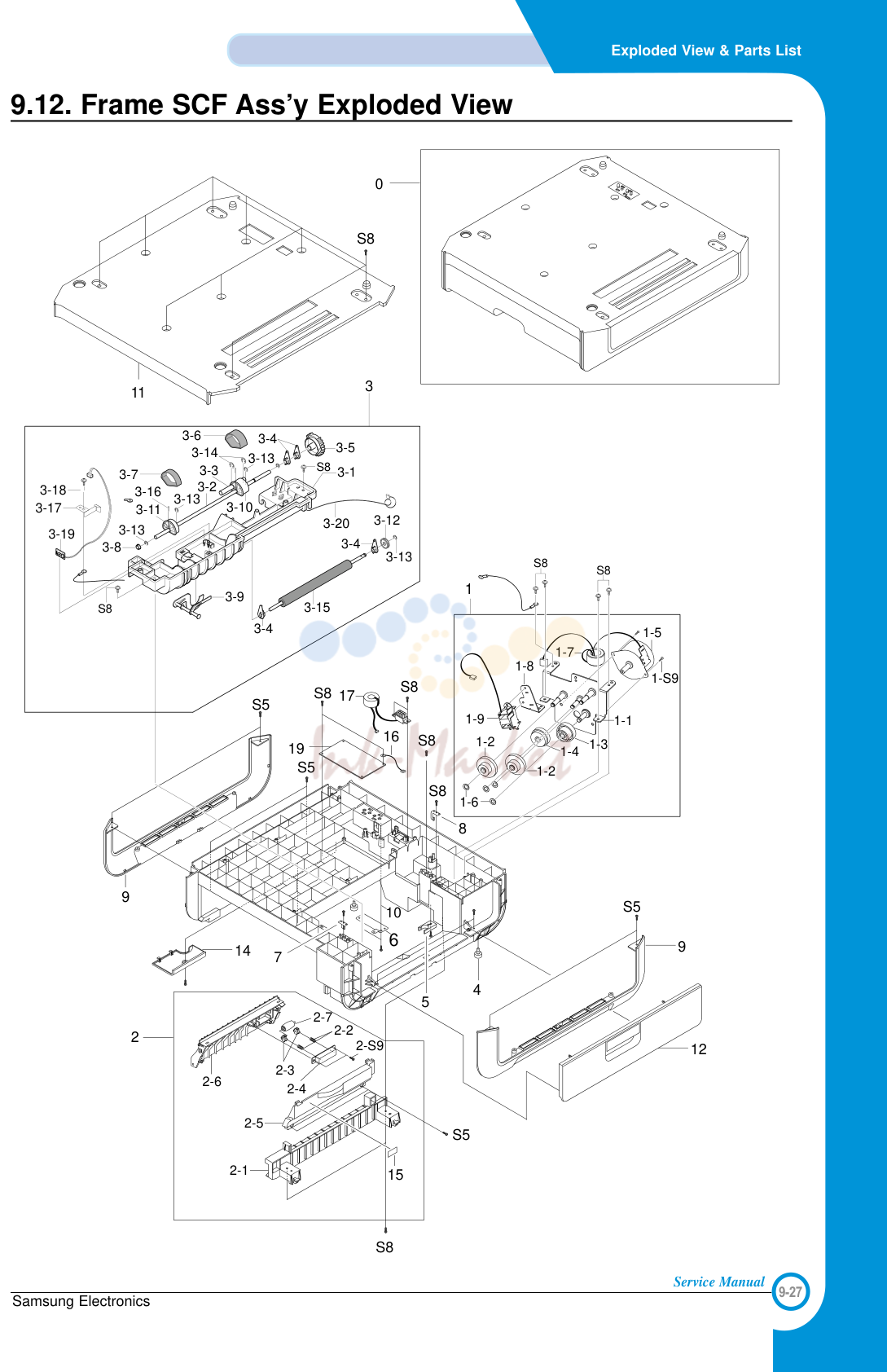

• 11. Exploded View & Parts List
• 12. Exploded View & Parts List

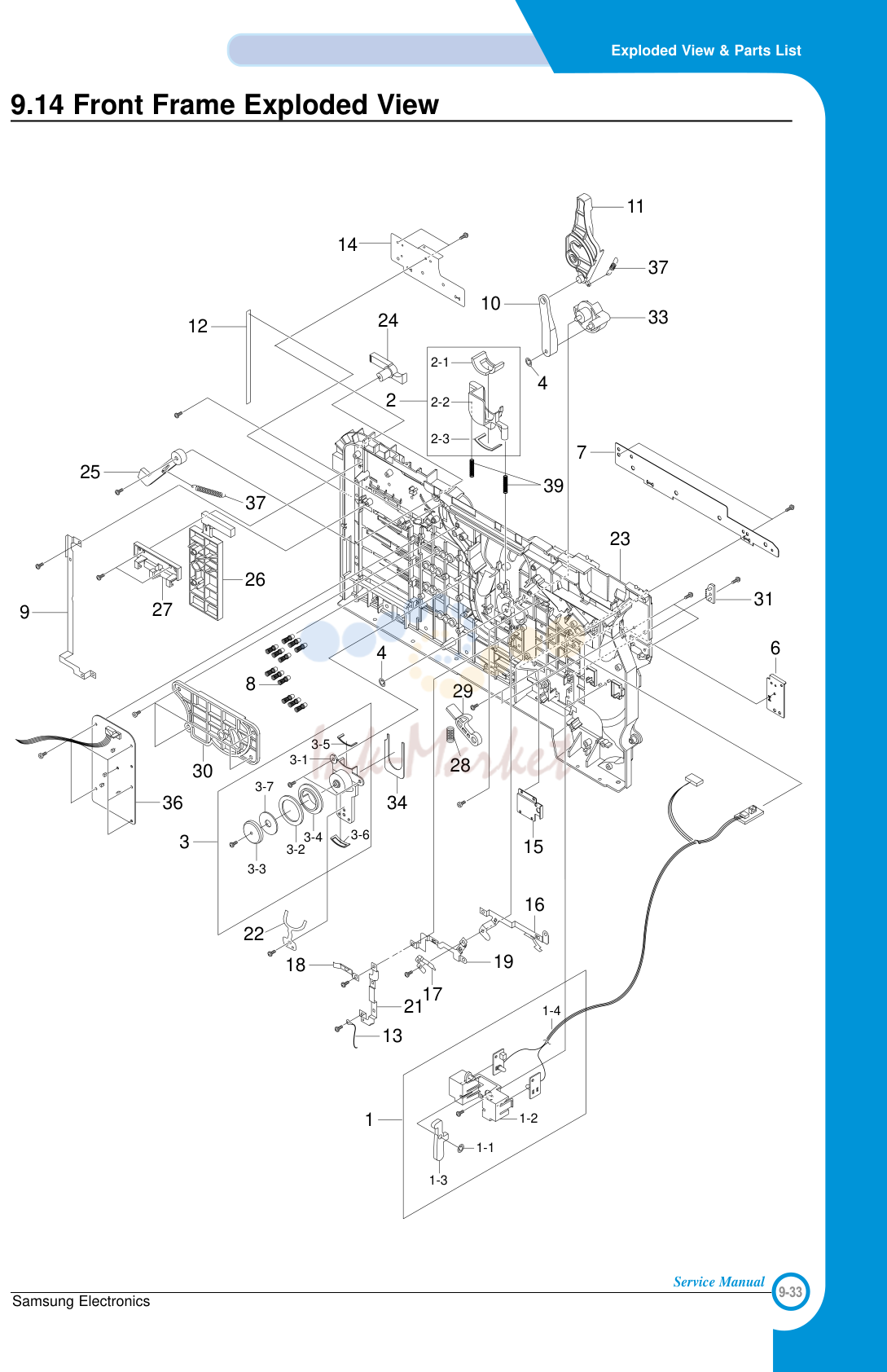

• 13. Exploded View & Parts List

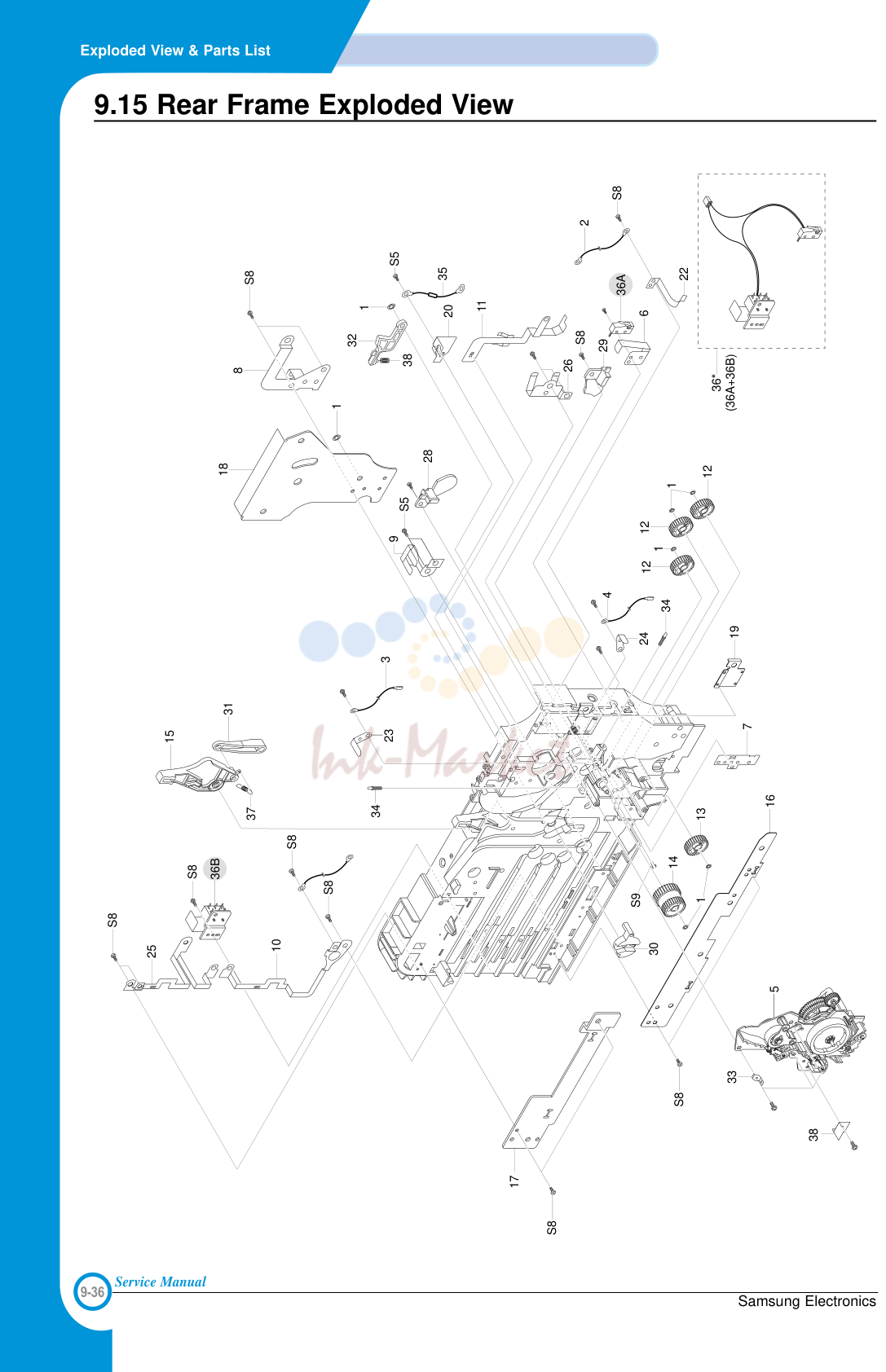

• 14. Exploded View & Parts List
• 15. Exploded View & Parts List

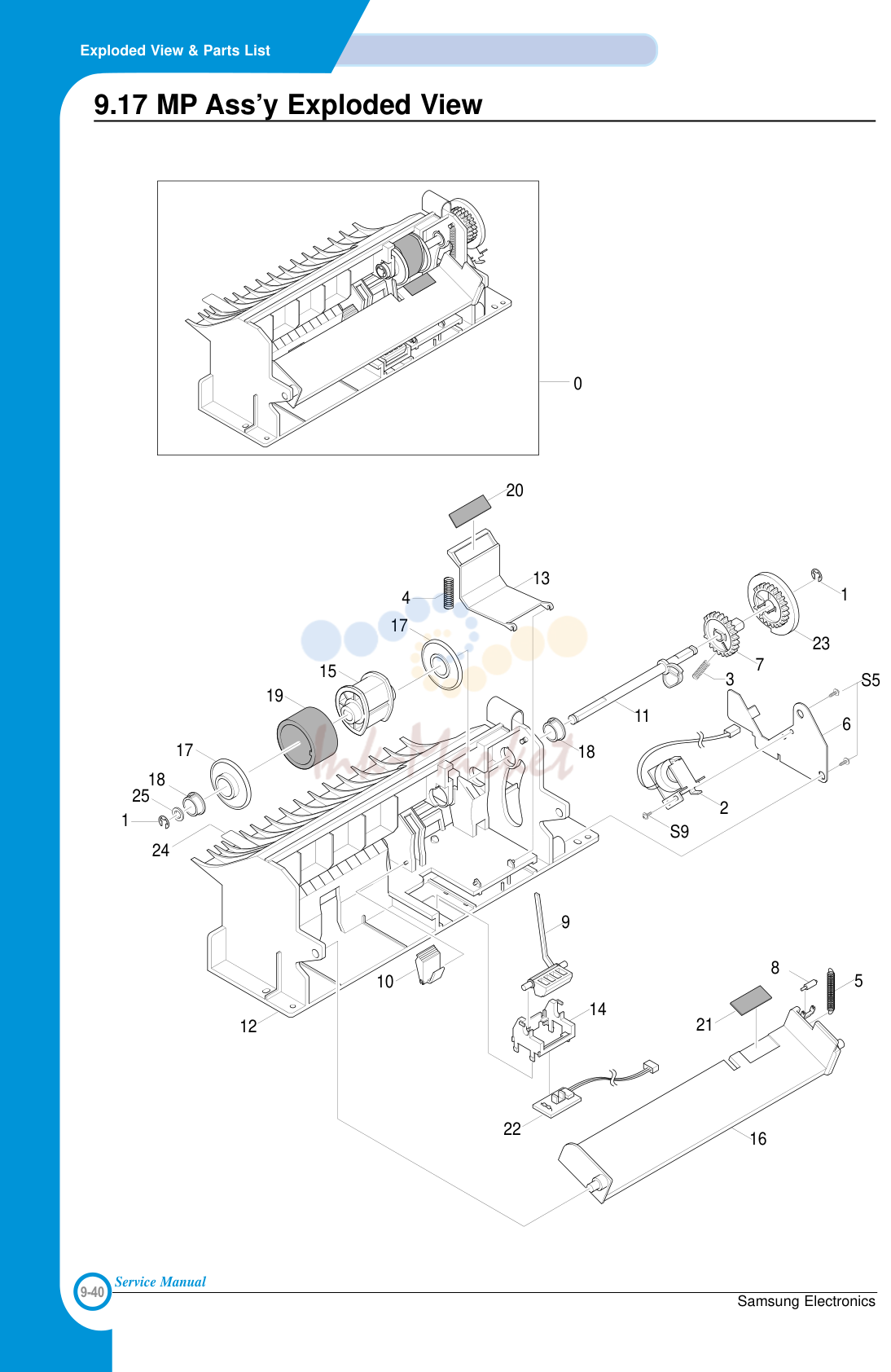

• 16. Exploded View & Parts List
• 17. Exploded View & Parts List

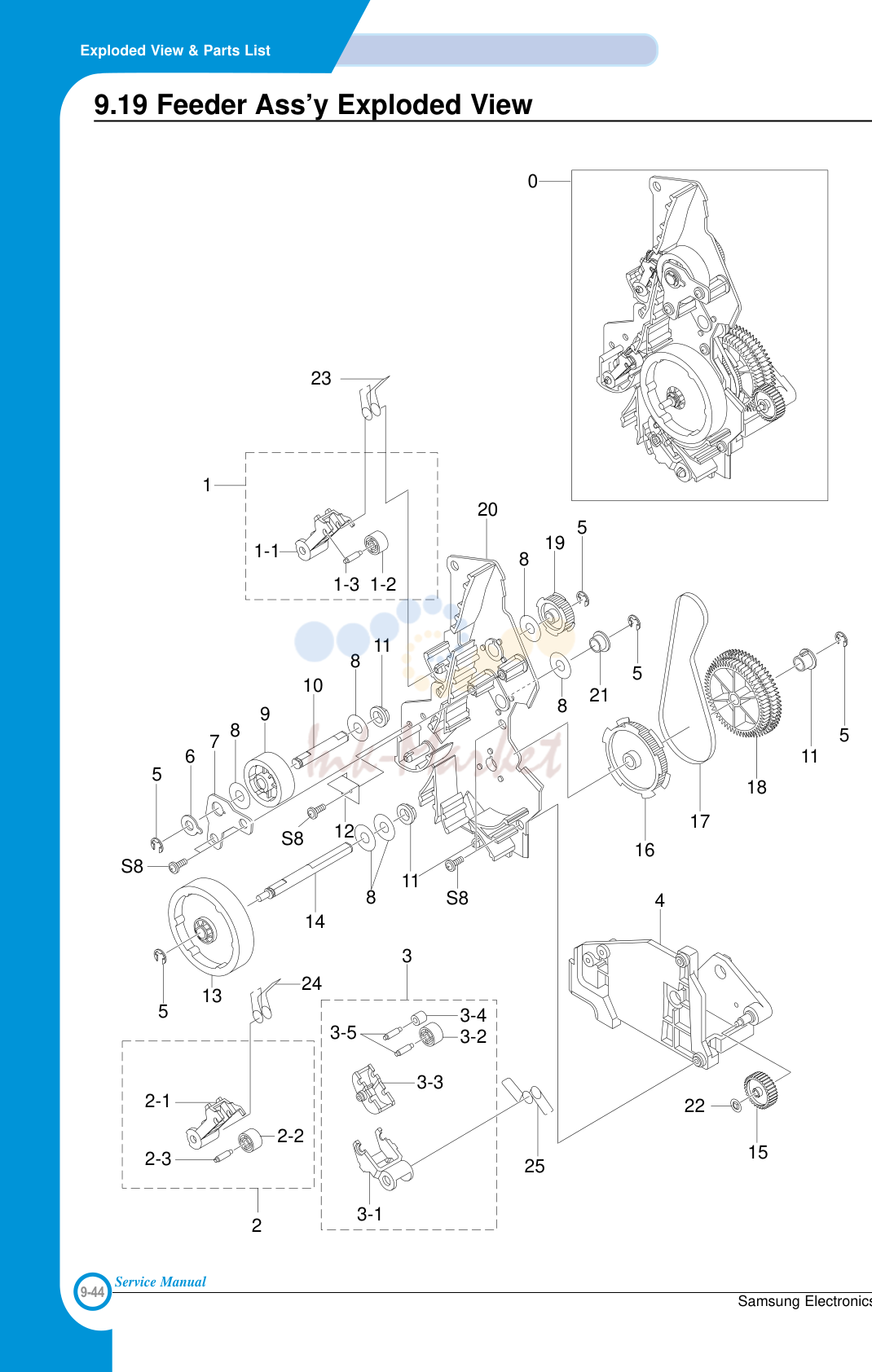

• 18. Exploded View & Parts List
• 19. Exploded View & Parts List

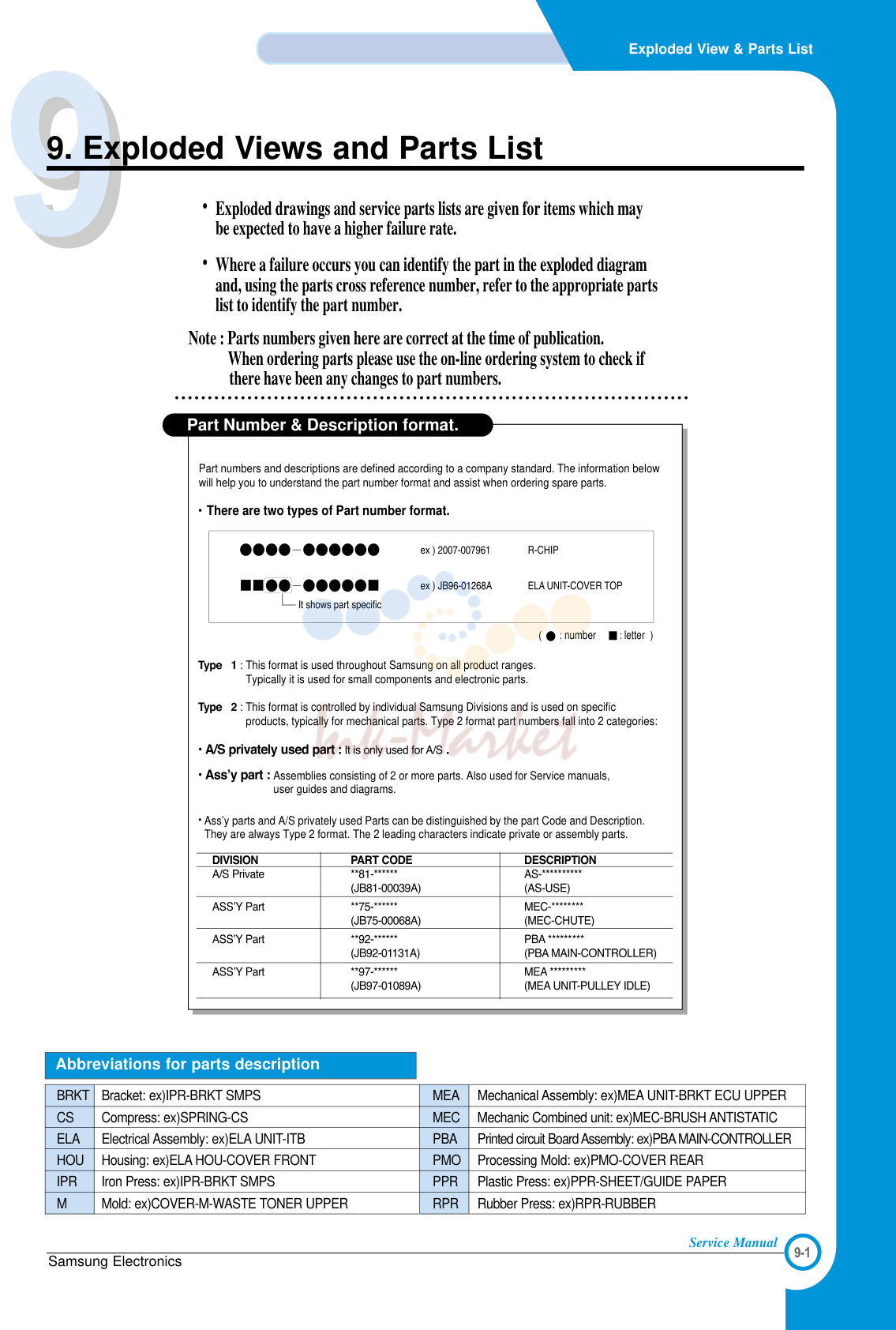

1. Exploded View & Parts List

№	Артикул	Альт. артикул	Описание
0			SET CLP-510
1			ELAUNIT-ITB JC96-03189A 1 X USER CHANGE
2			ELAUNIT-OPC JC96-03190A 1 X USER CHANGE
3			ELAUNIT-DEVE BLACK * 1 X USER CHANGE
4			ELAUNIT-DEVE CYAN * 1 X USER CHANGE
5			ELAUNIT-DEVE MAGENTA * 1 X USER CHANGE
6			ELAUNIT-DEVE YELLOW * 1 X USER CHANGE
7			ELAUNIT-MAIN DRIVE JC96-03236A 1 O
8			ELAUNIT-DEVE DRIVE JC96-03237A 1 O
9			ELAUNIT-FUSER 230V JC96-03239A 1 O 230V
10			PBAMAIN-CONT-BB-PLUS JC92-01630C 1 O CLP-510/CLP-510N
11			MEAMAIN-FRAME JC97-02037A 1 O
12			MEA-EXIT JC97-02039A 1 O
13			MEA-DUPLEX JC97-02041A 1 O
13-1	ELAUNIT-T2 запросить цену →		ROLLER JC96-03238A 1 O
14			MEA-CASSETTE JC97-01753A 1 O
15			ELAHOU-COVER FRONT JC96-03235A 1 O
16			MEAHOU-COVER REAR JC97-01764E 1 O CLP-510
16-1			PMO-COVER REAR JC72-01201A 1 O
16-2			PMO-COVER REAR DECO JC72-01202E 1 X
16-3			PMO-COVER OPEN BOARD JC72-01203A 1 X
16-4			LABEL(P)-REAR JC68-01176A 1 X
17			MEAHOU-COVER TOP JC97-01765A 1 O
18			MEAHOU-COVER DEVE JC97-01766A 1 O
19-1			IPR-BRKTSMPS JC70-00415A 1 O
19-2			SHEET-SMPS JC63-00236A 1 O
20			HVPS-BB_PLUS JC44-00075A 1 O
21			UNIT-LSU-BB_PLUS JC59-00020C 1 O
22			WASHER-PLAIN 6031-001255 2 O
23			RING-E 6044-000125 2 X
24			IPR BRKTGUIDE ECUC JC70-00382A 1 X
25			CBF HARNESS-LIU GND JB39-00103A 1 O
26			ICT-PIN ADF JB70-00168A 1 X
28			CBF HARNESS-MAIN LSU JC39-00271A 1 O
29			CBF HARNESS-MAIN_PANEL JC39-00398A 1 O
30			CBF HARNESS-DEVE_MOTOR JC39-00299A 1 O
31			CBF HARNESS-MAIN_MOTOR JC39-00293A 1 O
32			CBF HARNESS-MAIN_SMPS JC39-00296A 1 O
33			MEP-CLUTCH CAM SOLENOID JC47-00007A 1 O
34			BUSH-8/5 JC61-00426A 1 O
35			SHEET-VOINDOLO LCD JC63-00548A 1 O
36			SHEET-HVPS JC63-00234A 1 O
37			COVER-M-SMPS JC63-00549A 1 O
38			GEAR-OPC DRIVE 2_Z40 JC66-00478A 1 O
39	CAM-T2 запросить цену →		ENGAGE JC66-00512A 1 X
40			SHAFT-COVER EXITHINGE JC66-00616A 2 O
41			IPR-BRKTGUIDE ECU C JC70-00382A 1 X
42			BRACKET-P-ECU LOWER JC61-00978A 1 X
43			MEAUNIT-BRKTECU UPPER JC97-01760A 1 O
43-1			IPR-BRKTECU UPPER JC70-00410A 1 X
43-2			IPR-BRKTECU OPTION JC70-00411A 1 X
44			ELAUNIT-SCF BBP * 1 X OPTION
45			PMO-COVER SENSOR BASE JC72-01147A 1 X
48			CABLE CLAMP 6502-001093 1 X
49			MEAUNIT-LSU CLEANER JC97-01838A 1 O
49-1			SHUTTER-LSU CLEANER JC64-00093A 1 X
49-2			SHAFT-LSU CLEANER JC66-00673A 1 X
49-3			RING-E 6044-000121 2 O
49-4			PLATE-LINK REAR JC61-00843A 1 X
49-5			PLATE-LINK FRONT JC61-00844A 1 X
51			PMO-DEVE OPEN LINK GUIDE JC72-01176A 1 X
52			COVER-M-LSU JC63-00308A 1 O
56			MEAUNIT-DUCTFUSER JC97-01949A 1 O
56-1			PMO-DUCTFUSER LOWER JC72-01150A 1 X
56-2			PMO-DUCTFUSER UPPER JC72-01151A 1 X
56-3			FAN-DC JC31-00025A 1 O
57			MEAUNIT-WASTE TONER TANK JC97-01821A 1 O
57-1			COVER-M-WASTE TONER UPPER JC63-00271A 1 O
57-2			COVER-M-WASTE TONER LOWER JC63-00272A 1 O
57-3			CAP-TONER OPC JC67-00044A 2 X
58	ELAHOU-NPC3-PRT запросить цену →	JC96-03309A	1 O CLP-510N

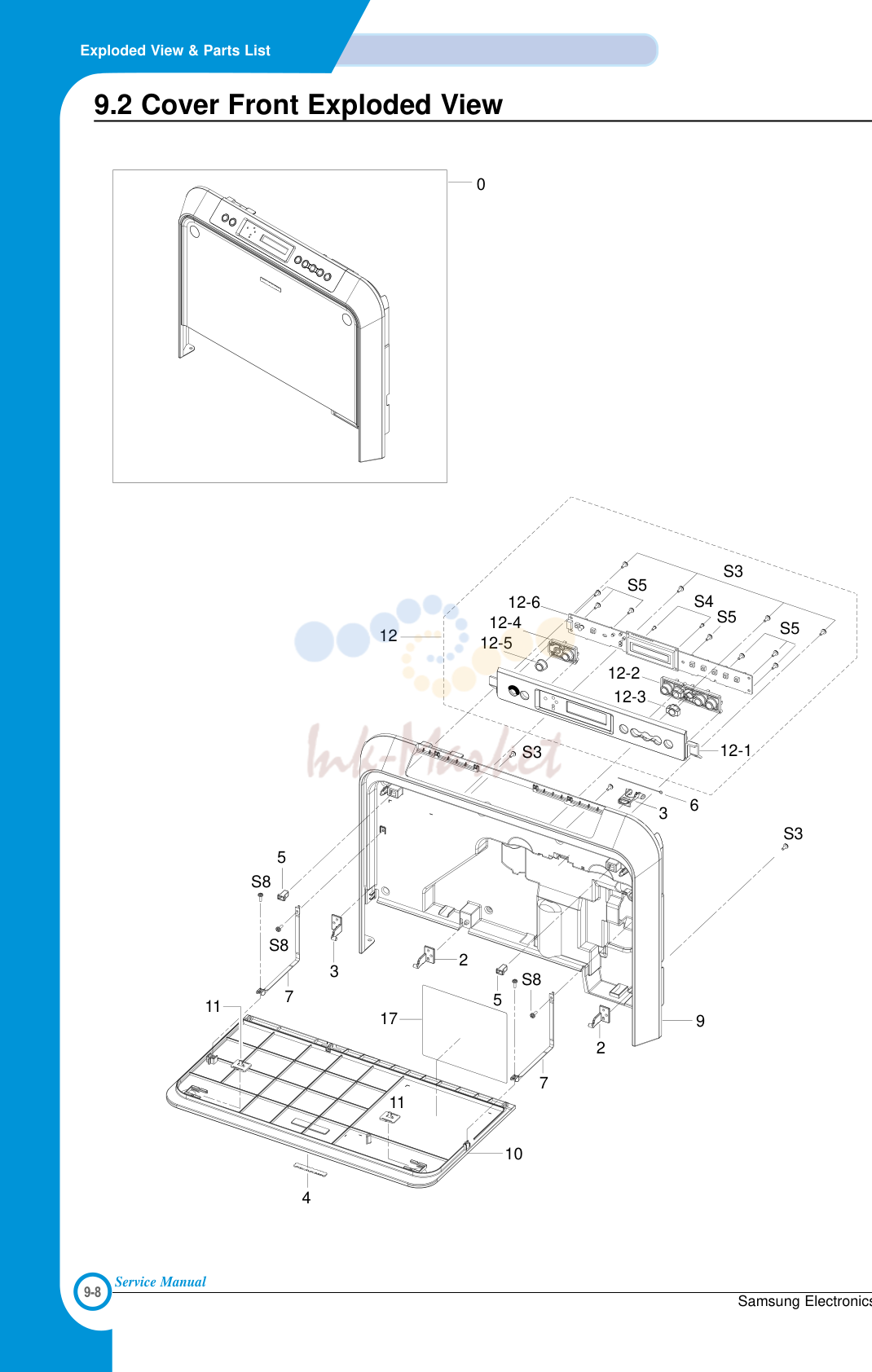

2. Exploded View & Parts List

№	Артикул	Альт. артикул	Описание
0			ELAHOU-COVER FRONT JC96-03235A 1 O
1			COVER-FRONTHINGE F JC63-00179A 1 O
2			COVER-FRONTHINGE R JC63-00180A 2 O
3			LOCKER-M-WASTER TANK JC64-00080A 1 O
4			BADGE-BRAND JC64-00081A 1 X
5			LOCKER-LATCH PUSH JB64-00007A 2 O
6			LOCKER-TANK PIN JC64-00087A 1 O
7			PMO-TIE STOPPER JC72-00766A 2 O
9			COVER-M-FRONTINNER JC63-00546A 1 O
10			PMO-COVER FRONTOPEN JC72-01194A 1 X
11			PMO-COVER FRONTPUSH JC72-01195A 2 O
12			ELAUNIT-OPE PANEL JC96-03242A 1 O
12-1			COVER-M-OPE PANEL JC63-00547A 1 O
12-2			PMO-OPE KEY1 JC72-01197B 1 X
12-3			PMO-OPE KEY1 CAP JC72-01198B 1 X
12-4			PMO-OPE KEY2 JC72-01199B 1 X
12-5			PMO-OPE KEY2 CAP JC72-01200A 1 X
12-6			PBAMAIN-CONT_BB_PLUS JC92-01633A 1 X
17			LABEL(P)-FRONTINNER JC68-01175A 1 X

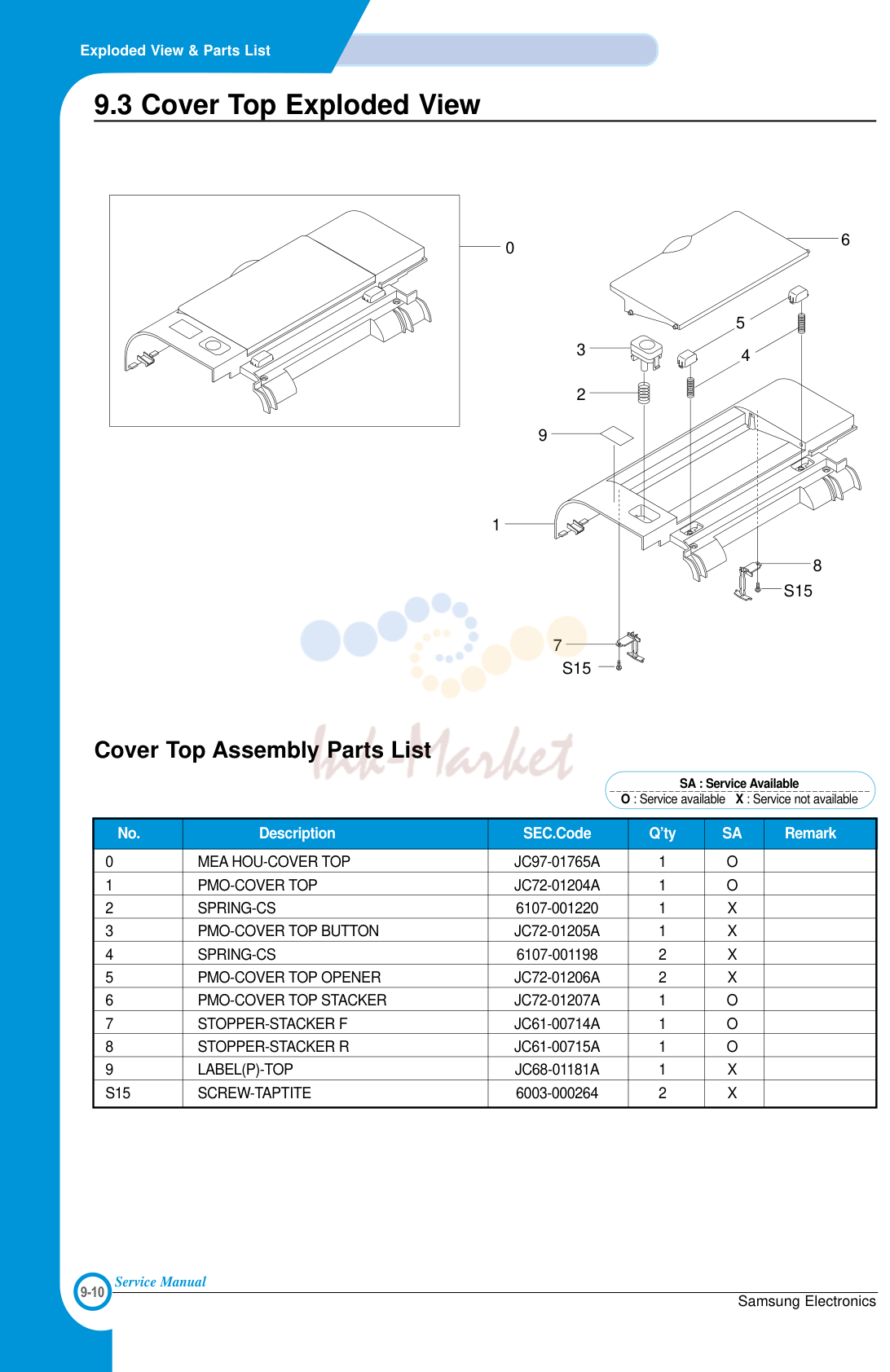

3. Exploded View & Parts List

№	Артикул	Альт. артикул	Описание
0			MEAHOU-COVER TOP JC97-01765A 1 O
1			PMO-COVER TOP JC72-01204A 1 O
2			SPRING-CS 6107-001220 1 X
3			PMO-COVER TOPBUTTON JC72-01205A 1 X
4			SPRING-CS 6107-001198 2 X
5			PMO-COVER TOPOPENER JC72-01206A 2 X
6			PMO-COVER TOPSTACKER JC72-01207A 1 O
7			STOPPER-STACKER F JC61-00714A 1 O
8			STOPPER-STACKER R JC61-00715A 1 O
9			LABEL(P)-TOP JC68-01181A 1 X
0			MEAHOU-COVER DEVE JC97-01766A 1 O
1			SPRING-TS 6107-001206 1 X
2			IPR-COVER DEV LOCK BAR JC70-00436A 1 X
3			LABEL(P)-DEVE COVER JC68-01180A 1 X
4			PMO-COVER DUPLOCKER F JC72-01081A 1 X
5			PMO-COVER DUPLOCKER R JC72-01082A 1 X
6			PMO-COVER DEVE JC72-01213A 1 O
7			PMO-COVER DEVE INNER JC72-01214A 1 O
8			PMO-COVER DEV SPRING CAP JC72-01215A 8 O
9			ARM-COVER DEVE HINGE JC66-00563A 1 X
10			PMO-COVER DUPLEX HANDLE JC72-01079A 1 X
11			SPRING-CS 6107-001198 8 X
12			PMO-DEVE OPEN LINK JC72-01175A 1 X

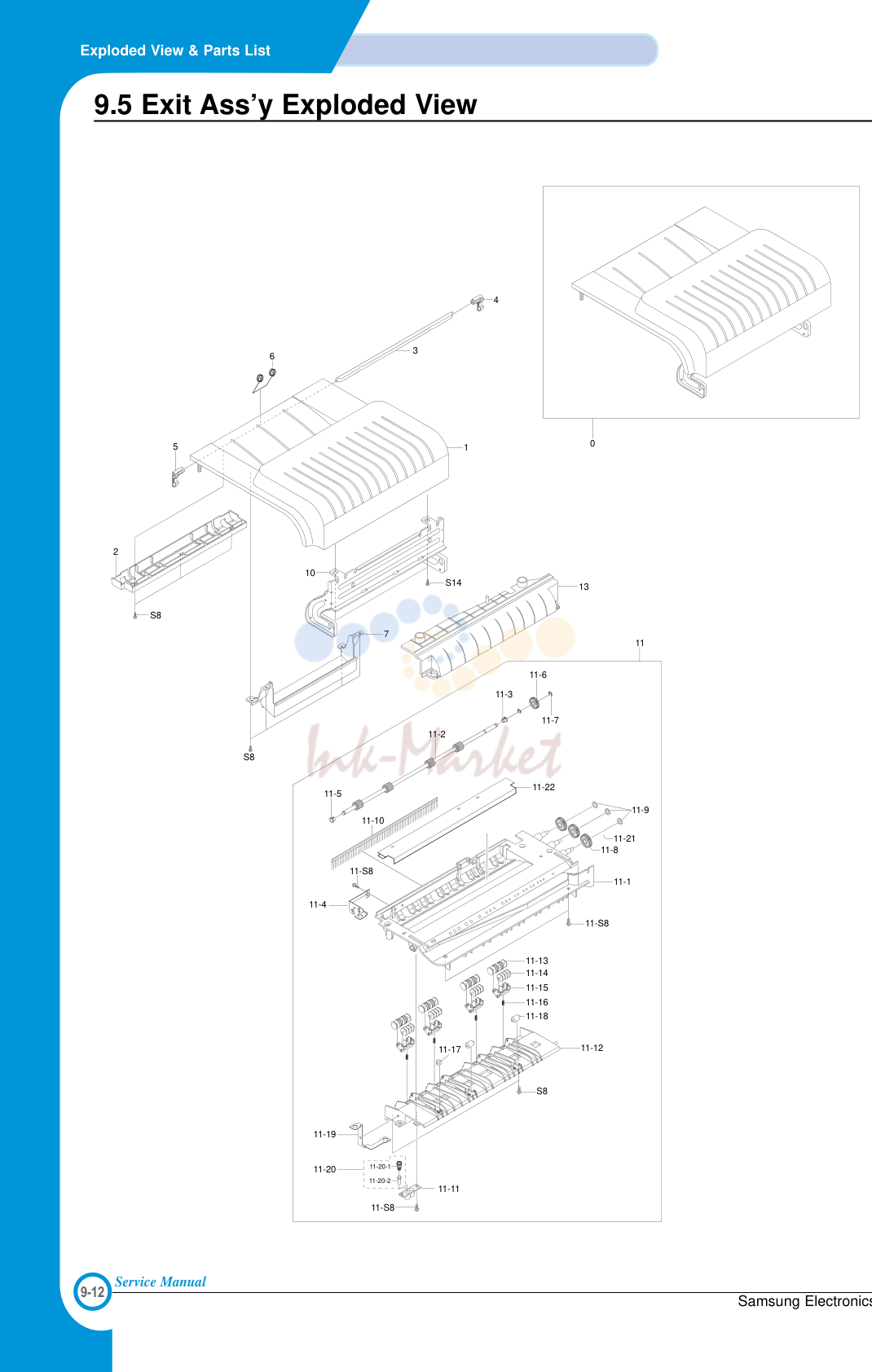

4. Exploded View & Parts List

№	Артикул	Альт. артикул	Описание
0			MEA-EXIT JC97-02039A 1 O
1			PMO-COVER EXIT JC72-01099A 1 O
2			PMO-C/EXITLOCK COVER JC72-01217A 1 O
3			IPR-COVER EXITBAR JC70-00440A 1 X
4			PMO-COVER DUPLOCKER F JC72-01081A 1 X
5			PMO-COVER DUPLOCKER R JC72-01082A 1 X
6			SPRING-TS 6107-001223 1 O LOCKER
7			PMO-COVER EXITGUIDE JC72-01098A 1 X
10			IPR-COVER EXITHINGE JC70-00372A 1 X
11			MEAUNIT-EXITFRAME JC97-02040A 1 X
11-1			PMO-GUIDE EXITUPPER JC72-01103A 1 X
11-2			ROLLER-EXITDRIVE JC66-00607B 1 O
11-3			PMO-BUSHING DP JC72-01345A 1 X
11-4			IPR-GROUND EXIT JC70-00374A 1 X
11-5			PMO-BEARING LARGE DP JC72-40978A 1 O
11-6			GEAR-DUPLEX JC66-40912A 1 O
11-7			RING-C 6044-000159 2 X
11-8			GEAR-DP, IDLE JC66-40911A 3 O
11-9			RING-CS 6044-000001 3 X
11-10			BRUSH ANTISTATIC JC67-00065A 1 X
11-11			PMO-HOLDER GROUND BALL JC72-01233A 1 O
11-12			PMO-GUIDE EXITLOWER JC72-01102A 1 X
11-13			PMO-ROLLER FD F JC72-41007A 4 X
11-14			PMO-ROLLER FD R JC72-41008A 4 X
11-15			HOLDER-EXIT(MC) JC61-00547A 4 X
11-16			SPRING ETC-EXITLOWER IDLE JC61-00484A 4 O
11-17			ROLLER-EXITIDLE JC66-00608A 1 X
11-18			PEX-ROLLER EXITF_UP JC72-20901A 2 O
11-19			IPR-GROUND EXITPLATE JC70-00375A 1 X
11-20			MEAUNIT-TERMINAL:L JC97-01410A 1 O
11-22			BRACKET-P-EXITUPPER JC61-00974A 1 X
13			GUIDE-EXITREAR JC61-00850A 1 X

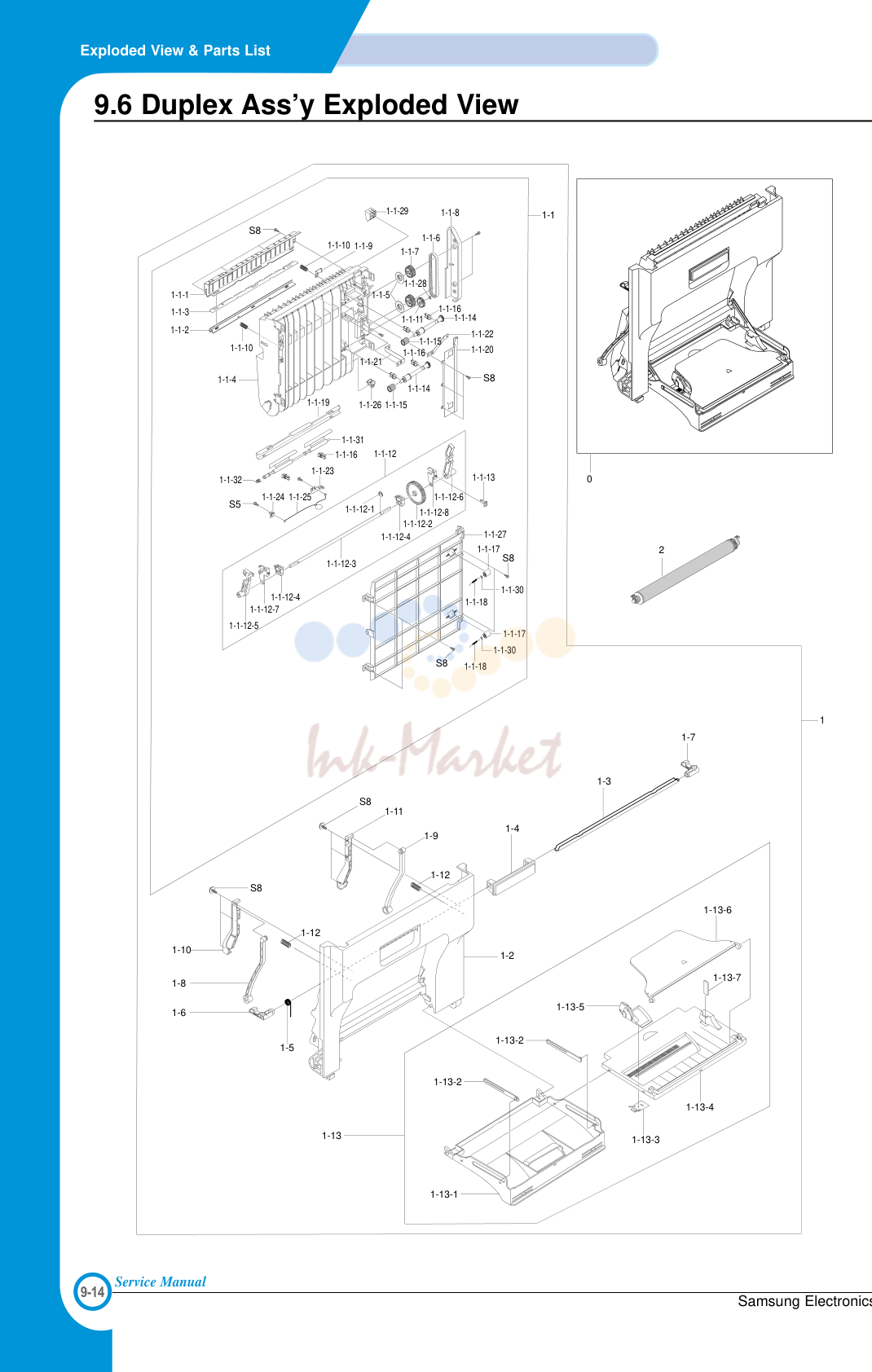

5. Exploded View & Parts List

№	Артикул	Альт. артикул	Описание
0			MEA-DUPLEX JC97-02041A 1 O
1			MEAHOU-COVER RIGHT JC97-01758A 1 O
1-1			MEAUNIT-DUPLEX JC97-02033A 1 X
1-2			PMO-COVER DUPLEX JC72-01078A 1 X
1-3			IPR-COVER DUPLOCK SHAFT JC70-00370A 1 X
1-4			PMO-COVER DUPLEX HANDLE JC72-01079A 1 X
1-5			SPRING-TS 6107-001206 1 X
1-6			PMO-COVER DUPLOCKER F JC72-01081A 1 X
1-7			PMO-COVER DUPLOCKER R JC72-01082A 1 X
1-8			PMO-COVER DUPLEX LINK JC72-01080A 1 X
1-9			COVER-DUPLEX LINK R JC63-00172A 1 X
1-10			PMO-COVER DUPLEX RAIL JC72-01083A 1 X
1-11			COVER-DUPLEX RAILR JC63-00173A 1 X
1-12			SPRING CS 6107-001194 2 X
1-13			MEAUNIT-TRAYMP JC97-01759A 1 O
2	ELAUNIT-T2 запросить цену →		ROLLER JC96-03238A 1 O

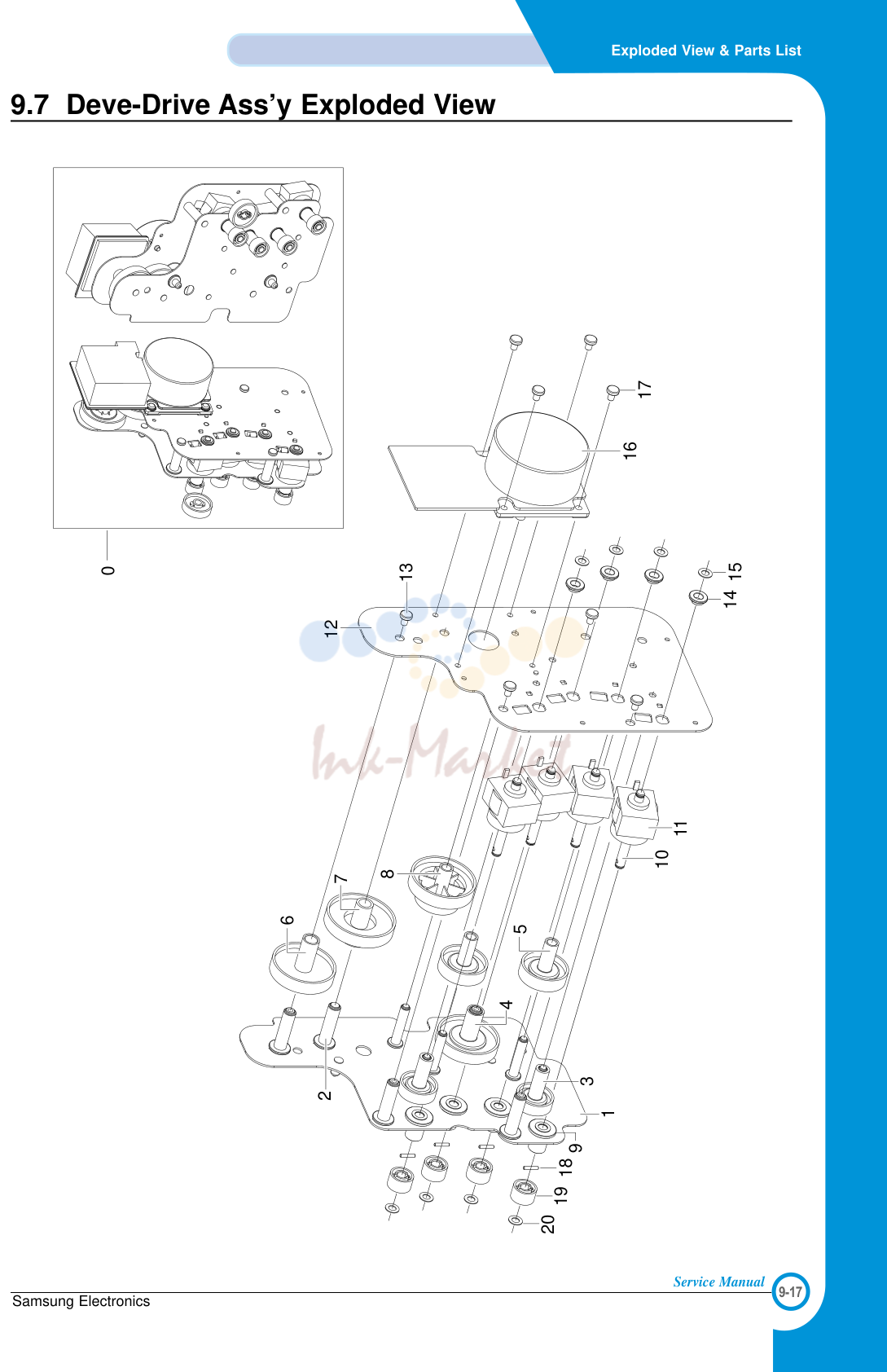

6. Exploded View & Parts List

№	Артикул	Альт. артикул	Описание
0			ELAUNIT-DEVE DRIVE JC96-03237A 1 O
1			BRACKET-DEVE-FRONT JC61-00972A 1 X
2			GREASE-BEARING 0205-001003 0.002 X
3			GEAR-DEVE IDLE Z33 JC66-00734A 2 O
4			GEAR-DEVE IDLE Z53 JC66-00735A 1 O
5			GEAR-DEVE IDLE Z41 JC66-00733A 2 O
6			GEAR-DEVE IDLE Z51 JC66-00473B 1 O
7			GEAR-ITB CLEAN RDCN JC66-00469A 1 O
8			GEAR-DEVE RDCN JC66-00732A 1 O
9			WASHER-PLAIN ID5.9 6031-000023 4 X
10			SHAFT-DEVE DRIVE JC66-00739A 4 X
11			MEP-CLUTCH SPRING JC47-00006B 4 X
12			BRACKET-DEVE REAR JC61-00973A 1 X
13			SCREW-TAPTITE 6003-000301 4 X
14			BUSH-D6/L4 JC61-00699A 4 O
15			RING-E ID4.0 6044-000125 4 X
16			MOTOR DC-DEVE(BLDC) JC31-00021A 1 O
17			SCREW-TAPTITE 6003-000301 4 X
18			ICT-PIN ADF JB70-00168A 4 X
19			GEAR-DEVE DRIVE 2 Z20 JC66-00465A 4 O
20			WASHER-PLAIN ID5.0 6031-001255 4 O
21			LABEL(P)-BAR CODE JF68-10532B 1 X

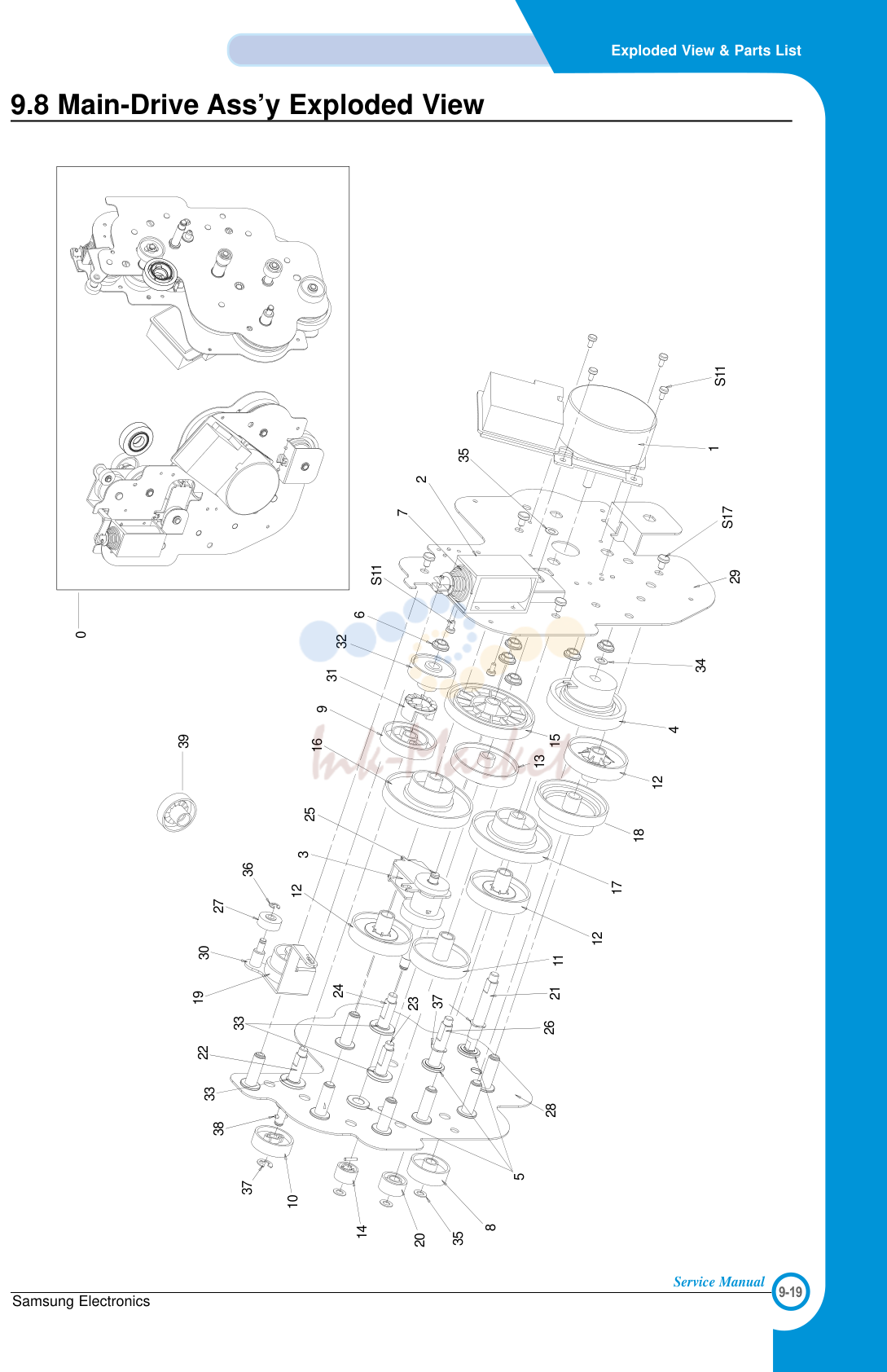

7. Exploded View & Parts List

№	Артикул	Альт. артикул	Описание
0			ELAUNIT-MAIN DRIVE JC96-03236A 1 O
1			MOTOR DRIVER-MAIN BLDC JC31-00038A 1 O
2			SOLENOID-DUPLEX JC33-00008B 1 O
3			MEP-CLUTCH CAM SOLENOID JC47-00007A 1 O
4			MEP-CLUTCH ELECTRIC FEED JC47-00008A 1 O
6			BUSH-D6/L4 JC61-00699A 6 O
7			SPRING ETC-SOLENOID DP JC61-70915A 1 O
8			GEAR-FEED DRIVE_Z37 JC66-00470A 1 O
9			GEAR-FUSER DRIVE 1_Z47 JC66-00471A 1 O
10			GEAR-FUSER DRIVE 2_Z30 JC66-00472A 1 O
11			GEAR-IDLE Z51 JC66-00473A 1 O
12			GEAR-IDLE Z53 JC66-00474A 3 O
13			GEAR-ITB DRIVE 1_Z90 JC66-00475A 1 O
14			GEAR-ITB DRIVE 2_Z30 JC66-00476A 1 O
15			GEAR-OPC DRIVE 1_Z120 JC66-00477A 1 O
16			GEAR-OPC RDCN_Z120/Z60 JC66-00479A 1 O
17			GEAR-RDCN Z110/Z37 JC66-00480A 1 O
18			GEAR-RDCN Z62/Z48 JC66-00481A 1 O
19			GEAR-SWING DRIVE JC66-00482A 1 O
21			SHAFT-FEED DRIVE JC66-00740A 1 X
22			SHAFT-FUSER DRIVE JC66-00547A 1 O
23			SHAFT-ITB DRIVE JC66-00549A 1 O
24			SHAFT-OPC DRIVE JC66-00550A 1 O
25	SHAFT-T2 запросить цену →		CAM JC66-00551A 1 O
26	SHAFT-T2 запросить цену →		DRIVE JC66-00741A 1 X
27			GEAR-EXIT/U,ID JC66-40211B 1 O
28			IPR-BRKTMAIN FRONT JC70-00341A 1 O
29			IPR-BRKTMAIN REAR JC70-00344A 1 O
30			IPR-LINK SOLENOID JC70-00346A 1 O
31			PMO-HUB CLUTCH JC72-01064A 1 O
32			PMO-DUMMYCLUTCH JC72-01232A 1 O
33			WASHER-PLAIN ID5.9 6031-000023 3 X
34			MPR-RING CHARGE JG74-10541A 1 O Feed-Clutch
35			WASHER-PLAIN ID5.0 6031-001255 4 O
36			RING-C ID3.0 6044-000159 1 X
37			RING-E ID5.0 6044-000231 3 O Fuser
38			ICT-PIN ADF JB70-00168A 2 X
39			GREASE-BEARING 0205-001003 0.002 X
40			LABEL(P)-BAR CODE JF68-10532B 1 X

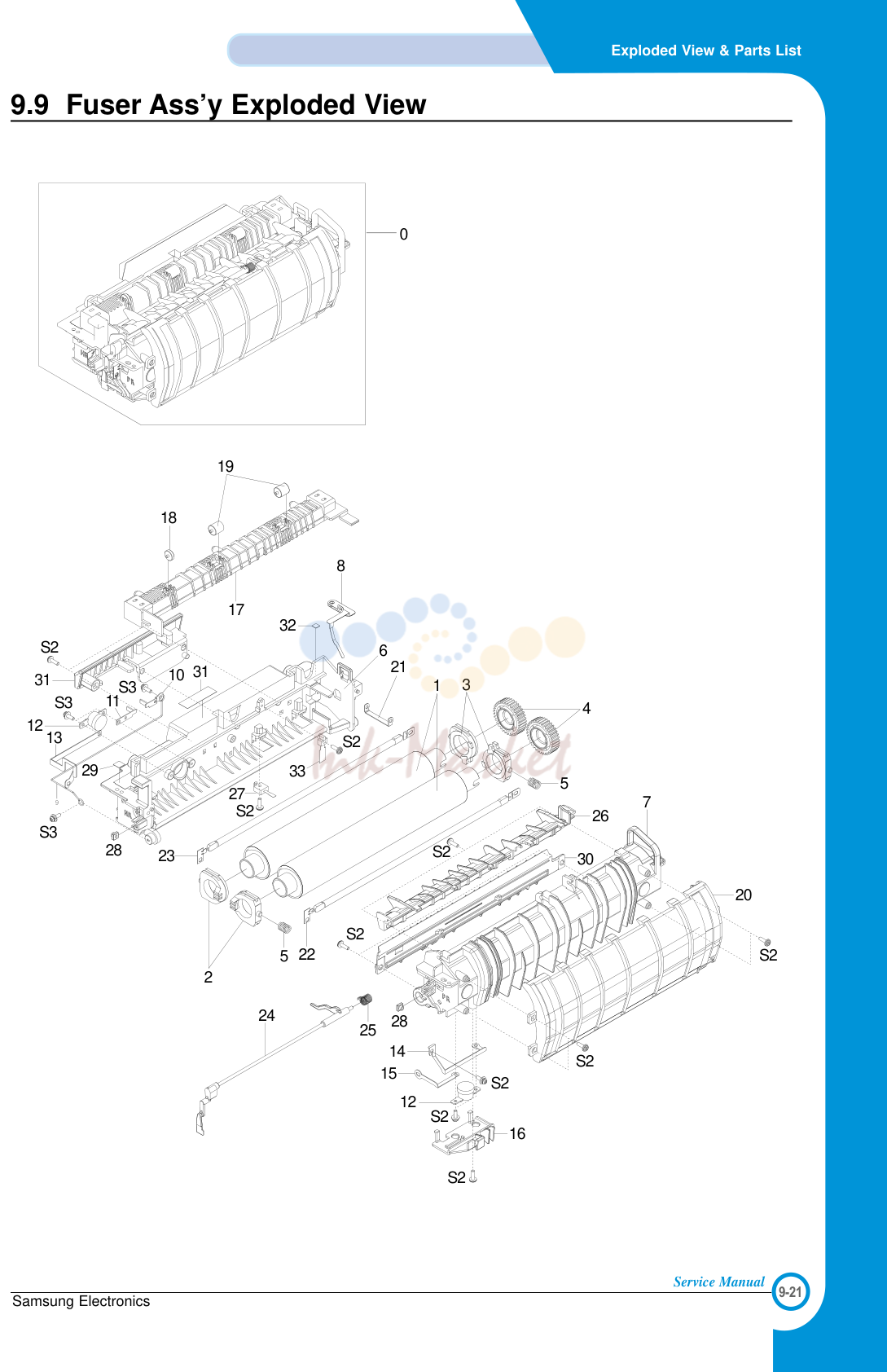

8. Exploded View & Parts List

№	Артикул	Альт. артикул	Описание
1			ROLLER PRESSURE JC66-00517A 2 X
2			PMO-BEARING FUSER F JC72-01058A 2 X
3			PMO-BEARING FUSER GEAR JC72-01059A 2 X
5			SPRING-CS 6107-001193 2 X
6			PMO-FUSER UPPER JC72-01061A 1 X
7			PMO-FUSER LOWER JC72-01062A 1 X
8			IPR-GROUND FUSER JC70-00355A 1 X
9			NPR-ELECTRODE AC WIRE JC71-00043A 1 X
10			NPR-ELECTRODE GEAR JC71-00047A 1 X
11			NPR-ELECTRODE M JC71-00048A 1 X
12			THERMOSTAT 4712-000001 2 O
13			NPR-ELECTRODE F JC71-00046A 1 X
14			NPR-ELECTRODE PR JC71-00049A 1 X
15			NPR-ELECTRODE AC PLATE JC71-00044A 1 X
16			PMO-COVER THERMOSTAT JC72-01055A 1 X
17			PMO-COVER CLEANING JC72-01060A 1 X
18			ROLLER-EXITIDLE JC66-00608A 1 O
19			PEX-ROLLER EXITF_UP JC72-20901A 2 O
20			PMO-GUIDE DPSIDE JC72-01100A 1 X
21			NPR-ELECTRODE CONNECTOR JC71-00045A 1 X
22			LAMP-HALOGEN, 300W 4713-001178 1 O 220V
23			LAMP-HALOGEN, 500W 4713-001176 1 O 220V
24			LEVER-M-ACTUATOR EXIT JC66-00742A 1 X
25			SPRING-TS 6107-001205 1 X
26			PMO-GUIDE OUTPUT JC72-01063A 1 X
27			THERMISTOR-NTC 1404-001310 1 O
28			NUT-SQUARE 6021-001194 4 X
29			LABEL(R)-HV FUSER JC68-00407A 1 X 220V
30			PMO-GUIDE INPUT JC72-01208A 1 X
31			DUMMYTHERMISTOR JC75-00165A 1 X
32			LABEL(P)-CAUTION JC68-30928E 1 X
33			PMO GUIDE INPUT JC72-01208A 1 X

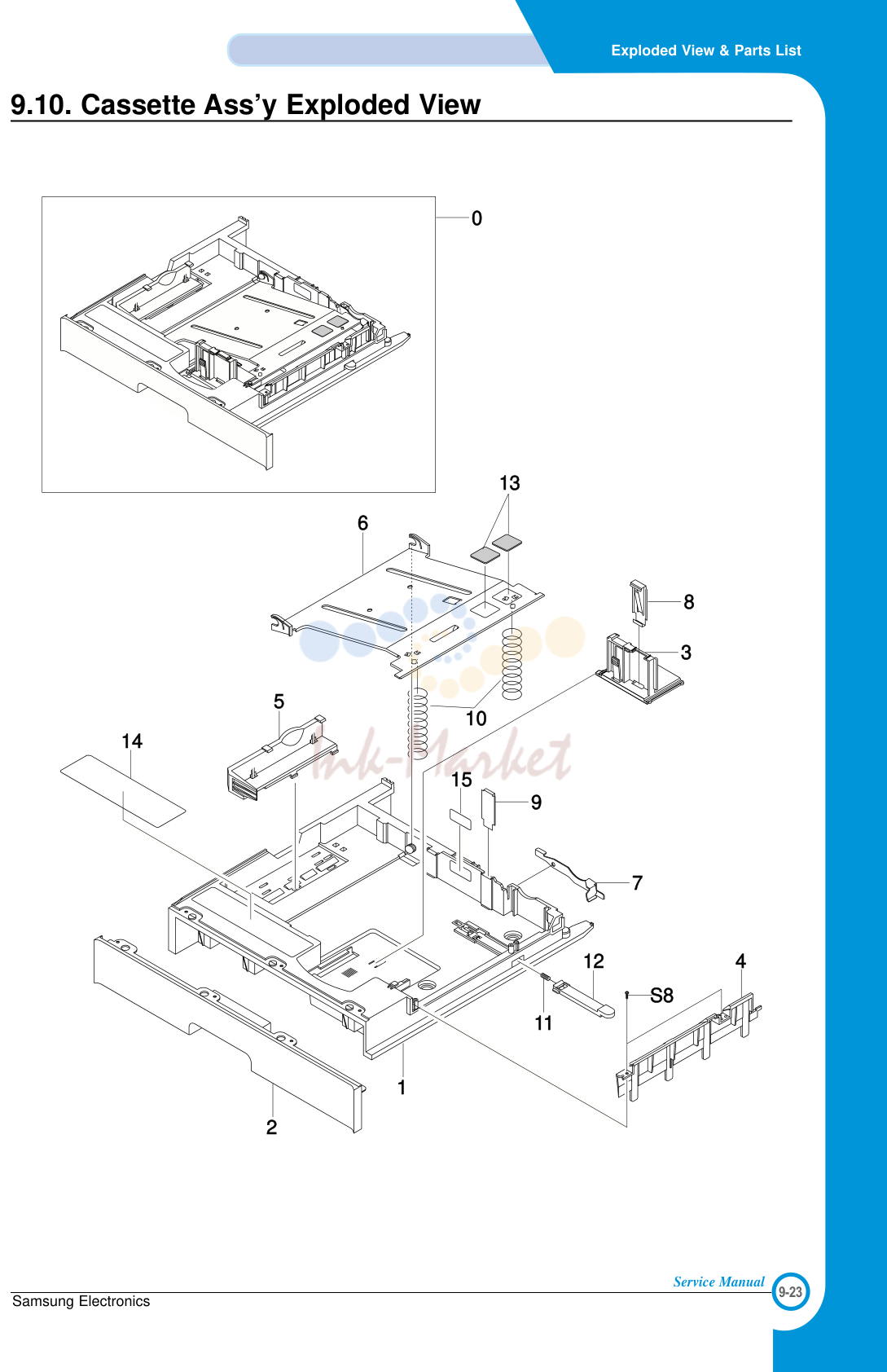

9. Exploded View & Parts List

№	Артикул	Альт. артикул	Описание
0			MEA-CASSETTE JC97-01753A 1 O
1			PMO-FRAME CASSETTE JC72-01069A 1 X
2			PMO-COVER CASSETTE JC72-01068A 1 X
3			PMO-GUIDE SIDE CST JC72-01072A 1 X
4			PMO-GUIDE FRONTCST JC72-01070A 1 X
5			PMO-GUIDE REAR JC72-01071A 1 X
6			IPR-PLATE K/UP JC70-00357A 1 O
7			IPR-FINGER JC70-00220A 1 O
8			IPR-SPRING PLATE G/SIDE JC70-00358A 1 O
9			IPR-GUIDE PLATE PAPER JC70-00356A 1 O
10			SPRING ETC-KNOCK UP(270) 6107-001200 2 X
11			SPRING ETC-LOCKER, PLATE JG61-70531A 1 O
12			PMO-LOCKER PLATE JC72-01073A 1 O
13			RPR-PAD CST JC73-10910A 2 O
14			LABEL(P)-INSTRUCTION CST JC68-01174A 1 X
15			LABEL(R)-HEIGHTXEROX JC68-00516A 1 X

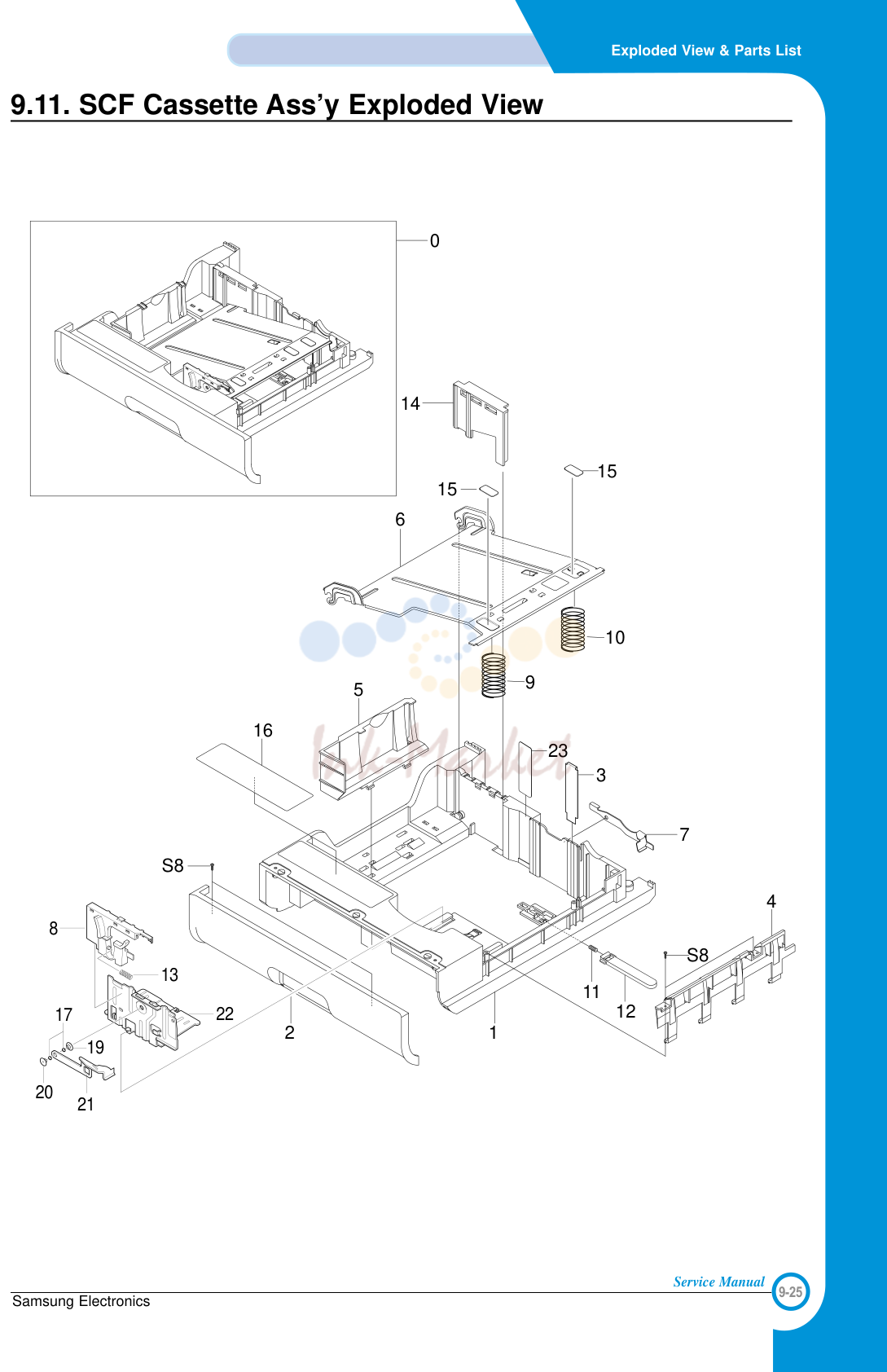

10. Exploded View & Parts List

№	Артикул	Альт. артикул	Описание
0			MEAUNIT-CSTSCF JC97-02145A 1 O
1			PMO-SCF FRAME CASSETTE JC72-01238A 1 X
2			PMO-SCF COVER CASSETTE JC72-01236A 1 X
3			IPR-GUIDE PLTPAPER JC70-10923A 1 O
4			GUIDE-M-FRONTCSTPLUS JC61-00825B 1 X
5			PMO-SCF GUIDE REAR JC72-01239A 1 X
6			IPR-PLATE K/UP JC70-00221A 1 X
7			IPR-FINGER JC70-00220A 1 O
8			GUIDE-M_SIDE HANDLE_R JC61-00824B 1 O
9			SPRING CS FR 6107-001191 1 O
10			SPRING CS RE 6107-001190 1 O
11			SPRING ETC-LOCKER, PLATE JG61-70531A 1 O
12			PMO-LOCKER PLATE JC72-41210A 1 X
13			SPRING ETC-WHITE BAR JC61-00548A 1 X
14			PMO-SCF DUMMYSIDE GUIDE JC72-01237A 1 X
15			PAD-CS PLUS JC69-00474A 2 X
16			LABEL(P)-MEDIA JC68-01174C 1 X
17			WASHER PLAIN 6031-000023 2 X
20			BUSH-M-FINGER, F JC61-00653A 2 X
21			IPR-P-FINGER LEFT JC70-00325A 1 X
22			GUIDE-P-SIDE CST JC72-01072A 1 X
23			LABEL(R)-HEIGHTCST JC68-01154A 1 X

11. Exploded View & Parts List

№	Артикул	Альт. артикул	Описание
0			ELAUNIT-SCF BBP JC96-03315A 1 X
1			ELAHOU-MOTOR_SCF BBP JC96-03006B 1 X
1-1			BRACKET-P-SCF MOTOR JC61-00728A 1 X
1-2			GEAR-SCF 41/23 JC66-00578A 2 X
1-3			GEAR-OPC 53/37 JC66-00580A 1 X
1-4			GEAR SCF 53/31 JC66-00577A 1 X
1-5			MOTOR STEP-MAIN JC31-00020B 1 O
1-6			WASHER-PLAIN 6031-000023 4 X
1-7			CBF HARNESS-SCF_MT JC39-00387A 1 X
1-8			BRACKET-P-CLUTCH SCF JC61-00727A 1 X
1-9			SOLENOID-PICK UP JC33-00007A 1 X
2			MEAHOU-GUIDE LOWER SCF JC97-01825A 1 X
2-1			PMO-GUIDE LOWER RAIL(SCF) JC72-01242A 1 X
2-2			SPRING CS 6107-001222 2 X
2-3			PMO-BUSH IDLE ROLL-SCF16 JC72-00658A 2 X
2-4			PMO-HOLDER IDLE ROLL16 JC72-00660A 1 X
2-5			PMO-COVER GUIDE LOWER(SCF) JC72-01066A 1 X
2-6			PMO-GUIDE LOWER(SCF) JC72-01241A 1 X
2-7			PMO-ROLLER IDLE(SCF) JC72-01244A 1 X
3			MEAHOU-GUIDE UPPER JC97-02146A 1 X
3-1			PMO-SCF GUIDE UPPER JC72-01240A 1 X
3-2			SHAFT-PICK_UPCST JC66-00672A 1 X
3-3			SHAFT-PICK_UPSUB JC66-00596A 1 X
3-4			PMO-BEARING SHAFT JC72-41191A 4 O
3-5			GEAR-PICK UP JC66-00326A 1 X
3-6			RUBBER-ROLLER PICKUP JC73-00145A 1 X
3-7			RUBBER-PICKUPROLLER_S JC73-00163A 1 X
3-8			PMO-BUSHING_P/U, MP JC72-41364A 1 O
3-9			PMO-M-ACTUATOR_NO PAPER JC72-01313A 1 X
3-10			HOUSING-M-PICKUPLARGE JC61-00822A 1 X
3-11			HOUSING-M-PICKUPSMALL JC61-00823A 1 X
3-12			GEAR-FEED (SCF) JC66-40955A 1 X
3-13			RING-E ID4 6044-000125 5 X
3-14			RING-E ID5 6044-000231 2 O
3-15			ROLLER-FEED SCF JC66-00579A 1 X
3-16			ICT-PIN ADF JB70-00168A 2 X
3-17			GROUND-P-PLATE SCF JC63-00194A 1 X
3-18			CBF HARNESS GND STAR WHELL JB39-00173A 1 X
3-19			PBASUB-SCF P_EMPTYSENSOR JC92-01501A 1 X
3-20			PBASUB-SCF COVER SENSOR JC92-01502A 1 X
5			CAM-CATCH JC66-00050A 1 O
6			IPR-PLATE GROUND(A) JC70-00249A 1 X
7			IPR-PLATE LOCKER(L) JC70-00370A 1 X
8			IPR-PLATE LOCKER(R) JC70-00378A 1 X
9			PMO-BASE DECO(SCF) JC72-01019A 2 X
10			ELAUNIT-TERMINALTR L JC96-01672A 4 X
11			PMO-COVER TOP(SCF) JC72-01209A 1 X
12			PMO-DOOR SIDE(SCF) JC72-01210A 1 X
13			PMO-FRAME BASE(SCF) JC72-01211A 1 X
14			PMO-COVER SENSOR(SCF) JC72-01235A 1 X
15			LABEL(P)-SCF JAM D JC68-01303A 1 X
16			CBF HARNESS-DRIVER GND JC39-00366A 2 X 150 m/m
17			CBF HARNESS-SCF_8P JC39-00102A 1 X
19			PBASUB-SCF JC92-01539A 1 X

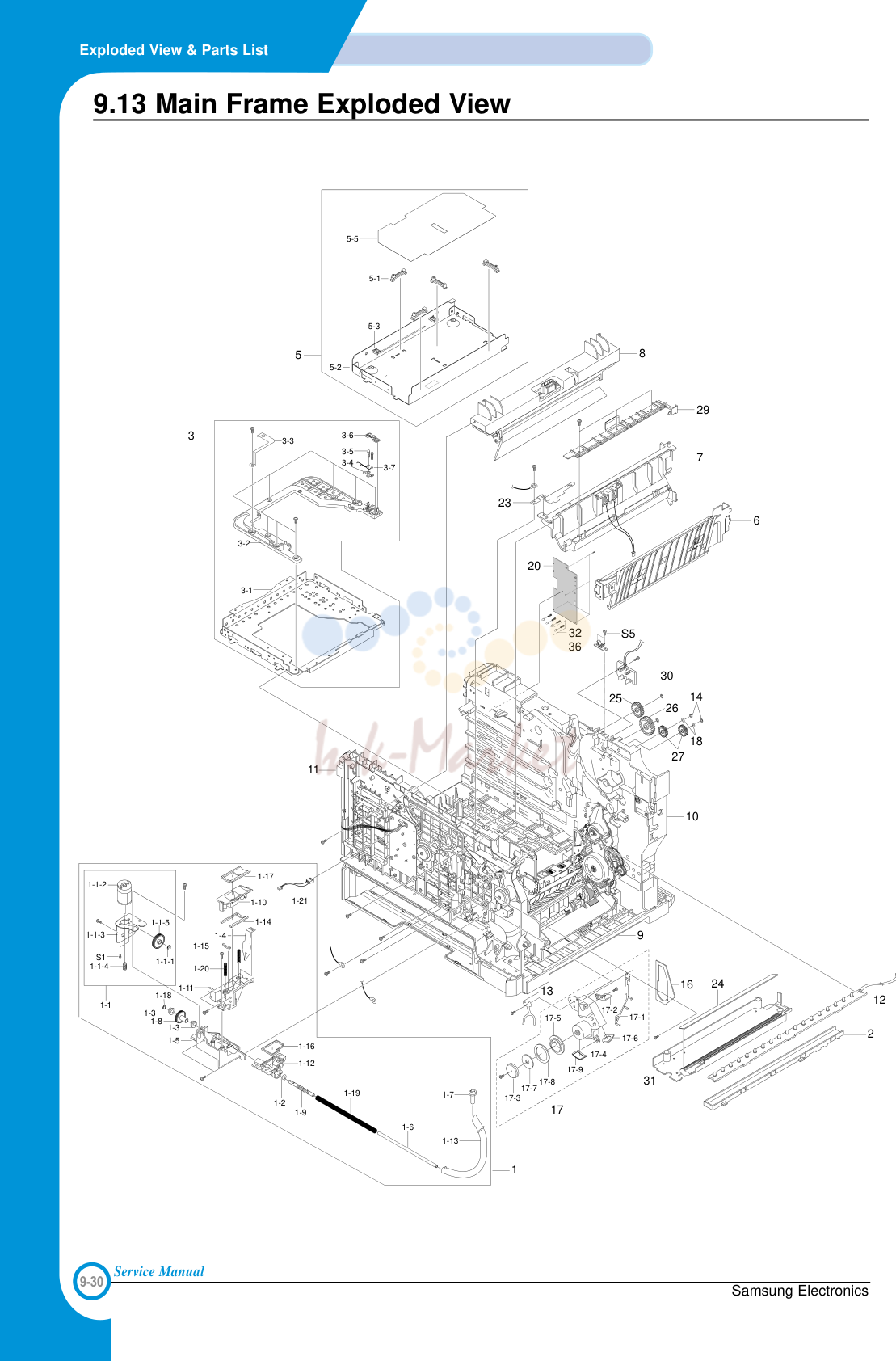

12. Exploded View & Parts List

№	Артикул	Альт. артикул	Описание
0			MEAMAIN-FRAME JC97-02037A 1 O
1			MEAUNIT-OPC TONER DUCT JC97-01834A 1 O
1-1			ELAUNIT-TONER MOTOR JC96-02882A 1 O
1-3			BUSH-D6/L4 JC61-00699A 2 O
1-2			WASUER-PLAIN 6031-000023 1 X
1-4			PLATE-VIBRATOR INLET JC61-00810A 1 X
1-5			BASE-M-WASTE TONER JC61-00820A 1 X
1-6			PIPE-WASTE BAR JC62-00129A 1 O
1-7			CAM-M-WASTE DUCTOUTLET JC66-00649A 1 O
1-8			GEAR WORM-WHEELZ35 JC66-00651A 1 O
1-9			SHAFT-M-WASTE DUCTINLET JC66-00652A 1 O
1-10			DUCT-M-WASTE LIFTER JC67-00052A 1 O
1-11			DUCT-M-WASTE TONER INLET1 JC67-00053A 1 O
1-12			DUCT-M-WASTE TONER INLET2 JC67-00054A 1 O
1-13			PMO-PIPE WASTE TRANSFER JC72-01186A 1 X
1-14			SPONGE-WASTE LIFTER 1 JC72-01278A 1 O
1-15			SPONGE-WASTE LIFTER 2 JC72-01279A 1 O
1-16			SPONGE-WASTE DUCTOPC JC72-01285A 1 O
1-17			SPONGE-WASTE COVER JC72-01290A 1 O
1-18			RING-E 6044-000125 1 X
1-19			SPRING-CS 6107-001201 1 X WASTE DUSTOPC
1-20			SPRING-CS 6107-001199 2 X ITB TONER LIFFER
1-21			CBF HARNESS-WASE_MOTOR JC39-00299A 1 O
2			HOLDER-ERASER JC72-01217A 1 O
3			MEAUNIT-LSU GUIDE BRKT JC97-01810B 1 X
3-1			IPR-BRKTLSU JC70-00388A 1 X
3-2			PMO-LSU BASE JC72-01169A 1 X
3-3			IPR-GROUND LSU JC70-00444A 1 X
3-4			IPR-PLATE OPC OEM JC70-00428A 2 X
3-5			MEA-TERMINAL JC75-00049A 2 O
3-6			PMO-COVER OEM UPPER JC72-01146A 1 X
3-7			CBF HARNESS-OPC_FUSE JC39-00229A 1 O
5			MEAUNIT-BRKTHVPS JC97-02038A 1 X
5-1			GUIDE-M-HVPS BOARD JC61-00975A 4 X
5-2			IPR-BRKTHVPS LOWER JC70-00386A 1 X
5-3			CABLE CLMP 6502-000132 2 X
5-4			CABLE CLMP 6502-000121 1 X
5-5			SHEETHVPS JC63-00234A 1 X
6			ELAUNIT-GUIDE PAPER T2 JC96-02797A 1 O
7			ELAUNIT-DUMMYFUSER BASE JC96-02795A 1 O
8			ELAUNIT-ITB CAM JC96-03216A 1 O
9			ELAUNIT-FRAME BASE JC96-03245A 1 O
10			ELAUNIT-FRAME REAR JC96-03215A 1 O
11			ELAUNIT-FRAME FRONT JC96-03214A 1 O
12			PBASUB-ERASER JC92-01534B 1 X
13			IPR-SHUTTER TORTION JC70-00447A 1 X
14			RING-CS 6044-000001 4 X
16			SPONGE-DUSTOPC COVER JC72-01284A 1 O
17			MEAUNIT-OPC TONER HOUSING JC97-01814A 1 O
17-1			PLATE-P-VIBRATOR OUTLET JC61-00885A 1 X
17-2			BUSH-M-WASTE CAM JC61-00812A 1 O
17-3			PMO-CAPSHUTTER ITB JC72-01222A 1 X
17-4			PMO-HOUSING TRANSFER JC72-01228A 1 X
17-5			PMO-SHUTTER TRANSFER OPC JC72-01230A 1 X
17-6			SPONGE-TANK TONER JC72-01289A 1 X
17-7			SPONGE-CAPSHUTTER JC72-01292A 1 X
17-8			SPONGE-DUCTTONER OPC JC72-01294A 1 X
17-9			SPONGE-TANK TONER OPC JC72-01295A 1 X
18			SPRING ETC-CLUTCH JB61-70922A 2 O
20			ELAUNIT-DEVE BOARD JC96-03244A 1 X
21			CBF HARNESS-MAIN FSR_ROLL JC39-00276A 1 O
22			CBF HARNESS-PANEL JC39-00399A 1 X
23			GROUND-FUSER FRAME JC63-00165A 1 X
24			SHEET-ERASER LAMP JC63-00247A 1 O
25			GEAR-GEAR FUSER DRV OUTER JC66-00334A 1 O
26			GEAR-DP, IDLE JC66-40911A 1 O
27			GEAR-EXIT, IDLE(Z17) JC66-40964A 2 O
29			PMO-COVER FUSER BASE JC72-01141A 1 X
30			PMO-COVER HARNESS FUSER JC72-01145A 1 X
31			PMO-LSU SHUTTER COVER JC72-01171A 1 X
32			MEAUNIT-TERMINALS JC97-02138A 4 X
33			SHEET-TONER COVER JC63-00360A 1 X
34			PMO-HOLDER GUIDE EXITUP JC72-01216A 1 O
35			MEP-CLUTCH CAM SOLENOID JC47-00007B 1 O
36			PMO-HOLDER GUIDE EXITUP JC72-01216A 1 O

13. Exploded View & Parts List

№	Артикул	Альт. артикул	Описание
0			ELAUNIT-FRAME FRONT JC96-03214A 1 O
1			ELAUNIT-TONER SENSOR JC96-03234A 1 X
1-1			RING-CS 6044-000001 1 X
1-2			HOLDER-M-WASTE TONER SENSOR JC61-00813A 1 O
1-3			PMO-TONER DETACTER JC72-01189A 1 O
1-4			PBASUB-EXIT_WASTE JC92-01637A 1 O
2			MEAUNIT-ITB LIFTER JC97-01812A 1 O
2-1			SPONGE-DUCTTONER ITB LIFT JC72-01282A 1 X
2-2			DUCT-TONER ITB LIFTER JC67-00043A 1 X
2-3			SPONGE-ITB DUCT JC72-01286A 1 X
3			MEAUNIT-ITB TONER HOUSING JC97-01813A 1 O
3-1			HOUSING-M-WASTE TONER ITB JC61-00814A 1 O
3-2			SPONGE-DUCTTONER OPC JC72-01294A 1 X
3-3			PMO-CAPSHUTTER ITB JC72-01222A 1 X
3-4			PMO-SHUTTER TRANSFER ITB JC72-01229A 1 X
3-5			SPONGE-ITB TANK DUST JC72-01287A 1 X
3-6			SPONGE-ITB TANK TONER JC72-01288A 1 X
3-7			SPONGE-CAPSHUTTER JC72-01292A 1 X
4			RING-CS 6044-000001 3 X
6			PLATE-GUIDE T2 FRONT JC61-00709A 1 X
7			BRACKET-DUMMYLSU F JC61-00756A 1 X
8			MEAUNIT-TERMINALS JC97-02138A 12 X
9			GROUND-HVPS LSU JC63-00166A 1 X
10			LINK-LOCK OPC F JC66-00562A 1 X
11			LEVER-ITB LOCK FRONT JC66-00666A 1 O
12			LABEL(R)-COLOR BAR JC68-01149B 1 X
13			CBF HARNESS-BUSH GND JC39-00114A 1 O
14			IPR-BRKTGUIDE HVPS R JC70-00385A 1 X
15			IPR-BRKTEXITHINGE F JC70-00406A 1 X
16			IPR-ITB HINGE GROUND JC70-00419A 1 X
17			IPR-ITB GUIDE TORSION JC70-00420A 1 X
18			IPR-OPC GUIDE TORSION JC70-00421A 1 X
19			IPR-OPC/ITB GROUND JC70-00422A 1 X
21			IPR-OPC/LSU GROUND JC70-00424A 1 X
22			IPR-SHUTTER TORTION JC70-00447A 1 X
23			PMO-FRAME FRONT JC72-01144A 1 X
24			PMO-COVER TOPLEVER IN JC72-01173A 1 X
25			PMO-COVER TOPLEVER OUT JC72-01174A 1 X
26			PMO-DEVE OPEN PLATE JC72-01177A 1 X
27			PMO-DEV OPEN PLATE GUIDE JC72-01178A 1 X
28			SPRING-CS 6107-001196 1 O ITB LOCK
29			PMO-LOCK ITB FRONT JC72-01184A 1 X
30			PMO-LOCK COVER FRONT JC72-01185A 1 X
31			PMO-RACK OPC JC72-01221A 1 X
32			SPRING-CS 6107-001199 2 X ITB TONER LIFTER
33			PMO-GUIDE LOCK OPE F JC72-01225A 1 X
34			SPONGE-DUSTITB COVER JC72-01283A 1 O
36			PBASUB-OEM_BB_PLUS JC92-01631A 1 X
37			SPRING-ES 6107-001214 2 O FRAME LOCK

14. Exploded View & Parts List

№	Артикул	Альт. артикул	Описание
0			ELAUNIT-FRAME REAR JC96-03215A 1 O
1			RING-CS 6044-000001 7 X
2			CBF HARNESS-HVPS_CHARGE JC39-00264A 1 O
3			CBF HARNESS-HVPS_T1 JC39-00265A 1 O
4			CBF HARNESS-HVPS_T2 JC39-00266A 1 O
5			MEAUNIT-FEED JC97-01829A 1 O
6			PLATE-S/W DUPLEX JC61-00707A 1 X
7			PLATE-GUIDE T2 REAR JC61-00708A 1 X
8			GROUND-MAIN ITB DEVE JC63-00162A 1 X
9			GROUND-LSU DEVE DRIVE JC63-00163A 1 X
10			GROUND-HVPS LSU LOWER JC63-00181A 1 X
11			GROUND-EXITDRIVE JC63-00208A 1 X
12			GEAR-RDCN FEED OUTER JC66-00343A 3 O
14	GEAR-T2 запросить цену →		RDCN_Z32/Z23 JC66-00485A 1 O
15			LEVER-ITB LOCK REAR JC66-00667A 1 O
16			IPR-BRKTDUMMYLSU R JC70-00381A 1 X
17			IPR-BRKTGUIDE HVPS F JC70-00384A 1 X
18			IPR-BRKTLOCK ITB JC70-00387A 1 X
19			IPR-BRKTEXITHINGE R JC70-00407A 1 X
20			IPR-PLATE FUSER JC70-00425A 1 X
22			IPR-PLATE OPC HV JC70-00427A 1 X
23			IPR-PLATE T1 JC70-00431A 1 X
24			IPR-PLATE T2 JC70-00432A 1 X
25			IPR-GROUND HVPS JC70-00443A 1 X
26			IPR-GROUND MAIN JC70-00445A 1 X
27			PMO-FRAME REAR JC72-01143A 1 X
28			PMO-COVER T1 HV JC72-01148A 1 X
29			PMO-COVER T2 HV JC72-01149A 1 X
30			PMO-GUIDE LOCK OPC JC72-01157A 1 X
31			PMO-LINK LOCK OPC JC72-01158A 1 X
32			PMO-LOCK ITB JC72-01168A 1 X
33			IPR-GROUND PAPER GUIDE JC70-00446A 1 X
34			MEC-TERMINAL JC75-00049A 2 O
35			CBF HARNESS-100M_GND JC39-00302A 1 O
36			ELAUNIT-COVER OPEN SENSOR JC96-02876A 1 O
37			SPRING-ES 6107-001214 1 O
38			SPRING-CS 6107-001196 1 O

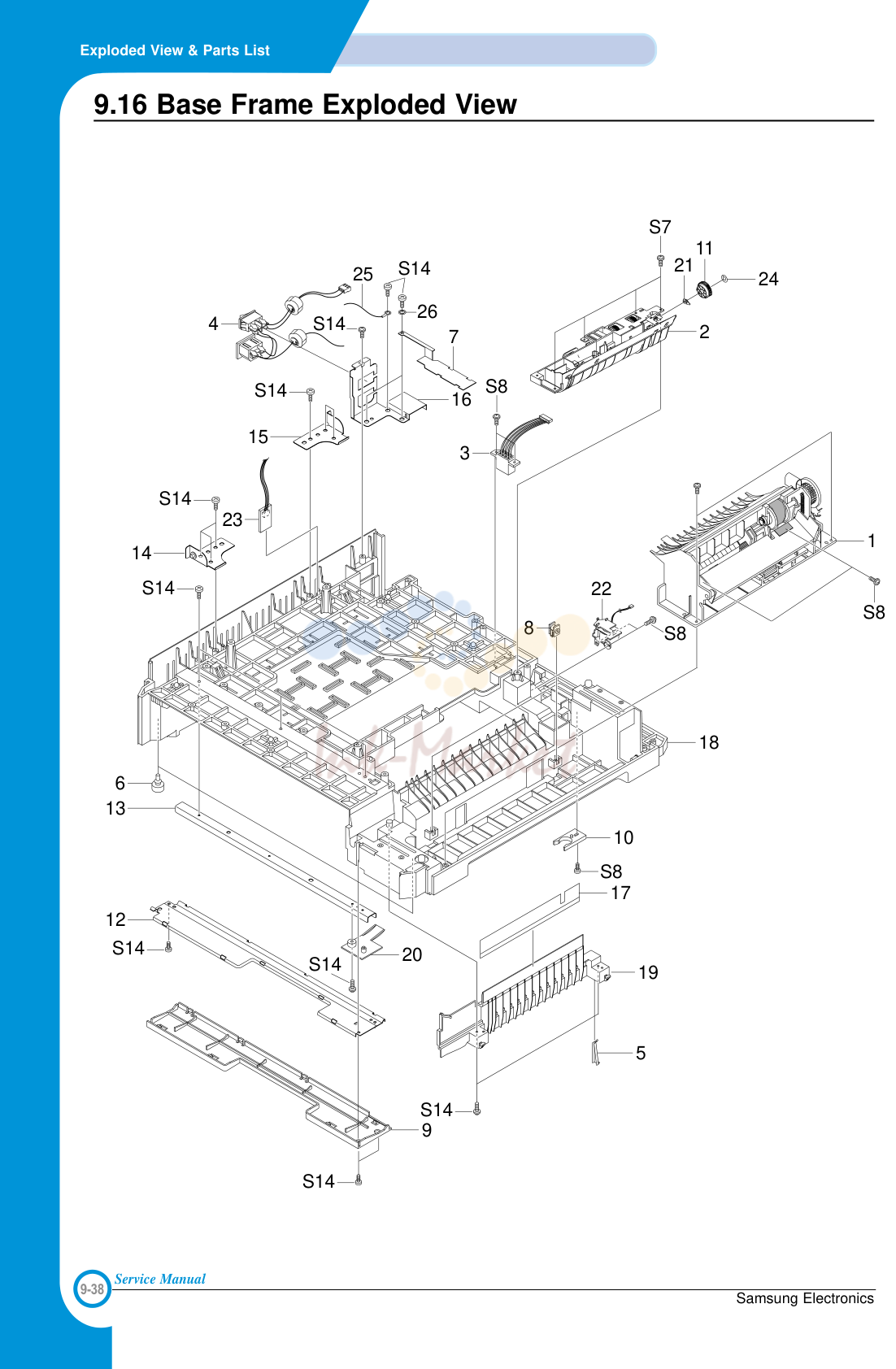

15. Exploded View & Parts List

№	Артикул	Альт. артикул	Описание
0			ELAUNIT-FRAME BASE JC96-03245A 1 O
1			ELAUNIT-MP JC96-02774A 1 O
2			MEA-PICKUP JC97-01755B 1 X
3			CBF HARNESS-SCF JC39-00082A 1 O
4			CBF HARNESS-SMPS_INLET JC39-00280A 1 O
5			PLATE-GUIDE RAIL JC61-00710A 1 X
7			GROUND-SCF JC63-00167A 1 X
8			COVER-SCREW LOCKING MP JC63-00175A 2 X
9			COVER-M-BASE BAR JC63-00207A 1 O
10			CAM-CATCH JC66-00050A 1 O
11			GEAR-PICK_UP JC66-00335A 1 O
12			IPR-BRKTBASE BAR JC70-00379A 1 O
13			IPR-CHANNELFRAME BASE JC70-00390A 1 O
14			IPR-BRKTDEVE HINGE F JC70-00404A 1 O
15			IPR-BRKTDEVE HINGE R JC70-00405A 1 O
16			IPR-BRKTPOWER JC70-00414A 1 X
17			PPR-SHEET/GUIDE PAPER JC72-00836A 1 O
18			PMO-FRAME BASE JC72-01156A 1 O
19			PMO-GUIDE SCTPAPER JC72-01161A 1 O
20			PMO-PAPER GUIDE JC72-01172A 1 X
21			PMO-BEARING SHAFT JC72-41191A 1 O
22			SOLENOID-PICK UP JC33-00007B 1 O
23			PBASUB-TEMP JC92-01535A 1 O
24			WASHER-PLAIN 6031-001255 1 O
25			CBF HARNESS-LIU GND JB39-00103A 1 O
26			WASHER-E.T 6031-000120 1 X

16. Exploded View & Parts List

№	Артикул	Альт. артикул	Описание
0			ELAUNIT-MP JC96-02774A 1 O
1			RING-E 6044-000125 2 X
2			SOLENOID-MP JC33-00006B 1 O
3			SPRING ETC-CAM MP JC61-00003A 1 O
4			SPRING ETC-PICK UPMP JC61-00549A 1 O
5			SPRING ETC-KNOCKUP,MP JC61-00483A 1 O
6			IPR-BRACKETSOLENOIDE JC70-00237A 1 O
7			PMO-HOLDER CAM MPF JC72-00055A 1 X
8			PMO-ROLLER CAM.MP JC72-00761A 1 X
9			PMO-ACTUATOR,MP JC72-00767A 1 O
10			PMO-ADJUSTER,MP JC72-00768A 1 O
11			PMO-CAM PICK UP,MP JC72-00769A 1 O
12			PMO-FRAME,MP JC72-00770A 1 O
13			PMO-HOLDER PAD,MP JC72-00771A 1 O
14			PMO-HOLDER SENSOR,MP JC72-00772A 1 O
15			PMO-HOUSING PICK UP,MP JC72-00773A 1 O
16			PMO-PLATE KNOCK UP,MP JC72-00775A 1 O
17			PMO-IDLE PICK UPMP JC72-41027A 2 O
18			PMO-BUSHING_P/U,MP JC72-41364A 2 O
19			RPR-RUBBER PICK UP,MP JC73-00089A 1 O
20			PAD-MP(PLUS) JC69-00494A 1 O
21			RPR-PAD KNOCK UPMP JC73-10910A 1 O
22			PBASUB-MP_EMPTYSENSOR JC92-01500A 1 O
23			PMO-GEAR P/U MPF JC72-00056A 1 O
24			SHEET-PAPER MP JC63-00240A 1 O

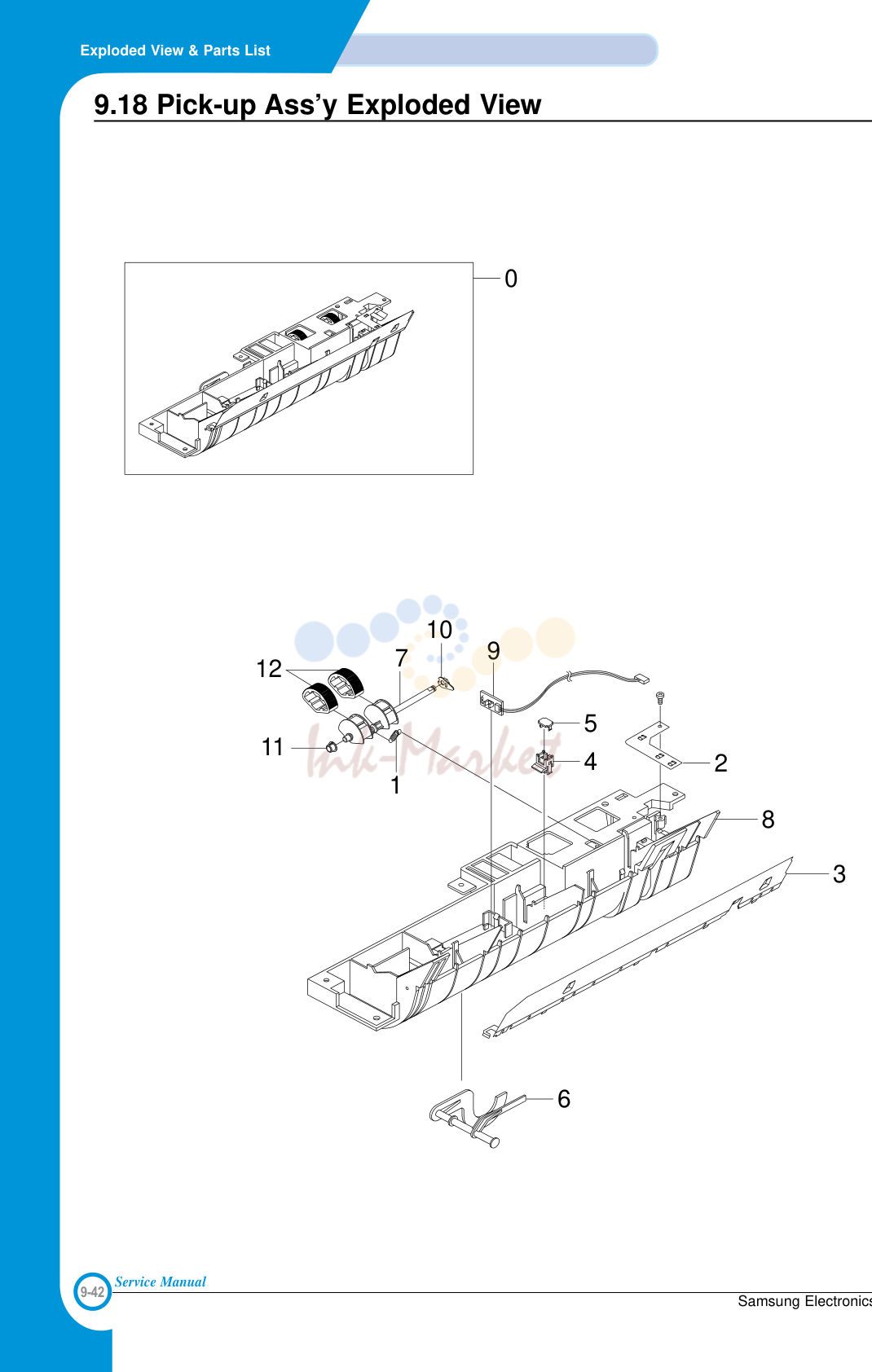

17. Exploded View & Parts List

№	Артикул	Альт. артикул	Описание
0			MEA-PICKUP JC97-01755B 1 X
1			SPRING ETC-PICKUP JC61-00482A 1 O
2			IPR-GROUND FEED JC70-00359A 1 O
3			IPR-GUIDE INPUT JC70-00360B 1 X
4			PMO-CAPCONNECTOR L JC72-00463A 1 O
5			PMO-CAPCONNECTOR U JC72-00465A 1 O
6			PMO-ACTUATOR EMPTY JC72-00719A 1 O
7			PMO-SHAFTPICK UP JC72-00729A 1 O
8			PMO-GUIDE PAPER JC72-01076A 1 O
9			PBASUB-P.EMPTYSENSOR JC92-01453A 1 O
10			PMO-BEARING SHAFT JC72-41191A 1 O
11			“PMO-BUSHING_P/U,MP” JC72-41364A 1 O
12			RUBBER-PICK UP JC73-00149A 2 O
13			CBF HARNESS-MAIN ERASER JC39-00277A 1 O

18. Exploded View & Parts List

№	Артикул	Альт. артикул	Описание
0			MEAUNIT-FEED JC97-01829A 1 O
1			MEA-HOLDER PINCH C3 JC97-01768A 1 O
1-1			PMO-HOLDER PINCH C3 JC72-01107A 1 X
1-2			PMO-ROLLER FEED L JC72-40261A 1 O
1-3			IPR-SHAFTFEED IDLER JC70-10230A 1 O
2			MEA-HOLDER PINCH C5 JC97-01769A 1 O
2-1			PMO-HOLDER PINCH C5 JC72-01108A 1 X
2-2			PMO-ROLLER FEED L JC72-40261A 1 O
2-3			IPR-SHAFTFEED IDLER JC70-10230A 1 O
3			MEA-HOLDER PINCH M JC97-01770A 1 O
3-1			PMO-HOLDER PINCH M JC72-00724A 1 O
3-2			PMO-ROLLER FEED L JC72-40261A 1 O
3-3			PMO-SUB HOLDER FEED JC72-40266A 1 O
3-4			PMO-ROLLER FEED S JC72-40262A 1 O
3-5			IPR-SHAFTFEED IDLER JC70-10230A 2 O
4			PMO-FRAME FEED JC72-01106A 1 O
5			RING-E 6044-000125 4 X
6			PMO-BUSHING FEED MID JC72-01105A 1 X
7			IPR-BRKTFEED MID JC70-00376A 1 X
8			WASHER-PLAIN 6031-000021 6 X
9			PMO-ROLLER FEED MID JC72-01113A 1 O
10			SHAFT-FEED MID JC66-00618A 1 X
11			PMO-BUSHING P/U.MP JC72-41364A 3 O
12			GROUND-PICKUPPLATE JC63-00182A 1 X
13			PMO-ROLLER FEED JC72-00727A 1 O
14			SHAFT-FEED JC66-00617A 1 O
15			GEAR-MP/DUPDRV JC66-00346A 1 O
16			PMO-PULLEYFEED L JC72-01110A 1 O
17			BELT-TIMING GEAR 6602-001176 1 O
18			GEAR-FEED JC66-00332A 1 O
19			PMO-PULLEYFEED S JC72-01111A 1 O
20			PMO-BRKTFEED JC72-01134A 1 O
21			PMO-PULLEYIDLE JC72-01112A 1 O
22			RING-CS 6044-000001 1 X
23			SPRING-TS 6107-001210 1 X
24			SPRING-TS 6107-001211 1 X
25			SPRING ETC-FEED MP JC61-00481A 1 O
0			ELAUNIT-GUIDE PAPER T2 JC96-02797A 1 O
1			PMO-COVER FEED SENSOR JC72-01139A 1 O
2			PBASUB-FEED SENSOR JC92-01455A 1 O
3			PMO-ACTUATOR FEED SENSOR JC72-01135A 1 O
4			IPR-BRKTPAPER GUIDE JC70-00389A 1 X
5			SHEET-PAPER GUIDE JC63-00235A 2 O
6			PMO-GUIDE PAPER PATH JC72-01160A 1 O
7			SPRING ETC-ACTUATOR JC61-00050A 1 O

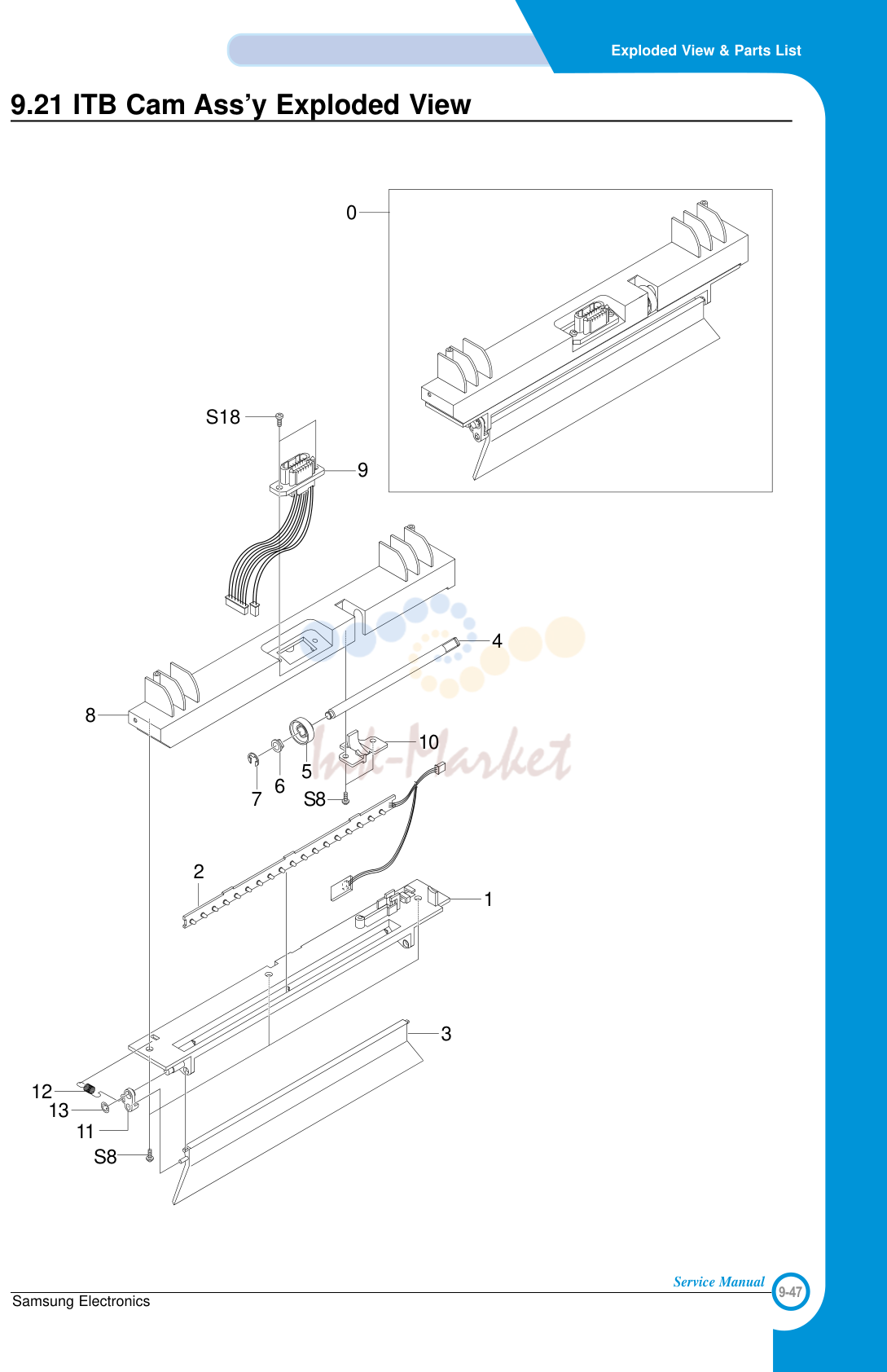

19. Exploded View & Parts List

№	Артикул	Альт. артикул	Описание
0			ELAUNIT-ITB CAM JC96-03216A 1 O
1			PMO-DUMMYITB CAM LOWER JC72-01154A 1 X
2			PBASUB-PTL_THER JC92-01651A 1 X
3			PMO-PTLPATH JC72-01187A 1 O
4			SHAFT-ITB CLEAN CAM JC66-00548A 1 O
5			CAM-ITB CLEANING JC66-00511A 1 X
6			BUSH-D6/L4 JC61-00699A 1 O
7			RING-E 6044-000125 1 X
8			PMO-DUMMYITB CAM UPPER JC72-01155A 1 X
9			CBF HARNESS-ITB D_SET JC39-00381A 1 O
10			PMO-COVER CAM SHAFT JC72-01136A 1 X
11			GUIDE-PTLSPRING JC61-00717A 1 X
12			SPRING-PTL 6107-001203 1 X
13			RING-CS 6044-000001 1 X
0			ELAUNIT-DUMMYFUSER BASE JC96-02795A 1 O
1			PMO-DUMMYFUSER BASE JC72-01142A 1 O
2			PMO-COVER FUSER AC JC72-01140A 1 O
3			IPR-TERMINALFU JC70-10961A 2 O
4			CBF HARNESS-SMPS_AC WIRE JC39-00288A 1 O
