Ricoh Aficio CL 1000 — каталог запчастей со схемами
Содержание

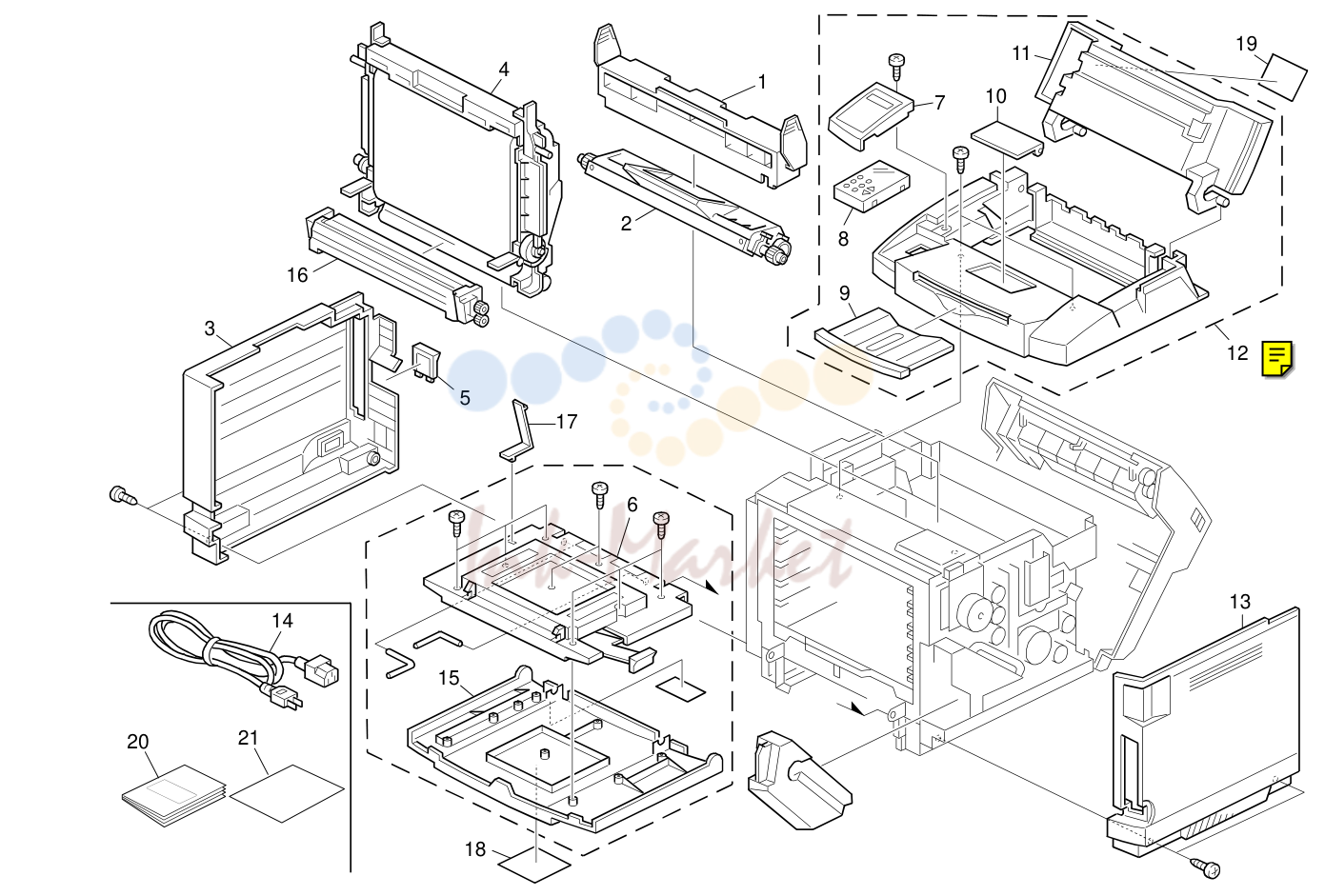

1. EXTERIOR (G108)
| № | Артикул | Альт. артикул | Описание |
|---|
| 1 | | | V128 408 Cleaning Roller Cover PU |
| 2 | | | V128 404 Cleaning Roller PU |
| 3 | | | V128 418 Left Side Cover PU |
| 4 | | | V128 403 OPC Charger Roller PU |
| 5 | | | V128 445 Duplex Connector Cover PU |
| 6 | | | V128 419 Inner Front Cover PU |
| 7 | | | V128 414 OP Panel Cover |
| 8 | | | V128 413 OP Panel |
| 9 | | | V128 415 Paper Tray PU |
| 10 | | | V128 416 Slope PU |
| 11 | | | V128 412 Top Cover PU |
| 12 | | | V128 411 Top Cover Assy PU |
| 13 | | | V128 417 Right Side Cover PU |
| 14 | | | V128 409 Power Cord (110 V) PU |
| 15 | | | V128 420 Front Cover PU |
| 16 | | | V128 444 Waste Toner Auger PU |
| 17 | | | V128 449 Front Band PU |
| 18 | G1087001 запросить цену → | | Decal - Emblem Ricoh EXP |
| 18 | G1087002 запросить цену → | | Decal:Emblem:NRG:GES |
| 18 | G1087003 запросить цену → | | Decal:Emblem:NRG:NAS |
| 18 | G1087004 запросить цену → | | Decal:Emblem:NRG:REX |
| 19 | GA003038 запросить цену → | | Decal - Inkjet Paper Caution |
| 20 | G1088607 запросить цену → | | Manual:Introduction:Eng |
| 20 | G1088608 запросить цену → | | Manual:Setup:Easy:Eng |
| 20 | G1088611 запросить цену → | | Manual:Maintenance:Eng |
| 20 | G1088614 запросить цену → | | Manual:Option:Eng |
| 21 | G1087022 запросить цену → | | Sheet:Color_chart:EXP |

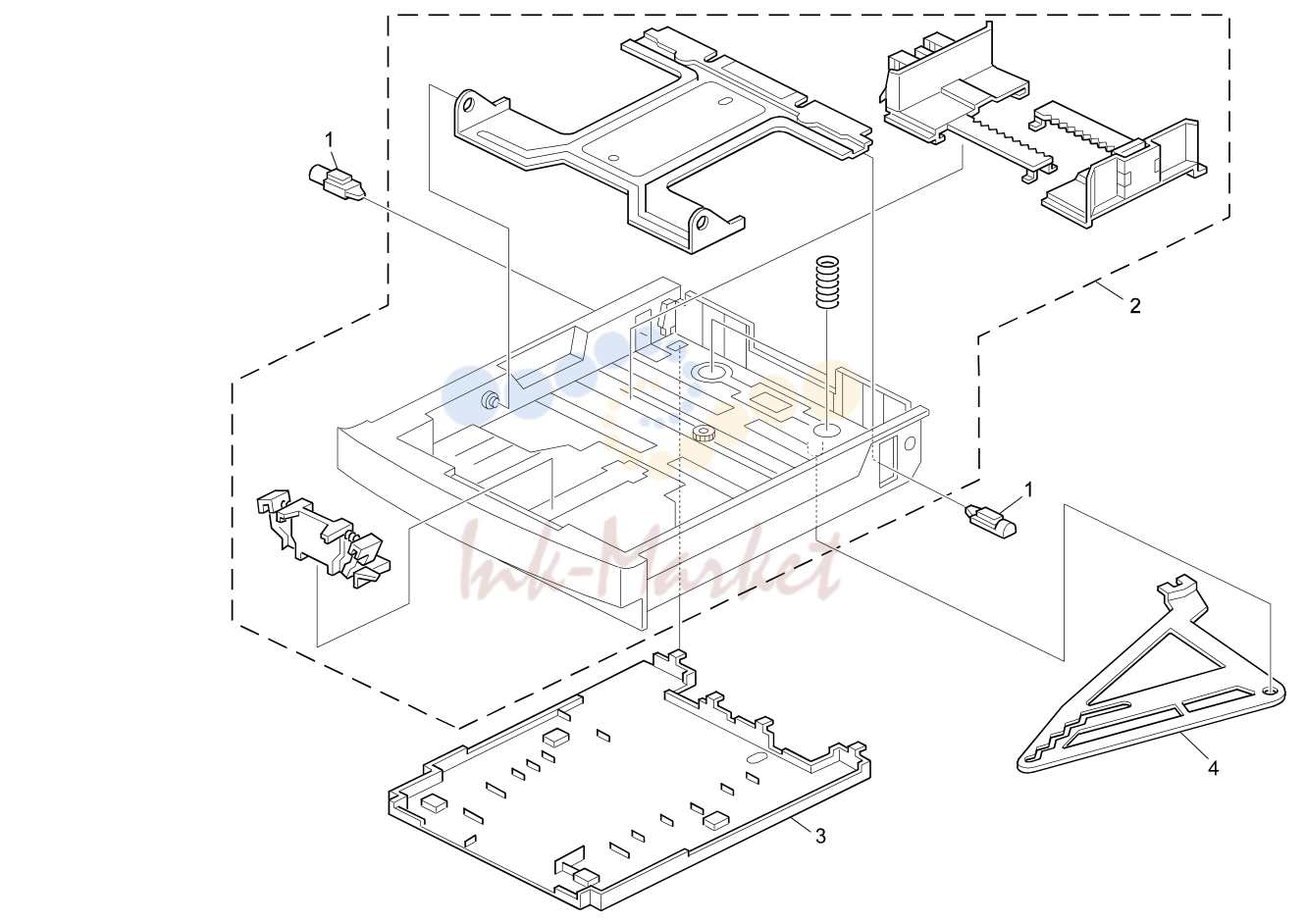

2. PAPER CASSETTE (G108)
| № | Артикул | Альт. артикул | Описание |
|---|
| 1 | | | V128 558 Cp Lach Lever |
| 2 | | | V128 559 Cp Cassette Base |
| 3 | | | V128 555 Cp Back Cover |
| 4 | | | V128 556 Cp Size Detect Lever |

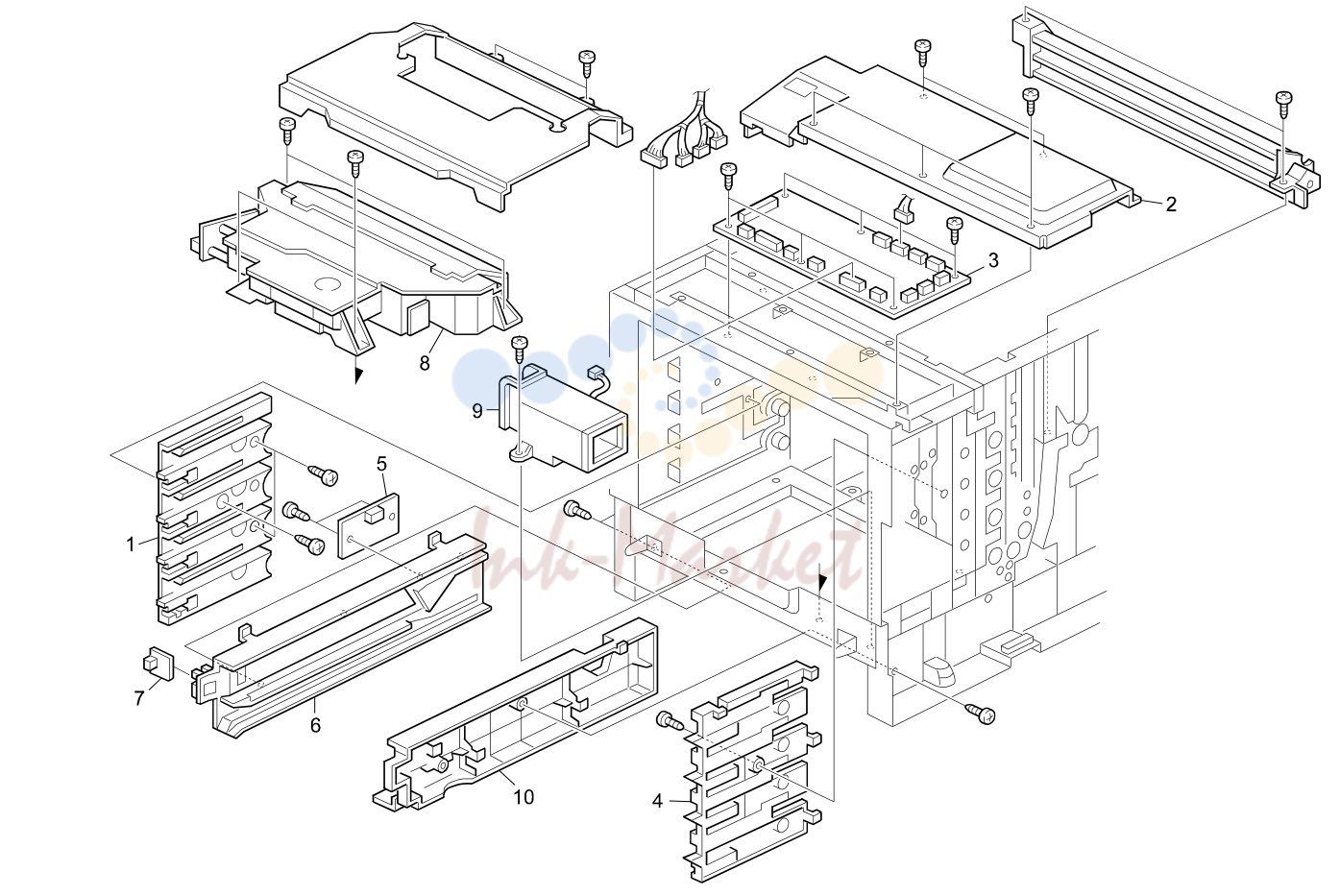

3. UNIT GUIDE SECTION (G108)
| № | Артикул | Альт. артикул | Описание |
|---|
| 1 | | | V128 443 Left Toner Guide PU |
| 2 | | | V128 422 I/O Board Cover PU |
| 3 | | | V128 421 I/O Board PU |
| 4 | | | V128 442 Right Toner Guide PU |
| 5 | | | V128 440 Paper Size Sensor PU |
| 6 | | | V128 439 Left Tray Guide PU |
| 7 | | | V128 441 Room Temp. Thermistor PU |
| 8 | | | V128 437 Laser Assy PU |
| 9 | | | V128 447 Laser Unit Fan Assy PU |
| 10 | | | V128 438 Right Tray Guide PU |

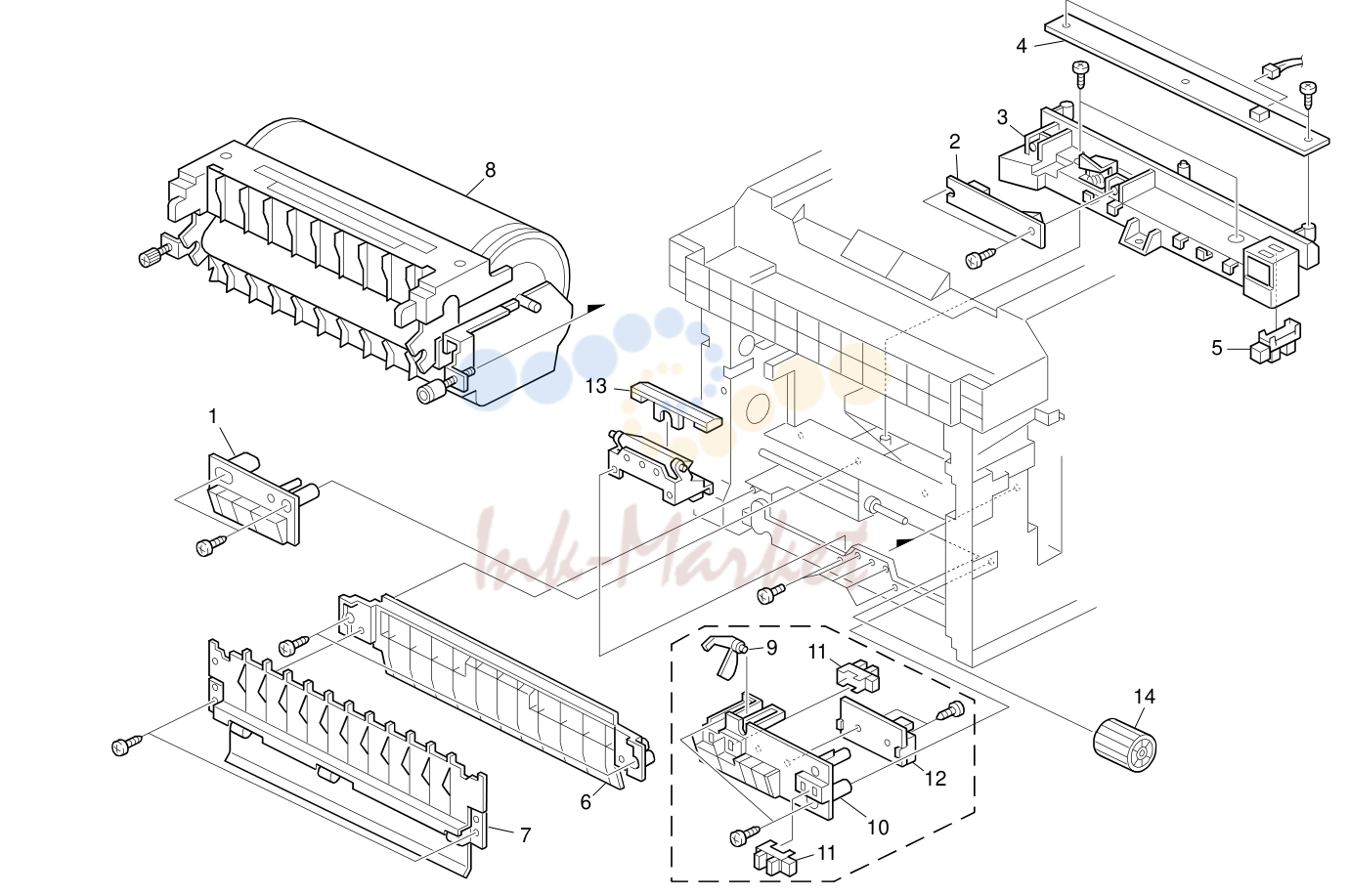

4. PCU SECTION (G108)
| № | Артикул | Альт. артикул | Описание |
|---|
| 1 | | | V128 470 Paper Guide (D) PU |
| 2 | | | V128 471 Toner Density Sensor PU |
| 3 | | | V128 472 Sensor Stay Assy PU |
| 4 | | | V128 469 Erase Lamp PU |
| 5 | | | V126 168 Belt Sensor |
| 6 | | | V128 465 Paper Guide (B) PU |
| 7 | | | V128 464 Paper Guide (A) PU |
| 8 | | | V128 463 Transfer Unit PU |
| 9 | | | V128 467 Tray Empty Actuator PU |
| 10 | | | V128 466 Paper Guide (C) PU |
| 11 | | | V126 167 Paper Sensor |
| 12 | | | V128 464 Paper Guide (A) PU |
| 13 | | | V128 468 Separator Pad 5 PU |
| 14 | | | V126 142 Paper Feeding Roller |

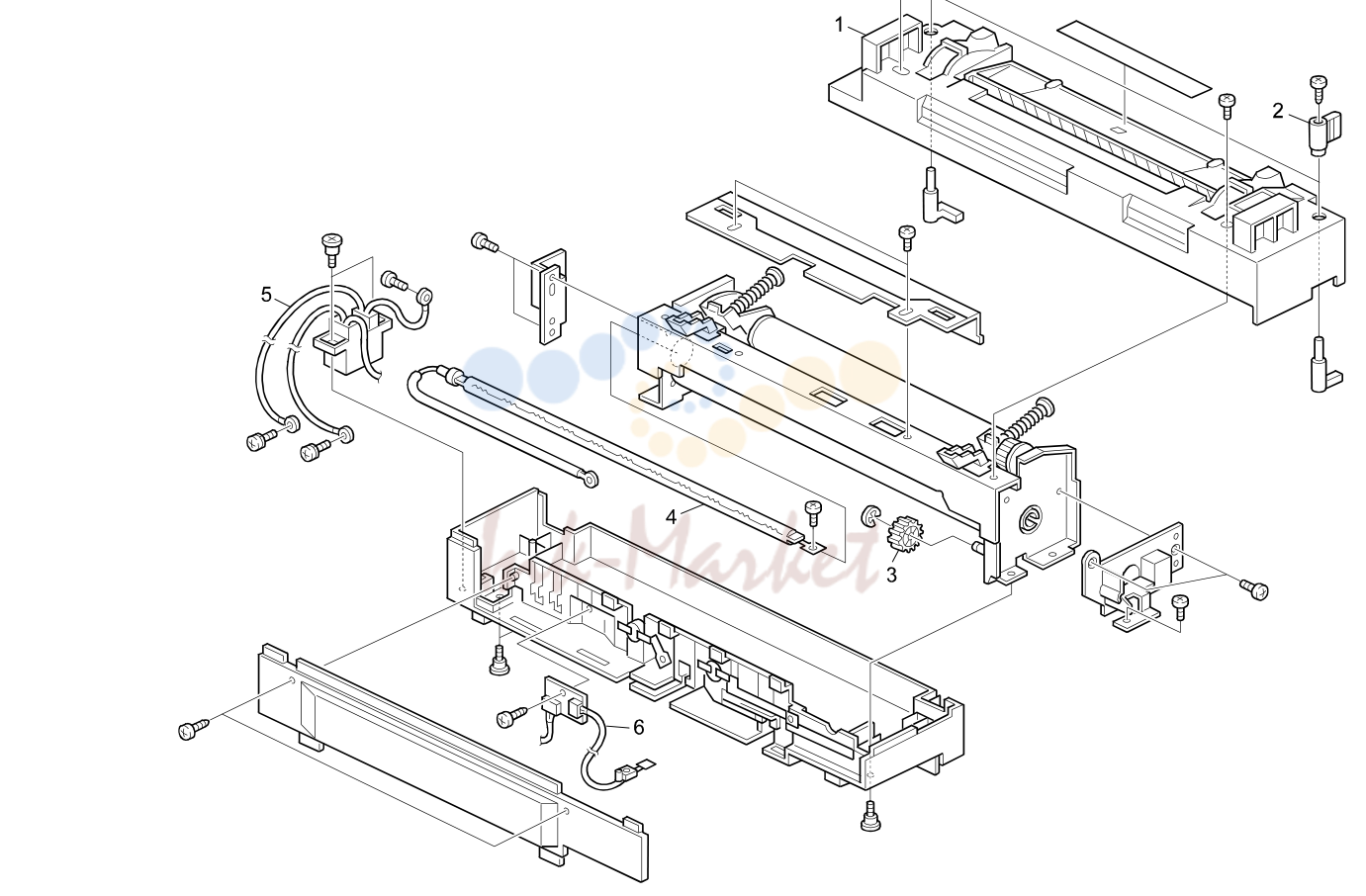

5. FUSING UNIT 1 (G108)
| № | Артикул | Альт. артикул | Описание |
|---|
| 1 | | | V128 606 Top Fuser Cover FU |
| 2 | | | V128 480 Lock Knob Kit FU |
| 3 | | | V128 481 Idle Gearz20 FU |
| 4 | | | V128 473 Fuser Lamp (110 V) FU |
| 4 | | | V128 474 Fuser Lamp (220 V) FU |
| 5 | | | V128 477 Fuser Connector (110V) FU |
| 5 | | | V128 478 Fuser Connector (220V) FU |
| 6 | | | V128 479 Thermistor Assy FU |

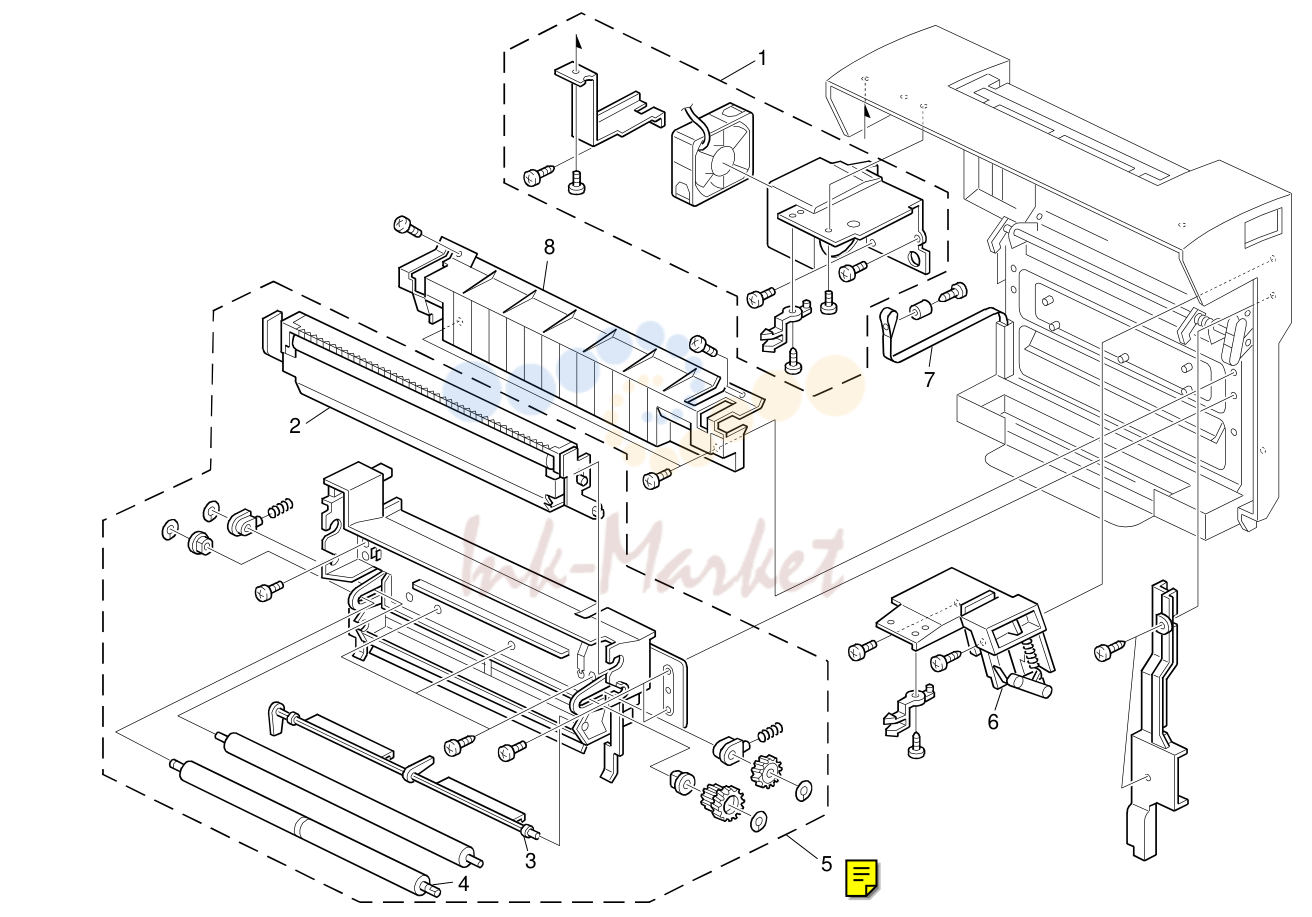

6. PAPER EXIT SECTION 1 (G108)
| № | Артикул | Альт. артикул | Описание |
|---|
| 1 | | | V128 493 Exit Fan Assy PU |
| 2 | | | V128 488 Transfer Roller Assy PU |
| 3 | | | V128 486 Registration Actuator PU |
| 4 | | | V128 611 Transfer Base Assy PU |
| 5 | | | V128 487 Registration Roller Assy PU |
| 6 | | | V128 496 Rear Cover Latch Assy PU |
| 7 | | | V128 498 Tr Unit Band |
| 8 | | | V128 495 Transfer Roller Guide PU |

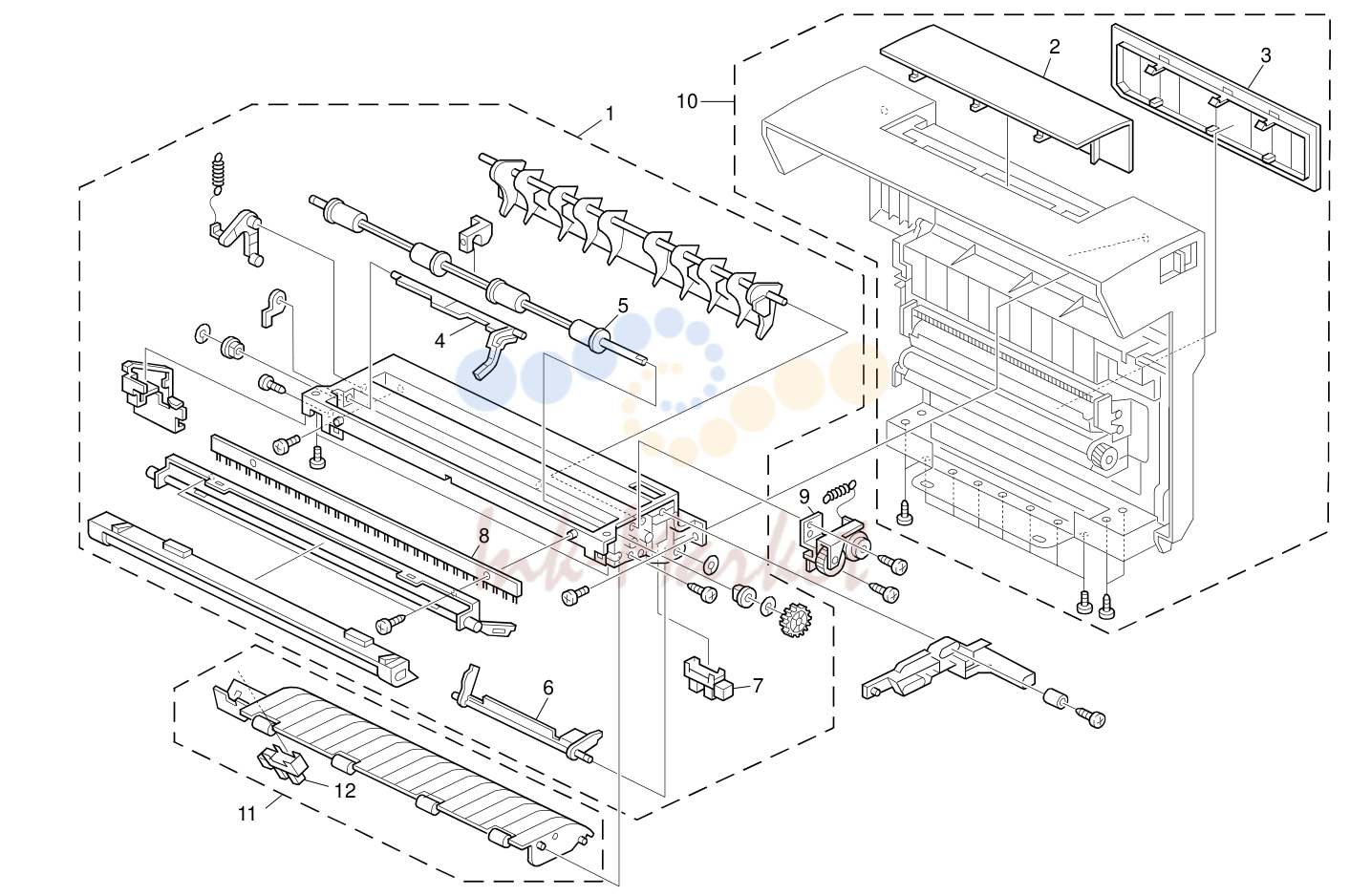

7. PAPER EXIT SECTION 2 (G108)
| № | Артикул | Альт. артикул | Описание |
|---|
| 1 | | | V128 489 Exit Guide Assy PU |
| 2 | | | V128 483 Upper Duplex Cover PU |
| 3 | | | V128 484 Lower Duplex Cover PU |
| 4 | | | V128 497 Paper Exit Actuator PU |
| 5 | | | V128 490 Exit Roller Assy PU |
| 6 | | | V128 491 Fuser Exit Actuator PU |
| 7 | | | V126 648 Ohp Sensor |
| 8 | | | V123 842 Discharging Brush |
| 9 | | | V128 494 Exit Drive Assy PU |
| 10 | | | V128 482 Rear Cover Assy PU |
| 11 | | | V128 492 Exit Idle Roller Assy PU |
| 12 | | | V126 167 Paper Sensor |

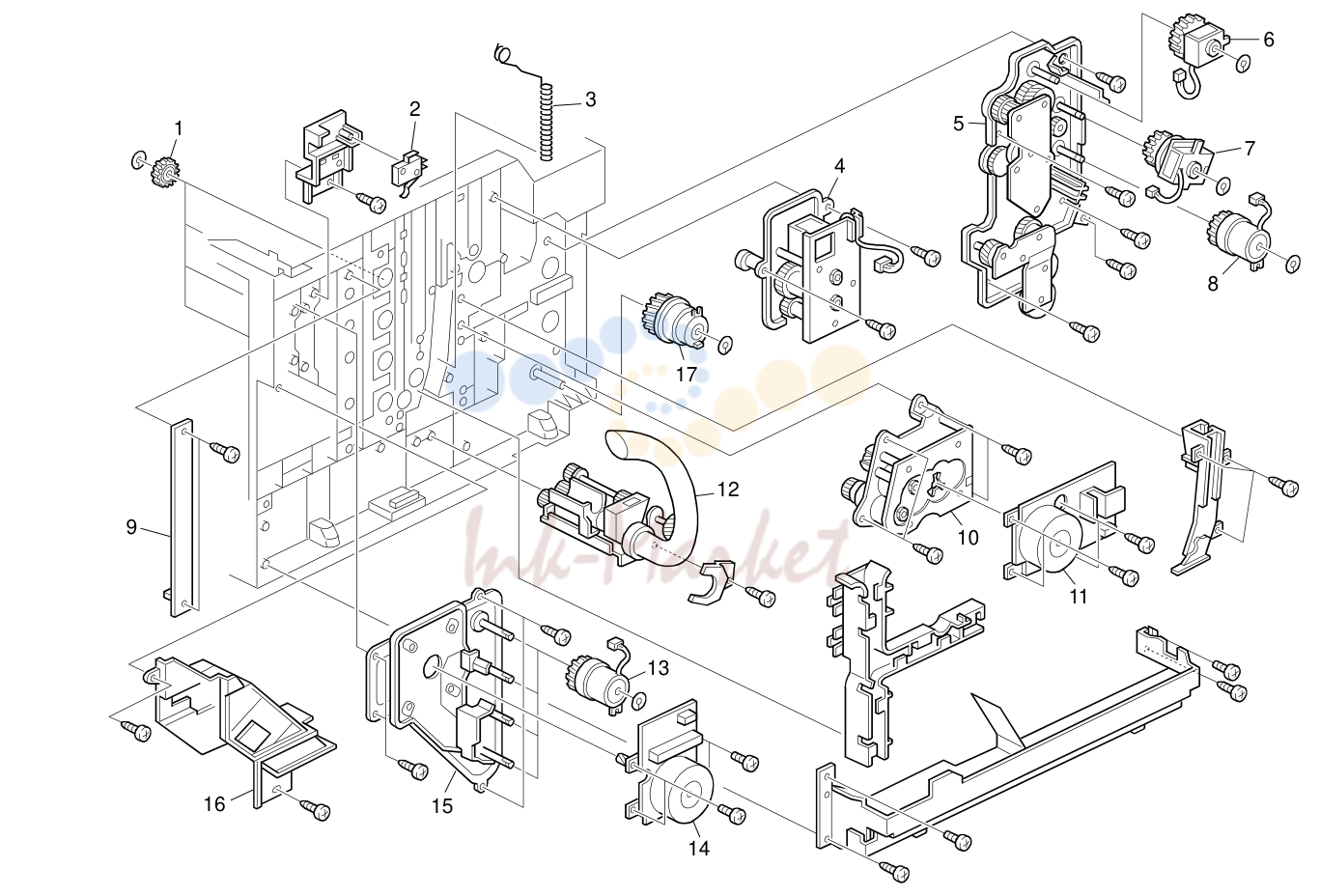

8. DRIVE SECTION (G108)
| № | Артикул | Альт. артикул | Описание |
|---|
| 1 | | | V128 433 Developer Gear PU |
| 2 | | | V128 436 Interlock Switch PU |
| 3 | | | V128 446 Waste Toner Agitator PU |
| 4 | | | V128 428 Cleaning Roller Clutch PU |
| 5 | | | V128 429 Main Drive Gear Assy PU |
| 6 | | | V128 427 Fuser Clutch PU |
| 7 | | | V126 639 Tr Cam Clutch |
| 8 | | | V128 426 Registration Clutch PU |
| 9 | | | V128 448 F Switch Base PU |
| 10 | | | V128 424 OPC Drive Gear Assy PU |
| 11 | | | V128 423 Main Motor PU |
| 12 | | | V128 430 Waste Toner Feeder PU |
| 13 | | | V128 434 Developer Clutch PU |
| 14 | | | V128 431 Developer Motor PU |
| 15 | | | V128 432 Developer Drive Assy PU |
| 16 | | | V128 435 Waste Toner Holder Assy PU |
| 17 | | | V128 425 Paper Feed Clutch PU |

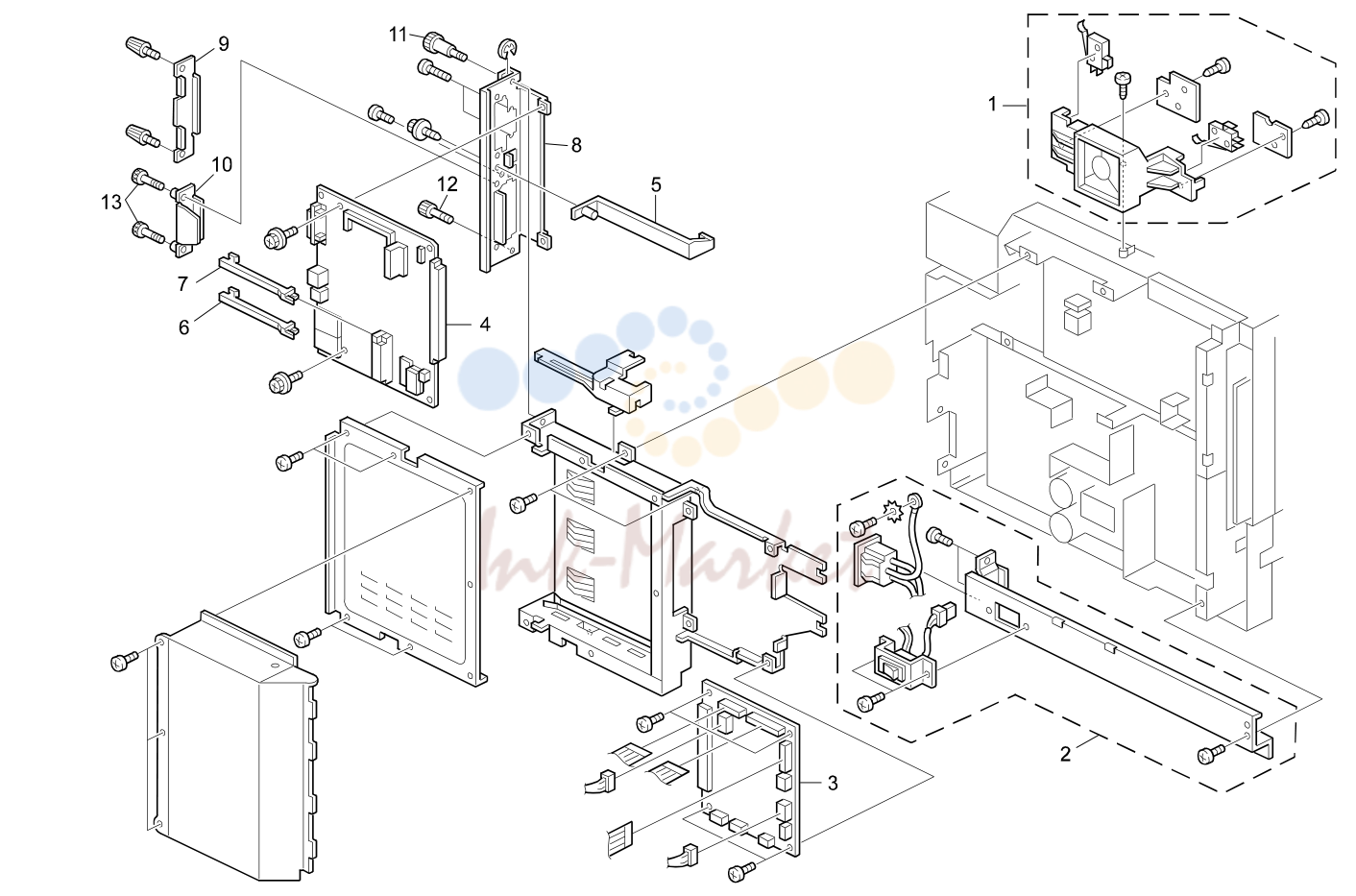

9. ELECTRICAL SECTION 1 (G108)

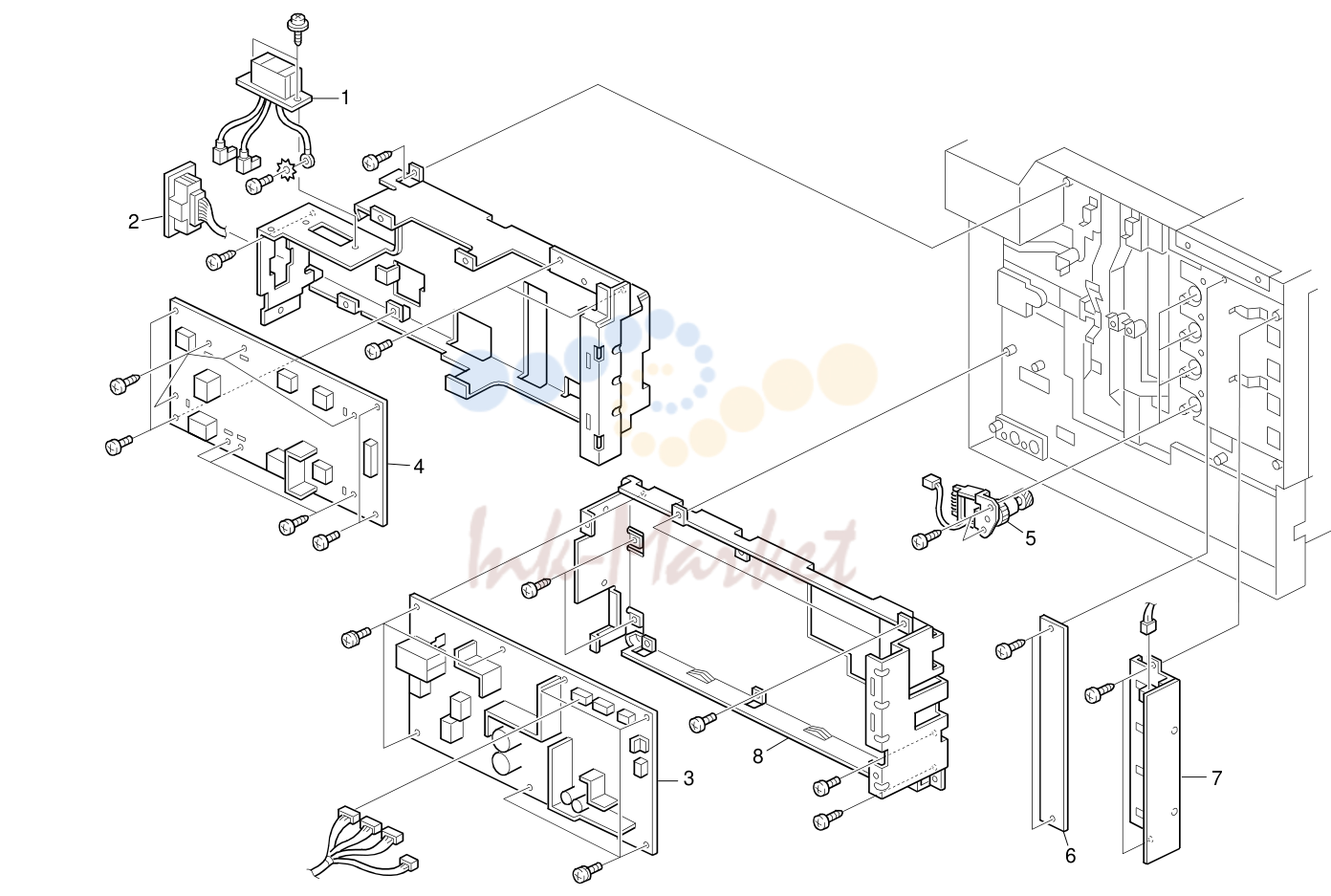

10. ELECTRICAL SECTION 2 (G108)
| № | Артикул | Альт. артикул | Описание |
|---|
| 1 | | | V128 457 Fuser Connector (110V) PU |
| 1 | | | V128 458 Fuser Connector (220V) PU |
| 2 | | | V128 462 Dup Connector |
| 3 | | | V128 452 Lv Power Supply (110 V) PU |
| 3 | | | V128 453 Lv Power Supply (220 V) PU |
| 4 | | | V128 451 Hv Power Supply PU |
| 5 | | | V128 459 Toner Retract Solenoid PU |
| 5 | | | V128 460 Toner Retract Cam PU |
| 6 | | | V126 169 Toner Sensor Assy |
| 7 | | | V128 461 Toner Present Sensor PU |
| 8 | | | V128 612 Power Supply Bracket (110V) PU |
| 8 | | | V128 613 Power Supply Bracket (220V) PU |
