Panasonic KX-FT932 934 — каталог запчастей со схемами

Содержание

• 1. ORDER NO.KMF0605958CE
• 2. 3.2. Flash Memory (IC2)
• 3. b. Redundancy Compression Process Coding Mode
• 4. 10. Operation Board Section
• 5. 11 Service Mode
• 6. 1.4. Memory Clear Specification

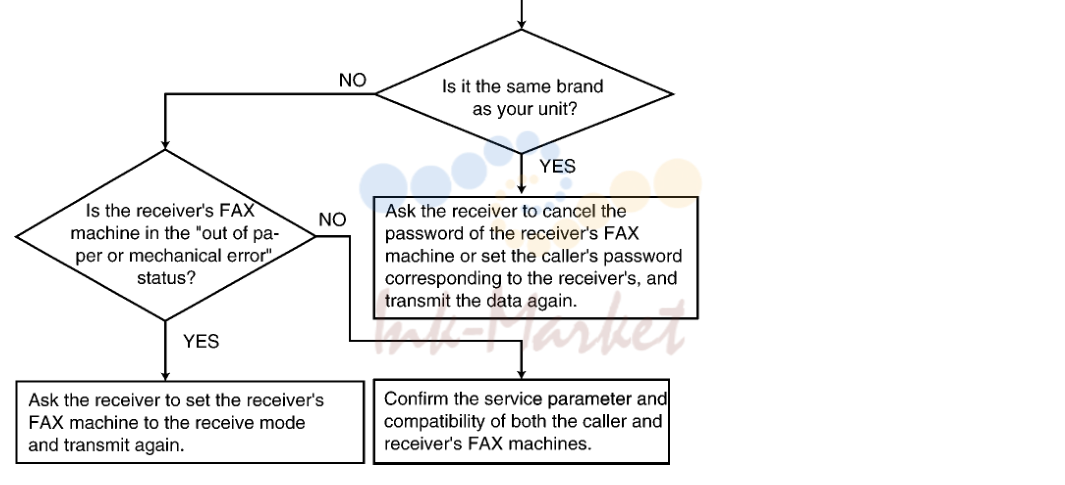

• 7. CROSS REFERENCE:

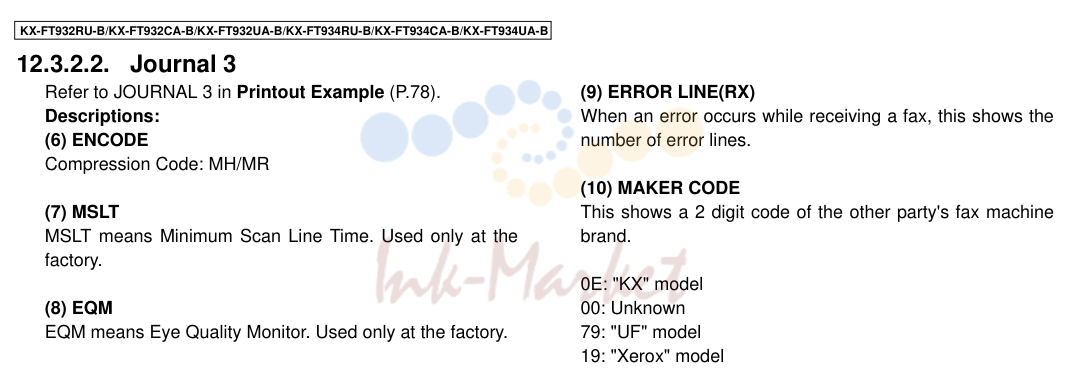

• 8. 3.2.2. Journal 3

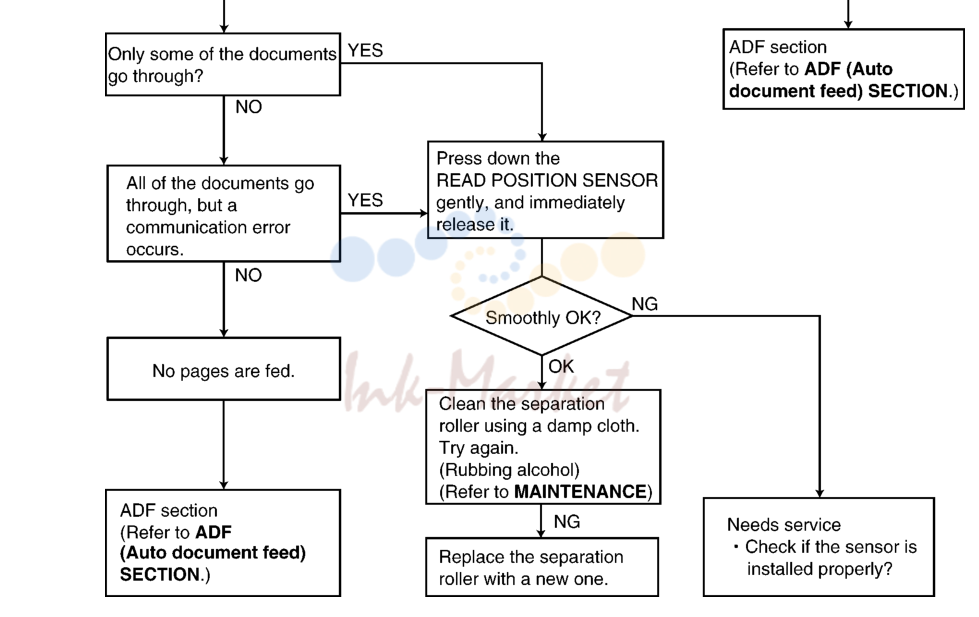

• 9. 3.3.1. Defective Facsimile Section

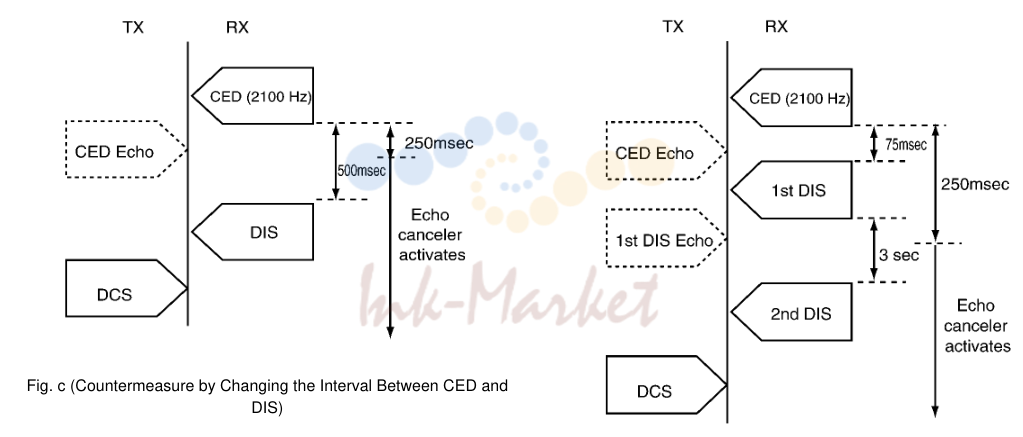

• 10. Fig. c (Countermeasure by Changing the Interval Between CED and

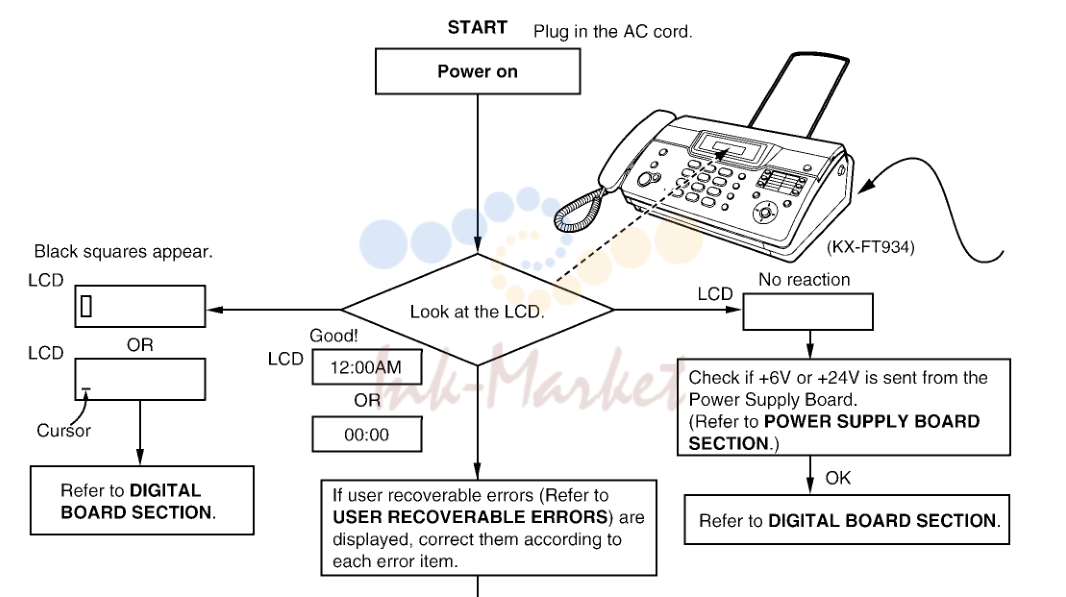

• 11. 5. Troubleshooting Details

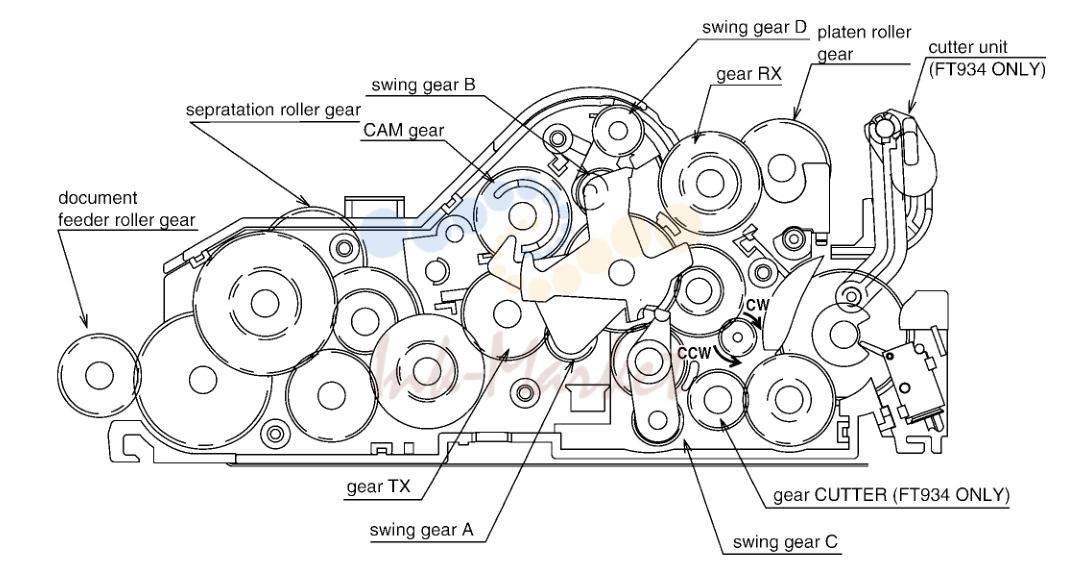

• 12. 2. Gear Section

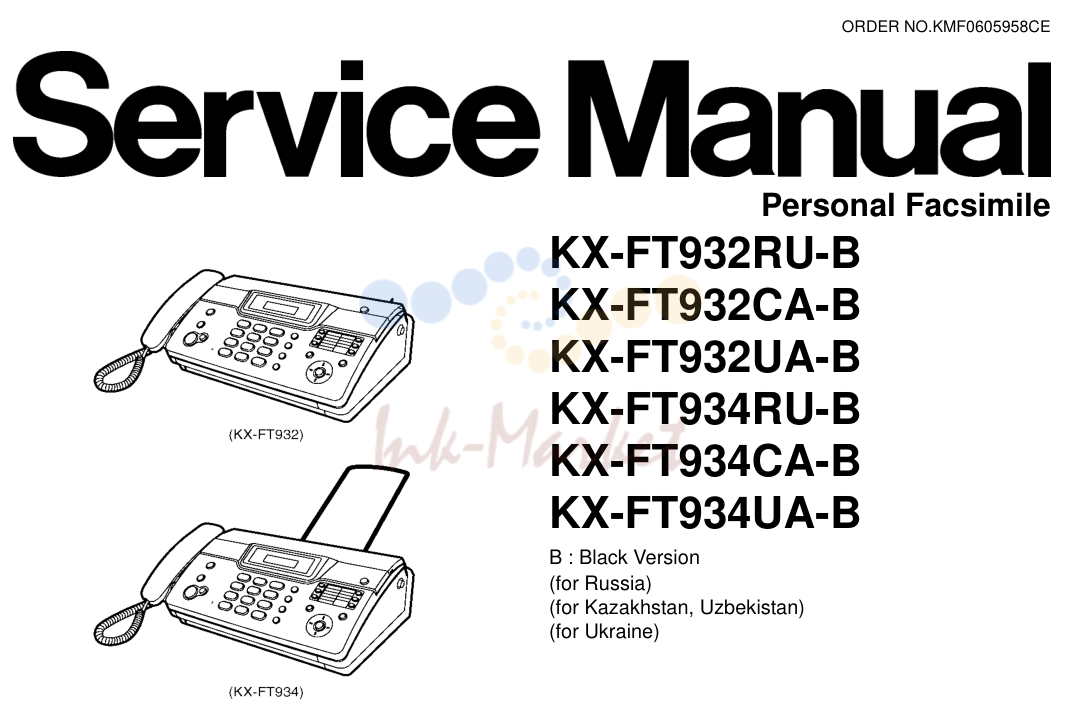

1. ORDER NO.KMF0605958CE

№	Артикул	Альт. артикул	Описание
1			VSSA GND POWER SOURCE (ANALOG GND)
2			VDDA 3.3 3.3V POWER SOURCE (ANALOG +3.3V)
3			AIN1 A 3.3V CIS IMAGE SIGNAL INPUT (ATN1)
4			AIN2 A 3.3V THERMISTOR TEMPERATURE WATCH INPUT
5			AIN3 A 3.3V LINE VOLTAGE DETECTION SIGNAL INPUT (DCIN)
6			AMON A 3.3V ANALOG SIGNAL MONITOR TERMINAL
7			VSS GND POWER SOURCE (GND)
8	X32OUT запросить цену →		O 3.3V/BATT RTC (32.768KHz) CONNECTION
9	X32IN запросить цену →		I 3.3V/BATT RTC (32.768KHz) CONNECTION
10			VDD (3.3V / B) ----- POWER SOURCE (+3.3V/LITHIUM BATTERY)
11			XBACEN I 3.3V/BATT BACKUP ENABLE
12			XRAMCS O 3.3V/BATT XRAMCS
13			VDD (3.3V / B) ----- POWER SOURCE(+3.3V / LITHIUM BATTERY)
14			VDD (2.5V/B) ----- POWER SOURCE (+2.5V / LITHIUM BATTERY)
15			FTG O 3.3V SH SIGNAL OUTPUT FOR CIS (FTG)
16			F1 O 3.3V 01 SIGNAL OUTPUT FOR CIS (F1)
17			F2/OP O 3.3V OUTPUT PORT (HEADON)
18			FR/OP O 3.3V OUTPUT PORT (MDMRST)
19			CPC I 3.3V INPUT PORT (CPC)
20			RVN I 3.3V INPUT PORT (PAPER)
21			IRDATXD/IOP I 3.3V INPUT PORT (JAM)
22			IRDARXD/IOP80 O 3.3V OUTPUT PORT (HSTX MUTE)
23			TXD/IOP I 3.3V INPUT PORT (BELL)
24			RXD/IOP I/O 3.3V PORT (TELRXEN)
25			XRTS/IOP I 3.3V INPUT PORT (PSHORT)
26			XCTS/IOP I/O 3.3V PORT (MDMTXEN)
27			VDD (2.5V) ----- POWER SOURCE (+2.5V)
28	TONE1 запросить цену →		A 3.3V TONE OUTPUT
29	TONE2 запросить цену →		A 3.3V TONE OUTPUT
30			VOLUREF A 3.3V ANALOG REF VOLTAGE
31			VOLUOUT A 3.3V VOLUME OUTPUT
32			VOLUIN A 3.3V VOLUME INPUT
33			XNMI I 3.3V HIGH FIXED
34			FMEMDO/IOP O 3.3V OUTPUT PORT (LED ON)
35			VDD (3.3V) ----- POWER SOURCE (+3.3V)
36			VSS GND POWER SOURCE (GND)
37			VSS GND POWER SOURCE (GND)
38			VDD (3.3V) ----- POWER SOURCE (+3.3V)
39			MIDAT/IOP I/O 3.3V PORT (TONE1EN)
40			MICLK/IOP O 3.3V OUTPUT PORT (TONE2EN)
41			MILAT/IOP I/O 3.3V PORT (HSRXEN)
42			20KOSC/IOP O 3.3V OUTPUT PORT (PWRCNT)
43			XWAIT I 3.3V INPUT PORT (HOOK)
44			HSTRD/IOP I 3.3V INPUT PORT (TEST)
45			HSTWR/IOP O 3.3V OUTPUT PORT (BLEEDER_ON)
46			XOPRBE O 3.3V OUTPUT PORT (MFCS)
47	ADR15 запросить цену →		O 3.3V CPU ADDRESS BUS 15 (NOT USED)
48	ADR14 запросить цену →		O 3.3V CPU ADDRESS BUS 14 (NOT USED)
49	ADR13 запросить цену →		O 3.3V CPU ADDRESS BUS 13 (NOT USED)
50			VDD (2.5V) ----- POWER SOURCE (+2.5V)
51			XOUT O 3.3V SYSTEM CLOCK (24MHz)
52			XIN I 3.3V SYSTEM CLOCK (24MHz)
53			VSS GND POWER SOURCE (GND)
54			VDD (3.3V) ----- POWER SOURCE (+3.3V)
55			XTEST O 3.3V 24MHz CLOCK
56	TEST1 запросить цену →		I 3.3V HIGH FIXED
57	TEST2 запросить цену →		I 3.3V HIGH FIXED
58	TEST3 запросить цену →		I 3.3V HIGH FIXED
59	TEST4 запросить цену →		I 3.3V HIGH FIXED
60			XMDMINT I 3.3V MODEM INTERRUPT
61			XMDMCS O 3.3V MODEM CHIP SELECT
62			XRAS/IOP O 3.3V DRAM ROW ADDRESS STROBE (RAS)
63			XCAS1/IOP O 3.3V DRAM COLUMN ADDRESS STROBE (CAS)
64			XCAS2/IOP I 3.3V PORT (SPMUTE)
65	XRESCS2 запросить цену →		O 3.3V FLASH CHIP SELECT (XRESCS2)
66			DB3 I/O 3.3V CPU DATA BUS
67			DB2 I/O 3.3V CPU DATA BUS
68			DB4 I/O 3.3V CPU DATA BUS
69			DB1 I/O 3.3V CPU DATA BUS
70			DB5 I/O 3.3V CPU DATA BUS
71			VDD (3.3V) ----- POWER SOURCE (+3.3V)
72			VSS GND POWER SOURCE (GND)
73			VSS GND POWER SOURCE (GND)
74			VDD (3.3V) ----- POWER SOURCE (+3.3V)
75			DB0 I/O 3.3V CPU DATA BUS
76			DB6 I/O 3.3V CPU DATA BUS
77			DB7 I/O 3.3V CPU DATA BUS
78			XROMCS O 3.3V FLASH (IC2) CHIP SELECT
79			RD O 3.3V CPU RD
80			WR O 3.3V CPU WR
81			ADR0 O 3.3V CPU ADDRESS BUS
82			ADR1 O 3.3V CPU ADDRESS BUS
83			ADR2 O 3.3V CPU ADDRESS BUS
84			ADR3 O 3.3V CPU ADDRESS BUS
85			ADR4 O 3.3V CPU ADDRESS BUS
86			ADR5 O 3.3V CPU ADDRESS BUS
87			VSS GND POWER SOURCE (GND)
88			VDD (2.5V) ----- POWER SOURCE (+2.5V)
89			ADR6 O 3.3V CPU ADDRESS BUS
90			ADR7 O 3.3V CPU ADDRESS BUS
91			ADR8 O 3.3V CPU ADDRESS BUS
92			ADR9 O 3.3V CPU ADDRESS
93	ADR10 запросить цену →		O 3.3V CPU ADDRESS
94	ADR11 запросить цену →		O 3.3V CPU ADDRESS
95	ADR12 запросить цену →		O 3.3V CPU ADDRESS
96			RBA0 O 3.3V ROM/RAM BANK ADDRESS
97			RBA1 O 3.3V ROM/RAM BANK ADDRESS
98			RBA2 O 3.3V ROM/RAM BANK ADDRESS
99			RBA3 O 3.3V ROM/RAM BANK ADDRESS
100			RBA4 O 3.3V ROM/RAM BANK ADDRESS
101			RBA5 O 3.3V ROM/RAM BANK ADDRESS
102			RBA6/IOP96 O 3.3V OUTPUT PORT (NC)
103			STB1 O 3.3V STROBE SIGNAL OUTPUT TO THERMAL HEAD
104			STB2 O 3.3V STROBE SIGNAL OUTPUT TO THERMAL HEAD
105			STB3 O 3.3V OUTPUT PORT (NC)
106			XRESET I 3.3V RESET INPUT
107			VDD (3.3V) ----- POWER SOURCE (+3.3V)
108			VSS GND POWER SOURCE (GND)
109			VSS GND POWER SOURCE (GND)
110			VDD (3.3V) ----- POWER SOURCE (+3.3V)
111			XORESET O 3.3V NOT USED
112			VDD(5V) ----- POWER SOURCE (+5V)
113			VSS GND POWER SOURCE (GND)
114			XRESETI I 3.3V RESET INPUT
115			WDERR O 3.3V WATCHED ERROR OUTPUT SIGNAL
116			THDAT O 3.3V RECORDED IMAGE OUTPUT (THDAT)
117			THCLK O 3.3V CLOCK OUTPUT FOR DATA TRANSFER (THCLK)
118			THLAT O 3.3V PULSE OUTPUT FOR DATA LATCH (THLAT)
119			STBNP I 3.3V INPUT PORT (MOT-POS)
120			RM0/IOP O 3.3V MOTOR A PHASE
121			RM1/IOP O 3.3V MOTOR B PHASE
122			RM2/IOP O 3.3V MOTOR /A PHASE
123			RM3/IOP O 3.3V MOTOR /B PHASE
124			RXE/IOP O 3.3V MOTOR ENABLE
125			TMO O 3.3V OUTPUT PORT (NC)
126			VDD (2.5V) ----- POWER SOURCE (+2.5V)
127			VSS GND POWER SOURCE (GND)
128			TM1/IOP O 3.3V OUTPUT PORT (ACK_EN)
129			TM2/IOP O 3.3V OUTPUT PORT (CISON)
130			TM3/IOP O 3.3V OUTPUT PORT (RLY)
131			TXE/IOP I 3.3V INPUT PORT (CUT_POS)
132			KSTART O 3.3V OPERATION PANEL CONTROL
133			KLATCH O 3.3V OPERATION PANEL CONTROL
134			KSCLK O 3.3V OPERATION PANEL CONTROL
135			KTXD O 3.3V OPERATION PANEL CONTROL
136			KRXD I 3.3V OPERATION PANEL CONTROL
137			FMEMCLK/IOP O 3.3V OUTPUT PORT (OPRESET)
138			FMEMDI/IOP O 3.3V OUTPUT PORT (NC)
139	ADSEL1 запросить цену →		O 3.3V CHANNEL SELECT SIGNAL FOR AIN2
140			VDDA (2.5V) 2.5V POWER SOURCE (ANALOG +2.5V)
141			VREFB A 3.3V A/D CONVERTER'S ZERO STANDARD VOLTAGE
142			VCL A 3.3V ANALOG PART STANDARD VOLTAGE SIGNAL
143			VREFT A 3.3V A/D CONVERTER'S FULL SCALE VOLTAGE OUTPUT
144			VSSA GND POWER SOURCE (ANALOG GND)

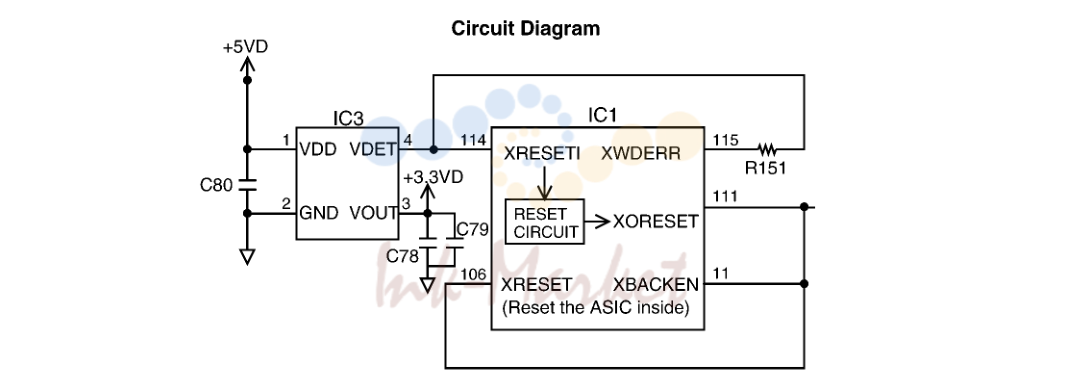

2. 3.2. Flash Memory (IC2)

№	Артикул	Альт. артикул	Описание
1			Transmitter --- T.2 operation
2			Receiver --- T.2 operation Receiver --- T.2 operation
3			T.2 IOC = 176 T.2 IOC =
4			Transmitter --- T.3 operation
5			Receiver --- T.3 operation Receiver --- T.3 operation
6			Reserved for future T.3 operation features
7			Reserved for future T.3 operation features.
8			Reserved for future T.3 operation features.
9			Transmitter --- T.4 operation
10			Receiver --- T.4 operation Receiver --- T.4 operation
15			R8×7.7 lines/mm and/or 200×200 pels/25.4mm R8×7.7 lines/mm and/or 200×200 pels/25.4mm
16			Two-dimensional coding capability Two-dimensional coding capability
24			Extend field Extend field
25			2400 bit/s handshaking 2400 bit/s handshaking
26			Uncompressed mode Uncompressed mode
27			Error correction mode Error correction mode
28			Set to "0". Frame size 0 = 256 octets 1 = 64 octets
29			Error limiting mode Error limiting mode
30			Reserved for G4 capability on PSTN Reserved for G4 capability on PSTN
31			T.6 coding capability T.6 coding enabled
32			Extend field Extend field
33			Validity of bits 17, 18 Recording width
34			Recording width capability 1216 picture elements alongMiddle 1216 elements of 1728 picture elements
35			Recording width capability 864 picture elements along scanMiddle 864 elements of 1728 picture elements
36			Recording width capability 1728 picture elements alongInvalid
37			Recording width capability 1728 picture elements alongInvalid
38			Reserved for future recording width capability.
39			Reserved for future recording width capability.
40			Extend field Extend field
41			R8×15.4 lines/mm R8×15.4 lines/mm
42			300×300 pels/25.4 mm 300×300 pels/25.4 mm
43			R16×15.4 lines/mm and/or 400×400 pels/25.4 mm R16×15.4 lines/mm and/or 400×400 pels/25.4 mm
44			Inch based resolution preferred Resolution type selection
45			Metric based resolution preferred Don’t care
46			Minimum scan line time capability for higher resolutions Don’t care
47			Selective Polling capability Set to "0".
48			Extend field Extend field

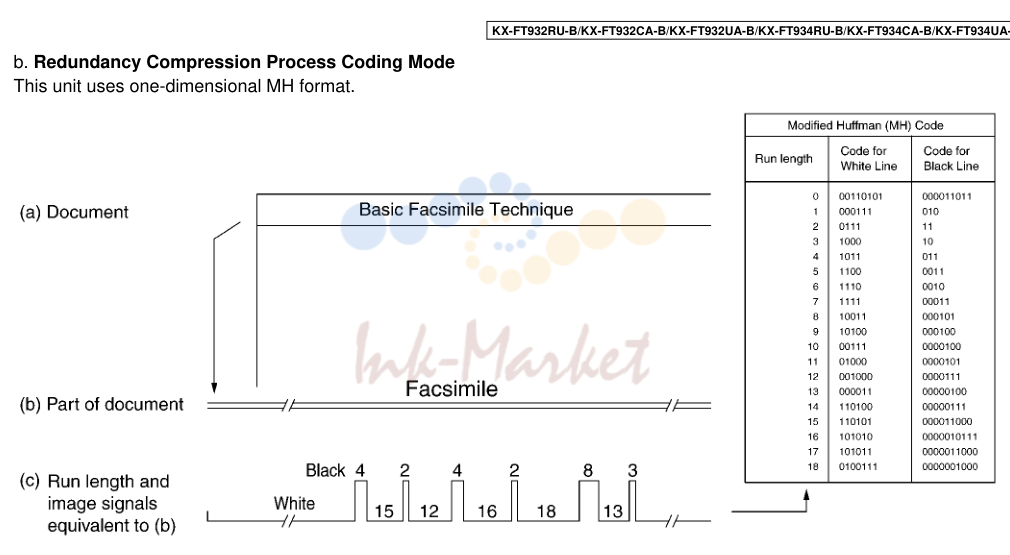

3. b. Redundancy Compression Process Coding Mode

№	Артикул	Альт. артикул	Описание
2			b 4 POS1
1			EXT
2			TEL

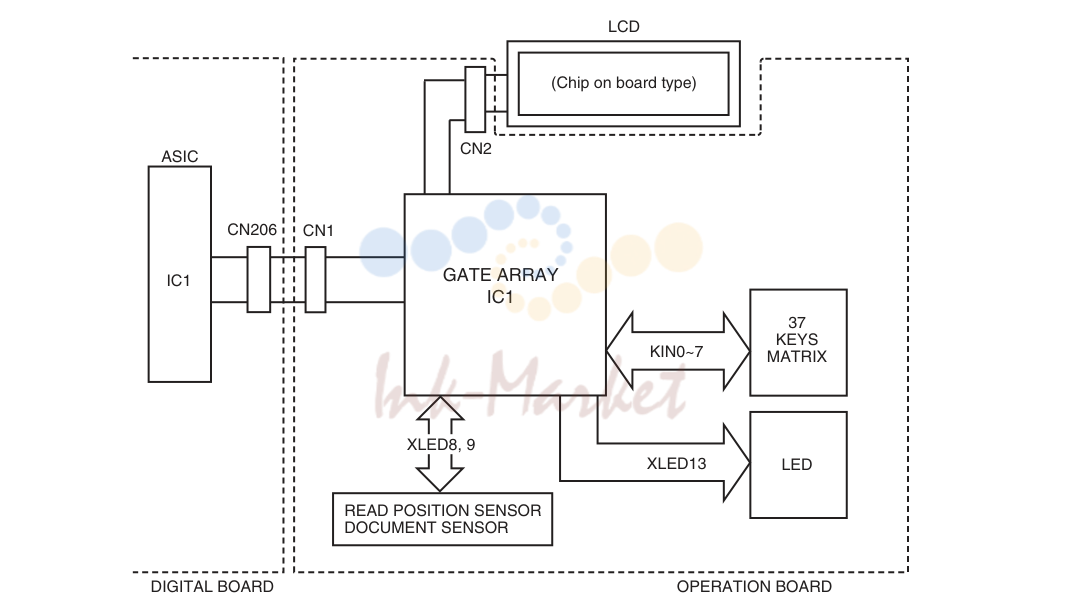

4. 10. Operation Board Section

№	Артикул	Альт. артикул	Описание
04			FAX /START 31 1 3E FLASH (RECALL)
05			LOWER 32 2 47 CALLER ID
06			COPY 33 3 64 STATION
08			MONITOR 34 4 65 STATION
20			MENU 3B - STOP
25			[+] VOLUME 3C # F8 SET
26			[-] VOLUME 3D PAUSE

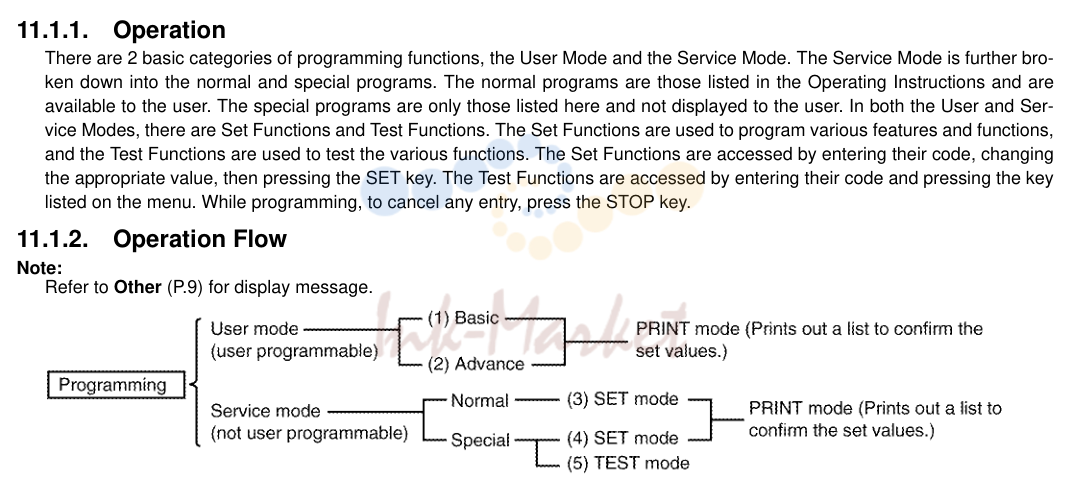

5. 11 Service Mode

№	Артикул	Альт. артикул	Описание
501			Pause time X 100 msec 001~600 60 ----------
502			Flash time X 10 ms 01~99 85 ----------
503			Dial speed select 1: 10 pps 1, 2 1 ----------
514			Bell detection time X 100 msec 1~9 6 ----------
520			CED frequency select 1:2100 Hz1, 2 1 See Symptom/Countermeasure Table for long distance
521			International mode select 1:ON 2:OFF 1, 2 1 See Symptom/Countermeasure Table for long distance
522			Auto standby select 1:ON 2:OFF 1, 2 1 The resolution reverts to the default when transmission
523			Receive equalizer select 1: 0 km 1~4 1 When the telephone station is far from the unit or recep-
524			Transmission equalizer select 1: 0 km 1~4 1 When the telephone station is far from the unit or trans-
544			Document feed position adjustment1: 3 mm 1~5 3 If it is difficult to feed documents, raise the set value. If

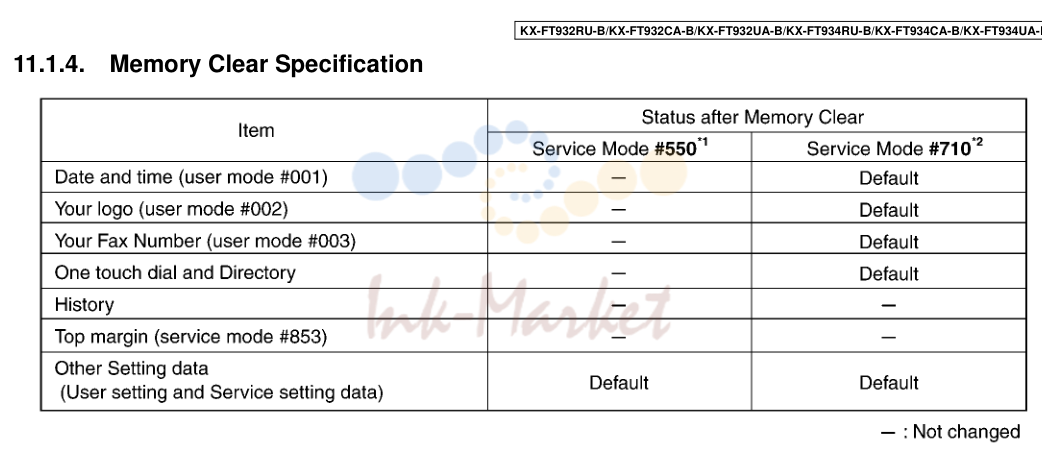

550			Memory Clear See Memory Clear Specification (P.59).
551			ROM check See Test Mode(P.54).
552			DTMF single tone test 1:ON 2:OFF 1, 2 2 For the DTMF single test, single tone (single tone fre-
553			Monitor on FAX communication select 1:OFF 1~3 1 Sets whether to monitor the line signal with the unit's
554			Modem test See Test Mode(P.54).
555			Scan check See Test Mode(P.54).
556			Motor test 0 See Test Mode(P.54).
557			LED test See Test Mode(P.54).
558			LCD test See Test Mode(P.54).
559			Document jam detection select 1:ON 2:OFF 1, 2 1 Select the jam detection of a document during FAX
560			Cutter selection (KX-FT934 only) 1:ON 2:OFF 1, 2 1 Turns off the cutter function.
561			KEY test See Test Mode(P.54).
562			Cutter test (KX-FT934 only) Press “SET” key.
570			BREAK % select 1:61% 2:67% 1, 2 1 Sets the % break of pulse dialing according PBX.
571			ITS auto redial time set X number of00~99 03 Selects the number of times that ITS is redialed (not
572			ITS auto redial line disconnection timeX second 001~999 065 Sets the interval of ITS redialing.
573			Remote turn-on ring number set X number of01~99 10 Sets the number of rings before the unit starts to
574			DIAL TONE detection ON/OFF selec-1:ON 2:OFF 1, 2 2 Sets the whether to dial the Automatic dial number
590			FAX auto redial time set X number of00~99 03 Selects the number of redial times during FAX commu-
591			FAX auto redial time disconnection timeX second 001~999 065 Sets the FAX redial interval during FAX communication.
592			CNG transmit select 1:OFF 1~3 2 Lets you select the CNG output during FAX transmis-
593			Time between CED and 300bps 1:75 msec 1~3 1 See Symptom/Countermeasure Table for long dis-
594			Overseas DIS detection select 1:detects at1, 2 1 See Symptom/Countermeasure Table for long dis-
595			Receive error limit value set 1: 5 % 1~4 2 Sets the number of acceptable error lines when the
596			Transmit level set 10 = -10 dBm 00~15 11 Selects the FAX transmission level. Refer to Sometime
598			Receiving sensitivity 43 = -43 dBm 20~48 43 Used when there is an error problem. Refer to The unit
710			Memory clear except History data Refer to Memory Clear Specification (P.59).
717			Transmit speed selection 1:9600BPS 1~4 1 Adjusts the speed to start training during FAX transmis-
718			Receive speed selection 1:9600BPS 1~4 1 Adjusts the speed to start training during FAX recep-
722			Redial tone detect 1:ON 2:OFF 1, 2 1 Sets the tone detection mode after redialing.
732			AUTO disconnect cancel time X 100 ms 1~3 1 When the auto disconnect circuit operates and cuts the
745			Power ON film feed 1:ON 2:OFF 1, 2 1 Invalid function for thermal model.
763			CNG detect time for friendly reception 1:10 sec 1~3 3 Selects the CNG detection tone of friendly reception.
774			T4 timer X 100 msec 00~99 00 Use this function when delay occurs in the line and
815			Sensor check See Test Mode(P.54).
852			Print test pattern See Test Mode(P.54).
853			Top margin 1~9 3 ----------
874			DTMF ON time X msec 60~20 10 ----------
875			DTMF OFF time X msec 60~20 10 ----------
880			History list ----------
881			Journal 2 list See Special service journal reports (P.76).
882			Journal 3 list See Special service journal reports (P.76).
961			The time transmitting the false ring backX sec 01~10 05 Set the time transmitting the false ring back tone to the
962			The operator calling time X sec 05~30 13 Set the operator calling time through the speaker in

6. 1.4. Memory Clear Specification

№	Артикул	Альт. артикул	Описание
28			COMMUNICATION ERROR SND & RCV ---------
41			COMMUNICATION ERROR SND DCN is received after DCS transmission.
42			COMMUNICATION ERROR SND FTT is received after transmission of a 2400BPS training signal.
43			COMMUNICATION ERROR SND No response after post message is transmitted three times.
44			COMMUNICATION ERROR SND RTN and PIN are received.
46			COMMUNICATION ERROR RCV No response after FTT is transmitted.
48			COMMUNICATION ERROR RCV No post message.
49			COMMUNICATION ERROR RCV RTN is transmitted.
50			COMMUNICATION ERROR RCV PIN is transmitted (to PRI-Q).
51			COMMUNICATION ERROR RCV PIN is transmitted.
54			ERROR-NOT YOUR UNIT RCV DCN is received after DIS transmission.
58			COMMUNICATION ERROR RCV DCN is received after FTT transmission.
59			ERROR-NOT YOUR UNIT SND DCN responds to the post message.
64			COMMUNICATION ERROR POL.RX Polling is not possible.
65			COMMUNICATION ERROR SND DCN is received before DIS reception.
65			COMMUNICATION ERROR RCV Reception is not EOP, EOM PIP, PIN, RTP or RTN.
68			COMMUNICATION ERROR RCV No response at the other party after MCF or CFR is transmitted.
70			ERROR-NOT YOUR UNIT RCV DCN is received after CFR transmission.
72			COMMUNICATION ERROR RCV Carrier is cut when the image signal is received.

7. CROSS REFERENCE:

№	Артикул	Альт. артикул	Описание
1			FAX MODE Means the unit received a fax message in the FAX mode.
2			MAN RCV Means the unit received a fax message by manual operation.
3			FRN RCV Means the unit received a fax message by friendly signal detection.
4			VOX Means the unit detected silence or no voice.
5			RMT DTMF Means the unit detected DTMF (Remote Fax activation code) entered remotely.
6			PAL DTMF Means the unit detected DTMF (Remote Fax activation code) entered by a parallel connected tele-
7			TURN-ON Means the unit started to receive after 10 rings. (Remote Turn On: Service Code #573)
8			TIME OUT Means the unit started to receive after Ring Time Out in the EXT-TAM or TEL/FAX mode.
9			IDENT Means the unit detected Ring Detection.
10			CNG OGM Means the unit detected the CNG while it was sending the Dummy Ring Back Tone in the TEL/FAX
11			CNG ICM Means the unit detected the CNG while it was recording the ICM in the ANS/FAX mode.

8. 3.2.2. Journal 3

№	Артикул	Альт. артикул	Описание
1			The paper is not fed properly when faxing. Troubleshooting Problem with the feeding mecha-
2			The fax usually transmits successfully but sometimes fails. Troubleshooting Problem with the service line or
3			The fax usually receives successfully but sometimes fails. Troubleshooting Problem with the service line or
4			The fax completely fails to transmit or receive. Troubleshooting Problem with the electric circuit.
5			The fax fails either to transmit or receive when making aDetailed description of theProblem with the service line.
6			The fax image is poor when transmitting or receiving duringand No.3.)
7	No.1-No.5 запросить цену →		The troubleshooting proce-

9. 3.3.1. Defective Facsimile Section

№	Артикул	Альт. артикул	Описание
1			Sending side Some time is needed to compare the levelAdd a dummy signal to the beginning ofService code (521)
2			Receiving side The echo canceler function stops accordingChange to a 1100Hz CED signal fre-Service code (520)
3			Sending side Communication failure occurs in a long dis-Decrease the transmission level from -Service code (596)
4			Sending side Decrease the receiving sensitivity fromService code (598)
5			Sending side There are some cases (e.g. Mobil comms.)Set additional Pause time (ServiceService code (774)

10. Fig. c (Countermeasure by Changing the Interval Between CED and

№	Артикул	Альт. артикул	Описание
001			Set date and time dd/mm/yy hh:mm 01 Jan. 2006 NG
002			Your logo --------- None NG
003			Your FAX number --------- None NG
004			Print sending report 1:ERROR / 2:ON / 3:OFF OFF OK
006			FAX ring count 1-4 / 5: EXT.TAM 2 OK
013			Dialing mode 1:PULSE / 2:TONE PULSE OK
017			Ringer pattern RINGER 1~3 RINGER 1 NG
022			Journal auto print 1:ON / 2:OFF ON OK
023			Overseas mode 1:NEXT FAX / 2:ERROR / 3:OFF ERROR OK
025			Delayed transmission ON / OFF OFF NG
026			Auto CALLER ID list 1:ON / 2:OFF OFF OK
027			Caller ID 1:AOH/ABH / 2:CALLER ID AOH/ABH OK
029			Caller ID Digits 5:4 / 6:5 / 7:6/ 8:7 7 OK
036			Receiving reduction 1:ON / 4:OFF ON OK
039			Display contrast NORMAL / DARKER NORMAL NG
041			FAX activation code ON / OFF ON ID= #9 NG
044			Memory receive alert 1:ON / 2:OFF ON OK
046			Friendly reception 1:ON / 2:OFF ON OK
048			Language 1:ENGLISH / 2:RUSSIAN RUSSIAN OK
058			Scan contrast 1:NORMAL / 2:LIGHT NORMAL OK
059			Print contrast 1:NORMAL / 2:DARKER NORMAL OK
072			Recall time 1:100msec / 2:200msec / 3:700msec /850MS OK
073			Manual receive mode 1:TEL 2: TEL/FAX TEL OK
076			Connecting tone 1:ON / 2:OFF ON OK
078			TEL/FAX ring setting 1~9 2 OK
080			Set default YES / NO NO NG
501			Pause time set 001~600 x 100msec 060 x 100msec OK
502			Flash time 01~99 x 10ms 85 x 10ms OK
503			Dial speed 1:10pps / 2:20 pps 10pps OK
514			Bell detection time 1~9 x 100msec 6 x 100msec OK
520			CED frequency select 1:2100Hz / 2:1100Hz 2100Hz OK
521			International mode select 1:ON / 2:OFF ON OK
522			Auto standby select 1:ON / 2:OFF ON OK
523			Receive equalizer select 1:0km / 2:1.8km / 3:3.6km / 4:7.2km 0km OK
524			Transmission equalizer select 1:0km / 2:1.8km / 3:3.6km / 4:7.2km 0km OK
544			Document feed position adjustment value set 1:3mm / 2:4mm / 3:5mm / 4:6mm / 5:7mm 5mm OK
550			Memory clear --------- --------- NG
551			ROM check --------- --------- NG
552			DTMF signal tone test 1:ON / 2:OFF OFF OK
553			Monitor on FAX communication 1:OFF / 2:Phase B / 3:ALL OFF OK
554			Modem test --------- --------- NG
555			Scanner test --------- --------- NG
556			Motor test --------- --------- NG
557			LED test --------- --------- NG
558			LCD test --------- --------- NG
559			Document jam detection 1:ON / 2:OFF ON OK
560			Cutter selection (KX-FT934 only) 1:ON / 2:OFF ON OK
561			Key test --------- --------- NG
562			Cutter test (KX-FT934 only) “SET” push --------- NG
570			Break % select 1:61% / 2:67% 61% OK
571			ITS auto redial time set 00-99 03 OK
572			ITS auto redial line disconnection time set 001-999sec 065sec OK
573			Remote turn-on ring number 01-99 10 OK
574			DIAL TONE detection ON/OFF selection 1:ON / 2:OFF OFF OK
590			FAX auto redial time set 00-99 03 OK
591			FAX auto redial line disconnection time set 001-999sec 065sec OK
592			CNG transmit select 1:OFF / 2:ALL / 3:AUTO ALL OK
593			Time between CED and 300 bps 1:75ms / 2:500ms / 3:1sec 75ms OK
594			Overseas DIS detection 1:1st / 2:2nd 1st OK
595			Receive error limit value 1: 5% / 2: 10% / 3: 15% / 4: 20% 10% OK
596			Transmit level set from -15 to 00dBm -11dBm OK
598			Receiving Sensitivity 20~48 dBm 43 OK
710			Memory clear except History data --------- --------- NG
717			Transmit speed select 1:9600/ 2:7200/ 3:4800/ 4:2400 9600bps OK
718			Receive speed select 1:9600/ 2:7200/ 3:4800/ 4:2400 9600bps OK
722			Redial tone detect 1:ON / 2:OFF ON OK
745			Power on film feed 1:ON / 2:OFF ON OK
763			CNG detect time for friendly reception 1:10s / 2:20s / 3:30s 30s OK
774			T4 timer 00~99 x 100ms 00ms OK
815			Sensor test --------- --------- NG
852			Print test pattern --------- --------- NG
853			Top margin 1~9 mm 3 OK
874			DTMF ON time 60~20 10ms OK
875			DTMF OFF time 60~20 10ms OK
880			History list 1:SET --------- NG
881			Journal 2 1:SET --------- NG
882			Journal 3 1:SET --------- NG
961			The time transmitting the false ring back tone 01~10 x sec 05sec OK
962			The operator calling time 05~30 x sec 13sec OK
991			Setup list 1:Start --------- OK
994			Journal list 1:Start --------- OK
995			Journal 2 list 1:Start --------- OK
996			Journal 3 list 1:Start --------- OK
998			History list 1:Start --------- OK
999			Service list 1:Start --------- OK

11. 5. Troubleshooting Details

№	Артикул	Альт. артикул	Описание
1			Document Path Remove any foreign matter such as paper. ----------
2			Rollers If the roller is dirty, clean it with a damp cloth then dry thoroughly. Refer to How to Remove the Image Sensor
3			Platen Roller If the platen is dirty, clean it with a damp cloth then dry thoroughly.Refer to How to Remove the Operation
4			Thermal Head If the thermal head is dirty, clean the printing surface with a clothRefer to How to Remove the Lock Lever and
5			Sensors Document sensor (SW39), Read position sensor (SW38), Record-See Maintenance check Items/Componet
6			Glass If the glass is dirty, clean them with a dry soft cloth. Refer to Document Feeder Cleaning (P.140).
7			Abnormal, wear andReplace the part. Check if the screws are tight on all parts. ----------
1			Separation Roller (Ref. No. 110) 3 months 7 years* Refer to How to Remove the Gear Block
2			Separation Rubber (Ref. No.23) 3 months 7 years (31,500 documents) Refer to How to Remove the Separation
3			Feed Rollers (Ref. No. 30, 78) 3 months 7 years (31,500 documents) Refer to How to Remove the Image Sensor
4			Thermal Head (Ref. No. 58) 3 months 7 years (31,500 documents) Refer to How to Remove the Lock Lever

12. 2. Gear Section

№	Артикул	Альт. артикул	Описание
20	PFKR1086Z1 запросить цену →		GUIDE, LEFT
21	PFUV1088Z2 запросить цену →		COVER, DOCUMENT GUIDE
22	PFHX1834Z запросить цену →		READ SHEET (WHITE PLATE)
25	PFUS1588Z запросить цену →		SPRING, SEP. HOLDER
26	PFHR1503Y запросить цену →		COVER, DOC. FEED SUPPORT
27	PFUS1631Z запросить цену →		SPRING, DOC. SUPPORT
31	PFUS1587Z запросить цену →		SPRING, DOCUMENT SUB ROLLER
32	PFJS09M27Z запросить цену →		CONNECTOR, 9 PIN
51	PFGT3126Z-M запросить цену →		NAME PLATE (for KX-FT932CA-B)
51	PFGT3000Z-M запросить цену →		NAME PLATE (for KX-FT932UA-B)
52	PFKV1135Z2 запросить цену →		COVER
53	PFKM1173Z2 запросить цену →		CABINET, HANDSET CRADLE
54			Not Used
55	PFDE1254Y1 запросить цену →		LEVER S
56	PFUS1585Z запросить цену →		SPRING, LOCK LEVER
57	PFDE1261Z запросить цену →		SPACER, HOLDER (RIGHT)
58	L1CC00000061 запросить цену →		PRINTER UNITS
59	PFDE1260Z запросить цену →		SPACER, HOLDER (LEFT)
60	PFBH1031Z2 запросить цену →		BUTTON, HOOK
61	PFDE1248Y запросить цену →		LEVER, PAPER SENSOR
62	PFJS11N16Y запросить цену →		CONNECTOR, 11 PIN
63	PFUS1589Z запросить цену →		SPRING, HOOK LVER
64	PFAS50P003Z запросить цену →		SPEAKER S
65	PFJS02N77Z запросить цену →		CONNECTOR, 2 PIN S
66	PFQT2425Z запросить цену →		LABEL, ARROW
67	PFUS1583Y запросить цену →		SPRING, EARTH HEAD
68	PFQT2528Z запросить цену →		LABEL, PAPER CAUTION
69	PFUS1254Z запросить цену →		SPRING, POP UP
70	PFUS1581Z запросить цену →		SPRING, EARTH LOCK LEVER
71	PFQT2722Z запросить цену →		LABEL, PAPER SET (KX-FT932UA)
72			Not Used
73	PFKM1189Z2 запросить цену →		CABINET, MAIN
74	PFJS07N09Y запросить цену →		CONNECTOR, 7 PIN
76	PFUS1702Z запросить цену →		SPRING, POP UP
1	PFKS1139Z2 запросить цену →		TRAY, DOCUMENT
77	PFDG1449Z запросить цену →		GEAR, FEED ROLLER
2	PFQT2393Y запросить цену →		LABEL, FACE DOWN
78	PFDN1078Z запросить цену →		ROLLER, FEED
3	PFGV1018Z запросить цену →		TRANSPARENT PLATE
79	PFUS1584X запросить цену →		SPRING, EARTH
4	PFGP1303V запросить цену →		PANEL, LCD
80	PFHX1350Z запросить цену →		SPACER, SHEET
5	PFGD1067Z запросить цену →		TELEPHONE CARD
81	PFUS1318Z запросить цену →		SPRING, THERMAL HEAD
6	PFGG1280T2 запросить цену →		GRILLE, Sub (for KX-FT932)
6	PFGG1280S2 запросить цену →		GRILLE, Sub (for KX-FT934) 20.3.2.2. KX-FT934RU/CA/UA
7	PFHX1947Z1 запросить цену →		SPACER, RING SHEET
8	PFBX1238Z6 запросить цену →		BUTTON, START KEY
9	PFBX1237Y3 запросить цену →		BUTTON, DIAL KEY
10	PFBX1239Y3 запросить цену →		BUTTON, FUNCTION KEY No.
11	PFBC1140Z1 запросить цену →		BUTTON, ABSENT KEY 100 PFGT3010Z-M NAME PLATE (for KX-FT934RU-B)
12	PFGG1278V2 запросить цену →		GRILLE, OPERATION PANEL (KX- 100 PFGT3127Z-M NAME PLATE (for KX-FT934CA-B)
100	PFGT3011Z-M запросить цену →		NAME PLATE (for KX-FT934UA-B)
12	PFGG1278P2 запросить цену →		GRILLE, OPERATION PANEL (KX-
101	PFKV1136Z2 запросить цену →		COVER
102	PFKM1173Z2 запросить цену →		CABINET, HANDSET CRADLE
13	PFDG1450Z запросить цену →		GEAR, PLATEN
103	PFDX1062Z запросить цену →		CUTTER ASS'Y
14	PFDJ1097Z запросить цену →		SPACER, PLATEN ROLLER (Right)
104	PFDE1254Y1 запросить цену →		LEVER S
15	PFDN1077Z запросить цену →		ROLLER, PLATEN ROLLER
105	PFUS1585Z запросить цену →		SPRING, LOCK LEVER
16	PFDJ1096Z запросить цену →		SPACER, PLATEN ROLLER (Left)
106	PFDE1261Z запросить цену →		SPACER, HOLDER (Right) 178 PFDG1440Z GEAR, CUTTER 2 (*1)
107	L1CC00000061 запросить цену →		PRINTER UNITS 179 PFDG1435Z GEAR, A
108	PFDE1260Z запросить цену →		SPACER, HOLDER (Left) 180 PFDG1435Y GEAR, A (*1)
109	PFBH1031Z2 запросить цену →		BUTTON, HOOK 181 PFUS1580Z SPRING (*1)
110	PFDE1248Y запросить цену →		LEVER, PAPER SENSOR 182 PFHR1502Z2 LEVER, CUTTER (*1)
111	PFJS11N16Y запросить цену →		CONNECTOR, 11 PIN 183 PFMH1171Z COVER
112	PFUS1589Z запросить цену →		SPRING, HOOK LVER 184 PFHX1413Z SHEET, GEAR (*1)
113	PFAS50P003Z запросить цену →		SPEAKER S 185 PFHR1501Z ARM, CUTTER (*1)
114	PFJS02N77Z запросить цену →		CONNECTOR, 2 PIN S 186 PFDG1439Y GEAR, CUTTER 1 (*1)
115	PFQT2425Z запросить цену →		LABEL, ARROW 187 PQST2A04Z SENSOR, MOTOR
116	PFUS1583Y запросить цену →		SPRING, EARTH HEAD 188 PFHR1488Y COVER, GEAR BASE (Black)
117	PFQT2528Z запросить цену →		LABEL, PAPER CAUTION 189 PFUA1066Y GEAR BASE
118	PFUS1254Z запросить цену →		SPRING, POP UP 190 L6HAGCLK0008 MOTOR
119	PFUS1581Z запросить цену →		SPRING, EARTH LOCK LEVER 191 PFDG1437Z GEAR (*1)
120	PFQT2411Y запросить цену →		LABEL, PAPER SET (KX-FT934RU/ 192 PFJS03Q79Y CONNECTOR for CUTTER SENSOR
120	PFQT2411T запросить цену →		LABEL, PAPER SET (KX-FT934UA) 193 PFJS03Q43Y CONNECTOR for CAM SENSOR
121	PFQT2720Z запросить цену →		LABEL, CUTTER CAUTION (KX- 194 PFHX1931Z SHEET (*1)
121	PFQT2721Z запросить цену →		LABEL, CUTTER CAUTION (KX-
122	PFKM1189Z2 запросить цену →		CABINET, MAIN
123	PFJS07N09Y запросить цену →		CONNECTOR, 71 PIN
124	N2GZBE000013 запросить цену →		IMAGE SENSOR (CIS) Ref. Part No. Part Name & Description Remarks
125	PFUS1702Z запросить цену →		SPRING, CIS No.
126	PFDG1449Z запросить цену →		GEAR, FEED ROLLER A1 PFJA02B002Y CORD, TELEPHONE
127	PFDN1078Z запросить цену →		ROLLER, FEED A2 PQJA212V CORD, HANDSET
128	PFUS1584X запросить цену →		SPRING, EARTH A3 PFHP1123Z SHEET PAPER, RECORDING PAPER
129	PFHX1350Z запросить цену →		SPACER, SHEET
130	PFUS1318Z запросить цену →		SPRING, THERMAL HEAD
140	PFHA1001Z запросить цену →		RUBBER, LEGS
141	PFMD1088Z запросить цену →		BOTTOM FRAME
142	PFJA03A016Z запросить цену →		POWER CORD
143	XWC4BFJ запросить цену →		WASHER A8 PFQX2443Z INSTRUCTION BOOK (for KX-
144	PQLB1E1 запросить цену →		INSULATOR, FERRITE CORE FT932/934UA-B)
145	J0KE00000101 запросить цену →		FILTER
146	PQHR945Z запросить цену →		BAND P1 PFZE1468Z-M GIFT BOX (for KX-FT932RU-B)
147	PFDE1253Y запросить цену →		LEVER, JAM SENSOR P1 PFZE1470Z-M GIFT BOX (for KX-FT932UA-W)
148	PFJS09P92X запросить цену →		CONNECTOR, 9 PIN P1 PFZE1531Z-M GIFT BOX (for KX-FT932CA-B)
149	PFDR1072Y запросить цену →		ROLLER, SEPARATION P1 PFZE1518Z-M GIFT BOX (for KX-FT934RU-B)
150	PFMH1173Z запросить цену →		COVER, POWER SUPPLY BOARD P1 PFZE1519Z-M GIFT BOX (for KX-FT934UA-B)
151			Not Used P1 PFZE1532Z-M GIFT BOX (for KX-FT934CA-B)
160	PFDG1447Z запросить цену →		GEAR,TX4
161	PFDG1444Z запросить цену →		GEAR,TX1
162	PFDG1446Z запросить цену →		GEAR,TX3
163	PFDG1445Z запросить цену →		GEAR,TX2 No.
164	PFDG1442Z запросить цену →		GEAR,DOC2 PCB1 PFWP1FT932RU DIGITAL BOARD ASS'Y (RTL)
165	PFDE1259Z запросить цену →		ARM (for KX-FT932)
166	PFDG1441Y запросить цену →		GEAR,DOC1 PCB1 PFWP1FT934RU DIGITAL BOARD ASS'Y (RTL)
167	PFUS1579Z запросить цену →		SPRING (for KX-FT934)
168	PFDG1448Z запросить цену →		GEAR,CAM
169	PFUS1591Z запросить цену →		SPRING (ICs)
170	PFDG1438Z запросить цену →		GEAR, D IC1 C1ZBZ0001896 IC
171	PFUS1231Y запросить цену →		SPRINT, GEAR 1 IC2 PFWIFT932RU IC (for KX-FT932RU)
172	PFHR1500Z запросить цену →		ARM4 IC2 PFWIFT934RU IC (for KX-FT934RU)
173	PFHR1497Y запросить цену →		ARM1 (Black) IC3 C0CBCBD00047 IC
174	PFHR1498Z запросить цену →		ARM2 IC4 C3ABKC000032 IC
175	PFDG1436Z запросить цену →		GEAR, B IC5 C1CB00001960 IC
176	PFDG1443Z запросить цену →		GEAR, RX IC7 B1HAGFF00015 IC
177	PFHR1499Z запросить цену →		ARM3 (*1) IC9 C0ABEB000052 IC
