OKI ol6w — каталог запчастей со схемами

Содержание

1. Table 8-1 Cover Assy Upper
2. Figure 8-2 Base Frame Unit
3. Figure 8-3-3 Base Plate Unit (OKIPAGE 6w Mask CPU type)

1. Table 8-1 Cover Assy Upper

№	Артикул	Альт. артикул	Описание
1			Cover-Upper
2			Lens
4			Guide Side (L) 2PP4128-1256P001
5			Guide Slide (R) 2PP4128-1257P001
6			Gear Spur A 4PP4128-1260P001
7			Plate-Hopper

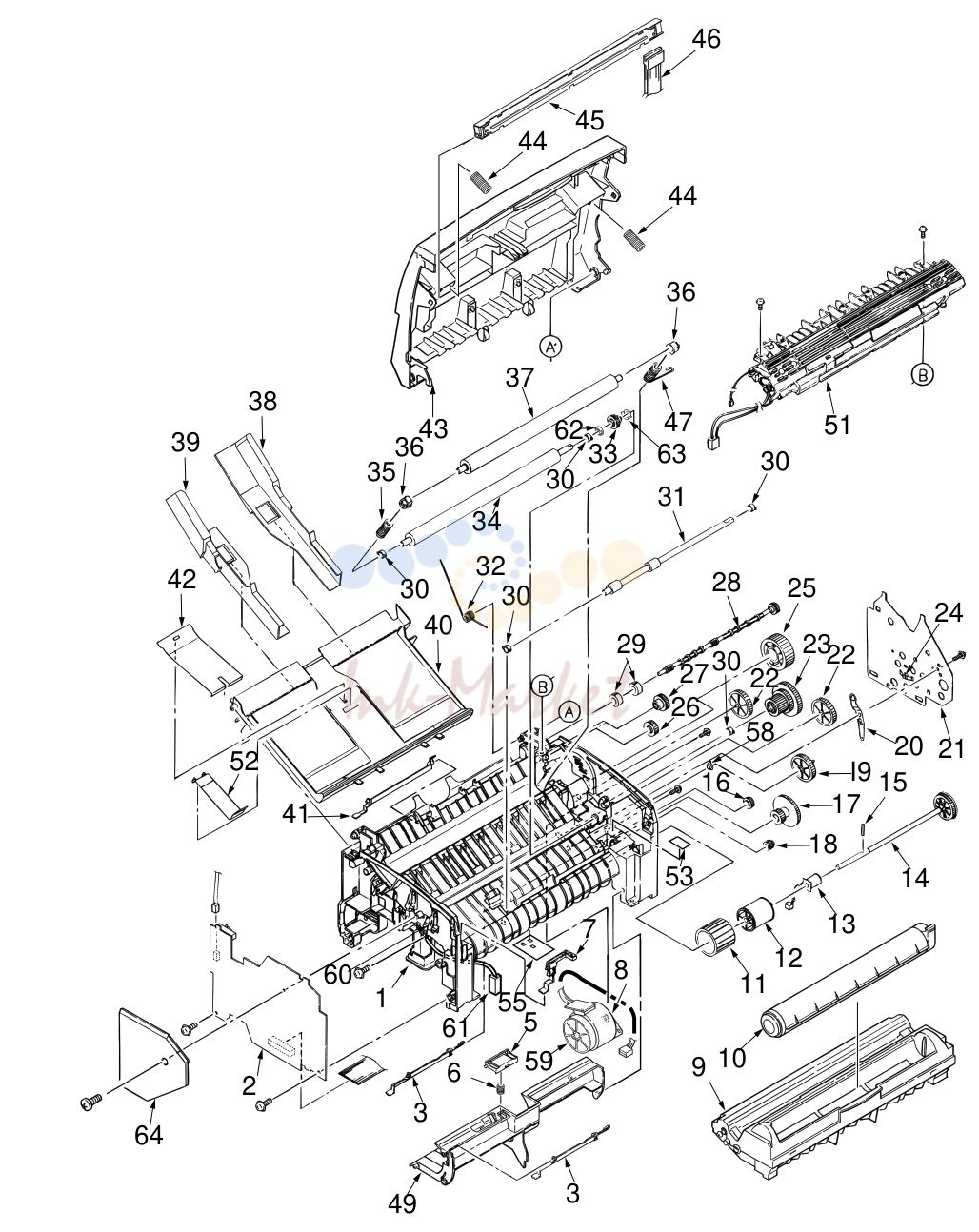

2. Figure 8-2 Base Frame Unit

№	Артикул	Описание
1		Frame Unit Assy
2		High-Voltage Power Supply Board P2H
3		Paper Sensor E 3PP4083-1191P001
5		Separator Assy
6		Compression Spring S
7		Toner Sensor Assy 3PA4083-1193G001
8		Pulse Motor
9		Ep Unit (Type 6) 1 Consumable
10		Toner Cartridge Unit (Type 6) 1 Consumable
11		Hopping Roller
12		Roller Holder (Hopping Roller) 3PP4083-1128P001
13		Magnet H (Hopping Shaft) 3PB4083-1127P001
14		Hopping Shaft Assy 3PA4083-1133G001
15		Knock Pin NK2-10-SUS
16		Idle Gear R 4PP4083-1143P001
17		Idle Gear 2R 3PP4083-1184P001
18		Gear R 3PP4083-1142P001
19		Idle Gear M 3PP4083-1181P001
20		Earth Plate A 3PP4083-1189P001
21		Side Plate M 3PP4083-1188P001
22		Idle Gear P 3PP4083-1182P001
23		Idle Gear 3R
24		Tension Plate 4PP4083-1165P001
25		Idle Gear Heat 3PP4083-1185P001
26		Idle Gear E (A) 4PP4083-1186P001
27		Idle Gear E (B) 3PP4083-1187P001
28		Drive Shaft E (Eject) 3PP4083-1170P001
29		Eject Roller
30		Regist Bearing 3PP4083-1141P001
31		Regist Roller 3PB4083-1140P001
32		Tension Spring
33		Gear T
34		Transfer Roller
35		Bias Spring (L) (Back Up Roller) 4PP4083-1136P001
36		Bearing BU (Back Up Roller) 3PP4083-1161P001
37		Pressure Roller B (Back Up Roller)
38		Paper Guide (R)
39		Paper Guide (L)
40		Paper Holder 1PP4083-1231P001
41		Paper Sensor Exit 3PP4083-1192P001
42		Hopper Spring 4PP4083-1247P001
43	40592308 запросить цену →	Top Cover Assy
44		Head Spring 4PP4083-6168P001
45		LED Head
46		Flat Cable Assy
47		Bias Spring (R) (Back Up Roller) 4PP4083-1137P001
49		Sheet Guide
51	40592801 запросить цену →	Heat Assy
52		Stopper Spring
53		Caution Label (TR) 4PB4091-6047P001 1 230V
55		Film Guide 4PP4083-1139P001
58		Bearing Gear
59		Fan
60		Contact CB
61		CONN Cord HV
62		Washer TR
63		Guide Gear T
64		Cover HV

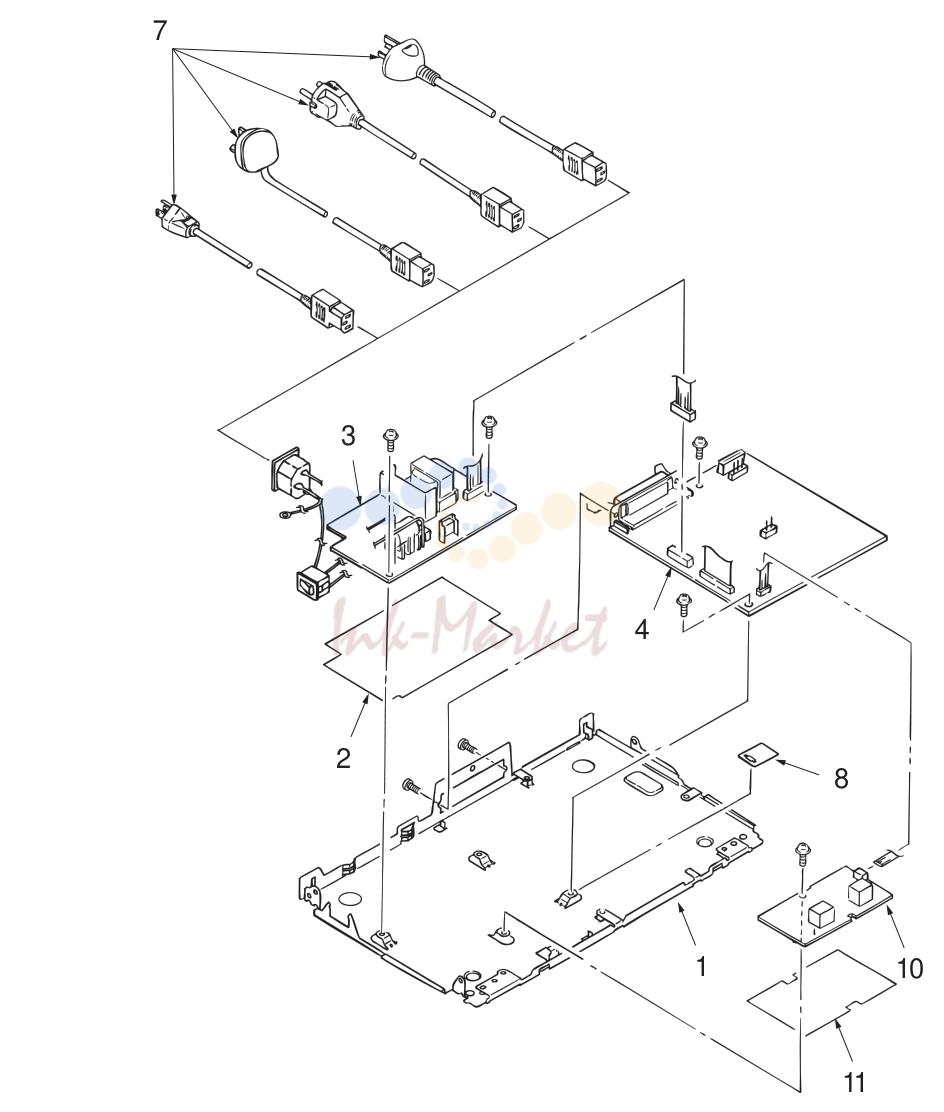

3. Figure 8-3-3 Base Plate Unit (OKIPAGE 6w Mask CPU type)

№	Артикул	Описание
1		Base Plate Assy
2		Insulation Sheet A
3	40455801 запросить цену →	Power Supply Unit
4	00096101 запросить цену →	Main Control Board
7		AC Cord 3YS4011-1270P001 1 U.K.
8		Insulation Sheet B
10		High Voltage Power Supply Board P6L
11		Insulation Sheet C
