OKI ol10i — каталог запчастей со схемами

Содержание

1. Table 8-1 Lower Base Unit (1/2)
2. Figure 8-3 Base unit

1. Table 8-1 Lower Base Unit (1/2)

№	Артикул	Описание
1		Hopping roller shaft 3PP4083-6020P001
2		Bearing 4PP4083-6022P002
3		Hopping roller one-way clutch gear 4PB4083-6024P001
4		Registration roller 3PB4083-6030P001
5		Bearing (registration) 4PP4083-6031P001
6		Roller-Transfer B Assy
7		Bearing TR
8		Back-up roller 3PB4083-6064P002
9		Bias spring 4PP4083-7620P001
10		Back-up roller bushing 4PP4083-6052P001
11		Reset lever L 3PP4083-6053P001
12		Reset lever R 3PP4083-6054P001
13		Cover open switch arm 3PP4083-6058P001
14		Stacker cover reset spring 4PP4083-6057P001
15		Fuser roller idle gear 4PP4083-6080P001
16		Eject roller idle gear 4PP4083-6081P001
17		Sensor plate (inlet) 4PP4083-6083P001
18		Sensor plate (outlet) 4PA4083-6025G001
19		Toner sensor (adhesion) 4PP4083-6086G001
20		Diselectrification bar 4PB4083-6979P001
21	40470101 запросить цену →	Heat Assy - OP10i
22	40470102 запросить цену →	Heat Assy - OP10i
23		Eject roller assy 2PA4083-7680G001
24		Manual feed guide assy 2PA4128-1149G001
25		Stacker-Assy
26		LED head unit - 51K
27		Stacker cover damper arm 4PP4083-6191G001
28		Lower base 2PP4083-6801G002
29		Stacker cover damper 4PB4083-6197P001
31		Motor Pulse (main)
32		Motor Pulse (regist)
33		Gear-Idle A (Z60/16)
34		Gear-Idle B (Z60/16)
35		Cord-LED Assembly
36	40433305 запросить цену →	Image drum unit (Type 5)
37	40433203 запросить цену →	Toner Cartridge (Type 5)
38		Reduction gear 3PP4083-7617P001
39		FG plate (O.P.) 4PP4083-7663P001
40		Hopping roller rubber 4PB4122-1280P001
41		Diselectritication Film 3PB4083-6089P001
42		Contact LED 4PP4083-6173P001
43		Washer C 4PP4120-1210P001
44		Washer B 4PP4120-1209P001
45		Spacer-Bearing R
46		Spacer-Bearing L
1		Upper cover 1PP4128-1133P001
2		IC card cover 2PP4128-1155P001
3		Cover-Lid

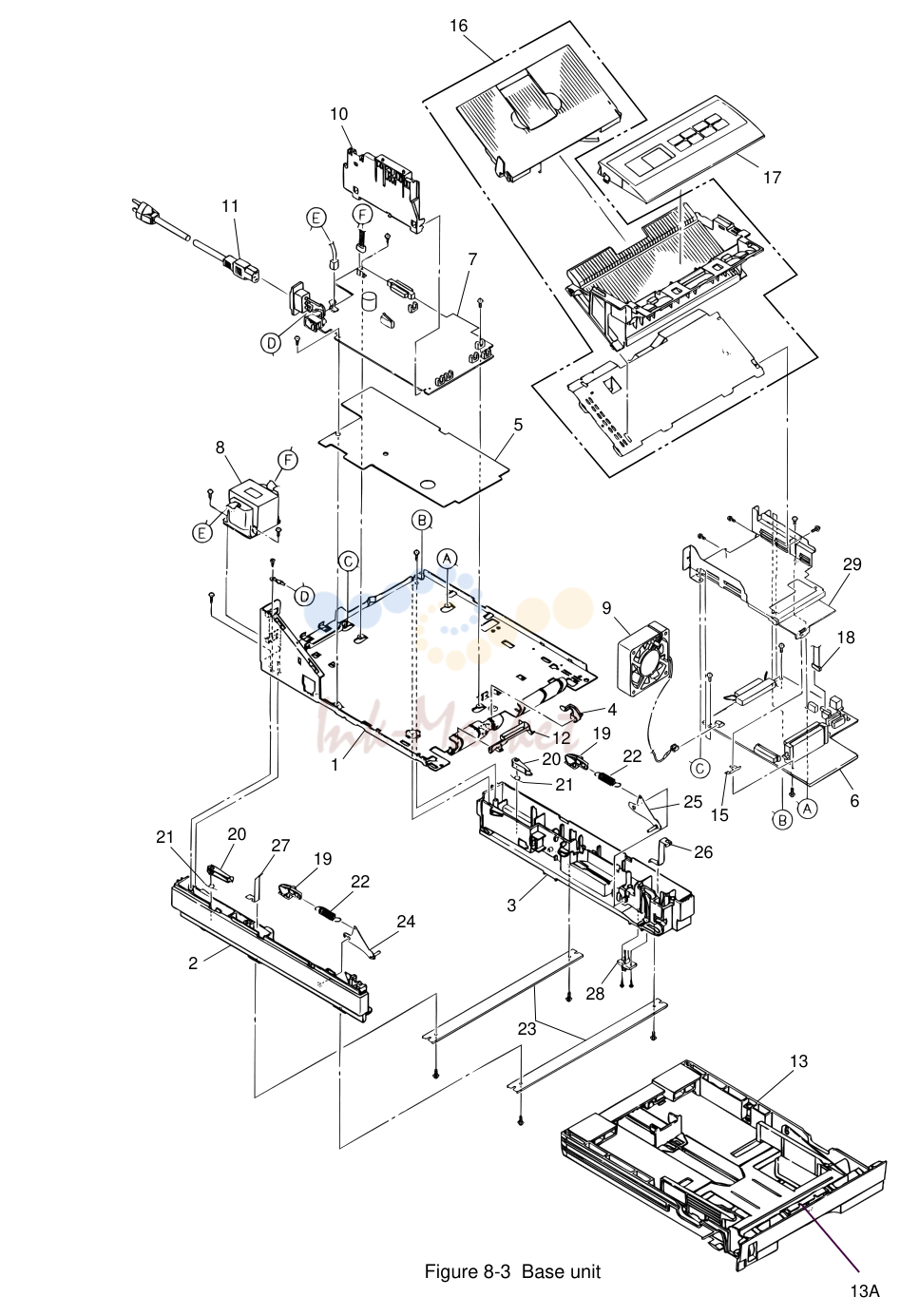

2. Figure 8-3 Base unit

№	Артикул	Описание
1		Base plate (adhension) 2PP4083-7672G001
2		Cassette guide (L) assy 3PP4083-7670G001
3		Cassette guide (R) assy 3PP4083-7671G001
4		Sensor plate (paper supply) 4PP4083-7667P001
5		Insulator 3PB4083-6144P001
6		Main control board (M5B-PCB)
7	40217701 запросить цену →	Power Supply Unit
8	40138801 запросить цену →	PWR Transformer
9	270A2167P0001 запросить цену →	Fan motor
10		Contact assy 3PA4083-6090G001
11		AC cord 3YS4011-1315P001 1 120V
12		Cassette sensor plate 3PP4083-6154P001
13		Cassette Assy-Paper
15		Earth plate 4PP4083-6137P001
16		Face up stacker cover assy 2PA4128-1143G001
17	40104401 запросить цену →	OP Panel assy
18		SUMI card assy (op panel) 4YX4046-1656G001 1 120V
19		Link pull block 4PP4122-1170P001
20		Cassette lock lever 3PP4083-7653P001
21		Cassette lock lever spring 4PP4083-7655P001
22		Sheet spring 4PP4083-7666P001
23		Beam 3PP4083-7660P001
24		Sheet link L assy 4PP4083-7657G001
25		Sheet link R assy 4PP4083-7658G001
26		FG plate (2nd) 4PP4083-7662P001
27		FG plate (bm) 4PP4083-7665P001
28		Connector cord 3YS4111-3527P001
29		Plate Guide-PCB
