Lexmark MX310 / MX410 / MX510 / MX511 / XM1140 / XM1145 (7015) — каталог запчастей со схемами

Содержание

1. Assembly 1: Covers
2. Assembly 2: Imaging
3. Assembly 3: Control panel (MX41x, MX51x)
4. Assembly 4: Control panel (MX31x)
5. Assembly 5: Electronics 1
6. Assembly 6: Electronics 2
7. Assembly 7: Frame
8. Assembly 8: Option trays

1. Assembly 1: Covers

№	Артикул	Описание
1	40X9075	1 1 Bin extender “Bin extender removal” on page
2	40X9091	1 1 Top cover “Top cover assembly removal” on page
3	40X9145 запросить цену →	1 1 Rear door “Rear exit door removal” on page
4	40X9070 запросить цену →	1 1 Rear cover “Rear cover removal” on page
5	40X9073 запросить цену →	1 1 Right cover “Right cover removal” on page
6	40X9100 запросить цену →	1 1 Memory access door “Memory access door removal” on page
7	40X8303	1 1 250-sheet media tray N/A
8	40X9148 запросить цену →	1 1 Cartridge plunger “Cartridge plunger removal” on page
9	40X9068 запросить цену →	1 1 MPF front access cover “Front access cover removal” on page
10	40X9131 запросить цену →	1 1 MPF tray “MPF tray removal” on page
10	40X8302 запросить цену →	1 1 MPF tray (MX31x) “MPF tray removal” on page
11	40X9069 запросить цену →	1 1 Front bin cover “Front bin cover removal” on page
12	40X9071 запросить цену →	1 1 Nameplate cover “Name plate cover removal” on page
13	40X9072 запросить цену →	1 1 Left cover “Left cover removal” on page

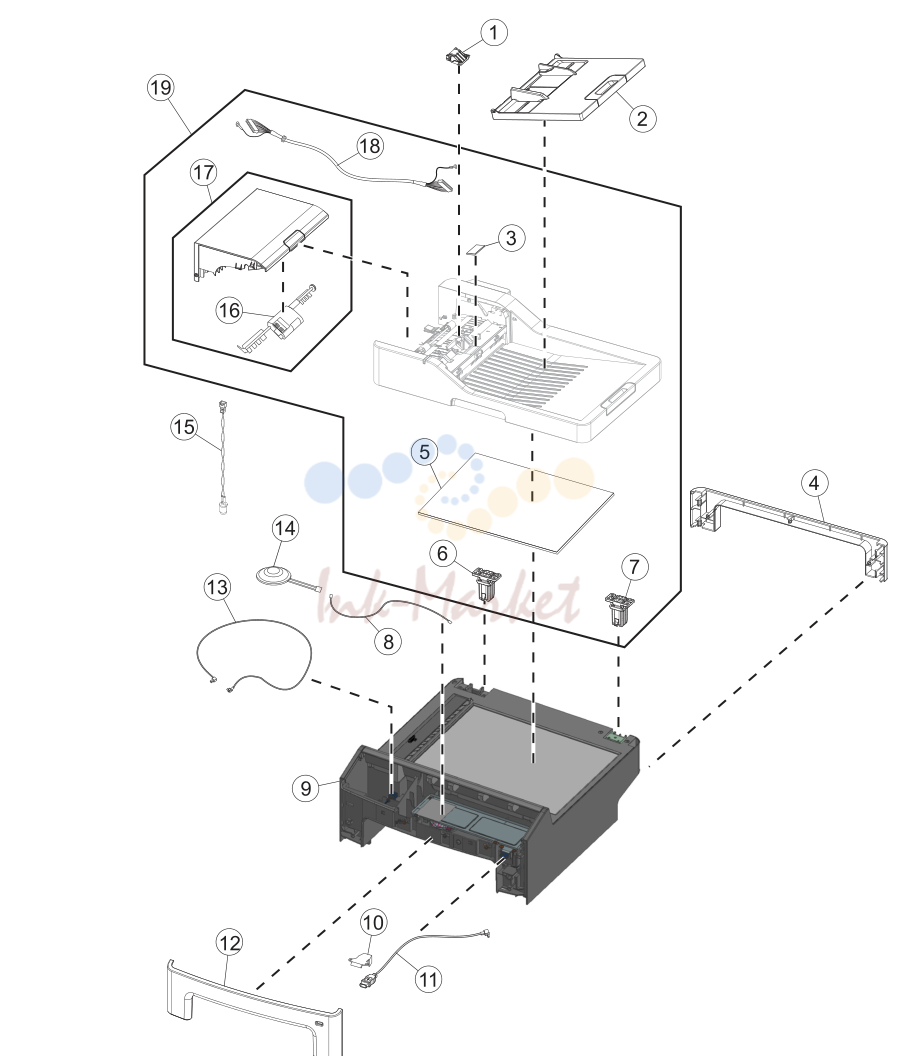

2. Assembly 2: Imaging

№	Артикул	Описание
1	40X6247	1 1 ADF separator pad (simplex) “ADF separator pad removal ” on
1	40X9108 запросить цену →	1 1 ADF separator roller “ADF separator roll removal ” on
2	40X9054	1 1 ADF input tray “ADF input tray removal” on
3	40X9110 ✓ в наличии	1 1 Restraint pad “Restraint pad removal” on
4	40X9081 запросить цену →	1 1 Scanner rear cover (MX31x, MX41x) “Scanner rear cover removal” on
4	40X9128 запросить цену →	1 1 Scanner rear cover (MX51x) “Scanner rear cover removal” on
5	40X9109	1 1 Flatbed cushion (MX31x, MX41x) “Flatbed cushion removal ” on
5	40X5804	1 1 Flatbed cushion (legal) “Flatbed cushion removal ” on
6	40X9129 ✓ в наличии	1 1 ADF left hinge “ADF hinge removal” on page
7	40X8734	1 1 ADF right hinge (MX31x, MX41x) N/A
7	40X7546	1 1 ADF right hinge (MX51x) N/A
8	40X9080 запросить цену →	1 1 Speaker cable “Speaker cable removal” on
9	40X9055	1 1 Flatbed (legal) “Flatbed assembly removal” on
9	40X9056	1 1 Flatbed (A4) “Flatbed assembly removal” on
10	40X9053 запросить цену →	1 1 USB cable bracket “USB cable bracket removal” on
11	40X9051 запросить цену →	1 1 USB cable (MFP) “USB cable removal” on page
12	40X9124 запросить цену →	1 1 Scanner front cover (MX31x) “Scanner front cover removal” on
12	40X9062 запросить цену →	1 1 Scanner front cover (MX41x) “Scanner front cover removal” on
12	40X9063 запросить цену →	1 1 Scanner front cover (MX51x) “Scanner front cover removal” on
13	40X9050 запросить цену →	1 1 Wireless cable (MFP) “USB wireless cable removal” on
14	40X9078 запросить цену →	1 1 Speaker (MX31x) “Speaker removal” on page
14	40X9079 запросить цену →	1 1 Speaker (MX41x, MX51x) “Speaker removal” on page
15	40X9060 запросить цену →	1 1 Cave light cable “Cave light cable removal” on
16	40X8736 ✓ в наличии	1 1 ADF pick roller N/A
17	40X9142 запросить цену →	1 1 ADF top cover (legal) “ADF top cover assembly” on
17	40X9143	1 1 ADF top cover (A4, duplex) “ADF top cover assembly” on
17	40X9144	1 1 ADF top cover (A4, simplex) “ADF top cover assembly” on
18	40X9118	1 1 ADF cable (MX31x, MX41x) “ADF cable removal” on page
18	40X9117	1 1 ADF cable (MX51x) “ADF cable removal” on page
19	40X9093 ✓ в наличии	1 1 ADF assembly (input, legal) “ADF unit removal” on page
19	40X9059	1 1 ADF assembly (simplex) “ADF unit removal” on page
19	40X9057	1 1 ADF assembly (A4, duplex) “ADF unit removal” on page

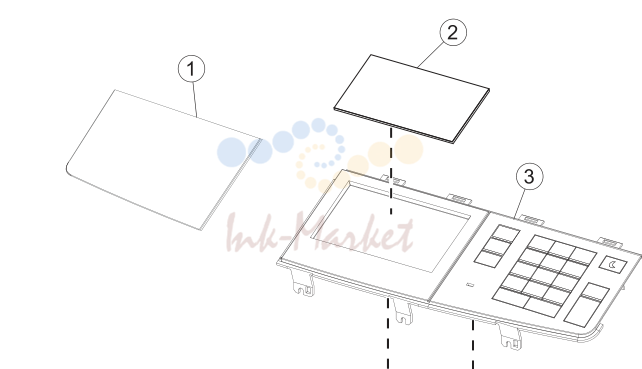

3. Assembly 3: Control panel (MX41x, MX51x)

№	Артикул	Описание
1	40X9122 запросить цену →	1 1 Control panel cover (MX41x) “Control panel cover
1	40X9123 запросить цену →	1 1 Control panel cover (MX510de) “Control panel cover
1	40X9149 запросить цену →	1 1 Control panel cover (MX511de) “Control panel cover
1	40X9160 запросить цену →	1 1 Control panel cover (MX511dhe) “Control panel cover
2	40X7116	1 1 4.3" LCD (touch-screen) “Display removal
3	40X9105 запросить цену →	1 1 Control panel keypad assembly (MX41x, MX51x) N/A
4	40X9064 запросить цену →	1 1 Light tube “Light tube removal”
5	40X9114 запросить цену →	1 1 UICC (MX41x, MX51x) “UICC removal” on
6	40X9052	1 1 UICC cable N/A

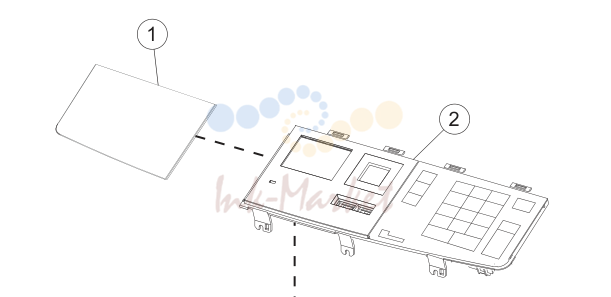

4. Assembly 4: Control panel (MX31x)

№	Артикул	Описание
1	40X9121 запросить цену →	1 1 Control panel cover (MX31x) “Control panel cover removal”
2	40X9104 запросить цену →	1 1 Control panel keypad assembly (MX31x) N/A
3	40X9113 запросить цену →	1 1 Control panel lens N/A
4	40X9111 запросить цену →	1 1 2.4" LCD “Display (MX310) removal ” on
5	40X9112 запросить цену →	1 1 UICC (MX31x) “UICC (MX310) removal” on
6	40X9052	1 1 UICC cable N/A

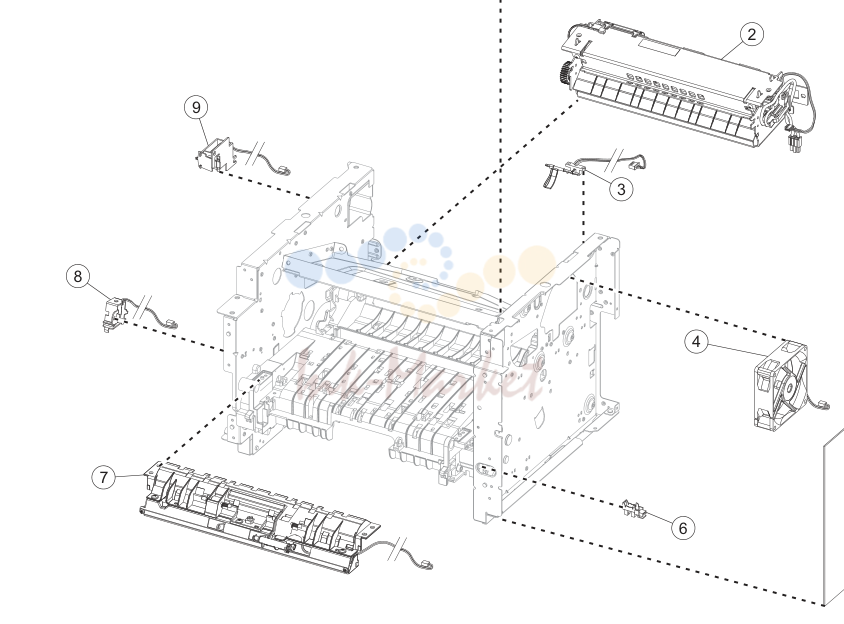

5. Assembly 5: Electronics 1

№	Артикул	Описание
1	40X8082	1 1 Laser scanning unit (MX31x) “Laser scanning unit (LSU) removal” on
1	40X8081	1 1 Laser scanning unit (MX41x) “Laser scanning unit (LSU) removal” on
1	40X8080	1 1 Laser scanning unit (MX51x) “Laser scanning unit (LSU) removal” on
2	40X8343 запросить цену →	1 1 Fuser, 100 V “Fuser removal” on page
2	40X8023 запросить цену →	1 1 Fuser, 110 V “Fuser removal” on page
2	40X8024 ✓ в наличии	1 1 Fuser, 220 V “Fuser removal” on page
3	40X8050 ✓ в наличии	1 1 Narrow media/exit sensor “Narrow media/bin full sensor removal” on
4	40X8274	1 1 Cooling fan “Cooling fan removal” on page
5	40X9065 запросить цену →	1 1 Controller board (MX31x) “Controller board removal” on page
5	40X9066 запросить цену →	1 1 Controller board (MX41x) “Controller board removal” on page
5	40X9067 запросить цену →	1 1 Controller board (MX51x) “Controller board removal” on page
6	40X7592	1 1 Tray present sensor “Tray present sensor removal” on page
7	40X8280 запросить цену →	1 1 Front input guide “Front input guide removal” on page
8	40X8300	1 1 MPF solenoid “MPF solenoid removal” on page
9	40X8301 ✓ в наличии	1 1 Reverse solenoid “Reverse solenoid removal” on page

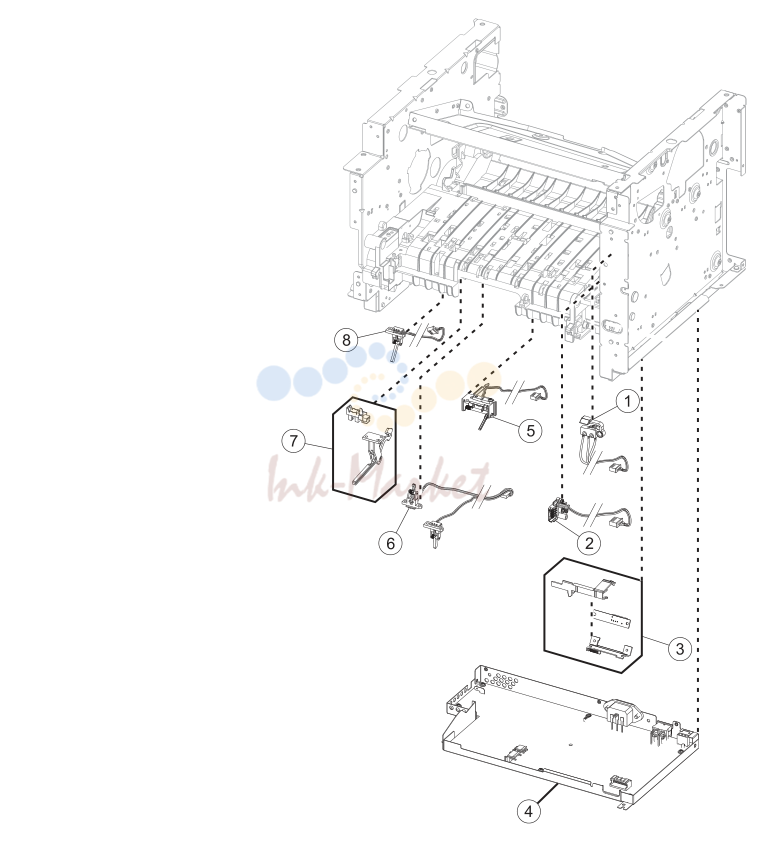

6. Assembly 6: Electronics 2

№	Артикул	Описание
1	40X8048	1 1 Front door sensor “Front door sensor removal” on
2	40X8266 ✓ в наличии	1 1 Cartridge smart chip contact “Toner cartridge smart chip contact
3	40X8046 запросить цену →	1 1 Toner density sensor “Toner density sensor removal” on
4	40X7797 запросить цену →	1 1 Power supply, 100 V/110 V “Power supply removal” on page
4	40X7798	1 1 Power supply, 220 V “Power supply removal” on page
5	40X8045	1 1 Trailing edge sensor “Trailing edge sensor removal” on
6	40X8043 ✓ в наличии	1 1 Duplex sensor and input sensor “Duplex sensor and input sensor
7	40X7592	1 1 Media present sensor “Media present sensor removal” on
8	40X8044	1 1 Index sensor “Index sensor removal” on page

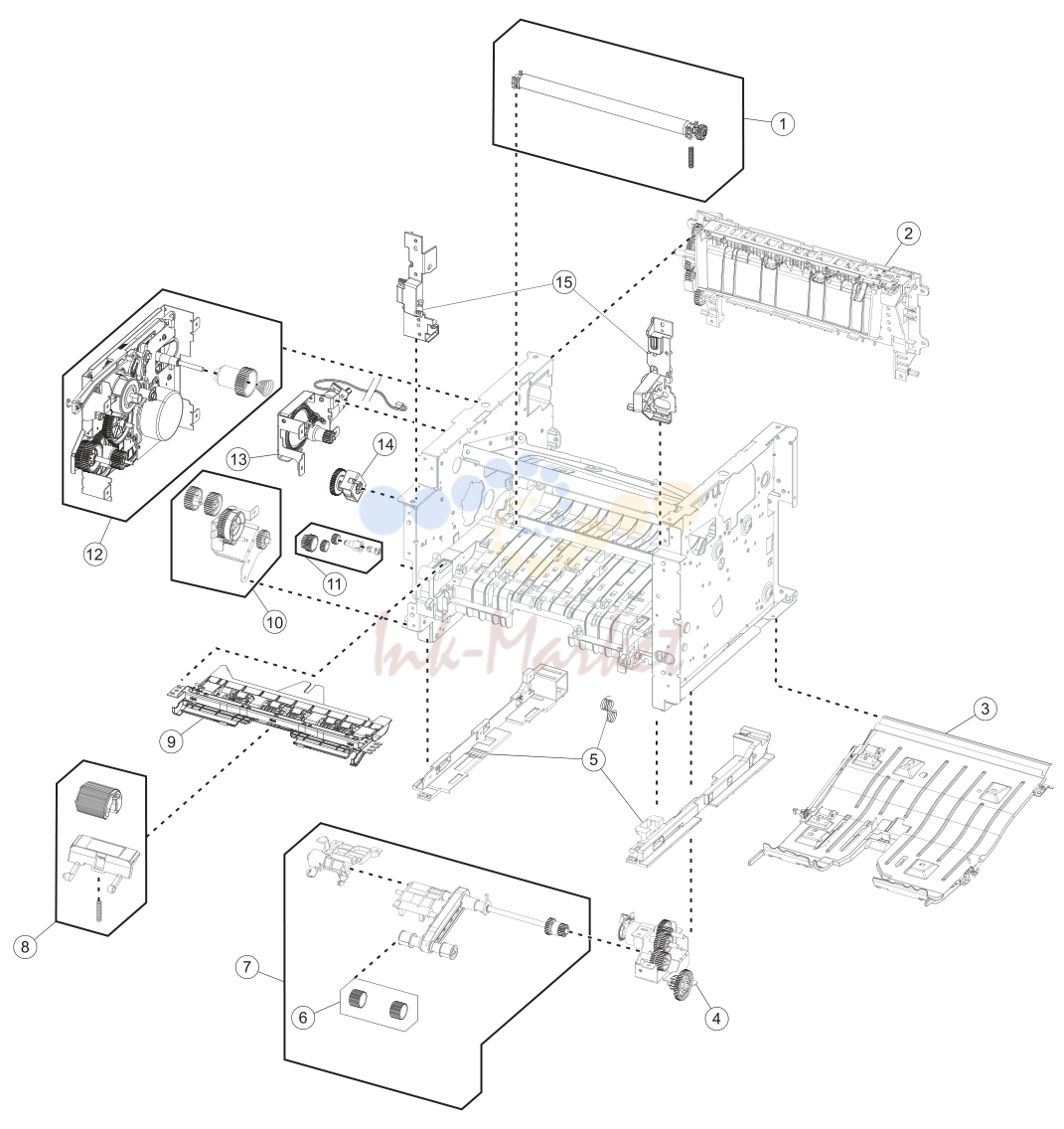

7. Assembly 7: Frame

№	Артикул	Описание
1	40X8393 ✓ в наличии	1 1 Transfer roll “Transfer roll removal” on page
2	40X9077	1 1 Redrive assembly “Redrive assembly removal” on
3	40X8275	1 1 Duplex assembly “Duplex removal” on page
4	40X8084	1 1 Pick/lift motor gearbox “Pick/lift motor gearbox removal” on
5	40X9522 запросить цену →	1 1 Tray guide (MX31x, MX41x) “Tray guide removal” on page
5	40X9523 запросить цену →	1 1 Tray guide (MX51x) “Tray guide removal” on page
6	40X8297 запросить цену →	2 2 Pick tire N/A
7	40X8261 запросить цену →	1 1 ACM assembly (MX51x) “ACM assembly removal” on
7	40X8260 запросить цену →	1 1 ACM assembly (MX31x, MX41x) “ACM assembly removal” on
8	40X8295	2 2 MPF pick roller and separator pad “MPF pick roller removal” on
9	40X8279	1 1 Jam access cover “Jam access cover removal” on
10	40X8278	1 1 MPF gearbox “MPF gearbox removal” on page
11	40X8277	1 1 Duplex gear assembly “Duplex gear assembly removal” on
12	40X8085	1 1 Main drive gearbox “Main drive gearbox removal” on
13	40X8083	1 1 Cartridge gearbox “Cartridge gearbox removal” on
14	40X8265	1 1 ACM clutch “ACM clutch removal (MX310,
15	40X8299 запросить цену →	1 1 Front mounts “Left front mount removal” on

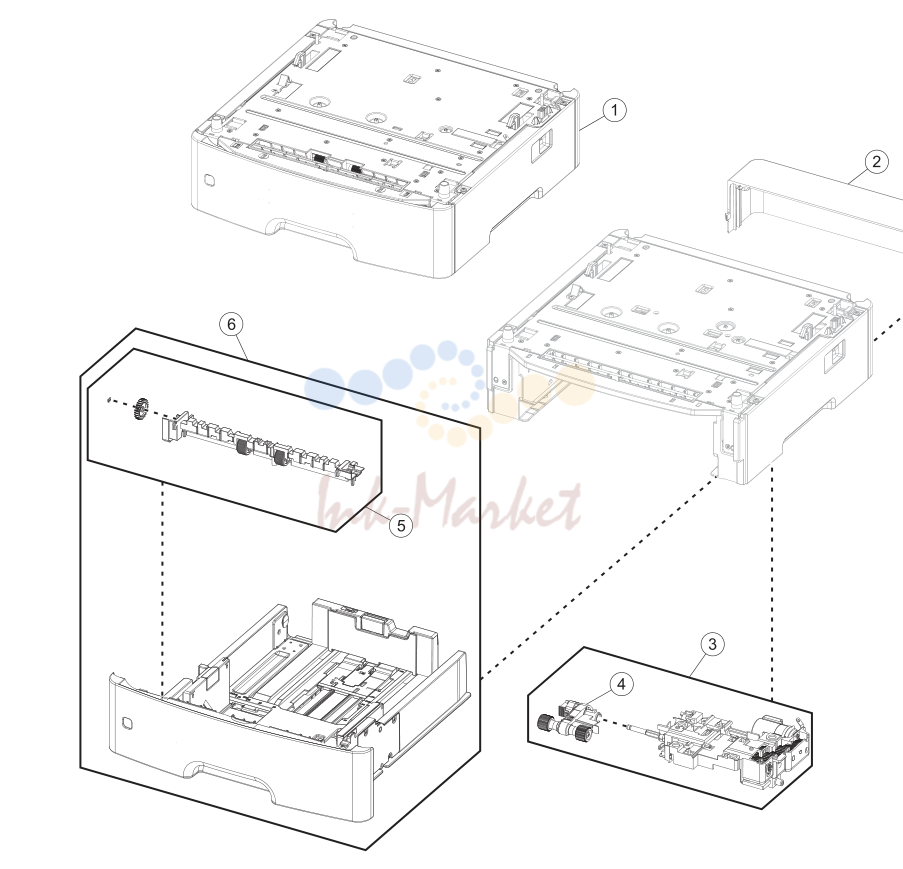

8. Assembly 8: Option trays

№	Артикул	Описание
1	40X8287 запросить цену →	1 1 250-sheet tray N/A
1	40X8286 запросить цену →	1 1 550-sheet tray N/A
2	40X8520 запросить цену →	1 1 Dust cover, 250-sheet tray “Dust cover removal” on
2	40X8521 запросить цену →	1 1 Dust cover, 550-sheet tray “Dust cover removal” on
3	40X8262 запросить цену →	1 1 ACM assembly “ACM assembly removal” on
4	40X8443 ✓ в наличии	1 1 Pick roller assembly “Pick roller removal” on page
5	40X8444	1 1 Separator roll assembly “Separator roll assembly
6	40X8305 запросить цену →	1 1 250-sheet tray insert N/A
6	40X8303	1 1 250-sheet tray insert (MX31x, MX41x) N/A
6	40X8086 запросить цену →	1 1 550-sheet tray insert N/A
