Kyocera TASKalfa-3051ci-3551ci-4551ci-5551ci — каталог запчастей со схемами

Содержание

1. Covers 1
2. Covers 2
3. Covers 3
4. Frames
5. Paper Cassettes
6. Paper Feed Section 1 (55/45 ppm)
7. Paper Feed Section 1 (35/30 ppm)

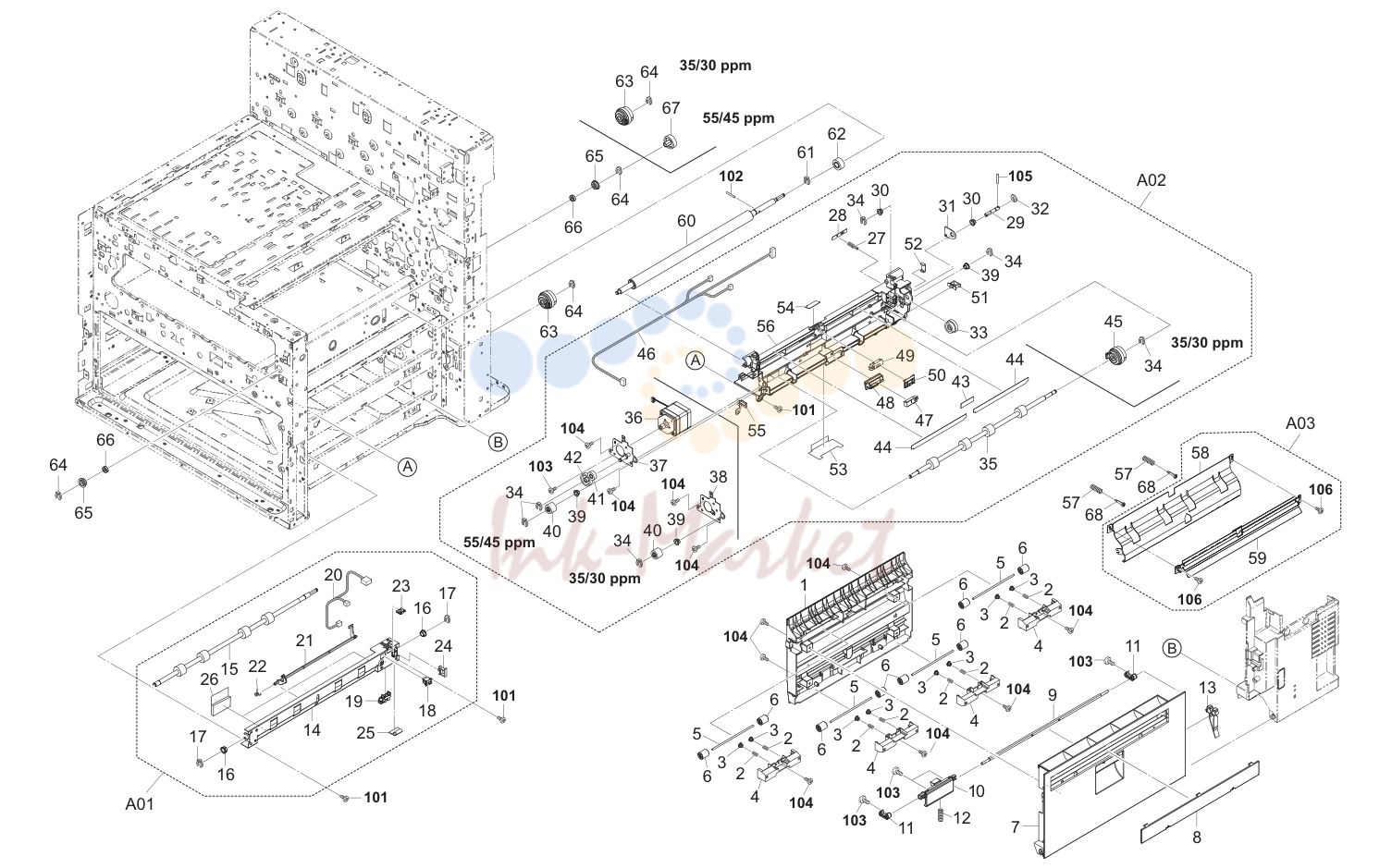

8. Paper Feed Section 2

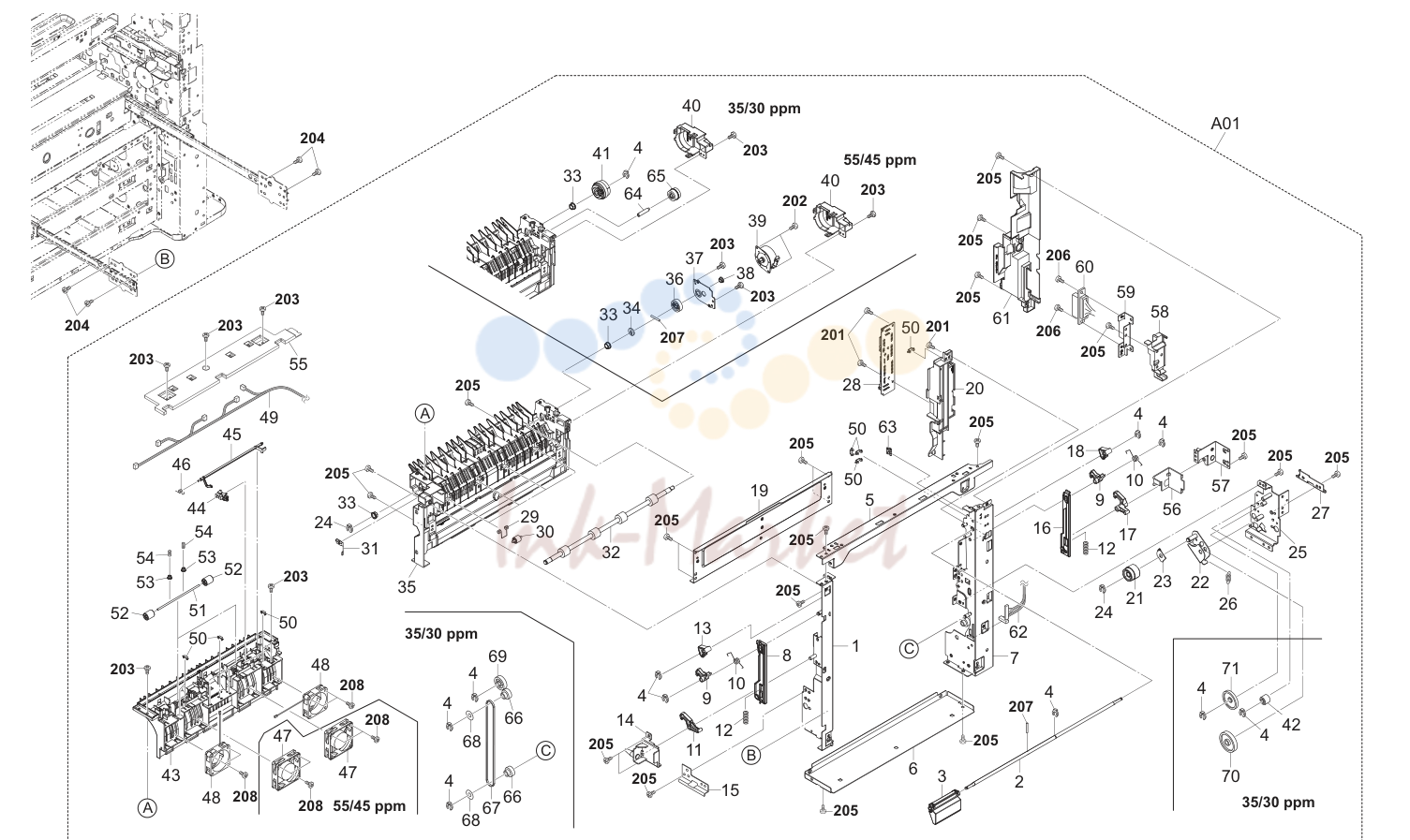

9. Paper Conveying Section 1-1

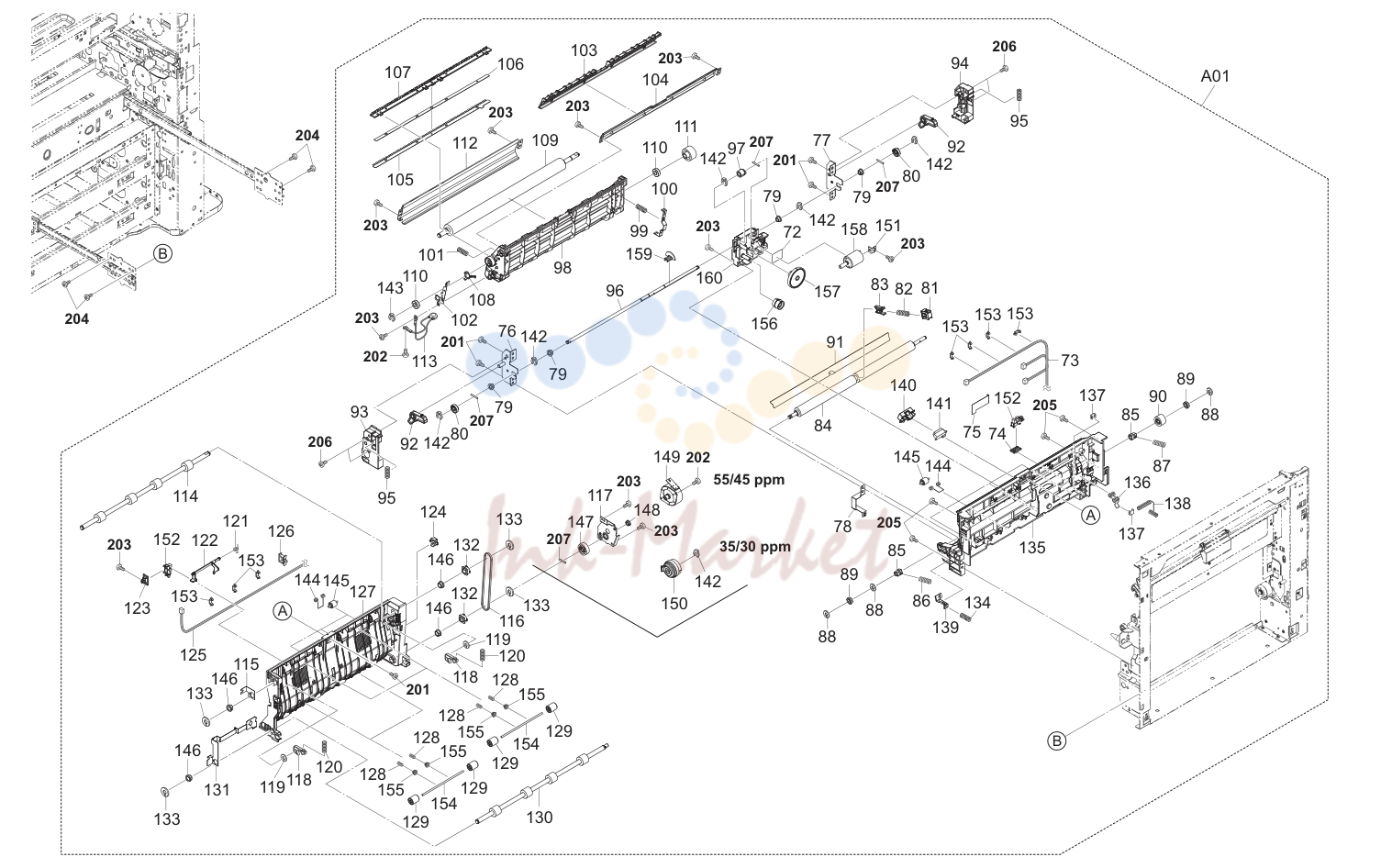

10. Paper Conveying Section 1-2

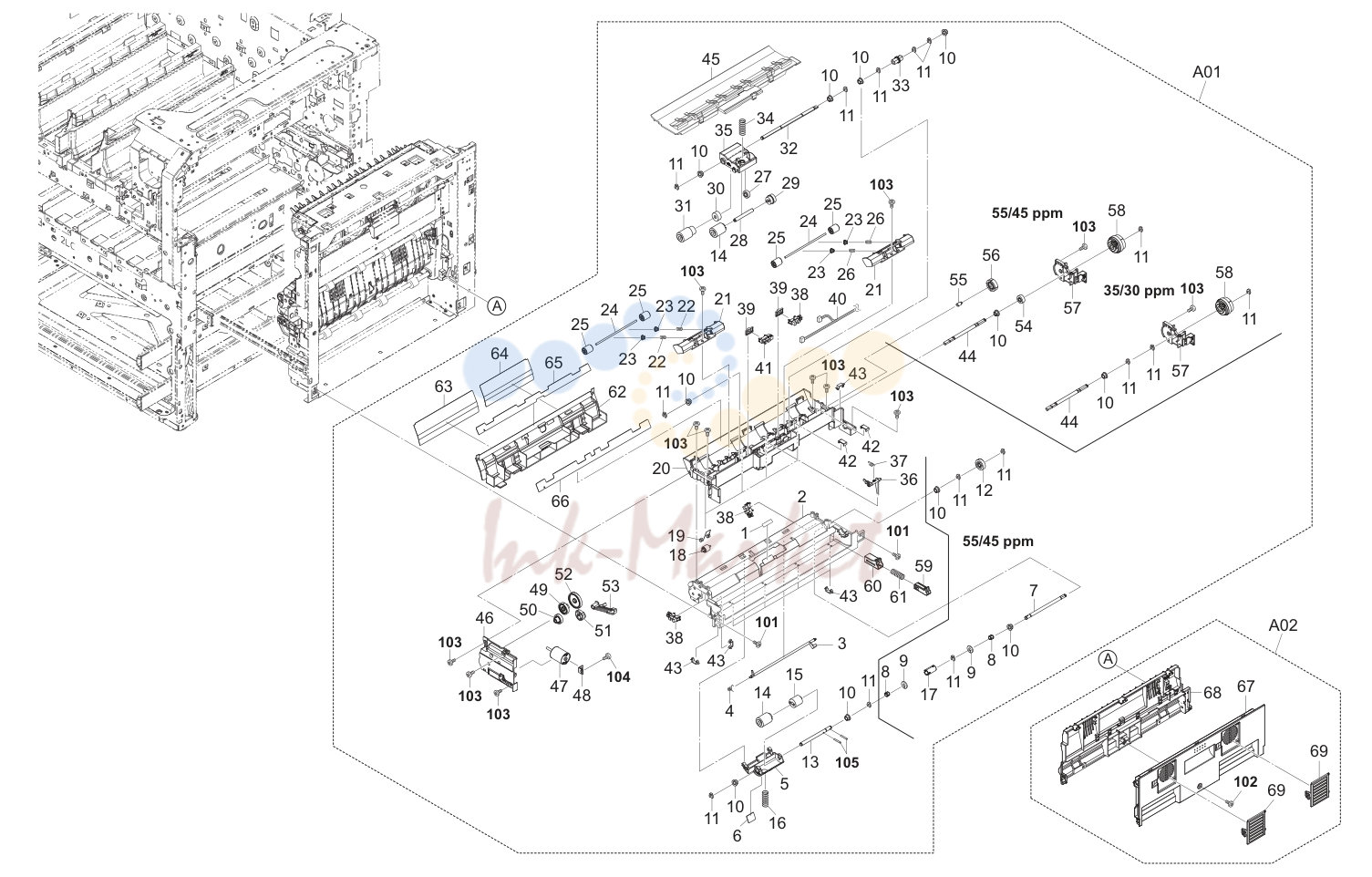

11. Paper Conveying Section 2

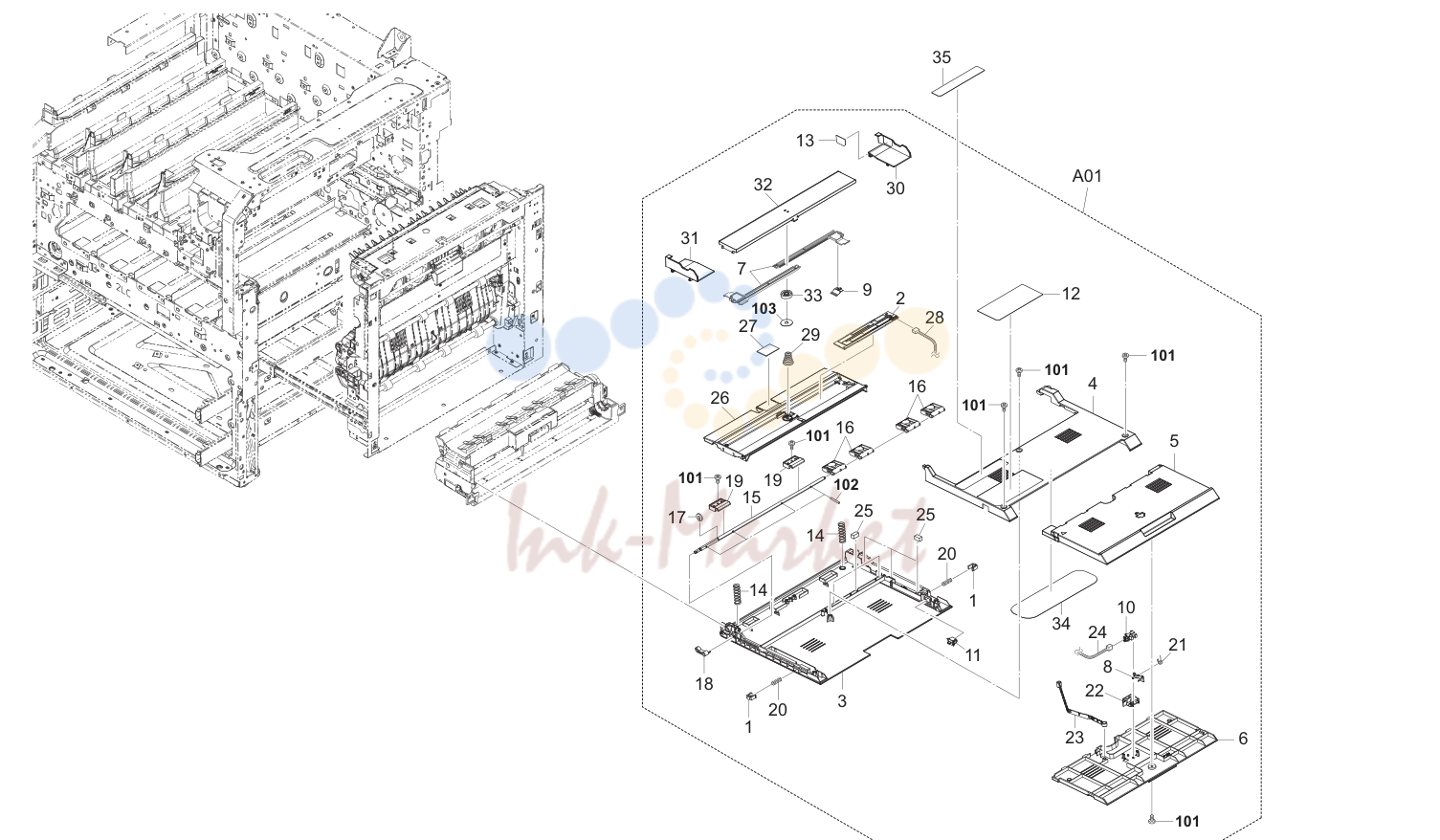

12. Paper Conveying Section 3

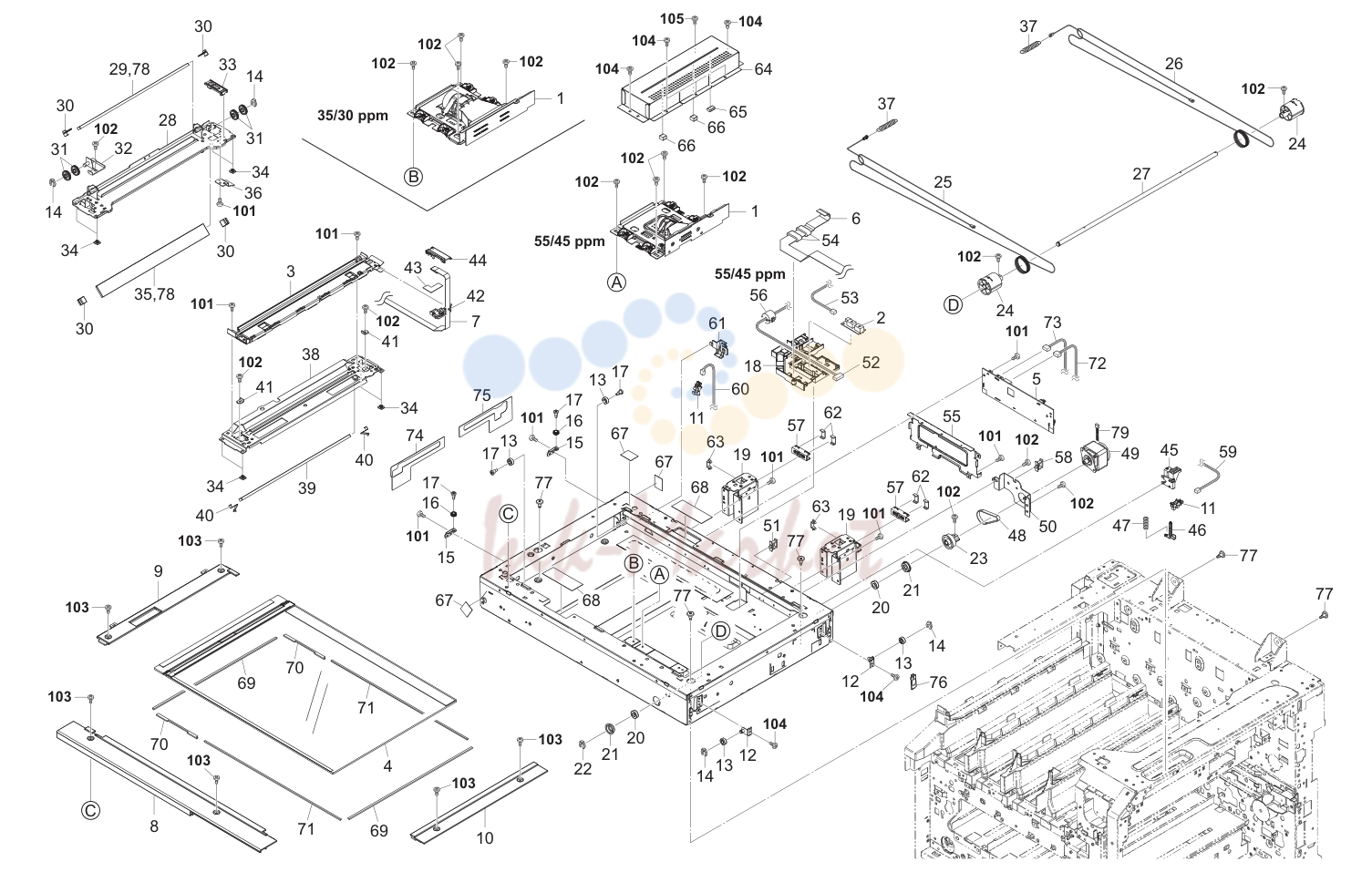

13. Scanner Section

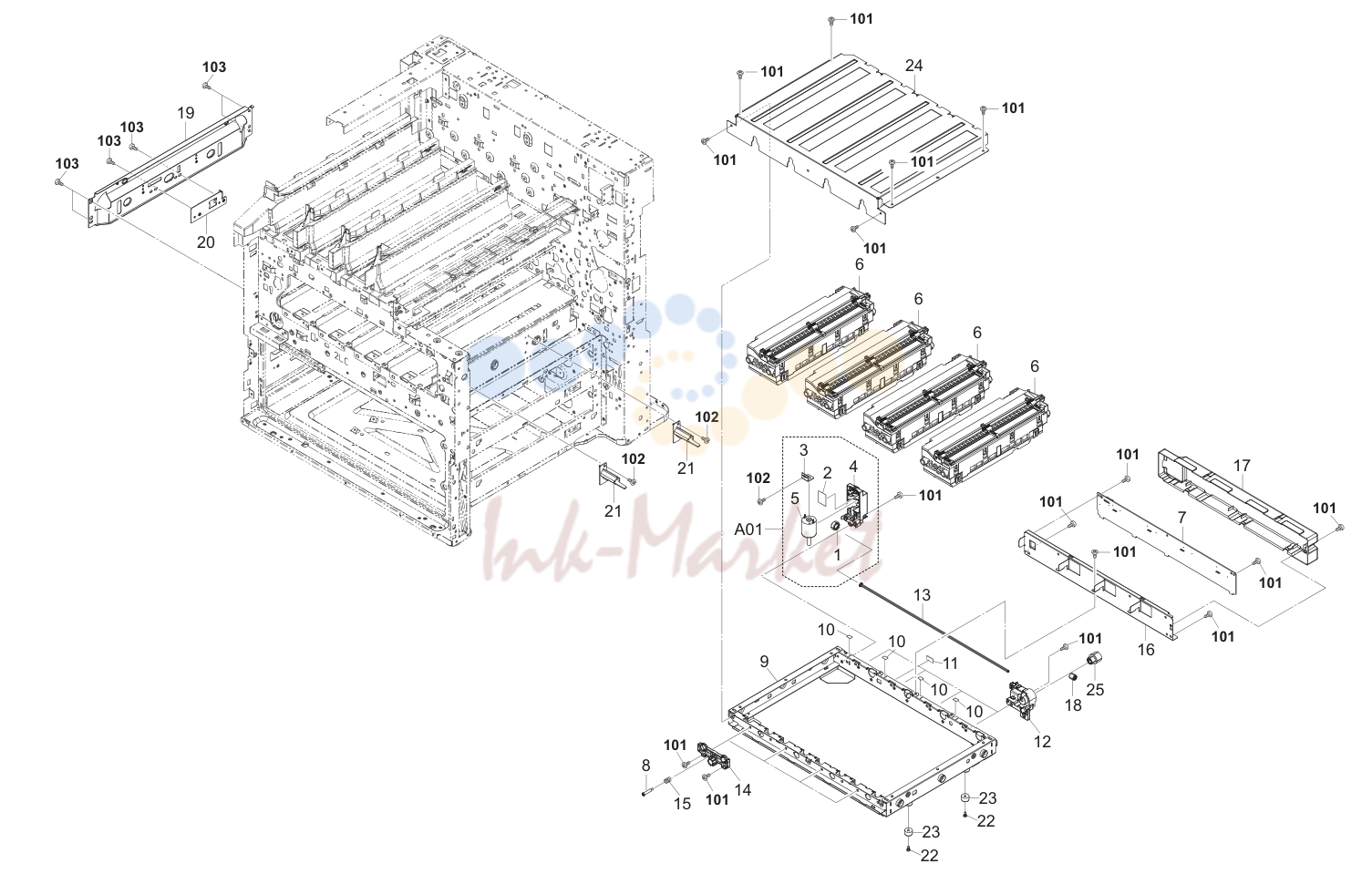

14. Laser Scanner Section

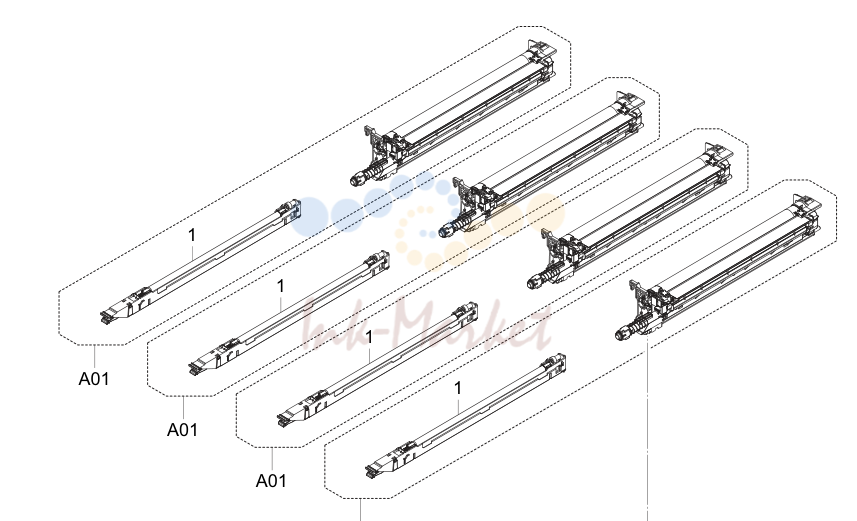

15. Image Formation & Developer Section

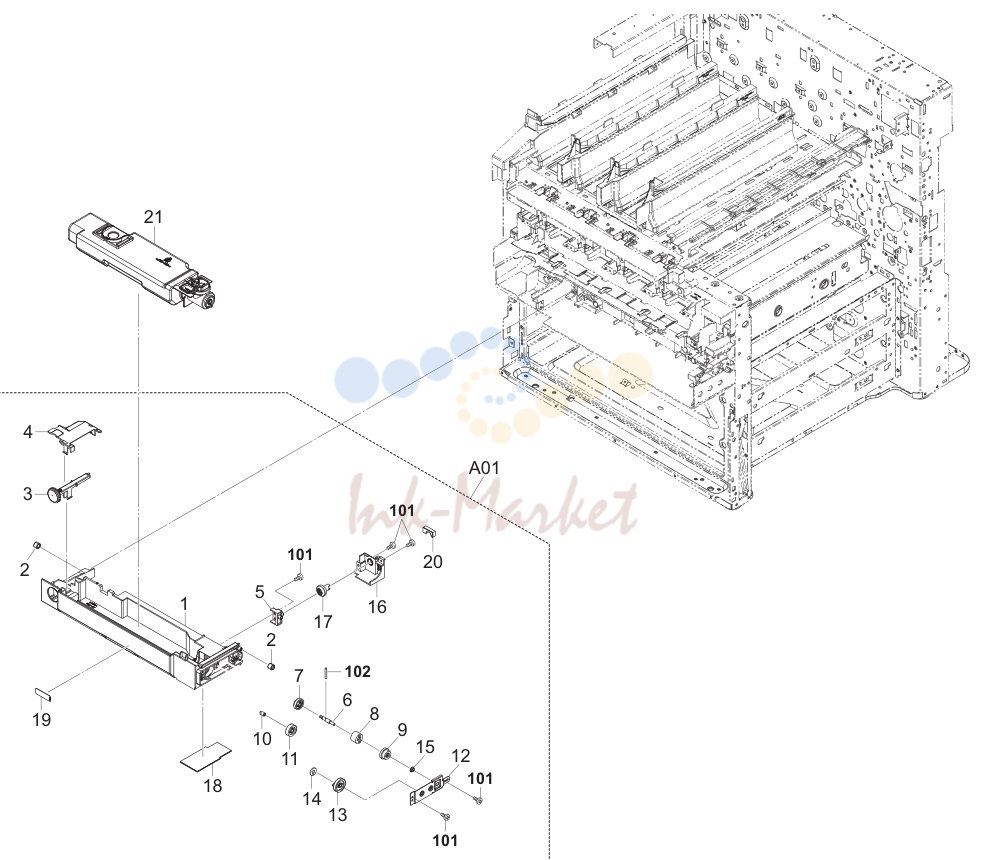

16. Inner Section 2

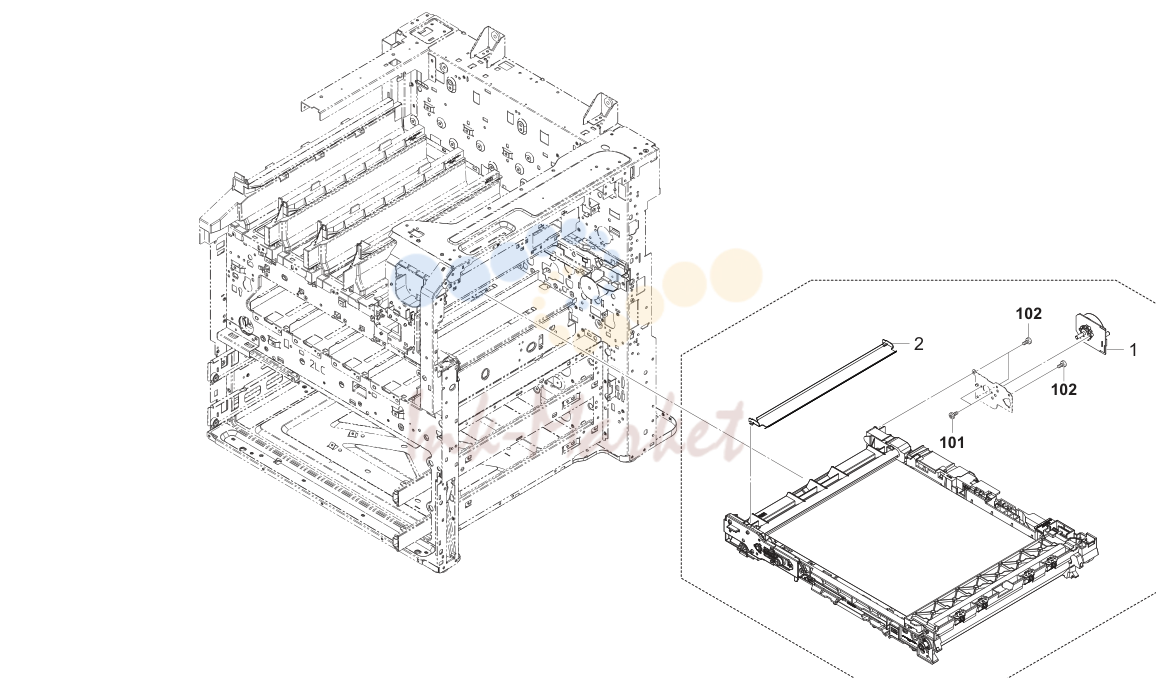

17. Transfer Section

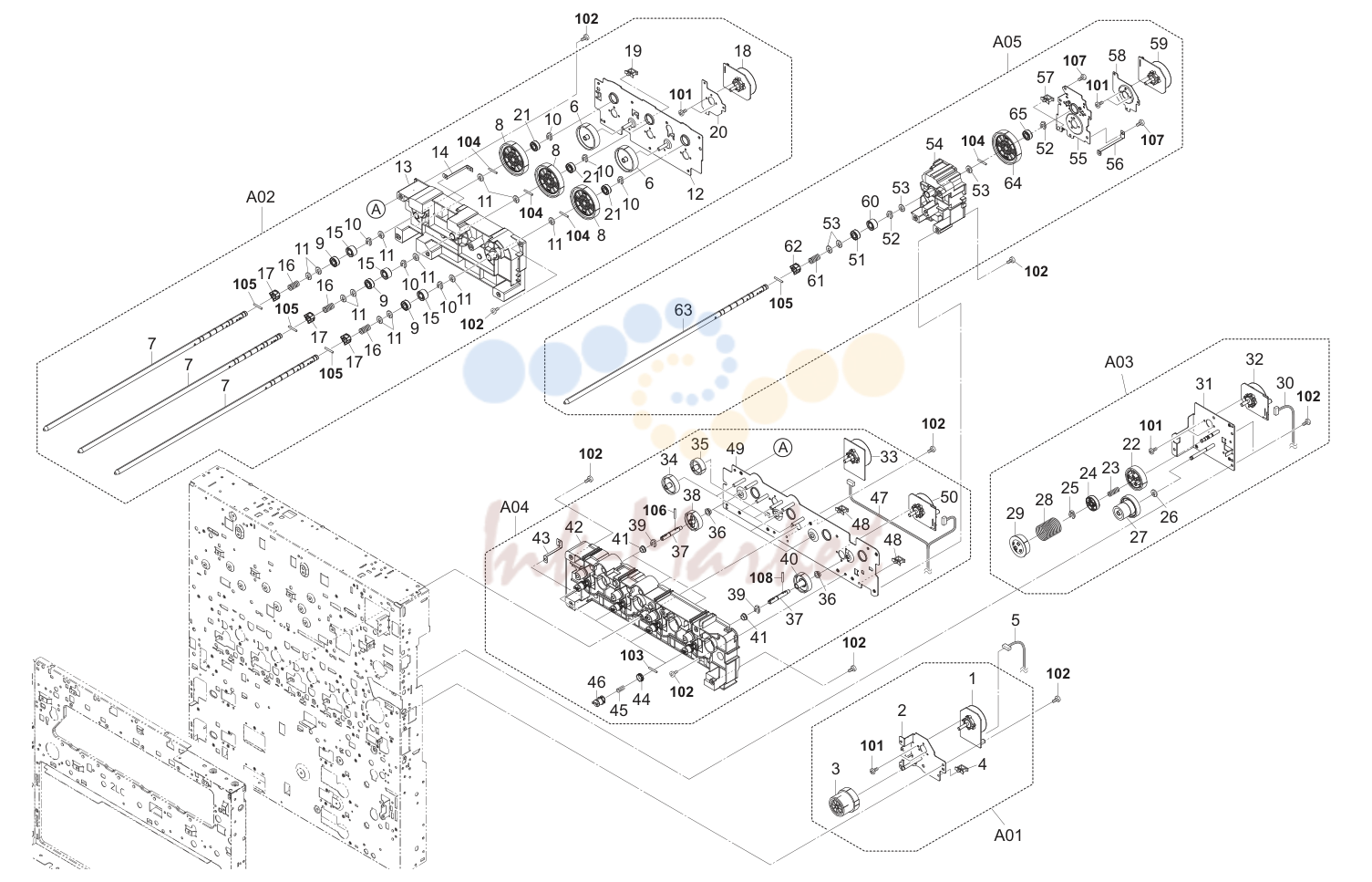

18. Drive Section 1 (35/30 ppm)

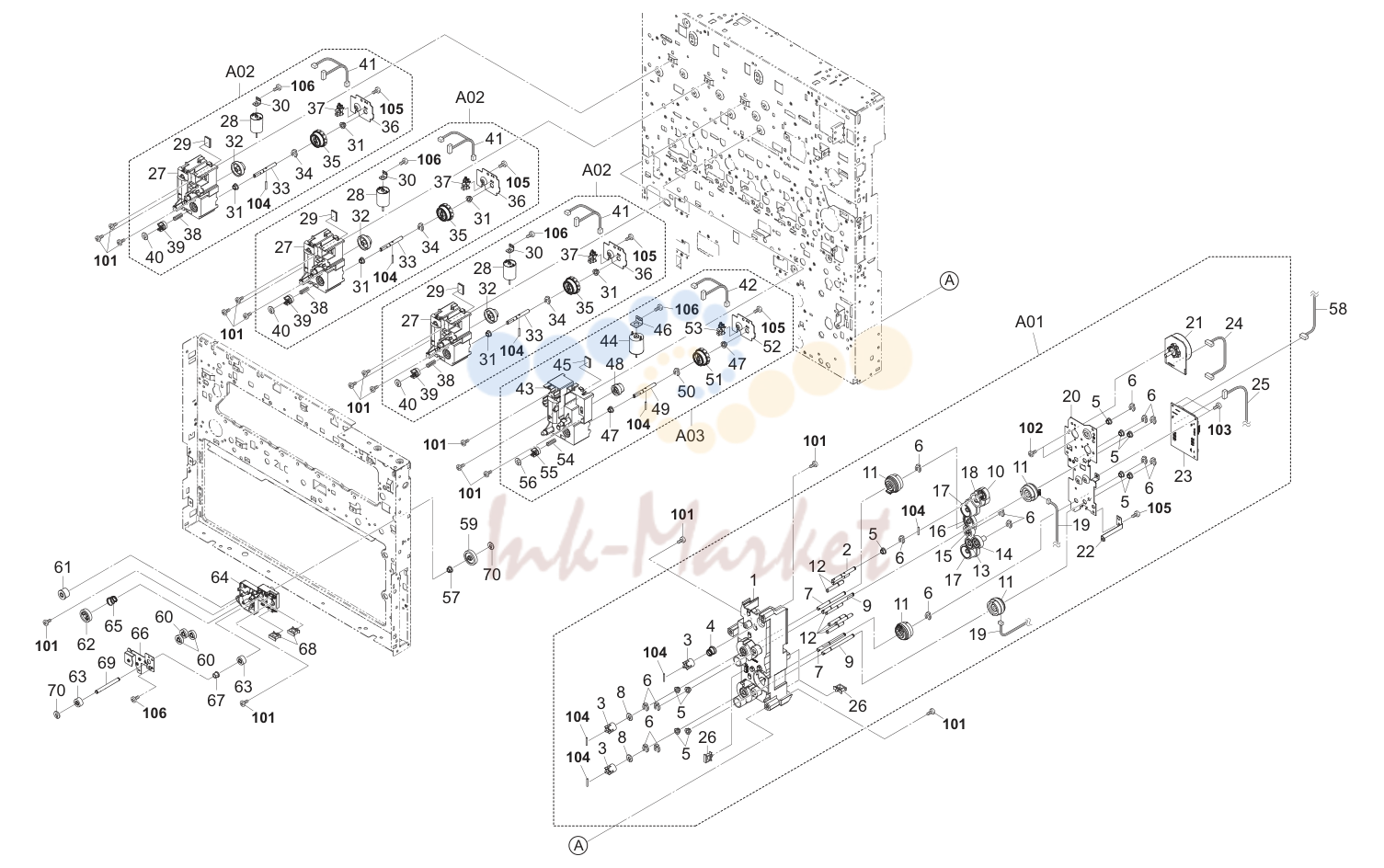

19. Drive Section 2 (55/45 ppm)

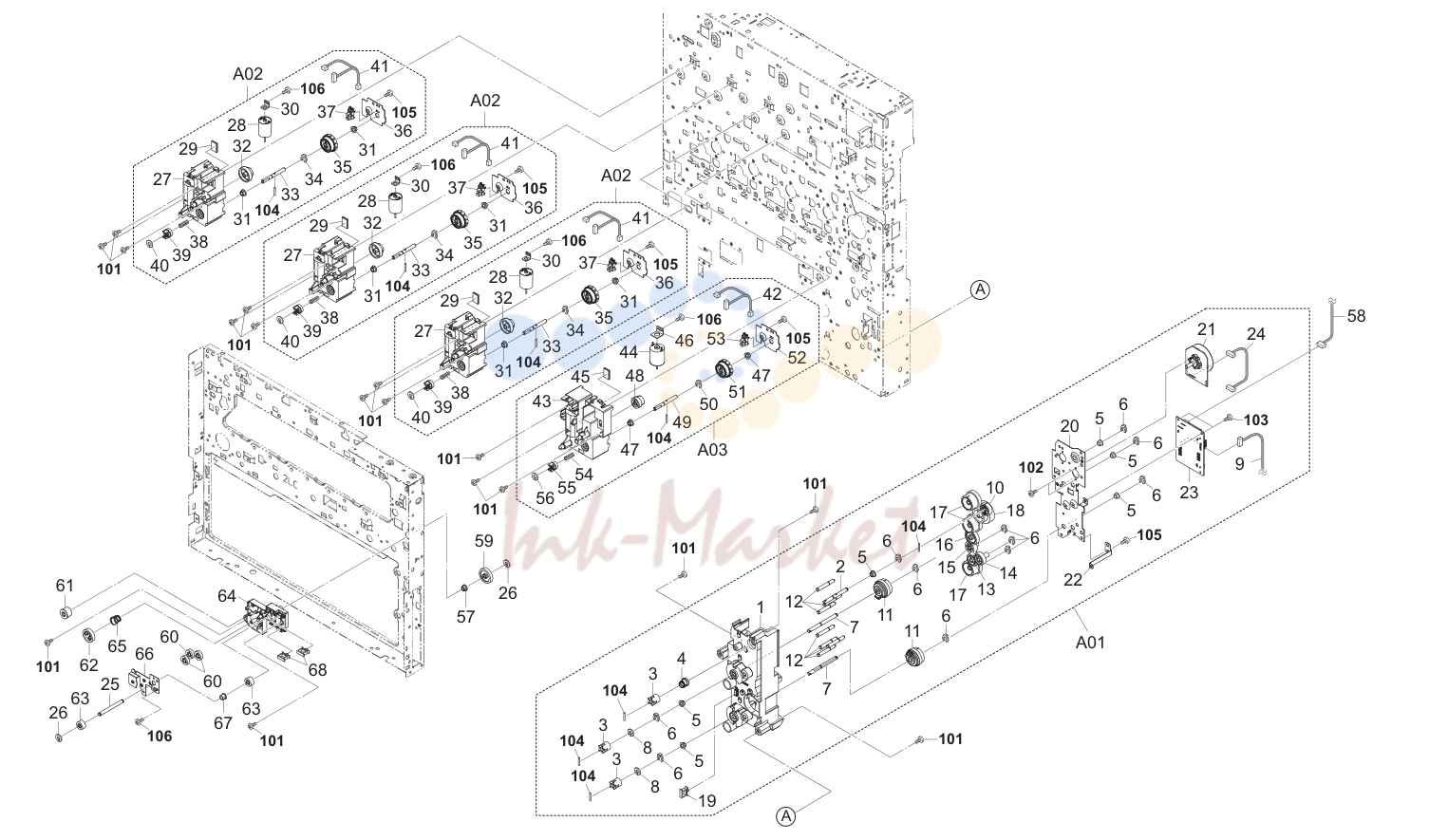

20. Drive Section 2 (35/30 ppm)

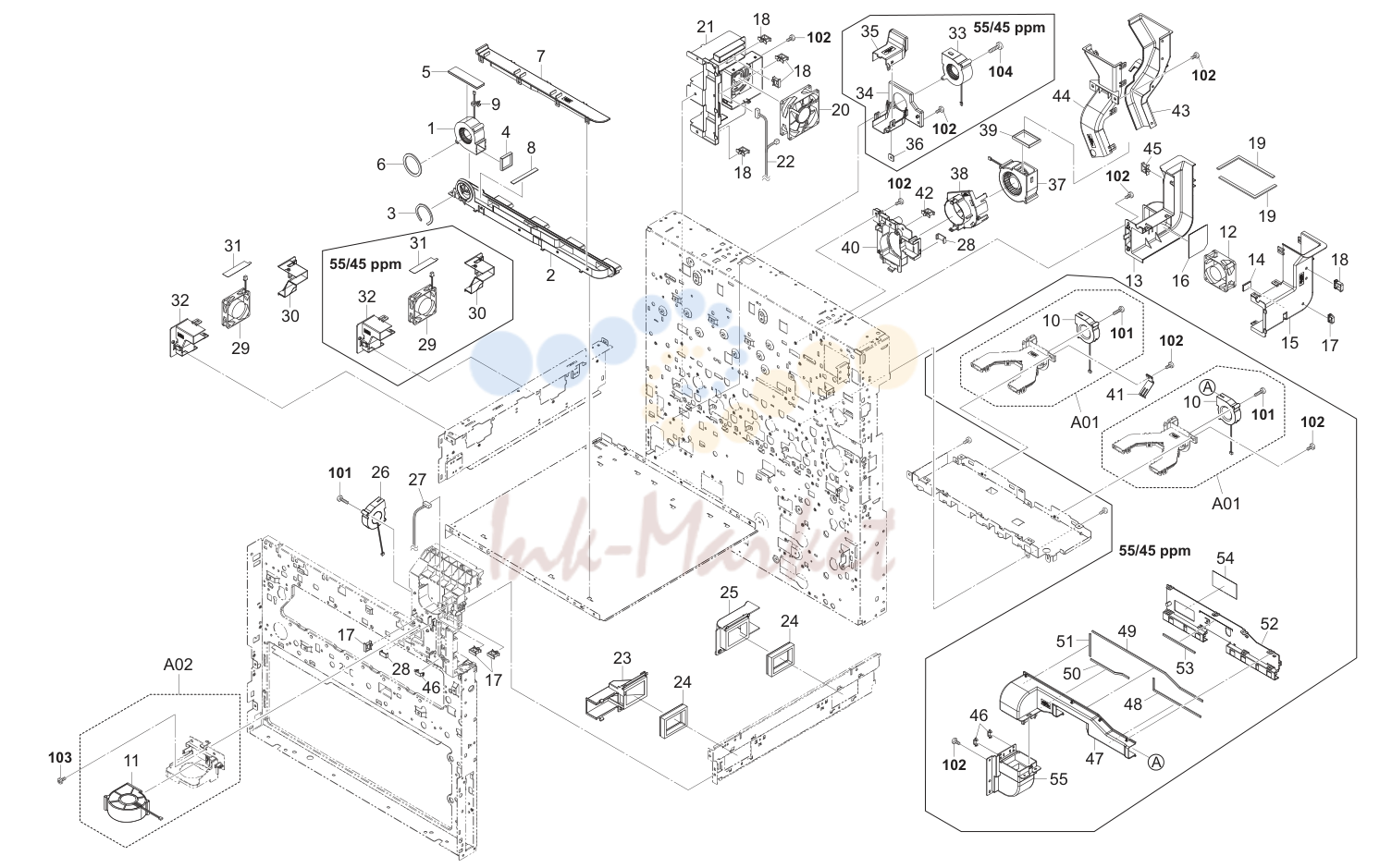

21. Cooling Section

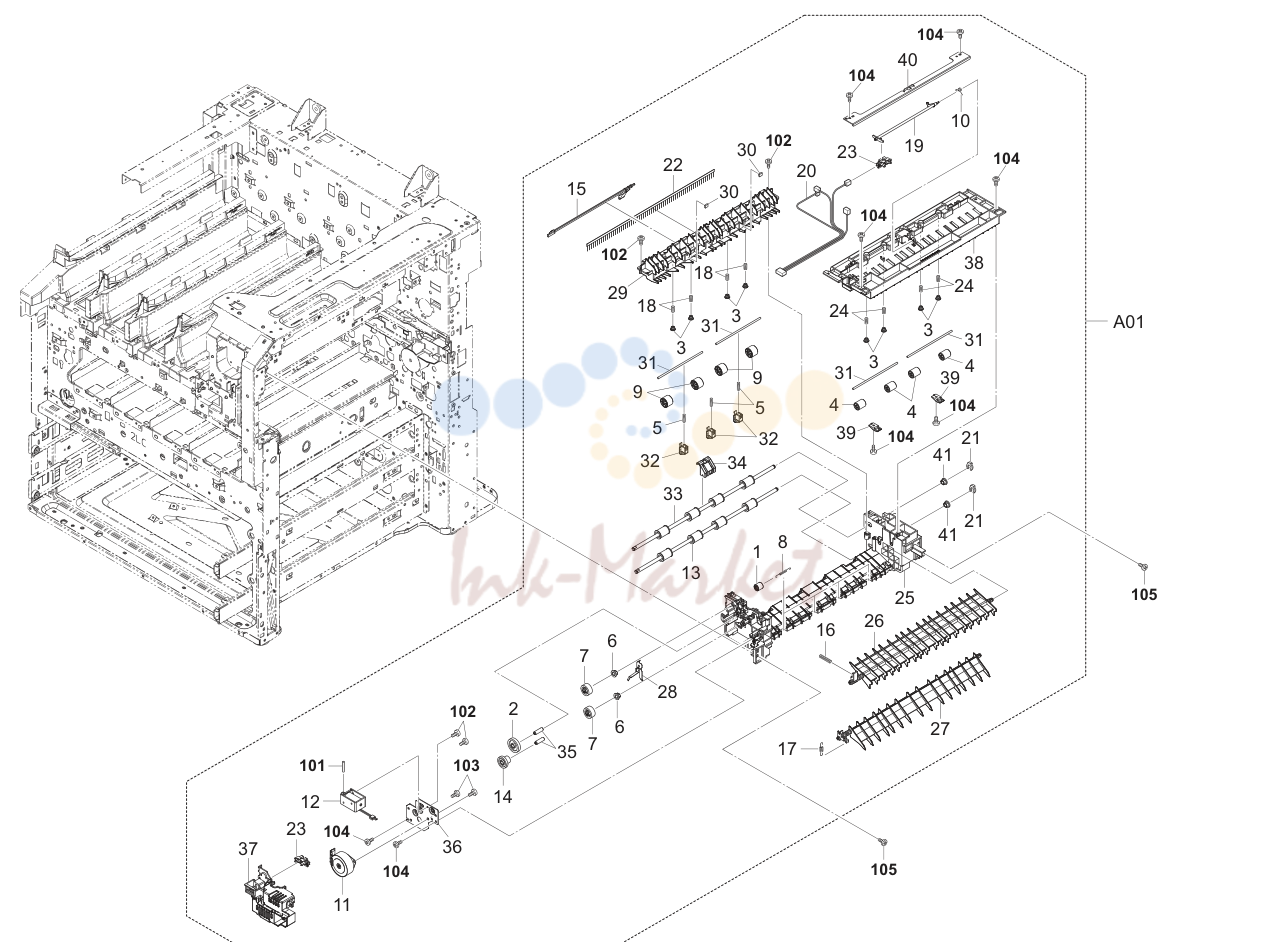

22. Exit Section

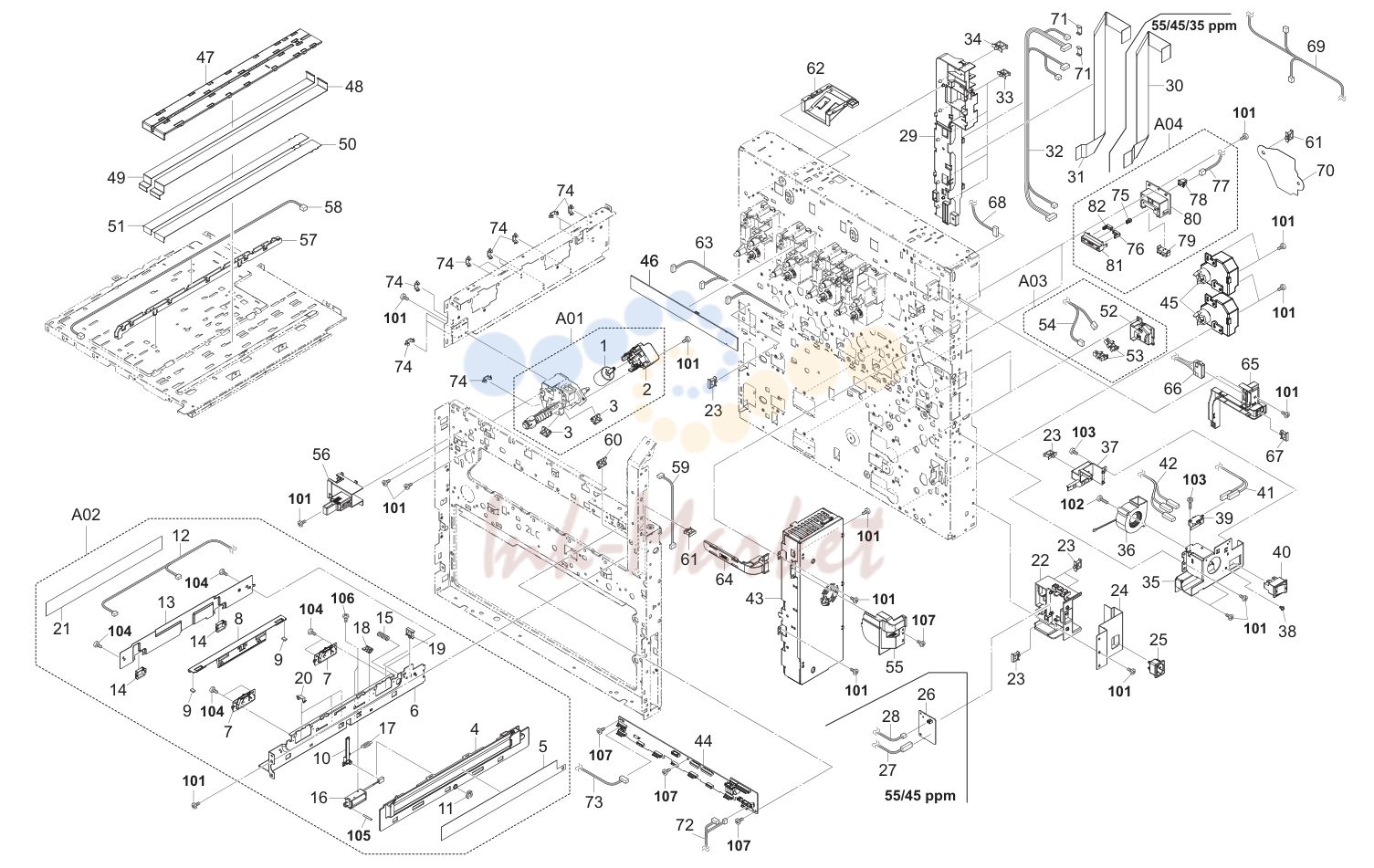

23. Electrical Components 1
24. Electrical Components 2
25. Electrical Components 3
26. Operation Section
27. Options 1
28. Options 2
29. Options 3

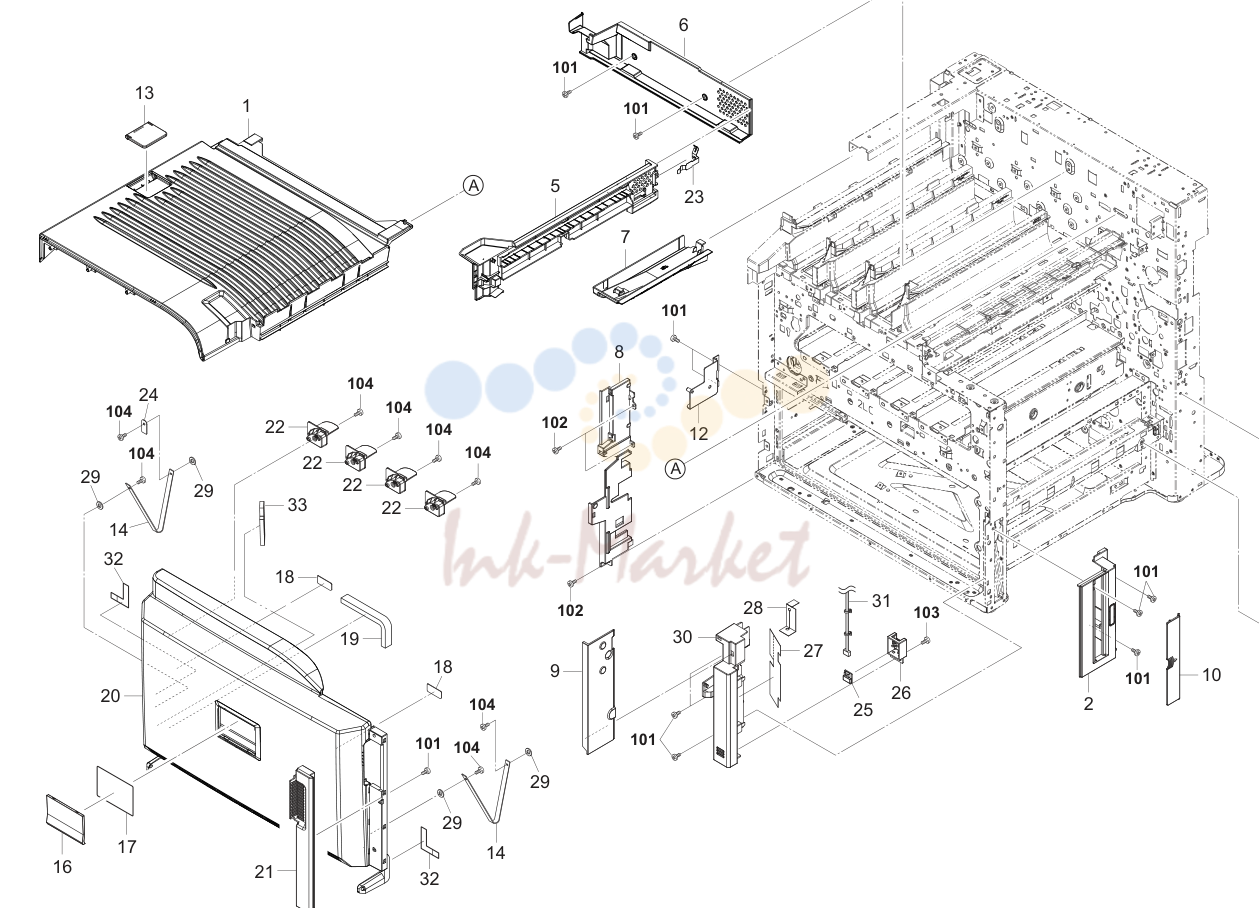

1. Covers 1

№	Артикул	Альт. артикул	Описание
12	302LC04410 запросить цену →	2LC04410	MOUNT FRONT COVER LEFT
13	302LC04720 запросить цену →	2LC04720	STOPPER ORIGINAL
14	302LC04651 запросить цену →	2LC04651	STRAP FRONT COVER
15	302LC34050 запросить цену →	2LC34050	LABEL SW CAUTION EN
18	2FB04270 запросить цену →	2FB04270	PLATE MAGNET
19	302N402360 запросить цену →	2N402360	SPONGE FRONT COVER
22	302LC04460 запросить цену →	2LC04460	STOPPER CONTAINER
23	302N402020 запросить цену →	2N402020	PLATE EARTH FRAME REAR
24	302LC04740 запросить цену →	2LC04740	SHEET COVER FRONT B
27	302LC02720 запросить цену →	2LC02720	SHEET HUMIDITY SENSOR A
28	302LC02730 запросить цену →	2LC02730	SHEET HUMIDITY SENSOR B
29	302LW04260 запросить цену →	2LW04260	SPACER USB
31	302LC46230 запросить цену →	2LC46230	WIRE FRONT LOW
32	302LC04730 запросить цену →	2LC04730	SHEET COVER FRONT
33	302LC04751 запросить цену →	2LC04751	SPONGE COVER FRONT B

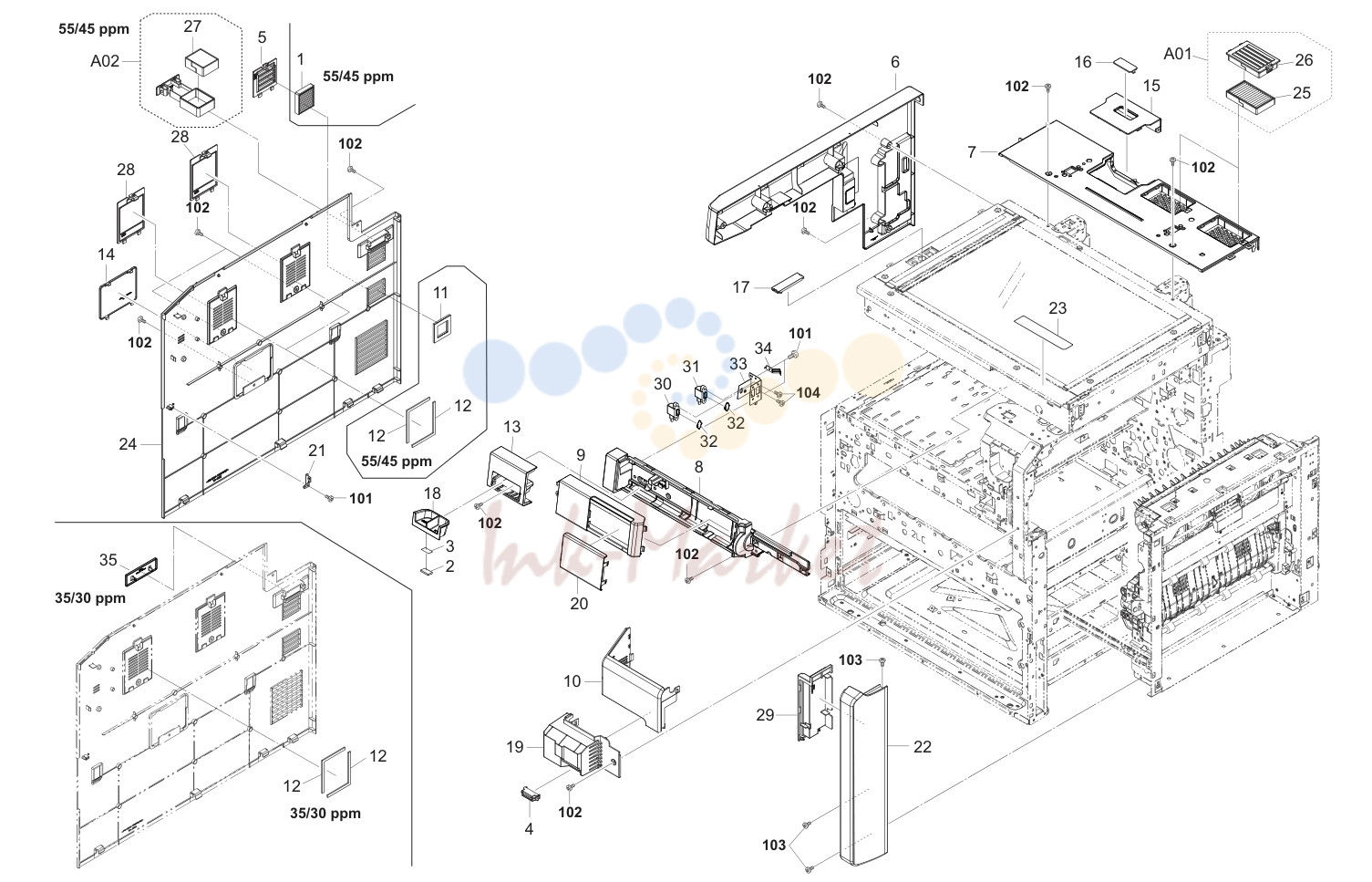

2. Covers 2

№	Артикул	Альт. артикул	Описание
2	302GR04370 запросить цену →	2GR04370	MAGNET CLIP DISH 1 1 1 102 7BB180408H BB111210 +BIND T.T S SCREW 4X8(BLACK)
3	302GR04380 запросить цену →	2GR04380	SEAL MAGNET 1 1 1 103 7BB780410H BB111220 +BIND T.T S SCREW 4X10 SR(BLACK)
4	302H004660 запросить цену →	2H004660	MAGNET CATCH 1 1 1 104 7BB600306H BB105730 +BIND M SCREW 3X6 R
11	302LC33490 запросить цену →	2LC33490	SPONGE DLP COOLING B 55/45 ppm
12	302LF04050 запросить цену →	2LF04050	SEAL LSU DUCT 55/45 ppm
12	302LF04050 запросить цену →	2LF04050	SEAL LSU DUCT 35/30 ppm
16	302LC04330 запросить цену →	2LC04330	LID DP CONNECTOR
18	302N404130 запросить цену →	2N404130	CASE CLIP
20	302N404040 запросить цену →	2N404040	LID CARD
21	302LC04480 запросить цену →	2LC04480	MOUNT COVER LEFT
23	302LC34031 запросить цену →	2LC34031	LABEL OPERATION CAUTION B
26			•302K933181 2K933181 COVER FILTER EXIT
27			•302LC33370 2LC33370 FILTER LEFT SIDE 55/45 ppm
29	302LC29090 запросить цену →	2LC29090	COVER INNER CONVEYING F
30	302N446220 запросить цену →	2N446220	WIRE USB KEYBOARD
31	302N446230 запросить цену →	2N446230	WIRE USB CARD READER
32	302K905900 запросить цену →	2K905900	SPRING USB HOLD
33	302N404180 запросить цену →	2N404180	MOUNT USB LEFT
34	302FB07930 запросить цену →	2FB07930	PLATE EARTH VF B

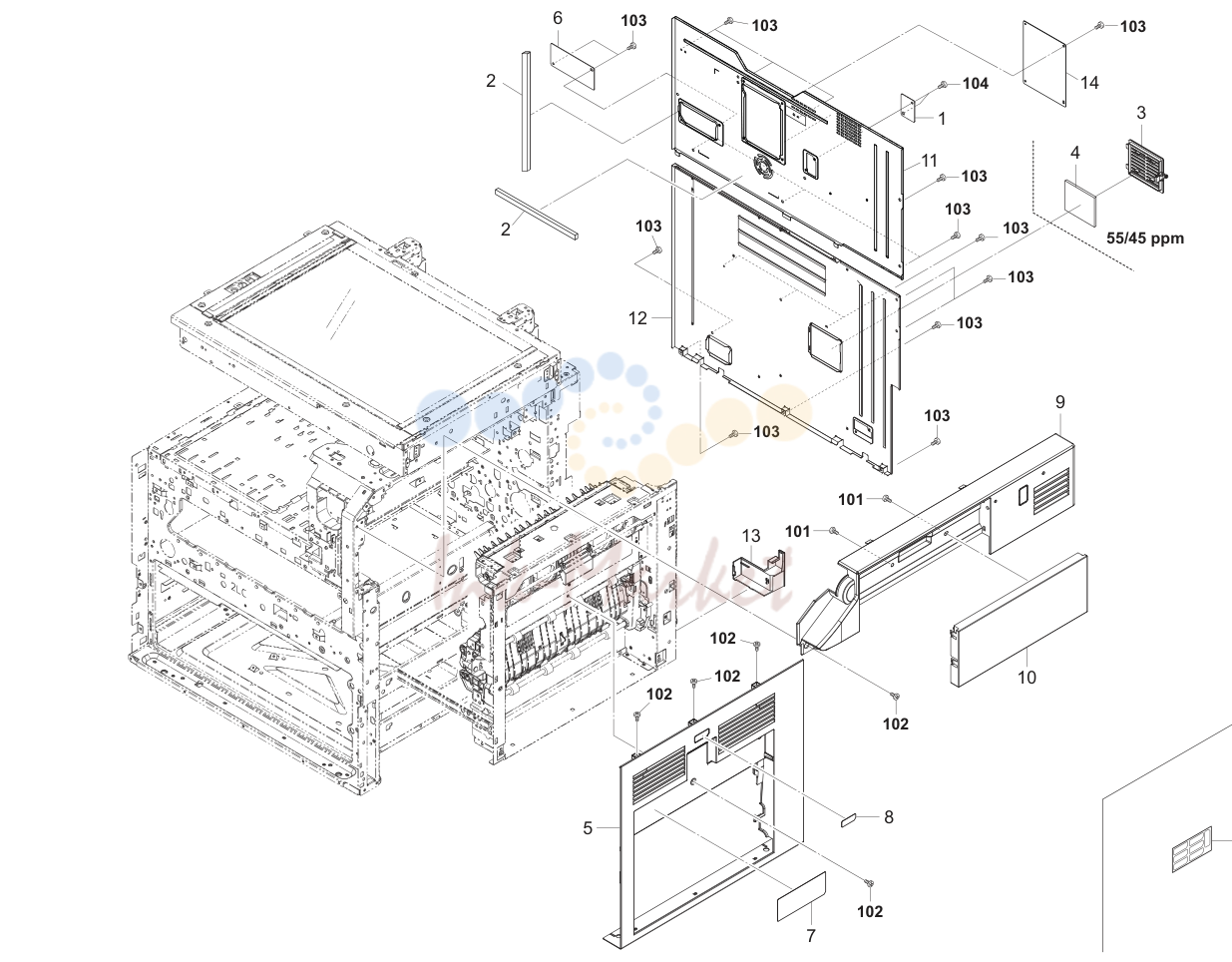

3. Covers 3

№	Артикул	Альт. артикул	Описание
1	2C912430 запросить цену →	2C912430	LID KMAS 1 1 1 101 7BB200308H BB105660 +BIND T.T P SCREW 3X8
2			7ZG65TSV+010H01 ZG111180 SHIELD GASKET 2 2 2 102 7BB180408H BB111210 +BIND T.T S SCREW 4X8(BLACK)
4	302LC33500 запросить цену →	2LC33500	FILTER DLP COOLING 55/45 ppm 1 1 1 104 7BB700308H BB105600 +BIND T.T S SCREW 3X8 SR
6	302LC04470 запросить цену →	2LC04470	LID FAX BOARD
7	302LC34070 запросить цену →	2LC34070	LABEL MPF CAUTION B
8	302LC34110 запросить цену →	2LC34110	LABEL MPF PUSH
13	302K929590 запросить цену →	2K929590	COVER INNER CONVEYING B
14	302LC04770 запросить цену →	2LC04770	LID DP BOARD
15	302LC34180 запросить цену →	2LC34180	LABEL MPF SET A
16	302LC34160 запросить цену →	2LC34160	LABEL SW CAUTION SET A

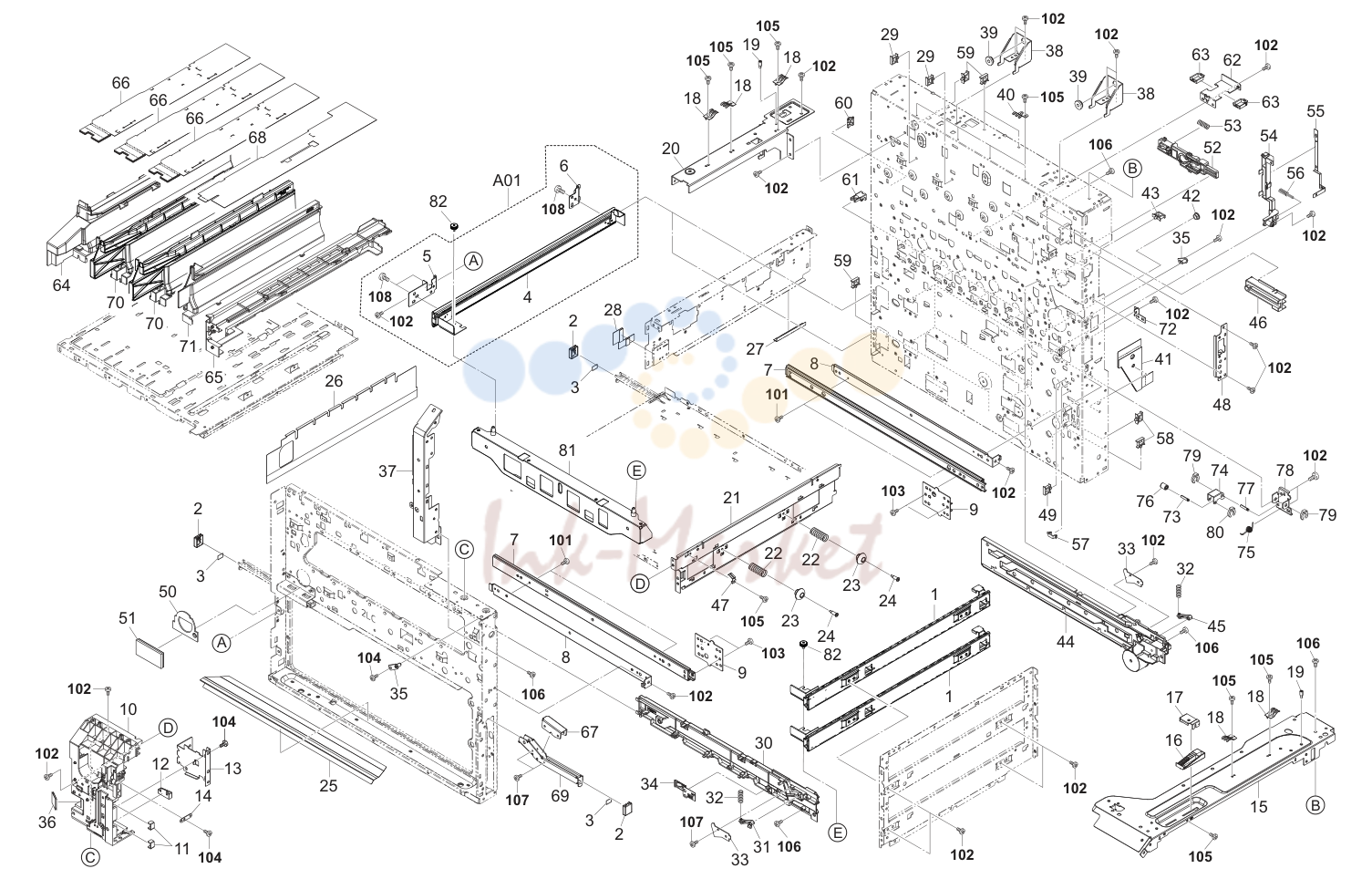

4. Frames

№	Артикул	Альт. артикул	Описание
1	302N209500 запросить цену →	2N209500	SLIDER CASSETTE RIGHT 2 2 2 48 302LC02260 2LC02260 PLATE BRACKET FUSER
2	302FZ02580 запросить цену →	2FZ02580	CAP HANDLE 3 3 3 49 7YZM610007++H01 YZ023340 ACCESS.SADDLE
3	302FZ03110 запросить цену →	2FZ03110	SEAL HANDLE 3 3 3 50 302LC33220 2LC33220 SEAL INNER COOLING A
4			•302N209510 2N209510 SLIDER CASSETTE LEFT 2 2 2 52 302K931690 2K931690 LEVER RELEASE FUSER DRIVE
5			•302N209530 2N209530 MOUNT SLIDER LF 4 4 4 53 302K931980 2K931980 SPRING LEVER RELEASE
6			•302N209540 2N209540 MOUNT SLIDER LR 4 4 4 54 302K939340 2K939340 GUIDE HV SEPARATION
7	302K924300 запросить цену →	2K924300	SLIDER CONVEYING 2 2 2 55 302K939350 2K939350 PLATE HV SEPARATION
8	302K924311 запросить цену →	2K924311	MOUNT SLIDER CONVEYING 2 2 2 56 302K939360 2K939360 SPRING HV
9	302LC29130 запросить цену →	2LC29130	MOUNT CONVEYING 55/45 ppm 2 2 2 57 302K931080 2K931080 WIRE STOPPER
9	302LK29050 запросить цену →	2LK29050	MOUNT CONVEYING 35/30 ppm 2 2 2 58 7YZM610008++H01 YZ037940 ACCESS.SADDLE
10	302LC02151 запросить цену →	2LC02151	FRAME FRONT FUSER A 1 1 1 59 7YZM610003++H01 YZ010250 ACCESS SADDLE
11	302LC02270 запросить цену →	2LC02270	NUT ADJUST 2 2 2 60 7YZM210006++H01 YZ038000 ACCESS.EDGING
12	302LC02240 запросить цену →	2LC02240	HOLDER FUSER ADJUST 1 1 1 61 302FZ02591 2FZ02591 HOOK DLP
13	302LC02250 запросить цену →	2LC02250	MOUNT FUSER ADJUST 1 1 1 62 302K939080 2K939080 PLATE SHIELD BOX
14	302FZ02720 запросить цену →	2FZ02720	PLATE FUSER 1 1 1 63 7YZM210003++H01 YZ037970 ACCESS.EDGING
15	302LC02221 запросить цену →	2LC02221	STAY UPPER TOP RIGHT 1 1 1 64 302LC03370 2LC03370 RAIL CONTAINER L
16	302K902950 запросить цену →	2K902950	ADJUSTER SCANNER 1 1 1 65 302LC03340 2LC03340 RAIL CONTAINER R
17	302K902960 запросить цену →	2K902960	MOUNT RUBBER SCANNER 1 1 1 66 302LC02750 2LC02750 FILM FRAME UPPER CL
18	302H017310 запросить цену →	2H017310	GROUND SCANNER REAR 5 5 5 67 302LC02810 2LC02810 PROTECTOR PLATE HANDLE
19	302FB16320 запросить цену →	2FB16320	PIN ROLLER RELEASE LEVER 2 2 2 68 302LC02740 2LC02740 FILM FRAME UPPER BK
20	302N402010 запросить цену →	2N402010	STAY ISU TOP LEFT 1 1 1 69 302LC02561 2LC02561 HANDLE RIGHT
21	302LC02170 запросить цену →	2LC02170	FRAME FUSER UNIT 1 1 1 70 302N403010 2N403010 RAIL CONTAINER C
22	302K926220 запросить цену →	2K926220	SPRING IH 2 2 2 71 302LC03360 2LC03360 RAIL CONTAINER R C
23	302LK26050 запросить цену →	2LK26050	CAP SPRING 2 2 2 72 302LC24060 2LC24060 PLATE KEY MIDDLE B 55/45 ppm
24	303LL24250 запросить цену →	3LL24250	PIN READING GUIDE 2 2 2 72 302LK24030 2LK24030 PLATE KEY MIDDLE C 35/30 ppm
25	302K902571 запросить цену →	2K902571	FILM BASE CASSETTE 1 1 1 73 302K909630 2K909630 SHAFT HOOK PULLEY
26	302LC33530 запросить цену →	2LC33530	FILM DLP RAIL LEFT 1 1 1 74 302K909640 2K909640 LEVER CASSETTE HOOK
27	302K902810 запросить цену →	2K902810	SHEET LSU LEFT 1 1 1 75 302LH02050 2LH02050 SPRING CASSETTE HOOK
28	302LC02790 запросить цену →	2LC02790	SHEET LEFT WIRE 1 1 1 76 303LW24060 3LW24060 PULLEY EJECT
29			7YZM610002++H01 YZ010240 ACCESS SADDLE 2 2 2 77 303NF02280 3NF02280 SHAFT HOOK FULCRUM
30	302K902770 запросить цену →	2K902770	RAIL MIDDLE TRANSFER FRONT 1 1 1 78 303NF02301 3NF02301 HOLDER DECK HOOK
31	302K902790 запросить цену →	2K902790	STOPPER RAIL FRONT 1 1 1 79 5MVX111DN003 2A806250 RING STOPPER /A-49 FEED A4
32	302FZ02300 запросить цену →	2FZ02300	SPRING STOPPER 2 2 2 80 5MVX111DN007 2BT11070 STOPPER 3 /2BT1107 A4
33	302K902830 запросить цену →	2K902830	PLATE RAIL 2 2 2 81 302N209520 2N209520 STAY CASSETTE FRONT
34	302K902930 запросить цену →	2K902930	PLATE EARTH IMAGE F 1 1 1 82 303H321080 3H321080 RETAINING PIN TRAY
35	302K924450 запросить цену →	2K924450	PIN HOOK
36	302LC33400 запросить цену →	2LC33400	SHEET SEPARATE FUSER COOLING
37	302LC02160 запросить цену →	2LC02160	FRAME FRONT FUSER B
38	302K902250 запросить цену →	2K902250	PLATE MOUNT DP
39	2AV12280 запросить цену →	2AV12280	BASE RUBBER,SCANNER SECTION
40	302H017380 запросить цену →	2H017380	GROUND BASE SCANNER 4 4 4 101 7BB100306H1 BB105820 +BIND T.T S SCREW 3X6
41	302K902990 запросить цену →	2K902990	SHEET COVER PWB FEED 1 1 1 102 7BB700408H BB105640 +BIND T.T S SCREW 4X8 SR
42			7YZM110001++H01 YZ009420 ACCESS.BUSHING 1 1 1 103 7BB607406H BB107150 +TP-CUP M SCREW 4X6 R
43			7YZM610001++H01 YZ010230 ACCESS SADDLE 1 1 1 104 7BB200408H BB106960 +BIND T.T P SCREW 4X8
44	302K902761 запросить цену →	2K902761	RAIL MIDDLE TRANSFER REAR 1 1 1 105 7BB700308H BB105600 +BIND T.T S SCREW 3X8 SR
45	302K902780 запросить цену →	2K902780	STOPPER RAIL REAR 1 1 1 106 7BB200410H BB105700 +BIND T.T P SCREW 4X10
46	302K902850 запросить цену →	2K902850	RAIL EXIT REAR 1 1 1 107 7BB200308H BB105660 +BIND T.T P SCREW 3X8
47	302LC28200 запросить цену →	2LC28200	PLATAE EARTH 1 1 1 108 7BB000305H BB063450 +BIND M SCREW 3X5

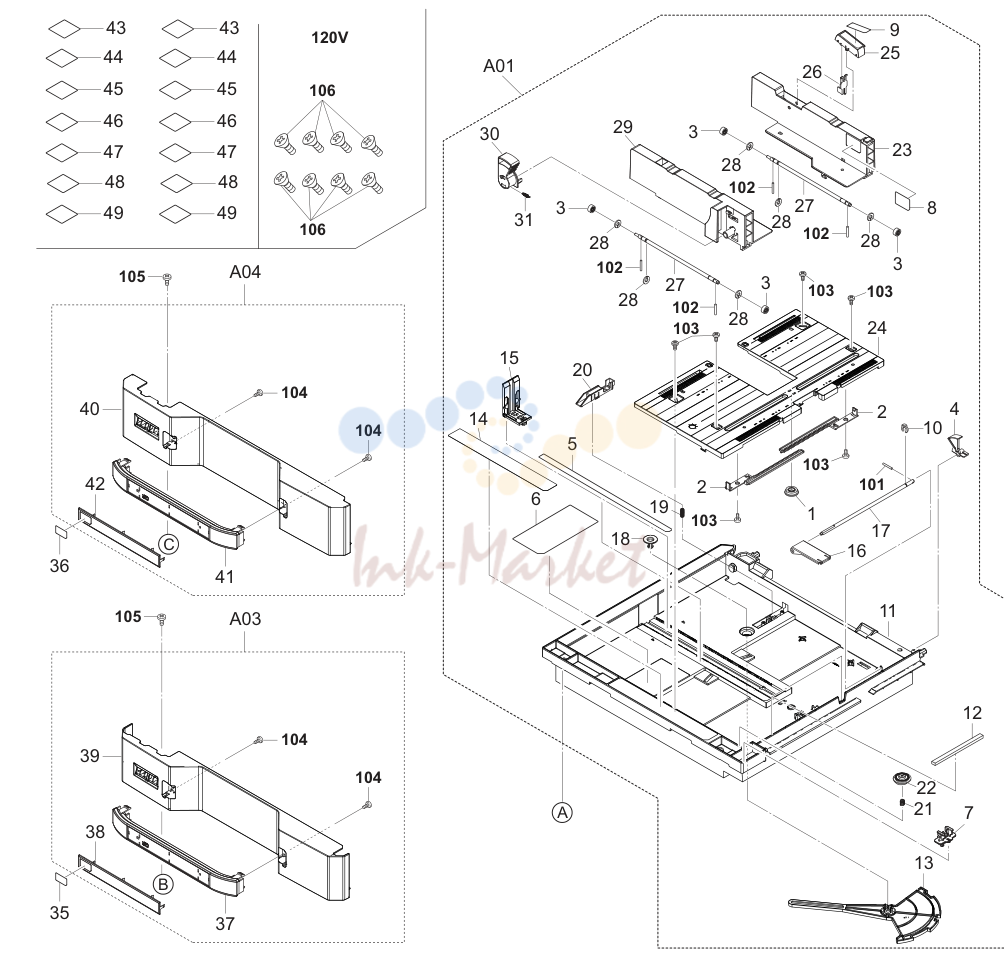

5. Paper Cassettes

№	Артикул	Альт. артикул	Описание
2			•302K909060 2K909060 RACK CURSOR 4 4 4 48 302K934750 2K934750 SHEET CASSETTE PAPER MEDIA KL-C
4			•302K909270 2K909270 ACTUATOR PAPER LEVEL DETECTION 2 2 2 50 302K934770 2K934770 SHEET CASSETTE PAPER MEDIA KL-E
5			•302K934011 2K934011 LABEL PAPER SIZE A
6			•302K934021 2K934021 LABEL PAPER SIZE B
7			•302GR09991 2GR09991 LIFT LOCK
8			•302K934090 2K934090 LABEL CASSETTE PAPER MAX
9			•302K934100 2K934100 LABEL CASSETTE CURSOR LOCK
10			•5MVX111DN003 2A806250 RING STOPPER /A-49 FEED A4 2 2 2 101 7BP512525B0CH01 BP124910 PARALLEL PIN 2.5X25
11			•302N209010 2N209010 CASSETTE BASE 2 2 2 102 7BP512008B0CH01 BP126150 PARALLEL PIN 2.0X8
12			•33907210 33907210 CUSHION,CASSETTE WORK PLATE 4 4 4 103 7BB282308H BB111240 +TP-FLAT T.T P SCREW 3X8(BLACK)
13			•302N209030 2N209030 ARM SIZE DETECTION 2 2 2 104 7BB200308H BB105660 +BIND T.T P SCREW 3X8
14			•302K934030 2K934030 LABEL CASSETTE OPERATION 2 2 2 105 7BB180408H BB111210 +BIND T.T S SCREW 4X8(BLACK)
15			•302K309300 2K309300 SPRING CASSETTE LIFT EARTH 2 2 2 106 7BB203308H BB106950 +FLAT HEAD T.T P SCREW 3X8
16			•302K909090 2K909090 PLATE WORK
17			•302K909190 2K909190 SHAFT WORK PLATE
18			•302K909140 2K909140 CAP TURN PLATE
19			•302H728100 2H728100 SPRING EXIT PULLEY
20			•302K909251 2K909251 LEVER SIDE SW
21			•302FZ29131 2FZ29131 SPRING DU
22			•302K909100 2K909100 CAM CURSOR RAIL
23			•302K909041 2K909041 CURSOR REAR
24			•302K909021 2K909021 RAIL CURSOR
25			•302K909121 2K909121 LEVER CURSOR LOCK REAR
26			•302K909151 2K909151 LOCK REAR CURSOR
27			•302K909131 2K909131 SHAFT CURSOR GEAR
28			•302K924820 2K924820 CUT-WASHER
29			•302K909031 2K909031 CURSOR FRONT
30			•302K909050 2K909050 LEVER CURSOR
31			•303JC02050 3JC02050 SPRING LOOP SOLENOID
32			•302N209020 2N209020 CURSOR END
33			••33907210 33907210 CUSHION,CASSETTE WORK PLATE
34			••302K909260 2K909260 PAD BOTTOM
35			••302K934040 2K934040 LABEL SET PAPER
36	302K934050 запросить цену →	2K934050	LABEL CASSETTE NUMBER
37	302K934060 запросить цену →	2K934060	LABEL CASSETTE NUMBER
44	302K934700 запросить цену →	2K934700	SHEET CASSETTE PAPER SIZE A
45	302K934710 запросить цену →	2K934710	SHEET CASSETTE PAPER SIZE B

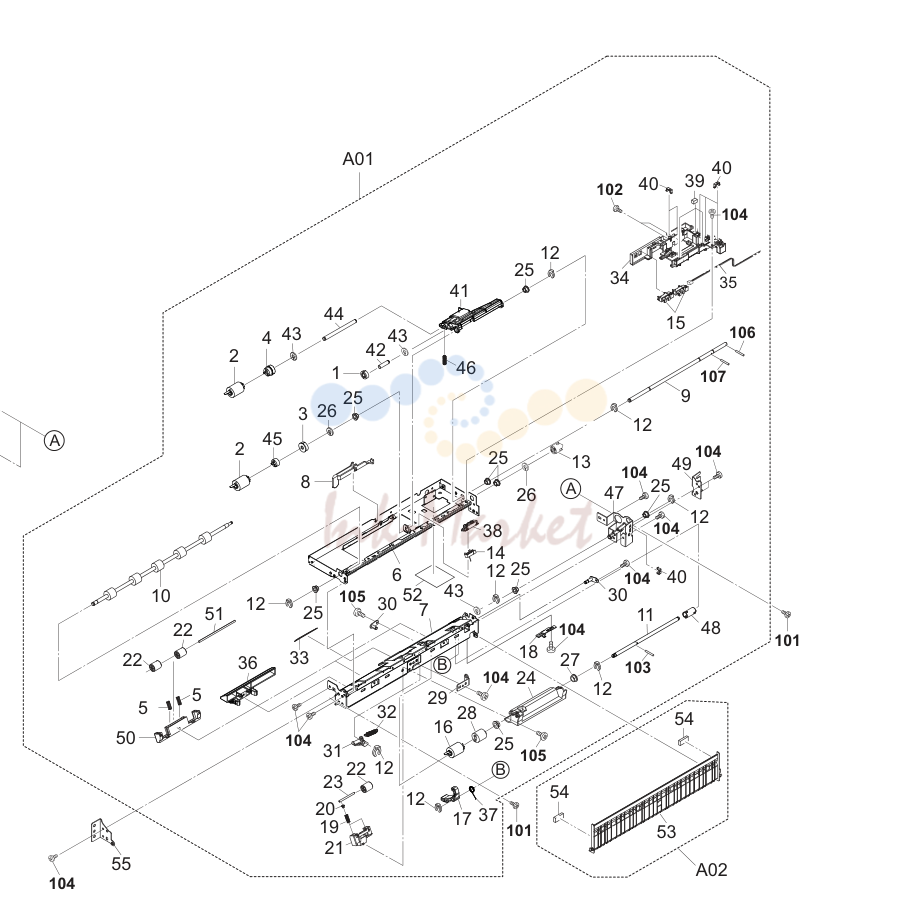

6. Paper Feed Section 1 (55/45 ppm)

№	Артикул	Альт. артикул	Описание
2			•302N406030 2N406030 PULLEY FEED 4 4 4 51 •302K906510 2K906510 SHAFT FEED LOW
5			•302LC28240 2LC28240 SPRING SWITCHBACK 8 8 8 53 •302K906051 2K906051 GUIDE PRIMARY FEED
6			•302N406010 2N406010 PLATE FRAME UPPER 2 2 2 54 •29812291 29812291 CUSHION,CONTACT GLASS
7			•302N406020 2N406020 PLATE FRAME LOWER 2 2 2 55 302K906100 2K906100 MOUNT PRIMARY FEED
8			•302K906321 2K906321 ACTUATOR PAPER EMPTY
9			•302N406210 2N406210 SHAFT FEED PRIMARY B
11			•302N406090 2N406090 SHAFT RETARD
12			•5MVX111DN003 2A806250 RING STOPPER /A-49 FEED A4
13			•302K931530 2K931530 COUPLING DRIVE 2 2 2 101 7BB700410H BB107090 +BIND T.T S SCREW 4X10 SR
16			•302N406040 2N406040 PULLEY RETARD 2 2 2 104 7BB700308H BB105600 +BIND T.T S SCREW 3X8 SR
17			•302N406160 2N406160 LEVER RETARD LOCK 2 2 2 105 7BB200308H BB105660 +BIND T.T P SCREW 3X8
18			•302K906420 2K906420 PLATE RETARD ADJUST 2 2 2 106 5MBP2014WXSP E0020140 SPRING PIN / M2 X 14 S-BLK
19			•302F708310 2F708310 SPRING LOCK MPF 4 4 4 107 7BP512010B0CH01 BP126160 PARALLEL PIN 2.0X10
20			•2FM04150 5MVM163DN005 CAP SPRING /B-11 ENCLOSURE A4
21			•302K906700 2K906700 HOLDER PULLEY
22			•302F929260 2F929260 PULLEY DU LOW
23			•302K906710 2K906710 SHAFT ASSIST PULLEY
24			•302K906151 2K906151 HOLDER RETARD
25			•302K324450 2K324450 BUSH
26			•302FB09830 2FB09830 CUT WASHER
27			•34806040 34806040 LOWER BUSHING,PAPER FEED
28			•302K906750 2K906750 TORQUE-LIMITER
29			•302K906300 2K906300 PLATE RETARD HOLDER
30			•302N406150 2N406150 FULCRUM-PIN RETARD
31			•302N406130 2N406130 LEVER RETARD RELEASE
32			•302N406200 2N406200 SPRING RETARD
33			•302K906721 2K906721 SHEET PRIMARY FEED HI
34			•302K906250 2K906250 GUIDE PRIM FEED WIRE
35			•302N446280 2N446280 WIRE PRIMARY FEED UNIT
36			•302N406060 2N406060 GUIDE FRONT LOWER
37			•302N406140 2N406140 SPRING RETARD LOCK
38			•302K906290 2K906290 HOLDER SENSOR FEED
39			•302H708150 2H708150 SPONGE WIRE MPT
40			•302K931080 2K931080 WIRE STOPPER
41			•302N406050 2N406050 HOLDER PICKUP
42			•302K906080 2K906080 PIN PICK UP IDLE
43			•302K924820 2K924820 CUT-WASHER
44			•302N406070 2N406070 SHAFT PICKUP PRIMARY
45			•302N406120 2N406120 ONEWAY-CLUTCH
46			•302K906260 2K906260 SPRING PICK UP
47			•302K906111 2K906111 PLATE PRIMARY FEED DRIVE
48			•302K906140 2K906140 COUPLING PRIMARY FEED DRIVE

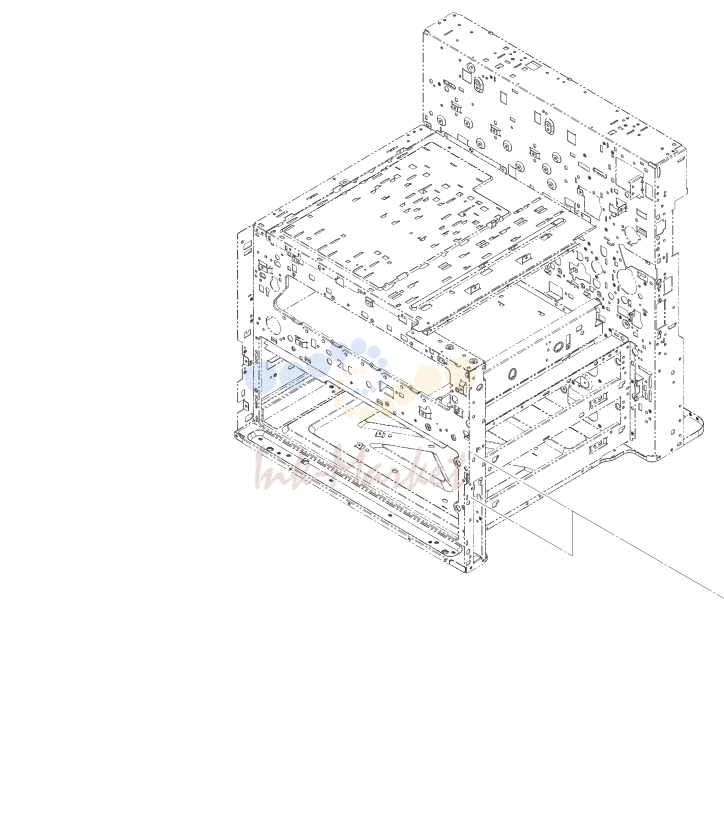

7. Paper Feed Section 1 (35/30 ppm)

№	Артикул	Альт. артикул	Описание
1			•302LC06090 2LC06090 HOLDER FEED PULLEY 2 2 2 102 5MBP2014WXSP E0020140 SPRING PIN / M2 X 14 S-BLK
3			•302HN06080 2HN06080 PULLEY PICKUP ASSY
4			•302LC06150 2LC06150 SHAFT PRIMARY FEED
6			•302F906230 2F906230 PULLEY FEED ASSY
7			•302LC06020 2LC06020 FRAME PRIMARY UPPER
8			•302LC06101 2LC06101 GUIDE PRIMARY FEED
9			•5MVM176DN026 2A806030 BUSH FEED /A-49 FEED A4
10			•5MVX111DN003 2A806250 RING STOPPER /A-49 FEED A4
11			•302LC06080 2LC06080 SPRING FEED PULLEY
12			•302LC06070 2LC06070 PLATE FEED EARTH
13			•302LC06040 2LC06040 SHAFT FEED PULLEY
14			•302H024370 2H024370 BUSH 6 EW
15			•302H702590 2H702590 BUSH SCREW
16			•302LC06050 2LC06050 JOINT FEED PULLEY
18			•302LC06110 2LC06110 HOLDER RETARD
19			•302LC06030 2LC06030 PLATE PRIMARY LOW
20			•302LC06121 2LC06121 SPRING RETARD
21			•302LC06180 2LC06180 SHEET PRIMARY FEED
22			•302LC06190 2LC06190 PLATE FRAME EARTH
23			•302LK46390 2LK46390 WIRE PRIMARY FEED UNIT
26			•302K906290 2K906290 HOLDER SENSOR FEED
27			•302K931080 2K931080 WIRE STOPPER
28			•302LC06061 2LC06061 ACTUATOR PAPER EMPTY

8. Paper Feed Section 2

№	Артикул	Альт. артикул	Описание
1	302K906610 запросить цену →	2K906610	GUIDE FEED LOW 1 1 1 46 •302K946451 2K946451 WIRE GUIDE FEED MIDDLE 55/45 ppm
2	2DC12170 запросить цену →	2DC12170	SPRING TENSION 8 8 8 46 •302LK46451 2LK46451 WIRE GUIDE FEED MIDDLE 35/30 ppm
3	2FM04150 запросить цену →	5MVM163DN005	CAP SPRING /B-11 ENCLOSURE A4 8 8 8  47 •2FG27110 2FG27110 SWITCH REGISTRATION
4	302K906640 запросить цену →	2K906640	HOLDER FEED LOW PULLEY 4 4 4 48 •302K924870 2K924870 HOLDER SENSOR MIDDLE
5	302K906510 запросить цену →	2K906510	SHAFT FEED LOW 4 4 4  49 •3H327410 3H327410 SENSOR,CONVEYING
6	302H722760 запросить цену →	2H722760	PULLEY MIDDLE A 8 8 8 50 •302K924861 2K924861 HOLDER SENSOR REGIST
9	302K906681 запросить цену →	2K906681	SHAFT FEED LOW HOOK 1 1 1 53 •302LF33580 2LF33580 FILM FEED UPPER
10	302K906660 запросить цену →	2K906660	HANDLE FEED LOW 1 1 1 54 •302K924890 2K924890 SHEET COVER SENSOR
11	302K906670 запросить цену →	2K906670	HOOK FEED LOW 2 2 2 55 •302K924570 2K924570 PLATE EARTH MIDDLE
12	302FZ20021 запросить цену →	2FZ20021	SPRING LID 1 1 1 56 •302K924530 2K924530 FRAME MIDDLE FEED
13	2BG06480 запросить цену →	2BG06480	BAND B 1 1 1 57 302FZ20040 2FZ20040 SPRING LSU
14			•302K906500 2K906500 PLATE FEED LOW 1 1 1 58 •302K924542 2K924542 PLATE MIDDLE FEED
16			•28107310 49028101 BUSH 8 2 2 2  60 302K994A00 2K994A00 PARTS ROLLER REGIST H SP 55/45 ppm
17			•2BC06910 2BC06910 STOPPER 6 2 2 2  60 302K994450 2K994450 PARTS ROLLER REGIST L SP 35/30 ppm
20			•302K946430 2K946430 WIRE GUIDE FEED LOW 1 1 1  63 303M894090 3M894090 PARTS CLUTCH 50 Z35R SP 55/45 ppm
21			•302K906560 2K906560 ACTUATOR FEED LOW 1 1 1  63 303M894090 3M894090 PARTS CLUTCH 50 Z35R SP 35/30 ppm
22			•302K906520 2K906520 SPRING FEED ACT 1 1 1 64 5MVX111DN003 2A806250 RING STOPPER /A-49 FEED A4 55/45 ppm
23			•7YZM210006++H01 YZ038000 ACCESS.EDGING 1 1 1 64 5MVX111DN003 2A806250 RING STOPPER /A-49 FEED A4 35/30 ppm
24			•7YZM610002++H01 YZ010240 ACCESS SADDLE 1 1 1 65 302K931970 2K931970 HOLDER BEARING MR126ZZ
25			•302LC06210 2LC06210 GUIDE WIRE FEED LOW 1 1 1 66 7BE006124431H01 BE119720 BEARING MR126ZZ
26			•302K994D70 2K994D70 PARTS PAD ROLLER SET SP 2pcs set 1 1 1  67 302LC31750 2LC31750 GEAR Z60L 55/45 ppm
27			•302K939360 2K939360 SPRING HV
28			•302K924620 2K924620 PLATE HV
29			•302N224010 2N224010 SHAFT DRIVE MIDDLE
30			•302H702590 2H702590 BUSH SCREW
31			•302LC24050 2LC24050 BRACKET KEY MIDDLE B 55/45 ppm 1 1 1 101 7BB700408H BB105640 +BIND T.T S SCREW 4X8 SR
31			•302LK24020 2LK24020 BRACKET KEY MIDDLE C 35/30 ppm 1 1 1 102 7BP512014B0CH01 BP126450 PARALLEL PIN 2.0X14
32			•302K924820 2K924820 CUT-WASHER 4 1 1 1 103 7BB600306H BB105730 +BIND M SCREW 3X6 R
34			•5MVX111DN003 2A806250 RING STOPPER /A-49 FEED A4 4 4 4 105 5MBP2014WXSP E0020140 SPRING PIN / M2 X 14 S-BLK
37			•302LC24040 2LC24040 PLATE MIDDLE MOUNT B 55/45 ppm
38			•302LK24010 2LK24010 PLATE MIDDLE MOUNT 35/30 ppm
39			•302K324450 2K324450 BUSH
43			•302K924881 2K924881 SHEET REGIST L C
44			•302K924560 2K924560 SHEET REGIST L A

9. Paper Conveying Section 1-1

№	Артикул	Альт. артикул	Описание
1			•302K929011 2K929011 FRAME CONVEYING F 1 1 1 46 •302K928190 2K928190 SPRING-TORSION SWITCHBACK
2			•302K929100 2K929100 SHAFT CONVEYING HOOK UP 1 1 1  47 •302FZ94420 2FZ94420 PARTS,FAN COOLING CONVEYING SP 55/45 ppm
3			•302K929090 2K929090 LEVER COVER RIGHT 1 1 1  48 •302LC94320 2LC94320 PARTS FANCOOLING 50 SP
4			•5MVX111DN003 2A806250 RING STOPPER /A-49 FEED A4 55/45 ppm 5 5 5 49 •302LC46240 2LC46240 WIRE DU UPPER 55/45 ppm
4			•5MVX111DN003 2A806250 RING STOPPER /A-49 FEED A4 35/30 ppm 11 11 11 49 •302L646030 2L646030 WIRE DU UPPER 35/30 ppm
5			•302K929051 2K929051 PLATE CONVEYING TOP 1 1 1 50 •302K931080 2K931080 WIRE STOPPER
6			•302K929040 2K929040 PLATE CONVEYING LOW 1 1 1 51 •302K324460 2K324460 SHAFT FEED
7			•302K929020 2K929020 FRAME CONVEYING R 1 1 1 52 •302F929260 2F929260 PULLEY DU LOW
8			•302K929400 2K929400 ARM HOOK F 1 1 1 53 •2FM04150 5MVM163DN005 CAP SPRING /B-11 ENCLOSURE A4
9			•302K929120 2K929120 HOOK CONVEYING UP 2 2 2 54 •302LC29100 2LC29100 SPRING-COMPRESSION
10			•302K929190 2K929190 SPRING HOOK UP 2 2 2 55 •302K929490 2K929490 COVER RIGHT GUIDE
11			•302K929140 2K929140 HOOK CONVEYING LOW F 1 1 1 56 •302K929750 2K929750 COVER WIRE
12			•3HL07240 3HL07240 SPRING HOOK 2 2 2 57 •302K929640 2K929640 PIN CONVEYING R
13			•302K929170 2K929170 CAM HOOK FRONT 1 1 1 58 •302K924390 2K924390 HOLDER DRAWER
14			•302K929630 2K929630 PIN CONVEYING F 1 1 1 59 •302K929620 2K929620 PLATE DRAWER
15			•302LC29120 2LC29120 GUIDE UNIT F 55/45 ppm 1 1 1 60 •302K946520 2K946520 WIRE CONVEYING
15			•302LK29040 2LK29040 GUIDE UNIT F 35/30 ppm 1 1 1 61 •302K929371 2K929371 COVER INNER CONVEYING A
16			•302K929410 2K929410 ARM HOOK R 1 1 1 62 •302LC46480 2LC46480 WIRE MPF JOINT
17			•302K929150 2K929150 HOOK CONVEYING LOW R 1 1 1 63 •7YZM210006++H01 YZ038000 ACCESS.EDGING
18			•302K929160 2K929160 CAM HOOK REAR 1 1 1 64 •302HN31680 2HN31680 PIN DRIVE B 35/30 ppm
19			•302K929030 2K929030 PLATE CONVEYING UP 1 1 1  65 •302K929550 2K929550 GEAR Z23R-Z23L 35/30 ppm
20			•302K929710 2K929710 COVER ARM 1 1 1  66 •302K929280 2K929280 GEAR Z23R PULLEY P18 S2M 35/30 ppm
22			•302K929600 2K929600 PLATE JOINT 1 1 1 68 •75714210 75714210 COLLAR DEVELOPING UNIT 35/30 ppm
23			•302K929610 2K929610 GUIDE GEAR 1 1 1  69 •302LK29030 2LK29030 GEAR Z27L 35/30 ppm
24			•2BC06910 2BC06910 STOPPER 6 2 2 2  70 •302K929250 2K929250 GEAR Z45L 35/30 ppm
25			•302K929062 2K929062 MOUNT DU DRIVE 55/45 ppm 1 1 1  71 •302K929260 2K929260 GEAR Z42R 35/30 ppm
25			•302LK29062 2LK29062 MOUNT DU DRIVE 35/30 ppm
26			•302F902180 2F902180 SPRING LEVER EF
27			•302K929580 2K929580 GUIDE UNIT R
29			•302K924770 2K924770 SPRING HOLDER PULLEY
30			•302FZ07020 2FZ07020 PULLEY MPT BYPASS 4 4 4 201 7BB700308H BB105600 +BIND T.T S SCREW 3X8 SR
31			•302K929690 2K929690 PLATE EARTH DU 1 1 1 202 7BB700306H BB105590 +BIND T.T S SCREW 3X6 SR
33			•28107310 49028101 BUSH 8 2 2 2 205 7BB700408H BB105640 +BIND T.T S SCREW 4X8 SR
34			•302HG12310 2HG12310 CUT WASHER 4 55/45 ppm 1 1 1 206 7BB700312H BB106820 +BIND T.T S SCREW 3X12 SR
35			•302LC29022 2LC29022 GUIDE DU LOWER B 1 1 1 207 7BP512012B0CH01 BP126440 PARALLEL PIN 2.0X12
37			•302LC29110 2LC29110 MOUNT MOTOR DU UP 55/45 ppm
38			•302K924830 2K924830 BUSH DU EW 55/45 ppm
40			•302LC29070 2LC29070 COVER CLUTCH B
43			•302LC29012 2LC29012 GUIDE DU UPPER B

10. Paper Conveying Section 1-2

№	Артикул	Альт. артикул	Описание
119			•302FZ21720 2FZ21720 POLYSLIDER CUT WASHER
72			•302LC31511 2LC31511 SEAL MOTOR DC 1 1 1 122 •302K929330 2K929330 ACTUATOR DU
73			•302K946310 2K946310 WIRE DU LOW 1 1 1 123 •302K924841 2K924841 MOUNT PI
74			•302K908460 2K908460 MOUNT PI 1 1 1  124 •66127010 66127010 SWITCH,COVER OPEN
75			•302K924910 2K924910 SHEET HOLD PI 1 1 1 125 •302K946460 2K946460 WIRE DU SENSOR 55/45 ppm
76			•302K924710 2K924710 MOUNT LEVER RELEASE F 1 1 1 125 •302LK46460 2LK46460 WIRE DU SENSOR 35/30 ppm
77			•302K924720 2K924720 MOUNT LEVER RELEASE R 1 1 1 126 •7YZM610001++H01 YZ010230 ACCESS SADDLE
78			•302K924810 2K924810 PLATE EARTH RELEASE 1 1 1 127 •302K924410 2K924410 FRAME DU
79			•302H024370 2H024370 BUSH 6 EW 4 4 4 128 •302F925780 2F925780 SPRING DU
80			•302K924210 2K924210 CAM RELEASE TRANSFER 2 2 2 129 •302H722760 2H722760 PULLEY MIDDLE A
81			•302K924440 2K924440 HOLDER BUSH REGIST 1 1 1  130 •302K994470 2K994470 PARTS ROLLER DU LOW SP 55/45 ppm
82			•302H724020 2H724020 SPRING REGIST C 1 1 1  130 •302LK94060 2LK94060 PARTS ROLLER DU LOW SP 35/30 ppm
83			•302K924430 2K924430 BUSH REGIST CENTER 1 1 1 131 •302K924920 2K924920 PLATE EARTH DU2
85			•302K924901 2K924901 BUSH REGIST 2 2 2 133 •302K921420 2K921420 CUT-WASHER
86			•302K924040 2K924040 SPRING-COMPRESSION REGIST F 1 1 1 134 •302LF22600 2LF22600 SPRING EARTH CONVEYING
87			•302K924050 2K924050 SPRING-COMPRESSION REGIST R 1 1 1 135 •302K924011 2K924011 BASE CONVEYING
88			•302K924820 2K924820 CUT-WASHER 4 3 3 3 136 •302K924270 2K924270 SPRING-TORSION DISCHARGER
89			•7BE006103431H01 BE122720 BEARING MR106ZZ 2 2 2 137 •302K924290 2K924290 PLATE CONTACT HV
91			•302LF24190 2LF24190 SHEET REGIST R 1 1 1 139 •302K924250 2K924250 PLATE EARTH REGIST
92			•302K924140 2K924140 LEVER RELEASE TRANSFER 2 2 2 140 •302K924100 2K924100 RETAINER LOOP SENSOR
93			•302K924731 2K924731 COVER LEVER RELEASE F 1 1 1  141 •302LC94410 2LC94410 PARTS SENSOR OPT. SP
94			•302K924740 2K924740 COVER LEVER RELEASE R 1 1 1 142 •5MVX111DN003 2A806250 RING STOPPER /A-49 FEED A4 55/45 ppm
95			•302K924120 2K924120 SPRING-COMPRESSION TRANSFER F 2 2 2 142 •5MVX111DN003 2A806250 RING STOPPER /A-49 FEED A4 35/30 ppm
96			•302K924200 2K924200 SHAFT RELEASE CAM 1 1 1 143 •2BC06910 2BC06910 STOPPER
98			•302LK22020 2LK22020 FRAME SECONDLY TRANSFER 1 1 1 145 •302FZ07020 2FZ07020 PULLEY MPT BYPASS
99			•302K922200 2K922200 SPRING-COMPRESSION DISCHARGER 1 1 1 146 •28107310 49028101 BUSH
100			•302K922190 2K922190 PLATE CONTACT DISCHARGER 1 1 1  147 •302LC31760 2LC31760 GEAR Z45L 55/45 ppm
101			•302H707110 2H707110 SPRING EARTH BYPASS F 1 1 1 148 •302K924830 2K924830 BUSH DU EW 55/45 ppm
102			•302K922230 2K922230 PLATE EARTH GUIDE TC 1 1 1  149 •302K994980 2K994980 PARTS MOTOR PM REGIST SP 55/45 ppm
103			•302K924090 2K924090 GUIDE CONVEYING TC 1 1 1  150 •303M894090 3M894090 PARTS CLUTCH 50 Z35R SP 35/30 ppm
104			•302K924081 2K924081 PLATE GUIDE CONVEYING 1 1 1 151 •302K908660 2K908660 PLATE DC MOTOR
105			•302K922120 2K922120 HOLDER DISCHARGER 1 1 1  152 •2C927210 2C927210 SENSOR 248NL1
106			•302K922280 2K922280 TAPE DISCHARGER 1 1 1 153 •302K931080 2K931080 WIRE STOPPER
107			•302K922130 2K922130 PLATE DISCHARGER 1 1 1 154 •302K324460 2K324460 SHAFT FEED
108			•302K922240 2K922240 PLATE EARTH TRANSFER 1 1 1 155 •2FM04150 5MVM163DN005 CAP SPRING /B-11 ENCLOSURE A4
110			•7BE008165431H01 BE119730 BEARING 688ZZ 2 2 2  158 •302LC94190 2LC94190 PARTS CONV RELEASE MOTOR ASSY SP
112			•302K922210 2K922210 GUIDE TRANSFER R 1 1 1 160 •302K924782 2K924782 HOUSING RELEASE DRIVE
113			•302FZ01310 2FZ01310 VARISTOR TC ASS'Y 1 1 1 201 7BB700308H BB105600 +BIND T.T S SCREW 3X8 SR
115			•302K929660 2K929660 PLATE EARTH DU MIDDLE 1 1 1 203 7BB200308H BB105660 +BIND T.T P SCREW 3X8
116			•302K929310 2K929310 BELT S2M A145 1 1 1 204 7BB180408H BB111210 +BIND T.T S SCREW 4X8(BLACK)
117			•302K929720 2K929720 MOUNT MOTOR DU MIDDLE 55/45 ppm 1 1 1 205 7BB700408H BB105640 +BIND T.T S SCREW 4X8 SR
118			•5MVX421DN003 2BL06490 LOCK COVER R /40283V0068 A4 2 2 2 206 7BB700312H BB106820 +BIND T.T S SCREW 3X12 SR
207	7BP512012B0CH01 запросить цену →	BP126440	PARALLEL PIN 2.0X12

11. Paper Conveying Section 2

№	Артикул	Альт. артикул	Описание
1			•302K908610 2K908610 FILM RETARD 1 1 1 45 •302K908320 2K908320 GUIDE DU LOWER
2			•302K908021 2K908021 BASE MPF LOWER 1 1 1 46 •302K908261 2K908261 CASE LIFT MOTOR A
3			•302K908280 2K908280 ACTUATOR FEED MPF 1 1 1  47 •302LC94200 2LC94200 PARTS MPT LIFT MOTOR ASSY SP
4			•302FZ22870 2FZ22870 SPRING ACTUATOR BYPASS 1 1 1 48 •302K908660 2K908660 PLATE DC MOTOR
5			•302K908240 2K908240 HOLDER RETARD MPF 1 1 1  49 •302K908370 2K908370 GEAR Z46S-Z18S
6			•3H610240 3H610240 FELT DUPLEX 1 1 1  50 •302K908360 2K908360 WORM-WHEEL 36 Z18S
7			•302K908501 2K908501 SHAFT RETARD MPF B 55/45 ppm 1 1 1  51 •302K908390 2K908390 GEAR LIFT Z25S
8			•302K906180 2K906180 JOINT RETARD DRIVE 55/45 ppm 2 2 2  52 •302K908380 2K908380 GEAR LIFT Z64S
9			•302K924820 2K924820 CUT-WASHER 4 55/45 ppm 2 2 2 53 •302K908310 2K908310 LEVER LIFT
10			•302H702590 2H702590 BUSH SCREW 55/45 ppm 10 10 10  54 •302K908410 2K908410 GEAR RETARD MPF Z17L 55/45 ppm
10			•302H702590 2H702590 BUSH SCREW 35/30 ppm 8 8 8 55 •302K908450 2K908450 PIN RETARD MPF 55/45 ppm
11			•5MVX111DN003 2A806250 RING STOPPER /A-49 FEED A4 55/45 ppm 12 12 12  56 •303LL31440 3LL31440 GEAR Z27R ONEWAY 55/45 ppm
11			•5MVX111DN003 2A806250 RING STOPPER /A-49 FEED A4 35/30 ppm 11 11 11 57 •302K908270 2K908270 COVER CLUTCH
13			•302K908491 2K908491 SHAFT RETARD MPF A 55/45 ppm 1 1 1 59 •302K908630 2K908630 DAMPER MPF B
13			•302LC08030 2LC08030 SHAFT RETARD MPF 35/30 ppm 1 1 1 60 •302K908620 2K908620 DAMPER MPF A
14			•2AR07230 2AR07230 PULLEY,SEPARATION 2 2 2 61 •302K908640 2K908640 SPRING DAMPER
15			•302K906750 2K906750 TORQUE-LIMITER 390 55/45 ppm 1 1 1 62 •302K908440 2K908440 GUIDE MIDDLE MPF
15			•302GR06110 2GR06110 TORQUE-LIMITER 360 35/30 ppm 1 1 1 63 •302N408010 2N408010 SHEET MPF F
16			•302K908540 2K908540 SPRING RETARD MPF 55/45 ppm 1 1 1 64 •302N408020 2N408020 SHEET MPF R
16			•302LC08040 2LC08040 SPRING RETARD MPF 35/30 ppm 1 1 1 65 •302K908590 2K908590 FILM MIDDLE GUIDE
17			•302K906140 2K906140 COUPLING PRIMARY FEED DRIVE 55/45 ppm 1 1 1 66 •302K908692 2K908692 FILM DU GUIDE B
18			•302F925160 2F925160 PULLEY FACE UP 4 4 4  A02 302LC94470 2LC94470 PARTS COVER GUIDE DU L ASSY SP
19			•302K924770 2K924770 SPRING HOLDER PULLEY 4 4 4 67 •302K929070 2K929070 COVER DU
20			•302K908012 2K908012 BASE MPF UPPER 1 1 1 68 •302K929080 2K929080 GUIDE COVER DU
21			•302K908250 2K908250 HOLDER MIDDLE PULLEY 2 2 2 69 •302K929380 2K929380 LID FILTER DU
22			•302LF08010 2LF08010 SPRING MIDDLE
23			•2FM04150 5MVM163DN005 CAP SPRING /B-11 ENCLOSURE A4
24			•302K324460 2K324460 SHAFT FEED
25			•302H722760 2H722760 PULLEY MIDDLE A
26			•302K908700 2K908700 SPRING MIDDLE R
28			•302K908300 2K908300 SHAFT PICKUP MPF 1 1 1 102 7BB280410H BB111250 +BIND T.T P SCREW 4X10(BLACK)
31			•2AR07220 2AR07220 PULLEY,PAPER FEED 1 1 1 105 5MBP2012WXSP E0020120 SPRING PIN / M2 X 12 S-BLK
32			•302K908471 2K908471 SHAFT FEED MPF A
33			•302FB06151 2FB06151 JOINT DRIVE
34			•302K908530 2K908530 SPRING PICKUP MPF
35			•302K908230 2K908230 HOLDER FEED MPF
36			•302K908290 2K908290 ACTUATOR PAPER SET
37			•302K908570 2K908570 SPRING PAPER SET
39			•302K908460 2K908460 MOUNT PI
40			•302K946370 2K946370 WIRE MPF
42			•303LL02330 3LL02330 HOLDER WIRE D

12. Paper Conveying Section 3

№	Артикул	Альт. артикул	Описание
1			•2FB07330 2FB07330 STOPPER BYPASS TABLE 2 2 2 102 7BP512014B0CH01 BP126450 PARALLEL PIN 2.0X14
3			•302K908030 2K908030 TRAY MPF A
4			•302K908040 2K908040 TRAY MPF B
5			•302K908050 2K908050 TRAY MPF C
6			•302K908060 2K908060 TRAY MPF D
7			•302K908120 2K908120 RACK CURSOR MPF
8			•302K908211 2K908211 ACTUATOR SIZE DETECTION
9			•3HL06110 3HL06110 TERMINAL PAPER SIZE
12			•302LC34061 2LC34061 LABEL MPF CAUTION A
13			•302LC34080 2LC34080 LABEL MPF PAPER LIMIT
14			•302K908200 2K908200 SPRING-COMPRESSION LIFT
15			•302K908190 2K908190 SHAFT LIFT MPF
16			•302K908130 2K908130 ARM LIFT A
17			•302FB09830 2FB09830 CUT WASHER
18			•302K908140 2K908140 ARM LIFT B
19			•302K908650 2K908650 HOLDER MPF TABLE
20			•303LL07471 3LL07471 SPRING PF
21			•302K908220 2K908220 SPRING-TORSION SIZE DETECTION
22			•302K908580 2K908580 HOLDER SIZE DETECTION
23			•302K908160 2K908160 GUIDE WIRE TRAY
24			•302K946600 2K946600 WIRE MPF SIZE DETECTION
25			•302H708150 2H708150 SPONGE WIRE MPT
26			•302K908080 2K908080 BASE LIFT
27			•302F909210 2F909210 PAD BOTTOM
28			•302K946380 2K946380 WIRE MPF TRAY
29			•302H712650 2H712650 SPRING DRUM JOINT
30			•302K908110 2K908110 CURSOR MPF R
31			•302K908100 2K908100 CURSOR MPF F
32			•302K908090 2K908090 COVER CURSOR
34			•302K917100 2K917100 SEAL FRAME ISU
35	302LC34100 запросить цену →	2LC34100	LABEL MPF SIZE INDICATOR IN
35	302LC34090 запросить цену →	2LC34090	LABEL MPF SIZE INDICATOR ME

13. Scanner Section

№	Артикул	Альт. артикул	Описание
6	302K946670 запросить цену →	2K946670	WIRE FFC CCD 1 1 1 55 302K917230 2K917230 MOUNT PWB
7	302K946710 ✓ в наличии	2K946710	WIRE FFC LED 1 1 1 56 65027470 65027470 CORE,7-15X18 55/45 ppm
8	302N404190 запросить цену →	2N404190	COVER ISU FRONT 1 1 1 57 302LF39050 2LF39050 GUIDE WIRE FRONT PWB
9	302LC04130 запросить цену →	2LC04130	COVER ISU LEFT 1 1 1 58 7YZM610001++H01 YZ010230 ACCESS SADDLE
10	302LC04141 запросить цену →	2LC04141	COVER ISU RIGHT 1 1 1 59 302K946730 2K946730 WIRE OPEN SENSOR
12	302KK17031 запросить цену →	2KK17031	MOUNT LEFT PULLEY 2 2 2 61 302K317330 2K317330 MOUNT PI
13	302H717160 запросить цену →	2H717160	PULLEY SCANNER 4 4 4 62 303LL02330 3LL02330 HOLDER WIRE D
14	2BC06980 запросить цену →	2BC06980	STOPPER 5 4 4 4 63 302K931080 2K931080 WIRE STOPPER
15	302GR17860 запросить цену →	2GR17860	PLATE PULLEY 2 2 2 64 302K917400 2K917400 COVER ISU
16	302K917150 запросить цену →	2K917150	PULLEY LEFT FRAME 2 2 2 65 7ZGSSTG58014H01 ZG128680 SHIELD GASKET
17	302GR17350 запросить цену →	2GR17350	PIN WIRE PULLEY B 4 4 4 66 7ZG65TSV+010H01 ZG111180 SHIELD GASKET
18	302K917381 запросить цену →	2K917381	GUIDE WIRE ISU 1 1 1 67 302H717440 2H717440 SEAL FRAME SIDE B
19	302N217010 запросить цену →	2N217010	MOUNT DP HINGE 2 2 2 68 302K317660 2K317660 FILM FRAME
20	7BE008165431H01 запросить цену →	BE119730	BEARING 688ZZ 2 2 2 69 302K317650 2K317650 SEAL FRAME ISU C
21	302K931960 запросить цену →	2K931960	HOLDER BEARING 688ZZ 2 2 2 70 302K317450 2K317450 SEAL FRAME ISU A
22	2BC06910 запросить цену →	2BC06910	STOPPER 6 1 1 1 71 302K317460 2K317460 SEAL FRAME ISU B
23	302K917021 запросить цену →	2K917021	PULLEY ISU Z59 1 1 1 72 302K946700 2K946700 WIRE CCD DATA
24	302H717251 запросить цену →	2H717251	DRUM PULLEY 2 2 2 73 302K946720 2K946720 WIRE ISC-MAIN
25	302H717381 запросить цену →	2H717381	WIRE SCANNER FRONT 1 1 1 74 302K917170 2K917170 FILM FRAME SIDE F
26	302H717391 запросить цену →	2H717391	WIRE SCANNER REAR 1 1 1 75 302K917180 2K917180 FILM FRAME SIDE R
27	302K917060 запросить цену →	2K917060	SHAFT ISU 1 1 1 76 302K917240 2K917240 CAP PULLEY ISU
28	302K917091 запросить цену →	2K917091	FRAME MIRROR B 1 1 1 77 302GR17180 2GR17180 PIN SCANNER RETAINING
29	302GR17281 запросить цену →	2GR17281	MIRROR B 55/45 ppm 1 1 1 78 2FB12180 2FB12180 MIRROR B 35/30 ppm
30	75712080 запросить цену →	75712080	MIRROR HOLDER 4 4 4 79 302N446240 2N446240 WIRE SCANNER MOTOR
31	302H017180 запросить цену →	2H017180	PULLEY SCANNER
32	302K317830 запросить цену →	2K317830	PLATE ADJUST B
33	302K317160 запросить цену →	2K317160	GUIDE FFC LED B
34	2DC12230 запросить цену →	2DC12230	SLIDER SCANNER
35	302GR17961 запросить цену →	2GR17961	MIRROR C 55/45 ppm
36	302K917080 запросить цену →	2K917080	PLATE SLIT PI 1 1 1 101 7BB700308H BB105600 +BIND T.T S SCREW 3X8 SR
37	302C912291 запросить цену →	2C912291	SPRING SCANNER TENSION 2 2 2 102 7BB606308H BB105280 +PAN M SCREW WITH SW W 3X8 R
38	302K317061 запросить цену →	2K317061	FRAME MIRROR A 1 1 1 103 7BB180408H BB111210 +BIND T.T S SCREW 4X8(BLACK)
39	302KK17320 запросить цену →	2KK17320	MIRROR A 1 1 1 104 7BB700306H BB105590 +BIND T.T S SCREW 3X6 SR
40	2BC12190 запросить цену →	2BC12190	SPRING,MIRROR HOLDER 2 2 2 105 7BB200308H BB105660 +BIND T.T P SCREW 3X8
41	2C912150 запросить цену →	2C912150	RETAINER WIRE
42	302K317172 запросить цену →	2K317172	GUIDE FFC LED C
43	302K317791 запросить цену →	2K317791	SHEET FFC LED
44	302K317310 запросить цену →	2K317310	GUIDE FFC LED D
45	302K917130 запросить цену →	2K917130	MOUNT RELEASE SWITCH
46	302K917120 ✓ в наличии	2K917120	SWITCH RELEASE
47	302GR17380 запросить цену →	2GR17380	SPRING RELEASE SWITCH

14. Laser Scanner Section

№	Артикул	Альт. артикул	Описание
2			•302LC31511 2LC31511 SEAL MOTOR DC 1 1 1 101 7BB700308H BB105600 +BIND T.T S SCREW 3X8 SR
3			•302K902610 2K902610 PLATE DC MOTOR 10 1 1 1 102 7BB200308H BB105660 +BIND T.T P SCREW 3X8
4			•302K902A00 2K902A00 HOLDER MOTOR 1 1 1 103 7BB700408H BB105640 +BIND T.T S SCREW 4X8 SR
8	302K902470 запросить цену →	2K902470	PIN LSU RETAINING
9	302K900021 запросить цену →	2K900021	LSU RETAINER FRAME ASSY
10	302K019140 запросить цену →	2K019140	SHEET LSU FRAME
11	7ZGSTGR55010H01 запросить цену →	ZG110970	SHIELD GASKET
12	302K902460 запросить цену →	2K902460	HOLDER LSU REAR
13	302K902490 запросить цену →	2K902490	SHAFT GLASS CLN
14	302K902380 запросить цену →	2K902380	HOLDER LSU FRONT
15	302K902480 запросить цену →	2K902480	SPRING-COMPRESSION LSU RETAINING
16	302K902370 запросить цену →	2K902370	MOUNT LSU PWB
17	302K902511 запросить цену →	2K902511	COVER LSU PWB
19	302K902320 запросить цену →	2K902320	PLATE LSU ADJUST
20	302LC02200 запросить цену →	2LC02200	MOUNT LSU LEFT
21	302K902910 запросить цену →	2K902910	GUIDE LSU PIN
22	2FB20860 запросить цену →	2FB20860	PIN FUSER COVER
23	3CG02030 запросить цену →	3CG02030	BASE RUBBER,FRAME
24	302K902550 запросить цену →	2K902550	MOUNT LSU LID

15. Image Formation & Developer Section

№	Артикул	Альт. артикул	Описание
47			•302LC03410 2LC03410 GUIDE CONTAINER C
2			•2BC06980 2BC06980 STOPPER 5 2 2 2 51 •302LC03460 2LC03460 LID COVER SHUTTER
3			•302FZ02410 2FZ02410 LEVER RETAINER 2 2 2 52 •302LC03480 2LC03480 SHEET INNER FAN
4			•302FZ02420 2FZ02420 SPRING RETAINER 2 2 2 53 •302LC03492 2LC03492 LEVER RELEASE B
5			•302H004660 2H004660 MAGNET CATCH 1 1 1 54 •302LC03500 2LC03500 COVER CONNECTOR
6			•302H702590 2H702590 BUSH SCREW 2 2 2 55 •302LC03560 2LC03560 CAM RELEASE SHAFT
7			•302H703100 2H703100 SHUTTER PIPE UP 4 4 4 56 •302LC03570 2LC03570 COVER SHUTTER
8			•302LK03A40 2LK03A40 SEAL PIPE LOW 4 4 4 57 •302LC03580 2LC03580 HOLDER TONER SENSOR
9			•302H703130 2H703130 SEAL PIPE DLP UP 4 4 4 58 •302LC03590 2LC03590 LEVER TONER SENSOR
10			•302LK03A50 2LK03A50 SPRING PIPE LOW 8 8 8 59 •302LC03660 2LC03660 HOOK TRAY R
11			•302H703240 2H703240 SPRING PIPE UP 4 4 4 60 •302LC03670 2LC03670 HOOK TRAY L
12			•302H703420 2H703420 PLATE DRUM EARTH 4 4 4 61 •302LC03680 2LC03680 SHAFT HOOK
13			•302H703430 2H703430 SEAL SCREW 2 2 2 62 •302LC03691 2LC03691 LEVER CASS SHUTTER
14			•302H703450 2H703450 SPRING HOOK WASTE 1 1 1 63 •302LC03730 2LC03730 HOLDER DRIVE B
15			•302H703510 2H703510 SPRING TRAY WASTE 2 2 2 64 •302LC03890 2LC03890 SEAL BEARING
16			•302H703542 2H703542 PIPE DLP UP 4 4 4 65 •302LC03A10 2LC03A10 SEAL LSU COOLING A
17			•302H703570 2H703570 SEAL CONT SHUTTER 4 4 4 66 •302LC03A20 2LC03A20 SEAL LSU COOLING B
18			•302H703740 2H703740 SEAL PIPE WASTE B 2 2 2 67 •302LC03A30 2LC03A30 SEAL LSU COOLING C
23			•302K903200 2K903200 SHAFT DRIVE B 1 1 1 72 •302LC34121 2LC34121 LABEL TONER OPERATION
24			•302K903250 2K903250 SPONGE FAN 2 2 2 73 •302LC34201 2LC34201 LABEL DISPOSAL TONER OPERATION
25			•302K946A80 2K946A80 WIRE TONER LEVEL SENSOR 1 1 1 74 •302LC46210 2LC46210 WIRE RETAINER
26			•302LC03010 2LC03010 RETAINER PU 1 1 1 75 •303LL02330 3LL02330 HOLDER WIRE D
27			•302LC03021 2LC03021 FRAME INNER 1 1 1 76 •302LK03060 2LK03060 SEAL CASS LEVER 35/30 ppm
28			•302LC03030 2LC03030 PLATE RETAINER 1 1 1  77 •3HW22020 3HW22020 GEAR
29			•302LC03045 2LC03045 COVER INNER 1 1 1 78 •5MMS111SL002 2BY20050 NUT FUSER A /FS-1800/3800 A4
30			•302LC03051 2LC03051 PIPE WASTE UPPER 55/45 ppm 1 1 1 79 •5MVS313SB002 2BR08310 SPACER LED /43587J2063 A4
30			•302LK03051 2LK03051 PIPE WASTE UPPER 35/30 ppm 1 1 1 80 •5MVX111DN003 2A806250 RING STOPPER /A-49 FEED A4
31			•302LC03060 2LC03060 PIPE WASTE LOWER 1 1 1 81 •7BE010197431H01 BE119740 BEARING 6800ZZ(7MM)
32			•302LC03070 2LC03070 SHUTTER WASTE 1 1 1 82 •7YZM610001++H01 YZ010230 ACCESS SADDLE
33			•302LC03080 2LC03080 SEAL SHUTTER WASTE 1 1 1 83 •302LC03A90 2LC03A90 SPONGE WASTE TRAY
34			•302LC03090 2LC03090 SEAL PIPE WASTE A 2 2 2 84 •302MN03010 2MN03010 SEAL DRUM JOINT
35			•302LC03110 2LC03110 SCREW WASTE 1 1 1 85 •302MN03040 2MN03040 SEAL RAIL WASTE
37			•302LC03190 2LC03190 DUCT DLP SUB 55/45 ppm 4 4 4 87 •302MN03060 2MN03060 SEAL COVER LEFT
37			•302LK03190 2LK03190 DUCT DLP SUB 35/30 ppm 4 4 4 88 •302MN03070 2MN03070 SEAL COVER SCREW
38			•302LC03250 2LC03250 LID SUB DUCT 55/45 ppm 4 4 4 89 •302MN03090 2MN03090 SHEET CASS FRONT
39			•302LC03260 2LC03260 LID FAN DUCT A 1 1 1 90 •302MN03130 2MN03130 SHEET CONNECTOR HINGE
40			•302LC03290 2LC03290 DUCT FAN B 1 1 1 91 •302MN03140 2MN03140 SEAL CONNECTOR TOP
41			•302LC03300 2LC03300 LID FAN DUCT B 1 1 1  92 302LC94170 2LC94170 PARTS FILTER FAN ASSY(V) SP
42			•302LC03320 2LC03320 RAIL WASTE L 1 1 1 101 7BB200308H BB105660 +BIND T.T P SCREW 3X8
43			•302LC03331 2LC03331 SHAFT SHUTTER RELEASE 1 1 1 102 7BP512010B0CH01 BP126160 PARALLEL PIN 2.0X10
44			•302LC03381 2LC03381 LEVER RELEASE A 3 3 3 103 7BB700408H BB105640 +BIND T.T S SCREW 4X8 SR
45			•302LC03390 2LC03390 GUIDE CONTAINER K 1 1 1 104 7BB600306H BB105730 +BIND M SCREW 3X6 R
46			•302LC03400 2LC03400 GUIDE CONTAINER M 1 1 1 105 7BB200312H BB105680 +BIND T.T P SCREW 3X12

16. Inner Section 2

№	Артикул	Альт. артикул	Описание
1			•302LC03711 2LC03711 TRAY WASTE 1 1 1 102 7BP512008B0CH01 BP126150 PARALLEL PIN 2.0X8
2			•302LC03510 2LC03510 PULLEY WASTE TRAY
3			•302H703390 2H703390 LEVER WASTE TRAY
4			•302LC03790 2LC03790 HOLDER JOINT WASTE
5			•302LC03750 2LC03750 BUSH BEVEL
6			•302LC03780 2LC03780 SHAFT DRIVE D
8			•302GR06110 2GR06110 TORQUE LIMITER
10			•302LC03430 2LC03430 PIN MOUNT DRIVE
12			•302LC03720 2LC03720 MOUNT WASTE DRIVE
14			•2BG22990 2BG22990 CUT WASHER
15			•302LC03230 2LC03230 BUSH 4-7
16			•302LC03740 2LC03740 MOUNT TRAY DRIVE
18			•302LC03311 2LC03311 SHEET WASTE TRAY
19			•302H734170 2H734170 LABEL PUSH A
20			•302LC03A70 2LC03A70 SEAL WASTE TRAY
21	1902LC0UN0 ✓ в наличии	092LC0UN	WT-860/WASTE TONER BOTTLE OPTION

17. Transfer Section

№	Артикул	Альт. артикул	Описание
3			•302LC31740 2LC31740 PLATE TRANSFER DRIVE H 1 1 1 49 •302LC31040 2LC31040 PLATE MAIN DRIVE
4			•2A116180 2A116180 BUSHING,TRANSFER 1 1 1  50 •302K994321 2K994321 PARTS MOTOR-BL W20 SP
6			•7YZM610007++H01 YZ023340 ACCESS.SADDLE 1 1 1  52 •302LC31150 2LC31150 GEAR Z72R
7			•302LC31090 2LC31090 SHAFT DRUM DRIVE 3 3 3 53 •302K931840 2K931840 CUT-WASHER 8X17
9			•7BE010197431H01 BE119740 BEARING 6800ZZ(7MM) 3 3 3 55 •302K931022 2K931022 PLATE DRUM DRIVE
10			•302K921120 2K921120 STOPPER 8 6 6 6 56 •302K931070 2K931070 PLATE EARTH DRUM
11			•302K931840 2K931840 CUT-WASHER 8X17 12 12 12 57 •7YZM610001++H01 YZ010230 ACCESS SADDLE
12			•302LC31011 2LC31011 MOUNT DRUM DRIVE L 1 1 1 58 •302K931100 2K931100 PLATE MOTOR DRUM
13			•302LC31031 2LC31031 HOLDER DRUM DRIVE L 1 1 1  59 •302LC94461 2LC94461 PARTS MOTOR-BL W20 DRUM Z11 SP
14			•302LC31170 2LC31170 PLATE EARTH DRUM 1 1 1 60 •302K931060 2K931060 HOLDER BEARING SUPPORT
15			•302K931060 2K931060 HOLDER BEARING SUPPORT 3 3 3 61 •302LC31070 2LC31070 SPRING DRUM JOINT
16			•302LC31070 2LC31070 SPRING DRUM JOINT 3 3 3 62 •302K931130 2K931130 COUPLING DRUM
17			•302K931130 2K931130 COUPLING DRUM 3 3 3 63 •302K931041 2K931041 SHAFT DRUM DRIVE
19			•7YZM610008++H01 YZ037940 ACCESS.SADDLE 2 2 2 65 •7BE010197431H01 BE119740 BEARING 6800ZZ(7MM)
20			•302LC31080 2LC31080 PLATE MOTOR DRUM 2 2 2 66 •302K921120 2K921120 STOPPER
21			•302N631050 2N631050 BUSH DRUM DRIVE 3 3 3 67 •302N631050 2N631050 BUSH DRUM DRIVE
22			•302N631020 2N631020 GEAR Z120L 1 1 1 68 302K946160 2K946160 WIRE MIDDLE TRANSFER MOTOR
23			•302K394201 2K394201 PARTS MOTOR-BL W30 SP 1 1 1 69 302K946550 2K946550 WIRE REGIST MOTOR
24			•302K931640 2K931640 JOINT FUSER DRIVE
25			•5MVX111DN003 2A806250 RING STOPPER /A-49 FEED A4
26			•302LC31640 2LC31640 CUT WASHER 5X10
28			•302K931660 2K931660 SPRING JOINT 1 1 1 101 7BB000304H BB105720 +BIND M SCREW 3X4
30			•302K946540 2K946540 WIRE FUSER MOTOR 1 1 1 103 7BB700308H BB105600 +BIND T.T S SCREW 3X8 SR
31			•302LC31612 2LC31612 PLATE FUSER DRIVE 1 1 1 104 7BP513040B0CH01 BP126470 PARALLEL PIN 3.0X40
34			•302H731650 2H731650 SPRING PADDLE CONT D 1 1 1 107 7BB200410H BB105700 +BIND T.T P SCREW 4X10
36			•302H702590 2H702590 BUSH SCREW
37			•302K931180 2K931180 SHAFT DLP DRIVE
39			•2BC06910 2BC06910 STOPPER
41			•302H024830 2H024830 BUSH
42			•302LC31050 2LC31050 HOLDER MAIN DRIVE
43			•302K931170 2K931170 PLATE EARTH MAIN
44			•302FZ31280 2FZ31280 COLLAR DLP COUPLING
45			•302BG22531 2BG22531 SPRING COUPLING DLP

18. Drive Section 1 (35/30 ppm)

№	Артикул	Альт. артикул	Описание
2			•302LC31710 2LC31710 PLATE TRANSFER DRIVE 1 1 1 48 •7YZM610008++H01 YZ037940 ACCESS.SADDLE
4			•7YZM610007++H01 YZ023340 ACCESS.SADDLE 1 1 1  50 •302K994321 2K994321 PARTS MOTOR-BL W20 SP
5	302K946160 запросить цену →	2K946160	WIRE MIDDLE TRANSFER MOTOR 1 1 1  A05 302L693090 2L693090 PARTS DRUM DRIVE BK L SP
7			•302LC31090 2LC31090 SHAFT DRUM DRIVE 3 3 3 53 •302K931840 2K931840 CUT-WASHER 8X17
9			•7BE010197431H01 BE119740 BEARING 6800ZZ(7MM) 3 3 3 55 •302K931022 2K931022 PLATE DRUM DRIVE
10			•302K921120 2K921120 STOPPER 8 6 6 6 56 •302K931070 2K931070 PLATE EARTH DRUM
11			•302K931840 2K931840 CUT-WASHER 8X17 12 12 12 57 •7YZM610001++H01 YZ010230 ACCESS SADDLE
12			•302LC31011 2LC31011 MOUNT DRUM DRIVE L 1 1 1 58 •302K931100 2K931100 PLATE MOTOR DRUM
13			•302LC31031 2LC31031 HOLDER DRUM DRIVE L 1 1 1  59 •302LC94461 2LC94461 PARTS MOTOR-BL W20 DRUM Z11 SP
14			•302LC31170 2LC31170 PLATE EARTH DRUM 1 1 1 60 •302K931060 2K931060 HOLDER BEARING SUPPORT
15			•302K931060 2K931060 HOLDER BEARING SUPPORT 3 3 3 61 •302LC31070 2LC31070 SPRING DRUM JOINT
16			•302LC31070 2LC31070 SPRING DRUM JOINT 3 3 3 62 •302K931130 2K931130 COUPLING DRUM
17			•302K931130 2K931130 COUPLING DRUM 3 3 3 63 •302K931041 2K931041 SHAFT DRUM DRIVE
19			•7YZM610008++H01 YZ037940 ACCESS.SADDLE 1 1 1 65 •302N631050 2N631050 BUSH DRUM DRIVE
20			•302LC31080 2LC31080 PLATE MOTOR DRUM
21			•302N631050 2N631050 BUSH DRUM DRIVE
23			•302H731650 2H731650 SPRING PADDLE CONT D
24			•302K931640 2K931640 JOINT FUSER DRIVE 1 1 1 101 7BB000304H BB105720 +BIND M SCREW 3X4
25			•5MVX111DN003 2A806250 RING STOPPER /A-49 FEED A4 1 1 1 102 7BB700408H BB105640 +BIND T.T S SCREW 4X8 SR
26			•302LC31640 2LC31640 CUT WASHER 5X10 1 1 1 103 7BP512512B0CH01 BP126420 PARALLEL PIN 2.5X12
28			•302K931660 2K931660 SPRING JOINT 1 1 1 105 7BP513012B0CH01 BP126430 PARALLEL PIN 3.0X12
30			•302K946540 2K946540 WIRE FUSER MOTOR 1 1 1 107 7BB200410H BB105700 +BIND T.T P SCREW 4X10
31			•302LC31612 2LC31612 PLATE FUSER DRIVE 1 1 1 108 7BP512516B0CH01 BP126540 PARALLEL PIN 2.5X16
36			•302H702590 2H702590 BUSH SCREW
37			•302K931180 2K931180 SHAFT DLP DRIVE
39			•2BC06910 2BC06910 STOPPER
41			•302H024830 2H024830 BUSH
42			•302LC31050 2LC31050 HOLDER MAIN DRIVE
43			•302K931170 2K931170 PLATE EARTH MAIN
44			•302FZ31280 2FZ31280 COLLAR DLP COUPLING
45			•302BG22531 2BG22531 SPRING COUPLING DLP

19. Drive Section 2 (55/45 ppm)

№	Артикул	Альт. артикул	Описание
1			•302K931411 2K931411 HOLDER FEED DRIVE 1 1 1  48 •302K931760 2K931760 WORM WHEEL Z56L-Z20S
2			•302K931441 2K931441 SHAFT MID DRIVE 1 1 1 49 •302K931780 2K931780 SHAFT CONT DRIVE
3			•302K931530 2K931530 COUPLING DRIVE 3 3 3 50 •5MVX111DN003 2A806250 RING STOPPER /A-49 FEED A4
4			•302H712650 2H712650 SPRING DRUM JOINT 1 1 1  51 •302K931830 2K931830 GEAR Z34S JOINT
5			•302H702590 2H702590 BUSH SCREW 10 10 10 52 •302K931720 2K931720 PLATE CONT DRIVE
6			•5MVX111DN003 2A806250 RING STOPPER /A-49 FEED A4 14 14 14  53 •7NXGP1A173LCH01 NX115300 SENSOR OPT.
7			•302K931431 2K931431 SHAFT FEED DRIVE 2 2 2 54 •302H731650 2H731650 SPRING PADDLE CONT D
8			•302K924820 2K924820 CUT-WASHER 4 2 2 2 55 •302H731640 2H731640 COUPLING CONT D
9			•302K931480 2K931480 SHAFT ASSIST DRIVE 2 2 2 56 •2BG22990 2BG22990 CUT WASHER
12			•302K931450 2K931450 PIN FEED DRIVE 6 6 6  59 302K903130 2K903130 GEAR Z35S
19			•302K946690 2K946690 WIRE ASSIST CLUTCH 2 2 2 66 302LC03170 2LC03170 PLATE DRIVE
20			•302K931420 2K931420 PLATE FEED DRIVE 1 1 1 67 2BC06520 2BC06520 BUSHING 6,REGISTRATION
22			•302K931540 2K931540 PLATE EARTH FEED 1 1 1 69 302LC03150 2LC03150 SHAFT DRIVE C
24			•302K946441 2K946441 WIRE FEED MOTOR
25			•302K946AB0 2K946AB0 WIRE FEED CLUTCH
26			•7YZM610007++H01 YZ023340 ACCESS.SADDLE
27			•302K931740 2K931740 HOLDER CONT DRIVE C
29			•302LC31511 2LC31511 SEAL MOTOR DC 3 3 3 102 7BB000304H BB105720 +BIND M SCREW 3X4
30			•302K908660 2K908660 PLATE DC MOTOR 6 3 3 3 103 7BB700308H BB105600 +BIND T.T S SCREW 3X8 SR
31			•302H702590 2H702590 BUSH SCREW 6 6 6 104 5MBP2012WXSP E0020120 SPRING PIN / M2 X 12 S-BLK
33			•302K931780 2K931780 SHAFT CONT DRIVE 3 3 3 106 7BB200308H BB105660 +BIND T.T P SCREW 3X8
34			•5MVX111DN003 2A806250 RING STOPPER /A-49 FEED A4
36			•302K931720 2K931720 PLATE CONT DRIVE
38			•302H731650 2H731650 SPRING PADDLE CONT D
39			•302H731640 2H731640 COUPLING CONT D
40			•2BG22990 2BG22990 CUT WASHER
41			•302LC46560 2LC46560 WIRE CONTAINER
42			•302LC46570 2LC46570 WIRE CONTAINER K
43			•302K931710 2K931710 HOLDER CONT DRIVE K
45			•302LC31511 2LC31511 SEAL MOTOR DC
46			•302K902610 2K902610 PLATE DC MOTOR

20. Drive Section 2 (35/30 ppm)

№	Артикул	Альт. артикул	Описание
1			•302K931411 2K931411 HOLDER FEED DRIVE 1 1 1  48 •302K931760 2K931760 WORM WHEEL Z56L-Z20S
2			•302K931441 2K931441 SHAFT MID DRIVE 1 1 1 49 •302K931780 2K931780 SHAFT CONT DRIVE
3			•302K931530 2K931530 COUPLING DRIVE 3 3 3 50 •5MVX111DN003 2A806250 RING STOPPER /A-49 FEED A4
4			•302H712650 2H712650 SPRING DRUM JOINT 1 1 1  51 •302K931830 2K931830 GEAR Z34S JOINT
5			•302H702590 2H702590 BUSH SCREW 6 6 6 52 •302K931720 2K931720 PLATE CONT DRIVE
6			•5MVX111DN003 2A806250 RING STOPPER /A-49 FEED A4 11 11 11  53 •7NXGP1A173LCH01 NX115300 SENSOR OPT.
7			•302K931431 2K931431 SHAFT FEED DRIVE 2 2 2 54 •302H731650 2H731650 SPRING PADDLE CONT D
8			•302K924820 2K924820 CUT-WASHER 4 2 2 2 55 •302H731640 2H731640 COUPLING CONT D
9			•302K946AB0 2K946AB0 WIRE FEED CLUTCH 1 1 1 56 •2BG22990 2BG22990 CUT WASHER
12			•302K931450 2K931450 PIN FEED DRIVE 7 7 7  59 302K903130 2K903130 GEAR Z35S
19			•7YZM610007++H01 YZ023340 ACCESS.SADDLE 1 1 1 66 302LC03170 2LC03170 PLATE DRIVE
20			•302K931420 2K931420 PLATE FEED DRIVE 1 1 1 67 2BC06520 2BC06520 BUSHING 6,REGISTRATION
22			•302K931540 2K931540 PLATE EARTH FEED
24			•302LC46440 2LC46440 WIRE FEED MOTOR
25	302LC03150 запросить цену →	2LC03150	SHAFT DRIVE C
26	302FB09830 ✓ в наличии	2FB09830	CUT WASHER
27			•302K931740 2K931740 HOLDER CONT DRIVE C 3 3 3 102 7BB000304H BB105720 +BIND M SCREW 3X4
29			•302LC31511 2LC31511 SEAL MOTOR DC 3 3 3 104 5MBP2012WXSP E0020120 SPRING PIN / M2 X 12 S-BLK
30			•302K908660 2K908660 PLATE DC MOTOR 6 3 3 3 105 7BB200410H BB105700 +BIND T.T P SCREW 4X10
31			•302H702590 2H702590 BUSH SCREW 6 6 6 106 7BB200308H BB105660 +BIND T.T P SCREW 3X8
33			•302K931780 2K931780 SHAFT CONT DRIVE
34			•5MVX111DN003 2A806250 RING STOPPER /A-49 FEED A4
36			•302K931720 2K931720 PLATE CONT DRIVE
38			•302H731650 2H731650 SPRING PADDLE CONT D
39			•302H731640 2H731640 COUPLING CONT D
40			•2BG22990 2BG22990 CUT WASHER
41			•302LC46560 2LC46560 WIRE CONTAINER
42			•302LC46570 2LC46570 WIRE CONTAINER K
43			•302K931710 2K931710 HOLDER CONT DRIVE K
45			•302LC31511 2LC31511 SEAL MOTOR DC
46			•302K902610 2K902610 PLATE DC MOTOR

21. Cooling Section

№	Артикул	Альт. артикул	Описание
2	302K933051 запросить цену →	2K933051	DUCT LSU LOW 1 1 1 45 M70AF010 M70AF010 CLAMP,LCT-1.5SIEM(TAKEUCHI)
3	302K933551 запросить цену →	2K933551	SEAL LSU DUCT 1 1 1 46 302K931080 2K931080 WIRE STOPPER 35/30 ppm
4	302LC33560 запросить цену →	2LC33560	SEAL INNER COOLING E 1 1 1 46 302K931080 2K931080 WIRE STOPPER 55/45 ppm
5	302LC33550 запросить цену →	2LC33550	SEAL INNER COOLING D 1 1 1 47 302K933111 2K933111 DUCT TONER REAR 55/45 ppm
6	302LC33540 запросить цену →	2LC33540	SEAL INNER COOLING C 1 1 1 48 302K933470 2K933470 SEAL TONER REAR A 55/45 ppm
7	302K933061 запросить цену →	2K933061	DUCT LSU UP 1 1 1 49 302K933480 2K933480 SEAL TONER REAR B 55/45 ppm
8	302LC33570 запросить цену →	2LC33570	SEAL INNER COOLING F 1 1 1 50 302K933490 2K933490 SEAL TONER REAR C 55/45 ppm
9			7YZM420003++H01 YZ052580 ACCESS.BAND 1 1 1 51 302K933500 2K933500 SEAL TONER REAR D 55/45 ppm
13	302K933151 запросить цену →	2K933151	DUCT EXIT RIGHT
14	302LC33510 запросить цену →	2LC33510	FILM FUSER DUCT
15	302K933161 запросить цену →	2K933161	DUCT EXIT LEFT
16	302LC31511 запросить цену →	2LC31511	SEAL MOTOR DC
17			7YZM610001++H01 YZ010230 ACCESS SADDLE 4 4 4 101 7BB200320H BB113430 +BIND T.T P SCREW 3X20
18			7YZM610003++H01 YZ010250 ACCESS SADDLE 5 5 5 102 7BB700408H BB105640 +BIND T.T S SCREW 4X8 SR
19	302K933580 запросить цену →	2K933580	SEAL DUCT EXIT 2 2 2 103 7BB200410H BB105700 +BIND T.T P SCREW 4X10
21	302K933281 запросить цену →	2K933281	HOLDER FAN LOW VOLT
22	302K946640 запросить цену →	2K946640	WIRE LVU FAN
23	302LC33090 запросить цену →	2LC33090	DUCT IH FRONT
24	302LC33200 запросить цену →	2LC33200	SEAL IH DUCT
25	302LC33110 запросить цену →	2LC33110	DUCT IH REAR
27	302LC46140 запросить цену →	2LC46140	WIRE EXIT FAN
28	303LL02330 запросить цену →	3LL02330	HOLDER WIRE D
30	302LC33020 запросить цену →	2LC33020	DUCT FAN BELT LEFT 35/30 ppm
30	302LC33020 запросить цену →	2LC33020	DUCT FAN BELT LEFT 55/45 ppm
31	302LC33210 запросить цену →	2LC33210	SHEET FAN BELT 35/30 ppm
31	302LC33210 запросить цену →	2LC33210	SHEET FAN BELT 55/45 ppm
32	302LC33010 запросить цену →	2LC33010	DUCT FAN BELT RIGHT 35/30 ppm
32	302LC33010 запросить цену →	2LC33010	DUCT FAN BELT RIGHT 55/45 ppm
34	302LC33450 запросить цену →	2LC33450	DUCT DLP C 55/45 ppm
35	302LC33460 запросить цену →	2LC33460	DUCT DLP D 55/45 ppm
36	3CY06030 запросить цену →	3CY06030	RETAINER M4 55/45 ppm
38	302LC33471 запросить цену →	2LC33471	DUCT FUSER LOW
39	302HG02450 запросить цену →	2HG02450	SEAL FRAME MIDDLE A
40	302K933190 запросить цену →	2K933190	DUCT FUSER REAR
41	302LC02590 запросить цену →	2LC02590	PLATE EARTH DRUM DRIVE 55/45 ppm
42			7YZM610002++H01 YZ010240 ACCESS SADDLE
43	302K933560 запросить цену →	2K933560	DUCT FUSER RIGHT

22. Exit Section

№	Артикул	Альт. артикул	Описание
1			•2FM02210 5MVM274DN002 PULLEY MID /B-11 FRAME A4 4 4 4 102 7BB000303H BB107000 +BIND M SCREW 3X3
3			•2FM04150 5MVM163DN005 CAP SPRING /B-11 ENCLOSURE A4 8 8 8 104 7BB200308H BB105660 +BIND T.T P SCREW 3X8
4			•302F929260 2F929260 PULLEY DU LOW 4 4 4 105 7BB700408H BB105640 +BIND T.T S SCREW 4X8 SR
5			•302FZ28270 2FZ28270 SPRING EXIT PUSH
6			•302H024370 2H024370 BUSH 6 EW
8			•302HN28120 2HN28120 SPRING PULLEY A
9			•302JF22010 2JF22010 PULLEY MIDDLE
10			•302K928190 2K928190 SPRING-TORSION SWITCHBACK
15			•302LC28091 2LC28091 ACTUATOR EXIT SENSOR
16			•302LC28100 2LC28100 SPRING-COMPRESSION
17			•302LC28110 2LC28110 SPRING-EXTENSION
18			•302LC28150 2LC28150 SPRING-COMPRESSION
19			•302LC28211 2LC28211 ACTUATOR SWITCHBACK
20			•302LC46360 2LC46360 WIRE EXIT
21			•5MVX111DN003 2A806250 RING STOPPER /A-49 FEED A4
22			•63212210 63212210 STATIC ELIMINATOR,EJECT
24			•302LC28240 2LC28240 SPRING SWITCHBACK
25			•302LC28011 2LC28011 FRAME EXIT LOWER
26			•302LC28041 2LC28041 GUIDE CHANGE UPPER
27			•302LC28051 2LC28051 GUIDE CHANGE LOWER
28			•302LC28140 2LC28140 PLATE EARTH EXIT
29			•302LC28030 2LC28030 GUIDE EXIT MIDDLE
30			•303JY28280 3JY28280 CUSHION EJECT GUIDE B
31			•302K324460 2K324460 SHAFT FEED
32			•302FZ28260 2FZ28260 EXIT PUSH
34			•302LC28221 2LC28221 GUIDE ACTUATOR
35			•303MA16560 3MA16560 SHAFT GEAR BELT
36			•302LC28060 2LC28060 PLATE EXIT F
37			•302LC28120 2LC28120 COVER EXIT FRONT
38			•302LC28023 2LC28023 FRAME EXIT UPPER
39			•302LH28010 2LH28010 GUIDE EXIT PUSH
40			•302LC28231 2LC28231 STAY EXIT LOW
41			•302H702590 2H702590 BUSH SCREW

Каталог очень большой (891 позиций). Показаны первые 22 узлов со схемами; полный список доступен по запросу.

Источник: Инк-Маркет.ру.

← Все статьи
