Kyocera TASKalfa 2552ci / 3252ci / 3552ci / 4052ci / 5052ci / 6052ci / 4002i / 5002i / 6002i, ECOSYS P8060cdn — каталог запчастей со схемами

Содержание

• 1. Items listed in the revision columns are defined as follows. 改訂欄記載項目の内容は以下の通りです。
• 2. Covers 1

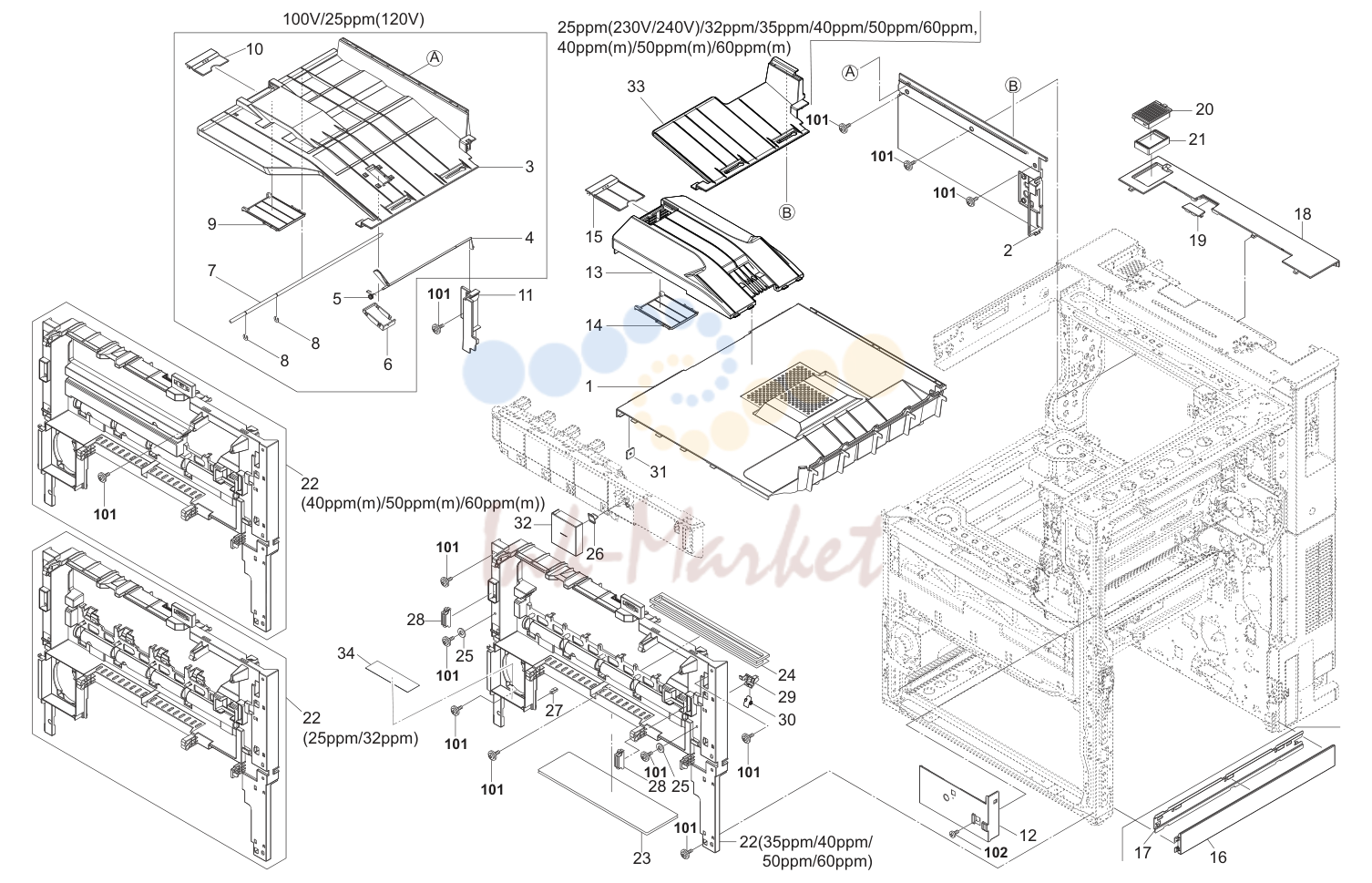

• 3. Covers 2

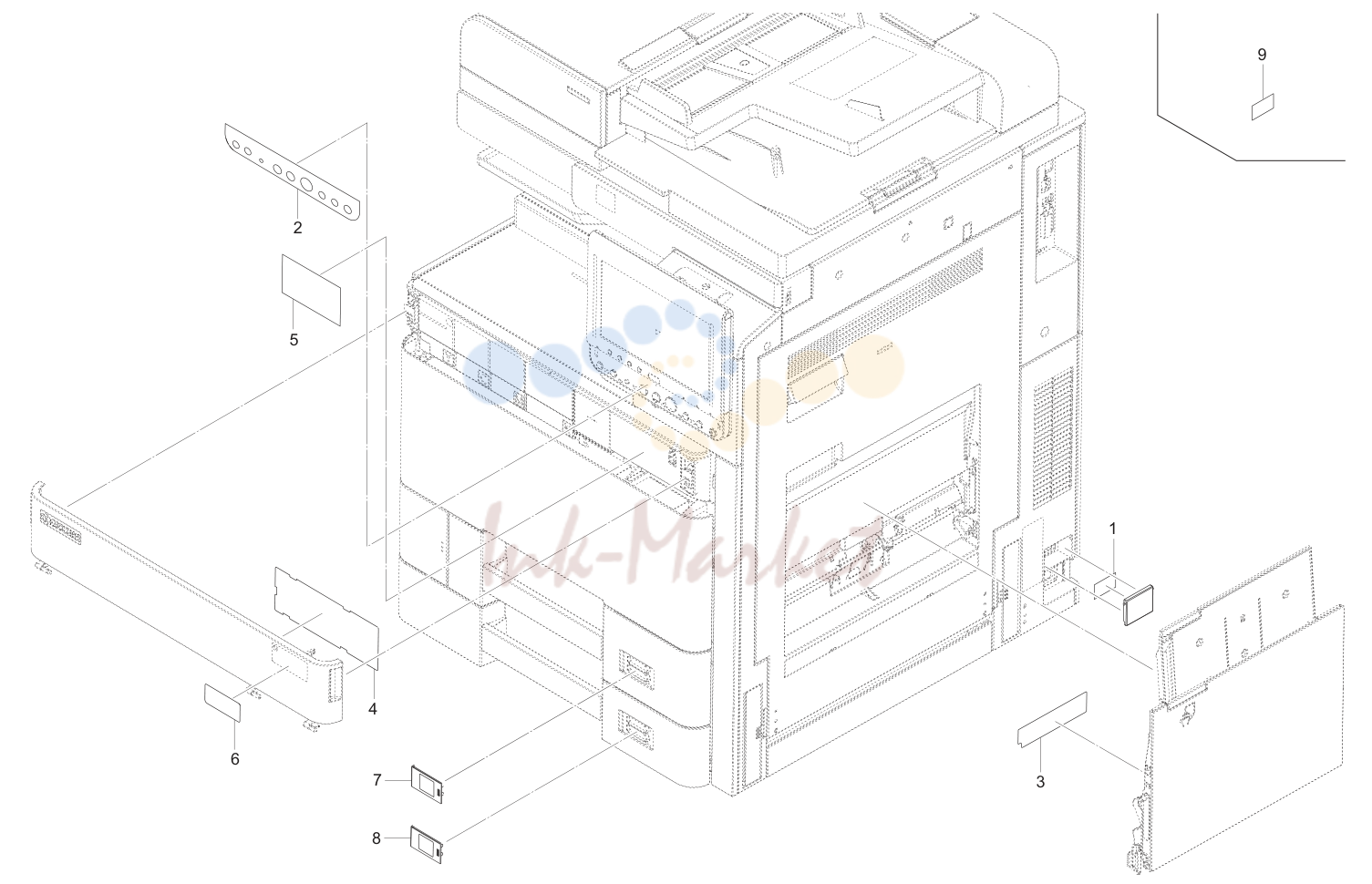

• 4. Covers 3

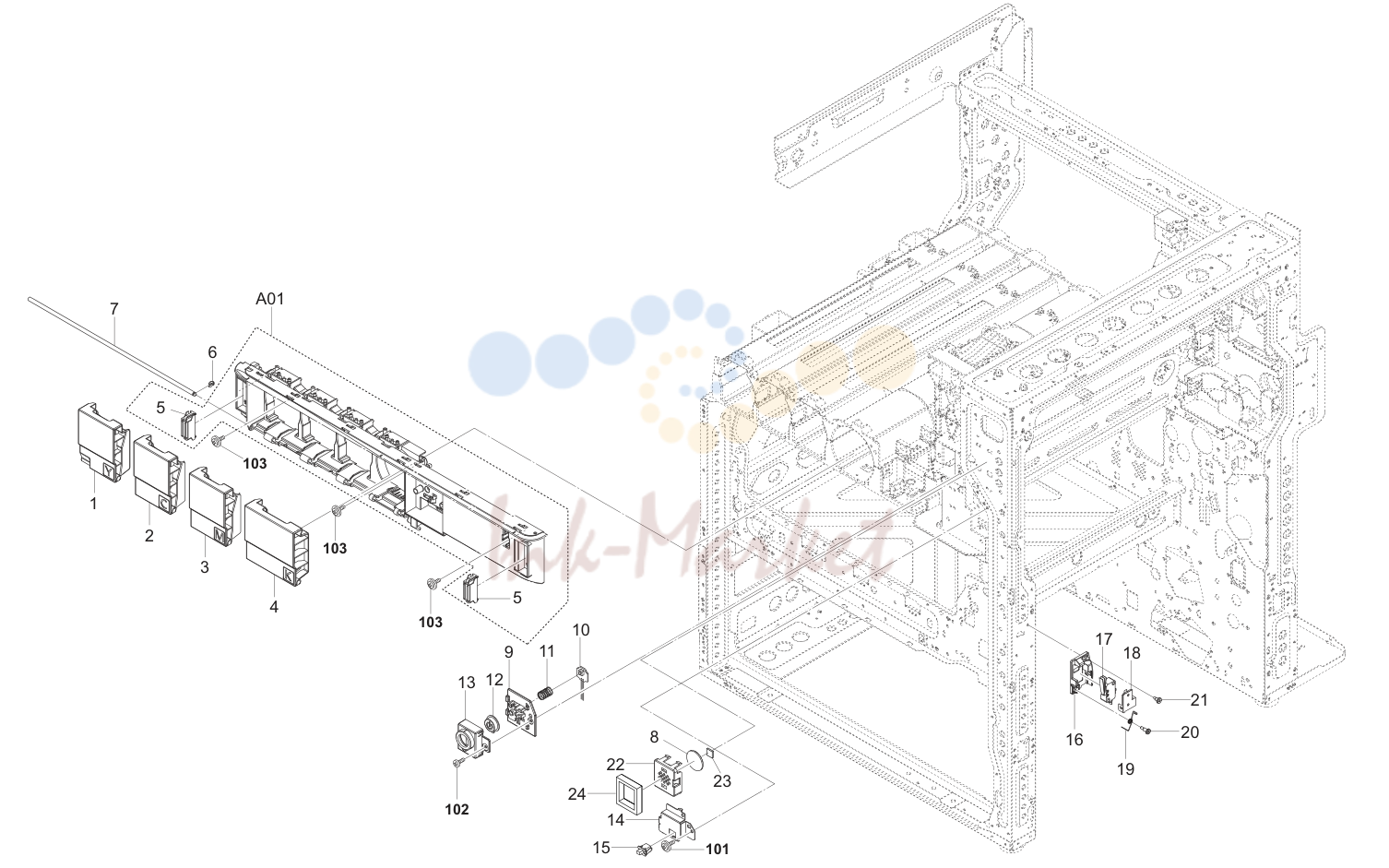

• 5. Frame Front (25ppm/32ppm/35ppm/40ppm/50ppm/60ppm)

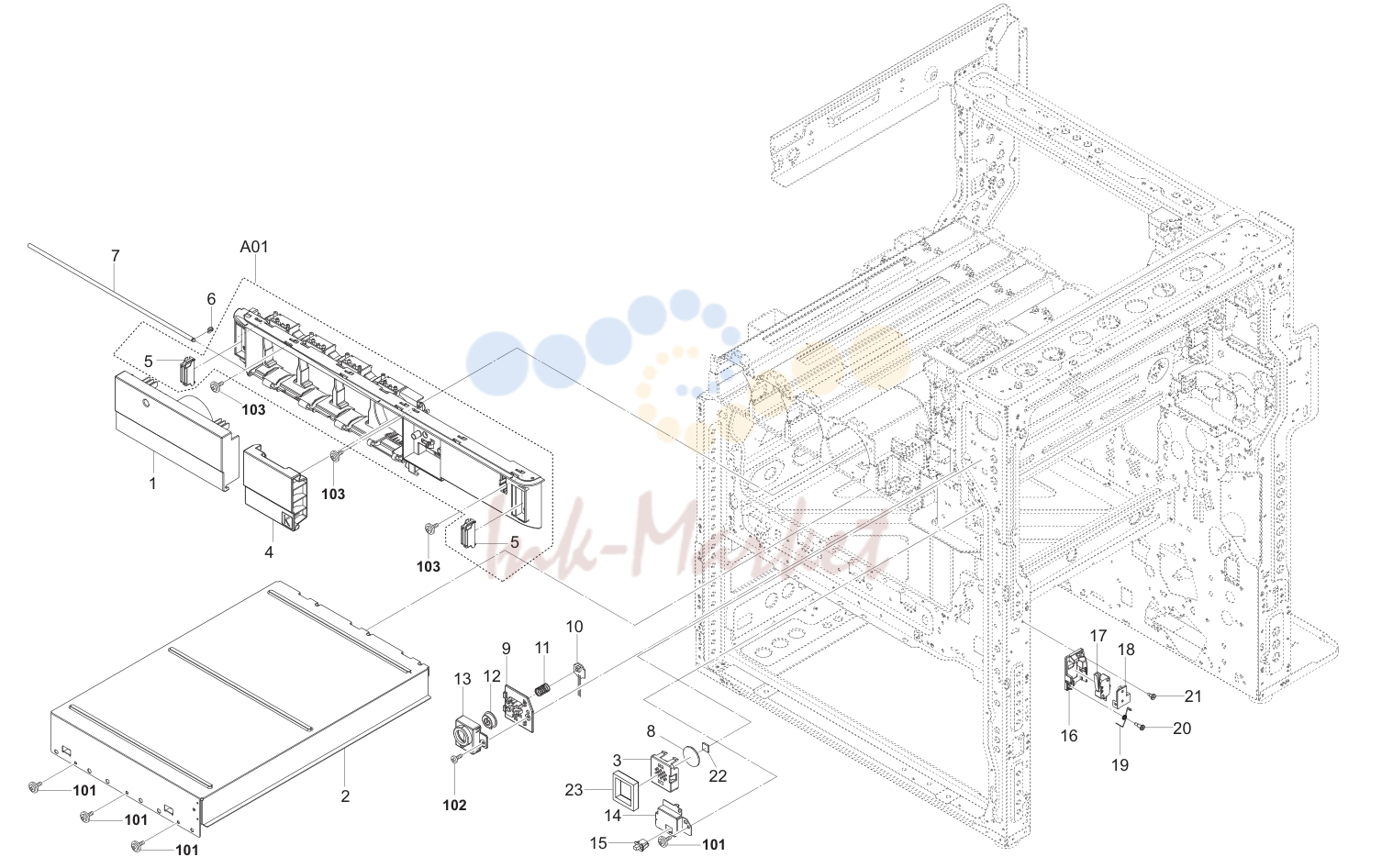

• 6. Frame Front (40ppm(m)/50ppm(m)/60ppm(m))

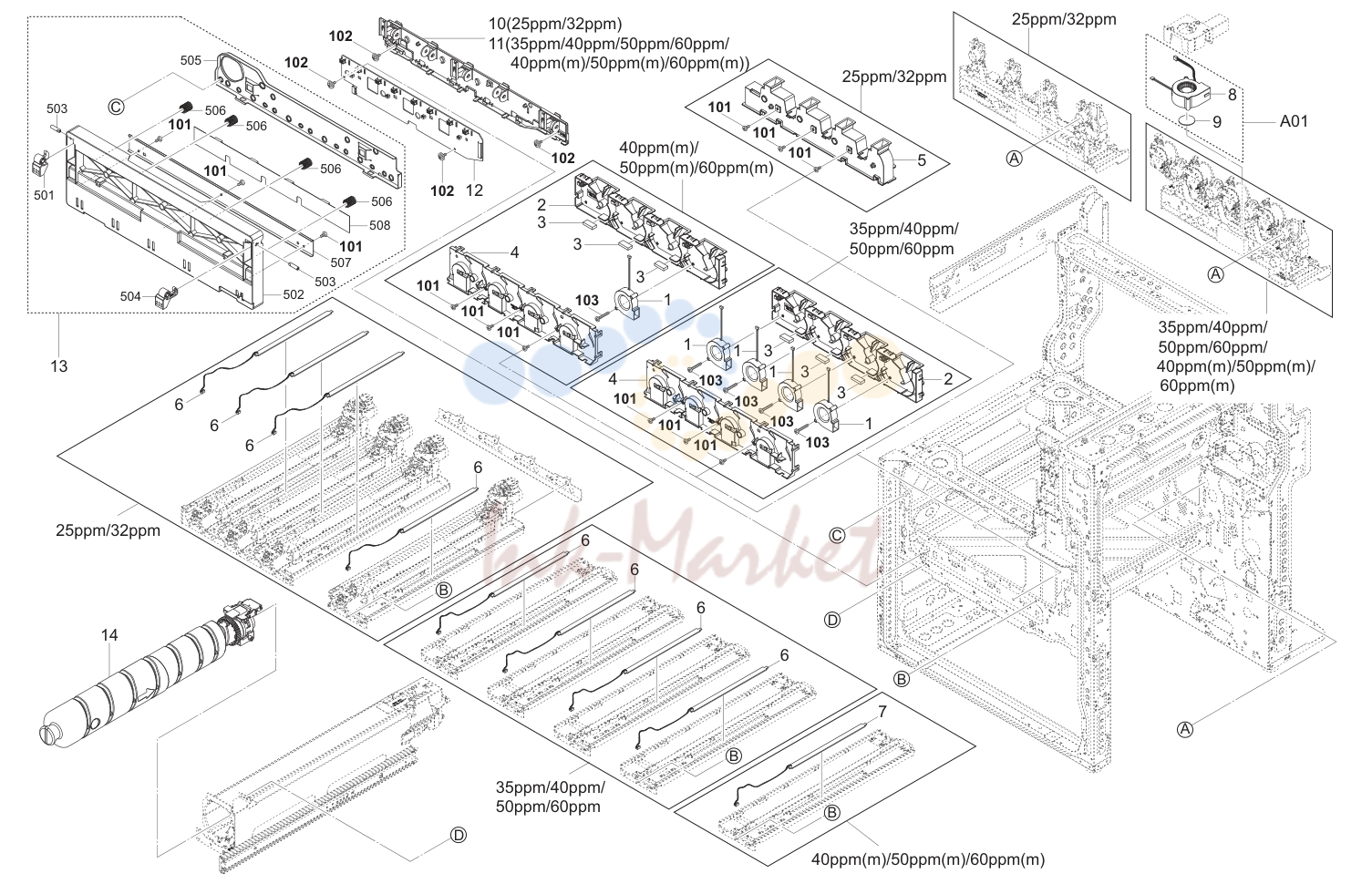

• 7. Frame Base

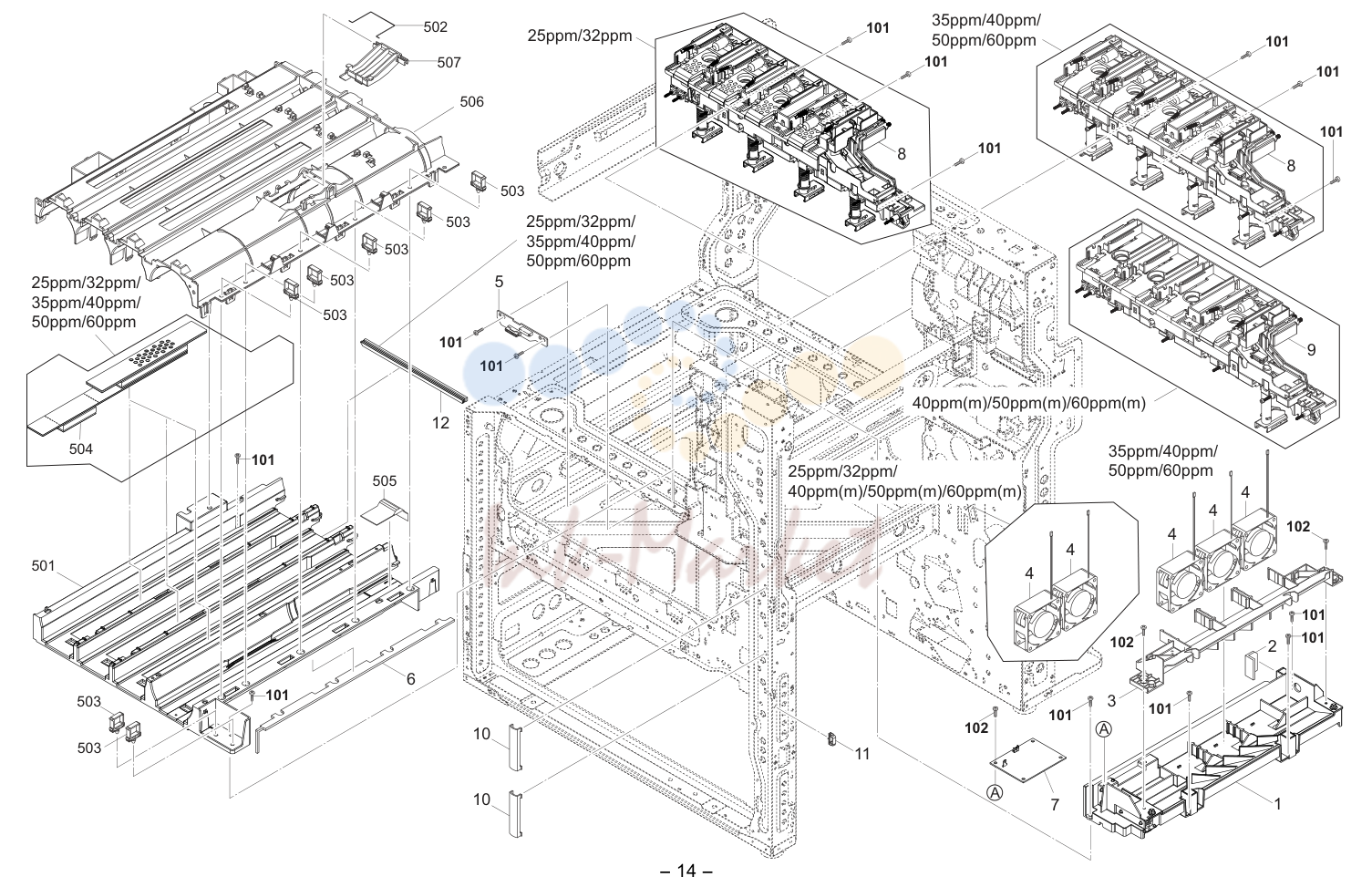

• 8. Frame Top

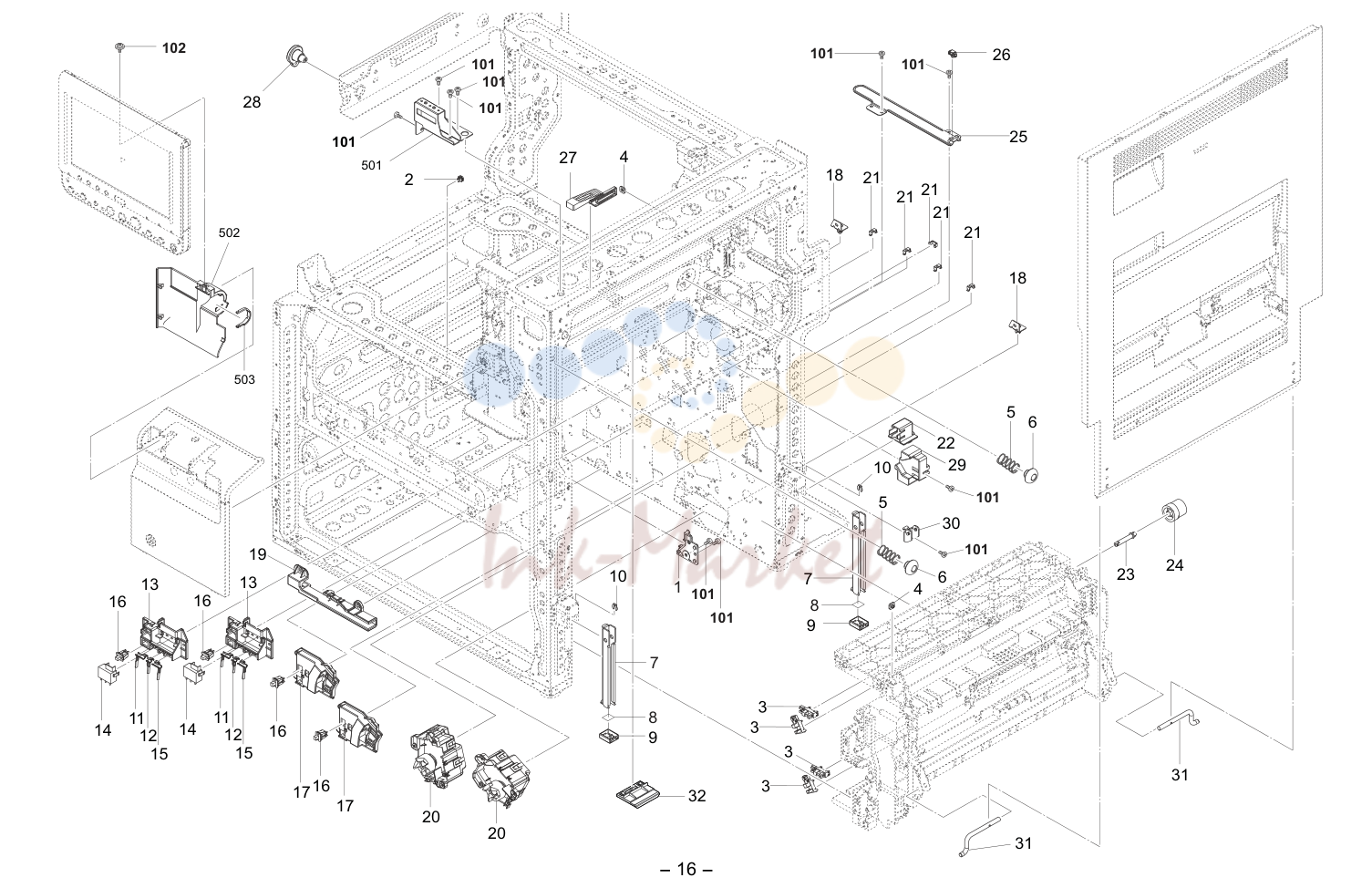

• 9. Frame Right

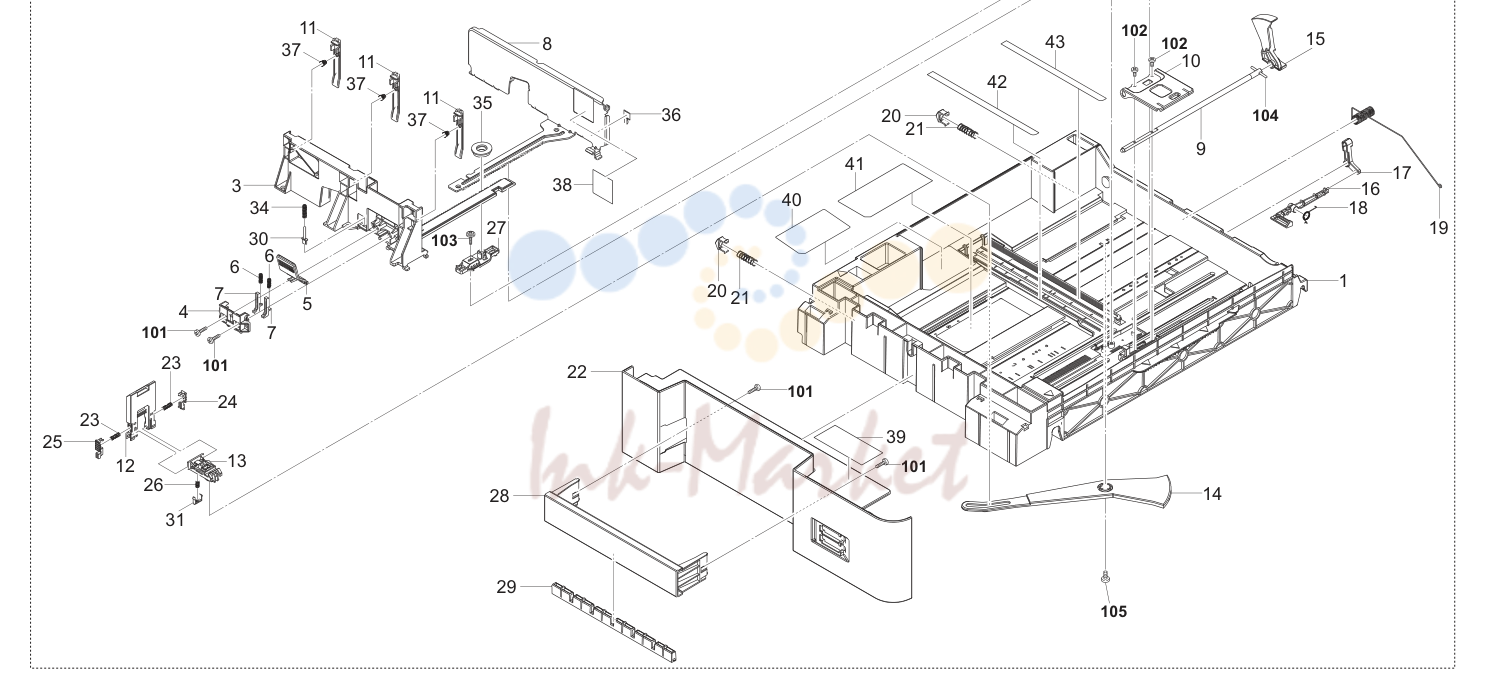

• 10. Paper Cassette 1

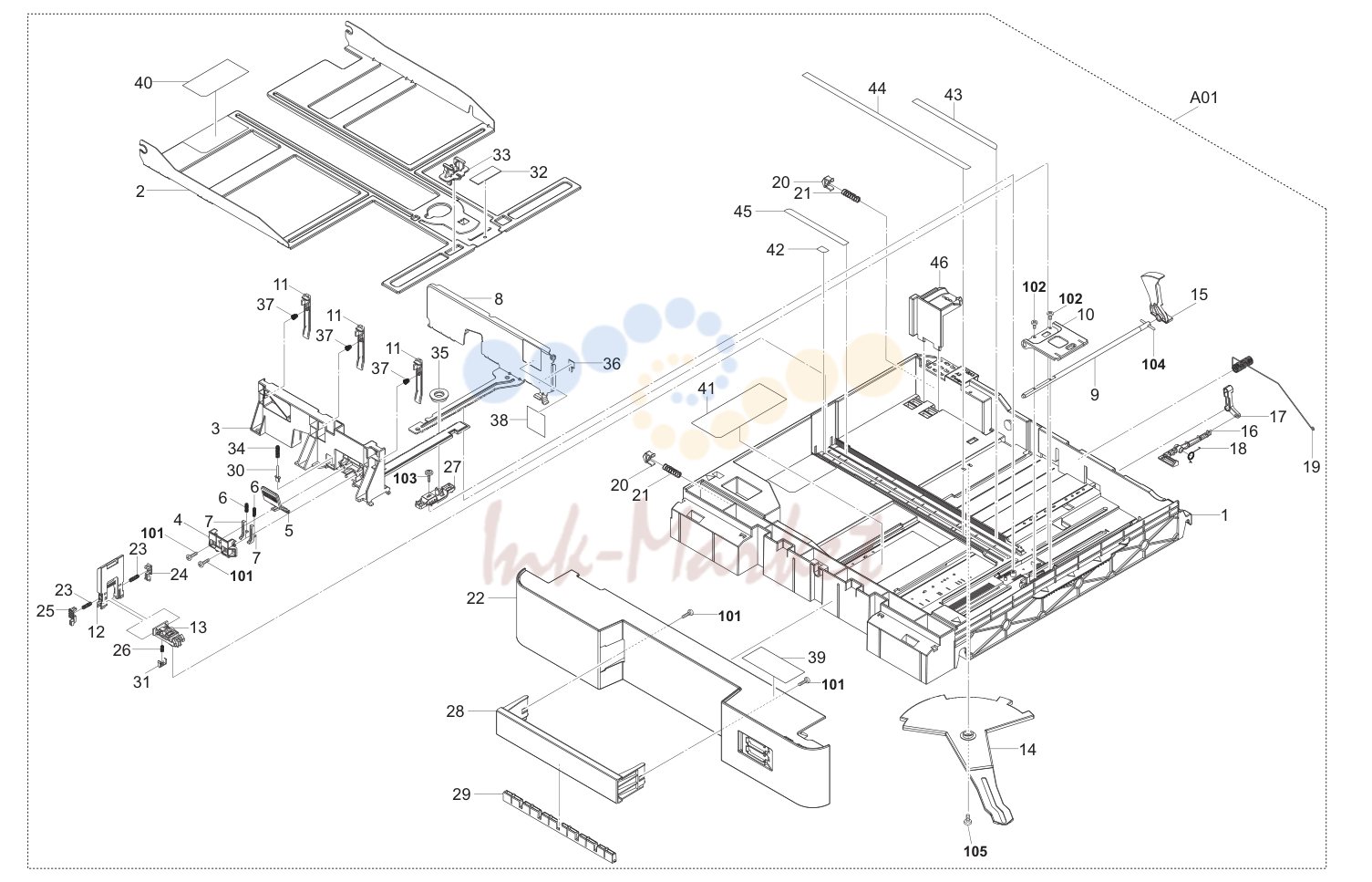

• 11. Paper Cassette 2

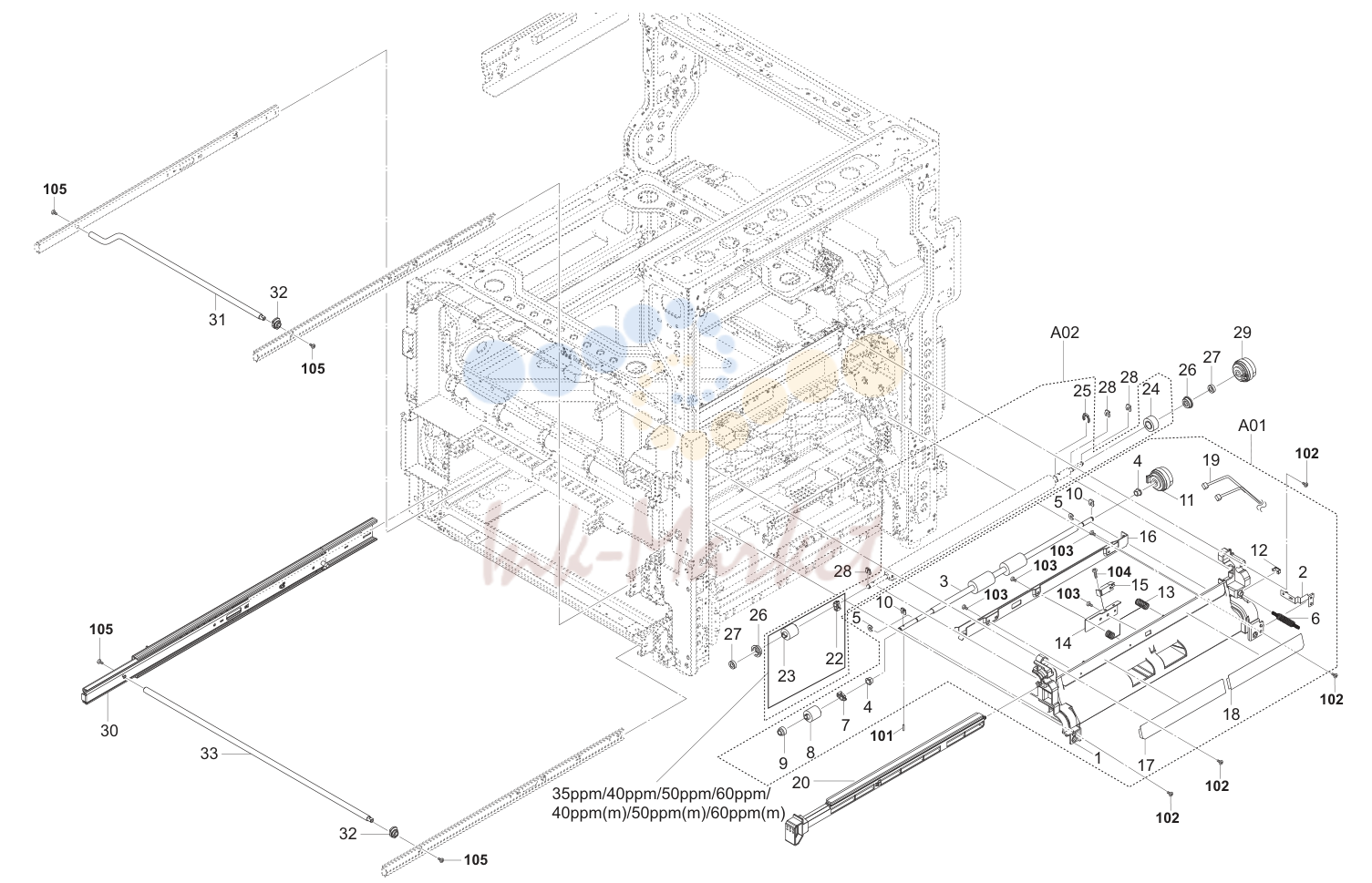

• 12. Paper Feed Section 1

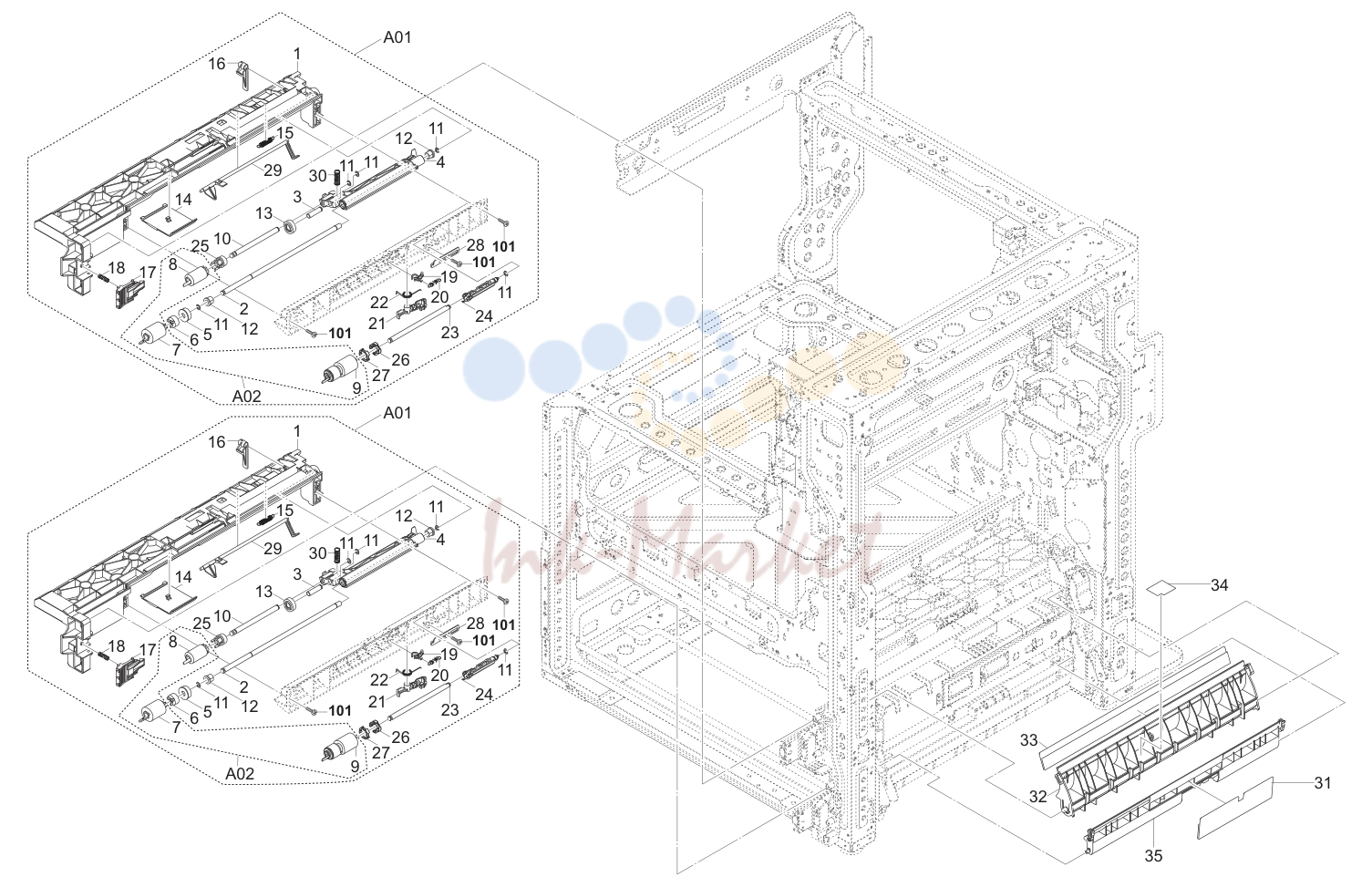

• 13. Paper Feed Section 2

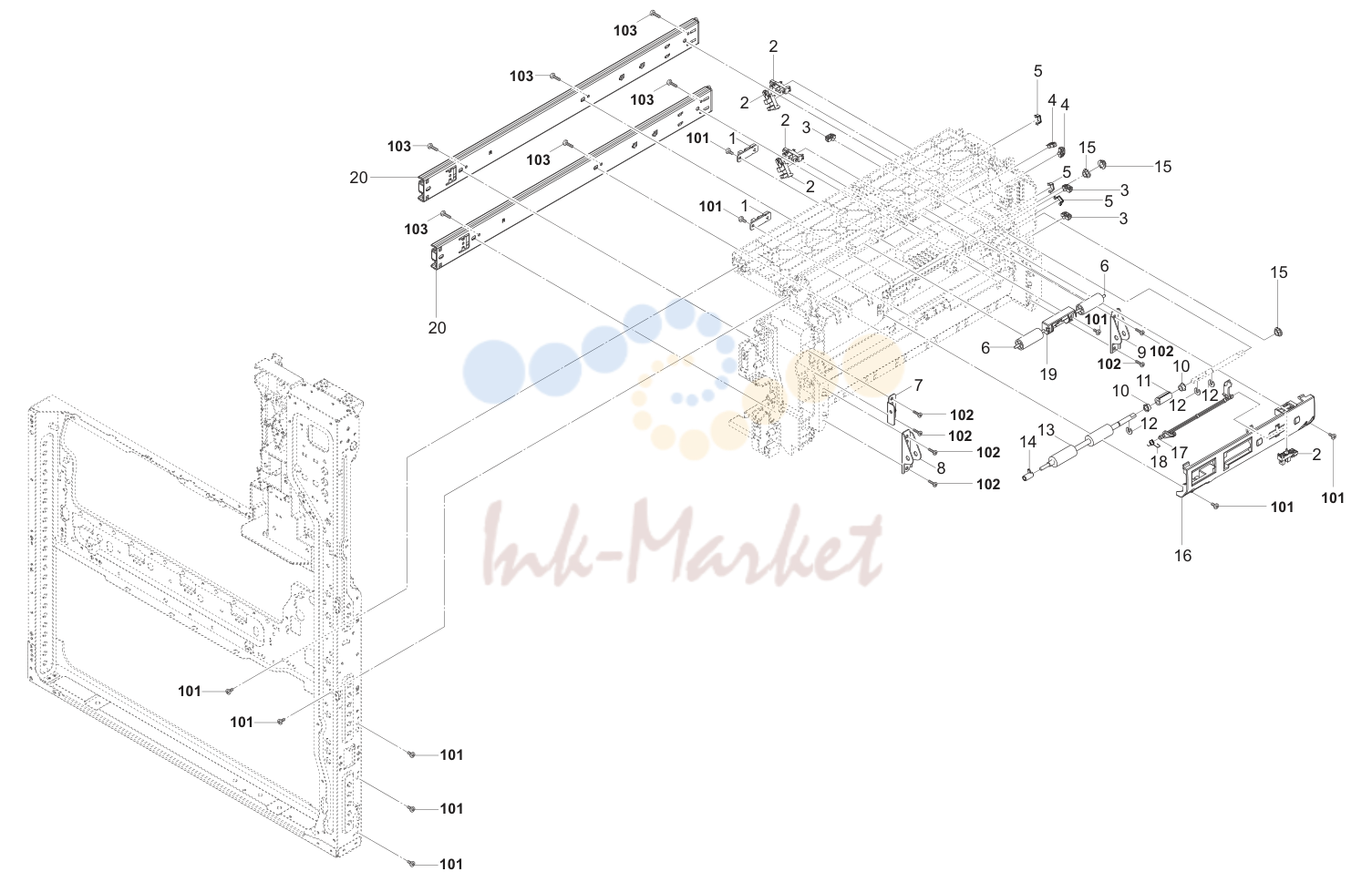

• 14. Paper Feed Section 3

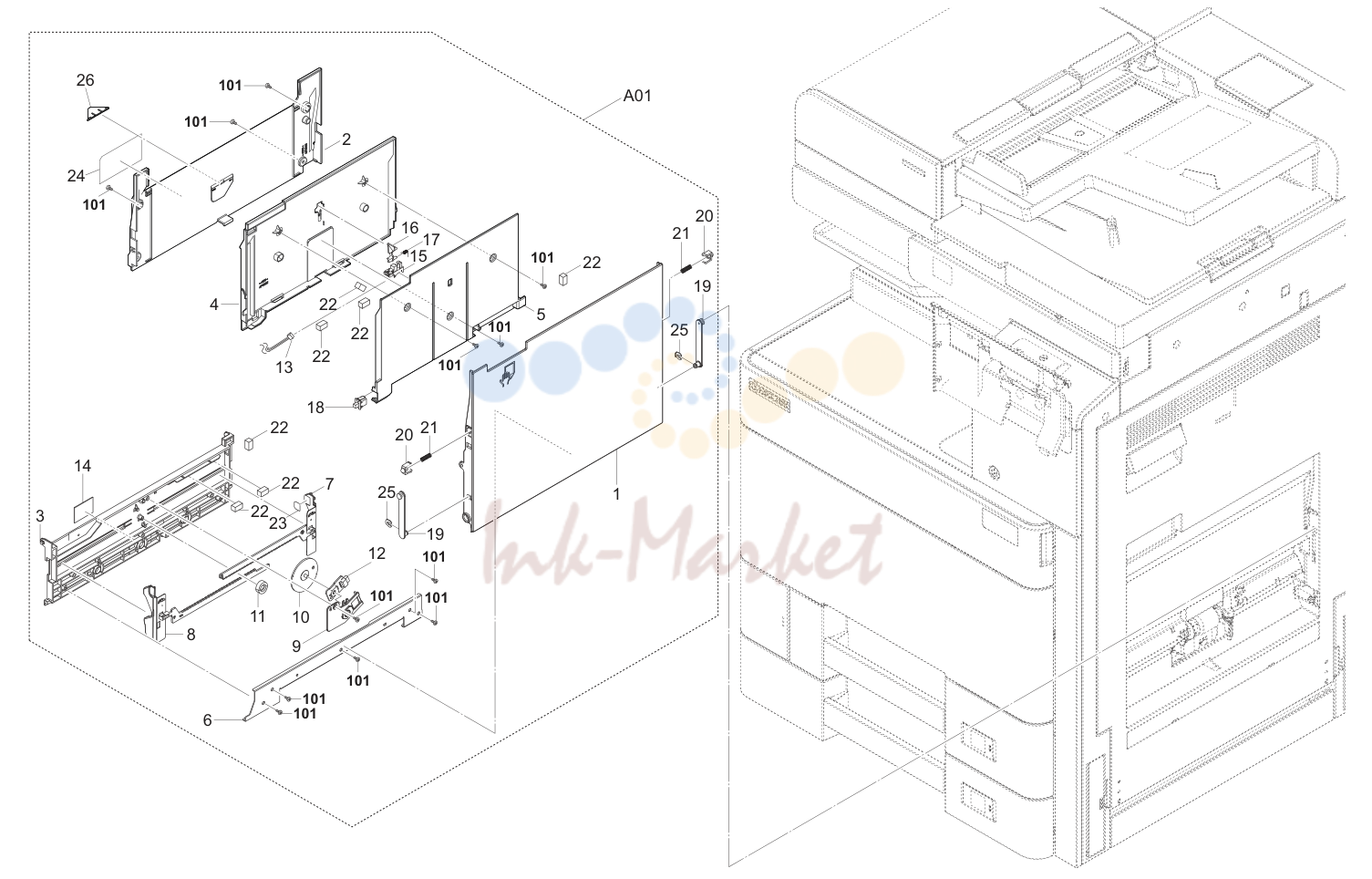

• 15. Paper Feed Section 4

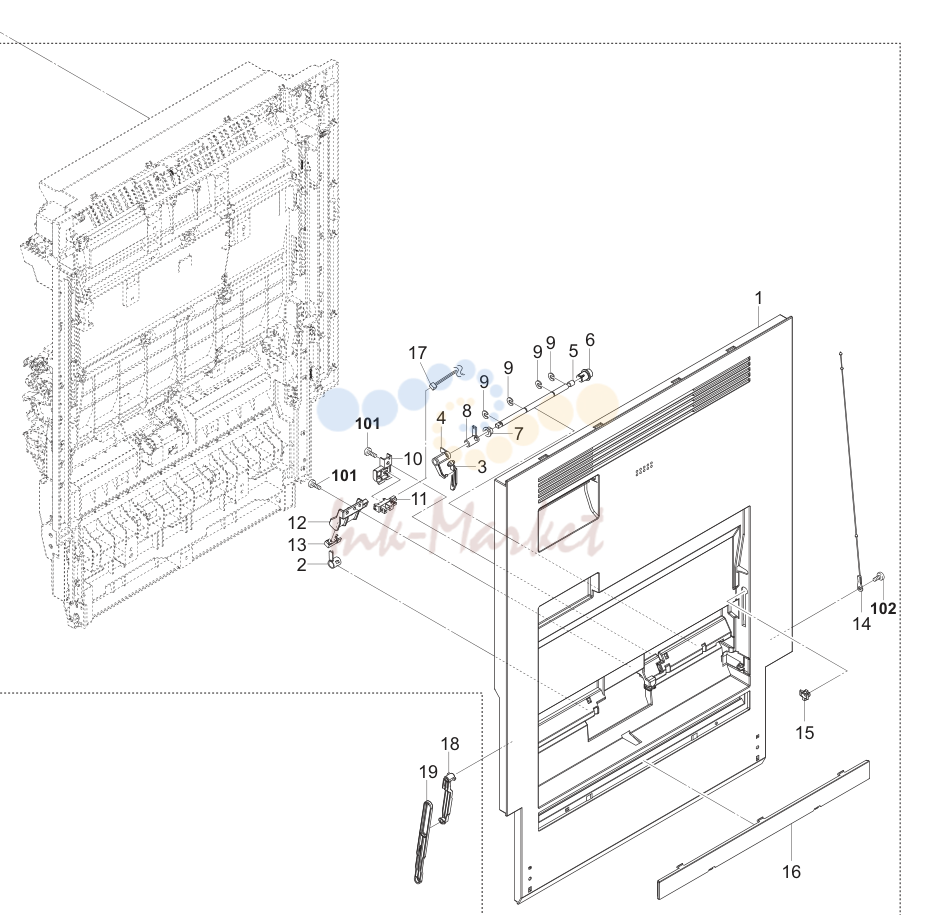

• 16. Paper Conveying Section 1

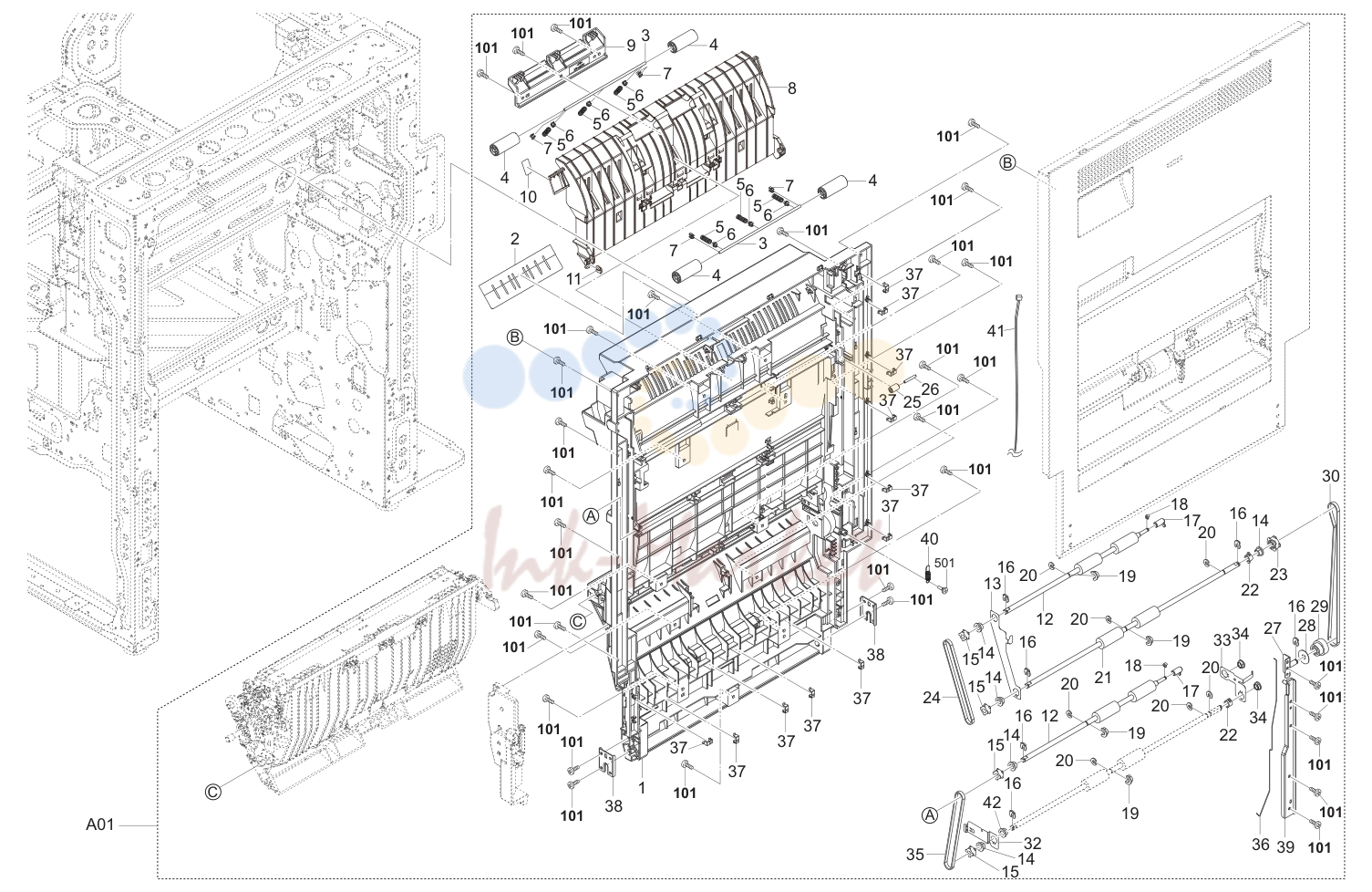

• 17. Paper Conveying Section 2
• 18. Paper Conveying Section 3
• 19. Paper Conveying Section 4
• 20. Paper Conveying Section 5
• 21. Paper Conveying Section 6
• 22. Scanner Section 1 (25ppm/32ppm)
• 23. Scanner Section 2 (25ppm/32ppm)
• 24. Scanner Section 1 (35ppm/40ppm/50ppm/60ppm/40ppm(m)/50ppm(m)/60ppm(m))
• 25. Scanner Section 2 (35ppm/40ppm/50ppm/60ppm/40ppm(m)/50ppm(m)/60ppm(m))
• 26. Laser Scanner Section
• 27. Developer Section
• 28. Image Formation Section
• 29. Transfer Section
• 30. Fuser Section
• 31. Exit Section 1
• 32. Exit Section 2
• 33. Drive Section 1 ( 25ppm/32ppm)
• 34. Drive Section 1 (35ppm/40ppm/50ppm/60ppm)
• 35. Drive Section 1 (40ppm(m)/50ppm(m)/60ppm(m))
• 36. Drive Section 2
• 37. Drive Section 3
• 38. Drive Section 4
• 39. Operation Section
• 40. Electrical Components 1
• 41. Electrical Components 2
• 42. Electrical Components 3
• 43. Wire Sections 1 (25ppm/32ppm)
• 44. Wire Sections 1 (25ppm/32ppm)
• 45. Wire Sections 3 (25ppm/32ppm)
• 46. Wire Sections 4 (25ppm/32ppm)
• 47. Wire Sections 6 (25ppm/32ppm,40ppm(m)/50ppm(m)/60ppm(m))
• 48. Wire Sections 7 (35ppm/40ppm/50ppm/60ppm)
• 49. Wire Sections 9 (35ppm/40ppm/50ppm/60ppm)
• 50. Wire Sections 10 (35ppm/40ppm/50ppm/60ppm)
• 51. Wire Sections 12 (35ppm/40ppm/50ppm/60ppm)
• 52. Wire Sections 14 (25ppm/32ppm/35ppm/40ppm/50ppm/60ppm)
• 53. Wire Sections 16 (40ppm(m)/50ppm(m)/60ppm(m))
• 54. Wire Sections 18 (40ppm(m)/50ppm(m)/60ppm(m))
• 55. Wire Sections 19 (40ppm(m)/50ppm(m)/60ppm(m))
• 56. Wire Sections 22
• 57. Wire Sections 23
• 58. Options 1
• 59. Options 2
• 60. Options 3
• 61. Accessories
• 62. Covers 3RB
• 63. Frames 3RB
• 64. Paper Cassettes 3RB-2
• 65. Paper Feed Section 1 3RB
• 66. Paper Feed Section 2 3RB
• 67. Drive Section 3RB
• 68. Electrical Components 3RB
• 69. WireSection 3RB
• 70. Accessories & Options 3RB
• 71. Covers 3RC
• 72. Frames 3RC
• 73. Paper Cassettes 3RC
• 74. Paper Feed Section 1 3RC
• 75. Paper Feed Section 2-1 3RC
• 76. Paper Feed Section 2-2 3RC
• 77. Drive Section 3RC
• 78. Electrical Components 3RC-2
• 79. WireSection 3RC
• 80. Accessories & Options 3RC
• 81. Covers 3RL
• 82. Frames 3RL
• 83. Paper Cassettes 3RL
• 84. Paper Feed Section 1-1 3RL
• 85. Paper Feed Section 1-2 3RL
• 86. Drive Section & Electrical Components 3RL
• 87. Wire Section 3RL
• 88. Accessories & Options 3RL
• 89. Covers 3R7
• 90. Frames 3R7
• 91. Table Assy 3R7
• 92. Paper Conveying Section 3R7-2
• 93. Paper Feed Section 1 3R7
• 94. Paper Feed Section 2 3R7
• 95. Paper Feed Section 3 3R7-2
• 96. Drive Section & Electrical Components 3R7
• 97. Wire Section 3R7
• 98. Accessories 3R7-3
• 99. Covers 3R8
• 100. Frames 3R8
• 101. Table Assy 3R8
• 102. Paper Conveying Section 3R8
• 103. Paper Feed Section 1 3R8
• 104. Paper Feed Section 2 3R8
• 105. Drive&Electrical 3R8
• 106. Wire Section 3R8
• 107. Accessories 3R8-3
• 108. Covers 3RJ-3
• 109. Frames 3RJ
• 110. Table Assy 3RJ
• 111. Paper Conveying Section 3RJ
• 112. Paper Feed Section 1 3RJ
• 113. Paper Feed Section 2 3RJ
• 114. Drive&Electrical 3RJ
• 115. Wire Section 3RJ
• 116. Covers 3RD
• 117. Frames 3RD
• 118. Paper Feed Section 3RD
• 119. Paper Conveying Section 1 3RD
• 120. Paper Conveying Section 2 3RD-2
• 121. Staple Section 3RD
• 122. Main Tray Section 3RD
• 123. Drive Section & Electrical Components 3RD
• 124. Wire Section 3RD
• 125. Covers 3RW
• 126. Frames 3RW
• 127. Paper Feed Section 1 3RW
• 128. Paper Feed Section 2 3RW
• 129. Paper Feed Section 3 3RW
• 130. Main Exit Section 3RW
• 131. Drive Section 3RW
• 132. Electrical Components 3RW
• 133. Wire Section 3RW
• 134. Accessories 3RW
• 135. Covers 3RV
• 136. Frames 3RV
• 137. Paper Feed Section 1 3RV
• 138. Paper Feed Section 2 3RV
• 139. Paper Feed Section 3 3RV
• 140. Drive Section & Electrical Components 3RV
• 141. Wire Section 3RV
• 142. Accessories 3RV
• 143. AK-7100 3RG-2
• 144. AK-7100 3RG
• 145. Wire Section 3RG
• 146. Wire Section
• 147. JS-7100 3RN
• 148. Booklet Folder 1 3ND-3
• 149. Booklet Folder 2 3ND-3
• 150. Booklet Folder 3 3ND-3
• 151. Booklet Folder 4 3ND-2
• 152. Accessories 3ND-2
• 153. Covers 3N0-3
• 154. Paper Conveying Section 1 3N0-1
• 155. Paper Conveying Section 2 3N0-1
• 156. Accessories 3N0-1
• 157. Options (AK-736) (MT-730(B)) 3N0-1
• 158. PH-7110 3RF-2
• 159. PH-7100 3RF-2
• 160. PH-7120 3RF-2
• 161. PH-7130 3RF-2
• 162. Wire Section 3RF
• 163. PH-7B 3NK-4
• 164. PH-7A 3NK-4
• 165. PH-7C 3NK-4
• 166. PH-7D 3NK-4
• 167. FAX System 12 3RK
• 168. Covers 1
• 169. Covers 2 (PRINTER)
• 170. Covers 3
• 171. Covers 4
• 172. Frame Front (25ppm/ 32ppm/35ppm/40ppm/50ppm/60ppm/ 60ppm(A))
• 173. Frame Front (4 0ppm(m)/50ppm(m)/60ppm(m))
• 174. Frame Base
• 175. Frame Top
• 176. Frame Right
• 177. Paper Cassette 1
• 178. Paper Cassette 2
• 179. Paper Feed Section 1
• 180. Paper Feed Section 2
• 181. Paper Feed Section 3
• 182. Paper Conveying Section 1
• 183. Paper Conveying Section 2
• 184. Paper Conveying Section 3
• 185. Paper Conveying Section 4
• 186. Paper Conveying Section 5
• 187. Paper Conveying Section 6
• 188. Paper Conveying Section 7
• 189. Scanner Section 1 (25ppm/32ppm)
• 190. Scanner Section 2 (25ppm/32ppm)
• 191. Scanner Section 1 (35ppm/40ppm/50ppm/60ppm/40ppm(m)/ 50ppm(m)/60ppm(m))
• 192. Scanner Section 2 (35ppm/40ppm/50ppm/60ppm/40ppm(m)/ 50ppm(m)/60ppm(m))
• 193. Developer Section
• 194. Image Formation Section
• 195. Transfer Section
• 196. Fuser Section
• 197. Exit Section 1
• 198. Exit Section 2
• 199. Drive Section 1 (25ppm/32ppm)
• 200. Drive Section 1 (35ppm /40ppm/50ppm/60ppm/60ppm(A))
• 201. Drive Section 1 (40ppm(m)/ 50ppm(m)/60ppm(m))
• 202. Drive Section 2
• 203. Drive Section 3
• 204. Drive Section 4
• 205. Operation Section
• 206. Electrical Components 1
• 207. Electrical Components 2
• 208. Electrical Components 3
• 209. Wire Sections 1 (25ppm/32ppm)
• 210. Wire Sections 2 (25ppm/32ppm)
• 211. Wire Sections 3 (25ppm/32ppm)
• 212. Wire Sections 4 (25ppm/32ppm)
• 213. Wire Sections 5 (25ppm/32ppm)
• 214. Wire Sections 6 (25ppm/32ppm,40ppm(m)/50ppm(m)/ 60ppm(m))
• 215. Wire Sections 7 (35ppm/ 40ppm/50ppm/60ppm/60ppm(A))
• 216. Wire Sections 8 (35ppm/ 40ppm/50ppm/60ppm/60ppm(A))
• 217. Wire Sections 9 (35ppm/ 40ppm/50ppm/60ppm/60ppm(A))
• 218. Wire Sections 10 (35p pm/40ppm/50ppm/60ppm/60ppm(A))
• 219. Wire Sections 11 (35ppm/40ppm/50p pm/60ppm,25ppm/ 32ppm,40ppm(m)/50ppm(m)/60ppm(m )/60ppm(A))
• 220. Wire Sections 12 (35p pm/40ppm/50ppm/60ppm/60ppm(A))
• 221. Wire Sections 13 (35p pm/40ppm/50ppm/60ppm/60ppm(A))
• 222. Wire Sections 14 ( 25ppm/32ppm, 35ppm/40ppm/50ppm/ 60ppm/60ppm(A)))
• 223. Wire Sections 15 (3 5ppm/40ppm/50ppm/60 ppm/60ppm(A))
• 224. Wire Sections 16 (40ppm(m )/50ppm(m)/60ppm(m) )
• 225. Wire Sections 17 (40ppm(m )/50ppm(m)/60ppm(m) )
• 226. Wire Sections 18 (40ppm(m )/50ppm(m)/60ppm(m) )
• 227. Wire Sections 19 (40ppm(m )/50ppm(m)/60ppm(m) )
• 228. Wire Sections 20 (40ppm(m )/50ppm(m)/60ppm(m) )
• 229. Wire Sections 21 (40ppm(m )/50ppm(m)/60ppm(m) )
• 230. Options 1
• 231. Options 2
• 232. Accessories
• 233. Covers
• 234. Frames
• 235. Paper Cassettes
• 236. Covers
• 237. Frames
• 238. Paper Cassettes
• 239. Paper Feed Section 1
• 240. Paper Feed Section 2-1
• 241. Covers
• 242. Frames
• 243. Paper Cassettes
• 244. Paper Feed Section 1-1
• 245. Paper Feed Section 1-2
• 246. Drive Section & Electric al Components
• 247. Wire Section
• 248. Accessories & Options
• 249. Covers
• 250. Frames
• 251. Table Assy
• 252. Paper Conveying Section
• 253. Paper Feed Section 1
• 254. Paper Feed Section 2
• 255. Paper Feed Section 3
• 256. Drive Section & Electric al Components
• 257. Wire Section
• 258. Accessories
• 259. Cover
• 260. Frame
• 261. Table Assy
• 262. Paper Conveying Section
• 263. Paper Feed Section 1
• 264. Paper Feed Section 2
• 265. Drive&Electrical
• 266. Wire Section
• 267. Accessories
• 268. Cover
• 269. Frame
• 270. Table Assy
• 271. Paper Conveying Section
• 272. Paper Feed Section 1
• 273. Paper Feed Section 2
• 274. Drive&Electrical
• 275. Wire Section
• 276. Covers
• 277. Frames
• 278. Paper Feed Section
• 279. Paper Conveying Section 1
• 280. Paper Conveying Section 2
• 281. Staple Section
• 282. Main Tray Section
• 283. Drive Section & Electric al Components
• 284. Wire Section
• 285. Covers
• 286. Frames
• 287. Paper Feed Section 1
• 288. Paper Feed Section 2
• 289. Paper Feed Section 3
• 290. Main Exit Section
• 291. Drive Section
• 292. Electrical Components
• 293. Wire Section
• 294. Accessories
• 295. Covers
• 296. Frames
• 297. Paper Feed Section 1
• 298. Paper Feed Section 2
• 299. Paper Feed Section 3
• 300. Drive Section & Electric al Components
• 301. Wire Section
• 302. Accessories
• 303. AK-7100
• 304. AK-7100
• 305. Wire Section
• 306. Accessories
• 307. JS-7100
• 308. PH-7110
• 309. PH-7100
• 310. PH-7120
• 311. PH-7130
• 312. Wire Section

1. Items listed in the revision columns are defined as follows. 改訂欄記載項目の内容は以下の通りです。

№	Артикул	Альт. артикул	Описание
1			June 2016 Correction 1 2016年6月 誤記訂正
2			August 2016 Design change 2 2016年8月 設変対応
3	November2016 запросить цену →		Design change 3 2016年11月 設変対応

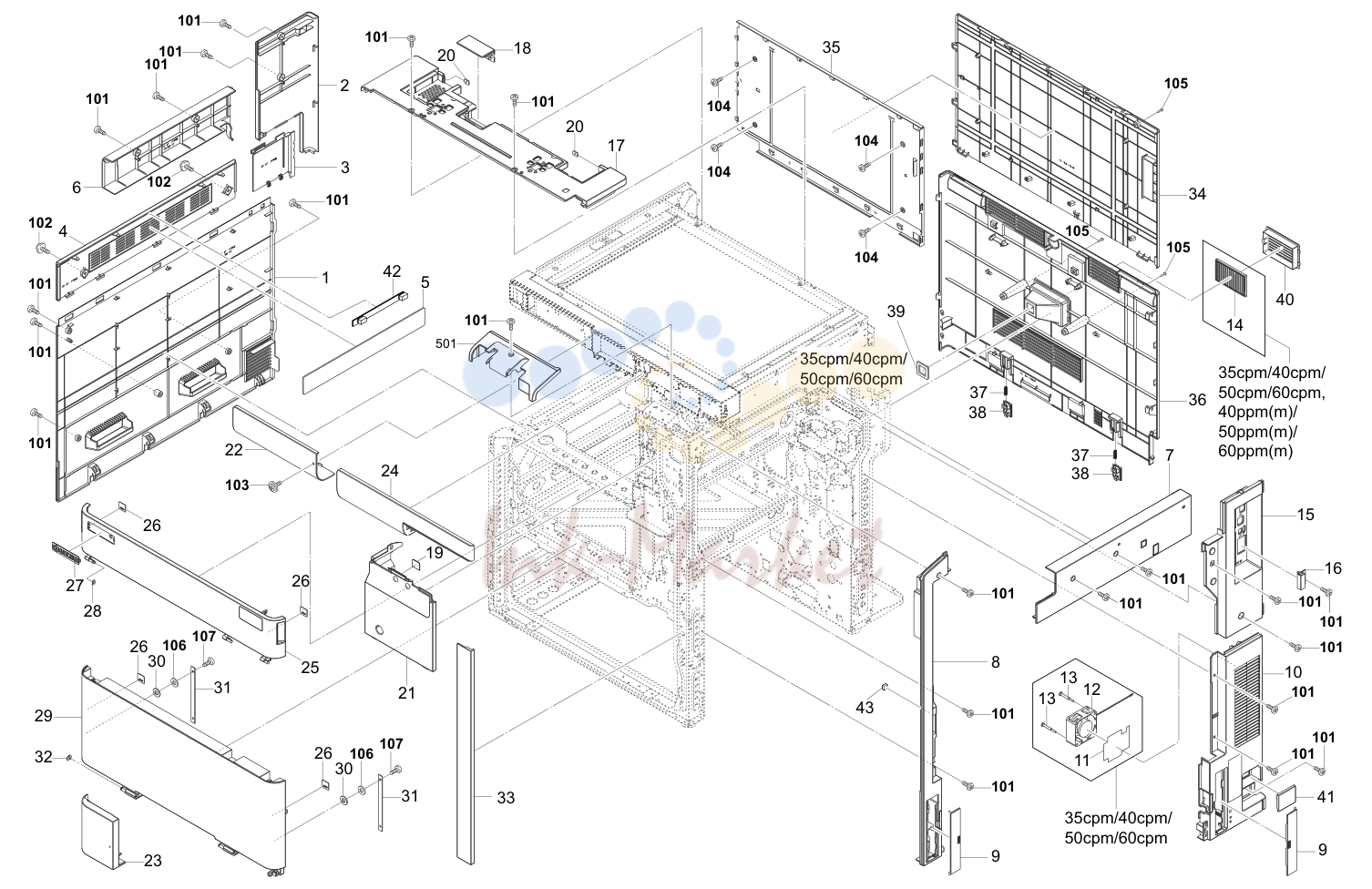

2. Covers 1

№	Артикул	Альт. артикул	Описание
37			50cpm/60cpm,
38			40ppm(m)/
22			37 7 60ppm(m)
1	302ND04060	2ND04060	COVER LEFT
2	302ND04180 запросить цену →	2ND04180	COVER LEFT REAR
3	302ND04310 запросить цену →	2ND04310	COVER LEFT B
4	302ND04240 ✓ в наличии	2ND04240	COVER LEFT LID
5	302ND33240 запросить цену →	2ND33240	FILTER TRANSFER
6	302ND04070 запросить цену →	2ND04070	COVER LEFT UP
7	302ND04130 запросить цену →	2ND04130	COVER ISU RIGHT
8	302ND04230 запросить цену →	2ND04230	COVER RIGHT FRONT
9	302ND04690 запросить цену →	2ND04690	COVER HANDLE
10	302ND04050 запросить цену →	2ND04050	COVER RIGHT REAR
11	302ND33300 запросить цену →	2ND33300	FILTER COVER RIGHT 35ppm/40ppm/50ppm/60ppm
12	302GR44080 ✓ в наличии	2GR44080	FAN LSU 60-25 35ppm/40ppm/50ppm/60ppm
13	302H733430 запросить цену →	2H733430	SCREW FAN 35ppm/40ppm/50ppm/60ppm
14	302ND33260	2ND33260	FILTER REAR LOWER 35ppm/40ppm/50ppm/60ppm,40ppm(m)/50ppm(m)/ 3:Others
15	302ND04680 запросить цену →	2ND04680	COVER RIGHT REAR UPPER
16	302ND04470 запросить цену →	2ND04470	LID SD-CARD
17	302ND04141 запросить цену →	2ND04141	COVER ISU REAR 2:Design-chg.
18	302RH04330 ✓ в наличии	2RH04330	LID DP
19	302HG25830 запросить цену →	2HG25830	SPACER GUIDE EXIT
20	302K926050 запросить цену →	2K926050	NUT FUSER
21	302ND04020 запросить цену →	2ND04020	COVER FRONT RIGHT
22	302ND04700 запросить цену →	2ND04700	COVER KEYBOARD
23	302ND04150 запросить цену →	2ND04150	COVER WASTE
24	302ND04710 запросить цену →	2ND04710	LID CARD-READER RIGHT
25	302ND04741 запросить цену →	2ND04741	COVER FRONT UPPER 2:Design-chg.
26	302NL04270 запросить цену →	2NL04270	PLATE MAGNET
27	302DY04010 запросить цену →	2DY04010	EMBLEM KC 1SG 70 B
28	302FB09830	2FB09830	CUT WASHER
29	302ND04010 запросить цену →	2ND04010	COVER FRONT
30	302LW04260 запросить цену →	2LW04260	SPACER USB
31	302ND04570 запросить цену →	2ND04570	STRAP FRONT COVER
32	302K921420 запросить цену →	2K921420	CUT-WASHER
33	302ND04660 запросить цену →	2ND04660	COVER RIGHT SIDE
34	302ND04080 запросить цену →	2ND04080	COVER REAR UPPER
35	302ND04340 запросить цену →	2ND04340	PLATE SHIELD
36	302ND04090 запросить цену →	2ND04090	COVER REAR LOWER
37	302ND04380 запросить цену →	2ND04380	SPRING SLIDER
38	302ND04300 запросить цену →	2ND04300	SLIDER COVER
39	302ND04970 запросить цену →	2ND04970	SEAL AIR DUCT COVER 35ppm/40ppm/50ppm/60ppm
40	302ND04980 запросить цену →	2ND04980	COVER FILTER EXIT
41	302ND04410 запросить цену →	2ND04410	COVER MAIN SWITCH
42	302ND04A40 запросить цену →	2ND04A40	CUSHION COVER LEFT
43	302FV18540 запросить цену →	2FV18540	SEAL PLATE EARTH 2:Add
101	7BB782308H запросить цену →	BB111300	+TP-FLAT T.T S SCREW 3X8 SR(BLACK)
102	7BB782410H запросить цену →	BB111310	+TP-FLAT T.T S SCREW 4X10 SR(BLACK)
103	7BB282308H запросить цену →	BB111240	+TP-FLAT T.T P SCREW 3X8(BLACK)
104	7BB200308H запросить цену →	BB105660	+BIND T.T P SCREW 3X8
105	7BB687310H запросить цену →	BB115270	+TP-CUP M SCREW 3X10 R(BLACK)
106	7BC00030A080H01 запросить цену →	BC046150	WASHER M3X10X0.8T
107	7BB202308H запросить цену →	BB105690	+TP-FLAT T.T P SCREW 3X8

3. Covers 2

№	Артикул	Альт. артикул	Описание
1	302ND04672 запросить цену →	2ND04672	COVER TRAY BASE 2:Design-chg.
2	302ND04110 запросить цену →	2ND04110	COVER TOP REAR
3	302ND04250 запросить цену →	2ND04250	TRAY INNER UPPER 100V/25ppm(120V)
4	302ND04270 запросить цену →	2ND04270	ACTUATOR TRAY INNER 100V/25ppm(120V)
5	302ND04421 запросить цену →	2ND04421	SPRING ACTUATOR 100V/25ppm(120V) 2:Design-chg.
6	302ND04350 запросить цену →	2ND04350	COVER ACTUATOR 100V/25ppm(120V)
7	302ND04260 запросить цену →	2ND04260	SHAFT TRAY 100V/25ppm(120V)
8	2BC06980 запросить цену →	2BC06980	STOPPER 5 100V/25ppm(120V)
9	302ND04280 запросить цену →	2ND04280	STOPPER PAPER OUTER 100V/25ppm(120V)
10	302ND04290 запросить цену →	2ND04290	STOPPER PAPER INNER 100V/25ppm(120V)
11	302ND04730 ✓ в наличии	2ND04730	COVER INNER
12	302ND04031 запросить цену →	2ND04031	COVER INNER FRONT UP 2:Design-chg.
13	302ND04101 ✓ в наличии	2ND04101	COVER TRAY TOP 3:Others
14	302ND04280 запросить цену →	2ND04280	STOPPER PAPER OUTER
15	302ND04961 запросить цену →	2ND04961	STOPPER PAPER INNER 3:Design-chg.
16	302ND04430 ✓ в наличии	2ND04430	COVER RIGHT LOWER
17	302ND04560 запросить цену →	2ND04560	PLATE COVER LOWER
18	302ND04720 запросить цену →	2ND04720	COVER DP
19	302ND04610 ✓ в наличии	2ND04610	COVER DP B
20	302ND04940 запросить цену →	2ND04940	COVER FILTER
21	302ND33250 ✓ в наличии	2ND33250	FILTER TOP
22	302ND04040 запросить цену →	2ND04040	COVER INNER FRONT LOW 25ppm/32ppm
22	302ND04170 запросить цену →	2ND04170	COVER INNER FRONT HIGH 35ppm/40ppm/50ppm/60ppm
22	302NK04010 запросить цену →	2NK04010	COVER INNER MONO 40ppm(m)/50ppm(m)/60ppm(m)
23	302ND04440 запросить цену →	2ND04440	SHEET DUCT PU
24	302ND04450 запросить цену →	2ND04450	SEAL DUCT PU
25	302LW04260 запросить цену →	2LW04260	SPACER USB
26	302ND04480 ✓ в наличии	2ND04480	SPRING COVER LOCK
27	302HN08140 запросить цену →	2HN08140	LUTCH
28	302H004660 запросить цену →	2H004660	MAGNET CATCH
29	302ND04330 запросить цену →	2ND04330	LEVER SWITCH
30	302ND04390 запросить цену →	2ND04390	SPRING LEVER SWITCH
31	3CY06030 запросить цену →	3CY06030	RETAINER M4
32	302ND04820 ✓ в наличии	2ND04820	COVER OUTER CONTAINER
33	302ND28560 запросить цену →	2ND28560	TRAY INNER SUB 25ppm(230V/240V)/32ppm/35ppm/40ppm/50ppm/
34	302ND34410 запросить цену →	2ND34410	LABEL OPERATION TONER JP 3:Add
34	302ND34420 запросить цену →	2ND34420	LABEL OPERATION TONER ENG 3:Add
101	7BB782308H запросить цену →	BB111300	+TP-FLAT T.T S SCREW 3X8 SR(BLACK)
102	7BB702308H запросить цену →	BB107060	+TP-FLAT T.T S SCREW 3X8 SR

4. Covers 3

№	Артикул	Альт. артикул	Описание
1	302ND34210 запросить цену →	2ND34210	LABEL SW CAUTION JP
1	302ND34220 запросить цену →	2ND34220	LABEL SW CAUTION EN 2:Others
2	302RH05350 запросить цену →	2RH05350	SHEET OPERATION JP
2	302RH05340 запросить цену →	2RH05340	SHEET OPERATION
3	302ND08720 запросить цену →	2ND08720	LABEL MPF SIZE INDICATOR ME 2:Others
3	302ND08710 запросить цену →	2ND08710	LABEL MPF SIZE INDICATOR IN 2:Others
4	302ND34300 запросить цену →	2ND34300	SHEET OPERATION TONER A
5	302ND34310 запросить цену →	2ND34310	SHEET OPERATION TONER B
6	302L734190 запросить цену →	2L734190	LABEL EMBLEM 2552C 25ppm
6	302RL34190 запросить цену →	2RL34190	LABEL EMBLEM 3252C 32ppm
6	302RM34190 запросить цену →	2RM34190	LABEL EMBLEM 4052C 40ppm
6	302RN34190 запросить цену →	2RN34190	LABEL EMBLEM 5052C 50ppm
6	302ND34190 запросить цену →	2ND34190	LABEL EMBLEM 6052C 60ppm
6	302SA34190 запросить цену →	2SA34190	LABEL EMBLEM 4002 40ppm(m)
6	302RJ34190 запросить цену →	2RJ34190	LABEL EMBLEM 5002 50ppm(m)
6	302NK34190 запросить цену →	2NK34190	LABEL EMBLEM 6002 60ppm(m)
6	302TH34190 запросить цену →	2TH34190	LABEL EMBLEM 3552C 35ppm 2:Add
7	302ND09420 запросить цену →	2ND09420	COVER CASSETTE LABEL
8	302ND09430 запросить цену →	2ND09430	COVER CASSETTE LABEL
9	302ND34470 запросить цену →	2ND34470	LABEL SW CAUTION US 2:Others

5. Frame Front (25ppm/32ppm/35ppm/40ppm/50ppm/60ppm)

№	Артикул	Альт. артикул	Описание
1	302ND04750 запросить цену →	2ND04750	COVER CONTAINER Y
2	302ND04760 запросить цену →	2ND04760	COVER CONTAINER C
3	302ND04770 запросить цену →	2ND04770	COVER CONTAINER M
4	302ND04780 запросить цену →	2ND04780	COVER CONTAINER K
5			•302H004660 2H004660 MAGNET CATCH 3:Others
6	302LF12410 запросить цену →	2LF12410	STOPPER 3 3:Others
7	302ND04950 запросить цену →	2ND04950	SHAFT COVER CONTAINER 3:Others
8	302ND94790 ✓ в наличии	2ND94790	PARTS SPEAKER SP
9	302ND04880 запросить цену →	2ND04880	HOLDER KEY POWER
10	302NG94300 ✓ в наличии	2NG94300	PARTS PWB SWITCH ASSY SP 2:Part No-chg.
11	302F931270 запросить цену →	2F931270	SPRING FUSER
12	302ND04870 запросить цену →	2ND04870	KEY POWER
13	302NG04210 запросить цену →	2NG04210	HOLDER MAIN KEY
14	302ND04910 запросить цену →	2ND04910	MOUNT PUSH SW
15			7SP01000004+H01 SP136500 SW.PUSH
16	302ND04320 запросить цену →	2ND04320	MOUNT INTERLOCK
17	2FB27160 ✓ в наличии	2FB27160	INTER LOCK SWITCH
18	302ND04460 запросить цену →	2ND04460	PLATE INTERLOCK
19	302ND04370 запросить цену →	2ND04370	SPRING INTERLOCK
20	302ND04510 запросить цену →	2ND04510	PIN INTERLOCK
21	302GR25241 запросить цену →	2GR25241	PIN GUIDE CHUTE
22	302RH05290 запросить цену →	2RH05290	HOLDER SPEAKER
23	303H321120 запросить цену →	3H321120	CUSHION HOLDER
24	302ND04530 запросить цену →	2ND04530	SPONGE SPEAKER
101	7BB702308H запросить цену →	BB107060	+TP-FLAT T.T S SCREW 3X8 SR
102	7BB200308H запросить цену →	BB105660	+BIND T.T P SCREW 3X8
103	7BB282308H запросить цену →	BB111240	+TP-FLAT T.T P SCREW 3X8(BLACK)

6. Frame Front (40ppm(m)/50ppm(m)/60ppm(m))

№	Артикул	Альт. артикул	Описание
1	302NK04020 запросить цену →	2NK04020	COVER FRONT CONTAINER MONO
2	302NK04030 запросить цену →	2NK04030	REINFORCEMENT INNER COVER
3	302RH05290 запросить цену →	2RH05290	HOLDER SPEAKER
4	302ND04780 запросить цену →	2ND04780	COVER CONTAINER K
5			•302H004660 2H004660 MAGNET CATCH 3:Others
6	302LF12410 запросить цену →	2LF12410	STOPPER 3 3:Others
7	302ND04950 запросить цену →	2ND04950	SHAFT COVER CONTAINER 3:Others
8	302ND94790 ✓ в наличии	2ND94790	PARTS SPEAKER SP
9	302ND04880 запросить цену →	2ND04880	HOLDER KEY POWER
10	302NG94300 ✓ в наличии	2NG94300	PARTS PWB SWITCH ASSY SP 2:Part No-chg.
11	302F931270 запросить цену →	2F931270	SPRING FUSER
12	302ND04870 запросить цену →	2ND04870	KEY POWER
13	302NG04210 запросить цену →	2NG04210	HOLDER MAIN KEY
14	302ND04910 запросить цену →	2ND04910	MOUNT PUSH SW
15			7SP01000004+H01 SP136500 SW.PUSH
16	302ND04320 запросить цену →	2ND04320	MOUNT INTERLOCK
17	2FB27160 ✓ в наличии	2FB27160	INTER LOCK SWITCH
18	302ND04460 запросить цену →	2ND04460	PLATE INTERLOCK
19	302ND04370 запросить цену →	2ND04370	SPRING INTERLOCK
20	302ND04510 запросить цену →	2ND04510	PIN INTERLOCK
21	302GR25241 запросить цену →	2GR25241	PIN GUIDE CHUTE
22	303H321120 запросить цену →	3H321120	CUSHION HOLDER
23	302ND04530 запросить цену →	2ND04530	SPONGE SPEAKER
101	7BB702308H запросить цену →	BB107060	+TP-FLAT T.T S SCREW 3X8 SR
102	7BB200308H запросить цену →	BB105660	+BIND T.T P SCREW 3X8
103	7BB282308H запросить цену →	BB111240	+TP-FLAT T.T P SCREW 3X8(BLACK)

7. Frame Base

№	Артикул	Альт. артикул	Описание
505			102 40ppm(m)/50ppm(m)/60ppm(m))
102			40ppm(m)/ 101 5 A
101			506 50ppm(m)/60ppm(m)
508			3 35ppm/40ppm/
101			4 3 50ppm/60ppm
101			35ppm/40ppm/
1			1 3 50ppm/60ppm/
13			1 3 40ppm(m)/50ppm(m)/
1	302FZ94660	2FZ94660	PARTS,FAN IMAGE SP 40ppm(m)/50ppm(m)/60ppm(m) 2:Part No-chg.
1	302FZ94660	2FZ94660	PARTS,FAN IMAGE SP 35ppm/40ppm/50ppm/60ppm 2:Part No-chg.
2	302ND33210 запросить цену →	2ND33210	DUCT IMAGE A
3	302H719150 запросить цену →	2H719150	SPONGE WIRE
4	302ND33220 запросить цену →	2ND33220	DUCT IMAGE B
5	302L733010 запросить цену →	2L733010	DUCT DLP LOWER FRONT 25ppm/32ppm
6	302ND94330	2ND94330	PARTS PWB DRUM HEATER ASSY SP 25ppm/32ppm/35ppm/40ppm/50ppm/60ppm
7	302NK94090 запросить цену →	2NK94090	PARTS PWB DRUM HEATER ASSY SP 40ppm(m)/50ppm(m)/60ppm(m)
8			•302K994360 2K994360 PARTS FAN COOLING LSU 60 SP
9			•302ND39650 2ND39650 CUSHION AIR FAN
10	302L794060 ✓ в наличии	2L794060	PARTS HINGE L ASSY SP 25ppm/32ppm
11	302ND94130 запросить цену →	2ND94130	PARTS HINGE H_MONO ASSY SP 35ppm/40ppm/50ppm/60ppm/40ppm(m)/50ppm(m)/
12	302L794030 ✓ в наличии	2L794030	PARTS PWB DRUM DLP CONNECT ASSY SP 25ppm/32ppm
12	302ND94070 ✓ в наличии	2ND94070	PARTS PWB DRUM DLP CONNECT ASSY SP 35ppm/40ppm/50ppm/60ppm
12	302NK94020 запросить цену →	2NK94020	PARTS PWB DRUM DLP CONNECT ASSY SP 40ppm(m)/50ppm(m)/60ppm(m)
13	302ND94170 запросить цену →	2ND94170	PARTS RETAINER ASSY SP
14	1902ND0UN0 ✓ в наличии	092ND0UN	WT-8500/WASTE TONER BOTTLE OPTION
101	7BB200308H запросить цену →	BB105660	+BIND T.T P SCREW 3X8
102	7BB702308H запросить цену →	BB107060	+TP-FLAT T.T S SCREW 3X8 SR
103	7BB200322H запросить цену →	BB129220	BIND T.T P SCREW 3X22

8. Frame Top

№	Артикул	Альт. артикул	Описание
502			101 35ppm/40ppm/
503			25ppm/32ppm/
504			35ppm/40ppm/
1	302ND33090 запросить цену →	2ND33090	HOUSING FAN IH COIL
2	302ND33290 запросить цену →	2ND33290	SPONGE HOUSING FAN B
3	302ND33071 запросить цену →	2ND33071	DUCT IH COIL FAN A 2:Design-chg.
4	302ND94590	2ND94590	PARTS FAN CENTER 60 25 SP 25ppm/32ppm,40ppm(m)/50ppm(m)/60ppm(m)
4	302ND94590	2ND94590	PARTS FAN CENTER 60 25 SP 35ppm/40ppm/50ppm/60ppm
5	302ND94290 запросить цену →	2ND94290	PARTS PWB TRANSFER CONNECT ASSY SP
6	302ND33280 запросить цену →	2ND33280	SPONGE HOUSING FAN A
7	302ND94690 запросить цену →	2ND94690	PARTS UNIT HIGH VOLTAGE FUSER SP
8	302L794070	2L794070	PARTS TONER HOPPER L UNIT SP 25ppm/32ppm
8	302ND94190	2ND94190	PARTS TONER HOPPER H UNIT SP 35ppm/40ppm/50ppm/60ppm
9	302NK94030 запросить цену →	2NK94030	PARTS TONER HOPPER MONO UNIT SP 40ppm(m)/50ppm(m)/60ppm(m)
10	302ND39310 запросить цену →	2ND39310	COVER WIRE EJECT
11			7YZM610008++H01 YZ037940 ACCESS.SADDLE
12	302ND15740 запросить цену →	2ND15740	SEAL CONTAINER RAIL 25ppm/32ppm,35ppm/40ppm/50ppm/60ppm
101	7BB702308H запросить цену →	BB107060	+TP-FLAT T.T S SCREW 3X8 SR
102	7BB200308H запросить цену →	BB105660	+BIND T.T P SCREW 3X8
103			2:Del

9. Frame Right

№	Артикул	Альт. артикул	Описание
1	302ND24410 запросить цену →	2ND24410	RAIL SECONDLY TRANSFER F
2			7YZM590001++H01 YZ147500 ACCESS.SPACER
3	302P794010 ✓ в наличии	2P794010	PARTS SENSOR OPT. SP
4	5MMS111SL002 запросить цену →	2BY20050	NUT FUSER A /FS-1800/3800 A4
5	302ND26040 запросить цену →	2ND26040	SPRING IH
6	302LK26050 запросить цену →	2LK26050	CAP SPRING
7	302JF02160 запросить цену →	2JF02160	HANDLE
8	302FZ03110 запросить цену →	2FZ03110	SEAL HANDLE
9	302FZ02580 запросить цену →	2FZ02580	CAP HANDLE
10	302FZ25740 запросить цену →	2FZ25740	STOPPER
11	302ND09300 ✓ в наличии	2ND09300	LEVER SIZE B
12	302ND09290 ✓ в наличии	2ND09290	LEVER SIZE A
13	302ND09280	2ND09280	HOLDER SIDE SWITCH
14			7SP03090001+H01 SP145850 SW.PUSH
15	302ND09310 ✓ в наличии	2ND09310	LEVER SIZE C
16			7SP01000004+H01 SP136500 SW.PUSH
17	302ND09360 ✓ в наличии	2ND09360	MOUNT PAPER SENSOR
18	302ND02490 запросить цену →	2ND02490	MOUNT PF PIN
19	302ND02530 запросить цену →	2ND02530	HOLDER HEATER CONNECTOR
20	302ND94480 ✓ в наличии	2ND94480	PARTS MOTOR LIFT ASSY SP
21	302K931080 запросить цену →	2K931080	WIRE STOPPER
22	302ND39110 запросить цену →	2ND39110	CAP DECK PIN
23	302ND06590 ✓ в наличии	2ND06590	PIN DRIVE MIDDLE
24	302ND06610 ✓ в наличии	2ND06610	GEAR Z29L-Z27L
25	302ND02540 запросить цену →	2ND02540	PLATE COVER HEATER
26			7YZM610007++H01 YZ023340 ACCESS.SADDLE
27	302ND17190 запросить цену →	2ND17190	MOUNT ISU C
28	302ND17290 запросить цену →	2ND17290	MOUNT ISU F
29	302ND24420 запросить цену →	2ND24420	RAIL SECONDLY TRANSFER R
30	302ND29490 запросить цену →	2ND29490	PLATE DAMPER C
31	302ND04630 запросить цену →	2ND04630	FULCRUM-PIN FEED
32	302ND02790 запросить цену →	2ND02790	STOPPER GUIDE PAPER 2:Add
101	7BB702308H запросить цену →	BB107060	+TP-FLAT T.T S SCREW 3X8 SR
102	7BB282308H запросить цену →	BB111240	+TP-FLAT T.T P SCREW 3X8(BLACK)

10. Paper Cassette 1

№	Артикул	Альт. артикул	Описание
1			•302ND09012 2ND09012 CASSETTE BASE 1ST 2:Design-chg.
2			•302ND09030 2ND09030 PLATE PAPER BOTTOM
3			•302ND09040 2ND09040 CURSOR FRONT
4			•302ND09050 2ND09050 COVER CURSOR F
5			•302ND09060 2ND09060 LEVER CURSOR F
6			•302ND09070 2ND09070 SPRING RELEASE CURSOR
7			•302ND09080 2ND09080 RACK CURSOR F
8			•302ND09090 2ND09090 PLATE CURSOR REAR
9			•302ND09110 2ND09110 SHAFT DRIVE LIFT
10			•302ND09120 2ND09120 PLATE LIFTUP
11			•302ND09130 2ND09130 LEVER CURSOR SET
12			•302ND09150 2ND09150 CURSOR END
13			•302ND09160 2ND09160 CURSOR END SUB
14			•302ND09171 2ND09171 ARM SIZE DETECTION 1ST 2:Design-chg.
15			•302ND09190 2ND09190 ACTUATOR PAPER LEVEL
16			•302ND09200 2ND09200 LEVER SIDE SWITCH A
17			•302ND09210 2ND09210 LEVER SIDE SWITCH B
18			•302ND09220 2ND09220 SPRING SIDE SWITCH
19			•302ND09230 2ND09230 SPRING EARTH CASSETTE
20			•302ND09240 2ND09240 LEVER CASSETTE SET
21			•302ND09250 2ND09250 SPRING CASSETTE SET
22			•302ND09260 2ND09260 COVER CASSETTE 1ST
23			•302ND09320 2ND09320 SPRING CURSOR RACK
24			•302ND09330 2ND09330 CURSOR END RACK R
25			•302ND09340 2ND09340 CURSOR END RACK L
26			•302ND09350 2ND09350 SPRING SIZE FIX E
27			•302ND09370 2ND09370 PLATE CASSETTE PINION
28			•302ND09390 2ND09390 HANDLE CASSETTE
29			•302ND09450 2ND09450 REINFORCEMENT HANDLE
30			•302HN09240 2HN09240 SIZE FIX
31			•302K309350 2K309350 STOPPER SIZE SET
32			•302K909260 2K909260 PAD BOTTOM
33			•302GR09991 2GR09991 LIFT LOCK
34			•302HN09190 2HN09190 SPRING FIX
35			•302BM07410 2BM07410 GEAR GUIDE SIDE
36			•303JY37220 3JY37220 STATIC ELIMINATOR CURSOR
37			•302NT09060 2NT09060 SPRING CURSOR SET
38			•302ND34010 2ND34010 LABEL CASSETTE PAPER MAX
39			•302ND34020 2ND34020 LABEL CASSETTE OPERATION A
40			•302ND34040 2ND34040 LABEL CASSETTE CURSOR OPERATION A
41			•302ND34100 2ND34100 LABEL PAPER SIZE E
42			•302ND34070 2ND34070 LABEL PAPER SIZE B
43			•302ND34060 2ND34060 LABEL PAPER SIZE A
101	7BB200308H запросить цену →	BB105660	+BIND T.T P SCREW 3X8
102	7BB000306H запросить цену →	BB106880	+BIND M SCREW 3X6
103	7BB202308H запросить цену →	BB105690	+TP-FLAT T.T P SCREW 3X8
104	7BP00252500JH01 запросить цену →	BP134130	SPRING PIN 2.5X25
105	7BB282308H запросить цену →	BB111240	+TP-FLAT T.T P SCREW 3X8(BLACK) 2:Add

11. Paper Cassette 2

№	Артикул	Альт. артикул	Описание
1			•302ND09023 2ND09023 CASSETTE BASE 2ND 2:Design-chg.
2			•302ND09460 2ND09460 PLATE PAPER BOTTOM 2ND
3			•302ND09040 2ND09040 CURSOR FRONT
4			•302ND09050 2ND09050 COVER CURSOR F
5			•302ND09060 2ND09060 LEVER CURSOR F
6			•302ND09070 2ND09070 SPRING RELEASE CURSOR
7			•302ND09080 2ND09080 RACK CURSOR F
8			•302ND09090 2ND09090 PLATE CURSOR REAR
9			•302ND09110 2ND09110 SHAFT DRIVE LIFT
10			•302ND09120 2ND09120 PLATE LIFTUP
11			•302ND09130 2ND09130 LEVER CURSOR SET
12			•302ND09150 2ND09150 CURSOR END
13			•302ND09160 2ND09160 CURSOR END SUB
14			•302ND09181 2ND09181 ARM SIZE DETECTION 2ND 2:Design-chg.
15			•302ND09190 2ND09190 ACTUATOR PAPER LEVEL
16			•302ND09200 2ND09200 LEVER SIDE SWITCH A
17			•302ND09210 2ND09210 LEVER SIDE SWITCH B
18			•302ND09220 2ND09220 SPRING SIDE SWITCH
19			•302ND09230 2ND09230 SPRING EARTH CASSETTE
20			•302ND09240 2ND09240 LEVER CASSETTE SET
21			•302ND09250 2ND09250 SPRING CASSETTE SET
22			•302ND09270 2ND09270 COVER CASSETTE 2ND
23			•302ND09320 2ND09320 SPRING CURSOR RACK
24			•302ND09330 2ND09330 CURSOR END RACK R
25			•302ND09340 2ND09340 CURSOR END RACK L
26			•302ND09350 2ND09350 SPRING SIZE FIX E
27			•302ND09370 2ND09370 PLATE CASSETTE PINION
28			•302ND09390 2ND09390 HANDLE CASSETTE
29			•302ND09450 2ND09450 REINFORCEMENT HANDLE
30			•302HN09240 2HN09240 SIZE FIX
31			•302K309350 2K309350 STOPPER SIZE SET
32			•302K909260 2K909260 PAD BOTTOM
33			•302GR09991 2GR09991 LIFT LOCK
34			•302HN09190 2HN09190 SPRING FIX
35			•302BM07410 2BM07410 GEAR GUIDE SIDE
36			•303JY37220 3JY37220 STATIC ELIMINATOR CURSOR
37			•302NT09060 2NT09060 SPRING CURSOR SET
38			•302ND34010 2ND34010 LABEL CASSETTE PAPER MAX
39			•302ND34030 2ND34030 LABEL CASSETTE OPERATION B
40			•302ND34050 2ND34050 LABEL CASSETTE CURSOR OPERATION B
41			•302ND34110 2ND34110 LABEL PAPER SIZE F
42			•302ND34340 2ND34340 LABEL PAPER SIZE G
43			•302ND34060 2ND34060 LABEL PAPER SIZE A
44			•302ND34090 2ND34090 LABEL PAPER SIZE D
45			•302ND34080 2ND34080 LABEL PAPER SIZE C
46			•302ND09380 2ND09380 GUIDE PAPER SET SUB
101	7BB200308H запросить цену →	BB105660	+BIND T.T P SCREW 3X8
102	7BB000306H запросить цену →	BB106880	+BIND M SCREW 3X6
103	7BB202308H запросить цену →	BB105690	+TP-FLAT T.T P SCREW 3X8
104	7BP00252500JH01 запросить цену →	BP134130	SPRING PIN 2.5X25
105	7BB282308H запросить цену →	BB111240	+TP-FLAT T.T P SCREW 3X8(BLACK) 2:Add

12. Paper Feed Section 1

№	Артикул	Альт. артикул	Описание
1			•302ND24620 2ND24620 FRAME FEED REGIST
2			•302ND24650 2ND24650 PLATE EARTH MIDDLE
3			•302ND94410 2ND94410 PARTS ROLLER MIDDLE L SP 2:Part No-chg.
4			•302HG24200 2HG24200 BUSH METAL REGIST
5			•302FB09830 2FB09830 CUT WASHER
6			•302ND24660 2ND24660 SPRING HV
7			•302ND24730 2ND24730 HOLDER TORQUE LIMITER
8			•302K906750 2K906750 TORQUE-LIMITER
9			•303NG06320 3NG06320 STOPPER RETARD
10			•5MVX111DN003 2A806250 RING STOPPER/A-49 FEED A4
11			•302RH94090 2RH94090 PARTS CLUTCH 35 Z35R SP 2:Part No-chg.
12			•302K931080 2K931080 WIRE STOPPER
13			•302ND24640 2ND24640 SPRING PROTECTOR REGIST
14			•302ND24630 2ND24630 MOUNT SENSOR REGIST
15			•303NW94040 3NW94040 PARTS SENSOR OPT. SP
16			•302ND24710 2ND24710 PLATE CLEANER REGIST
17			•302ND24670 2ND24670 SHEET REGIST F
18			•302ND24680 2ND24680 SHEET REGIST R
19			•302ND46090 2ND46090 CONN.CORD ASSY MID FEED UNIT 3:Others
101			• 2:Del
20	302ND94020 ✓ в наличии	2ND94020	PARTS CLEANER REGIST ASSY SP
21			2:Del
22			•302ND24730 2ND24730 HOLDER TORQUE LIMITER 35ppm/40ppm/50ppm/60ppm,40ppm(m)/50ppm(m)/
23			•302K906750 2K906750 TORQUE-LIMITER 390 35ppm/40ppm/50ppm/60ppm,40ppm(m)/50ppm(m)/
24			•302K924510 2K924510 GEAR Z24L
25			•302K921120 2K921120 STOPPER
26	302K931970 ✓ в наличии	2K931970	HOLDER BEARING MR126ZZ
27	7BE006124431H01 запросить цену →	BE119720	BEARING MR126ZZ
28	5MVX111DN003	2A806250	RING STOPPER/A-49 FEED A4
29	302RH94090	2RH94090	PARTS CLUTCH 35 Z35R SP 2:Part No-chg.
30	302ND09520 запросить цену →	2ND09520	SLIDER CASSETTE LEFT
31	302ND09570 запросить цену →	2ND09570	SHAFT CASSETTE FRONT 1ST
32	302ND09530 запросить цену →	2ND09530	GUIDE CASSETTE SET
33	302ND09540 запросить цену →	2ND09540	SHAFT CASSETTE FRONT
101	7BP512010B0CH01 запросить цену →	BP126160	PARALLEL PIN 2.0X10
102	7BB702308H запросить цену →	BB107060	+TP-FLAT T.T S SCREW 3X8 SR
103	7BB200308H запросить цену →	BB105660	+BIND T.T P SCREW 3X8
104	7BB700316H запросить цену →	BB106910	+BIND T.T S SCREW 3X16 SR
105	7BB607306H запросить цену →	BB105770	+TP-CUP M SCREW 3X6 R

13. Paper Feed Section 2

№	Артикул	Альт. артикул	Описание
1			•302ND06010 2ND06010 FRAME FEED UPPER
2			•302ND06030 2ND06030 SHAFT PRIMARY FEED
3			•302K906080 2K906080 PIN PICK UP IDLE
4			•302ND06020 2ND06020 HOLDER PICKUP
5			•302ND06040 2ND06040 GEAR Z30 FEED OW
6			•302N406120 2N406120 ONEWAY-CLUTCH
7			••302N406030 2N406030 PULLEY FEED
8			••302ND94340 2ND94340 PARTS PULLEY PICKUP SP
9			••302ND94350 2ND94350 PARTS ROLLER RETARD ASSY SP
10			•302N406070 2N406070 SHAFT PICKUP PRIMARY
11			•302K924820 2K924820 CUT-WASHER
12			•2BC06520 2BC06520 BUSHING 6,REGISTRATION
13			•302ND06060 2ND06060 GEAR Z32 FEED
14			•302ND06240 2ND06240 GUIDE PRIMARY FEED SUB
15			•302ND06100 2ND06100 SPRING PICKUP RELEASE
16			•302ND06090 2ND06090 LEVER PICKUP RELEASE
17			•302ND06220 2ND06220 LEVER FEED LOCK
18			•302ND06230 2ND06230 SPRING FEED LOCK
19			•302ND06160 2ND06160 LEVER RETARD
20			•302ND06150 2ND06150 SPRING RETARD
21			•302ND06180 2ND06180 LEVER RETARD RELEASE
22			•302ND06190 2ND06190 SPRING RETARD RELEASE
23			•302ND06140 2ND06140 SHAFT RETARD
24			•302ND06130 2ND06130 HOLDER RETARD
25			•302ND06050 2ND06050 GEAR Z24 PICKUP
26			•302ND06250 2ND06250 PULLEY RETARD ROTATION W
27			•302ND06260 2ND06260 PULLEY RETARD ROTATION B
28			•302ND06170 2ND06170 PLATE RETARD ADJUST
29			•302ND06070 2ND06070 ACTUATOR PAPER EMPTY
30			•302ND06080 2ND06080 SPRING PICKUP
31	302ND06780 запросить цену →	2ND06780	FILM FEED LOW B
32	302ND06520 ✓ в наличии	2ND06520	GUIDE PRIMARY FEED A
33	302ND06660 запросить цену →	2ND06660	FILM FEED LOW
34	302ND34270 запросить цену →	2ND34270	LABEL A3
35	302ND06530 ✓ в наличии	2ND06530	GUIDE PRIMARY FEED B
101	7BB200308H запросить цену →	BB105660	+BIND T.T P SCREW 3X8

14. Paper Feed Section 3

№	Артикул	Альт. артикул	Описание
1	302ND94320 запросить цену →	2ND94320	PARTS PWB RETARD SENSOR ASSY SP
2	302P794010 ✓ в наличии	2P794010	PARTS SENSOR OPT. SP
3			7YZM610007++H01 YZ023340 ACCESS.SADDLE
4			7YZM610008++H01 YZ037940 ACCESS.SADDLE
5	302K931080 запросить цену →	2K931080	WIRE STOPPER
6	302K329020	2K329020	PULLEY DU
7	302ND06790 запросить цену →	2ND06790	MOUNT COVER STRAP
8	302ND06770 запросить цену →	2ND06770	MOUNT FULCRUM
9	302ND06800 запросить цену →	2ND06800	MOUNT FULCRUM R
10	302H431070 запросить цену →	2H431070	BUSH DRIVE
11	302ND06680 запросить цену →	2ND06680	JOINT SHAFT EW
12	302FB09830	2FB09830	CUT WASHER
13	302ND94370 ✓ в наличии	2ND94370	PARTS ROLLER FEED LOW B SP
14	302K329270 запросить цену →	2K329270	BUSH DU
15	302HN31590 запросить цену →	2HN31590	BUSH DRIVE
16	302ND06761 запросить цену →	2ND06761	MOUNT SENSOR 2:Design-chg.
17	302ND06570 ✓ в наличии	2ND06570	ACTUATOR FEED LOW
18	302ND06720 запросить цену →	2ND06720	SPRING ACTUATOR PI
19	302ND06640 запросить цену →	2ND06640	MOUNT SENSOR OPT B
20	302ND09510 запросить цену →	2ND09510	SLIDER CASSETTE RIGHT
101	7BB200308H запросить цену →	BB105660	+BIND T.T P SCREW 3X8
102	7BB200410H запросить цену →	BB105700	+BIND T.T P SCREW 4X10
103	7BB200312H запросить цену →	BB105680	+BIND T.T P SCREW 3X12

15. Paper Feed Section 4

№	Артикул	Альт. артикул	Описание
1			•302ND08100 2ND08100 COVER MPF 2:Quantity-chg.
2			•302ND08111 2ND08111 TABLE MPF 2:Design-chg.
3			•302ND08120 2ND08120 BASE LIFT MPF
4			•302ND08171 2ND08171 TRAY MPF A 2:Design-chg.
5			•302ND08181 2ND08181 TRAY MPF B 2:Design-chg.
6			•302ND08150 2ND08150 PLATE BOTTOM MPF
7			•302ND08140 2ND08140 CURSOR MPF R
8			•302ND08130 2ND08130 CURSOR MPF F
9			•302ND08200 2ND08200 HOLDER DETECTION
10			•302ND08210 2ND08210 GEAR DETECTION
11			•302ND08220 2ND08220 GEAR 18 BYPASS
12			•303R394050 3R394050 PARTS PWB PAPER SIZE SENSOR ASSY SP
13			•302ND46150 2ND46150 CONN.CORD ASSY MPF TABLE
14			•302ND08820 2ND08820 PAD BOTTOM
15			•302P794010 2P794010 PARTS SENSOR OPT. SP
16			•302K908211 2K908211 ACTUATOR SIZE DETECTION
17			•302K908220 2K908220 SPRING-TORSION SIZE DETECTION
18			•7SP01000004+H01 SP136500 SW.PUSH
19			•302R408230 2R408230 STRAP LINK MPF
20			•302R408220 2R408220 STOPPER BYPASS TABLE
21			•302ND08830 2ND08830 SPRING BYPASS TABLE F
22			•302H708150 2H708150 SPONGE WIRE MPT
23			•302ND08700 2ND08700 LABEL MPF PAPER LIMIT
24			•302ND08740 2ND08740 LABEL OPERATION
25			•302FB09830 2FB09830 CUT WASHER
26			•302R408170 2R408170 STOPPER MULTI 2:Add
101	7BB282308H запросить цену →	BB111240	+TP-FLAT T.T P SCREW 3X8(BLACK)
102			2:Del
103			2:Del

16. Paper Conveying Section 1

№	Артикул	Альт. артикул	Описание
1			•302ND29010 2ND29010 COVER RIGHT
2			•302NG08250 2NG08250 BUSH
3			•302ND08390 2ND08390 ACTUATOR PAPER SET
4			•302ND08560 2ND08560 ACTUATOR PAPER LINK
5			•302ND08300 2ND08300 SHAFT FEED MPF
6			•302HN31660 2HN31660 JOINT SHAFT CASSETTE
7			•302H024370 2H024370 BUSH 6 EW
8			•302ND08590 2ND08590 BUSH 6 R
9			•302ND08670 2ND08670 CUT-WASHER
10			•302ND08580 2ND08580 MOUNT PI
11			•302P794010 2P794010 PARTS SENSOR OPT. SP
12			•302ND29600 2ND29600 HOLDER SENSOR MPF
13			•302K994580 2K994580 PARTS SENSOR OPT. SP
14			•302ND08880 2ND08880 WIRE MPF
15			•302ND08920 2ND08920 HOOK WIRE MPF
16			•302ND29320 2ND29320 COVER SIDE DECK
17			•302ND46650 2ND46650 CONN.CORD ASSY MPF SET SENSOR
18	302ND29170 ✓ в наличии	2ND29170	STRAP RIGHT COVER A
19	302ND29610 ✓ в наличии	2ND29610	STRAP RIGHT COVER B
101	7BB200308H запросить цену →	BB105660	+BIND T.T P SCREW 3X8
102	7BB607306H запросить цену →	BB105770	+TP-CUP M SCREW 3X6 R 2:Others

17. Paper Conveying Section 2

Каталог очень большой — показана первая часть. Полная версия доступна в интерактивном каталоге.

№	Артикул	Альт. артикул	Описание
1			•302ND29021 2ND29021 GUIDE DU RIGHT 2:Design-chg.
2			•302ND29720 2ND29720 SHEET GUIDE DU
3			•302ND29280 2ND29280 SHAFT FEED
4			•302ND29260 2ND29260 PULLEY FEED
5			•302ND29300 2ND29300 SPRING-COMPRESSION PULLEY FEED
6			•302ND24290 2ND24290 CAP SPRING
7			•302ND29630 2ND29630 CAP HOLDER SHAFT
8			•302ND29040 2ND29040 GUIDE DU UPPER LEFT
9			•302ND29390 2ND29390 HOLDER PULLEY DU
10			•302ND34280 2ND34280 LABEL A4
11			•5MVL177DN001 177DN001 RING STOPPER
12			•302ND94450 2ND94450 PARTS ROLLER DU UP SP
13			•302ND29450 2ND29450 PLATE EARTH DU UPPER
14			•302H024370 2H024370 BUSH 6 EW
15			•302LF28342 2LF28342 PULLEY P18-S2M
16			•5MVX111DN003 111DN003 RING STOPPER/A-49 FEED A4
17			•302K329270 2K329270 BUSH DU
18			•5MVX111DN007 111DN007 STOPPER 3/2BT1107 A4
19			•302FZ07540 2FZ07540 HOLDER SHAFT OUT
20			•302ND08670 2ND08670 CUT-WASHER
