Содержание
- 1. Covers
- 2. Paper Cassette (Multi purpose feeder)
- 3. Paper Cassette (Paper feeder)
- 4. Drive Section (Multi purpose feeder)
- 5. Drive Section (Paper feeder)
- 6. Option (CA-500)

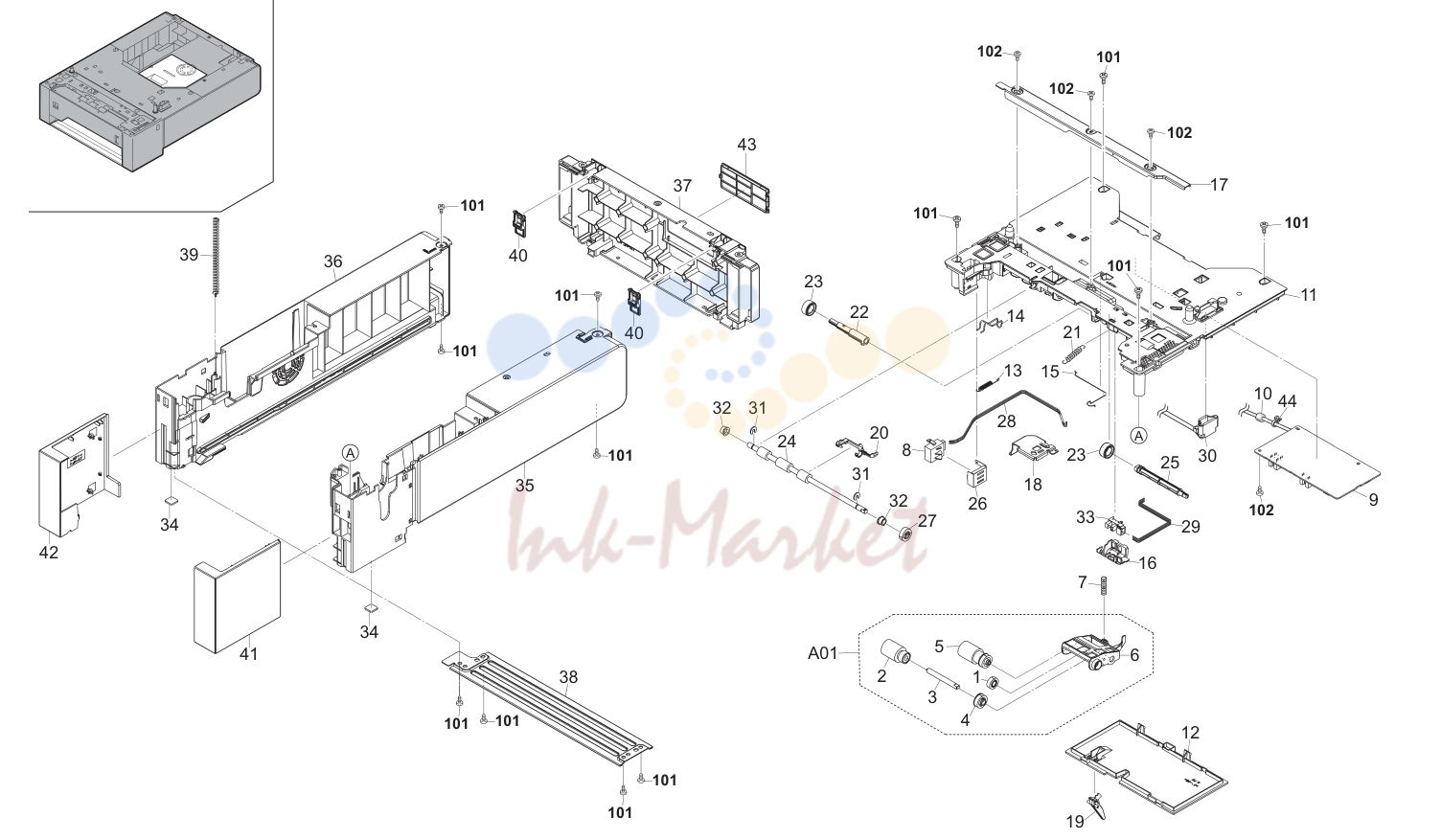

1. Covers
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | •302F906030 2F906030 GEAR FEED Z26H 1 1 1 1 102 BAA63080 BAA63080 +TP TAP-TITE P SCREW M3X08 | ||
| 2 | •302F906230 2F906230 PULLEY FEED ASSY | ||
| 3 | •302F906272 2F906272 SHAFT FEED L | ||
| 4 | •302F906280 2F906280 GEAR FEED Z30H | ||
| 5 | •302HN06080 2HN06080 PULLEY PICKUP ASSY | ||
| 6 | •303K906010 3K906010 HOLDER FEED | ||
| 7 | 303K806150 запросить цену → | 3K806150 | SPRING PICK UP |
| 10 | 3HK27050 запросить цену → | 3HK27050 | CORE 8-16X10 |
| 18 | 303K802190 запросить цену → | 3K802190 | PLATE FOOT |
| 25 | 303K806090 запросить цену → | 3K806090 | SHAFT FEED R |
| 27 | 303K831070 ✓ в наличии | 3K831070 | GEAR Z17R MIDDLE |
| 32 | 5MVM176DN016 запросить цену → | 2BR20170 | BUSH A /45309P0135 A4 |
| 44 | 7YZM420003++H01 YZ052580 ACCESS.BAND |

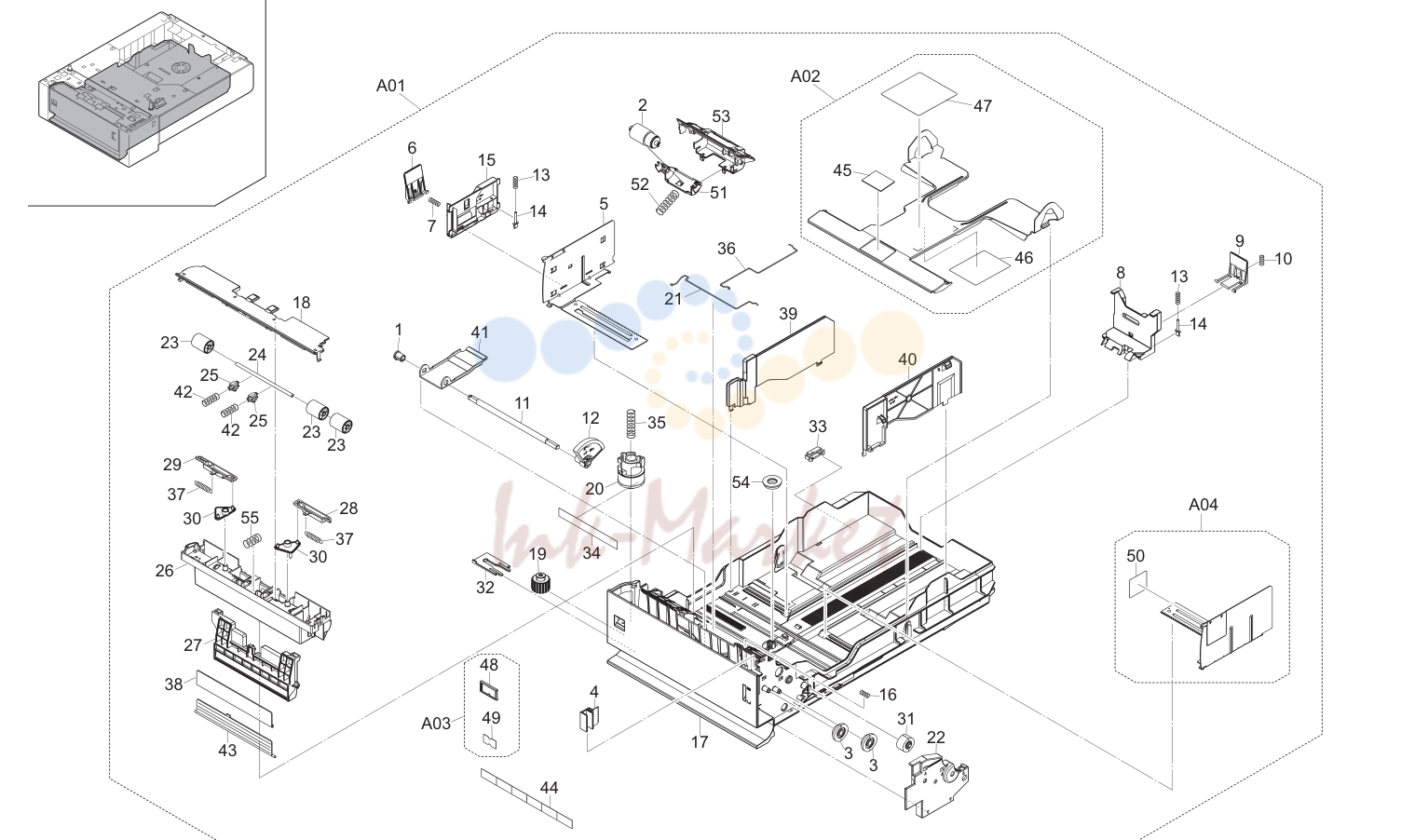

2. Paper Cassette (Multi purpose feeder)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | •302F909160 2F909160 BUSH LIFT 6 1 1 1 1 49 ••303K809450 3K809450 TAPE CASE SIZE | ||
| 2 | •302F909170 2F909170 RETARD ROLLER ASSY 1 1 1 1 (cid:27) A04 •303K894060 3K894060 CURSOR RIGHT PF ASSY | ||
| 3 | •302HN09030 2HN09030 GEAR Z20S-Z17S INDICATOR 2 2 2 2 50 ••303K834030 3K834030 LABEL CURSOR | ||
| 4 | •302HN09041 2HN09041 MARKER INDICATOR 1 1 1 1 51 •303K909010 3K909010 HOLDER RETARD N | ||
| 5 | •302HN09070 2HN09070 CURSOR LEFT 1 1 1 1 52 •303K909020 3K909020 SPRING RETARD N | ||
| 6 | •302HN09090 2HN09090 LEVER GUIDE SIDE 1 1 1 1 53 •303K909030 3K909030 GUIDE RETARD N | ||
| 7 | •302HN09100 2HN09100 SPRING GUIDE SIDE 1 1 1 1 54 •5MVG127DB046 2B700190 GEAR CASSETTE /FS-1200 A4 | ||
| 8 | •302HN09110 2HN09110 CURSOR END 1 1 1 1 55 •73818100 73818100 SPRING, BLADE THRUST | ||
| 9 | •302HN09120 2HN09120 LEVER STOPPER | ||
| 10 | •302HN09130 2HN09130 SPRING STOPPER | ||
| 11 | •302HN09150 2HN09150 SHAFT WORKPLATE | ||
| 12 | •302HN09160 2HN09160 GEAR Z50S LIFT | ||
| 13 | •302HN09190 2HN09190 SPRING FIX | ||
| 14 | •302HN09240 2HN09240 SIZE FIX | ||
| 15 | •302HN09350 2HN09350 CURSOR LEFT B | ||
| 17 | •303K809010 3K809010 BASE CASSETTE | ||
| 18 | •303K809020 3K809020 COVER CASSETTE | ||
| 19 | •303K809040 3K809040 DIAL CASSETTE SUB | ||
| 20 | •303K809050 3K809050 DIAL CASSETTE | ||
| 21 | •303K809090 3K809090 SPRING EARTH | ||
| 22 | •303K809120 3K809120 COVER LIFT GEAR | ||
| 23 | •303K809130 3K809130 PULLEY MID IDLE | ||
| 24 | •303K809140 3K809140 SHAFT MID MP | ||
| 25 | •303K809170 3K809170 STOPPER SPRING FEED | ||
| 26 | •303K809270 3K809270 GUIDE CASSETTE | ||
| 27 | •303K809280 3K809280 HANDLE CASSETTE | ||
| 28 | •303K809290 3K809290 HOOK RIGHT | ||
| 29 | •303K809300 3K809300 HOOK LEFT | ||
| 30 | •303K809310 3K809310 LEVER HOOK | ||
| 31 | •303K809321 3K809321 GEAR JOINT Z13 | ||
| 32 | •303K809330 3K809330 DIAL CASSETTE LOCK | ||
| 33 | •303K809360 3K809360 STOPPER CASSETTE B | ||
| 34 | •303K809370 3K809370 LABEL DIAL PF | ||
| 39 | •303K809470 3K809470 CURSOR LEFT SUB | ||
| 40 | •303K809480 3K809480 CURSOR RIGHT SUB | ||
| 41 | •303K809490 3K809490 WORKPLATE LIFT PF | ||
| 42 | •303K809520 3K809520 SPRING MID IDLE M | ||
| 43 | •303K809530 3K809530 FLAPPER HANDLE | ||
| 44 | •303K834020 3K834020 LABEL PAPER | ||
| 45 | ••302F909210 2F909210 PAD BOTTOM | ||
| 46 | ••303K809510 3K809510 SHEET PLATE | ||
| 47 | ••303K834010 3K834010 LABEL OPERATION M |

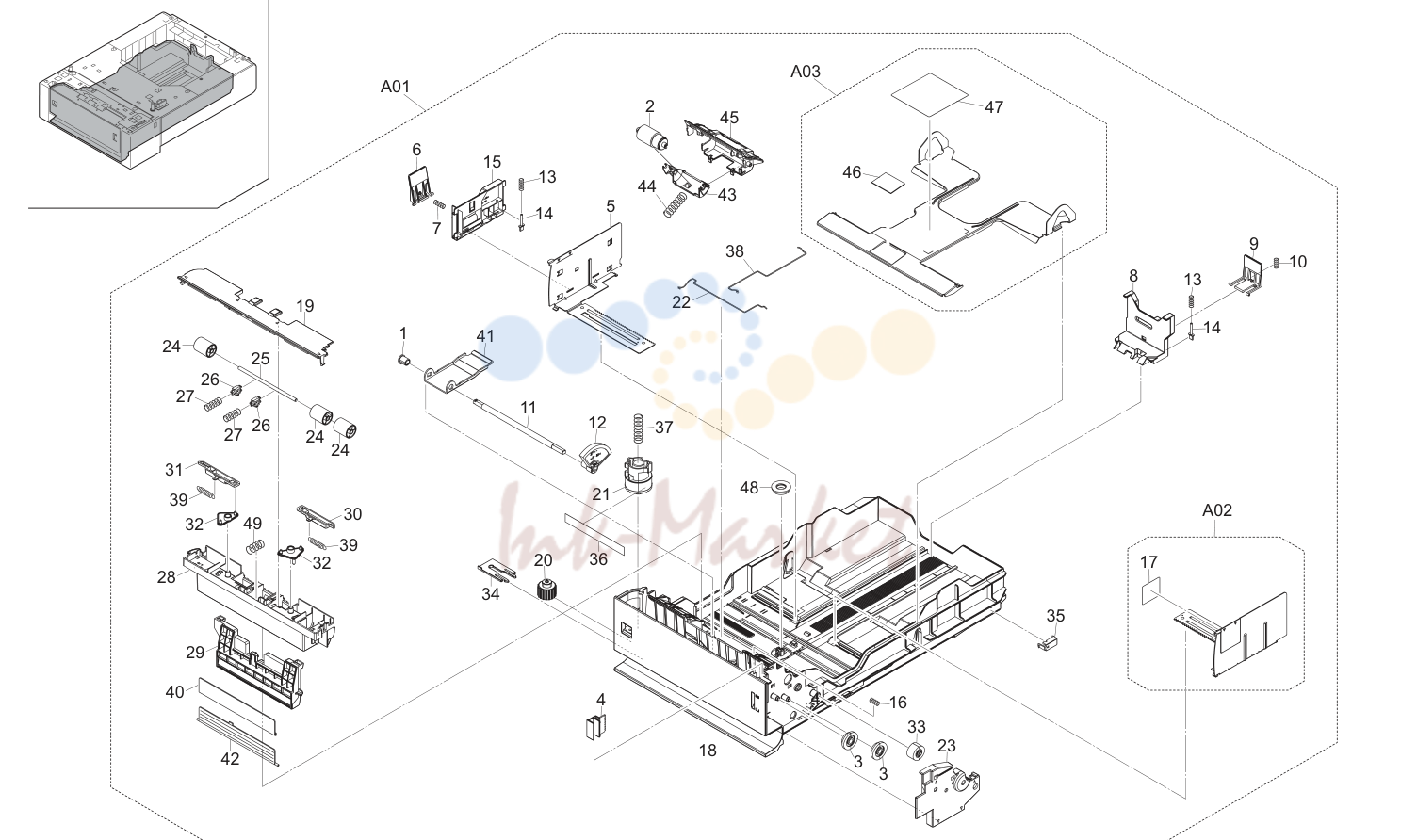

3. Paper Cassette (Paper feeder)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | •302F909160 2F909160 BUSH LIFT 6 1 1 1 1 49 •73818100 73818100 SPRING, BLADE THRUST | ||
| 2 | •302F909170 2F909170 RETARD ROLLER ASSY | ||
| 3 | •302HN09030 2HN09030 GEAR Z20S-Z17S INDICATOR | ||
| 4 | •302HN09041 2HN09041 MARKER INDICATOR | ||
| 5 | •302HN09070 2HN09070 CURSOR LEFT | ||
| 6 | •302HN09090 2HN09090 LEVER GUIDE SIDE | ||
| 7 | •302HN09100 2HN09100 SPRING GUIDE SIDE | ||
| 8 | •302HN09110 2HN09110 CURSOR END | ||
| 9 | •302HN09120 2HN09120 LEVER STOPPER | ||
| 10 | •302HN09130 2HN09130 SPRING STOPPER | ||
| 11 | •302HN09150 2HN09150 SHAFT WORKPLATE | ||
| 12 | •302HN09160 2HN09160 GEAR Z50S LIFT | ||
| 13 | •302HN09190 2HN09190 SPRING FIX | ||
| 14 | •302HN09240 2HN09240 SIZE FIX | ||
| 15 | •302HN09350 2HN09350 CURSOR LEFT B | ||
| 17 | ••302HN09420 2HN09420 LABEL CURSOR | ||
| 18 | •303K809010 3K809010 BASE CASSETTE | ||
| 19 | •303K809020 3K809020 COVER CASSETTE | ||
| 20 | •303K809040 3K809040 DIAL CASSETTE SUB | ||
| 21 | •303K809050 3K809050 DIAL CASSETTE | ||
| 22 | •303K809090 3K809090 SPRING EARTH | ||
| 23 | •303K809120 3K809120 COVER LIFT GEAR | ||
| 24 | •303K809130 3K809130 PULLEY MID IDLE | ||
| 25 | •303K809140 3K809140 SHAFT MID MP | ||
| 26 | •303K809170 3K809170 STOPPER SPRING FEED | ||
| 27 | •303K809220 3K809220 SPRING MID IDLE | ||
| 28 | •303K809270 3K809270 GUIDE CASSETTE | ||
| 29 | •303K809280 3K809280 HANDLE CASSETTE | ||
| 30 | •303K809290 3K809290 HOOK RIGHT | ||
| 31 | •303K809300 3K809300 HOOK LEFT | ||
| 32 | •303K809310 3K809310 LEVER HOOK | ||
| 33 | •303K809321 3K809321 GEAR JOINT Z13 | ||
| 34 | •303K809330 3K809330 DIAL CASSETTE LOCK | ||
| 35 | •303K809360 3K809360 STOPPER CASSETTE B | ||
| 36 | •303K809370 3K809370 LABEL DIAL PF | ||
| 41 | •303K809490 3K809490 WORKPLATE LIFT PF | ||
| 42 | •303K809530 3K809530 FLAPPER HANDLE | ||
| 43 | •303K909010 3K909010 HOLDER RETARD N | ||
| 44 | •303K909020 3K909020 SPRING RETARD N | ||
| 45 | •303K909030 3K909030 GUIDE RETARD N | ||
| 46 | ••302F909210 2F909210 PAD BOTTOM | ||
| 47 | ••303K934010 3K934010 LABEL OPERATION N |

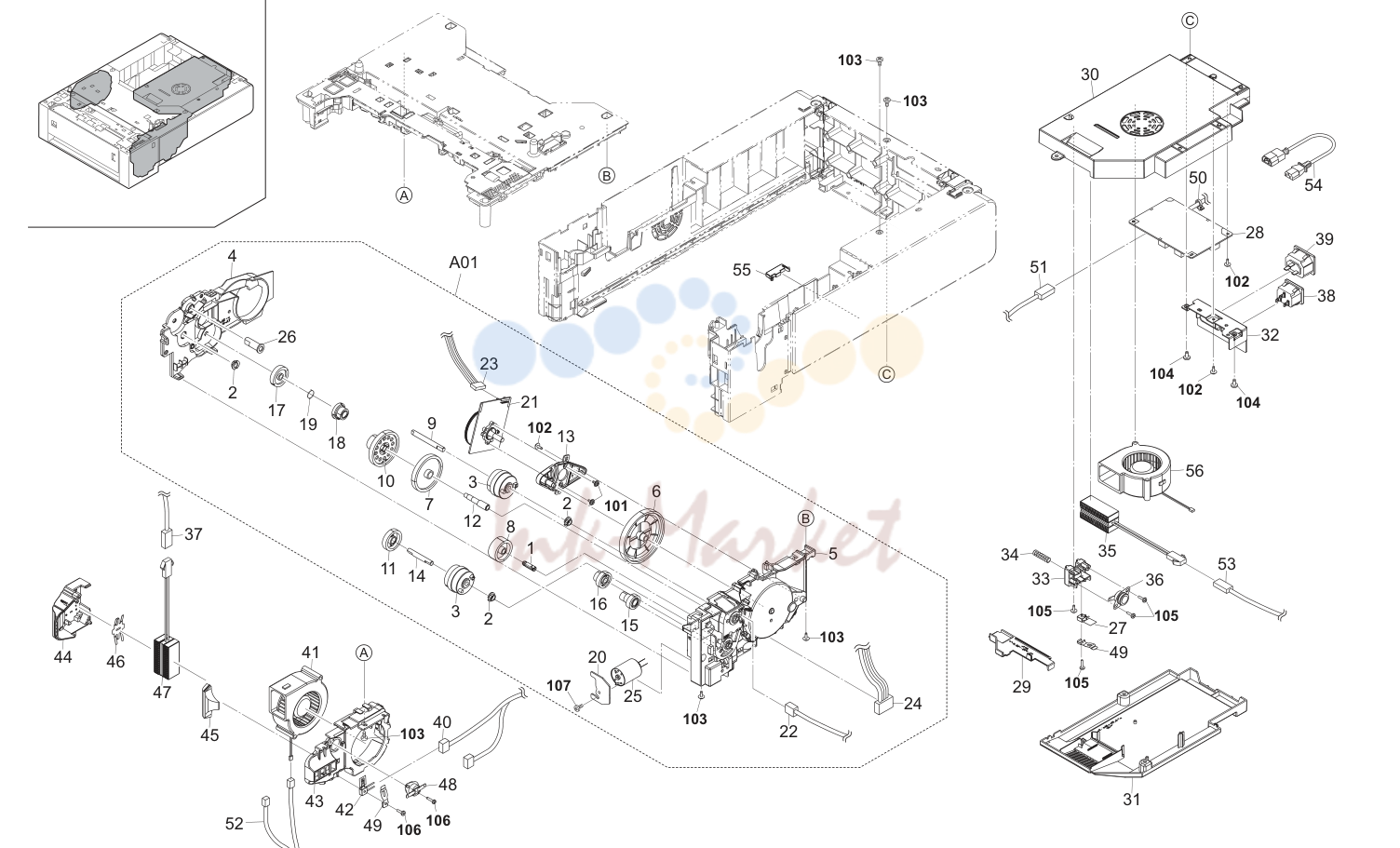

4. Drive Section (Multi purpose feeder)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | •302HN31390 2HN31390 PIN DRIVE DLP 1 1 1 1 (cid:27) 48 303K845010 3K845010 THERMOSTAT FEED | ||
| 4 | •303K831010 3K831010 LID HOUSING DRIVE 1 1 1 1 (cid:27) 51 303K846080 3K846080 WIRE HEATER PWB | ||
| 5 | •303K831020 3K831020 HOUSING DRIVE 1 1 1 1 (cid:27) 52 303K846090 3K846090 WIRE FAN | ||
| 7 | •303K831040 3K831040 GEAR Z58L 1 1 1 1 (cid:27) 54 3065027601 65027601 POWER CORD | ||
| 8 | •303K831060 3K831060 GEAR Z35L 1 1 1 1 (cid:27) 54 303K894080 3K894080 AC CORD 120 ASSY SP | ||
| 9 | •303K831080 3K831080 SHAFT FEED CLUTCH 1 1 1 1 (cid:27) 54 303K894090 3K894090 AC CORD 200 ASSY SP | ||
| 10 | •303K831100 3K831100 GEAR Z57S/Z13S JOINT 1 1 1 1 (cid:27) 55 303K802160 3K802160 STOPPER CASSETTE A | ||
| 11 | •303K831110 3K831110 GEAR Z30R 1 1 1 1 (cid:27) 56 302FZ44020 2FZ44020 FAN COOLING DLP | ||
| 12 | •303K831190 3K831190 PIN DRIVE B | ||
| 13 | •303K831220 3K831220 MOUNT MOTOR | ||
| 14 | •303K831250 3K831250 SHAFT MIDDLE CLUTCH | ||
| 15 | •303K831261 3K831261 GEAR Z36R Z20S | ||
| 16 | •303K831280 3K831280 GEAR Z41S Z14S | ||
| 20 | •303K831330 3K831330 PLATE MOTOR 1 1 1 1 104 B9604060 B9604060 GROUNDING SCREW M4X6 (BRASS,N;) | ||
| 26 | •303K931010 3K931010 JOINT FEED | ||
| 29 | 303K802180 запросить цену → | 3K802180 | COVER WIRE |
| 30 | 303K807010 запросить цену → | 3K807010 | BASE FAN |
| 31 | 303K807020 запросить цену → | 3K807020 | COVER FAN |
| 32 | 303K807050 запросить цену → | 3K807050 | MOUNT INLET OUTLET |
| 33 | 303K807060 запросить цену → | 3K807060 | BASE THERMOCUT |
| 34 | 303K807090 запросить цену → | 3K807090 | SPRING THERMOCUT |
| 43 | 303K807030 запросить цену → | 3K807030 | DUCT SIDE FAN |
| 44 | 303K807040 запросить цену → | 3K807040 | DUCT SIDE COVER |
| 45 | 303K807110 запросить цену → | 3K807110 | INNER DUCT |
| 46 | 303K807080 запросить цену → | 3K807080 | SPRING PLATE HEATER |

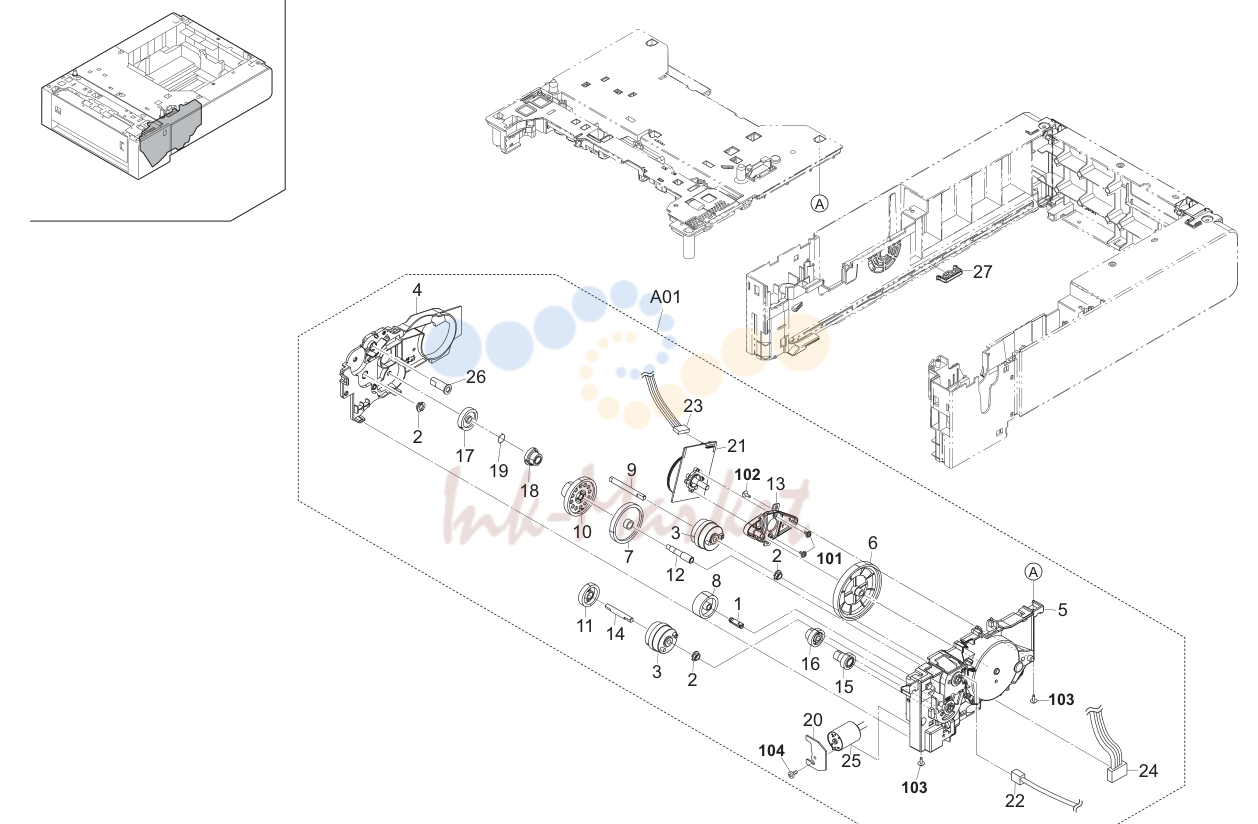

5. Drive Section (Paper feeder)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | •302HN31390 2HN31390 PIN DRIVE DLP 1 1 1 1 102 BAA63080 BAA63080 +TP TAP-TITE P SCREW M3X08 | ||
| 4 | •303K831010 3K831010 LID HOUSING DRIVE | ||
| 5 | •303K831020 3K831020 HOUSING DRIVE | ||
| 7 | •303K831040 3K831040 GEAR Z58L | ||
| 8 | •303K831060 3K831060 GEAR Z35L | ||
| 9 | •303K831080 3K831080 SHAFT FEED CLUTCH | ||
| 10 | •303K831100 3K831100 GEAR Z57S/Z13S JOINT | ||
| 11 | •303K831110 3K831110 GEAR Z30R | ||
| 12 | •303K831190 3K831190 PIN DRIVE B | ||
| 13 | •303K831220 3K831220 MOUNT MOTOR | ||
| 14 | •303K831250 3K831250 SHAFT MIDDLE CLUTCH | ||
| 15 | •303K831261 3K831261 GEAR Z36R Z20S | ||
| 16 | •303K831280 3K831280 GEAR Z41S Z14S | ||
| 20 | •303K831330 3K831330 PLATE MOTOR | ||
| 26 | •303K931010 3K931010 JOINT FEED |

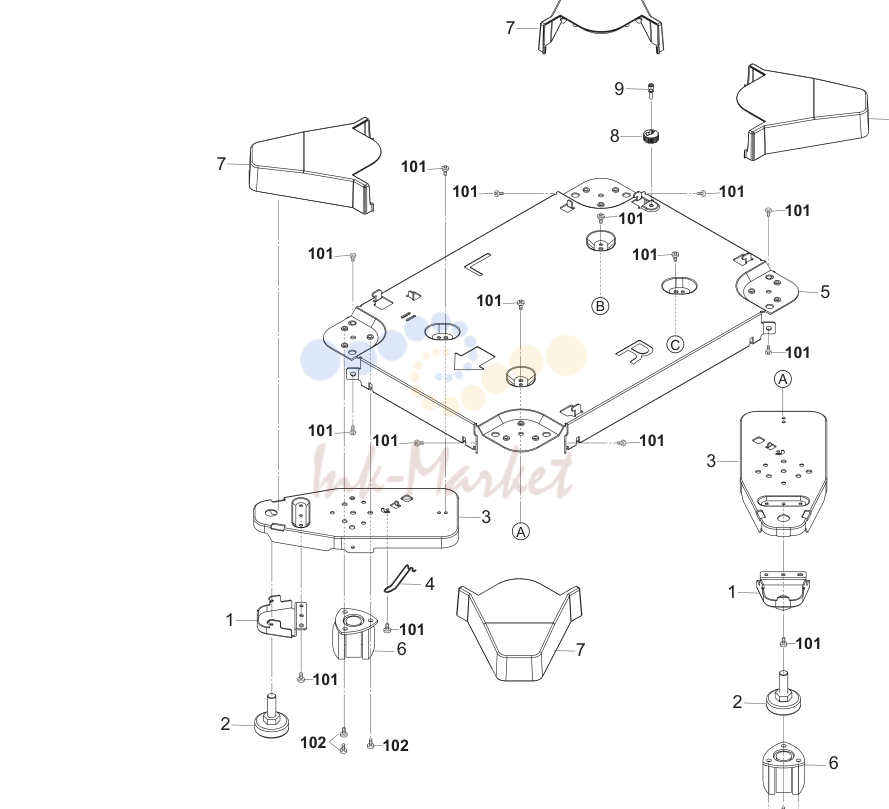

6. Option (CA-500)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 303K802220 запросить цену → | 3K802220 | MOUNT FOOT CA 4 4 4 4 101 B1A54080 B1A54080 +BIND TAP-TITE S SCREW M4X08 |
| 2 | 66502120 запросить цену → | 66502120 | BOLT,LEVEL 4 4 4 4 102 B1A25100 B1A25100 +BINDING SCREW WITH SW.W M5X10 |
| 3 | 303K802210 запросить цену → | 3K802210 | MOUNT ADJUSTER CA |
| 4 | 303K802231 запросить цену → | 3K802231 | SPRING EARTH CA |
| 5 | 303K802200 запросить цену → | 3K802200 | BASE CA |
| 6 | 302A002171 запросить цену → | 2A002171 | CASTER UA |
| 7 | 303K804030 запросить цену → | 3K804030 | COVER CA |
| 8 | 302FB12901 запросить цену → | 2FB12901 | CAP PIN |
| 9 | 303K802240 запросить цену → | 3K802240 | PIN LOCK |
