Kyocera KM-4850W — каталог запчастей со схемами

Содержание

1. EXTERIOR COVERS I 2A7
2. EXTERIOR COVERS II 2A7
3. FRAMES 2A7
4. PAPER FEED-IN SECTION I 2A7
5. PAPER FEED-IN SECTION II (roll unit) 2A7
6. EJECT SECTION 2A7

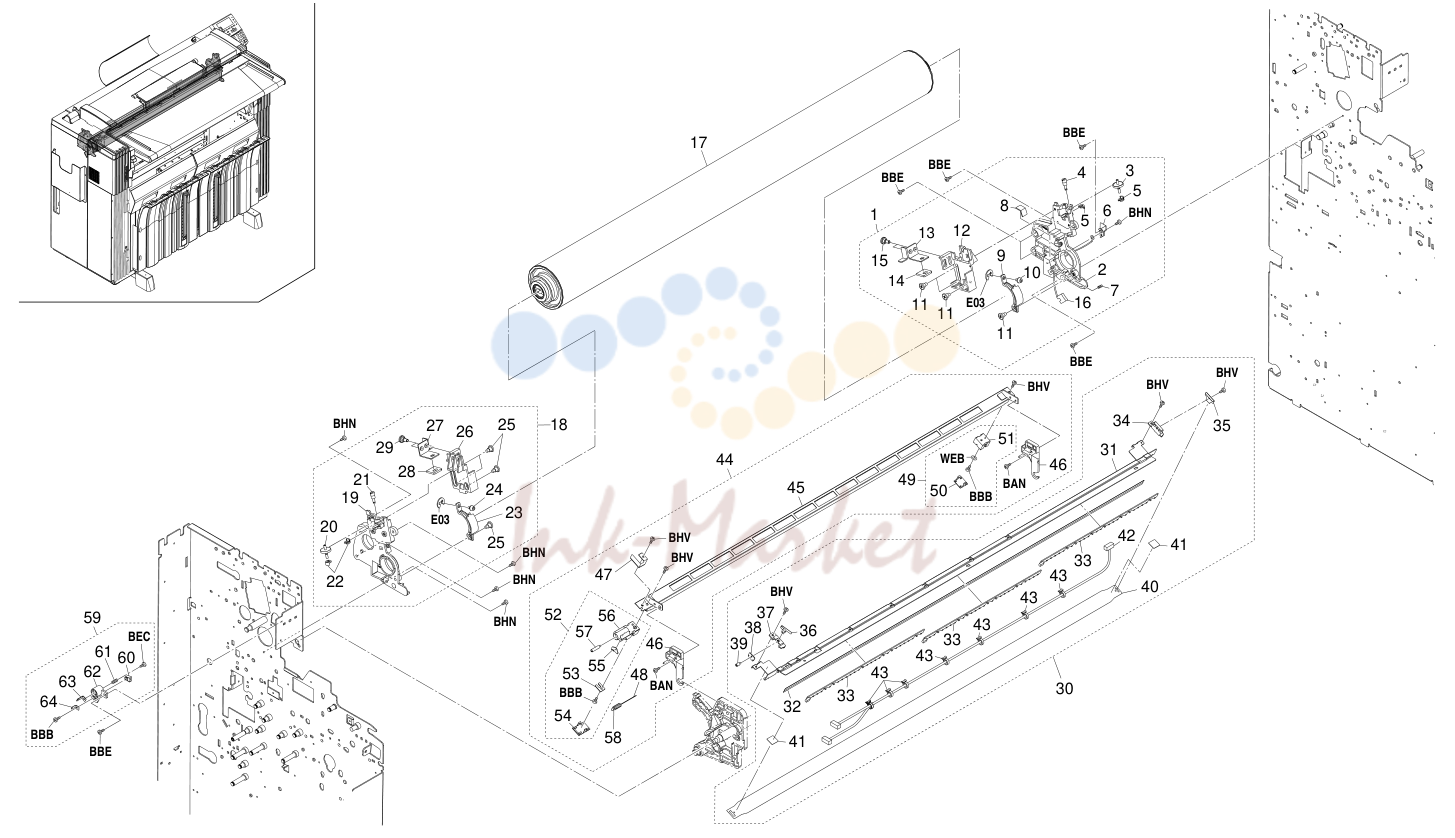

7. IMAGING UNIT I 2A7

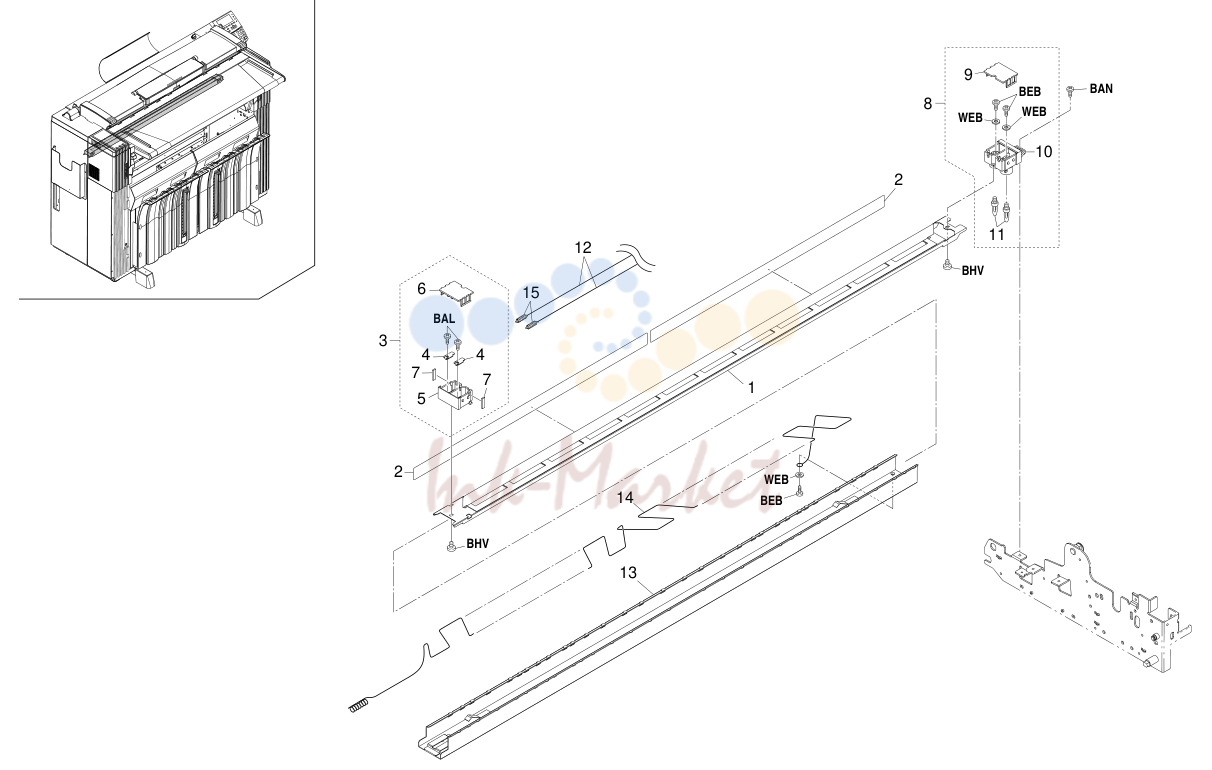

8. IMAGING UNIT II 2A7

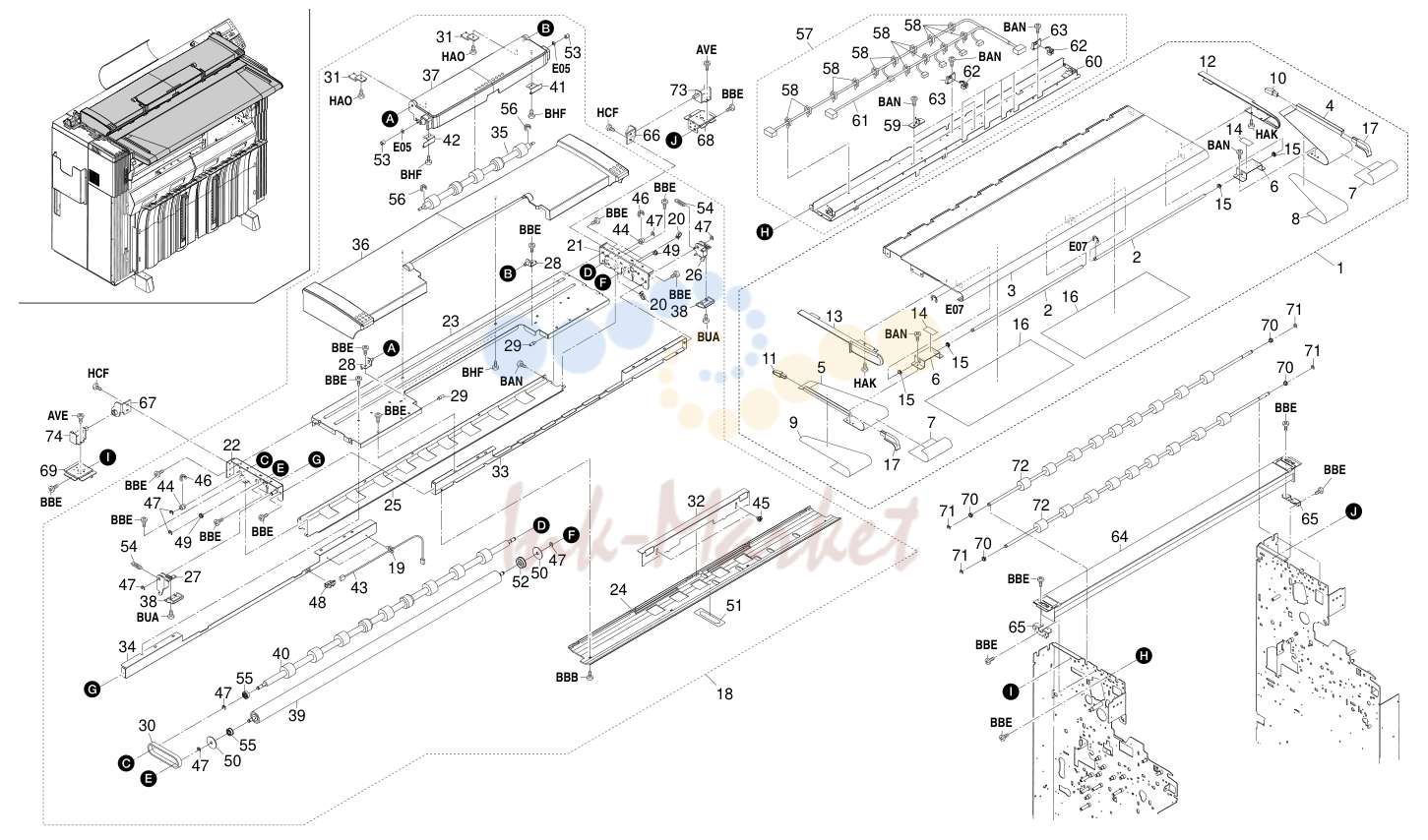

9. ORIGINAL HOLDER 2A7
10. OPTICAL SECTION 2A7

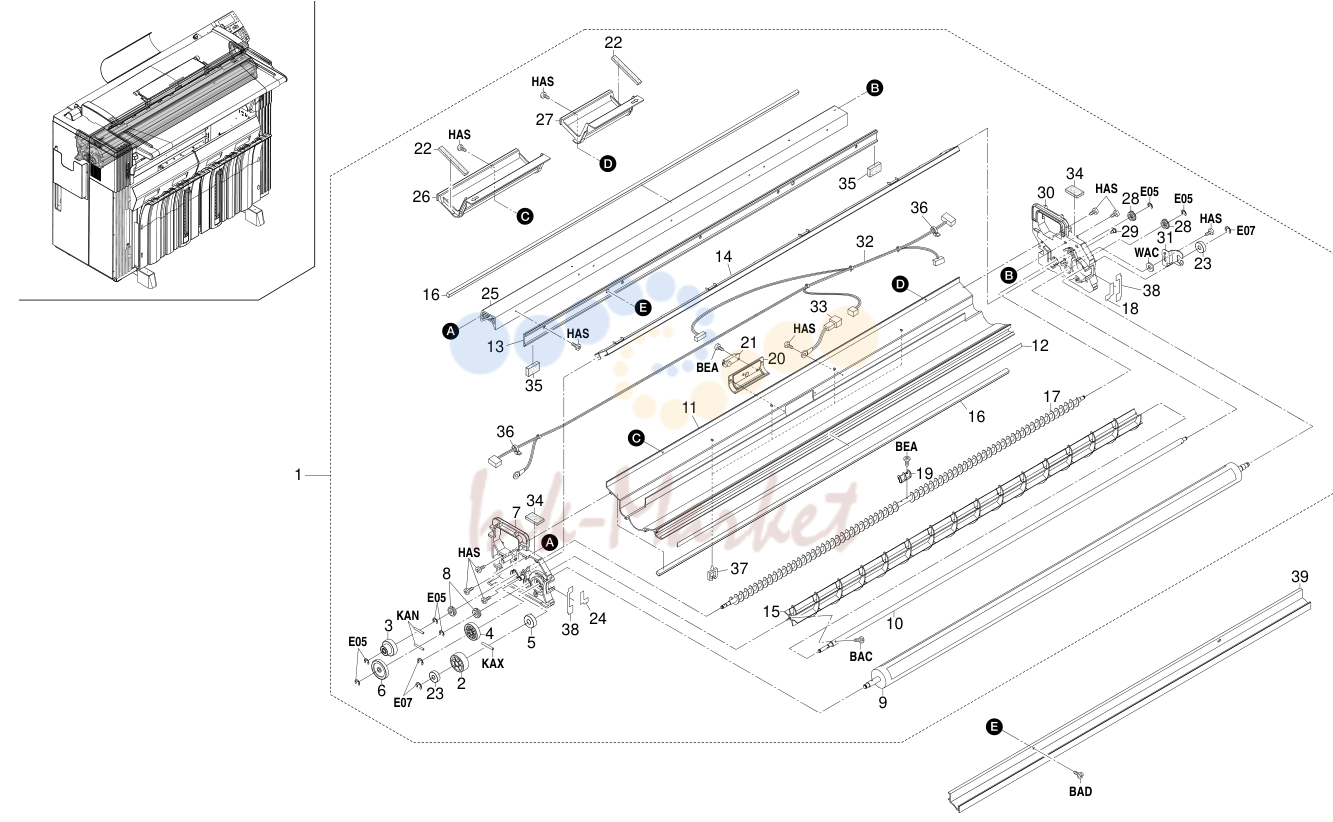

11. DEVELOPING UNIT 2A7

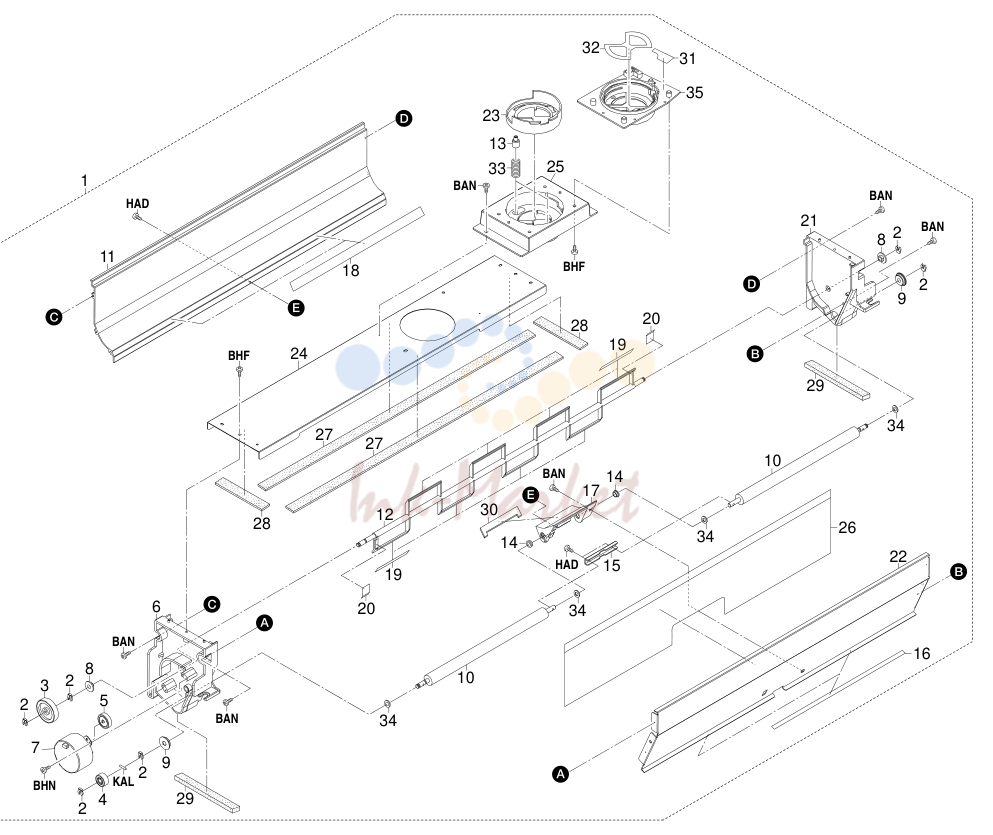

12. HOPPER SECTION 2A7

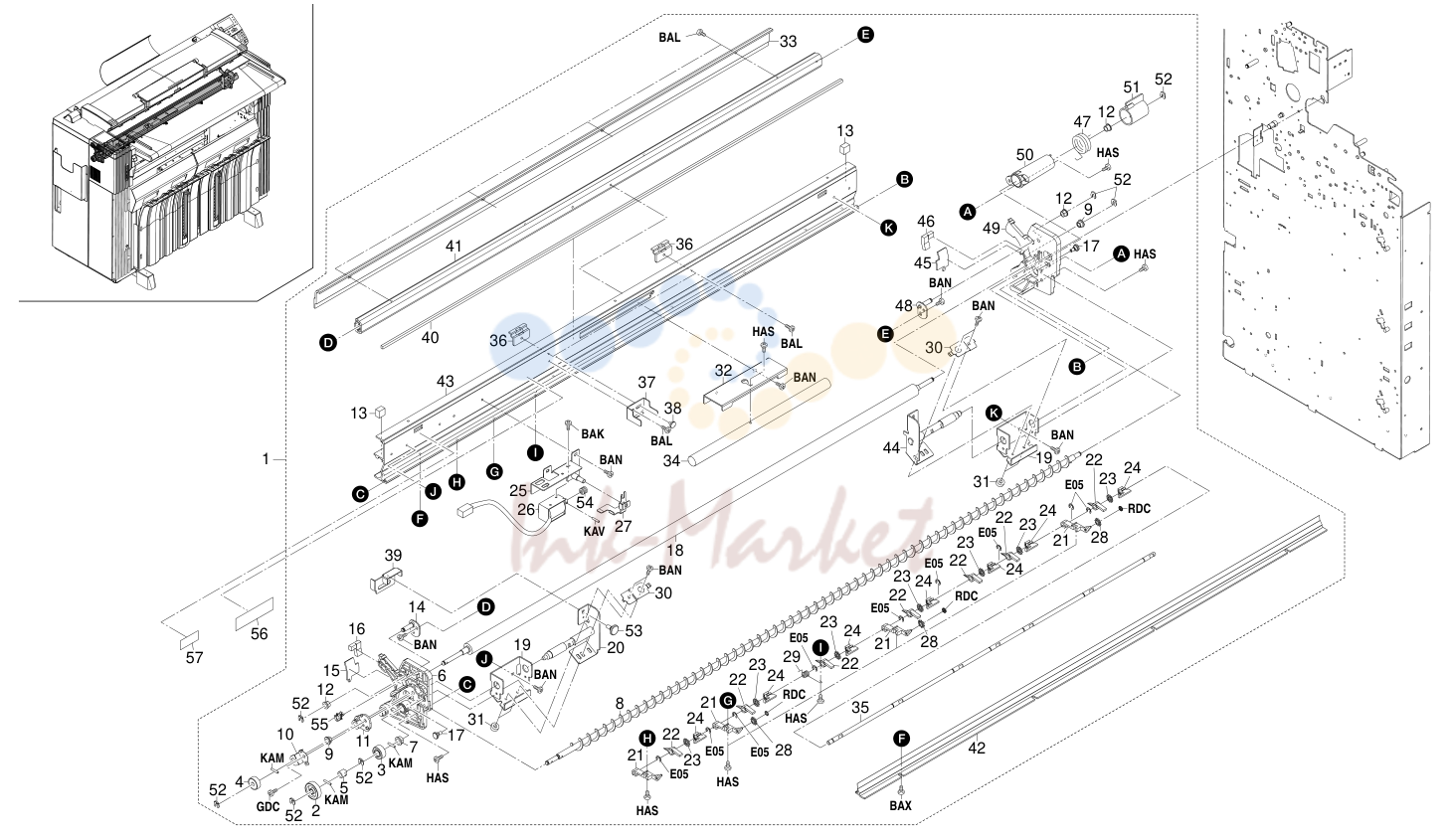

13. CLEANING SECTION I 2A7
14. CLEANING SECTION II 2A7

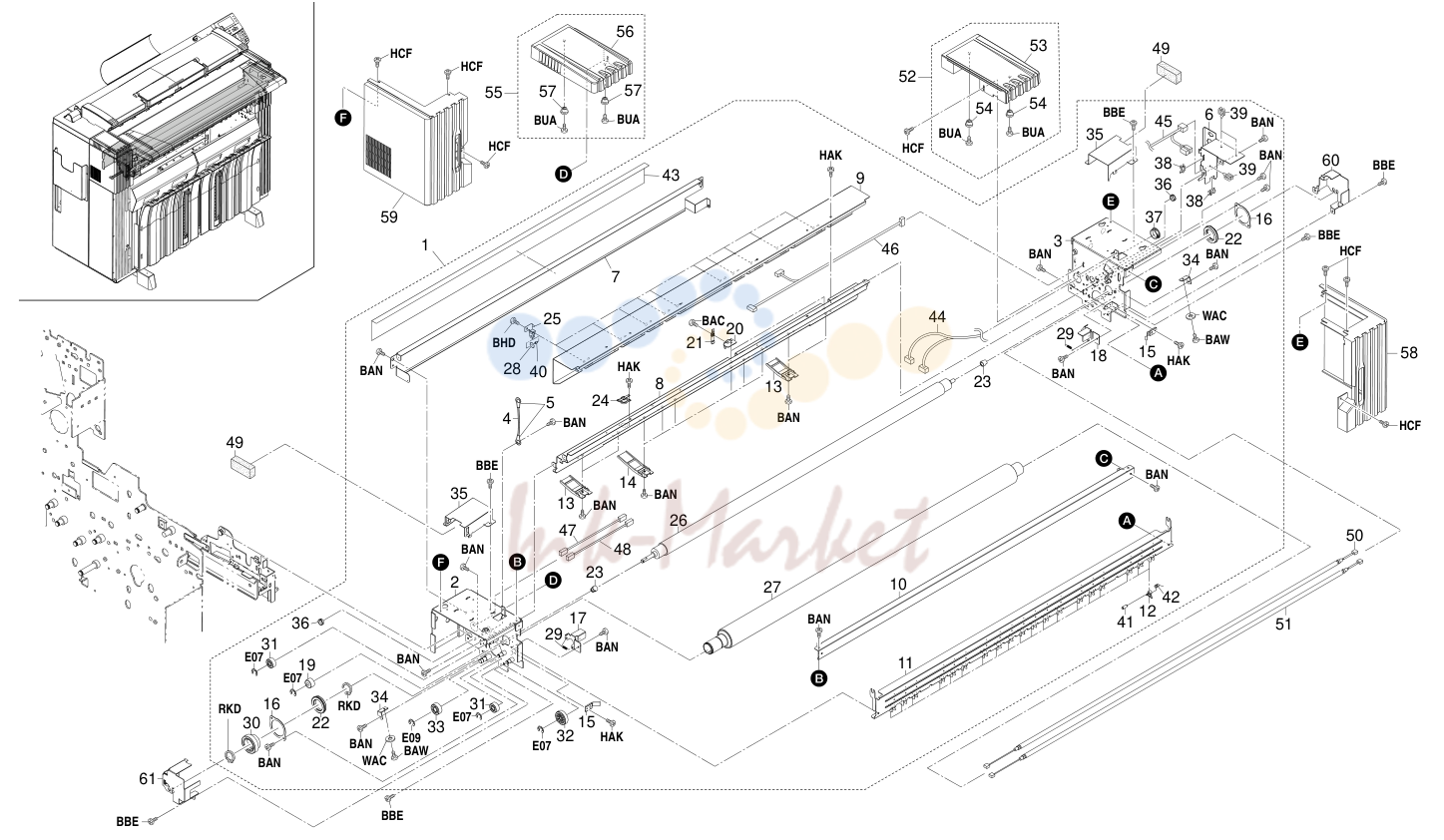

15. FIXING SECTION I 2A7
16. FIXING SECTION II 2A7
17. DRIVING,COLLING SECTION I 2A7

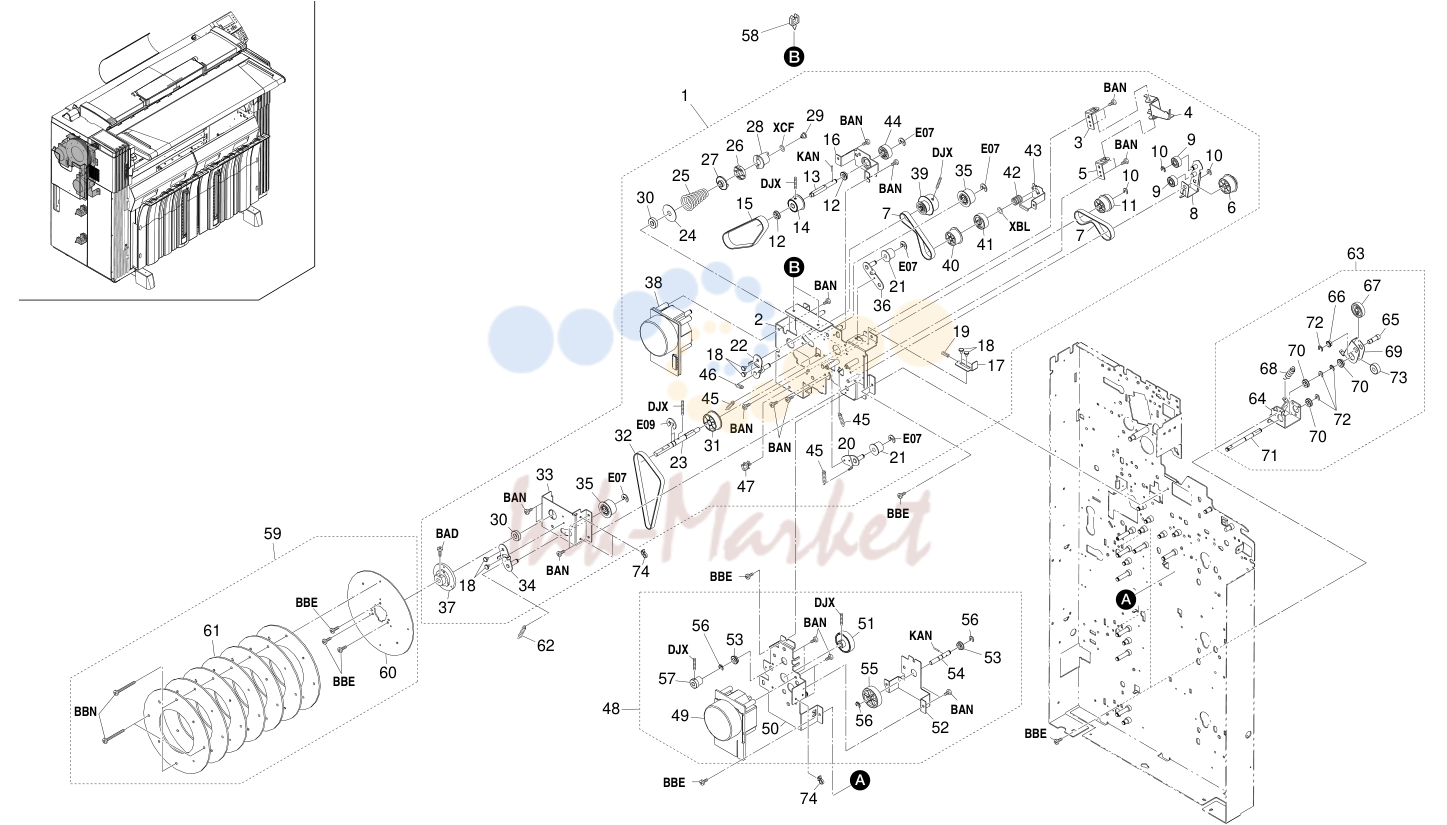

18. DRIVING,COLLING SECTION II 2A7
19. DRIVING,COLLING SECTION III 2A7

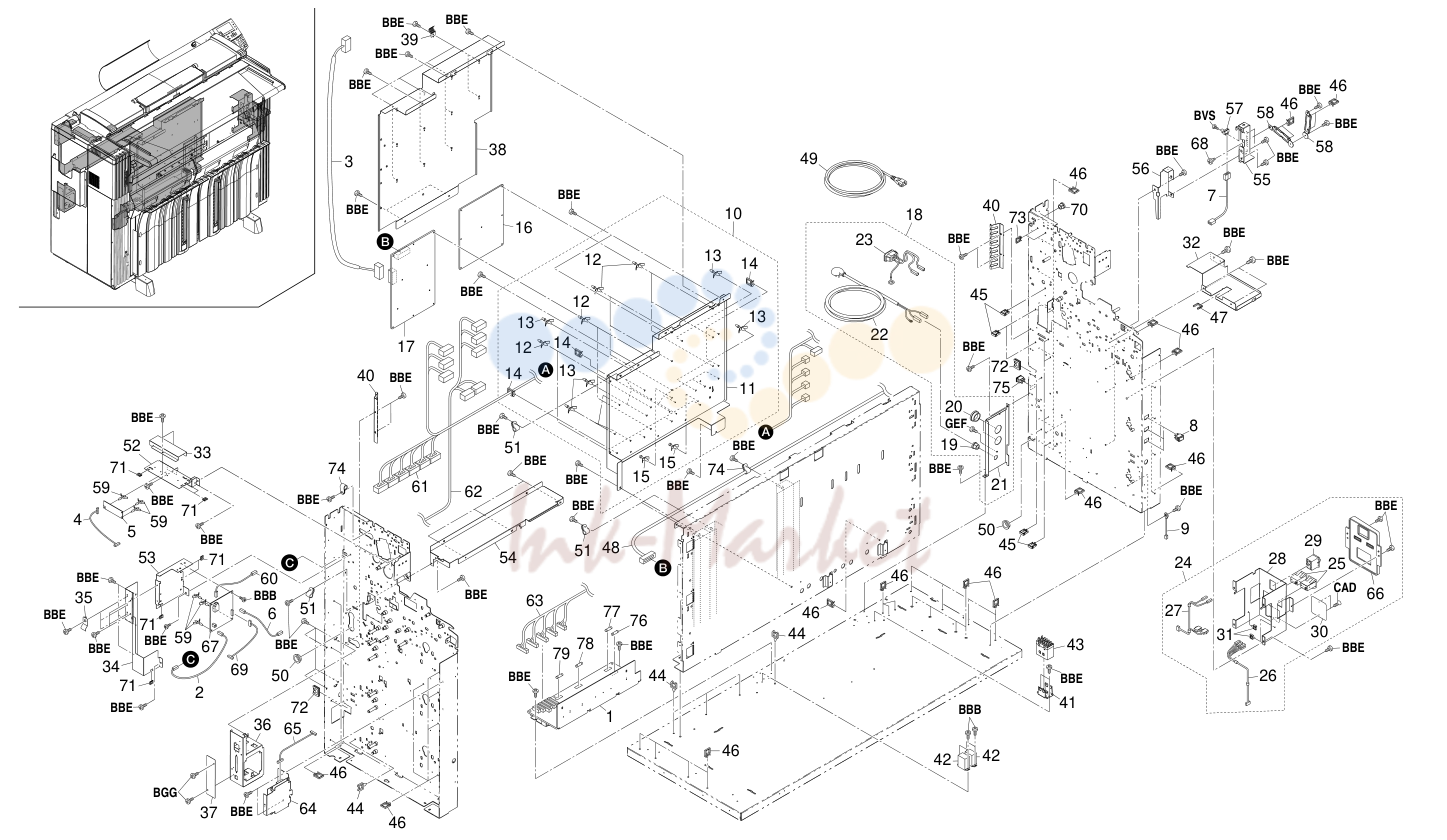

20. ELECTRICAL COMPONENTS 2A7

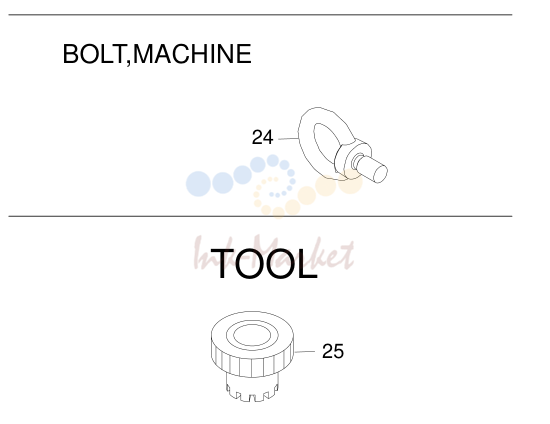

21. OPTION & TOOL 2A7

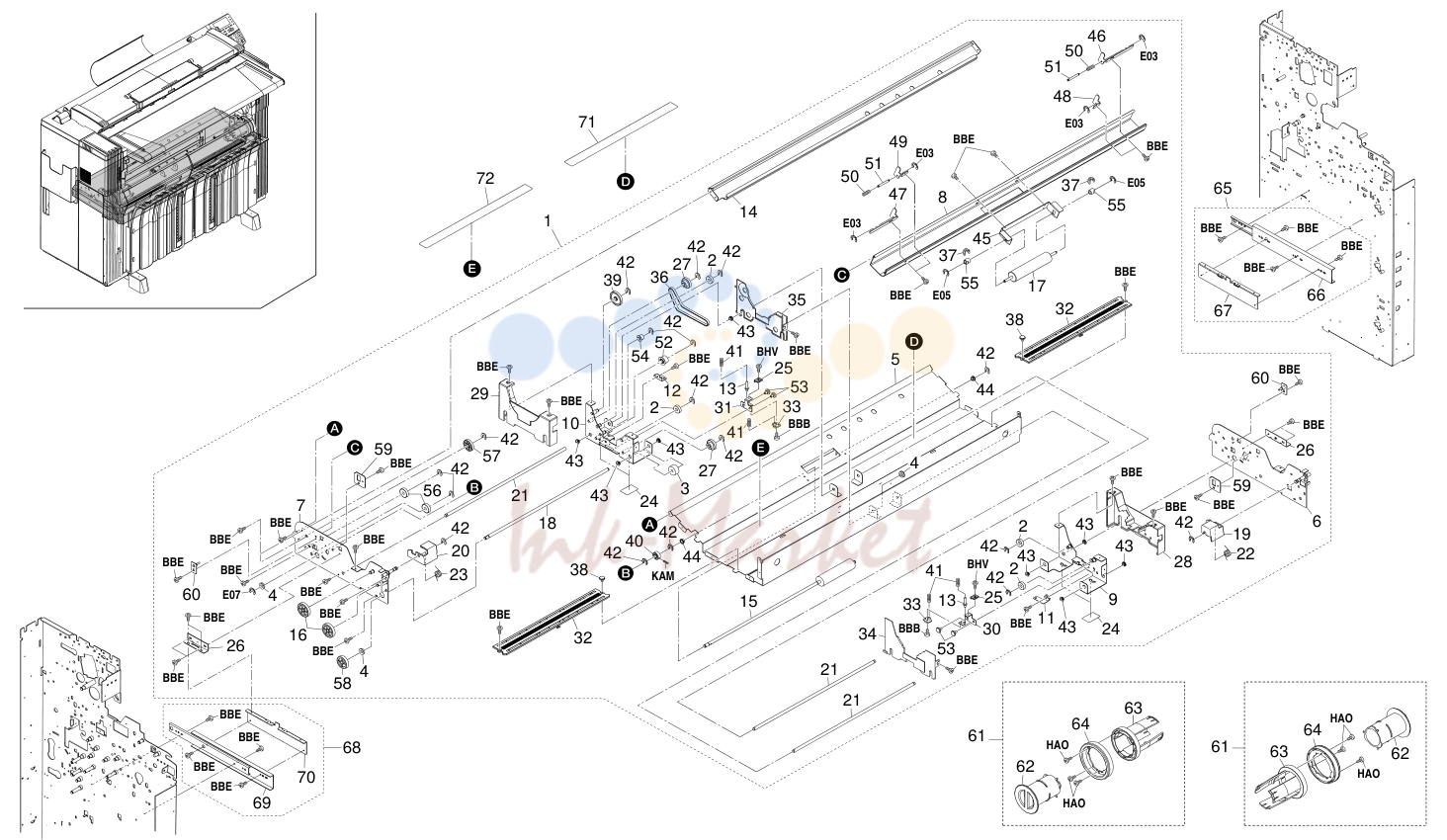

22. ROLL UNIT I 2A7
23. ROLL UNIT II 2A7

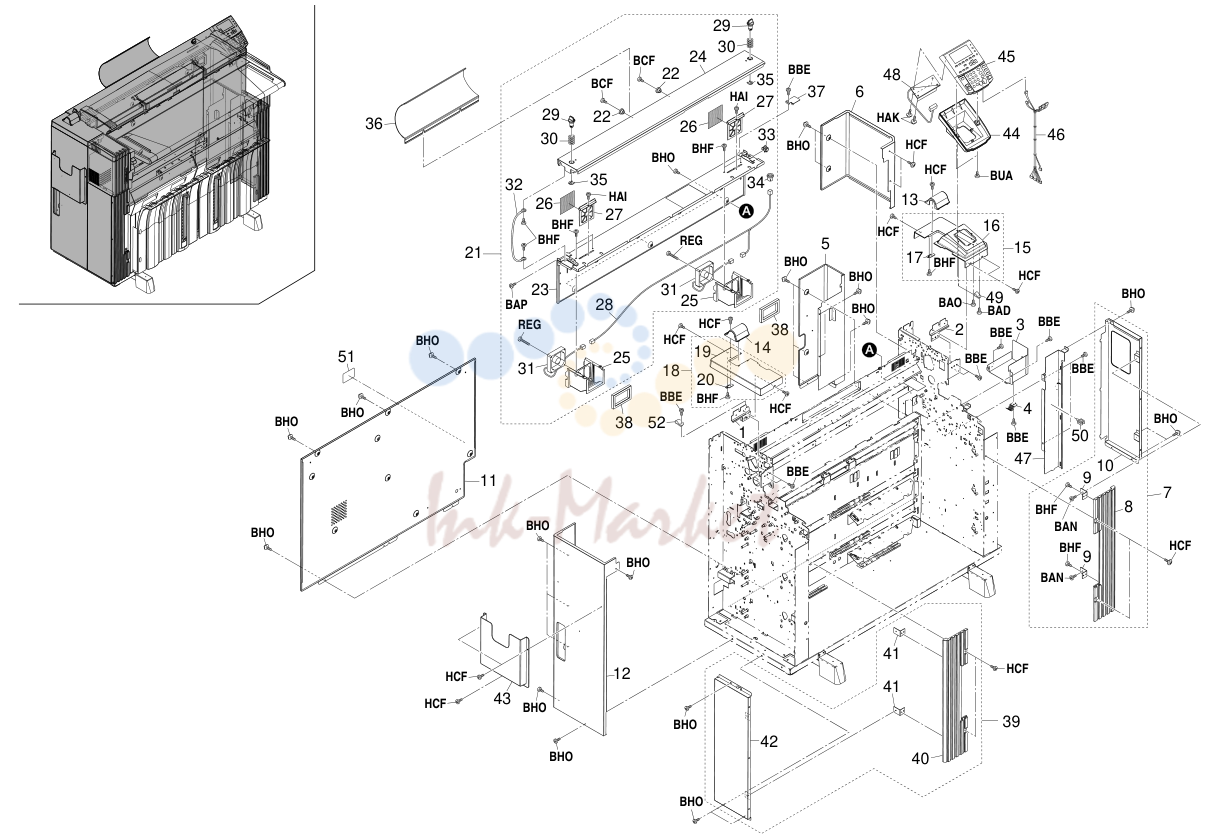

1. EXTERIOR COVERS I 2A7

№	Артикул	Описание
36		29 22 26 HAK
32		35 34 BUA
26		HAI
21		BHF REG BHO 5 17 BHF
51		25 19 14 BBE
31		18 BBE
1		BBE
11		BBE
1	2A704181 запросить цену →	UPPER LEFT MOUNT,COVER 1 1 1 41 •2A704540 JUNCTION PLATE,SIDE COVER
2	2A704171 запросить цену →	UPPER RIGHT MOUNT,COVER 1 1 1 ' 42 •2A704530 LEFT COVER,SIDE
3	2A704080 запросить цену →	INNER RIGHT COVER 1 1 1 ' 43 34051550 POCKET,INSTRUCTION HANDBOOK(RC)
4	2AR26360 запросить цену →	GROUND PLATE,SCANNER UNIT 1 1 1 ' 44 2A704220 MOUNT BASE,OPERATION UNIT
7	2A700930 запросить цену →	RIGHT COVER SIDE ASS’Y 1 1 1 46 2A727340 WIRE,OPERATION UNIT PCB
9		•2A704540 JUNCTION PLATE,SIDE COVER 2 2 2 ' 48 2AR93270 PARTS,LCD PCB(SP)
15	2A700911 запросить цену →	UPPER RIGHT COVER ASS’Y
17		•2A704120 MOUNT,HINGE COVER
18	2A700920 запросить цену →	UPPER LEFT COVER ASS’Y
20		•2A704120 MOUNT,HINGE COVER
21	2A700360 запросить цену →	UPPER REAR COVER ASS’Y
25		•2A723510 DUCT,COOLING FAN LPH
27		•2A723540 HOLDER,FILTER
28		•2A727220 WIRE,COOLING FAN
29		•34013110 PIN,ORIGINAL RETAINING
32		•63527100 GROUND WIRE,ADF MOTOR
34		•M1203200 OPEN BUSHING,OCB-375
35		•74712770 STOP RING U-6
37	2A704560 запросить цену →	UPPER REAR COVER,WIRE
39	2A700940 запросить цену →	LEFT COVER SIDE ASS’Y

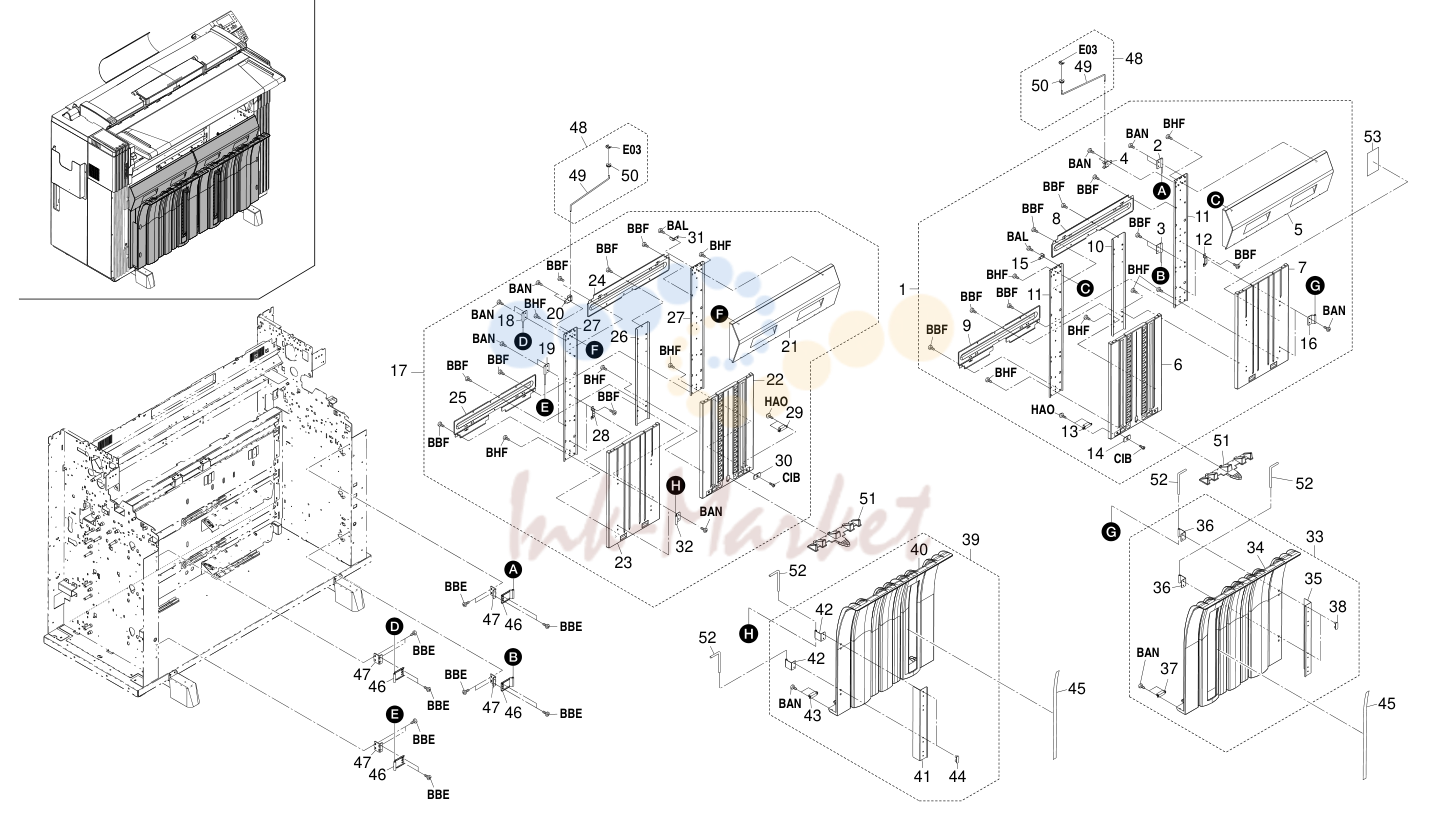

2. EXTERIOR COVERS II 2A7

№	Артикул	Описание
48		BHF
31		BAL
17		BBF BBF BHF 22 BHF
25		BBF HAO
29		HAO
47		BBE
1	2A700321 запросить цену →	FRONT RIGHT COVER ASS’Y 1 1 1 ' 41 •2A721030 MOUNT,TRAY
2		•2A702120 UPPER RIGHT FRONT HINGE,COVER 1 1 1 42 •2A721070 UPPER HINGE,TRAY
3		•2A702130 LOWER RIGHT FRONT HINGE,COVER 1 1 1 43 •44728101 MAGNET CATCHER
8		•2A704341 UPPER FRONT REINFORCEMENT,COVER 1 1 1 47 67802180 MOUNT,HINGE
9		•2A704351 LOWER FRONT REINFORCEMENT,COVER 1 1 1 48 2A700110 STOPPER COVER ASS’Y
10		•2A704361 INNER FRONT REINFORCEMENT,COVER 1 1 1 49 •67804180 STOPPER, COVER
11		•2A704371 OUTER FRONT REINFORCEMENT,COVER 2 2 2 50 •74716160 SPACER GUIDE
12		•2A721050 MOUNT,HINGE TRAY 2 2 2 ' 51 2A721040 STOPPER,TRAY
13		•44728101 MAGNET CATCHER 1 1 1 52 2AZ04290 SHAFT,HINGE
14		•49628105 RECEIVER,MAGNET 1 1 1 ' 53 2A705070 LABEL,DEHUMIDIFIER HEATER
15		•67804170 PROJECTION,SWITCH
16		•67821090 LOWER HINGE,COPY TRAY
17	2A700331 запросить цену →	FRONT LEFT COVER ASS’Y
18		•2A702140 UPPER LEFT FRONT HINGE,COVER
19		•2A702150 LOWER LEFT FRONT HINGE,COVER
24		•2A704341 UPPER FRONT REINFORCEMENT,COVER
25		•2A704351 LOWER FRONT REINFORCEMENT,COVER
26		•2A704361 INNER FRONT REINFORCEMENT,COVER
27		•2A704371 OUTER FRONT REINFORCEMENT,COVER
28		•2A721050 MOUNT,HINGE TRAY
29		•44728101 MAGNET CATCHER
30		•49628105 RECEIVER,MAGNET
31		•67804170 PROJECTION,SWITCH
32		•67821090 LOWER HINGE,COPY TRAY
33	2A700340 запросить цену →	RIGHT EJECT TRAY ASS’Y
36		•2A721070 UPPER HINGE,TRAY
37		•44728101 MAGNET CATCHER
38		•67821070 RETAINER PIN,COPY TRAY
39	2A700350 запросить цену →	LEFT EJECT TRAY ASS’Y

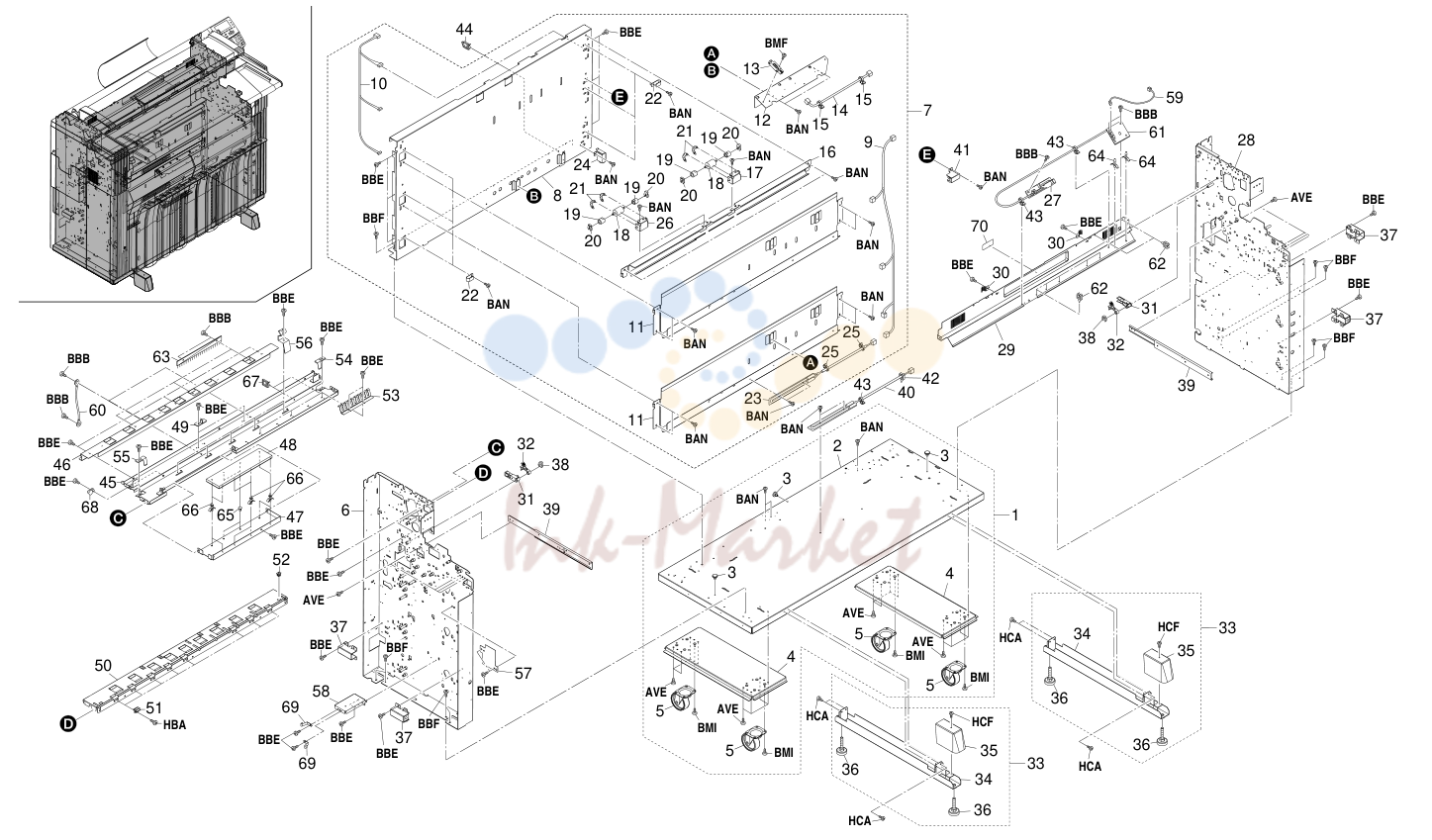

3. FRAMES 2A7

№	Артикул	Описание
44		BBE
21		1920 BAN
24		19 BAN 16 41 BBB
8		20 27 AVE BBE
20		18 BAN
62		BBE
60		BBE
11		BAN
49		BAN BAN
31		BAN
57		BMI
58		BBE AVE
51		69 5 AVE
69		36 33 HCA
1	2A700010 запросить цену →	MACHINE BASE ASS’Y 1 1 1 ' 40 2A727480 HEATER,DEHUMIDIFIER(120)
2		•2A702040 BASE,MACHINE 1 1 1 41 2A706360 COVER,HEATER CONNECTOR
3		•48129208 PIN,TENSION 3 3 3 42 M2109180 WIRE SADDLE,LWS-1S
4		•2A702060 MOUNT,CASTER 2 2 2 43 M2107120 BINDING BAND SG-130
5		•2A702190 CASTER,MACHINE 4 4 4 44 M2109200 LOCKING WIRE SADDLE,LWS-3S-2W
6	2A702021 запросить цену →	LEFT FRAME,MACHINE 1 1 1 45 2A713340 REAR STAY,SCANNER
7	2A700590 запросить цену →	ROLL GUIDE ASS’Y(120) 1 46 2A713350 REAR GUIDE,SCANNER
7	2A700600 запросить цену →	ROLL GUIDE ASS’Y(230) 1 1 47 2A726080 MOUNT,ISU PCB
8		•2A706180 REAR GUIDE,ROLL CONVEYING 1 1 1 ' 48 2A701051 ISU ASS’Y
9		•2A727210 JUNCTION WIRING,DEHUMIDIFIER HEATER 1 1 1 ' 49 2AZ13070 LOWER BUSHING, ORIGINAL FEED ROLLER
10		•2A727350 JUNCTION WIRING,PRIMARY PAPER FEED 1 1 1 50 2A713400 FRONT GUIDE,SCANNER(METRIC)
11		•2A706190 FRONT GUIDE,ROLL CONVEYING 2 2 2 50 2A713700 FRONT GUIDE,SCANNER(INCH)
12		•2A706210 MOUNT,PAPER SWITCH 2 2 2 51 2A713420 GUIDE,ORIGINAL
14		•2A727280 WIRE,PRIMARY PAPER FEED 2 2 2 53 2A713671 FRONT GROUND PLATE,SCANNER
15		•M2107120 BINDING BAND SG-130 4 4 4 54 2A712110 RIGHT GROUND PLATE,LPH
16		•2A706230 FRONT GUIDE,CUTTER INSERTION 1 1 1 55 2A712120 LEFT GROUND PLATE,LPH
17		•2A706270 MOUNT,CUTTER INSERTION PULLEY 1 1 1 56 2A712130 GROUND PLATE,LPH
21		•71607160 PRESSING SPRING 4 4 4 60 23227320 WIRE CE,MAIN PCB GROUND
22		•2A707260 HOLDER,ROLL FRAME 6 6 6 ' 61 34093331 PARTS SENSOR SURFACE POTENTIAL(SP)
24		•2A706360 COVER,HEATER CONNECTOR 1 ' 63 67813320 STATIC ELIMINATOR,ORIGINAL
25		•M2107120 BINDING BAND SG-130 2 64 M2108120 SPACER,KGLS-4S
26		•2A706450 LEFT MOUNT,CUTTER INSERTION PULLEY 1 1 1 65 M2108880 SPACER,KGPS-5RF(KITAGAWA)
27	34010301 запросить цену →	MOUNT,POTENTIAL SENSOR 1 1 1 66 M2108920 SPACER,KGLS-5RT(KITAGAWA)
28	2A702011 запросить цену →	RIGHT FRAME,MACHINE 1 1 1 67 M2109230 WIRE SADDLE,LWS-3S(KITAGAWA)
29	2A712040 запросить цену →	PARTITION,LPH 1 1 1 68 M2505140 CLAMP,GNK-6N(NIKKO)
30	2AR26360 запросить цену →	GROUND PLATE,SCANNER UNIT 2 2 2 69 34026110 GROUND PLATE B,NOIZE
31	2AZ14240 запросить цену →	GUIDE,DEVELOPING 2 2 2 70 2AG05200 LABEL,HIGH VOLTAGE CAUTION(EXP)
32	33414080 запросить цену →	LEVER,DEVELOPING RETAINING
33	2A700550 запросить цену →	MACHINE SUPPORT ASS’Y
34		•2A702070 SUPPORT PLATE,MACHINE
36		•68202160 BOLT,LEVEL
37	2A702050 запросить цену →	MOUNT,HANDLE
39	2A717080 запросить цену →	SLIDER,DETACHING

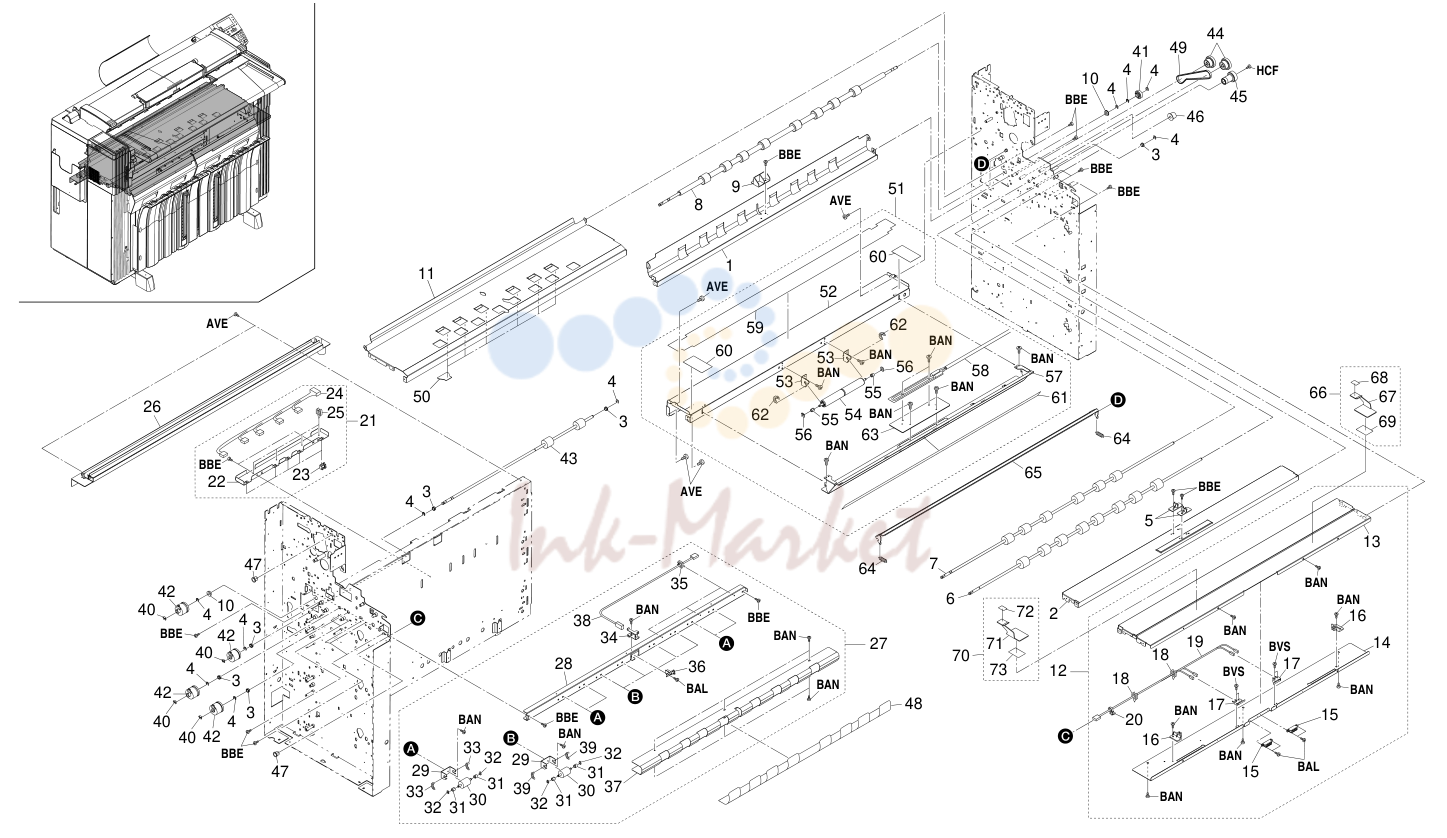

4. PAPER FEED-IN SECTION I 2A7

№	Артикул	Описание
4		4 HCF
9		51 BBE
8		AVE
53		BAN BAN
4		53 BAN
24		50 55 BAN
26		25 21 3 62 5554 BAN
3		AVE BBE
35		BAN
40		4 10 4 38 BAN BBE 6 72 2 BA 1 N
42		4 3 28 B 3 A 6 L BAN 73 12 18 BVS 17 BAN
40		4 3 BAN BBE 20 BAN
40		42 BAN
47		29 31 15 BAL
32		31 30 32 31 BAN
1	2A706140 запросить цену →	GUIDE,REGISTRATION 1 1 1 39 •2A706460 SPRING,PRESSING
2	2A706060 запросить цену →	STAY,BYPASS 1 1 1 ' 40 33906630 STOPPER 5,RING
11	2A706050 запросить цену →	LOWER GUIDE,BYPASS 1 1 1 ' 49 2A722430 BELT,HANDLE
12	2A700060 запросить цену →	BYPASS TABLE ASS’Y(METRIC) 1 1 ' 50 74707080 SEAL REGISTRATION
12	2A700090 запросить цену →	BYPASS TABLE ASS’Y(INCH) 1 51 2A700200 DEVELOPING BASE ASS’Y(120)
14		•2A702080 FRONT MOUNT,COVER SWITCH 1 1 1 53 •2A716150 FRONT MOUNT,TRANSFER PULLEY
15		•60804120 MAGNET CATCH 2 2 2 ' 54 •2A716140 FRONT PULLEY,TRANSFER
18		•M2105740 MINIATURE CLAMP,UAMS-05S-2 2 2 2 57 •2A716060 OUTER FRONT GUIDE,TRANSFER
19		•2A727460 JUNCTION WIRING,FRONT COVER SWITCH 1 1 1 ' 58 •2A727480 HEATER,DEHUMIDIFIER(120)
20		•M2107120 BINDING BAND SG-130 1 1 1 ' 58 •2A727490 HEATER,DEHUMIDIFIER(240)
21	2A700570 запросить цену →	PAPER SIZE ASS’Y 1 1 1 ' 59 •2A716050 UPPER FRONT FILM,TRANSFER
22		•2A706280 MOUNT,PAPER SIZE 1 1 1 ' 60 •2A714240 FILM,DEVELOPING PARTITION
24		•2A727200 JUNCTION WIRING,PAPER FEED SIZE DETECTIO 1 1 1 ' 62 •77706492 FRONT PRESSING SPRING
25		•M2105730 MINIATURE CLAMP,UAMS-07-0 4 4 4 63 •2A708070 MOUNT,DRUM HEATER
27	2A700080 запросить цену →	REAR ROLL REGISTRATION ASS’Y 1 1 1 65 2A716110 INNER FRONT GUIDE,TRANSFER
28		•2A706160 REAR STAY,ROLL REGISTRATION 1 1 1 ' 66 2A700820 RIGHT BYPASS CURSOR ASS’Y
29		•2A706200 MOUNT,EJECT PULLEY 8 8 8 67 •2A706410 RIGHT CURSOR,BYPASS
34		•2A706290 MOUNT,REGISTRATION SWITCH 1 1 1 72 •2A706430 SEAL,BYPASS CURSOR
35		•M2105740 MINIATURE CLAMP,UAMS-05S-2 3 3 3 73 •2A706440 MAGNET,BYPASS CURSOR
37		•2A706150 REAR GUIDE,REGISTRATION
38		•67827130 RESISTRATION SWITCH WIRING

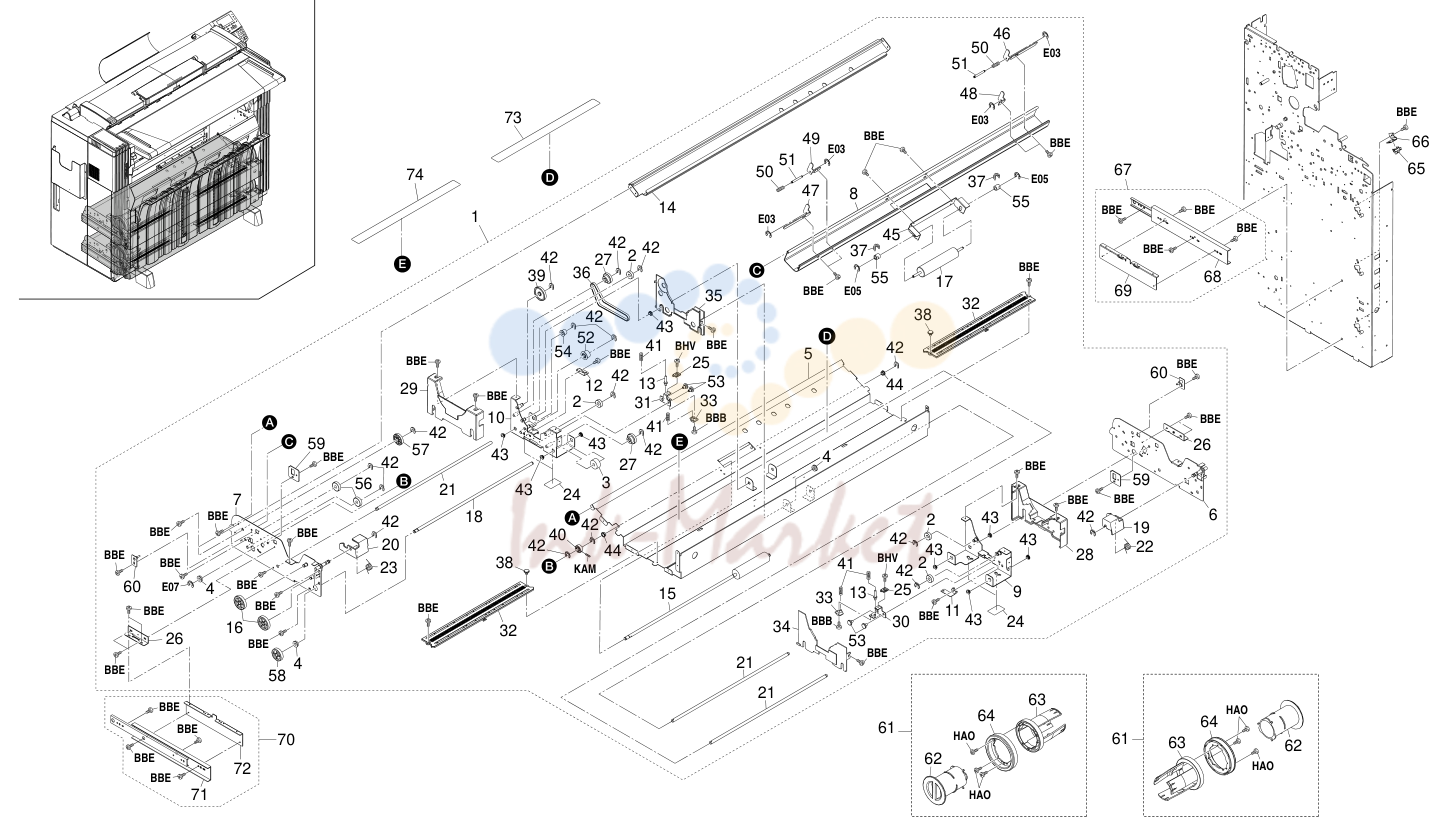

5. PAPER FEED-IN SECTION II (roll unit) 2A7

№	Артикул	Описание
73		E03 BBE
49		BBE BBE
1		14 E03 BBE BBE
45		BBE
42		27 42 2 42 37 BBE
39		36 55 17 BBE
35		BBE E05
54		BBE 41 BHV BBE
10		41 BBB BBE
59		BBE 42 57 43 43 27 42 4 BBE
7		56 21 43 24 3 BBE BBE
60		E07 4 BBE
26		BBE
70		HAO
72		HAO
71		HAO
1	2A700170 запросить цену →	ROLL ASS’Y(METRIC) 2 2 ' 40 •29822350 GEAR 20T,DRIVE
1	2A700510 запросить цену →	ROLL ASS’Y(INCH) 2 ' 41 •34020260 SPRING,PRESS ROLLER
5		•2A707010 BASE,ROLL 2 2 2 45 •67807370 MOUNT B,PAPER FEED ROLLER
6		•2A707020 RIGHT FRAME,ROLL 2 2 2 46 •67807581 RIGHT LEVER, ROLL PAPER FEED
7		•2A707030 LEFT FRAME,ROLL 2 2 2 47 •67807591 LEFT LEVER, ROLL PAPER FEED
8		•2A707400 UPPER GUIDE ROLL PAPER FEED 2 2 2 48 •67807600 RIGHT LEVER,ROLL PAPER FEED RETAINING
9		•2A707050 RIGHT FRAME,ROLL GUIDE 2 2 2 49 •67807610 LEFT LEVER,ROLL PAPER FEED RETAINING
10		•2A707060 LEFT FRAME,ROLL GUIDE 2 2 2 50 •67807690 SPRING,PAPER FEED LEVER
11		•2A707070 RIGHT SUPPORT PLATE,CURSOR 2 2 2 51 •67807760 PIN,LEVER PAPER FEED
12		•2A707080 LEFT SUPPORT PLATE,CURSOR 2 2 2 ' 52 •68322210 PULLEY,21 IDLE
13		•2A707090 SUPPORT BAR,SIDE GUIDE 4 4 4 53 •71802210 PIN,DRUM LIFT
14		•2A707100 UPPER REINFORCEMENT,PAPER FEED 2 2 2 ' 54 •71808260 PULLEY,DRUM TENSION
18		•2A707270 SHAFT,ROLL UNIT DRIVE 2 2 2 ' 58 •74714130 GEAR 23 SPIRAL ROLLER
19		•2A707280 RIGHT HOOK,ROLL 2 2 2 59 •2A707430 POSITIONING PLATE PAPER FEED GUIDE
20		•2A707290 LEFT HOOK,ROLL 2 2 2 60 •2A707420 FULCRUM PLATE PAPER FEED GUIDE
21		•2A707300 SHAFT,ROLL 6 6 6 ' 61 2A700420 ROLL FLANGE ASS’Y
24		•2A707370 SEAL,ROLL GUIDE 8 8 8 64 •2A707220 FLANGE C,ROLL
25		•2A707380 KNOB,ROLL SUPPORT 4 4 4 ' 65 35327400 SWITCH,FEED
26		•2A707410 MOUNT ROLL 4 4 4 66 2A707330 MOUNT,PHOT0 INTERRUPTOR
28		•2A707520 RIGHT COVER,ROLL GUIDE 2 2 2 68 •2A707160 SLIDER,ROLL
29		•2A707530 LEFT COVER,ROLL GUIDE 2 2 2 69 •2A707360 MOUNT,SLIDER
30		•2A707540 RIGHT POSITIONING PLATE,ROLL SUPPORT 2 2 2 70 2A700810 LEFT SLIDER ASS’Y
31		•2A707550 LEFT POSITIONING PLATE,ROLL SUPPORT 2 2 2 71 •2A707160 SLIDER,ROLL
32		•2A707560 RAIL,ROLL CURSOR 4 4 4 72 •2A707360 MOUNT,SLIDER
33		•2A707570 STOPPER,ROLL SUPPORT 4 4 4 ' 73 2A707460 RIGHT LABEL,ROLL SIZE(INCH)
34		•2A707580 INNER RIGHT COVER,ROLL GUIDE 2 2 2 ' 73 2A707440 RIGHT LABEL,ROLL SIZE(METRIC)
35		•2A707590 INNER LEFT COVER,ROLL GUIDE 2 2 2 ' 74 2A707470 LEFT LABEL,ROLL SIZE(INCH)
38		•48129208 PIN,TENSION

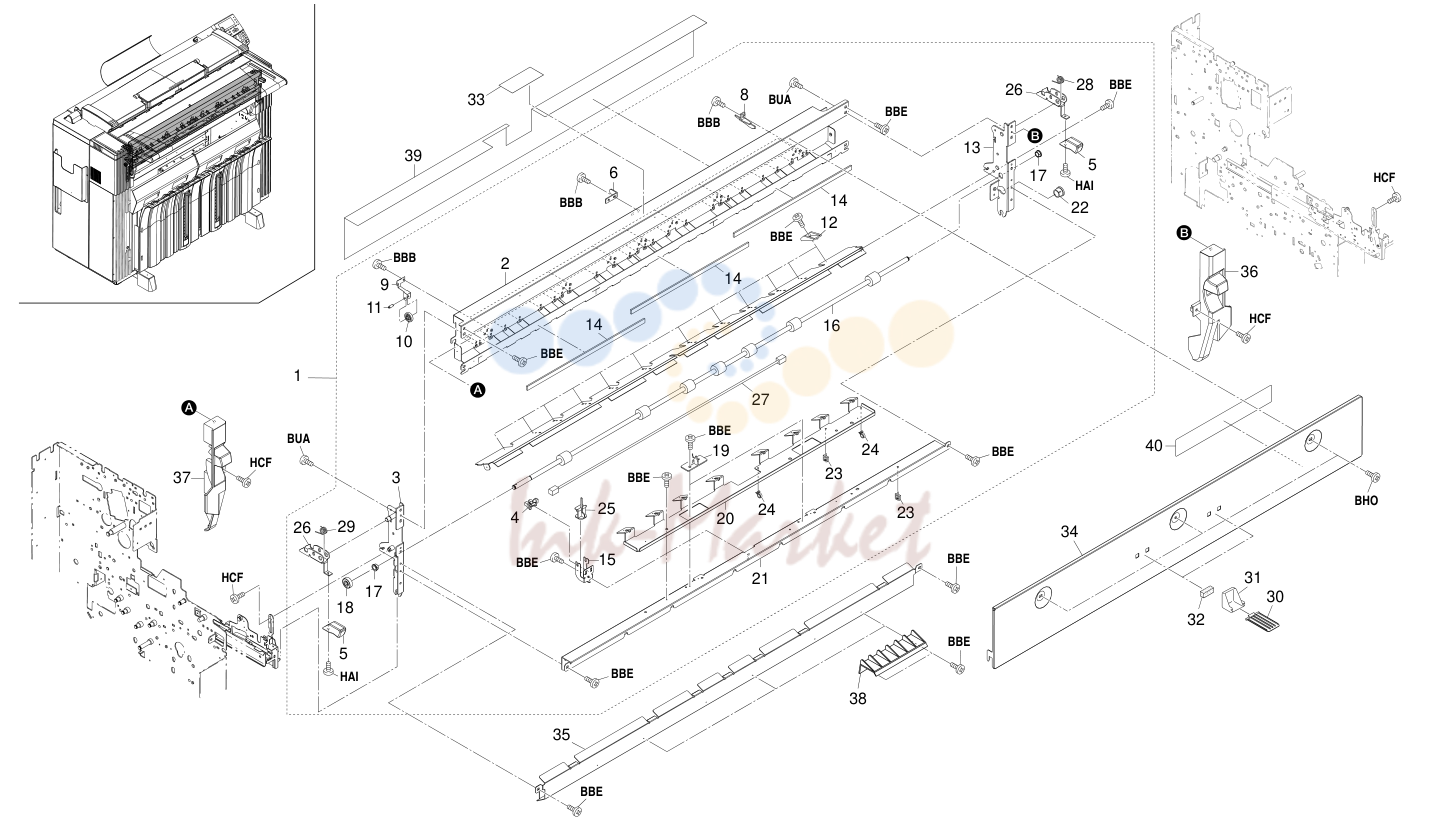

6. EJECT SECTION 2A7

№	Артикул	Описание
33		8 BUA 26 28 BBE
6		17 HCF
14		16 HCF
37		3 BBE
17		(cid:0)y(cid:0)y
18		(cid:0)y(cid:0)y
1	2A700311 запросить цену →	EJECT ASS’Y
2		•2A720220 UPPER PARTITION,EJECT
3		•2A720110 LEFT FRAME,EJECT
6		•67804170 PROJECTION,SWITCH
7		•2A720290 LOWER GUIDE,EJECT
8		•2A720360 UPPER GUIDE,EJECT
9		•2A720250 PLATE SPRING,PULLEY EJECT
11		•34051680 SHAFT,PULLEY EJECT (RC)
12		•2A720490 GUIDE,EJECT
13		•2A720120 RIGHT FRAME,EJECT
14		•76510181 STATIC ELIMINATOR ORIGINAL EJECT SECTION
15		•2A720430 MOUNT,EJECT SWITCH
20		•2A720260 REINFORCEMENT,EJECT GUIDE
21		•2A720310 LOWER REINFORCEMENT,EJECT
22		•M1203220 OPEN BUSHING,OCB-625
23		•M2105740 MINIATURE CLAMP,UAMS-05S-2
24		•M2107120 BINDING BAND SG-130
26		•2A920090 FRONT LEVER,FIXING
27		•2A727400 JUNCTION WIRING,EJECT SWITCH
40	2A705110 запросить цену →	LABEL,EJECT JAM

7. IMAGING UNIT I 2A7

№	Артикул	Описание
1		8 6 BHN
44		WEB
21		24 45 49 50 BAN
19		BBB
25		BHV
22		BHN
59		BHN
63		BBB BAN
1	2A700270 запросить цену →	RIGHT DRUM HOLDER ASS’Y 1 1 1 41 •34010280 SPACER,GRID
2		•2A708020 RIGHT HOLDER,DRUM 1 1 1 42 •2A727190 WIRE,CHARGE UNIT
6		•2A708060 GROUND PLATE,DRUM 1 1 1 46 •2A710020 COUPLER,SHIELD MAIN
9		•2A708040 STOPPER,DRUM 1 1 1 ' 49 •34068080 RIGHT MAIN HOUSING ASS’Y
10		•33408341 PIN,DRUM RETAINING 1 1 1 50 ••34010101 RIGHT LID,MAIN
11		•34920170 FULCRUM PIN,FIXING 4 4 4 51 ••34010090 RIGHT HOUSING,MAIN
12		•2A712020 RIGHT ADJUSTING PLATE,LPH 1 1 1 ' 52 •34093990 SET LEFT MAIN HOUSING
13		•2A712090 RIGHT RETAINER,LPH 1 1 1 53 ••28210041 ADJUSTER,CHARGER WIRE
14		•2A712080 VIBRATION INSULATOR,LPH 1 1 1 54 ••34010080 LEFT LID,MAIN
15		•48128606 PIN,WIRE TENSION 2 2 2 55 ••34010160 ELECTRODE,MAIN
18	2A700280 запросить цену →	LEFT DRUM HOLDER ASS’Y 1 1 1 ' 58 •74710050 SPRING,MAIN CHARGER WIRE
19		•2A708030 LEFT HOLDER,DRUM 1 1 1 59 34000200 TERMINAL BASE CHARGER ASS’Y
23		•2A708040 STOPPER,DRUM 1 1 1 63 •34010210 TERMINAL,MAIN
24		•33408341 PIN,DRUM RETAINING 1 1 1 64 •34010220 TERMINAL,GRID
25		•34920170 FULCRUM PIN,FIXING
26		•2A712030 LEFT ADJUSTING PLATE,LPH
27		•2A712100 LEFT RETAINER,LPH
28		•2A712080 VIBRATION INSULATOR,LPH
29		•48128606 PIN,WIRE TENSION
31		•2A710030 SHIELD,GRID
34		•34010191 RIGHT HOUSING,GRID
35		•34010150 SPRING,GRID
36		•34010120 GROUND PLATE,GRID
37		•34010181 LEFT HOUSING,GRID
38		•34010200 ELECTRODE,GRID
39		•34010110 PIN,GRID

8. IMAGING UNIT II 2A7

№	Артикул	Альт. артикул	Описание
1			•34016091 INNER SHIELD,TRANSFER
2			•74716322 FILM ST CHARGER
4			••2AZ16190 ELECTRODE,TRANSFER
5			••2AZ16171 LEFT HOUSING,TRANSFER
6			••28216072 LID,TC HOUSING
9			••28216072 LID,TC HOUSING
10			••28216051 FRONT HOUSING,TC
13			•2A716100 OUTER SHIELD,TRANSFER

9. ORIGINAL HOLDER 2A7

№	Артикул	Описание
31		57 58 58 BAN
42		35 66 68 61 59 14 HAK
56		46 BBE
69		33 17 72 BBE
54		49 BBE BBE
47		27 43 19 52 50 24 BBE
34		BBE
55		BBB
30		BBE
1	2A700150 запросить цену →	ORIGINAL TABLE ASS’Y(METRIC) 1 1 ' 39 •2A713430 INNER ROLLER,ORIGINAL HOLDER
1	2A700160 запросить цену →	ORIGINAL TABLE ASS’Y(INCH) 1 ' 40 •2A713440 REAR ROLLER,ORIGINAL HOLDER
2		•2A707300 SHAFT,ROLL 2 2 2 41 •2A713710 INNER RIGHT HOOK,ORIGINAL
6		•2A713530 MOUNT,ORIGINAL CURSOR 2 2 2 ' 46 •34013270 SPRING,ORIGINAL ROLLER
14		•2A713690 SEAL,MOUNT ORIGINAL CURSOR 2 2 2 54 •72418140 SPRING, BLADE
17		•74712810 REAR GUIDE CHIP ORIGINAL INSERTION 2 2 2 57 2A700220 FRONT STAY SCANNER ASS’Y
18	2A700181 запросить цену →	ORIGINAL HOLDER ASS’Y 1 1 1 58 •M2105730 MINIATURE CLAMP,UAMS-07-0
19		•M2105730 MINIATURE CLAMP,UAMS-07-0 2 2 2 ' 59 •2AZ13070 LOWER BUSHING, ORIGINAL FEED ROLLER
20		•M2107120 BINDING BAND SG-130 3 3 3 60 •2A713330 FRONT STAY,SCANNER
21		•2A713010 RIGHT FRAME,ORIGINAL 1 1 1 61 •2A727270 JUNCTION WIRING,SCANNER
22		•2A713020 LEFT FRAME,ORIGINAL 1 1 1 ' 62 •2A727360 REAR SWITCH, ORIGINAL FEED
23		•2A713030 STAY,ORIGINAL 1 1 1 63 •67813311 MOUNT,ORIGINAL SWITCH
25		•2A713070 REAR GUIDE,ORIGINAL 1 1 1 65 2A709020 MOUNT,CIS
26		•2A713081 RIGHT HOOK,ORIGINAL 1 1 1 66 2A713040 RIGHT MOUNT,ORIGINAL HINGE
27		•2A713091 LEFT HOOK,ORIGINAL 1 1 1 67 2A713050 LEFT MOUNT,ORIGINAL HINGE
28		•2A713110 INNER FULCRUM PLATE,ORIGINAL 2 2 2 68 2A713310 RIGHT MOUNT,HINGE
29		•2A713150 INNER PIN,ORIGINAL HOOK(M3) 2 2 2 69 2A713320 LEFT MOUNT,HINGE
31		•2A713170 SUPPORT PLATE,ORIGINAL SHUTTER 2 2 2 ' 71 34806480 STOPPER
32		•2A713180 SHUTTER,ORIGINAL REGISTRATION 1 1 1 ' 72 2A713370 LOWER ROLLER,ORIGINAL
33		•2A713190 FRONT STAY,ORIGINAL 1 1 1 73 34013070 RIGHT HINGE,ORIGINAL HOLDER
34		•2A713200 REAR STAY,ORIGINAL 1 1 1 74 34013080 LEFT HINGE,ORIGINAL HOLDER
38		•2A713260 LEVER,ORIGINAL HOOK

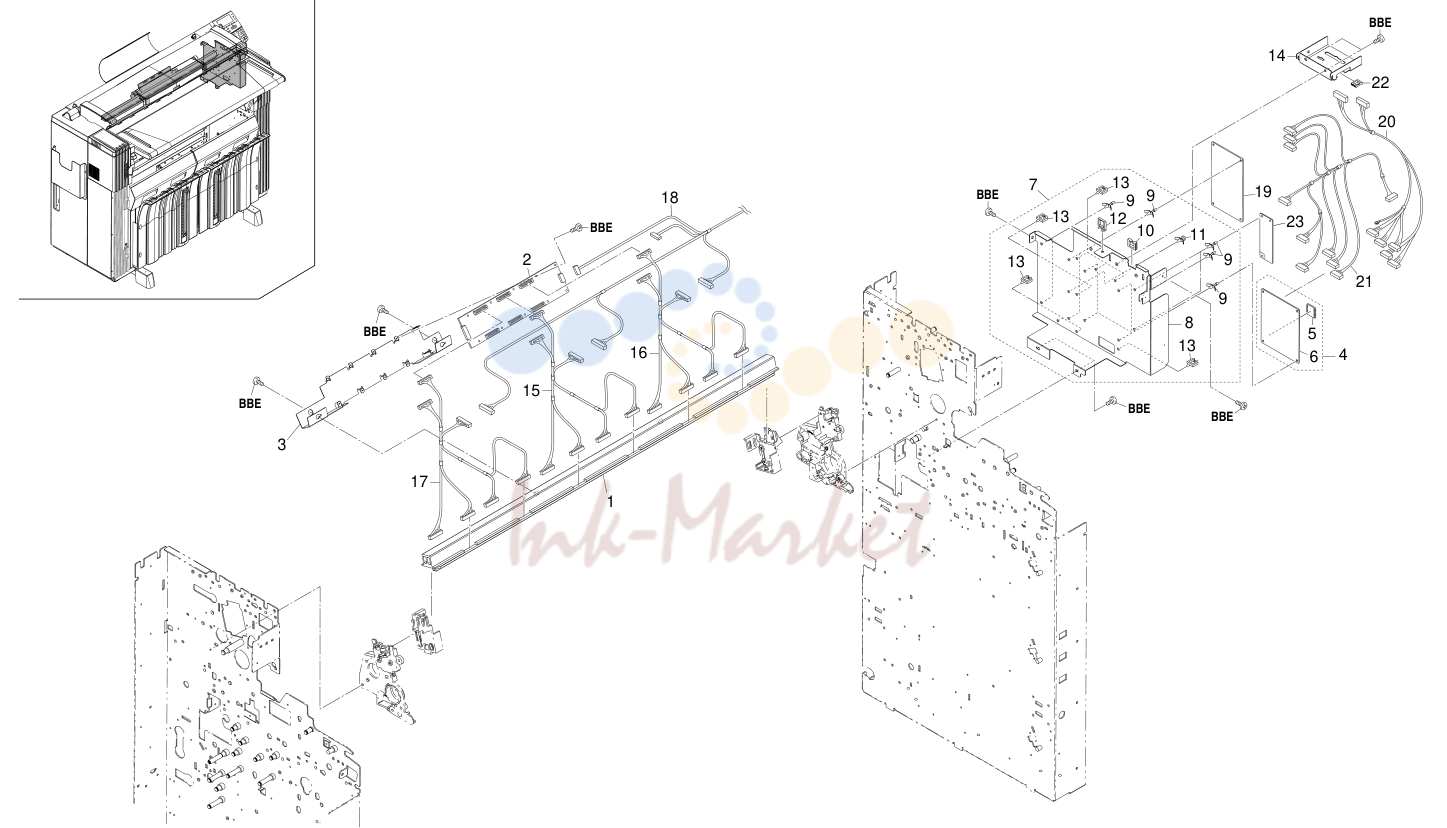

10. OPTICAL SECTION 2A7

№	Артикул	Описание
3	2A726070 запросить цену →	MOUNT,HDC PCB
5		•2A701140 SCANNER BOOT ROM ASS’Y
6		•2A728030 SCANNER MAIN PCB
7	2A701090 запросить цену →	MOUNT SCANNER MAIN PCB ASS’Y
8		•2A726050 MOUNT,SCANNER PCB
9		•M2108120 SPACER,KGLS-4S
10		•M2104250 EDGING,EDS-17L(KITAGAWA)
11		•M2108130 SPACER,KGPS-4S
12		•M2109150 WIRE SADDLE,HL-28
13		•M2109200 LOCKING WIRE SADDLE,LWS-3S-2W
14	2A726120 запросить цену →	MOUNT,OPERATION UNIT WIRE
15	2A727070 запросить цену →	INNER WIRE,LPH
16	2A727090 запросить цену →	RIGHT WIRE,LPH
17	2A727080 запросить цену →	LEFT WIRE,LPH
18	2A727370 запросить цену →	JUNCTION WIRING,LPH
20	2A727240 запросить цену →	WIRE,SCANNER OPERATION UNIT
21	2A727290 запросить цену →	WIRE,SCANNER
22	M2104250 запросить цену →	EDGING,EDS-17L(KITAGAWA)

11. DEVELOPING UNIT 2A7

№	Артикул	Альт. артикул	Описание
26			(cid:0)y(cid:0)y(cid:0)y (cid:0)y(cid:0)y 36 30 (cid:0) (cid:0) y y (cid:0) (cid:0) y y (cid:0) (cid:0) y y HAS 28 E05 E05
14			WAC
3			KAN
7			•2A714040 LEFT FRAME,DEVELOPING
9			•2A714010 ROLLER S,DEVELOPING
10			•2A714080 SHAFT,DEVELOPING PADDLE
11			•2A714020 HOUSING,DEVELOPING
13			•2A714060 DOCTOR BLADE,DEVELOPING
14			•2A714070 PARTITION,DEVELOPING
15			•2A714090 PADDLE,DEVELOPING
17			•2A714100 SPIRAL,DEVELOPING
20			•2AZ14140 MOUNT,TONER CONTOROL SENSOR
25			•2A714050 STAY,DEVELOPING
26			•2A714130 LEFT LID,DEVELOPING
27			•2A714120 RIGHT LID,DEVELOPING
28			•75915090 BUSHING AGITATION ROTOR SHAFT
29			•34920170 FULCRUM PIN,FIXING
30			•2A714030 RIGHT FRAME,DEVELOPING
31			•2AZ14200 TERMINAL,DEVELOPING BIAS
32			•2A727170 WIRE,DEVELOPING
36			•M0207000 BINDING BAND,KB-100-1
37			•M2109000 WIRE SADDLE,WS-1NS

12. HOPPER SECTION 2A7

№	Артикул	Альт. артикул	Описание
1			BAN
2			BAN
18			BHF
2			(cid:0)y(cid:0)y(cid:0)y(cid:0)y
5			•2AZ15210 GEAR 20,TONER MOTOR
6			•2A715030 LEFT FRAME,HOPPER
11			•2A715050 REAR STAY,HOPPER
12			•2AZ15080 AGITATION BAR,HOPPER
13			•36715560 STOPPER,HOPPER
15			•2AZ15070 JOINT,HOPPER
17			•2AZ15060 INNER SUPPORT PLATE,HOPPER
21			•2A715020 RIGHT FRAME,HOPPER
22			•2A715040 FRONT STAY,HOPPER
23			•2A715110 SHUTTER F,HOPPER(USA)
23			•2A715130 SHUTTER C,HOPPER(JPN)
24			•2A715090 LOWER LID,HOPPER
25			•2A715100 UPPER LID,HOPPER
35			•2A715120 UPPER MOUNT BASE F,HOPPER(USA)
35			•36756181 UPPER MOUNT BASE C,HOPPER (R S)

13. CLEANING SECTION I 2A7

№	Артикул	Альт. артикул	Описание
50			HAS
48			BAN
40			36 HAS BAL
43			37 BAN
1			BAN
26			24 RDC
30			22 RDC
56			16 BAN 19 20 53 E05
15			6 BAN
52			8 21 RDC
55			31 24 HAS
6			•2A718020 LEFT FRAME,CLEANING 1 1 1 ' 46 •2A718460 RIGHT SHIELD,CLEANING BLADE SIDE
8			•2A718080 SPIRAL,CLEANING 1 1 1 48 •2A718170 RIGHT FULCRUM PLATE,BLADE
10			•2A718410 GROUND PLATE,FUR BRUSH 1 1 1 50 •2A718110 NOZZLE,CLEANING
11			•2A718320 MOUNT,FUR BRUSH 1 1 1 51 •2AZ18160 CAP,NOZZLE
14			•2A718180 LEFT FULCRUM PLATE,BLADE 1 1 1 ' 54 •78318330 SPRING SEPARATION CLAW SOLENOID
17			•48128606 PIN,WIRE TENSION 2 2 2 57 2AG05200 LABEL,HIGH VOLTAGE CAUTION(EXP)
19			•2A718350 MOUNT,FULCRUM PIN
20			•2A718340 LEFT FULCRUM PLATE,CLEANING RETAINING
21			•67816151 BUSHING,SEPARATION
23			•67816170 GUIDE,SEPARATION
24			•67816160 GUIDE,SEPARATION CLAW
25			•67816130 MOUNT,SEPARATION SOLENOID
27			•2A718090 LEVER,SEPARATION SOLENOID
30			•2A718440 POSITIONING PLATE,MAIN CHARGER
31			•2A902020 PROTECTOR,EDGE
32			•67818130 MOUNT,WEIGHT
34			•67818110 WEIGHT,CLEANING BLADE
35			•34016110 SHAFT, SEPARATION
36			•2A718530 VIBRATION INSULATOR,CLEANING BLADE
37			•2A718500 SLIDE PLATE,BLADE RELEASE
38			•72114320 PIN,DEV.UNIT HANDLE
39			•2A718360 RETAINER,MAIN CHARGER

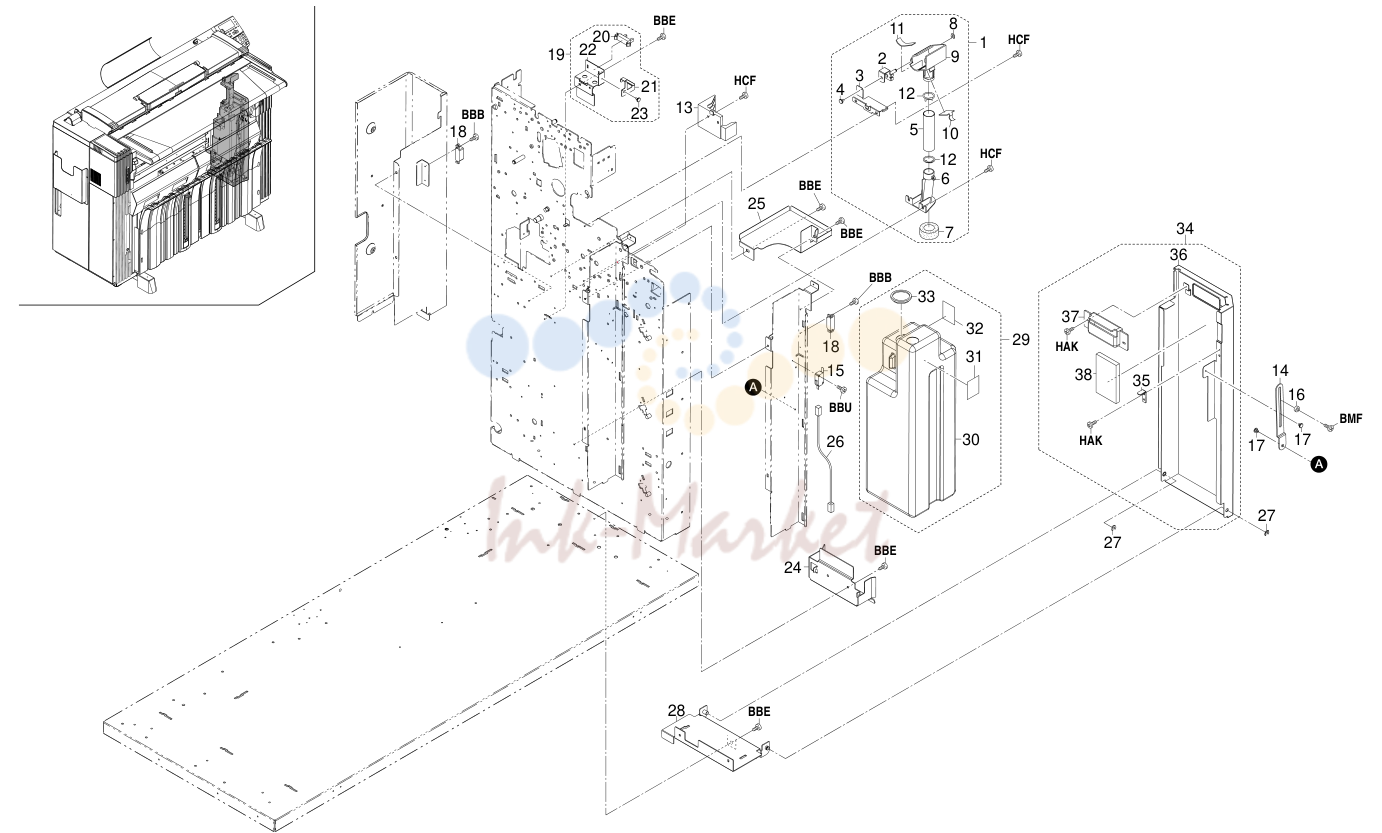

14. CLEANING SECTION II 2A7

№	Артикул	Описание
20		1 HCF
21		HCF
12		HCF
18		HAK
26		30 HAK
28		BBE
1	2A700410 запросить цену →	DISPOSAL PIPE ASS’Y
2		•2A718370 JUNCTION PLATE,DUCT
3		•2A718190 RETAINER,DUCT
4		•71802210 PIN,DRUM LIFT
5		•2A718400 COUPLER,TONER DISPOSAL
6		•2AZ18330 PIPE,TONER DISPOSAL
8		•34806140 STOPPER
9		•2AZ18170 DUCT,DISPOSAL TONER
10		•2A718430 SPRING,DUCT
12		•2AZ18370 SHIELD,TUBE
13	2A718520 запросить цену →	GUIDE,DISPOSAL TANK
14	2A718480 запросить цену →	ARM,RELEASE
16	2A902020 запросить цену →	PROTECTOR,EDGE
17	48129208 запросить цену →	PIN,TENSION
18	44728101 запросить цену →	MAGNET CATCHER
20		•74718390 OVERFLOW SENSOR
21		•2AZ18230 DETECTION PLATE,DISPOSAL TANK
22		•2AZ18220 MOUNT,OVERFLOW
23		•72918050 PIN,BLADE ARM
24	2A718260 запросить цену →	FULCRUM PLATE,DISPOSAL TANK
25	2A726920 запросить цену →	UPPER PARTITION,DISPOSAL TANK
26	2A727510 запросить цену →	RIGHT WIRE,DOOR SWITCH
27	34806480 запросить цену →	STOPPER
28	2A718390 запросить цену →	FULCRUM PLATE,COVER DISPOSAL TANK
29	2A700430 запросить цену →	DISPOSAL TANK ASS’Y
30		•2A718230 TANK,TONER DISPOSAL
31		•48828112 TAPE,TONER TANK
32		•36505111 LABEL,TONER DISPOSAL TANK
33		•67818410 LID,TONER DISPOSAL TANK
34	2A700440 запросить цену →	COVER DISPOSAL TANK ASS’Y
35		•67804170 PROJECTION,SWITCH
37		•2AZ04370 HANDLE,DISPOSAL TANK COVER

15. FIXING SECTION I 2A7

№	Артикул	Альт. артикул	Описание
55			57 57 (cid:0)y(cid:0)y(cid:0)y
54			54 BBE (cid:0)y(cid:0)y(cid:0)y
1			46 BAN 3 34BAN 22 BBE HCF
25			BAC 44 WAC
4			BAN BAN HCF
35			BAN
13			BAN
36			17 BAN
31			BAN
2			•2A720041 LEFT FRAME,FIXING 1 1 1 ' 42 •2A720550 SPRING,SEPARATION CLAW
3			•2A720050 RIGHT FRAME,FIXING 1 1 1 43 •2A723091 SEAL,COOLING PARTITION ADIABATIC
4			•67401030 GRANDING WIRING ASS’Y 1 1 1 44 •2A727140 WIRE A,DETACHING
5			••L0023070 ROUND TYPE TERMINAL,173636-1 2 2 2 45 •2A727160 WIRE,FIXING
6			•2A720410 MOUNT,FIXING WIRE 1 1 1 46 •2A727230 JUNCTION WIRING,FIXING THERMISTOR
7			•2A723040 LOWER PARTITION,COOLING 1 1 1 47 •2A727670 JUNCTION WIRING A,FIXING THERMOSTAT
8			•2A720091 UPPER PARTITION,FIXING 1 1 1 48 •2A727680 JUNCTION WIRING B,FIXING THERMOSTAT
9			•2A720101 COVER,FIXING 1 1 1 ' 49 34023130 FILTER,COOLING
10			•2A720160 FRONT REINFORCEMENT,FIXING 1 1 1 ' 50 2A720390 HEATER 120A,FIXING
11			•2A720190 MOUNT,HEAT ROLLER SEPARATION CLAW 1 1 1 ' 50 2A720450 HEATER 240A,FIXING
13			•2A720480 FRONT GUIDE,FIXING 4 4 4 ' 51 2A720461 HEATER 240B,FIXING
14			•2AZ20370 FRONT GUIDE,FIXING 6 6 6 52 2A700520 UPPER RIGHT COVER DETACHING ASS’Y
15			•2A720420 FRONT SPRING,COVER 2 2 2 ' 53 •2A704410 UPPER RIGHT COVER,DETACHING
16			•34020250 HOLDER,BEARING FIXING 2 2 2 54 •66004210 COLLAR,HINGE
17			•2AZ20280 LEFT MOUNT,SPRING OIL 1 1 1 55 2A700530 UPPER LEFT COVER DETACHING ASS’Y
18			•2AZ20300 RIGHT MOUNT,SPRING OIL 1 1 1 ' 56 •2A704400 UPPER LEFT COVER,DETACHING
19			•2A720440 GEAR 18,OIL ROLLER 1 1 1 57 •66004210 COLLAR,HINGE
20			•2A720210 UPPER MOUNT,THERMISTOR 2 2 2 ' 58 2A704390 RIGHT COVER,DETACHING
34			•2AZ20400 PROJECTION,GUIDE ADMISSION
35			•2A723070 DUCT,COOLING FAN SUB
36			•M1203220 OPEN BUSHING,OCB-625
37			•M1203510 OPEN BUSHING,OCB-1000
38			•M2104200 EDGING EDS-1
39			•M2105730 MINIATURE CLAMP,UAMS-07-0
40			•2AZ20390 SHAFT,SEPARATION CLAW FIXING

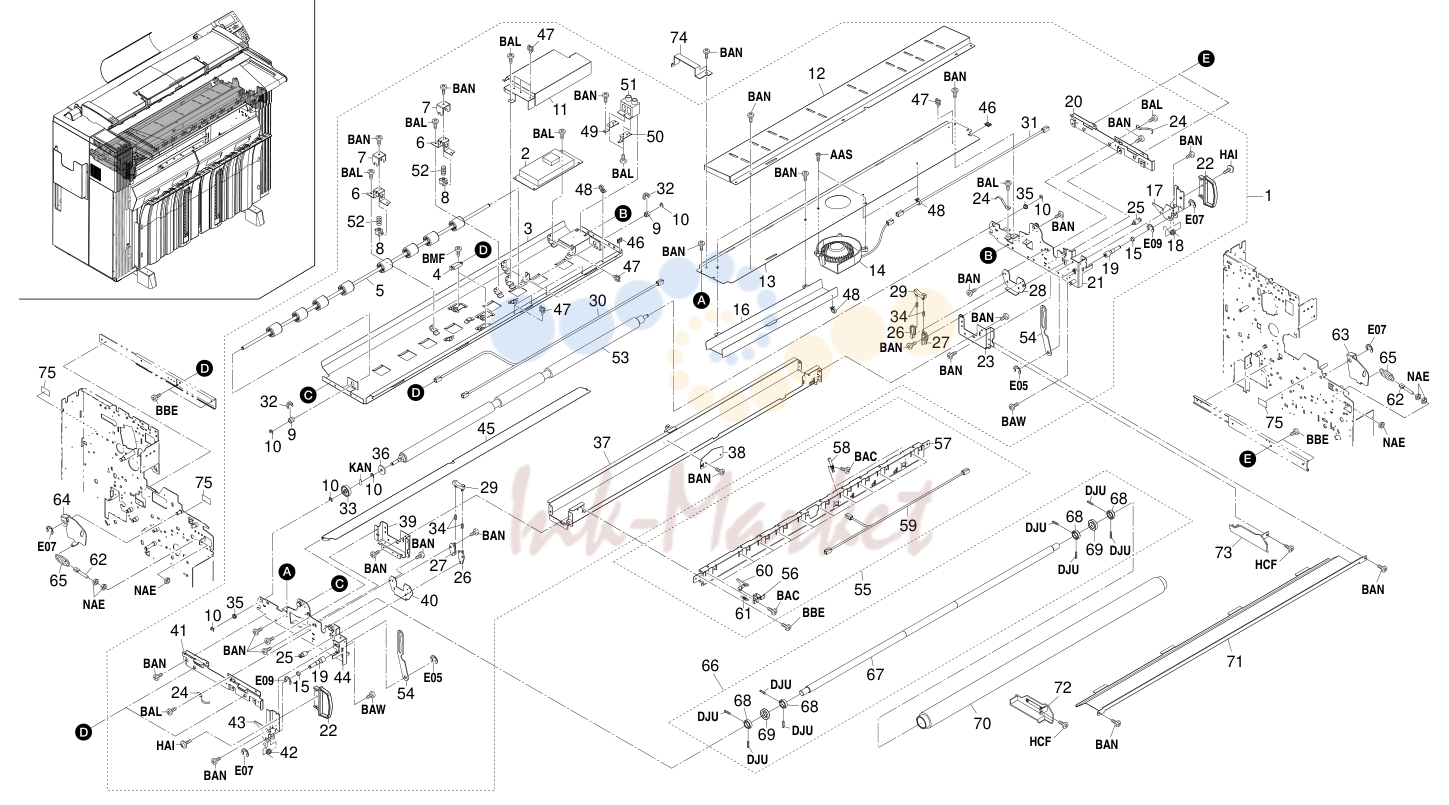

16. FIXING SECTION II 2A7

№	Артикул	Описание
12		BAN
7		11 BAN BAN 47 46 20 BAL
7		2 AAS 22 HAI
3		9 BAN
8		BMF 46 BAN 15 E0918
4		47 13 14 BAN
34		BAN
75		BAN NAE
45		BAW
10		36 37 38 58 BAC 57 BBE NAE
75		10 10 29 BAN DJU
39		34 59 DJU
65		62 BAN 27 26 60 56 DJU HCF
10		61 BBE
24		E09 15 1944 54 E05 DJU
22		69 DJU
1	2A700291 запросить цену →	DETACHING ASS’Y 1 1 1 41 •2A717030 LEFT MOUNT,SLIDER
3		•2A706030 UPPER GUIDE,BYPASS 1 1 1 43 •2A717091 LEFT LEVER,DETACHING
6		•2A706320 SUPPORT PLATE,BYPASS BUSHING 2 2 2 46 •M2104260 EDGING,EDS-0607U(KITAGAWA)
7		•2A706380 STOPPER,BYPASS ROLLER 2 2 2 47 •M2105730 MINIATURE CLAMP,UAMS-07-0
11		•2A716200 COVER,TRANSFER HIGH VOLTAGE 1 1 1 51 •2AZ16150 TERMINAL BASE,TRANSFER
12		•2A717140 GUIDE,CONVEYING 1 1 1 ' 52 •2A706350 SPRING,BYPASS ROLLER
13		•2A717130 MOUNT,CONVEYING FAN 1 1 1 ' 53 •2A716080 FRONT ROLLER,TRANSFER
15		•74702120 COLLAR 12 DETACHABLE SECTION 4 4 4 55 2A700650 PRESSURE ROLLER SEPARATION CLAW ASS’Y
16		•2A717150 DUCT,CONVEYING 1 1 1 56 •2A720350 MOUNT,PRESSURE ROLLER SEPARATION CLAW
17		•2A717101 RIGHT LEVER,DETACHING 1 1 1 57 •2A720470 LOWER MOUNT,THERMISTOR
18		•2AZ20210 LEFT SPRING,HOOK FIXING 1 1 1 ' 58 •2A720520 THERMISTOR,FIXING
19		•2A717070 PIN,DETACHING(M4) 2 2 2 59 •2A727410 JUNCTION WIRING,PRESS ROLLER THERMISTOR
20		•2A717040 RIGHT MOUNT,SLIDER 1 1 1 ' 60 •36720493 CLAW,PRESS ROLLER
21		•2A717011 RIGHT FRAME,DETACHING 1 1 1 ' 61 •68320310 SPRING,SEPARATION CLAW
22		•2AZ17091 HANDLE,DETACHING 2 2 2 62 29720420 ROD,PRESSING SPRING
23		•2A720060 RIGHT LOWER MOUNT,PARTITION FIXING 1 1 1 63 2A720270 RIGHT LEVER,SHAFT PRESSURE
25		•48129208 PIN,TENSION 2 2 2 65 2A720530 SPRING,FIXING
28		•2A720230 RIGHT MOUNT,PRESSURE ROLLER GUIDE 1 1 1 68 •2A720510 COLLAR,PRESS ROLLER
30		•2A727180 WIRE B,DETACHING 1 1 1 ' 70 2A720020 ROLLER,PRESSURE FIXING
31		•2A727260 JUNCTION WIRING,CONVEYING FAN 1 1 1 ' 71 2A704420 LOWER COVER,DETACHING
32		•71821600 SPRING,UPPER EJECT ROLLER 2 2 2 ' 72 2A704430 LOWER LEFT COVER,DETACHING
37		•2A720080 LOWER PARTITION,FIXING
38		•2AZ20240 ADJUSTING PLATE,GUIDE ADMISSION
39		•2A720070 LEFT LOWER MOUNT,PARTITION FIXING
40		•2A720240 LEFT MOUNT,PRESSURE ROLLER GUIDE

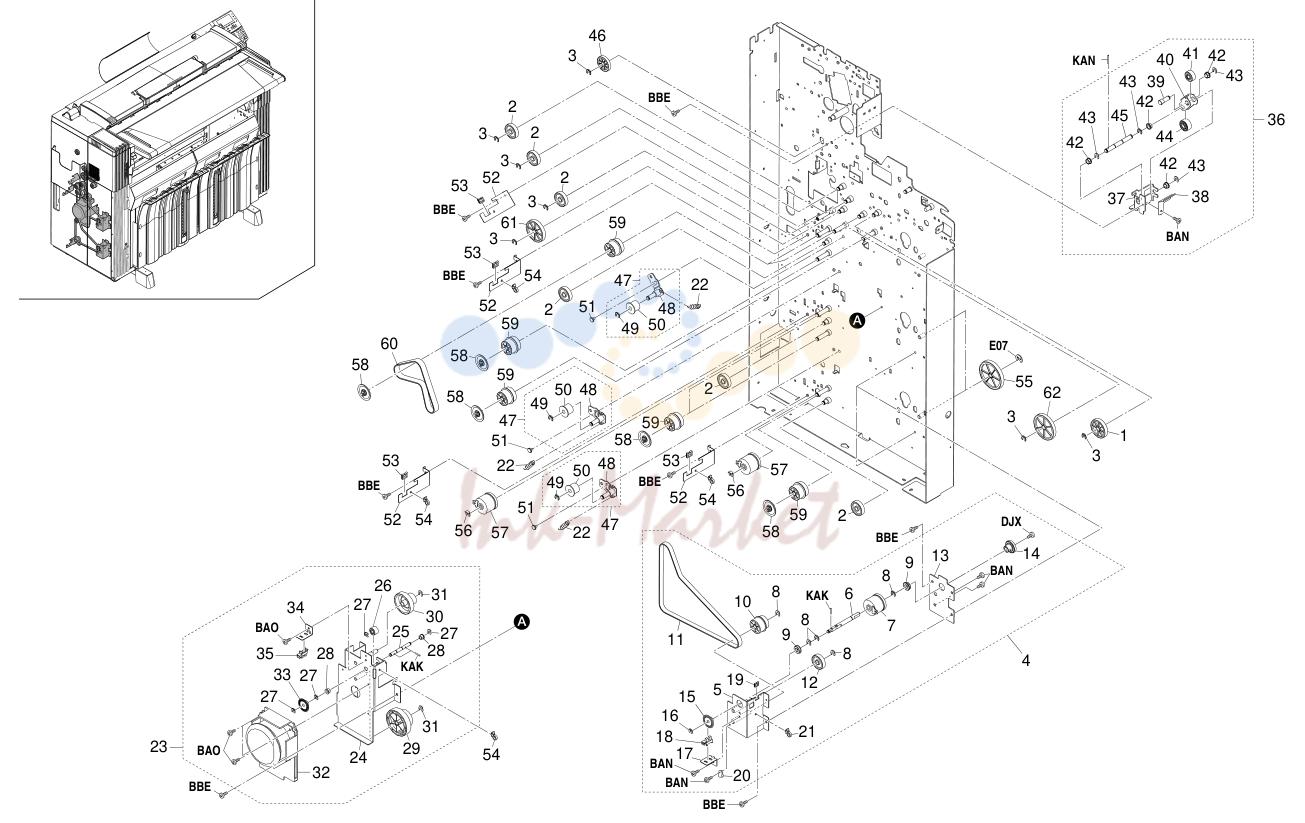

17. DRIVING,COLLING SECTION I 2A7

№	Артикул	Описание
3		KAN
2		BBE
3		BAN
52		54 47 59 2 DJX
8		BAN
34		27 26 31 10 8 KAK
23		BAO
4	2A700730 запросить цену →	ROLL UP DRIVE ASS’Y 2 2 2 ' 44 •67822410 GEAR 22,PRE-TRANSFER DRIVE
5		•2A722120 RETAINER,ROLL UP DRIVE 2 2 2 45 •2A722060 SHAFT,TRANSFER DRIVE
6		•2A722150 SHAFT,ROLL UP DRIVE 2 2 2 ' 46 2AZ22490 GEAR 32,TRANSFER DRIVE
13		•2A722110 MOUNT,ROLL UP DRIVE 2 2 2 53 M2104200 EDGING EDS-1
14		•67822270 GEAR 16,ROLL DRIVE 2 2 2 54 M2107120 BINDING BAND SG-130
15		•75208110 PULSE SENSOR PLATE 2 2 2 ' 55 2A707190 GEAR 40,ROLL DRIVE
17		•67822230 MOUNT,ROLL PI 2 2 2 ' 57 2AZ27060 CLUTCH,PAPER FEED
19		•M2104260 EDGING,EDS-0607U(KITAGAWA) 2 2 2 59 2A722490 PULLEY 32/30
20		•M2105740 MINIATURE CLAMP,UAMS-05S-2 2 2 2 ' 60 2A722380 BELT,PAPER FEED DRIVE
21		•M2107120 BINDING BAND SG-130 2 2 2 ' 61 2AC22450 GEAR 47,FEED
23	2A700760 запросить цену →	PAPER FEED MOTOR ASS’Y
24		•2A722170 MOUNT,PAPER FEED MOTOR
25		•2A722300 SHAFT,ROLL PI
33		•75208110 PULSE SENSOR PLATE
34		•67822230 MOUNT,ROLL PI
36	2A700750 запросить цену →	TRANSFER DRIVE ASS’Y
37		•2A722040 MOUNT,TRANSFER DRIVE
38		•2A722190 PLATE SPRING,TRANSFER DRIVE
39		•2A722460 SHAFT,TRANSFER DRIVE JOINT
40		•2A722050 JUNCTION PLATE,TRANSFER DRIVE

18. DRIVING,COLLING SECTION II 2A7

№	Артикул	Описание
27		26 28 XCF KA 2 N 9 16 BAN 44 E07 DJX E07 43 3 BAN
30		DJX BAN
14		XBL
38		BAN
32		E09 23 31 BAN BAN 45 20 45 21 E07
30		BBE
59		BAD
61		62 DJX 56 53 BAN 51 KAN
50		52 BBE
1	2A700770 запросить цену →	IMAGE FORMATION DRIVE ASS’Y 1 1 1 ' 41 •34022250 GEAR 30,TRANSFER
2		•2A722180 MOUNT,IMAGE FORMATION DRIVE 1 1 1 ' 42 •34022231 SPRING,TRANSFER DRIVE
3		•2A722470 UPPER SUPPORT PLATE,DRUM RELEASE 1 1 1 43 •2A722290 HOLDER,TRANSFER DRIVE
4		•2AZ22150 HOLDER,DRUM JOINT 1 1 1 ' 44 •2AZ22340 GEAR 25,DEVELOPING DRIVE
5		•2A722480 LOWER SUPPORT PLATE,DRUM RELEASE 1 1 1 45 •72418140 SPRING, BLADE
8		•2A722140 JOINT,CLEANING DRIVE 1 1 1 48 2A700780 DRUM MOTOR ASS’Y
13		•2A722210 SHAFT,DEVELOPING DRIVE 1 1 1 ' 53 •28107400 BEARING,688ZZNR
14		•2AZ22270 PULLEY 30,DEVELOPING DRIVE 1 1 1 54 •2A722330 SHAFT,DRUM GEAR
16		•2A722220 RETAINER,DEVELOPING DRIVE 1 1 1 ' 56 •34806480 STOPPER
17		•2AZ22170 POSITIONING PLATE,DRUM RELEASE 1 1 1 57 •2AZ22240 PULLEY 17,DRUM DRIVE
18		•71802210 PIN,DRUM LIFT 6 6 6 58 M2109200 LOCKING WIRE SADDLE,LWS-3S-2W
20		•33922100 TENSION PLATE,DRUM DRIVE 1 1 1 60 •34022051 FLYWHEEL A
22		•2A722270 TENSION PLATE,DEVELOPING DRIVE 1 1 1 ' 62 48528604 TENSION SPRING,CLUTCH
23		•2A722280 SHAFT,DRUM DRIVE 1 1 1 63 2A700710 ROLL JOINT ASS’Y
24		•78622430 WASHER FIXING COUPLER 1 1 1 64 •2A722100 MOUNT,ROLL JOINT
26		•2AZ22310 JUNCTION PLATE,DRUM COUPLER 1 1 1 ' 66 •67322230 BUSHING
27		•2AZ22300 COUPLER,DRUM DRIVE 1 1 1 ' 67 •33922330 GEAR 30,IDLE
28		•2AZ22320 COUPLER,DRUM FLANGE 1 1 1 ' 68 •48528208 SPRING,BLADE B
29		•65011860 PIN,ORIGINAL MAT 1 1 1 69 •2A722090 JUNCTION PLATE,ROLL DRIVE
33		•2A722240 RETAINER,DRUM DRIVE 1 1 1 ' 73 •45727601 GEAR 20,DEVELOPING UNIT
34		•2AZ22280 TENSION PLATE,DEVELOPING DRIVE 1 1 1 74 M2107120 BINDING BAND SG-130
36		•67822380 TENSION PLATE,PRE-TRANSFER DRIVE
37		•18522331 RETAINER,FLYWHEEL
39		•2A722010 PULLEY 24/37,MAIN

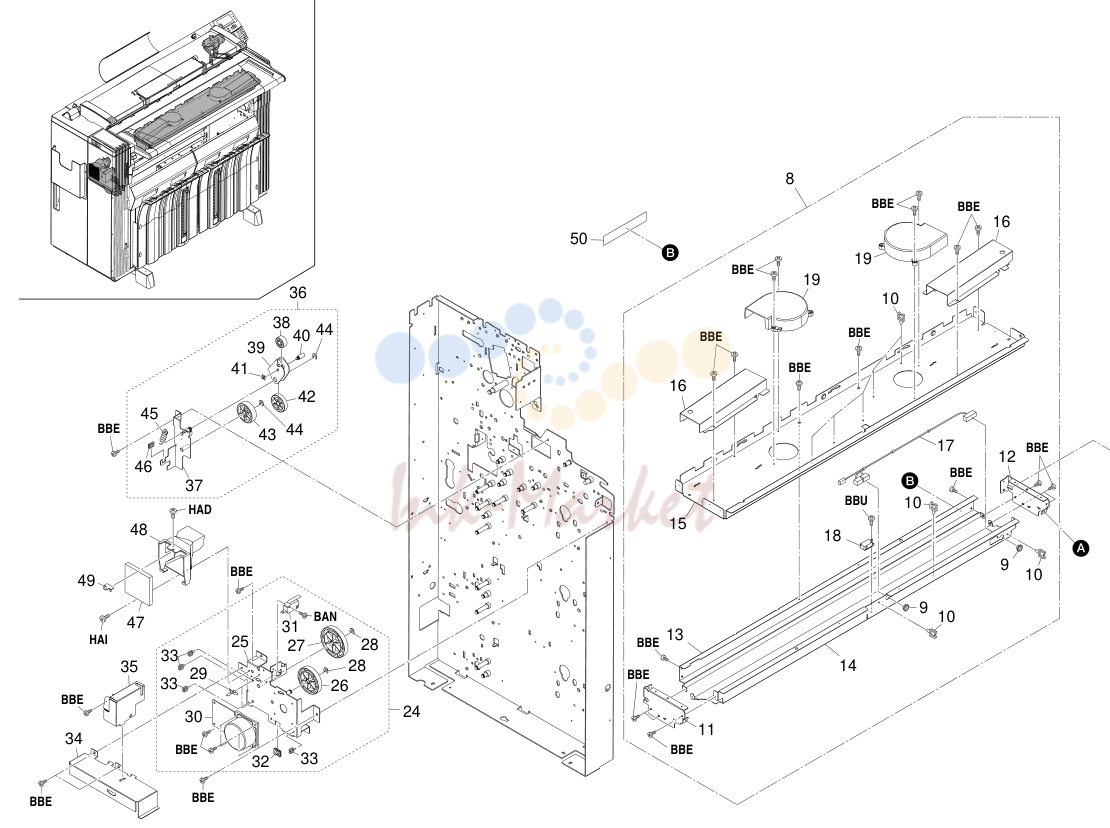

19. DRIVING,COLLING SECTION III 2A7

№	Артикул	Описание
4		DJV
8		BAN
16		BBE
50		2 BBE
38		40 44 BBE BBE KAN
41		BBE KAN
17		BBE
48		15 BBE
49		BBE
47		31 BAN
29		BBE
4	2A700660 запросить цену →	ORIGINAL MOTOR ASS’Y 1 1 1 ' 44 •34806480 STOPPER
6		•18821120 PULLEY,SWITCH BACK MOTOR 1 1 1 46 •M2104260 EDGING,EDS-0607U(KITAGAWA)
7		•2A722200 MOUNT,ORIGINAL MOTOR 1 1 1 ' 47 67823080 FILTER,CONVEYING
8	2A700450 запросить цену →	COOLING FAN ASS’Y 1 1 1 48 2A716170 DUCT,TRANSFER
9		•M1203240 OPEN BUSHING,OCB-500 2 2 2 49 2AZ17120 RETAINER,FILTER
10		•M2105740 MINIATURE CLAMP,UAMS-05S-2 8 8 8 ' 50 20305130 LABEL L,HIGH TEMPERATURE CAUTION(EXP)
11		•2A723010 LEFT FRAME,COOLING
12		•2A723020 RIGHT FRAME,COOLING
13		•2A723050 REAR PARTITION,COOLING
14		•2A723030 FRONT PARTITION,COOLING
15		•2A723060 MOUNT,COOLING FAN
16		•2A723080 DUCT,COOLING FAN MAIN
17		•2A727250 JUNCTION WIRING,FIXING FAN
21	2A722250 запросить цену →	TENSION PLATE,ORIGINAL
22	71802210 запросить цену →	PIN,DRUM LIFT
24	2A700690 запросить цену →	FIXING MOTOR ASS’Y
25		•2A722130 MOUNT,FIXING MOTOR
29		•M2108120 SPACER,KGLS-4S
32		•M2104210 EDGING,EDS-2
33		•M2105740 MINIATURE CLAMP,UAMS-05S-2
34	2A726630 запросить цену →	COVER,FIXING MOTOR
35	2A726640 запросить цену →	LEFT COVER,INTERLOCK SWITCH
36	2A700680 запросить цену →	FIXING JOINT ASS’Y
37		•2A722160 MOUNT,FIXING JOINT
39		•2AZ22460 JOINT,FIXING DRIVE
40		•2AZ22470 SHAFT,FIXING JOINT

20. ELECTRICAL COMPONENTS 2A7

№	Артикул	Описание
38		BBE
3		49 BBE
23		BBE 32 BBE
12		13 14 BBE
17		12 14 BBE
40		BBE
71		52 33 74 51 BBE 15 74 BBE BB 1 E
59		61 62 BBE 15 BBE 21 BBE
35		BBB BBE 63 CAD
34		71 69 50 BBE 44 BBE
37		BBE
2	2A727440 запросить цену →	WIRE,DEVELOPING BIAS 1 1 1 40 2A713671 FRONT GROUND PLATE,SCANNER
3	2A727500 запросить цену →	WIRE,LPH DATA 1 1 1 41 34027120 MOUNT BASE,POWER RELAY
4	2A727650 запросить цену →	LEFT JUNCTION WIRING,INVERTER PCB 1 1 1 ' 42 68327260 RELAY,SAFETY SWITCH
6	34027320 запросить цену →	WIRE,GRID 1 1 1 44 M2109210 LOCKING WIRE SADDLE,LWS-8S-2.5W
7	34052750 запросить цену →	JUNCTION WIRING,MAIN SWITCH (R C) 1 1 1 45 M2109180 WIRE SADDLE,LWS-1S
10	2A701070 запросить цену →	MOUNT MAIN PCB ASS’Y 1 1 1 48 2A727330 WIRE,CIS DATA
11		•2A726010 MOUNT,MAIN PCB 1 1 1 49 2AR27800 POWER CORD(230)
12		•M2108120 SPACER,KGLS-4S 11 11 11 49 29927231 POWER CODE AS(240)
13		•M2108130 SPACER,KGPS-4S 9 9 9 50 M1203510 OPEN BUSHING,OCB-1000
14		•M2109210 LOCKING WIRE SADDLE,LWS-8S-2.5W 10 10 10 51 M2505190 CLAMP,GNK-4N(NIKKO)
15		•M2108380 SPACER,WLS-06-0 3 3 3 52 2A726610 LEFT MOUNT,INVERTER PCB
18	2A701111 запросить цену →	POWER SOURCE SUPPLY ASS’Y 120 1 55 2A717110 RIGHT MOUNT,DETACHING SWITCH
18	2A701121 запросить цену →	POWER SOURCE SUPPLY ASS’Y 230 1 1 56 2A726140 RIGHT COVER,SWITCH DETACHING
19		•M1203490 STRAIN RELEAF BUSHING,SR-7K-2 1 ' 57 34027190 SWITCH,INTERLOCK
20		•M2103070 BUSHING,DDB-2428(KITAGAWA) 2 2 2 58 2AZ26160 ARM,DETACHING WIRE
21		•2AZ26062 MOUNT,POWER CORD 1 59 M2108120 SPACER,KGLS-4S
21		•2A726031 MOUNT 230,POWER CORD 1 1 60 2A727100 WIRE,MAIN HIGH VOLTAGE
22		•36701160 POWER CORD ASS’Y (120) 1 61 2A727110 RIGHT WIRE,MAIN
23		•36701170 POWER INLET ASS’Y 1 1 62 2A727120 LEFT WIRE,MAIN
24	2A701060 запросить цену →	MAIN SWITCH ASS’Y 1 1 1 63 2A727130 WIRE,PRIMARY
26		•2AZ27280 JUNCTION WIRING,MAIN SWITCH 1 1 1 65 2A727150 WIRE,ISU POWER SOURCE
27		•2AZ27290 JUNCTION WIRING,MAIN SWITCH MOUNT 1 1 1 ' 66 2A704550 COVER,MAIN SWITCH
28		•2A726110 MOUNT,MAIN SWITCH 1 1 1 ' 67 2A727010 TRANSFORMER,MAIN HIGH VOLTAGE
30		•72404230 COVER, KEY COUNTER 1 1 1 69 2A727430 JUNCTION WIRING,MAIN TRANSFORMER
31		•M2105730 MINIATURE CLAMP,UAMS-07-0 2 2 2 70 M1203220 OPEN BUSHING,OCB-625
32	2A726131 запросить цену →	PROTECTING PLATE,MAIN SWITCH 1 1 1 71 M2104260 EDGING,EDS-0607U(KITAGAWA)
33	2A726650 запросить цену →	UPPER LEFT SHIELD,CIS WIRE 1 1 1 72 M2104280 EDGING,EDS-25L(KITAGAWA)
34	2A726660 запросить цену →	LOWER LEFT SHIELD,CIS WIRE 1 1 1 73 M2109230 WIRE SADDLE,LWS-3S(KITAGAWA)
35	34026130 запросить цену →	GROUND PLATE D,NOIZE 3 3 3 74 M2505140 CLAMP,GNK-6N(NIKKO)
36	2A726910 запросить цену →	MOUNT,SCANNER INTERFACE 1 1 1 ' 75 65227040 POWER SOURCE SWITCH
37	2A726151 запросить цену →	LID,CABLE WIRE
38		BBE
3		49 BBE
23		BBE 32 BBE
12		13 14 BBE
17		12 14 BBE
40		BBE
71		52 33 74 51 BBE 15 74 BBE BB 1 E
59		61 62 BBE 15 BBE 21 BBE
35		BBB BBE 63 CAD
34		71 69 50 BBE 44 BBE
37		BBE

21. OPTION & TOOL 2A7

№	Артикул	Описание
1	74760011 запросить цену →	ORIGINAL CARRIER SHEET A2
1	74760021 запросить цену →	ORIGINAL CARRIER SHEET 18X24
2	74712661 запросить цену →	ORIGINAL CARRIER SHEET A1
3	74760060 запросить цену →	ORIGINAL CARRIER SHEET 36X48M
3	74760050 запросить цену →	ORIGINAL CARRIER SHEET A0 M
4	74712671 запросить цену →	ORIGINAL CARRIER SHEET 24X36
5	82142540 запросить цену →	KEY COUNTER
6	41529121 запросить цену →	SOCKET ASS’Y KEY COUNTER
7		•41525016 SOCKET,KEY COUNTER
8		•41529105 PLUG EL 4P
9	74782110 запросить цену →	ORIGINAL TRAY DC-A0/3648
10		•74760220 TRAY,ORIGINAL
11		•74760210 SUPPORT BAR,ORIGINAL TRAY
12		•74760230 STOPPER,ORIGINAL
13		•74760241 MOUNT,ORIGINAL TRAY
14		•74760250 HINGE,ORIGINAL TRAY
15		•48128108 FRONT PIN,FIXING FULCRUM
16	71802210 запросить цену →	PIN,DRUM LIFT
17	2A768040 запросить цену →	LEFT MOUNT,ORIGINAL TRAY
18	2A768030 запросить цену →	RIGHT MOUNT,ORIGINAL TRAY
19	B1304060 запросить цену →	BINDING SCREW BVM4X6 (BLACK)
21		•2A706360 COVER,HEATER CONNECTOR
22		•M2107120 BINDING BAND SG-130
24	67868010 запросить цену →	BOLT,MACHINE
25	2AZ68100 запросить цену →	HANDLE,DEVELOPING DRIVE

22. ROLL UNIT I 2A7

№	Артикул	Описание
49		BBE
1		E03 BBE BBE
39		42 36 27 42 2 42 37 55 17 BBE BBE BBE
35		BBE E05
54		BBE 41 BHV BBE
10		41 BBB BBE
59		BBE 42 57 43 43 27 42 4 BBE
7		56 21 43 24 3 BBE BBE
60		E07 4 BBE
26		BBE
68		HAO
70		HAO
69		HAO
1	2A700170 запросить цену →	ROLL ASS’Y(METRIC) 2 2 ' 40 •29822350 GEAR 20T,DRIVE
1	2A700510 запросить цену →	ROLL ASS’Y(INCH) 2 ' 41 •34020260 SPRING,PRESS ROLLER
5		•2A707010 BASE,ROLL 2 2 2 45 •67807370 MOUNT B,PAPER FEED ROLLER
6		•2A707020 RIGHT FRAME,ROLL 2 2 2 46 •67807581 RIGHT LEVER, ROLL PAPER FEED
7		•2A707030 LEFT FRAME,ROLL 2 2 2 47 •67807591 LEFT LEVER, ROLL PAPER FEED
8		•2A707400 UPPER GUIDE ROLL PAPER FEED 2 2 2 48 •67807600 RIGHT LEVER,ROLL PAPER FEED RETAINING
9		•2A707050 RIGHT FRAME,ROLL GUIDE 2 2 2 49 •67807610 LEFT LEVER,ROLL PAPER FEED RETAINING
10		•2A707060 LEFT FRAME,ROLL GUIDE 2 2 2 50 •67807690 SPRING,PAPER FEED LEVER
11		•2A707070 RIGHT SUPPORT PLATE,CURSOR 2 2 2 51 •67807760 PIN,LEVER PAPER FEED
12		•2A707080 LEFT SUPPORT PLATE,CURSOR 2 2 2 ' 52 •68322210 PULLEY,21 IDLE
13		•2A707090 SUPPORT BAR,SIDE GUIDE 4 4 4 53 •71802210 PIN,DRUM LIFT
14		•2A707100 UPPER REINFORCEMENT,PAPER FEED 2 2 2 ' 54 •71808260 PULLEY,DRUM TENSION
18		•2A707270 SHAFT,ROLL UNIT DRIVE 2 2 2 ' 58 •74714130 GEAR 23 SPIRAL ROLLER
19		•2A707280 RIGHT HOOK,ROLL 2 2 2 59 •2A707430 POSITIONING PLATE PAPER FEED GUIDE
20		•2A707290 LEFT HOOK,ROLL 2 2 2 60 •2A707420 FULCRUM PLATE PAPER FEED GUIDE
21		•2A707300 SHAFT,ROLL 6 6 6 ' 61 2A700420 ROLL FLANGE ASS’Y
24		•2A707370 SEAL,ROLL GUIDE 8 8 8 64 •2A707220 FLANGE C,ROLL
25		•2A707380 KNOB,ROLL SUPPORT 4 4 4 65 2A700800 RIGHT SLIDER ASS’Y
26		•2A707410 MOUNT ROLL 4 4 4 66 •2A707160 SLIDER,ROLL
28		•2A707520 RIGHT COVER,ROLL GUIDE 2 2 2 68 2A700810 LEFT SLIDER ASS’Y
29		•2A707530 LEFT COVER,ROLL GUIDE 2 2 2 69 •2A707160 SLIDER,ROLL
30		•2A707540 RIGHT POSITIONING PLATE,ROLL SUPPORT 2 2 2 70 •2A707360 MOUNT,SLIDER
31		•2A707550 LEFT POSITIONING PLATE,ROLL SUPPORT 2 2 2 ' 71 2A707460 RIGHT LABEL,ROLL SIZE(INCH)
32		•2A707560 RAIL,ROLL CURSOR 4 4 4 ' 71 2A707440 RIGHT LABEL,ROLL SIZE(METRIC)
33		•2A707570 STOPPER,ROLL SUPPORT 4 4 4 ' 72 2A707470 LEFT LABEL,ROLL SIZE(INCH)
34		•2A707580 INNER RIGHT COVER,ROLL GUIDE 2 2 2 ' 72 2A707450 LEFT LABEL,ROLL SIZE(METRIC)
35		•2A707590 INNER LEFT COVER,ROLL GUIDE
38		•48129208 PIN,TENSION

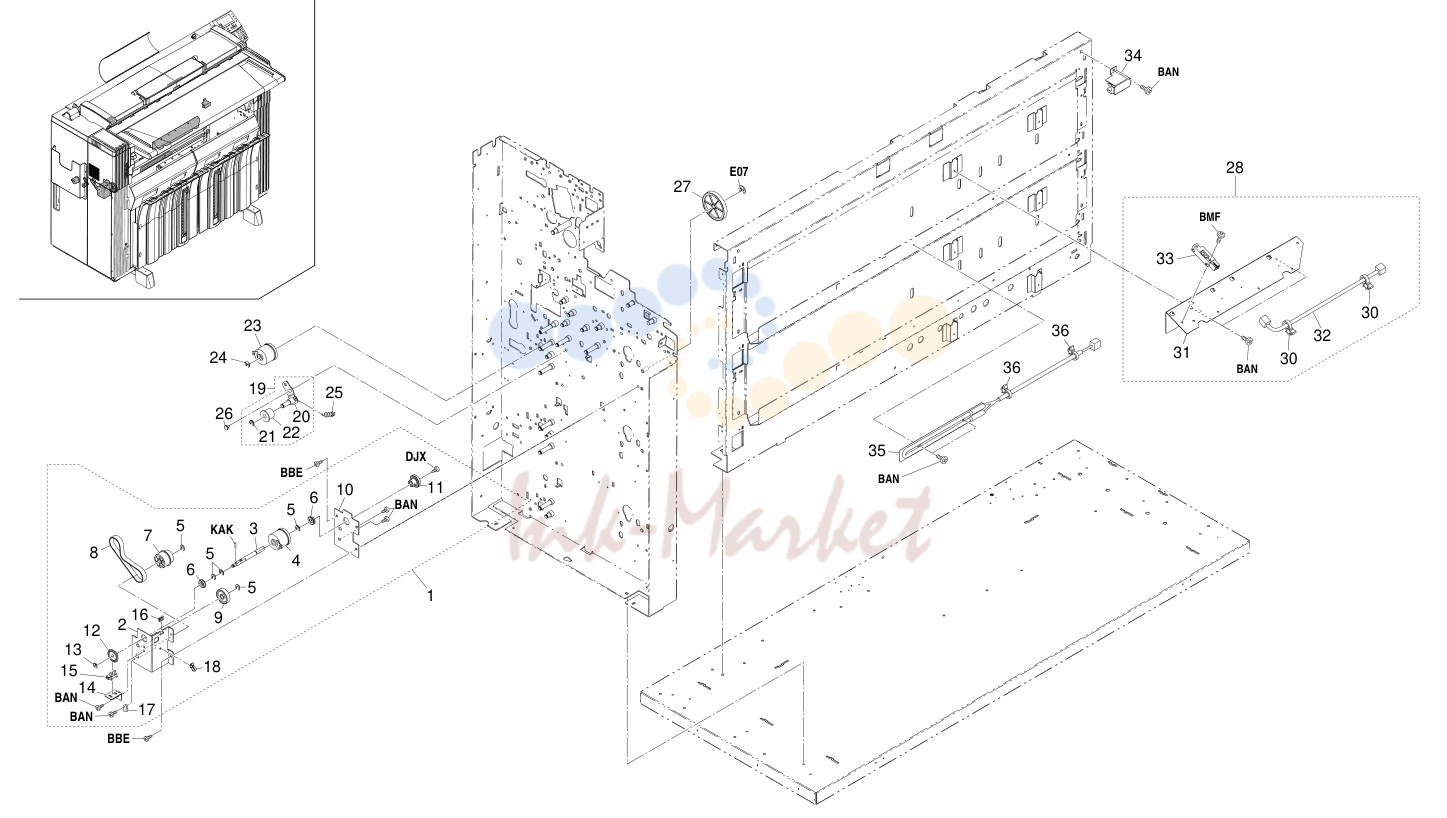

23. ROLL UNIT II 2A7

№	Артикул	Описание
36		BAN
5		BAN
7		5 KAK
1	3CL00020 запросить цену →	UPPER ROLL UP DRIVE ASS’Y
2		•2A722120 RETAINER,ROLL UP DRIVE
3		•2A722150 SHAFT,ROLL UP DRIVE
5		•34806480 STOPPER
10		•2A722110 MOUNT,ROLL UP DRIVE
11		•67822270 GEAR 16,ROLL DRIVE
12		•75208110 PULSE SENSOR PLATE
13		•34806140 STOPPER
14		•67822230 MOUNT,ROLL PI
16		•M2104260 EDGING,EDS-0607U(KITAGAWA)
17		•M2105740 MINIATURE CLAMP,UAMS-05S-2
18		•M2107120 BINDING BAND SG-130
19	2A700700 запросить цену →	TENSION PLATE PAPER FEED ASS’Y
20		•2A722320 TENSION PLATE,PAPER FEED DRIVE
21		•34806480 STOPPER
24	33906630 запросить цену →	STOPPER 5,RING
26	71802210 запросить цену →	PIN,DRUM LIFT
28	3CL00010 запросить цену →	UPPER SIZE DETECTION ASS’Y
29		•M2105730 MINIATURE CLAMP,UAMS-07-0
30		•M2107120 BINDING BAND SG-130
31		•2A706210 MOUNT,PAPER SWITCH
32		•3CL27010 WIRE,UPPER SIZE DETECTION
34	2A706360 запросить цену →	COVER,HEATER CONNECTOR
36	M2107120 запросить цену →	BINDING BAND SG-130
1-3		Parkhead Place,
8		Beacontree Plaza Phone: (01) 86338-0
162		50 Vällingby, Sweden
121		Genting Lane, 3rd Level,
225		Sand Road, P.O. Box 40008,

Источник: Инк-Маркет.ру.

← Все статьи
