Содержание
- 1. Covers 1 2KA
- 2. Covers 2 2KA
- 3. Frames 1 2KA
- 4. Frames 2 2KA
- 5. Paper Cassette 1 2KA

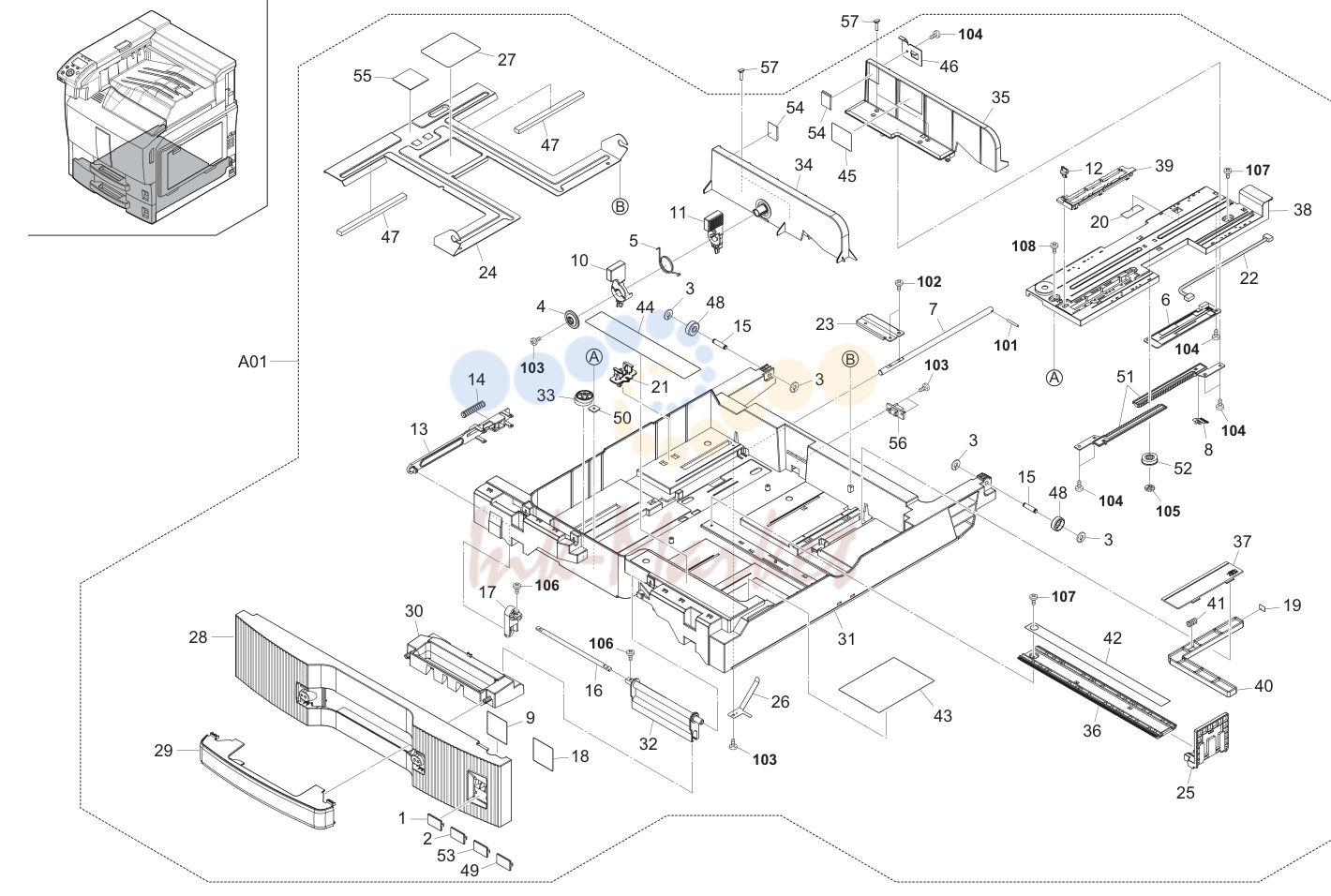

- 6. Paper Cassette 2 2KA

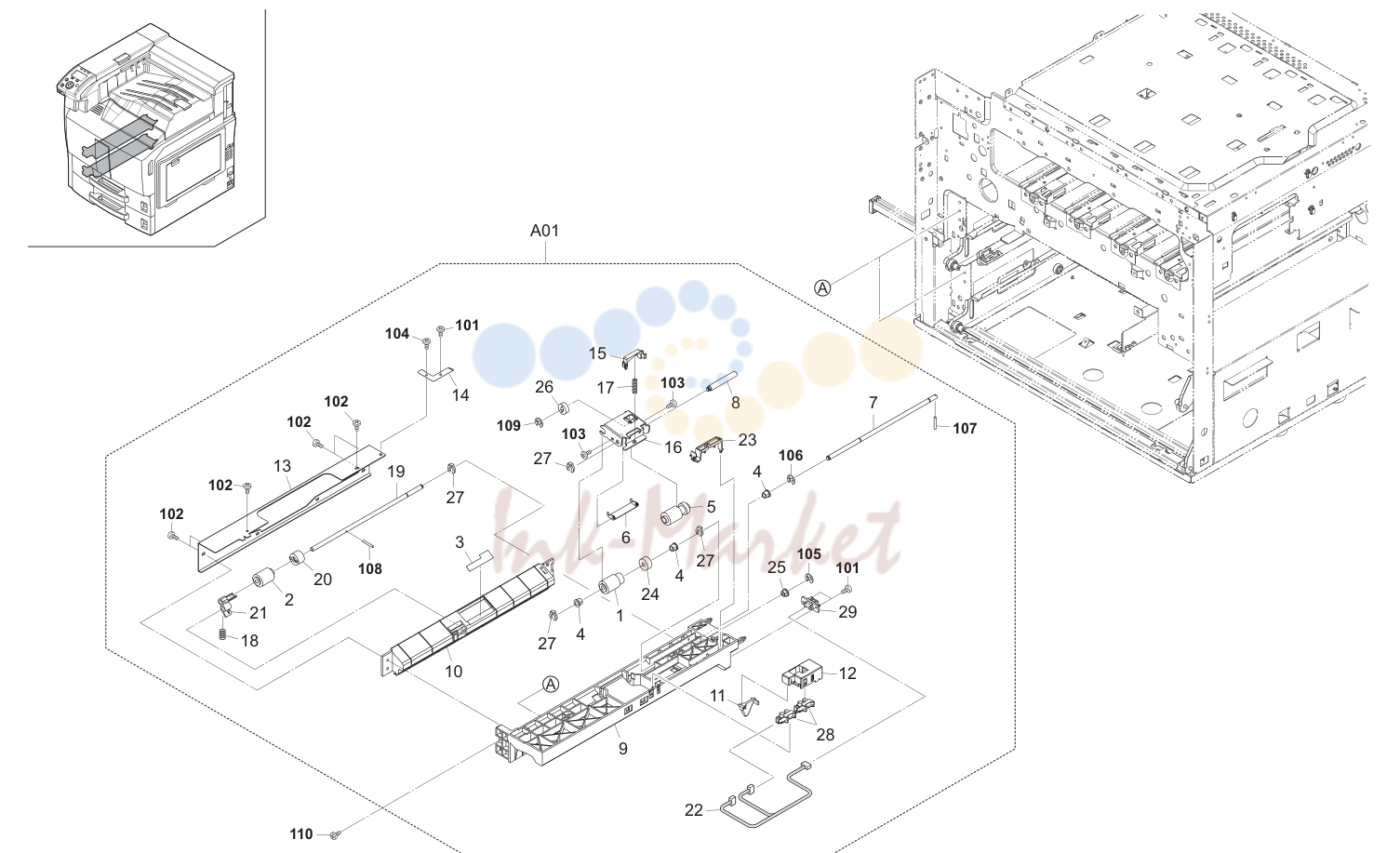

- 7. Paper Feed Section 1 2KA

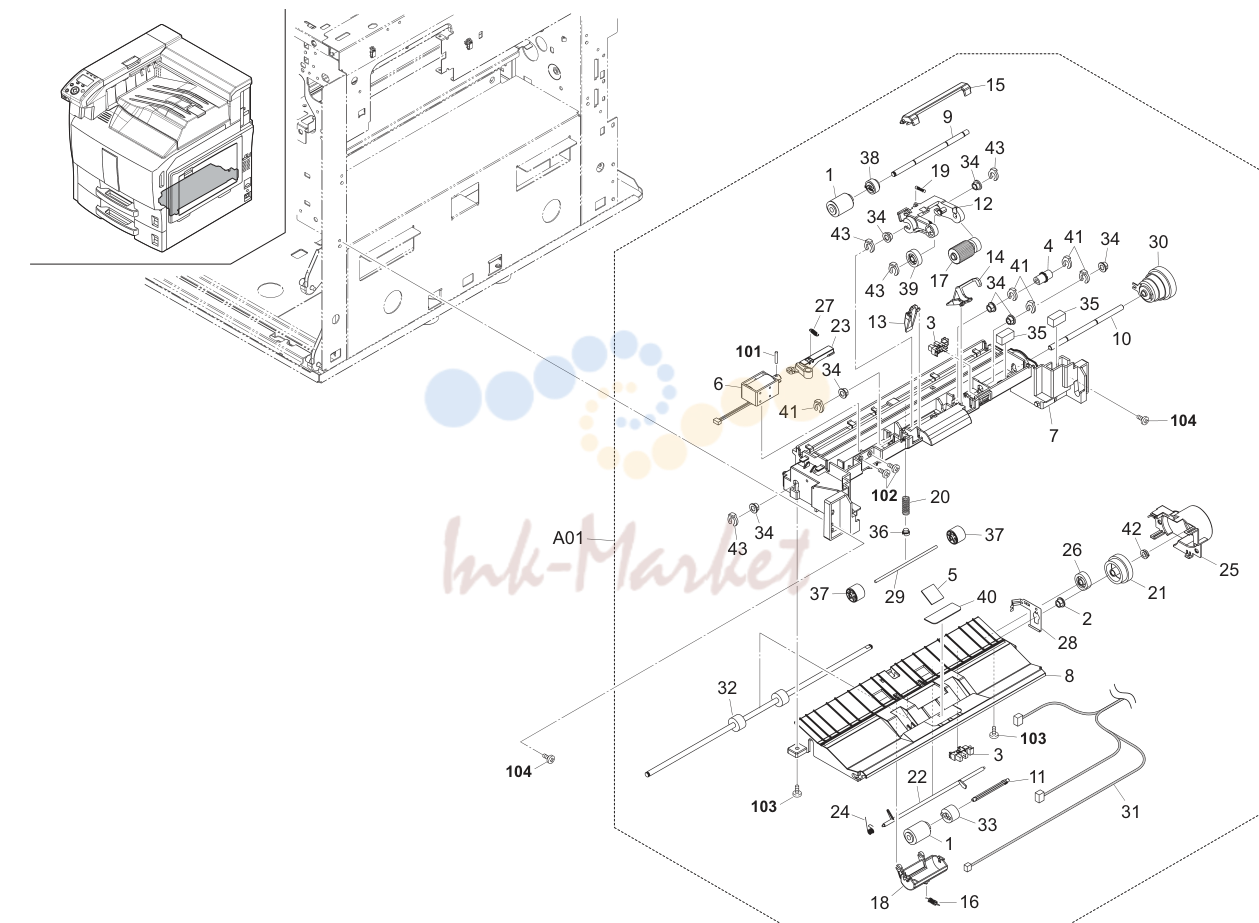

- 8. Paper Feed Section 2 2KA

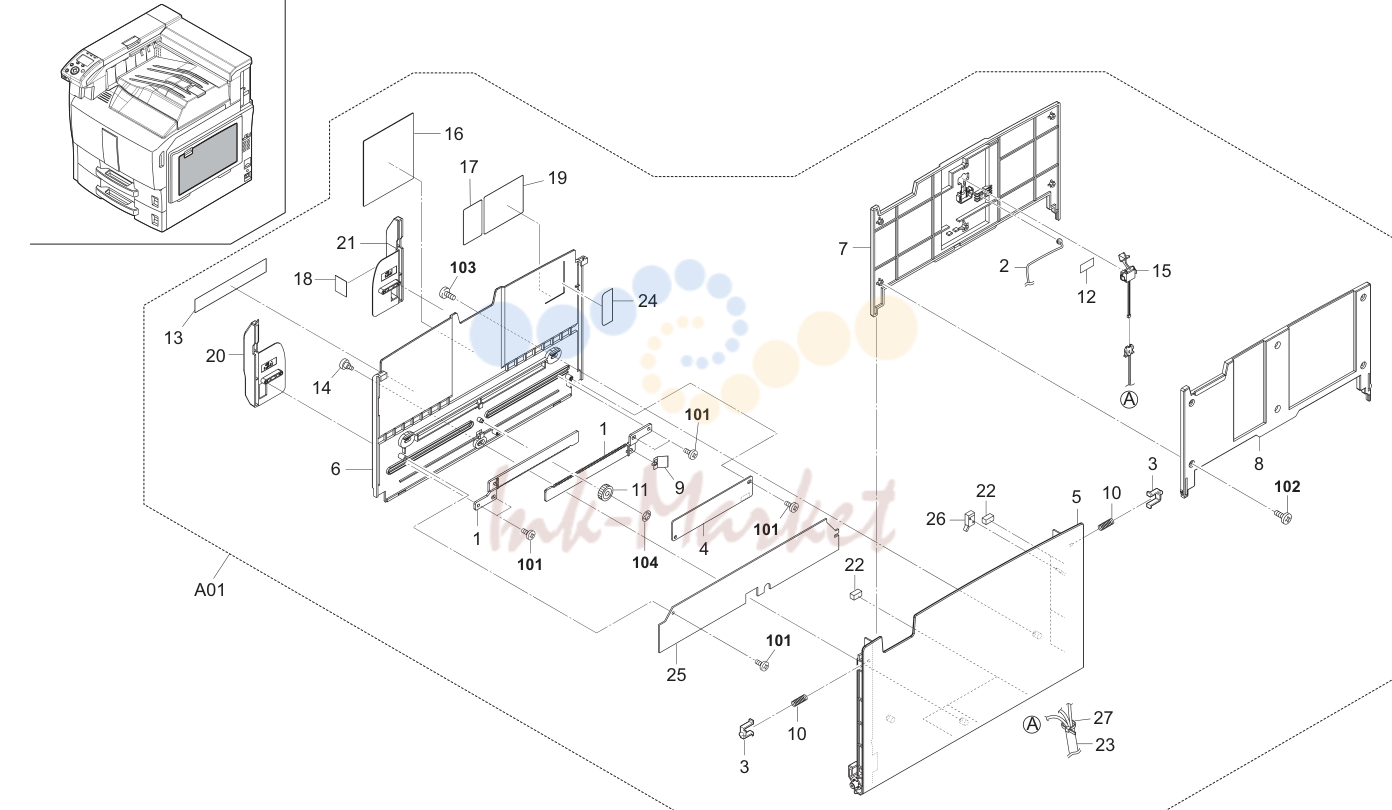

- 9. Paper Feed Section 3 2KA

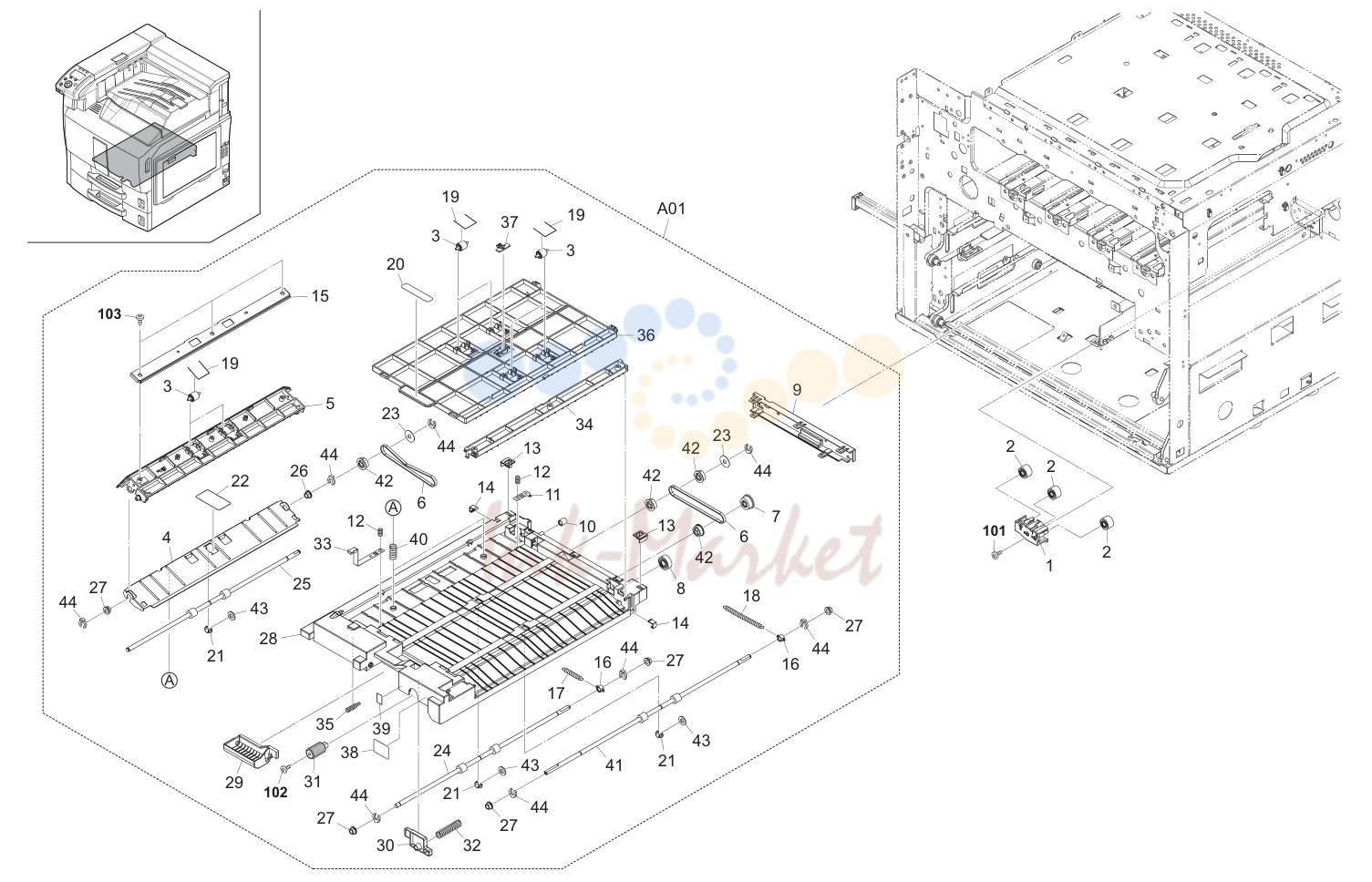

- 10. Paper Feed Section 4 2KA

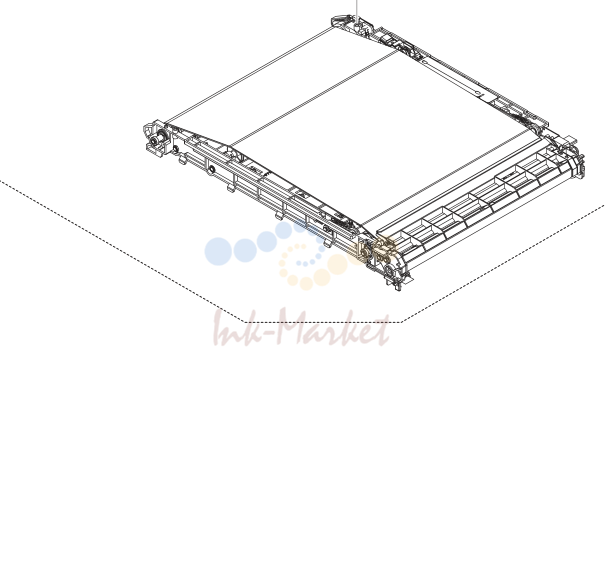

- 11. Transfer Section 2KA

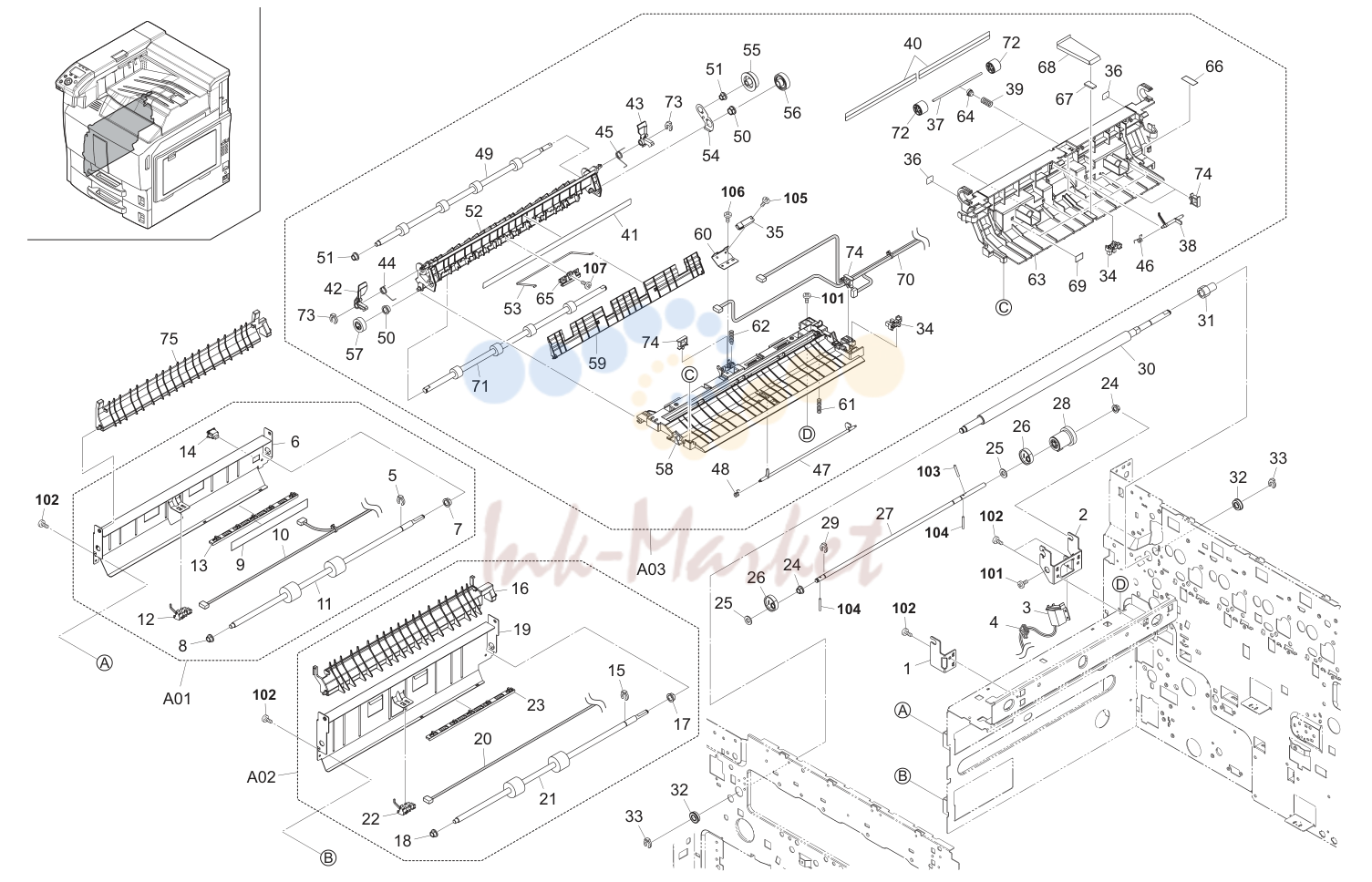

- 12. Paper Conveying Section 1 2KA

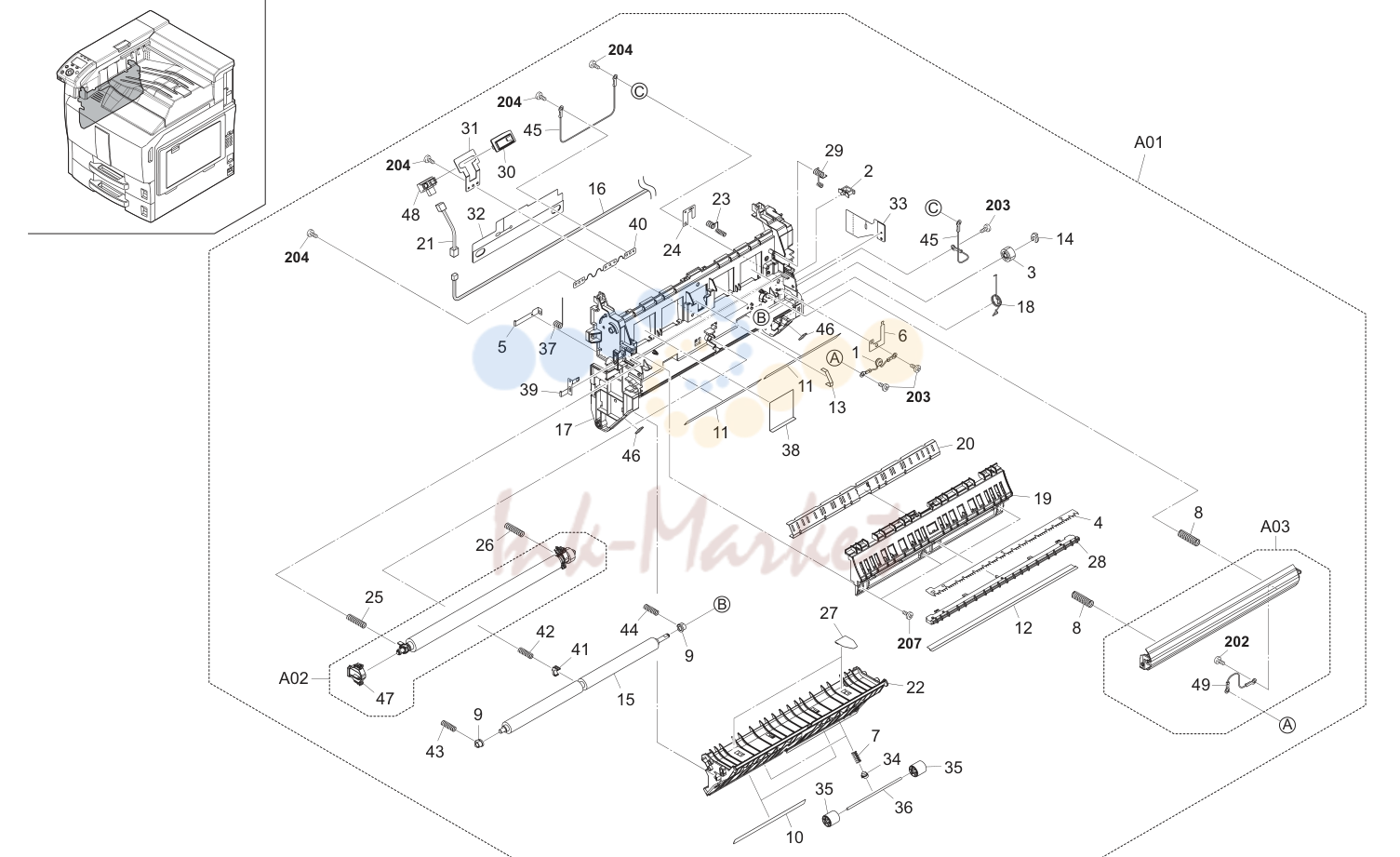

- 13. Paper Conveying Section 2-1 2KA

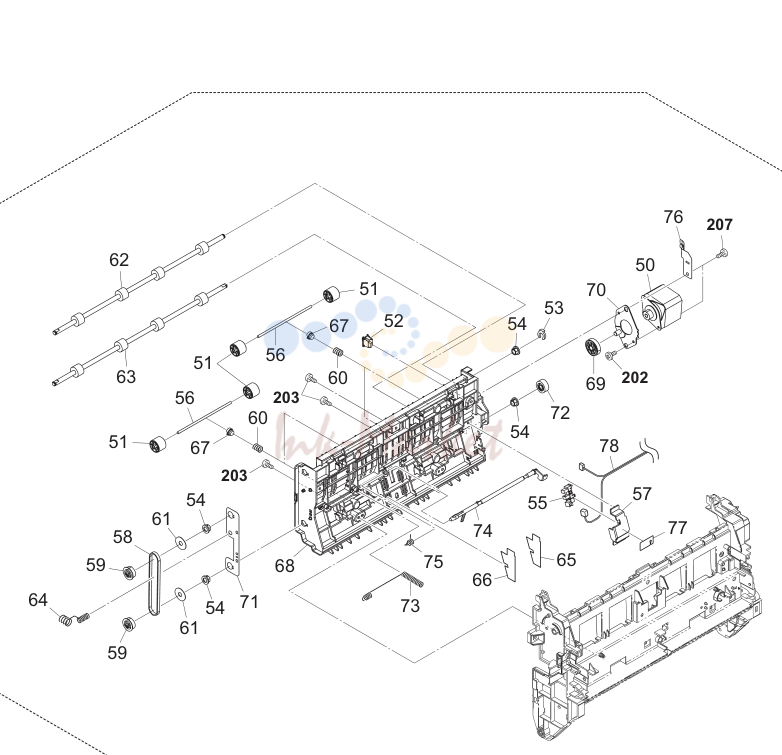

- 14. Paper Conveying Section 2-2 2KA

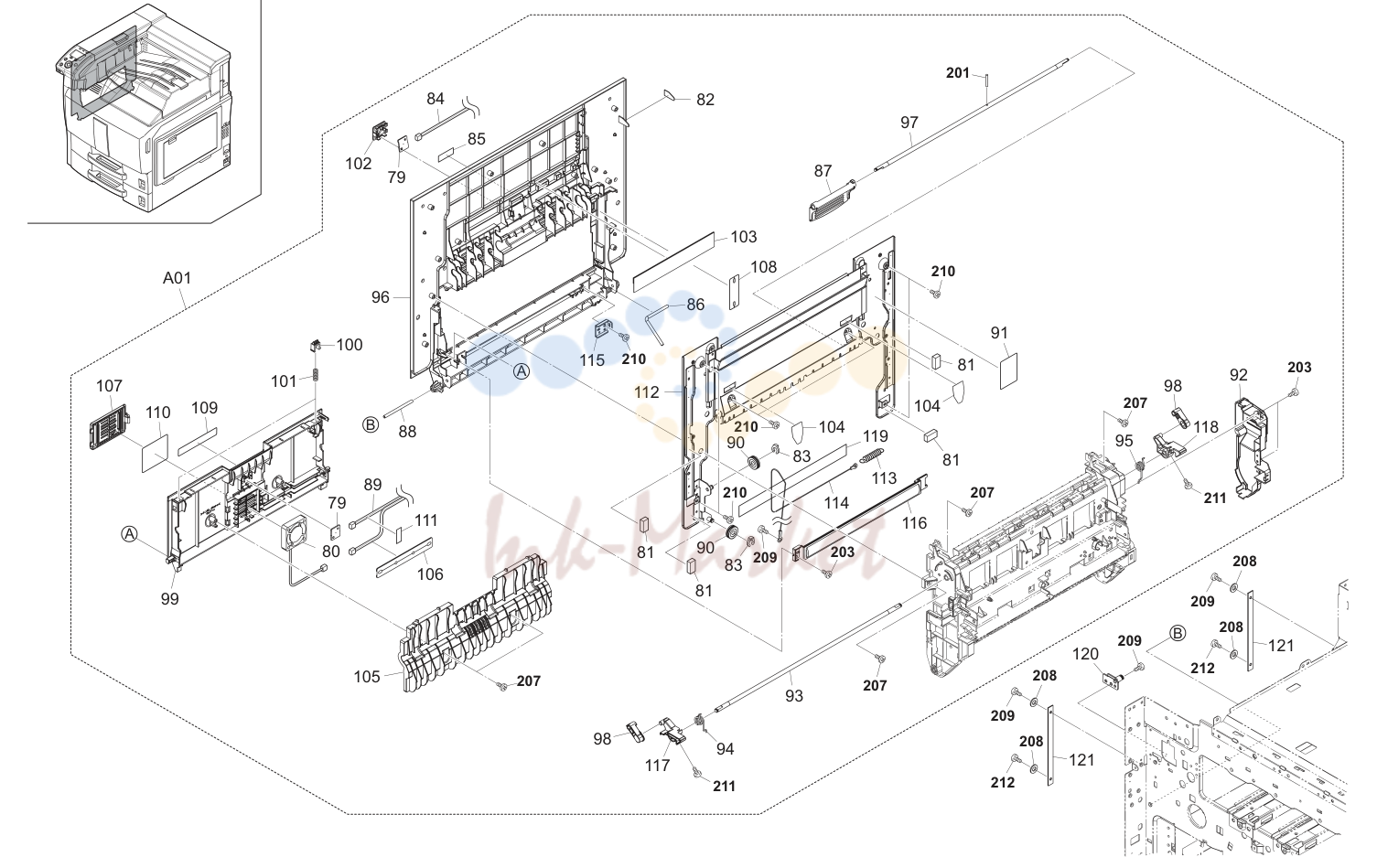

- 15. Paper Conveying Section 2-3 2KA

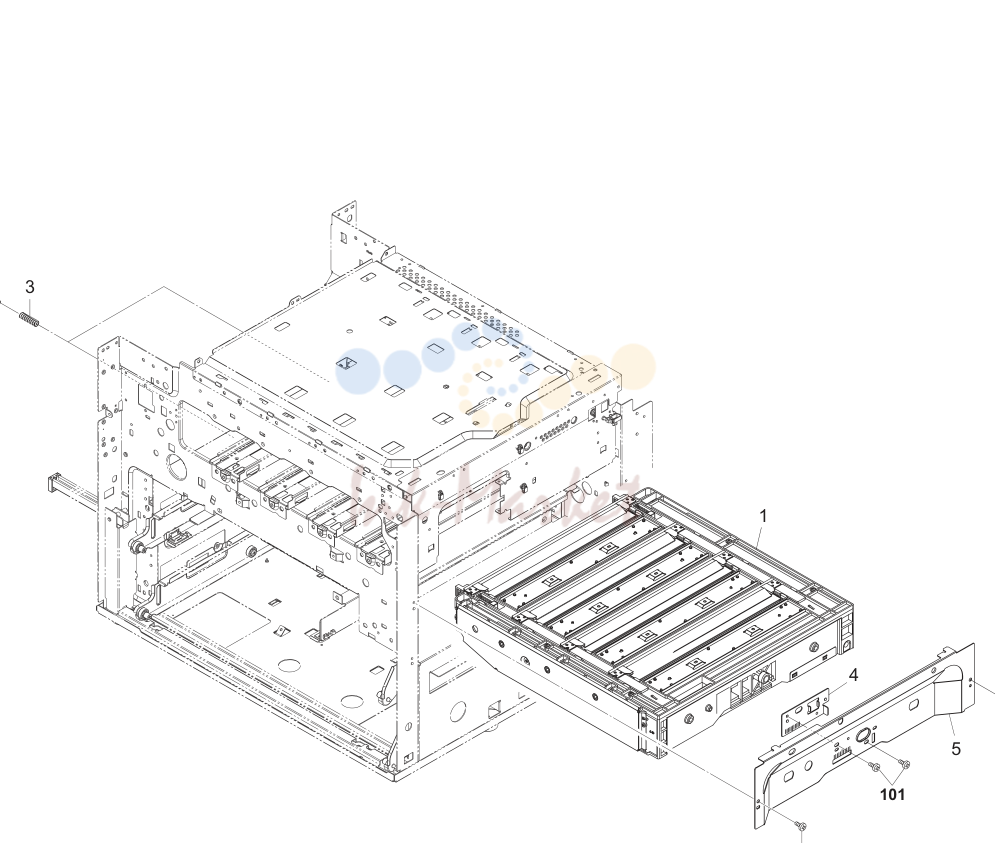

- 16. Laser Scanner Section 2KA

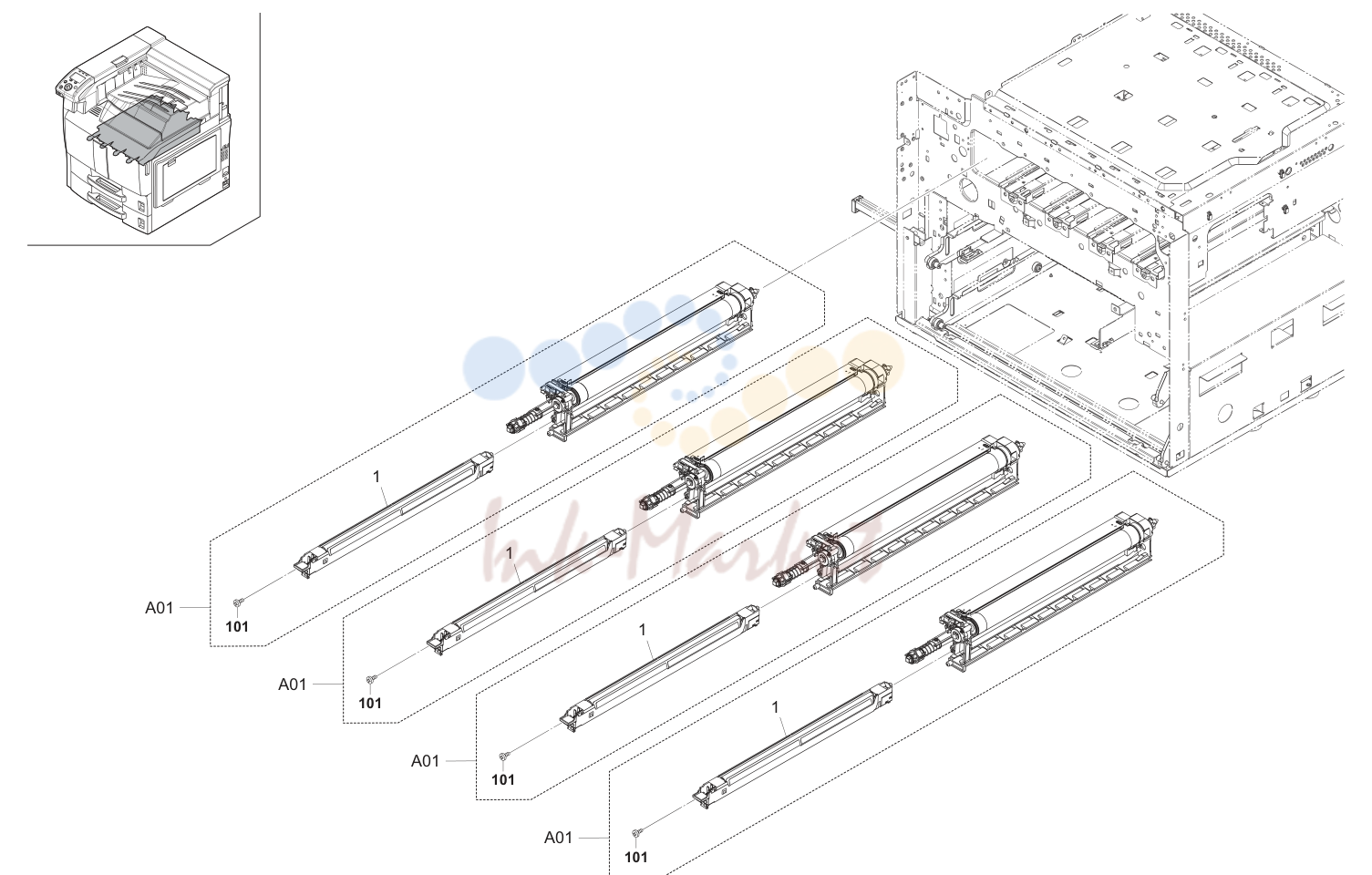

- 17. Image Formation Section 2KA

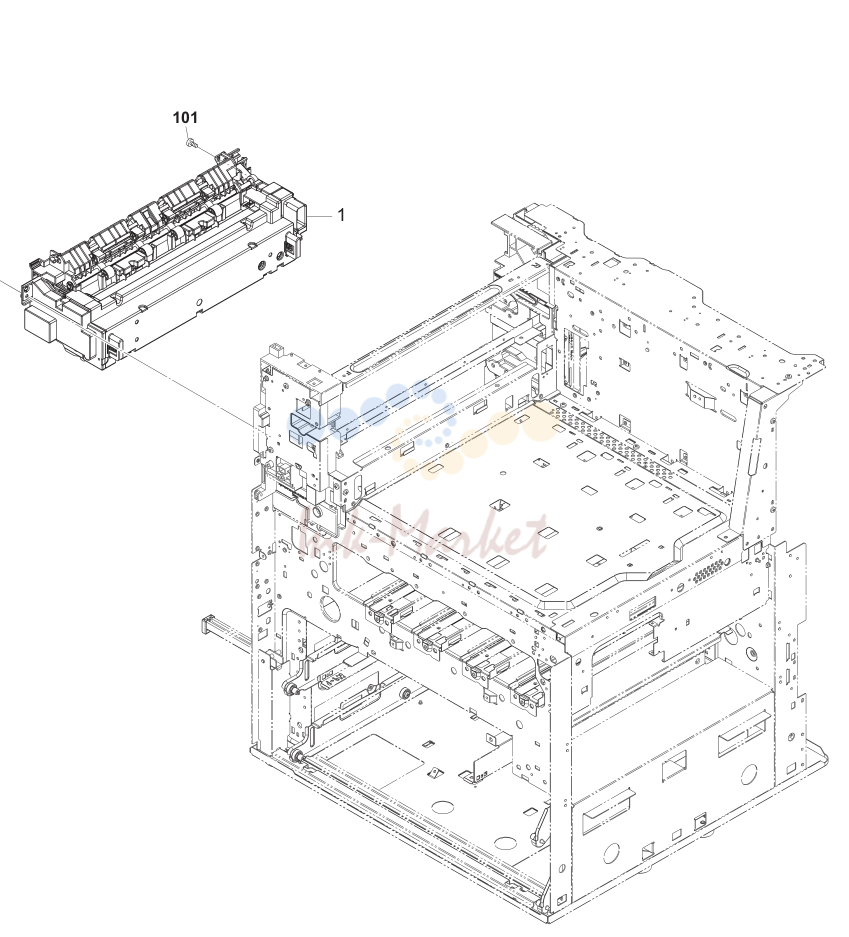

- 18. Fuser Section 2KA

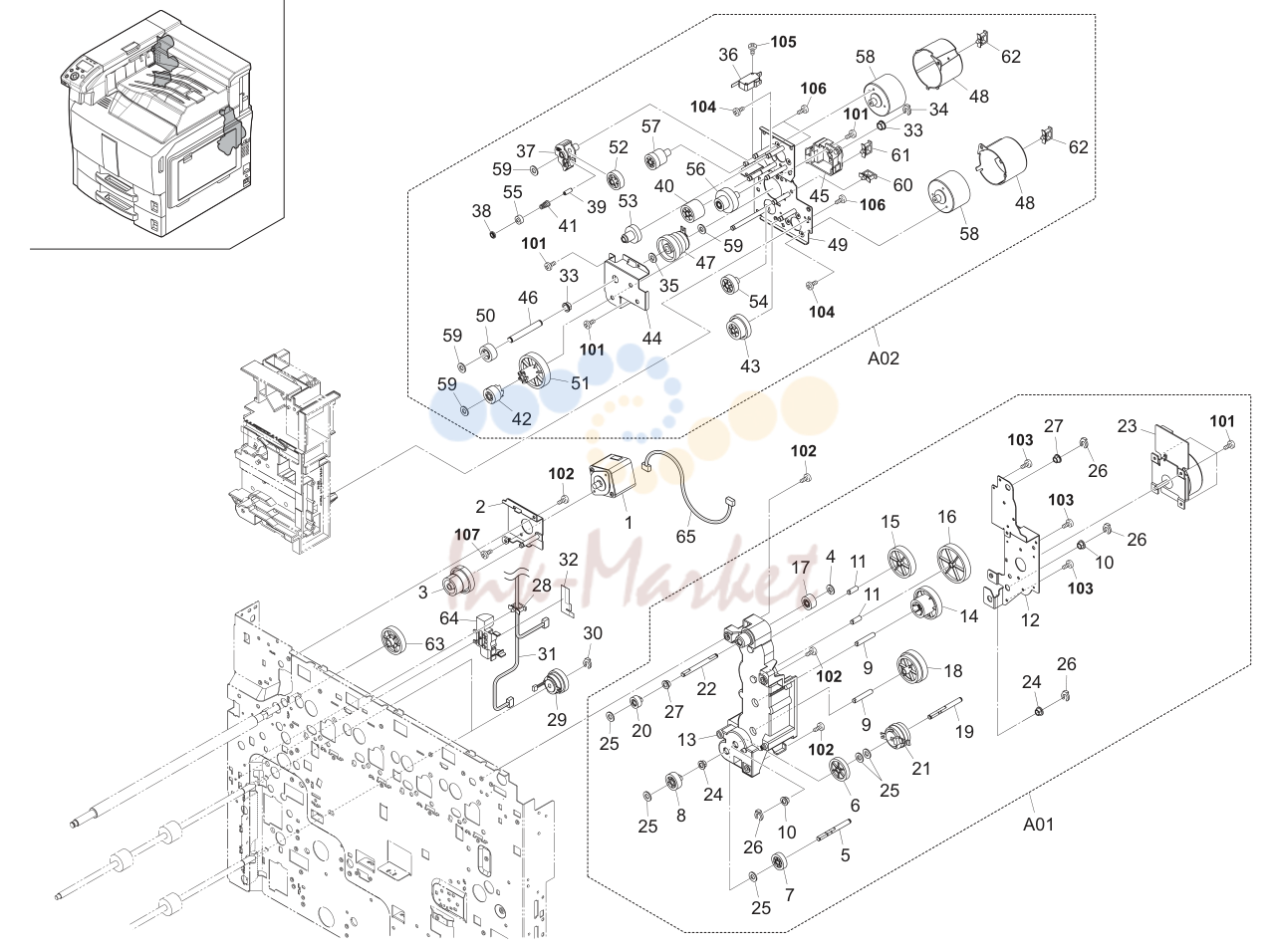

- 19. Drive Section 2 2KA

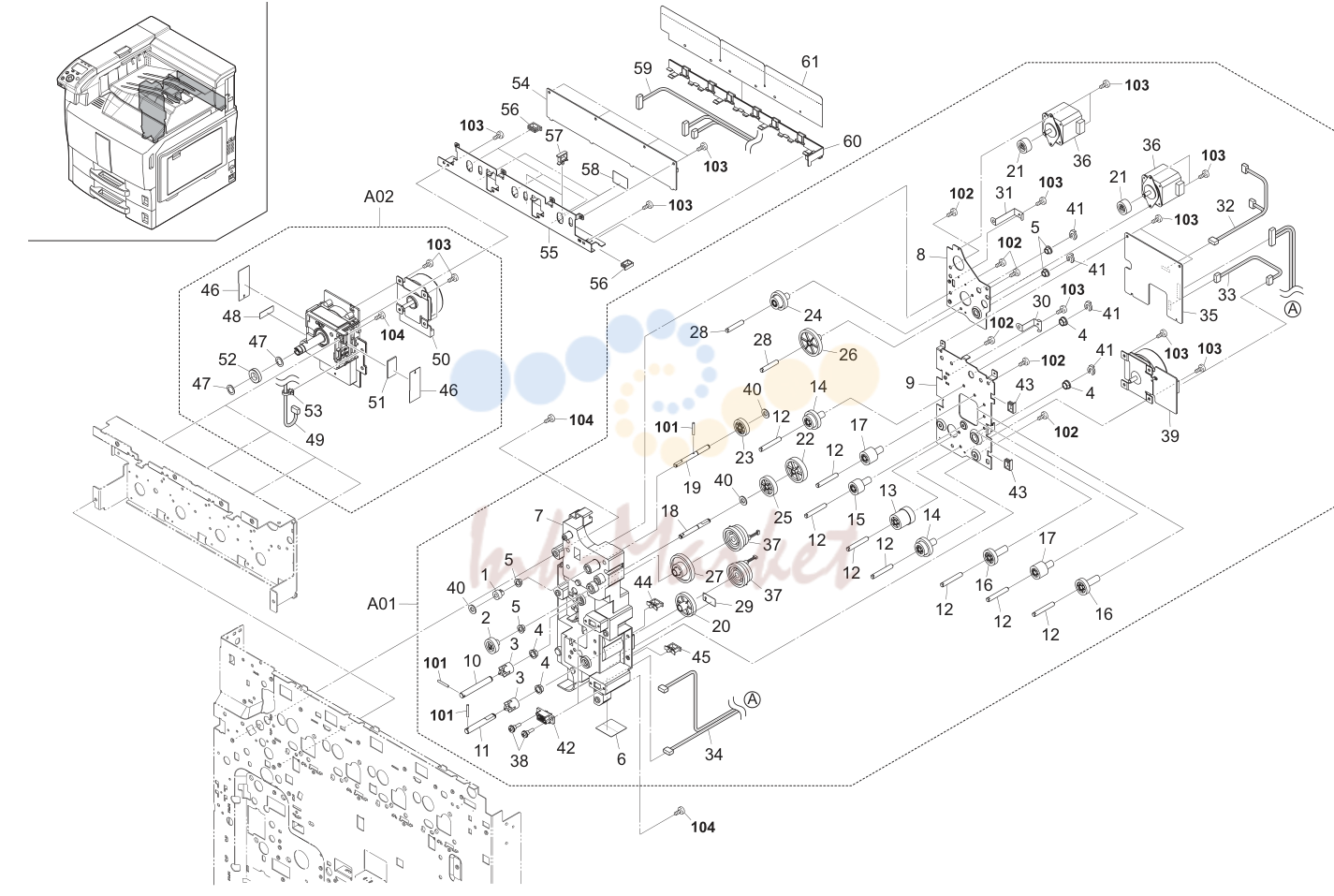

- 20. Drive Section 3 2KA

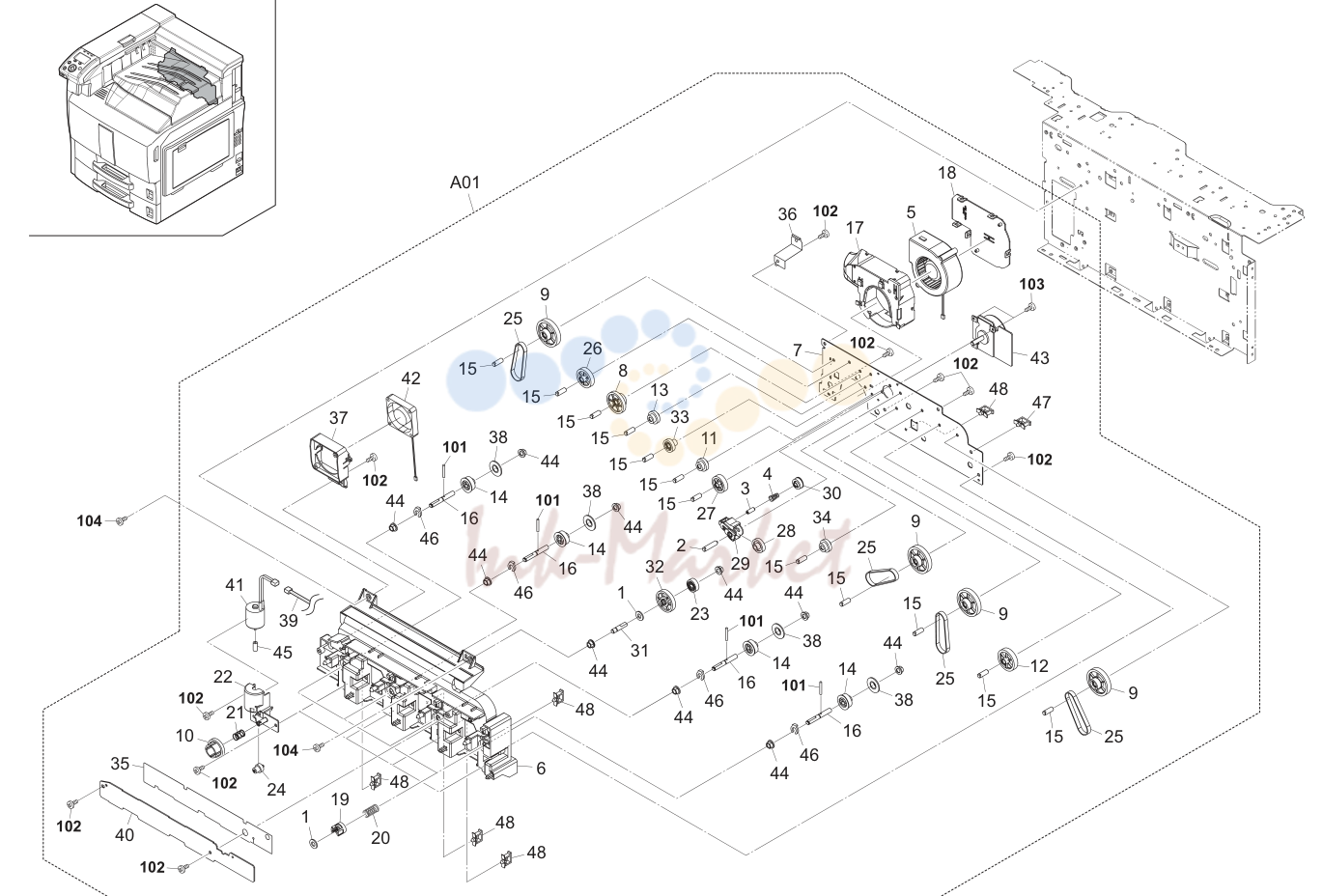

- 21. Drive Section 4 2KA

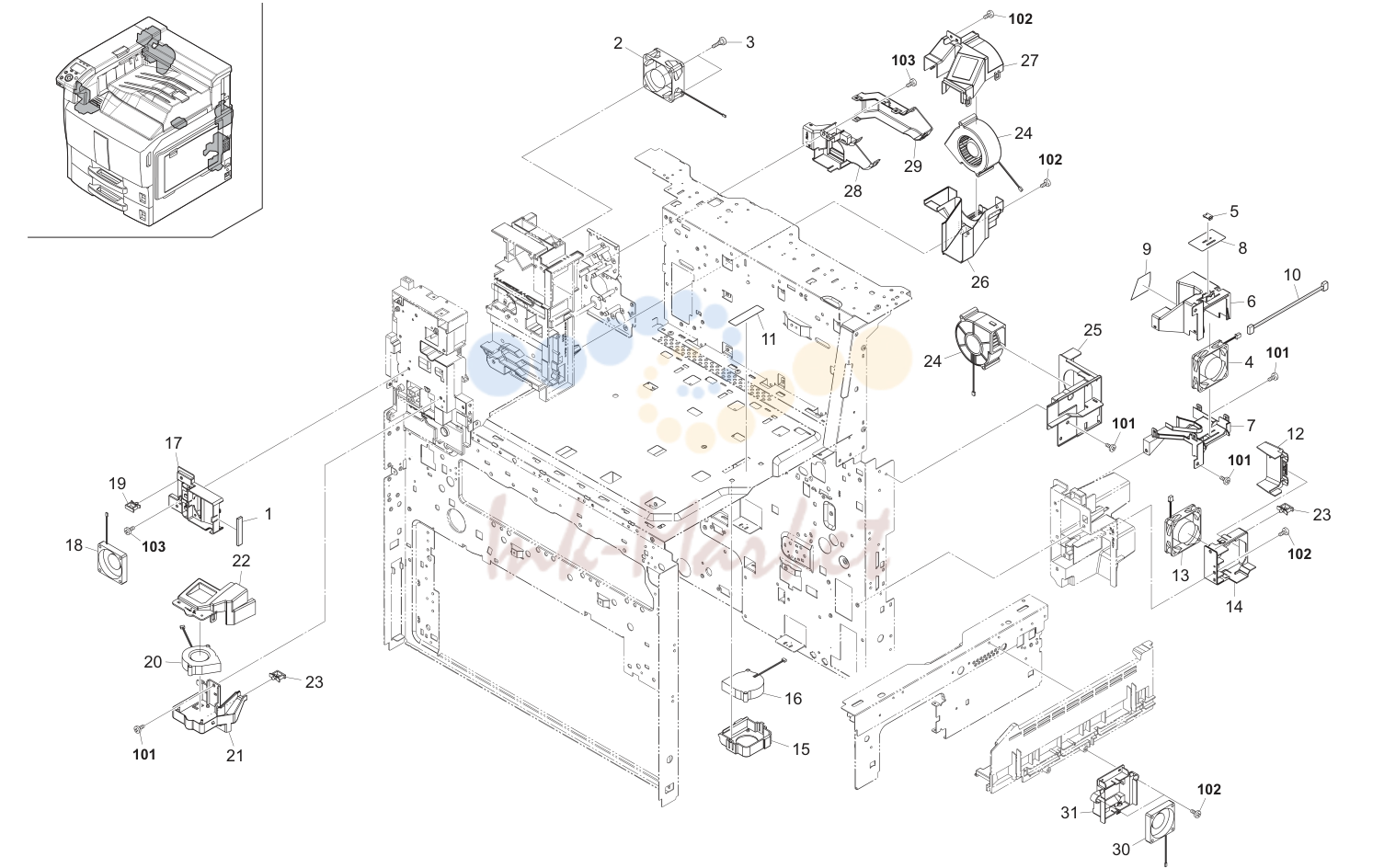

- 22. Cooling Section 2KA

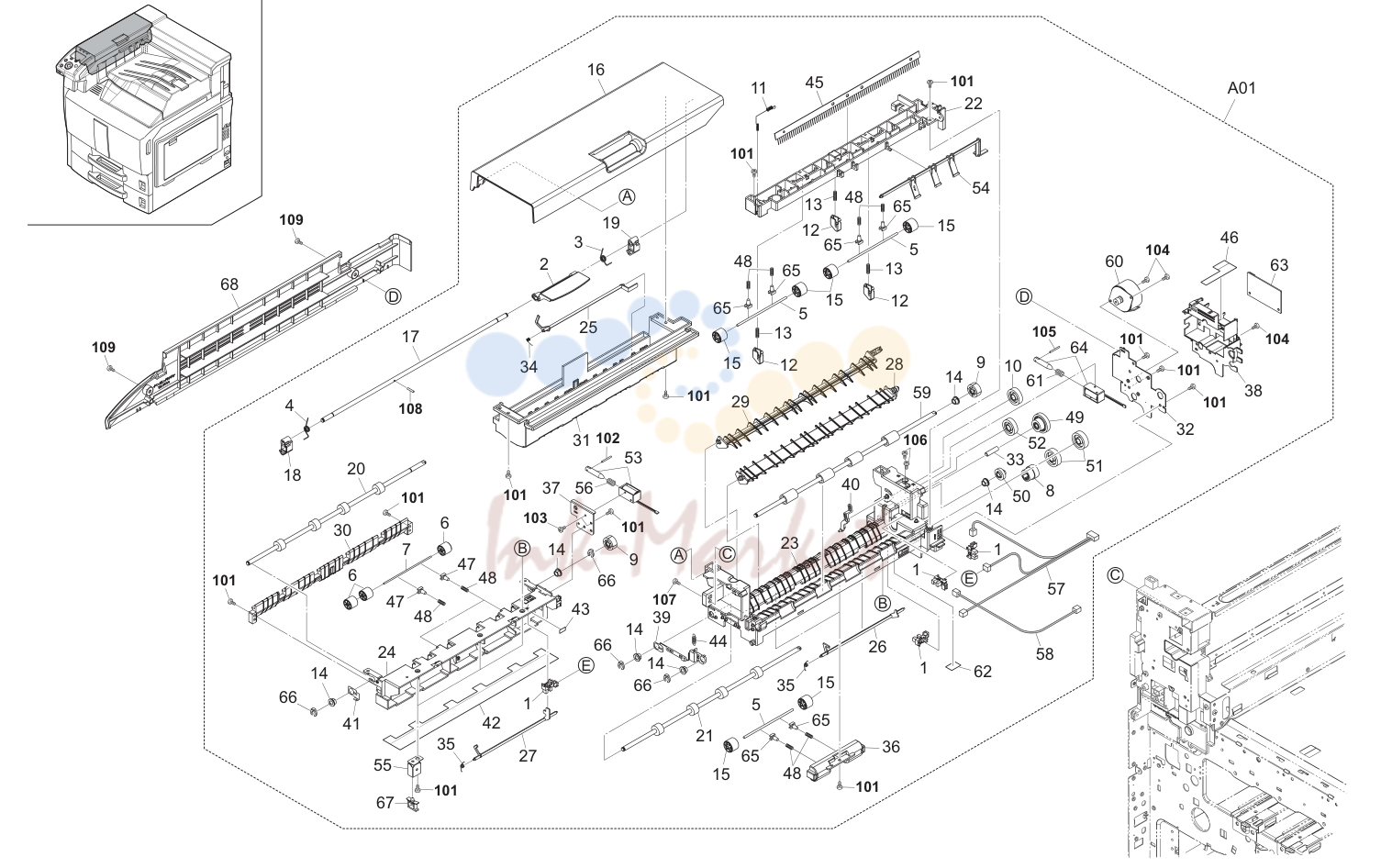

- 23. Exit Section 2KA

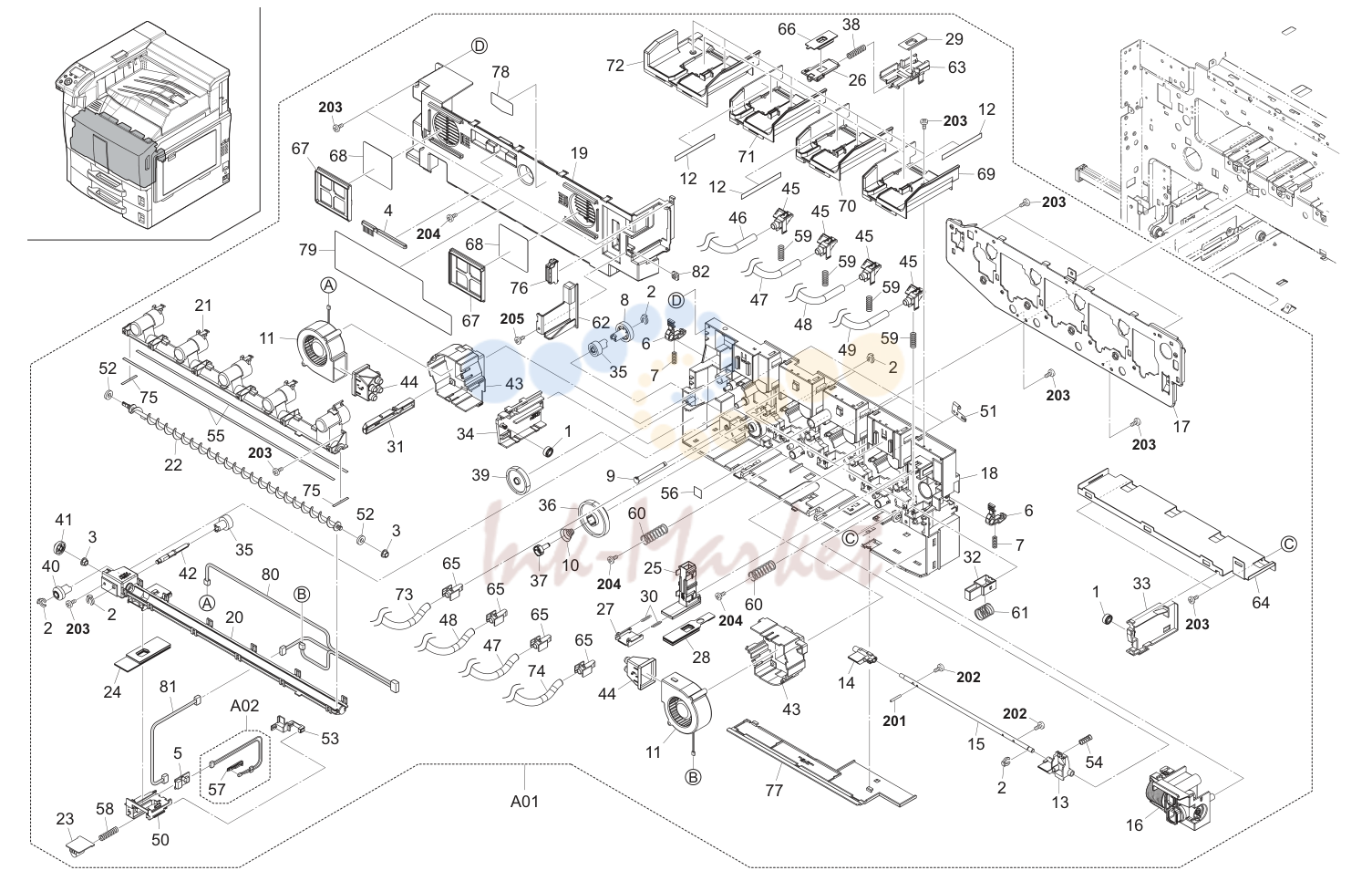

- 24. Retainer Section-1 2KA

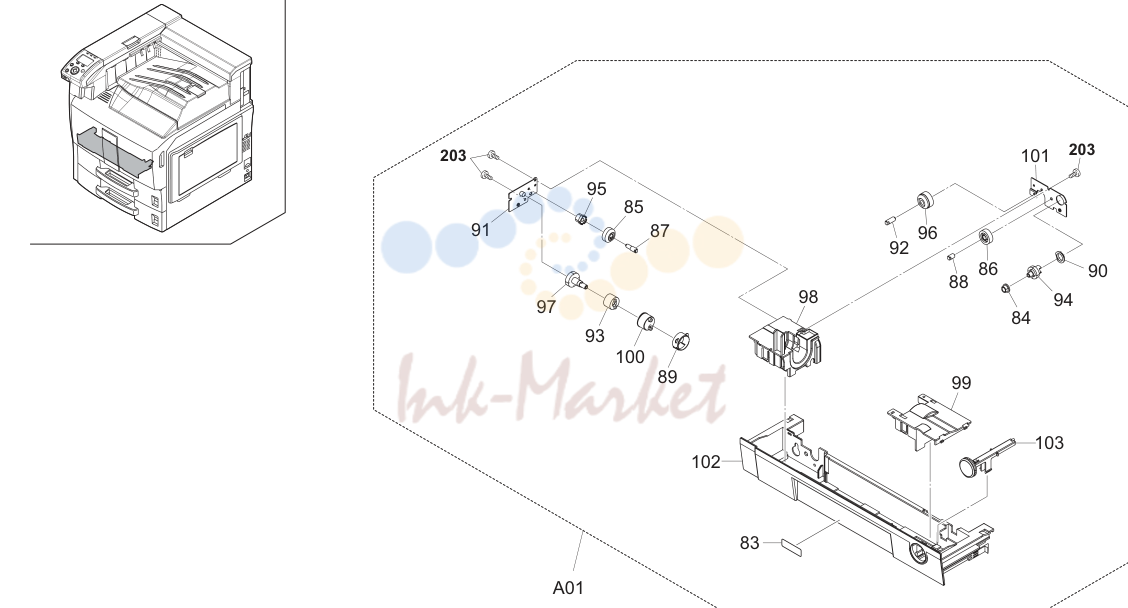

- 25. Retainer Section-2 2KA

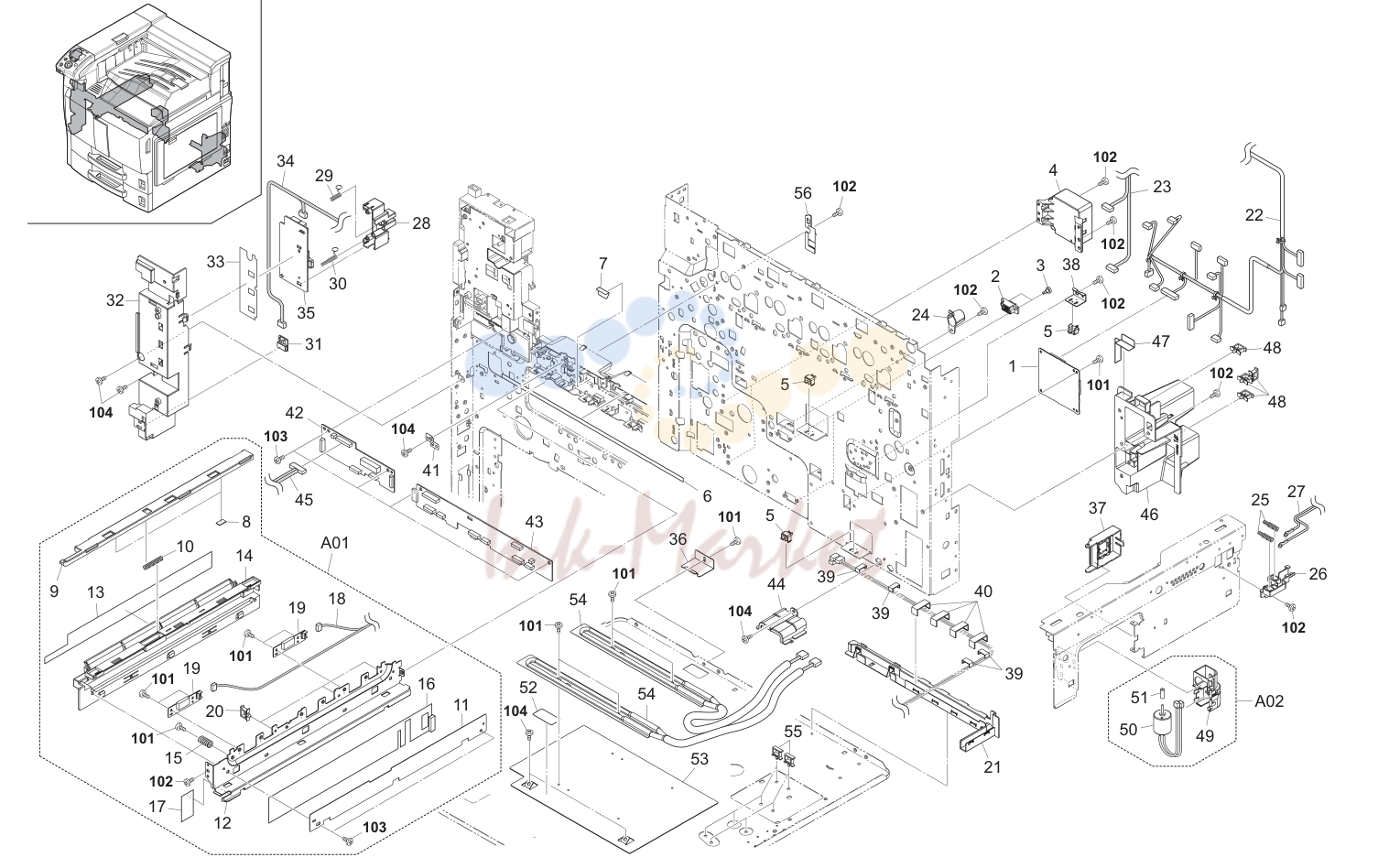

- 26. Electrical Components 1 2KA

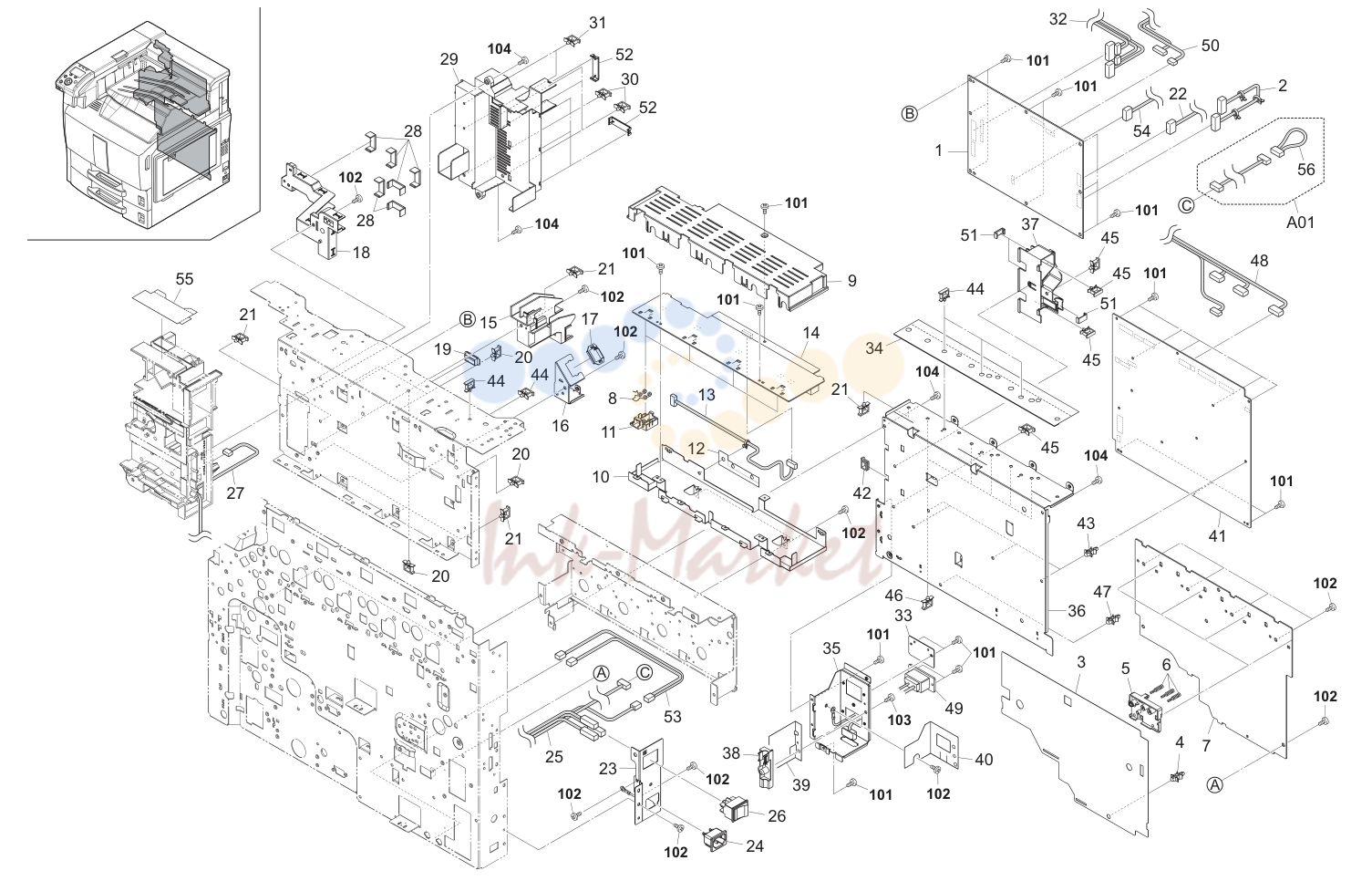

- 27. Electrical Components 2 2KA

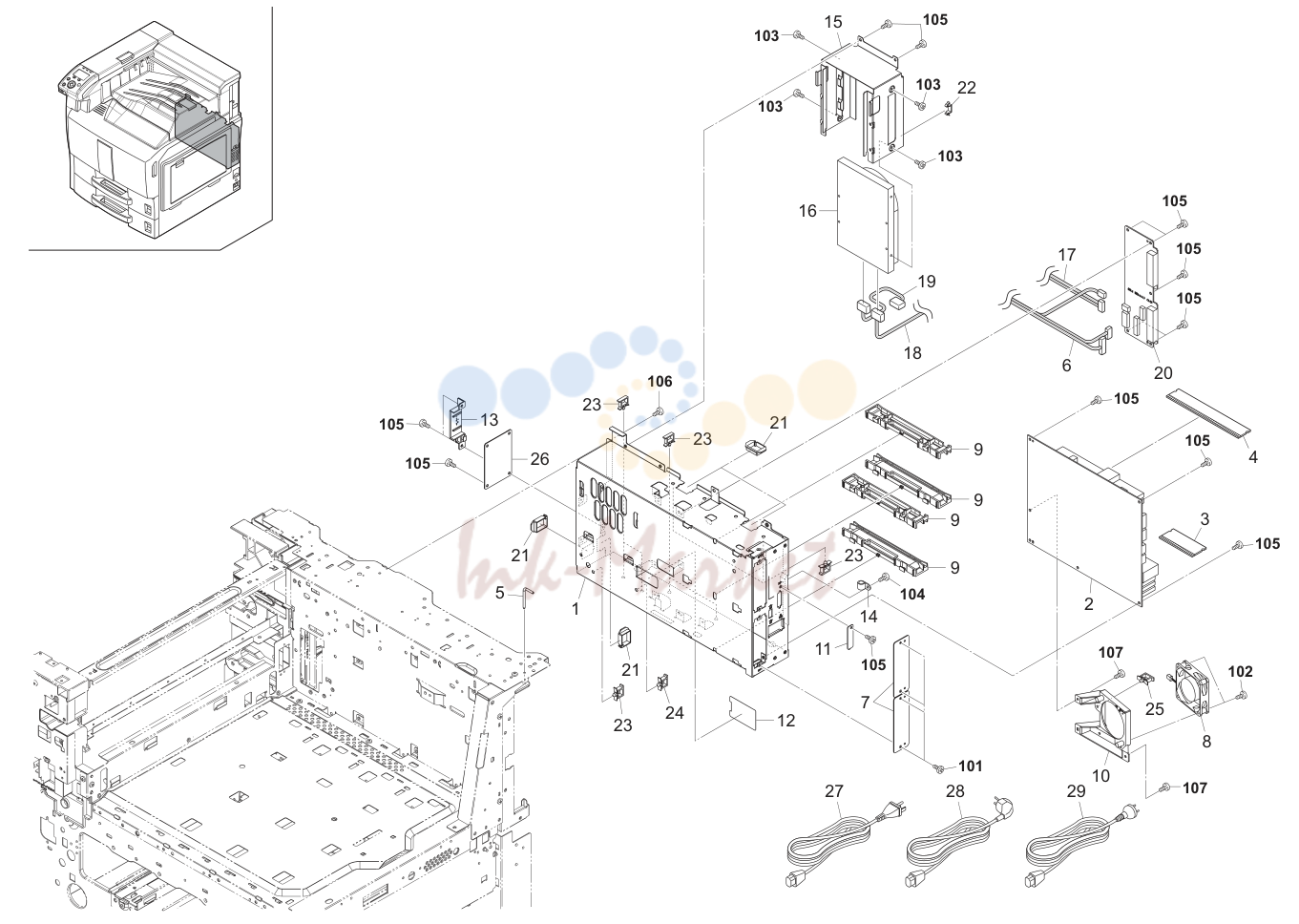

- 28. Electrical Components 3 2KA

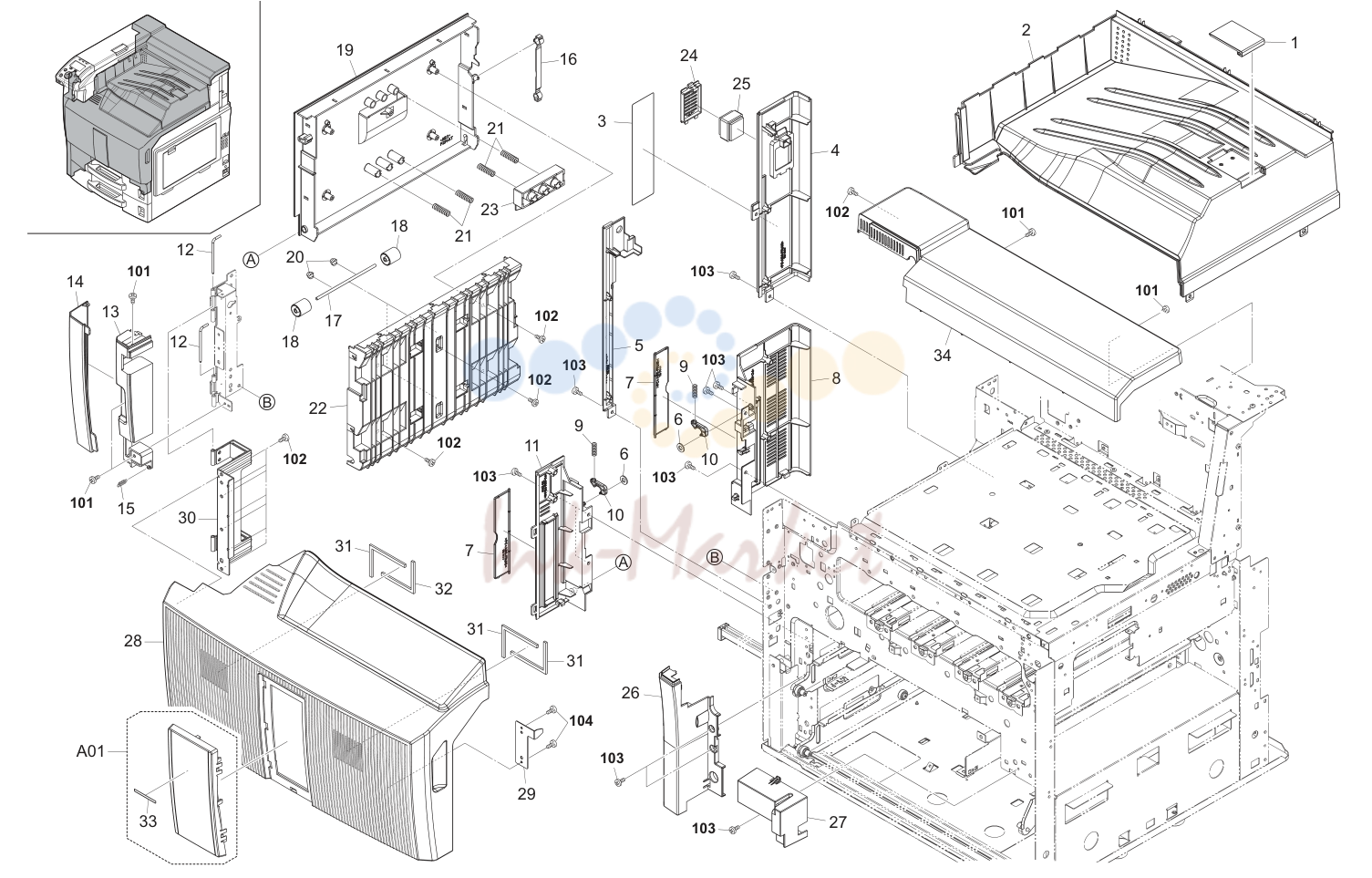

1. Covers 1 2KA
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 3 | 302KA34030 запросить цену → | 2KA34030 | LABEL CONVEY JAM 1 1 1 103 7BB100408H1 BB105830 +BIND T.T S SCREW 4X8 |
| 6 | 2BG22990 запросить цену → | 2BG22990 | CUT WASHER |
| 9 | 302H704870 запросить цену → | 2H704870 | SPRING FEED LOW |
| 10 | 5MVX421DN003 запросить цену → | 2BL06490 | LOCK COVER R /40283V0068 A4 |
| 12 | 302H704540 запросить цену → | 2H704540 | PIN FRONT COVER |
| 13 | 302H704390 запросить цену → | 2H704390 | COVER FRONT LEFT INN |
| 15 | 302H704400 запросить цену → | 2H704400 | SPRING COVER FL |
| 16 | 2BG06480 запросить цену → | 2BG06480 | BAND B |
| 17 | 302BG06152 запросить цену → | 2BG06152 | SHAFT FEED B |
| 18 | 302KY22010 запросить цену → | 2KY22010 | PULLEY FEED |
| 19 | 302H704660 запросить цену → | 2H704660 | COVER LEFT FEED LOW |
| 20 | 302H722730 запросить цену → | 2H722730 | BUSH SP B |
| 21 | 302H722740 запросить цену → | 2H722740 | SPRING FEED LOW B |
| 22 | 302H722810 запросить цену → | 2H722810 | GUIDE LEFT FEED LOW |
| 23 | 303LM04080 запросить цену → | 3LM04080 | HANDLE LEFT FEED COVER |
| 24 | 302H733250 запросить цену → | 2H733250 | COVER FILTER DUCT PU |
| 27 | 302H704630 запросить цену → | 2H704630 | COVER INNER RIGHT |
| 29 | 302H704380 запросить цену → | 2H704380 | PLATE FRONT COVER |
| 30 | 302H704510 запросить цену → | 2H704510 | HINGE FRONT COVER |
| 31 | 302H704830 запросить цену → | 2H704830 | SEAL FAN RETAINER |
| 32 | 302H704840 запросить цену → | 2H704840 | SEAL FAN RETAINER |

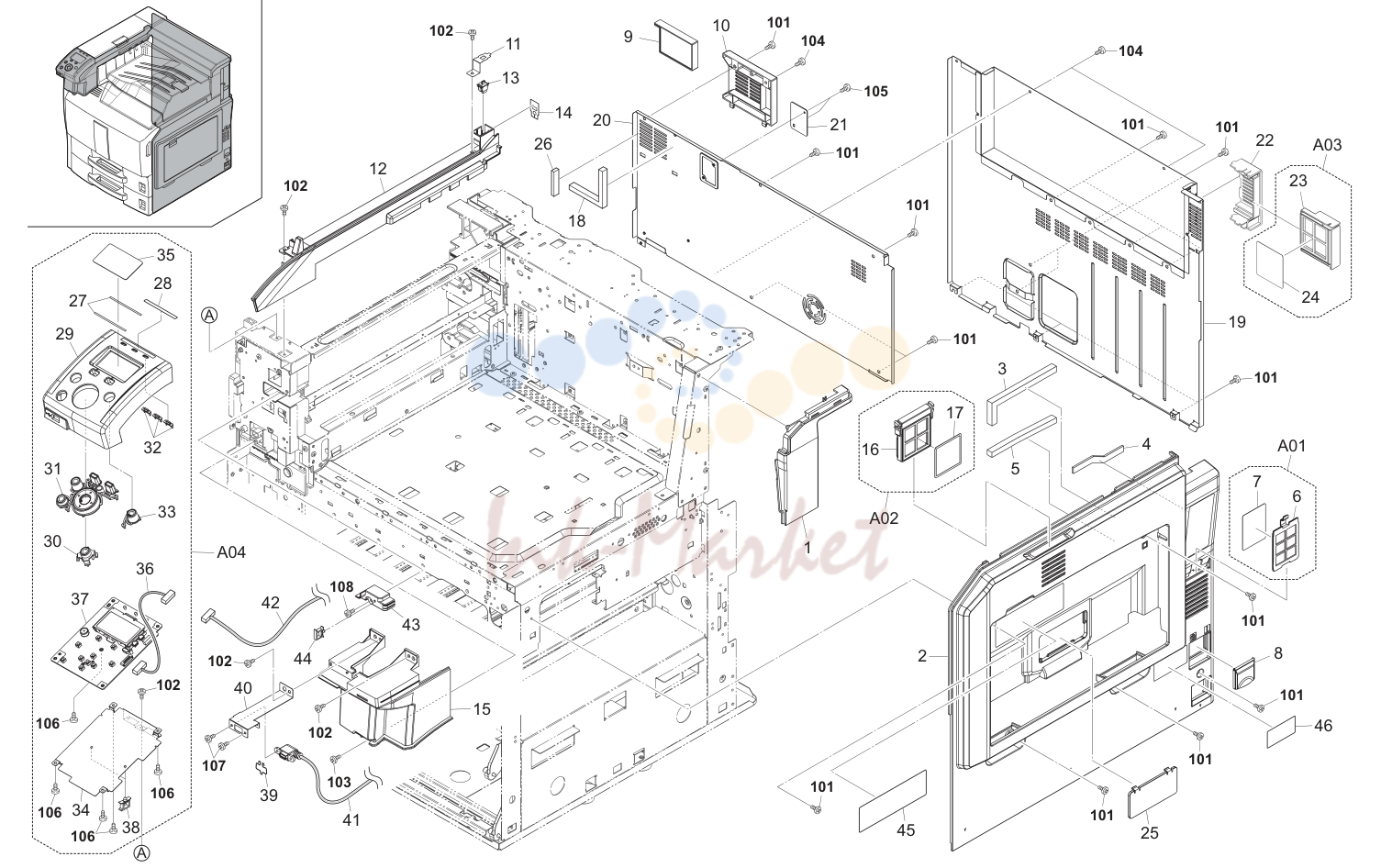

2. Covers 2 2KA
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 2 | 302KY04050 запросить цену → | 2KY04050 | COVER RIGHT 1 1 1 102 7BB100408H1 BB105830 +BIND T.T S SCREW 4X8 |
| 3 | 302KY04040 запросить цену → | 2KY04040 | SPONGE RIGHT FAN D 1 1 1 103 7BB200414H1 BB106970 +BIND T.T P SCREW 4X14 |
| 4 | 302H704810 запросить цену → | 2H704810 | SPONGE RIGHT FAN B 1 1 1 104 7BB180306H BB111190 +BIND T.T S SCREW 3X6(BLACK) |
| 5 | 302H704820 запросить цену → | 2H704820 | SPONGE RIGHT FAN C 1 1 1 105 7BB100306H1 BB105820 +BIND T.T S SCREW 3X6 |
| 6 | •302H733080 2H733080 COVER FILTER VU 1 1 1 107 7BB700308H BB105600 +BIND T.T S SCREW 3X8 SR | ||
| 7 | •302H733170 2H733170 FILTER VU 1 1 1 108 7BB200410H BB105700 +BIND T.T P SCREW 4X10 | ||
| 11 | 302HP04140 запросить цену → | 2HP04140 | EARTH PUSH SWITCH |
| 14 | 302KA04110 запросить цену → | 2KA04110 | SHEET COVER EXIT |
| 16 | •302KY04020 2KY04020 COVER FILTER RIGHT | ||
| 17 | •302KY04030 2KY04030 FILTER FAN RIGHT | ||
| 18 | 302H704580 запросить цену → | 2H704580 | SEAL COVER REAR B |
| 21 | 2C912430 запросить цену → | 2C912430 | LID KMAS |
| 22 | 302H733420 запросить цену → | 2H733420 | GUIDE COVER FILTER |
| 23 | •302H733400 2H733400 COVER FILTER | ||
| 24 | •302H733410 2H733410 FILTER COOLING FAN | ||
| 26 | 302H704570 запросить цену → | 2H704570 | SEAL COVER REAR A |
| 27 | •302F805130 2F805130 TAPE PANEL | ||
| 28 | •302J005100 2J005100 SHEET LED | ||
| 29 | •302KA05010 2KA05010 COVER OPERATION | ||
| 30 | •302KA05020 2KA05020 BUTTON ENTER | ||
| 31 | •302KA05030 2KA05030 BUTTON COMBI | ||
| 32 | •302KA05040 2KA05040 LENS LED | ||
| 33 | •302KA05050 2KA05050 BUTTON STOP | ||
| 34 | •302KA05060 2KA05060 HOLDER PWB | ||
| 35 | •302KA05070 2KA05070 PLATE LCD | ||
| 36 | •302KA46070 2KA46070 WIRE PANEL | ||
| 38 | •7YZM610008++H01 YZ037940 ACCESS.SADDLE | ||
| 39 | 302H005661 запросить цену → | 2H005661 | SPRING USB HOST |
| 40 | 302KA05080 запросить цену → | 2KA05080 | HOLDER USB |
| 41 | 302KA46100 запросить цену → | 2KA46100 | WIRE USB HOST |
| 42 | 302KA46060 запросить цену → | 2KA46060 | WIRE PANEL JOINT |
| 43 | 302KA02070 запросить цену → | 2KA02070 | GUIDE WIRE F |
| 44 | 7YZM610008++H01 YZ037940 ACCESS.SADDLE | ||
| 45 | 302H734290 запросить цену → | 2H734290 | LABEL MP CAUTION |
| 46 | 302H734030 запросить цену → | 2H734030 | LABEL CAUTION HG |

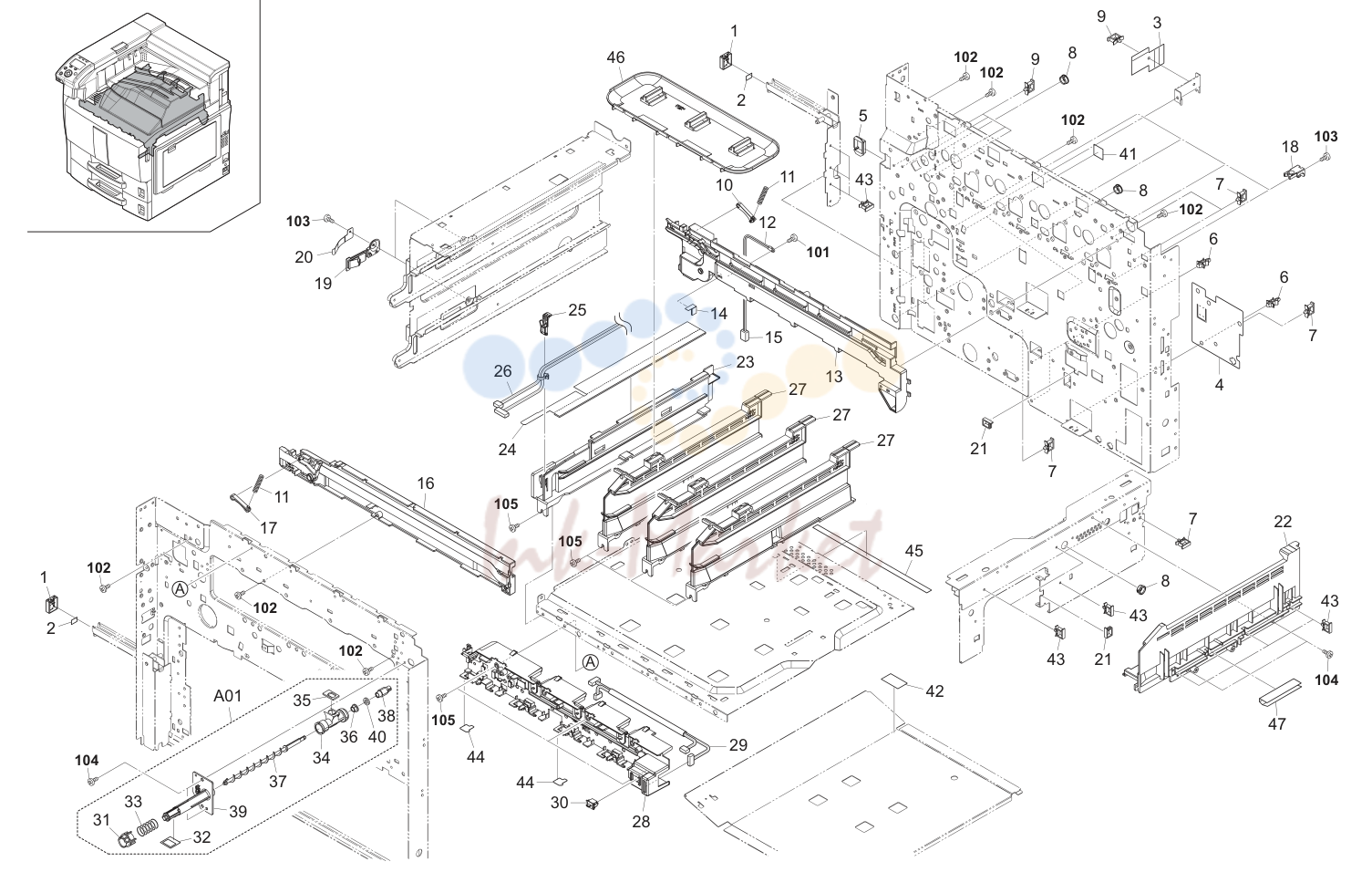

3. Frames 1 2KA
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 2 | 302FZ03110 запросить цену → | 2FZ03110 | SEAL HANDLE 2 2 2 102 7BB200410H BB105700 +BIND T.T P SCREW 4X10 |
| 3 | 302H702230 запросить цену → | 2H702230 | SHEET MOUNT LVU 1 1 1 103 7BB100306H1 BB105820 +BIND T.T S SCREW 3X6 |
| 4 | 302H739910 запросить цену → | 2H739910 | SHEET PWB 2 1 1 1 104 7BB100408H1 BB105830 +BIND T.T S SCREW 4X8 |
| 5 | 7YZM210002++H01 YZ004730 ACCESS.EDGING 1 1 1 105 7BB700410H BB107090 +BIND T.T S SCREW 4X10 SR | ||
| 6 | 7YZM510007++H01 YZ042780 ACCESS.SPACER | ||
| 7 | 7YZM610002++H01 YZ010240 ACCESS SADDLE | ||
| 8 | 7YZM110004++H01 YZ037960 ACCESS.BUSHING | ||
| 9 | 7YZM610008++H01 YZ037940 ACCESS.SADDLE | ||
| 10 | 302FZ02292 запросить цену → | 2FZ02292 | STOPPER IMAGE UNIT R |
| 11 | 302FZ02300 запросить цену → | 2FZ02300 | SPRING STOPPER |
| 13 | 302H702160 запросить цену → | 2H702160 | RAIL IMAGE REAR |
| 14 | 302H702220 запросить цену → | 2H702220 | SHEET RAIL PWB |
| 15 | 7YCC02B1001+H01 YC014610 CONNECTOR | ||
| 16 | 302H702150 запросить цену → | 2H702150 | RAIL IMAGE FRONT |
| 17 | 302H702280 запросить цену → | 2H702280 | STOPPER IMAGE UNIT F |
| 19 | 302GR02221 запросить цену → | 2GR02221 | LEVER LOCK CASSETTE |
| 20 | 302GR02230 запросить цену → | 2GR02230 | SPRING LEVER |
| 21 | 7YZM210006++H01 YZ038000 ACCESS.EDGING | ||
| 22 | 302H703921 запросить цену → | 2H703921 | PLATE CONTAINER RIGHT |
| 23 | 302H703910 запросить цену → | 2H703910 | PLATE CONTAINER LEFT |
| 24 | 302H704670 запросить цену → | 2H704670 | SHEET CONTAINER LEFT |
| 25 | 302H704680 запросить цену → | 2H704680 | STOPPER WIRE |
| 26 | 302H746081 запросить цену → | 2H746081 | WIRE FRONT |
| 27 | 302H703900 запросить цену → | 2H703900 | PLATE CONTAINER CENTER |
| 28 | 302H703150 запросить цену → | 2H703150 | HOLDER PWB FRONT |
| 29 | 302H746040 запросить цену → | 2H746040 | WIRE RETAINER JOINT |
| 31 | •302FZ12161 2FZ12161 SHUTTER CLN | ||
| 32 | •302FZ12190 2FZ12190 SEAL SHUTTER CLN | ||
| 33 | •302FZ12220 2FZ12220 SPRING SHUTTER CLN | ||
| 34 | •302FZ23600 2FZ23600 PIPE JOINT ICL | ||
| 35 | •302FZ23640 2FZ23640 SEAL PIPE WT ICL | ||
| 36 | •302H702590 2H702590 BUSH SCREW | ||
| 39 | •302H703650 2H703650 PIPE WT ICL | ||
| 40 | •302H703830 2H703830 SEAL ICL SCREW | ||
| 41 | 302H733270 запросить цену → | 2H733270 | REAR FILM FRAME REAR |
| 42 | 302H733300 запросить цену → | 2H733300 | REAR FILM FRAME MID |
| 43 | 7YZM610007++H01 YZ023340 ACCESS.SADDLE | ||
| 44 | 302H702080 запросить цену → | 2H702080 | SHEET WIRE DRUM |
| 45 | 302H733770 запросить цену → | 2H733770 | SHEET CONT HOLE |
| 46 | 302KA04060 запросить цену → | 2KA04060 | STAY PLATE CONTAINER |
| 47 | 302KY04060 запросить цену → | 2KY04060 | SHEET FAN RIGHT |

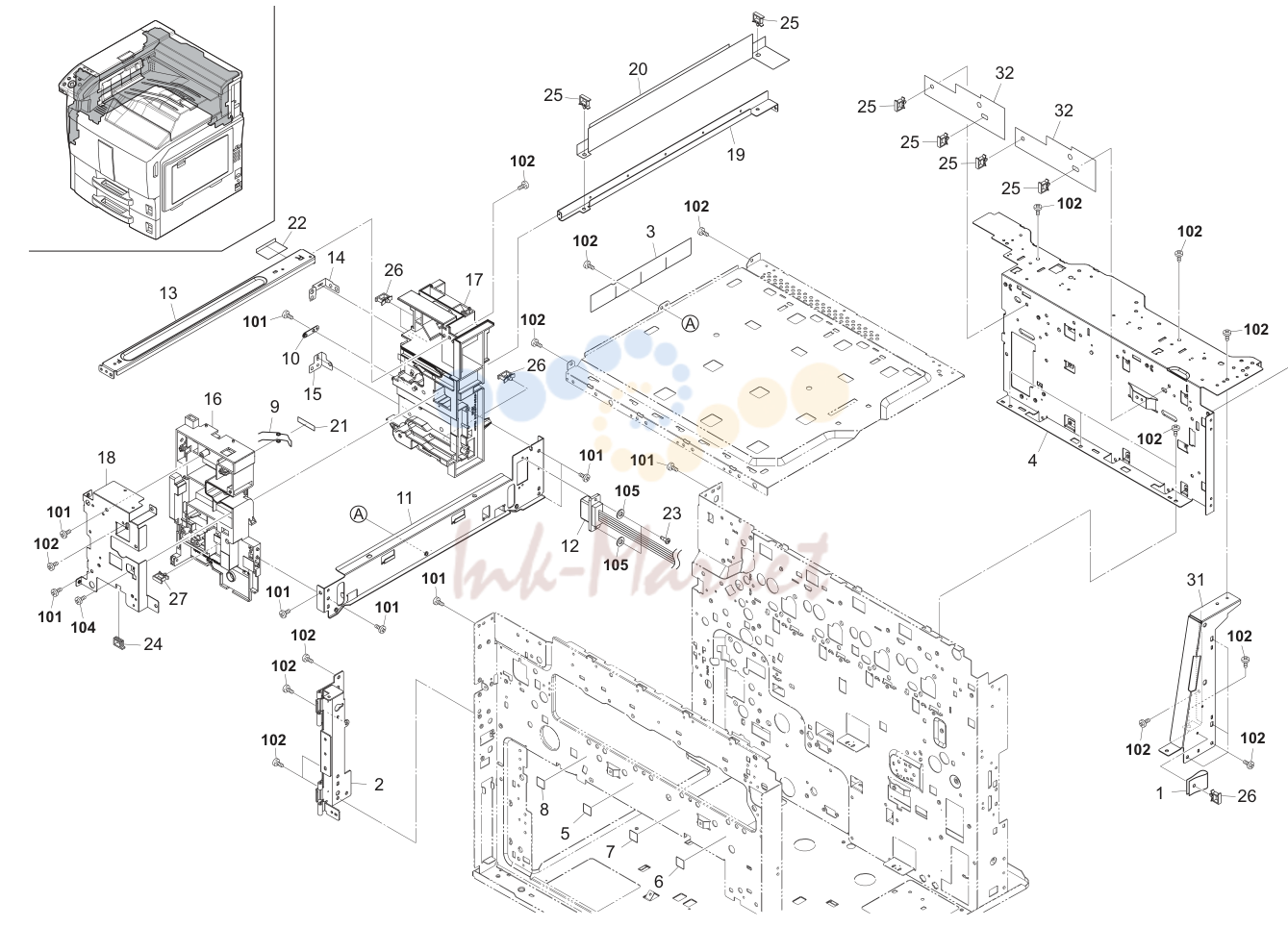

4. Frames 2 2KA
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 302H702450 запросить цену → | 2H702450 | SHEET LSU WIRE 1 1 1 101 7BB200410H BB105700 +BIND T.T P SCREW 4X10 |
| 2 | 302H704530 запросить цену → | 2H704530 | MOUNT HINGE 1 1 1 102 7BB100408H1 BB105830 +BIND T.T S SCREW 4X8 |
| 3 | 302H733700 запросить цену → | 2H733700 | SHEET INTERCEPT FUSER 1 1 1 103 7BB702306H BB105630 +TP-FLAT T.T S SCREW 3X6 SR |
| 4 | 302KA02010 запросить цену → | 2KA02010 | STAY UPPER REAR 1 1 1 104 7BB100306H1 BB105820 +BIND T.T S SCREW 3X6 |
| 5 | 4AK73740 запросить цену → | 5MVVL221WN33 | LABEL CONTAINER T1 1 1 1 105 7BC060467225H01 BC047550 POLY SLIDER WASHER 4.6X7.2X0.25T |
| 6 | 4AK73750 запросить цену → | 5MVVL221WN34 | LABEL CONTAINER T2 |
| 7 | 4AK73760 запросить цену → | 5MVVL221WN35 | LABEL CONTAINER T3 |
| 8 | 4AK73770 запросить цену → | 5MVVL221WN36 | LABEL CONTAINER T4 |
| 9 | 302FZ02510 запросить цену → | 2FZ02510 | SPRING EARTH EXIT |
| 10 | 302FZ02720 запросить цену → | 2FZ02720 | PLATE FUSER |
| 11 | 302H702250 запросить цену → | 2H702250 | FRAME FUSER UNIT CENTER |
| 12 | 302H746190 запросить цену → | 2H746190 | WIRE FUSER JOINT |
| 13 | 302HP02060 запросить цену → | 2HP02060 | STAY UPPER LEFT |
| 14 | 302HP02080 запросить цену → | 2HP02080 | PLATE EARTH EXIT |
| 15 | 302HP02090 запросить цену → | 2HP02090 | PLATE EARTH FUSER |
| 16 | 302KA02030 запросить цену → | 2KA02030 | FRAME FUSER UNIT F |
| 17 | 302KA02040 запросить цену → | 2KA02040 | FRAME FUSER UNIT R |
| 18 | 302KA02050 запросить цену → | 2KA02050 | PLATE FRAME FUSER F |
| 19 | 302KA02060 запросить цену → | 2KA02060 | STAY OPERATION WIRE |
| 20 | 302KA02080 запросить цену → | 2KA02080 | SHEET OPERATION WIRE |
| 21 | 302KA02120 запросить цену → | 2KA02120 | SHEET FRAME FUSER F |
| 22 | 302KA28060 запросить цену → | 2KA28060 | SHEET COVER EXIT WIRE |
| 23 | 3CZ02240 запросить цену → | 3CZ02240 | PIN,DRAWER SIDE CONVEYING |
| 24 | 7YZM210006++H01 YZ038000 ACCESS.EDGING | ||
| 25 | 7YZM610001++H01 YZ010230 ACCESS SADDLE | ||
| 26 | 7YZM610007++H01 YZ023340 ACCESS.SADDLE | ||
| 27 | 7YZM610008++H01 YZ037940 ACCESS.SADDLE | ||
| 28 | 302H739030 запросить цену → | 2H739030 | STAY SHIELD BOX |
| 29 | 7YZM210002++H01 YZ004730 ACCESS.EDGING | ||
| 30 | 7ZGSTG15C050H01 запросить цену → | ZG000470 | SHIELD GASKET |
| 31 | 302KA02020 запросить цену → | 2KA02020 | STAY UPPER RIGHT |
| 32 | 302KA02110 запросить цену → | 2KA02110 | SHEET UPPER REAR |

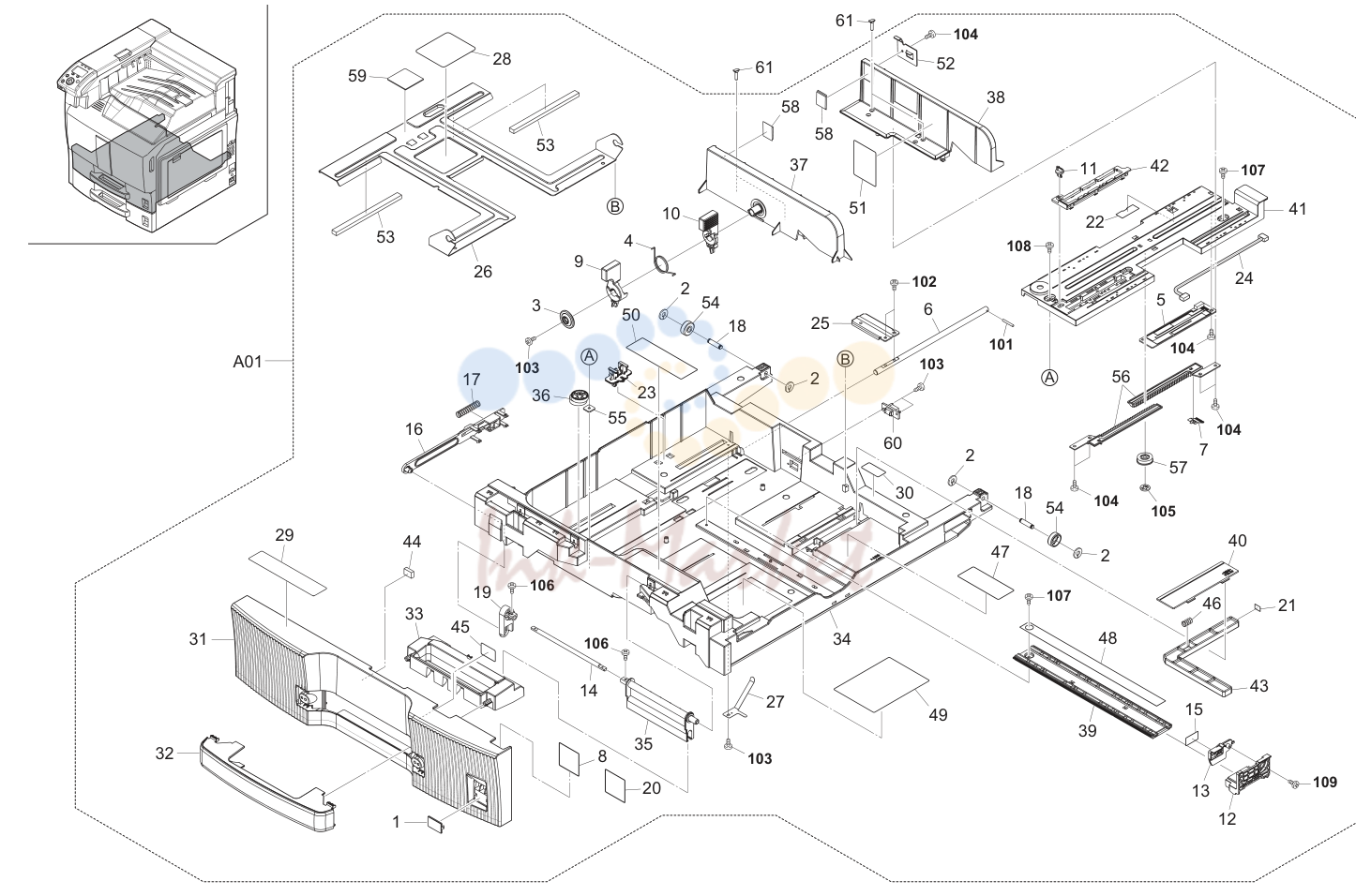

5. Paper Cassette 1 2KA
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | •2BL04310 2BL04310 PLATE NUMBER 1 1 1 51 •302H734180 2H734180 LABEL PAPER UPPER LIMIT 1ST | ||
| 2 | •2C904550 2C904550 CUT WASHER 5 4 4 4 52 •302KY09010 2KY09010 STOPPER PAPER | ||
| 3 | •2FB07050 2FB07050 PIN CURSOR 1 1 1 53 •33907210 33907210 CUSHION,CASSETTE WORK PLATE | ||
| 4 | •2FB07060 2FB07060 SPRING CURSOR 1 1 1 54 •34907150 34907150 PULLEY,CASSETTE | ||
| 6 | •302AR07041 2AR07041 SHAFT,WORK PLATE 1 1 1 (cid:27) 56 •3CY06090 3CY06090 RACK CURSOR | ||
| 8 | •302FB05200 2FB05200 PLATE SIZE C 1 1 1 58 •60907170 60907170 CUSHION,CASSETTE R | ||
| 9 | •302FB07032 2FB07032 LEVER CURSOR A 1 1 1 59 •66107100 66107100 PAD,CASSETTE | ||
| 10 | •302FB07042 2FB07042 LEVER CURSOR B 1 1 1 60 •7YCC08B2046+H01 YC026110 CONNECTOR | ||
| 11 | •302FB07420 2FB07420 PIN CASSETTE 1 1 1 61 302GR09220 2GR09220 PIN CURSOR | ||
| 12 | •302FZ09030 2FZ09030 CURSOR RIGHT | ||
| 13 | •302FZ09040 2FZ09040 CURSOR RIGHT UPPER | ||
| 14 | •302FZ09070 2FZ09070 SHAFT HANDLE | ||
| 16 | •302GR09051 2GR09051 LEVER CASSETTE | ||
| 17 | •302GR09120 2GR09120 SPRING LEVER CASSETTE 1 1 1 101 5MBP2514WXSP E0025250 SPRING PIN /M2.5 X 14 S-BLK | ||
| 18 | •302GR09130 2GR09130 SHAFT PULLEY 2 2 2 102 7BB607408H BB107040 +TP-CUP M SCREW 4X8 R | ||
| 19 | •302GR09150 2GR09150 WORK PLATE HANDLE 1 1 1 103 7BB200308H BB105660 +BIND T.T P SCREW 3X8 | ||
| 20 | •302GR09201 2GR09201 PLATE SIZE INCH 1 1 1 104 7BB202308H BB105690 +TP-FLAT T.T P SCREW 3X8 | ||
| 21 | •302GR09210 2GR09210 SEAL DETECTION PLATE 1 1 1 105 5MBCS4025XSP D4000400 CS STOP RING /X 4 X .25T S-BLK | ||
| 22 | •302GR09250 2GR09250 FILM PWB COVER 1 1 1 106 7BB000305H BB063450 +BIND M SCREW 3X5 | ||
| 23 | •302GR09991 2GR09991 LIFT LOCK 1 1 1 107 7BB282308H BB111240 +TP-FLAT T.T P SCREW 3X8(BLACK) | ||
| 24 | •302GR46450 2GR46450 WIRE CASSETTE UNIT 1 1 1 108 7BB687408H BB111270 +TP-CUP M SCREW 4X8 R(BLACK) | ||
| 25 | •302H009070 2H009070 WORK PLATE LIFT CASSETTE 1 1 1 109 7BB202306H BB106940 +TP-FLAT T.T P SCREW 3X6 | ||
| 26 | •302H009101 2H009101 BASE CASSETTE | ||
| 27 | •302H009120 2H009120 PLATE CASSETTE EARTH | ||
| 28 | •302H034070 2H034070 LABEL PAPER SET | ||
| 30 | •302H708100 2H708100 LABEL JAM LEVER GUIDE | ||
| 34 | •302H709050 2H709050 CASSETTE 1ST | ||
| 35 | •302H709070 2H709070 JOINT HANDLE CASSETTE | ||
| 36 | •302H709080 2H709080 ADJUSTING PLATE CASSETTE | ||
| 37 | •302H709090 2H709090 FRONT CURSOR CASSETTE | ||
| 38 | •302H709100 2H709100 REAR CURSOR CASSETTE | ||
| 39 | •302H709110 2H709110 RAIL CURSOR R | ||
| 40 | •302H709120 2H709120 LID PAPER SIZE | ||
| 41 | •302H709130 2H709130 RAIL CURSOR A | ||
| 42 | •302H709140 2H709140 SUPPORT PLATE | ||
| 43 | •302H709150 2H709150 DETECTION PLATE PAPER SIZE | ||
| 44 | •302H709160 2H709160 CUSHION PUSH BYPASS | ||
| 45 | •302H709170 2H709170 SHEET LEVER BYPASS | ||
| 46 | •302H709190 2H709190 SPRING PAD | ||
| 47 | •302H734040 2H734040 LABEL CURSOR OPERATION | ||
| 48 | •302H734050 2H734050 LABEL CASSETTE SIZE L | ||
| 49 | •302H734060 2H734060 LABEL CASSETTE SIZE S |
6. Paper Cassette 2 2KA
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | •2BL04310 2BL04310 PLATE NUMBER 1 1 1 (cid:27) 51 •3CY06090 3CY06090 RACK CURSOR | ||
| 2 | •2BL04370 2BL04370 PLATE NUMBER 2 1 1 1 (cid:27) 52 •3CY06100 3CY06100 GEAR 20,CURSOR | ||
| 3 | •2C904550 2C904550 CUT WASHER 5 4 4 4 53 •5MVX321CE001 3CF04050 PLATE NUMBER 3 /3CF0405 A4 | ||
| 4 | •2FB07050 2FB07050 PIN CURSOR 1 1 1 54 •60907170 60907170 CUSHION,CASSETTE R | ||
| 5 | •2FB07060 2FB07060 SPRING CURSOR 1 1 1 55 •66107100 66107100 PAD,CASSETTE | ||
| 7 | •302AR07041 2AR07041 SHAFT,WORK PLATE 1 1 1 57 302GR09220 2GR09220 PIN CURSOR | ||
| 9 | •302FB05200 2FB05200 PLATE SIZE C | ||
| 10 | •302FB07032 2FB07032 LEVER CURSOR A | ||
| 11 | •302FB07042 2FB07042 LEVER CURSOR B | ||
| 12 | •302FB07420 2FB07420 PIN CASSETTE | ||
| 13 | •302GR09051 2GR09051 LEVER CASSETTE 1 1 1 101 5MBP2514WXSP E0025250 SPRING PIN /M2.5 X 14 S-BLK | ||
| 14 | •302GR09120 2GR09120 SPRING LEVER CASSETTE 1 1 1 102 7BB607408H BB107040 +TP-CUP M SCREW 4X8 R | ||
| 15 | •302GR09130 2GR09130 SHAFT PULLEY 2 2 2 103 7BB200308H BB105660 +BIND T.T P SCREW 3X8 | ||
| 16 | •302GR09140 2GR09140 SHAFT HANDLE 1 1 1 104 7BB202308H BB105690 +TP-FLAT T.T P SCREW 3X8 | ||
| 17 | •302GR09150 2GR09150 WORK PLATE HANDLE 1 1 1 105 5MBCS4025XSP D4000400 CS STOP RING /X 4 X .25T S-BLK | ||
| 18 | •302GR09201 2GR09201 PLATE SIZE INCH 1 1 1 106 7BB000305H BB063450 +BIND M SCREW 3X5 | ||
| 19 | •302GR09210 2GR09210 SEAL DETECTION PLATE 1 1 1 107 7BB282308H BB111240 +TP-FLAT T.T P SCREW 3X8(BLACK) | ||
| 20 | •302GR09250 2GR09250 FILM PWB COVER 1 1 1 108 7BB687408H BB111270 +TP-CUP M SCREW 4X8 R(BLACK) | ||
| 21 | •302GR09991 2GR09991 LIFT LOCK | ||
| 22 | •302GR46450 2GR46450 WIRE CASSETTE UNIT | ||
| 23 | •302H009070 2H009070 WORK PLATE LIFT CASSETTE | ||
| 24 | •302H009101 2H009101 BASE CASSETTE | ||
| 25 | •302H009110 2H009110 CURSOR C CASSETTE | ||
| 26 | •302H009120 2H009120 PLATE CASSETTE EARTH | ||
| 27 | •302H034070 2H034070 LABEL PAPER SET | ||
| 31 | •302H709060 2H709060 CASSETTE 2ND | ||
| 32 | •302H709070 2H709070 JOINT HANDLE CASSETTE | ||
| 33 | •302H709080 2H709080 ADJUSTING PLATE CASSETTE | ||
| 34 | •302H709090 2H709090 FRONT CURSOR CASSETTE | ||
| 35 | •302H709100 2H709100 REAR CURSOR CASSETTE | ||
| 36 | •302H709110 2H709110 RAIL CURSOR R | ||
| 37 | •302H709120 2H709120 LID PAPER SIZE | ||
| 38 | •302H709130 2H709130 RAIL CURSOR A | ||
| 39 | •302H709140 2H709140 SUPPORT PLATE | ||
| 40 | •302H709150 2H709150 DETECTION PLATE PAPER SIZE | ||
| 41 | •302H709190 2H709190 SPRING PAD | ||
| 42 | •302H734050 2H734050 LABEL CASSETTE SIZE L | ||
| 43 | •302H734060 2H734060 LABEL CASSETTE SIZE S | ||
| 44 | •302H734070 2H734070 LABEL CASSETTE OPERATION B | ||
| 45 | •302H734080 2H734080 LABEL PAPER UPPER LIMIT | ||
| 46 | •302KY09010 2KY09010 STOPPER PAPER | ||
| 47 | •33907210 33907210 CUSHION,CASSETTE WORK PLATE | ||
| 48 | •34907150 34907150 PULLEY,CASSETTE | ||
| 49 | •3CF04060 3CF04060 PLATE NUMBER4 |
7. Paper Feed Section 1 2KA
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 3 | •2AR07660 2AR07660 GUIDE FILM,SEPARATION PULLEY 2 2 2 104 7BB000305H BB063450 +BIND M SCREW 3X5 | ||
| 4 | •2BC06520 2BC06520 BUSHING 6,REGISTRATION 6 6 6 105 D1A00400 D1A00400 STOP RING E-4(TRIVALENT CHROMATING) | ||
| 6 | •2BL07900 2BL07900 PLATE LEADING FEED 2 2 2 107 5MBP2012WXSP E0020120 SPRING PIN / M2 X 12 S-BLK | ||
| 7 | •302AR07252 2AR07252 SHAFT,PAPER FEED 2 2 2 108 E5120080 E5120080 PARALLEL PIN H7A 2X8 SUS | ||
| 8 | •302AR07271 2AR07271 SHAFT,LEADING FEED 2 2 2 109 7BD105060+++H01 BD018620 E STOP RING E-5 | ||
| 9 | •302FG07253 2FG07253 UPPER HOUSING,PAPER FEED 2 2 2 110 7BB700410H BB107090 +BIND T.T S SCREW 4X10 SR | ||
| 10 | •302FG07260 2FG07260 LOWER HOUSING,PAPER FEED | ||
| 11 | •302FG07290 2FG07290 ACTUATOR,PAPER EMPTY | ||
| 12 | •302FG07300 2FG07300 HOLDER,ACTUATOR | ||
| 13 | •302FG07310 2FG07310 REINFORCEMENT PRIMARY PAPER FEED | ||
| 14 | •302FG07330 2FG07330 GROUND PLATE,PRIMARY PAPER FEED | ||
| 15 | •302GR06060 2GR06060 HOLDER PICK | ||
| 16 | •302GR06070 2GR06070 SUPPORT PLATE FEED | ||
| 17 | •302GR06080 2GR06080 SPRING PICK | ||
| 18 | •302GR06091 2GR06091 SPRING SEPARATION | ||
| 19 | •302GR06101 2GR06101 SHAFT SEPARATION | ||
| 21 | •302GR06201 2GR06201 LEVER SEPARATION RELEASE | ||
| 22 | •302GR46431 2GR46431 WIRE PRIMARY FEED UNIT1 | ||
| 23 | •302H706010 2H706010 COVER PRIMARY WIRE | ||
| 25 | •34806040 34806040 LOWER BUSHING,PAPER FEED | ||
| 27 | •5MVX111DN003 2A806250 RING STOPPER /A-49 FEED A4 | ||
| 29 | •7YCC08B2046+H01 YC026110 CONNECTOR |
8. Paper Feed Section 2 2KA
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 2 | •2BG22970 2BG22970 BUSH 6 EW 1 1 1 103 7BB200410H BB105700 +BIND T.T P SCREW 4X10 | ||
| 4 | •302FB06151 2FB06151 JOINT DRIVE | ||
| 7 | •302FZ08012 2FZ08012 BASE MPT | ||
| 8 | •302FZ08020 2FZ08020 LOWER GUIDE MPT | ||
| 9 | •302FZ08030 2FZ08030 SHAFT FEED MPT | ||
| 10 | •302FZ08040 2FZ08040 SHAFT FEED JOINT MPT | ||
| 11 | •302FZ08050 2FZ08050 SHAFT SEPARATE MPT | ||
| 12 | •302FZ08072 2FZ08072 HOLDER MPT LF | ||
| 13 | •302FZ08090 2FZ08090 PAPER STOPPER MPT F | ||
| 14 | •302FZ08100 2FZ08100 PAPER STOPPER MPT R | ||
| 15 | •302FZ08110 2FZ08110 LEVER STOPPER RELEASE | ||
| 16 | •302FZ08120 2FZ08120 SPRING SEPARATE PULLEY | ||
| 18 | •302FZ08160 2FZ08160 HOLDER SEPARATE MPT | ||
| 19 | •302FZ08190 2FZ08190 SPRING HOLDER MPT | ||
| 20 | •302FZ08291 2FZ08291 SPRING MID MPT | ||
| 23 | •302FZ08320 2FZ08320 LEVER MPT SOLENOID | ||
| 24 | •302FZ08350 2FZ08350 SPRING ACTUATOR MPT | ||
| 25 | •302FZ08360 2FZ08360 COVER MPT DRIVE | ||
| 27 | •302FZ08430 2FZ08430 SPRING SOLENOID MPT | ||
| 28 | •302FZ08440 2FZ08440 PLATE EARTH MPT ROLL | ||
| 29 | •302FZ22140 2FZ22140 SHAFT MIDDLE L | ||
| 31 | •302FZ46520 2FZ46520 WIRE MPF UNIT | ||
| 34 | •302H702590 2H702590 BUSH SCREW | ||
| 35 | •302H708130 2H708130 PAD WIRE | ||
| 36 | •302H722730 2H722730 BUSH SP B | ||
| 37 | •302JF22010 2JF22010 PULLEY MIDDLE | ||
| 41 | •5MVL177DN001 2FB06810 RING STOPPER | ||
| 42 | •5MVM176XN001 2BM14330 BUSH D1234 | ||
| 43 | •5MVX111DN003 2A806250 RING STOPPER /A-49 FEED A4 |
9. Paper Feed Section 3 2KA
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | •2BC06750 2BC06750 RACK,CURSOR 2 2 2 103 BAB64080 BAB64080 +TP TAP-TITE P SCREW M4X8 | ||
| 2 | •2BC07340 2BC07340 LEFT WIRE B,LIFT 1 1 1 104 5MBCS4025XSP D4000400 CS STOP RING /X 4 X .25T S-BLK | ||
| 3 | •2FB07330 2FB07330 STOPPER BYPASS TABLE | ||
| 10 | •302FB17700 2FB17700 SPRING BYPASS TEBLE | ||
| 12 | •302FB17730 2FB17730 SEAL BYPASS TABLE | ||
| 13 | •302FB17750 2FB17750 SIZE INDICATOR BYPASS(I) | ||
| 13 | •302FB17740 2FB17740 SIZE INDICATOR BYPASS(M) | ||
| 14 | •302FB17800 2FB17800 PIN BYPASS TABLE | ||
| 17 | •302H708050 2H708050 LABEL MP CAUTION E S | ||
| 19 | •302H708080 2H708080 LABEL MP CAUTION PIC S | ||
| 20 | •302H708110 2H708110 CURSOR MPT F | ||
| 21 | •302H708120 2H708120 CURSOR MPT R | ||
| 22 | •302H708150 2H708150 SPONGE WIRE MPT | ||
| 23 | •302H746980 2H746980 WIRE BYPASS TRAY | ||
| 25 | •33906900 33906900 COVER,CURSOR | ||
| 27 | •7YZM420003++H01 YZ052580 ACCESS.BAND |
10. Paper Feed Section 4 2KA
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 302FZ07500 запросить цену → | 2FZ07500 | BRACKET MPT GEAR 1 1 1 101 7BB100408H1 BB105830 +BIND T.T S SCREW 4X8 |
| 4 | •302FZ07061 2FZ07061 GUIDE BYPASS RIGHT | ||
| 5 | •302FZ07071 2FZ07071 COVER BYPASS OUT | ||
| 9 | •302FZ07140 2FZ07140 COVER MPT REAR | ||
| 11 | •302FZ07180 2FZ07180 PLATE EARTH MPT | ||
| 12 | •302FZ07210 2FZ07210 SPRING EARTH BYPASS JOINT | ||
| 13 | •302FZ07240 2FZ07240 SLIDER BYPASS A | ||
| 14 | •302FZ07250 2FZ07250 SLIDER BYPASS B | ||
| 15 | •302FZ07302 2FZ07302 PLATE GUIDE MPT | ||
| 16 | •302FZ07310 2FZ07310 BUSH CONTACT MPT B | ||
| 17 | •302FZ07320 2FZ07320 SPRING EARTH MPT A | ||
| 18 | •302FZ07330 2FZ07330 SPRING EARTH MPT B | ||
| 19 | •302FZ07380 2FZ07380 SPRING BYPASS PULLEY B | ||
| 20 | •302FZ07420 2FZ07420 LABEL JAM BYPASS B4 | ||
| 21 | •302FZ07540 2FZ07540 HOLDER SHAFT OUT | ||
| 22 | •302FZ07550 2FZ07550 SHEET BYPASS OUT | ||
| 23 | •302FZ29140 2FZ29140 COLLAR DU PULLEY | ||
| 26 | •302H024370 2H024370 BUSH 6 EW | ||
| 27 | •302H702590 2H702590 BUSH SCREW | ||
| 28 | •302H707010 2H707010 BASE MPF BYPASS | ||
| 29 | •302H707020 2H707020 HANDLE BYPASS | ||
| 30 | •302H707030 2H707030 LEVER PUSH BYPASS | ||
| 31 | •302H707040 2H707040 LEVER JAM BYPASS | ||
| 32 | •302H707050 2H707050 SPRING LEVER BYPASS | ||
| 33 | •302H707070 2H707070 PLATE EARTH BYPASS F | ||
| 34 | •302H707080 2H707080 GUIDE BYPASS IN | ||
| 35 | •302H707110 2H707110 SPRING EARTH BYPASS F | ||
| 36 | •302H707120 2H707120 COVER MPT BYPASS | ||
| 37 | •302H707130 2H707130 PUSH COVER BYPASS | ||
| 38 | •302H707140 2H707140 LABEL JAM BYPASS B2 | ||
| 39 | •302H707150 2H707150 LABEL JAM BYPASS B3 | ||
| 40 | •302H707160 2H707160 SPRING BYPASS MOTION | ||
| 43 | •5MVS665KB001 2BM40060 CUT WASHER | ||
| 44 | •5MVX111DN003 2A806250 RING STOPPER /A-49 FEED A4 |
11. Transfer Section 2KA
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | •302FZ21700 2FZ21700 HOLDER GUIDE PULLEY | ||
| 2 | •302FZ25940 2FZ25940 PULLEY GUIDE | ||
| 3 | •302H721120 2H721120 GUIDE BELT UP |
12. Paper Conveying Section 1 2KA
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 302FZ02700 запросить цену → | 2FZ02700 | MOUNT SHAFT CAM 1 1 1 48 •302FZ22870 2FZ22870 SPRING ACTUATOR BYPASS |
| 2 | 302FZ02691 запросить цену → | 2FZ02691 | MOUNT SOLENOID 1 1 1 (cid:27) 49 •302FZ94540 2FZ94540 PARTS,ROLLER MIDDLE R SP |
| 4 | 7YZM210006++H01 YZ038000 ACCESS.EDGING 1 1 1 51 •302H024370 2H024370 BUSH 6 EW | ||
| 5 | •2BC06910 2BC06910 STOPPER 6 1 1 1 53 •302H722510 2H722510 WIRE GUIDE MIDDLE | ||
| 6 | •302FZ22802 2FZ22802 GUIDE FEED LOW 1ST 1 1 1 54 •302H722520 2H722520 PLATE EARTH SHAFT | ||
| 7 | •302H024360 2H024360 BUSH 8 EW 1 1 1 (cid:27) 55 •302H722530 2H722530 GEAR MIDDLE A | ||
| 8 | •302H702590 2H702590 BUSH SCREW 1 1 1 (cid:27) 56 •302H722540 2H722540 GEAR MIDDLE B | ||
| 9 | •302H724220 2H724220 FILM WIRE GUIDE 1 1 1 (cid:27) 57 •302H722550 2H722550 GEAR MIDDLE Z19S | ||
| 10 | •302H746500 2H746500 WIRE GUIDE FEED LOW1 1 1 1 58 •302H722600 2H722600 GUIDE MIDDLE LOW | ||
| 13 | •303LM24050 3LM24050 GUIDE WIRE 1 1 1 61 •302H722630 2H722630 SPRING EARTH MID LOW | ||
| 15 | •2BC06910 2BC06910 STOPPER 6 1 1 1 64 •302H722730 2H722730 BUSH SP B | ||
| 17 | •302H024360 2H024360 BUSH 8 EW 1 1 1 66 •302H724210 2H724210 SHEET WIRE LED | ||
| 18 | •302H702590 2H702590 BUSH SCREW 1 1 1 67 •302H724270 2H724270 CENTER SPONGE GUIDE FEED | ||
| 19 | •302H722660 2H722660 GUIDE FEED LOW 2ND 1 1 1 68 •302H724281 2H724281 CENTER FILM GUIDE FEED | ||
| 20 | •302H746510 2H746510 WIRE GUIDE FEED LOW2 1 1 1 69 •302H724290 2H724290 FILM GUIDE HOLE | ||
| 23 | •303LM24050 3LM24050 GUIDE WIRE 1 1 1 72 •302JF22010 2JF22010 PULLEY MIDDLE | ||
| 24 | 302H702590 ✓ в наличии | 2H702590 | BUSH SCREW 2 2 2 73 •5MVX111DN003 2A806250 RING STOPPER /A-49 FEED A4 |
| 25 | 2BG22990 запросить цену → | 2BG22990 | CUT WASHER 4 2 2 2 74 •7YZM610007++H01 YZ023340 ACCESS.SADDLE |
| 27 | 302FZ02682 запросить цену → | 2FZ02682 | SHAFT CLN LSU |
| 29 | 5MVX111DN003 ✓ в наличии | 2A806250 | RING STOPPER /A-49 FEED A4 |
| 32 | 7BE08165Z131H01 запросить цену → | BE116760 | BEARING 688ZZNR 2 2 2 101 7BB100306H1 BB105820 +BIND T.T S SCREW 3X6 |
| 33 | 2BC06910 запросить цену → | 2BC06910 | STOPPER 6 2 2 2 102 7BB100408H1 BB105830 +BIND T.T S SCREW 4X8 |
| 37 | •302FZ22140 2FZ22140 SHAFT MIDDLE L 2 2 2 107 7BB700306H BB105590 +BIND T.T S SCREW 3X6 SR | ||
| 39 | •302FZ22341 2FZ22341 SPRING MIDDLE | ||
| 44 | •302FZ22600 2FZ22600 SPRING MID LEVER F | ||
| 45 | •302FZ22610 2FZ22610 SPRING MID LEVER R | ||
| 46 | •302FZ22621 2FZ22621 SPRING ACTUATOR REGIST |
13. Paper Conveying Section 2-1 2KA
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 2 | •7YZM610008++H01 YZ037940 ACCESS.SADDLE | ||
| 4 | •302FZ22201 2FZ22201 PLATE DISCHARGER | ||
| 5 | •302FZ22230 2FZ22230 CONTACT DISCHARGE | ||
| 6 | •302FZ22241 2FZ22241 PLATE EARTH REGIST | ||
| 7 | •302FZ22341 2FZ22341 SPRING MIDDLE | ||
| 8 | •302FZ22350 2FZ22350 SPRING GUIDE TRANSFER | ||
| 9 | •302FZ22560 2FZ22560 BUSH REGIST | ||
| 10 | •302FZ22720 2FZ22720 SHEET MIDDLE L | ||
| 11 | •302FZ24010 2FZ24010 SHEET REGIST L | ||
| 12 | •302FZ24240 2FZ24240 SHEET DISCHARGER | ||
| 13 | •302FZ24550 2FZ24550 SEAL FAN CONV B | ||
| 14 | •5MVX111DN003 2A806250 RING STOPPER /A-49 FEED A4 | ||
| 16 | •302KA46160 2KA46160 WIRE DU | ||
| 17 | •302H722010 2H722010 BASE CONVEYING | ||
| 18 | •302H722050 2H722050 SPRING EARTH FEED UNIT | ||
| 19 | •302H722060 2H722060 GUIDE CONVEYING TC | ||
| 20 | •302H722070 2H722070 PLATE GUIDE CONVEYING H | ||
| 21 | •302H746950 2H746950 WIRE LOOP SENS | ||
| 22 | •302H722090 2H722090 GUIDE MIDDLE L | ||
| 23 | •302H722120 2H722120 SPRING EARTH CONVEYING | ||
| 24 | •302H722130 2H722130 PLATE EARTH CONVEYING | ||
| 25 | •302H722170 2H722170 SPRING TRANSFER F | ||
| 26 | •302H722180 2H722180 SPRING TRANSFER R | ||
| 27 | •302H722320 2H722320 SHEET PLATE LEFT | ||
| 28 | •302H722350 2H722350 HOLDER DISCHARGER | ||
| 29 | •302H722390 2H722390 SPRING EARTH GUIDE TC | ||
| 30 | •302H722440 2H722440 RETAINER SENS LOOP | ||
| 31 | •302H722450 2H722450 PLATE SENSOR LOOP | ||
| 32 | •302H722670 2H722670 SHEET WIRE CONV C | ||
| 33 | •302H722680 2H722680 SHEET WIRE CONV R | ||
| 34 | •302H722730 2H722730 BUSH SP B | ||
| 35 | •302H722760 2H722760 PULLEY MIDDLE A | ||
| 36 | •302H722770 2H722770 SHAFT MIDDLE A | ||
| 37 | •302H722820 2H722820 SPRING CONTACT DISCHARGER | ||
| 38 | •302H722860 2H722860 SHEET FAN COVEYING | ||
| 39 | •302H722900 2H722900 CONTACT TRANSFER | ||
| 40 | •302H722910 2H722910 PLATE EARTH FAN | ||
| 41 | •302H724010 2H724010 BUSH10 REGIST C | ||
| 42 | •302H724020 2H724020 SPRING REGIST C | ||
| 43 | •302H724030 2H724030 SPRING REGIST F | ||
| 44 | •302H724040 2H724040 SPRING REGIST R | ||
| 45 | •302H746960 2H746960 WIRE EARTH | ||
| 46 | •302H724180 2H724180 SHEET CONV MID | ||
| 47 | ••302H724170 2H724170 STOPPER TRANS BEARING |
14. Paper Conveying Section 2-2 2KA
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 51 | •302JF22010 2JF22010 PULLEY MIDDLE | ||
| 53 | •5MVX111DN003 2A806250 RING STOPPER /A-49 FEED A4 | ||
| 54 | •302H024370 2H024370 BUSH 6 EW | ||
| 56 | •302FZ22140 2FZ22140 SHAFT MIDDLE L | ||
| 57 | •302FZ29080 2FZ29080 RETAINER ACTUATOR DU | ||
| 60 | •302FZ29131 2FZ29131 SPRING DU | ||
| 61 | •302FZ29140 2FZ29140 COLLAR DU PULLEY | ||
| 64 | •302H722420 2H722420 SPRING EARTH PLATE LEFT | ||
| 65 | •302H722710 2H722710 SHEET DUCT LOOP | ||
| 66 | •302H722720 2H722720 SHEET DUCT LOOP | ||
| 67 | •302H722730 2H722730 BUSH SP B | ||
| 68 | •302H729011 2H729011 FRAME DU | ||
| 70 | •302H729030 2H729030 MOUNT MOTOR DU HIGH | ||
| 71 | •302H729060 2H729060 PLATE EARTH DU | ||
| 73 | •302H729100 2H729100 SPRING EARTH PLATE DU | ||
| 74 | •302H729110 2H729110 ACTUATOR DU | ||
| 75 | •302H729120 2H729120 SPRING ACT DU | ||
| 76 | •302H729130 2H729130 PLATE EARTH MOTOR DU | ||
| 77 | •302H732230 2H732230 SHEET WIRE CL | ||
| 78 | •302H746800 2H746800 WIRE DU OPEN SW |
15. Paper Conveying Section 2-3 2KA
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 81 | •7ZG65TSV+020H01 ZG046810 SHIELD GASKET 4 4 4 203 7BB200308H BB105660 +BIND T.T P SCREW 3X8 | ||
| 82 | •302H724300 2H724300 SHEET LEFT ACT 1 1 1 204 7BB200310H BB105670 +BIND T.T P SCREW 3X10 | ||
| 83 | •2BG22990 2BG22990 CUT WASHER 4 2 2 2 205 7BB700320H BB105620 +BIND T.T S SCREW 3X20 SR | ||
| 84 | •302H746830 2H746830 WIRE JAM LED2 1 1 1 206 7BB100406H BB106920 +BIND T.T S SCREW 4X6 | ||
| 86 | •302FZ04310 2FZ04310 SHAFT LEFT COVER 1 1 1 208 7BC00045C080H01 BC047540 WASHER M4.5X12X08T CRFREE | ||
| 88 | •302FZ04420 2FZ04420 SHAFT LEFT COVER B 1 1 1 210 7BB200408H BB106960 +BIND T.T P SCREW 4X8 | ||
| 89 | •302H746820 2H746820 WIRE JAM LED1 1 1 1 211 7BB607310H BB106860 +TP-CUP M SCREW 3X10 R | ||
| 90 | •302H017180 2H017180 PULLEY SCANNER 2 2 2 212 7BB000404H1 BB111290 +BIND M SCREW 4X4 | ||
| 91 | •302KA34020 2KA34020 LABEL HIGH TEMP CAUTION 1 1 1 213 7BB607312H BB107140 +TP-CUP M SCREW 3X12 R | ||
| 92 | •302H722020 2H722020 COVER PWB FEED | ||
| 93 | •302H722110 2H722110 SHAFT HOOK CONVEYING | ||
| 94 | •302H722150 2H722150 SPRING CONVEYING F | ||
| 95 | •302H722160 2H722160 SPRING CONVEYING R | ||
| 97 | •302H722240 2H722240 SHAFT HOOK | ||
| 98 | •302H722250 2H722250 JOINT HOOK CONVEYING | ||
| 100 | •302H722270 2H722270 STOPPER COVER DU | ||
| 101 | •302H722280 2H722280 SPRING COVER DU | ||
| 103 | •302H722310 2H722310 SHEET COVER LEFT | ||
| 104 | •302H722320 2H722320 SHEET PLATE LEFT | ||
| 105 | •302H722330 2H722330 GUIDE LEFT DU | ||
| 106 | •302H722340 2H722340 SHEET RELEASE CORD | ||
| 107 | •302H722490 2H722490 COVER FILTER DU | ||
| 108 | •302H722690 2H722690 SHEET WIRE CONV E | ||
| 110 | •302H722870 2H722870 FILTER DU | ||
| 111 | •302H724210 2H724210 SHEET WIRE LED | ||
| 112 | •302KA22010 2KA22010 PLATE LEFT COVER ASSY | ||
| 113 | •302H724060 2H724060 SPRING DAMPER CONV | ||
| 114 | •302H724070 2H724070 WIRE DAMPER CONV | ||
| 115 | •302H724080 2H724080 PLATE DAMPER A | ||
| 116 | •302H724100 2H724100 COVER DAMPER SPRING | ||
| 117 | •302H724140 2H724140 HOOK CONVEYING S F | ||
| 118 | •302H724150 2H724150 HOOK CONVEYING S R | ||
| 119 | •302H724200 2H724200 SHEET DAMPER SPRING | ||
| 120 | 302H724110 запросить цену → | 2H724110 | PLATE PIN WIRE CONV |
| 121 | 302FZ04990 запросить цену → | 2FZ04990 | BAND LEFT COVER |
16. Laser Scanner Section 2KA
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 2 | 302JF19011 ✓ в наличии | 2JF19011 | PIN LSU |
| 3 | 302FZ20040 запросить цену → | 2FZ20040 | SPRING LSU |
| 4 | 302FZ03061 запросить цену → | 2FZ03061 | PLATE LSU ADJUST |
| 5 | 302H702560 запросить цену → | 2H702560 | MOUNT LSU RIGHT |
17. Image Formation Section 2KA
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 2 | •302H714230 2H714230 COVER FRONT BK DLP | ||
| 3 | •302H714320 2H714320 COVER REAR BK DLP | ||
| 4 | •302H714630 2H714630 UPPER DUCT DLP | ||
| 5 | •302H715350 2H715350 SEAL TAKEOFF | ||
| 12 | •302H714630 2H714630 UPPER DUCT DLP | ||
| 19 | •302H714630 2H714630 UPPER DUCT DLP | ||
| 26 | •302H714630 2H714630 UPPER DUCT DLP | ||
| 30 | 302JF14010 запросить цену → | 2JF14010 | STUD SCREW M4 |
18. Fuser Section 2KA
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | •28107310 49028101 BUSH 8 16 16 16 102 7BB100408H1 BB105830 +BIND T.T S SCREW 4X8 | ||
| 2 | •2BC06910 2BC06910 STOPPER 6 8 8 8 103 C2894950 C2894950 SHIM 6.2-0.13T | ||
| 3 | •302BG22531 2BG22531 SPRING COUPLING DLP 8 8 8 104 5MBP2012WXSP E0020120 SPRING PIN / M2 X 12 S-BLK | ||
| 5 | •302FZ31280 2FZ31280 COLLAR DLP COUPLING | ||
| 7 | •302FZ31720 2FZ31720 PIN MAIN DRIVE | ||
| 9 | •302FZ32150 2FZ32150 PIN DLP DRIVE | ||
| 10 | •302H731310 2H731310 HOLDER MAIN DRIVE | ||
| 11 | •302H731320 2H731320 PLATE MAIN DRIVE | ||
| 12 | •302H731400 2H731400 SHAFT CLN DRIVE | ||
| 13 | •302H731410 2H731410 SHAFT DLP DRIVE MK | ||
| 14 | •302H731420 2H731420 SHAFT DLP DRIVE CY | ||
| 23 | •302H739310 2H739310 GUIDE MAIN DRIVE | ||
| 30 | •7YZM610003++H01 YZ010250 ACCESS SADDLE | ||
| 31 | 302H746220 запросить цену → | 2H746220 | WIRE RUB/DLP MOT |
| 32 | 303LL02330 запросить цену → | 3LL02330 | HOLDER WIRE D |
19. Drive Section 2 2KA
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 2 | 302JD31110 запросить цену → | 2JD31110 | PLATE DRIVE TC 1 1 1 (cid:27) 50 •302KA31010 2KA31010 GEAR Z20L FUSER DRIVE |
| 4 | •2BG22990 2BG22990 CUT WASHER 4 1 1 1 (cid:27) 53 •302KA31040 2KA31040 GEAR EXIT Z45Z22 | ||
| 5 | •302FZ31221 2FZ31221 SHAFT BYPASS DRIVE 1 1 1 (cid:27) 54 •302KA31050 2KA31050 GEAR Z30 FUSER | ||
| 9 | •302FZ31710 2FZ31710 PIN MPF DRIVE 2 2 2 (cid:27) 58 •302KY94120 2KY94120 PARTS MOTOR FUSER SP | ||
| 10 | •302H702590 2H702590 BUSH SCREW 2 2 2 59 •5MVS665KB001 2BM40060 CUT WASHER | ||
| 11 | •302H731600 2H731600 PIN CONT D 2 2 2 60 •7YZM610002++H01 YZ010240 ACCESS SADDLE | ||
| 12 | •302H731821 2H731821 PLATE MPF DRIVE 1 1 1 61 •7YZM610007++H01 YZ023340 ACCESS.SADDLE | ||
| 13 | •302H731831 2H731831 HOLDER MPF DRIVE 1 1 1 62 •7YZM610008++H01 YZ037940 ACCESS.SADDLE | ||
| 19 | •302H731920 2H731920 SHAFT MPF CL | ||
| 22 | •302KY31080 2KY31080 SHAFT BRS DRIVE 1 1 1 101 7BB100306H1 BB105820 +BIND T.T S SCREW 3X6 | ||
| 24 | •3CY07080 3CY07080 BUSHING 6 2 2 2 103 7BB200308H BB105660 +BIND T.T P SCREW 3X8 | ||
| 25 | •5MVS665KB001 2BM40060 CUT WASHER 5 5 5 104 7BB007303H BB105750 +TP-CUP M SCREW 3X3 | ||
| 26 | •5MVX111DN003 2A806250 RING STOPPER /A-49 FEED A4 4 4 4 105 7BB700316H BB106910 +BIND T.T S SCREW 3X16 SR | ||
| 27 | •68822330 68822330 BEARING,DRIVE 2 2 2 106 7BB200410H BB105700 +BIND T.T P SCREW 4X10 | ||
| 28 | 7YZM610007++H01 YZ023340 ACCESS.SADDLE 1 1 1 107 7BB000305H BB063450 +BIND M SCREW 3X5 | ||
| 30 | 5MVX111DN003 ✓ в наличии | 2A806250 | RING STOPPER /A-49 FEED A4 |
| 31 | 302H746520 запросить цену → | 2H746520 | WIRE FEED CLT |
| 32 | 302H702550 запросить цену → | 2H702550 | SHEET STOPPER CLUTCH |
| 33 | •28107310 49028101 BUSH | ||
| 34 | •2BC06980 2BC06980 STOPPER | ||
| 35 | •2BG22990 2BG22990 CUT WASHER | ||
| 37 | •302FZ31671 2FZ31671 JOINT GEAR EXIT | ||
| 39 | •302FZ31750 2FZ31750 PIN EXIT | ||
| 41 | •302FZ31790 2FZ31790 SPRING EXIT | ||
| 44 | •302FZ32012 2FZ32012 PLATE FUSER DRIVE | ||
| 45 | •302FZ32024 2FZ32024 HOLDER FUSER CL | ||
| 46 | •302FZ32031 2FZ32031 SHAFT FUSER DRIVE | ||
| 48 | •302H732010 2H732010 COVER FUSER MOTOR |
20. Drive Section 3 2KA
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 3 | •302FZ32070 2FZ32070 COUPLING PAPER FEED 2 2 2 52 •7BE6801ZZ+++H01 BE058150 BEARING 6801ZZ | ||
| 4 | •302H024830 2H024830 BUSH 8 4 4 4 53 •7YZM410001++H01 YZ037950 ACCESS.BAND | ||
| 5 | •302H702590 2H702590 BUSH SCREW 4 4 4 (cid:27) 54 302H794090 2H794090 PARTS PWB MOTOR CONTROL ASSY SP | ||
| 6 | •302H731100 2H731100 SHEEL FEED DRIVE 1 1 1 55 302H739210 2H739210 PLATE MOTOR PWB | ||
| 7 | •302H731110 2H731110 HOLDER FEED DRIVE 1 1 1 56 7YZM210005++H01 YZ037990 ACCESS.EDGING | ||
| 8 | •302H731120 2H731120 PLATE REGIST 1 1 1 57 7YZM610001++H01 YZ010230 ACCESS SADDLE | ||
| 9 | •302H731130 2H731130 PLATE FEED 1 1 1 58 7ZS46175001+H01 ZS106120 THERMAL SHEET | ||
| 10 | •302H731140 2H731140 SHAFT FEED DRIVE A 1 1 1 59 302H746290 2H746290 WIRE MOT CONTROL | ||
| 11 | •302H731150 2H731150 SHAFT FEED DRIVE B 1 1 1 60 302H739230 2H739230 COVER MOTOR PWB | ||
| 12 | •302H731160 2H731160 PIN FEED DRIVE 8 8 8 61 302H739240 2H739240 SHEET MOTOR PWB | ||
| 18 | •302H731220 2H731220 SHAFT MIDDLE DRIVE 1 1 1 101 5MBP2012WXSP E0020120 SPRING PIN / M2 X 12 S-BLK | ||
| 19 | •302H731230 2H731230 SHAFT LSU DRIVE 1 1 1 102 7BB200410H BB105700 +BIND T.T P SCREW 4X10 | ||
| 28 | •302H731810 2H731810 PIN DRIVE MIDDLE | ||
| 29 | •302H732230 2H732230 SHEET WIRE CL | ||
| 30 | •302H739110 2H739110 PLATE EARTH FEED | ||
| 31 | •302H739150 2H739150 PLATE EARTH MIDDLE | ||
| 32 | •302H746480 2H746480 WIRE REG/ROL MOT | ||
| 33 | •302H746490 2H746490 WIRE FEED MOT | ||
| 34 | •302H746530 2H746530 WIRE CASSETTE | ||
| 38 | •302JF31010 2JF31010 STUD SCREW | ||
| 40 | •5MVS665KB001 2BM40060 CUT WASHER | ||
| 41 | •5MVX111DN003 2A806250 RING STOPPER /A-49 FEED A4 | ||
| 42 | •7YCC08B2046+H02 YC026130 CONNECTOR | ||
| 43 | •7YZM210006++H01 YZ038000 ACCESS.EDGING | ||
| 44 | •7YZM610003++H01 YZ010250 ACCESS SADDLE | ||
| 45 | •7YZM610008++H01 YZ037940 ACCESS.SADDLE | ||
| 46 | •302H731390 2H731390 COVER DRUM SENSOR | ||
| 47 | •302H731990 2H731990 CUT WASHER | ||
| 48 | •302H732020 2H732020 SEAL DRUM DRIVE |
21. Drive Section 4 2KA
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | •2BG22990 2BG22990 CUT WASHER 4 5 5 5 104 7BB700410H BB107090 +BIND T.T S SCREW 4X10 SR | ||
| 2 | •302FZ31720 2FZ31720 PIN MAIN DRIVE | ||
| 3 | •302FZ31750 2FZ31750 PIN EXIT | ||
| 4 | •302FZ31790 2FZ31790 SPRING EXIT | ||
| 6 | •302H731511 2H731511 HOLDER CONT DRIVE | ||
| 7 | •302H731520 2H731520 PLATE CONT DRIVE | ||
| 14 | •302H731590 2H731590 PULLEY 32 CONT D | ||
| 15 | •302H731600 2H731600 PIN CONT D | ||
| 16 | •302H731610 2H731610 SHAFT PADDLE CONT D | ||
| 17 | •302H731620 2H731620 DUCT CONT D | ||
| 18 | •302H731630 2H731630 COVER DUCT CONT D | ||
| 19 | •302H731640 2H731640 COUPLING CONT D | ||
| 20 | •302H731650 2H731650 SPRING PADDLE CONT D | ||
| 21 | •302H731660 2H731660 SPRING SPIRAL CONT D | ||
| 22 | •302H731690 2H731690 HOLDER SPIRAL DRIVE H | ||
| 24 | •302H731710 2H731710 WORM WHEEL 22-Z14 | ||
| 29 | •302H731951 2H731951 HOLDER JOINT CNG | ||
| 31 | •302H732030 2H732030 SHAFT OWCE CONT D | ||
| 35 | •302H732170 2H732170 SHEET WIRE CONT D | ||
| 36 | •302H732180 2H732180 PLATE EARTH CONT D | ||
| 37 | •302H732200 2H732200 CASE FAN CONT D | ||
| 38 | •302H732210 2H732210 COLLAR PULLEY CONT D | ||
| 39 | •302H746180 2H746180 WIRE CONTAIN MOT | ||
| 44 | •3CY07080 3CY07080 BUSHING | ||
| 45 | •5MVG115DB002 2BM14540 GEAR WORM /48390M0062 A4 | ||
| 46 | •5MVX111DN003 2A806250 RING STOPPER /A-49 FEED A4 | ||
| 47 | •7YZM610002++H01 YZ010240 ACCESS SADDLE | ||
| 48 | •7YZM610007++H01 YZ023340 ACCESS.SADDLE |
22. Cooling Section 2KA
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 302H733780 запросить цену → | 2H733780 | SEAL FAN FRONT 1 1 1 101 7BB100408H1 BB105830 +BIND T.T S SCREW 4X8 |
| 3 | 302H733430 запросить цену → | 2H733430 | SCREW FAN 2 2 2 103 7BB700410H BB107090 +BIND T.T S SCREW 4X10 SR |
| 5 | 302H017230 запросить цену → | 2H017230 | LID GUIDE WIRE C |
| 6 | 302H733090 запросить цену → | 2H733090 | DUCT FAN VU UPPER |
| 7 | 302H733100 запросить цену → | 2H733100 | DUCT FAN VU LOWER |
| 8 | 302H733220 запросить цену → | 2H733220 | SHEET STOPPER WIRE VU |
| 9 | 302H733590 запросить цену → | 2H733590 | SHEET FAN VU |
| 10 | 302H746970 запросить цену → | 2H746970 | WIRE FAN LVU |
| 11 | 302H733530 запросить цену → | 2H733530 | SHEET FUN GUIDE |
| 12 | 302H733210 запросить цену → | 2H733210 | DUCT FAN PS2 |
| 14 | 302H733181 запросить цену → | 2H733181 | DUCT FAN PS |
| 15 | 302H733110 запросить цену → | 2H733110 | MOUNT FAN IMAGE |
| 17 | 302H733191 запросить цену → | 2H733191 | DUCT FAN FRONT |
| 19 | 7YZM610002++H01 YZ010240 ACCESS SADDLE | ||
| 21 | 302H733131 запросить цену → | 2H733131 | MOUNT FAN CONT BK |
| 22 | 302H733140 запросить цену → | 2H733140 | COVER FAN CONT BK |
| 23 | 7YZM610007++H01 YZ023340 ACCESS.SADDLE | ||
| 25 | 302H733390 запросить цену → | 2H733390 | DUCT COOLING FAN |
| 26 | 302H733010 запросить цену → | 2H733010 | DUCT EXIT LOWER |
| 27 | 302H733020 запросить цену → | 2H733020 | DUCT EXIT UPPER |
| 28 | 302H733031 запросить цену → | 2H733031 | DUCT PU FRONT |
| 29 | 302H733040 запросить цену → | 2H733040 | DUCT PU REAR |
| 31 | 302KY04010 запросить цену → | 2KY04010 | DUCT FAN RIGHT |
23. Exit Section 2KA
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 3 | •302FZ04390 2FZ04390 SPRING LEFT COVER F 1 1 1 (cid:27) 53 •302HP44020 2HP44020 SOLENOID EXIT | ||
| 4 | •302FZ04400 2FZ04400 SPRING LEFT COVER R 1 1 1 54 •302KA28010 2KA28010 ACTUATOR EXIT FULL | ||
| 5 | •302FZ22140 2FZ22140 SHAFT MIDDLE L 4 4 4 55 •302KA28030 2KA28030 GUIDE WIRE | ||
| 6 | •302FZ25360 2FZ25360 PULLEY FUSER EXIT 6 6 6 56 •302KA28040 2KA28040 SPRING SOL | ||
| 7 | •302FZ25380 2FZ25380 SHAFT EXIT PULLEY 2 2 2 57 •302KA46010 2KA46010 WIRE EJECT | ||
| 11 | •302FZ28120 2FZ28120 SPRING EARTH 1 1 1 61 •303KN16180 3KN16180 SPRING SOL A | ||
| 12 | •302FZ28260 2FZ28260 EXIT PUSH 3 3 3 62 •303KN16311 3KN16311 SEAL ACT | ||
| 13 | •302FZ28270 2FZ28270 SPRING EXIT PUSH 3 3 3 (cid:27) 63 •303KN94010 3KN94010 PARTS,PRINTED W.BOARD JOB,SP | ||
| 14 | •302H024370 2H024370 BUSH 6 EW 6 6 6 (cid:27) 64 •303KN94040 3KN94040 PARTS,SOLENOID,SP | ||
| 15 | •302H728310 2H728310 PULLEY EXIT B 8 8 8 65 •5MVF111DN005 2BM20610 BUSH SP /40613P5004 A4 | ||
| 17 | •302HP04100 2HP04100 SHAFT HOOK 1 1 1 67 •7YZM610008++H01 YZ037940 ACCESS.SADDLE | ||
| 18 | •302HP04110 2HP04110 HOOK LID F 1 1 1 (cid:27) 68 302HP04040 2HP04040 COVER LEFT MIDDLE | ||
| 19 | •302HP04120 2HP04120 HOOK LID R | ||
| 21 | •302HP28050 2HP28050 ROLLER EXIT OUT | ||
| 22 | •302HP28060 2HP28060 FRAME EXIT UPPER | ||
| 23 | •302HP28070 2HP28070 FRAME EXIT LOW | ||
| 24 | •302HP28080 2HP28080 FRAME EXIT ENTRANCE 1 1 1 101 5MBTPB3008PW++R B1A63080 BIND T.T SCREW(+) / M3 X 8 CRFREE P-T | ||
| 25 | •302HP28100 2HP28100 ACTUATOR EXIT L 1 1 1 102 E0120200 E0120200 SPRING PIN 2X20(SUS) | ||
| 28 | •302HP28130 2HP28130 GUIDE CHANGE R 1 1 1 105 7BP012520+++H01 E5125200 SPRING PIN 2.5X20(SUS) | ||
| 29 | •302HP28140 2HP28140 GUIDE CHANGE L 1 1 1 106 B1B03040 B1B03040 +BIND SCREW M3X04(TRIVALENT CHROMATI | ||
| 30 | •302HP28151 2HP28151 GUIDE ENTRANCE 1 1 1 107 7BB200410H BB105700 +BIND T.T P SCREW 4X10 | ||
| 31 | •302HP28190 2HP28190 FRAME EXIT MIDDLE 1 1 1 108 E5120100 E5120100 SPRING PIN H7A 2X10 SUS | ||
| 32 | •302HP28220 2HP28220 PLATE EXIT DRIVE 1 1 1 109 7BB180408H BB111210 +BIND T.T S SCREW 4X8(BLACK) | ||
| 33 | •302HP28230 2HP28230 SHAFT GEAR EXIT | ||
| 34 | •302HP28240 2HP28240 SPRING ACT EXIT L | ||
| 35 | •302HP28250 2HP28250 SPRING ACT EXIT R | ||
| 36 | •302HP28261 2HP28261 HOLDER EXIT PULLEY | ||
| 37 | •302HP28280 2HP28280 PLATE EXIT SOL | ||
| 38 | •302HP28290 2HP28290 COVER PWB | ||
| 39 | •302HP28320 2HP28320 PLATE EARTH EXIT | ||
| 40 | •302HP28330 2HP28330 ARM SOLENOID | ||
| 41 | •302HP28360 2HP28360 PLATE EARTH EXIT B | ||
| 42 | •302HP28370 2HP28370 SHEET EXIT | ||
| 43 | •302HP28390 2HP28390 SEAL ACT | ||
| 44 | •302HP28400 2HP28400 SPRING EXIT EARTH | ||
| 45 | •302HP28450 2HP28450 STATIC ELIMINATOR PR | ||
| 46 | •302HP28460 2HP28460 SHEET EXIT WIRE | ||
| 47 | •302HP28520 2HP28520 BUSH SP | ||
| 48 | •302HP28530 2HP28530 SPRING EXIT PULLEY |
24. Retainer Section-1 2KA
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | •302FG07020 2FG07020 PULLEY,CASSETTE RAIL 2 2 2 51 •302H703420 2H703420 PLATE DRUM EARTH | ||
| 2 | •2BC06980 2BC06980 STOPPER 5 5 5 5 52 •302H703430 2H703430 SEAL SCREW | ||
| 3 | •302H702590 2H702590 BUSH SCREW 2 2 2 53 •302H703440 2H703440 LID FULL SENSOR | ||
| 6 | •302FZ02410 2FZ02410 LEVER RETAINER 2 2 2 56 •302FZ21670 2FZ21670 SEAL FRAME TC B | ||
| 7 | •302FZ02420 2FZ02420 SPRING RETAINER 2 2 2 (cid:27) A02 •302H794480 2H794480 PARTS RETANER ASSY | ||
| 9 | •302FZ02860 2FZ02860 SHAFT FEED SWEEP 1 1 1 58 •302H703490 2H703490 SPRING WASTE SHUTTER | ||
| 10 | •302FZ31650 2FZ31650 SPRING JOINT 1 1 1 59 •302H703500 2H703500 SPRING JOINT TUBE | ||
| 12 | •302H703820 2H703820 SEAL TONER B 3 3 3 61 •302H703520 2H703520 SPRING ATTACHMENT | ||
| 13 | •302H702810 2H702810 HOOK TRAY R 1 1 1 62 •302H703530 2H703530 COVER CONNECTOR | ||
| 14 | •302H702820 2H702820 HOOK TRAY L 1 1 1 63 •302H703540 2H703540 PIPE DLP UP | ||
| 15 | •302H702830 2H702830 SHAFT HOOK 1 1 1 64 •302H703550 2H703550 PLATE HOLDER WT | ||
| 16 | •302H702840 2H702840 HOLDER BOTTLE 1 1 1 65 •302H703560 2H703560 JOINT TUBE DLP BLADE | ||
| 17 | •302H703010 2H703010 RETAINER PU 1 1 1 66 •302H703570 2H703570 SEAL CONT SHUTTER | ||
| 18 | •302H703020 2H703020 HOUSING RETAINER 1 1 1 67 •302H703580 2H703580 COVER FILTER | ||
| 19 | •302H703030 2H703030 COVER RETAINER 1 1 1 68 •302H703590 2H703590 FILTER DUST | ||
| 20 | •302H703040 2H703040 PIPE WASTE LOW 1 1 1 69 •302H703660 2H703660 GUIDE CONTAINER M | ||
| 21 | •302H703050 2H703050 PIPE WASTE UP 1 1 1 70 •302H703670 2H703670 GUIDE CONTAINER C | ||
| 22 | •302H703060 2H703060 SCREW WASTE 1 1 1 71 •302H703680 2H703680 GUIDE CONTAINER Y | ||
| 23 | •302H703070 2H703070 SHUTTER WASTE 1 1 1 72 •302H703690 2H703690 GUIDE CONTAINER K | ||
| 24 | •302H703080 2H703080 SEAL WASTE SHUTTER 1 1 1 73 •302H703700 2H703700 TUBE COOLING UPPER K | ||
| 25 | •302H703090 2H703090 PIPE DLP LOW 4 4 4 74 •302H703730 2H703730 TUBE COOLING UPPER M | ||
| 26 | •302H703100 2H703100 SHUTTER PIPE UP 4 4 4 75 •302H703740 2H703740 SEAL PIPE WASTE B | ||
| 27 | •302H703110 2H703110 SHUTTER PIPE LOW 4 4 4 76 •302H704410 2H704410 MAGNET CATCH | ||
| 28 | •302H703120 2H703120 SEAL PIPE DLP LOW 4 4 4 77 •302H704620 2H704620 COVER RETAINER LOW | ||
| 29 | •302H703130 2H703130 SEAL PIPE DLP UP 4 4 4 78 •302H734130 2H734130 LABEL CLEANING | ||
| 30 | •302H703140 2H703140 SPRING PIPE LOW 8 8 8 79 •302H734161 2H734161 LABEL INNER COVER | ||
| 31 | •302H703170 2H703170 ATTACHMENT ID SENSOR 1 1 1 80 •302H746050 2H746050 WIRE RETAINER | ||
| 32 | •302H703180 2H703180 ATTACHMENT SW F 1 1 1 81 •302H746070 2H746070 WIRE TONER SENSOR JOINT | ||
| 33 | •302H703190 2H703190 RAIL WASTE R 1 1 1 82 •5MMS111SL002 2BY20050 NUT FUSER A /FS-1800/3800 A4 | ||
| 34 | •302H703200 2H703200 RAIL WASTE L | ||
| 37 | •302H703230 2H703230 JOINT WASTE DRIVE | ||
| 38 | •302H703240 2H703240 SPRING PIPE UP | ||
| 42 | •302H703280 2H703280 SHAFT WASTE DRIVE | ||
| 43 | •302H703290 2H703290 BRACKET FAN DLP | ||
| 44 | •302H703300 2H703300 JOINT TUBE | ||
| 45 | •302H703310 2H703310 JOINT TUBE DLP LID | ||
| 46 | •302H703320 2H703320 TUBE COOLING LOW K | ||
| 47 | •302H703330 2H703330 TUBE COOLING LOW Y | ||
| 48 | •302H703340 2H703340 TUBE COOLING LOW C | ||
| 49 | •302H703350 2H703350 TUBE COOLING LOW M |
25. Retainer Section-2 2KA
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 83 | •302H734170 2H734170 LABEL PUSH A 1 1 1 201 5MBP2010WXSP E0020100 SPRING PIN / M2 X 10 S-BLK | ||
| 84 | •302H702590 2H702590 BUSH SCREW 1 1 1 202 7BB200312H BB105680 +BIND T.T P SCREW 3X12 | ||
| 87 | •302H702600 2H702600 SHAFT DRIVE A 1 1 1 205 7BB100306H1 BB105820 +BIND T.T S SCREW 3X6 | ||
| 88 | •302H702610 2H702610 SHAFT DRIVE B | ||
| 89 | •302H702620 2H702620 BUSH COUPLING | ||
| 90 | •302H702640 2H702640 BUSH JOINT | ||
| 91 | •302H702650 2H702650 PLATE WASTE DRIVE | ||
| 92 | •302H702680 2H702680 SHAFT DRIVE C | ||
| 98 | •302H702740 2H702740 HOLDER DRIVE A | ||
| 99 | •302H702780 2H702780 HOLDER JOINT JV | ||
| 100 | •302H702800 2H702800 COUPLING WASTE | ||
| 101 | •302H702990 2H702990 HOLDER DRIVE C | ||
| 102 | •302H703380 2H703380 TRAY WASTE | ||
| 103 | •302H703390 2H703390 LEVER WASTE TRAY |
26. Electrical Components 1 2KA
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 2 | 7YCC08B2046+H02 YC026130 CONNECTOR 2 2 2 (cid:27) 50 •302H794440 2H794440 PARTS DC MOTOR ASSY | ||
| 3 | 302FZ03070 запросить цену → | 2FZ03070 | RETAINING PIN DRAWER 4 4 4 51 •5MVG115DB002 2BM14540 GEAR WORM /48390M0062 A4 |
| 6 | 302H703850 запросить цену → | 2H703850 | SEAL TONER A 1 1 1 (cid:27) 54 302H794610 2H794610 PARTS HEATER DEHUMIDIFIER |
| 7 | 302H703760 запросить цену → | 2H703760 | GUIDE HARNESS 1 1 1 55 7YZM610001++H01 YZ010230 ACCESS SADDLE |
| 8 | •2BG16590 2BG16590 FELT TC CLN | ||
| 9 | •302FZ02190 2FZ02190 SHUTTER ID SENSOR | ||
| 10 | •302FZ02200 2FZ02200 SPRING SHUTTER ID SENSOR | ||
| 11 | •302FZ02771 2FZ02771 PLATE ID SENSOR | ||
| 12 | •302H702170 2H702170 RAIL DRUM LEFT | ||
| 13 | •302H702432 2H702432 SHEET TRANSFER R 1 1 1 101 7BB100306H1 BB105820 +BIND T.T S SCREW 3X6 | ||
| 14 | •302H702441 2H702441 GUIDE TC R 1 1 1 102 7BB100408H1 BB105830 +BIND T.T S SCREW 4X8 | ||
| 15 | •302H702500 2H702500 SPRING EARTH ICL 1 1 1 103 7BB200410H BB105700 +BIND T.T P SCREW 4X10 | ||
| 16 | •302H733260 2H733260 LOWER FILM ID SENSOR 1 1 1 104 7BB700410H BB107090 +BIND T.T S SCREW 4X10 SR | ||
| 17 | •302H733290 2H733290 FRONT FILM ID SENSOR | ||
| 18 | •302H746350 2H746350 WIRE REG SENS | ||
| 20 | •7YZM610007++H01 YZ023340 ACCESS.SADDLE | ||
| 21 | 302H739250 запросить цену → | 2H739250 | GUIDE WIRE VU |
| 22 | 302H746210 запросить цену → | 2H746210 | WIRE MPF/HVU |
| 23 | 302H746570 запросить цену → | 2H746570 | WIRE LIFT MOT |
| 24 | 302H702950 запросить цену → | 2H702950 | CAP CAS FOOT |
| 26 | 302H739580 запросить цену → | 2H739580 | TERMINAL ICL |
| 27 | 302H746320 запросить цену → | 2H746320 | WIRE CLEANING |
| 28 | 302FZ39610 запросить цену → | 2FZ39610 | HOLDER HV2 TC |
| 33 | 302H704650 запросить цену → | 2H704650 | SHEET INNER LEFT |
| 34 | 302H746120 запросить цену → | 2H746120 | WIRE HVU T2 |
| 36 | 302GR39190 запросить цену → | 2GR39190 | COVER CONN |
| 37 | 302H702240 запросить цену → | 2H702240 | BRACKET PPT |
| 38 | 302FZ02610 запросить цену → | 2FZ02610 | MOUNT CASSETTE SW |
| 39 | 303LL02330 запросить цену → | 3LL02330 | HOLDER WIRE D |
| 40 | 303LL02180 запросить цену → | 3LL02180 | HOLDER WIRE A |
| 41 | 302H702580 запросить цену → | 2H702580 | PLATE EARTH PWB |
| 44 | 302H702670 запросить цену → | 2H702670 | COVER CONNECTOR HEATER |
| 45 | 302KA46020 запросить цену → | 2KA46020 | WIRE EJECT JOINT |
| 46 | 302H739060 запросить цену → | 2H739060 | COVER INLET |
| 47 | 302H739630 запросить цену → | 2H739630 | SHEET COVER INLET |
| 48 | 7YZM610002++H01 YZ010240 ACCESS SADDLE |
27. Electrical Components 2 2KA
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 2 | 302H746170 запросить цену → | 2H746170 | WIRE CONTAIN MOT JOINT 1 1 1 51 303LL02330 3LL02330 HOLDER WIRE D |
| 3 | 302H739900 запросить цену → | 2H739900 | SHEET PWB 1 1 1 52 302H739270 2H739270 LID WIRE GUIDE |
| 4 | 7YZM510007++H01 YZ042780 ACCESS.SPACER 1 1 1 53 302KA46150 2KA46150 WIRE OP HEATER RELAY | ||
| 5 | 302FZ39110 запросить цену → | 2FZ39110 | MOUNT HV TERMINAL 4 4 4 54 302KA46050 2KA46050 WIRE SOLENOID |
| 9 | 302H739590 запросить цену → | 2H739590 | COVER HV TC1 |
| 10 | 302H739600 запросить цену → | 2H739600 | MOUNT TRANSFER HV |
| 11 | 302H739610 запросить цену → | 2H739610 | TERMINAL TC1 |
| 12 | 302H739620 запросить цену → | 2H739620 | SHEET TC1 |
| 13 | 302H746360 запросить цену → | 2H746360 | WIRE HVU T1 |
| 15 | 302H702530 запросить цену → | 2H702530 | GUIDE WIRE MAIN 1 1 1 102 7BB100408H1 BB105830 +BIND T.T S SCREW 4X8 |
| 16 | 302H702120 запросить цену → | 2H702120 | MOUNT CONT BOX 1 1 1 103 7BB200410H BB105700 +BIND T.T P SCREW 4X10 |
| 17 | 7YZM210002++H01 YZ004730 ACCESS.EDGING 1 1 1 104 7BB700410H BB107090 +BIND T.T S SCREW 4X10 SR | ||
| 18 | 302H739220 запросить цену → | 2H739220 | GUIDE WIRE EXIT |
| 19 | 7YZM210003++H01 YZ037970 ACCESS.EDGING | ||
| 20 | 7YZM610002++H01 YZ010240 ACCESS SADDLE | ||
| 21 | 7YZM610005++H01 YZ012220 ACCESS SADDLE | ||
| 22 | 302KA46090 запросить цену → | 2KA46090 | WIRE RIGHT SIDE |
| 23 | 302H739050 запросить цену → | 2H739050 | PLATE INLET |
| 24 | 302H746420 запросить цену → | 2H746420 | WIRE INLET ASSY |
| 25 | 302KA46170 запросить цену → | 2KA46170 | WIRE MSW US |
| 25 | 302KA46130 запросить цену → | 2KA46130 | WIRE MSW |
| 27 | 302KA46030 запросить цену → | 2KA46030 | WIRE TRANSFER-EXIT |
| 28 | 303LL02180 запросить цену → | 3LL02180 | HOLDER WIRE A |
| 29 | 302H739160 запросить цену → | 2H739160 | GUIDE WIRE L |
| 30 | 7YZM610002++H01 YZ010240 ACCESS SADDLE | ||
| 31 | 7YZM610007++H01 YZ023340 ACCESS.SADDLE | ||
| 32 | 302H746340 запросить цену → | 2H746340 | WIRE FEED |
| 33 | 302FB26290 запросить цену → | 2FB26290 | LID VENDOR |
| 34 | 302H702190 запросить цену → | 2H702190 | SHEET PS |
| 35 | 302H739070 запросить цену → | 2H739070 | BRACKET OPTION IF |
| 36 | 302H739080 запросить цену → | 2H739080 | BRACKET LVU PWB |
| 37 | 302H739280 запросить цену → | 2H739280 | GUIDE WIRE LVU |
| 38 | 302H739300 запросить цену → | 2H739300 | GUIDE WIRE HV |
| 39 | 302H739340 запросить цену → | 2H739340 | SHEET OPTION IF |
| 40 | 302H739350 запросить цену → | 2H739350 | SHEET OPTION CV |
| 42 | 7YZM210006++H01 YZ038000 ACCESS.EDGING | ||
| 43 | 7YZM510007++H01 YZ042780 ACCESS.SPACER | ||
| 44 | 7YZM610001++H01 YZ010230 ACCESS SADDLE | ||
| 45 | 7YZM610002++H01 YZ010240 ACCESS SADDLE | ||
| 46 | 7YZM610004++H01 YZ012210 ACCESS SADDLE | ||
| 47 | M2108130 запросить цену → | M2108130 | SPACER,KGPS-4S |
| 48 | 302KA46080 запросить цену → | 2KA46080 | WIRE LVU |
| 49 | 302KA46140 запросить цену → | 2KA46140 | WIRE OP DESK |
28. Electrical Components 3 2KA
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 302H739010 запросить цену → | 2H739010 | CONT BOX 1 1 1 101 7BB100306H1 BB105820 +BIND T.T S SCREW 3X6 |
| 5 | 302H739200 запросить цену → | 2H739200 | PIN HINGE A 1 1 1 106 7BB100408H1 BB105830 +BIND T.T S SCREW 4X8 |
| 6 | 302H746730 запросить цену → | 2H746730 | WIRE MAIN-KUIO 1 1 1 107 7BB700308H BB105600 +BIND T.T S SCREW 3X8 SR |
| 7 | 2DD26070 запросить цену → | 2DD26070 | PLATE OPTION |
| 9 | 302H739040 запросить цену → | 2H739040 | RAIL PWB |
| 10 | 302H739170 запросить цену → | 2H739170 | MOUNT FAN MAIN |
| 11 | 302H739260 запросить цену → | 2H739260 | LID DP |
| 12 | 302H739320 запросить цену → | 2H739320 | FILM CONT BOX |
| 13 | 302H739770 запросить цену → | 2H739770 | GUIDE CF |
| 14 | M2105010 запросить цену → | M2105010 | NYLON CLAMP 3N,NK-3N |
| 15 | 302H739020 запросить цену → | 2H739020 | BRACKET HDD |
| 17 | 302H746740 запросить цену → | 2H746740 | WIRE CF |
| 18 | 302JZ46150 запросить цену → | 2JZ46150 | WIRE HDD POWER (L) |
| 19 | 302H746900 запросить цену → | 2H746900 | WIRE HDD DATA1 |
| 21 | 7YZM210002++H01 YZ004730 ACCESS.EDGING | ||
| 22 | 7YZM390011++H01 YZ050250 ACCESS.CLAMP | ||
| 23 | 7YZM610002++H01 YZ010240 ACCESS SADDLE | ||
| 24 | 7YZM610003++H01 YZ010250 ACCESS SADDLE | ||
| 25 | 7YZM610007++H01 YZ023340 ACCESS.SADDLE | ||
| 27 | 3019527401 запросить цену → | 19527401 | POWER CORD(120) |
| 28 | 2AR27800 запросить цену → | 2AR27800 | POWER CORD(230) |
| 29 | 7AAACCAS+10H001 AA063380 AC CORD ASSY AS |
