Kyocera FS-C5015N C5025N — каталог запчастей со схемами

Содержание

• 1. Exterior Covers
• 2. Upper Frame Unit
• 3. Drive Units
• 4. Controller Box
• 5. Paper Feed Unit
• 6. Fuser Unit (16/17ppm EUR/USA)
• 7. Fuser Unit (20/22ppm EUR/USA)
• 8. Drum Unit / LED Unit
• 9. Developer Unit
• 10. MP Tray
• 11. Primary Transfer Unit
• 12. Accessories

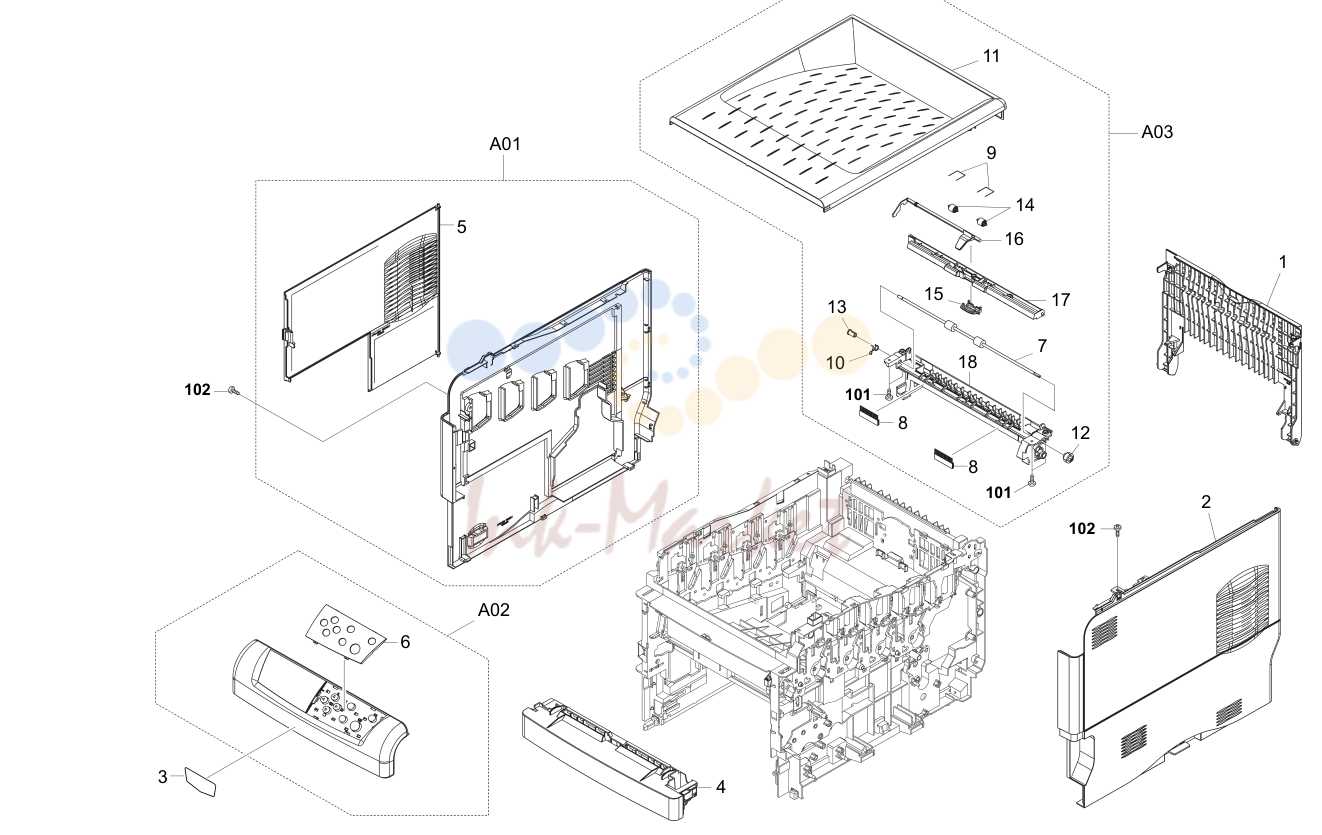

1. Exterior Covers

№	Артикул	Альт. артикул	Описание
3	302HJ04040 запросить цену →	2HJ04040	PLATE EMBLEM
10			•5MMW463LD001 2D902570 SPRING FD LOW
17			•5MVX852CH002 2BS04340 FRAME FD
18			•5MVX866XB003 2D904060 FRAME FD LOW

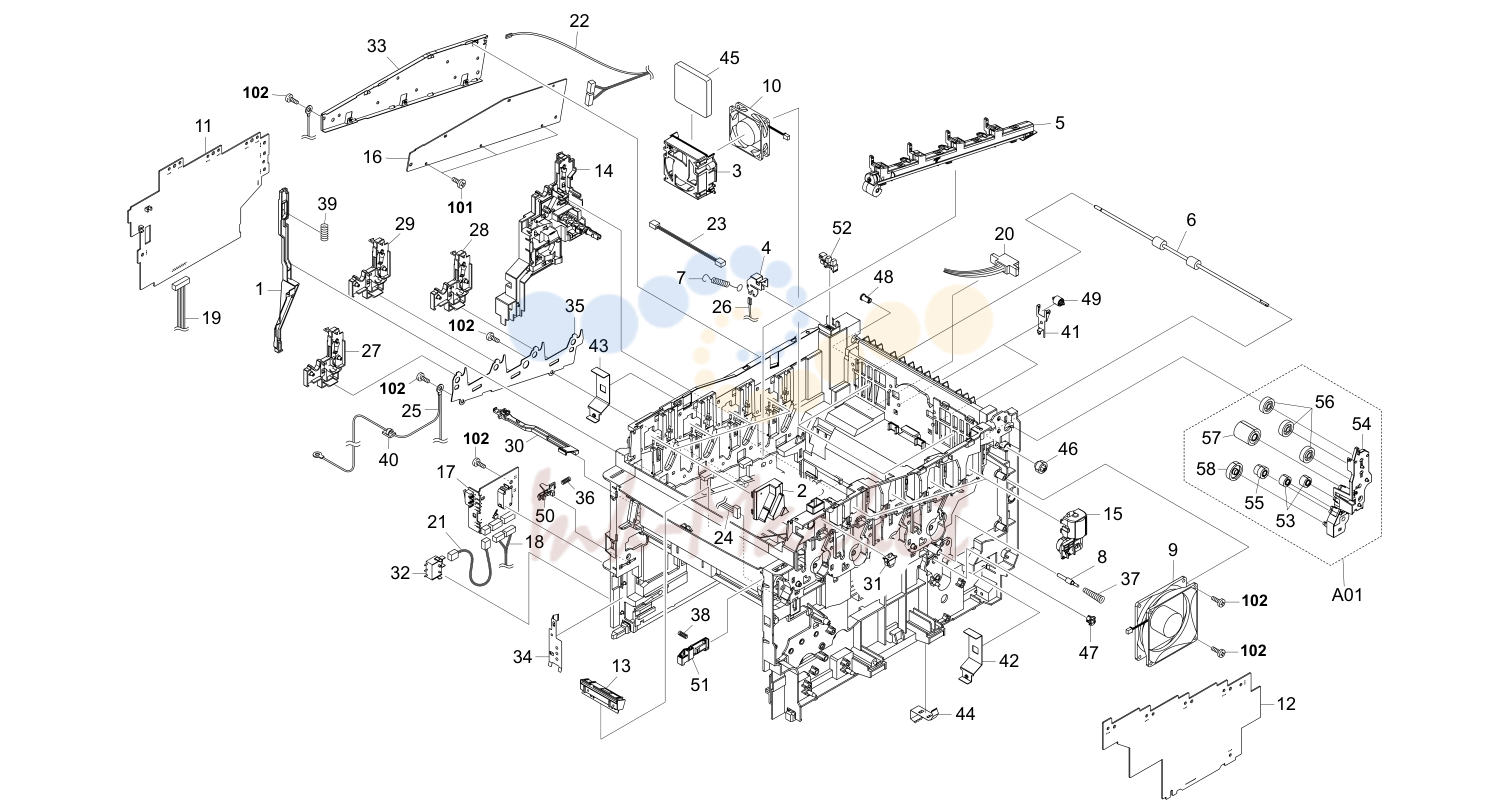

2. Upper Frame Unit

№	Артикул	Альт. артикул	Описание
1	302D902311 запросить цену →	2D902311	ROD INTERLOCK 1 1 1 1 (cid:27) 45 5MVB661XF001 2D902530 OZONE FILTER
2	302D902372 запросить цену →	2D902372	COVER HARNESS 4 4 4 4 (cid:27) 46 5MVG127DN076 2BS02220 GEAR ROLL FD Z18
3	302D902542 запросить цену →	2D902542	BRACKET FAN 2 2 2 2 (cid:27) 47 5MVM176DN035 2D922250 BUSH FRAME
4	302D902551 запросить цену →	2D902551	PLATE EARTH FD 1 1 1 1 (cid:27) 48 5MVM266DN006 2BS02290 BUSH FD
7	302F302020 запросить цену →	2F302020	SPRING EARTH FD 1 1 1 1 51 5MVX522DB006 2BS02390 LOCK COVER M/P
8	302F302030 запросить цену →	2F302030	PIN CONTACT BIAS 1 1 1 1 (cid:27) 52 7NXEESX1235AH01 2D902860 PT.SENSOR EE-SX1235A
18	302HJ46040 запросить цену →	2HJ46040	CONN. CORD ASSY S03197
19	302HJ46060 запросить цену →	2HJ46060	CONN. CORD ASSY S03199
20	302HJ46080 запросить цену →	2HJ46080	CONN. CORD ASSY S03203
21	302HJ46110 запросить цену →	2HJ46110	CONN. CORD ASSY S03207
22	302HJ46170 запросить цену →	2HJ46170	CONN. CORD ASSY S03213
23	302HJ46180 запросить цену →	2HJ46180	CONN. CORD ASSY S03215
24	302HJ46210 запросить цену →	2HJ46210	CONN. CORD ASSY S03219
25	302HJ46230 запросить цену →	2HJ46230	CONN. CORD ASSY S03221
26	302HK46040 запросить цену →	2HK46040	CONN. CORD ASSY S03232
33	5MMB861SD004 запросить цену →	2D902200	PLATE SHIELD PWB
34	5MMS632LD001 запросить цену →	2D902320	PLATE EARTH HV A
35	5MMS866SD001 запросить цену →	2D908510	PLATE FRAME DRUM
36	5MMW222LD002 запросить цену →	2BR02280	SPRING LEVER EF
37	5MMW222LD003 запросить цену →	2D902580	SPRING CONTACT CLN
38	5MMW261LD051 запросить цену →	2BR02340	SP LOCK COVER M/P
39	5MMW451LD001 запросить цену →	2B700570	SPRING INTER LOCK
40	5MMX221SW002 запросить цену →	3FW02530	CORD KEEP
41	5MMX431LD017 запросить цену →	2D902410	BRACKET ROLLER PINCH
42	5MMX632SD006 запросить цену →	2D902380	PLATE EARTH FUSER
43	5MMX632SD006 запросить цену →	2D902380	PLATE EARTH FUSER
44	5MMZ242LD002 запросить цену →	2D902330	PLATE EARTH HV B

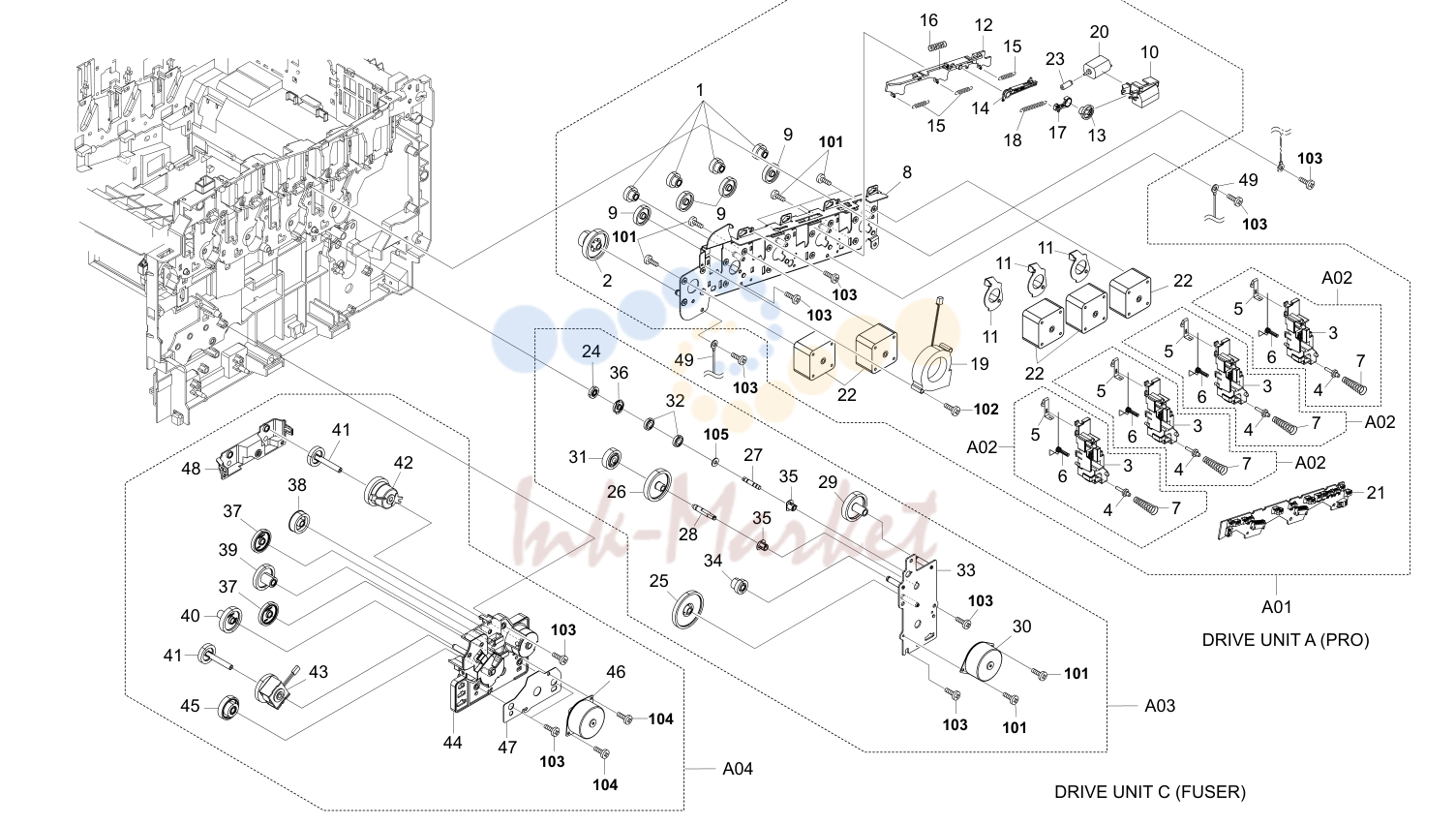

3. Drive Units

№	Артикул	Альт. артикул	Описание
3			••302F331150 2F331150 BRACKET HV MAIN 4 4 4 4 (cid:27) 38 •302D922051 2D922051 GEAR Z30S
4			••302F331180 2F331180 PIN HV CONTACT 4 4 4 4 (cid:27) 39 •302D922061 2D922061 GEAR Z38S-Z14S
5			••302F331190 2F331190 CONTACT MAIN B 4 4 4 4 (cid:27) 40 •302D922071 2D922071 GEAR Z38S
6			••302F331200 2F331200 SPRING HV MAIN 4 4 4 4 (cid:27) 41 •302D922081 2D922081 GEAR CL Z21S
7			••5MMW311LD003 2B702130 SPRING HV CONTACT 4 4 4 4 (cid:27) 42 •302F331120 2F331120 CLUTCH REGIST
8			•302F331010 2F331010 PLATE DRIVE MAIN 1 1 1 1 (cid:27) 43 •302F331130 2F331130 CLUTCH FEED
10			•302F331030 2F331030 BRACKET MOTOR 1 1 1 1 (cid:27) 45 •302F331260 2F331260 GEAR Z56H-Z20S
11			•302F331041 2F331041 PLATE IDLE ARM 3 3 3 3 (cid:27) 46 •302F344051 2F344051 STEPPING MOTOR FEED
12			•302F331050 2F331050 LEVER PLATE IDLE 1 1 1 1 (16/17ppm EUR/USA)
15			•302F331090 2F331090 SPRING IDLE ARM 3 3 3 3 (cid:27) 47 •5MMS656AX001 2D922260 SHEET MOTOR FEED (20/22ppm EUR/USA)
16			•302F331100 2F331100 SPRING LEVER 1 1 1 1 48 •5MVB732XB002 2D922020 COVER DRIVE FEED
18			•302F331170 2F331170 SPRING HOOK CRANK
33			•5MMX763SD003 2D922090 PLATE DRIVE FUSER

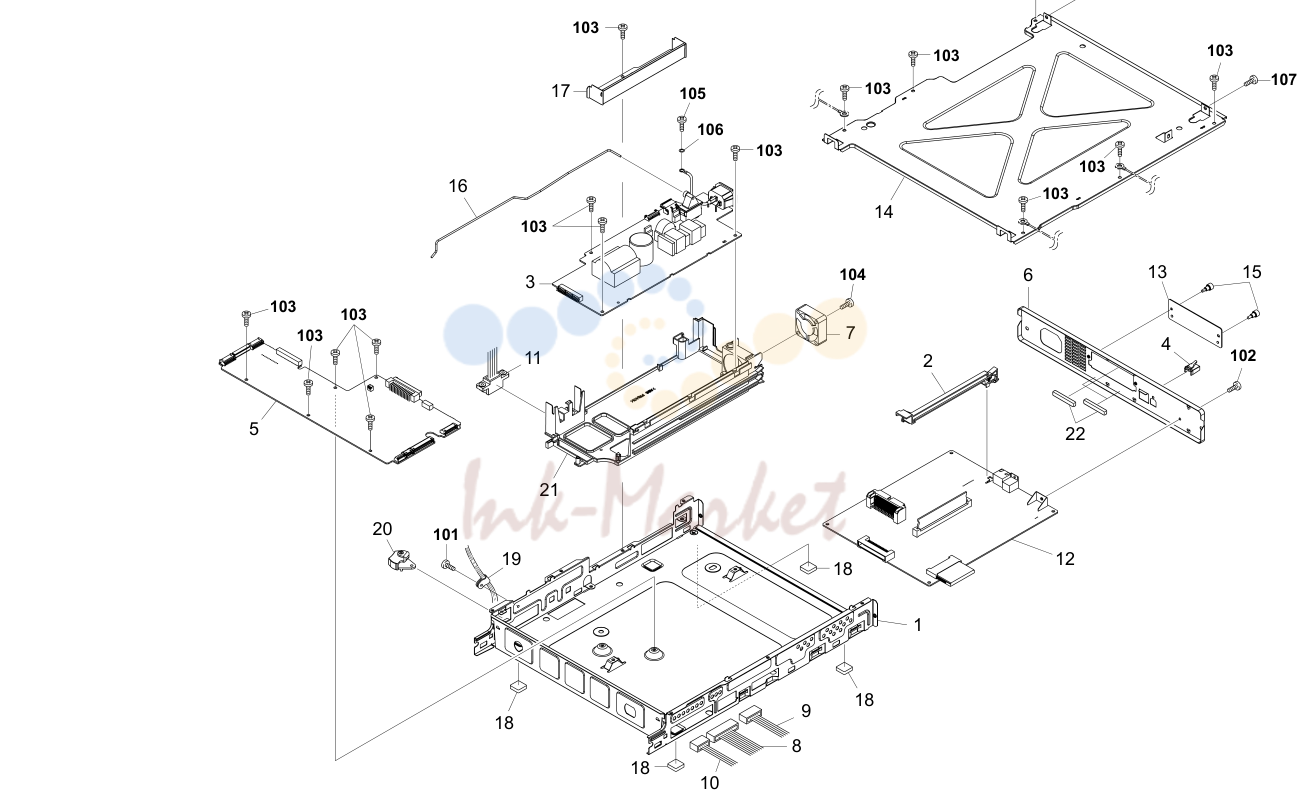

4. Controller Box

№	Артикул	Альт. артикул	Описание
1	302D903011 запросить цену →	2D903011	BOX CONTROLLER 1 1 1 1 101 B4A03120 TP-A SCREW M3X12(TRIVALENT CHROMAT
2	302D903071 запросить цену →	2D903071	RAIL OPTION 1 1 1 1 102 5MBSPP3006NW++R B0B03060 PAN HEAD SCREW(+) / M3 X 6 CRFREE
4	302F939090 запросить цену →	2F939090	CAP NETWORK
6	302HJ39010 запросить цену →	2HJ39010	PANEL REAR
8	302HJ46010 запросить цену →	2HJ46010	CONN. CORD ASSY S03194
9	302HJ46020 запросить цену →	2HJ46020	CONN. CORD ASSY S03195
10	302HJ46050 запросить цену →	2HJ46050	CONN. CORD ASSY S03198
13	303BH26021 запросить цену →	3BH26021	PLATE OPTION
14	5MMS884SD001 запросить цену →	2D903020	LID CONTROLLER
16	5MMW803SD001 запросить цену →	2D903060	ROD SW POWER
17	5MMX733SD001 запросить цену →	2D903040	BRACKET BOX
19			5MVX321NP001++R 2D902760 SHIELD CLAMP
20	5MVX433SH002 запросить цену →	2BS03120	LEVER SW
21	5MVX876SB009 запросить цену →	2D903050	CASE PWB POWER
22	7ZGSTGN1R033H01 запросить цену →	ZG047920	SHIELD GASKET

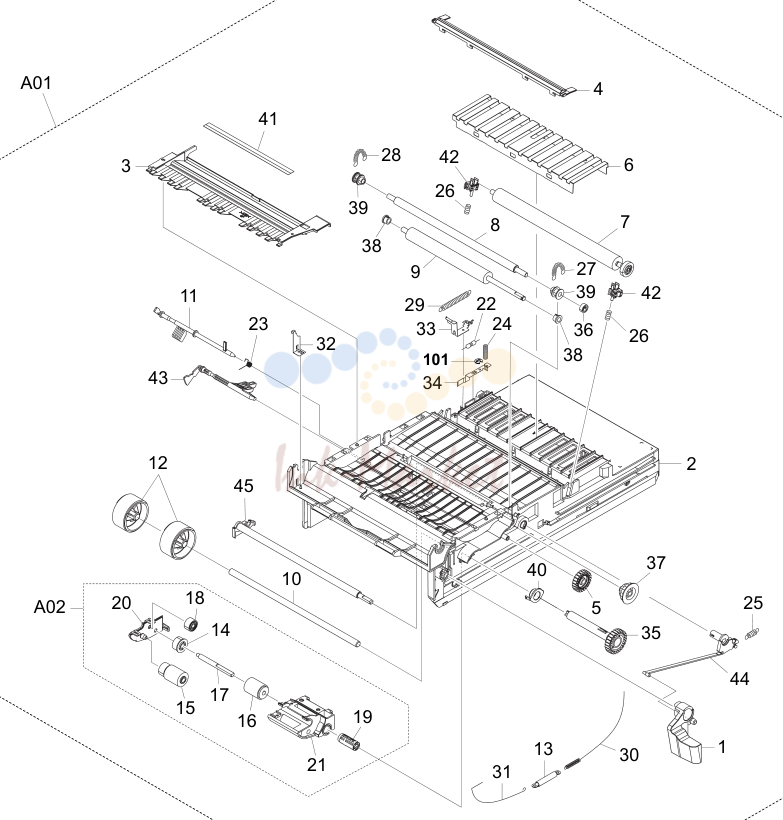

5. Paper Feed Unit

№	Артикул	Альт. артикул	Описание
1			•2BS16431 2BS16431 LEVER LOCK
2			•302D916051 2D916051 BASE FEED
3			•302D916071 2D916071 GUIDE PAPER
6			•302F300670 2F300670 DISCHARGER ASSY
10			•302F324030 2F324030 SHAFT ROLL GUIDE
13			•302HJ46300 2HJ46300 CONN. CORD ASSY S03236
17			••5MMT664SN002 2BR16370 SHAFT PICKUP
18			••5MVG137DN036 2BS16250 GEAR FEED IDLE Z29S
20			••5MVX642DH001 2BS16400 COVER BKT FEED
21			••5MVX664SH004 2BS16420 BRACKET FEED
22			•5FRHA3A10702+01 RH0A0040 M.GLAZE R. 100M 1W
23			•5MMW161SD014 2D916260 SPRING ACTUATOR REG
24			•5MMW241SX005 2B716150 SPRING TRANS R
25			•5MMW251SD002 2BR16250 SPRING LOCK R
26			•5MMW251SX004 2D916060 SPRING TRANS
27			•5MMW341LD008 2BR16240 SPRING REGIST R
28			•5MMW341LD011 2D916250 SPRING REGIST L
29			•5MMW641SD001 2D916130 SPRING EARTH B
30			•5MMW641SD002 2D916270 SPRING EARTH C
31			•5MMW641SD003 2D916280 WIRE EARTH M/P
32			•5MMX422LD012 2D916140 PLATE EARTH MP
33			•5MMX543LD006 2D916110 PLATE EARTH TC
34			•5MMX543LD007 2D916210 PLATE EARTH FEED
44			•5MVX733DN002 2D916090 HOOK RELEASE
45			•5MVX843CB004 2BS16470 SHAFT RELEASE

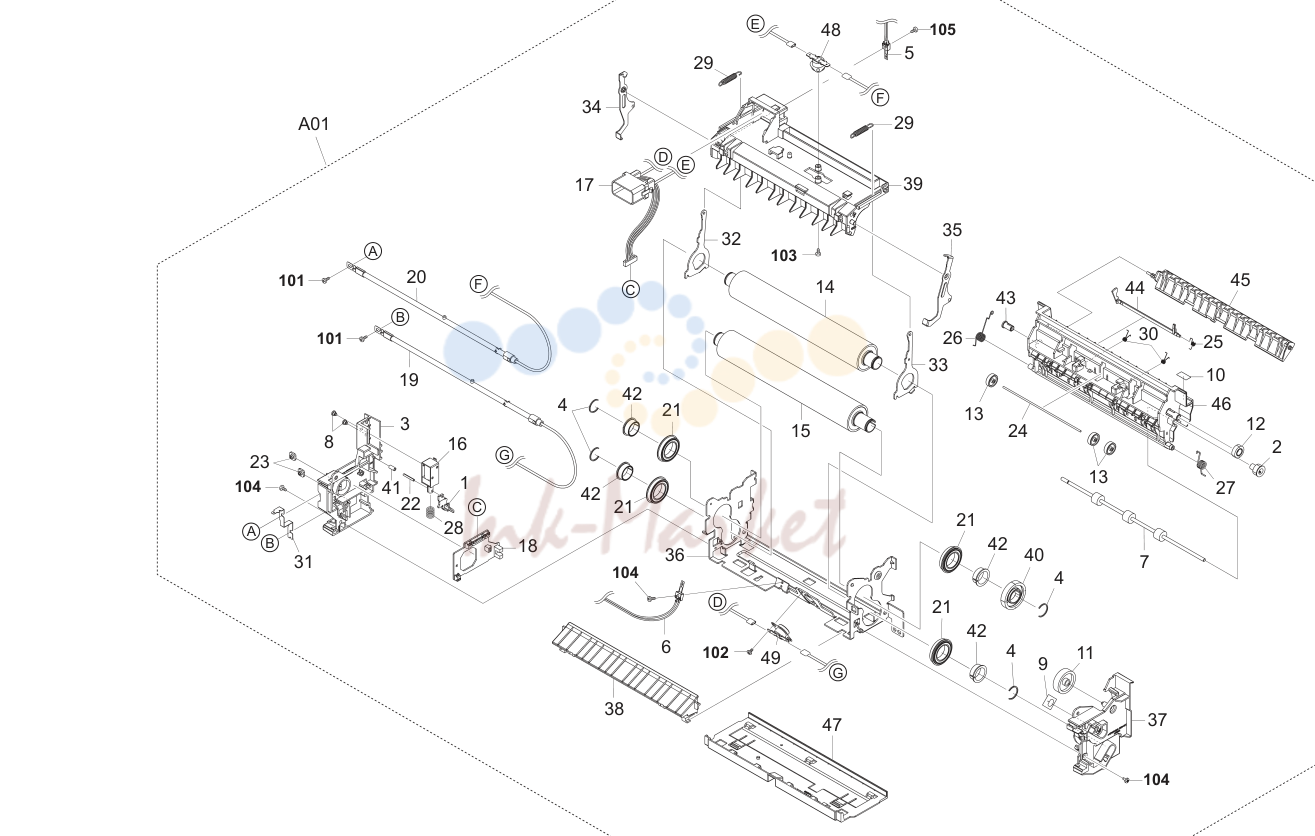

6. Fuser Unit (16/17ppm EUR/USA)

№	Артикул	Альт. артикул	Описание
1			•302D920012 2D920012 ACTUATOR SOL 1 1 1 1 (cid:27) 48 •YF0A1530 5FYFFQ15001++03 THERMOSTAT 250V150C
3			•302D925010 2D925010 COVER FUSER L
4			•302D925020 2D925020 RING STOP
8			•302F325010 2F325010 STUD SCREW M3 2 2 2 2 101 5MBSP43006NW++R B4A03060 TP HEAD SCREW(+) / M3 X 6 DRFREE
9			•302F325020 2F325020 SEAL HEATER R 1 1 1 1 102 5MBTPB3006TW++R B1A53060 BIND T.T SCREW(+) / M3 X 6 CRFREE S-T
10			•302F325030 2F325030 LABEL EXIT 1 1 1 1 103 5MBTPB3008PW++R B1A63080 BIND T.T SCREW(+) / M3 X 8 CRFREE P-T
17			•302HJ46100 2HJ46100 CONN. CORD ASSY S03205
17			•302HJ46090 2HJ46090 CONN. CORD ASSY S03204
22			•5MBP2518WXSP E0025180 SPRING PIN /M2.5 X 18 S-BLK
23			•5MMS111SL002 2BY20050 NUT FUSER A
24			•5MMT722SZ001 2BR20370 SHAFT EXIT
25			•5MMW151LD007 2D920280 SPRING ACTUATOR
26			•5MMW161SD012 2D920260 SPRING EXIT L
27			•5MMW161SD013 2D920270 SPRING EXIT R
28			•5MMW261LJ032 2BM21060 SPRING SOL
29			•5MMW361SD005 2D920250 SPRING PRESS
30			•5MMW501LD003 2D920300 SPRING PULLEY EXIT
31			•5MMX641RD001 2D920220 PLATE HEATER L
32			•5MMX641SD003 2D920170 PLATE PRESS L
33			•5MMX641SD004 2D920180 PLATE PRESS R
34			•5MMX641SD005 2D920190 PLATE RELEASE L
35			•5MMX641SD006 2D920200 PLATE RELEASE R
36			•5MMX876SD003 2D920050 FRAME FUSER
37			•5MVB663KB003 2D920120 COVER FUSER R
38			•5MVB833KB004 2D920330 GUIDE ENTRANCE LOW
39			•5MVB866KB002 2D920320 FRAME FUSER UP
41			•5MVM111RB002 2BR20450 RUBBER PIN

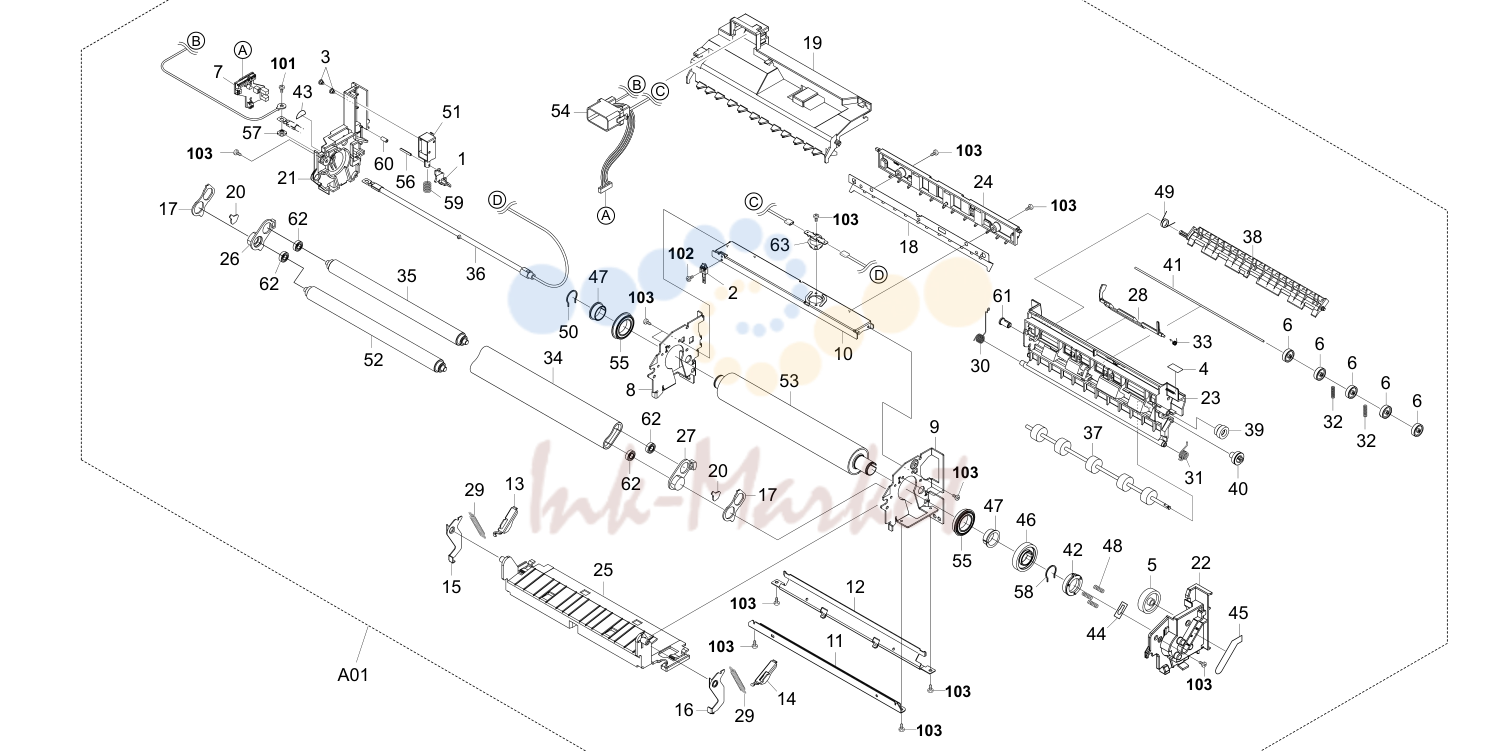

7. Fuser Unit (20/22ppm EUR/USA)

№	Артикул	Альт. артикул	Описание
1			•302D920012 2D920012 ACTUATOR SOL 1 1 1 1 (cid:27) 50 •302F425480 2F425480 RING STOP
3			•302F325010 2F325010 STUD SCREW M3 2 2 2 2 (cid:27) 52 •302HK25020 2HK25020 ROLLER BELT A
4			•302F325030 2F325030 LABEL EXIT 1 1 1 1 (cid:27) 53 •302HK25030 2HK25030 ROLLER HEAT
8			•302F425012 2F425012 PLATE FUSER L 1 1 1 1 (cid:27) 57 •5MMS111SL002 2BY20050 NUT FUSER A
9			•302F425021 2F425021 PLATE FUSER R 1 1 1 1 (cid:27) 58 •5MMW171LD007 2D920310 RING STOP
10			•302F425030 2F425030 STAY FUSER A 1 1 1 1 59 •5MMW261LJ032 2BM21060 SPRING SOL
11			•302F425040 2F425040 STAY FUSER B 1 1 1 1 60 •5MVM111RB002 2BR20450 RUBBER PIN
12			•302F425050 2F425050 STAY FUSER C 1 1 1 1 (cid:27) 61 •5MVM266DN006 2BS02290 BUSH FD
13			•302F425060 2F425060 PLATE PRESS L 1 1 1 1 (cid:27) 62 •7BE686ZZ++++H01 BE010080 FUSER BELT BEARING
14			•302F425070 2F425070 PLATE PRESS R 1 1 1 1 (cid:27) 63 •YF0A1530 5FYFFQ15001++03 THERMOSTAT 250V150 C/CS-7SA 6A
15			•302F425080 2F425080 PLATE RELEASE L
16			•302F425090 2F425090 PLATE RELEASE R
17			•302F425100 2F425100 PLATE PITCH
18			•302F425110 2F425110 PLATE SEPARATOR
19			•302F425120 2F425120 COVER FUSER UP
20			•302F425130 2F425130 PULLEY PRESS 2 2 2 2 101 5MBSP43006NW++R B4A03060 TP HEAD SCREW(+) / M3 X 6 DRFREE
21			•302F425141 2F425141 COVER FUSER L 1 1 1 1 102 5MBTPB3008TW++R B1A53080 BIND T.T SCREW(+) / M3 X 8 CRFREE S-T
22			•302F425151 2F425151 COVER FUSER R 1 1 1 1 103 5MBTPB3006TW++R B1A53060 BIND T.T SCREW(+) / M3 X 6 CRFREE S-T
23			•302F425161 2F425161 GUIDE EXIT
24			•302F425171 2F425171 GUIDE EXIT UP
25			•302F425180 2F425180 GUIDE ENTRANCE
26			•302F425194 2F425194 HOLDER BELT L
27			•302F425204 2F425204 HOLDER BELT R
30			•302F425230 2F425230 SPRING EXIT L
31			•302F425240 2F425240 SPRING EXIT R
32			•302F425250 2F425250 SPRING PULLEY EXIT
33			•302F425260 2F425260 SPRING ACTUATOR
38			•302F425341 2F425341 GUIDE CHANGE
41			•302F425370 2F425370 SHAFT EXIT
42			•302F425390 2F425390 SLEEVE FUSER GEAR
43			•302F425400 2F425400 SEAL LUMP HOLD R
44			•302F425410 2F425410 SEAL LUMP HOLD L
45			•302F425420 2F425420 SEAL COVER FUSER

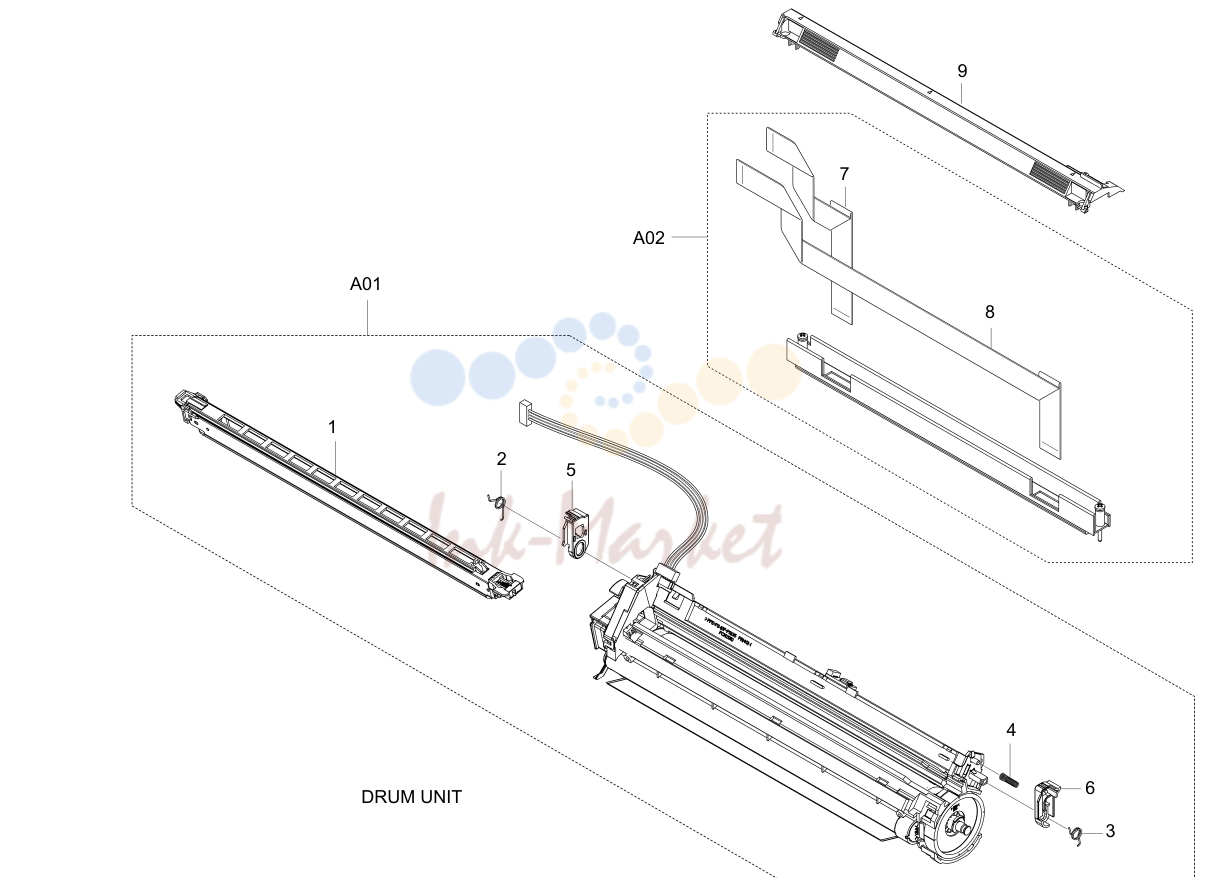

8. Drum Unit / LED Unit

№	Артикул	Альт. артикул	Описание
2			•5MMW161LD056 2D908360 SPRING LOCK L
3			•5MMW161LD057 2D908370 SPRING LOCK R
4			•5MMW241LD024 2D908000 SPRING EARTH
5			•5MVX421SL001 2D908340 LEVER DRUM L
6			•5MVX422SL003 2D908350 LEVER DRUM R

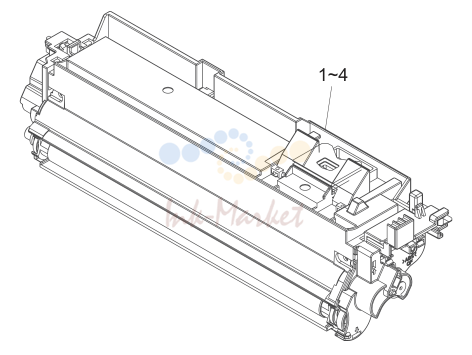

9. Developer Unit

№	Артикул	Альт. артикул	Описание
4			•5MMW161LD043 2BR02450 SPRING CAM M/P
5			•5MMW161SD009 2BR02530 SP ACTUATOR M/P C
6			•5MMW161SD010 2BR02520 SP ACTUATOR M/P B
7			•5MMW601SD001 2BR02440 SPRING MID M/P
9			•5MVG148DN063 2BS02280 GEAR M/P Z40
10			•5MVG158XN005 2D916010 GEAR MID Z42S
11			•5MVT676CB003 2BS02320 SHAFT MID B
17			•5MVX522DN004 2BS02400 LEVER CAM
19			•5MVX662DN003 2BS02440 HOLDER CLUTCH M/P
20			•5MVX866CH011 2FP02130 FRAME M/P

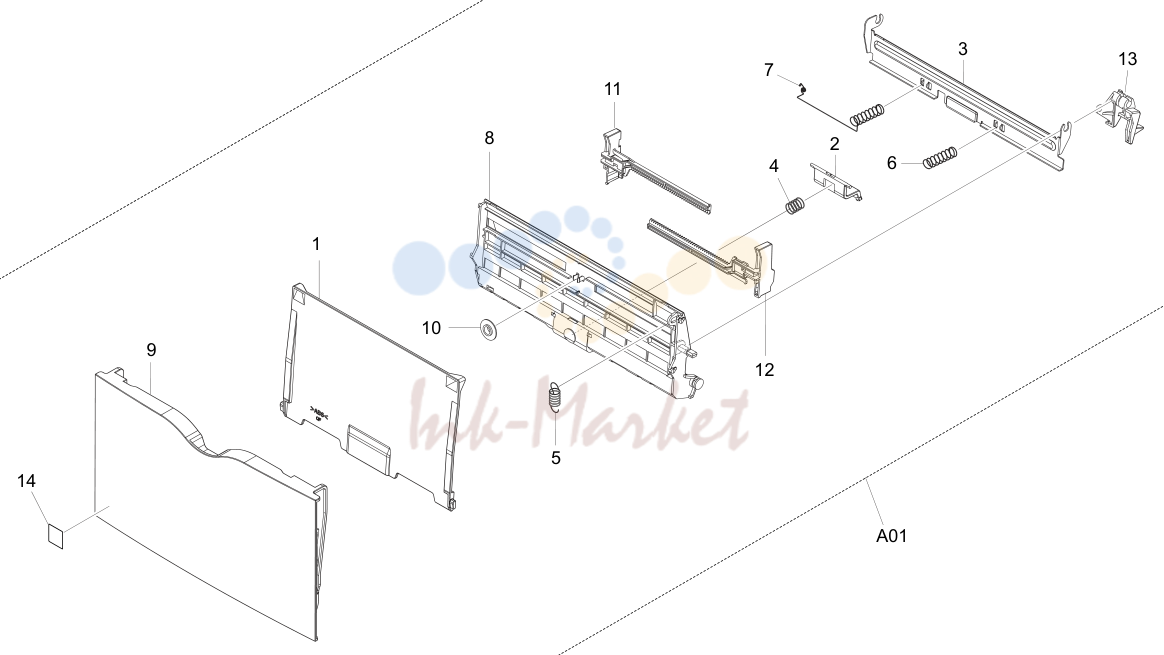

10. MP Tray

№	Артикул	Альт. артикул	Описание
1			•302D906012 2D906012 TRAY M/P
4			•5MMW261LD039 2BS06160 SPRING SEPARATOR
5			•5MMW261SM001 2BS06170 SPRING LOCK M/P
6			•5MMW461SD004 2BS06190 SP BOTTOM M/P R
7			•5MMW461SD006 2D916020 SP BOTTOM M/P L
8			•5MVB864SH009 2BS06250 BASE M/P
10			•5MVG127DH001 2B700380 GEAR MANUAL
11			•5MVL673DH003 2D906030 GUIDE M/P L
12			•5MVL673DH004 2D906040 GUIDE M/P R
13			•5MVX533DN002 2BS06460 BRACKET BOTTOM

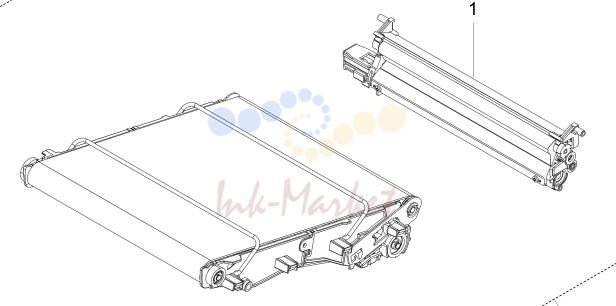

11. Primary Transfer Unit

№	Артикул	Альт. артикул	Описание
1			•302BS06051 2BS06051 PLATE SIDE R
2			•302BS06061 2BS06061 PLATE SIDE L
3			•303DD06011 3DD06011 BASE CASSETTE LGL
5			•5MMW151LD004 2BS06090 SPRING RETARD
6			•5MMW151SD003 2BS06100 SPRING END
7			•5MMW161LD044 2BM22440 SPRING FEED R
8			•5MMW161LD045 2BS06120 SPRING FEED L
9			•5MMW166LD010 2B700070 SPRING LOCK GUIDE
10			•5MMW251LD048 2BS06150 SP STOPPER BOTTOM
11			•5MMW682LD006 2BR06380 SPRING BOTTOM
11			•5MMW682LD004 2BS06200 SPRING BOTTOM
12			•5MMW682LD007 2BR06390 SPRING BOTTOM EARTH
12			•5MMW682LD005 2BS06210 SPRING BOTTOM EARTH
13			•5MMX653LD004 2BS06220 EARTH PLATE
14			•5MMX883SD004 2BS06230 PLATE BOTTOM
15			•5MVG127DB046 2B700190 GEAR CASSETTE
17			•5MVM586SH001 2B700210 DIAL CASSETTE
20			•5MVVL171WN03 3DD06160 LABEL SIZE LGL
21			•5MVVL221GE1J 2BR06510 LABEL OPERATION J
21			•5MVVL221GE1H 2BS06430 LABEL OPERATION
22			•5MVX422SD002 2BS06440 INDICATER PAPER
24			•5MVX543DH002 2BS06470 HOLDER DIAL
25			•5MVX632SH005 2BS06480 GUIDE RETARD
26			•5MVX642DG001 2BS06490 LOCK LEVER SIDE
27			•5MVX642DG002 2BS06500 LOCK LEVER END
28			•5MVX644DN001 2BS06510 HOLDER RETARD
29			•5MVX664DN001 2BS06520 END FENCE
31			•5MVX853SH003 2BS06540 COVER ROLLER

12. Accessories

№	Артикул	Альт. артикул	Описание
3	3065027601 запросить цену →	65027601	AC CORD ASSY
3	2DC27410 запросить цену →	2DC27410	AC CORD ASSY
3	2BJ27300 запросить цену →	2BJ27300	AC CORD ASSY ( KMA 220V )
3	302FV45040 запросить цену →	2FV45040	AC CORD ASSY ( KMAUS )
4			5AACAC480BSA++P 2A827840 AC CORD ASSY ( KMUK )
5	302FV45020 запросить цену →	2FV45020	AC CORD ASSY ( Excl. KMUK )
6			7AAACCSG+10H002 AA047510 AC CORD ASSY ( KMSG )
