Konica Minolta MAGICOLOR 6100 — каталог запчастей со схемами

Содержание

№	Артикул	Альт. артикул	Описание

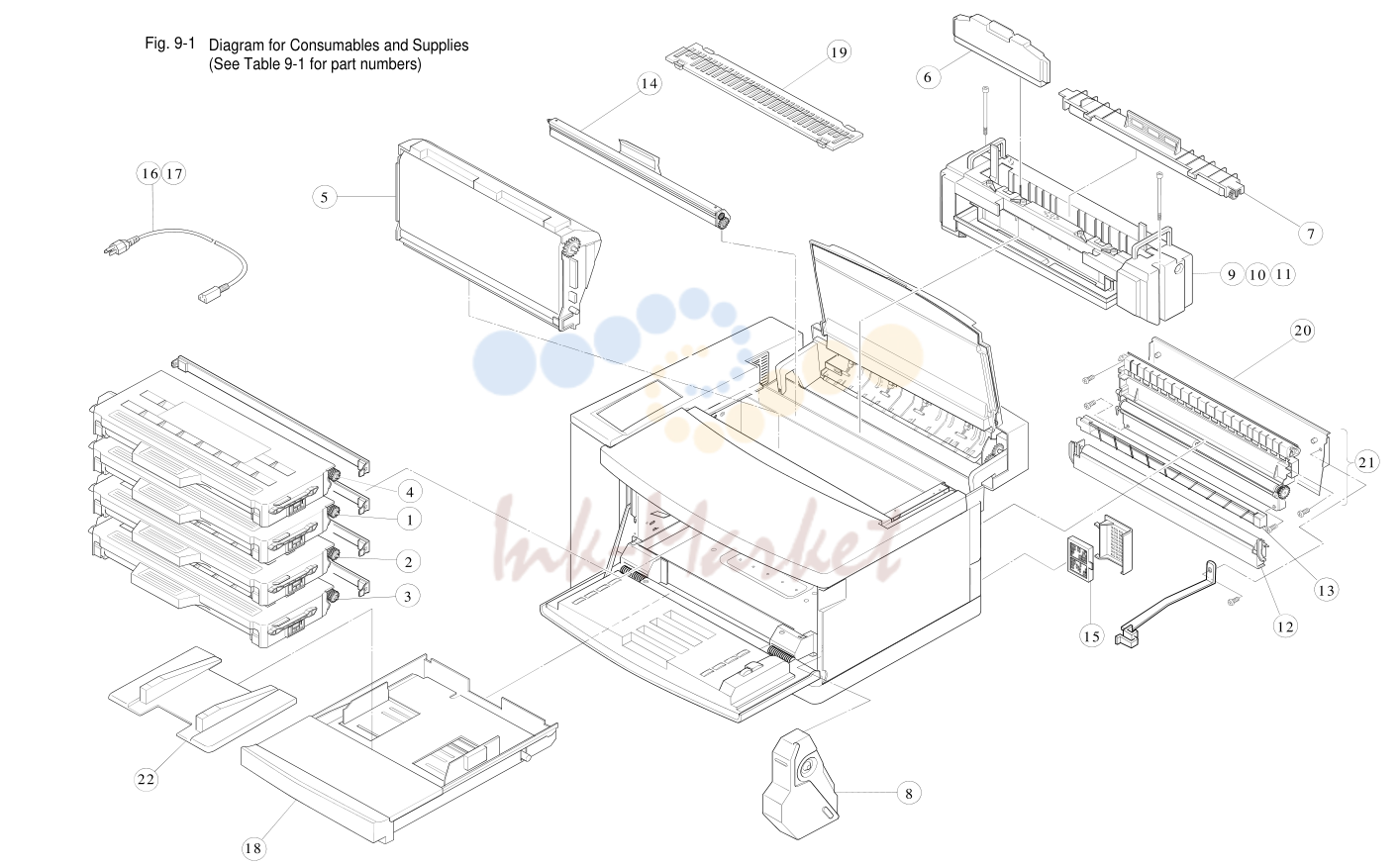

1			Toner Cartridge, Yellow 1710362-004 8,500 images
2			Toner Cartridge, Magenta 1710362-003 8,500 images
3			Toner Cartridge, Cyan 1710362-002 8,500 images
4			Toner Cartridge, Black 1710362-001 14,000 images
5			OPC Belt Cartridge 1710365-001 12,000 images
6			Fuser Oil 1710367-001 12,000 pages
7			Cleaning Roller, Fuser 1710367-001 200,000 images
8			Waste Toner Bottle 1710368-001 18,000 images
9			Fuser (US) 825126619 100,000 pages
10			Fuser (EC) 825126620 100,000 pages
11			Fuser (JP) 825126621 100,000 pages
12			Transfer Roller 825126627 240,000 pages
13			Paper Discharger 825126628 240,000 pages
14			Drum Cleaner 825126630 240,000 pages
15			Ozone Filter 825126164 1 per year
16			Power Cord (US)
17			Power Cord (JP) NA
18			Paper Cassette
19			Cleaner Cover
20			Transfer Unit Door Cover
21			Transfer Unit
22			Envelope Adaptor 1710389-001
23			Controller (Crown) 2293279-901

№	Артикул	Альт. артикул	Описание

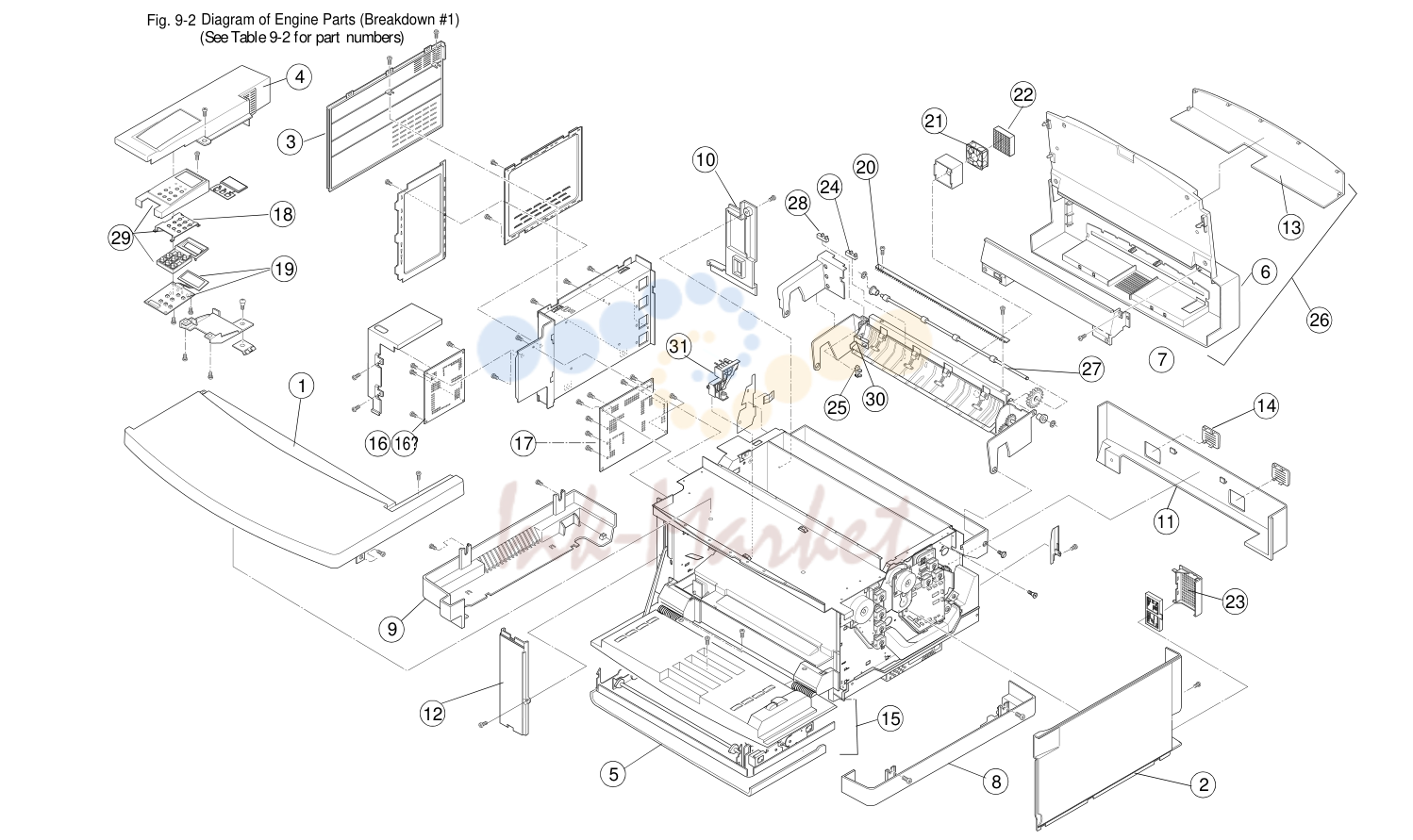

1			Top Cover
2			Right Side Cover
3			Left Side Cover
4			Left-upper Side Cover
5			Front Cover
6			Paper Exit Unit Cover
7			Paper Exit Front Cover
8			Right Base Cover
9			Left Base Cover
10			Rear Cover
11			Upper Rear Cover
12			Side F Cover (L)
13			Paper Exit Upper Cover
14			Upper Rear Cover Cap
15			Front Cover Unit
16			MCTL P.W.B.
18			Panel Button
19			Panel P.W.B.
20			Discharge Brush
21			Cooling Fan (EX)
22			Paper Exit Filter
23			Ozone Filter Cover
24			Paper Sensor PT2
25			Cleaning Roller Sensor
267			Paper Exit Unit
27			Paper Exit Roller
28			Paper Exit Full Sensor
29			Panel Case Assembly
30			EP3 CR Sensor Lever
31			BC Terminal

№	Артикул	Альт. артикул	Описание

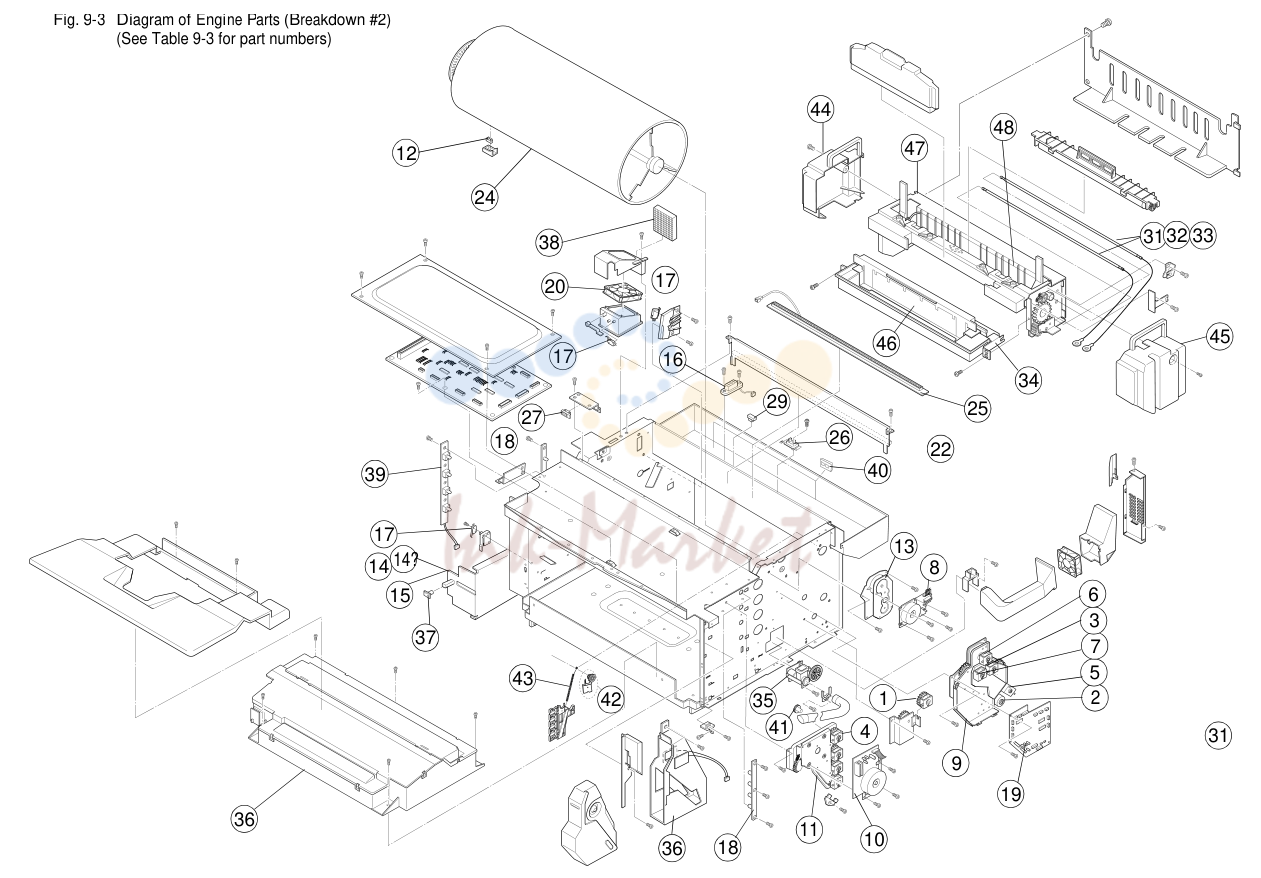

1			Paper Feeding Clutch
2			Registration Clutch
3			Fuser Clutch
4			Developer Clutch 825126638 DCLK, DCLY, DCLM, DCLC
5			TR Cam Clutch
6			FB Cam Clutch
7			Cleaner Clutch
8			Main Motor
9			Main Gear Unit
10			Developer Drive Motor
11			Developer Drive Unit
12			Paper Sensor (Drum Encoder) 825126167 EN
13			BD 3 Gear Assembly
14			Low Voltage Power Supply (EC)
15			Low Voltage Power Supply (US)
16			Fuser Connector
17			Interlock Switch 825126817 Front, Back, Top
18			Toner Sensor Assembly (P.W.B.)
19			IOD2 P.W.B.
20			Cooling Fan (PS) 825126655 Controller
21			Cooling Fan (OZ) 825126163 Ozone
22			Waste Toner Feeder (U)
23			Optical Unit
24			Transfer Drum 825126631 600,000
25			Erase Lamp
26			Oil Sensor 825126145 Oil
27			Belt Sensor 825126168 PBS
28			IOD1 P.W.B.
29			Drum Jam Sensor 825126168 DJP
31			Fuser Heater (US)
32			Fuser Heater (EC)
33			Fuser Heater (JP)
34			Oil Pan
35			Waste Toner Feeder (L)
36			WT Holder Assembly 825126656 WTS
37			SW Button
38			Ozone Filter (PS)
39			Toner Key Sensor
40			SL3 Paper Guide D
41			Dev. Drive Gear 3 (4 pcs.)
42			MD Gear 15 (Set)
43			WT Toner Auger (U)
44			Fuser Cover (L)
45			Fuser Cover (R)
46			FU3 Felt A?ssy
47			FU3 Cover F A?ssy
48			SL3 BR Felt A/ssy

№	Артикул	Альт. артикул	Описание

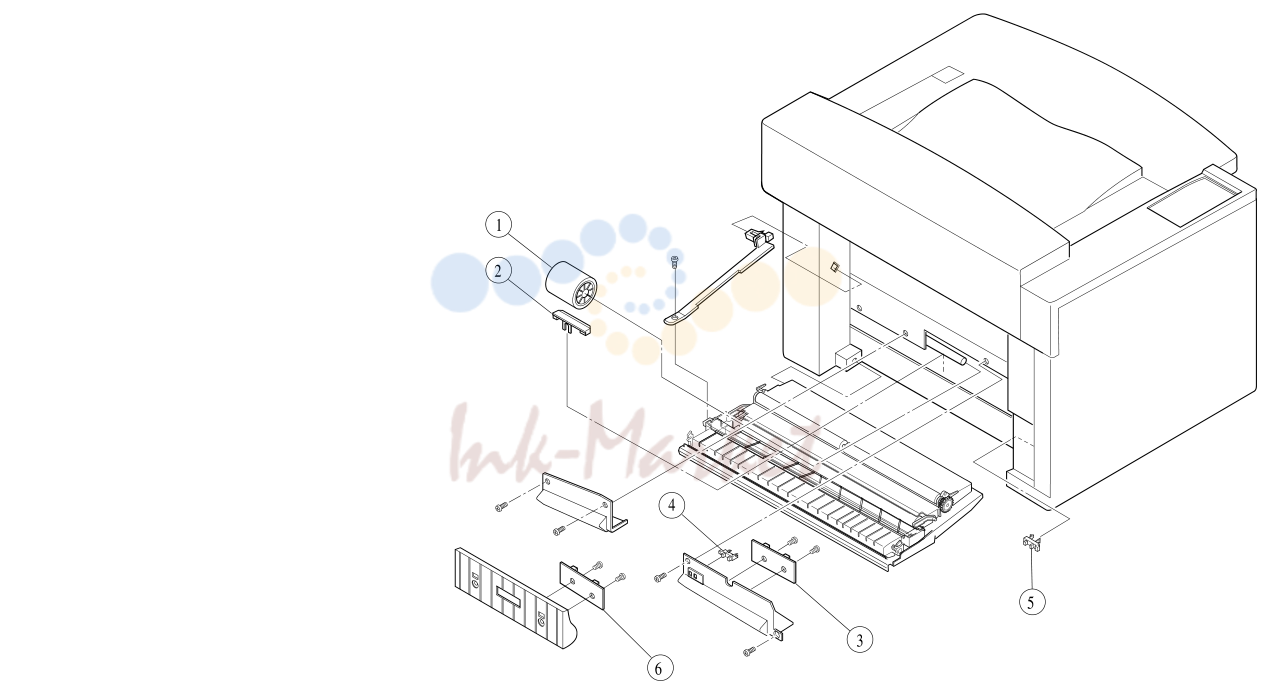

1			Paper Feeding Roller 825126142 120,000 pages
2			Separator Pad 825126528 120,000 pages
3			OHP Sensor
4			Paper Empty Sensor
5			Paper Sensor PT1
6			Paper Size Sensor

№	Артикул	Альт. артикул	Описание

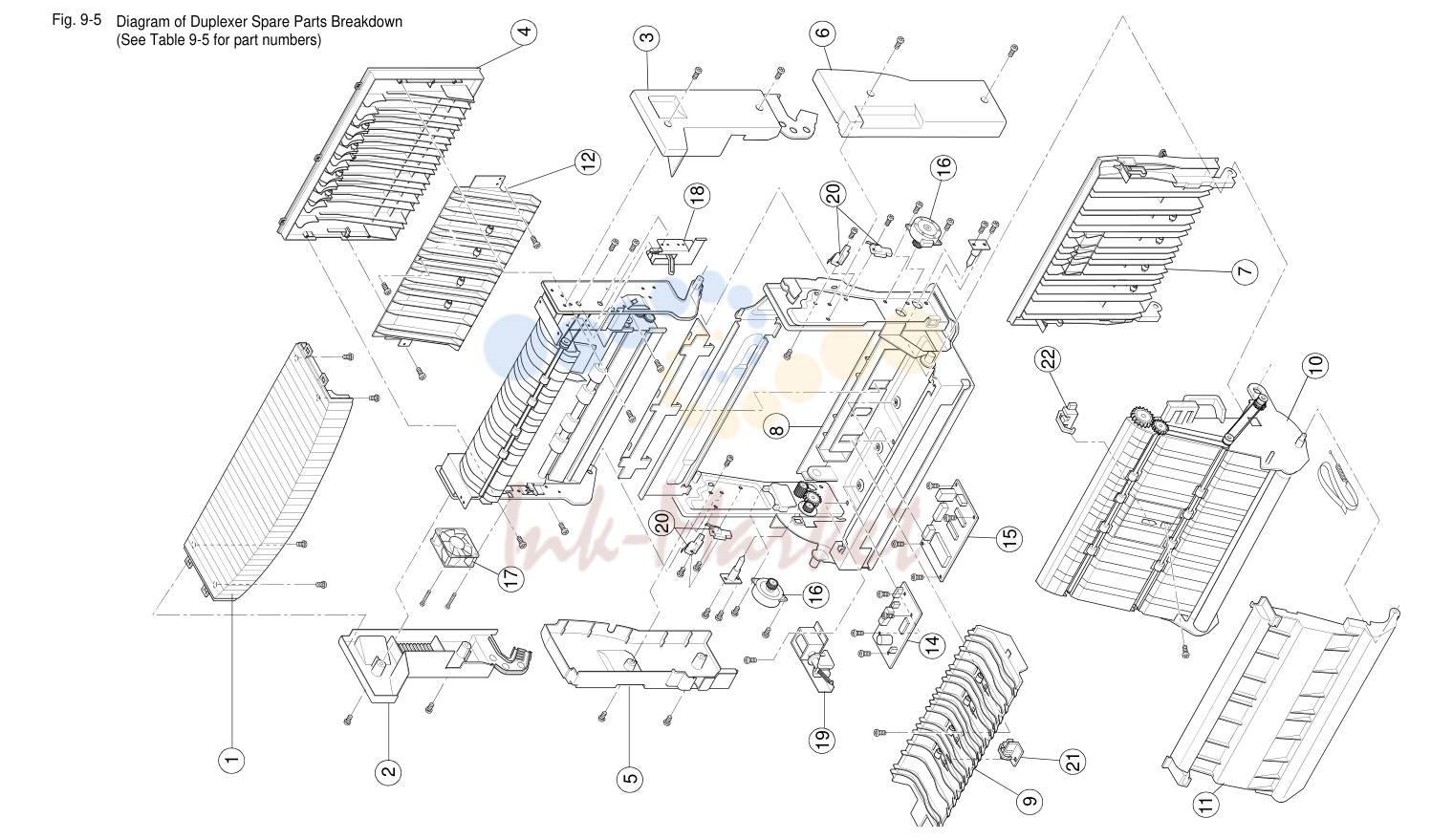

1			Top Cover
2			Top-left Cover
3			Top-right Cover
4			Top-rear Cover
5			Lower-left Cover
6			Lower-right Cover
7			Lower-rear Cover
8			Bottom Cover
9			Paper Guide Bottom Assembly
10			Reverse Paper Guide Unit
11			Reverse Input Paper Guide
12			Paper Guide - U
14			Duplexer P.W.B
15			Relay P.W.B
16			Motor 825126230 DPM1; DPM2
17			Fan Motor
18			Upper Solenoid
19			Lower Solenoid
20			Interlock Switch 825126817 D-SW1 d~D-SW4
21			Sensor PT4
22			Sensor PT5

№	Артикул	Альт. артикул	Описание
1			Paper Sensor 825126167 To sense the availability of paper.
2			Paper Size Sensor
3			Paper Feeding Clutch 825126152 To drive the paper feeding roller.
4			Paper Feeding Roller 825126142 To automatically feed paper from cassette.
5			Separator Pad 825126528 Prevents multiple sheets from being fed.
6			Paper Cassette 1710375-001 Holds 250 sheets.
7			Right Base Cover 825126699 Right base cover.
8			Left Base Cover 825126700 Left base cover.
9			Right Side Cover 825126664 Right side cover.
10			Left Side Cover 825126665 Left side cover.
11			Paper Transportation Clutch 825126666 Drives the paper transportation roller.
12			LF3 Rear Cover Assy 825126668 Rear cover
13			IOD3 PWB Assy 825126669 IO Board
14			Interlock Switch 825123817 Micro switch for printer door
