Konica Minolta MAGICOLOR 3300 — каталог запчастей со схемами

Содержание

• 1. Chapter5 PartsList
• 2. Chapter5 PartsList
• 3. Chapter5 PartsList
• 4. Chapter5 PartsList
• 5. Chapter5 PartsList
• 6. Chapter5 PartsList
• 7. Chapter5 PartsList
• 8. Chapter5 PartsList
• 9. Chapter5 PartsList
• 10. Chapter5 PartsList
• 11. Chapter5 PartsList
• 12. Chapter5 PartsList
• 13. Chapter5 PartsList
• 14. Chapter5 PartsList
• 15. Chapter5 PartsList

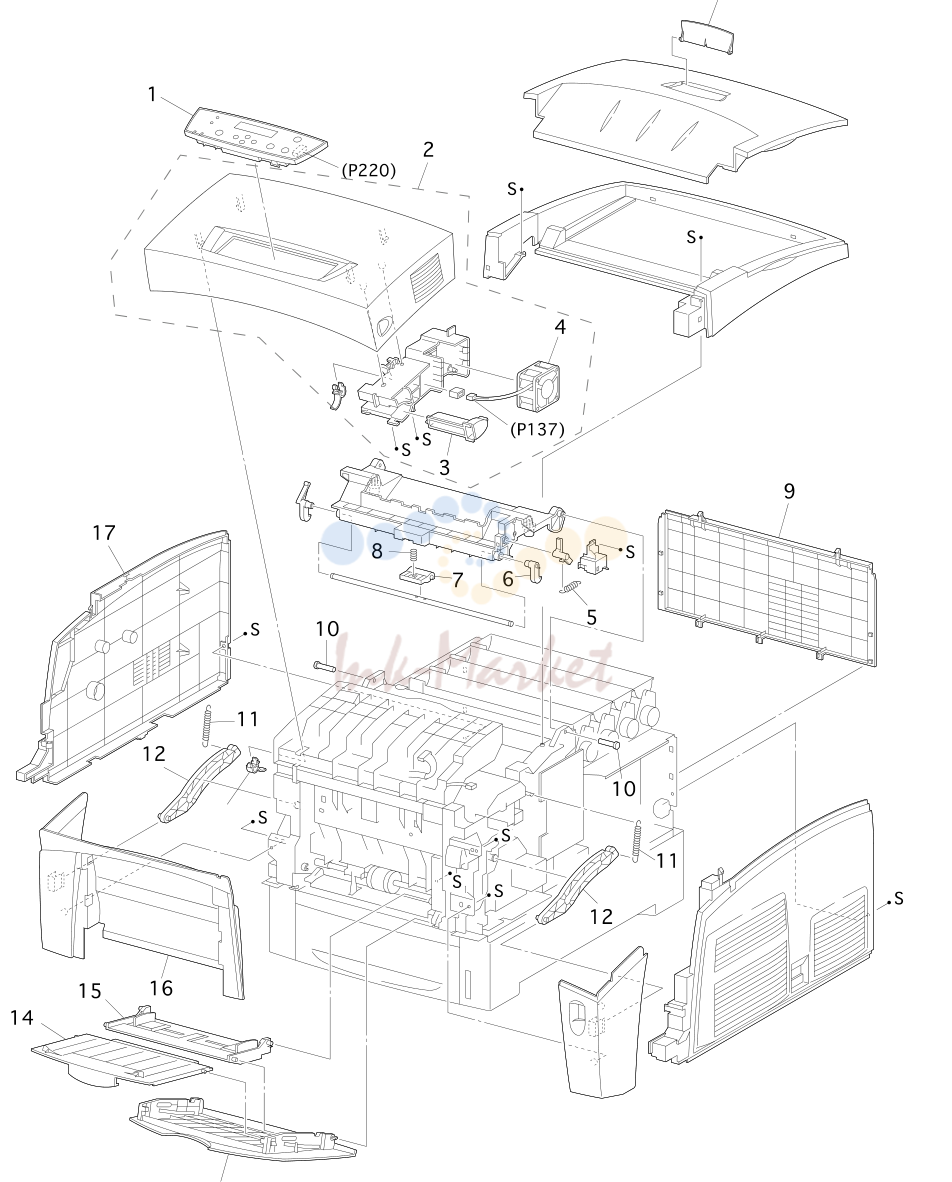

1. Chapter5 PartsList

№	Артикул	Альт. артикул	Описание
1			Console panel 865802K52400
2			Cover Front head 865802K52170
3			Lever out 865011E10690
4			Fan Fuser 865127E82890
5			Spring Cam I/R 865809E28210
6			Latch Top R 865003E53230
7			Handle Top 865003E56850
8			Spring Handle 865809E28240
9			Cover Rear 865802E22930
10			Stud Top 865026E76270
11			Spring Link 865809E28570
12			Link 865012E10050
13			Cover MSI 865050K44820
14			Tray MSI Slide 865050E16900
15			Tray Assy Base 865050K44610
16			Cover Assy Front 865802K34290
17			Cover Side L 865802E22900
18			over Top Stopper 865802E32020

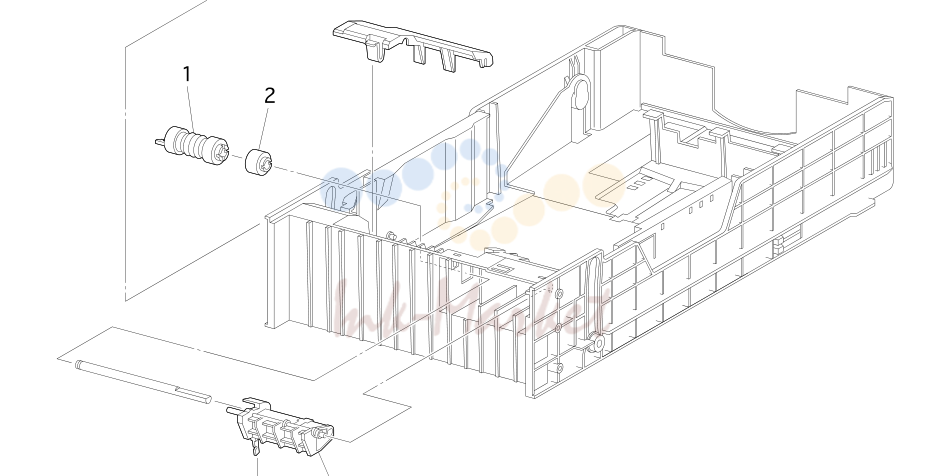

2. Chapter5 PartsList

№	Артикул	Альт. артикул	Описание
1			Roll Assy 865059K21730
2			Clutch Assy Friction 865005K06270
3			Holder retard 865019E49231

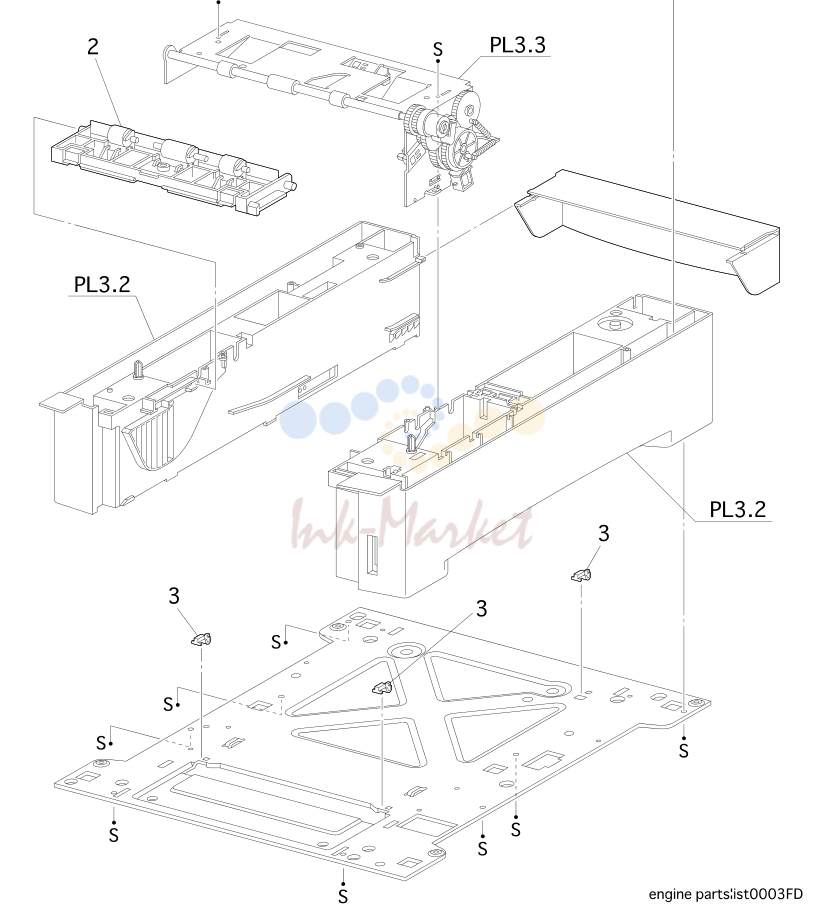

3. Chapter5 PartsList

№	Артикул	Альт. артикул	Описание
1			Cover FDR Front 865802E22810
2			Chute Assy Turn 865054K18000
3			Block 865014E42120

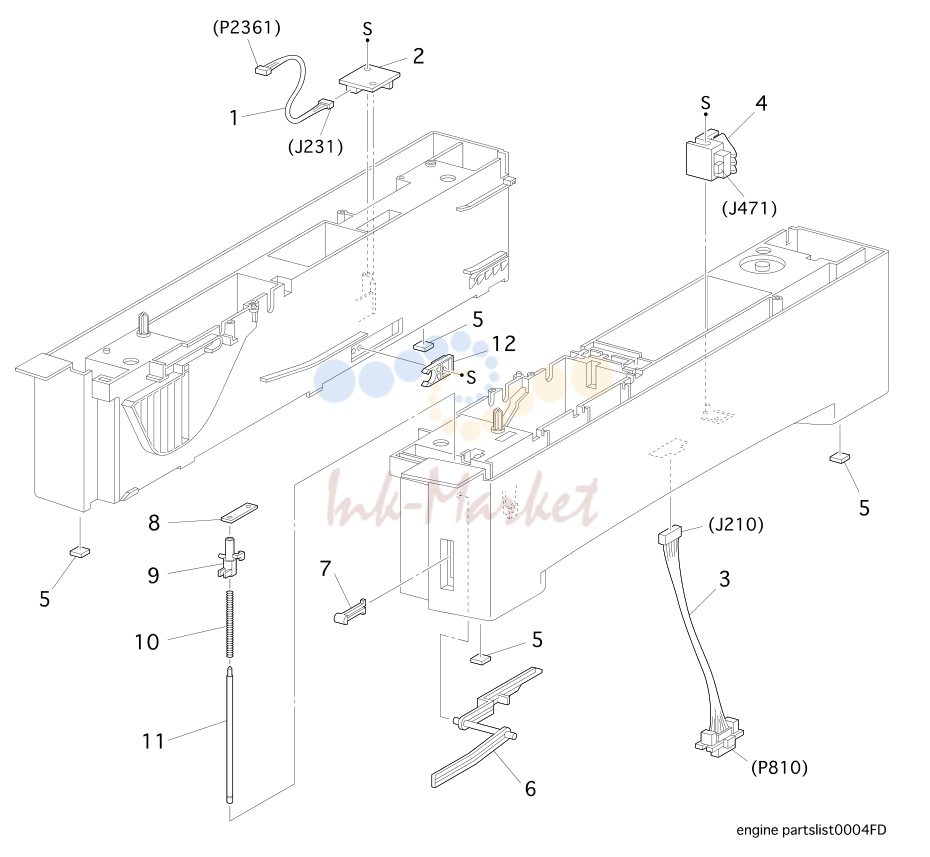

4. Chapter5 PartsList

№	Артикул	Альт. артикул	Описание
1			Harness Assy TMPA (J231-J2361 865162K69650
2			Sensor Hum Temp 865130K61530
3			Harness Assy OPFREC (J210-P810) 865162K69700
4			Switch assy size 865110K11240
5			Foot 865017E92080
6			Lever Low Paper 865011E10680
7			Indicator 865123E91110
8			Holder Shaft indicator 865019E48400
9			Guide Indicator 865032E16070
10			Spring indicator 865809E28300
11			Shaft indicator 865006E71960
12			Stopper CST 865003E56900

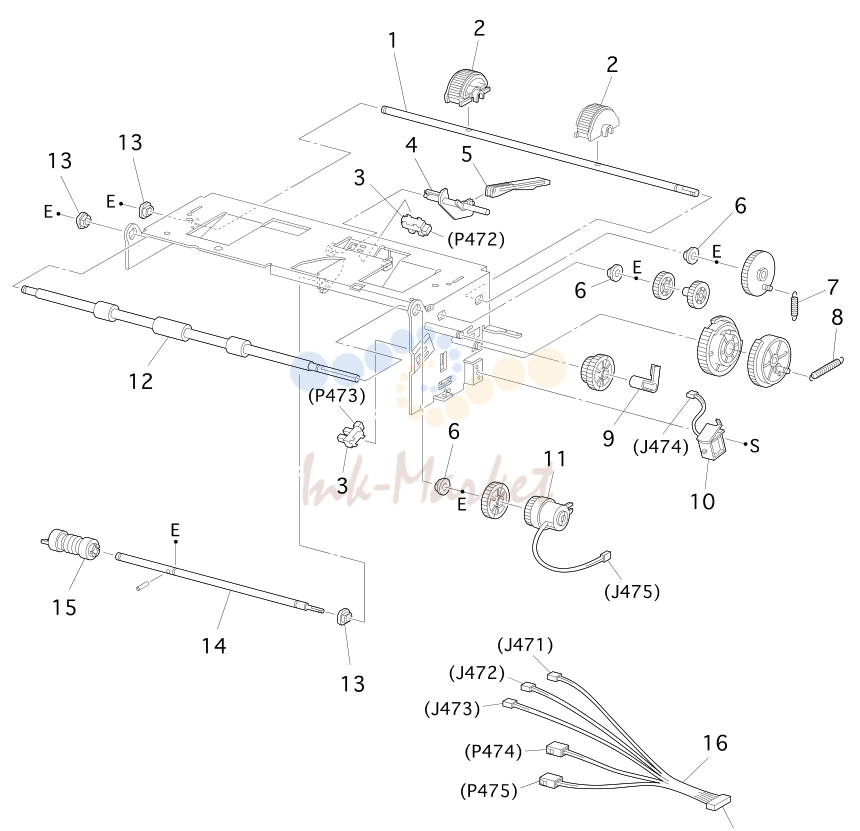

5. Chapter5 PartsList

№	Артикул	Альт. артикул	Описание
1			Shaft Feed 1 865006E71970
2			Roll Assy Feed 865059K18240
3			Sensor Photo 865130E82740
4			Actuator No Paper 865120E18640
5			Link Actuator 865012E93210
6			Bearing metal 865413W75959
7			Spring Feed 1 865809E28310
8			Spring Feed H 865809E28320
9			Stopper Clutch 865003E53290
10			Solenoid Feed 865121E87700
11			Clutch Assy Turn 865005K06011
12			Roll Assy Turn 865059K18261
13			Bearing Metal/Black 865413W11660
14			Shaft Feed 2 865006E71980
15			Roll Assy 865059K18250
16			Harness Assy Feeder (J47-J471/J472/J473/P474/P475) 865162K69690

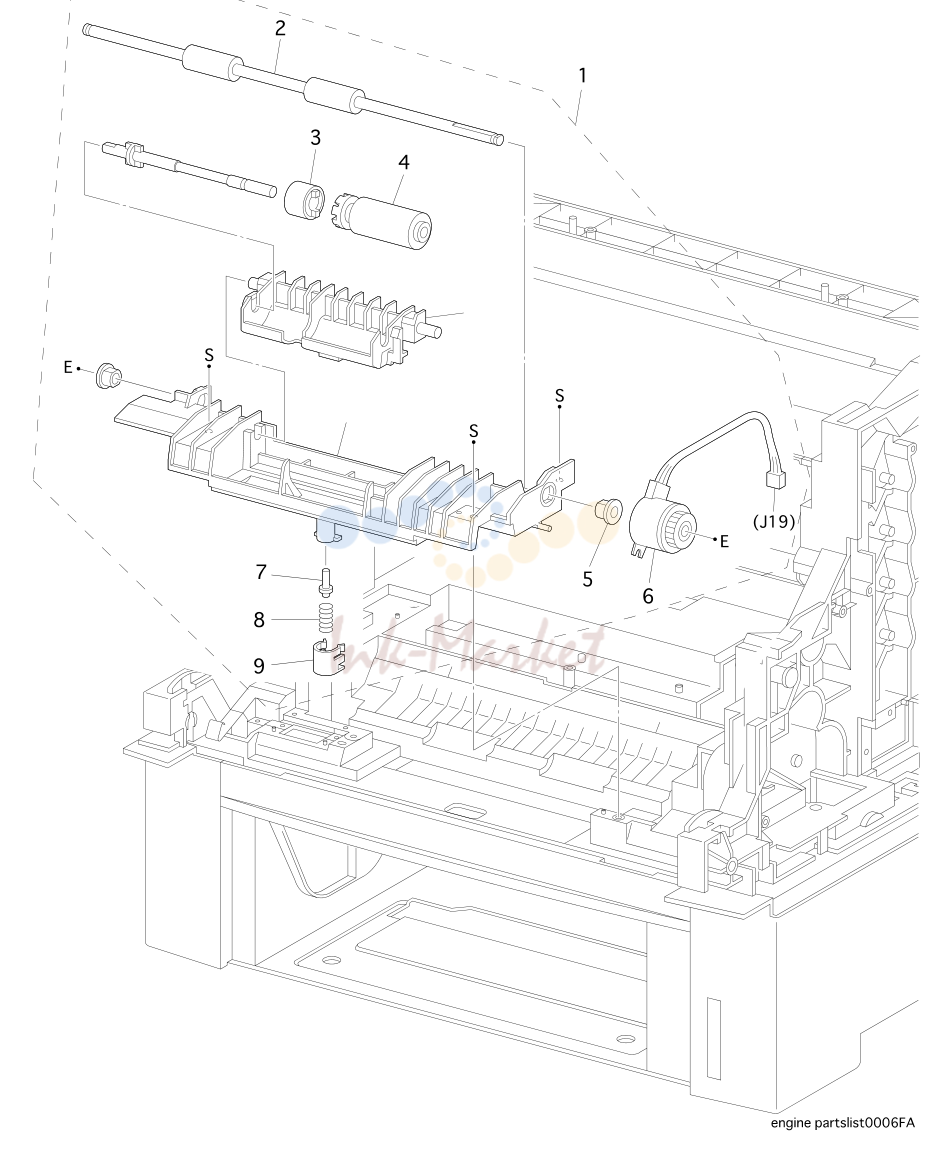

6. Chapter5 PartsList

№	Артикул	Альт. артикул	Описание
1			Housing Assy Retard 865802K24843
2			Roll Turn 865059K19940
3			Clutch Assy Friction 865005K06280
4			Roll Assy Retard 865059K19950
5			Bearing 865013E18061
6			Clutch Turn 865121E87710
7			Stud Retard 865026E77720
8			Spring Retard 370 865809E28671
9			Cap Retard 865021E97470

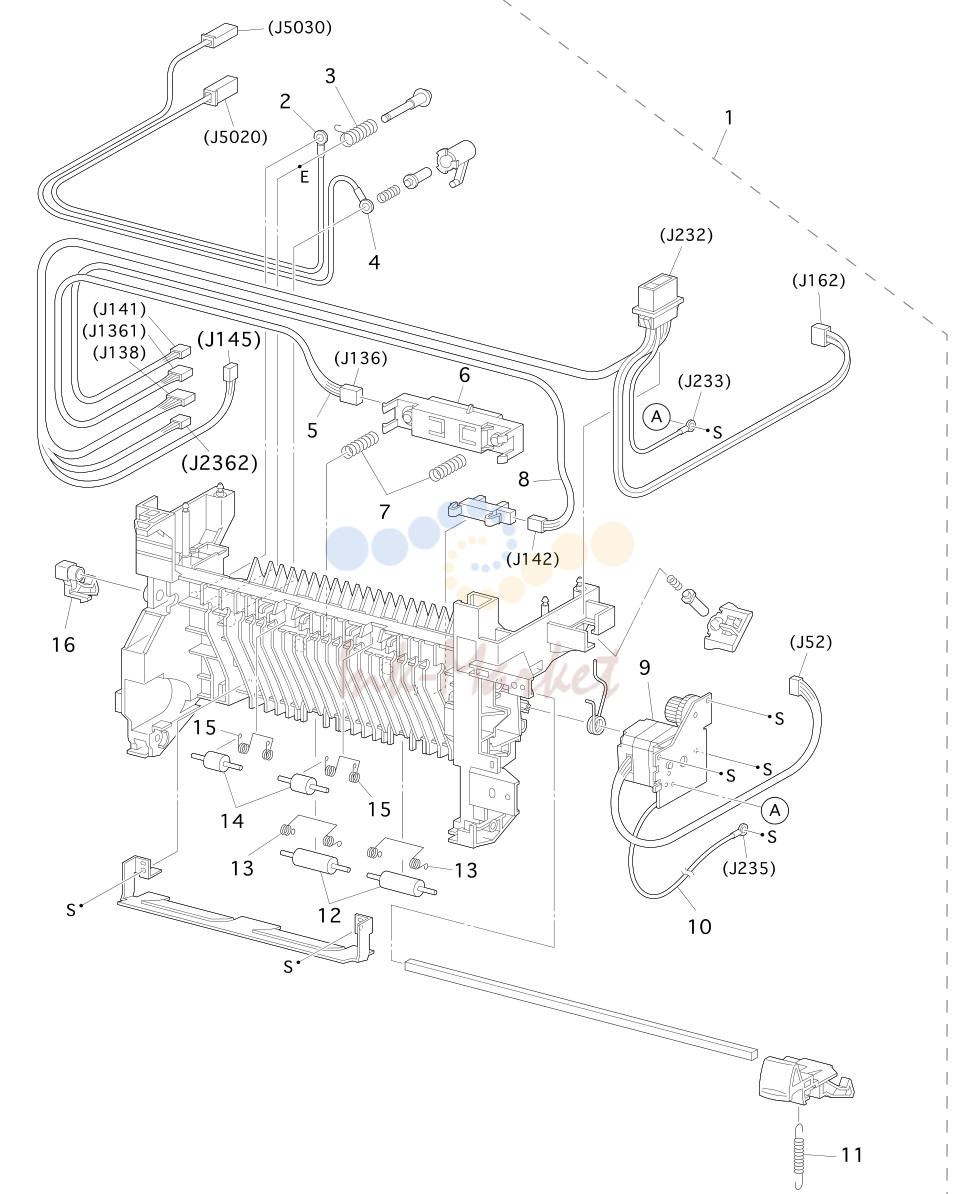

7. Chapter5 PartsList

№	Артикул	Альт. артикул	Описание
1			Cute Assy In (100V) 865084K12170
1			Cute Assy In (200V) 865084K12280
2			Wire Assy BTR2 (J5020) 865117K34570
3			Spring BTR R2 865809E35110
4			Wire Assy DTSK(J5030) 865117K34560
5			Harness Assy CTD(J136-J1361) 865162K69620
6			Sensor ADC Assy 865019K97900
7			Spring ADC 865809E28620
8			Harness Assy TFLSNS(J141-J142) 865162K69830
9			Fuser Drive Assy 865007K87970
10			Wire Assy FSR Earth(J234-J235) 865117K34580
11			Spring Latch 865809E28590
12			Roll Pinch Turn 865059E95690
13			Spring Pinch Turn 865809E28610
14			Roll Pinch Dup 865059E95700
15			Spring Pinch Dup 865809E28600
16			Latch L 865003E53380

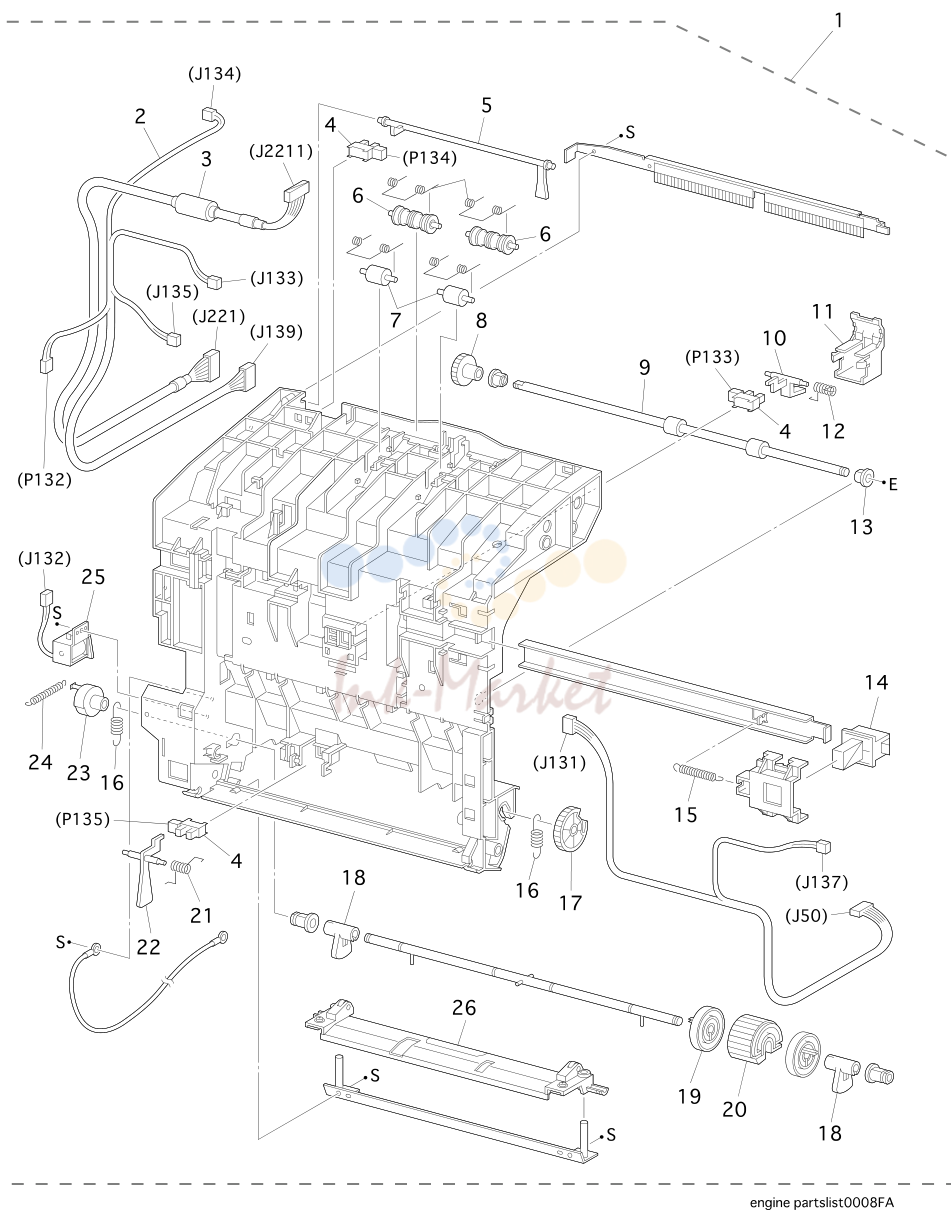

8. Chapter5 PartsList

№	Артикул	Альт. артикул	Описание
1			Cute Assy Out 865084K12161
2			Harness assy front 2 (J139-P132/J133/J134/J135) 865162K69590
3			Harness Assy Opepane BS(221-J2211) 865162K69610
4			Sensor Photo 865130E82740
5			Actuator Full 865120E18740
6			Roll Pinch Exit 865059E95780
7			Roll Pinch 865059E95760
8			Gear 30 865007E66672
9			Roll Dup 865059E95750
10			Actuator Dup 865120E18750
11			Cover Actuator 865802E23280
12			Spring SNR Dup 865809E30110
13			Bearing 865013E19281
14			Latch Out 865003E53410
15			Spring Latch Out 865809E28730
16			Spring N/F MSI 250gf 865809E28700
17			Gear MSI 865007E65840
18			Cam MSI 865008E93880
19			Roll Core MSI 865059E95740
20			Roll Assy Feed 865059K19960
21			Spring Sensor MSI 865809E28720
22			Actuator MSI 865120E18730
23			Stopper Sol 865003E53400
24			Spring Sol 0.5 865809E28690
25			Solenoid Feed MSI 865121E88250
26			PLate assy Bottom MSI 865015K52790

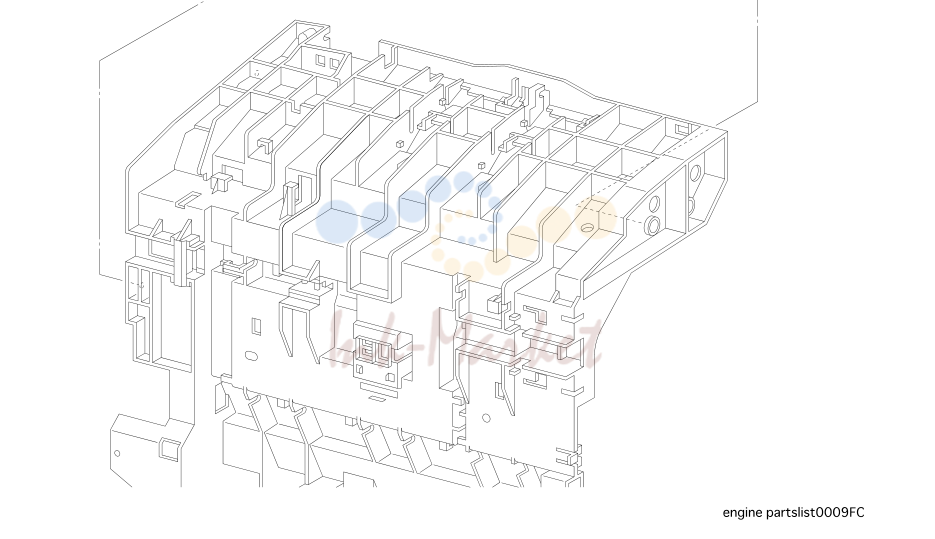

9. Chapter5 PartsList

№	Артикул	Альт. артикул	Описание
1			Cute Assy Exit 865054K23260
2			Roll Exit 865059E96430
3			Roll Mid 865059E95770
4			Motor Assy Dup 865127K31710

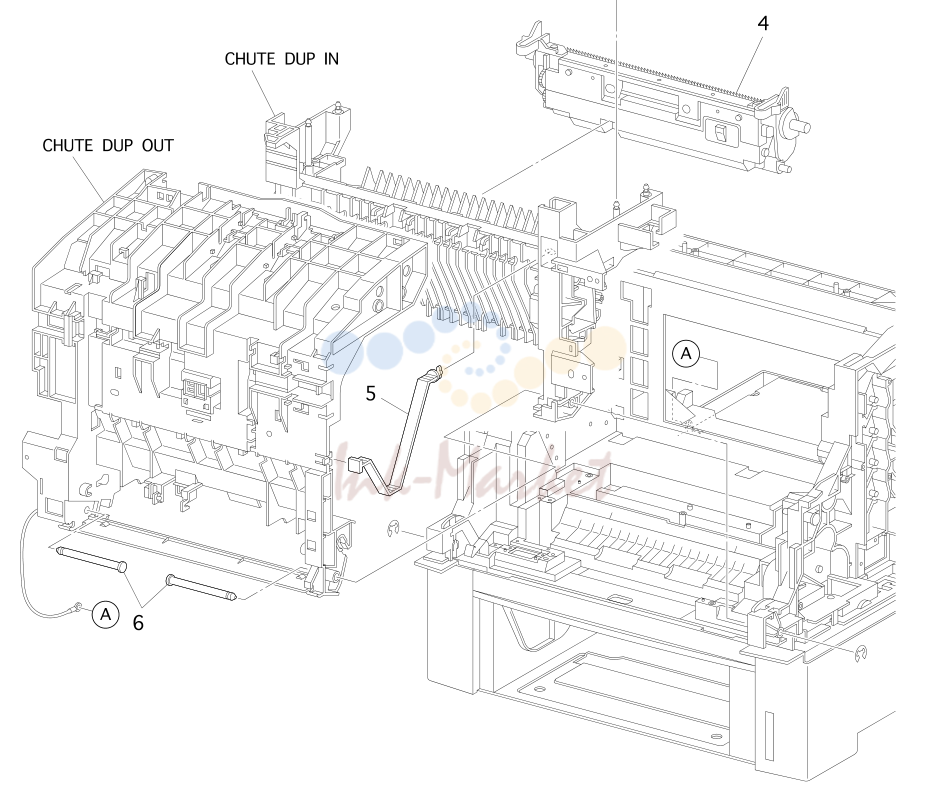

10. Chapter5 PartsList

№	Артикул	Альт. артикул	Описание
1			Fuser Unit (220V) 1710555-002
2			Actuator Exit 865120E20790
3			Spring Actuator 865809E34550
4			BTR Kit 1710494-001
5			Strap 865003E53390
6			Shaft Pivot 865006E72030

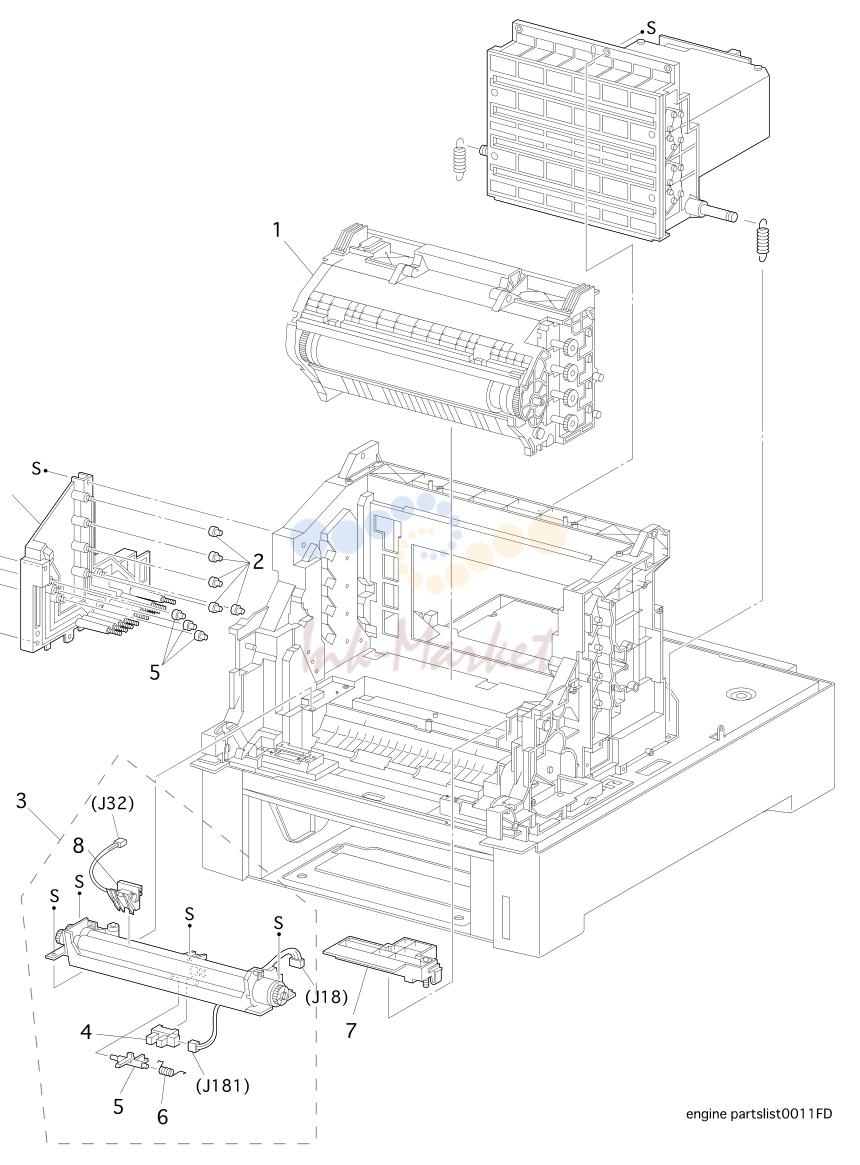

11. Chapter5 PartsList

№	Артикул	Альт. артикул	Описание
1			Print Head Unit 1710552-001
2			Stud Plunger 865026E77670
3			Chute Assy Reg 865054K23250
4			Sensor Photo 865130E82740
5			Actuator Regi 865120E20680
6			Spring Sensor Regi 865809E34580
7			Housing Assy Elec 865802K24830
8			Kit Snr OHP (w/Harness) 865604K02520

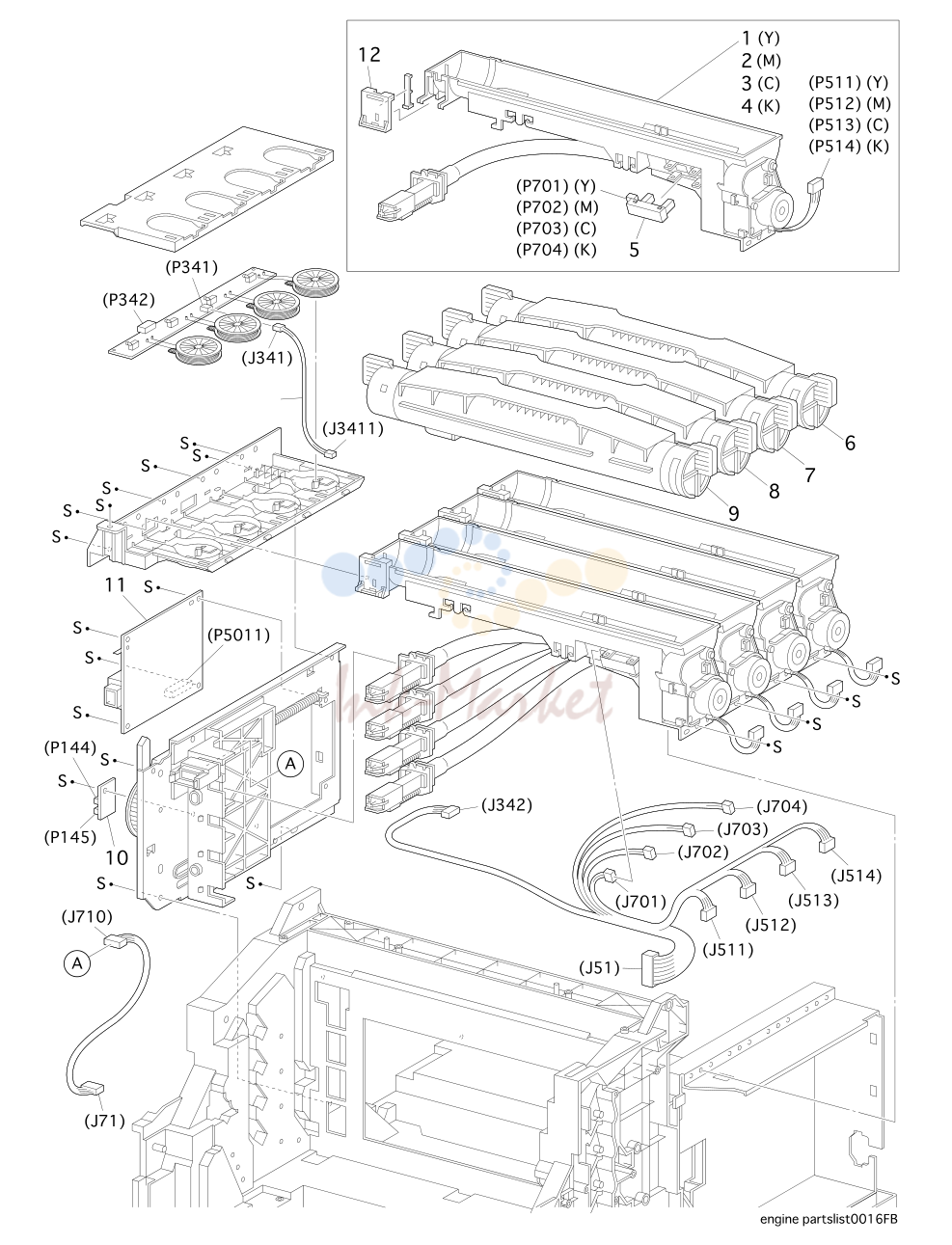

12. Chapter5 PartsList

№	Артикул	Альт. артикул	Описание
1			Holder Assy Y 865113K03130
2			Holder Assy M 865113K03140
3			Holder Assy C 865113K82660
4			Holder Assy K 865113K82670
5			Sensor Toner Low 865130E85200
6			Toner Cartridge Y 1710550-002
7			Toner Cartridge M 1710550-003
8			Toner Cartridge C 1710550-004
9			Toner Cartridge K 1710550-001
10			PWBA Eeprom 865160K83190
11			S-HVPS 865105K19520
12			Switch TCRU Assy 865110K11250

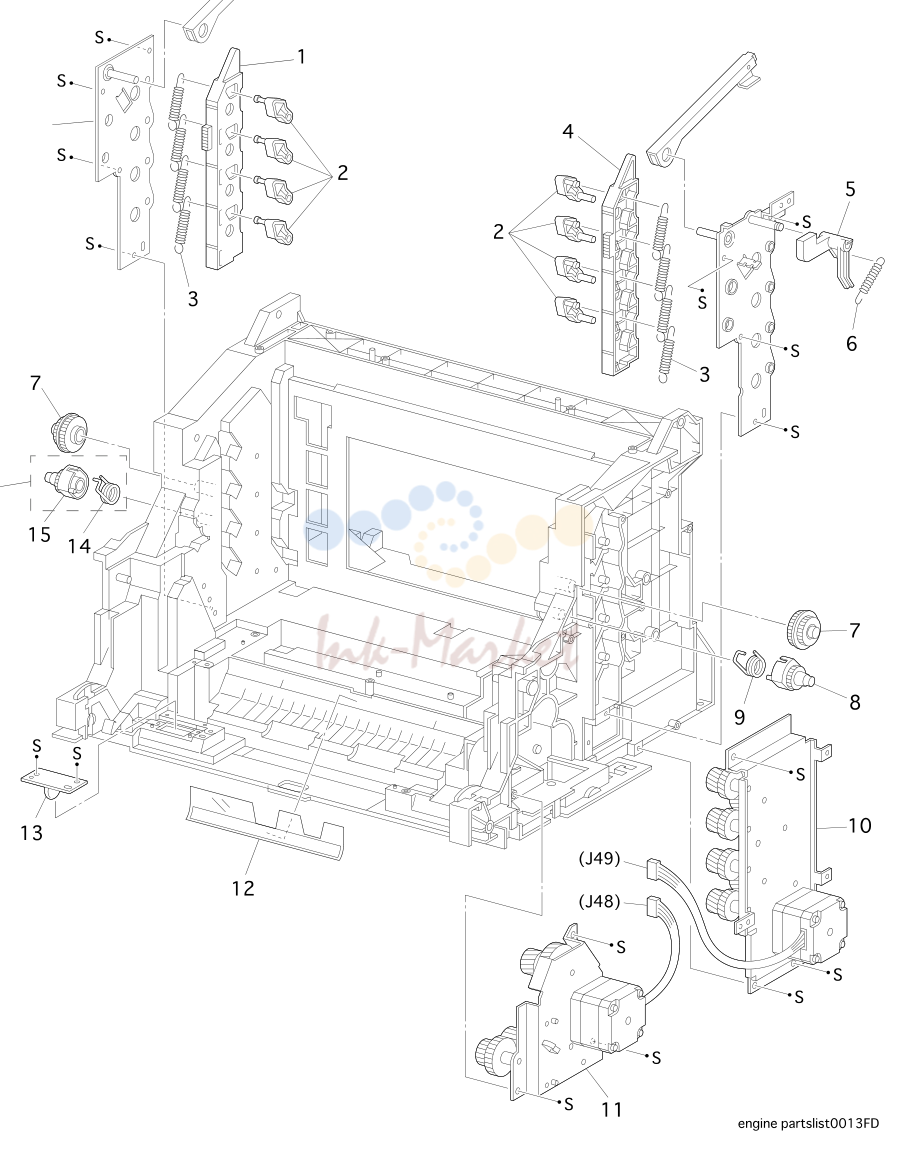

13. Chapter5 PartsList

№	Артикул	Альт. артикул	Описание
1			Link Lever L 865012E10040
2			Lever Drum 865011E10730
3			Spring Lever 30n 865809E28430
4			Link Lever R 865012E10030
5			Actuator I/L 865120E18682
6			Spring I/L 865809E28460
7			Gear IDL. Press 865007E65810
8			Gear Press R 865007K87251
9			Spring IDT R 865809E28440
10			Deve Drive Assy 865007K86681
11			Main Drive Assy 865007K87980
12			Film Regi 865035E58130
13			PWBA Assy Earth 865160K70780
14			Spring IDT L 865809E28450
15			Gear Press L 865007E65801
16			Gear Assy Press L 865007K87261

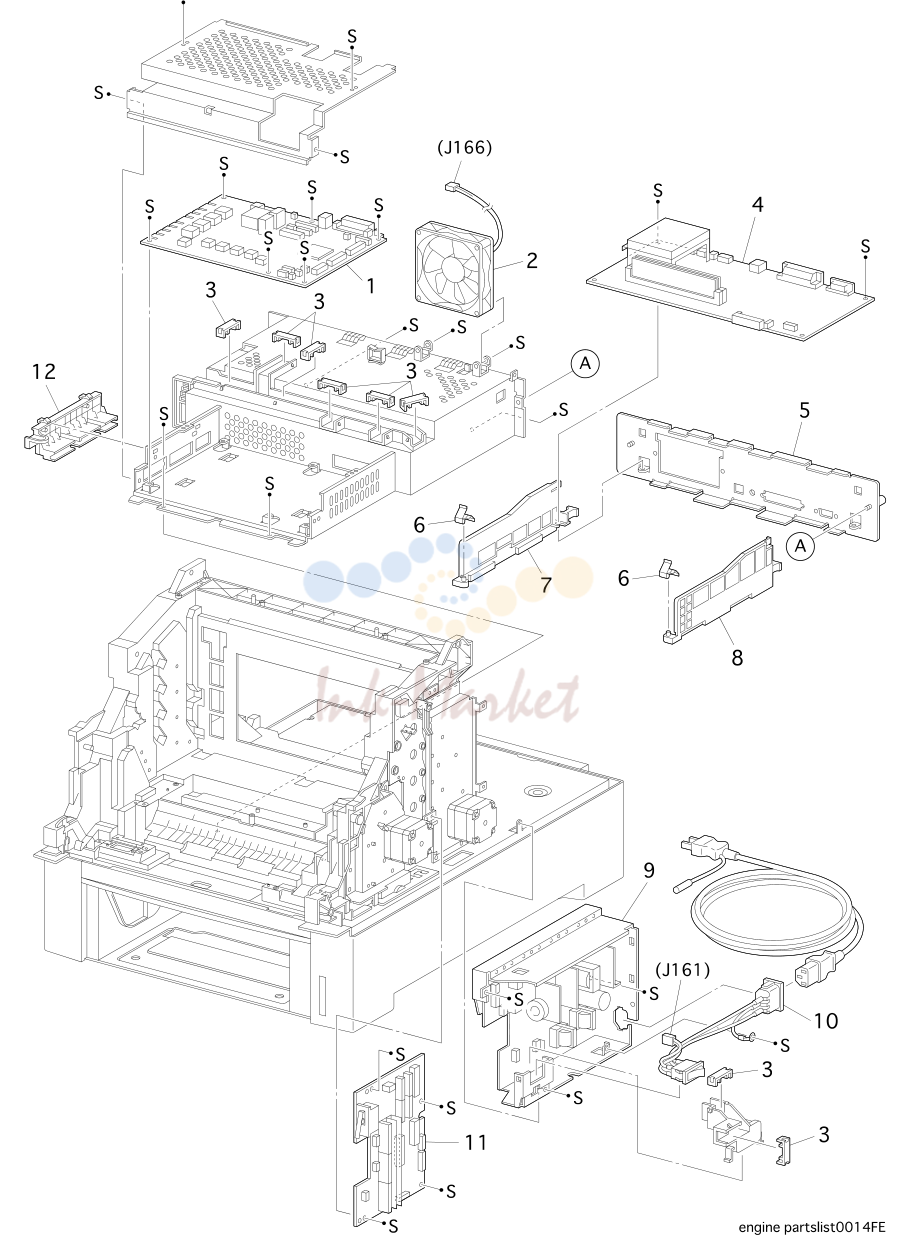

14. Chapter5 PartsList

№	Артикул	Альт. артикул	Описание
1			PWBA HNB MCU 865160K93610
2			Fan Rear 865127E82900
3			Clamp Guide Harness 865019E49010
4			Controller Board 865160K94530
5			Plate Rear Ess 865015E75141
6			Spring Earth Ess 865809E29820
7			Guide R Ess 865032E17450
8			Guide L Ess 865032E17440
10			Harness Assy AC SW 865162K69581
11			PWBA HNB DRV 865160K93700
12			Housing Assy Contact 865802K32500

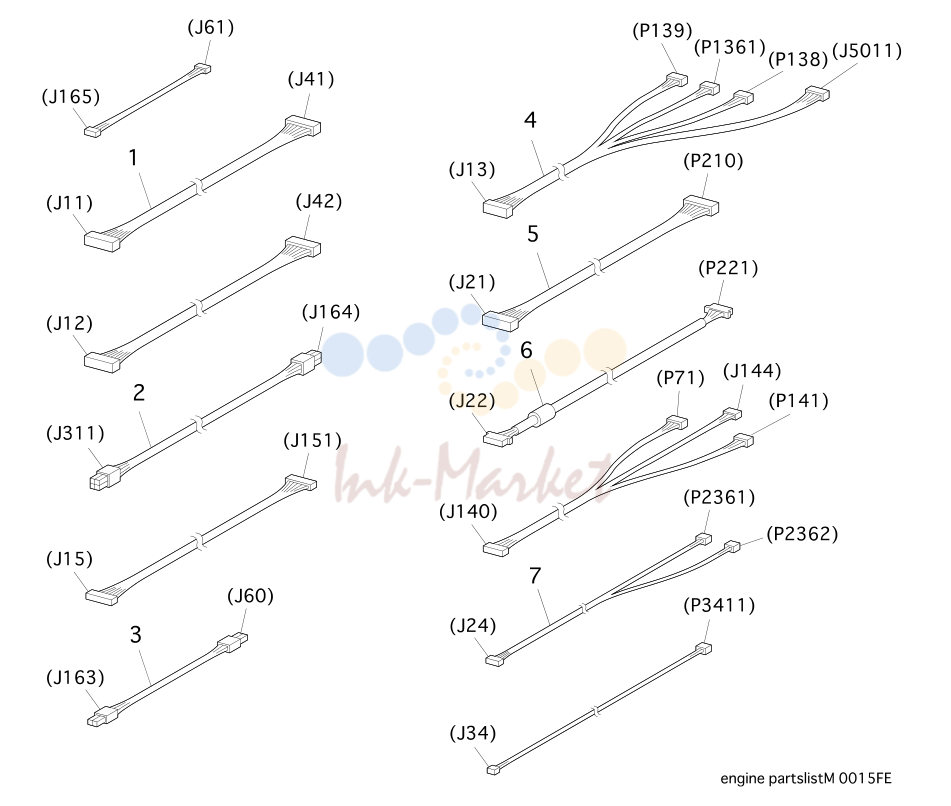

15. Chapter5 PartsList

№	Артикул	Альт. артикул	Описание
1			Harness Assy Drv (J11-J41) 865162K69720
2			Harness Assy LVRPG (J164-J311) 865162K69740
3			Harness Assy 24V (J60-J163) 865162K69760
4			Harness Assy Front 1A (J13-P139/P1361/P1381/J5011) 865162K69770
5			Harness Assy OPF Main (J121-P210) 865162K69781
6			Harness Assy Opepane as (J22-P221) 865162K69790
7			Harness Assy EEprom (J140-P71/J144/P141) 865162K69810
