Konica Minolta MAGICOLOR 3100 — каталог запчастей со схемами

Содержание

• 1. PL 1.1 Cover [Illustration]
• 2. PL 2.1 Paper Cassette [Illustration]
• 3. PL 3.1 Paper Feeder I [Illustration]
• 4. PL 3.3 Paper Feeder III [Illustration]
• 5. PL 4.1 Housing Assy Retard [Illustration]
• 6. PL 5.1 Chute Assy In [Illustration]
• 7. PL 6.1 Chute Assy Out [Illustration]
• 8. PL 7.1 Chute Assy Exit [Illustration]
• 9. PL 8.1 BTR Assy & Fuser [Illustration]
• 10. PL 9.1 Xerographics [Illustration]
• 11. PL 10.1 TCRU Assy [Illustration]

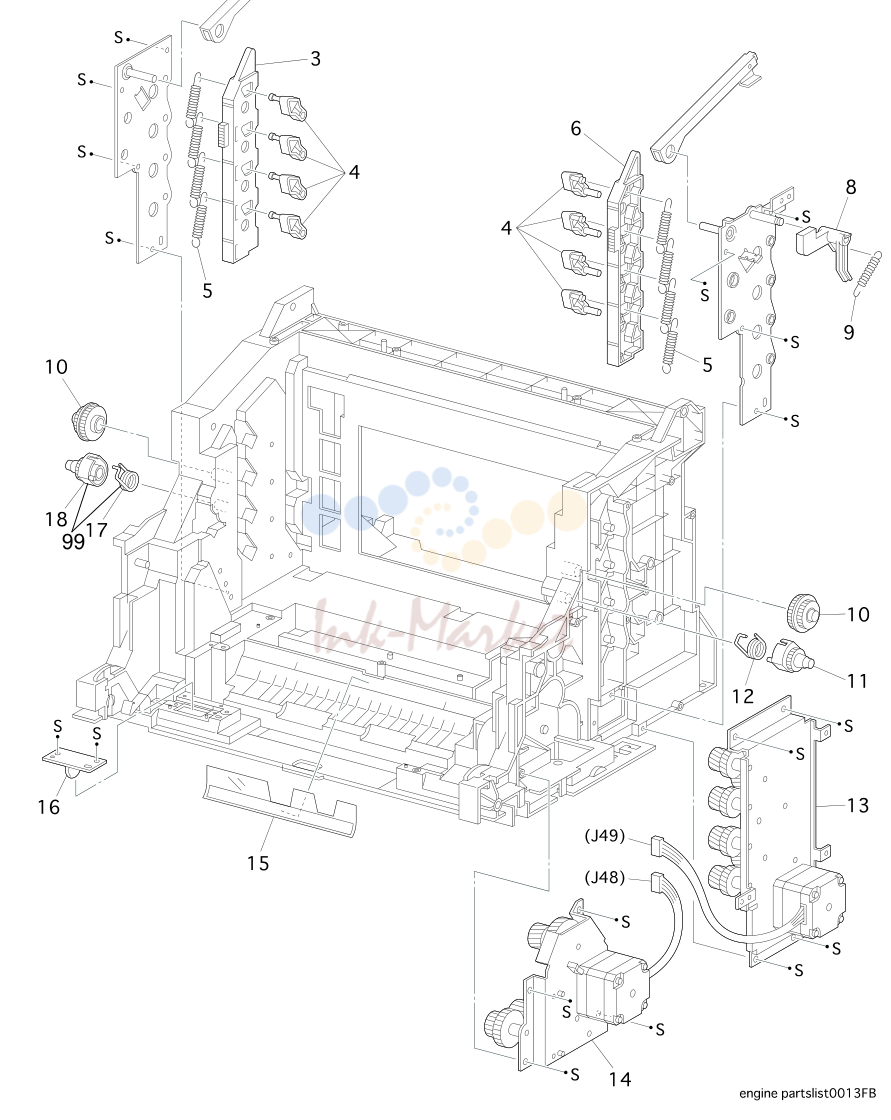

• 12. PL 11.1 Frame & Drive [Illustration]

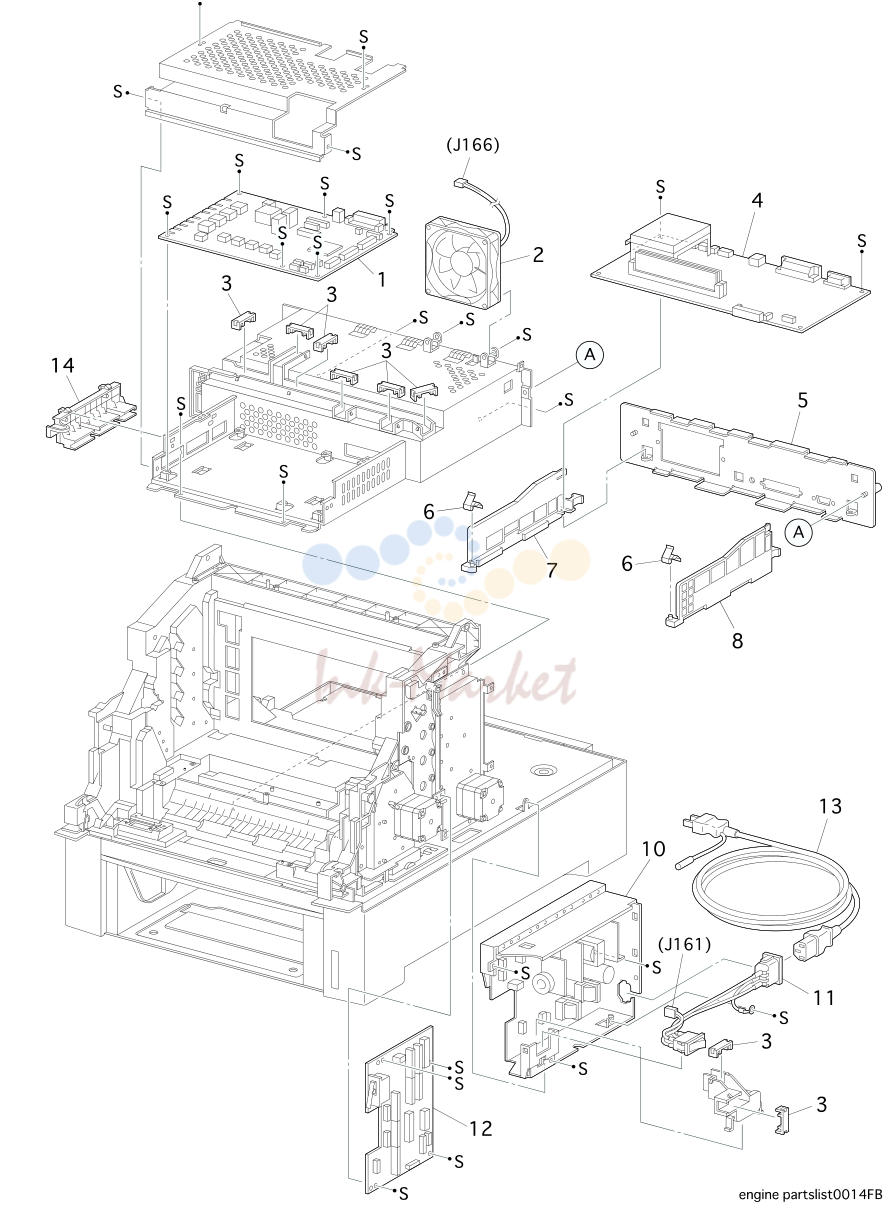

• 13. PL 12.1 Electrical [Illustration]

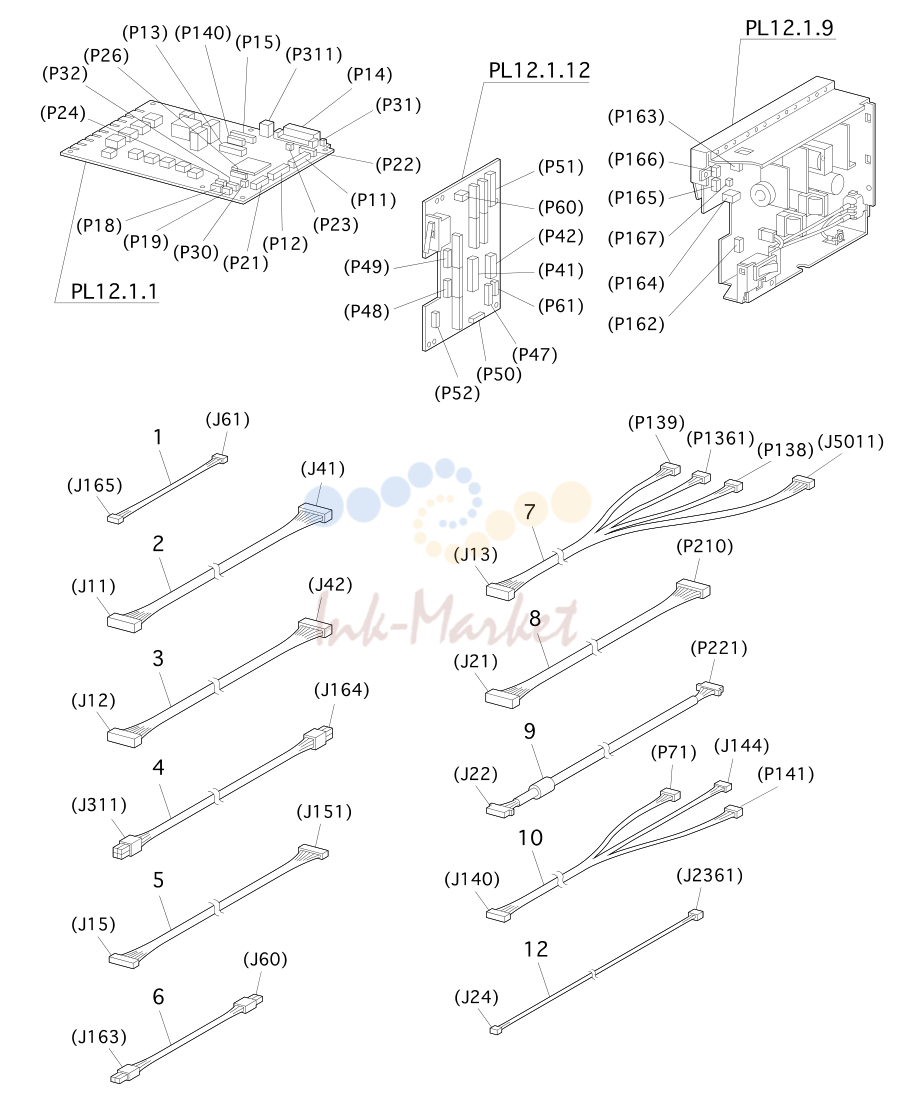

• 14. PL 13.1 Harness [Illustration]

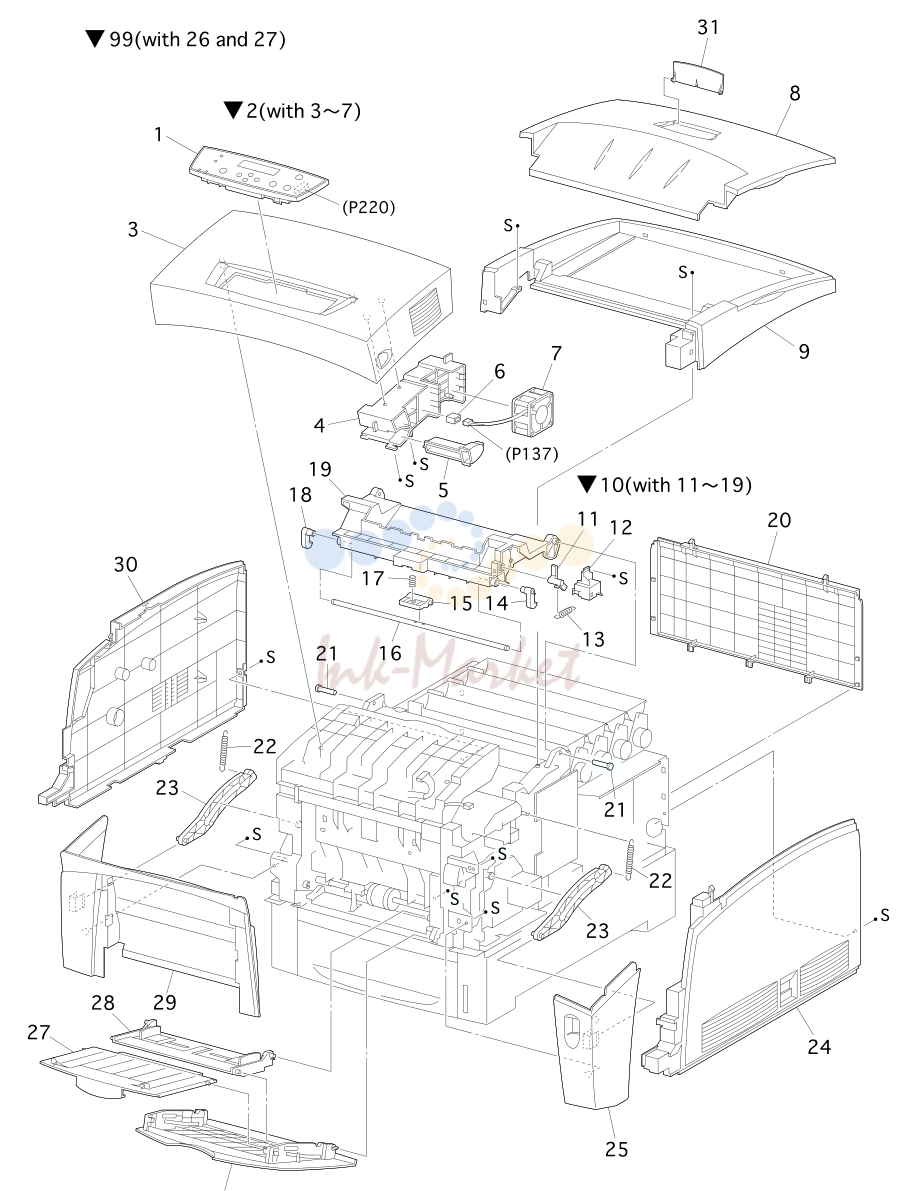

1. PL 1.1 Cover [Illustration]

№	Артикул	Альт. артикул	Описание
1			CONSOLE PANEL HANABI..................................................865802K32510
2			COVER ASSY FRONT HEAD (with 3~7)..............................865802K32860
4			HOLDER LEVER OUT..........................................................865019E48220
5			LEVER OUT..........................................................................865011E10690
7			FAN FUSER..........................................................................865127E82890
8			COVER TOP.........................................................................865802E31150
9			COVER TOP MAIN...............................................................865802E22950
10			COVER ASSY TOP PHD(with 11~19)..................................865802K33120
13			SPRING CAM I/R..................................................................865809E28210
14			LATCH TOP R.......................................................................865003E53230
15			HANDLE TOP.......................................................................865003E56850
17			SPRING HANDLE.................................................................865809E28240
18			LATCH TOP L.......................................................................865003E53220
20			COVER REAR.......................................................................865802E22930
21			STUD TOP............................................................................865026E76270
22			SPRING LINK........................................................................865809E28570
24			COVER SIDE R.....................................................................865802E22910
25			COVER ASSY FRONT IN.....................................................865802K34280
26			COVER MSI..........................................................................865050K44820
27			TRAY MSI SLIDE..................................................................865050E16900
28			TRAY ASSY BASE................................................................865050K44610
29			COVER ASSY FRONT..........................................................865802K34290
30			COVER SIDE L.....................................................................865802E22900
31			COVER TOP STOPPER.......................................................865802E31170
99			TRAY ASSY LOW(with 26 and 27).......................................865050K44820

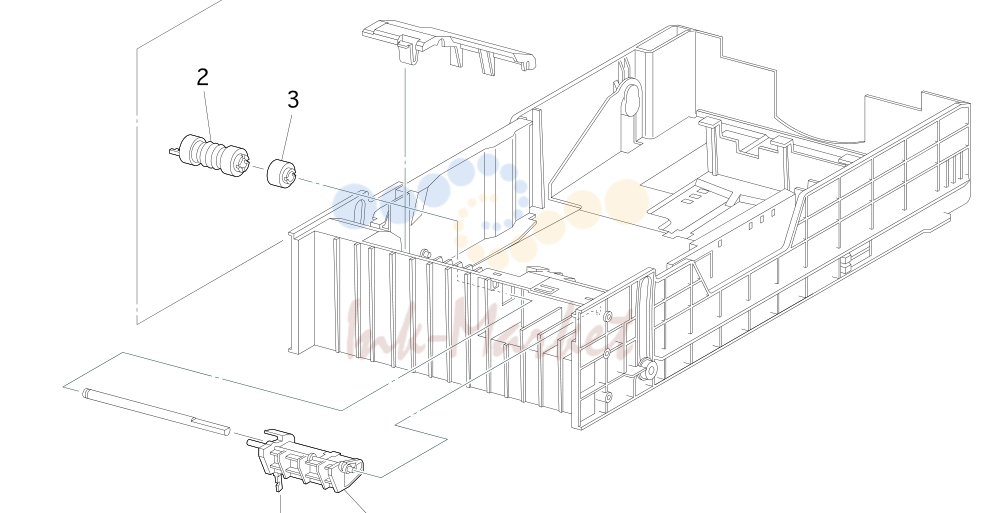

2. PL 2.1 Paper Cassette [Illustration]

№	Артикул	Альт. артикул	Описание
1			CASSETTE ASSY(with 2~6).................................................865084K03070
2			ROLL ASSY..........................................................................865059K21730
3			CLUTCH ASSY FRICTION...................................................865005E16150
4			HOLDER RETARD................................................................865019E49230
5			SPRING RETARD.................................................................865809E30100
6			A5 BLOCK

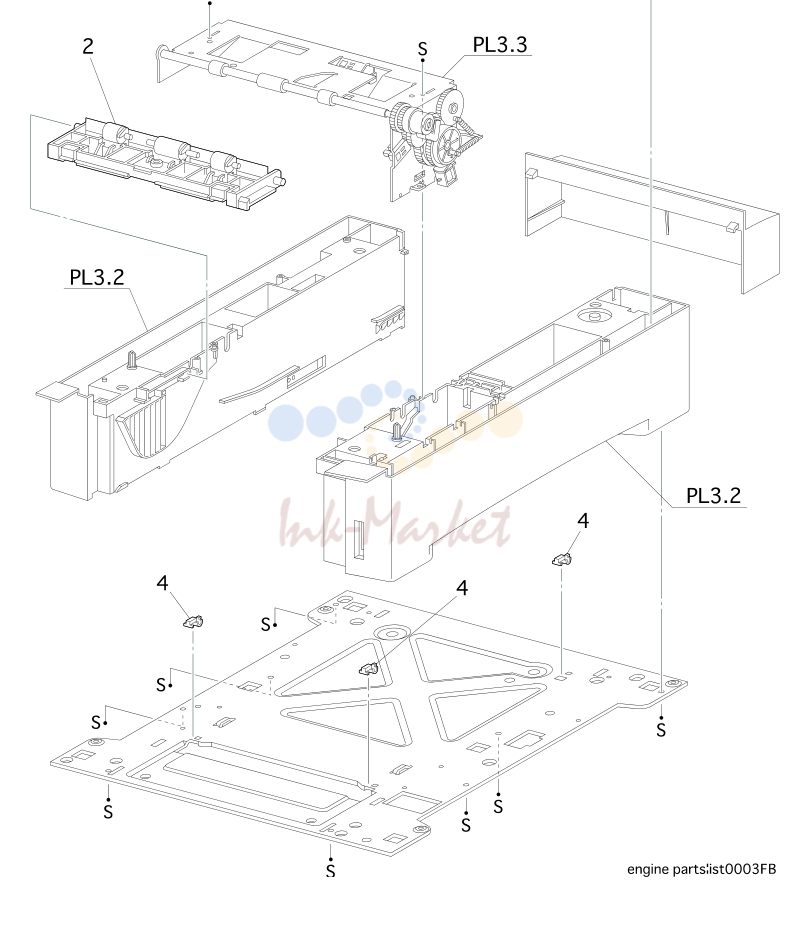

3. PL 3.1 Paper Feeder I [Illustration]

№	Артикул	Альт. артикул	Описание
1			HARNESS ASSY TMPA(J231-J2361)..................................865162K69650
2			SENSOR HUM TEMP...........................................................865130K61530
3			HARNESS ASSY OPFREC(J210-P810)...............................865162K69700
4			SWITCH ASSY SIZE.............................................................865110K11240
7			LEVER LOW PAPER............................................................865011E10680
9			HOLDER SHAFT INDICATOR..............................................865019E48400
10			GUIDE INDICATOR .............................................................865032E16070
11			SPRING INDICATOR............................................................865809E28300
12			SHAFT INDICATOR..............................................................865006E71960
13			STOPPER CST.....................................................................865003E56900

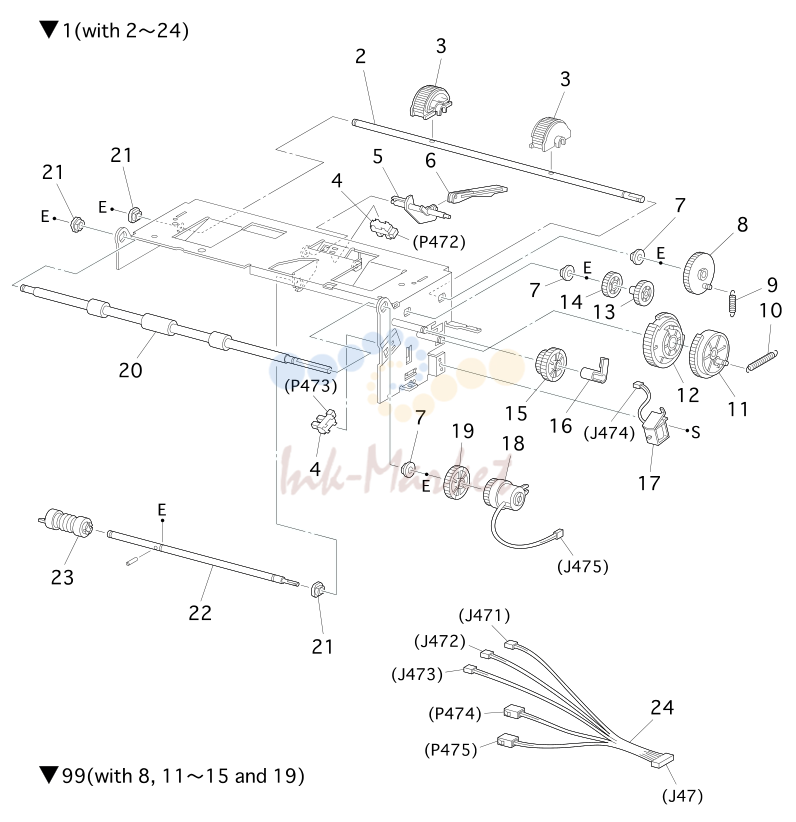

4. PL 3.3 Paper Feeder III [Illustration]

№	Артикул	Альт. артикул	Описание
1			PICKUP ASSY(with 2~24).....................................................865001K03730
2			SHAFT FEED 1.....................................................................865006E71970
3			ROLL ASSY FEED................................................................865059K18240
4			SENSOR PHOTO.................................................................865130E82740
5			ACTUATOR NO PAPER.......................................................865120E18640
6			LINK ACTUATOR..................................................................865012E93210
7			BEARING (ø6×L8)/METAL....................................................865413W75959
9			SPRING FEED 1...................................................................865809E28310
10			SPRING FEED H..................................................................865809E28320
16			STOPPER CLUTCH..............................................................865003E53290
17			SOLENOID FEED.................................................................865121E87700
18			CLUTCH ASSY TURN..........................................................865005K06010
20			ROLL ASSY TURN...............................................................865059K18260
21			BEARING (ø6×L8)/BLACK....................................................865413W11660
22			SHAFT FEED 2.....................................................................865006E71980
23			ROLL ASSY..........................................................................865059K18250
24			HARNESS ASSY FEEDER(J47-J471/J472/J473/P474/P475)865162K69690
99			KIT GEAR FDR(with 8,11~15 and 19)..................................865604K02530

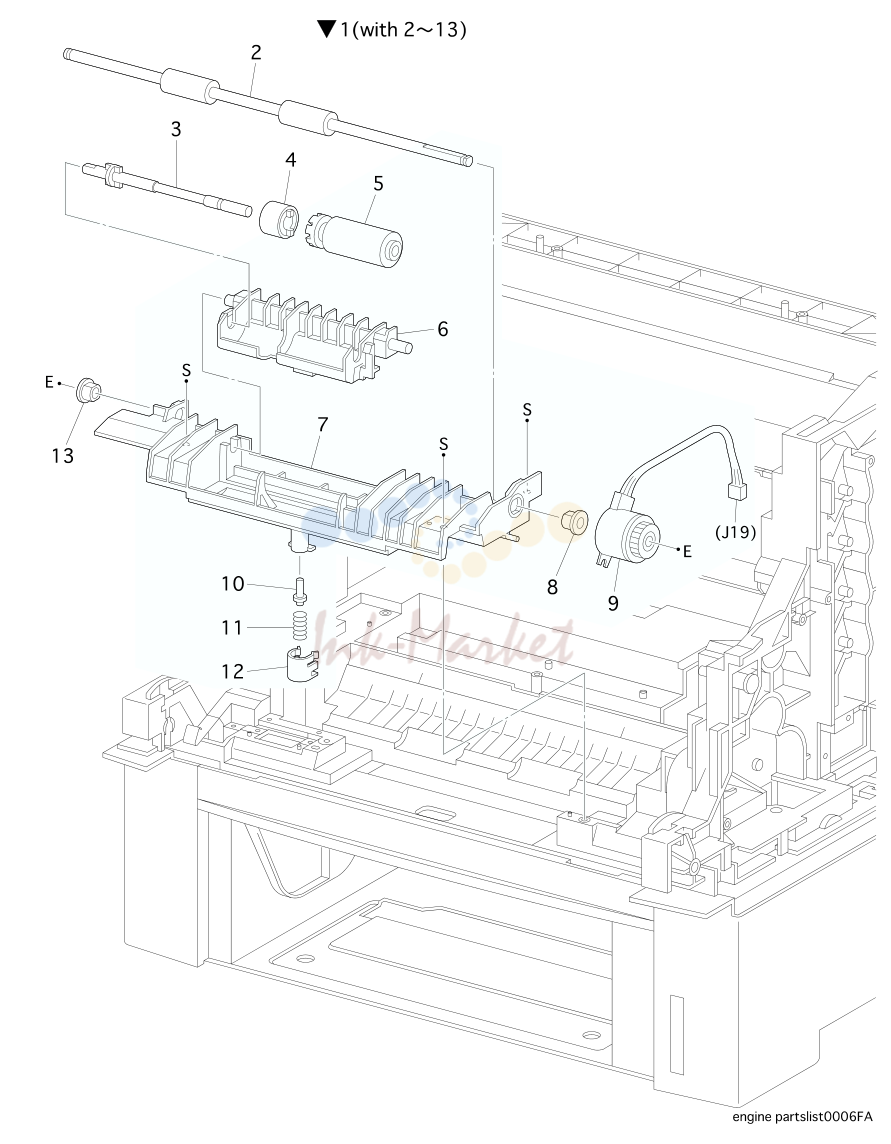

5. PL 4.1 Housing Assy Retard [Illustration]

№	Артикул	Альт. артикул	Описание
1			HOUSING ASSY RETARD(with 2~13).................................865802K24840
2			ROLL TURN..........................................................................865059K19940
4			CLUTCH ASSY FRICTION...................................................865005K82440
5			ROLL ASSY RETARD...........................................................865059K19950
9			CLUTCH TURN.....................................................................865121E87710
10			STUD RETARD.....................................................................865026E77720
11			SPRING RETARD 370..........................................................865809E28670
12			CAP RETARD.......................................................................865021E97470
13			BEARING EARTH.................................................................865016E19270

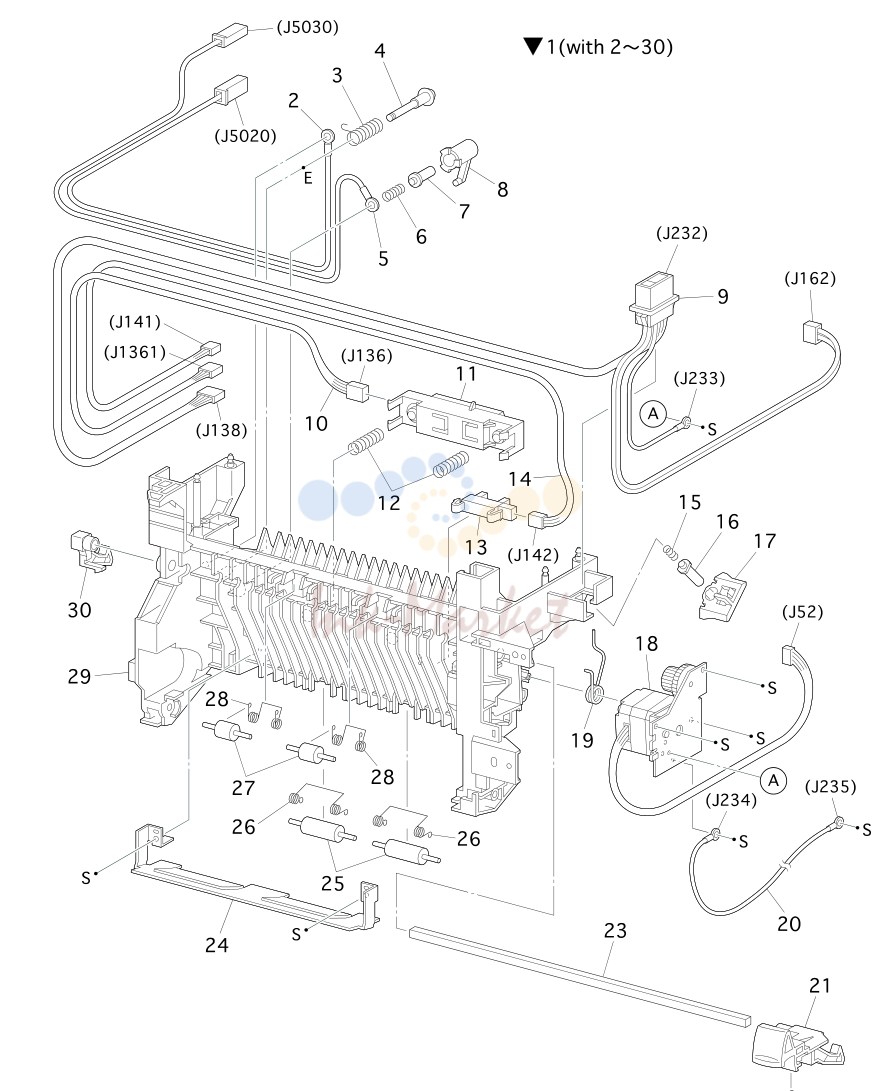

6. PL 5.1 Chute Assy In [Illustration]

№	Артикул	Альт. артикул	Описание
2			WIRE ASSY BTR2(J5020)....................................................865117K34570
3			SPRING BTR R2...................................................................865809E28630
5			WIRE ASSY DTSK(J5030)....................................................865117K34560
10			HARNESS ASSY CTD(J136-J1361).....................................865162K69620
11			SENSOR ADC ASSY............................................................865019K97900
12			SPRING ADC........................................................................865809E28620
13			SENSOR TNR FULL.............................................................865130E91010
14			HARNESS ASSY TFLSNS(J141-J142)................................865162K69830
18			FUSER DRIVE ASSY............................................................865007K86690
20			WIRE ASSY FSR EARTH(J234-J235)..................................865117K34580
21			LATCH R...............................................................................865003E53370
22			SPRING LATCH 1.2kgf.........................................................865809E28590
25			ROLL PINCH TURN..............................................................865059E95690
26			SPRING PINCH TURN.........................................................865809E28610
27			ROLL PINCH DUP................................................................865059E95700
28			SPRING PINCH DUP............................................................865809E28600
30			LATCH L................................................................................865003E53380

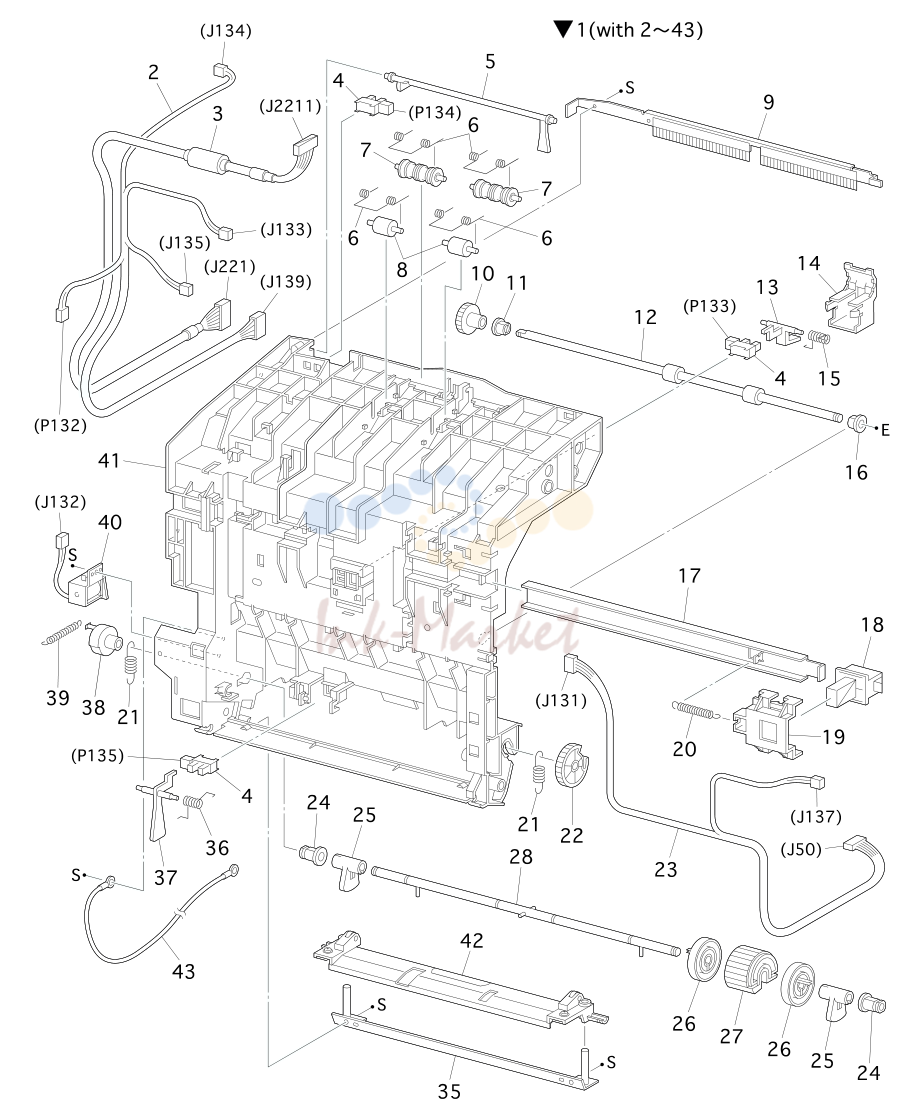

7. PL 6.1 Chute Assy Out [Illustration]

№	Артикул	Альт. артикул	Описание
1			CHUTE ASSY OUT(with 2~43).............................................865084K03690
2			HARNESS ASSY FRONT 2(J139-P132/J133/J134/J135)....865162K69590
3			HARNESS ASSY OPEPANE BS(J221-J2211).....................865162K69610
4			SENSOR PHOTO.................................................................865130E82740
5			ACTUATOR FULL.................................................................865120E18740
6			SPRING PINCH E0IT............................................................865809E28710
7			ROLL PINCH E0IT................................................................865059E95780
8			ROLL PINCH.........................................................................865059E95760
10			GEAR 30...............................................................................865007E66670
11			BEARING EARTH.................................................................865059E95750
12			ROLL DUP............................................................................865059E95750
13			ACTUATOR DUP..................................................................865120E18750
14			COVER ACTUATOR.............................................................865802E23280
15			SPRING SNR DUP...............................................................865809E30110
18			LATCH OUT..........................................................................865003E53410
20			SPRING LATCH OUT...........................................................865809E28730
21			SPRING N/F MSI 250gf........................................................865809E28700
22			GEAR MSI.............................................................................865007E65840
23			HARNESS ASSY DUP(J50-J131/J137)................................865062K69600
25			CAM MSI...............................................................................865008E93880
26			ROLL CORE MSI..................................................................865059E95740
27			ROLL ASSY FEED................................................................865059K19960
36			SPRING SENSOR MSI.........................................................865809E28720
37			ACTUATOR MSI...................................................................865120E18730
38			STOPPER SOL.....................................................................865003E53400
39			SPRING SOL 0.5..................................................................865809E28690
40			SOLENOID FEED MSI..........................................................865121E88250
42			PLATE ASSY BOTTOM MSI.................................................865015K52790
43			WIRE ASSY DUP EARTH

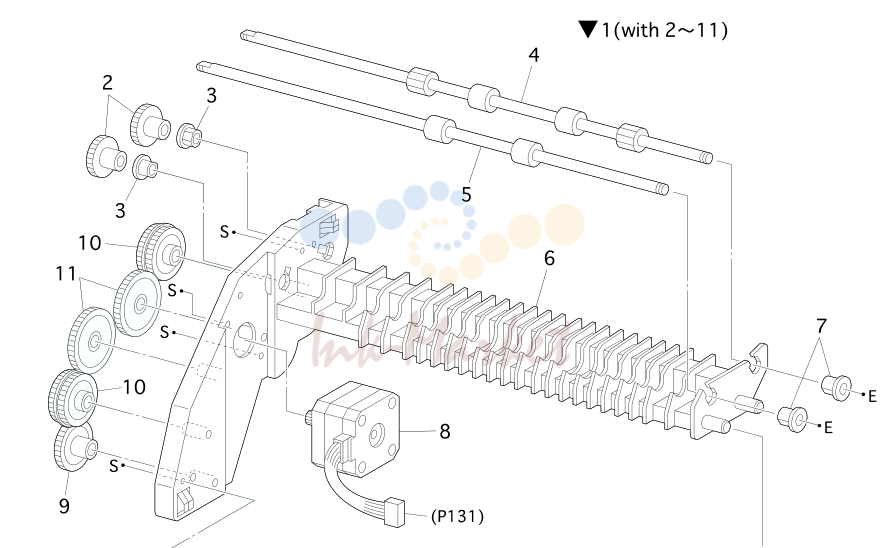

8. PL 7.1 Chute Assy Exit [Illustration]

№	Артикул	Альт. артикул	Описание
1			CHUTE ASSY EXIT(with 2~11).............................................865054K18100
4			ROLL EXIT............................................................................865059E96430
5			ROLL MID.............................................................................865059E95770
8			MOTOR ASSY DUP..............................................................865127K31710

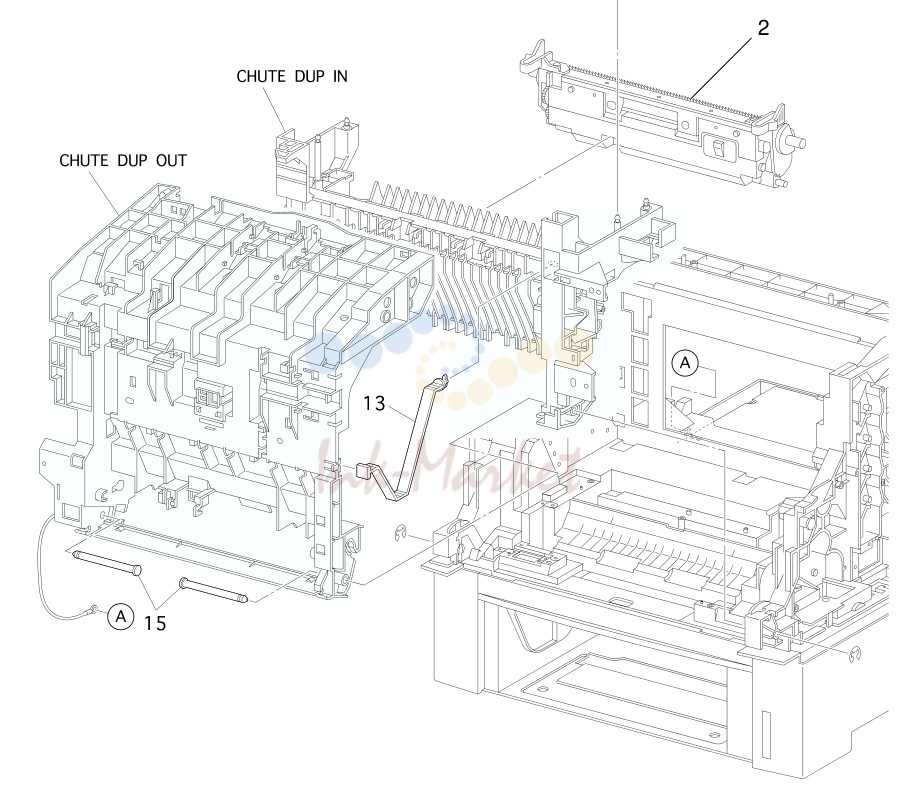

9. PL 8.1 BTR Assy & Fuser [Illustration]

№	Артикул	Альт. артикул	Описание
1			FUSER ASSY(with 7 and 8)110V MQI..................................865NS080199A
2			BTR ASSY(Transfer Unit).....................................................1710494-001
7			ACTUATOR EXIT..................................................................865120E20790
8			SPRING ACTUATOR............................................................865809E34550
15			SHAFT PIVOT.......................................................................865006E72030

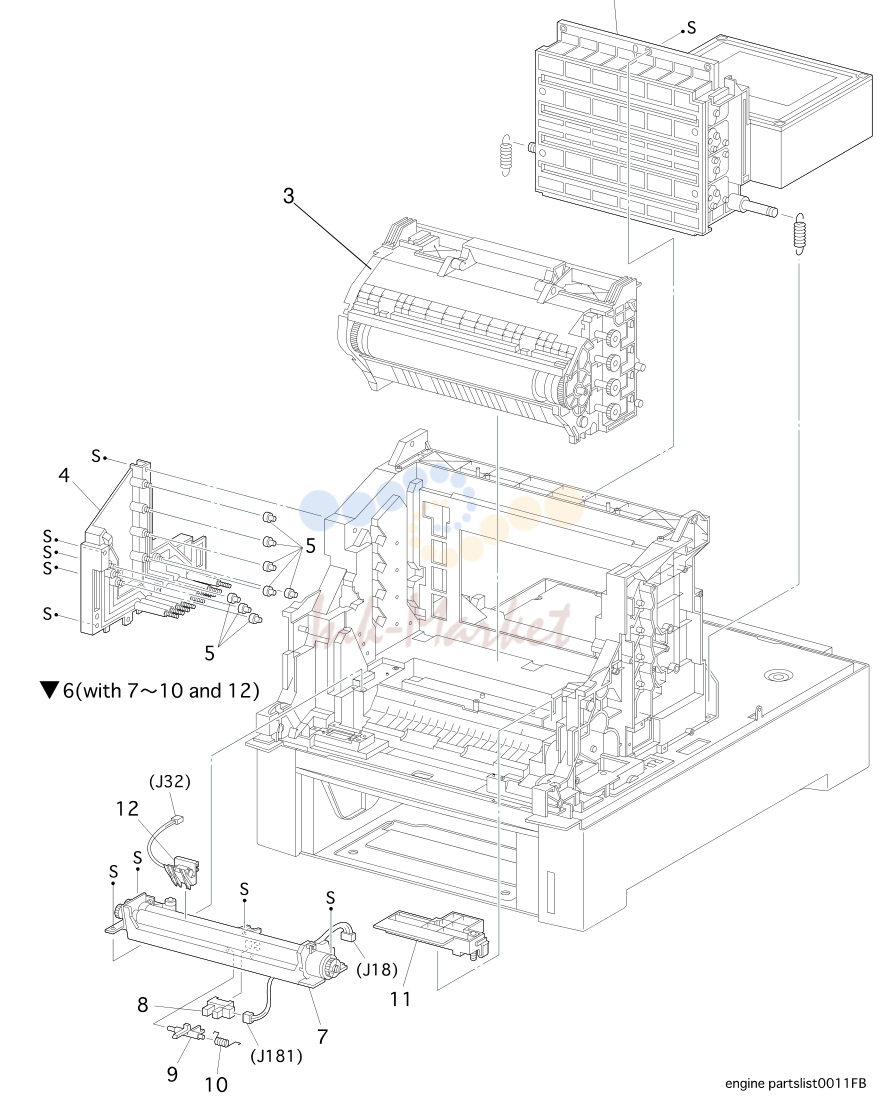

10. PL 9.1 Xerographics [Illustration]

№	Артикул	Альт. артикул	Описание
1			ROS ASSY............................................................................865062K10860
3			PHD ASSY PKG MQI............................................................1710493-001
4			HSG ASSY BIAS...................................................................865805K24820
5			STUD PLUNGER..................................................................865026E77670
6			CHUTE ASSY REGI(with 7~10 and 12)................................865054K20530
8			SENSOR PHOTO.................................................................865130E82740
9			ACTUATOR REGI.................................................................865120E20680
10			SPRING SENSOR REGI.......................................................865809E34580
11			HOUSING ASSY ELEC.........................................................865802K24830
12			KIT SNR OHP(w/HARNESS)*...............................................865604K02520

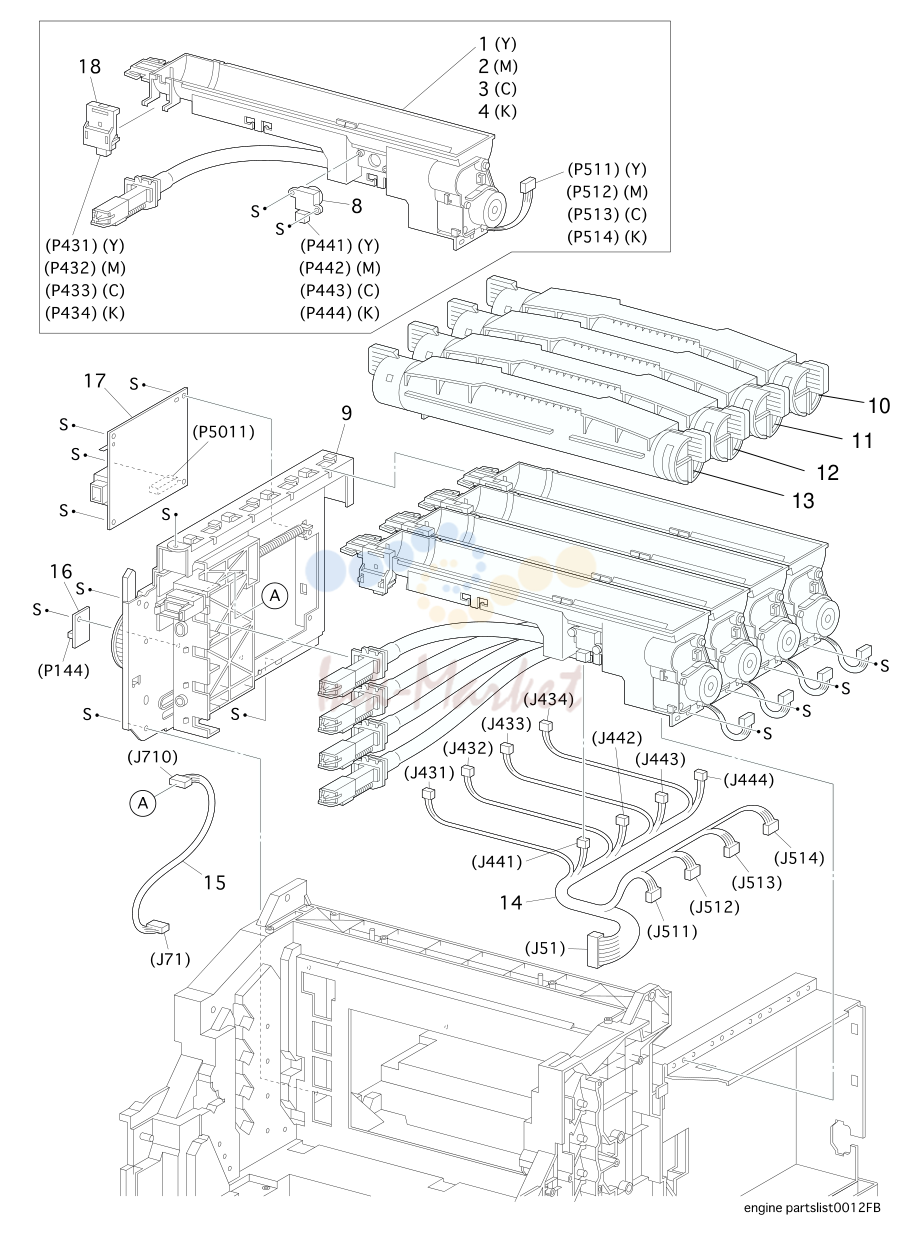

11. PL 10.1 TCRU Assy [Illustration]

№	Артикул	Альт. артикул	Описание
1			HOLDER ASSY Y.................................................................865084K03770
2			HOLDER ASSY M.................................................................865084K03780
3			HOLDER ASSY C.................................................................865084K03790
4			HOLDER ASSY K.................................................................865084K03800
8			SENSOR TONER LOW........................................................865130E85200
9			PLATE ASSY DISPENSER L................................................865015K49550
10			PKG TCRU MQI-Y................................................................1710490-002
11			PKG TCRU MQI-M................................................................1710490-003
12			PKG TCRU MQI-C................................................................1710490-004
13			PKG TCRU MQI-K................................................................1710490-001
14			HARNESS ASSY TNR..........................................................865162K69670
15			HARNESS ASSY CRUM(J71-J710).....................................865062K69680
16			PWBA EEPROM...................................................................865160K83190
18			SWITCH TCRU ASSY...........................................................865110K11250

12. PL 11.1 Frame & Drive [Illustration]

№	Артикул	Альт. артикул	Описание
3			LINK LEVER L.......................................................................865012E10040
4			LEVER DRUM.......................................................................865011E10730
5			SPRING LEVER 30N............................................................865809E28430
6			LINK LEVER R......................................................................865012E10030
8			ACTUATOR I/R.....................................................................865120E18680
9			SPRING I/R...........................................................................865809E28460
10			GEAR IDL. PRESS...............................................................865007E65810
11			GEAR PRESS R...................................................................865007K87250
12			SPRING IDT R......................................................................865809E28440
13			DEVE DRIVE ASSY..............................................................865007K86680
14			MAIN DRIVE ASSY...............................................................865007K86670
15			FILM REGI............................................................................865035E58130
16			PWBA ASSY EARTH............................................................865160K70780
17			SPRING IDT L.......................................................................865809E28450
18			GEAR PRESS L....................................................................865007E65800
99			GEAR ASSY PRESS L.........................................................865007K87260

13. PL 12.1 Electrical [Illustration]

№	Артикул	Альт. артикул	Описание
1			PWBA HNB MCU..................................................................865160K83960
2			FAN REAR............................................................................865127E82900
3			CLAMP GUIDE HARNESS...................................................865019E49010
4			CONTROLLER BOARD........................................................865160K83750
5			PLATE REAR ESS................................................................865015K50530
6			SPRING EARTH ESS...........................................................865809E29820
7			GUIDE R ESS.......................................................................865032E17450
8			GUIDE L ESS........................................................................865032E17440
11			HARNESS ASSY AC SW......................................................865162K69580
12			PWBA HNB DRV...................................................................865160K78360
13			POWER CORD US...............................................................865T359847
14			HOUSING ASSY CONTACT.................................................865802K32500

14. PL 13.1 Harness [Illustration]

№	Артикул	Альт. артикул	Описание
1			HARNESS ASSY LVNC(J165-J61).......................................865162K69710
2			HARNESS ASSY DRV 1(J11-J41)........................................865162K69720
3			HARNESS ASSY DRV 2(J12-J42)........................................865162K69730
4			HARNESS ASSY LVRPG(J164-J311)..................................865162K69740
5			HARNESS ASSY ROSKA(J15-J151)....................................865162K69750
6			HARNESS ASSY 24V(J60-J163)..........................................865162K69760
7			HARNESS ASSY FRONT 1A(J13-P139/P1361/P1381/J5011) 865162K69770
8			HARNESS ASSY OPF MAIN(J121-P210)............................865162K69780
9			HARNESS ASSY OPEPANE AS(J22-P221)........................865162K69790
10			HARNESS ASSY EEPROM(J140-P71/J144/P141)..............865162K69810
12			HARNESS ASSY TMPB(J24-J2361)....................................865162K69800
99			KIT PEPACK IOT..................................................................865604K02930
