Содержание
- 1. Automatic document feeder (whole unit)
- 2. Front end cover (ADF)
- 3. Hinges (ADF)
- 4. Base assembly (ADF)
- 5. Backbone assembly (ADF)
- 6. Jam Cover (ADF)
- 7. Pickup roller assembly (ADF)
- 8. Separation pad assembly (ADF)
- 9. Separation floor assembly (ADF)
- 10. Scanner assembly base
- 11. Carriage assembly (scanner; optical assembly)
- 12. Scanner controller board (SCB) assembly
- 13. Stapler/stacker assembly main body
- 14. Paper feed assembly (stapler/stacker)
- 15. Alignment and jogger assembly (stapler/stacker)
- 16. Cartridge door assembly (print engine)
- 17. Internal components (print engine 1 of 3)

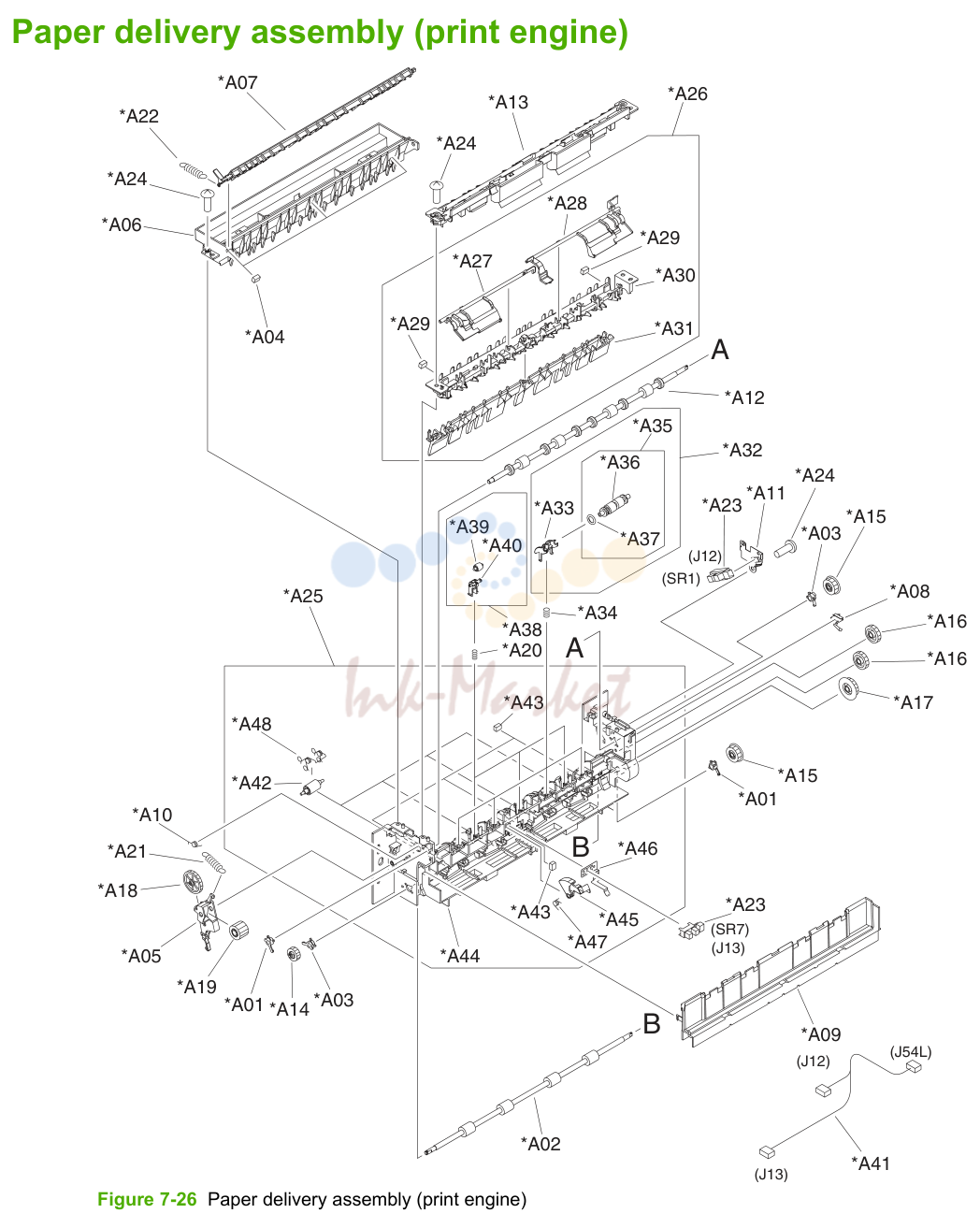

- 18. Paper delivery assembly (print engine)

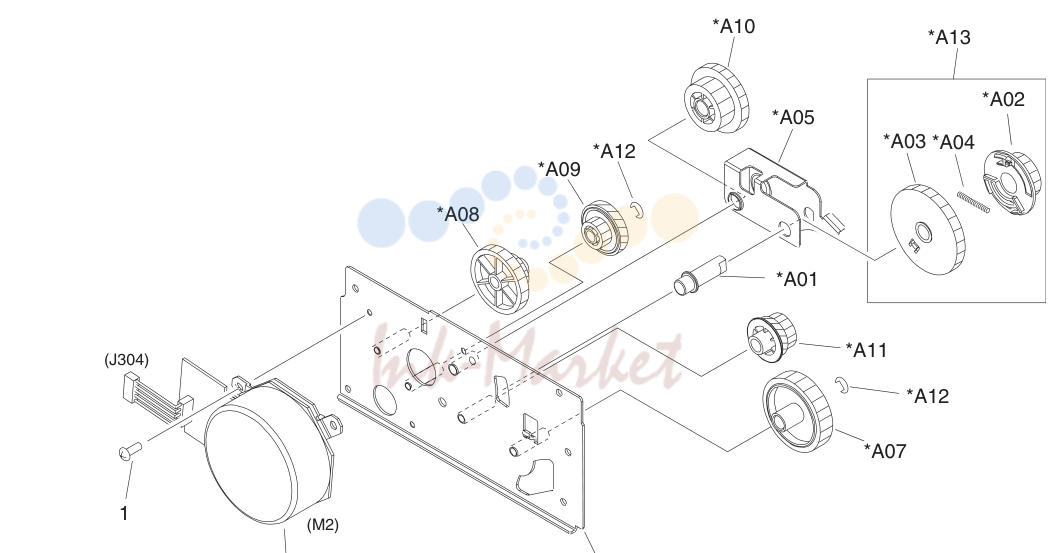

- 19. Fuser drive assembly (print engine)

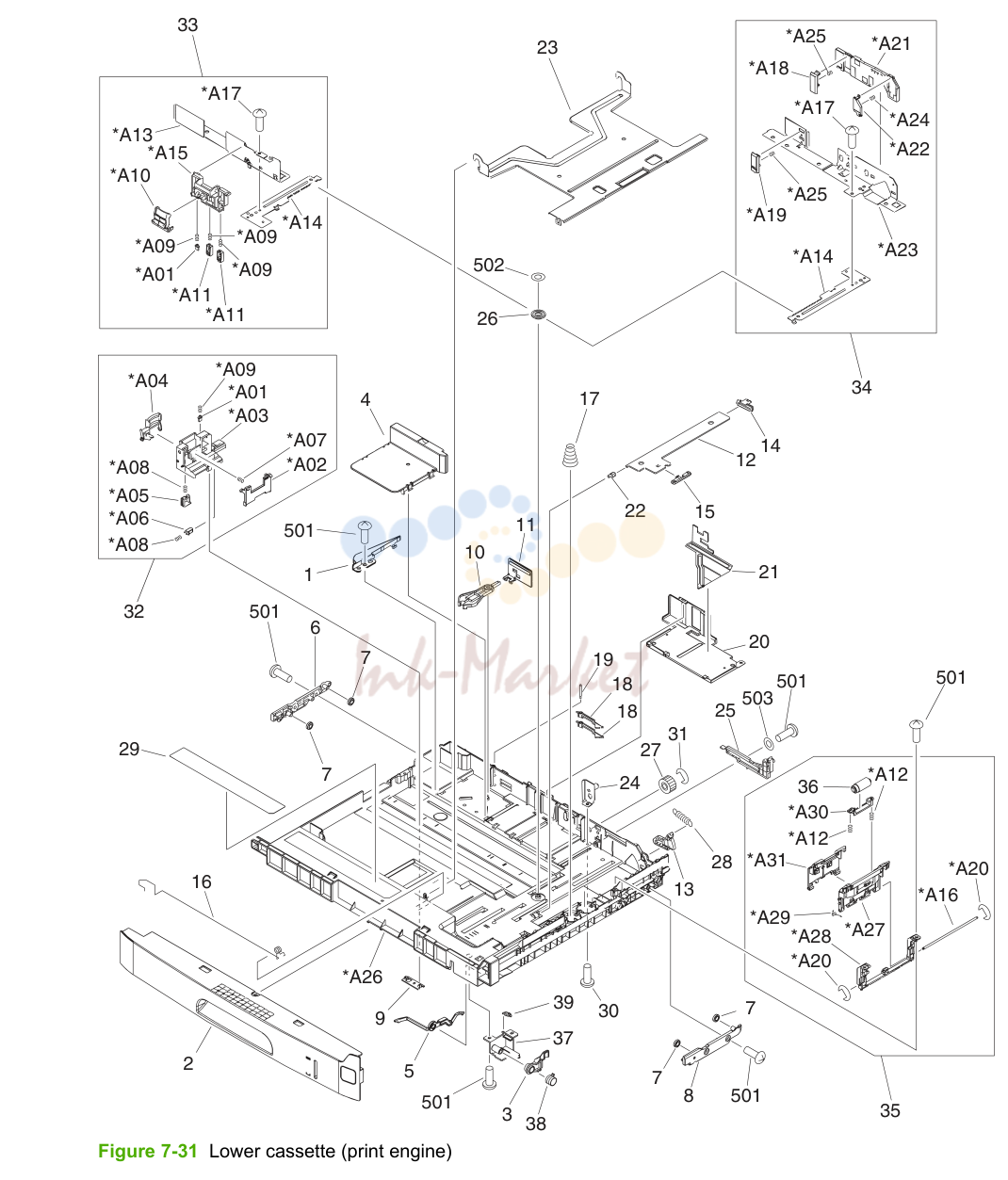

- 20. Lower cassette (print engine)

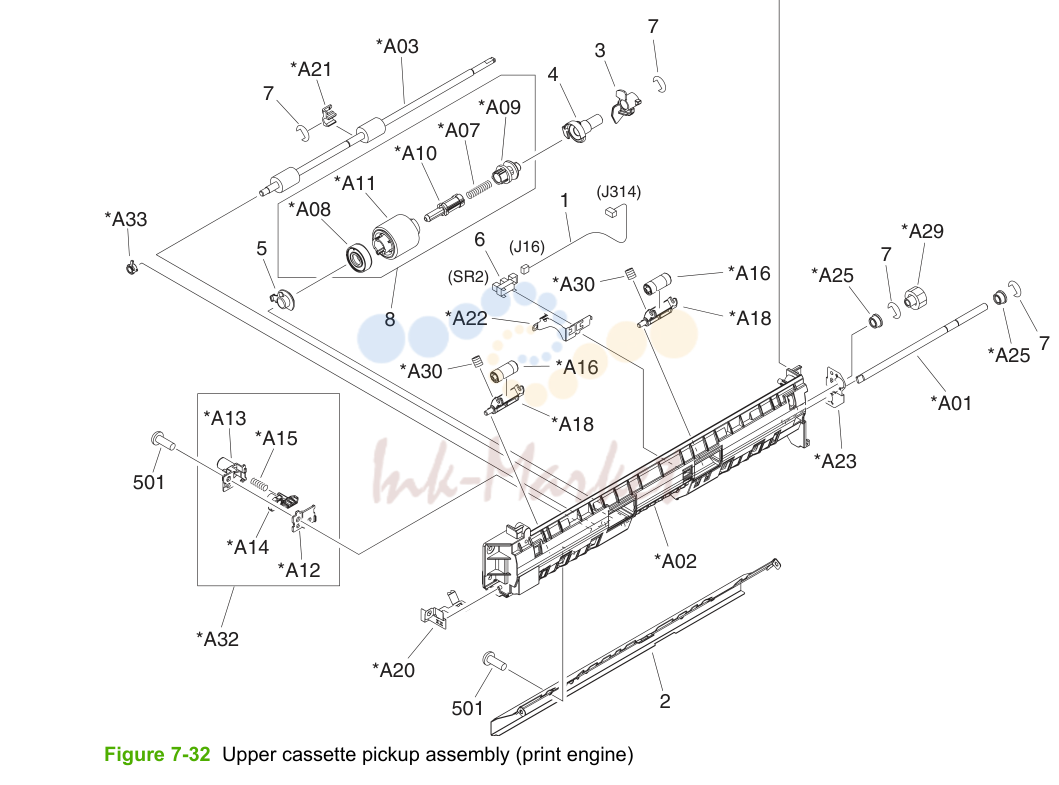

- 21. Upper cassette pickup assembly (print engine)

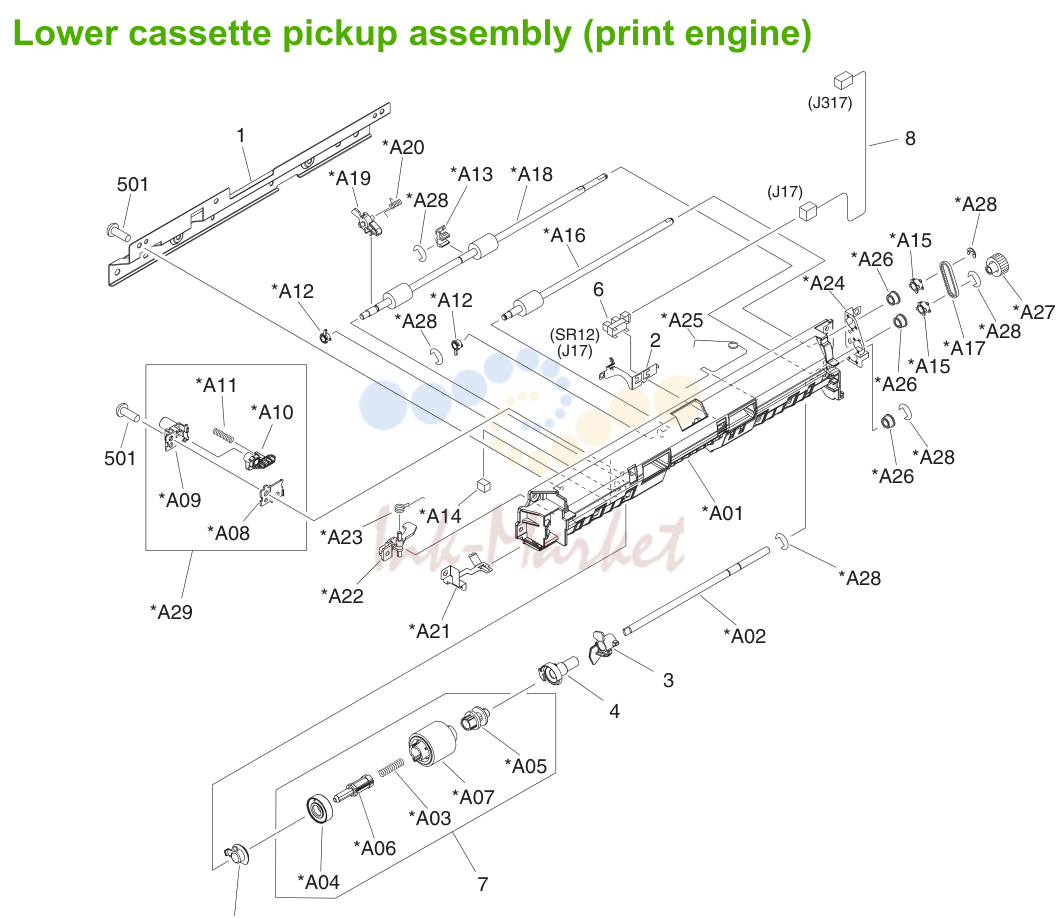

- 22. Lower cassette pickup assembly (print engine)

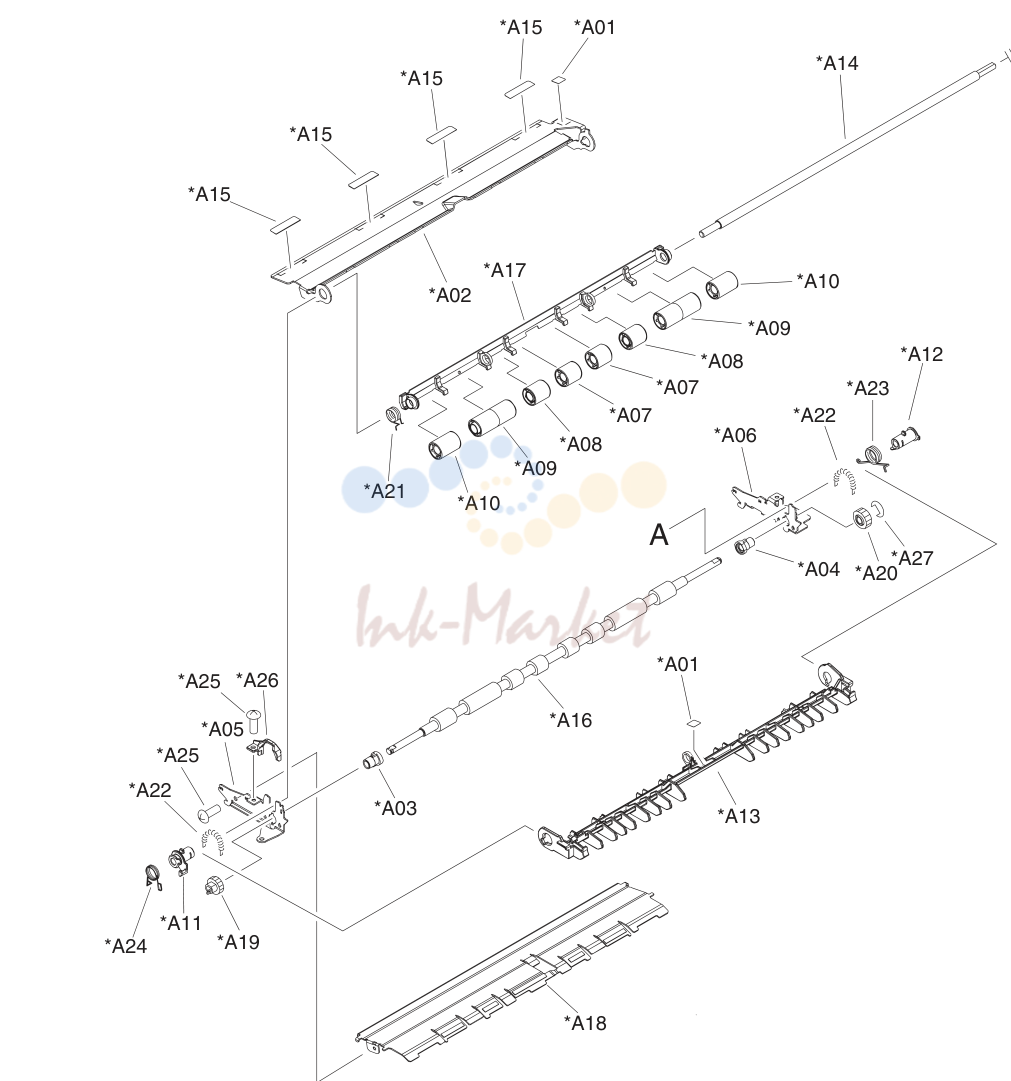

- 23. Registration assembly (print engine)

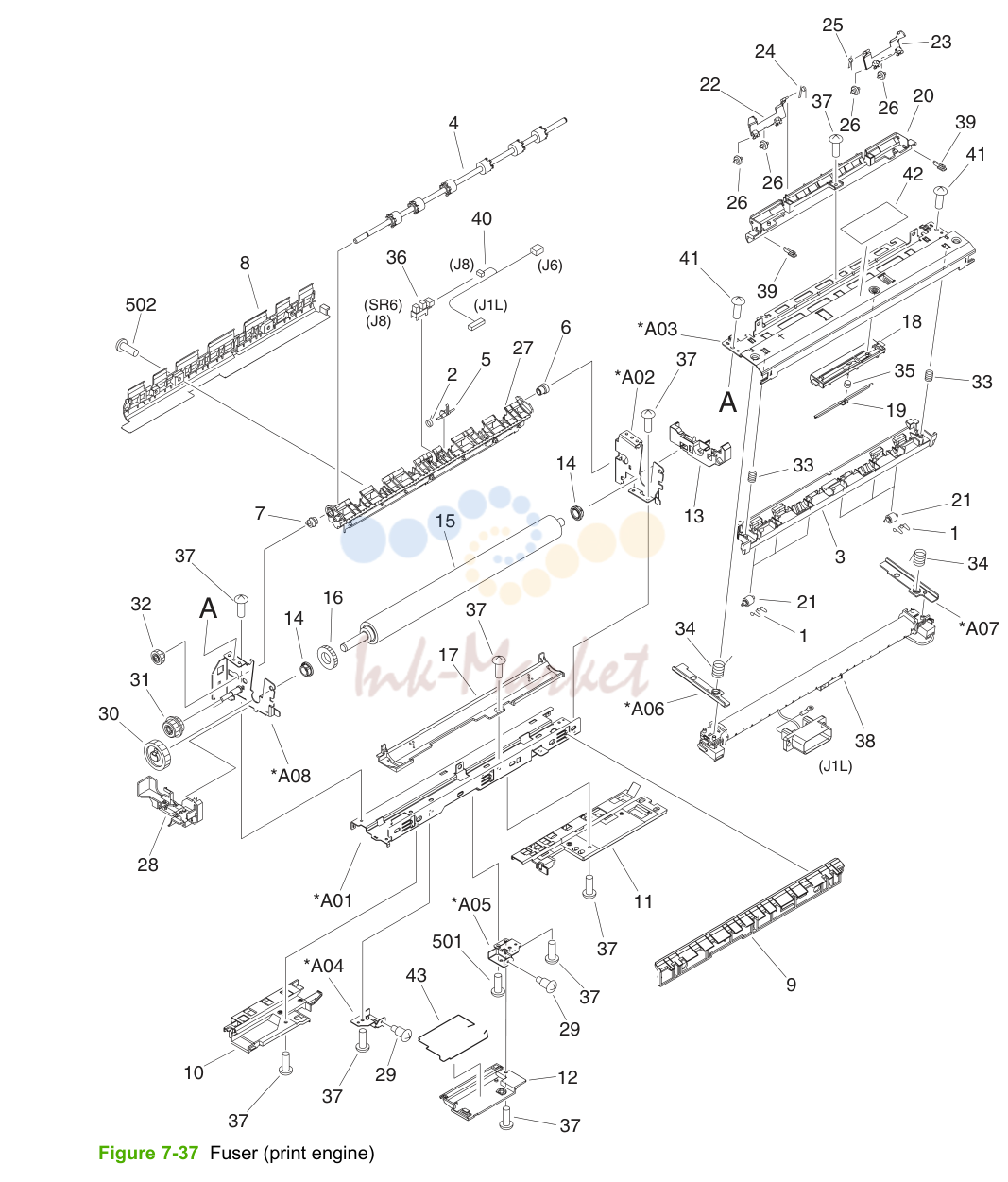

- 24. Fuser (print engine)

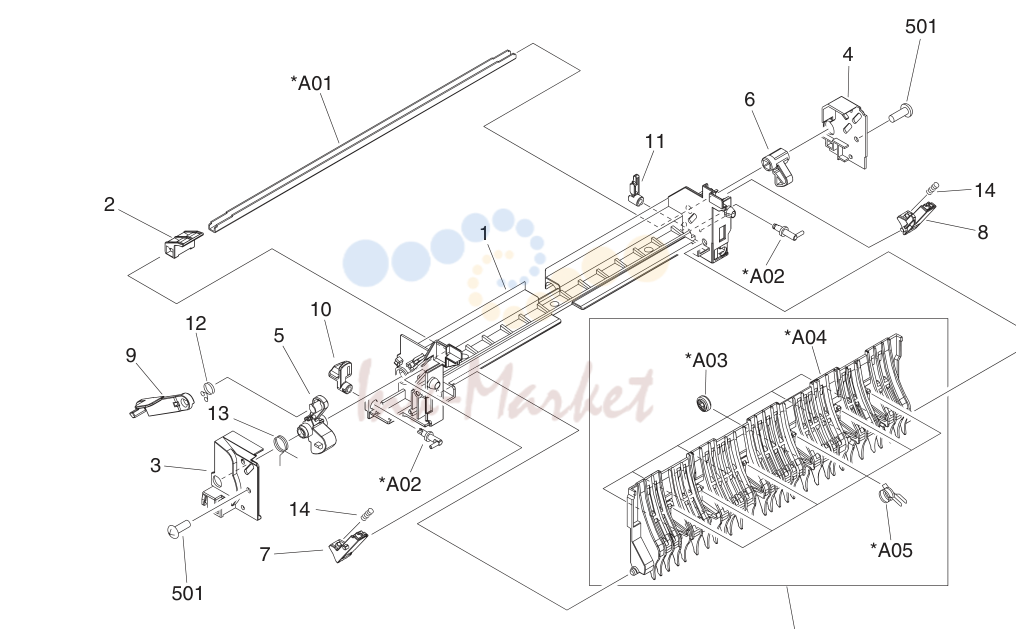

- 25. Fuser pressure release assembly (print engine)

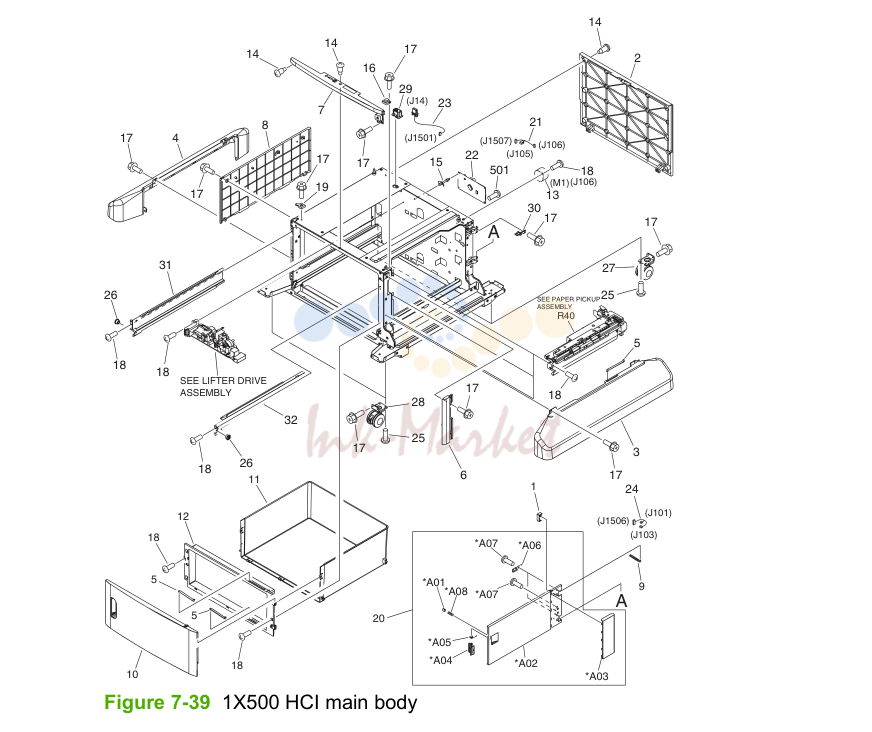

- 26. High capacity input (HCI) 1X500 feeder main body

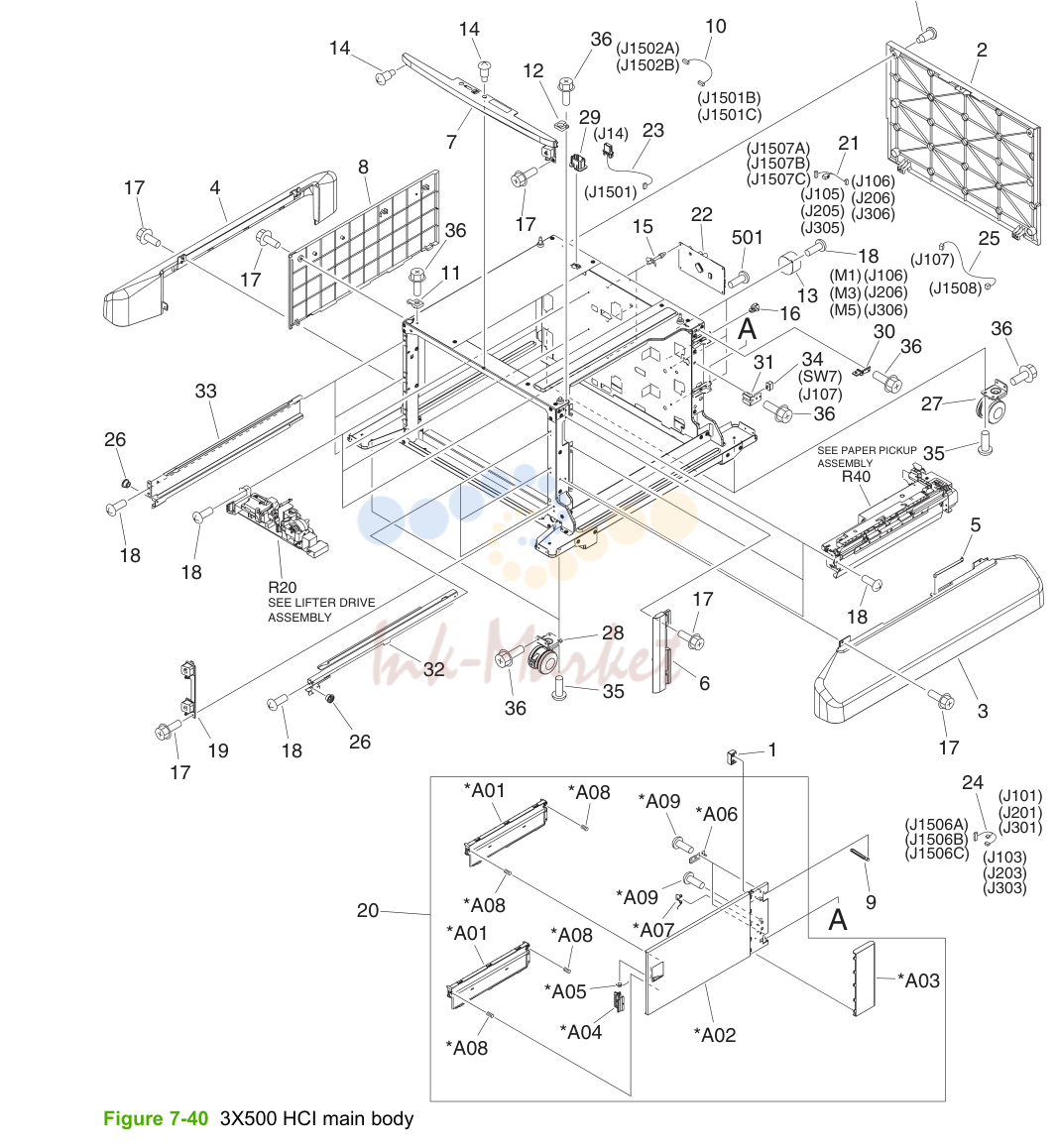

- 27. High capacity input (HCI) 3X500 feeder main body

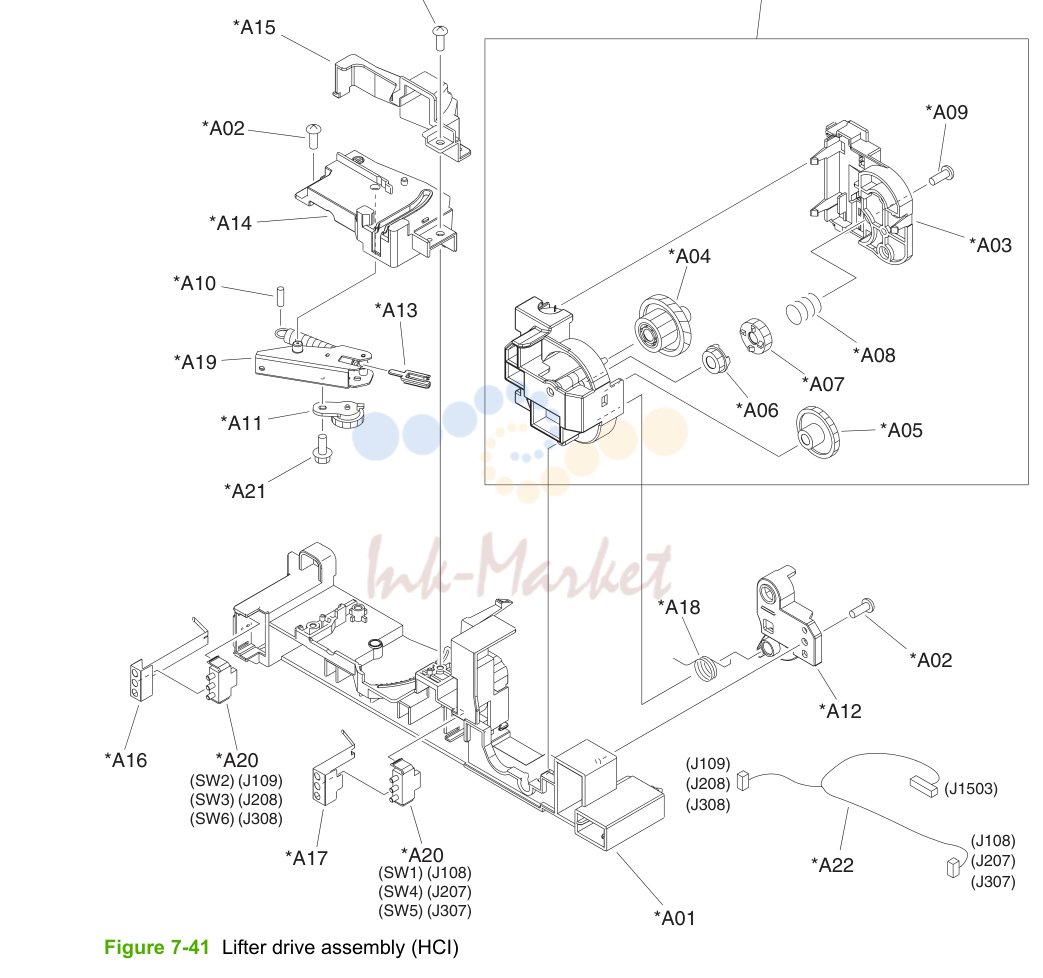

- 28. Lifter drive assembly (HCI)

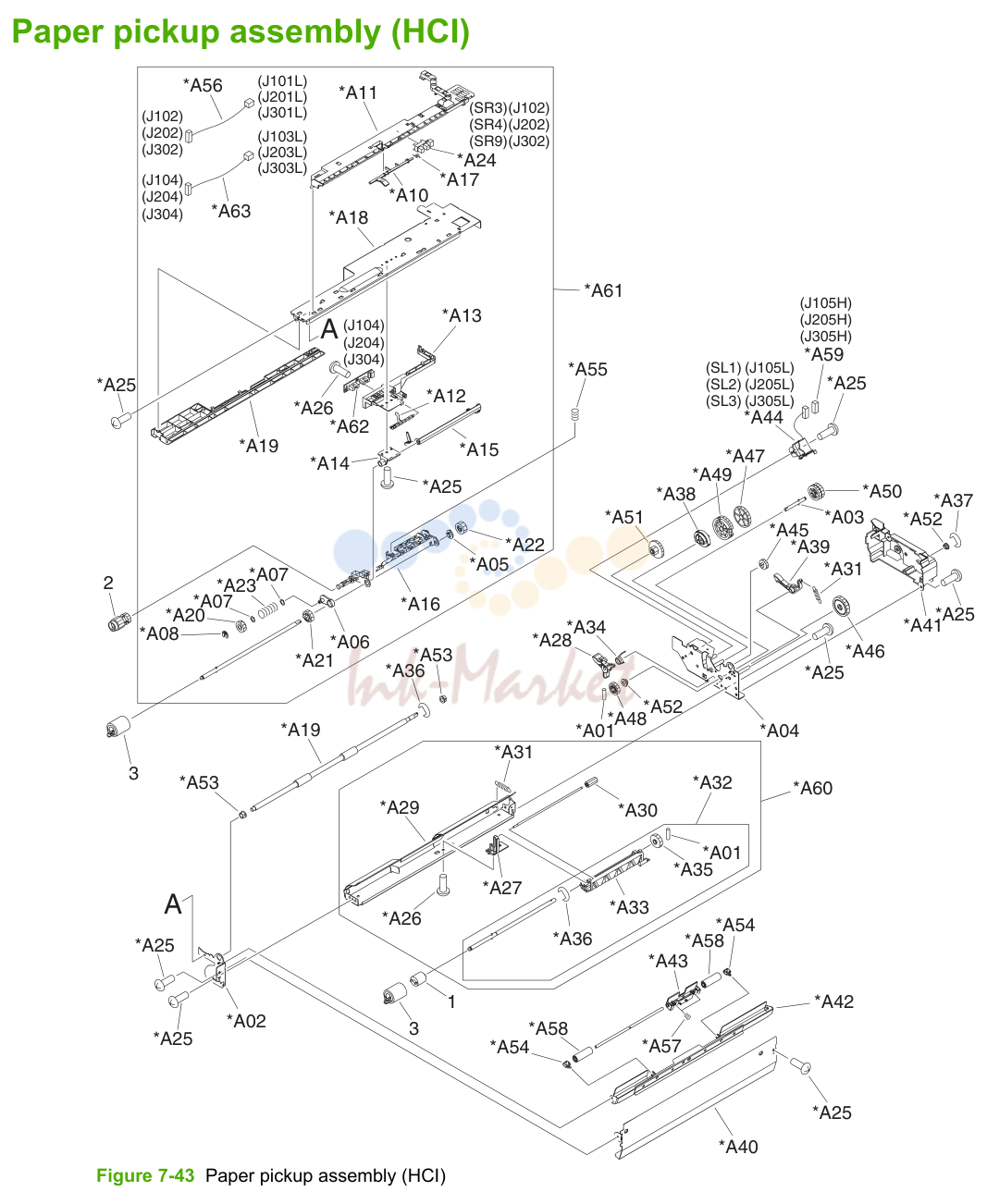

- 29. Paper pickup assembly (HCI)

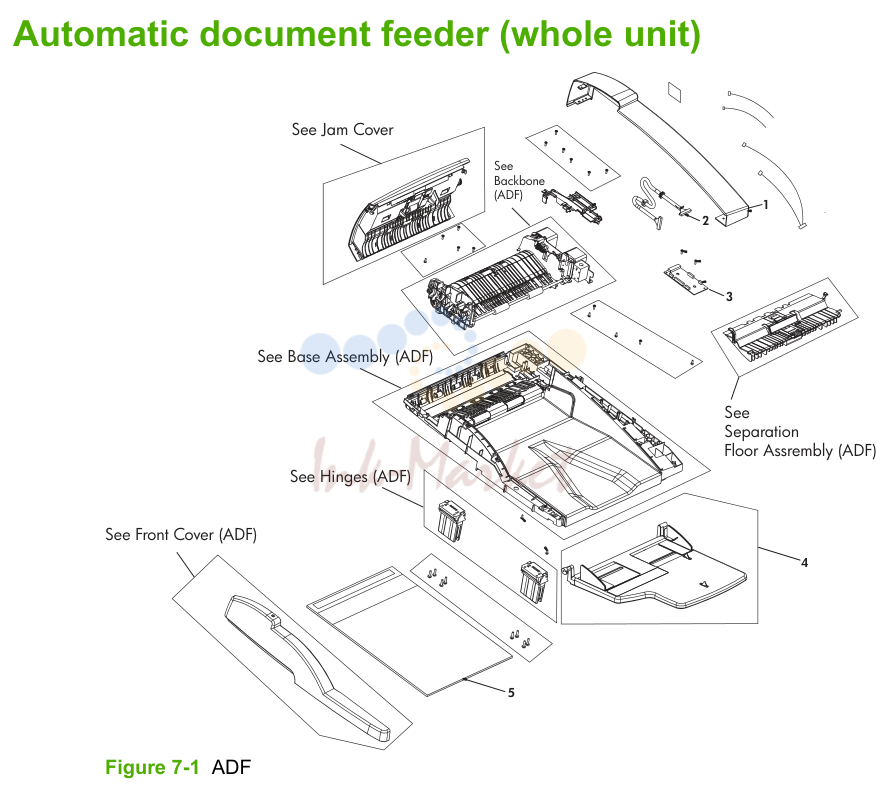

1. Automatic document feeder (whole unit)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | ADF endcap back Q7829-67904 | ||
| 2 | Cable, ADF to scanner Q7829-67907 | ||
| 3 | PCA motor assembly Q7829-67903 | ||
| 4 | ADF tray input assembly Q7829-67912 | ||
| 5 | ADF reflector foam (white backing) Q7829-67909 |

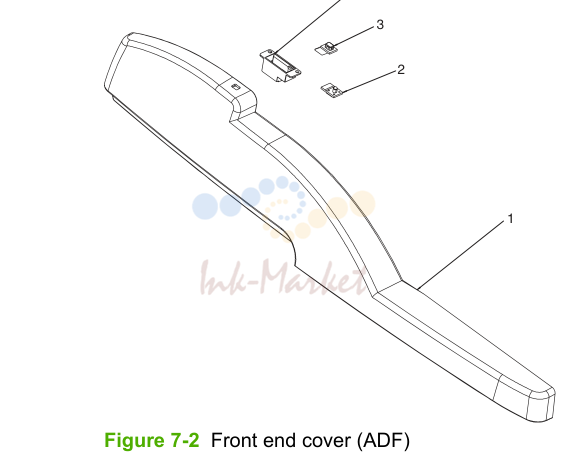

2. Front end cover (ADF)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | ADF end cover (cap) front | ||
| 2 | Media LED | ||
| 3 | LED light pipe | ||
| 4 | LED housing |

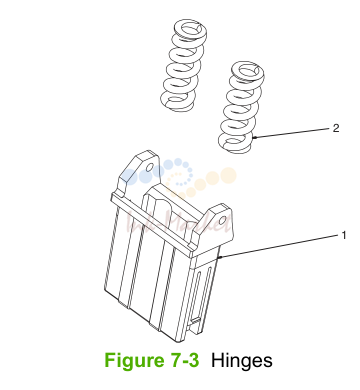

3. Hinges (ADF)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Stem, hinge | ||
| 2 | Spring, hinge | ||
| 3 | Plunger, hinge | ||
| 4 | Pin, hinge | ||
| 5 | Profile, hinge |

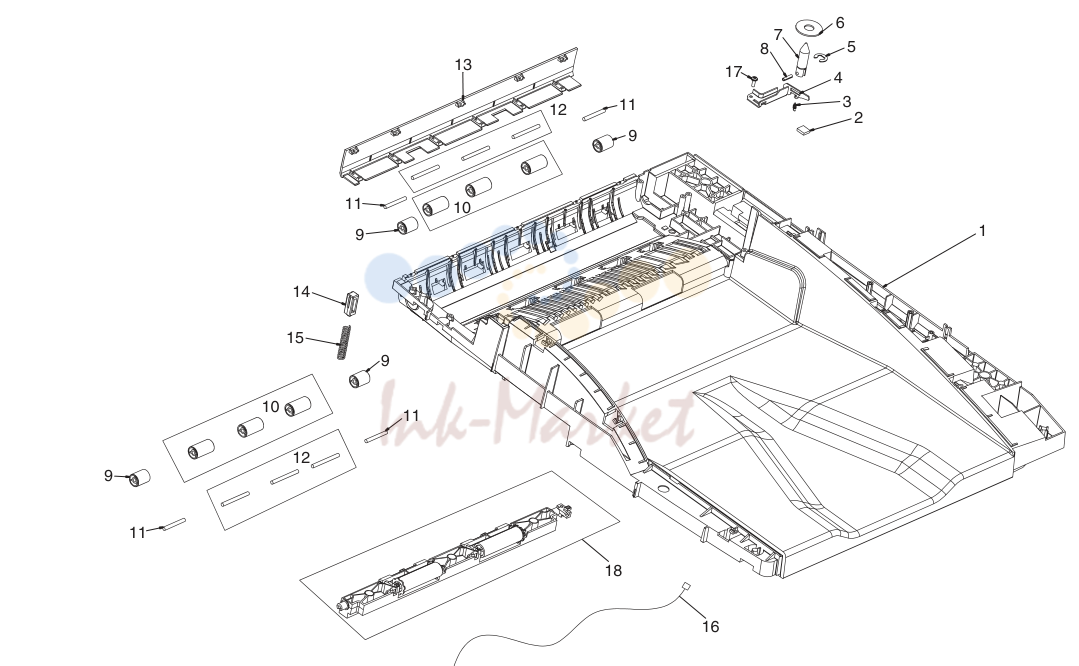

4. Base assembly (ADF)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Enclosure, base | ||
| 2 | Pad, solenoid | ||
| 3 | Spring, extension | ||
| 4 | Exit crank | ||
| 5 | E-clip | ||
| 6 | Damper solenoid | ||
| 7 | Solenoid | ||
| 8 | Pin 3X12 mm | ||
| 9 | Wheel, pinch | ||
| 10 | Wheel, pinch L | ||
| 11 | Spring, axle | ||
| 12 | Spring, axle L | ||
| 13 | Cover, left Q7829-67906 | ||
| 14 | Plunger, input tray | ||
| 15 | Spring, input tray | ||
| 16 | Cable, LED and media eject | ||
| 17 | Screw, M3X9 PT pan head phillips | ||
| 1 | To order components (other than the left cover) for this assembly, you must order a replacement ADF (Q7829-67901). |

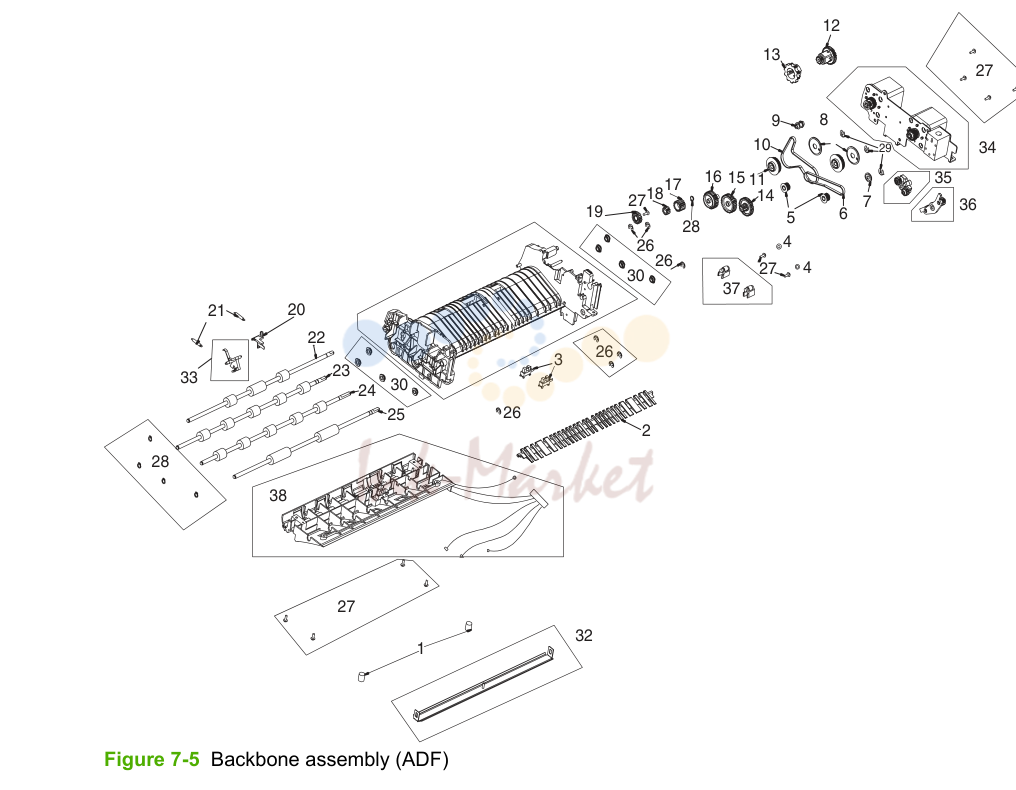

5. Backbone assembly (ADF)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Spring, float | ||
| 2 | ADF diverter Q7829-67918 | ||
| 3 | ADF photo interrupter w/connector Q7829-67914 | ||
| 4 | Washer, lock 3X5M with external tooth | ||
| 5 | Pulley, exit | ||
| 6 | Belt, exit | ||
| 7 | Retainer, belt exit pulley D1 | ||
| 8 | Retainer, belt exit pulley D2 | ||
| 9 | Pulley, belt | ||
| 10 | Belt, feed | ||
| 11 | Pulley, drive tire | ||
| 12 | Gear, 35T - 14T | ||
| 13 | Gear, 30T - 12T | ||
| 14 | Gear, 30T - 12T | ||
| 15 | Gear, 36T | ||
| 16 | Gear, 34T | ||
| 17 | Gear, 20T | ||
| 18 | Gear, deskew 14T | ||
| 19 | Gear, 22T | ||
| 20 | Flag, prescan | ||
| 21 | Spring, tension | ||
| 22 | Drivetrain assembly, deskew | ||
| 23 | Drivetrain assembly, prescan | ||
| 24 | Drivetrain assembly, post scan | ||
| 25 | Drivetrain assembly, exit | ||
| 26 | E-clip | ||
| 27 | Screw, M3X9 PT pan head phillips | ||
| 28 | Circle clip | ||
| 29 | Retainer STS | ||
| 30 | Bushing, feed shaft | ||
| 31 | Nyogel (55cc syringe) | ||
| 32 | ADF float assembly Q7829-67917 |

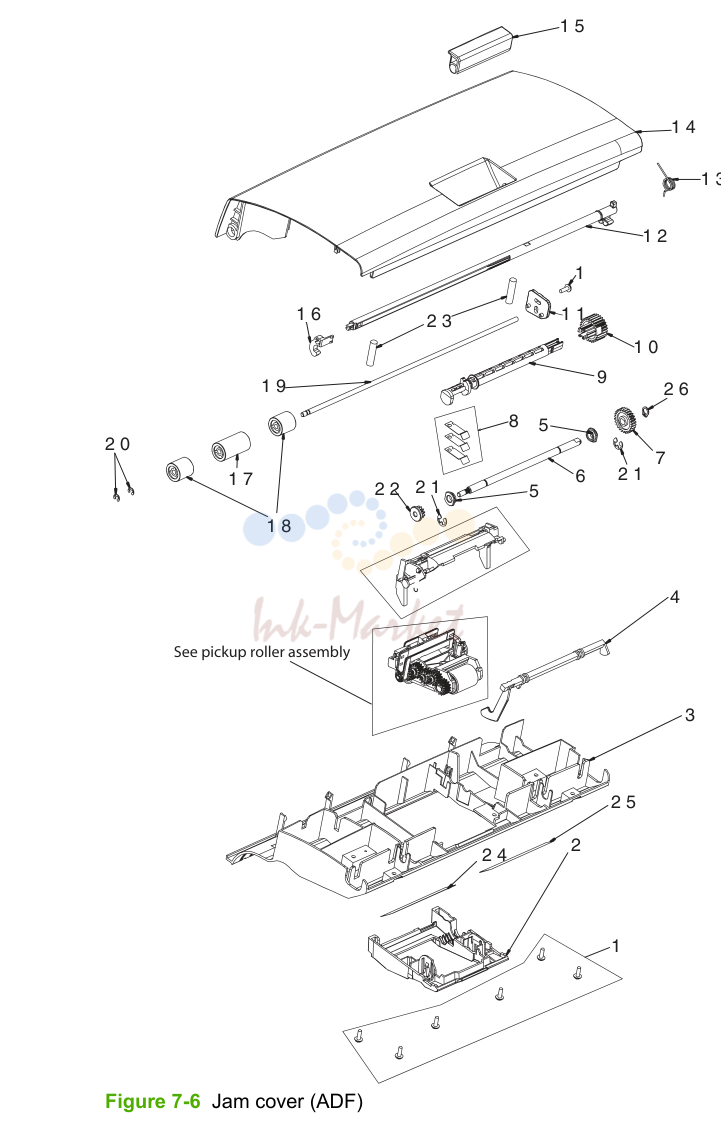

6. Jam Cover (ADF)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Screw, M3X9 PT pan head phillips #2 | ||
| 2 | Cover ADF pickup roller Q7829-67920 | ||
| 3 | Cover, pick | ||
| 4 | Flag, media present sensor | ||
| 5 | Bushing, feed shaft | ||
| 6 | Shaft, pick | ||
| 7 | Gear, pick 26T | ||
| 8 | Spring, plate detent | ||
| 9 | Shaft, cam | ||
| 10 | Gear, camshaft 26T | ||
| 11 | Adjuster, deskew | ||
| 12 | Lock shaft, jam cover | ||
| 13 | Spring, jam cover latch | ||
| 14 | Cover, jam | ||
| 15 | Handle, jam cover | ||
| 16 | End cap, jam cover | ||
| 17 | Pinch, deskew center | ||
| 18 | Pinch, deskew right | ||
| 19 | Shaft, pinch deskew | ||
| 20 | E-clip (dia 3) | ||
| 21 | E-clip (dia 5) | ||
| 22 | Gear, pickshaft 12T | ||
| 23 | Spring, deskew | ||
| 24 | Label, pick roller replacement | ||
| 25 | Label, pick roller replacement | ||
| 26 | Circle clip |

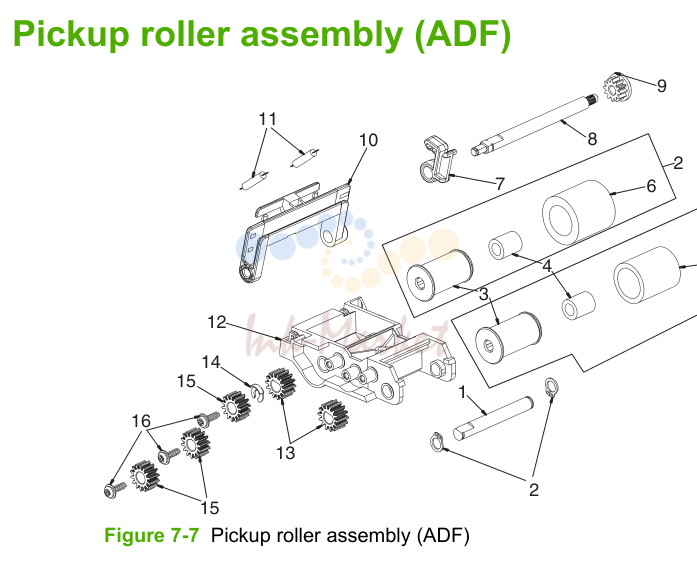

7. Pickup roller assembly (ADF)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Shaft, pick | ||
| 2 | Circle clip | ||
| 3 | Hub, separation | ||
| 4 | Clutch, single direction | ||
| 5 | Tire, pick | ||
| 6 | Tire, separation | ||
| 7 | Latch, pickup | ||
| 8 | Shaft, pickup | ||
| 9 | Gear, pick shaft 12T | ||
| 10 | Body, slider | ||
| 11 | Spring, bias pick | ||
| 12 | Holder, pick | ||
| 13 | Gear, deskew 14T | ||
| 14 | Retainer STS | ||
| 15 | Gear, swing 14T | ||
| 16 | Screw, M3X9 PT pan head phillips #2 | ||
| 1 | The ADF pickup roller is part of the ADF maintenance kit (which also includes the ADF separation pad). |

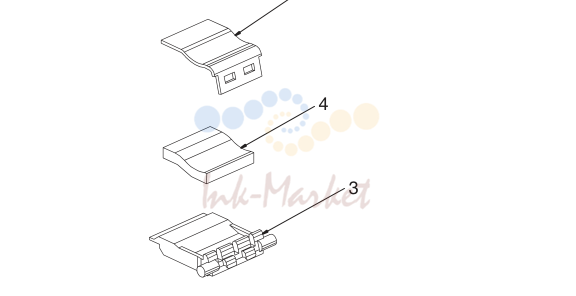

8. Separation pad assembly (ADF)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Pad, friction | ||
| 2 | Base, separation | ||
| 3 | Base, separation pad | ||
| 4 | Foam separation | ||
| 5 | Pad, separation | ||
| 1 | The ADF separation pad is part of the ADF maintenance kit (which also includes the ADF pickup roller). |

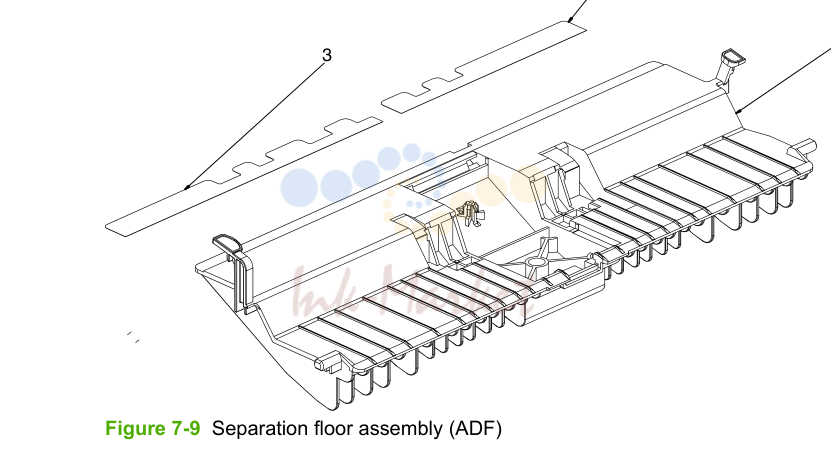

9. Separation floor assembly (ADF)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | ADF separation floor assembly Q7829-67909 | ||
| 2 | Mylar, short separation right | ||
| 3 | Mylar, separation left | ||
| 4 | Spring, separation |

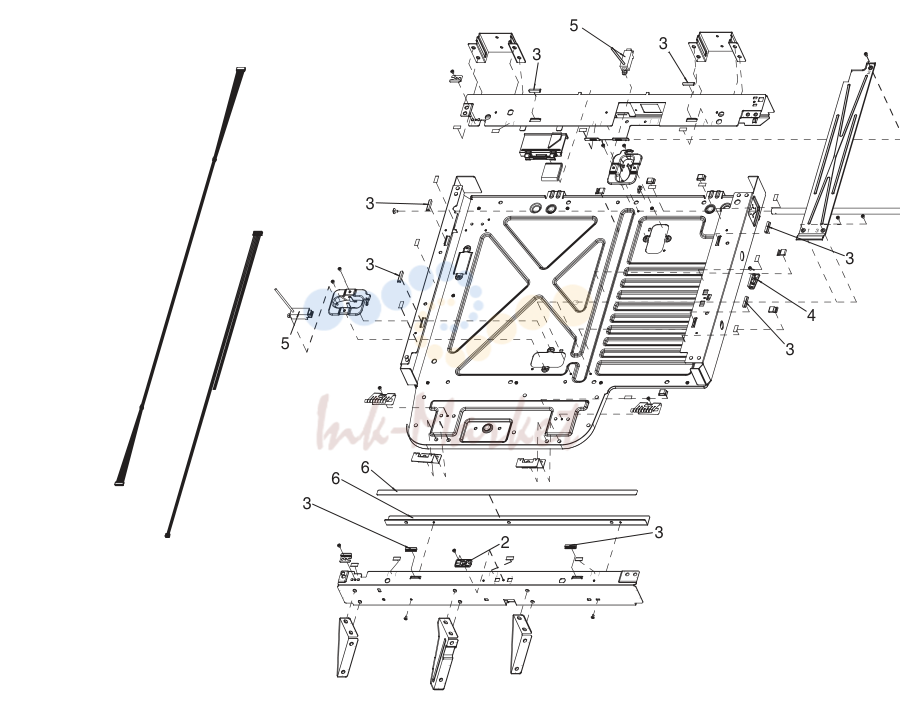

10. Scanner assembly base
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Rod Q7829-60160 | ||
| 2 | Guide, glass Q7829-60157 | ||
| 3 | Rubber, guide Q7829-60162 | ||
| 4 | Guide, glass Q7829-60158 | ||
| 5 | Sensor, paper Q7829-60163 | ||
| 6 | Rail and slide sheet assembly Q7829-60164 |

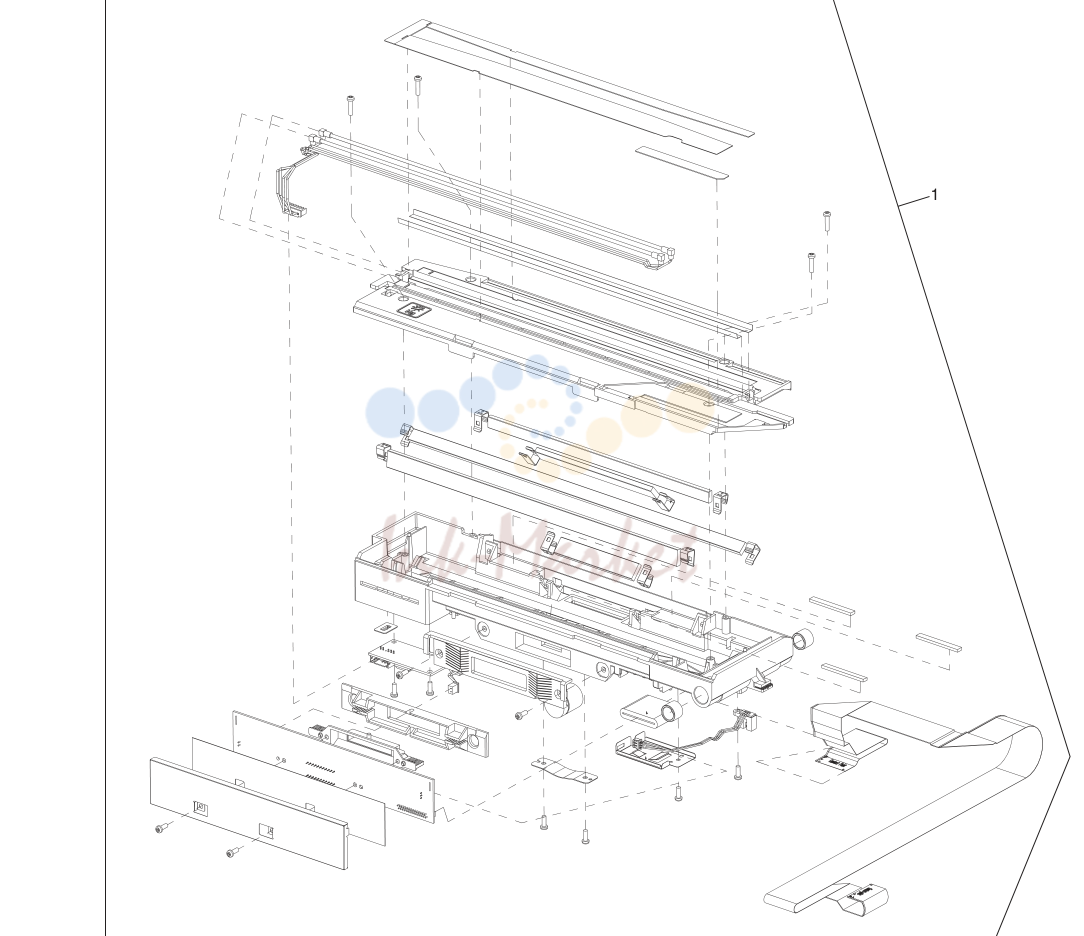

11. Carriage assembly (scanner; optical assembly)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Top cover Q7829-60152 | ||
| 2 | Right cover Q7829-60153 | ||
| 3 | Adhesive cover Q7829-60144 | ||
| 4 | Cover, bottom Q7829-60154 | ||
| 5 | Glass Q7829-60143 |

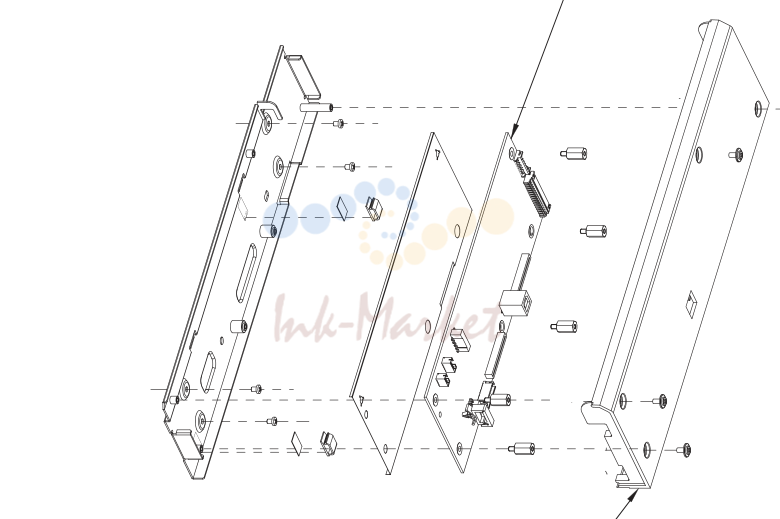

12. Scanner controller board (SCB) assembly
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Motor, transmission Q7829-60149 | ||
| 2 | Timing belt, transmission Q7829-60150 | ||
| 3 | Pulley, transmission Q7829-60151 |

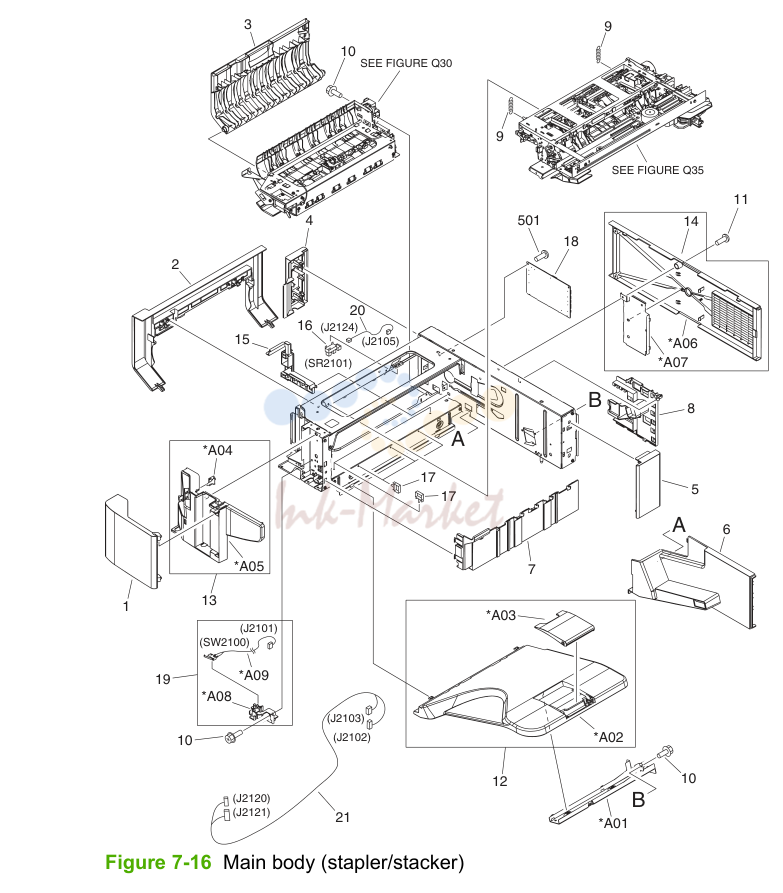

13. Stapler/stacker assembly main body
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | RC1-9716-000CN запросить цену → | Door, front | |
| 2 | RC1-9718-000CN запросить цену → | Cover, left | |
| 3 | RC1-9719-000CN запросить цену → | Door, left | |
| 4 | Cover, rear left | ||
| 5 | Cover, rear right | ||
| 6 | Cover, rear inner | ||
| 7 | RC1-9724-000 запросить цену → | Cover, stack | |
| 8 | RC1-9767-000CN запросить цену → | Guide, FFC | |
| 9 | RU5-2731-000CN запросить цену → | Spring, tension | |
| 10 | Screw, RS, M3X8 | ||
| 11 | Screw, D, MX6 | ||
| 12 | RM1-3093-000CN запросить цену → | Tray assembly | |
| 13 | RM1-3094-000CN запросить цену → | Stapler cover assembly | |
| 14 | RM1-3095-000CN запросить цену → | Rear cover assembly | |
| 15 | Guide, frame cable | ||
| 16 | WG8-5696-000CN запросить цену → | Photo interrupter, TLP1 | |
| 17 | Saddle, wire | ||
| 18 | Staple stacker PCA assembly | ||
| 19 | RM1-3087-000CN запросить цену → | Interlock assembly | |
| 20 | Cable, left door sensor | ||
| 21 | Cable, staple unit | ||
| 501 | Screw, TP, M3X8 |

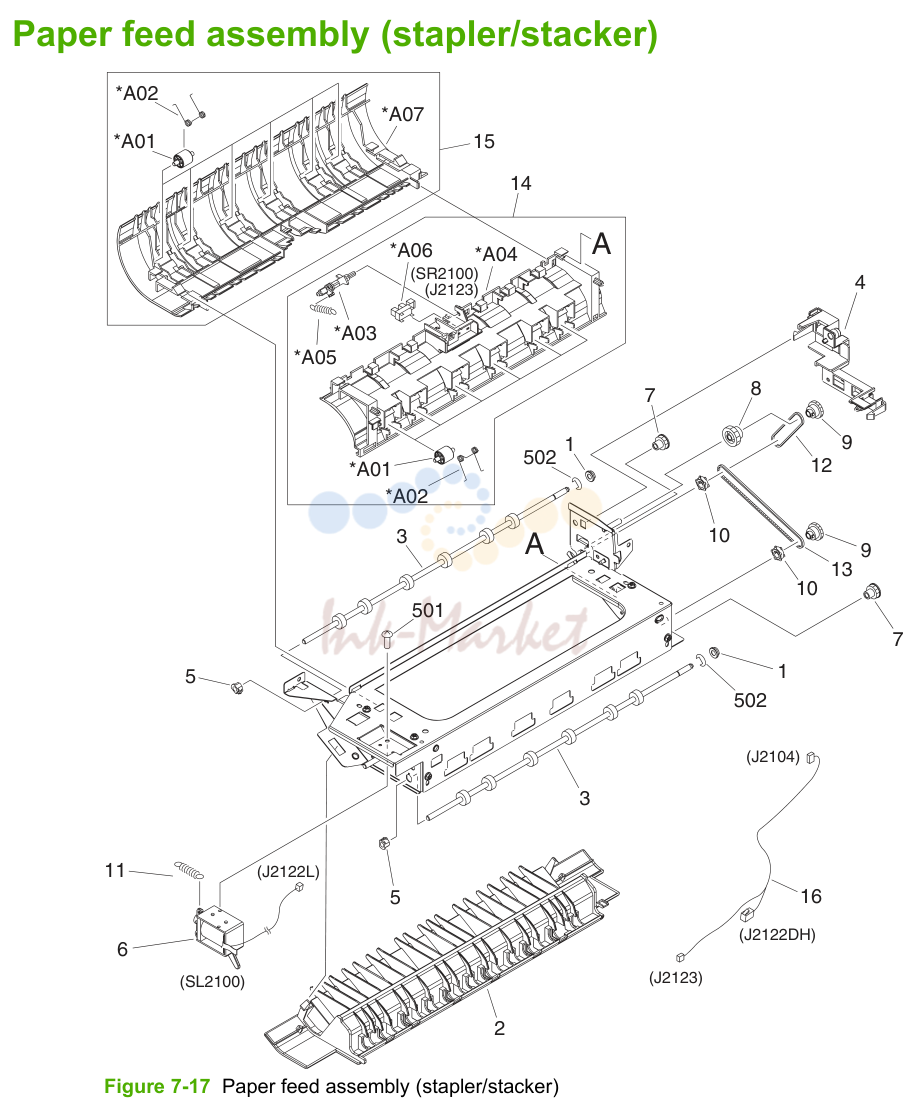

14. Paper feed assembly (stapler/stacker)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Bushing | ||
| 2 | Guide, lower | ||
| 3 | Roller, paper feed | ||
| 4 | Guide, paper feed cable | ||
| 5 | Bushing | ||
| 6 | Solenoid, flapper | ||
| 7 | Gear, 21T | ||
| 8 | Gear, 18T | ||
| 9 | Gear, 27T | ||
| 10 | Pulley | ||
| 11 | Spring, compression | ||
| 12 | Belt, timing | ||
| 13 | Belt, timing | ||
| 14 | Upper guide assembly, | ||
| 15 | Upper guide assembly, | ||
| 16 | Cable, paper feed unit | ||
| 501 | Screw, TP, M3X4 | ||
| 502 | Ring, E |

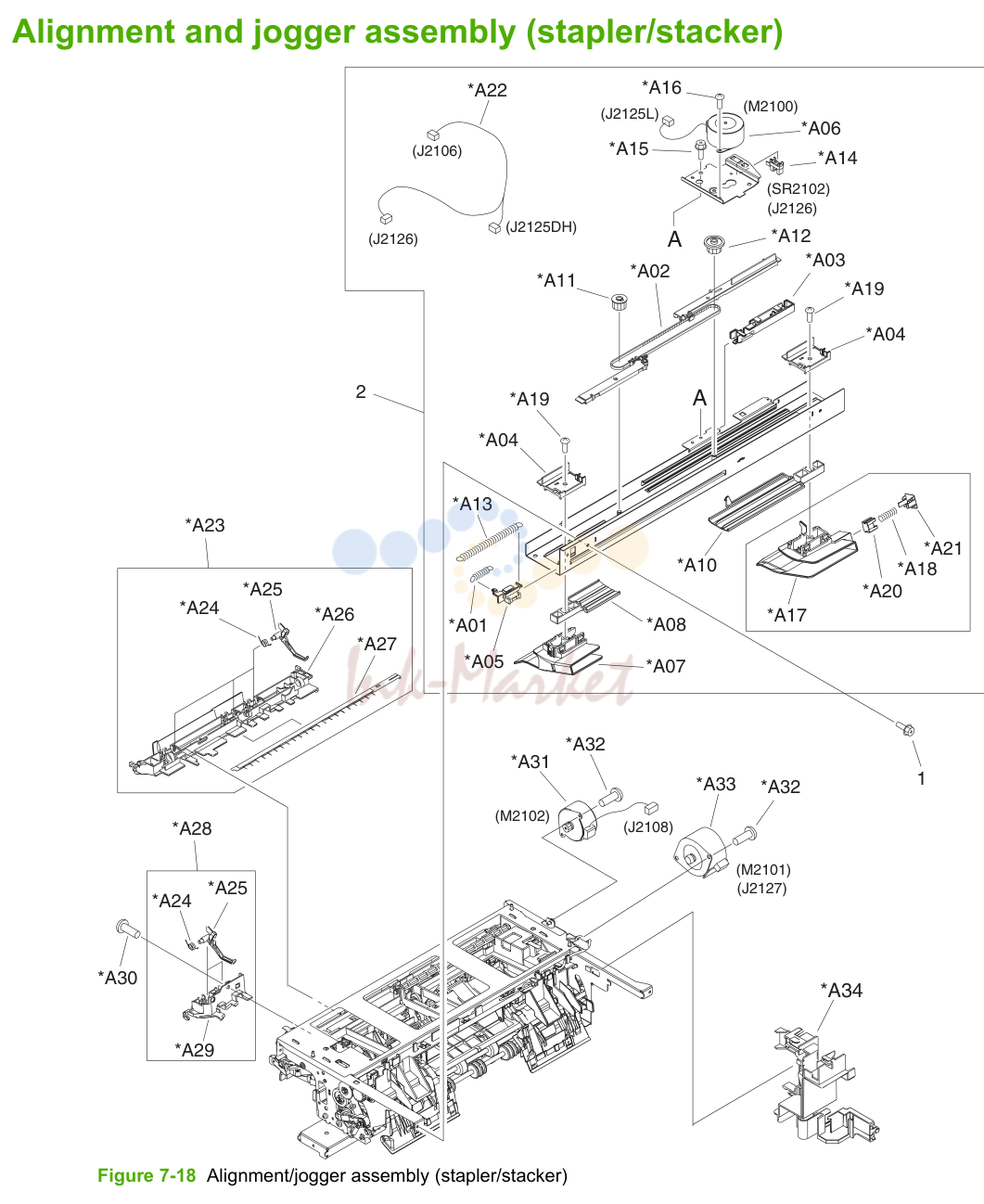

15. Alignment and jogger assembly (stapler/stacker)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Cover, facedown, top RC1-82220-000CN | ||
| 2 | RC1-8221-000CN запросить цену → | Cover, front | |
| 3 | RC1-8223-000CN запросить цену → | Cover, rear | |
| 4 | RC1-8224-000CN запросить цену → | Cover, formatter | |
| 5 | Cover, rear inner, right | ||
| 6 | RC1-8225-000CN запросить цену → | Cover, left, rear | |
| 7 | RC1-8226-000CN запросить цену → | Cover, right, rear | |
| 8 | RC1-8227-000CN запросить цену → | Cover, left, upper | |
| 9 | RC1-8228-000CN запросить цену → | Cover, left, lower | |
| 10 | Cover, inner, front | ||
| 11 | RC1-8231-000CN запросить цену → | Cover, facedown side | |
| 12 | Cover, rear inner, left | ||
| 13 | RC1-8233-000CN запросить цену → | Cover, top | |
| 14 | RC1-8235-000CN запросить цену → | Cover, duplexing blanking | |
| 15 | RC1-8236-000CN запросить цену → | Cover, grip, right | |
| 16 | RC1-8327-000CN запросить цену → | Cover, inner top | |
| 17 | RM1-2990-000CN запросить цену → | Left door assembly | |
| 18 | RM1-2991-000CN запросить цену → | Right door assembly | |
| 19 | RC1-8137-000CN запросить цену → | Tray, sub |

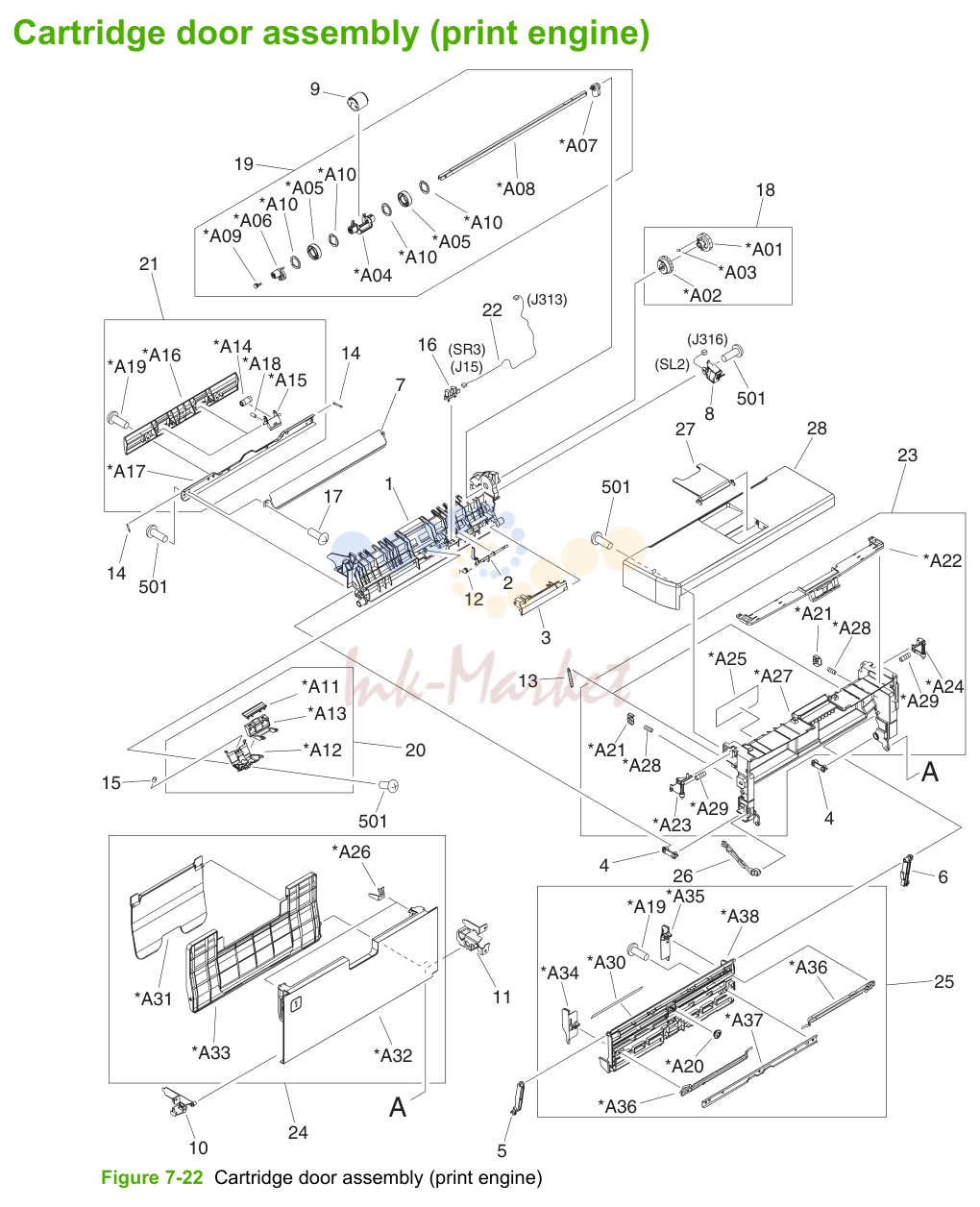

16. Cartridge door assembly (print engine)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Guide, paper feed | ||
| 2 | Lever, multipurpose sensor | ||
| 3 | Cover, sensor | ||
| 4 | Rod, main frame | ||
| 5 | Arm, multipurpose, left | ||
| 6 | Arm, multipurpose, right | ||
| 7 | Cover, roller holder | ||
| 8 | Solenoid | ||
| 9 | RL1-0915-000CN запросить цену → | Roller, multipurpose paper pickup | |
| 10 | Hinge, cartridge door, front | ||
| 11 | Hinge, cartridge door, rear | ||
| 12 | Spring, torsion | ||
| 13 | RU5-2548-000CN запросить цену → | Spring, tension | |
| 14 | Spring, tension | ||
| 15 | RU5-2553-000CN запросить цену → | Spring, compression | |
| 16 | WG8-5696-000CN запросить цену → | Photo interrupter, TLP1 | |
| 17 | Screw, D, M3X6 | ||
| 18 | Pick gear assembly | ||
| 19 | Paper pickup shaft assembly | ||
| 20 | RM1-2462-000CN запросить цену → | Multipurpose pad assembly | |
| 21 | Roller assembly | ||
| 22 | Cable, sensor | ||
| 23 | RM1-2985-000CN запросить цену → | Cartridge door base assembly | |
| 24 | RM1-2986-000CN запросить цену → | Multipurpose (Tray 1) cover assembly | |
| 25 | Multipurpose tray assembly | ||
| 26 | RC1-8021-000CN запросить цену → | Stopper, cartridge door | |
| 27 | Tray, facedown extension | ||
| 28 | Cover, cartridge | ||
| 501 | Screw, tapping, truss head, M4X10 |

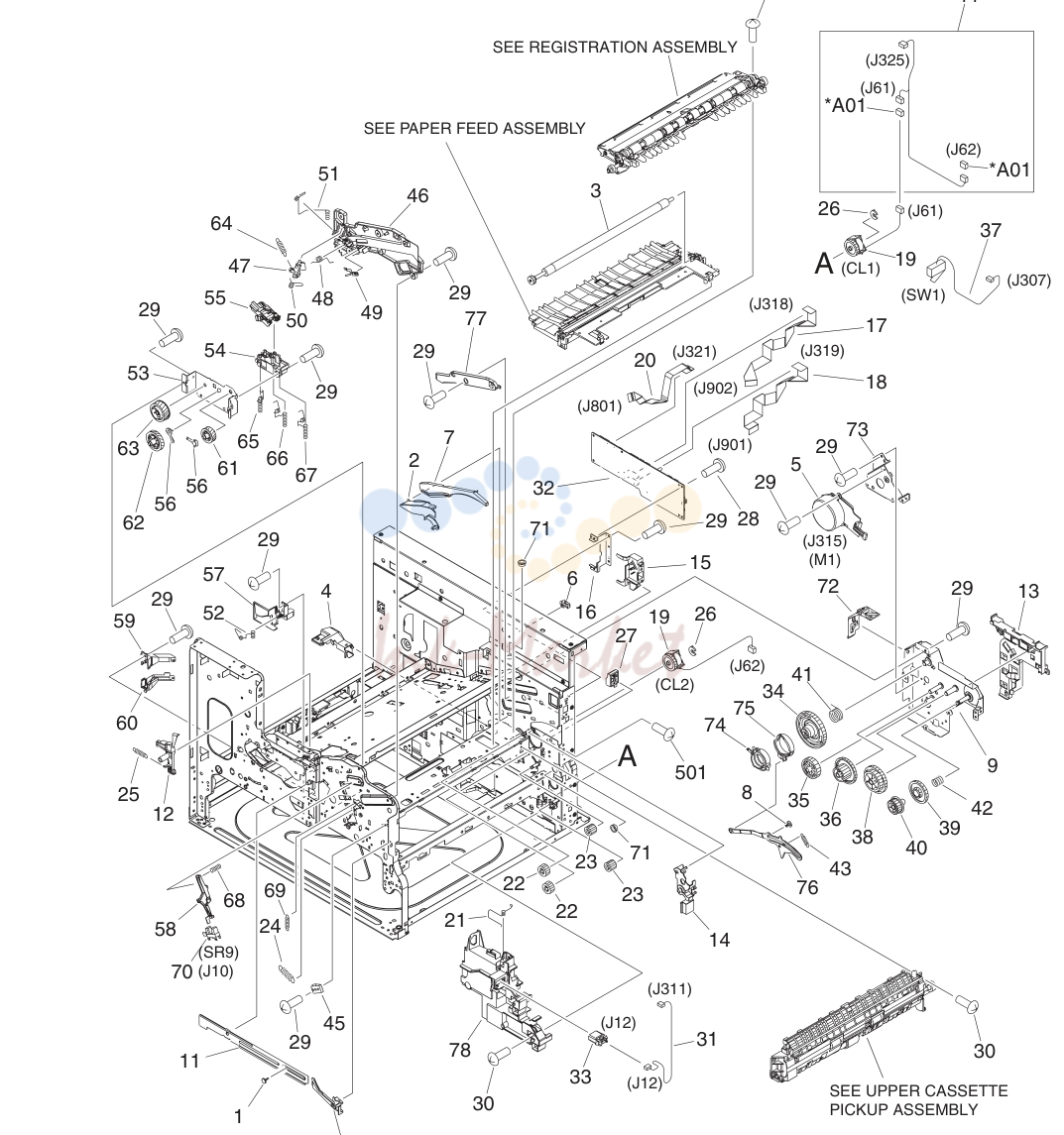

17. Internal components (print engine 1 of 3)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | RC1-3090-000CN запросить цену → | Stopper, busing arm | |
| 2 | RC1-7019-000CN запросить цену → | Cover, gear, right upper | |
| 3 | RM1-2485-000CN запросить цену → | Roller, transfer | |
| 4 | RC1-7141-000CN запросить цену → | Cap, paper feed guide | |
| 5 | RM1-2516-000CN запросить цену → | Main motor assembly | |
| 6 | Clip, cable | ||
| 7 | RC1-7286-000CN запросить цену → | Guide, cartridge, right lower | |
| 8 | RC1-7288-000CN запросить цену → | Stopper, link | |
| 9 | RL1-0951-000CN запросить цену → | Plate, gear | |
| 10 | RC1-8022-000CN запросить цену → | Guide, cartridge door stopper | |
| 11 | Link, fuser drive release | ||
| 12 | RC1-8032-000CN запросить цену → | Lever, fuser shutter | |
| 13 | Guide, cable | ||
| 14 | RC1-8164-000CN запросить цену → | Cover, gear, rear | |
| 15 | RC1-8165-000CN запросить цену → | Mount, interlock guide | |
| 16 | Support, DC controller | ||
| 17 | RK2-1053-000CN запросить цену → | Cable, flexible flat, 21P | |
| 18 | RK2-1055-000CN запросить цену → | Cable, flexible flat, 23P | |
| 19 | RK2-1281-000CN запросить цену → | Clutch, electromagnetic | |
| 20 | RK2-1283-000CN запросить цену → | Cable, flexible flat, 15P | |
| 21 | RC1-8052-000CN запросить цену → | Spring, grounding | |
| 22 | RU5-0564-000CN запросить цену → | Gear, 14T | |
| 23 | RU5-0553-000CN запросить цену → | Gear, 15T | |
| 24 | RU5-2660-000CN запросить цену → | Spring, tension | |
| 25 | RU5-2663-000CN запросить цену → | Spring, tension | |
| 26 | RC1-8358-000CN запросить цену → | Ring, E | |
| 27 | Holder, stopper | ||
| 28 | Screw, tap, M3X6 | ||
| 29 | Screw, D, M3X6 | ||
| 30 | Screw, M3X8 | ||
| 31 | Cable, duplexing interface | ||
| 32 | RM1-3459-000CN запросить цену → | DC controller PCA assembly | |
| 33 | VS1-7258-007CN запросить цену → | Connector, drawer | |
| 34 | RU5-0546-000CN запросить цену → | Gear, 133T | |
| 35 | RU5-0547-000CN запросить цену → | Gear, 73T | |
| 36 | RU5-0548-000CN запросить цену → | Gear, 96T/52T | |
| 37 | RM1-3474-000CN запросить цену → | Switch, fuser door | |
| 38 | RU5-0549-000CN запросить цену → | Gear, 99T/40T | |
| 39 | RU5-0550-000CN запросить цену → | Gear, 43T | |
| 40 | RU5-0551-000CN запросить цену → | Gear, 26T | |
| 41 | RU5-2630-000CN запросить цену → | Spring, compression | |
| 42 | RU5-2631-000CN запросить цену → | Spring, compression | |
| 43 | RU5-2632-000CN запросить цену → | Spring, tension | |
| 44 | Cable, feed clutch extension | ||
| 45 | RC1-7021-000CN запросить цену → | Plate, grounding | |
| 46 | RC1-7121-000CN запросить цену → | Guide, cartridge, left | |
| 47 | RC1-7122-000CN запросить цену → | Paddle | |
| 48 | RC1-7123-000CN запросить цену → | Spring, torsion | |
| 49 | RC1-7124-000CN запросить цену → | Spring, grounding | |
| 50 | RC1-7125-000CN запросить цену → | Spring, torsion | |
| 51 | RC1-7126-000CN запросить цену → | Spring, compression | |
| 52 | RC1-7127-000CN запросить цену → | Spring, compression | |
| 53 | RC1-7129-000CN запросить цену → | Side plate, transfer drive | |
| 54 | RC1-7241-000CN запросить цену → | Holder, contact | |
| 55 | RC1-7265-000CN запросить цену → | Cover | |
| 56 | RC1-7443-000CN запросить цену → | Bushing | |
| 57 | RC1-8026-000CN запросить цену → | Holder, spring | |
| 58 | RC1-8034-000CN запросить цену → | Arm, lock | |
| 59 | RC1-8344-000CN запросить цену → | Duct, high-voltage, upper | |
| 60 | RC1-8345-000CN запросить цену → | Duct, high-voltage, lower | |
| 61 | RU5-0537-000CN запросить цену → | Gear, 25T | |
| 62 | RU5-0538-000CN запросить цену → | Gear, 35T | |
| 63 | RU5-0539-000CN запросить цену → | Gear, 33T | |
| 64 | RU5-2575-000CN запросить цену → | Spring, tension | |
| 65 | RU5-2587-000CN запросить цену → | Spring, compression | |
| 66 | RU5-2588-000CN запросить цену → | Spring, compression | |
| 67 | RU5-2589-000CN запросить цену → | Spring, compression | |
| 68 | RU5-2590-000CN запросить цену → | Spring, compression | |
| 69 | RU5-2591-000CN запросить цену → | Spring, tension | |
| 638 | Chapter 7 Parts and diagrams ENWW | ||
| 70 | WG8-5696-000CN запросить цену → | Photo interrupter, TL1 | |
| 71 | Bushing | ||
| 72 | Guide, high voltage FFC | ||
| 73 | Plate, motor | ||
| 74 | RC1-7283-000CN запросить цену → | Bushing | |
| 75 | RC1-7284-000CN запросить цену → | Cam | |
| 76 | RC1-7285-000CN запросить цену → | Lever, coupling | |
| 77 | RC1-7287-000CN запросить цену → | Guide, cartridge, right upper | |
| 78 | RC1-8046-000CN запросить цену → | Guide, rear | |
| 501 | XB4-7401-005CN запросить цену → | Screw, tapping, truss head, M4X | |
| 46 | DRIVE ASSEMBLY | ||
| 24 | 61 13 2 SEE LOWER CASSETTE | ||
| 24 | PICKUP ASSEMBLY | ||
| 640 | Chapter 7 Parts and diagrams ENWW | ||
| 1 | RM1-2555-000CN запросить цену → | Laser scanner assembly (print engine) | |
| 2 | RC1-7163-000CN запросить цену → | Shutter, fuser | |
| 3 | Guide, laser FFC | ||
| 4 | RC1-7289-000CN запросить цену → | Link, tag | |
| 5 | RC1-7436-000CN запросить цену → | Shaft, fuser shutter | |
| 6 | RC1-7451-000CN запросить цену → | Lever, shutter | |
| 7 | Cover, shutter lever | ||
| 8 | RC1-8058-000CN запросить цену → | Link, fuser sensing, small | |
| 9 | Block, cartridge | ||
| 10 | RC1-8069-000CN запросить цену → | Plate, scanner duct | |
| 11 | Duct, scanner | ||
| 12 | Guide, cable | ||
| 13 | RC1-8328-000CN запросить цену → | Duct, scanner, lower | |
| 14 | RC1-8329-000CN запросить цену → | Cam, shutter | |
| 15 | RC1-8330-000CN запросить цену → | Lever, pushing | |
| 16 | RC1-8331-000CN запросить цену → | Spacer, slide | |
| 17 | RC1-8332-000CN запросить цену → | Cam, slide | |
| 18 | RC1-8333-000CN запросить цену → | Ring, spacer | |
| 19 | RC1-8334-000CN запросить цену → | Spring, torsion | |
| 20 | RC1-8335-000CN запросить цену → | Spring, torsion | |
| 21 | RU5-2633-000CN запросить цену → | Spring, compression | |
| 22 | RU5-2651-000CN запросить цену → | Spring, tension | |
| 23 | WG8-5696-000CN запросить цену → | Photo interrupter, TLP1 | |
| 24 | Screw, D, M3X6 | ||
| 25 | RM1-2999-000CN запросить цену → | Tag holder assembly | |
| 26 | Cable, memory contact | ||
| 27 | Guide, scanner cable | ||
| 28 | Holder, front fan | ||
| 29 | Guide, cable | ||
| 30 | RC1-8059-000CN запросить цену → | Link, fuser sensing | |
| 31 | RC1-8060-000CN запросить цену → | Lever, fuser sensing switch | |
| 32 | RC1-8078-000CN запросить цену → | Spring, torsion | |
| 33 | Cover, interlock | ||
| 34 | Cross member, handle | ||
| 35 | Guide, cable | ||
| 36 | Support, DC controller | ||
| 37 | Holder, rear fan | ||
| 38 | Holder, rear fan | ||
| 39 | Plate, FFC shield | ||
| 40 | RU5-2683-000CN запросить цену → | Spring, compression | |
| 41 | Screw, tap, M3X6 | ||
| 42 | RM1-2994-000CN запросить цену → | Power supply assembly (110-127 V) | |
| 42 | RM1-3006-000CN запросить цену → | Power supply assembly (220-240 V) | |
| 43 | Shield, rear fan grounding | ||
| 44 | RK2-1284-000CN запросить цену → | Fan, rear | |
| 45 | RK2-1285-000CN запросить цену → | Fan, front | |
| 46 | Guide, cable | ||
| 47 | RC1-8039-000CN запросить цену → | Lock, pressure release, front | |
| 48 | Sheet, drawer protective | ||
| 49 | RC1-8075-000CN запросить цену → | Lever, drive release | |
| 50 | Guide, cable | ||
| 51 | RM1-2962-000CN запросить цену → | Paper delivery drive assembly | |
| 52 | Holder, floating connector | ||
| 53 | Connector, drawer VS1-7258-0007CN | ||
| 54 | Clip, cable | ||
| 55 | Foot assembly | ||
| 56 | RM1-2995-000CN запросить цену → | Connecting PCA assembly | |
| 57 | Lever, tag lock | ||
| 58 | Spring, compression | ||
| 59 | Cable, heater | ||
| 60 | Cable, multi-scanner | ||
| 61 | RM1-3471-000CN запросить цену → | Switch, cartridge door | |
| 62 | Cable, facedown drive | ||
| 63 | Cable, delivery option | ||
| 64 | Cable, feeder | ||
| 65 | Cable, cassette lift | ||
| 66 | Connector, snap tight | ||
| 67 | Cable, scanner power | ||
| 68 | Cable, cartridge sensor | ||
| 642 | Chapter 7 Parts and diagrams ENWW | ||
| 69 | Screw, M3X8 | ||
| 70 | Plate, reinforcement | ||
| 501 | Screw, tap, binding head, M3X8 | ||
| 32 | (J26) SEE LIFTER | ||
| 5 | *A16 DRIVE ASSEMBLY | ||
| 644 | Chapter 7 Parts and diagrams ENWW | ||
| 1 | Cam, pad return, upper | ||
| 2 | Holder, sensor | ||
| 3 | Plate, frame auxiliary | ||
| 4 | WG8-5696-000CN запросить цену → | Photo interrupter, TLP1 | |
| 5 | Screw, D, M3X6 | ||
| 6 | Cable, feed sensor | ||
| 7 | RM1-2970-000CN запросить цену → | Left cassette rail assembly | |
| 8 | RM1-2971-000CN запросить цену → | Right cassette rail assembly | |
| 9 | RC1-7264-000CN запросить цену → | Plate, cross member auxiliary | |
| 10 | RC1-7268-000CN запросить цену → | Holder, top sensor | |
| 11 | RC1-8027-000CN запросить цену → | Guide, duplexer, front | |
| 12 | RC1-8035-000CN запросить цену → | Holder, cassette, right front | |
| 13 | RC1-8036-000CN запросить цену → | Holder, cassette, left front | |
| 14 | RC1-8038-000CN запросить цену → | Cam, pad return, lower | |
| 15 | RC1-8048-000CN запросить цену → | Guide, duplexer, rear | |
| 16 | Guide, path, lower | ||
| 17 | Holder, power supply link guide | ||
| 18 | Joint, power supply switch | ||
| 19 | Link, power supply switch | ||
| 20 | Rod, power switch | ||
| 21 | Spring, torsion | ||
| 22 | RU5-2596-000CN запросить цену → | Spring, torsion | |
| 23 | RC1-7144-000CN запросить цену → | Flag, loop sensor | |
| 24 | RC1-7145-000CN запросить цену → | Spring, torsion | |
| 25 | RM1-2957-000CN запросить цену → | High voltage power supply assembly (110-127 V) | |
| 25 | RM1-2958-000CN запросить цену → | High voltage power supply assembly (220-240 V) | |
| 26 | Screw, M3X8 | ||
| 27 | RM1-2968-000CN запросить цену → | Back end sensor assembly | |
| 28 | Right lower handle assembly | ||
| 29 | Plate, cassette positioning | ||
| 30 | RC1-7249-000CN запросить цену → | Bushing | |
| 31 | RC1-7261-000CN запросить цену → | Flag, top sensor | |
| 32 | Holder, cassette, rear | ||
| 33 | Lock, pressure release, rear | ||
| 34 | Support, high voltage, left | ||
| 35 | Support, high voltage, right | ||
| 501 | Screw, tapping, truss head, M4X10 | ||
| 646 | Chapter 7 Parts and diagrams ENWW |
18. Paper delivery assembly (print engine)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Spring, grounding | ||
| 2 | Plate, photosensor grounding | ||
| 3 | Switch, push | ||
| 4 | WG8-5696-000CN запросить цену → | Photo interrupter, TLP1 | |
| 5 | Cable, cassette size |
19. Fuser drive assembly (print engine)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Guide, cassette lock | ||
| 2 | Cover, cassette, upper | ||
| 3 | Cam, remnant, upper | ||
| 4 | Cover, back end sensing, upper | ||
| 5 | Lever, remnant detect, upper | ||
| 6 | Rail, attachment, left | ||
| 7 | Roller, cassette rail | ||
| 8 | Rail, attachment, right | ||
| 9 | Slider, back end limit | ||
| 10 | Cam, back end sensing | ||
| 11 | Lever, back end sensing | ||
| 12 | Arm, lift | ||
| 13 | Cam, lift arm | ||
| 14 | Cap, lift arm cam | ||
| 15 | Slider, lifter arm | ||
| 16 | Spring, grounding | ||
| 17 | Spring, compression | ||
| 18 | Link, back end sensing switch | ||
| 19 | Shaft, back end sensing link | ||
| 20 | Cover, width sensing | ||
| 21 | Cam, width sensing | ||
| 22 | Bushing | ||
| 23 | Plate, lifter | ||
| 24 | Plate, cassette support | ||
| 25 | Rack, lifter | ||
| 26 | Gear, 14T | ||
| 27 | Gear, 17T | ||
| 28 | Spring, tension | ||
| 29 | Label, cassette control, UP | ||
| 30 | Screw, M3X8 | ||
| 31 | Ring, E | ||
| 32 | Back end limit assembly | ||
| 33 | Front paper side end assembly | ||
| 34 | Rear paper side end assembly | ||
| 35 | RM1-2983-000CN запросить цену → | Separation block assembly | |
| 36 | Separation roller assembly | ||
| 37 | Holder, remnant, upper | ||
| 38 | Spring, compression | ||
| 39 | Spring, tension | ||
| 501 | Screw, tapping, truss head, M4X10 | ||
| 502 | Plain washer | ||
| 503 | Plain washer | ||
| 660 | Chapter 7 Parts and diagrams ENWW |
20. Lower cassette (print engine)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Guide, cassette lock | ||
| 2 | Cover, cassette, lower | ||
| 3 | Cam, remnant, lower | ||
| 4 | Cover, back end sensing | ||
| 5 | Lever, remnant detect, lower | ||
| 6 | Rail, attachment, left | ||
| 7 | Roller, cassette rail | ||
| 8 | Rail, attachment, right | ||
| 9 | Slider, back end limit | ||
| 10 | Cam, back end sensing | ||
| 11 | Lever, back end sensing | ||
| 12 | Arm, lift | ||
| 13 | Cam, lift arm | ||
| 14 | Cap, lift arm cam | ||
| 15 | Slider, lifter arm | ||
| 16 | Spring, grounding | ||
| 17 | Spring, compression | ||
| 18 | Link, back end sensing switch | ||
| 19 | Shaft, back end sensing link | ||
| 20 | Cover, width sensing | ||
| 21 | Cam, width sensing | ||
| 22 | Bushing | ||
| 23 | Plate, lifter | ||
| 24 | Plate, cassette support | ||
| 25 | Rack, lifter | ||
| 26 | Gear, 14T | ||
| 27 | Gear, 17T | ||
| 28 | Spring, tension | ||
| 29 | Label, cassette control, lower | ||
| 30 | Screw, M3X8 | ||
| 31 | Ring, E | ||
| 32 | Back end limit assembly | ||
| 33 | Front paper side end assembly | ||
| 34 | Rear paper side end assembly | ||
| 35 | RM1-2983-000CN запросить цену → | Separation block assembly | |
| 36 | Separation roller assembly | ||
| 37 | Holder, remnant, lower | ||
| 38 | Spring, compression | ||
| 39 | Spring, tension | ||
| 501 | Screw, tapping, truss head, M4X10 | ||
| 502 | Plain washer | ||
| 503 | Plain washer | ||
| 664 | Chapter 7 Parts and diagrams ENWW |
21. Upper cassette pickup assembly (print engine)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Cable, cassette sensor, upper | ||
| 2 | Guide, paper re-pick up | ||
| 3 | Lever, paper sensor | ||
| 4 | Bushing | ||
| 5 | Bushing | ||
| 6 | WG8-5696-000CN запросить цену → | Photo interrupter, TLP1 | |
| 7 | Ring, E | ||
| 8 | RM1-2988-000CN запросить цену → | Paper pickup roller assembly | |
| 501 | Screw, tapping, truss head, M4X10 |
22. Lower cassette pickup assembly (print engine)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Support, frame, lower | ||
| 2 | Plate, sensor grounding | ||
| 3 | Lever, paper sensor | ||
| 4 | Bushing | ||
| 5 | Bushing | ||
| 6 | WG8-5696-000CN запросить цену → | Photo interrupter, TLP1 | |
| 7 | RM1-2998-000CN запросить цену → | Paper pickup roller assembly | |
| 8 | Cable, cassette sensor, lower | ||
| 501 | Screw, tapping, truss head, M4X10 |
23. Registration assembly (print engine)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | RM1-3459-000CN запросить цену → | DC controller PCA assembly | |
| 2 | RM1-2957-000CN запросить цену → | High-voltage PCA assembly (110V-127V) | |
| 2 | RM1-2958-000CN запросить цену → | High-voltage PCA assembly (220V-240V) | |
| 3 | RM1-2994-000CN запросить цену → | Low-voltage PCA assembly (110V-127V) | |
| 3 | RM1-3006-000CN запросить цену → | Low-voltage PCA assembly (220V-240V) |
24. Fuser (print engine)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Spring, compression | ||
| 2 | Spring, torsion | ||
| 3 | Guide, separation, upper | ||
| 4 | Roller, face-up paper delivery | ||
| 5 | Lever, paper delivery sensor | ||
| 6 | Bushing | ||
| 7 | Bushing | ||
| 8 | Guide, reverse | ||
| 9 | Guide, fuser entrance | ||
| 10 | Holder, fuser cable | ||
| 11 | Holder, fuser cable | ||
| 12 | Cover, fuser drawer | ||
| 13 | Guide, fuser, right | ||
| 14 | Bushing | ||
| 15 | Roller, pressure | ||
| 16 | Ring, conductive rubber | ||
| 17 | Duct, fuser | ||
| 18 | Holder, wrap stopper | ||
| 19 | Arm, wrap stopper | ||
| 20 | Duct, separation, upper | ||
| 21 | Roller, face-up | ||
| 22 | Guide, flapper, left | ||
| 23 | Guide, flapper, right | ||
| 24 | Spring, torsion | ||
| 25 | Spring, torsion | ||
| 26 | Roller, flapper guide | ||
| 27 | Guide, separation, lower | ||
| 28 | Guide, fuser, left | ||
| 29 | Screw, stepped | ||
| 30 | Gear, 29T | ||
| 31 | Gear, 18T/16T | ||
| 32 | Gear, 16T | ||
| 33 | Spring, compression | ||
| 34 | Spring, compression | ||
| 35 | Spring, compression | ||
| 36 | IC, photo interrupter | ||
| 37 | Screw, D, M3X6 | ||
| 38 | Film guide assembly | ||
| 39 | Rib, separation duct, upper | ||
| 40 | Cable, fuser DC | ||
| 41 | Screw, TP, M4X6 | ||
| 42 | Label, high temperature caution | ||
| 43 | Cable, fuser drawer grounding | ||
| 501 | Screw, w/washer, M3X6 | ||
| 502 | Screw, tapping, truss head, M4X10 | ||
| 682 | Chapter 7 Parts and diagrams ENWW |
25. Fuser pressure release assembly (print engine)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Frame, pressure release | ||
| 2 | Cam, intermediate guide | ||
| 3 | Plate, fixed, front | ||
| 4 | Plate, fixed, rear | ||
| 5 | Cam, pressure release, front | ||
| 6 | Cam, pressure release, rear | ||
| 7 | Arm, pressure release, front | ||
| 8 | Arm, pressure release, rear | ||
| 9 | Link, pressure release | ||
| 10 | Lever, front | ||
| 11 | Lever, rear | ||
| 12 | Spring, torsion | ||
| 13 | Spring, torsion | ||
| 14 | Spring, compression | ||
| 15 | Intermediate guide assembly | ||
| 501 | Screw, tapping, truss head, M4X10 |
26. High capacity input (HCI) 1X500 feeder main body
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | RC1-9882-000CN запросить цену → | Stopper, right door | |
| 2 | RC2-0151-000CN запросить цену → | Cover, rear | |
| 3 | RC2-0152-000CN запросить цену → | Cover, right lower | |
| 4 | RC2-0153-000CN запросить цену → | Cover, left lower | |
| 5 | RC2-0160-000CN запросить цену → | Link, right door | |
| 6 | RC2-0161-000CN запросить цену → | Cover, right front | |
| 7 | RC2-0162-000CN запросить цену → | Cover, front upper | |
| 8 | RC2-0163-000CN запросить цену → | Cover, left | |
| 9 | RC2-0170-000CN запросить цену → | Link, right door, upper | |
| 10 | RC2-0181-000CN запросить цену → | Door, stock | |
| 11 | Box, stock | ||
| 12 | RC2-0183-000CN запросить цену → | Cover, stock box | |
| 13 | RK2-1331-000CN запросить цену → | Motor, stepping, DC | |
| 14 | Screw, stepped | ||
| 15 | Support, PCA | ||
| 16 | Spacer, reinforcement, right | ||
| 17 | Screw, RS, M4X8 | ||
| 18 | Screw, TP, M3X6 | ||
| 19 | Spacer, reinforcement, left | ||
| 20 | RM1-3825-000CN запросить цену → | Right door assembly | |
| 21 | Cable, paper pickup option | ||
| 22 | RM1-3641-000CN запросить цену → | Paper feed PCA assembly | |
| 23 | Cable, power interface | ||
| 24 | Cable, multi-sensor | ||
| 25 | Screw, w/washer, M5X12 | ||
| 26 | RC1-9231-000CN запросить цену → | Roller, rail | |
| 27 | RC1-9917-000CN запросить цену → | Caster, rear | |
| 28 | RC2-0134-000CN запросить цену → | Caster, front | |
| 29 | RC2-0167-000CN запросить цену → | Holder, drawer | |
| 30 | RC2-0169-000CN запросить цену → | Stopper, right door link upper | |
| 31 | RL1-1391-000CN запросить цену → | Rail, cassette, left | |
| 32 | RL1-1390-000CN запросить цену → | Rail, cassette, right | |
| 501 | Screw, w/washer, M3X6 |
27. High capacity input (HCI) 3X500 feeder main body
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | RC1-9882-000CN запросить цену → | Stopper, right door | |
| 2 | RC2-0151-000CN запросить цену → | Cover, rear | |
| 3 | RC2-0152-000CN запросить цену → | Cover, right lower | |
| 4 | RC2-0153-000CN запросить цену → | Cover, left lower | |
| 5 | RC2-0160-000CN запросить цену → | Link, right door | |
| 6 | RC2-0161-000CN запросить цену → | Cover, right front | |
| 7 | RC2-0162-000CN запросить цену → | Cover, front upper | |
| 8 | RC2-0163-000CN запросить цену → | Cover, left | |
| 9 | RC2-0170-000CN запросить цену → | Link, right door, upper | |
| 10 | Cable, option interface | ||
| 11 | Spacer, reinforcement, left | ||
| 12 | Spacer, reinforcement, right | ||
| 13 | RK2-1331-000CN запросить цену → | Motor, stepping, DC | |
| 14 | Screw, stepped | ||
| 15 | Support, PCA | ||
| 16 | Saddle, wire | ||
| 17 | Screw, RS, M4X8 | ||
| 18 | Screw, TP, M3X6 | ||
| 19 | Plate, number indication | ||
| 20 | RM1-3824-000CN запросить цену → | Right door assembly | |
| 21 | Cable, paper pickup option | ||
| 22 | RM1-3641-000CN запросить цену → | Paper feed PCA assembly | |
| 23 | Cable, power interface | ||
| 24 | Cable, multi-sensor | ||
| 25 | Cable, door open switch | ||
| 26 | RC1-9231-000CN запросить цену → | Roller, rail | |
| 27 | RC1-9917-000CN запросить цену → | Caster, rear | |
| 28 | RC2-0134-000CN запросить цену → | Caster, front | |
| 29 | RC2-0167-000CN запросить цену → | Holder, drawer | |
| 30 | RC2-0169-000CN запросить цену → | Stopper, right door link upper | |
| 31 | Plate, switch cover | ||
| 32 | RL1-1390-000CN запросить цену → | Rail, cassette, right | |
| 33 | RL1-1391-000CN запросить цену → | Rail, cassette, left | |
| 34 | WC2-5512-000CN запросить цену → | Switch, bottom | |
| 35 | Screw, w/washer, M5X12 | ||
| 36 | Screw, w/washer, M5X12 | ||
| 501 | Screw, w/washer, M3X6 | ||
| 692 | Chapter 7 Parts and diagrams ENWW |
28. Lifter drive assembly (HCI)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Gear, 20T | ||
| 2 | Roller, cassette | ||
| 3 | Guide, nip | ||
| 4 | Support, lifter arm, | ||
| 5 | Support, lifter arm, | ||
| 6 | Gear, 14T | ||
| 7 | Cover, cassette, front | ||
| 8 | Cover, back end sensor | ||
| 9 | Spring, grounding | ||
| 10 | Block, length sensor | ||
| 11 | Lever, paper width sensor | ||
| 12 | Arm, lifter | ||
| 13 | Arm, remnant indication | ||
| 14 | Spring, torsion | ||
| 15 | Plate, lifter | ||
| 16 | Arm, pin support lifter | ||
| 17 | Gear, 80T | ||
| 18 | Spring, tension | ||
| 19 | Spring, tension | ||
| 20 | Screw, B, M4X8 | ||
| 21 | Paper side end front assembly | ||
| 22 | Paper side end rear assembly | ||
| 23 | Back end limit assembly | ||
| 501 | Screw |
29. Paper pickup assembly (HCI)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Limiter, torque | ||
| 2 | RL1-1206-000CN запросить цену → | Roller, pickup | |
| 3 | RL1-0037-000CN запросить цену → | Paper feed roller assembly |
