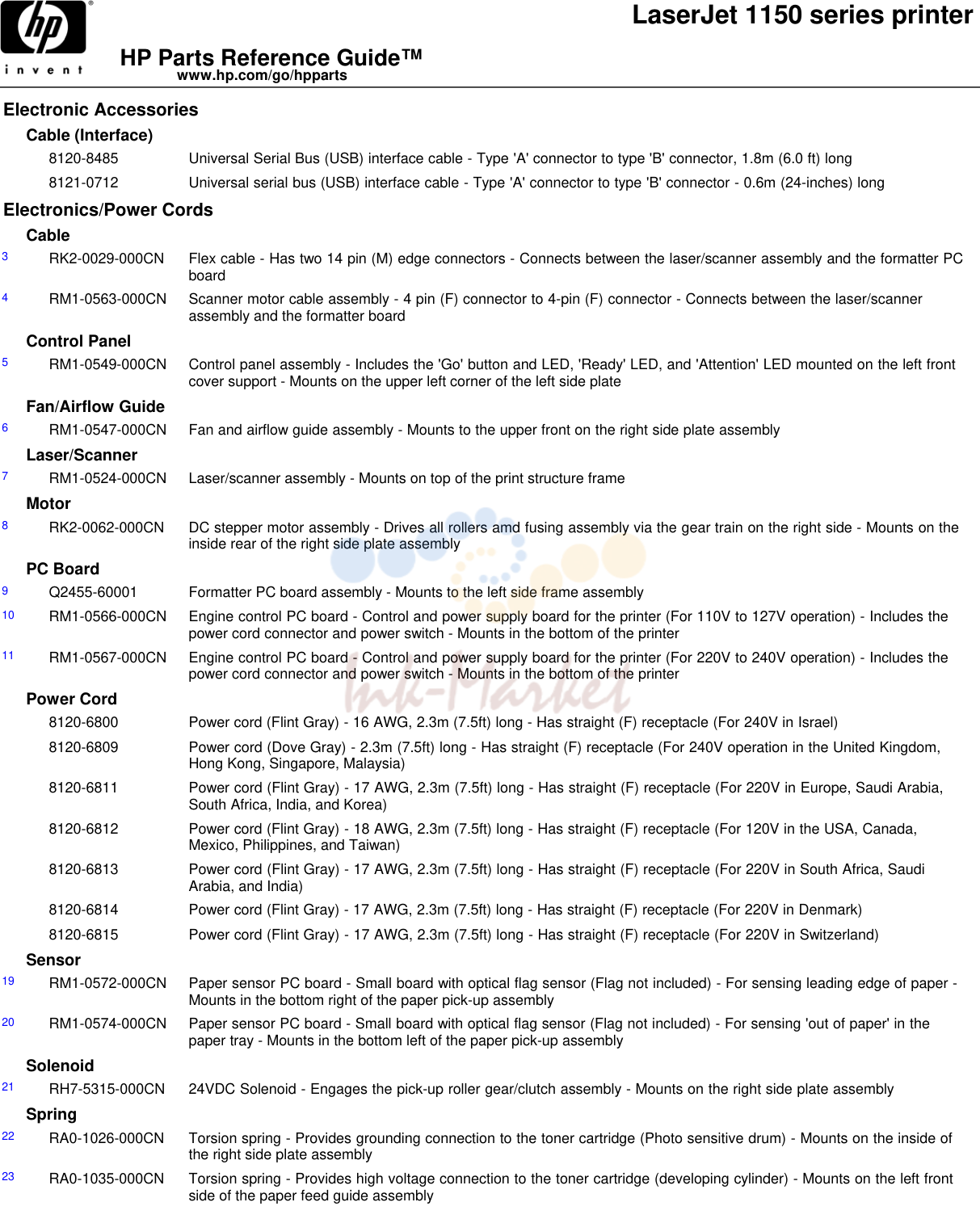

| 3 | RK2-0029-000CN запросить цену → | | Flex cable - Has two 14 pin (M) edge connectors - Connects between the laser/scanner assembly and the formatter PC |
| 4 | RM1-0563-000CN запросить цену → | | Scanner motor cable assembly - 4 pin (F) connector to 4-pin (F) connector - Connects between the laser/scanner |
| 5 | RM1-0549-000CN запросить цену → | | Control panel assembly - Includes the 'Go' button and LED, 'Ready' LED, and 'Attention' LED mounted on the left front |
| 6 | RM1-0547-000CN запросить цену → | | Fan and airflow guide assembly - Mounts to the upper front on the right side plate assembly |
| 7 | RM1-0524-000CN запросить цену → | | Laser/scanner assembly - Mounts on top of the print structure frame |
| 8 | RK2-0062-000CN запросить цену → | | DC stepper motor assembly - Drives all rollers amd fusing assembly via the gear train on the right side - Mounts on the |
| 9 | Q2455-60001 запросить цену → | | Formatter PC board assembly - Mounts to the left side frame assembly |
| 10 | RM1-0566-000CN запросить цену → | | Engine control PC board - Control and power supply board for the printer (For 110V to 127V operation) - Includes the |
| 11 | RM1-0567-000CN запросить цену → | | Engine control PC board - Control and power supply board for the printer (For 220V to 240V operation) - Includes the |
| 19 | RM1-0572-000CN запросить цену → | | Paper sensor PC board - Small board with optical flag sensor (Flag not included) - For sensing leading edge of paper - |
| 20 | RM1-0574-000CN запросить цену → | | Paper sensor PC board - Small board with optical flag sensor (Flag not included) - For sensing 'out of paper' in the |
| 21 | RH7-5315-000CN запросить цену → | 24VDC | Solenoid - Engages the pick-up roller gear/clutch assembly - Mounts on the right side plate assembly |
| 22 | RA0-1026-000CN запросить цену → | | Torsion spring - Provides grounding connection to the toner cartridge (Photo sensitive drum) - Mounts on the inside of |
| 23 | RA0-1035-000CN запросить цену → | | Torsion spring - Provides high voltage connection to the toner cartridge (developing cylinder) - Mounts on the left front |
| 24 | RA0-1200-000CN запросить цену → | | Torsion spring - Provides high voltage connection to the toner cartridge (primary charging roller) - Mounts on the left rear |
| 25 | RC1-1792-000CN запросить цену → | | Torsion spring - Functions as an electrical connection between the engine control board and the transfer roller contact |
| 26 | RC1-1821-000CN запросить цену → | | Front cover - Lower front of printer - With opening for inserting the paper input tray assembly |
| 27 | RC1-1822-000CN запросить цену → | | Right side cover assembly - Has molded-in air intake louvers |
| 28 | RC1-1823-000CN запросить цену → | | Left side printer cover - Covers the USB and LIO port connectors (On the formatter board) |
| 29 | RC1-1852-000CN запросить цену → | | Cover Insert - Covers the unused slot under the right side plate - Mounts to the right side plate |
| 30 | RM1-0544-000CN запросить цену → | | Rear cover assembly - Includes rear cover and fold down face-up (or straight through) paper output tray (Tray is NOT |
| 31 | RM1-0720-000CN запросить цену → | | Top cover assembly - Has face-down paper output tray molded into it |
| 32 | RM1-0543-000CN запросить цену → | | Toner cartridge door - Fold down door used when accessing the toner cartridge - Mounts to the top of the front cover |
| 33 | RA0-1003-000CN запросить цену → | | Rubber foot - Used for the rear feet on the bottom of printer - Mounts on the front bottom frame of the paper pick-up |
| 34 | RA0-1023-000CN запросить цену → | | Connecting link - Connects between the sliding linkage on the left and right side plates and the toner cartridge access |
| 35 | RC1-1813-000CN запросить цену → | | Support pan (case) for the engine controller PC board - Metal pan which also acts as part of the bottom of the printer |
| 36 | RY7-5082-000CN запросить цену → | | Screw kit - Includes nine bags of different size screws - This is a complete set of screws for the LaserJet 1300 series |
| 37 | RM1-0556-020CN запросить цену → | | Face-down delivery assembly - Includes the support frame, drive roller and gear, and the four spring loaded pressure |
| 38 | RM1-0560-000CN запросить цену → | | Fusing assembly - Bonds toner to paper with heat (For 100V to 120V operation) - Mounts in the upper rear of the printer |
| 39 | RM1-0561-000CN запросить цену → | | Fusing assembly - Bonds toner to paper with heat (For 220V to 240V operation) - Mounts in the upper rear of the printer |
| 40 | RA0-1088-000CN запросить цену → | | 29 tooth gear - Mounts on the end of the pressure roller - Largest of the three gears on the fusing assembly |
| 41 | RA0-1090-000CN запросить цену → | | Tension spring - Provides upward tension for the green release lever (2 used) - Mounts in the left and right rear corners |
| 42 | RA0-1099-000CN запросить цену → | | Torsion spring - Provides a small amount of back pressure for the delivery sensor flag - mounts in the rear center of the |
| 43 | RA0-1115-000CN запросить цену → | | Torsion spring - Provides pressure for the lower solid rollers on the face-down paper delivery assembly (2 used) |
| 44 | RA0-1116-000CN запросить цену → | | Torsion spring - Provides pressure for the upper serrated rollers on the face-down paper delivery assembly (2 used) |
| 45 | RU5-2140-000CN запросить цену → | | Compression spring - Provides downward pressure on each end of the fusing roller (2 used) - Mounts in the upper part |
| 49 | RA0-1185-000CN запросить цену → | | Left side fuser bracket ('L' Shaped) - Provides mounting support for the fusing assembly - Mounts to the upper rear |
| 50 | RA0-1186-000CN запросить цену → | | Right side fuser bracket ('L' Shaped) - Provides mounting support for the fusing assembly - Mounts to the upper rear |
| 51 | RM1-0547-000CN запросить цену → | | Fan and airflow guide assembly - Mounts to the upper front on the right side plate assembly |
| 52 | RA0-1176-000CN запросить цену → | | 69 tooth gear - Large gear with ribs and six small holes - Mounts on on a rod in the upper rear corner of the right side |
| 53 | RA0-1016-000CN запросить цену → | | 87 tooth / 23 tooth dual gear assembly - (Reduction gear) Drives the paper feed roller gear - Mounts on the right side |
| 55 | RM1-0682-000CN запросить цену → | | Front guide assembly - Ribbed plastic piece that runs the width of the printer - Mounts to the front of the left and right |
| 56 | RK2-0062-000CN запросить цену → | | DC stepper motor assembly - Drives all rollers amd fusing assembly via the gear train on the right side - Mounts on the |
| 57 | RM1-0528-000CN запросить цену → | | Left plate assembly - Left side of internal printer mechanism - Plate that the formatter PC board mounts to |
| 58 | RM1-0678-000CN запросить цену → | | Right side plate assembly - Includes the right side plate, drive motor, most all drive gears, and cam levers - Does not |
| 59 | RA0-1006-000CN запросить цену → | | Tension spring - Provides tension for the floating gear holder (drive gear for the fusing assembly) - Mounts on the right |
| 60 | RA0-1012-000CN запросить цену → | | Compression Spring - Grounds the pin in the toner cartridge drive gear - Mounts on the right side plate assembly |
| 61 | RA0-1026-000CN запросить цену → | | Torsion spring - Provides grounding connection to the toner cartridge (Photo sensitive drum) - Mounts on the inside of |
| 62 | RA0-1035-000CN запросить цену → | | Torsion spring - Provides high voltage connection to the toner cartridge (developing cylinder) - Mounts on the left front |
| 63 | RA0-1200-000CN запросить цену → | | Torsion spring - Provides high voltage connection to the toner cartridge (primary charging roller) - Mounts on the left rear |
| 64 | RA0-1212-000CN запросить цену → | | Tensoin spring - Provides tension for the linkage which engages the toner cartridge drive gear - Mounts on the right side |
| 65 | RC1-1765-000CN запросить цену → | | Torsion spring - Mounts under the toner cartridge retainer arm on the rear of the left side plate |
| 66 | RM1-0556-020CN запросить цену → | | Face-down delivery assembly - Includes the support frame, drive roller and gear, and the four spring loaded pressure |
| 67 | RM1-0682-000CN запросить цену → | | Front guide assembly - Ribbed plastic piece that runs the width of the printer - Mounts to the front of the left and right |
| 68 | RM1-0721-000CN запросить цену → | | Paper feed guide assembly - Support structure for the tranfer roller - Black plastic frame with metal guide plates and the |
| 69 | RM1-0531-000CN запросить цену → | | Paper pick-up assembly - Includes the pick-up roller, paper feed roller assembly, separation pad, plastic housing and |
| 70 | RL1-0303-000CN запросить цену → | | Paper Pickup Roller ('D' shaped roller) - Picks up media from the paper input tray - Clips in the holder on the paper |
| 71 | RM1-0550-000CN запросить цену → | | Transfer roller assembly - Transfers static charge to the media being printed on - Mounts in the top of the paper feed |
| 72 | RA0-1003-000CN запросить цену → | | Rubber foot - Used for the rear feet on the bottom of printer - Mounts on the front bottom frame of the paper pick-up |
| 73 | RM1-0551-000CN запросить цену → | | Gear/clutch assembly (Solenoid activiated) - Includes the two gear bodies and internal spring - Drives the pickup roller in |
| 74 | RG0-1019-000CN запросить цену → | | Roller and holder assembly - Spring loaded roller in a black plastic holder assembly - Rolls against the paper feed rollers |
| 75 | RM1-0532-000CN запросить цену → | | Lift plate assembly - Quartz Gray plastic plate with two Blue paper width adjusters - Mounts on the top front of the paper |
| 76 | RF0-1014-000CN запросить цену → | | Separation pad assembly - Mounts on a spring loaded arm in the paper pick-up assembly |
| 77 | RM1-0531-000CN запросить цену → | | Paper pick-up assembly - Includes the pick-up roller, paper feed roller assembly, separation pad, plastic housing and |
| 78 | RL1-0303-000CN запросить цену → | | Paper Pickup Roller ('D' shaped roller) - Picks up media from the paper input tray - Clips in the holder on the paper |
| 79 | RM1-0572-000CN запросить цену → | | Paper sensor PC board - Small board with optical flag sensor (Flag not included) - For sensing leading edge of paper - |
| 80 | RM1-0574-000CN запросить цену → | | Paper sensor PC board - Small board with optical flag sensor (Flag not included) - For sensing 'out of paper' in the |
| 81 | RM1-0533-000CN запросить цену → | | Paper pick-up shaft assembly - Includes the shaft, the two cams, pick-up roller holder, and end cap - Mounts in the |
| 82 | RA0-1050-000CN запросить цену → | | Compression spring - Clutch spring - Engages the center gear in the paper feed roller gear/clutch assembly - Mounts on |
| 83 | RA0-1060-000CN запросить цену → | | Compression spring - Provides upward pressure for the separation pad assembly - Mounts in the paper pick-up |
| 84 | RA0-1061-000CN запросить цену → | | Compression Spring - Provides upward pressure for the rear of the lift plate assembly (2 Used) - Mounts on top of the |
| 85 | RC1-1782-000CN запросить цену → | | Torsion spring - Provides a small amount of back pressure for the paper pick-up sensor flag - mounts in the bottom rear |
| 86 | RC1-1792-000CN запросить цену → | | Torsion spring - Functions as an electrical connection between the engine control board and the transfer roller contact |
| 87 | RM1-0544-000CN запросить цену → | | Rear cover assembly - Includes rear cover and fold down face-up (or straight through) paper output tray (Tray is NOT |
| 88 | RM1-0554-000CN запросить цену → | | Paper tray cover assembly - Includes translucent blue plastic cover with blue plastic width adjustment guides for 'priority' |
| 89 | RM1-0553-000CN запросить цену → | | Printer input paper tray assembly - Includes bottom tray, paper length adjustment lever, and extension arm |
