1. For additional service and support
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Toner cartridge door | ||
| 2 | Output bin extension | ||
| 3 | Model name | ||
| 4 | Priority input tray | ||
| 5 | Main input tray | ||
| 6 | Main input tray door | ||
| 7 | Power button | ||
| 8 | Control panel | ||
| 9 | Output bin | ||
| 1 | Rear door (access for clearing jams) | ||
| 2 | USB interface port | ||
| 3 | Ethernet port | ||
| 4 | Power connection | ||
| 5 | Serial number and product number label | ||
| 6 | Slot for cable-type security lock | ||
| 1 | Output bin | ||
| 2 | Toner cartridge door | ||
| 3 | Output bin extension | ||
| 4 | Power button | ||
| 5 | Priority input tray | ||
| 6 | Main input tray | ||
| 7 | Main input tray door | ||
| 8 | Model name | ||
| 9 | Walk-up USB port (for printing and scanning without a computer) | ||
| 10 | Control panel | ||
| 11 | Scanner | ||
| 12 | Document feeder | ||
| 13 | Document feeder input tray | ||
| 1 | Rear door (access for clearing jams) | ||
| 2 | Interface ports | ||
| 3 | Power connection | ||
| 4 | Serial number and product number label | ||
| 5 | Slot for cable-type security lock (on the rear cover of the printer) | ||
| 1 | USB interface port | ||
| 2 | Ethernet port |

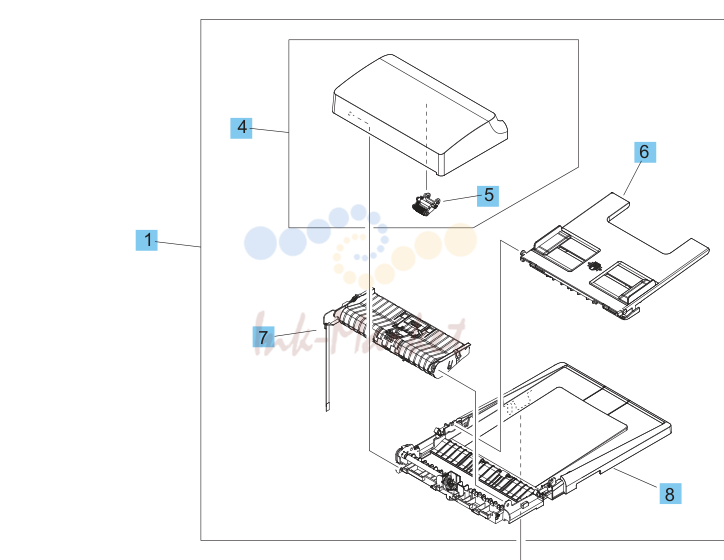

2. 3-in-1 and 4-in-1 scanner assemblies
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Automatic document feeder (M227) RM2-1179-000CN | ||
| 1 | Automatic document feeder (M230) RM2-1664-000CN | ||
| 2 | 4-in-1 запросить цену → | scanner assembly RM2-6989-000CN | |
| 3 | Sheet plate assembly RM2-1185-000CN | ||
| 4 | Cover, document feeder top RM2-1180-000CN | ||
| 5 | Pre-pick arm assembly RM2-1187-000CN | ||
| 6 | Input tray, document feeder (M227) RM2-1181-000CN | ||
| 6 | Input tray, document feeder (M230) RM2-1665-000CN | ||
| 7 | Core assembly, ADF RM2-1184-000CN | ||
| 8 | ADF base RM2-1183-000CN |

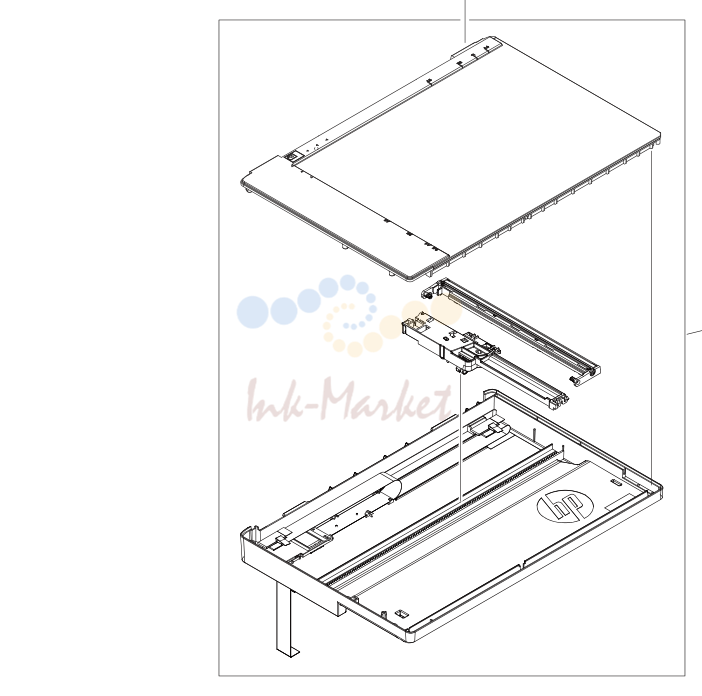

3. 3-in-1 scanner assembly
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Cover, multipurpose (SFP) RL2-5015-000CN | ||
| 2 | Door, duplexing assembly (SFP) RM2-0809-000CN | ||
| 3 | Cover, right (SFP) RC4-8058-000CN | ||
| 4 | Cover, left (SFP) RL2-2925-000CN | ||
| 5 | Door, cartridge (M203; SFP) RL2-5011-000CN | ||
| 5 | Door, cartridge (M206; SFP) RL2-5018-000CN | ||
| 6 | Cover, front assembly (SFP) RM2-0816-000CN | ||
| 7 | Cover, front top assembly (network model) (M203; SFP) RM2-0822-000CN | ||
| 7 | Cover, front top assembly (wireless model) (M203; SFP) RM2-0823-000CN | ||
| 7 | Cover, front top assembly (no LED) (M203; SFP) RM2-2082-000CN | ||
| 7 | Cover, front top assembly (network model) (M206; SFP) RM2-2083-000CN | ||
| 7 | Cover, front top assembly (no LED) (M206; SFP) RM2-2084-000CN | ||
| 8 | Cover, top rear (SFP) RC4-8057-000CN | ||
| 9 | Guide, feed front (SFP) RC4-7985-000CN | ||
| 10 | Button, switch (SFP) RL2-1664-000CN | ||
| 11 | Switch, power PCA (SFP) RM2-8273-000CN | ||
| 12 | Control panel assembly (non-wireless model) (M203; SFP) RM2-0824-000CN | ||
| 12 | Control panel assembly (wireless model) (M203; SFP) RM2-0825-000CN | ||
| 12 | Control panel assembly (M206; SFP) RM2-2085-000CN | ||
| 14 | Cover, front (no power switch) (SFP) RC4-8059-000CN |

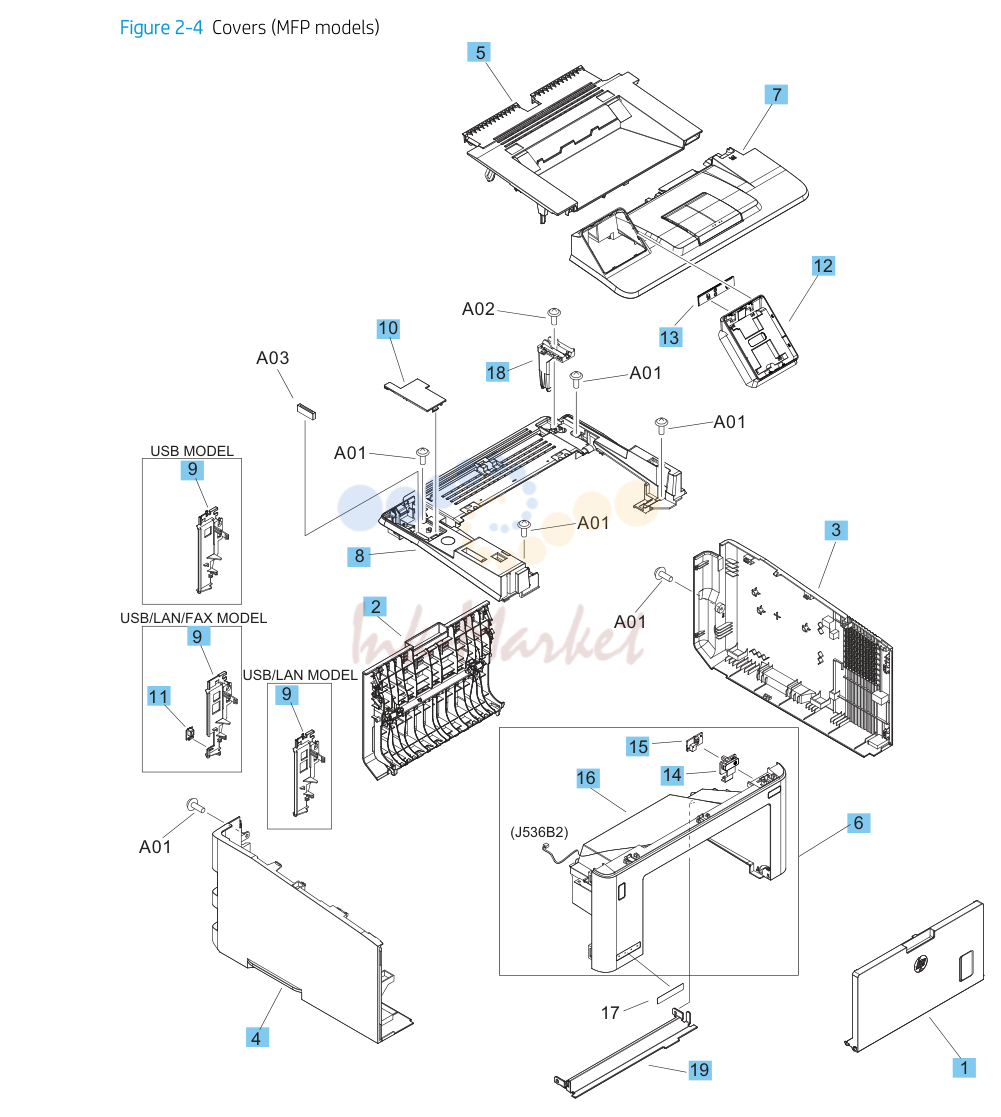

4. Covers (MFP models)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Cover, multipurpose (MFP) RL2-5015-000CN | ||
| 2 | Door, duplexing assembly (MFP) RM2-0809-000CN | ||
| 3 | Cover, right (MFP) RC4-8067-000CN | ||
| 4 | Cover, left (MFP) RC4-8070-000CN | ||
| 5 | Door, cartridge (MFP) RL2-5012-000CN | ||
| 6 | Cover, front (wireless model; USB port) (MFP) RM2-0827-000CN | ||
| 6 | Cover, front (except wireless model; no USB port) (MFP) RM2-0826-000CN | ||
| 7 | Cover, top front assembly (wireless model) (MFP) RM2-0834-000CN | ||
| 7 | Cover, top front assembly (except wireless model) (MFP) RM2-2087-000CN | ||
| 8 | Cover, top (MFP) RL2-2927-000CN | ||
| 9 | Cover, USB (MFP) USB models RC4-8021-000CN | ||
| 9 | Cover, USB (MFP) USB/LAN models RC4-8020-000CN | ||
| 9 | Cover, USB (MFP) USB/LAN/FAX models RC4-8019-000CN | ||
| 10 | Cover, cable (MFP) RC5-0436-000CN | ||
| 11 | Cap, FAX RC5-0437-000CN | ||
| 12 | Frame, control panel (adaptor) (M227d/sdn/fdn, M230sdn) RC4-8125-000CN | ||
| 13 | Cover, frame (MFP) RC5-3760-000CN | ||
| 14 | Button, switch (MFP) RL2-1661-000CN | ||
| 15 | Switch, power PCA (MFP) RM2-8273-000CN | ||
| 16 | Cover, front (no power switch) (MFP) RC4-8068-000CN | ||
| 18 | Hinge assembly (MFP) RM2-1182-000CN | ||
| 19 | Guide, feed front (MFP) RC4-7985-000CN |

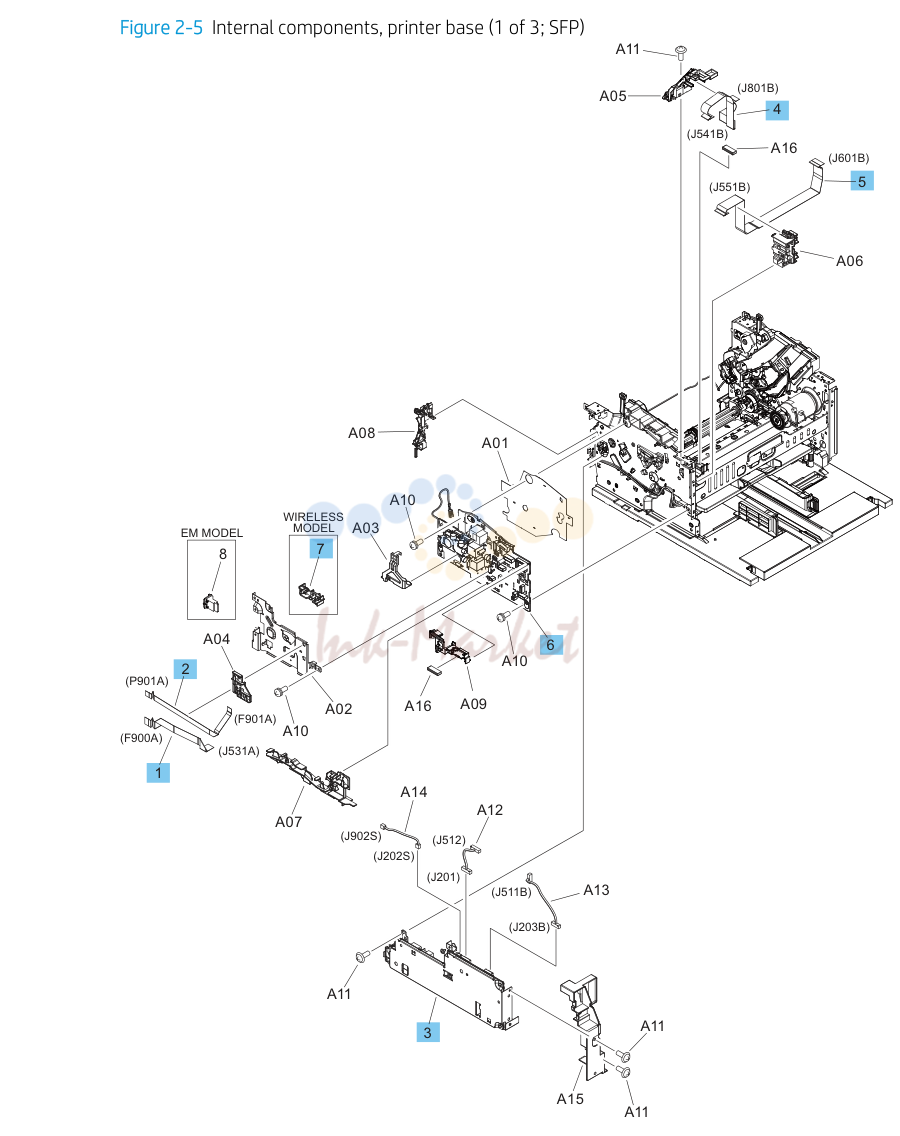

5. Internal components, printer base
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Cable, flat flexible (SFP) RK2-8416-000CN | ||
| 2 | Cable, flat flexible (SFP) RK2-8522-000CN | ||
| 3 | Low-voltage power supply (LVPS) (110-127V) (SFP) RM2-0837-000CN | ||
| 3 | Low-voltage power supply (LVPS) (220-240V; China) (SFP) RM2-0839-000CN | ||
| 3 | Low-voltage power supply (LVPS) (220-240V; except China) (SFP) RM2-0838-000CN | ||
| 4 | Cable, flat flexible (SFP) RK2-8510-000CN | ||
| 5 | Cable, flat flexible (SFP) RK2-8513-000CN | ||
| 6 | Engine control unit (ECU) PCA (SFP) RM2-8334-000CN | ||
| 7 | Holder, Wi-Fi PCA (SFP) RC4-7851-000CN | ||
| 1 | Some assemblies are common between the SFP printers and the MFP printers. Make sure that the correct part number is used to order |

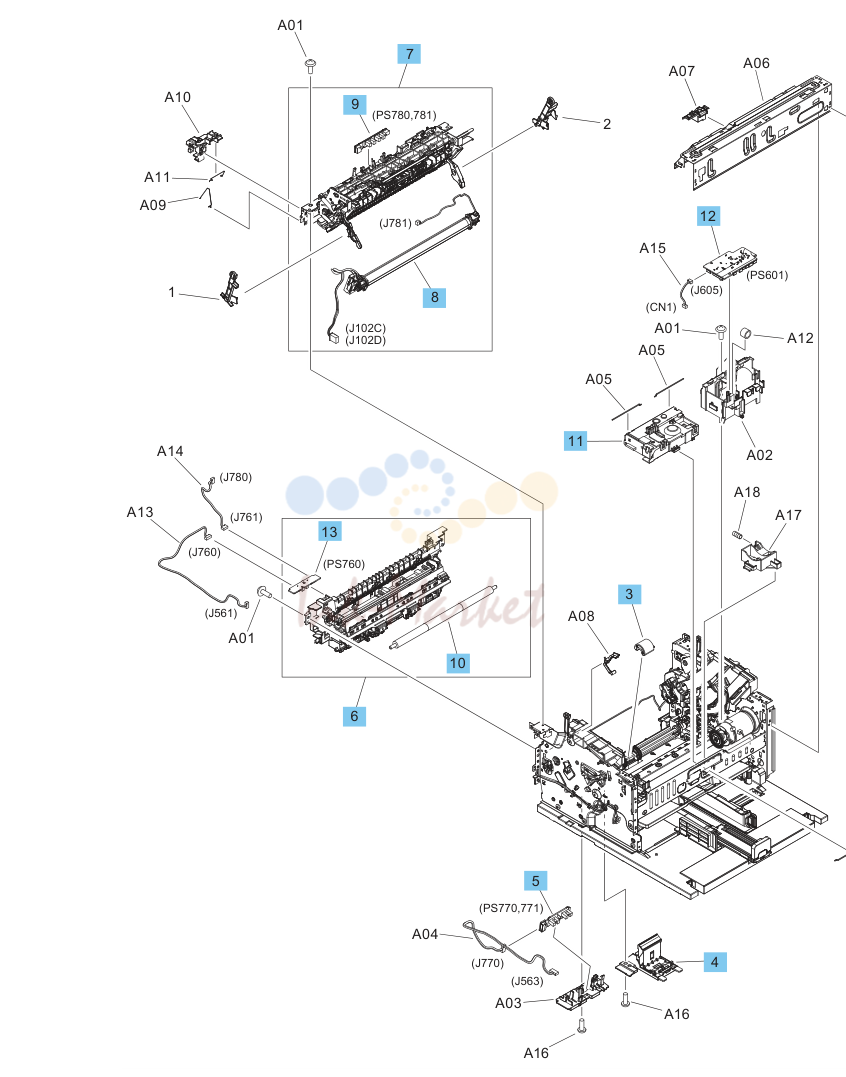

6. Internal components, printer base (2 of 3; SFP)1
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 3 | Roller, paper pickup (SFP) RL1-2593-000CN | ||
| 4 | Pad, separation holder assembly (SFP) RM2-0812-000CN | ||
| 5 | Sensor, environmental PCA (SFP) RM2-8376-000CN | ||
| 6 | Transfer assembly (SFP) RM2-0843-000CN | ||
| 7 | Fixing (fuser) assembly (110-120V) (SFP) RM2-0805-000CN | ||
| 7 | Fixing (fuser) assembly (220-240V) (SFP) RM2-0806-000CN | ||
| 8 | Fixing (fuser) film assembly (110-120V) (SFP) RM2-0814-000CN | ||
| 8 | Fixing (fuser) film assembly (220-240V) (SFP) RM2-0815-000CN | ||
| 9 | Sensor, delivery PCA (SFP) RM2-8378-000CN | ||
| 10 | Roller, transfer (SFP) RM2-1660-000CN | ||
| 11 | Laser scanner assembly (SFP) RM2-6911-000CN | ||
| 12 | Motor PCA (SFP) RM2-8351-000CN | ||
| 13 | Paper pickup sensor PCA assembly (SFP) RM2-8377-000CN | ||
| 1 | Some assemblies are common between the SFP printers and the MFP printers. Make sure that the correct part number is used to order |

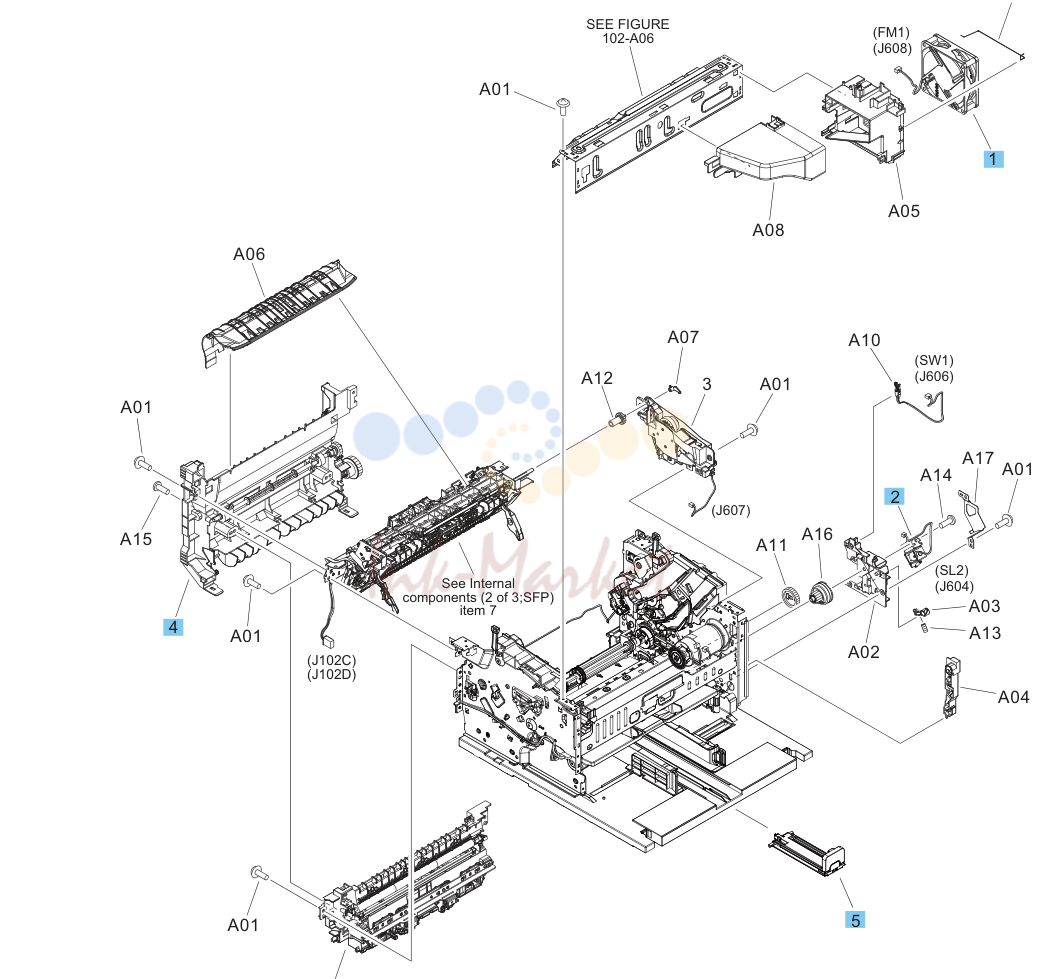

7. Internal components, printer base (3 of 3; SFP)1
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Fan (SFP) RK2-1378-000CN | ||
| 2 | Solenoid (SFP) RK2-7601-000CN | ||
| 4 | Duplex paper feed assembly (SFP) RM2-2086-000CN | ||
| 5 | Guide, end (SFP) RL2-5016-000CN | ||
| 1 | Some assemblies are common between the SFP printers and the MFP printers. Make sure that the correct part number is used to order |

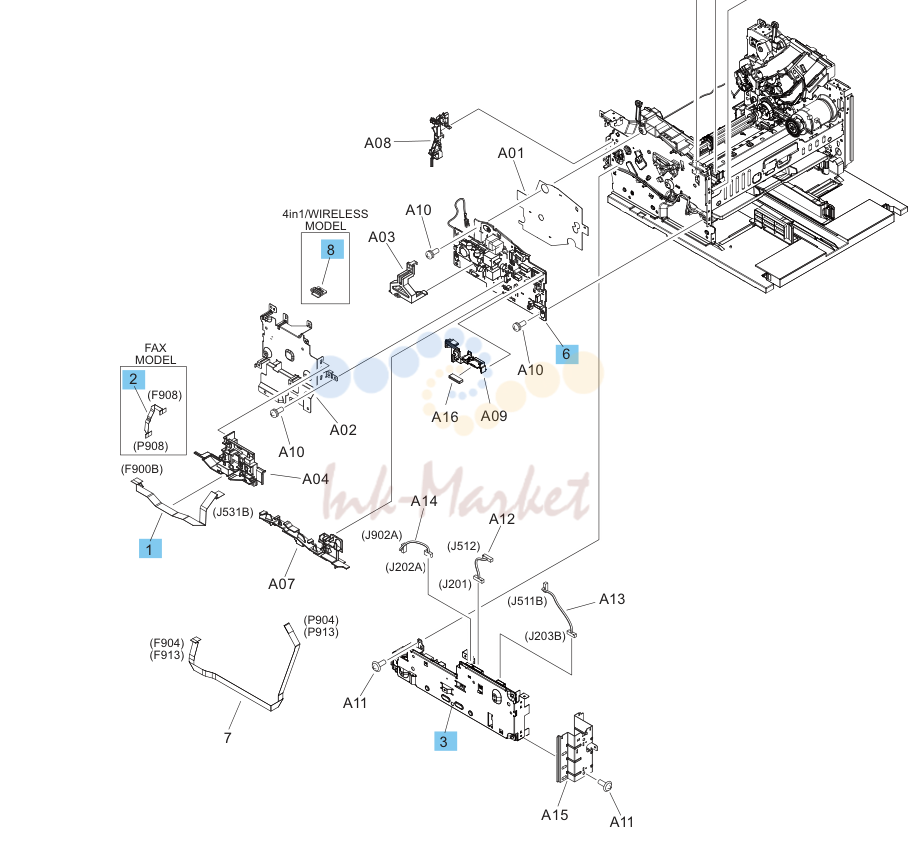

8. Internal components, printer base (1 of 3; MFP)1
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Cable, flat flexible (MFP) RK2-8419-000CN | ||
| 2 | Cable, flat flexible (USB/LAN/FAX model) (MFP) RK2-8440-000CN | ||
| 3 | Low-voltage power supply (LVPS) (110-127V) (MFP) RM2-0840-000CN | ||
| 3 | Low-voltage power supply (LVPS) (220-240V; China) (MFP) RM2-0842-000CN | ||
| 3 | Low-voltage power supply (LVPS) (220-240V; except China) (MFP) RM2-0841-000CN | ||
| 4 | Cable, flat flexible (MFP) RK2-8510-000CN | ||
| 5 | Cable, flat flexible (MFP) RK2-8513-000CN | ||
| 6 | Engine control unit (ECU) PCA (MFP) RM2-8334-000CN | ||
| 8 | Holder, Wi-Fi PCA (MFP) RC5-0500-000CN | ||
| 1 | Some assemblies are common between the SFP printers and the MFP printers. Make sure that the correct part number is used to order |

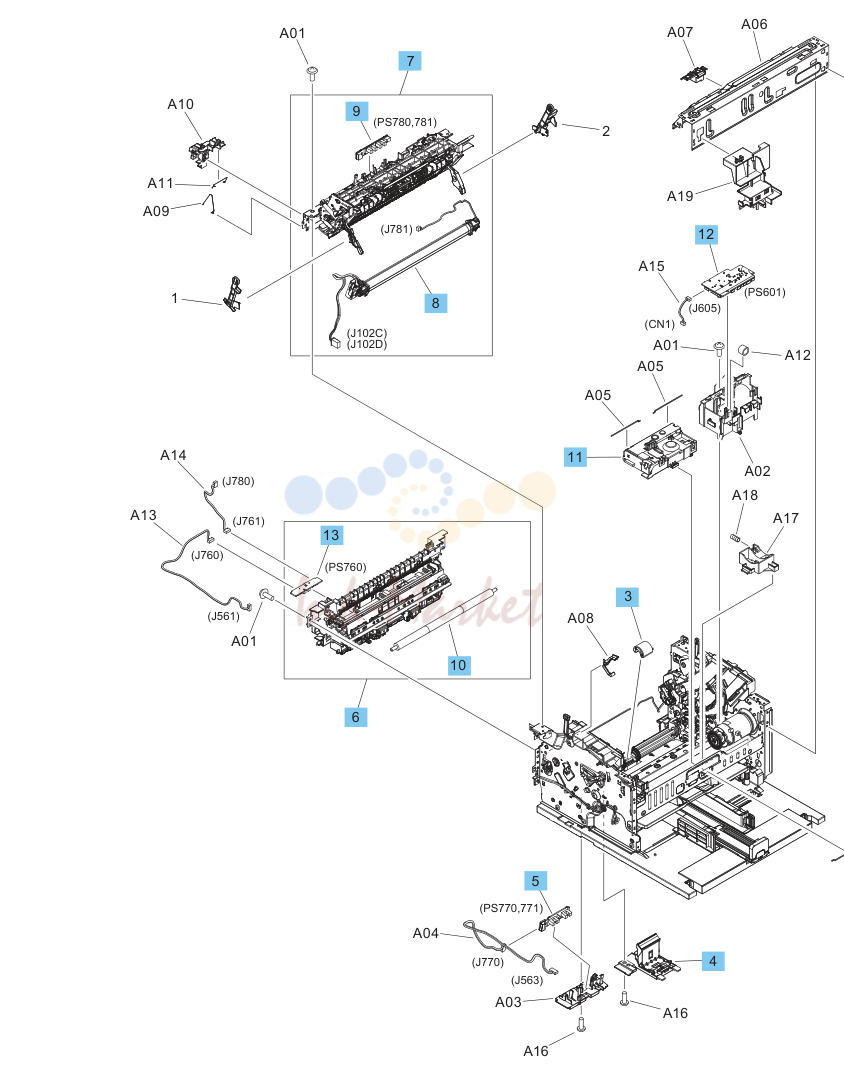

9. Internal components, printer base (2 of 3; MFP)1
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 3 | Roller, paper pickup (MFP) RL1-2593-000CN | ||
| 4 | Pad, separation holder assembly (MFP) RM2-0812-000CN | ||
| 5 | Sensor, environmental PCA (MFP) RM2-8376-000CN | ||
| 6 | Transfer assembly (MFP) RM2-0843-000CN | ||
| 7 | Fixing (fuser) assembly (110-120V) (MFP) RM2-0805-000CN | ||
| 7 | Fixing (fuser) assembly (220-240V) (MFP) RM2-0806-000CN | ||
| 8 | Fixing (fuser) film assembly (110-120V) (MFP) RM2-0814-000CN | ||
| 8 | Fixing (fuser) film assembly (220-240V) (MFP) RM2-0815-000CN | ||
| 9 | Sensor, delivery PCA (MFP) RM2-8378-000CN | ||
| 10 | Roller, transfer (MFP) RM2-1660-000CN | ||
| 11 | Laser scanner assembly (MFP) RM2-6911-000CN | ||
| 12 | Motor PCA (MFP) RM2-8351-000CN | ||
| 13 | Paper pickup sensor PCA assembly (MFP) RM2-8377-0000CN | ||
| 1 | Some assemblies are common between the SFP printers and the MFP printers. Make sure that the correct part number is used to order |

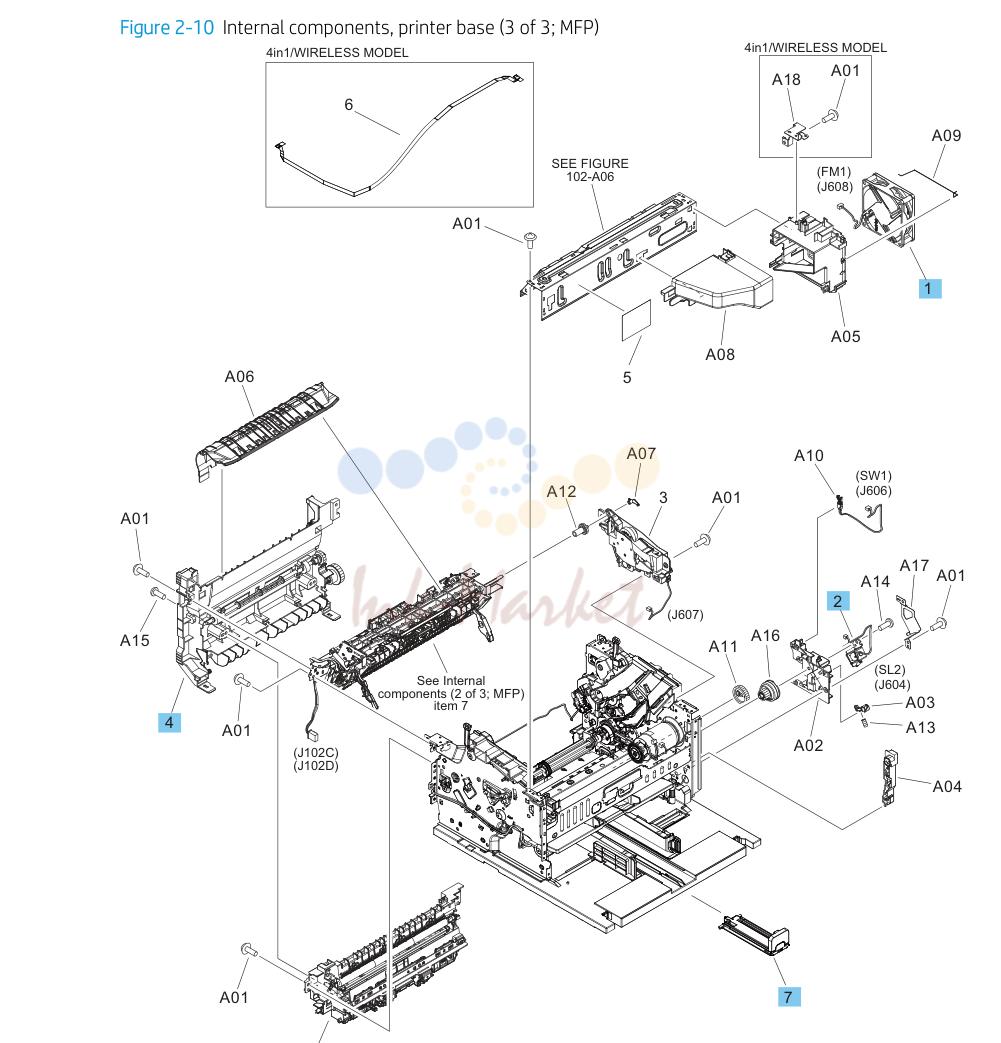

10. Internal components, printer base (3 of 3; MFP)1
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Fan (MFP) RK2-1378-000CN | ||
| 2 | Solenoid (MFP) RK2-7601-000CN | ||
| 4 | Duplex paper feed assembly (MFP) RM2-2086-000CN | ||
| 7 | Guide, end (MFP) RL2-5016-000CN | ||
| 1 | Some assemblies are common between the SFP printers and the MFP printers. Make sure that the correct part number is used to order |
