Содержание
- 1. For additional service and support
- 2. Parts and diagrams: Covers and control panels
- 3. M377, M477 covers and control panel
- 4. Parts and diagrams: Internal components
- 5. Internal components (2 of 5)
- 6. Internal components (3 of 5)
- 7. Internal components (4 of 5)
- 8. Internal components (5 of 5)
- 9. Parts and diagrams: 550-sheet paper feeder
- 10. 550-sheet paper feeder main body (1 of 2)
1. For additional service and support
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 2-line запросить цену → | control panel (nw and dn models) 7 Tray | |
| 2 | Near field communication (NFC) internal antenna (dw 8 Power on/off button | ||
| 3 | Walk-up USB port (for printing without a computer) (dw 9 Front door (provides toner cartridge access) | ||
| 4 | Touchscreen control panel (dw model) (tilts up for 10 Output bin extension | ||
| 5 | Regulatory label (inside the front door) 11 Front door open button (on left cover) | ||
| 6 | Tray 2 12 Output bin | ||
| 1 | Scanner 7 Front door (provides toner cartridge access) | ||
| 2 | Document feeder 8 Output bin extension | ||
| 3 | Regulatory label (inside the front door) 9 Output bin | ||
| 4 | Tray 2 10 Front door open button (on left cover) | ||
| 5 | Tray 1 11 Walk-up USB port (for printing and scanning without a | ||
| 6 | Power on/off button 12 Touchscreen control panel (tilts up for easier viewing) | ||
| 1 | Positioning pins | ||
| 2 | Tray | ||
| 3 | Connector |

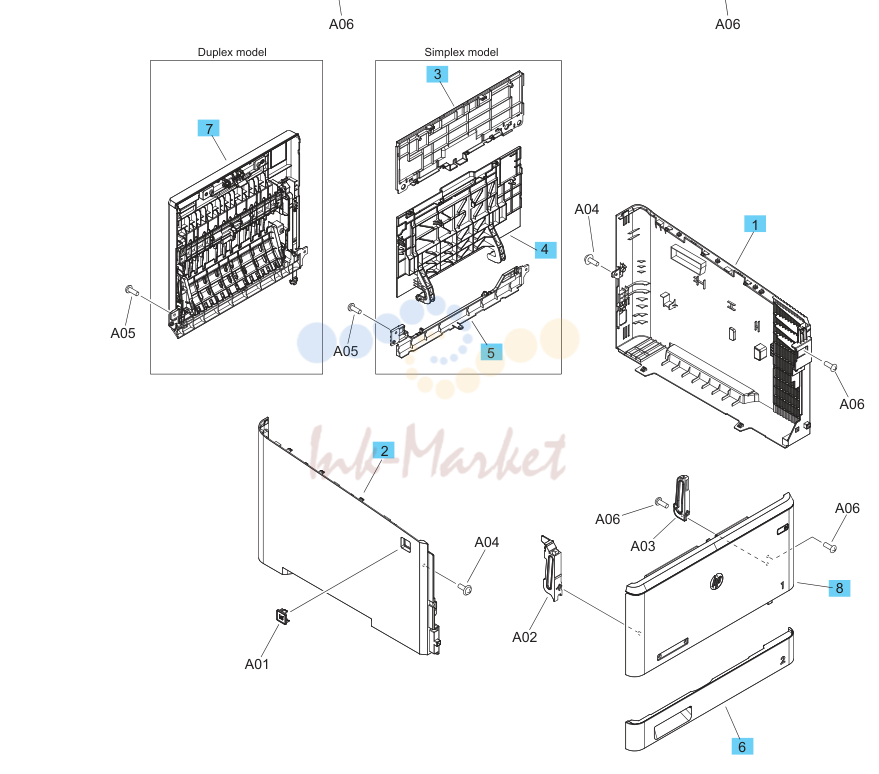

2. Parts and diagrams: Covers and control panels
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Cover, right (M452) RC4-4853-000CN | ||
| 2 | Cover, left (M452) RC4-4854-000CN | ||
| 3 | Cover, rear (simplex models) RC4-4855-000CN | ||
| 4 | Door, rear (simplex models) RC4-5130-000CN | ||
| 5 | Cover, rear lower (simplex models) RC4-5131-000CN | ||
| 6 | Cover, cassette RC4-5334-000CN | ||
| 7 | Duplexing door assembly (duplex models) RM2-6383-000CN | ||
| 8 | Door, front assembly RM2-6390-000CN | ||
| 9 | Cover, top and control panel (M452nw) RM2-6433-000CN | ||
| 9 | Cover, top and control panel (M452dn) RM2-6442-000CN | ||
| 10 | Cover, top (M452dw) RM2-6456-000CN |

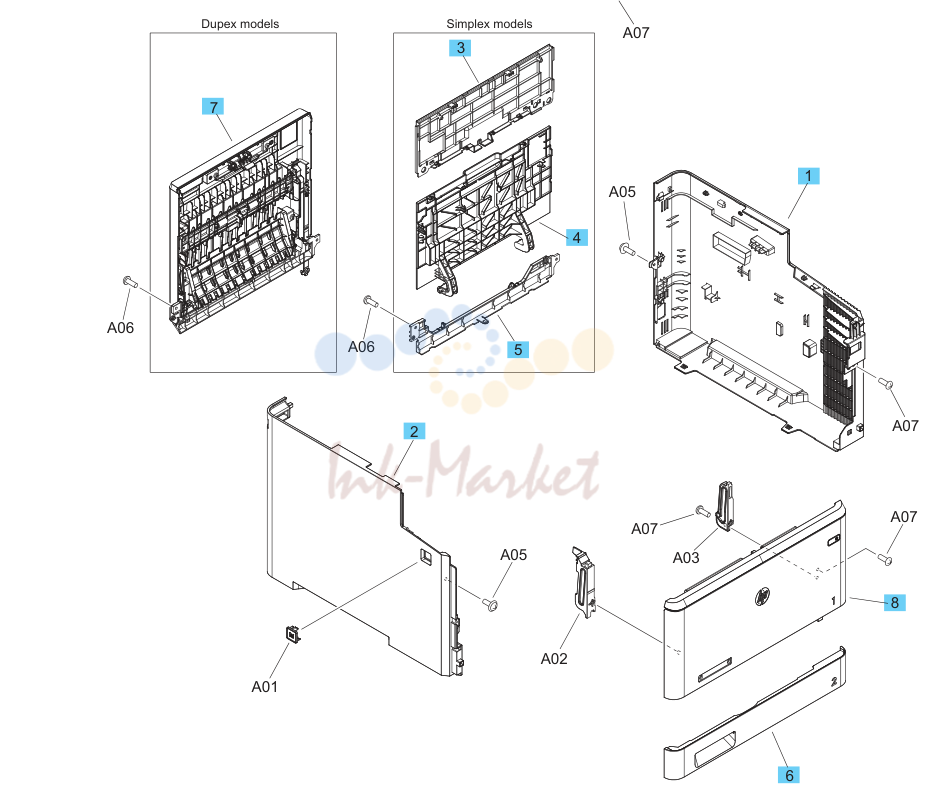

3. M377, M477 covers and control panel
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Cover, right (M377, M477) RC4-6044-000CN | ||
| 2 | Cover, left (M377, M477) RC4-6045-000CN | ||
| 3 | Cover, rear (simplex models) RC4-4855-000CN | ||
| 4 | Door, rear (simplex models) RC4-5130-000CN | ||
| 5 | Cover, rear lower (simplex models) RC4-5131-000CN | ||
| 6 | Cover, cassette RC4-5334-000CN | ||
| 7 | Duplexing door assembly (duplex models) RM2-6383-000CN | ||
| 8 | Door, front assembly RM2-6390-000CN | ||
| 9 | Cover, top (M377, M477fdw) RM2-6468-000CN | ||
| 9 | Cover, top (M477fnw/fdn) RM2-6466-000CN |

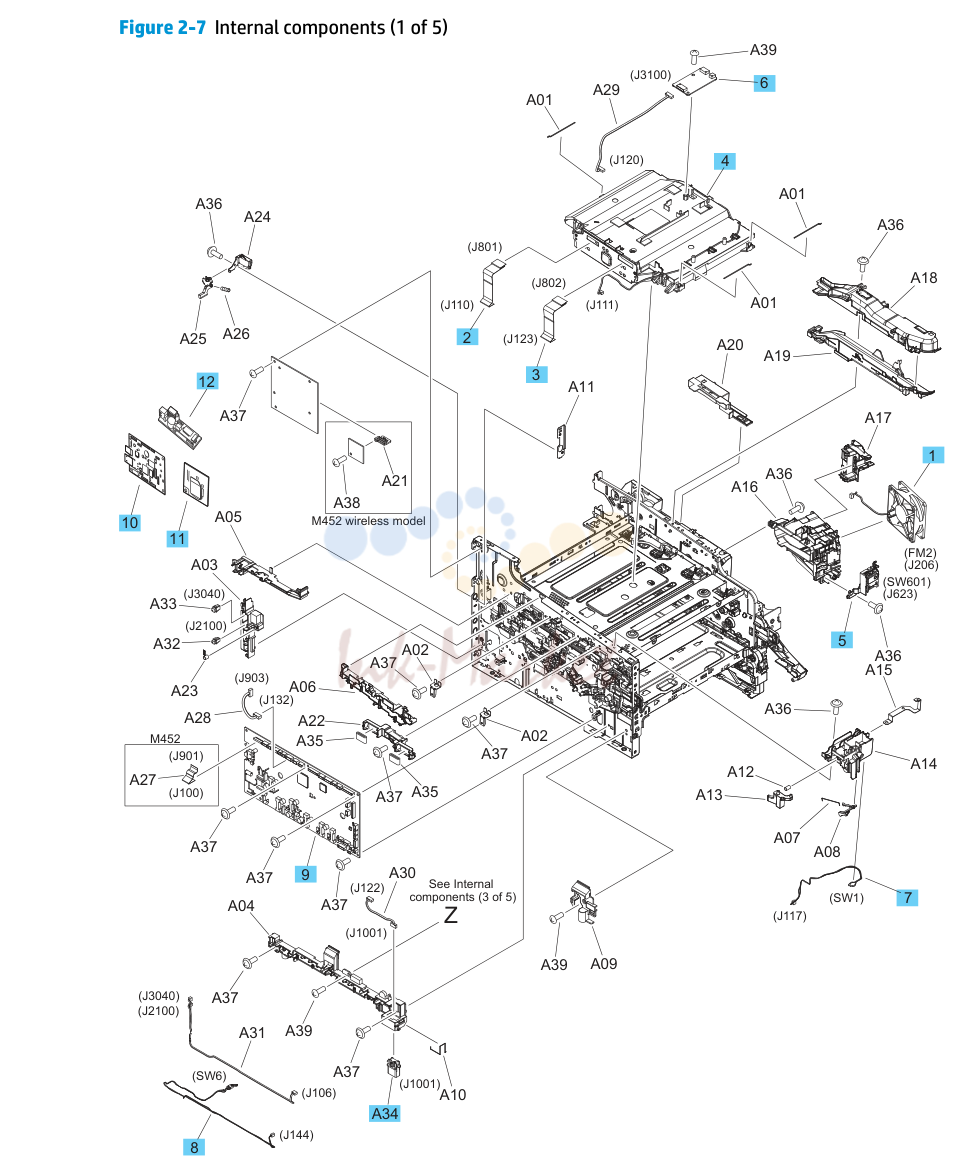

4. Parts and diagrams: Internal components
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Fan (FM2) RK2-6270-000CN | ||
| 2 | Cable, flexible flat RK2-6300-000CN | ||
| 3 | Cable, flexible flat RK2-6302-000CN | ||
| 4 | Laser/scanner assembly RM2-5612-000CN | ||
| 5 | Switch assembly, power RM2-6373-000CN | ||
| 6 | Memory PCA RM2-7374-000CN | ||
| 7 | Switch, cable front door assembly RM2-7889-000CN | ||
| 8 | Switch, cassette cable assembly RM2-7896-000CN | ||
| 9 | Engine controller PCA (duplex models) RM2-7909-000CN | ||
| 9 | Engine controller PCA (simplex models) RM2-7910-000CN | ||
| 10 | Formatter PCA, generic (M452nw/dn) CF389-60001 | ||
| 10 | Formatter PCA, generic (M452dw) CF394-60001 | ||
| 10 | Formatter PCA (M452nw) CF388-60003 | ||
| 10 | Formatter PCA (M452nw-China only) CF388-67018 | ||
| 10 | Formatter PCA (M452dn) CF389-60002 | ||
| 10 | Formatter PCA (M452dn-China only) CF389-67018 | ||
| 10 | Formatter PCA (M452dw) CF394-60002 | ||
| 10 | Formatter PCA (M452dw-China only) CF394-67018 | ||
| 10 | Formatter PCA, generic (M477) CF379-60001 | ||
| 10 | Formatter PCA (M477fnw) CF377-60001 | ||
| 10 | Formatter PCA (M477fnw-China only) CF377-67018 | ||
| 10 | Formatter PCA (M477fdn) CF378-60002 | ||
| 10 | Formatter PCA (M477fdn-China only) CF378-67018 | ||
| 10 | Formatter PCA (M477fdw) CF379-60003 | ||
| 10 | Formatter PCA (M477fdw-China only) CF379-67018 | ||
| 10 | Formatter PCA (M377dw) CF378-67902 | ||
| 10 | Formatter PCA (M377dw-China only) CF378-67901 | ||
| 11 | Wireless PCA (M452nw/dw) 0960-3295 | ||
| 11 | Wireless PCA (M377, M477fnw/fdw) 1150-7967 | ||
| 12 | Fax PCA (M477; US) CF206-60001 | ||
| 12 | Fax PCA (M477; Europe) CF207-60001 | ||
| 12 | Fax PCA (M477; Brazil) CF208-60001 |

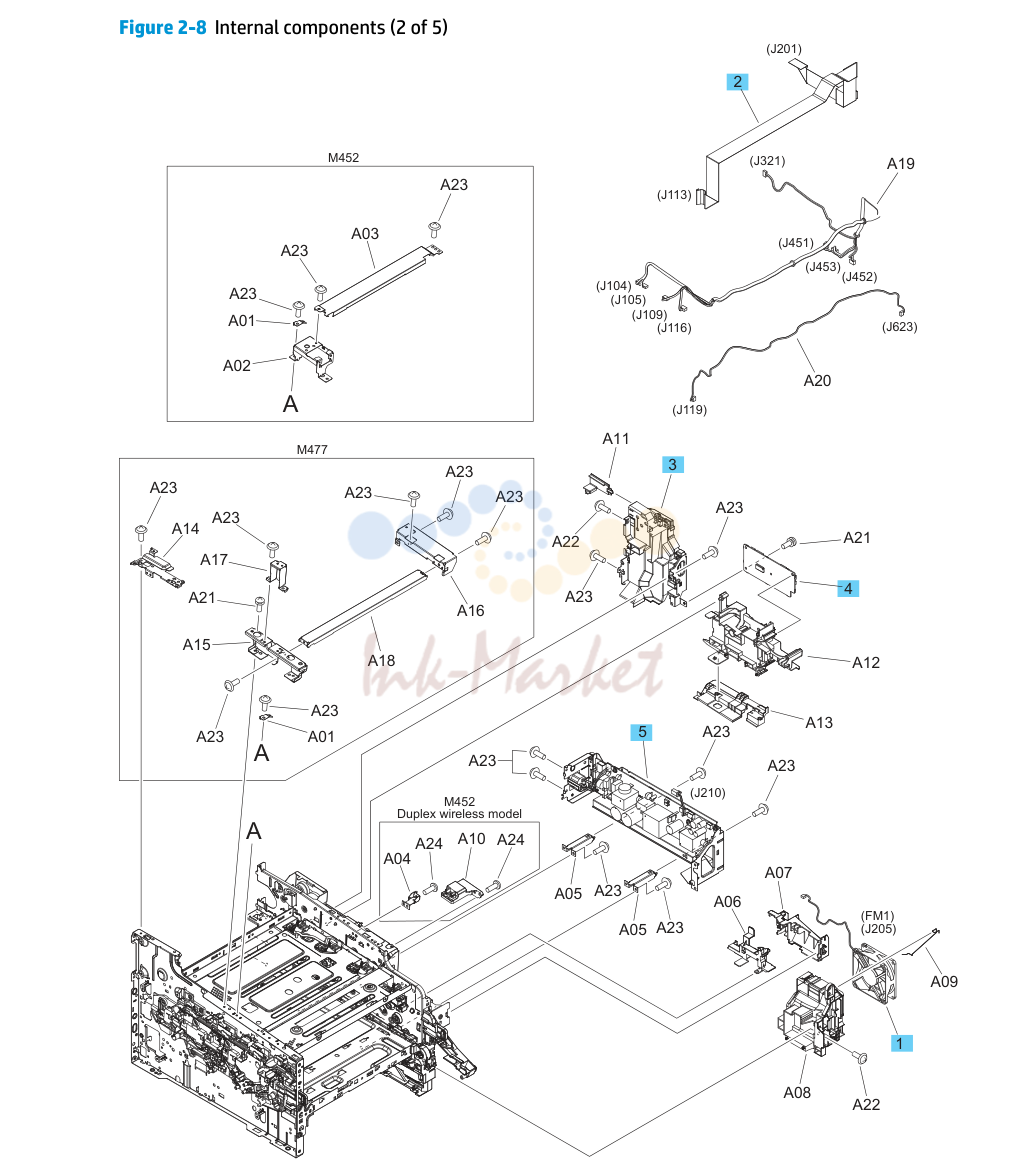

5. Internal components (2 of 5)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Fan (FM1) RK2-6270-000CN | ||
| 2 | Cable, flexible flat RK2-6298-000CN | ||
| 3 | Fuser power supply PCA (110-127V) RM2-6440-000CN | ||
| 3 | Fuser power supply PCA (220-240V) RM2-6441-000CN | ||
| 4 | Driver PCA RM2-7369-000CN | ||
| 5 | Low-voltage power supply (110-127V) RM2-7913-000CN | ||
| 5 | Low-voltage power supply (220-240V) RM2-7914-000CN |

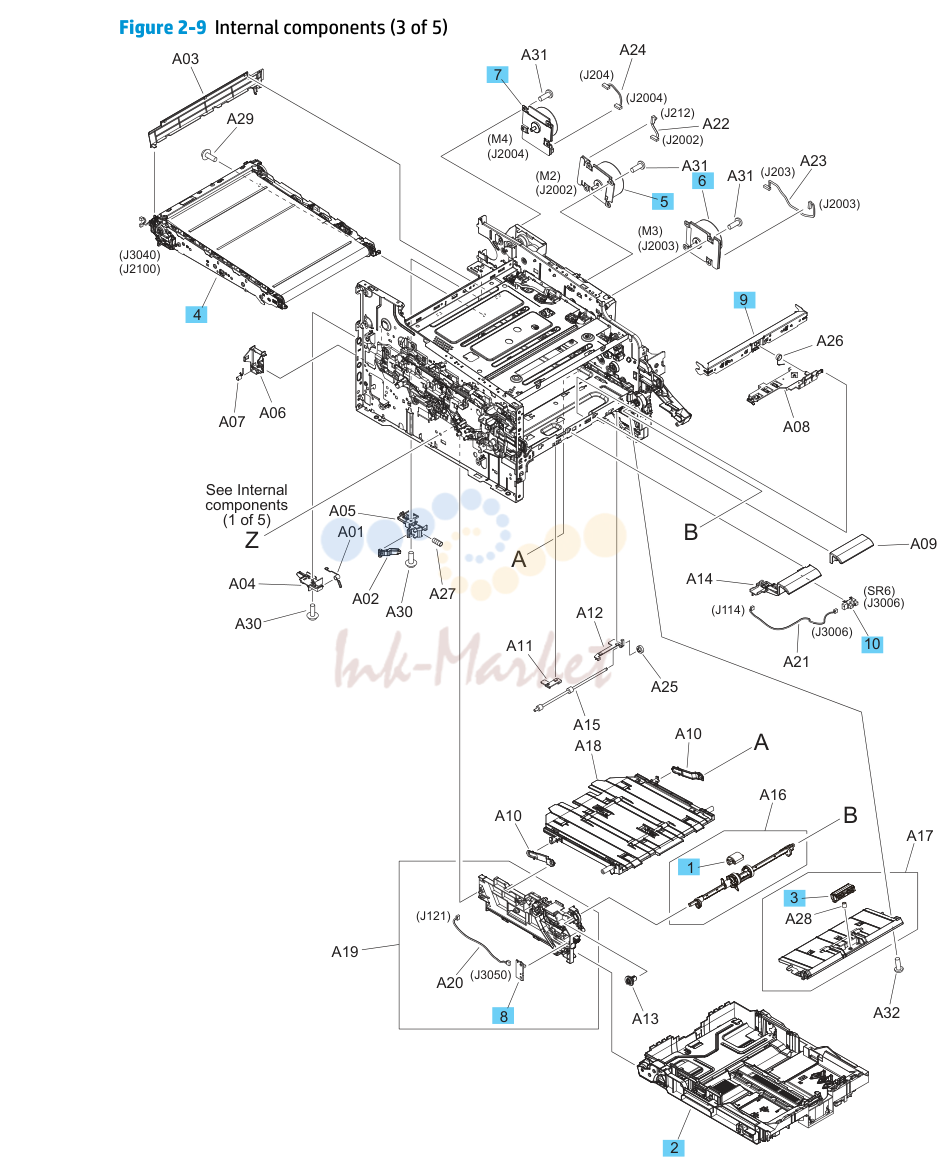

6. Internal components (3 of 5)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Roller, paper pickup RL1-2593-000CN | ||
| 2 | Cassette (Tray 2) assembly RM2-6377-000CN | ||
| 3 | Pad, separation RM2-6406-000CN | ||
| 4 | Intermediate transfer belt (ITB) RM2-6454-000CN | ||
| 5 | Motor, drum (M2) RM2-7342-000CN | ||
| 6 | Motor, developing (M3) RM2-7344-000CN | ||
| 7 | Motor, fuser (M4) RM2-7348-000CN | ||
| 8 | Sensor, environment PCA RM2-7376-000CN | ||
| 9 | Sensor, density detect RM2-7399-000CN | ||
| 10 | Photointerrupter WG8-5935-000CN |

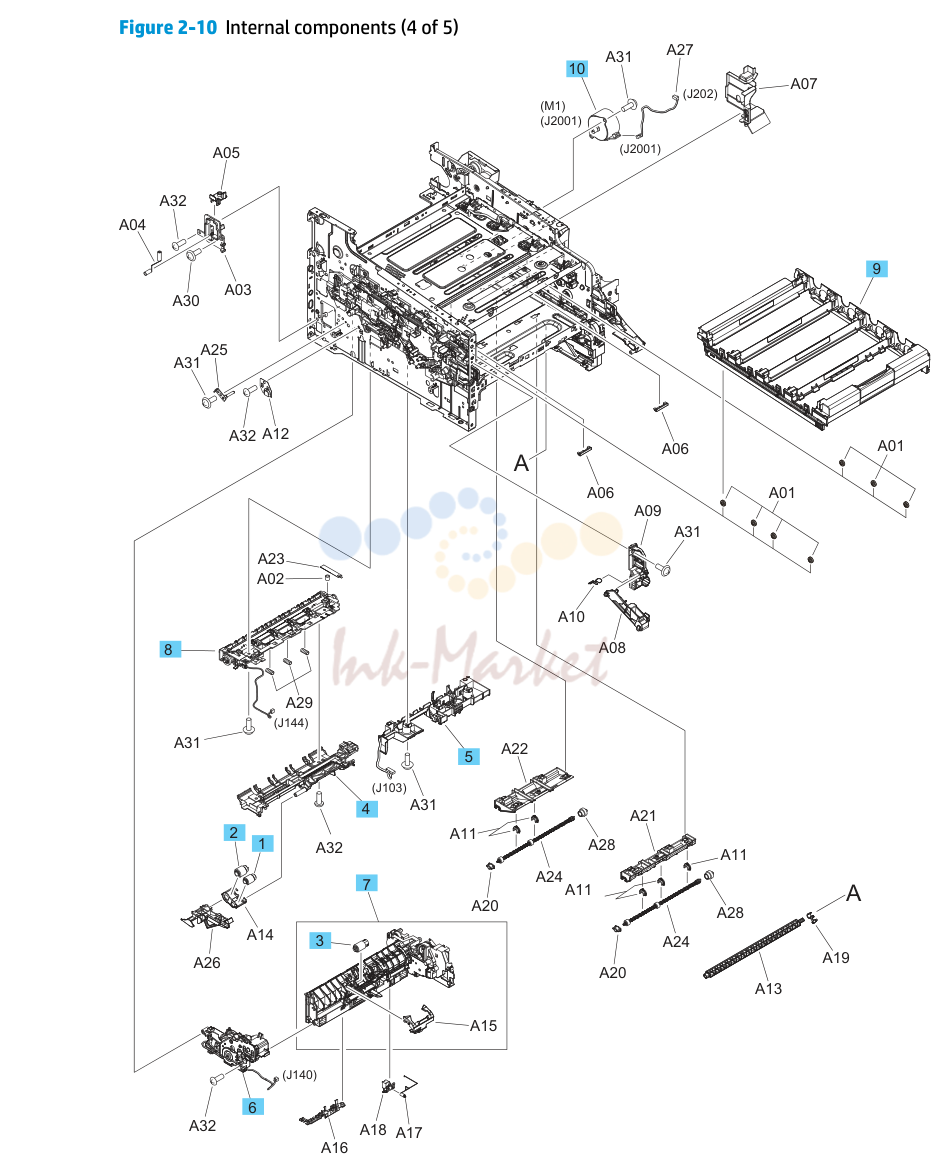

7. Internal components (4 of 5)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Roller, paper pickup assembly RM2-5576-000CN | ||
| 2 | Roller, feed assembly RM2-5577-000CN | ||
| 3 | Roller, separation RM2-5881-000CN | ||
| 4 | Feed guide assembly, rear RM2-6366-000CN | ||
| 5 | Feed guide assembly, front RM2-6368-000CN | ||
| 6 | Lifter drive assembly RM2-6370-000CN | ||
| 7 | Paper pickup assembly RM2-6372-000CN | ||
| 8 | Registration assembly RM2-6374-000CN | ||
| 9 | Cartridge tray assembly RM2-6401-000CN | ||
| 10 | Motor, pickup (M1) RM2-7350-000CN |

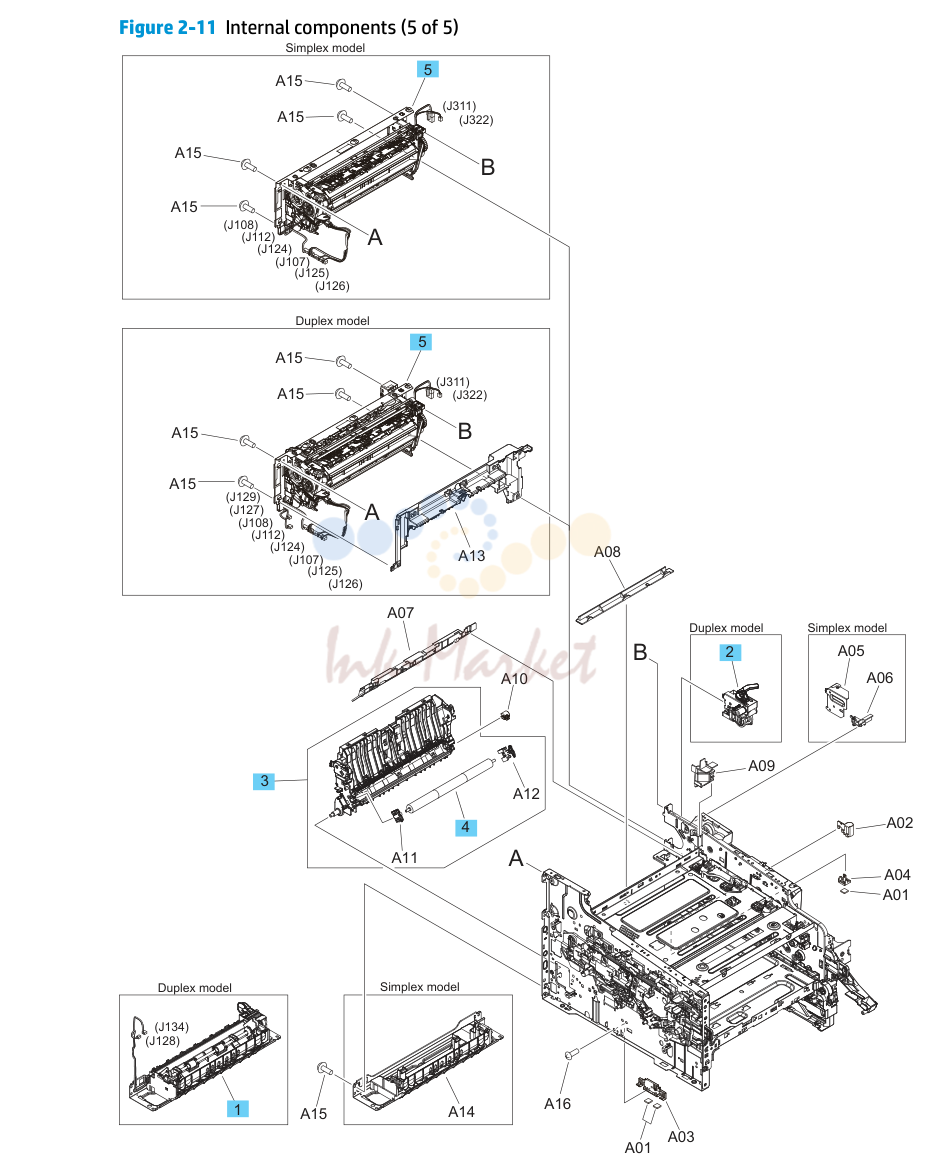

8. Internal components (5 of 5)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Paper pickup assembly (duplex models) RM2-6387-000CN | ||
| 2 | Reverse drive assembly (duplex models) RM2-6389-000CN | ||
| 3 | Secondary transfer assembly (duplex models) RM2-6397-000CN | ||
| 3 | Secondary transfer assembly (simplex models) RM2-6430-000CN | ||
| 4 | Secondary transfer roller RM2-6455-000CN | ||
| 5 | Fuser (duplex; 110-127V) RM2-6418-000CN | ||
| 5 | Fuser (duplex; 220-240V) RM2-6435-000CN | ||
| 5 | Fuser (simplex; 110-127V) RM2-6431-000CN | ||
| 5 | Fuser (simplex; 220-240V) RM2-6436-000CN |

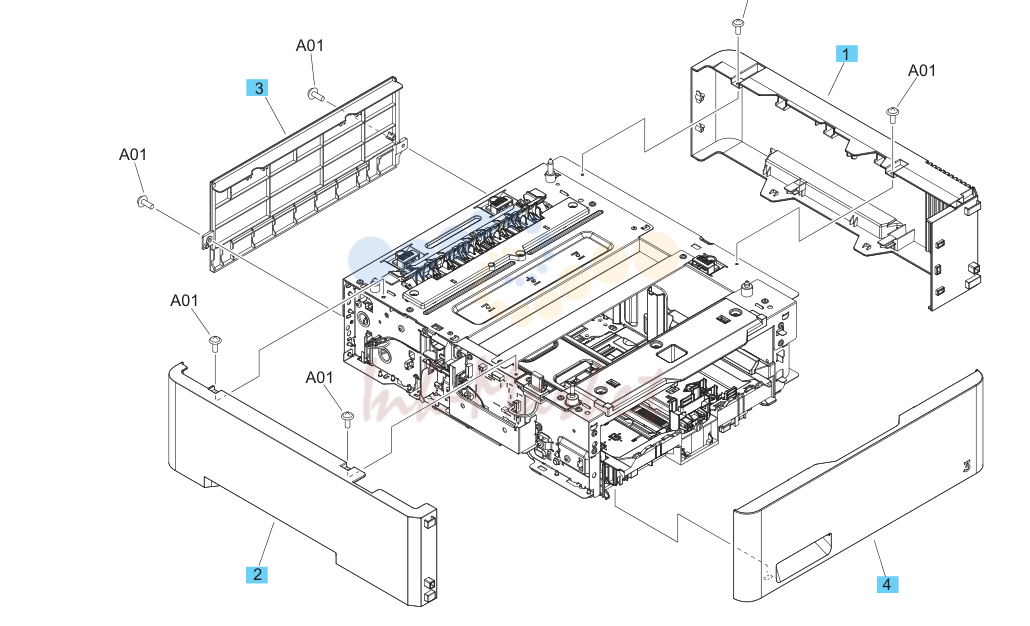

9. Parts and diagrams: 550-sheet paper feeder
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Cover, left (550-sheet feeder) RC4-2201-000CN | ||
| 2 | Cover, right (550-sheet feeder) RC4-2202-000CN | ||
| 3 | Cover, rear (550-sheet feeder) RC4-2203-000CN | ||
| 4 | Cover, cassette (550-sheet feeder) RC4-2224-000CN |

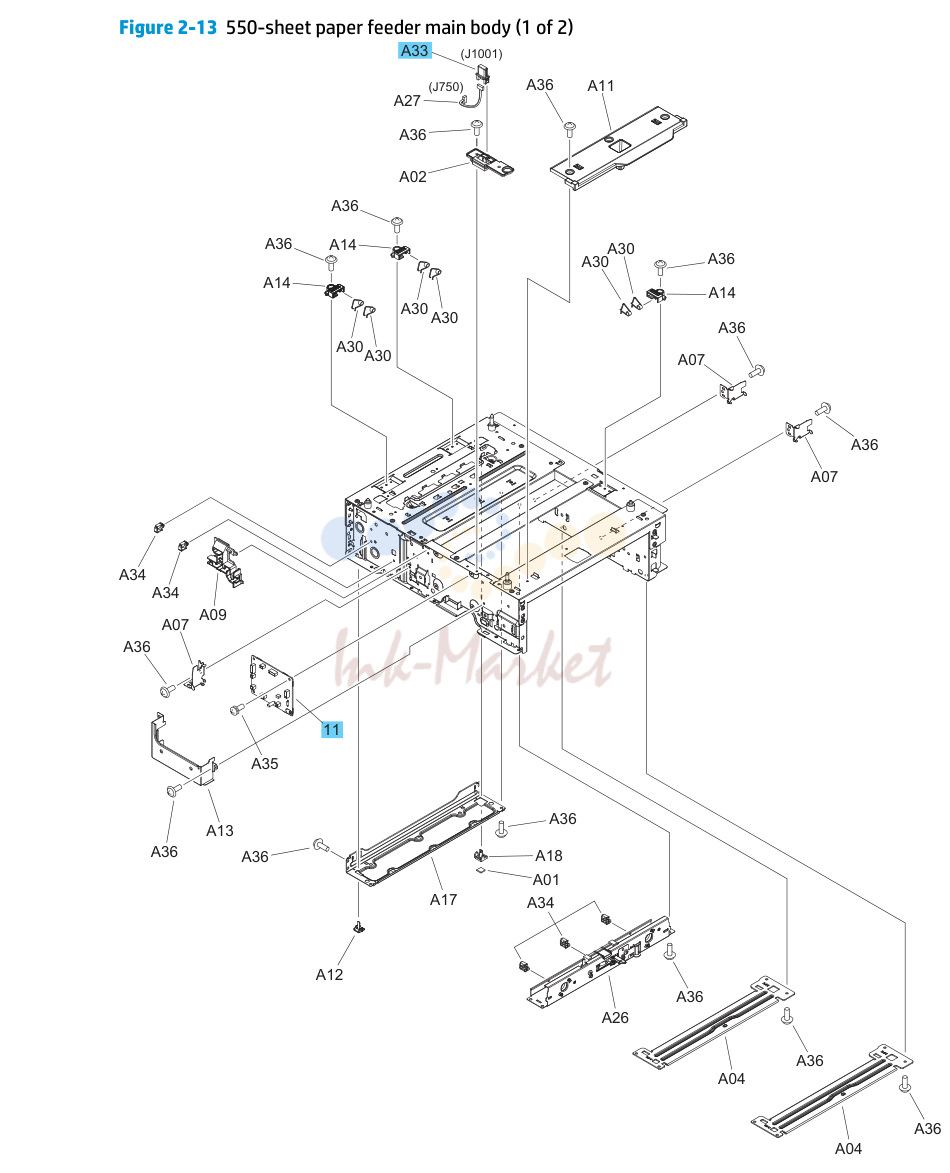

10. 550-sheet paper feeder main body (1 of 2)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Paper pickup roller assembly (550-sheet feeder) RM2-5576-000CN | ||
| 2 | Feed roller assembly (550-sheet feeder) RM2-5577-000CN | ||
| 3 | Separation roller assembly (550-sheet feeder) RM2-5881-000CN | ||
| 4 | Feed guide assembly, rear (550-sheet feeder) RM2-6366-000CN | ||
| 5 | Cassette assembly (550-sheet feeder) RM2-6486-000CN | ||
| 6 | Paper pickup assembly (550-sheet feeder) RM2-6490-000CN | ||
| 7 | Feed guide assembly, front (550-sheet feeder) RM2-6492-000CN | ||
| 8 | Lifter drive assembly (550-sheet feeder) RM2-6493-000CN | ||
| 9 | Paper feed assembly (550-sheet feeder) RM2-6494-000CN | ||
| 10 | Pickup motor (M9) (550-sheet feeder) RM2-7350-000CN | ||
| 12 | Switch cable assembly (550-sheet feeder) RM2-7897-000CN |
