Содержание
- 1. Assembly locations (1 of 2)
- 2. Covers
- 3. Internal assemblies
- 4. Figure 7-3. Internal components (1 of 2)
- 5. Figure 7-4. Internal components (2 of 2)
- 6. Figure 7-5. Main drive assembly
- 7. Figure 7-6. Rear frame assembly
- 8. Figure 7-7. Middle frame assembly
- 9. Figure 7-8. Rotary (carousel) assembly
- 10. Figure 7-9. Power-supply base assembly
- 11. Figure 7-10. Rotary-drive assembly

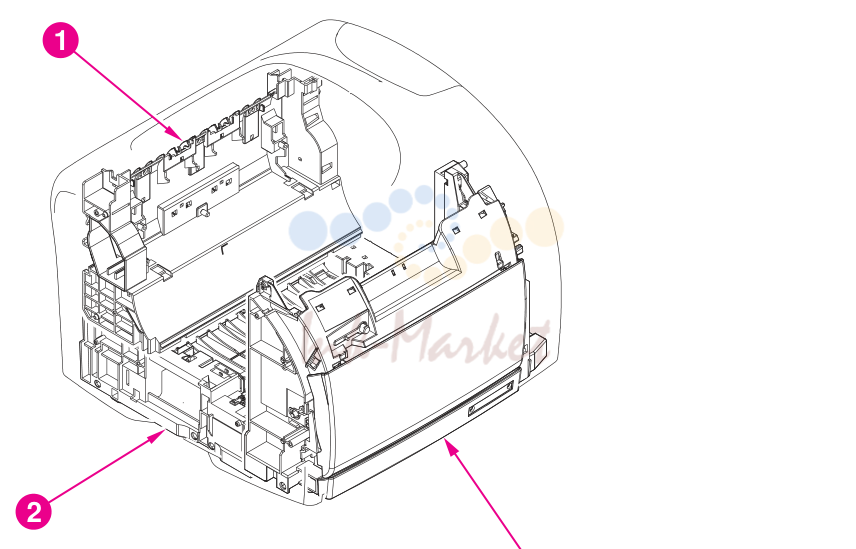

1. Assembly locations (1 of 2)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Rear frame assembly See Table 7-3. Covers | ||
| 2 | Middle frame assembly See Table 7-9. Middle frame | ||
| 3 | Front frame assembly See Table 7-4. Front frame | ||
| 4 | Fuser, 110-127 V RG5-7572-000CN | ||
| 4 | Fuser, 220-240 V RG4-7573-000CN | ||
| 5 | Power-supply base assembly See Table 7-11. Power-supply | ||
| 6 | Rotary assembly RG5-7587-000CN | ||
| 7 | Main drive assembly RG5-7579-000CN | ||
| 8 | Rotary drive assembly RG5-7592-000CN | ||
| 242 | Chapter7 запросить цену → | Parts and diagrams ENWW |

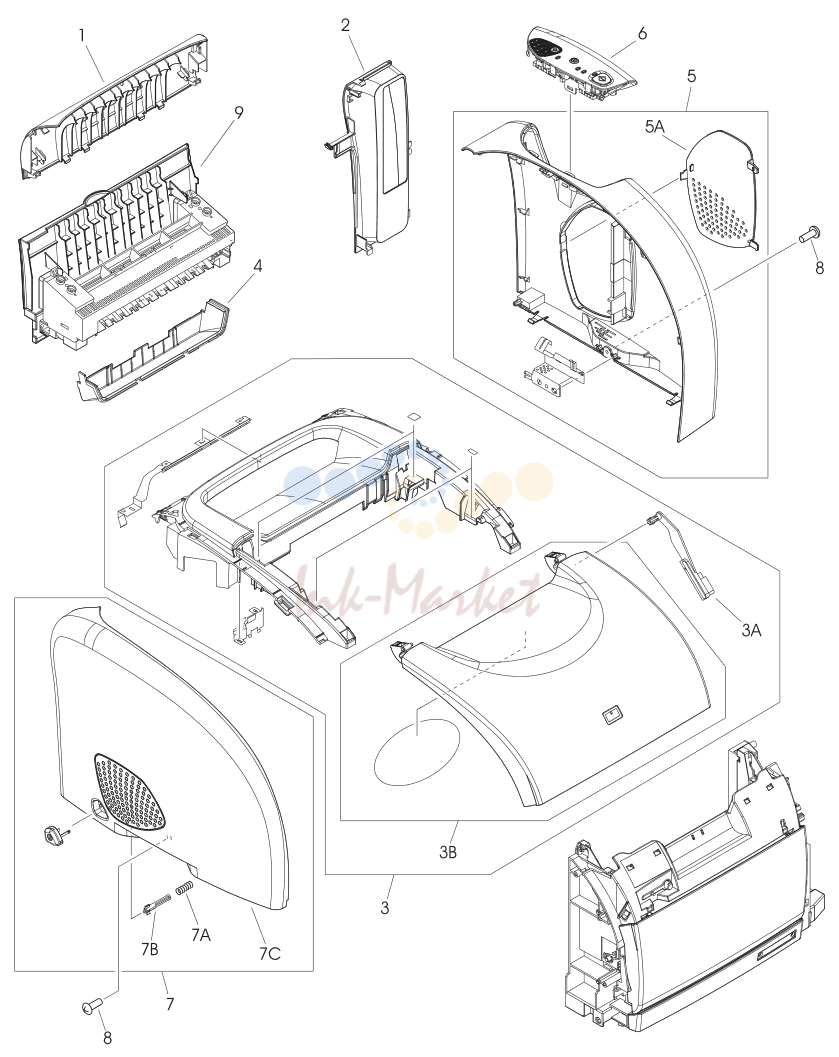

2. Covers
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Cover, rear RB9-0880-000CN | ||
| 2 | Cover, interface RB3-1112-000CN | ||
| 3 | Cover, top (assembly) RG5-7567-000CN | ||
| 4 | Cover, top output bin RB9-0881-000CN | ||
| 5 | Cover, right side (assembly) RG5-7569-000CN | ||
| 6 | Control panel assembly RG5-7570-000CN | ||
| 7 | Cover, left side (assembly) RG5-7571-000CN | ||
| 8 | Screw, RS, M3x8 XA9-1291-000CN | ||
| 9 | Fuser, 110-127 V RG5-7572-000CN | ||
| 9 | Fuser, 220-240 V RG5-7573-000CN |

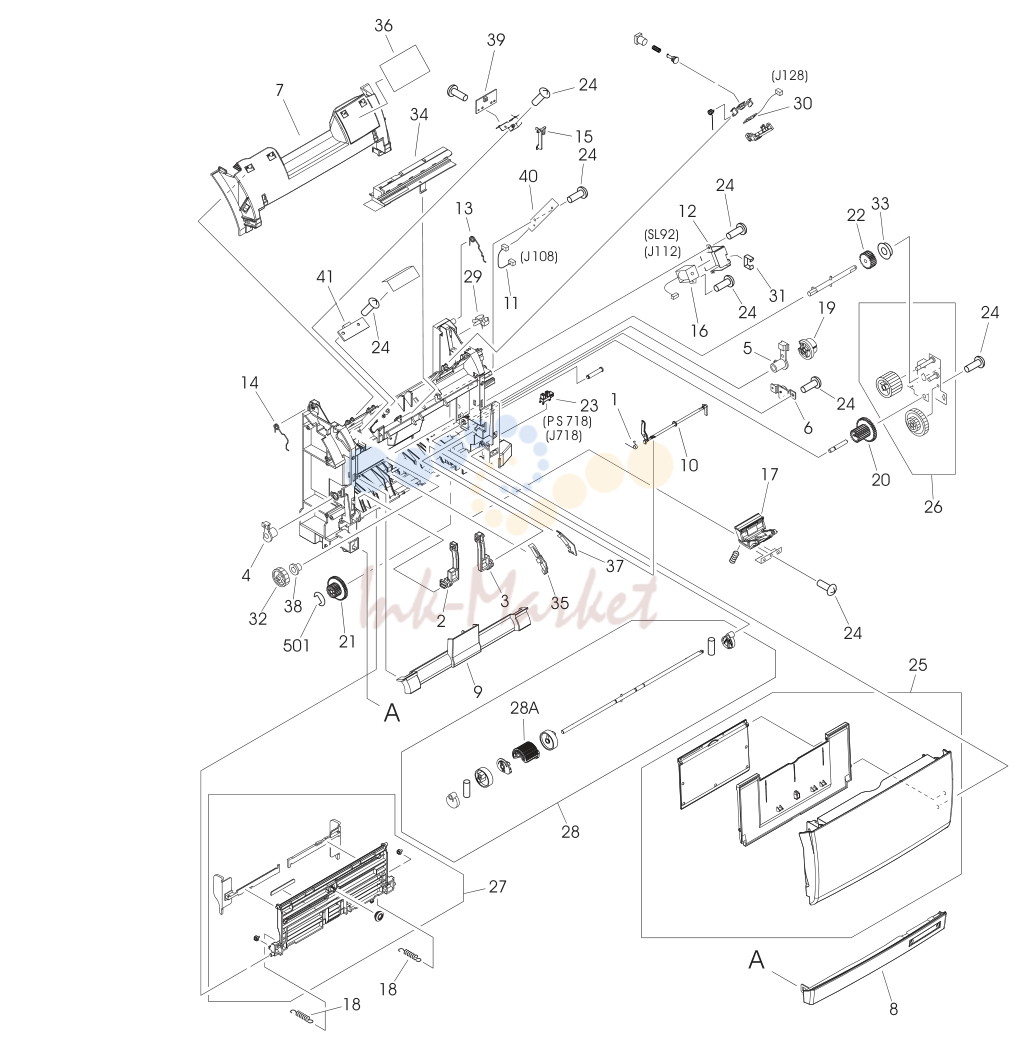

3. Internal assemblies
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Spring, tray 1 flag RB2-9952-000CN | ||
| 2 | Hinge, left, tray 1 RB9-0889-000CN | ||
| 3 | Hinge, right, tray 1 RB9-0890-000CN | ||
| 4 | Bushing, left RB2-3043-000CN | ||
| 5 | Bushing, right RB2-3044-000CN | ||
| 6 | Damper RB2-6248-000CN | ||
| 7 | Front cover RB3-1108-000CN | ||
| 8 | Front lower cover RB9-0897-000CN | ||
| 9 | Roller cover RB3-0104-000CN | ||
| 10 | Flag, tray 1 sensor RB3-0111-000CN | ||
| 11 | Cable, waste toner sensor RG5-7624-000CN | ||
| 12 | Cover, solenoid (SL92) RB3-0120-000CN | ||
| 13 | Spring, right RB3-0121-000CN | ||
| 14 | Spring, left RB3-0122-000CN | ||
| 15 | Flag, switch RB3-0135-000CN | ||
| 16 | Solenoid (SL92) RH7-5338-000CN | ||
| 17 | Separation pad assembly RF5-4012-000CN | ||
| 18 | Spring, tray 1 guide RS6-2030-000CN | ||
| 19 | Gear, 26T RS7-0418-000CN | ||
| 20 | Gear, 20T/40T RS7-0424-000CN | ||
| 21 | Gear, 26T/50T RS7-0426-000CN | ||
| 22 | Gear, 26T RS7-0429-000CN | ||
| 23 | Sensor (PS718) WG8-5382-000CN | ||
| 24 | Screw, M4x10 XA9-1262-000CN | ||
| 25 | Tray 1 assembly RG5-7585-000CN | ||
| 26 | Gear assembly RG5-6938-000CN | ||
| 27 | Tray 1 guide assembly RG5-7584-000CN | ||
| 28 | Tray 1 pickup assembly RG5-6952-000CN | ||
| 29 | Clamp, cable WT2-5700-000CN | ||
| 30 | E-label reader PCA RG5-6956-000CN | ||
| 31 | Clip, cable WT2-5056-000CN | ||
| 32 | Gear, 30T RS7-0425-000CN | ||
| 33 | Bushing, gear assembly RS5-1635-000CN | ||
| 34 | Pad, light-blocking RF5-4047-000CN | ||
| 35 | Guide, left, paper feed RB2-9954-000CN | ||
| 36 | Label, image cartridge RS6-8662-000CN | ||
| 37 | Guide, right, paper feed RB2-9955-000CN | ||
| 38 | Bushing RS5-1638-000CN | ||
| 39 | Sensor, top-of-page RG5-6966-000CN | ||
| 40 | Sensor, waste toner RG5-7607-000CN | ||
| 41 | Sensor, density RH7-7146-000CN | ||
| 501 | E-ring XD2-1100-502CN | ||
| 248 | Chapter7 запросить цену → | Parts and diagrams ENWW |

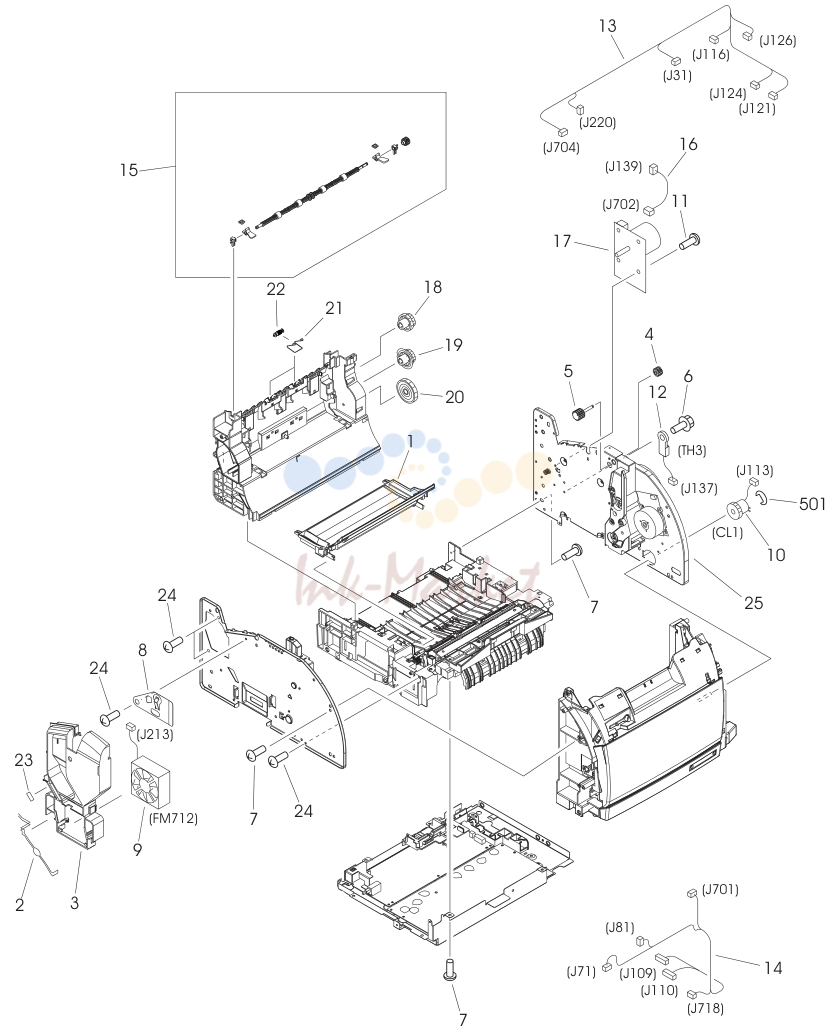

4. Figure 7-3. Internal components (1 of 2)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Toner-catch tray RB3-0019-000CN | ||
| 2 | RFI shield RB2-9932-000CN | ||
| 3 | Air duct RB9-0901-000CN | ||
| 4 | Gear, 18T RB3-0091-000CN | ||
| 5 | Gear, 15T RB3-0092-000CN | ||
| 6 | Screw, M3x8 XA9-1355-000CN | ||
| 7 | Screw, M4x10 XA9-1262-000CN | ||
| 8 | Plate, swing shaft, grounding RB3-1113-000CN | ||
| 9 | Fan (FM712) RH7-1537-000CN | ||
| 10 | Clutch (CL1) RH7-5366-000CN | ||
| 11 | Screw, M3x10 XA9-1328-000CN | ||
| 12 | Thermistor (TH3) RH7-7149-000CN | ||
| 13 | Cable, upper RG5-7622-000CN | ||
| 14 | Cable, front RG5-7145-000CN | ||
| 15 | Roller assembly, upper, top output bin RG5-6897-000CN | ||
| 16 | Cable, fuser motor RG5-7620-000CN | ||
| 17 | Motor, dc, 24 V RH7-1613-000CN | ||
| 18 | Gear, 32T/37T RS7-0435-000CN | ||
| 19 | Gear, 37T/43T RS7-0436-000CN | ||
| 20 | Gear, 51T RS7-0437-000CN | ||
| 21 | Spring, torsion RB2-9905-000CN | ||
| 22 | Roller, small, top output bin RF5-4068-000CN | ||
| 23 | Label, caution RS6-8668-000CN | ||
| 24 | Screw, RS, M3x6 XA9-0849-000CN | ||
| 25 | Main drive assembly RG5-7579-000CN | ||
| 501 | E-ring XD2-1100-322CN |

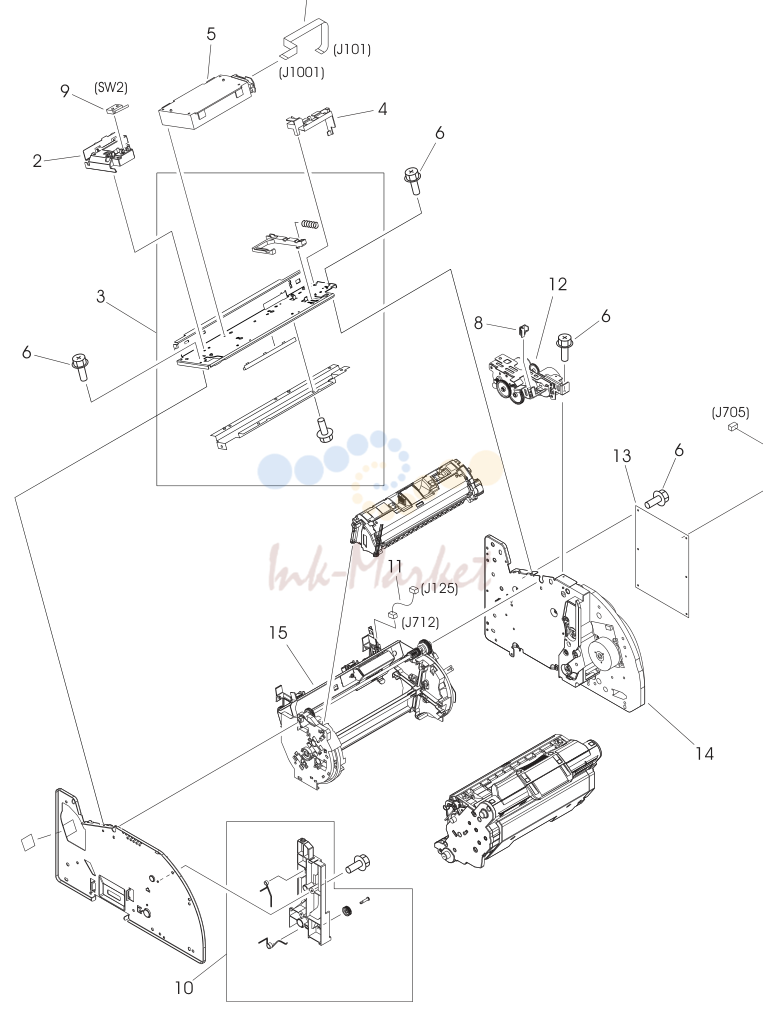

5. Figure 7-4. Internal components (2 of 2)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Cable, flat, flexible, laser/scanner RH2-5524-000CN | ||
| 2 | Holder, interlock switch RB3-0023-000CN | ||
| 3 | Top plate RG5-6907-000CN | ||
| 4 | Cable guide RB2-9903-000CN | ||
| 5 | Laser/scanner RG5-6880-000CN | ||
| 6 | Screw, M3x6 XA9-0849-000CN | ||
| 7 | Cable, motor RG5-7114-000CN | ||
| 8 | Guide, rotary release RB2-9852-000CN | ||
| 9 | Switch, interlock RH7-6051-000CN | ||
| 10 | Cartridge guide assembly RG5-6935-000CN | ||
| 11 | Cable, sensor RG5-7117-000CN | ||
| 12 | Rotary drive assembly RG5-7592-000CN | ||
| 13 | Dc Controller RG5-7605-000CN | ||
| 14 | Main drive assembly RG5-7579-000CN | ||
| 15 | Rotary assembly RG5-7587-000CN |

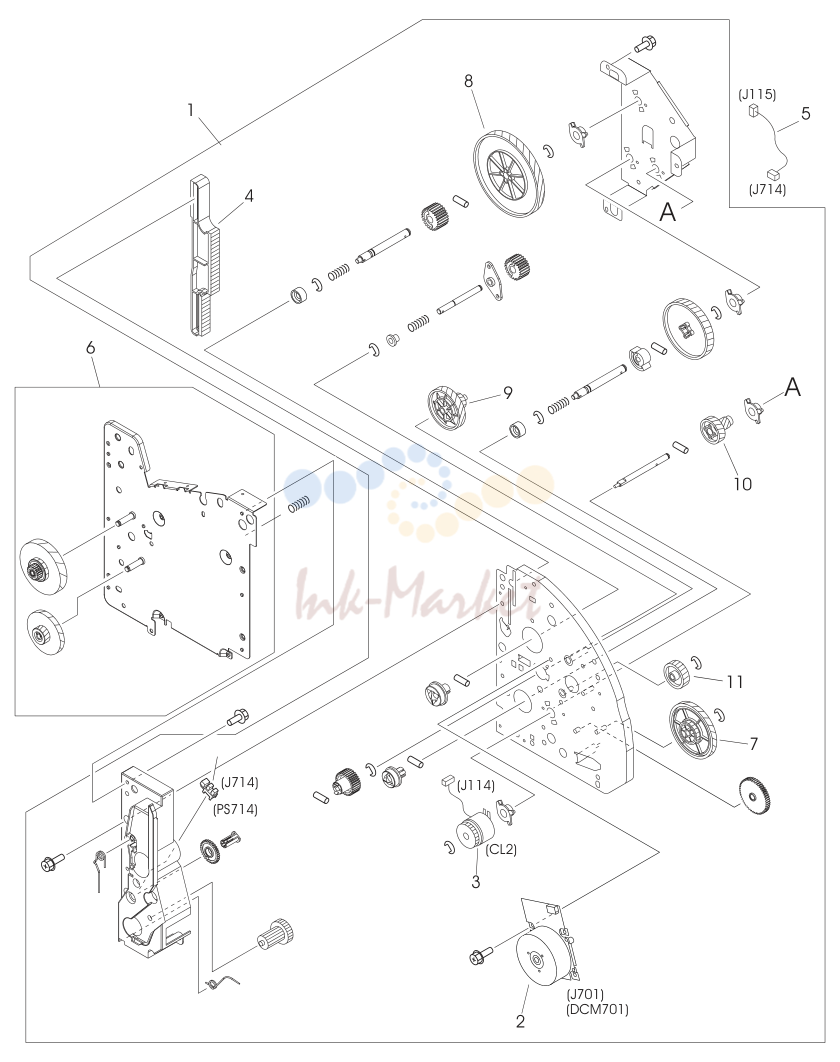

6. Figure 7-5. Main drive assembly
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Right side plate front assembly RG5-7581-000CN | ||
| 2 | Gear train motor RF5-4063-000CN | ||
| 3 | Clutch, main gear train (CL2) RH7-5335-000CN | ||
| 4 | Rack RB3-0090-000CN | ||
| 5 | Cable, transfer sensor (2nd) RG5-7115-000CN | ||
| 6 | Right side plate rear assembly RG5-7580-000CN | ||
| 7 | Gear, 32T/123T RS7-0574-000CN | ||
| 8 | Gear, 186T RS7-0573-000CN | ||
| 9 | Gear, 31T/90T RS7-0572-000CN | ||
| 10 | Gear, 23T/54T RS7-0571-000CN | ||
| 11 | Gear, 81T RS7-0570-000CN |

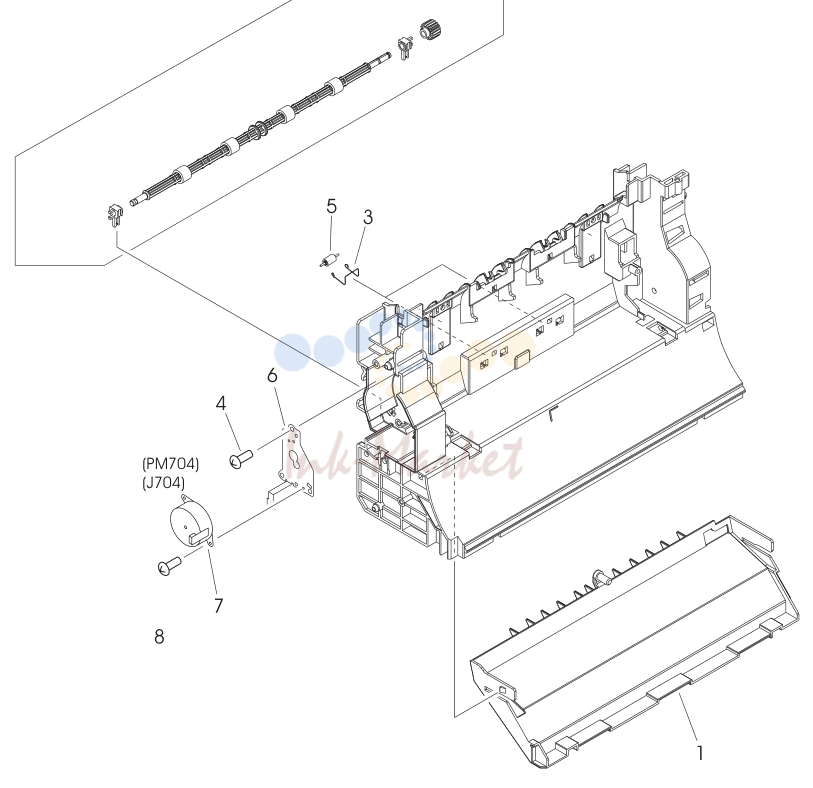

7. Figure 7-6. Rear frame assembly
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Fuser duct RB2-9904-000CN | ||
| 2 | Roller, lower, top output bin RG5-7595-000CN | ||
| 3 | Spring, left RB3-1065-000CN | ||
| 4 | Screw, M4x10 XA9-1262-000CN | ||
| 5 | Roller, lower, top output bin, small RB2-9909-000CN | ||
| 6 | Cover, fuser motor RB2-9916-000CN | ||
| 7 | Motor, dc, 24 V RH7-1533-000CN | ||
| 8 | Screw, RS, M3x6 XA9-0849-000CN |

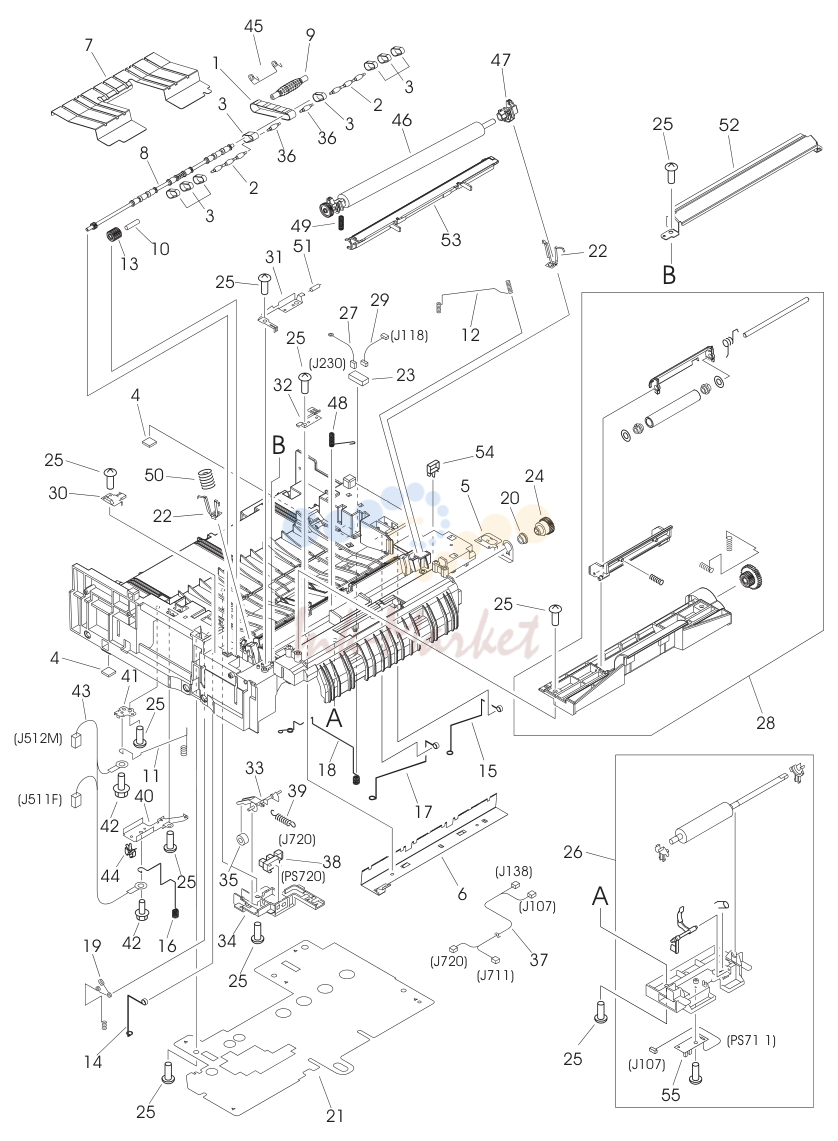

8. Figure 7-7. Middle frame assembly
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Timing belt RB1-8668-030CN | ||
| 2 | Pulley RB3-0061-000CN | ||
| 3 | Feed belt RB3-0063-000CN | ||
| 4 | Rubber foot RB2-6297-000CN | ||
| 5 | Grounding plate RB3-0286-000CN | ||
| 6 | Static charge eliminator plate RB3-0009-000CN | ||
| 7 | Feed plate RB3-0010-000CN | ||
| 8 | Shaft, feed drive RB3-0011-000CN | ||
| 9 | Roller, belt RB3-0012-000CN | ||
| 10 | Shaft, idler gear RB3-0060-000CN | ||
| 11 | Spring RB3-0045-000CN | ||
| 12 | Spring RB3-0016-000CN | ||
| 13 | Gear, idler, 23T RB3-0022-000CN | ||
| 14 | Spring RB3-0042-000CN | ||
| 15 | Spring RB3-0043-000CN | ||
| 16 | Spring RB3-0044-000CN | ||
| 17 | Spring RB3-0046-000CN | ||
| 18 | Spring RB3-0047-000CN | ||
| 19 | Spring RB3-0048-000CN | ||
| 20 | Bushing RS5-1637-000CN | ||
| 21 | Insulating sheet RB3-1110-000CN | ||
| 22 | Transfer slide plate RB3-0057-000CN | ||
| 23 | Connector, optional trays RH2-5519-000CN | ||
| 24 | Gear, 30T RS7-0428-000CN | ||
| 25 | Screw, M4x10 XA9-1262-000CN | ||
| 26 | Registration roller assembly RG5-6939-000CN | ||
| 27 | Cable, grounding RG5-7123-000CN | ||
| 28 | Registration shutter assembly RG5-6940-000CN | ||
| 29 | Cable, interface RG5-7122-000CN | ||
| 30 | Cover, gear RB3-0052-000CN | ||
| 31 | Grounding spring RB3-0065-000CN | ||
| 32 | Grounding spring RB3-0066-000CN | ||
| 33 | Flag, transfer sensor RB2-9925-000CN | ||
| 34 | Holder, transfer sensor RB2-9924-000CN | ||
| 35 | Roller, transfer sensor RB2-7195-000CN | ||
| 36 | Pulley RB3-0067-000CN | ||
| 37 | Cable RG5-7128-000CN | ||
| 38 | Sensor, transfer (PS720) WG8-5382-000CN | ||
| 39 | Spring RS6-2766-000CN | ||
| 40 | Mount, terminal RB2-9850-000CN | ||
| 41 | Mount, antenna contact RB2-9851-000CN | ||
| 42 | Screw, RS, M3x6 XA9-0890-000CN | ||
| 43 | Cable, high-voltage transformer RG5-7130-000CN | ||
| 44 | Clamp, cable WT2-5700-000CN | ||
| 45 | Spring RB2-9999-000CN | ||
| 46 | Roller, transfer RF5-4067-000CN | ||
| 47 | Bushing RB3-1094-000CN | ||
| 48 | Spring RB3-1091-000CN | ||
| 49 | Spring RB3-1092-000CN | ||
| 50 | Spring RB3-0015-000CN | ||
| 51 | Resistor RH5-3115-000CN | ||
| 52 | Guide, transfer inlet RB3-1088-000CN | ||
| 53 | Entrance guide RF5-4065-000CN | ||
| 54 | Clip, cable WT2-5737-000CN | ||
| 55 | Registration sensor RG5-6967-000CN | ||
| 260 | Chapter7 запросить цену → | Parts and diagrams ENWW |

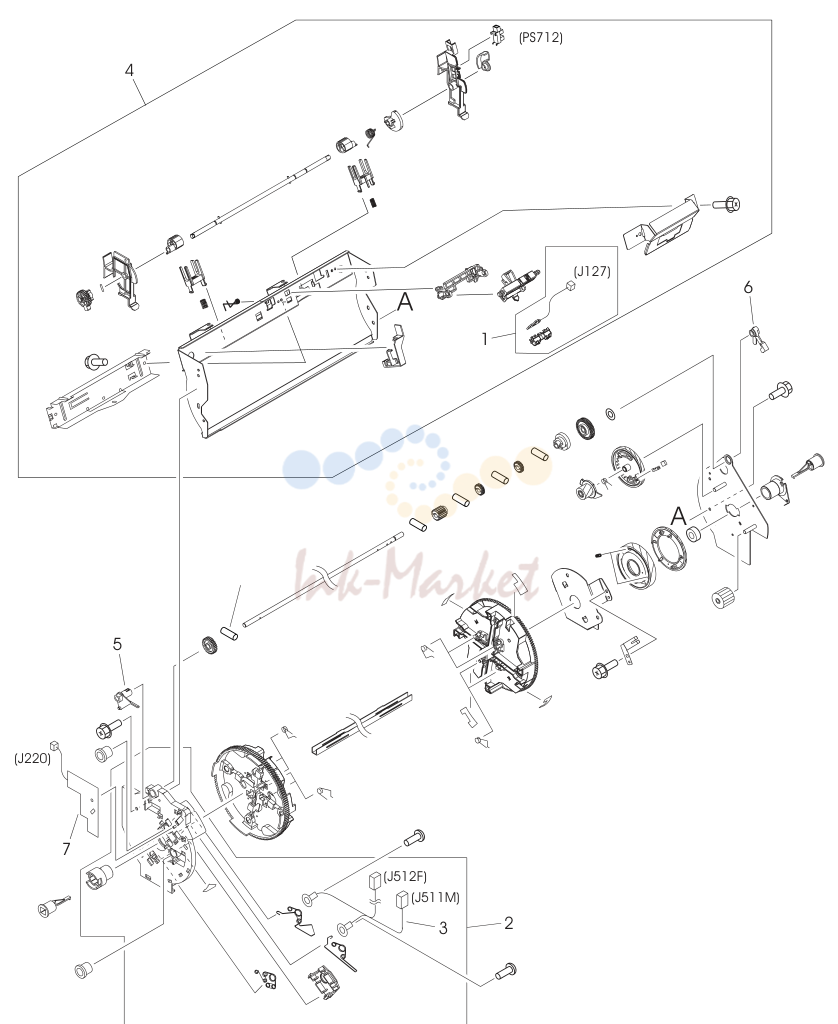

9. Figure 7-8. Rotary (carousel) assembly
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Contact assembly, E-label reader RG5-6957-000CN | ||
| 2 | Rotary plate assembly, left RG5-6942-000CN | ||
| 3 | Cable, rotary assembly RG5-7129-000CN | ||
| 4 | Rotary pressure assembly RG5-7589-000CN | ||
| 5 | Carousel lock, left (white) RB2-9809-000CN | ||
| 6 | Carousel lock, right (black) RB9-0879-000CN | ||
| 7 | Toner-sensor PCA RG5-6964-000CN |

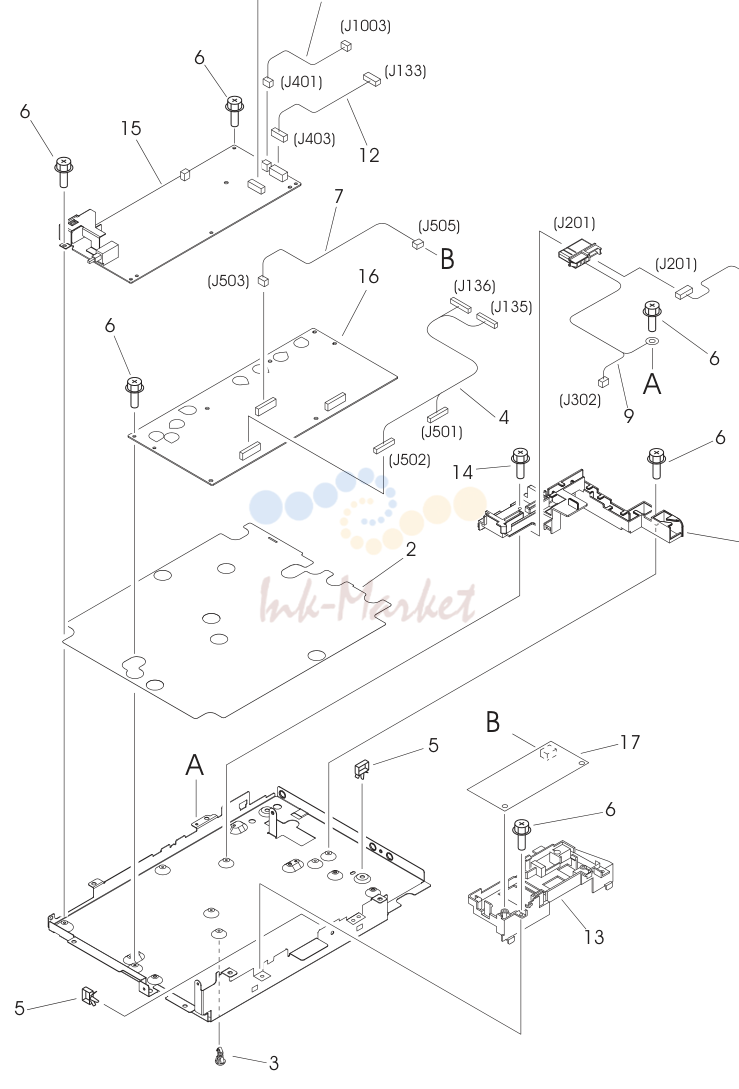

10. Figure 7-9. Power-supply base assembly
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Holder, fuser connector RB3-0006-000CN | ||
| 2 | Insulating sheet RB3-0007-000CN | ||
| 3 | Support, high-voltage PCA VT2-0012-005CN | ||
| 4 | Cable, high-voltage transformer RG5-7146-000CN | ||
| 5 | Clip, cable WT2-5737-000CN | ||
| 6 | Screw, M3x8 XA9-1355-000CN | ||
| 7 | Cable, sub-high-voltage transformer RG5-7126-000CN | ||
| 8 | Cable, fuser connector, dc controller RG5-7109-000CN | ||
| 9 | Cable, fuser, power RG5-6971-000CN | ||
| 10 | Cable, formatter, power RG5-7106-000CN | ||
| 11 | Cable, power (1) RG5-7621-000CN | ||
| 12 | Cable, power (2) RG5-7108-000CN | ||
| 13 | Holder, high-voltage RB3-0062-000CN | ||
| 14 | Screw, M3x8 XA9-1291-000CN | ||
| 15 | Low-voltage PCA, 110-127 V RH3-2254-000CN | ||
| 15 | Low-voltage PCA, 220-240 V RH3-2255-000CN | ||
| 16 | High-voltage transformer PCA RG5-7606-000CN | ||
| 17 | Sub-high-voltage transformer PCA RG5-7124-000CN |

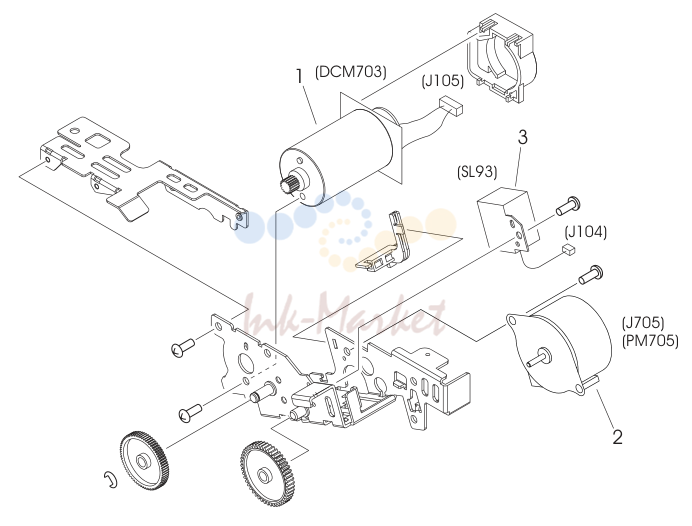

11. Figure 7-10. Rotary-drive assembly
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Motor (DCM703) RG5-7593-000CN | ||
| 2 | Motor (PM705) RH7-1535-000CN | ||
| 3 | Solenoid (SL93) RH7-5340-000CN | ||
| 1 | Top-of-page sensor PCA RG5-6966-000CN | ||
| 2 | Dc controller RG5-7605-000CN | ||
| 3 | Low-voltage PCA, 110-127 V RH3-2254-000CN | ||
| 3 | Low-voltage PCA, 220-240 V RH3-2255-000CN | ||
| 4 | High-voltage transformer PCA RG5-7606-000CN | ||
| 5 | Waste-toner sensor PCA RG5-7607-000CN | ||
| 6 | Registration-sensor PCA RG5-6967-000CN | ||
| 7 | Density-sensor PCA RH7-7146-000CN | ||
| 8 | Toner-sensor PCA RG5-6964-000CN | ||
| 9 | Sub-high-voltage transformer PCA RG5-7124-000CN |
