1. Overview
2. Figure 7-2 External panels and covers (1 of 2)
3. Figure 7-3 External panels and covers (2 of 2)
4. Covers
5. Figure 7-6 Internal components (2 of 3)
6. Figure 7-7 Internal components (3 of 3)
7. Figure 7-8 Control panel assembly
8. Figure 7-11 PCB assembly location (Tray 2)
9. Input devices
10. Figure 7-13 250-sheet input tray (cassette)
11. Figure 7-15 Paper pick-up feeder assembly for Tray 2
12. Figure 7-16 Tray 3 input tray (cassette)
13. Figure 7-17 Paper pickup feeder assembly (Tray 3)

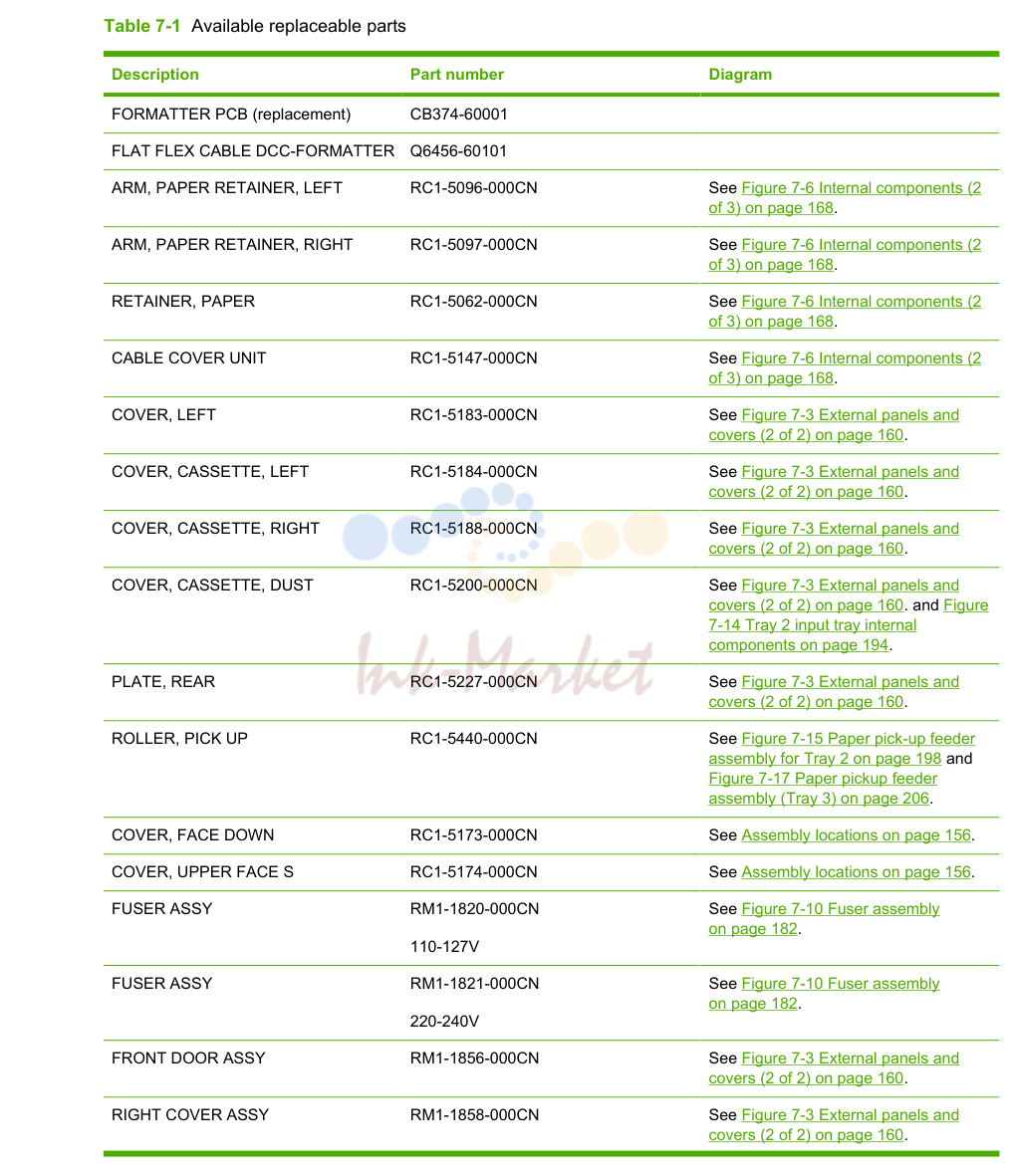

1. Overview

№	Артикул	Описание
1		UPPER COVER *
2	RM1-1983-000CN запросить цену →	CONTROL PANEL ASSEMBLY
3	RM1-1820-000CN запросить цену →	(110v) or
4		MAIN DRIVE ASSEMBLY *
5		PAPER PICKUP FEEDER ASSEMBLY *
6	RM1-1916-000CN запросить цену →	CASSETTE

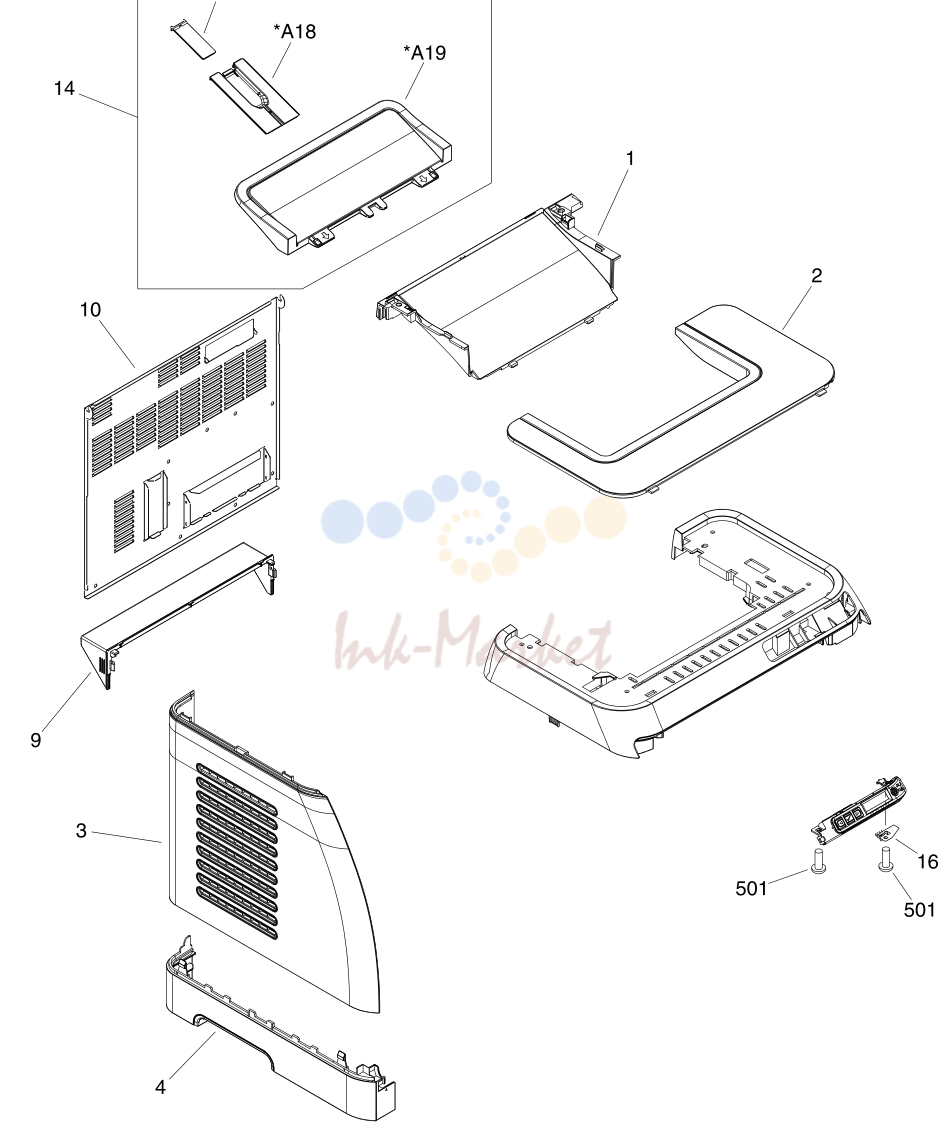

2. Figure 7-2 External panels and covers (1 of 2)

№	Артикул	Описание
1	RC1-5173-000CN запросить цену →	COVER, FACE-DOWN
2	RC1-5174-000CN запросить цену →	COVER, UPPER FACE, S
3	RC1-5183-000CN запросить цену →	COVER, LEFT
4	RC1-5184-000CN запросить цену →	COVER, CASSETTE, LEFT
9	RC1-5200-000CN запросить цену →	COVER, CASSETTE DUST
10	RC1-5227-000CN запросить цену →	PLATE, REAR
14	RM1-1859-000CN запросить цену →	PAPER DELIVERY TRAY ASS'Y
16		PLATE, GROUNDING *
501		SCREW, TAPPING,TRUSS HEAD,M3X8 *

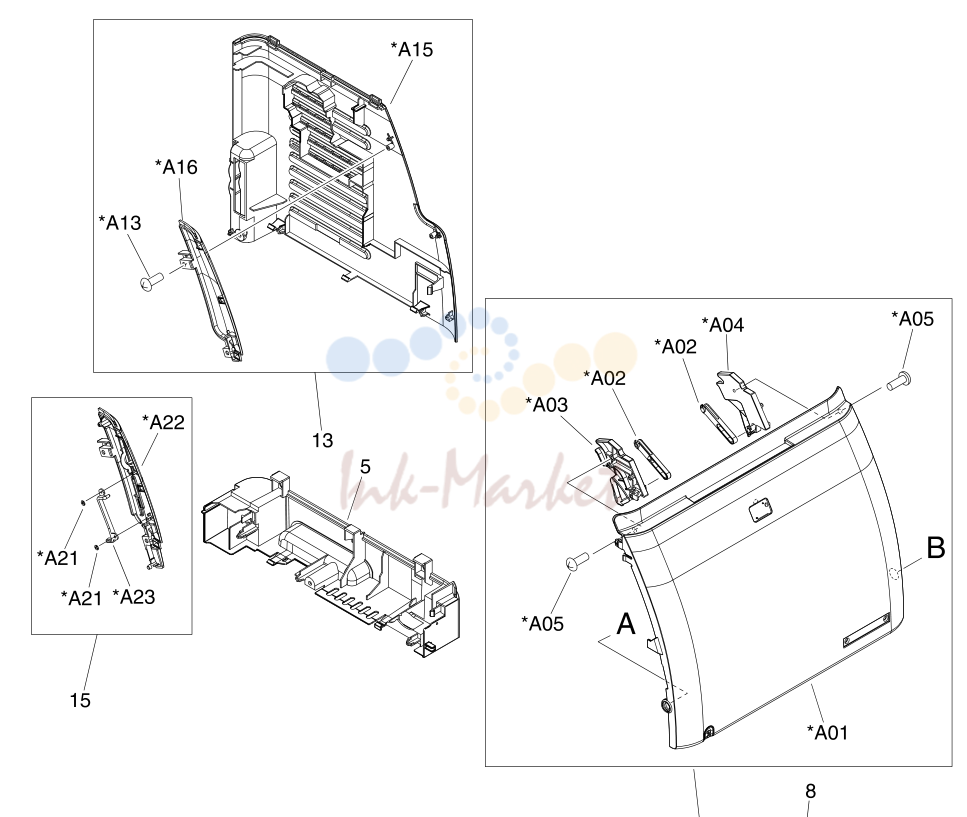

3. Figure 7-3 External panels and covers (2 of 2)

№	Артикул	Описание
5	RC1-5188-000CN запросить цену →	COVER, CASSETTE, RIGHT
6		ARM, FRONT DOOR, LEFT *
7		ARM, FRONT DOOR, RIGHT *
8		SHAFT, FRONT DOOR ARM *
9	RC1-5200-000CN запросить цену →	COVER, CASSETTE DUST
10	RC1-5227-000CN запросить цену →	PLATE, REAR
11	RM1-1856-000CN запросить цену →	FRONT DOOR ASS'Y
13	RM1-1858-000CN запросить цену →	RIGHT COVER ASS'Y
15		COVER, RIGHT FRONT *

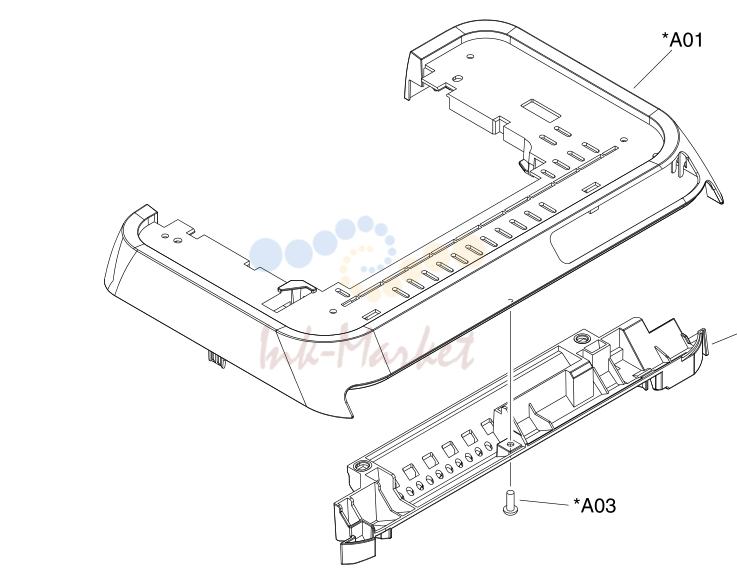

4. Covers

№	Артикул	Альт. артикул	Описание
1			CROSSMEMBER, TOP COVER *
2			BRACKET, LEFT REAR *
3			BRACKET, RIGHT REAR *
4			COVER, INSIDE, RIGHT *
5			BRACKET, CARD READER *
6			HOLDER, FAN RETAINER *
7			LATCH, LEFT *
8			BUSHING *
9			LATCH, RIGHT *
10			LEVER, ETB RELEASE *
11			FAN *
12			GEAR, 54T *
13			SPRING, TENSION *
14			SPRING, COMPRESSION *
15			LEFT INTERNAL COVER ASS'Y *
16			GUIDE, CARTRIDGE, RIGHT *
17			HOLDER, DRUM *
18			BUSHING *
19			PLATE, PRESSURE, RIGHT *
20			BUSHING *
21			GUIDE, CASSETTE, REAR RIGHT *
22			GUIDE, CASSETTE, FRONT RIGHT *
23			GEAR, 20T *
24			GEAR, 36T *
25			GEAR, 36T *
26			SPRING, TORSION *
27			SCREW, RS, M3X8 *
27			SCREW, RS, M3X8 *
27			SCREW, RS, M3X8 *
27			SCREW, RS, M3X8 *
28			GUIDE, CARTRIDGE, LEFT *
29			HOLDER, DRUM *
30			LINK, SHUTTER *
31			PLATE, PRESSURE, LEFT *
32			SPRING, TORSION *
33			PLATE, SHAFT *
34			ARM, OPEN/CLOSE *
35			ARM, OPEN/CLOSE *
36			SPRING, TORSION *
37			ROD, LEFT *
38			SPRING, GROUNDING *
39			GUIDE, CASSETTE, FRONT LEFT *
40			GUIDE, CASSETTE, REAR LEFT *
41			RING, E *
42			ARM, LASER SHUTTER *
43			DUCT, FAN *
44			SPRING, TENSION *
45			MEMORY CONTROLLER PCB ASS'Y *
46			DUCT, FAN, UPPER *
47			DUCT, FAN, LOWER *
48			HOLDER, MEMORY CONTROLLER *
49			FLAG, PRESSURE RELEASE SENSOR *
50			CLAMP, FFC *
501			SCREW, TAPPING,TRUSS HEAD,M4X8 *
166			Chapter 7 Parts and diagrams ENWW

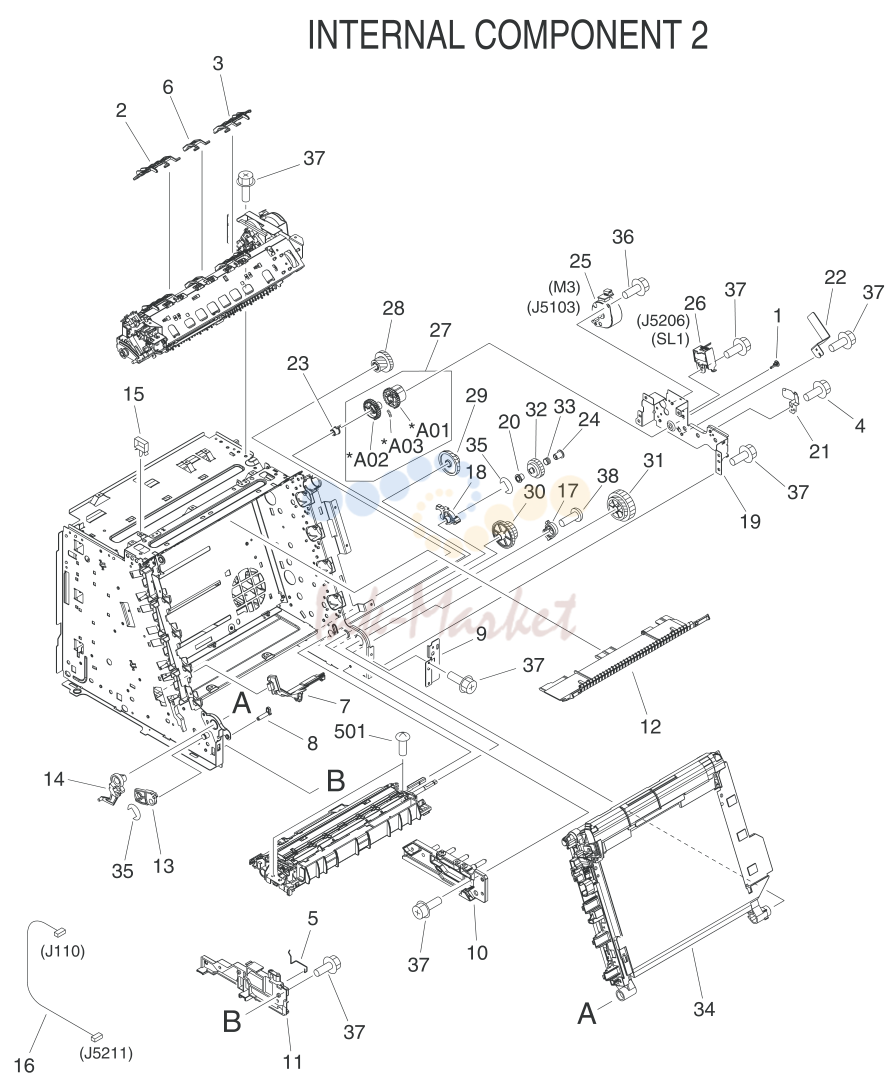

5. Figure 7-6 Internal components (2 of 3)

№	Артикул	Описание
1		CAP, SHAFT CONDUCTIVE *
2	RC1-5096-000CN запросить цену →	ARM, PAPER RETAINER, LEFT
3	RC1-5097-000CN запросить цену →	ARM, PAPER RETAINER, RIGHT
4		SCREW, RS, M3X6 *
5	RC1-5147-000CN запросить цену →	SPRING, GROUNDING
6	RC1-5062-000CN запросить цену →	RETAINER, PAPER
7		COVER, PICK-UP FEED CABLE *
8		SHAFT, FRONT DOOR *
9		PLATE, PANEL FIX, RIGHT FRONT *
10		GUIDE, CASSETTE, FRONT RIGHT *
11		GUIDE, CASSETTE, FRONT LEFT *
12		PLATE, HEAT INSULATING *
13		LEVER, CONNECTING, LEFT *
14		CAM, LEFT *
15		SADDLE, WIRE *
16		FEEDER UNIT JOINT CABLE *
17		CAM, HINGE, RIGHT *
18		LEVER, CONNECTING, RIGHT *
19		BASE, MOTOR *
20		CLUTCH, MECHANICAL *
21		SPRING, LEAF *
22		PLATE *
23		BUSHING *
24		STOP, CLUTCH *
25		MOTOR, STEPPING, DC *
26		SOLENOID *
27		PICKUP GEAR ASS'Y *
28		GEAR, 57T/20T *
29		GEAR, 43T/16T *
30		GEAR, 47T/26T *
31		GEAR, 40T/43T *
32		CAM/GEAR, 26T *
33		SPRING, COMPRESSION *
34	RM1-1885-000CN запросить цену →	ELECT.TRANSPORT BELT ASS'Y
35		RING, E *
36		SCREW, RS, M3X6 *
37		SCREW, RS, M3X8 *
38		SCREW, W/WASHER, M4X18 *
501		SCREW, TAPPING, TRUSS HEAD, M4X8 *
170		Chapter 7 Parts and diagrams ENWW

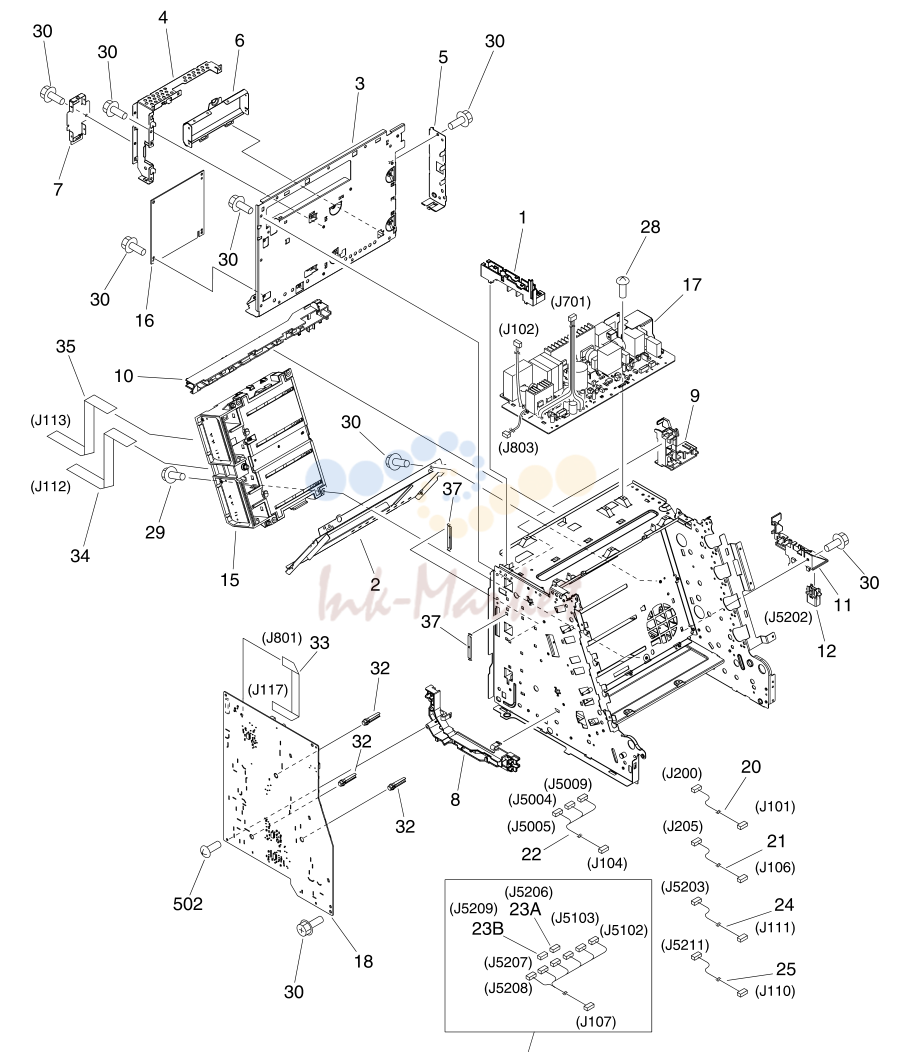

6. Figure 7-7 Internal components (3 of 3)

№	Артикул	Описание
1		GUIDE, CABLE, UPPER *
3		PLATE, SHIELD *
4		PLATE, SHIELD, FRONT *
5		PLATE, CONNECTOR *
6		COVER, CONTROLLER *
7		LID, CONTROLLER *
8		HOLDER, CABLE, LEFT *
9		HOLDER, DC CABLE *
10		HOLDER, CABLE, UPPER *
11		HOLDER, DRAWER *
12		CONNECTOR, DRAWER *
15		SCANNER UNIT *
16	RM1-1975-000CN запросить цену →	DC CONTROLLER PCB ASS'Y
17		POWER SUPPLY PCB ASS'Y *
17		POWER SUPPLY PCB ASS'Y *
17		POWER SUPPLY PCB ASS'Y *
18		HIGH-VOLTAGE PCB ASS'Y *
20		POWER CABLE *
21		POWER CONTROLLER CABLE *
22		FIXING SENSOR CABLE *
23		DRIVE CABLE *
24		CABLE, CPR *
25		FEEDER UNIT JOINT CABLE *
28		SCREW, W/WASHER, M3X8 *
29		SCREW, RS, M3X10 *
30		SCREW, RS, M3X8 *
32		ROD, BEARING SUPPORT *
33		CABLE, FLAT *
34		CABLE, FLAT *
35		CABLE, FLAT *
37		CLAMP, FFC *
502		SCREW, TAPPING, TRUSS HEAD, M4X8 *
174		Chapter 7 Parts and diagrams ENWW

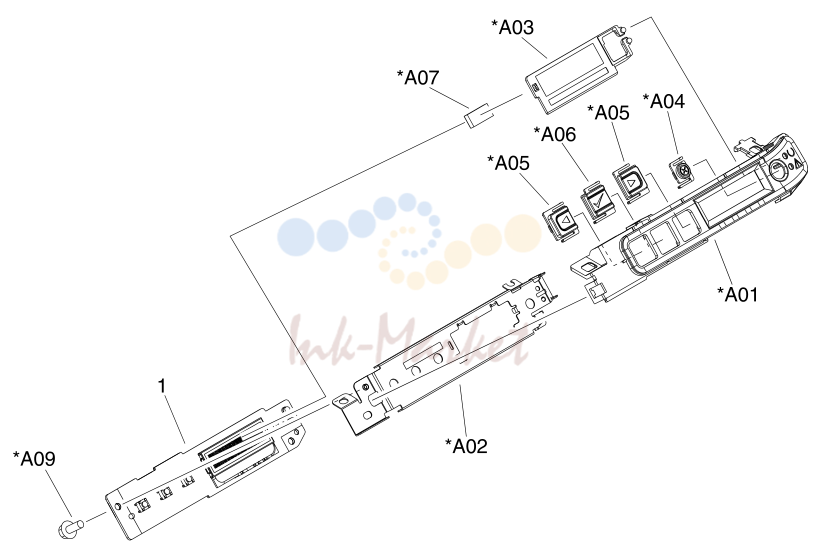

7. Figure 7-8 Control panel assembly

№	Артикул	Альт. артикул	Описание
1			SPRING, TORSION *
2			BUSHING *
3			BUSHING *
4			RIB, ENTRANCE GUIDE *
5			FLAG, INLET *
6			GUIDE, PAPER DELIVERY UPPER *
7			FLAG, PAPER DELIVERY *
8			FILM GUIDE ASS'Y (110v) *
8			FILM GUIDE ASS'Y (220v) *
9			GUIDE, PAPER DELIVERY LOWER *
10			FLAG, INTERTWINE PREVENTION *
11			BUSHING *
12			PLATE, PRESSURE, LEFT *
13			PLATE, PRESSURE, RIGHT *
14			HOLDER, RESISTOR *
15			SPRING, GROUNDING *
16			SPRING, GROUNDING *
17			SPRING, GROUNDING *
18			GUIDE, CONTACT/SENSOR SUPPORT *
19			ROLLER, PRESSURE *
20			ROLLER, FACE-DOWN BENDING *
21			PIN,DOWEL *
22			CAM, PRESSURE RELEASE *
23			FLAG, PRESSURE RELEASE *
24			HOLDER, PRESSURE RELEASE GEAR *
25			SPRING, LEAF *
26			BUSHING *
27			BUSHING *
28			SPRING, COMPRESSION *
29			RING, E *
30			RING, E
31			SPRING, GROUNDING *
32			ROLLER, DELIVERY *
33			MOTOR, STEPPING, DC *
34			SCREW, RS, M3X6 *
35			SHAFT, FACE-DOWN ROLLER *
36			SCREW, RS, M3X8 *
37			GEAR, 30T *
38			GEAR, 19T *
39			GEAR, 16T *
40			GEAR, 49T *
41			GEAR, 19T/71T *
42			GEAR, 27T *
43			GEAR, 26T *
44			GEAR, 20T/44T *
45			GEAR, 22T/38T *
46			SPRING, TENSION *
47			SPRING, TORSION *
48			SOLID RESISTOR, 20MOHM, 1/4W *
49			PHOTO INTERRUPTER (SENSOR) *
50			SCREW, RS, M3X8 *
51			CLIP, ENTRANCE GUIDE *
52			PLATE, GROUNDING *
53			GUIDE, FIXING ENTRANCE *
184			Chapter 7 Parts and diagrams ENWW

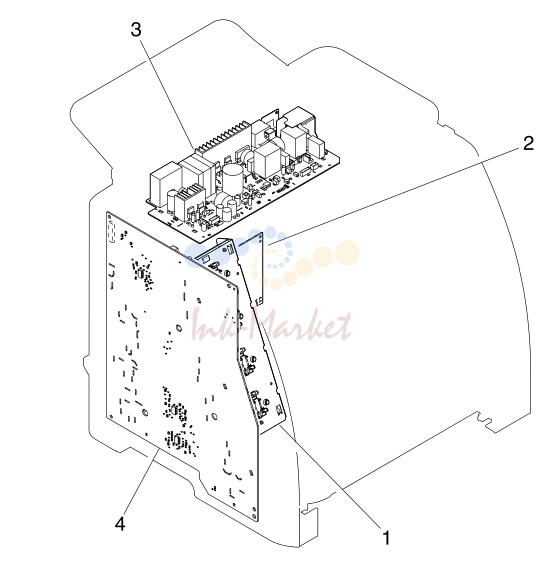

8. Figure 7-11 PCB assembly location (Tray 2)

№	Артикул	Описание
1		MEMORY CONTROLLER PCB ASS'Y *
2	RM1-1975-000CN запросить цену →	DC CONTROLLER PCB ASS'Y
3		POWER SUPPLY PCB ASS'Y *
3		POWER SUPPLY PCB ASS'Y *
4		HIGH-VOLTAGE PCB ASS'Y *

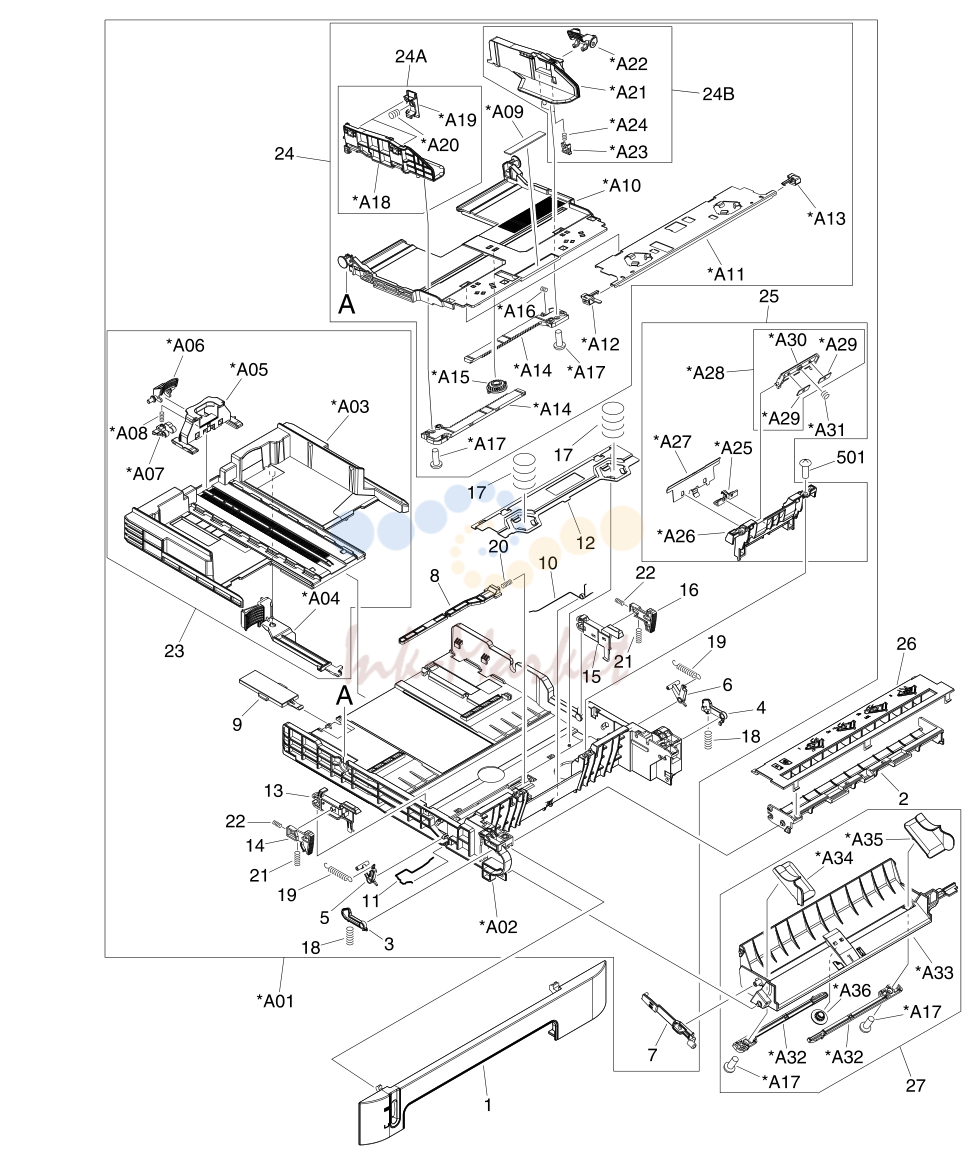

9. Input devices

№	Артикул	Описание
1		PANEL, FRONT *
2		GUIDE, CASSETTE DUPLEX, LOWER *
3		STOPPER, CASSETTE, LEFT *
4		STOPPER, CASSETTE, RIGHT *
5		ARM, CLAW RELEASE, LEFT *
6		ARM, CLAW RELEASE, RIGHT *
7		ARM, REMNANT INDICATION *
8		ARM, PLATE LOCK RELEASE, MD. *
9		SIZE PLATE, PAPER *
10		SPRING, GROUNDING *
11		SPRING, GROUNDING *
12		PLATE, CASSETTE REINFORCEMENT *
13		ARM, MD. PLATE RELEASE, LEFT *
14		CLAW, MD. PLATE RELEASE, LEFT *
15		ARM, MD. PLATE RELEASE, RIGHT *
16		CLAW, MD. PLATE RELEASE, RIGHT *
17		SPRING, COMPRESSION *
18		SPRING, COMPRESSION *
19		SPRING, TENSION *
20		SPRING, COMPRESSION *
21		SPRING, COMPRESSION *
22		SPRING, COMPRESSION *
23		BACK END LIMIT PLATE ASS'Y *
24		MIDDLE PLATE ASS'Y *
25	RM1-1922-000CN запросить цену →	SEPARATION ASS'Y
26		GUIDE, CASSETTE DUPLEX, UPPER *
27	RM1-1923-000CN запросить цену →	FEED ASS'Y
501		SCREW, TAPPING,TRUSS HEAD,M4X8 *

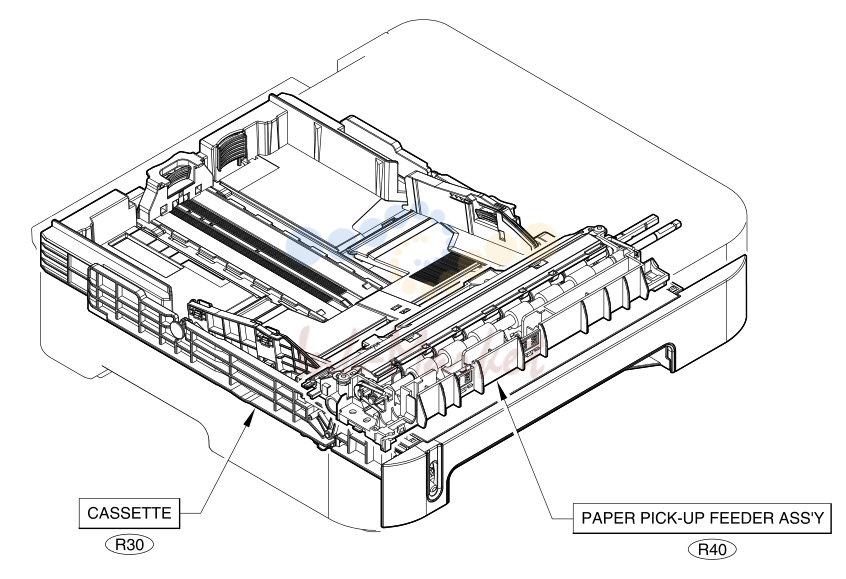

10. Figure 7-13 250-sheet input tray (cassette)

№	Артикул	Описание
1		CAP, CONTINUITY *
2	RC1-5200-000CN запросить цену →	COVER, CASSETTE DUST
3		BASE, MOTOR *
4		CLUTCH, MECHANICAL *
5		SPRING, LEAF *
6		BUSHING *
7		HOLDER, DRAWER CONNECTOR *
8		HOLDER, SWING GEAR *
9		PLATE, GROUNDING *
10		COVER, OPTION FRONT *
11		COVER, OPTION LEFT *
12		COVER, PCB *
13		SHAFT, POSITIONING *
14		COVER, SWING GEAR *
15		STOP, CLUTCH *
16		SOLENOID *
17		PICKUP GEAR ASS'Y *
18		COVER, OPTION RIGHT *
19		GEAR, 47T/26T *
20		GEAR, 40T/43T *
21		CAM/GEAR, 26T *
22		GEAR, 19T *
23		GEAR, 18T *
24		SPRING, COMPRESSION *
25		SPRING, TENSION *
26		CONNECTOR, DRAWER *
27		SADDLE, WIRE *
28		SCREW, RS, M3X8 *
29		SPRING, GROUNDING *
30		GUIDE, CASSETTE, FRONT LEFT *
31		GUIDE, CASSETTE, REAR LEFT *
32		SCREW, RS, M3X8 *
33		GUIDE, CASSETTE, REAR RIGHT *
34		GUIDE, CASSETTE, FRONT RIGHT *
35		SCREW, RS, M3X8 *
36		PAPER FEEDER PCB ASS'Y *
501		SCREW, TAPPING,TRUSS HEAD, M4X8 *
196		Chapter 7 Parts and diagrams ENWW

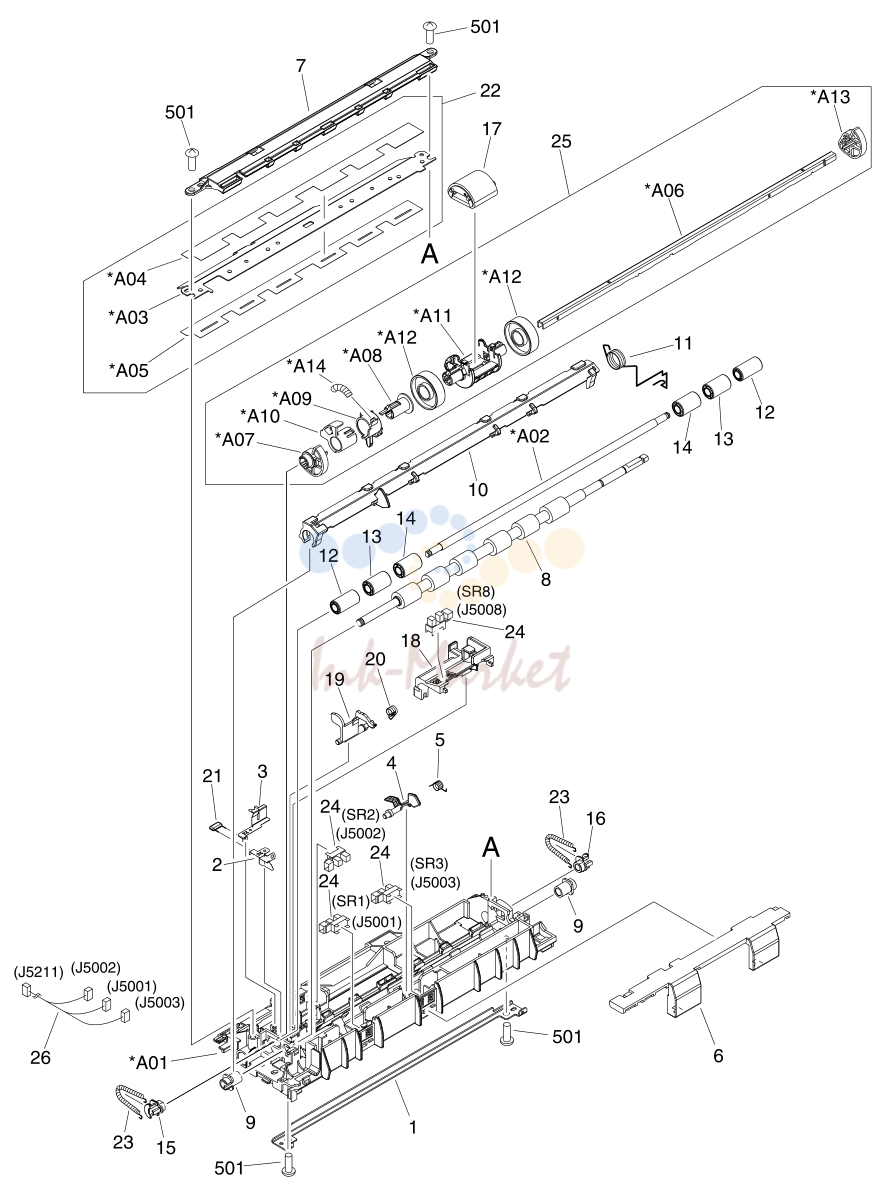

11. Figure 7-15 Paper pick-up feeder assembly for Tray 2

№	Артикул	Описание
1		GUIDE, REGISTRATION *
2		PLATE, REG. GROUNDING, 1 *
3		PLATE, REG. GROUNDING, 2 *
4		FLAG, SENSOR *
5		SPRING, TORSION *
6		COVER, SENSOR, TOP *
7		GUIDE, PRE-TRANSFER *
8		ROLLER, REGISTRATION DRIVE *
9		BUSHING *
10		SHUTTER, REGISTRATION *
11		SPRING, TORSION *
12		ROLLER, REGISTRATION, A *
13		ROLLER, REGISTRATION, B *
14		ROLLER, REGISTRATION, C *
15		BUSHING *
16		BUSHING *
17	RC1-5440-000CN запросить цену →	ROLLER, PAPER PICKUP
18		HOLDER, PAPER WIDTH SENSOR *
19		FLAG, PAPER WIDTH SENSOR *
20		SPRING, TORSION *
21		RESISTOR, 400 OHM, 0.5W *
22		COVER, PICKUP FEED FRAME *
23		SPRING, TENSION *
24		PHOTO INTERRUPTER (SENSOR) *
25		PAPER PICKUP DRIVE ASS'Y *
26		FEEDER UNIT CABLE *
501		SCREW, TAPPING,TRUSS HEAD,M4X8 *

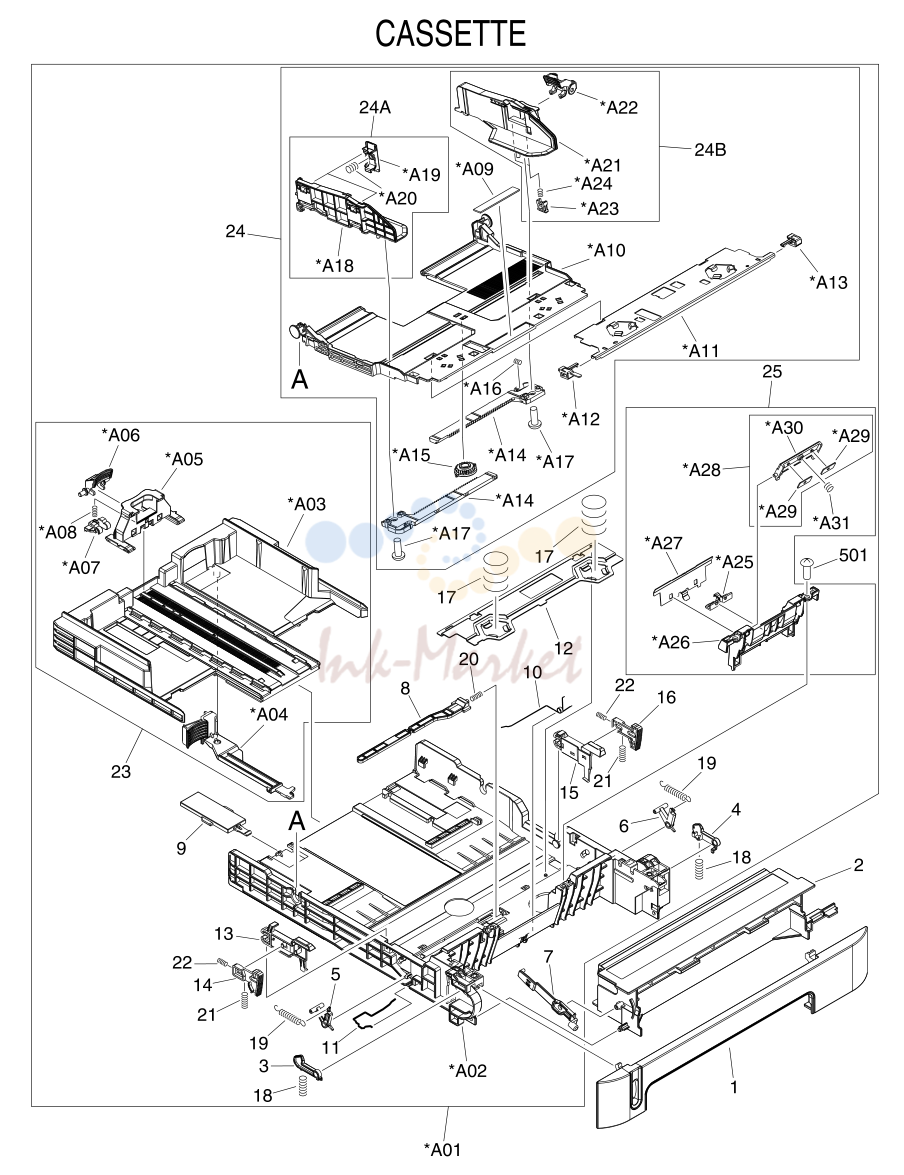

12. Figure 7-16 Tray 3 input tray (cassette)

№	Артикул	Описание
1		PANEL, FRONT *
2		FRAME, FRONT *
3		STOPPER, CASSETTE, LEFT *
4		STOPPER, CASSETTE, RIGHT *
5		ARM, CLAW RELEASE, LEFT *
6		ARM, CLAW RELEASE, RIGHT *
7		ARM, REMNANT INDICATION *
8		ARM, PLATE LOCK RELEASE, MD *
9		SIZE PLATE, PAPER *
10		SPRING, GROUNDING *
11		SPRING, GROUNDING *
12		PLATE, CASSETTE REINFORCEMENT *
13		ARM, MD. PLATE RELEASE, LEFT *
14		CLAW, MD. PLATE RELEASE, LEFT *
15		ARM, MD. PLATE RELEASE, RIGHT *
16		CLAW, MD. PLATE RELEASE, RIGHT *
17		SPRING, COMPRESSION *
18		SPRING, COMPRESSION *
19		SPRING, TENSION *
20		SPRING, COMPRESSION *
21		SPRING, COMPRESSION *
22		SPRING, COMPRESSION *
23		BACK END LIMIT PLATE ASS'Y *
24		MIDDLE PLATE ASS'Y *
25	RM1-1922-000CN запросить цену →	SEPARATION ASS'Y
501		SCREW, TAPPING,TRUSS HEAD,M4X8 *

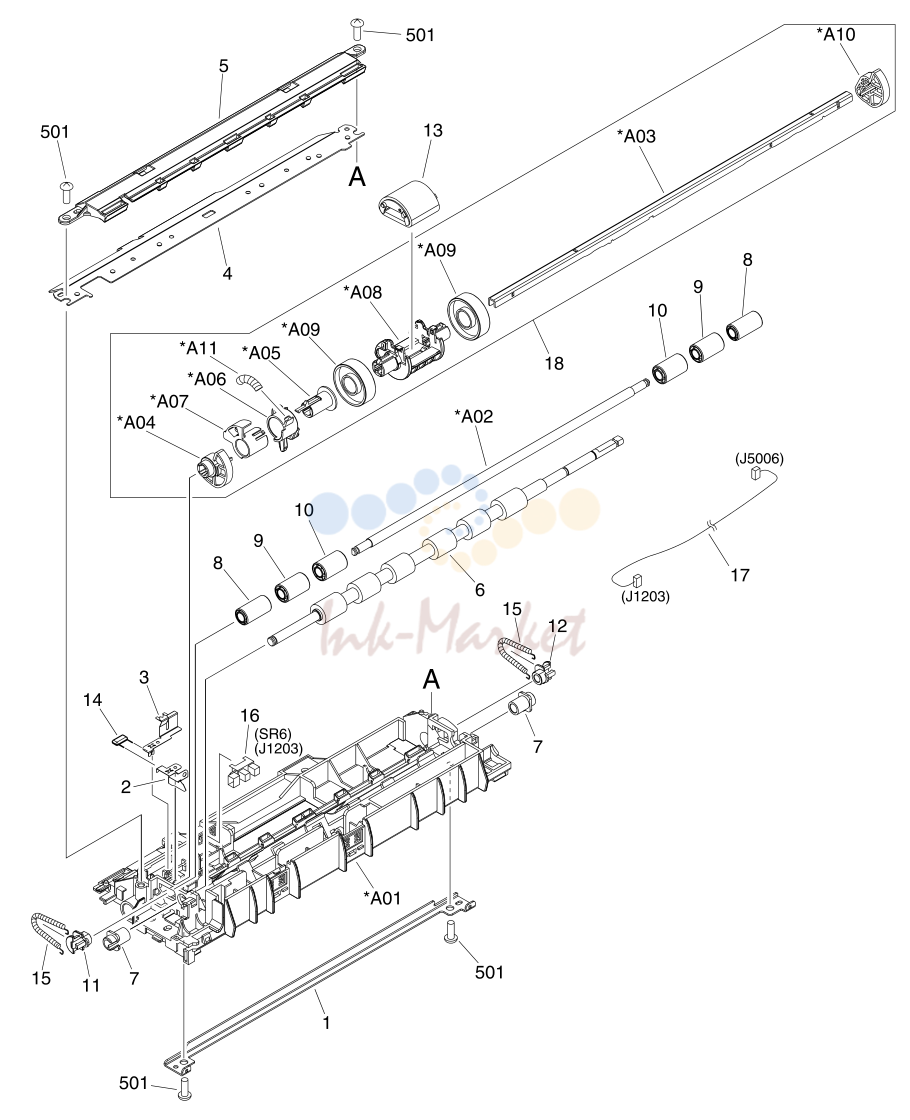

13. Figure 7-17 Paper pickup feeder assembly (Tray 3)

№	Артикул	Описание
1		GUIDE, REGISTRATION *
2		PLATE, REG. GROUNDING, 1 *
3		PLATE, REG. GROUNDING, 2 *
4		COVER, PICKUP FEED FRAME *
5		GUIDE, PRE-TRANSFER *
6		ROLLER, REGISTRATION DRIVE *
7		BUSHING *
8		ROLLER, REGISTRATION, A *
9		ROLLER, REGISTRATION, B *
10		ROLLER, REGISTRATION, C *
11		BUSHING *
12		BUSHING *
13	RC1-5440-000CN запросить цену →	ROLLER, PAPER PICKUP
14		RESISTOR, 400 OHM, 0.5W *
15		SPRING, TENSION *
16		PHOTO INTERRUPTER (SENSOR) *
17		CABLE, OPTION SENSOR *
18		PAPER PICKUP DRIVE ASS'Y *
501		SCREW, TAPPING,TRUSS HEAD,M4X8 *
