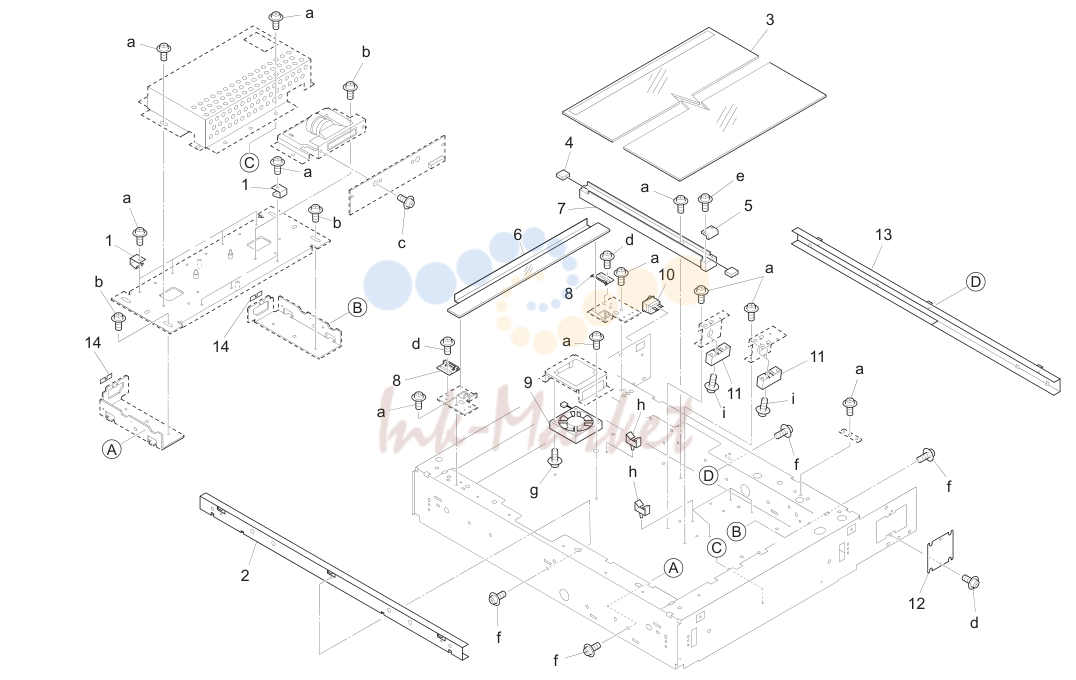

- 9. Optics unit (2)

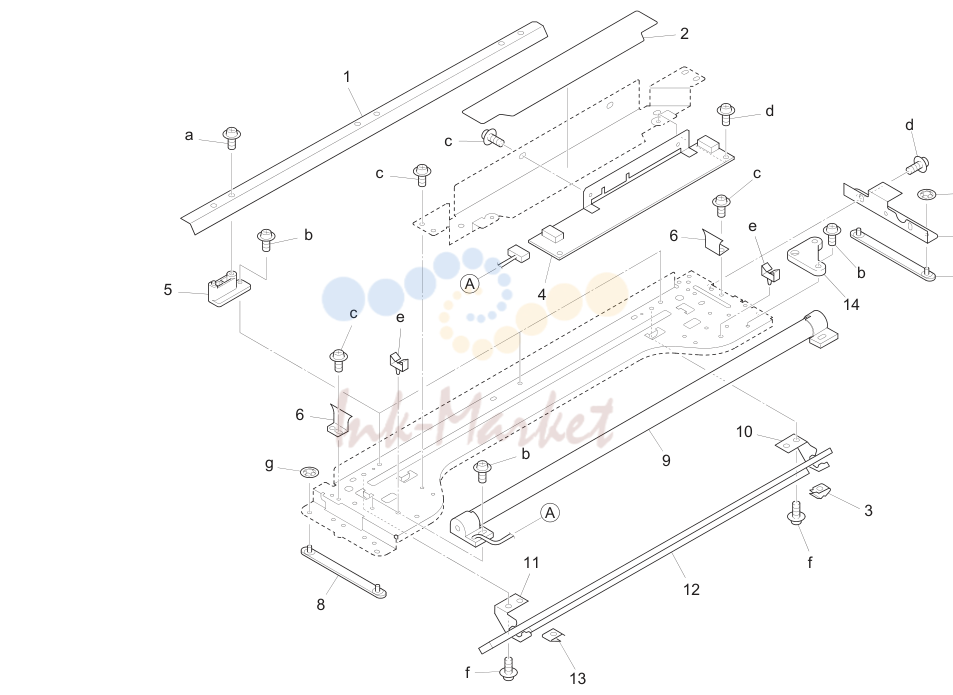

- 10. Optics unit (3)

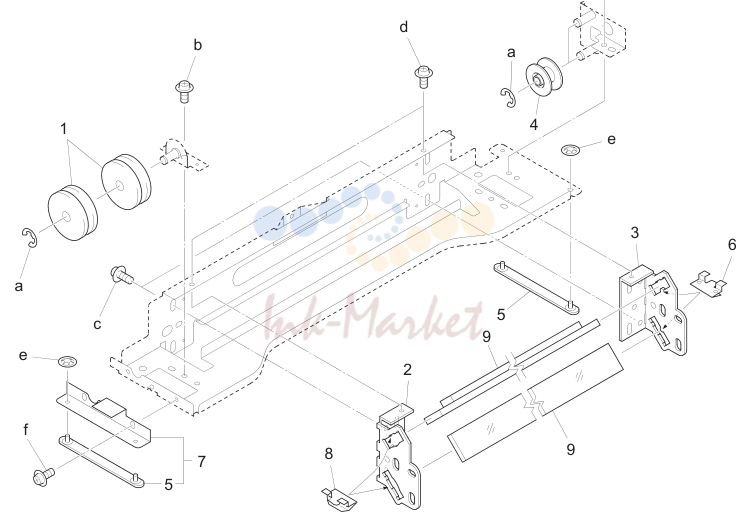

- 11. Optics unit (4)

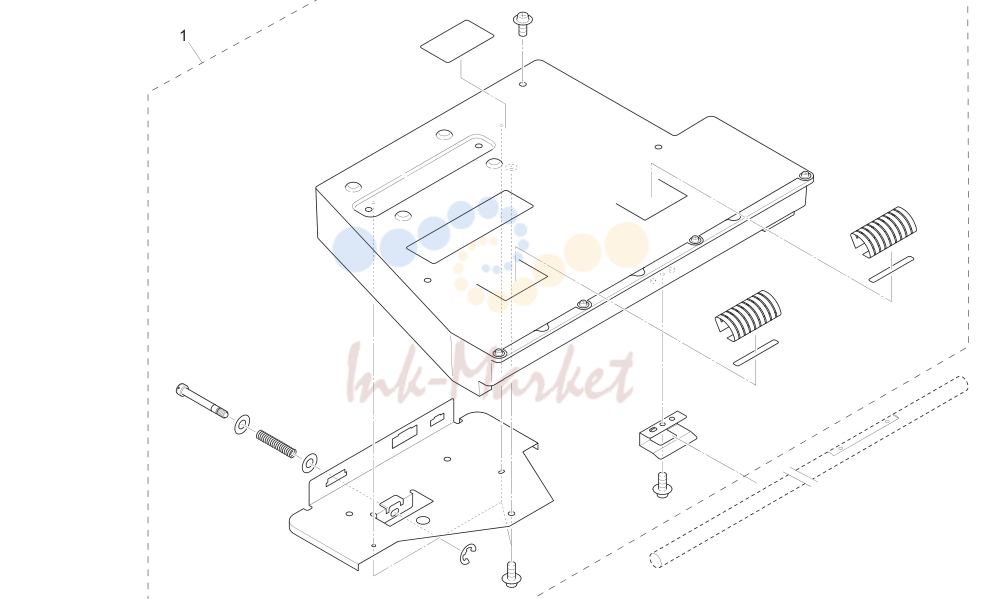

- 12. Optics unit (5)
- 13. Driving section (2)

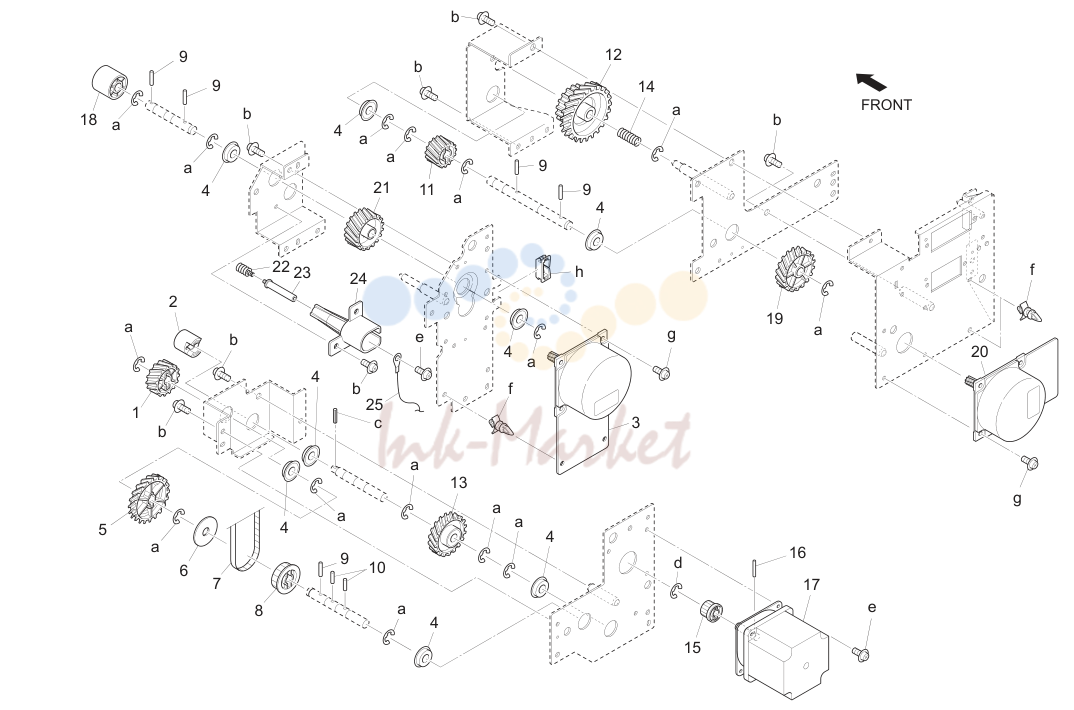

- 14. Driving section (3)

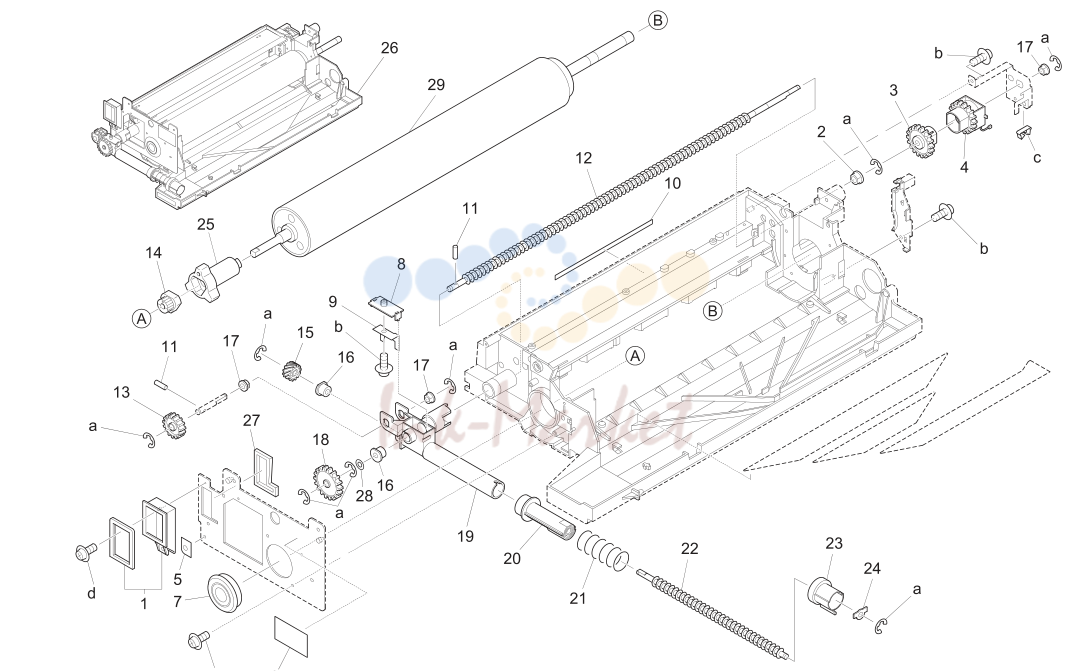

- 15. Drum cartridge (1)

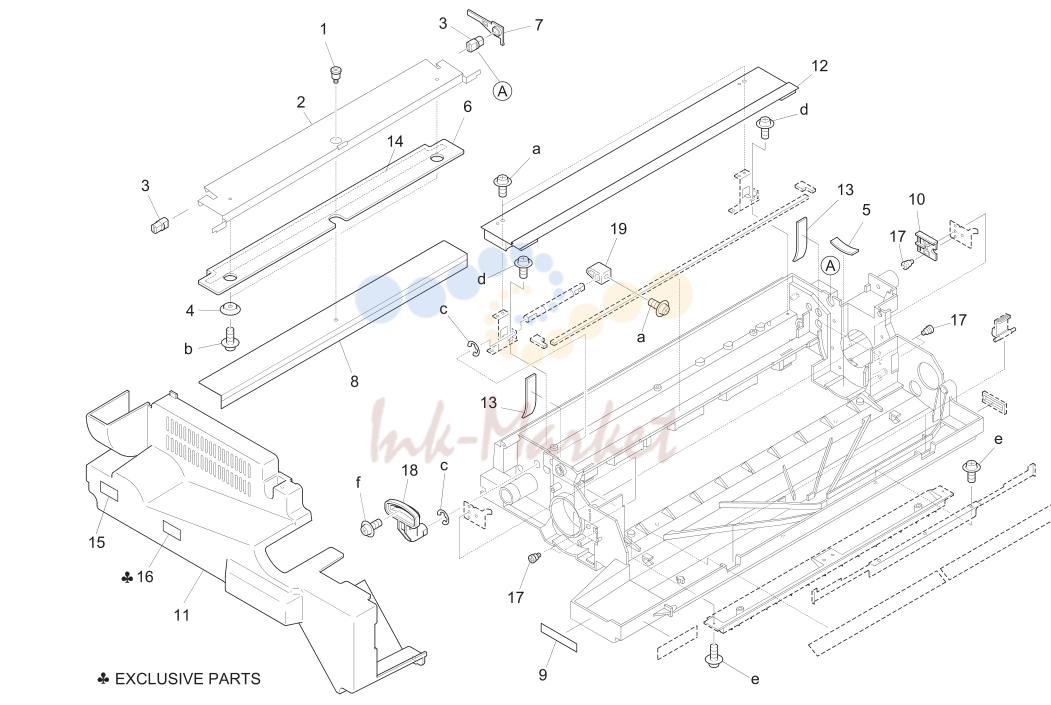

- 16. Drum cartridge (2)

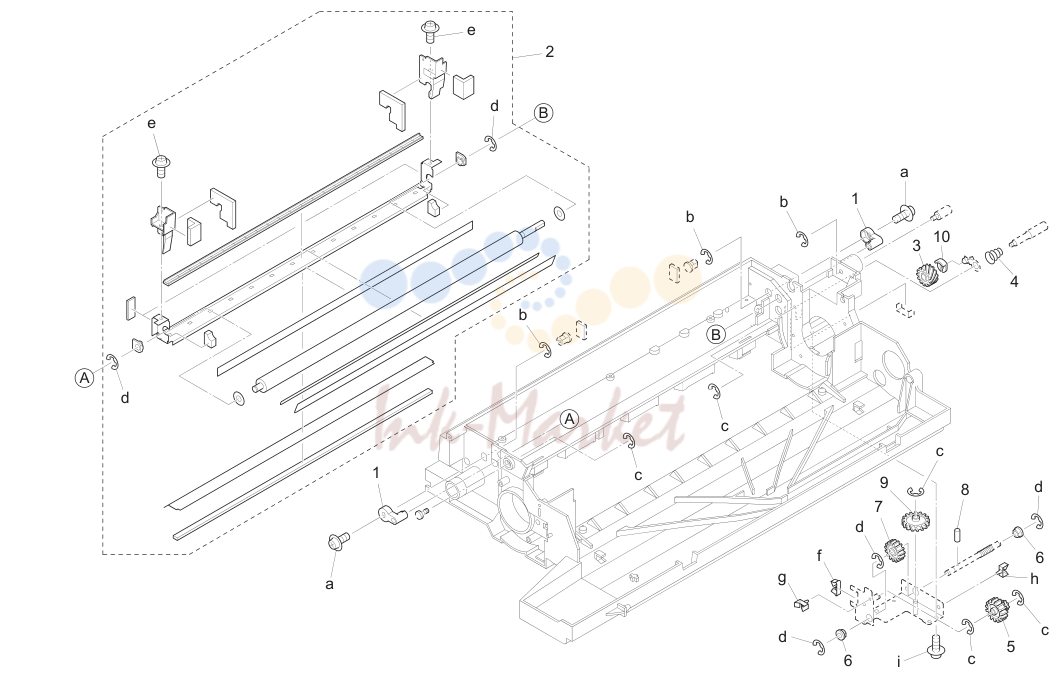

- 17. Drum cartridge (3)

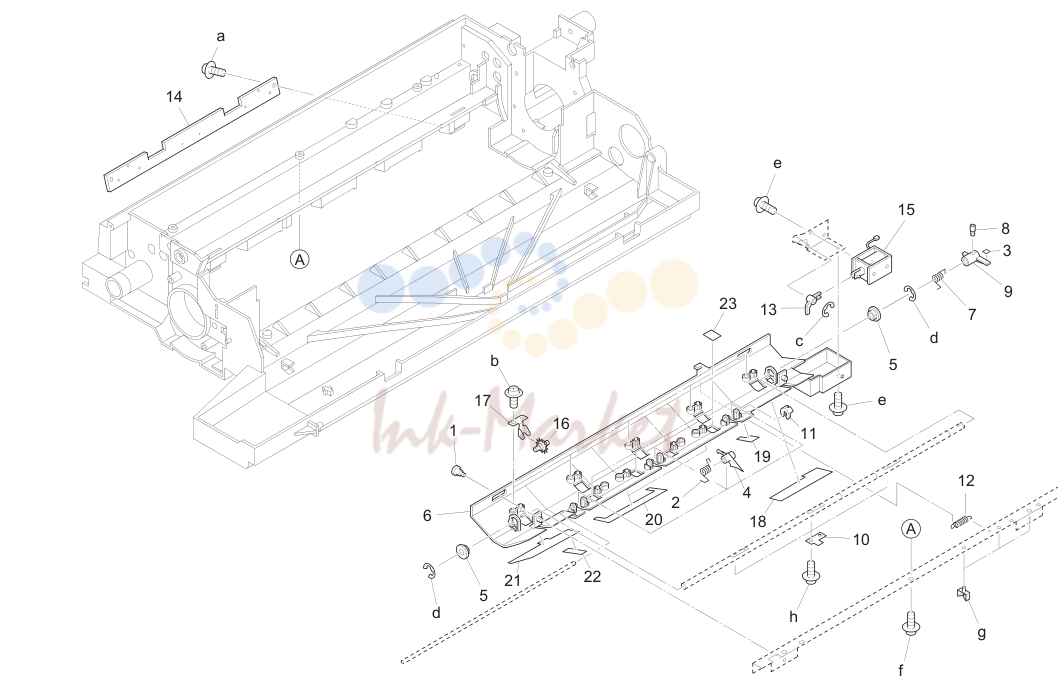

- 18. Drum cartridge (4)
- 19. Transfer separator corona unit

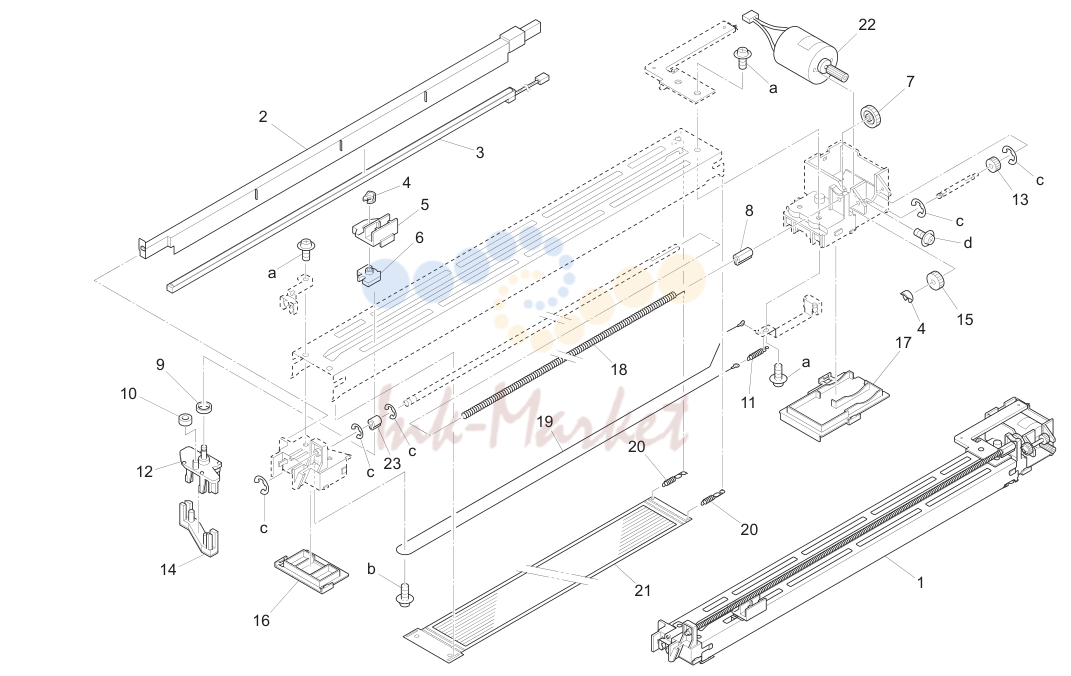

- 20. Charging unit

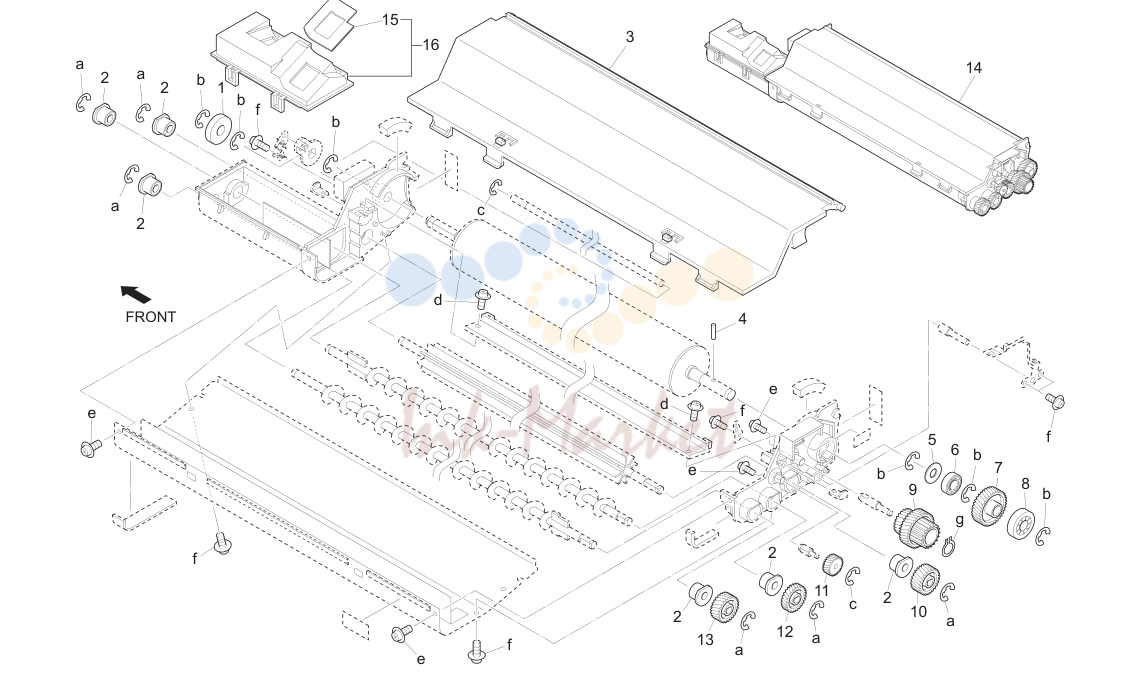

- 21. Developing unit
- 22. Toner supply unit (1)

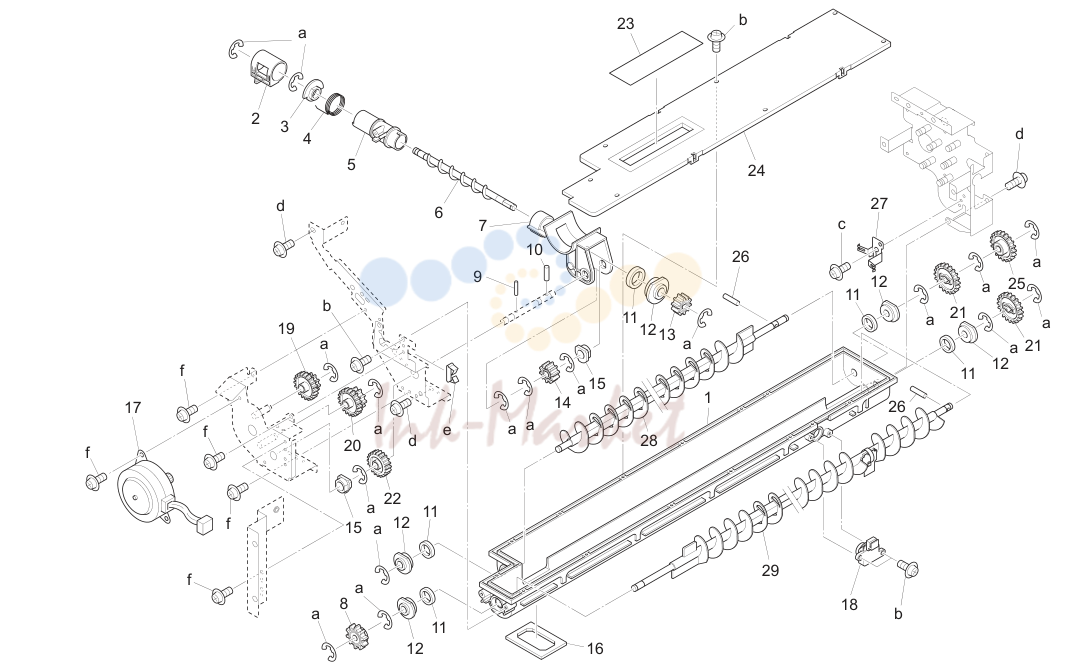

- 23. Toner supply unit (2)

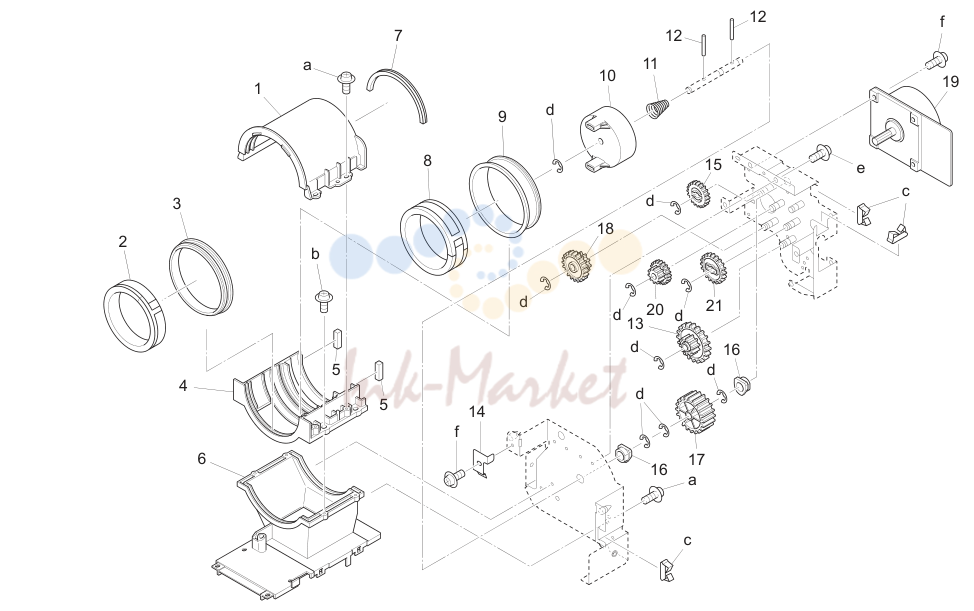

- 24. Toner supply unit (3)

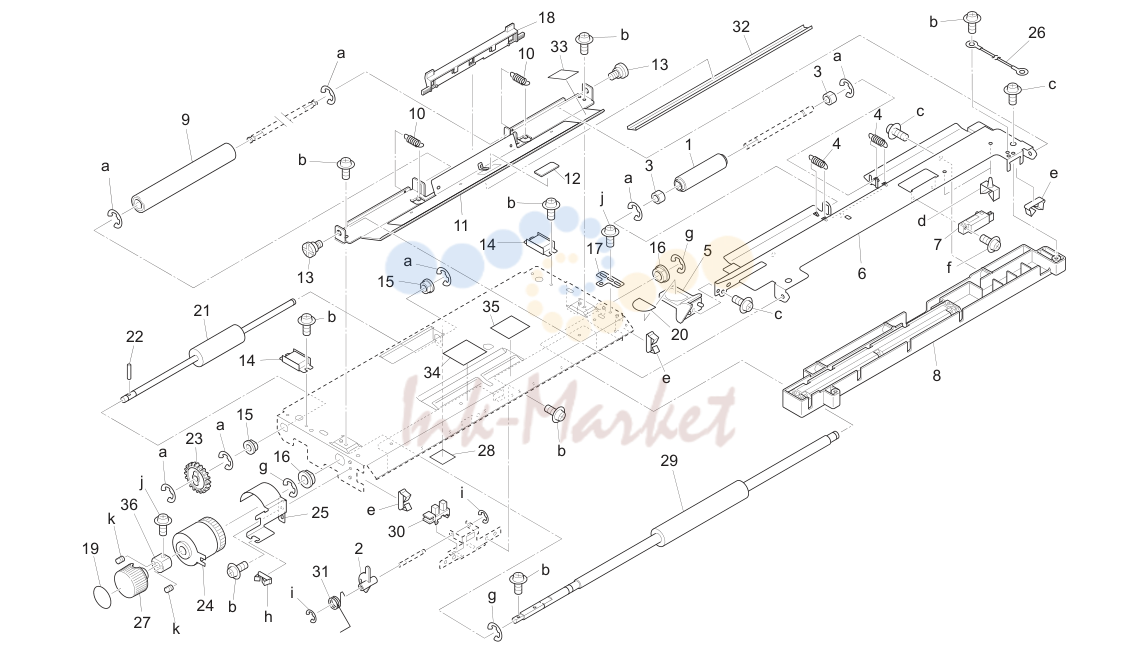

- 25. Registration unit

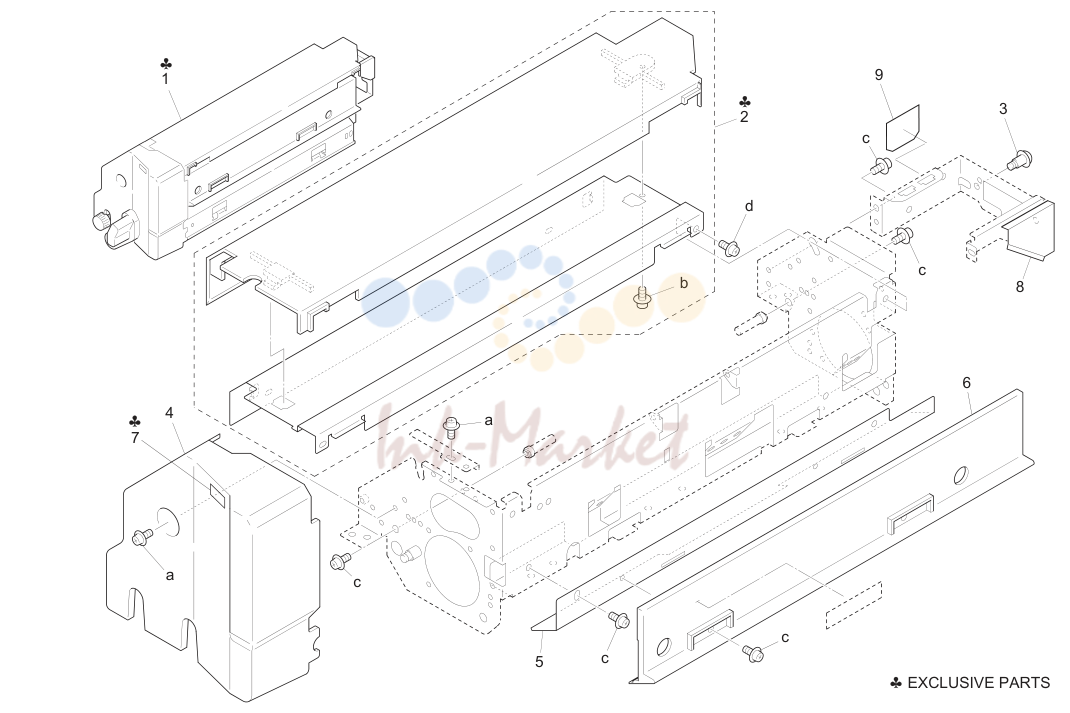

- 26. Fixing unit (fuser) (1)

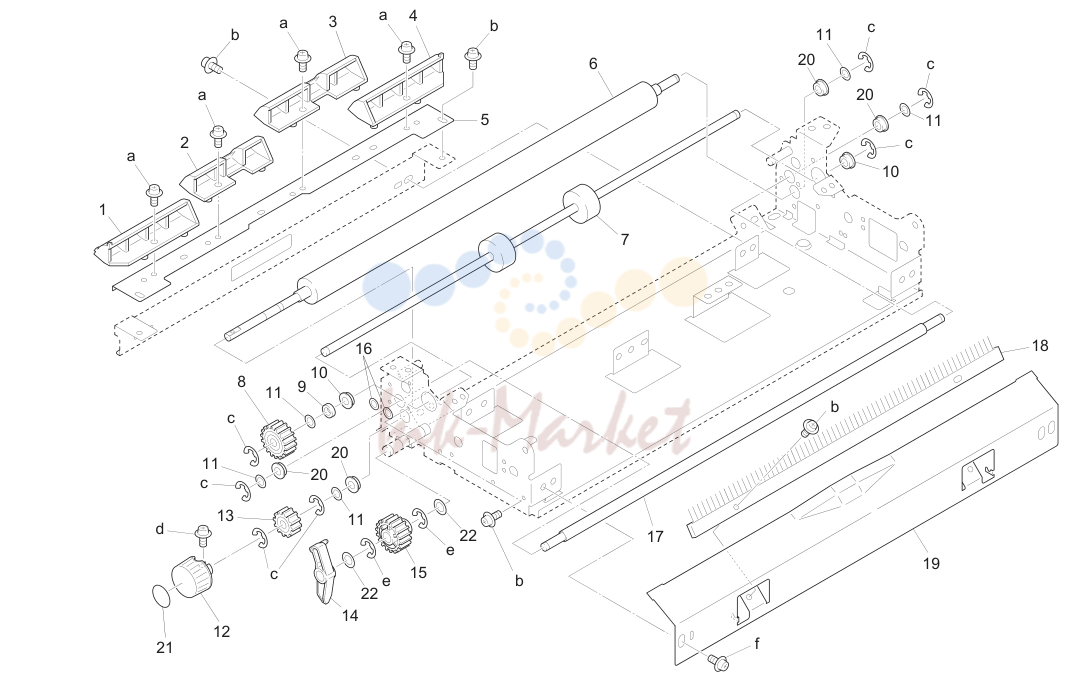

- 27. Fixing unit (fuser) (2)

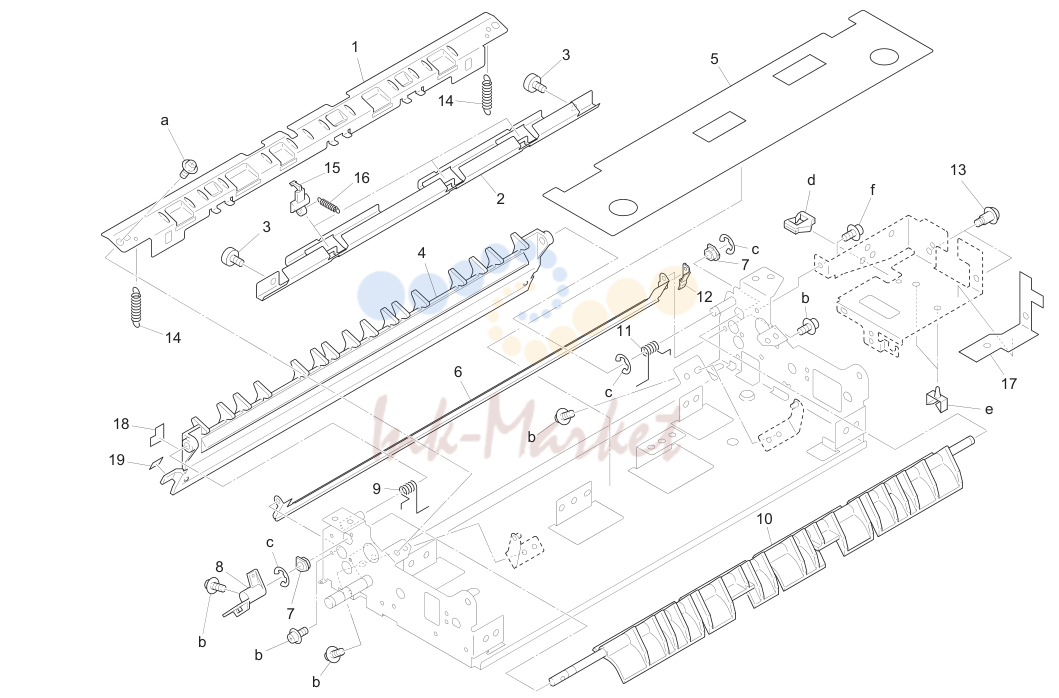

- 28. Fixing unit (fuser) (3)

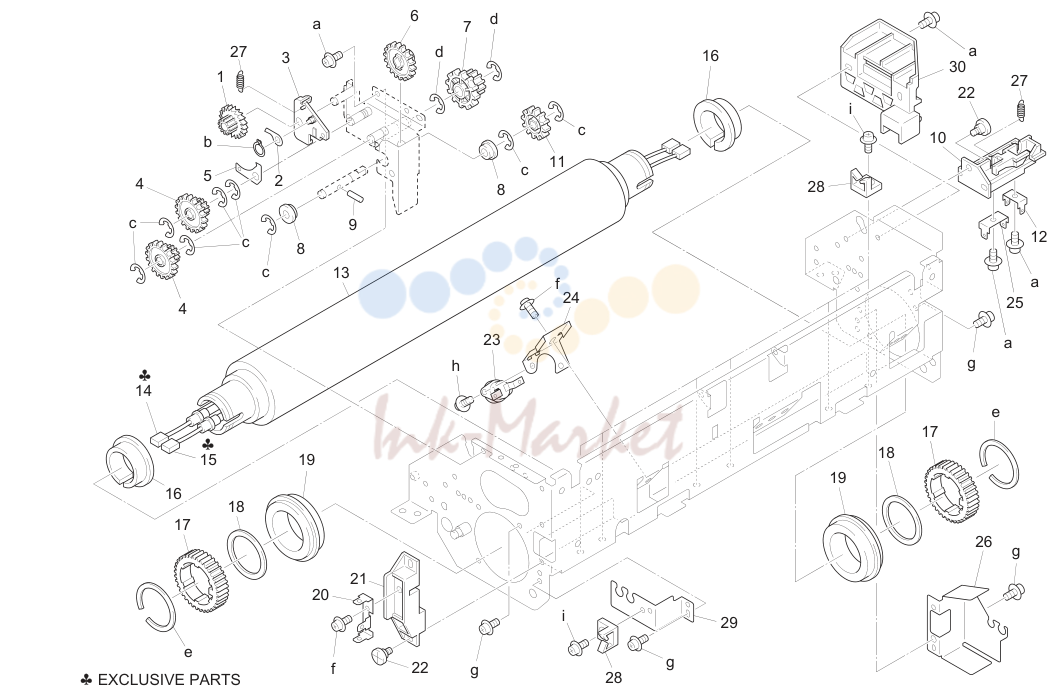

- 29. Fixing unit (fuser) (4)

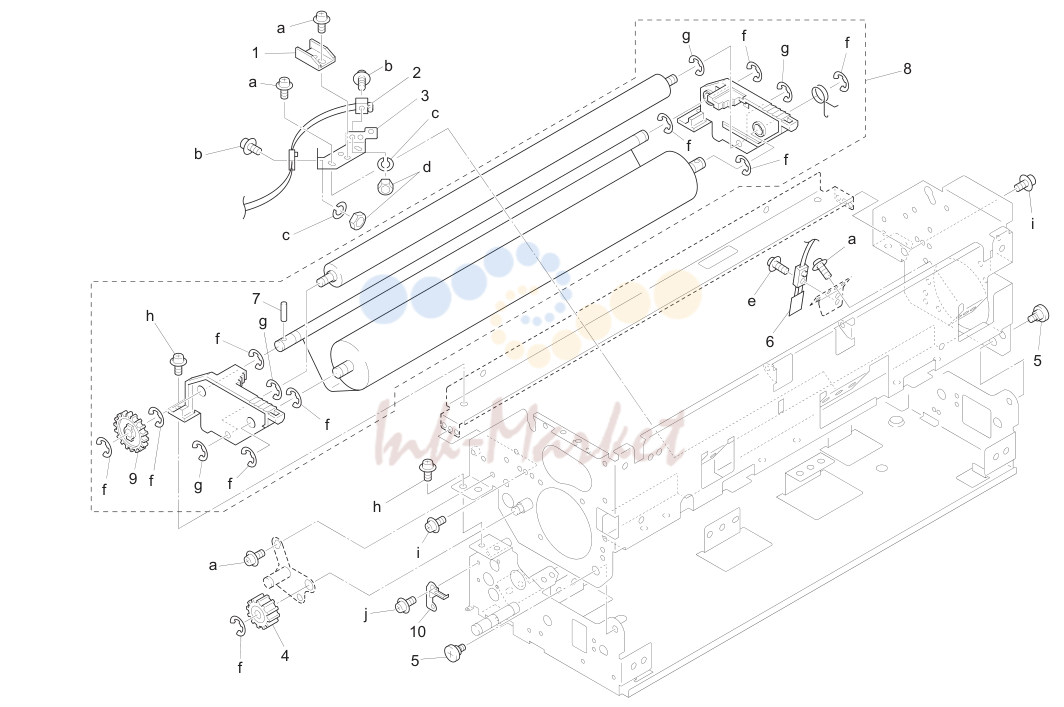

- 30. Fixing unit (fuser) (5)

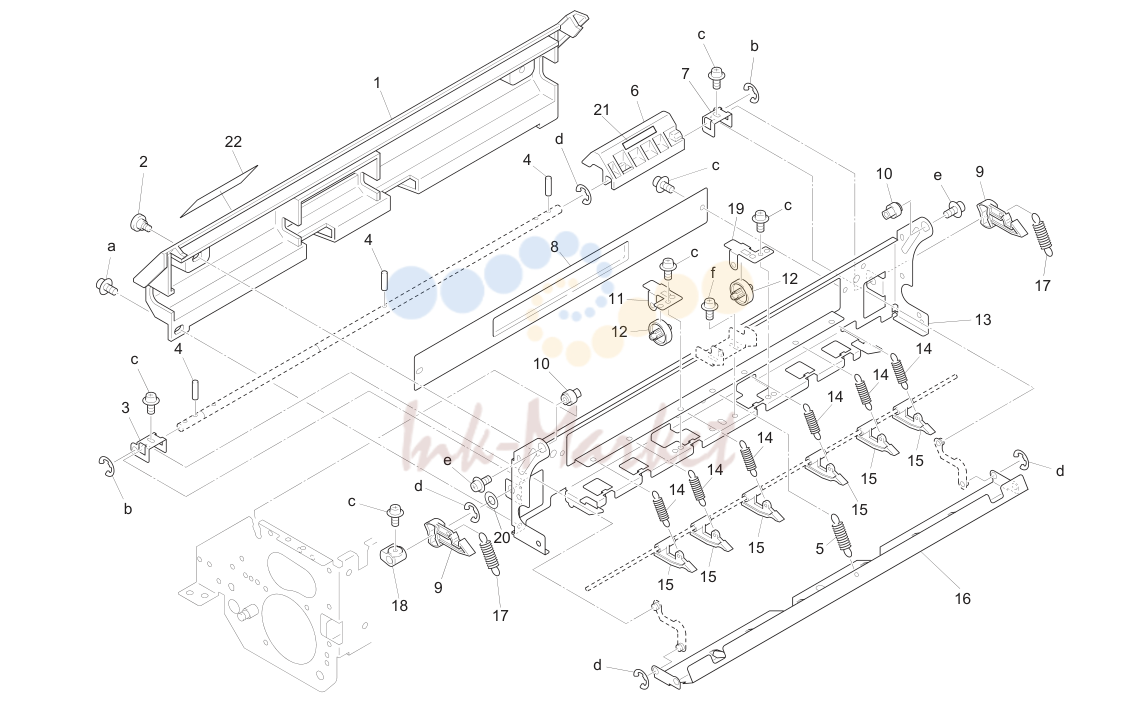

- 31. Fixing unit (fuser) (6)

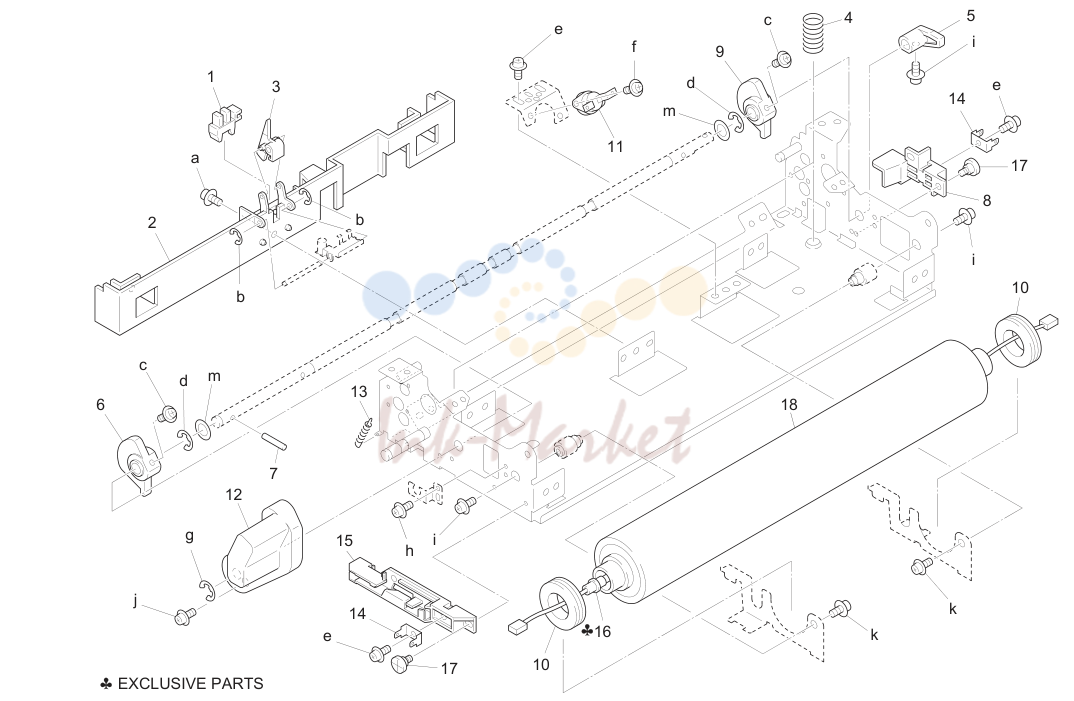

- 32. Fixing unit (fuser) (7)

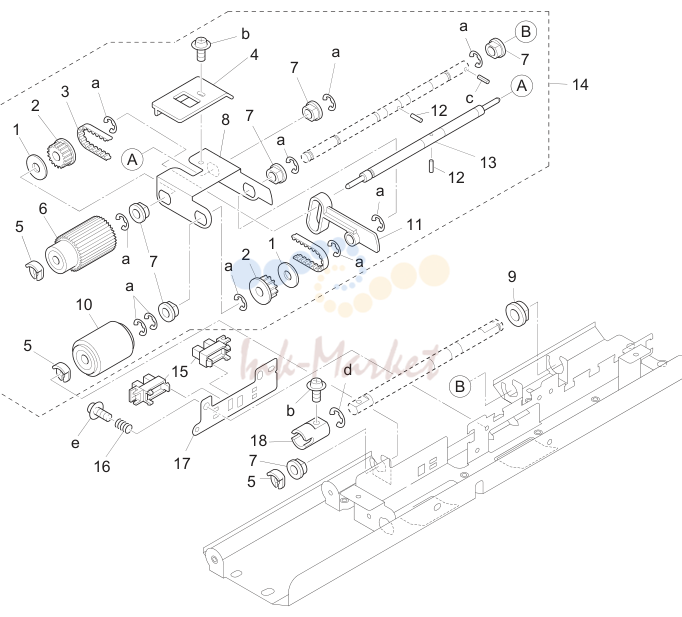

- 33. Paper feed unit (1)

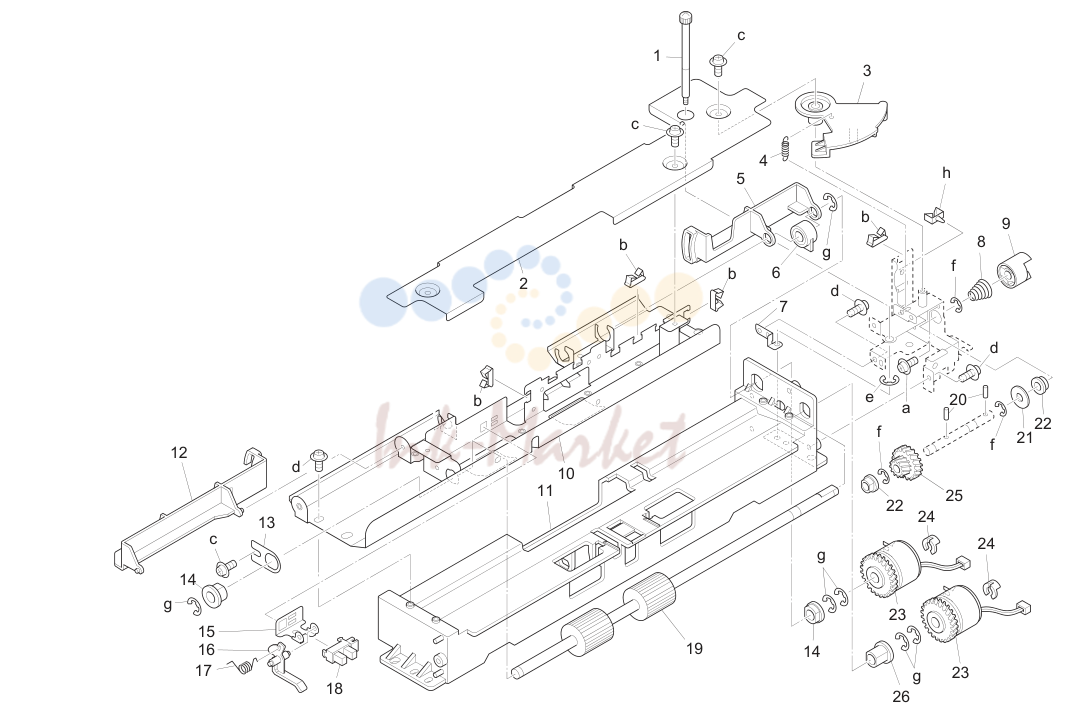

- 34. Paper feed unit (2)

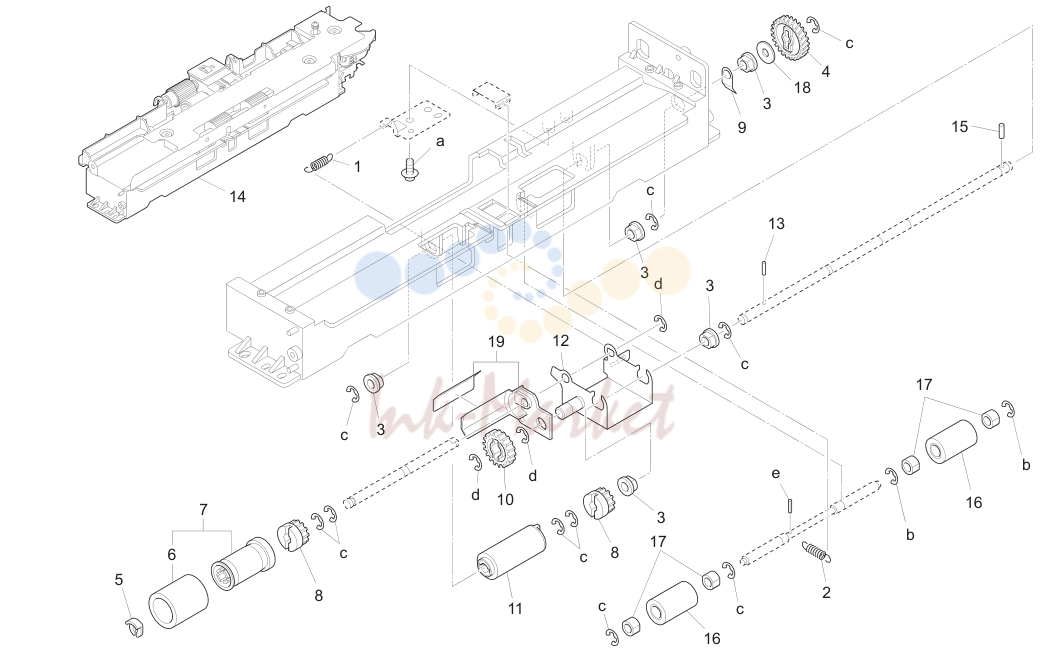

- 35. Paper feed unit (3)

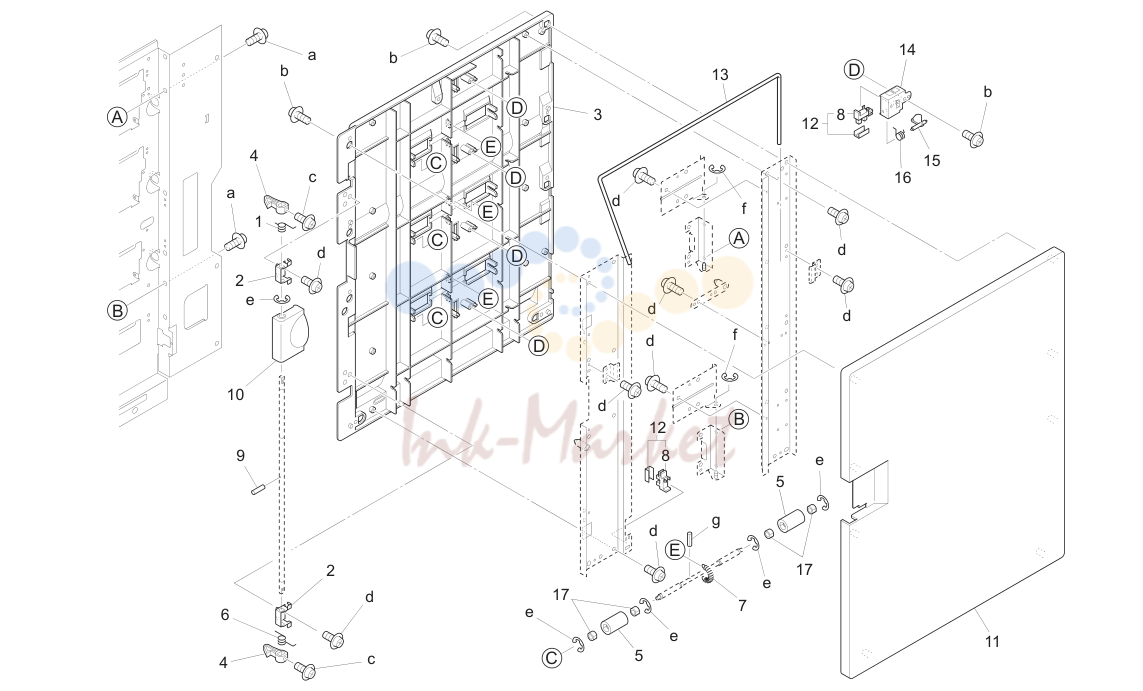

- 36. Vertical conveyance unit (1)
- 37. Vertical conveyance unit (2)

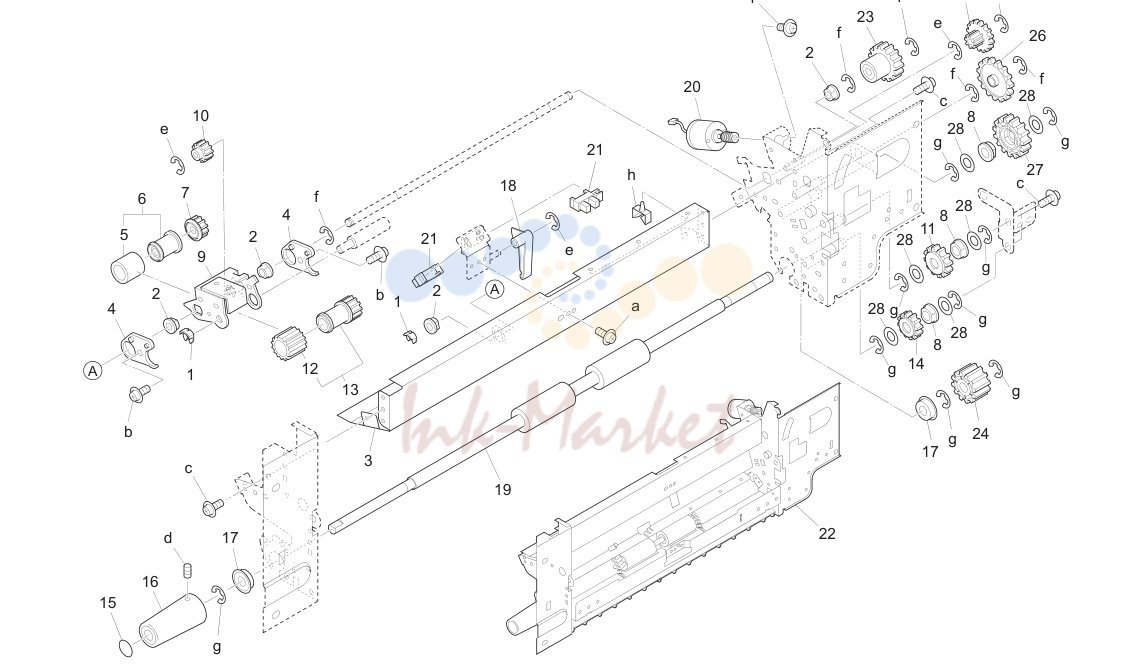

- 38. Tray 1 (Bypass Tray) (1)

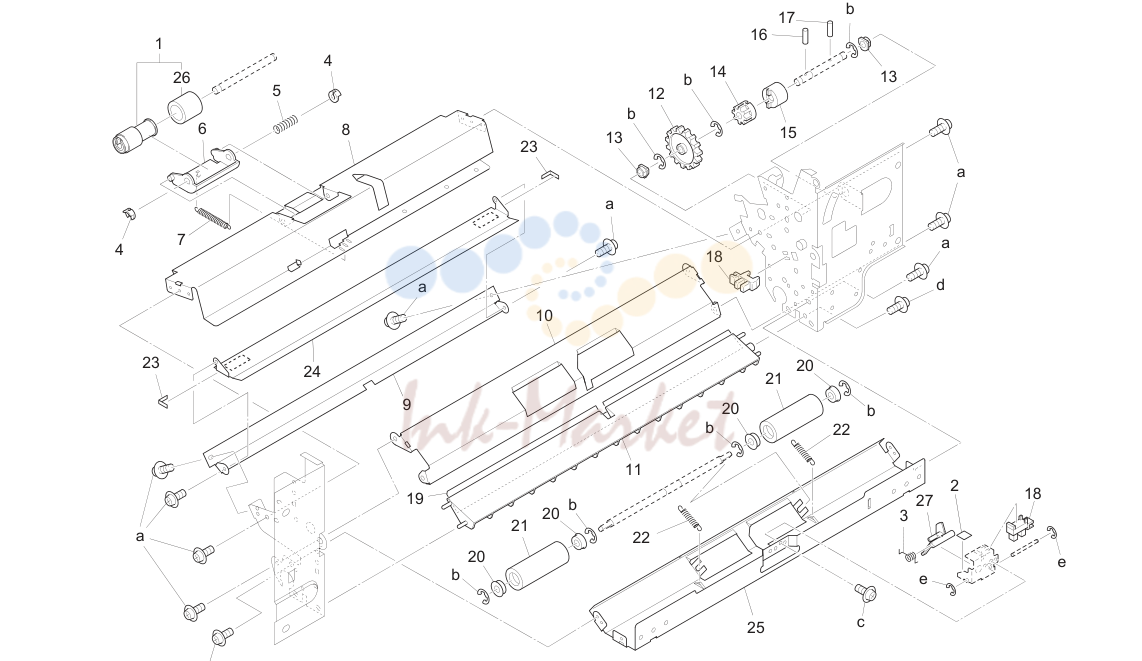

- 39. Tray 1 (Bypass Tray) (2)

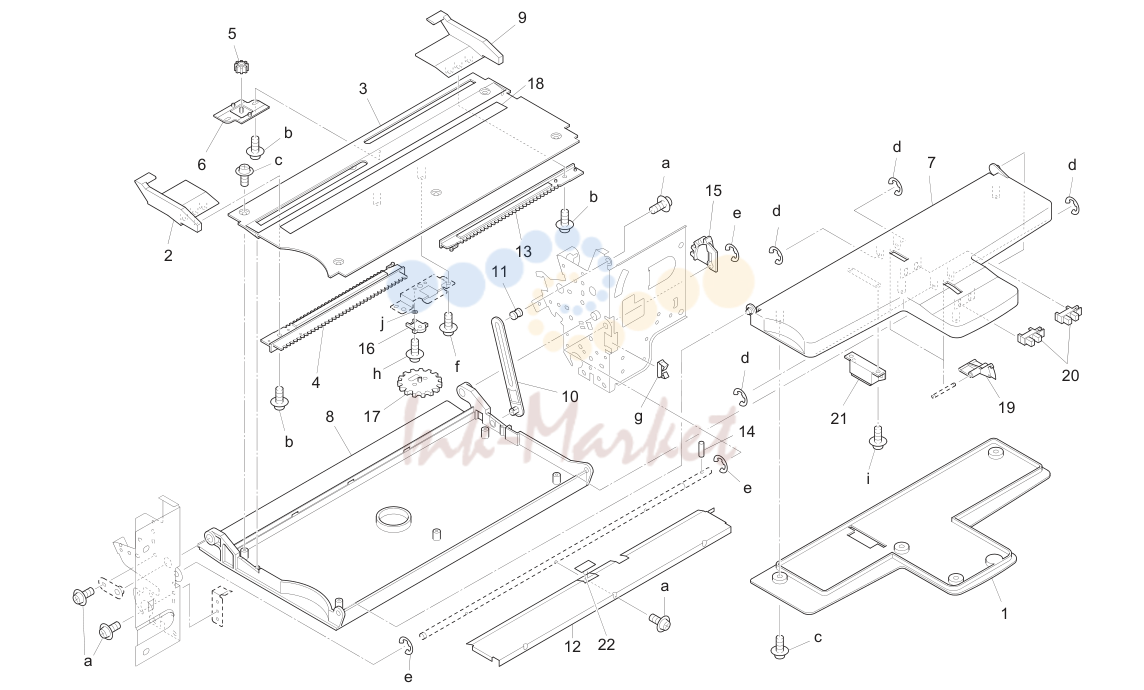

- 40. Tray 1 (Bypass Tray) (3)

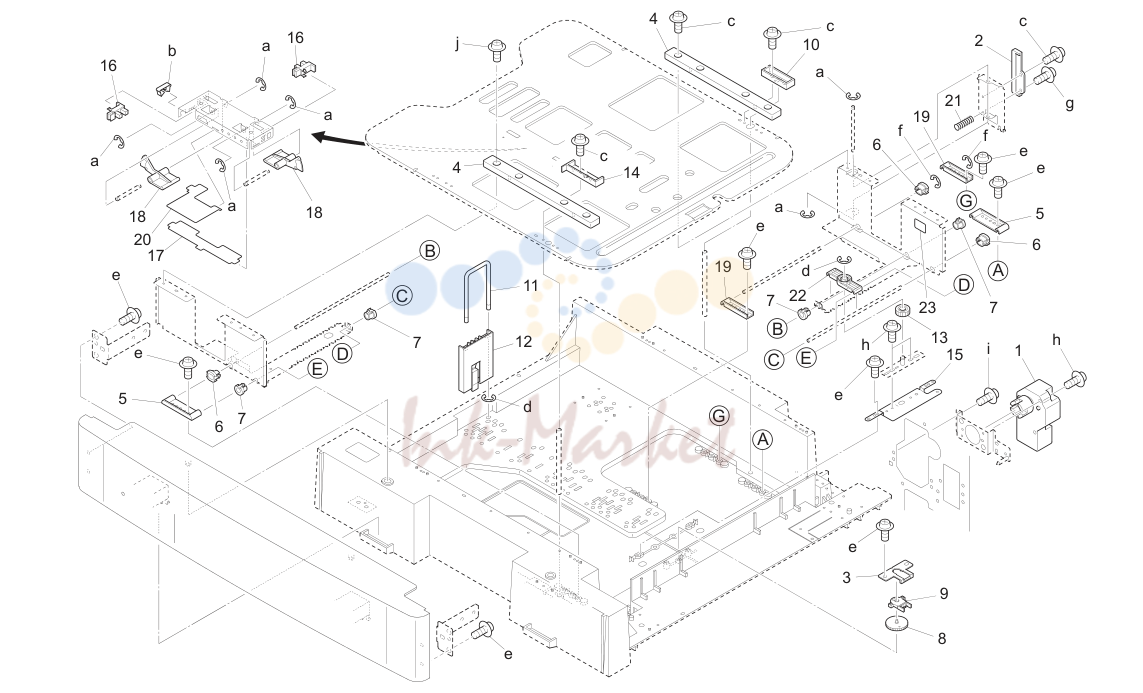

- 41. 500-sheet tray (1)

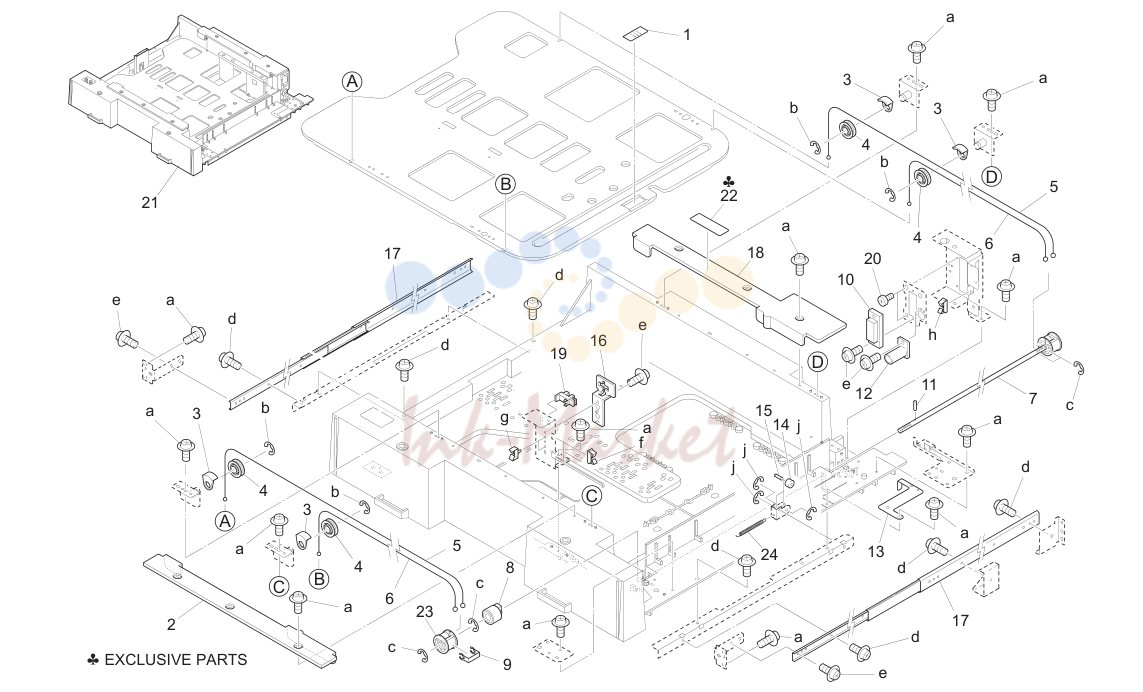

- 42. 500-sheet tray (2)

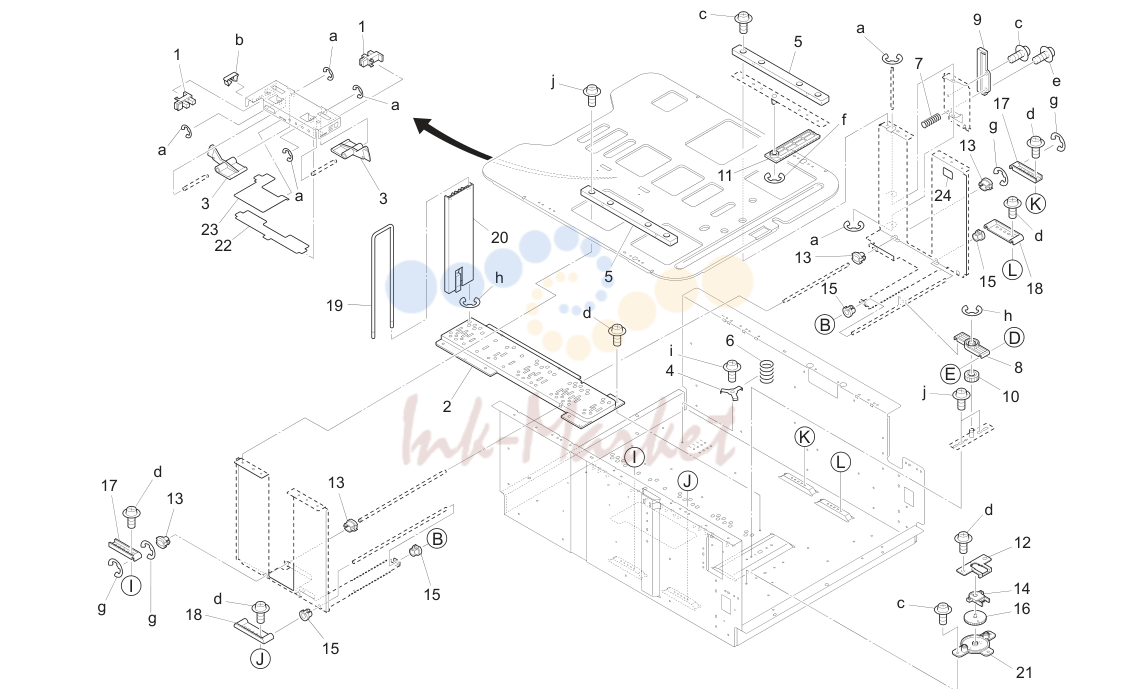

- 43. 1500-sheet tray (1)

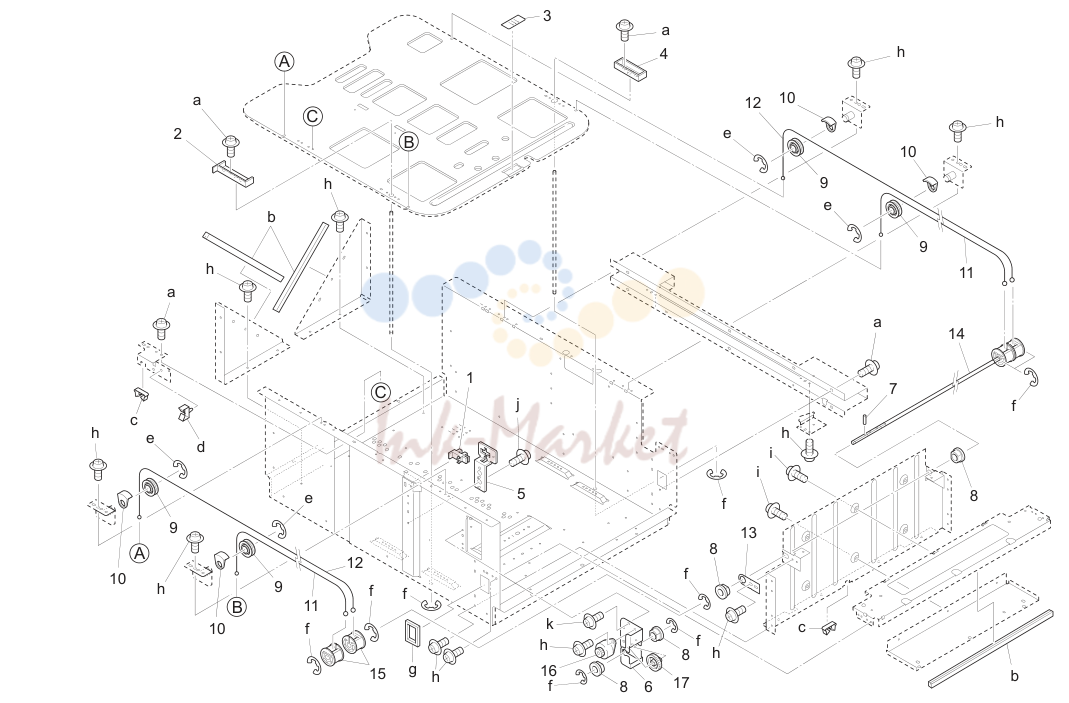

- 44. 1500-sheet tray (2)

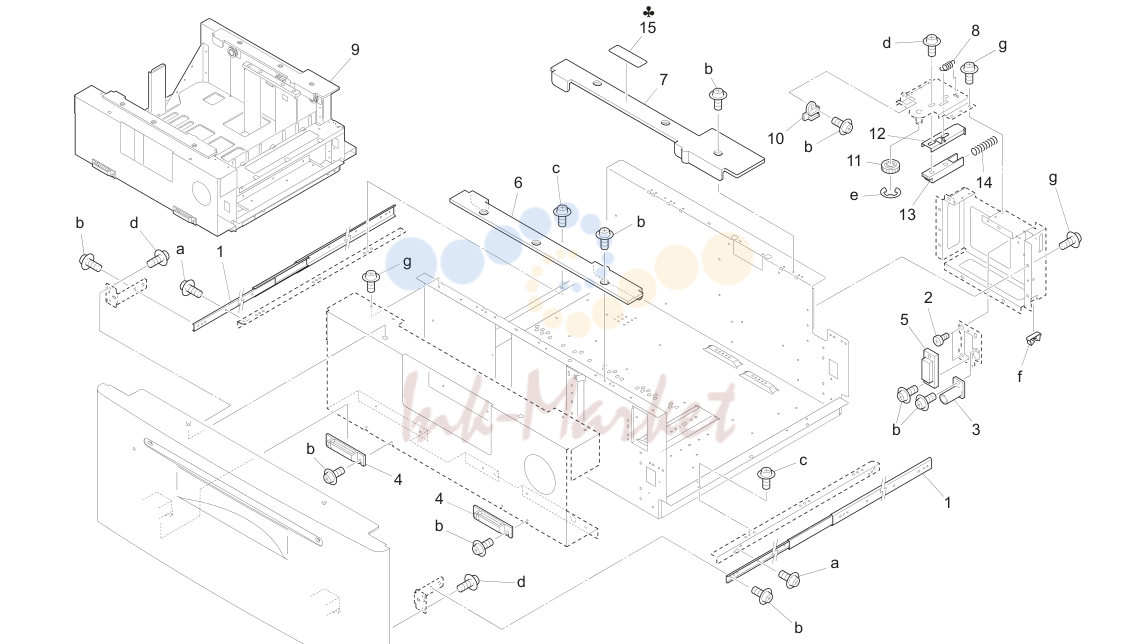

- 45. 1500-sheet tray (3)

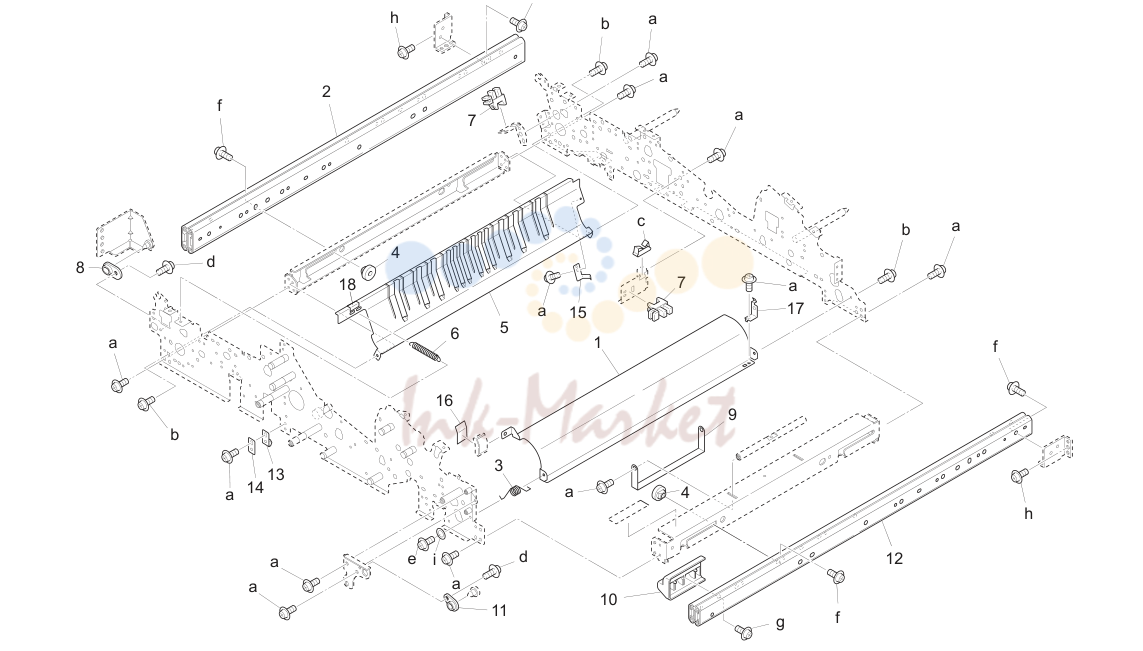

- 46. 92 ADU(1) ENWW

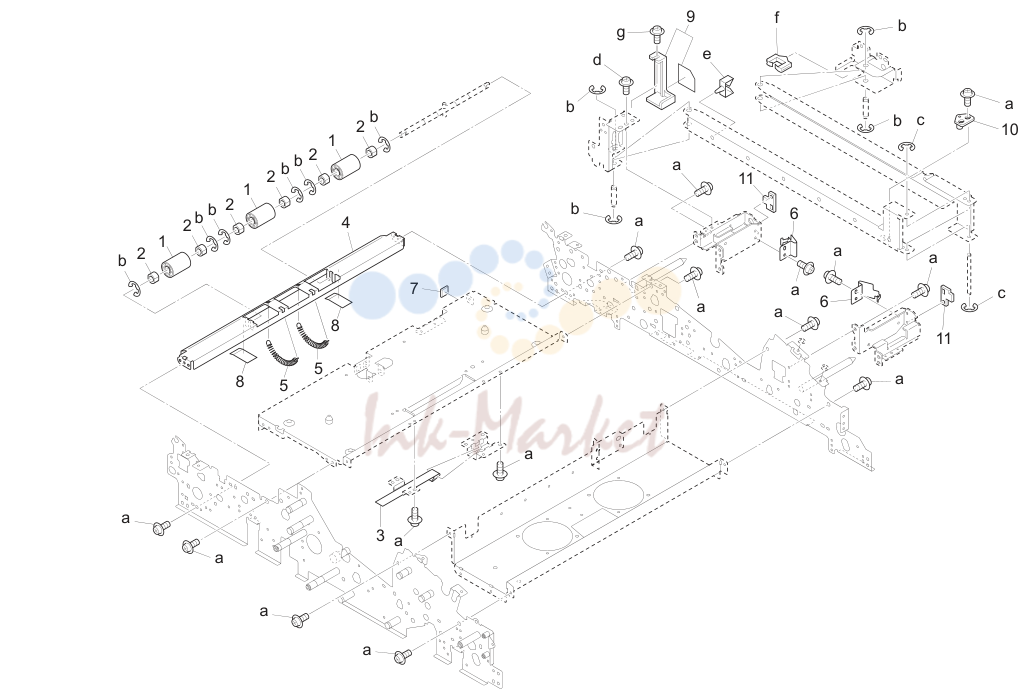

- 47. 94 ADU(2) ENWW

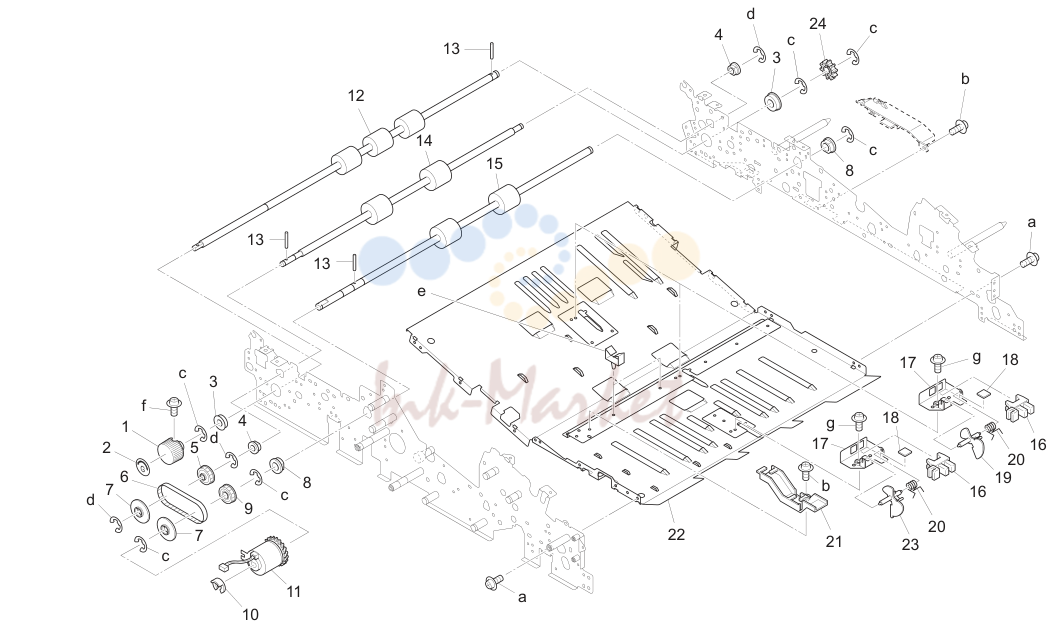

- 48. 96 ADU(3) ENWW

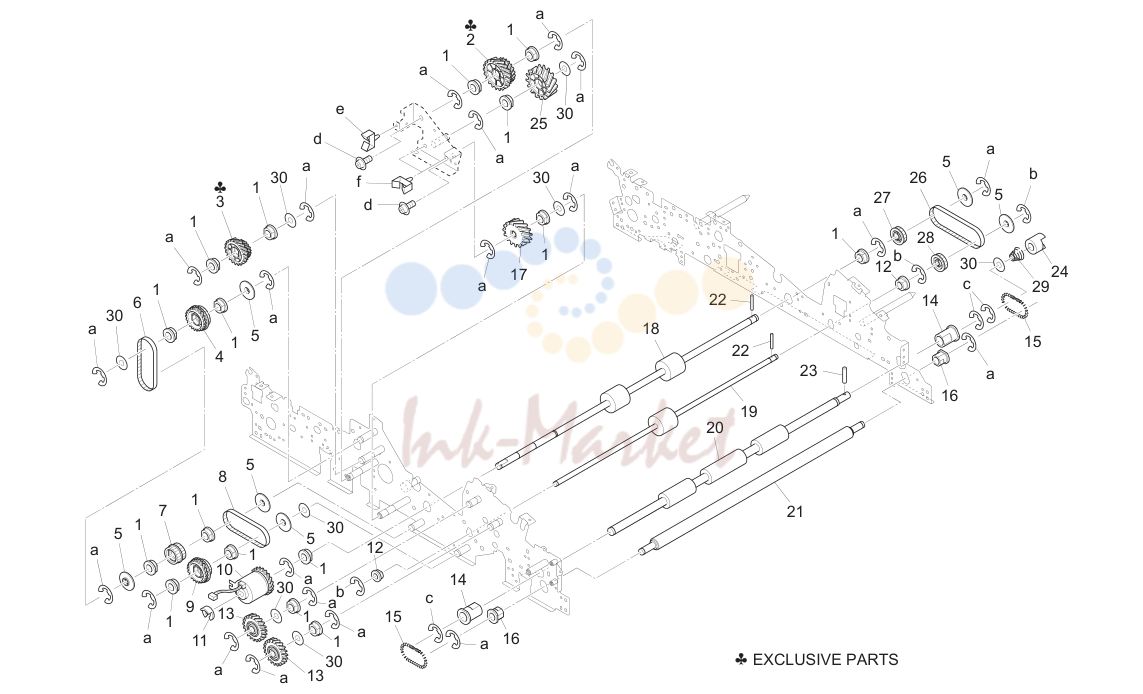

- 49. 30 EXCLUSIVE PARTS

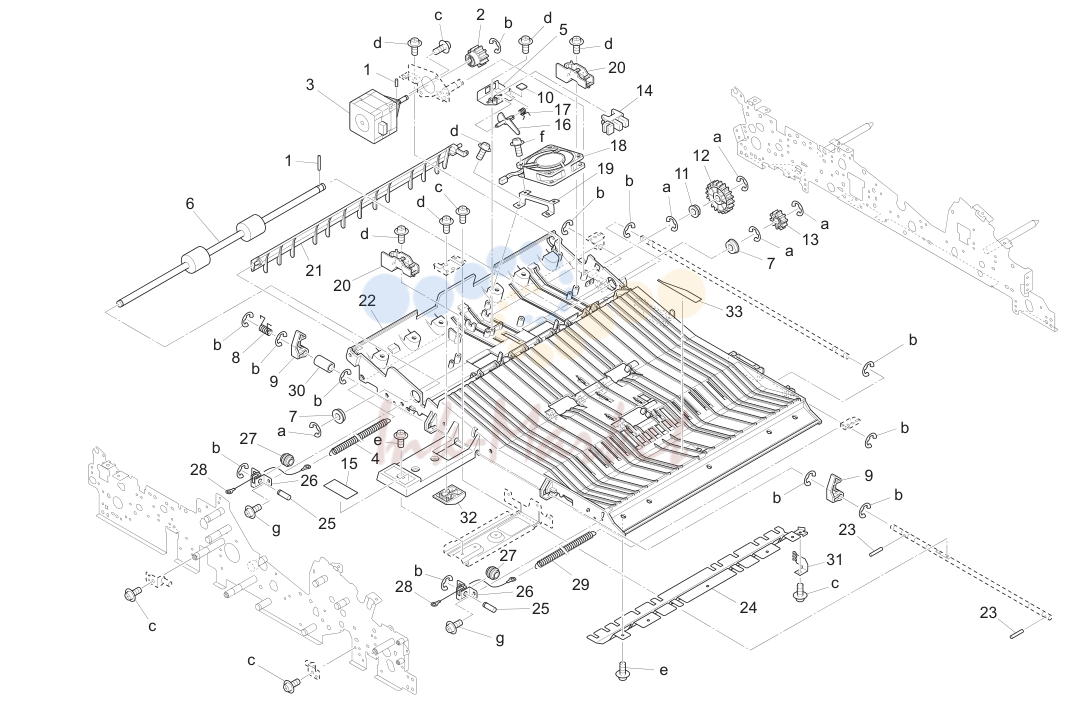

- 50. 100 ADU(5) ENWW

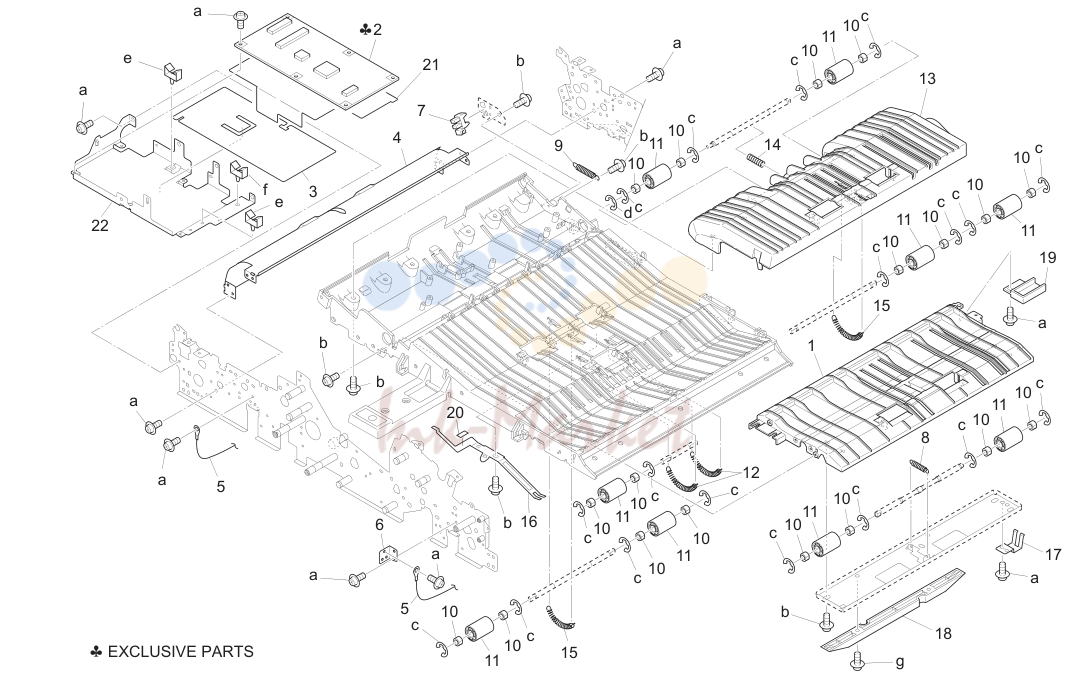

- 51. EXCLUSIVE PARTS 10 15
- 52. 104 ADU(7) ENWW
- 53. FROM(7) 2 8
- 54. Conveyance unit (1)
- 55. Conveyance unit (2)
- 56. Paper exit unit
- 57. Electric parts (1)
- 58. Electric parts (2)
- 59. Electric parts (3)
- 60. Automatic document feeder (1)
- 61. Automatic document feeder (2)
- 62. Automatic document feeder (3)
- 63. Automatic document feeder (4)
- 64. Automatic document feeder (5)
- 65. Automatic document feeder (6)
- 66. Automatic document feeder (7)
- 67. Automatic document feeder (8)
- 68. 2500-sheet multifunction finisher (1)
- 69. 2500-sheet multifunction finisher (2)
- 70. 2500-sheet multifunction finisher (3)
- 71. 2500-sheet multifunction finisher (4)
- 72. 2500-sheet multifunction finisher (5)
- 73. 2500-sheet multifunction finisher (6)
- 74. 2500-sheet multifunction finisher (7)
- 75. 2500-sheet multifunction finisher (8)
- 76. 2500-sheet multifunction finisher (9)
- 77. 2500-sheet multifunction finisher (10)
- 78. 2500-sheet multifunction finisher (11)
- 79. 2500-sheet multifunction finisher (12)
- 80. 2500-sheet multifunction finisher (13)
- 81. 2500-sheet multifunction finisher (14)
- 82. 2500-sheet multifunction finisher (15)
- 83. 2500-sheet multifunction finisher (16)
- 84. 2500-sheet multifunction finisher (17)
- 85. 2500-sheet multifunction finisher (18)
- 86. 2500-sheet multifunction finisher (19)
- 87. 3000-sheet stapler/stacker (1)
- 88. 3000-sheet stapler/stacker (2)
- 89. 3000-sheet stapler/stacker (3)
- 90. 3000-sheet stapler/stacker (4)
- 91. 3000-sheet stapler/stacker (5)
- 92. 3000-sheet stapler/stacker (6)
- 93. 3000-sheet stapler/stacker (7)
- 94. 3000-sheet stapler/stacker (8)
- 95. 3000-sheet stapler/stacker (9)
- 96. 3000-sheet stapler/stacker (10)
- 97. 3000-sheet stapler/stacker (11)
- 98. 3000-sheet stapler/stacker (12)
- 99. 3000-sheet stapler/stacker (13)
- 100. 3000-sheet stapler/stacker (14)
- 101. 3000-sheet stapler/stacker (15)
- 102. 4000-sheet high capacity input (A4/letter) (1)
- 103. 4000-sheet high capacity input (A4/letter) (2)
- 104. 4000-sheet high capacity input (A4/letter) (3)
- 105. 4000-sheet high capacity input (A4/letter) (4)
- 106. 4000-sheet high capacity input (A4/letter) (5)
- 107. 4000-sheet high capacity input (A4/letter) (6)
- 108. 4000-sheet high capacity input (A4/letter) (7)
- 109. 4000-sheet high capacity input (A4/letter) (8)
- 110. 4000-sheet high capacity input (A4/letter) (9)
- 111. 4000-sheet high capacity input (A3/ledger) (1)
- 112. 4000-sheet high capacity input (A3/ledger) (2)
- 113. 4000-sheet high capacity input (A3/ledger) (3)
- 114. 4000-sheet high capacity input (A3/ledger) (4)
- 115. 4000-sheet high capacity input (A3/ledger) (5)
- 116. 4000-sheet high capacity input (A3/ledger) (6)
- 117. 4000-sheet high capacity input (A3/ledger) (7)
- 118. 4000-sheet high capacity input (A3/ledger) (8)
- 119. Post insertion kit (1)
- 120. Post insertion kit (2)
- 121. Post insertion kit (3)
- 122. Post insertion kit (4)
- 123. Post insertion kit (5)
- 124. Post insertion kit (6)
- 125. Post insertion kit (7)
- 126. 4-hole type
- 127. 2-hole and 3-hole type
- 128. Print controller
- 129. Maintenance tool

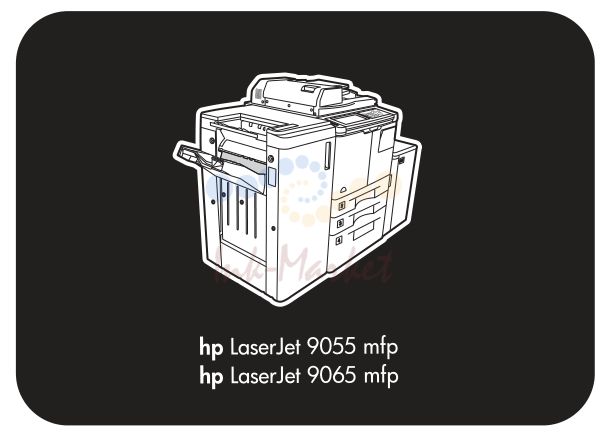

1. hp LaserJet 9055 mfp
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Main machine hp LaserJet 9055mfp/9065mfp | ||
| 2 | ADF Automatic Document Feeder | ||
| 3 | HCI 4000-sheet High Capacity Input (A4/Letter) | ||
| 4 | HCI 4000-sheet High Capacity Input (A3/Ledger) | ||
| 5 | Finisher 3000-sheet Stapler/Stacker | ||
| 6 | Finisher 2500-sheet Multifunction Finisher | ||
| 7 | Cover feeder Post Insertion Kit | ||
| 8 | Punch kit 2-hole Punch Kit, 3-hole Punch Kit, 4-hole | ||
| 9 | Tools Maintenance Tools |

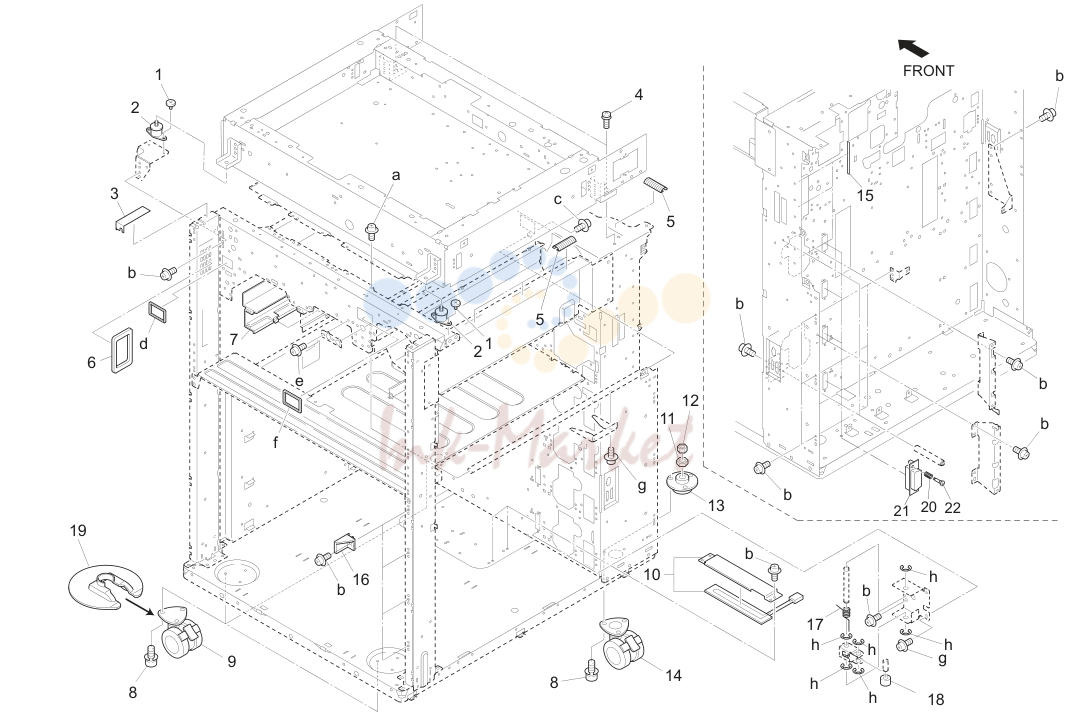

2. Main frame
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 3080 6136 0KC Screw e 00Z164061KC C.R.P.H.S.Sems2 M4X6 | ||
| 2 | 25SA 1020 0KC Read Support Rubber f 00Z920025KC Bushing SB-4025 | ||
| 3 | 56AA 1056 0KC Cooling Seal /2 g 00Z193061KC C.R.P.H. Screw M3X6 | ||
| 4 | 0900 2041 0KC Spring Hanger Screw h 00Z670606KC E-Ring | ||
| 5 | 56AA -149 0KC Earth Spring Assembly | ||
| 6 | 56AA 1055 0KC Cooling Seal /1 | ||
| 7 | 56AA 1008 0KC Cleaner Cooling Duct | ||
| 8 | 25SA 1043 1KC Locking Screw | ||
| 9 | 55WA 1030 0KC Main Body Support Roller/X | ||
| 10 | 56AA -710 0KC Heater Mounting Plate Assembly | ||
| 11 | 56AA 1764 0KC Adjusting Part/2 | ||
| 12 | 56AA 1763 0KC Adjusting Part | ||
| 13 | 56AA 1762 0KC Carriage Adjusting Part | ||
| 14 | 55WA 1031 0KC Main Body Support Roller/Y | ||
| 15 | 56AA 7358 0KC Earth Part/Right | ||
| 16 | 56AA 4156 0KC Tray Stopper | ||
| 17 | 56AE 4356 1KC Paper Feed Lock Spring | ||
| 18 | 0676 4258 0KC Tray Lock Pulley | ||
| 19 | 56AA 1060 0KC Bottom Plate Cover Part | ||
| 20 | 56AA 1708 0KC Terminal Rocking Spring | ||
| 21 | 56AE 9006 1KC Paper Feed Control Wiring | ||
| 22 | 56AA 1733 0KC Slide Shaft |

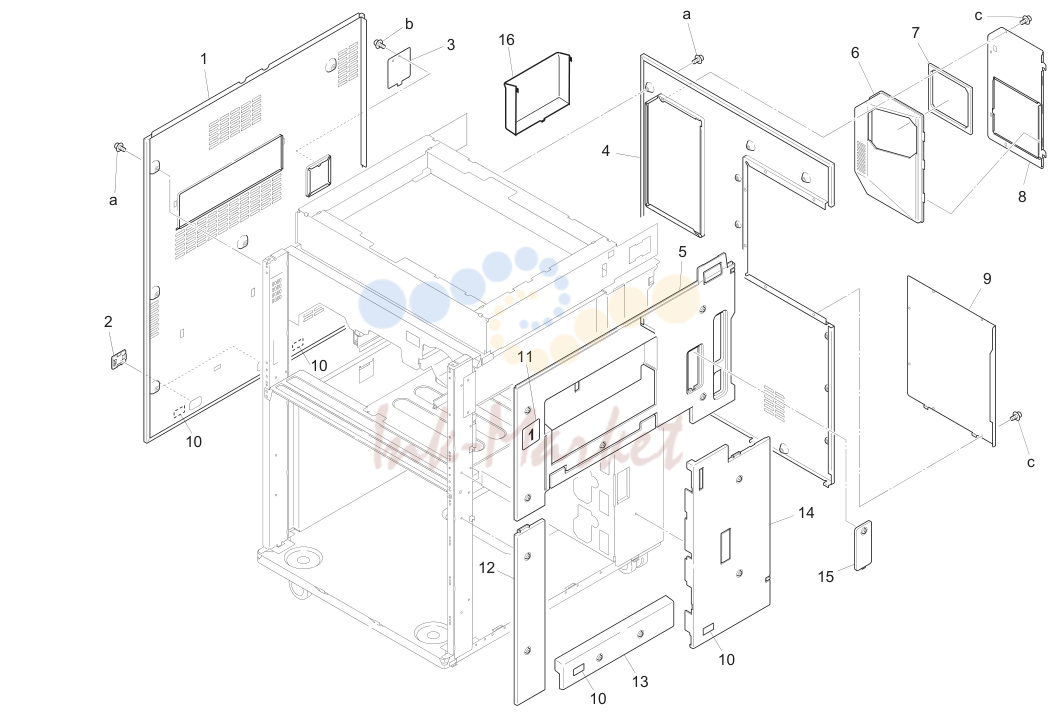

3. External parts (1)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 56AA 1209 0KC Side Cover/Left | ||
| 2 | 56AA 1236 0KC External Auxiliary Part/Left | ||
| 3 | 56AA 1280 0KC Side Cover | ||
| 4 | 56AA 1210 0KC Rear Cover | ||
| 5 | 56AA -129 0KC Side Cover/A Assembly | ||
| 6 | 56AA 1231 0KC Ozone Guide Duct | ||
| 7 | 56AA 1234 0KC Ozone Sealing Pad | ||
| 8 | 56AA 1232 0KC Ozone Guide Plate | ||
| 9 | 56AA 1233 0KC External Cover Part/Rear | ||
| 10 | 56AA 9779 0KC Bottom Plate Caution Label | ||
| 11 | 56NE 9791 0KC Paper Feed Indicating Label/B | ||
| 12 | 56AA -126 0KC Side Cover/B Assembly | ||
| 13 | 56AA -127 0KC Side Cover/C Assembly | ||
| 14 | 56AA -128 0KC Side Cover/D Assembly | ||
| 15 | 56AA -132 0KC External Auxiliary Part/Right Assembly | ||
| 16 | 26NA 1254 0KC Accessories Holding Panel |

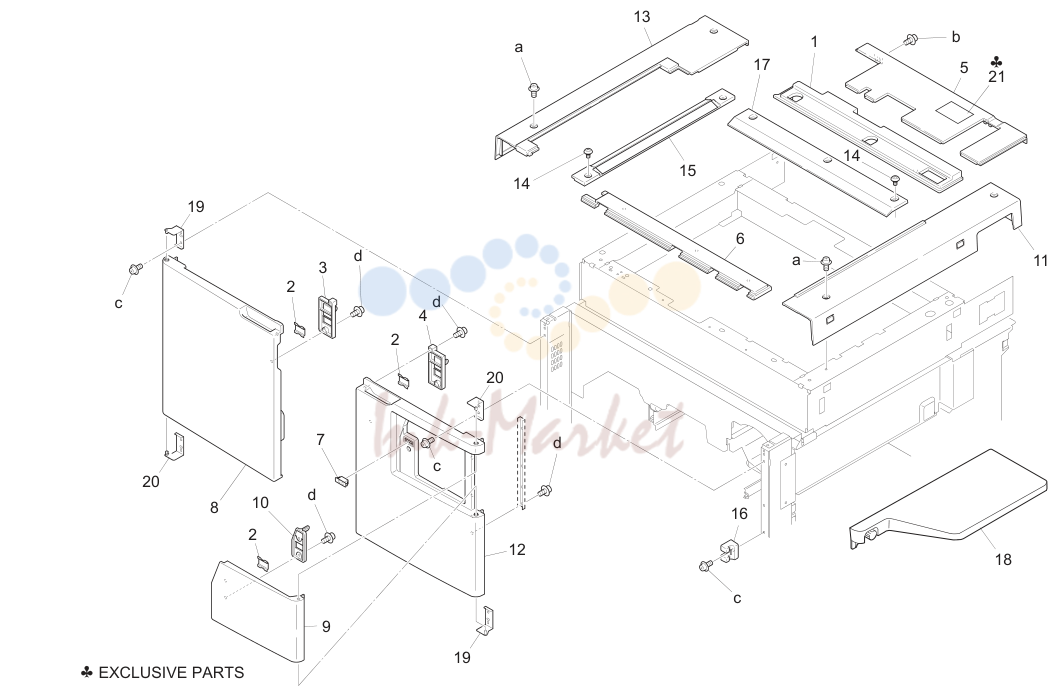

4. External parts (2)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 56AA 1245 0KC Read Cover/Middle | ||
| 2 | 56AA 1224 1KC External Locking Plate | ||
| 3 | 56AA 1256 0KC External Locking Cover/C | ||
| 4 | 56AA 1240 0KC External Locking Cover/B | ||
| 5 | 56AA 1204 0KC Read Cover/Rear | ||
| 6 | 56AA 1203 0KC Read Cover/Front | ||
| 7 | 56AA 1227 0KC External Locking Part | ||
| 8 | 56NE 1202 0KC Front Door/Left | ||
| 9 | 56AA 1220 0KC Toner Supply Cover | ||
| 10 | 56AA 1223 0KC External Locking Cover | ||
| 11 | 56AA 1205 0KC Read Cover/Right | ||
| 12 | 56AE 1201 0KC Front Door/Right | ||
| 13 | 56AA 1206 0KC Read Cover/Left | ||
| 14 | 1900 4092 1KC Scale Plate Fixed Screw | ||
| 15 | 56NE -145 0KC Original Stopper Plate /Left Assembly | ||
| 16 | 56AA 1246 0KC Front Open/Shut Stopper/Right | ||
| 17 | 56NE 1252 0KC Original Stopper Plate/Rear | ||
| 18 | 56AA -147 0KC Working Table | ||
| 19 | 56AA -143 0KC External Open/Shut Hinge/D Assembly | ||
| 20 | 56AA -142 0KC External Open/Shut Hinge/C Assembly | ||
| 21 | 56AE 9797 0KC Caution Label /Front | ||
| 21 | 56AF 9797 0KC Caution Label /Front |

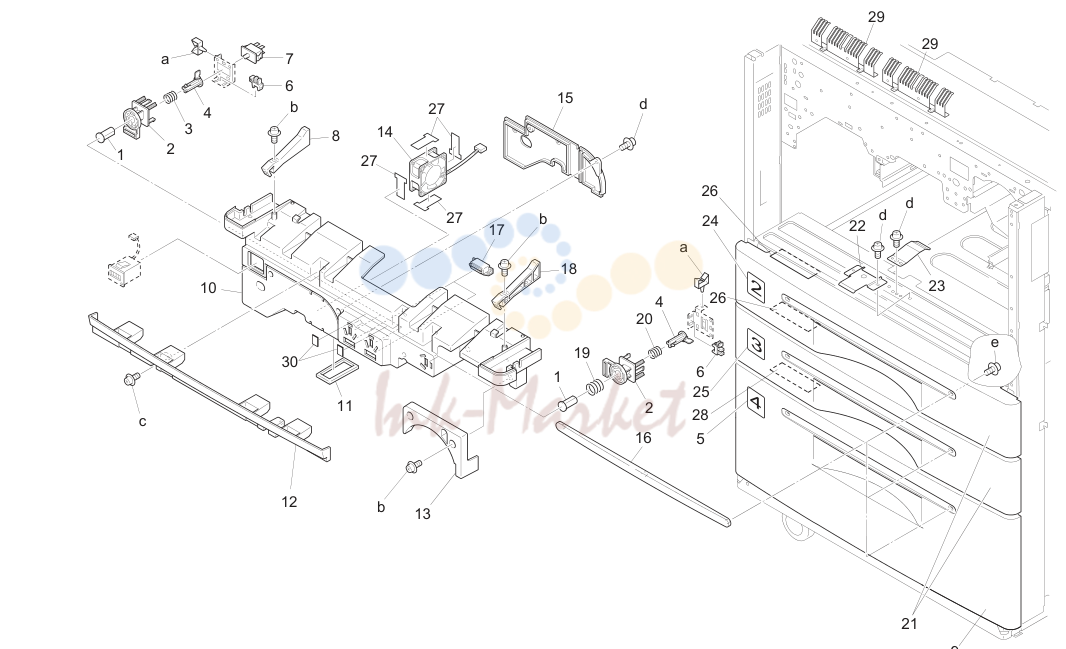

5. External parts (3)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 56AA 1214 0KC Switch Connecting Actuator 25 56NE 9793 0KC Paper Feed Indicating Label/3 | ||
| 2 | 56AA 1212 0KC Switch Guide Part 26 56AA 9796 0KC Paper Supply Label | ||
| 3 | 56AA 1216 0KC Contact Pressing Spring/1 27 26NA 7373 1KC Dust Proof Seal/5 | ||
| 4 | 56AA 1215 0KC Switch Pressing Actuator 28 56AA 9781 0KC Paper Supply Label/2 | ||
| 5 | 56NE 9794 0KC Paper Feed Indicating Label/4 29 56AA 7017 0KC Operation Unit (Control Panel) Earth Plate/ | ||
| 6 | 08AA 8551 0KC Photo Sensor | ||
| 30 | 56AA 1273 0KC Front Door Stopper Part (Snap Ring) | ||
| 7 | 40AA 8501 0KC Door Switch | ||
| 8 | 56AA 1259 0KC Operation Unit (Control Panel) Support Block/ | ||
| 9 | 56AE 1225 0KC Cassette Cover c 00Z253121KC CRPH TA Screw | ||
| 10 | 56AA 1211 2KC Operation Unit (Control Panel) Cover/Lower d 00Z193041KC C.R.P.H. Screw M3X4 | ||
| 11 | 56AA 1254 0KC Cleaner Suction Seal e 00Z243081KC Cross Recessed Tapping Screw | ||
| 12 | 56NE 1247 0KC Operation Unit (Control Panel) Cover/Middle | ||
| 13 | 56AA 1249 0KC Toner Auxiliary Cover | ||
| 14 | 56AA 8054 0KC Fan Motor/1 | ||
| 15 | 56AA -121 0KC Cleaner Suction Cover Assembly | ||
| 16 | 56NE 1226 0KC Cassette Auxiliary Part | ||
| 17 | 55FA 1210 1KC Magnet Catch/X | ||
| 18 | 56AA 1250 0KC Operation Unit (Control Panel) Support Block/ | ||
| 19 | 56AA 1218 0KC Contact Pressing Spring/3 | ||
| 20 | 56AA 1217 0KC Contact Pressing Spring/2 | ||
| 21 | 56AA 1225 0KC Cassette Cover | ||
| 22 | 56AA 5241 0KC Spring Cover Plate | ||
| 23 | 56AA 5240 0KC Locking Spring | ||
| 24 | 56NE 9792 0KC Paper Feed Indicating Label/2 |

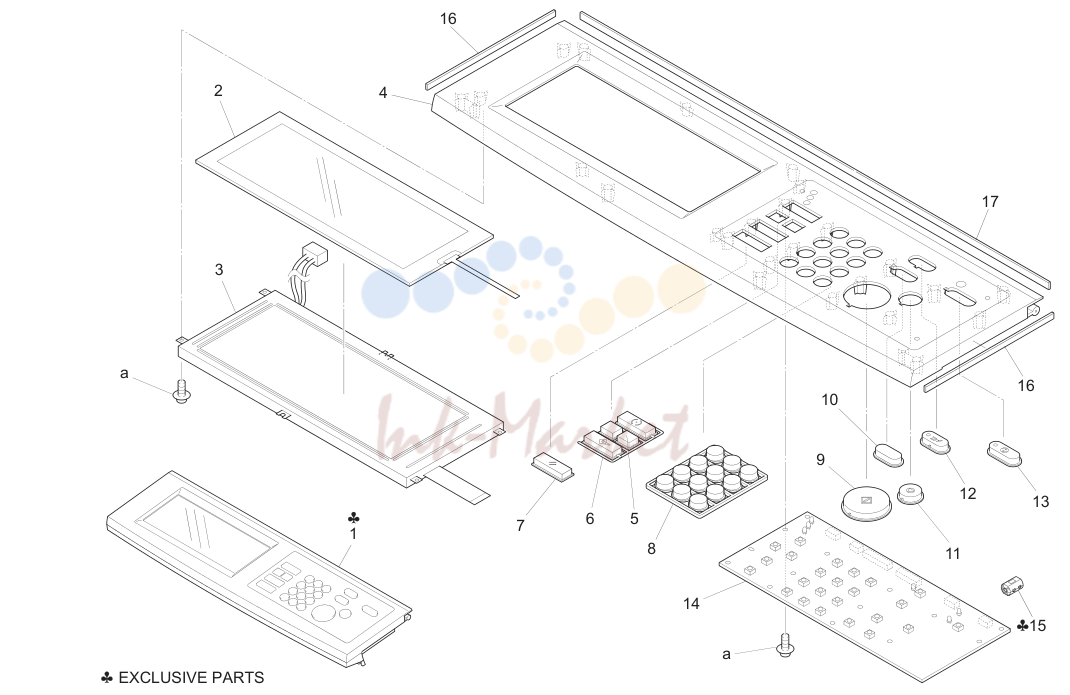

6. Operation unit (control panel) (1)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 56NE -700 0KC Operation Unit (Control Panel) (110V) Q3631-67907 CPO-NL Dutch | ||
| 1 | 56NF -700 0KC Operation Unit (Control Panel) (220V and Q3631-67908 CPO-SV Swedish | ||
| 2 | 56AA 8755 0KC Touch Key Board | ||
| 3 | 55VA 8754 1KC Indication Board | ||
| 4 | 56NE 7015 0KC Operation Unit (Control Panel) Cover/A | ||
| 5 | 56NE 7006 0KC Operation Button/K | ||
| 6 | 56NE 7007 0KC Operation Button/C | ||
| 7 | 55TA 7008 1KC Operation Button/D | ||
| 8 | 56NE 7009 0KC Operation Button/E | ||
| 9 | 56NE 7012 0KC Operation Button/H | ||
| 10 | 56NE 7011 0KC Operation Button/G | ||
| 11 | 56NE 7013 0KC Operation Button/I | ||
| 12 | 56NE 7010 0KC Operation Button/F | ||
| 13 | 56NE 7014 0KC Operation Button/J | ||
| 14 | 56AA -903 2KC Operation Board/1 Assembly | ||
| 15 | 56AF 8871 0KC Ferrite core /1 (220V and Taiwan) | ||
| 16 | 56AA 7020 0KC Operation Unit (Control Panel) Seal | ||
| 17 | 56AA 7019 0KC Operation Unit (Control Panel) Seal/Rear |

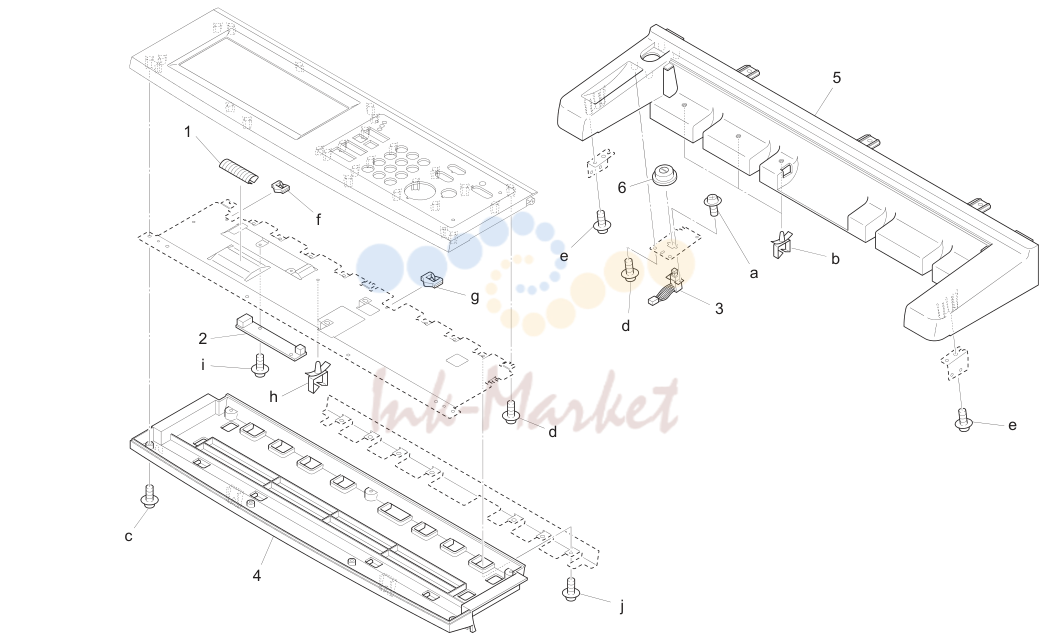

7. Operation unit (control panel) (2)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 56AA -149 0KC Earth Spring Assembly | ||
| 2 | 56AA 8352 0KC Indicating Starter | ||
| 3 | 56AA -801 0KC Operation Unit (Control Panel) Source Switch | ||
| 4 | 56NE 7016 0KC Operation Unit (Control Panel) Cover/B | ||
| 5 | 56AA 7001 0KC Operation Unit (Control Panel) Cover/Upper | ||
| 6 | 56AA 7008 0KC Power Source Switch |

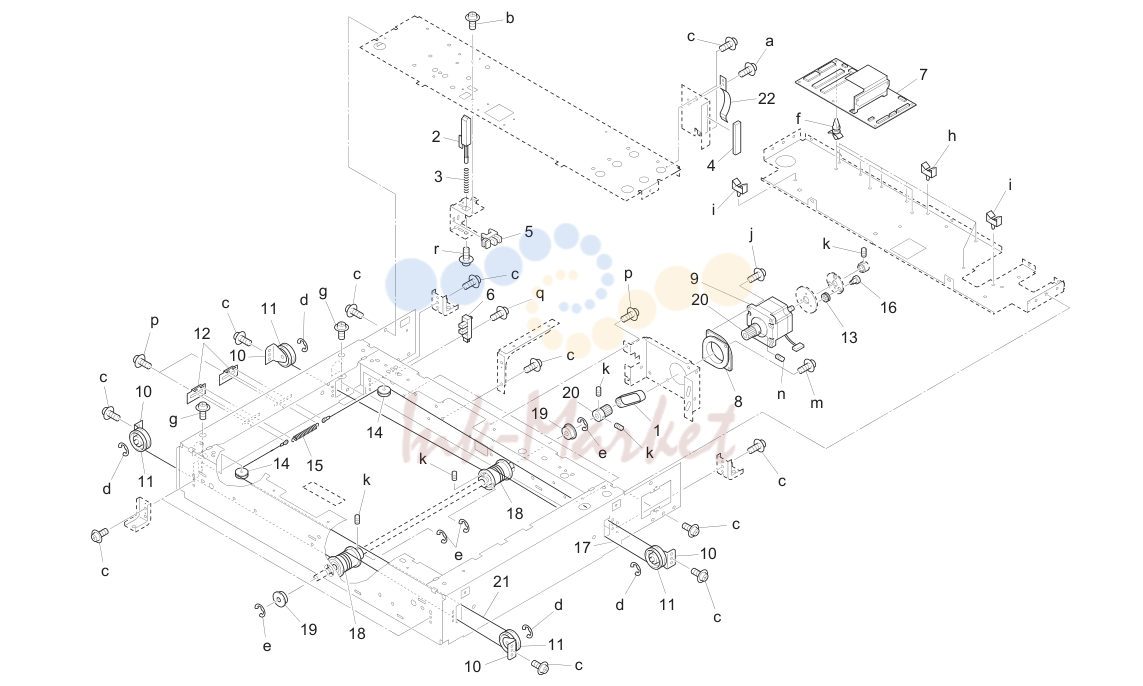

8. Optics unit (1)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 55VA 7811 0KC Read Driving Belt e 00Z670906KC E-Ring | ||
| 2 | 56AA 6142 0KC ADF Detecting Actuator f 00Z925106KC Locking Circuit Board Support | ||
| 3 | 56AA 6143 0KC ADF Detecting Spring g 00Z194081KC Cross Recessed Pan Head Screw | ||
| 4 | 56AA 6154 0KC Read Earth Part /Right Rear h 00Z921303KC Wire Saddle | ||
| 5 | 08AA 8551 0KC Photo Sensor i 00Z921302KC Wire Saddle | ||
| 6 | 56AA 8551 0KC Photo Sensor j 00Z184101KC Bind Screw M4X10 | ||
| 7 | 56AA -909 1KC Scanner Drive Board Assembly k 00Z474063KC Hexagon Socket Screw | ||
| 8 | 55VA 6202 0KC Motor Fixing Part m 00Z194051KC C.R.P.H. Screw | ||
| 9 | 55VA 8012 1KC Optics Driving Motor n 00Z474083KC Hexagon Socket Screw (W Point) | ||
| 10 | 25SA -620 1KC Pulley Mt Plate/Front Unit p 00Z164061KC C.R.P.H.S.Sems2 M4X6 | ||
| 11 | 56AA 6129 0KC Optics Idling Pulley q 00Z184121KC Bind Screw M4X12 | ||
| 12 | 25SA 6171 0KC Spring Fixing Plate r 00Z253061KC Cross Recessed Tapping Screw | ||
| 13 | 56AA 6141 0KC Motor Auxiliary Rubber | ||
| 14 | 25SA 6170 0KC Wire Guide Roller | ||
| 15 | 56AA 6157 0KC Wire Tension Spring | ||
| 16 | 56AA 6140 0KC Motor Auxiliary Screw | ||
| 17 | 56AA 6114 1KC Read Driving Wire/Rear | ||
| 18 | 25SA 6165 0KC Drive Pulley | ||
| 19 | 5000 7501 0KC Read Driving Shaft Holder (Bushing/Bearing) | ||
| 20 | 55VA 7670 0KC Read Driving Pulley /1(Z=19) | ||
| 21 | 56AA 6113 1KC Read Driving Wire/Front | ||
| 22 | 56AA 6153 0KC Read Earth Spring /Right Rear |
9. Optics unit (2)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 55TA 6132 0KC Lens Earth Spring | ||
| 2 | 56AA -617 0KC Guide Rail/Front Assembly | ||
| 3 | 56AA -635 0KC Original Glass Assembly (Scanner Glass) | ||
| 4 | 56AA 9091 0KC Lamp Relay Wiring | ||
| 5 | 25SA 6188 1KC Cord Holder | ||
| 6 | 56AA -633 1KC Original Glass/1 Assembly (ADF Glass) | ||
| 7 | 25SA 6186 0KC Cord Guide Part | ||
| 8 | 56AA 6133 0KC Glass Holder | ||
| 9 | 56AA 8055 0KC Fan Motor/2 | ||
| 10 | 25AA 8502 0KC Heater Switch | ||
| 11 | 56AA 8553 0KC APS Sensor/2 | ||
| 12 | 3000 7315 0KC Key Counter Inner Cover | ||
| 13 | 56AA -618 0KC Guide Rail/Rear Assembly | ||
| 14 | 56AA 6158 0KC Wire Regulation Sheet |
10. Optics unit (3)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 55TA 6111 0KC Reflecting Mirror/1 | ||
| 2 | 56AA 6144 0KC Power Source Protection Sheet | ||
| 3 | 25SA 6147 0KC Mirror Holder/2 | ||
| 4 | 56AA 8351 0KC Lamp Starter | ||
| 5 | 55TA 6113 0KC Mirror Support Part | ||
| 6 | 55TA 6112 0KC Reflecting Mirror/2 | ||
| 7 | 56AA -614 0KC Side Guide Plate Assembly | ||
| 8 | 25SA 6142 0KC Optics Slide Part | ||
| 9 | 56AA 8301 0KC Exposure Lamp | ||
| 10 | 25SA 6208 0KC Mirror Positioning Plate/4 | ||
| 11 | 25SA 6207 0KC Mirror Positioning Plate/3 | ||
| 12 | 55WA 6115 0KC Read Mirror/1 | ||
| 13 | 25SA 6146 0KC Mirror Holder/1 | ||
| 14 | 56AA 6118 0KC Cord Holder Part/B |
11. Optics unit (4)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 56AA 6129 0KC Optics Idling Pulley | ||
| 2 | 55FA 6113 0KC Mirror Positioning Plate | ||
| 3 | 55FA 6114 0KC Mirror Positioning Plate/2 | ||
| 4 | 25SA 6216 0KC Cord Guide Pulley/2 | ||
| 5 | 25SA 6142 0KC Optics Slide Part | ||
| 6 | 25SA 6155 1KC Mirror Holder/4 | ||
| 7 | 56AA -614 0KC Side Guide Plate Assembly | ||
| 8 | 25SA 6154 1KC Mirror Holder/3 | ||
| 9 | 55TA 6134 1KC Read Mirror/2 |
12. Optics unit (5)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 56AA 1554 1KC Wiring Guide Part | ||
| 2 | 56AA 7774 0KC Conveyance Driving Gear/2 (Z=25) | ||
| 3 | 55VA 1554 1KC Cleaner Coupling Part | ||
| 4 | 56AA 1748 0KC Pin (B) | ||
| 5 | 5400 7605 0KC Driving Shaft Holder (Bushing/Bearing) | ||
| 6 | 12QV 4065 0KC Spacer | ||
| 7 | 55VA 1547 0KC Belt Guide Plate | ||
| 8 | 56AA 7753 0KC Paper Feed Driving Belt/1 (L=336) | ||
| 9 | 55VA 7713 0KC Paper Feed Driving Gear/C (Z=63/36) | ||
| 10 | 56AA 7714 0KC Paper Feed Driving Gear (Z=23) | ||
| 11 | 55VA 7712 0KC Paper Feed Driving Gear/B | ||
| 12 | 56AA 8201 1KC Paper Feed Driving Clutch | ||
| 13 | 56AA 1732 0KC Pin (A) (D2*7) | ||
| 14 | 56AA 8001 1KC DC Brushless Motor/40 | ||
| 15 | 56AA 7653 0KC Paper Feed Driving Pulley (Z=36) | ||
| 16 | 56AA 7771 1KC Conveyance Driving Gear/1 (Z=24) | ||
| 17 | 56AA -150 1KC Paper Feed Drive Assembly | ||
| 18 | 56AA 7715 0KC Conveyance Input Gear (Z=23) | ||
| 19 | 56AA 1542 0KC Paper Feed Coupling Collar |

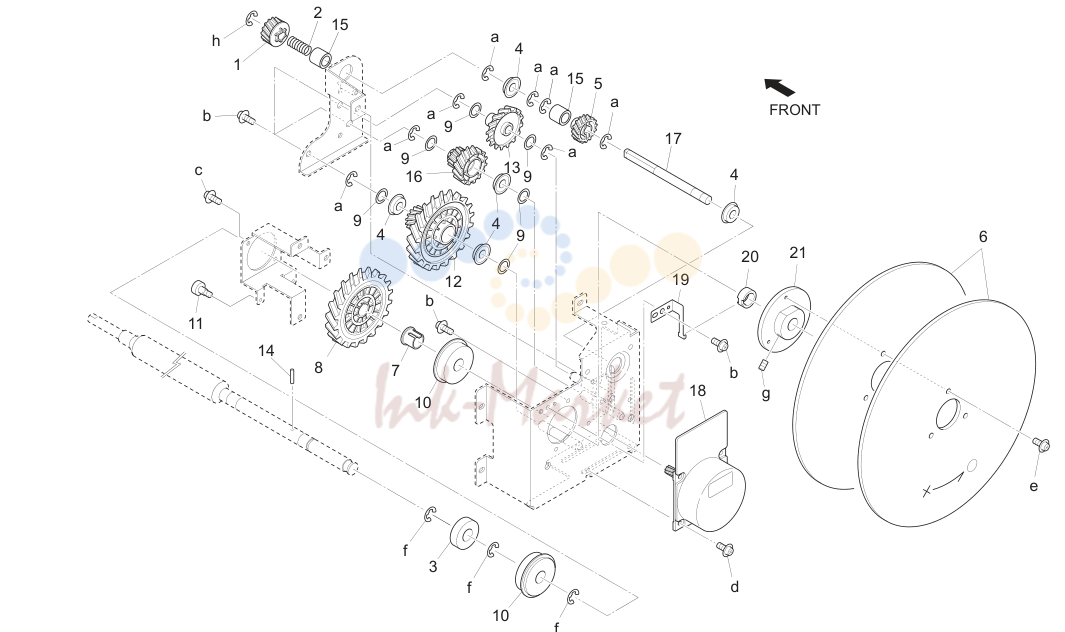

13. Driving section (2)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 56AA 7783 1KC Toner Collecting Gear/4 (Z=22) f 00Z681203KC Set Ring For Shaft (D=12) | ||
| 2 | 56AA 1701 0KC Fixing Coupling Spring g 00Z474063KC Hexagon Socket Screw | ||
| 3 | 56AA 7502 0KC Base Shaft Holder (Bushing/Bearing) h 00Z670506KC E-Ring | ||
| 4 | 5400 7605 0KC Driving Shaft Holder (Bushing/Bearing) | ||
| 5 | 56AA 7782 0KC Toner Collecting Gear/3 (Z=28) | ||
| 6 | 55JE 1501 0KC Drum Rotary Plate | ||
| 7 | 56AA 1553 0KC Drum Collar | ||
| 8 | 56AA 7705 0KC Drum Driving Gear/2 (Z=73) | ||
| 9 | 12QV 4065 0KC Spacer | ||
| 10 | 56AA 7501 0KC Drum Rotary Shaft Holder/1 (Bushing/Bearing) | ||
| 11 | 56AA 2087 0KC Terminal Fixing Screw | ||
| 12 | 56AA 7704 0KC Drum Driving Gear/1 (Z=124/25) | ||
| 13 | 56AA 7707 0KC Toner Collecting Gear/2 (Z=46) | ||
| 14 | 56AA 1749 0KC Pin | ||
| 15 | 56AA 1559 0KC Drum Coupling Collar | ||
| 16 | 56AA 7706 0KC Toner Collecting Gear/1 (Z=61/21) | ||
| 17 | 56AA 1518 1KC Toner Collecting Shaft/2 | ||
| 18 | 56AA 8008 1KC DC Brushless Motor/15 | ||
| 19 | 25SA 1528 0KC Drum Earth Spring | ||
| 20 | 55GA 1506 0KC Earth Shaft Holder (Bushing/Bearing) | ||
| 21 | 55GA 1503 0KC Mounting Material |
14. Driving section (3)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 56AA 7713 0KC By-Pass Feed Driving Gear/2 (Z=28) b 00Z194061KC C.R.P.H. Screw M4X6 | ||
| 2 | 56AA 1554 1KC Wiring Guide Part c 00Z713206KC Spring Pin | ||
| 3 | 56AA 8007 0KC DC Brushless Motor/30 d 00Z670406KC E-Ring | ||
| 4 | 5400 7605 0KC Driving Shaft Holder (Bushing/Bearing) e 00Z193061KC C.R.P.H. Screw M3X6 | ||
| 5 | 12AJ 7703 1KC Gear/2 (Z=42) f 00Z925103KC Locking Circuit Board Support | ||
| 6 | 56AA 1549 0KC Pulley Guide Plate g 00Z184061KC Bind Screw M4X6 | ||
| 7 | 56AA 7752 0KC By-Pass Feed Driving Belt/1 (L=192) h 00Z921370KC Edge Saddle | ||
| 8 | 56AA 7652 0KC By-Pass Feed Driving Pulley/2 (Z=26) | ||
| 9 | 56AA 1748 0KC Pin (B) | ||
| 10 | 56AA 1747 0KC Pin (B) (3*12) | ||
| 11 | 56AA 7702 0KC Fixing Driving Gear/2 (Z=22) | ||
| 12 | 25BA 7726 1KC Fixing Input Gear (Z=50/36) | ||
| 13 | 56AA 7712 0KC By-Pass Feed Driving Gear/1 (Z=36) | ||
| 14 | 56AA 1701 0KC Fixing Coupling Spring | ||
| 15 | 56AA 7651 0KC By-Pass Feed Driving Pulley/1 (Z=15) | ||
| 16 | 56AA 1753 0KC Pin (A) (D2*10) | ||
| 17 | 56AA 8011 0KC Paper Exit Driving Motor | ||
| 18 | 56AA 1541 0KC Developing Coupling Part | ||
| 19 | 56AA 7701 0KC Fixing Driving Gear/1 (Z=72) | ||
| 20 | 56AA 8008 1KC DC Brushless Motor/15 | ||
| 21 | 56AA 7709 0KC Developing Driving Gear (Z=64) | ||
| 22 | 56AA 1547 1KC Contact Spring | ||
| 23 | 56AA 1552 1KC Contact Shaft | ||
| 24 | 56AA 1546 0KC High Voltage Guide Part | ||
| 25 | 56AA 9070 0KC High Voltage Lead Wire/1 |
15. Drum cartridge (1)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 56AA -228 0KC Cleaner Cooling Duct Assembly 25 56NE 2106 0KC Drum Fixing Coupling (Drum Coupling) | ||
| 2 | 3920 1565 0KC Slide Shaft Holder/C (Bushing/Bearing) 26 56AA -990 0KC Drum Cartridge | ||
| 3 | 56AA -217 0KC Clutch Connecting Gear Assembly 27 56AA 2033 0KC Cleaner Suction Seal | ||
| 4 | 56AA 8202 1KC Cleaner Clutch 28 25HA 1521 0KC Spacer/E | ||
| 5 | 56AA 9786 0KC Guide Label/2 29 E4SKKC Drum | ||
| 6 | 26NA 9708 1KC Laser Indication Label a 00Z670406KC E-Ring | ||
| 7 | 56AA 7504 0KC Drum Rotary Shaft Holder/2 (Bushing/Bearing) b 00Z253081KC Cross Recessed Tapping Screw | ||
| 8 | 25SA 2064 0KC Toner Collection Block (B) c 00Z926251KC Edge Saddle (EDS-1) | ||
| 9 | 56AA 2076 0KC Toner Agitating Sheet d 00Z193061KC C.R.P.H. Screw M3X6 | ||
| 10 | 56AA 9787 0KC Guide Label/3 | ||
| 11 | 56AA 1752 0KC Pin (A) (D3*10) | ||
| 12 | 56AA 2052 0KC Toner Recycling Screw/1 | ||
| 13 | 25SA 7718 0KC Toner Conveyance Gear (B) (Z=26) | ||
| 14 | 56AA 2107 1KC Drum Fixing Coupling /2 (Drum Shaft | ||
| 15 | 56AA 7726 0KC Toner Recycling Gear (Z=17) | ||
| 16 | 55WA 3001 0KC Developing Shaft Holder (Bushing/Bearing) | ||
| 17 | 08AA 7601 0KC Drum Driving Shaft Holder (Bushing/Bearing) | ||
| 18 | 25SA 7717 0KC Toner Conveyance Gear (A) (Z=38) | ||
| 19 | 56AA 2051 0KC Toner Recycling Block | ||
| 20 | 56AA -231 0KC Toner Collecting Pipe | ||
| 21 | 56AA 1703 0KC Open-Close Spring | ||
| 22 | 56AA 2081 0KC Toner Recycling Screw/2 | ||
| 23 | 56AA 2056 0KC Toner Slide Cover | ||
| 24 | 25SA 2067 0KC Toner Conveyance Shaft Holder (Bushing/ |
16. Drum cartridge (2)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 56AA 1741 0KC Blade Rotary Screw (M4*3.2) | ||
| 2 | 56AA -222 0KC Blade Support Plate Caulking | ||
| 3 | 56AA 2116 0KC Hinge | ||
| 4 | 25SA 2028 0KC Blade Position Block | ||
| 5 | 5400 2080 0KC Drum Support Material | ||
| 6 | 56AA 2012 0KC Blade Tension Plate | ||
| 7 | 56AA 2115 0KC Blade Fulcrum Shaft Holder (Bushing/Bearing) | ||
| 8 | 56AA 2010 0KC Cleaner Blade | ||
| 9 | 56AA 9785 0KC Guide Label/1 | ||
| 10 | 56AA 2021 0KC Developing Base Part | ||
| 11 | 56AA -125 0KC Drum Cover Assembly | ||
| 12 | 56AA -223 0KC Cleaner Cover Assembly | ||
| 13 | 5400 2079 0KC Drum Seal | ||
| 14 | 56AA 2110 0KC Cleaner Auxiliary Seal | ||
| 15 | 56AA 9782 0KC Drum Caution Label | ||
| 16 | 56AA 9712 0KC High Voltage Caution Label | ||
| 16 | 56AE 9712 0KC High Voltage Caution Label | ||
| 17 | 56AA 1739 0KC Base Screw | ||
| 18 | 56AA 2112 0KC Blade Release Lever | ||
| 19 | 56AA 2113 0KC Blade Release Cam |
17. Drum cartridge (3)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 56AA 2040 0KC Shaft Positioning Part | ||
| 2 | 56AA -213 1KC Collecting Roller Assembly (Toner Guide | ||
| 3 | 56AA 7708 1KC Cleaner Idling Gear (Z=21) | ||
| 4 | 56AA 2017 0KC Contact Pressing Spring | ||
| 5 | 56AA 7710 0KC Separation Driving Gear (Z=26/18) | ||
| 6 | 56AA 2075 0KC Separation Fulcrum Shaft Holder (Bushing/ | ||
| 7 | 56AA 7711 0KC Separation Idling Gear (Z=40) | ||
| 8 | 56AA 1753 0KC Pin (A) (D2*10) | ||
| 9 | 56AA 7725 0KC Separation Rocking Gear (Z=41) | ||
| 10 | 56AA 2125 0KC Shaft Stopper/5 |
18. Drum cartridge (4)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 55VA 2068 0KC Separation Positioning Screw c 00Z670206KC E-Ring | ||
| 2 | 56AA 2098 0KC Separation Pressing Spring d 00Z670406KC E-Ring | ||
| 3 | 56AA 2126 0KC Spacer e 00Z193041KC C.R.P.H. Screw M3X4 | ||
| 4 | 56AA 2070 0KC Drum Separating Claw f 00Z253081KC Cross Recessed Tapping Screw | ||
| 5 | 56AA 2075 0KC Separation Fulcrum Shaft Holder (Bushing/ g 00Z921931KC Mini Clamp (MSB-1607) | ||
| 6 | 56AA 2003 0KC Separation Guide Part | ||
| 7 | 56AA 2096 0KC Solenoid Release Spring | ||
| 8 | 56AA 1742 0KC Separate Screw (M3*3.2) | ||
| 9 | 56AA 2044 1KC Rocking Cam | ||
| 10 | 56AA 2046 0KC Release Plate | ||
| 11 | 45AA 2040 0KC Stopper Part (Snap Ring) | ||
| 12 | 56AA 1710 0KC Separation Rocking Spring | ||
| 13 | 56AA 2043 0KC Release Cam | ||
| 14 | 56AA -910 0KC Toner Control Sensor Assembly | ||
| 15 | 26NA 8251 2KC Paper Feed Solenoid | ||
| 16 | 07BA 5472 1KC Paper Holding Claw | ||
| 17 | 56AA 2108 0KC Fixing Part | ||
| 18 | 56AA 2119 0KC Separation Guide Seal/1 | ||
| 19 | 56AA 2120 0KC Separation Guide Seal/2 | ||
| 20 | 56AA 2121 0KC Separation Guide Seal/3 | ||
| 21 | 56AA 2122 0KC Separation Guide Seal/4 | ||
| 22 | 56AA 2123 0KC Separation Guide Seal/5 | ||
| 23 | 56AA 2124 0KC Separation Guide Seal/6 |

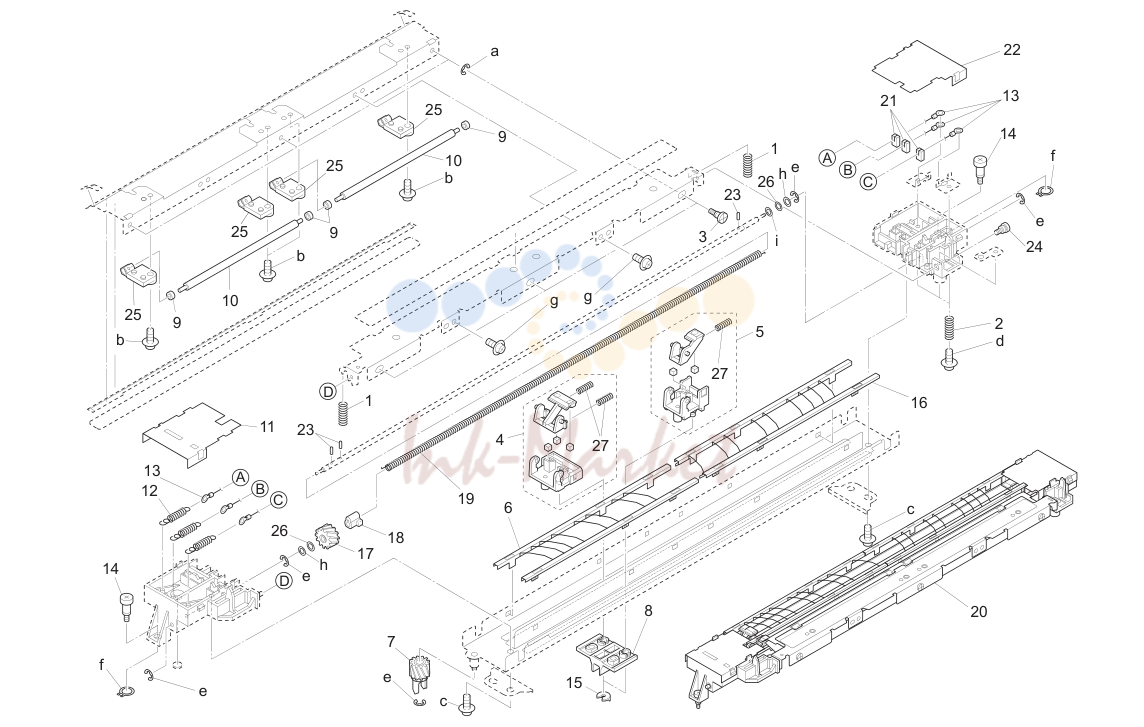

19. Transfer separator corona unit
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 56AA 1705 0KC Pressure Spring 26 56AA 2631 0KC Spacer/5 | ||
| 2 | 56AA 1702 0KC Electrify Spring 27 56AA 1704 0KC Wire Cleaning Spring | ||
| 3 | 56AA 1758 0KC Adjusting Screw a 00Z670306KC E-Ring | ||
| 4 | 56AA -267 1KC Separation Cleaning Assembly b 00Z183061KC Bind Screw M3X6 | ||
| 5 | 56AA -264 0KC Transfer Cleaning Assembly c 00Z253081KC Cross Recessed Tapping Screw | ||
| 6 | 56AA 2608 2KC Separating Bridge d 00Z112061KC C.R.P.H. Screw M2X6 | ||
| 7 | 56AA 7770 0KC Cleaning Gear /1 (Z=14/14) e 00Z670206KC E-Ring | ||
| 8 | 56AA 2620 2KC Slide Block f 00Z600506KC Set Ring (5M) | ||
| 9 | 55GA 7655 0KC Transfer Guide Shaft Holder/2 (Bushing/ g 00Z193061KC C.R.P.H. Screw M3X6 | ||
| 10 | 56AA 2625 0KC Transfer Guide Roller | ||
| 11 | 56AA 2604 0KC Spark Preventing Plate/Front | ||
| 12 | 56AA 1714 0KC Wire Tension Spring | ||
| 13 | 56AA 2609 0KC Discharging Wire | ||
| 14 | 56AA 2628 0KC Electrode Fixing Screw | ||
| 15 | 45AA 2040 0KC Stopper Part (Snap Ring) | ||
| 16 | 56AA 2619 2KC Separating Bridge/Rear | ||
| 17 | 56AA 7797 0KC Cleaning Gear /2 (Z=14/14) | ||
| 18 | 56AA 2618 0KC Electrode Cleaning Joint | ||
| 19 | 56AA 2617 0KC Electrode Cleaning Spring | ||
| 20 | 56AA -260 5KC Transfer/Separation Unit | ||
| 21 | 56AA 1783 0KC Transfer Holding Rubber | ||
| 22 | 56AA 2605 0KC Spark Preventing Plate/Rear | ||
| 23 | 56AA 1731 0KC Pin | ||
| 24 | 56AA 1739 0KC Base Screw | ||
| 25 | 56AA 2612 0KC Transfer Guide Shaft Holder (Bushing/Bearing) |
20. Charging unit
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 56AA -250 3KC Charging Corona Unit d 00Z11B061KC C.R.P.H. Screw M2.6*6 | ||
| 2 | 56AA 2530 1KC PCL Cover | ||
| 3 | 56AA 8307 0KC PCL | ||
| 4 | 45AA 2040 0KC Stopper Part (Snap Ring) | ||
| 5 | 56AA 2538 0KC Charge Slide Part | ||
| 6 | 56AA 2540 0KC Charge Cleaning Base Plate | ||
| 7 | 56AA 7791 0KC Charge Cleaning Gear/4 (Z=28) | ||
| 8 | 56AA 2515 0KC Electrode Cleaning Joint | ||
| 9 | 25SA 2518 0KC Charging Slide Collar | ||
| 10 | 56AA 2545 0KC Charge Slide Collar/2 | ||
| 11 | 56AA 2523 0KC Charge Tension Spring | ||
| 12 | 56AA -253 1KC Charge Cleaner Upper Block Assembly | ||
| 13 | 56AA 7789 0KC Charge Cleaning Gear/2 (Z=15) | ||
| 14 | 56AA -254 1KC Charge Cleaner Lower Block Assembly | ||
| 15 | 56AA 7790 0KC Charge Cleaning Gear/3 (Z=18) | ||
| 16 | 56AA 2533 0KC Spark Preventing Part/Front | ||
| 17 | 56AA 2534 0KC Spark Preventing Part/Rear | ||
| 18 | 56AA 2517 0KC Electrode Cleaning Spring | ||
| 19 | 56AA 2509 0KC Charge Wire | ||
| 20 | 56AA 1716 0KC Charging Control Spring | ||
| 21 | 56AA 2503 0KC Charge Control Plate | ||
| 22 | 56AA -255 0KC Charge Cleaning Motor Assembly | ||
| 23 | 56AA 2514 1KC Electrode Cleaning Joint /Front |
21. Developing unit
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 56GA 3071 0KC Developing Stopper Roller/B | ||
| 2 | 55WA 3001 0KC Developing Shaft Holder (Bushing/Bearing) | ||
| 3 | 56AA -301 1KC Developing Cover Assembly | ||
| 4 | 56AA 1747 0KC Pin (B) (3*12) | ||
| 5 | 5400 3017 0KC Spewing Preventive Felt | ||
| 6 | 4660 7803 0KC Shaft Holder (Bushing/Bearing) | ||
| 7 | 56AA 7775 0KC Developing Driving Gear (Z=36) | ||
| 8 | 56GA 3070 0KC Developing Stopper Roller/A | ||
| 9 | 56AA 7776 0KC Developing Input Gear (Z=36/24) | ||
| 10 | 56AA 7777 0KC Developing Agitating Gear (Z=26) | ||
| 11 | 56AA 7778 0KC Developing Idling Gear (Z=18) | ||
| 12 | 56AA 7779 0KC Screw Gear/Left (Z=26) | ||
| 13 | 56AA 7780 0KC Screw Gear/Right (Z=26) | ||
| 14 | 56AA -300 4KC Developing Unit | ||
| 15 | 56AA 3042 0KC Scatter Preventing Pad /No.3 | ||
| 16 | 56AA -306 0KC Developing Cover Part Assembly | ||
| 17 | E4Q0KC запросить цену → | Developer (not shown) |

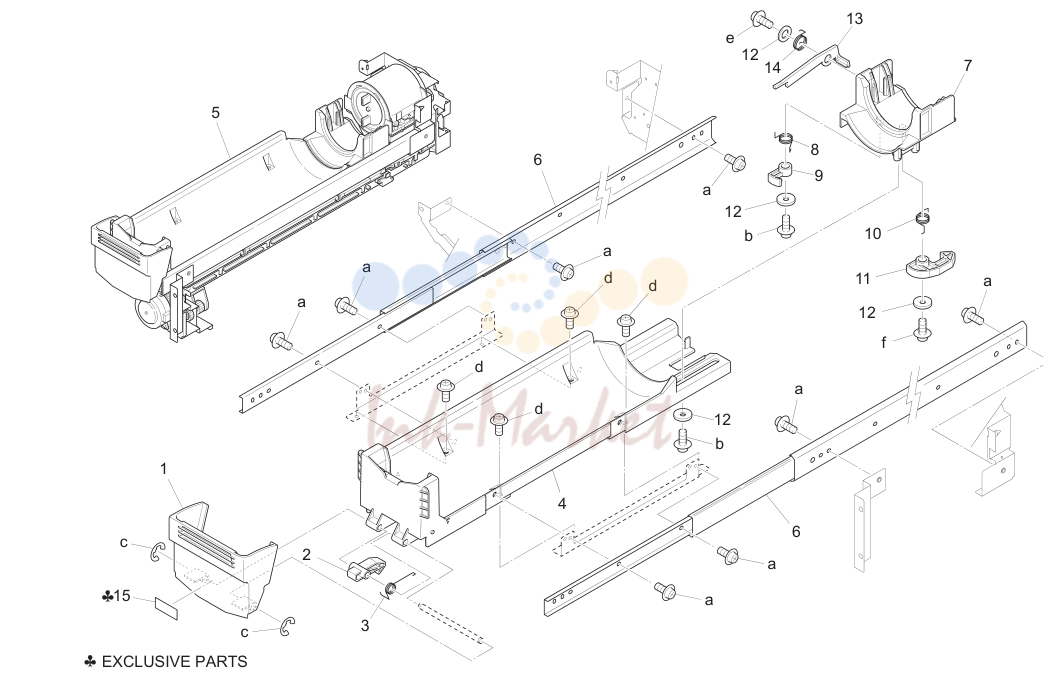

22. Toner supply unit (1)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 56NE 3251 0KC Lever | ||
| 2 | 56AA 3261 0KC Toner Supply Locking Part | ||
| 3 | 56AA 3262 0KC Toner Supply Locking Spring | ||
| 4 | 56AA 3230 2KC Cartridge Pressing Part | ||
| 5 | 56NE -320 0KC Toner Supply Unit | ||
| 6 | 56AA 1030 0KC Slide Rail/A | ||
| 7 | 56NE 3243 0KC Cartridge Holding Part | ||
| 8 | 56AA 3264 0KC Locking Spring/B | ||
| 9 | 56AA 3263 0KC Locking Part/B | ||
| 10 | 56AA 3245 0KC Locking Spring/A | ||
| 11 | 56AA 3244 0KC Locking Part/A | ||
| 12 | 56AA 3271 0KC Guide Spacer | ||
| 13 | 56AA 3275 1KC Locking Part /C | ||
| 14 | 56AA 3276 1KC Locking Spring /C | ||
| 15 | 56NE9795 запросить цену → | Toner Part # Label (N. America) | |
| 15 | 56NF9795 запросить цену → | Toner Part # Label (EMEA) | |
| 15 | 56NN9795 запросить цену → | Toner Part # Label (AP) |
23. Toner supply unit (2)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 56AA 3203 0KC Toner Supply Main Body/Lower 26 56AA 1747 0KC Pin (B) (3*12) | ||
| 2 | 56AA 3233 1KC Toner Supply Open/Shut Cover 27 56AA 3273 0KC Screw Earth Plate | ||
| 3 | 56AA 3270 0KC Screw Shaft Holder (Bushing/Bearing) 28 56AA 3206 0KC Agitating Screw/Left | ||
| 4 | 56AA 3235 1KC Toner Supply Open/Shut Spring 29 56AA -333 0KC Screw/Right | ||
| 5 | 56AA 3259 0KC Toner Supply Block/B a 00Z670406KC E-Ring | ||
| 6 | 56AA 3209 0KC Toner Supply Screw b 00Z253081KC Cross Recessed Tapping Screw | ||
| 7 | 56AA 3256 0KC Toner Supply Block/A c 00Z193041KC C.R.P.H. Screw M3X4 | ||
| 8 | 55GA 7768 0KC Toner Agitating Gear/A (Z=25) d 00Z243083KC C.R.P.H.TA. Screw | ||
| 9 | 56AA 1732 0KC Pin (A) (D2*7) e 00Z921370KC Edge Saddle | ||
| 10 | 56AA 1752 0KC Pin (A) (D3*10) f 00Z193061KC C.R.P.H. Screw M3X6 | ||
| 11 | 56AA 3266 0KC Toner Conveying Seal | ||
| 12 | 56AA 3265 0KC Toner Conveying Shaft Holder (Bushing/ | ||
| 13 | 56AA 7733 0KC Screw Gear (Z=15) | ||
| 14 | 56AA 7724 0KC Screw Input Gear (Z=15) | ||
| 15 | 4660 7602 0KC Paper Feed Shaft Holder (Bushing/Bearing) | ||
| 16 | 56AA 3214 0KC Toner Supply Seal | ||
| 17 | 56AA 8006 0KC Toner Supply Motor | ||
| 18 | 40AA 8803 0KC Quantity Detecting Sensor | ||
| 19 | 56AA 7729 0KC Idling Gear/C (Z=51,15) | ||
| 20 | 56AA 7732 0KC Idling Gear/D (Z=47,20) | ||
| 21 | 56AA 7730 0KC Agitating Gear (Z=37) | ||
| 22 | 12AA 7708 0KC Gear/H (Z=27) | ||
| 23 | 56AA 3274 0KC Toner Sealing Sheet/A | ||
| 24 | 56AA 3213 0KC Main Body Cover/Lower | ||
| 25 | 56AA 7731 0KC Toner Supply Input Gear (Z=30) |
24. Toner supply unit (3)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 56AA 3242 0KC Main Body Cover/Upper f 00Z193041KC C.R.P.H. Screw M3X4 | ||
| 2 | 56AA 3215 1KC Toner Sealing Part/A | ||
| 3 | 56AA 3240 0KC Toner Supply Sleeve/Front | ||
| 4 | 56AA 3202 0KC Toner Supply Main Body/Upper | ||
| 5 | 56AA 3268 0KC Toner Sealing Part/D | ||
| 6 | 56AA 3201 1KC Toner Supply Main Body | ||
| 7 | 56AA 3267 0KC Toner Sealing Part/C | ||
| 8 | 56AA 3216 0KC Toner Sealing Part/B | ||
| 9 | 56AA 3241 0KC Toner Supply Sleeve/Rear | ||
| 10 | 56AE 3239 0KC Cartridge Driving Part | ||
| 11 | 56AA 3227 0KC Drive Release Spring | ||
| 12 | 56AA 1750 0KC Pin | ||
| 13 | 56AA 7728 0KC Idling Gear/B (Z=44/16) | ||
| 14 | 56AA 3272 0KC Earth Plate/A | ||
| 15 | 56AA 7794 0KC Idling Gear/G (Z=20) | ||
| 16 | 4660 7602 0KC Paper Feed Shaft Holder (Bushing/Bearing) | ||
| 17 | 56AA 7795 0KC Cartridge Gear (Z=33) | ||
| 18 | 56AA 7727 0KC Idling Gear/A (Z=53/14) | ||
| 19 | 56AA 8008 1KC DC Brushless Motor/15 | ||
| 20 | 56AA 7793 0KC Idling Gear/F (Z=15/20) | ||
| 21 | 56AA 7792 0KC Idling Gear/E (Z=30) |
25. Registration unit
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 55VA 4689 0KC Driven Rubber 26 56AA 9029 0KC ADU Earth Wire | ||
| 2 | 56AA 4610 0KC Registration Paper Feed Actuator 27 13GQ 4547 0KC Rotary Knob (see Note 1) | ||
| 3 | 25AA 7553 0KC Slide Shaft Holder (Bushing/Bearing) 28 56AA 5028 0KC Registration Lift-Up Sheet/2 | ||
| 4 | 56AA 4645 0KC Registration Feeding Spring 29 56AA 4603 1KC Registration Roller/Upper | ||
| 5 | 56AA 4606 0KC Transfer Guide Handle 30 08AA 8551 0KC Photo Sensor | ||
| 6 | 56AA 4604 1KC Transfer Feeding Plate 31 56AA 4616 0KC Pressing Spring/Lower | ||
| 7 | 56AA 8552 0KC Conveyance Photo Sensor 32 56AA -367 0KC Paper Regulating Plate Assembly | ||
| 8 | 55VA -804 0KC Sensor Assembly 33 56AA 4607 0KC Wiring Guide Sheet | ||
| 9 | 56AA 4617 2KC Registration Driven Roller/Upper 34 56AA 4612 0KC Registration Enter Sheet/Front | ||
| 10 | 56AA 4691 0KC Registration Pressing Spring/Upper 35 56AA 4613 0KC Registration Enter Sheet/Rear | ||
| 11 | 56AA 4605 0KC Registration Entrance Plate 36 56AA 4693 0KC Clutch Fixing Part | ||
| 12 | 56AA 1782 0KC Preventing Rubber a 00Z670406KC E-Ring | ||
| 13 | 56AA 4611 0KC Registration Open/Shut Screw b 00Z193041KC C.R.P.H. Screw M3X4 | ||
| 14 | 40AA 3229 0KC Magnet Catch c 00Z254081KC Cross Recessed Tapping Screw | ||
| 15 | 08AA 7601 0KC Drum Driving Shaft Holder (Bushing/Bearing) d 00Z921941KC Mini Clamp (MSC-1609) | ||
| 16 | 26NA 4082 0KC Paper Feed Slide Shaft Holder (Bushing/ e 00Z921370KC Edge Saddle | ||
| 17 | 56AA 4640 0KC Registration Positioning Plate | ||
| 18 | 56AA -366 0KC Registration Cleaner Assembly | ||
| 19 | 56AA 9721 0KC Jam Release Label/D (see Note 1) | ||
| 20 | 56AA 9725 0KC Jam Release Label/1 | ||
| 21 | 56AA 4685 2KC Conveyance Driving Roller/T | ||
| 22 | 56AA 1747 0KC Pin (B) (3*12) | ||
| 23 | 56AA 7784 0KC Driving Gear (Z=30) | ||
| 24 | 56AA 8201 1KC Paper Feed Driving Clutch | ||
| 25 | 56AA 4620 1KC Registration Driving Base Plate |
26. Fixing unit (fuser) (1)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 56AE -53T 0KC Fixing Unit (Fuser) (110V) | ||
| 1 | 56AF -53T 0KC Fixing Unit (Fuser (220V) | ||
| 1 | 56AG -53T 0KC Fixing Unit (Fuser) (220V Asia-Pacific A/P) | ||
| 1 | 56AK -53T 0KC Fixing Unit (Fuser) (100V Taiwan) | ||
| 2 | 56AE -544 0KC Upper Plate Assembly | ||
| 2 | 56AF -544 0KC Upper Plate Assembly | ||
| 3 | 26NA 5403 0KC Mounting Screw | ||
| 4 | 56AA 5336 0KC Fixing Cover/Front | ||
| 5 | 56AA 5345 0KC Fixing Entrance Plate/Upper | ||
| 6 | 56AA 5339 0KC Guide Part/A | ||
| 7 | 56AA 9710 0KC High Temperature Caution Label | ||
| 7 | 56AE 9710 0KC High Temperature Caution Label | ||
| 8 | 56AA 5394 2KC Fixing Heat Insulate Sheet /A | ||
| 9 | 56AA 5455 0KC Protection Seal/1 |
27. Fixing unit (fuser) (2)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 56AA 5441 0KC Paper Exit Guide Part/1 b 00Z193061KC C.R.P.H. Screw M3X6 | ||
| 2 | 56AA 5442 0KC Paper Exit Guide Part/2 c 00Z670406KC E-Ring | ||
| 3 | 56AA 5443 0KC Paper Exit Guide Part/3 d 00Z183061KC Bind Screw M3X6 | ||
| 4 | 56AA 5444 0KC Paper Exit Guide Part/4 e 00Z670606KC E-Ring | ||
| 5 | 56AA 5378 0KC Paper Exit Guide Plate f 00ZAA0008KC Hexagon Cross Recessed RS Tap | ||
| 6 | 56AA 5307 0KC Paper Exit Conveying Roller/Upper (Decurler | ||
| 7 | 56AA 5371 0KC Fixing Paper Exit Roller | ||
| 8 | 56AA 7722 0KC Paper Exit Driving Gear/1 (Z=24) | ||
| 9 | 56AA 5447 1KC Drive Stopper Roller | ||
| 10 | 56AA 7506 1KC Fixing Paper Exit Shaft Holder (Bushing/ | ||
| 11 | 56AA 5448 0KC Drive Protection Spacer | ||
| 12 | 13GQ 4547 0KC Rotary Knob | ||
| 13 | 56AA 7723 1KC Paper Exit Driving Gear/2 (Z=18) | ||
| 14 | 56AA 5384 0KC Paper Exit Guide Lever | ||
| 15 | 56AA 7721 0KC Paper Exit Idling Gear/1 (Z=25) | ||
| 16 | 56AA 5464 0KC Shaft Holder (Bushing/Bearing) Regulation | ||
| 17 | 56AA 5372 1KC Paper Exit Driven Roller/Upper (Regulator | ||
| 18 | 56AA 5419 0KC Neutralizing Brush (Anti-Static Brush) | ||
| 19 | 56AA 5346 0KC Fixing Entrance Plate/Lower | ||
| 20 | 07AA 7509 0KC Bushing /1 (Bearing) | ||
| 21 | 56AA 9722 0KC Jam Release Label | ||
| 22 | 12QV 4065 0KC Spacer |
28. Fixing unit (fuser) (3)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 56AA 5418 0KC Fixing Paper Exit Plate/Lower | ||
| 2 | 56AA 5417 1KC Fixing Paper Exit Plate/Upper | ||
| 3 | 56AA 1790 0KC Fixing Paper Exit Screw | ||
| 4 | 56AA 5373 2KC Paper Exit Entrance Plate/Upper | ||
| 5 | 56AA 5389 0KC Insulating Sheet/1 | ||
| 6 | 56AA 5408 0KC Paper Exit Guide Plate/Lower | ||
| 7 | 4660 7602 0KC Paper Feed Shaft Holder (Bushing/Bearing) | ||
| 8 | 56AA 5382 0KC Positioning Lever | ||
| 9 | 56AA 5374 1KC Paper Exit Pressing Spring/Front | ||
| 10 | 56AA 5380 2KC Paper Exit Guide Part/Right | ||
| 11 | 56AA 5375 1KC Paper Exit Pressing Spring /Rear | ||
| 12 | 56AA 5449 0KC Paper Exit Release Handle | ||
| 13 | 26NA 5403 0KC Mounting Screw | ||
| 14 | 56AA 1711 0KC Jam Detecting Spring | ||
| 15 | 25BA 5333 0KC Fixing Claw/Lower | ||
| 16 | 56AA 1713 0KC Separating Spring/Lower | ||
| 17 | 56AA 5395 1KC Fixing Heat Insulate Sheet /B | ||
| 18 | 56AA 9728 0KC Jam Release Label/4 | ||
| 19 | 56AA 9730 0KC Jam Release Label/6 |
29. Fixing unit (fuser) (4)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 56AA 7734 0KC Fixing Cleaning Gear/1 (Z=18) 23 SP00 -002 0KC Thermostat | ||
| 2 | 5400 5346 0KC Rock Claw 24 5400 5354 0KC Fuse Attaching Plate | ||
| 3 | 56AA 5344 2KC Rocking Lever 25 56AA 5366 0KC Terminal Plate/4 | ||
| 4 | 5400 7722 0KC Fixing Driving Gear/D 26 56AA 5358 2KC Lamp Mounting Plate/Rear | ||
| 5 | 5400 5351 0KC Regulate Claw 27 56AA 5435 0KC Solenoid Pulling Spring | ||
| 6 | 5400 7721 0KC Fixing Driving Gear/C 28 55GA 5365 2KC Wiring Holding Part | ||
| 7 | 56AA 7736 0KC Fixing Cleaning Gear/3 (Z=25/19) 29 56AA 5340 2KC Lamp Mounting Plate/Front | ||
| 8 | 5400 7606 0KC Fixing Cleaning Shaft Holder/A (Bushing/ 30 56AA 5412 0KC Fixing Handle | ||
| 9 | 56AA 1753 0KC Pin (A) (D2*10) | ||
| 10 | 56AA 5361 0KC Terminal Pedestal/3 | ||
| 11 | 56AA 7735 0KC Fixing Cleaning Gear/2 (Z=19) | ||
| 12 | 56AA 5365 0KC Terminal Plate/3 | ||
| 13 | 56AE 5305 2KC Fixing Roller/Upper | ||
| 14 | 56AE 8304 0KC Fixing Lamp/2 (110V) | ||
| 14 | 56AF 8304 0KC Fixing Lamp/2 (220V) | ||
| 14 | 56AK 8304 0KC Fixing Lamp/2 (Taiwan) | ||
| 15 | 56AE 8303 0KC Fixing Lamp/1 (110V) | ||
| 15 | 56AF 8303 0KC Fixing Lamp/1 (220V) | ||
| 16 | 4540 5339 1KC Heat Insulate Sleeve | ||
| 17 | 5440 7720 1KC Fixing Driving Gear/B | ||
| 18 | 25SA 5379 0KC Fixing Collar | ||
| 19 | 4540 7504 0KC Shaft Holder (Bushing/Bearing) | ||
| 20 | 56AA 5363 0KC Terminal Plate/1 | ||
| 21 | 56AA 5359 0KC Terminal Pedestal/1 | ||
| 22 | 56AA 5422 0KC Fixing Screw/2 |
30. Fixing unit (fuser) (5)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 25SA 5369 1KC Holding Part | ||
| 2 | 56AA 8803 0KC Temperature Sensor/1 | ||
| 3 | 25SA 5368 0KC Support Part/2 | ||
| 4 | 25BA 7719 1KC Fixing Idling Gear/Black | ||
| 5 | 56AA 5347 0KC Fixing Fulcrum Shaft | ||
| 6 | 56AA 8804 0KC Temperature Sensor/2 | ||
| 7 | 56AA 1755 0KC Pin/A | ||
| 8 | 56AA -543 0KC Web Unit | ||
| 9 | 56AA 7737 0KC Fixing Cleaning Gear/4 (Z=37) | ||
| 10 | 56AA 5453 0KC Fixing Earth Spring |
31. Fixing unit (fuser) (6)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 56AA 5337 0KC Jam Processing Cover e 00Z194061KC C.R.P.H. Screw M4X6 | ||
| 2 | 56AA 5421 0KC Fixing Screw/1 f 00Z193081KC C.R.P.H. Screw M3X8 | ||
| 3 | 56AA 5437 0KC Paper Exit Release Plate/A | ||
| 4 | 56AA 1732 0KC Pin (A) (D2*7) | ||
| 5 | 56AA 5434 0KC Fixing Release Spring | ||
| 6 | 56AA 5433 1KC Jam Release Lever | ||
| 7 | 56AA 5438 0KC Paper Exit Release Plate/B | ||
| 8 | 56AA 5312 0KC Release Plate/2 | ||
| 9 | 56AA 5316 0KC Locking Claw/Front | ||
| 10 | 56AA 5320 0KC Fixing Mounting Shaft/Front | ||
| 11 | 56AA 5458 3KC Pressing Plate/2 | ||
| 12 | 56AA 5466 0KC Paper Exit Roller | ||
| 13 | 56AA 5303 1KC Fixing Paper Exit Plate/Right | ||
| 14 | 56AA 5324 0KC Separating Spring/Upper | ||
| 15 | 56AA 5427 0KC Fixing Claw/Upper | ||
| 16 | 56AA 5318 0KC Fixing Paper Exit Plate/Left | ||
| 17 | 56AA 5436 0KC Fixing Locking Spring | ||
| 18 | 56AA 5317 2KC Fixing Rocking Cam | ||
| 19 | 56AA 5457 3KC Pressing Plate /1 | ||
| 20 | 26MA 7406 0KC Spacer/A | ||
| 21 | 56AA 9727 0KC Jam Release Label/3 | ||
| 22 | 56AA 9778 0KC Fixing Open/Shut Label |
32. Fixing unit (fuser) (7)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 55VA 8552 0KC Photo Sensor h 00ZAA0008KC Hexagon Cross Recessed RS Tap | ||
| 2 | 56AA 5402 0KC Mounting Part i 00Z194081KC Cross Recessed Pan Head Screw | ||
| 3 | 56AA 5328 1KC Paper Exit Actuator j 00Z243101KC CPPH Screw | ||
| 4 | 55FA 5304 0KC Pressure Spring k 00Z184061KC Bind Screw M4X6 | ||
| 5 | 56AA 5413 1KC Lever Stopper m 00Z610801KC Plane Washer | ||
| 6 | 56AA 5405 1KC Pressure Cam/Front | ||
| 7 | 56AA 5450 0KC Pin/1 | ||
| 8 | 56AA 5362 0KC Terminal Pedestal/4 | ||
| 9 | 56AA 5430 1KC Pressure Cam/Rear | ||
| 10 | 25SA 7603 0KC Fixing Rolling Shaft Holder (Bushing/Bearing) | ||
| 11 | SP00 -001 0KC Thermostat/2 | ||
| 12 | 56AA 5403 0KC Fixing Lever | ||
| 13 | 56AA 5383 0KC Regulating Spring/1 | ||
| 14 | 56AA 5365 0KC Terminal Plate/3 | ||
| 15 | 56AA 5360 0KC Terminal Pedestal/2 | ||
| 16 | 56AE 8305 0KC Fixing Lamp/3 (110V) | ||
| 16 | 56AF 8305 0KC Fixing Lamp/3 (220V) | ||
| 17 | 56AA 5422 0KC Fixing Screw/2 | ||
| 18 | 56AA 5306 1KC Fixing Roller/Lower |
33. Paper feed unit (1)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 56AA 1776 0KC Roller Collar | ||
| 2 | 0590 7651 0KC Pulley/1 | ||
| 3 | 56AA 7759 0KC Paper Feed Rocking Belt (L=111) | ||
| 4 | 56AA 4035 0KC Rocking Handle | ||
| 5 | 56AA 4049 0KC Shaft Stopper/4 | ||
| 6 | 56AA -458 0KC Paper Feed Oscillate Roller Assembly (Pick | ||
| 7 | 08AA 7601 0KC Drum Driving Shaft Holder (Bushing/Bearing) | ||
| 8 | 56AA 4007 0KC Paper Feed Rocking Plate | ||
| 9 | 26NA 4082 0KC Paper Feed Slide Shaft Holder (Bushing/ | ||
| 10 | 56AA -457 0KC Feeding Roller Assembly (Feed Roller) | ||
| 11 | 56AA 4030 0KC Paper Quantity Actuator | ||
| 12 | 56AA 1751 0KC Pin (B) | ||
| 13 | 56AA 4029 0KC Paper Feed Rocking Shaft | ||
| 14 | 56AA -403 0KC Feeding Assembly | ||
| 15 | 08AA 8551 0KC Photo Sensor | ||
| 16 | 56AA 4052 0KC Earth Spring | ||
| 17 | 56AA 4046 0KC Adjusting Plate | ||
| 18 | 55FA 4032 0KC Coupling |
34. Paper feed unit (2)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 56AA 4012 0KC Paper Feed Holding Screw 26 55VA 7554 0KC Paper Feed Shaft Holder/B (Bushing/Bearing) | ||
| 2 | 56AA 4010 0KC Wiring Protection Cover a 00Z113081KC C.R.P.H. Screw M3X8 | ||
| 3 | 56AA 4039 0KC Cam Plate (see Note 1) b 00Z920013KC Super Saddle MSS-2 | ||
| 4 | 56AA 1712 1KC Separate Spring/Upper (see Note 1) c 00Z193061KC C.R.P.H. Screw M3X6 | ||
| 5 | 56AA 4022 0KC Entrance Guide Plate/Rear d 00Z253081KC Cross Recessed Tapping Screw | ||
| 6 | 56AA 4038 0KC Paper Feed Regulating Block e 00Z670306KC E-Ring | ||
| 7 | 56AA 4047 0KC Screw Earth Plate f 00Z670406KC E-Ring | ||
| 8 | 56AA 4051 0KC Pressing Spring g 00Z670606KC E-Ring | ||
| 9 | 56AA 4045 0KC Paper Feed Coupling Part h 00Z921941KC Mini Clamp (MSC-1609) | ||
| 10 | 56AA 4003 0KC Paper Feed Guide Plate/Upper Note 1: U6181-60001 includes both 56AA40390KC (key no. 3) and | ||
| 11 | 56AA 4001 0KC Paper Feed Main Body 56AA17121KC (key no. 4). | ||
| 12 | 56AA 4021 0KC Entrance Guide Plate/Front | ||
| 13 | 56AA 4037 0KC Adjusting Plate | ||
| 14 | 26NA 4082 0KC Paper Feed Slide Shaft Holder (Bushing/ | ||
| 15 | 56AA 4031 0KC Mounting Plate | ||
| 16 | 56AA 4017 1KC Paper Feed Detecting Actuator | ||
| 17 | 56AA 4019 0KC Pressing Spring | ||
| 18 | 08AA 8551 0KC Photo Sensor | ||
| 19 | 56AA 4023 0KC Paper Feed Registration Roller | ||
| 20 | 56AA 1748 0KC Pin (B) | ||
| 21 | 56AA 1776 0KC Roller Collar | ||
| 22 | 08AA 7601 0KC Drum Driving Shaft Holder (Bushing/Bearing) | ||
| 23 | 56AA 8201 1KC Paper Feed Driving Clutch | ||
| 24 | 55VA 4212 0KC Shaft Stopper | ||
| 25 | 56AA 7772 0KC Paper Feed Reversing Gear/1 (Z=16/22) |
35. Paper feed unit (3)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 56AA 4042 0KC Multi-Feed Preventing Spring | ||
| 2 | 56AA 4048 0KC Paper Feed Pressing Spring | ||
| 3 | 08AA 7601 0KC Drum Driving Shaft Holder (Bushing/Bearing) | ||
| 4 | 56AA 7773 0KC Paper Feed Reversing Gear/2 (Z=33) | ||
| 5 | 56AA 4049 0KC Shaft Stopper/4 | ||
| 6 | 25SA 4096 0KC Multi-Feed Preventing Rubber | ||
| 7 | 56AA -408 0KC Reversing Roller Assembly (Separation Roller) | ||
| 8 | 55VA 7903 0KC Paper Feed Reversing Gear/C (Z=14) | ||
| 9 | 56AA 4050 0KC Shaft Holder (Bushing/Bearing) Earth Plate | ||
| 10 | 26NA 4206 1KC By-Pass Feed Conveying Gear (Z=21) | ||
| 11 | 56AA 4041 1KC Torque Limiter | ||
| 12 | 56AA 4008 1KC Multi-Feed Preventing Plate | ||
| 13 | 56AA 1731 0KC Pin | ||
| 14 | 56AA -400 0KC Paper Feed Unit | ||
| 15 | 56AA 1748 0KC Pin (B) | ||
| 16 | 26NA 4256 0KC Manual Feed Driven Roller | ||
| 17 | 25AA 7553 0KC Slide Shaft Holder (Bushing/Bearing) | ||
| 18 | 56AA 1776 0KC Roller Collar | ||
| 19 | 56AA -459 0KC Entrance Guide Assembly |
36. Vertical conveyance unit (1)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 56AA 4418 0KC Locking Spring/Upper | ||
| 2 | 56AA 4415 0KC Shaft Fixing Part | ||
| 3 | 56AA 4404 1KC Conveyance Guide Plate/Right | ||
| 4 | 56AA 4420 0KC Locking Claw | ||
| 5 | 26NA 4256 0KC Manual Feed Driven Roller | ||
| 6 | 56AA 4419 0KC Locking Spring/Lower | ||
| 7 | 56AA 4443 0KC Conveyance Pressing Spring/1 | ||
| 8 | 08AA 8551 0KC Photo Sensor | ||
| 9 | 56AA 1730 0KC Pin | ||
| 10 | 56AA 4414 0KC Door Open/Shut Lever | ||
| 11 | 56AA 4403 0KC Paper Feed Conveying Door | ||
| 12 | 56AA -455 0KC Sensor Assembly | ||
| 13 | 56AA 4454 0KC Conveyance Pressing Spring | ||
| 14 | 56AA 4425 0KC Mounting Part | ||
| 15 | 56AA 4427 0KC Paper Detecting Actuator | ||
| 16 | 56AA 4426 0KC Pressing Spring | ||
| 17 | 25AA 7553 0KC Slide Shaft Holder (Bushing/Bearing) |

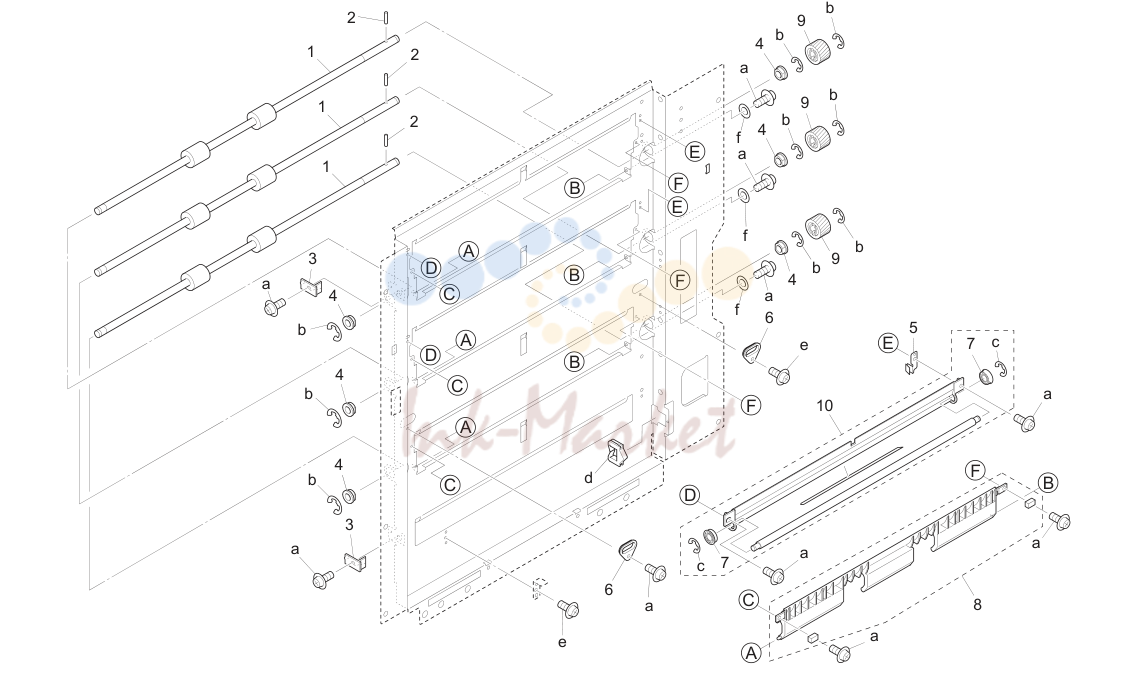

37. Vertical conveyance unit (2)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 56AA 4408 1KC Paper Feed Conveying Roller | ||
| 2 | 56AA 1748 0KC Pin (B) | ||
| 3 | 56AA 4423 0KC Door Locking Part | ||
| 4 | 26NA 4082 0KC Paper Feed Slide Shaft Holder (Bushing/ | ||
| 5 | 56AA 4444 0KC Shaft Earth Plate | ||
| 6 | 56AA 4424 0KC Door Positioning Part | ||
| 7 | 26NA 1728 0KC Developing Driving Shaft Holder (Bushing/ | ||
| 8 | 56AA -453 0KC Paper Feed Guide Part/Upper Assembly | ||
| 9 | 56AA 7738 0KC Conveyance Gear (Z=21) | ||
| 10 | 56AA -444 0KC Conveyance Auxiliary Roller Assembly |
38. Tray 1 (Bypass Tray) (1)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 3960 4068 1KC Snap Ring 26 4660 7722 0KC Double Gear | ||
| 2 | 08AA 7601 0KC Drum Driving Shaft Holder (Bushing/Bearing) 27 25AA 4952 1KC Paper Exit Idler Gear (Z=31) | ||
| 3 | 56AA 4203 0KC By-Pass Feed Guide Plate/Upper 28 12QV 4065 0KC Spacer | ||
| 4 | 56AA 4243 0KC Paper Guide Part a 00Z183041KC Bind Screw M3X4 | ||
| 5 | 5400 4056 2KC Paper Supply Rubber b 00Z193053KC C.R.P.H. Screw | ||
| 6 | 56AA -469 0KC Paper Con Roller Assembly (Feed Roller) c 00Z193061KC C.R.P.H. Screw M3X6 | ||
| 7 | 56AA 7718 0KC By-Pass Feed Conveying Gear/1 (Z=19) d 00Z474043KC Hexagon Socket Screw (W-Point) | ||
| 8 | 26NA 4082 0KC Paper Feed Slide Shaft Holder (Bushing/ e 00Z670306KC E-Ring | ||
| 9 | 56AA 4216 0KC Paper Feeding Plate | ||
| 10 | 56AA 7796 0KC By-Pass Feed Idling Gear (Z=18) | ||
| 11 | 25AA 7773 0KC Conveyance Idler/Right (Z=24) | ||
| 12 | 55FA 4233 0KC Paper Delivery Rubber | ||
| 13 | 56AA -468 0KC Feeding Roller/A Assembly (Pick Roller) | ||
| 14 | 25AA 7736 0KC Conveyance Idler | ||
| 15 | 56AA 9720 0KC Jam Processing Label/C | ||
| 16 | 4540 4048 0KC Roller Knob | ||
| 17 | 5400 7605 0KC Driving Shaft Holder (Bushing/Bearing) | ||
| 18 | 56AA 4217 0KC By-Pass Feed Detecting Part | ||
| 19 | 56AA 4251 0KC Paper Stopper Roller | ||
| 20 | 56AA -479 0KC Motor Assembly | ||
| 21 | 08AA 8551 0KC Photo Sensor | ||
| 22 | 56AA -461 1KC By-Pass Feed Main Body | ||
| 23 | 56AA 7717 0KC By-Pass Feed Input Gear/B (Z=28) | ||
| 24 | 56AA 7716 0KC By-Pass Feed Input Gear/A (Z=24) | ||
| 25 | 3960 7724 0KC Toner Supply Gear/A |
39. Tray 1 (Bypass Tray) (2)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 56AA -475 1KC Double Feed Preventive Roller (Separation 26 5400 4056 2KC Paper Supply Rubber | ||
| 27 | 56AA 4258 0KC Paper Detecting Actuator/B | ||
| 2 | 56AA 4245 0KC Preventing Rubber | ||
| 3 | 56AA 4267 0KC Spring /B | ||
| 4 | 3960 4068 1KC Snap Ring | ||
| 5 | 56AA 4244 0KC By-Pass Feed Pressing Spring | ||
| 6 | 56AA 4206 1KC Multi-Feed Mounting Plate | ||
| 7 | 56AA 4224 1KC Multi-Feed Pressing Spring | ||
| 8 | 56AA 4204 0KC By-Pass Feed Guide Plate/Lower | ||
| 9 | 56AA 4205 0KC By-Pass Feed Auxiliary Plate | ||
| 10 | 56AA 4253 0KC Conveyance Guide Plate/Lower | ||
| 11 | 56AA 4254 0KC Entrance Guide Part | ||
| 12 | 55VA 7774 0KC Manual Feed Up-Down Gear/A (Z=45) | ||
| 13 | 4660 7602 0KC Paper Feed Shaft Holder (Bushing/Bearing) | ||
| 14 | 55VA 7903 0KC Paper Feed Reversal Gear/C (Z=14) | ||
| 15 | 13GQ 4551 1KC Torque Limiter | ||
| 16 | 56AA 1732 0KC Pin (A) (D2*7) | ||
| 17 | 56AA 1731 0KC Pin | ||
| 18 | 08AA 8551 0KC Photo Sensor | ||
| 19 | 56AA 4270 1KC Paper Guide Sheet/Front | ||
| 20 | 56AA 7505 0KC Cleaner Shaft Holder (Bushing/Bearing) | ||
| 21 | 56AA 4250 0KC Conveyance Driven Roller/Lower | ||
| 22 | 56AA 4259 0KC Conveyance Pressing Spring/1 | ||
| 23 | 56AA 4264 0KC Stopper Sheet | ||
| 24 | 56AA 4246 0KC Open/Shut Plate | ||
| 25 | 56AA 4252 0KC Conveyance Guide Plate/Upper |
40. Tray 1 (Bypass Tray) (3)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 56AA 4233 0KC Wiring Protection Cover e 00Z670406KC E-Ring | ||
| 2 | 56AA 4240 0KC Paper Regulating Plate/Front f 00Z921003KC Cord Keep K-103G | ||
| 3 | 56AA 4231 0KC By-Pass Feed Paper Feed Tray g 00Z921370KC Edge Saddle | ||
| 4 | 56AA 4234 0KC Rack/Front h 00Z11B041KC C.R.P.H. Screw M2.6*4 | ||
| 5 | 4660 7713 0KC Pinion i 00Z243081KC Cross Recessed Tapping Screw | ||
| 6 | 56AA 4242 0KC Slide Holder j 00Z610401KC Plane Washer | ||
| 7 | 56AA 4232 0KC By-Pass Feed Auxiliary Tray | ||
| 8 | 56AA 4230 0KC By-Pass Feed Paper Feed Cover | ||
| 9 | 56AA 4241 0KC Paper Regulating Plate/Rear | ||
| 10 | 56AA 4261 0KC Open/Shut Stopper | ||
| 11 | 56AA 4226 0KC Paper Feed Tray Stopper Shaft | ||
| 12 | 56AA 4211 0KC Paper Lifting Plate | ||
| 13 | 56AA 4235 0KC Rack/Rear | ||
| 14 | 56AA 1746 0KC Pin/A | ||
| 15 | 5400 7705 2KC Paper Lift-Up Gear/A | ||
| 16 | 56AA 8560 0KC Size Detecting Volume (Variable Resistor) | ||
| 17 | 56AA 4238 0KC Pinion | ||
| 18 | 56NE 9788 0KC By-Pass Feed Label/1 | ||
| 19 | 56AA 4237 0KC Paper Detecting Actuator/A | ||
| 20 | 08AA 8551 0KC Photo Sensor | ||
| 21 | 07BA 1235 1KC Magnet Catch | ||
| 22 | 5400 4235 0KC Double Feed Preventive Plate |
41. 500-sheet tray (1)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 56AA 8003 0KC Cassette Driving Motor d 00Z670406KC E-Ring | ||
| 2 | 56AA 4125 0KC Slide Handle e 00Z253081KC Cross Recessed Tapping Screw | ||
| 3 | 56AA 4135 0KC Detecting Base Plate f 00Z670306KC E-Ring | ||
| 4 | 56AA 4136 0KC Protection Cover g 00Z193101KC C.R.P.H. Screw M3X10 | ||
| 5 | 56AA 4146 0KC Tray Slide Holder h 00Z193201KC C.R.P.H. Screw M3X20 | ||
| 6 | 56AA 4120 0KC Tray Guide Collar/Left i 00Z194061KC C.R.P.H. Screw M4X6 | ||
| 7 | 56AA 4119 0KC Tray Guide Collar/Right j 00Z193041KC C.R.P.H. Screw M3X4 | ||
| 8 | 56AA 4134 0KC Detecting Gear (Z=35) 6 56AA 9065 1KC By-Pass Feed Wiring/2 | ||
| 9 | 56AA 8560 0KC Size Detecting Volume (Variable Resistor) 7 56AA 9066 0KC Paper Feed Relay Wiring/1 | ||
| 10 | 56AA 4161 0KC Tray Slide Part/Rear Note 1: U6181-60003 includes both 56AA41490KC (key no. 11) and | ||
| 11 | 56AA 4149 0KC Tray Locking Shaft/Left (see Note 1) 56AA41070KC (key no. 12). | ||
| 12 | 56AA 4107 0KC Tray Slide Side Plate/Left (see Note 1) | ||
| 13 | 55VA 7915 0KC Cassette Pinion | ||
| 14 | 56AA 4116 0KC Tray Slide Part | ||
| 15 | 56AA 4133 0KC Adjusting Plate/Lower | ||
| 16 | 08AA 8551 0KC Photo Sensor | ||
| 17 | 56AA 4166 0KC Protection Sheet | ||
| 18 | 56AA 4237 0KC Paper Detecting Actuator/A | ||
| 19 | 56AA 4160 0KC Tray Slide Cover/Middle | ||
| 20 | 56AA 4168 0KC Protection Sheet /2 | ||
| 21 | 56AA 1706 0KC Switch Fixed Spring | ||
| 22 | 56AA 4123 0KC Tray Slide Cover | ||
| 23 | 56AA 9790 0KC Paper Guide Label |
42. 500-sheet tray (2)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 55VA 4093 0KC Double Feed Preventive Plate b 00Z670606KC E-Ring | ||
| 2 | 56AA 4142 0KC Pulley Guide Part c 00Z670406KC E-Ring | ||
| 3 | 55VA 4061 0KC Wire Holder/A d 00Z184061KC Bind Screw M4X6 | ||
| 4 | 25AA 4257 0KC Wire Pulley e 00Z193061KC C.R.P.H. Screw M3X6 | ||
| 5 | 56AA 4112 0KC Tray Up/Down Wire/B f 00Z920013KC Super Saddle MSS-2 | ||
| 6 | 56AA 4111 0KC Tray Up/Down Wire/A g 00Z921941KC Mini Clamp (MSC-1609) | ||
| 7 | 56AA -418 0KC Paper Up/Down Shaft Assembly h 00Z921370KC Edge Saddle | ||
| 8 | 56AA 4144 0KC Tray Up/Down Limiter i 00Z253101KC Cross Recessed Tapping Screw | ||
| 9 | 56AA 4167 1KC Wire Cover j 00Z670306KC E-Ring | ||
| 10 | 56AA 9060 2KC Paper Feed Wiring/1 k 00Z510301KC Hexagon Nut. (A) | ||
| 11 | 56AA 1731 0KC Pin | ||
| 12 | 56AA 4169 0KC Shaft Guide Cover | ||
| 13 | 56AA 4145 0KC Earth Spring | ||
| 14 | 56AA 4176 0KC Tray Locking Roller | ||
| 15 | 56AA 4174 0KC Tray Locking Pin | ||
| 16 | 56AA 4165 0KC Protection Cover | ||
| 17 | 56AA 1030 0KC Slide Rail/A | ||
| 18 | 56AA 4163 0KC Pulley Guide Part/Rear | ||
| 19 | 08AA 8551 0KC Photo Sensor | ||
| 20 | 26NA 4544 0KC Registration Fixing Screw | ||
| 21 | 56AA -410 0KC 500 Sheet Tray | ||
| 22 | 56AE 9717 0KC Paper Feed Caution Label | ||
| 22 | 56AF 9717 0KC Paper Feed Caution Label | ||
| 23 | 56AA 4139 0KC Pulley | ||
| 24 | 56AA 4173 1KC Tray Positioning Spring |
43. 1500-sheet tray (1)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 08AA 8551 0KC Photo Sensor c 00Z193061KC C.R.P.H. Screw M3X6 | ||
| 2 | 56AE 4304 0KC HCI Slide Base Plate d 00Z193053KC C.R.P.H. Screw | ||
| 3 | 56AA 4237 0KC Paper Detecting Actuator/A e 00Z193101KC C.R.P.H. Screw M3X10 | ||
| 4 | 56AE 4334 0KC Spring Holder f 00Z670606KC E-Ring | ||
| 5 | 56AA 4136 0KC Protection Cover g 00Z670306KC E-Ring | ||
| 6 | 56AE 4329 0KC Bottom Plate Regulating Spring h 00Z670406KC E-Ring | ||
| 7 | 56AA 1706 0KC Switch Fixed Spring i 00Z193031KC T.P.Screw M3X3 | ||
| 8 | 56AA 4123 0KC Tray Slide Cover j 00Z193041KC C.R.P.H. Screw M3X4 | ||
| 9 | 56AA 4125 0KC Slide Handle Note 1: U6181-60004 includes both 56AE43150KC (key no. 19) and | ||
| 10 | 55VA 7915 0KC Cassette Pinion 56AE43070KC (key no. 20). | ||
| 11 | 56AE 4320 0KC Reinforce Rack | ||
| 12 | 56AA 4135 0KC Detecting Base Plate | ||
| 13 | 56AA 4120 0KC Tray Guide Collar/Left | ||
| 14 | 56AA 8560 0KC Size Detecting Volume (Variable Resistor) | ||
| 15 | 56AA 4119 0KC Tray Guide Collar/Right | ||
| 16 | 56AA 4134 0KC Detecting Gear (Z=35) | ||
| 17 | 56AA 4160 0KC Tray Slide Cover/Middle | ||
| 18 | 56AA 4146 0KC Tray Slide Holder | ||
| 19 | 56AE 4315 0KC HCI Locking Shaft/Left (see Note 1) | ||
| 20 | 56AE 4307 0KC HCI Slide Side Plate/Left (see Note 1) | ||
| 21 | 56AE 4309 0KC Base Plate Mounting Part | ||
| 22 | 56AA 4166 0KC Protection Sheet | ||
| 23 | 56AA 4168 0KC Protection Sheet /2 | ||
| 24 | 56AA 9790 0KC Paper Guide Label |
44. 1500-sheet tray (2)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 08AA 8551 0KC Photo Sensor j 00Z193053KC C.R.P.H. Screw | ||
| 2 | 56AA 4116 0KC Tray Slide Part k 00Z193101KC C.R.P.H. Screw M3X10 | ||
| 3 | 55VA 4093 0KC Double Feed Preventive Plate | ||
| 4 | 56AA 4161 0KC Tray Slide Part/Rear | ||
| 5 | 56AA 4165 0KC Protection Cover | ||
| 6 | 56AE 4341 0KC CI Regulating Plate | ||
| 7 | 56AA 1731 0KC Pin | ||
| 8 | 08AA 7601 0KC Drum Driving Shaft Holder (Bushing/Bearing) | ||
| 9 | 25AA 4257 0KC Wire Pulley | ||
| 10 | 55VA 4061 0KC Wire Holder/A | ||
| 11 | 56AE 4311 0KC HCI Up/Down Wire/A | ||
| 12 | 56AE 4312 0KC HCI Up/Down Wire/B | ||
| 13 | 56AE 4330 0KC HCI Adjusting Plate | ||
| 14 | 56AE -430 0KC HCI Up/Down Shaft Assembly | ||
| 15 | 56AA 4139 0KC Pulley | ||
| 16 | 56AE 4340 0KC HCI Regulating Limiter | ||
| 17 | 56AA 7799 0KC HCI Regulating Gear (Z=24) |
45. 1500-sheet tray (3)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 56AA 1030 0KC Slide Rail/A | ||
| 2 | 26NA 4544 0KC Registration Fixing Screw | ||
| 3 | 56AA 4169 0KC Shaft Guide Cover | ||
| 4 | 56AE 4352 0KC External Support Part | ||
| 5 | 56AE 9060 2KC Paper Feed Wiring/1 | ||
| 6 | 56AA 4142 0KC Pulley Guide Part | ||
| 7 | 56AA 4163 0KC Pulley Guide Part/Rear | ||
| 8 | 56AE 4343 0KC Gear Pressure Spring | ||
| 9 | 56AE -420 0KC 1500 Sheet Tray | ||
| 10 | 56AE 4332 0KC Locking Holder | ||
| 11 | 55VA 7908 0KC Paper Feed Driving Gear/C (Z=22) | ||
| 12 | 56AE 4322 1KC Locking Plate | ||
| 13 | 56AE 4323 0KC Locking Part | ||
| 14 | 56AE 4325 0KC Locking Spring | ||
| 15 | 56AE 9717 0KC Paper Feed Caution Label |
46. 92 ADU(1) ENWW
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 56AA 5106 0KC ADU Paper Exit Plate/Right i 00Z610301KC Plane Washer | ||
| 2 | 56AA 5052 0KC Slide Rail/D | ||
| 3 | 56AA 5143 0KC Exit Open/Shut Spring/Front | ||
| 4 | 56AA 5053 0KC ADU Mounting Collar | ||
| 5 | 56AA 5102 0KC ADU Entrance Plate/Left | ||
| 6 | 56AA 5139 0KC Entrance Open/Shut Spring/Front | ||
| 7 | 08AA 8551 0KC Photo Sensor | ||
| 8 | 129X 4836 0KC Guide Shaft Holder/B (Bushing/Bearing) | ||
| 9 | 56AA 5021 0KC Shaft Regulating Plate | ||
| 10 | 56AA 5282 0KC Protection Cover/Right | ||
| 11 | 129X 4835 0KC Guide Shaft Holder/A (Bushing/Bearing) | ||
| 12 | 56AA 5051 0KC Slide Rail/C | ||
| 13 | 56AA 5231 1KC Bottom Plate Click Plate /Left | ||
| 14 | 56AA 5232 0KC Holding Plate | ||
| 15 | 56AA 5041 0KC Earth Spring /1 | ||
| 16 | 56AA 9726 0KC Jam Release Label /2 | ||
| 17 | 56AA 5042 0KC Earth Spring /2 | ||
| 18 | 56AA 9799 0KC Jam Processing Label |
47. 94 ADU(2) ENWW
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 56AA 5155 0KC ADU Driven Roller | ||
| 2 | 25AA 7553 0KC Slide Shaft Holder (Bushing/Bearing) | ||
| 3 | 56AA 5016 0KC ADU Lifting Belt/Left (L=520) | ||
| 4 | 56AA 5104 0KC ADU Entrance Plate/Lower | ||
| 5 | 56AA 5145 1KC Entrance Pressing Spring | ||
| 6 | 56AA 5024 0KC ADU Earth Plate/A | ||
| 7 | 56AA 4245 0KC Preventing Rubber | ||
| 8 | 56AA 5158 0KC ADU Guide Sheet /1 | ||
| 9 | 56AA -058 0KC Wiring Cover Assembly | ||
| 10 | 56AA 5038 1KC Hinge Lifting Block | ||
| 11 | 56AA 5014 0KC ADU Stopper Cushion/2 |
48. 96 ADU(3) ENWW
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 13GQ 4547 0KC Rotary Knob b 00Z193061KC C.R.P.H. Screw M3X6 | ||
| 2 | 56AA 9724 0KC Jam Release Label/G c 00Z670606KC E-Ring | ||
| 3 | 5400 7605 0KC Driving Shaft Holder (Bushing/Bearing) d 00Z670406KC E-Ring | ||
| 4 | 08AA 7601 0KC Drum Driving Shaft Holder (Bushing/Bearing) e 00Z921930KC Mini Clamp | ||
| 5 | 56AA 7660 0KC ADU Conveying Pulley/2 (Z=32) f 00Z183061KC Bind Screw M3X6 | ||
| 6 | 56AA 7760 0KC ADU Conveying Belt/2 (L=344) g 00Z183041KC Bind Screw M3X4 | ||
| 7 | 56AA 5181 0KC Belt Holding Collar | ||
| 8 | 26NA 4082 0KC Paper Feed Slide Shaft Holder (Bushing/ | ||
| 9 | 56AA 7659 0KC ADU Conveying Pulley/1 (Z=32) | ||
| 10 | 55VA 4212 0KC Shaft Stopper | ||
| 11 | 56AA 8201 1KC Paper Feed Driving Clutch | ||
| 12 | 56AA 5113 0KC ADU Reversing Roller/Left | ||
| 13 | 56AA 1755 0KC Pin/A | ||
| 14 | 56AA 5115 0KC ADU Conveying Roller/1 | ||
| 15 | 56AA 5116 0KC ADU Conveying Roller/2 | ||
| 16 | 08AA 8551 0KC Photo Sensor | ||
| 17 | 56AA 4255 0KC Mounting Part | ||
| 18 | 56AA 4245 0KC Preventing Rubber | ||
| 19 | 56AA 5130 0KC ADU Paper Exit Actuator | ||
| 20 | 56AA 4257 0KC Paper Conveying Spring/1 | ||
| 21 | 56AA 5279 0KC Wiring Protection Part | ||
| 22 | 56AA 5101 0KC ADU Guide Plate/Upper | ||
| 23 | 56AA 5131 0KC ADU Paper Exit Actuator/2 | ||
| 24 | 56AA 7748 0KC Paper Exit Reversing Gear/1 (Z=19) |
49. 30 EXCLUSIVE PARTS
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 26NA 4082 0KC Paper Feed Slide Shaft Holder (Bushing/ 20 56AA 5111 0KC ADU Registration Roller/Upper | ||
| 21 | 56AA 5112 0KC ADU Registration Roller/Lower | ||
| 2 | 56AA 7742 1KC ADU Conveying Gear/2 (Z=25/36) | ||
| 22 | 56AA 1755 0KC Pin/A | ||
| 23 | 56AA 1748 0KC Pin (B) | ||
| 2 | 56EA 7742 0KC ADU Conveying Gear/B (Z=28/36) | ||
| 3 | 56AA 7741 0KC ADU Conveying Gear/1 (Z=29/23) 25 56AA 7745 0KC ADU Conveying Gear/3 (Z=34) | ||
| 3 | 56EA 7741 0KC ADU Conveying Gear/A (Z=28/23) 27 56AA 7659 0KC ADU Conveying Pulley/1 (Z=32) | ||
| 28 | 56AA 7660 0KC ADU Conveying Pulley/2 (Z=32) | ||
| 4 | 56AA 7658 0KC Conveyance Driving Pulley/3 (Z=23/22) | ||
| 29 | 56AA 1709 0KC Pressure Spring | ||
| 5 | 56AA 5181 0KC Belt Holding Collar | ||
| 30 | 12QV 4065 0KC Spacer | ||
| 6 | 56AA 7757 0KC Conveyance Driving Belt/2 (L=315) | ||
| 7 | 56AA 7655 0KC Conveyance Driving Pulley/2 (Z=23) | ||
| 8 | 56AA 7756 0KC Conveyance Driving Belt/1 (L=225) | ||
| 9 | 56AA 7654 0KC Conveyance Driving Pulley/1 (Z=23/29) | ||
| 10 | 56AA 8201 1KC Paper Feed Driving Clutch | ||
| 11 | 55VA 4212 0KC Shaft Stopper | ||
| 12 | 08AA 7601 0KC Drum Driving Shaft Holder (Bushing/Bearing) | ||
| 13 | 56AA 7746 0KC Registration Driving Gear/2 (Z=27) | ||
| 14 | 55GA 7551 0KC Registration Shaft Holder (Bushing/Bearing)/ | ||
| 15 | 56AA 5150 0KC ADU Registration Spring | ||
| 16 | 55GA 7552 0KC Registration Shaft Holder (Bushing/Bearing)/ | ||
| 17 | 56AA 7747 0KC ADU Conveying Gear/4 (Z=34) | ||
| 18 | 56AA 5117 0KC ADU Conveying Roller/3 | ||
| 19 | 56AA 5118 0KC ADU Conveying Roller/4 |
50. 100 ADU(5) ENWW
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 56AA 1755 0KC Pin/A 26 56AA 5245 1KC Pulley Mounting Plate | ||
| 2 | 56AA 7743 0KC ADU Reversing Gear/1 (Z=19) 27 25AA 5008 0KC Wire Pulley | ||
| 3 | 56AA -812 0KC ADU Drive Assembly 28 56AA 5247 0KC Open/Shut Wire | ||
| 4 | 56AA 5246 0KC Open/Shut Spring 29 56AA 5249 0KC Open/Shut Spring /Right | ||
| 5 | 56AA 4255 0KC Mounting Part 30 56AA 5229 0KC Bottom Plate Open/Shut Collar | ||
| 6 | 56AA 5114 0KC ADU Reversing Roller/Right 31 56AA 5045 0KC Earth Spring /5 | ||
| 7 | 56AA 7507 0KC Driving Shaft Holder (Bushing/Bearing) 32 56AA 5238 0KC Locking Part/A | ||
| 8 | 56AA 5226 0KC Bottom Plate Locking Spring 33 56AA 5159 0KC ADU Guide Sheet/2 | ||
| 9 | 56AA 5242 0KC Bottom Plate Locking Claw a 00Z670606KC E-Ring | ||
| 10 | 56AA 4245 0KC Preventing Rubber b 00Z670406KC E-Ring | ||
| 11 | 26NA 4082 0KC Paper Feed Slide Shaft Holder (Bushing/ c 00Z193041KC C.R.P.H. Screw M3X4 | ||
| 12 | 56AA 7744 0KC ADU Reversing Gear/2 (Z=36) | ||
| 13 | 56AA 7748 0KC Paper Exit Reversing Gear/1 (Z=19) | ||
| 14 | 08AA 8551 0KC Photo Sensor | ||
| 15 | 56AA 9729 0KC Jam Release Label/5 | ||
| 16 | 56AA 5124 0KC ADU Reversing Actuator | ||
| 17 | 56AA 4257 0KC Paper Conveying Spring/1 | ||
| 18 | 56AA 8055 0KC Fan Motor/2 | ||
| 19 | 56AA 5248 0KC Fan Mounting Plate | ||
| 20 | 56AA 5278 0KC Wiring Guide Part | ||
| 21 | 56AA 5110 2KC ADU Open/Shut Part | ||
| 22 | 56AA 5107 2KC ADU Guide Part/Middle | ||
| 23 | 56AA 1747 0KC Pin (B) (3*12) | ||
| 24 | 56AA 5243 1KC Bottom Plate Guide Plate | ||
| 25 | 56AA 1736 0KC Wire Rotary Shaft |
Каталог очень большой (2768 позиций). Показаны первые 50 узлов со схемами; полный список доступен по запросу.
