Hewlett Packard HP-600-M601-M603-M603 — каталог запчастей со схемами

Содержание

• 1. Assembly locations
• 2. Covers
• 3. Internal components
• 4. Internal components (2 of 3)
• 5. Internal components (3 of 3)
• 6. High-voltage power supply
• 7. Cassette (Tray 2)
• 8. Cassette (custom media)
• 9. Paper feed roller assembly
• 10. Paper delivery assembly
• 11. Fuser assembly
• 12. Input devices
• 13. Main body (1x500)
• 14. Cassette (1x500)
• 15. 1x1500-sheet paper deck
• 16. Main body (1x500; 1 of 2)
• 17. Main body (1x500; 2 of 2)
• 18. Duplexer
• 19. PCA (duplexer)
• 20. Main body (2 of 2; envelope feeder)
• 21. Main body (MBM; 2 of 2)
• 22. Main body (SS)

1. Assembly locations

№	Артикул	Альт. артикул	Описание
1			Top output bin
2			Control panel (the M602 and M603 models include a numeric keypad)
3			Top cover (provides access to the print cartridge)
4			Walkup USB printing
5			Tray 1 (pull to open)
6			On/off button
7			Tray
1			Rear output bin
2			Duplex accessory cover (remove to install the duplex accessory)
3			Interface ports(formatter)
4			Right cover (provides access to the DIMM slot)
5			Hardware integration pocket (M602 and M603 models only)
1	RJ-45 запросить цену →		Network connection
2			Power connection
3			Host USB connection
408			Chapter 4 Parts and diagrams ENWW

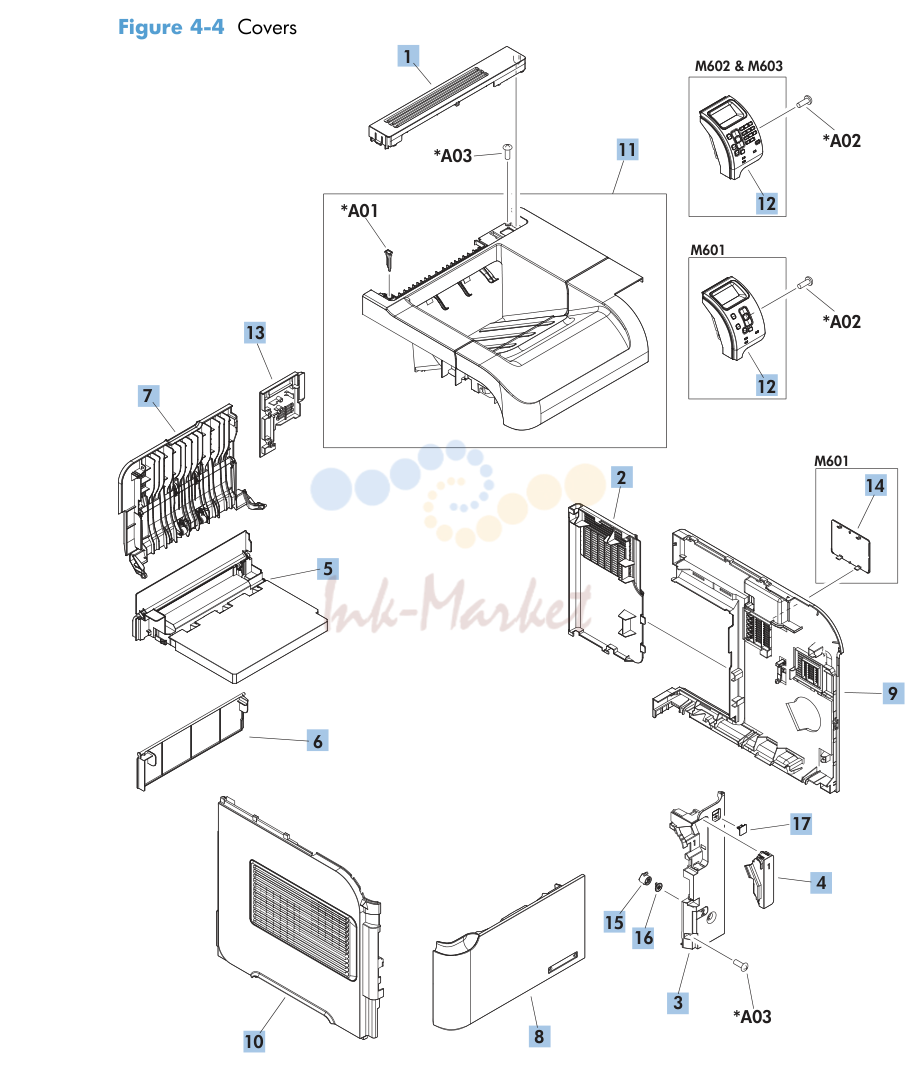

2. Covers

№	Артикул	Альт. артикул	Описание
1			Cover, option RC2-2459-000CN
2			Cover, formatter RC2-2468-000CN
3			Cover, right front RC3-1426-000CN
4			Cover, envelope connector RC2-2476-000CN
5			Cover, duplexing assembly RM1-8399-000CN
6			Cover, legal RC2-5239-000CN
7			Face-up tray assembly RM1-8388-000CN
8			Cover, front assembly RM1-8408-000CN
9			Cover, right (M602 and M603) RM1-8400-000CN
9			Cover, right (M601) RM1-8445-000CN
10			Cover, left assembly RM1-8401-000CN
11			Cover, top assembly (M602 and M603) RM1-8394-000CN
11			Cover, top assembly (M601) RM1-8434-000CN
12			Control-panel assembly (M602 and M603) RM1-8289-000CN
12			Control-panel assembly (M601) RM1-8290-000CN
13			Cover, right rear RC2-2478-000CN
14			Cover, HIP (M602 and M603) RC3-1424-000CN
15			Button, power RC3-1430-000CN
16			Cap, power button RC3-1431-000CN
17			Cover, USB RC3-1434-000CN

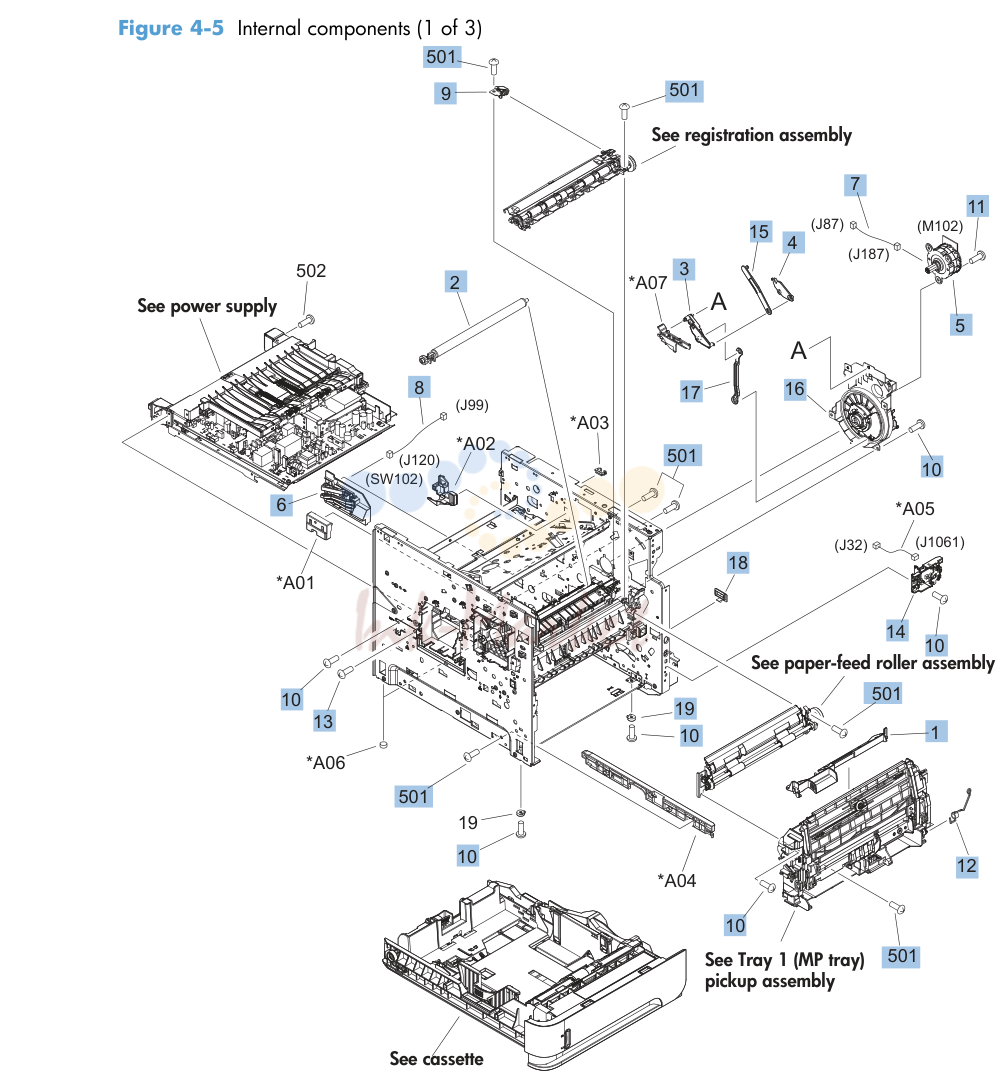

3. Internal components

№	Артикул	Альт. артикул	Описание
1			Cover, envelope feeder RL1-1667-000CN
2			Transfer roller RM1-8491-000CN
3			Arm, release A RC2-2480-000CN
4			Arm, release B RC2-2481-000CN
5			Motor, drum assembly (M102) RM1-8358-000CN
6			Size detect assembly RM1-4525-000CN
7			Cable, drum motor RM1-8308-000CN
8			Cable, size sensor RM1-5091-000CN
9			Plate, ground assembly RM1-5461-000CN
10			Screw, D, M3x8 XA9-1671-000CN
11			Screw, tap, M3x6 XA9-1503-000CN
12			Spring, torsion RC3-1470-000CN
13			Screw, M4x5 RC2-2633-000CN
14			PCA, switch assembly RM1-8428-000CN
15			Rod, release, upper RC2-2482-000CN
16			Drum drive assembly RM1-8489-000CN
17			Rod, release lower RC2-2483-000CN
18			Guard, edge RC1-0247-000CN
19			Spacer, frame RC2-2725-000CN
501			Screw, tapping pan head M4X10 XB4-7401-607CN

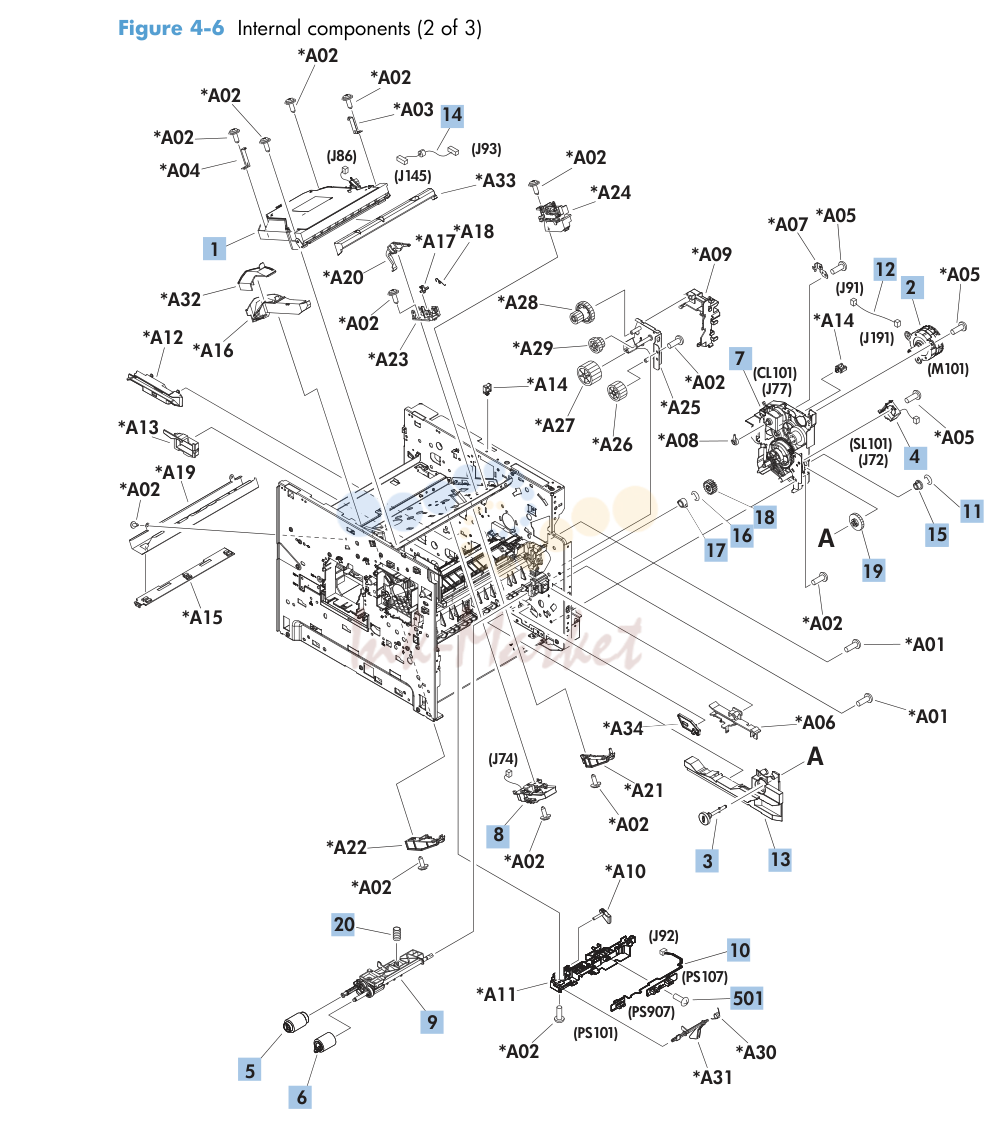

4. Internal components (2 of 3)

№	Артикул	Альт. артикул	Описание
1			Laser/scanner assembly RM1-8406-000CN
2			Motor, paper feed assembly (M101) RM1-8285-000CN
3			Shaft retard drive RL1-3020-000CN
4			Solenoid RK2-4078-000CN
5			Paper pickup roller assembly RM1-0036-020CN
6			Paper feed roller assembly RM1-0037-020CN
7			Paper pickup drive assembly RM1-8415-000CN
8			Tag holder assembly RM1-4539-000CN
9			Paper feed shaft assembly RM1-8424-000CN
10			Cable, feed sensor RM1-8298-000CN
11			Ring, E XD9-0232-000CN
12			Cable, feed motor RM1-8311-000CN
13			Guide, front right assembly RM1-8427-000CN
14			Cable, laser RM1-8340-000CN
15			Bushing RC1-0214-000CN
16			Ring, E XD9-0233-010CN
17			Bushing RC3-1403-000CN
18			Gear, 18T RU5-0088-000CN
19			Gear, 23T RU5-0040-000CN
20			Spring, compression RC1-0213-000CN
501			Screw, tap, binding head, M3x8 XB4-7300-809CN

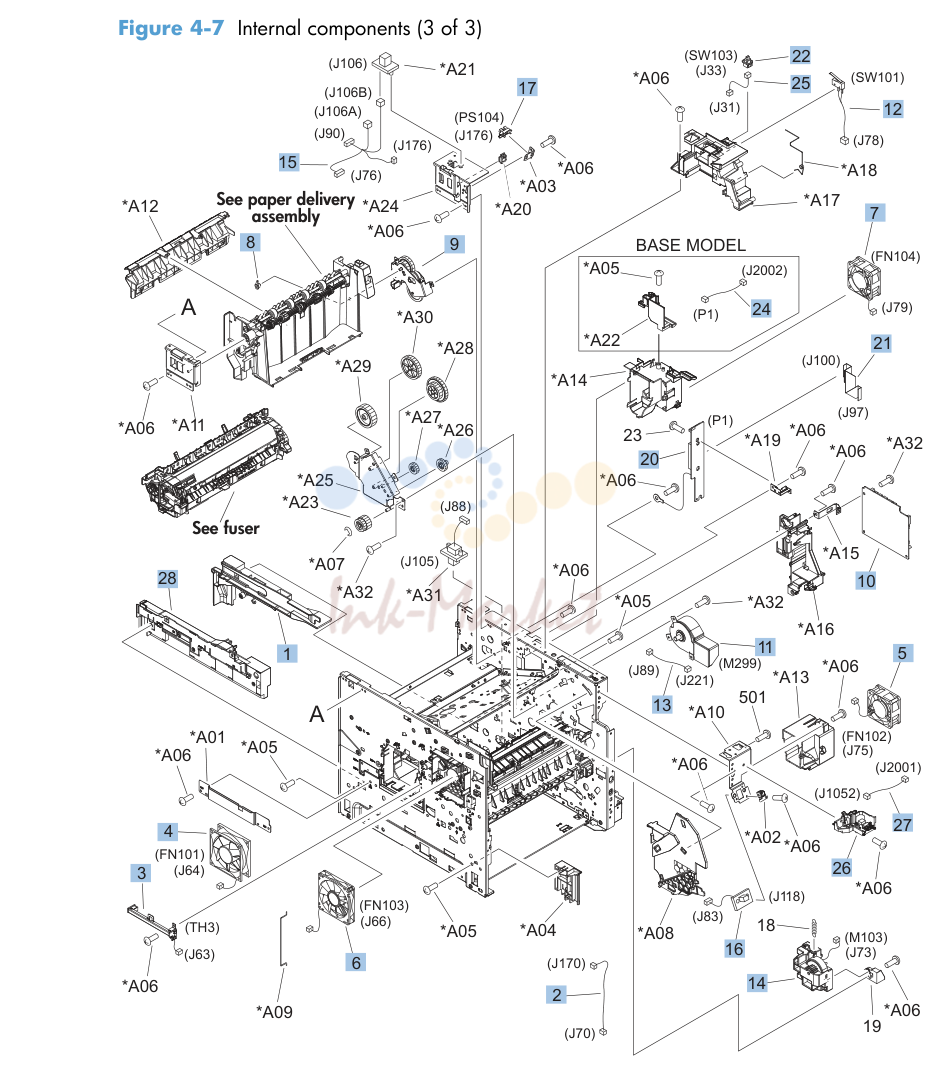

5. Internal components (3 of 3)

№	Артикул	Альт. артикул	Описание
1			Guide, right assembly RM1-4558-000CN
2			Cable, panel RM1-8341-000CN
3			Sensor, temperature assembly RM1-8438-000CN
4			Fan (FN101) RK2-1988-000CN
5			Fan (FN102) RK2-1989-000CN
6			Fan (FN103) RK2-3244-000CN
7			Fan (FN104) RK2-1992-000CN
8			Bushing, paper delivery RC1-0136-000CN
9			Paper delivery drive assembly RM1-8410-000CN
10			PCA, DC controller RM1-8293-000CN
11			Motor, fuser (M299) RM1-5051-020CN
12			Switch, interlock assembly RM1-8307-000CN
13			Cable, fuser motor RM1-5088-000CN
14			Lifter drive assembly RM1-4585-000CN
15			Cable, full sensor RM1-8927-000CN
16			Cable, envelope feeder RM1-5085-000CN
17			Photo interrupter, IC WG8-5849-000CN
20			PCA, inner connecting RM1-8294-000CN
21			Cable, flat flexible (FFC) RK2-4077-000CN
22			Switch, push WC2-5637-000CN
24			Cable, HIP (M602 and M603) RK2-4152-000CN
25			Cable, door switch RM1-8344-000CN
26			USB PCA RM1-8429-000CN
27			Cable, USB RK2-4149-000CN
28			Guide assembly, left RM1-8439-000CN

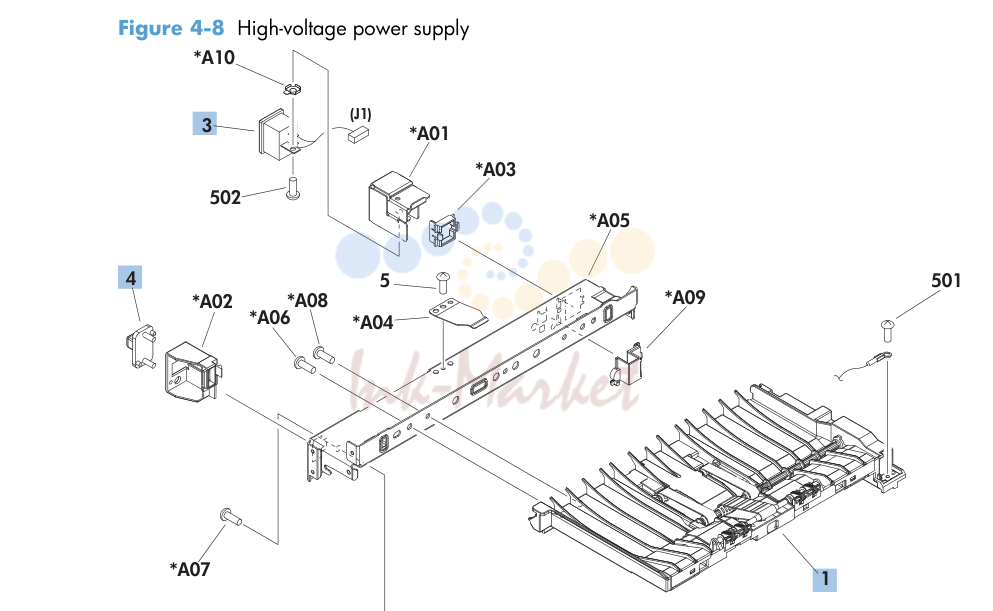

6. High-voltage power supply

№	Артикул	Альт. артикул	Описание
1			Paper feed assembly RM1-4548-000CN
2			High-voltage power supply 110V RM1-8392-000CN
2			High-voltage power supply 220V RM1-8393-000CN
3			Connector, inlet RM1-8348-000CN
4			Connector, drawer 6P VS1-7514-006CN

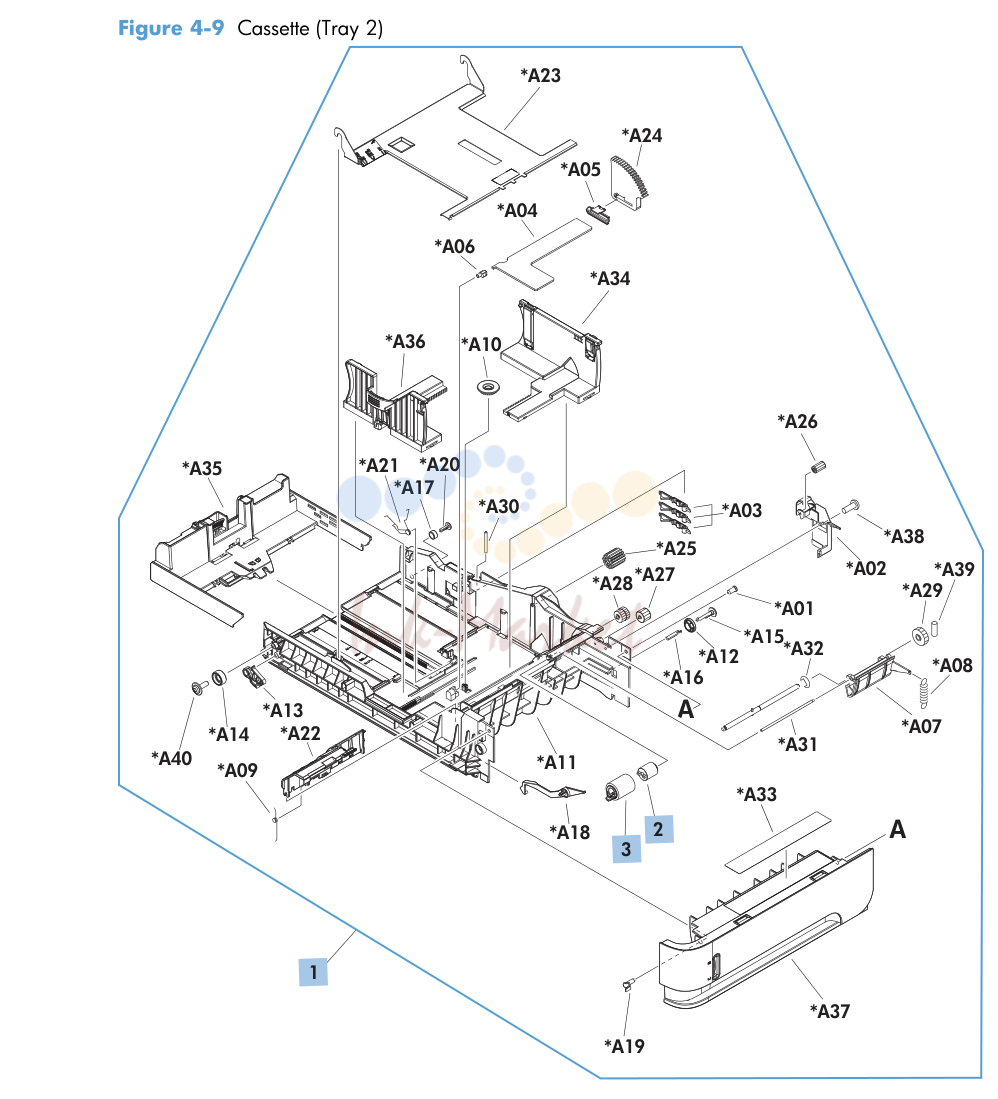

7. Cassette (Tray 2)

№	Артикул	Альт. артикул	Описание
1			Cassette (Tray 2) RM1-4559-020CN
2			Torque limiter (Tray 2) RC2-5771-000CN
3			Roller, paper feed assembly (Tray 2) RM1-0037-020CN

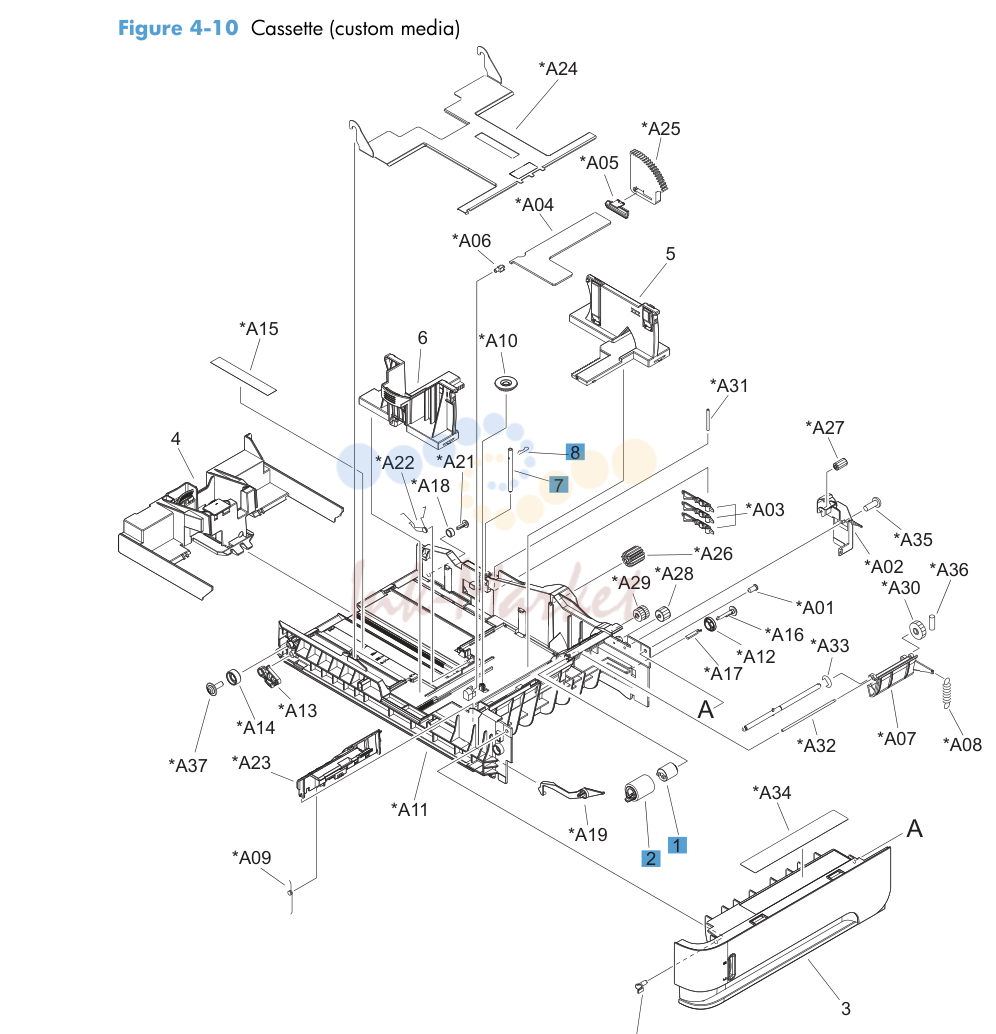

8. Cassette (custom media)

№	Артикул	Альт. артикул	Описание
1			Torque limiter (custom media) RM1-0037-000CN
2			Roller, paper feed assembly (custom media) RM1-4560-000CN
7			Pin, cassette (custom media) RC2-6486-000CN
8			Pin, stopper (custom media) RC2-6487-000CN

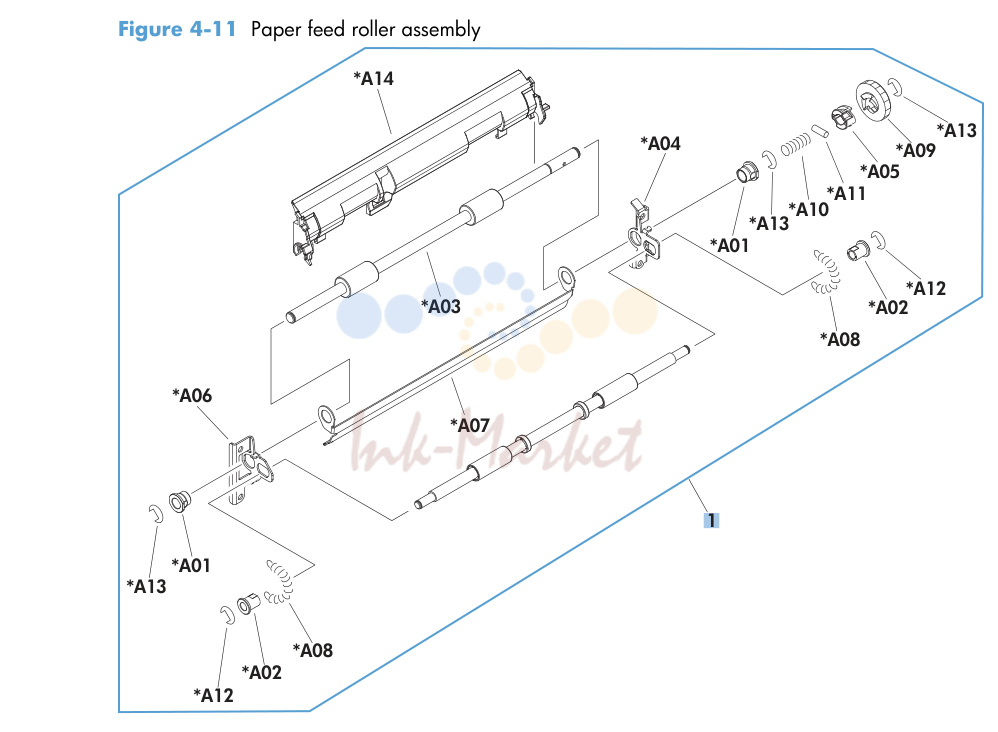

9. Paper feed roller assembly

№	Артикул	Альт. артикул	Описание
1			Tray 1 (MP) pickup assembly RM1-8425-000CN
2			Roller pickup, Tray 1 (MP) RL1-1641-000CN
3			Roller feed, Tray 1 (MP) RL1-1663-000CN
4			Roller separation, Tray 1 (MP) RL1-1654-020CN

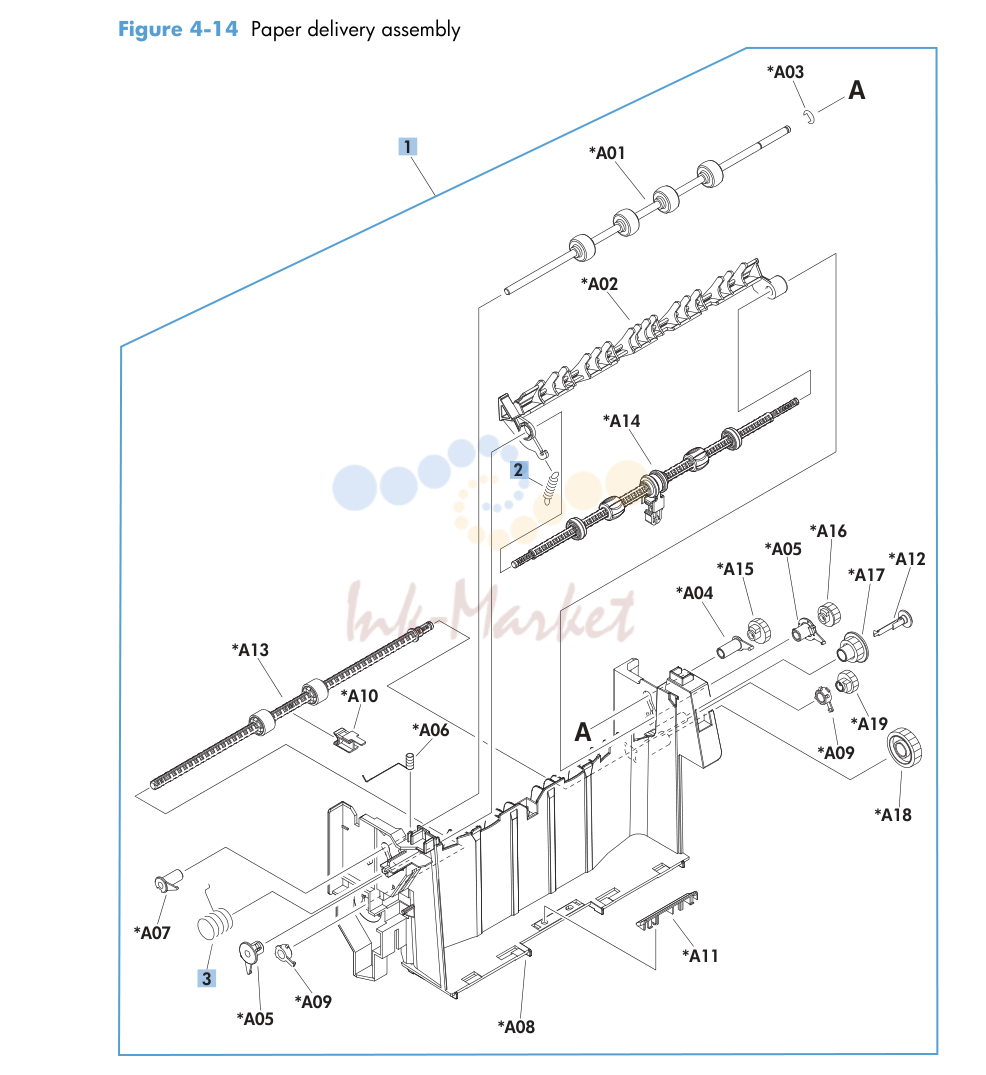

10. Paper delivery assembly

№	Артикул	Альт. артикул	Описание
1			Paper delivery assembly RM1-8414-000CN
2			Spring, tension RC1-0133-000CN
3			Spring, grounding RU6-2105-000CN

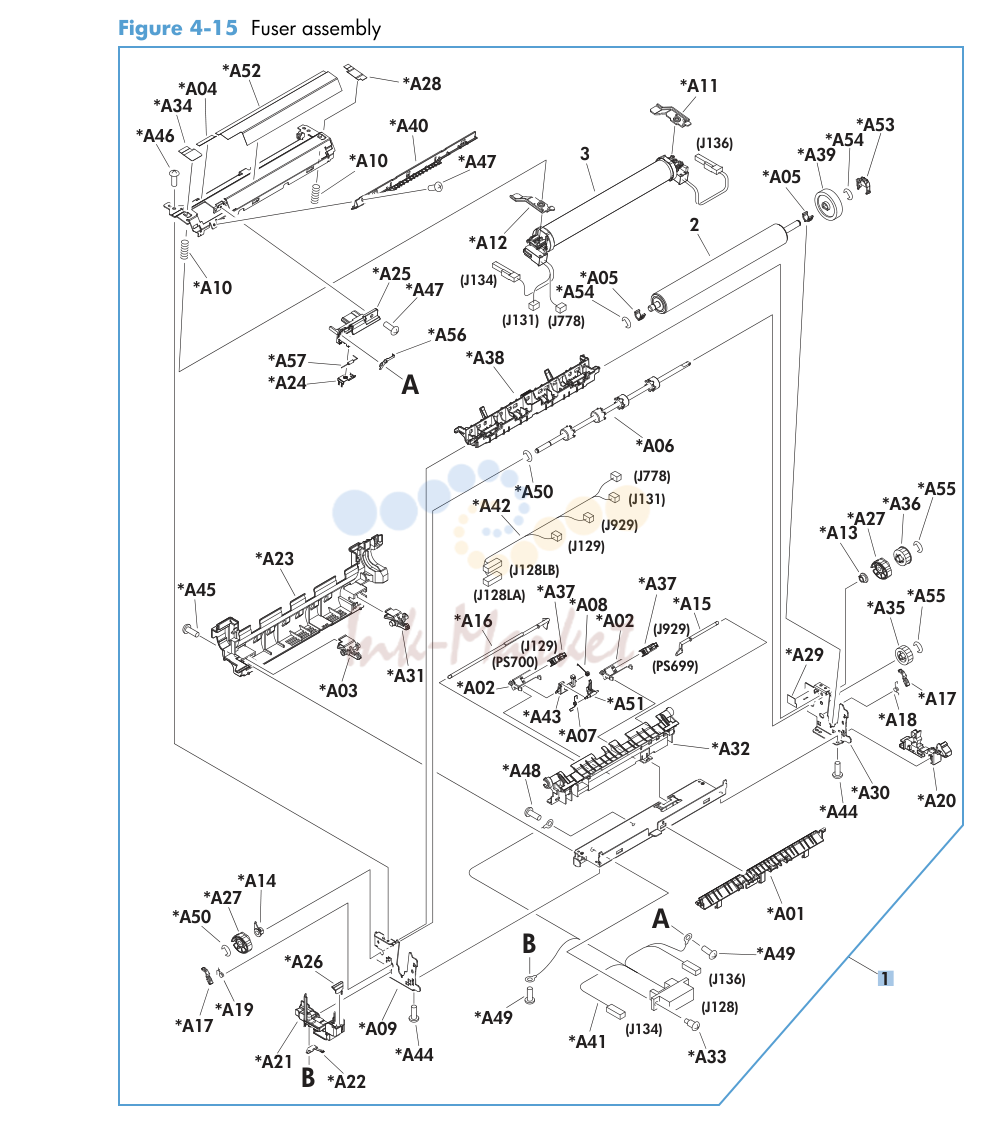

11. Fuser assembly

№	Артикул	Альт. артикул	Описание
1			PCA, DC controller RM1-8293-000CN
2			Power supply, high-voltage 110V RM1-8392-000CN
2			Power supply, low-voltage 220V RM1-8393-000CN
3			PCA, inner connecting RM1-8294-000CN
4			Formatter CE988-67906

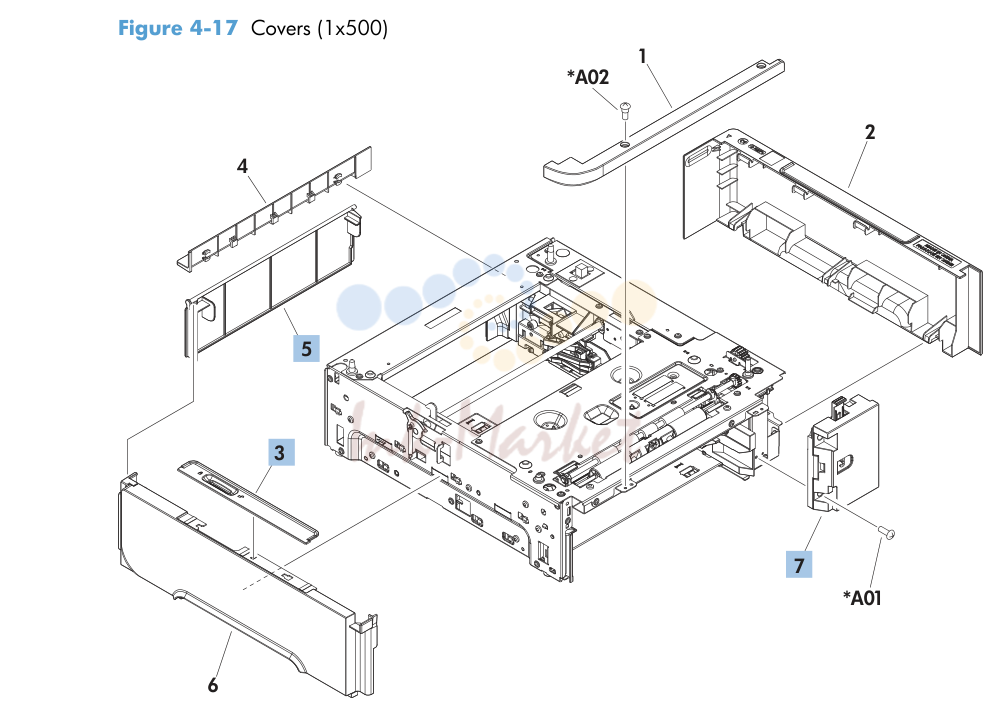

12. Input devices

№	Артикул	Альт. артикул	Описание
3			Cover, lock (1x500) RC2-2584-000CN
5			Cover, legal (1x500) RC2-5239-000CN
7			Number dial assembly (1x500) RM1-4591-000CN

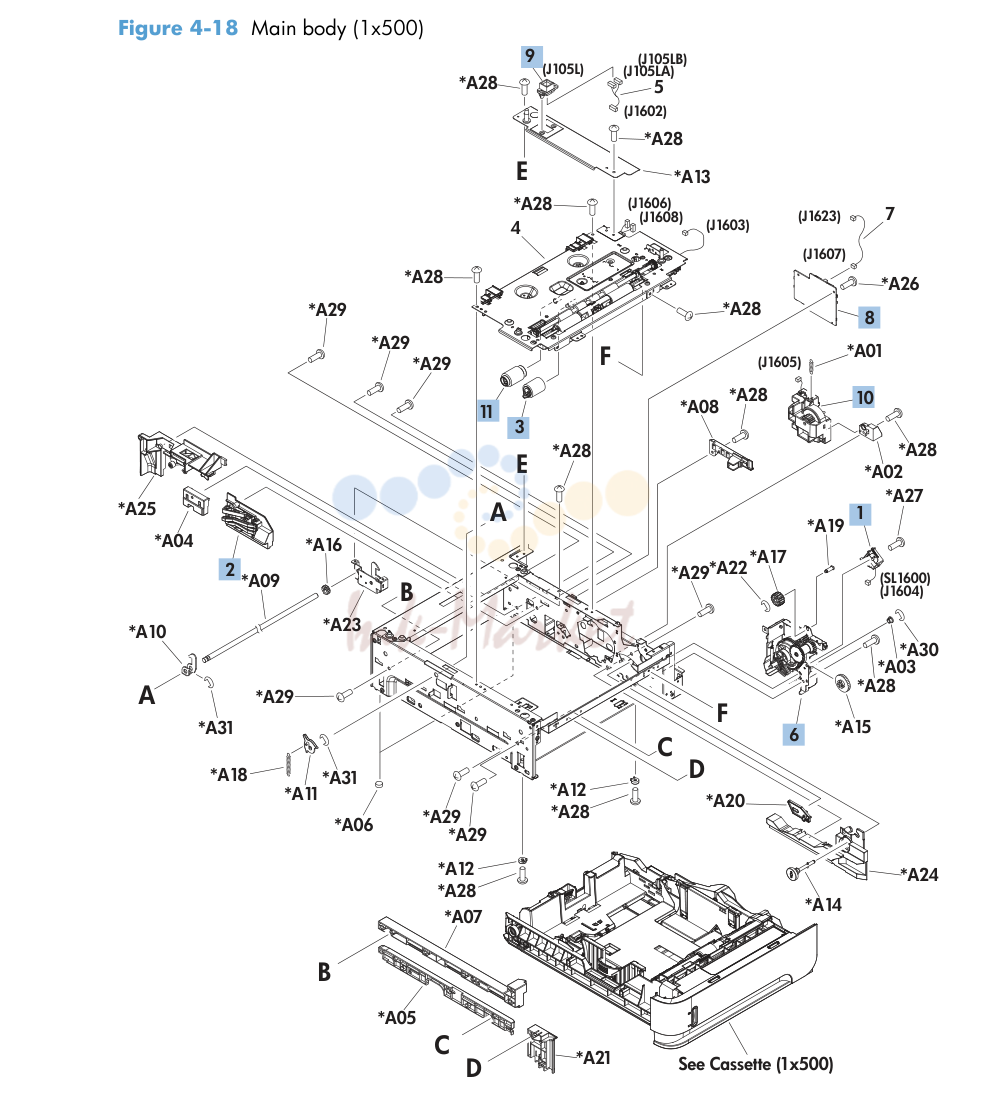

13. Main body (1x500)

№	Артикул	Альт. артикул	Описание
1			Solenoid (1x500) RK2-0270-000CN
2			Size detect assembly (1x500) RM1-4525-000CN
3			Roller, paper feed assembly (1x500) RM1-0037-020CN
6			Plate, pickup drive side assembly (1x500) RM1-8441-000CN
8			PCA, Feeder (1x500) RM1-8302-000CN
9			Connector, drawer 6P (1x500) VS1-7500-006CN
10			Lifter drive assembly (1x500) RM1-1094-050CN
11			Roller, paper pickup assembly (1x500) RM1-0036-020CN

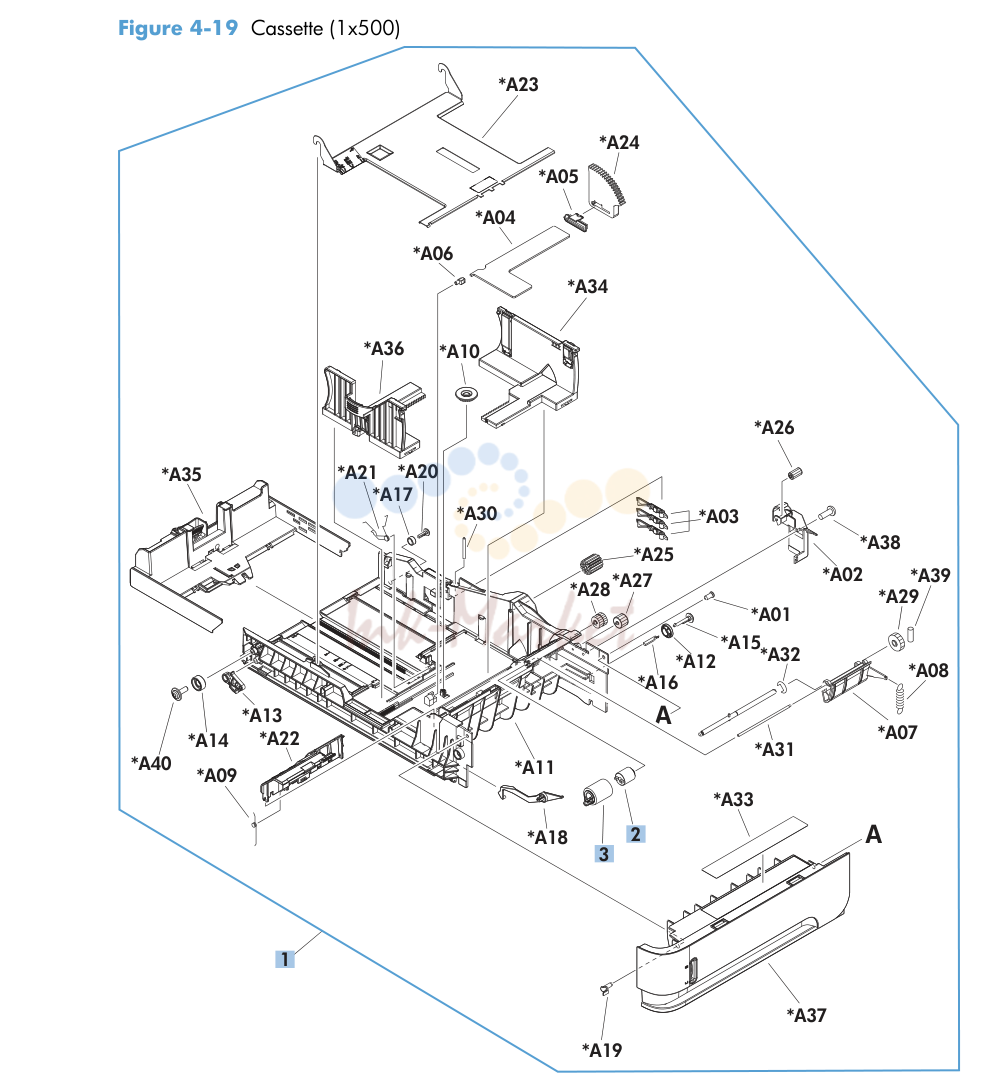

14. Cassette (1x500)

№	Артикул	Альт. артикул	Описание
1			Cassette (1x500) RM1-4559-020CN
2			Torque limiter (1x500) RC2-5771-000CN
3			Roller, paper feed assembly (1x500) RM1-0037-020CN

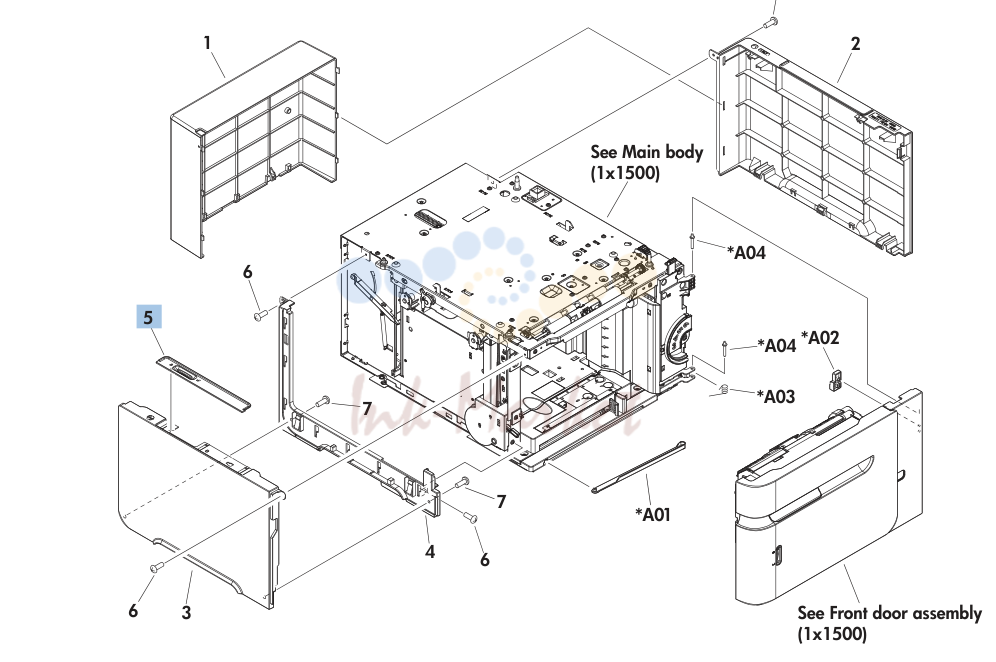

15. 1x1500-sheet paper deck

№	Артикул	Альт. артикул	Описание
1			Front door assembly (1x1500) RM1-5255-020CN
2			Roller, paper feed assembly (1x1500) RM1-0037-020CN
3			Torque limiter (1x1500) RC2-5771-000CN

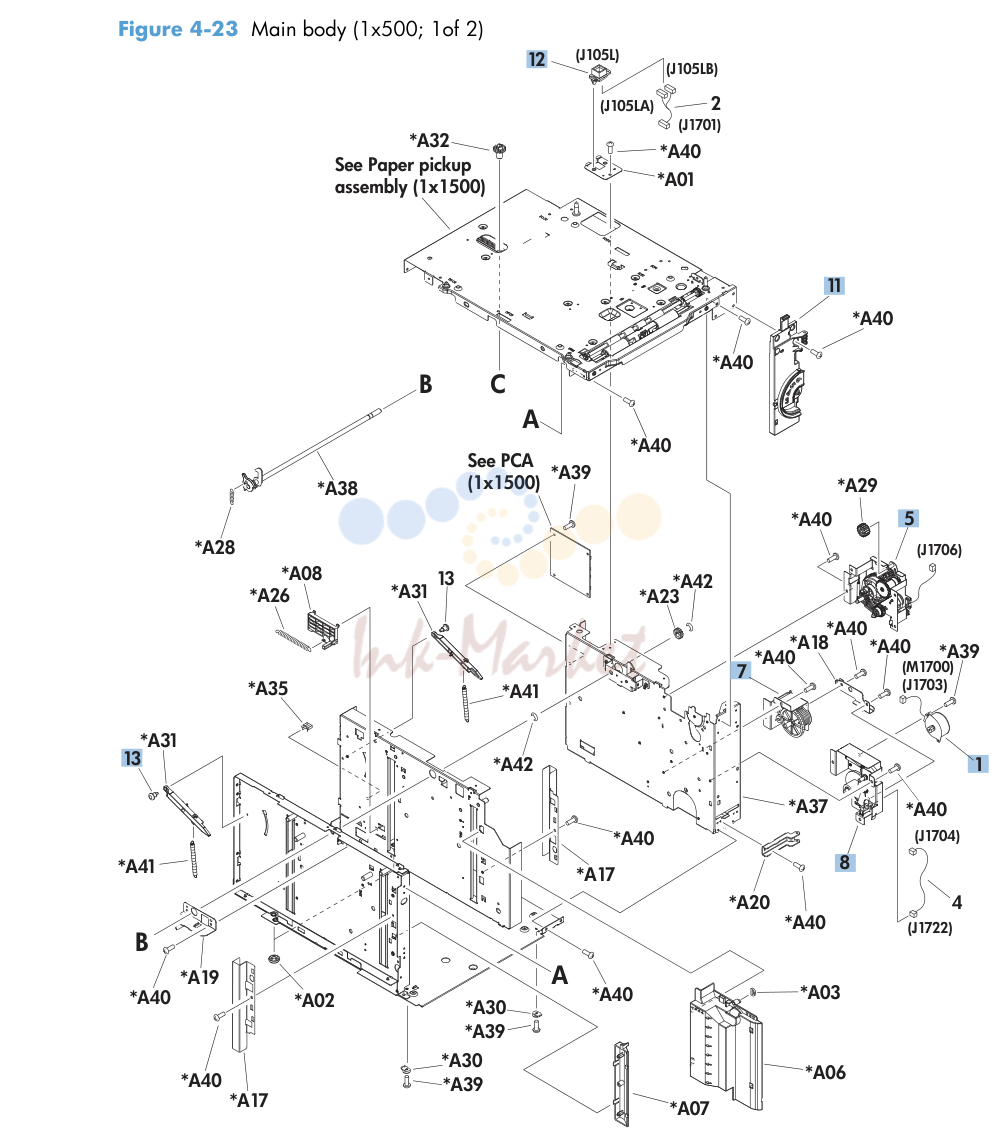

16. Main body (1x500; 1 of 2)

№	Артикул	Альт. артикул	Описание
1			Motor, stepping (M1700) (1x1500) RH7-1603-020CN
5			Paper pickup drive assembly (1x1500) RM1-8457-000CN
7			Oil damper assembly (1x1500) RM1-0289-030CN
8			Lifter drive assembly (1x1500) RM1-8453-000CN
11			Numbering assembly (1x1500) RM1-5265-000CN
12			Connector, drawer 6 pin(1x1500) VS1-7500-006CN

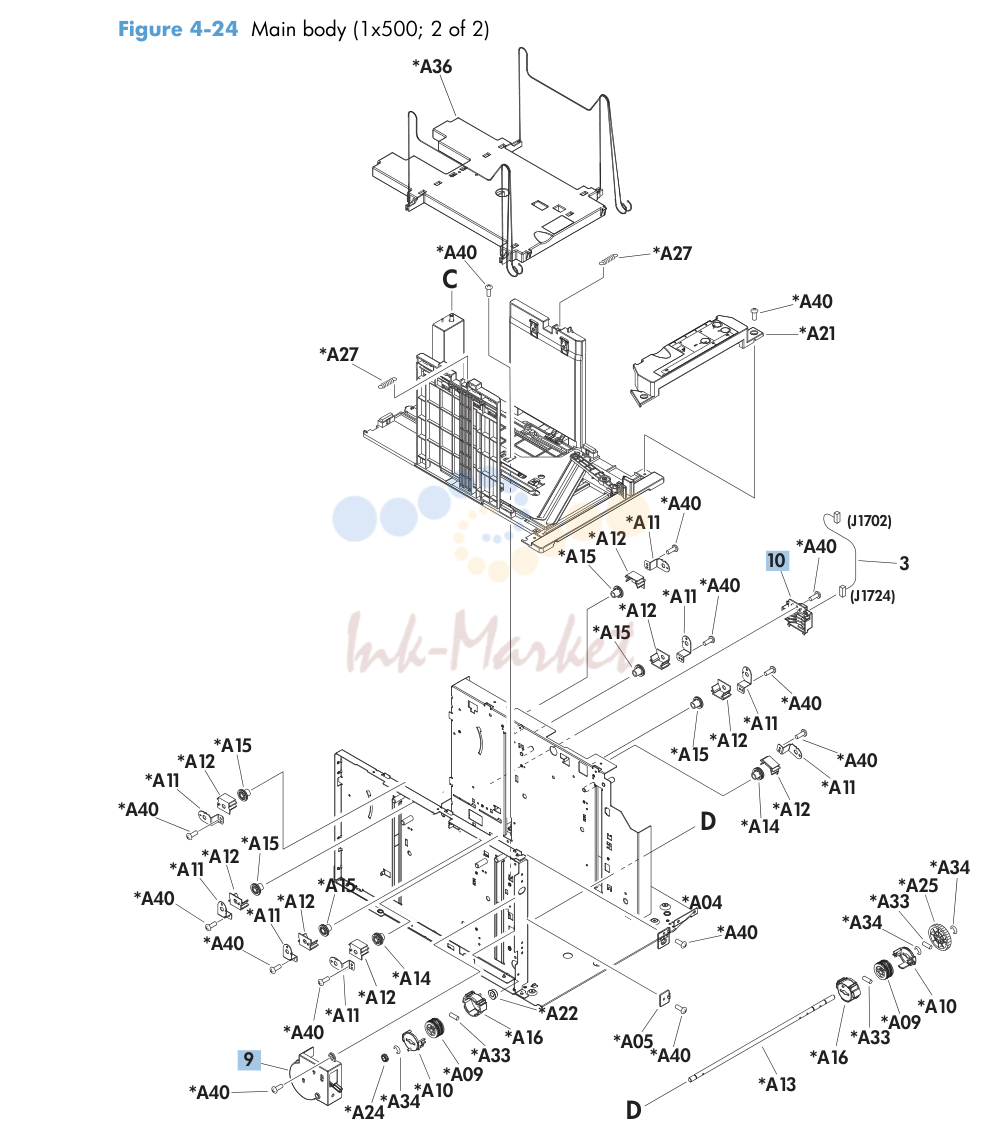

17. Main body (1x500; 2 of 2)

№	Артикул	Альт. артикул	Описание
1			Roller, paper feed assembly (1x1500) RM1-0037-020CN
2			Roller, paper pickup assembly (1x1500) RM1-0036-020CN
3			Paper detect sensor assembly (1x1500) RM1-8456-000CN
4			Flag, paper detect (1x1500) RC2-2524-000CN

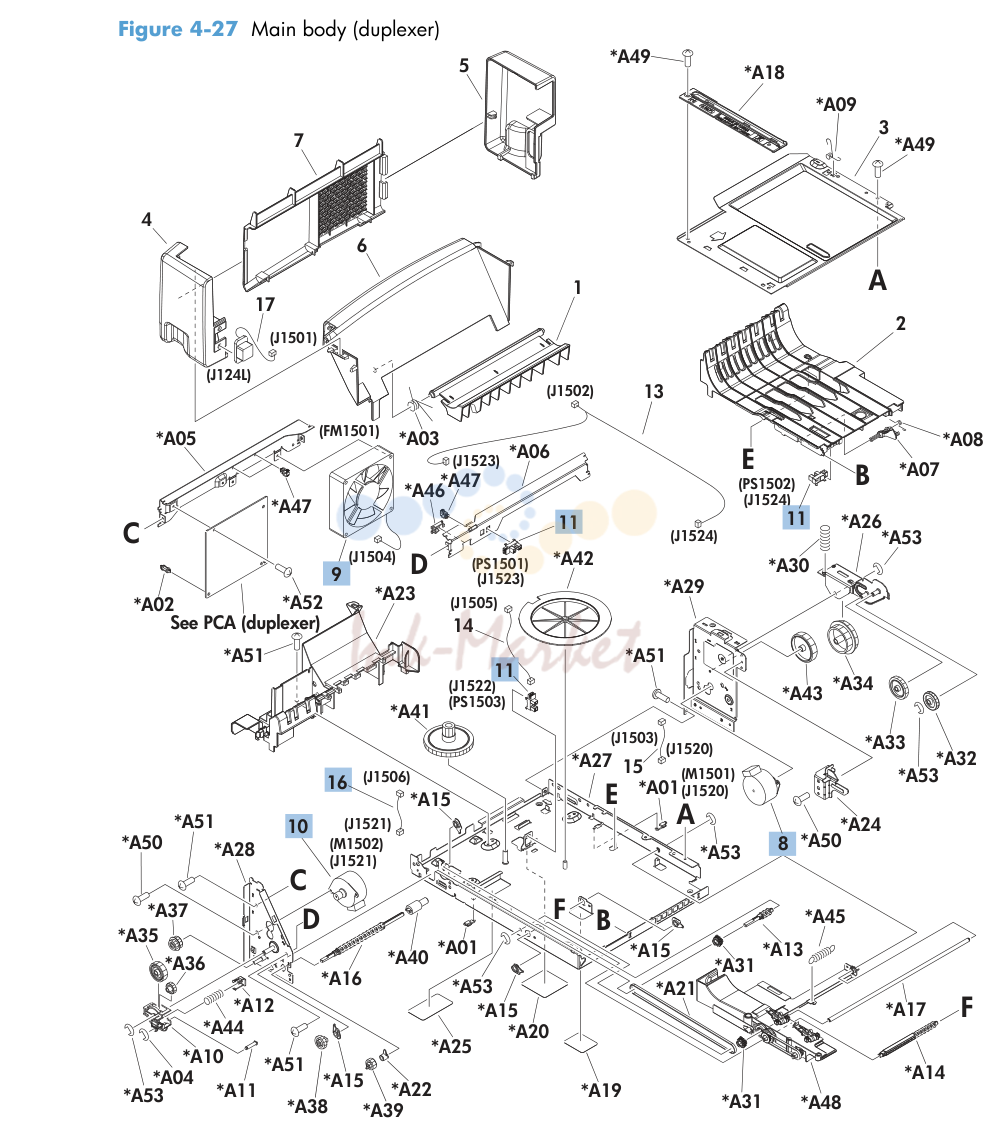

18. Duplexer

№	Артикул	Альт. артикул	Описание
8			Motor, stepping, DC 24V (M1501) (duplexer) RK2-2015-000CN
9			Fan (FN1501) (duplexer) RK2-2016-000CN
10			Motor, stepping, DC 24V (M1502) (duplexer) RK2-2139-000CN
11			Photo interrupter (duplexer) WG8-5849-000CN
16			Cable, paper re-pickup motor (duplexer) RM1-5141-000CN

19. PCA (duplexer)

№	Артикул	Альт. артикул	Описание
1			Photo interrupter (envelope feeder) WG8-5624-000CN
2			Roller, separation assembly (envelope feeder) RM1-5224-000CN
4			Roller, paper feed assembly (envelope feeder) RM1-5223-000CN
5			Roller, paper pickup assembly (envelope feeder) RM1-5221-000CN
6			Roller, paper pickup (envelope feeder) RC2-5700-000CN
7			Roller, paper feed (envelope feeder) RC2-5701-000CN

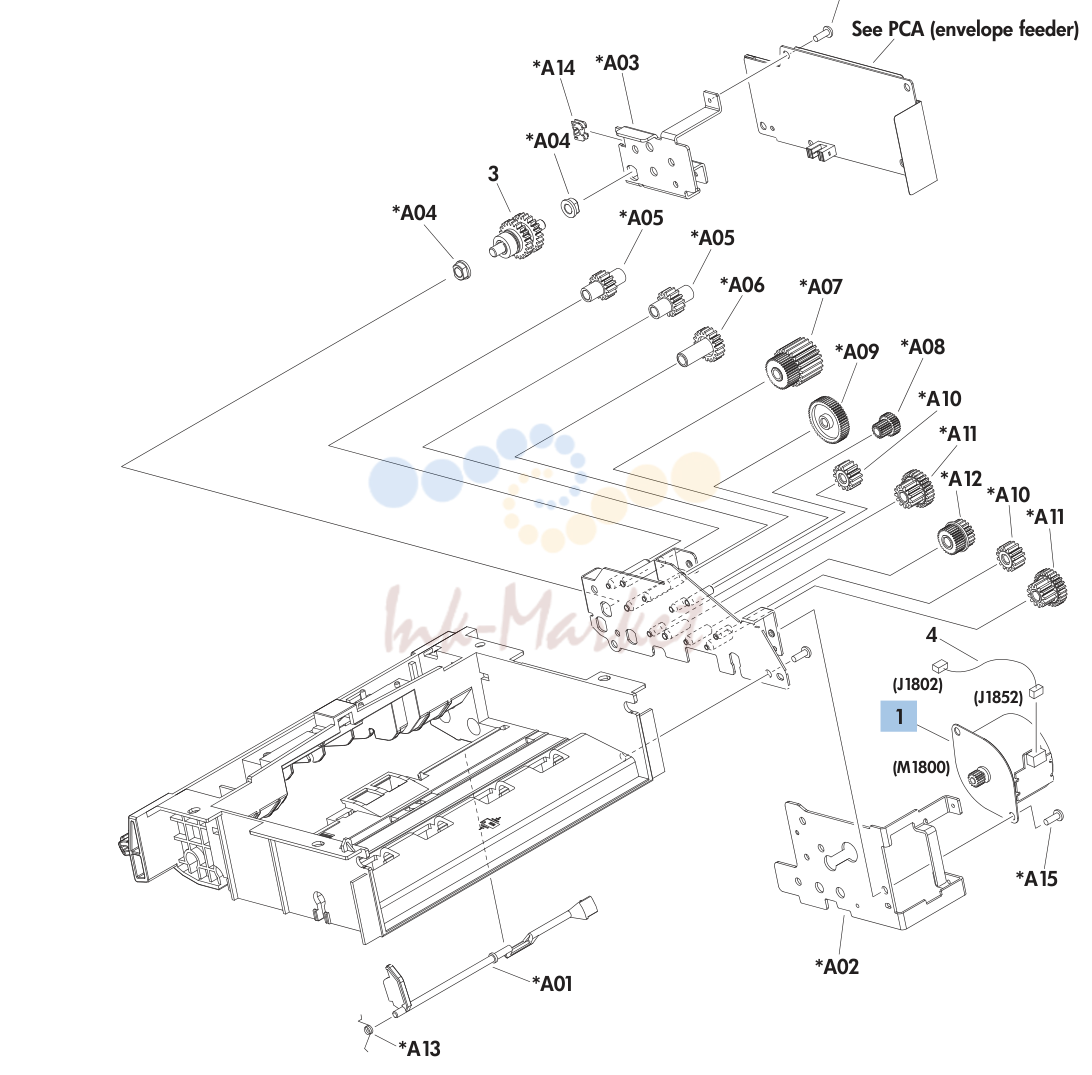

20. Main body (2 of 2; envelope feeder)

№	Артикул	Альт. артикул	Описание
1			Flag, paper sensing (MBM) RM1-5269-000CN
2			Top bin flapper assembly (MBM) RM1-4665-000CN
3			Bin flapper assembly (MBM) RM1-4666-000CN
4			Center bin flapper assembly (MBM) RM1-4667-000CN
12			Bin assembly (MBM) RM1-6672-000CN
13			Solenoid (MBM) RL1-1709-000CN

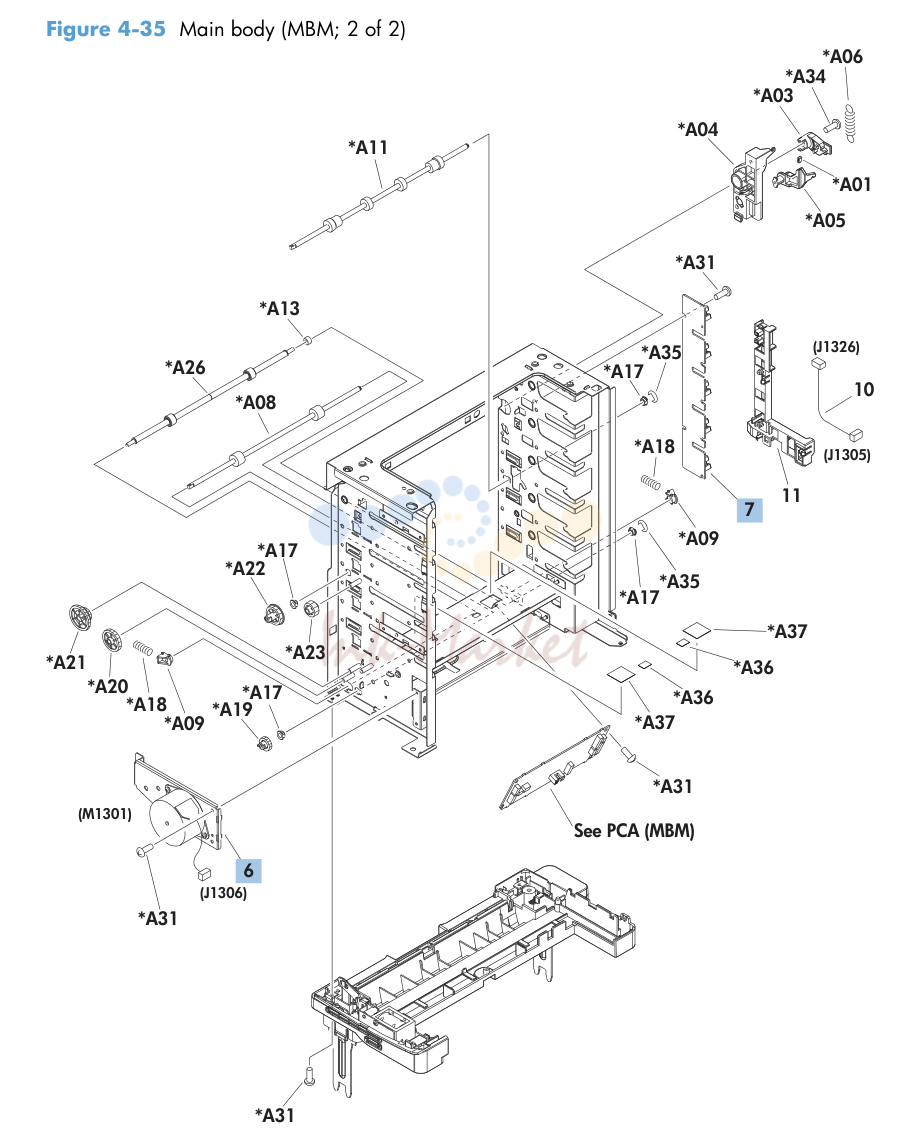

21. Main body (MBM; 2 of 2)

№	Артикул	Альт. артикул	Описание
6			Tray assembly (S and S/S) RM1-4671-000CN
9			Joint, left (S and S/S) RL1-1703-000CN
10			Joint, right (S and S/S) RL1-1704-000CN
11			Connector 8P (S and S/S) VS1-7500-008CN
13			Solenoid assembly, IN (S and S/S) RM1-5270-000CN

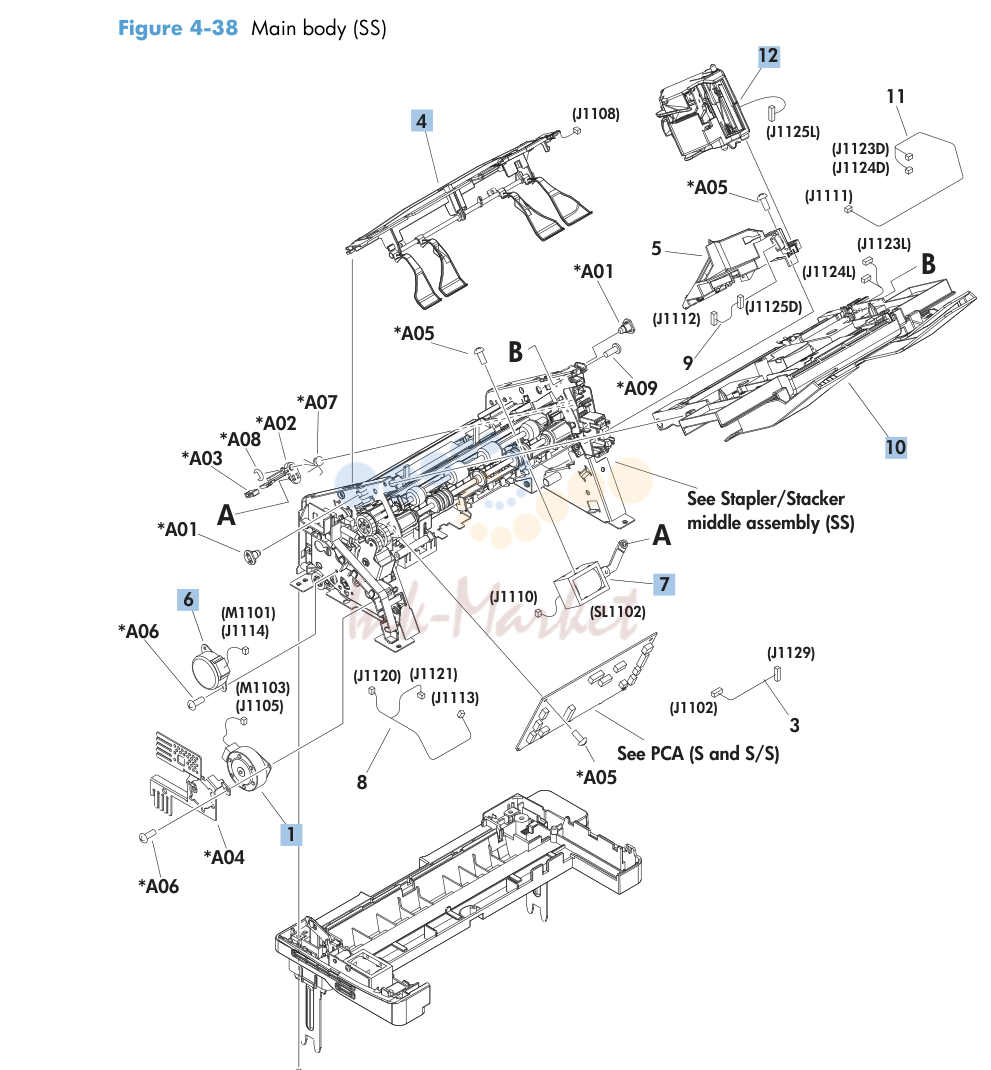

22. Main body (SS)

№	Артикул	Альт. артикул	Описание
1			Motor, stepping, DC 24V (M1103) (S/S) RK2-2025-000CN
4			Sensor, paper full assembly (S/S) RM1-1166-000CN
6			Motor, stepping, DC 24V (M1101) (S/S) RK2-2027-000CN
7			Solenoid (S/S) RL1-0506-000CN
10			Jog assembly (S/S) RM1-4670-000CN
12			Stapler assembly (S/S) RM1-4826-000CN
