- 1. HP LaserJet 3015 scanner assembly
- 2. Figure 7-2. ADF input and delivery assemblies (HP LaserJet 3015)
- 3. Figure 7-4. Frame assembly (HP LaserJet 3015)
- 4. Figure 7-7. Link assembly (HP LaserJet 3020/3030)
- 5. Figure 7-8. Major assemblies (HP LaserJet 3020/3030)
- 6. HP LaserJet 3015/3020/3030 printer base
- 7. Figure 7-10. Pickup and delivery tray assemblies (LJ 3015/3020/3030 printer base)
- 8. Figure 7-12. Internal components 1 of 1 (LJ 3015/3020/3030 printer base)
- 9. Figure 7-13. Internal components 2 of 2 (LJ 3015/3020/3030 printer base)

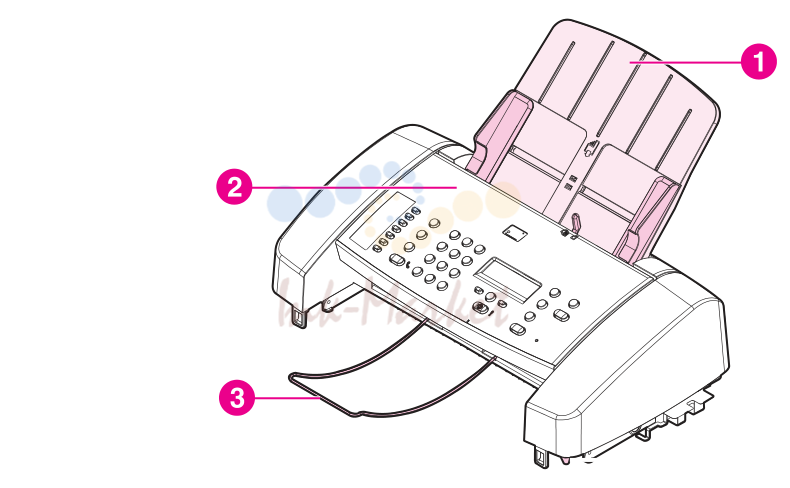

1. HP LaserJet 3015 scanner assembly
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | HP LaserJet 3015 scanner assembly NA | ||
| 2 | Scanner control panel assembly RK2-0232-000CN | ||
| 3 | Scanner tray, delivery (wire) RC1-2560-000CN |
2. Figure 7-2. ADF input and delivery assemblies (HP LaserJet 3015)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Scanner cover, right RC1-2559-000CN | ||
| 2 | Scanner flexible flat cable (FFC) RK2-0236-000CN | ||
| 3 | Scanner cover top assembly RC1-2564-000CN | ||
| 4 | Scanner control-panel assembly RK2-0232-000CN | ||
| 5 | Scanner link assembly, right (HP LaserJet RM1-0897-000CN | ||
| 6 | Scanner spring, compression RU5-2198-000CN | ||
| 7 | Scanner link assembly, left (HP LaserJet 3015) RM1-0896-000CN | ||
| 8 | Scanner cover, left RC1-2358-000CN | ||
| 9 | Scanner base frame assembly (scanner RL1-0375-000CN | ||
| 10 | Scanner sheet, grounding RL1-0376-000CN |

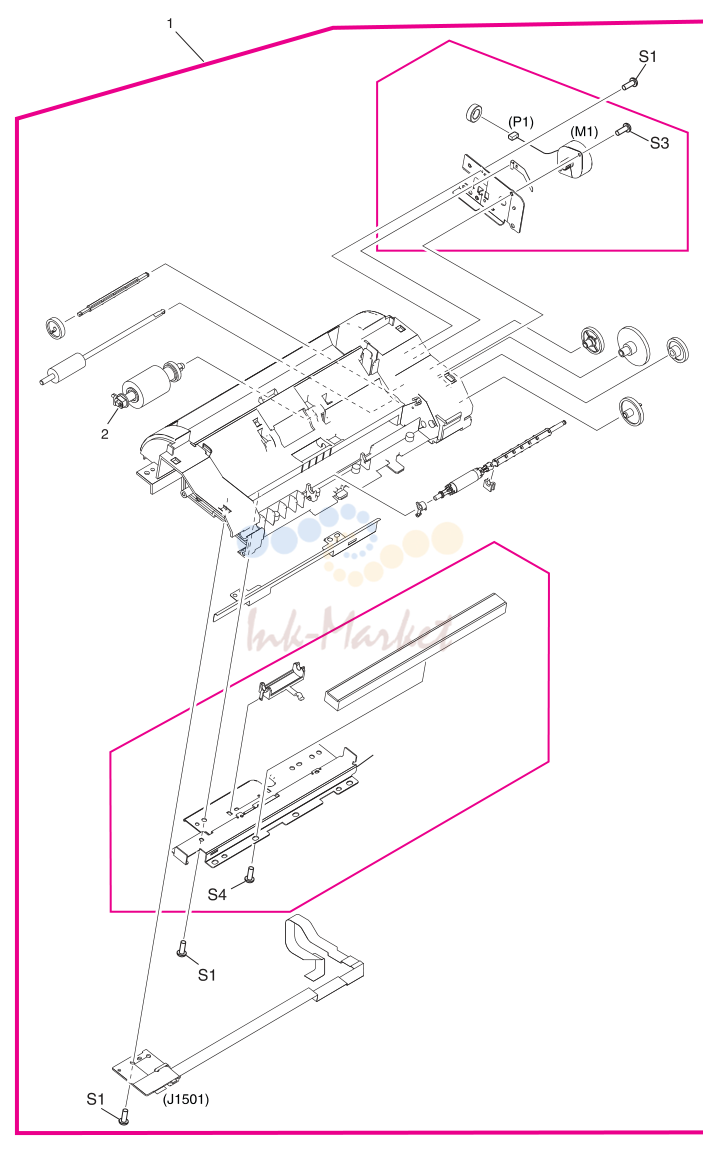

3. Figure 7-4. Frame assembly (HP LaserJet 3015)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Scanner guide assembly RM1-0889-000CN | ||
| 2 | Scanner separation-pad assembly RM1-0890-000CN | ||
| 3 | Scanner media lever (lever, pressure convert) RC1-2543-000CN | ||
| 4 | Scanner white platen RF5-3235-000CN | ||
| 1 | HP LaserJet 3020/3030 scanner assembly NA | ||
| 2 | Automatic document feeder and flatbed lid Q2665-60102-000CN | ||
| 3 | Flatbed scanner assembly Q26665-60112-000CN | ||
| 4 | LJ3020 запросить цену → | copy control panel Q2665-60101 | |
| 4 | LJ3030 запросить цену → | fax control panel Q2666-60101 |

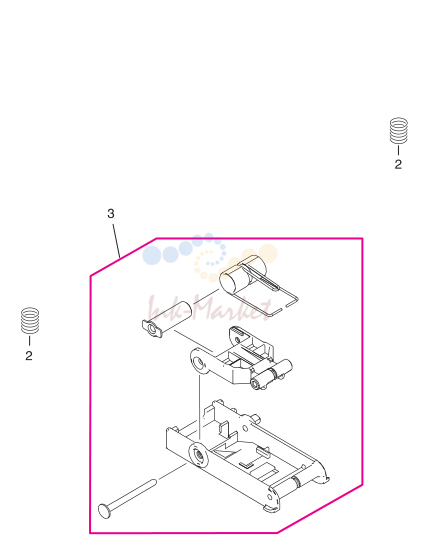

4. Figure 7-7. Link assembly (HP LaserJet 3020/3030)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | LJ3020/3030 scanner link assembly right RM1-0899-000CN | ||
| 2 | LJ3020/3030 scanner spring, compression RU5-2199-000CN | ||
| 3 | LJ3020/3030 scanner link assembly left RM1-0898-000CN |

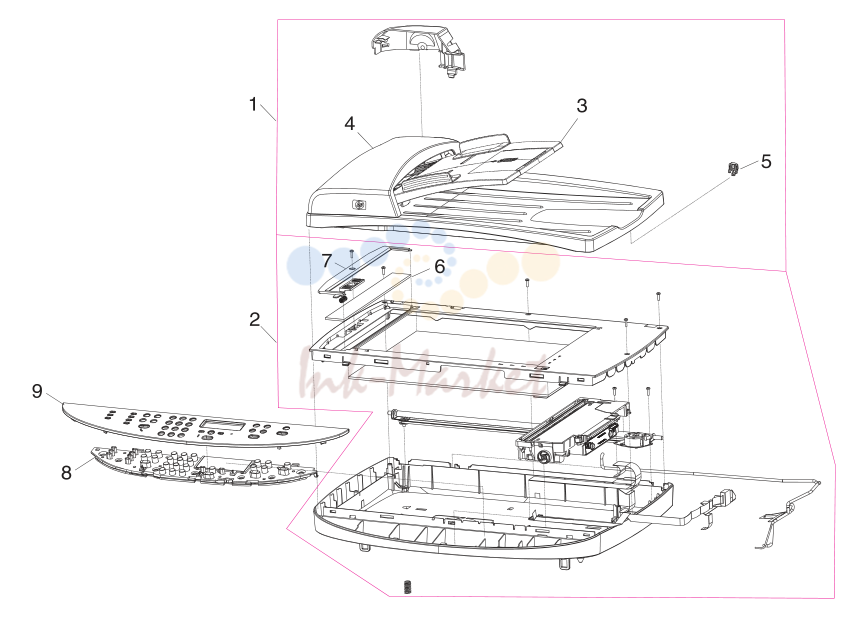

5. Figure 7-8. Major assemblies (HP LaserJet 3020/3030)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | ADF assembly and flatbed lid Q2665-60102 | ||
| 2 | Flatbed scanner assembly (does not include the Q2665-60112 | ||
| 3 | ADF input tray Q2665-60109 | ||
| 4 | LJ3020/3030 ADF lid Q26665-60102 | ||
| 5 | LJ3020/3030 ADF solar lock (clip) Q1636-40036 | ||
| 6 | LJ3020/3020 ADF glass C7296-00014 | ||
| 7 | ADF glass frame Q1636-40037 | ||
| 8 | LJ3020 запросить цену → | copy control panel Q2665-60101 | |
| 9 | 3020 bezel; English Q2665-40010 | ||
| 9 | 3020 bezel; French Q2665-40018 | ||
| 9 | 3020 bezel; German Q2665-40019 | ||
| 9 | 3020 bezel; Italian Q2665-40020 | ||
| 9 | 3020 bezel; Spanish Q2665-40021 | ||
| 9 | 3020 bezel; Danish Q2665-40022 | ||
| 9 | 3020 bezel; Dutch Q2665-40023 | ||
| 9 | 3020 bezel; Finnish Q2665-40024 | ||
| 9 | 3020 bezel; Portuguese Q2665-40025 | ||
| 9 | 3020 bezel; Swedish Q2665-40026 | ||
| 9 | 3020 bezel; Czech Q2665-40027 | ||
| 9 | 3020 bezel; Hungarian Q2665-40028 | ||
| 9 | 3020 bezel; Polish Q2665-40029 | ||
| 9 | 3020 bezel; Russian Q2665-40030 | ||
| 9 | 3020 bezel; Slovak Q2665-40031 | ||
| 9 | 3020 bezel; Turkish Q2665-40032 | ||
| 9 | 3020 bezel; Arabic Q2665-40033 | ||
| 9 | 3020 bezel; Greek Q2665-40034 | ||
| 9 | 3020 bezel; Hebrew Q2665-40035 | ||
| 9 | 3020 bezel; Korean Q2665-40036 | ||
| 9 | 3020 bezel; Simplified Chinese Q2665-40037 | ||
| 9 | 3020 bezel; Traditional Chinese Q2665-40038 | ||
| 9 | 3020 bezel; Thai Q2665-40039 | ||
| 9 | 3020 bezel; Norwegian Q2665-40040 | ||
| 9 | 3020 bezel; Swiss German Q2665-40042 | ||
| 9 | 3020 bezel; Vietnamese Q2665-40043 | ||
| 8 | LJ3030 запросить цену → | fax control panel Q2666-60101 | |
| 9 | 3030 bezel; English Q2666-40002 | ||
| 9 | 3030 bezel; French Q2666-40003 | ||
| 9 | 3030 bezel; German Q2666-40004 | ||
| 9 | 3030 bezel; Italian Q2666-40005 | ||
| 9 | 3030 bezel; Spanish Q2666-40006 | ||
| 9 | 3030 bezel; Danish Q2666-40007 | ||
| 9 | 3030 bezel; Dutch Q2666-40008 | ||
| 9 | 3030 bezel; Finnish Q2666-40009 | ||
| 9 | 3030 bezel; Portuguese Q2666-40010 | ||
| 9 | 3030 bezel; Swedish Q2666-40011 | ||
| 9 | 3030 bezel; Czech Q2666-40012 | ||
| 9 | 3030 bezel; Hungarian Q2666-40013 | ||
| 9 | 3030 bezel; Polish Q2666-40014 | ||
| 9 | 3030 bezel; Russian Q2666-40015 | ||
| 9 | 3030 bezel; Slovak Q2666-40016 | ||
| 9 | 3030 bezel; Turkish Q2666-40017 | ||
| 9 | 3030 bezel; Arabic Q2666-40018 | ||
| 9 | 3030 bezel; Greek Q2666-40019 | ||
| 9 | 3030 bezel; Hebrew Q2666-40020 | ||
| 9 | 3030 bezel; Korean Q2666-40021 | ||
| 9 | 3030 bezel; Simplified Chinese Q2666-40022 | ||
| 9 | 3030 bezel; Traditional Chinese Q2666-40023 | ||
| 302 | Chapter7 запросить цену → | Parts and diagrams ENWW |

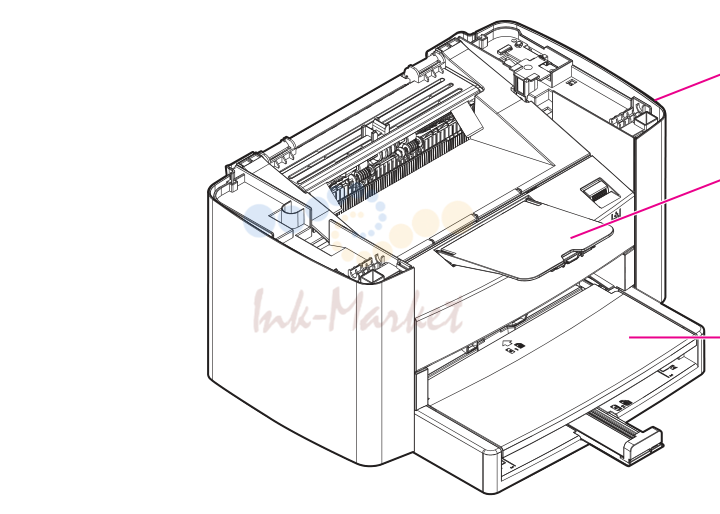

6. HP LaserJet 3015/3020/3030 printer base
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 3015/20/30 print engineprinter, replacement 110 Q2665-67001 | ||
| 1 | 3015/20/30 print engineprinter, replacement 220 Q2665-67002 | ||
| 2 | Delivery tray assembly RM1-0859-000CN | ||
| 3 | Pickup tray assembly RM1-0858-000CN |

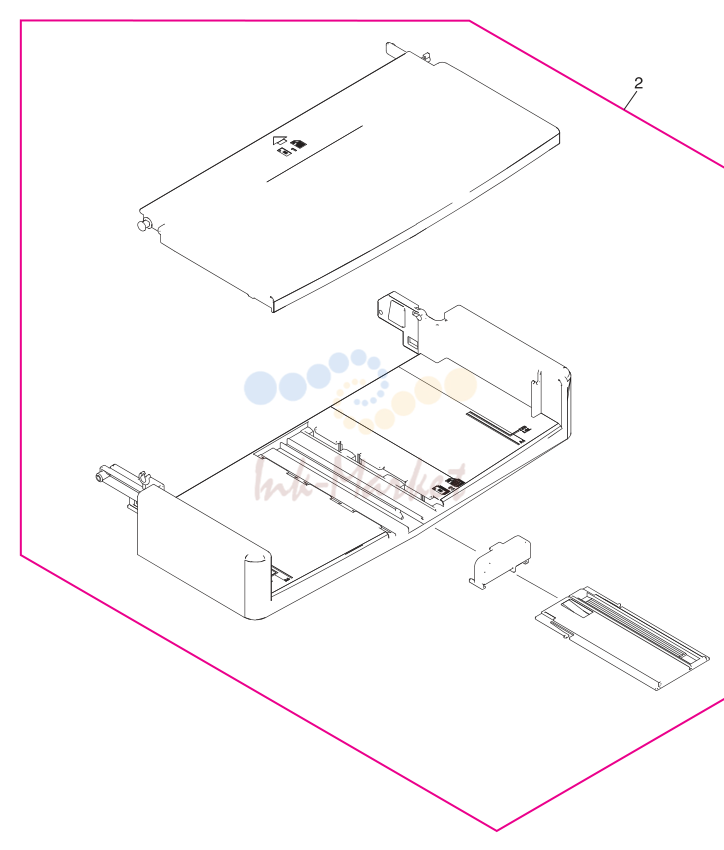

7. Figure 7-10. Pickup and delivery tray assemblies (LJ 3015/3020/3030 printer base)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Door, print cartridge RC1-2473-000CN | ||
| 2 | Cover, right RC1-2472-000CN | ||
| 3 | Cover, front RL1-0358-000CN | ||
| 4 | Cover, left RC1-2471-000CN | ||
| 5 | Cover, rear RC1-2474 | ||
| 6 | Cover, top (scanner support frame), printer RL1-0359-000CN | ||
| 7 | Scanner cushion RC1-2476-000CN |

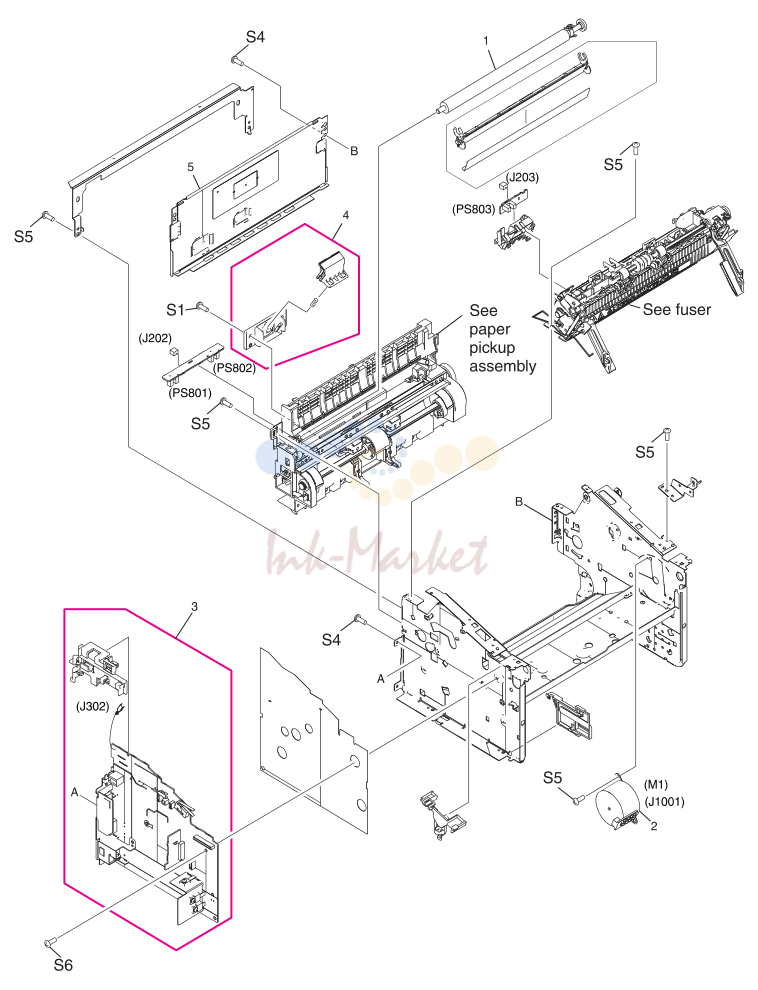

8. Figure 7-12. Internal components 1 of 1 (LJ 3015/3020/3030 printer base)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Transfer-roller assembly RM1-0658-000CN | ||
| 2 | Motor, stepping RK2-0107-000CN | ||
| 3 | Power-supply assembly, 110-127 V RM1-0903-000CN | ||
| 3 | Power-supply assembly, 220-240 V RM1-0904-000CN | ||
| 4 | Separation-pad assembly, printer RM1-0648-000CN | ||
| 5 | Panel, rear RC1-1985-000CN |

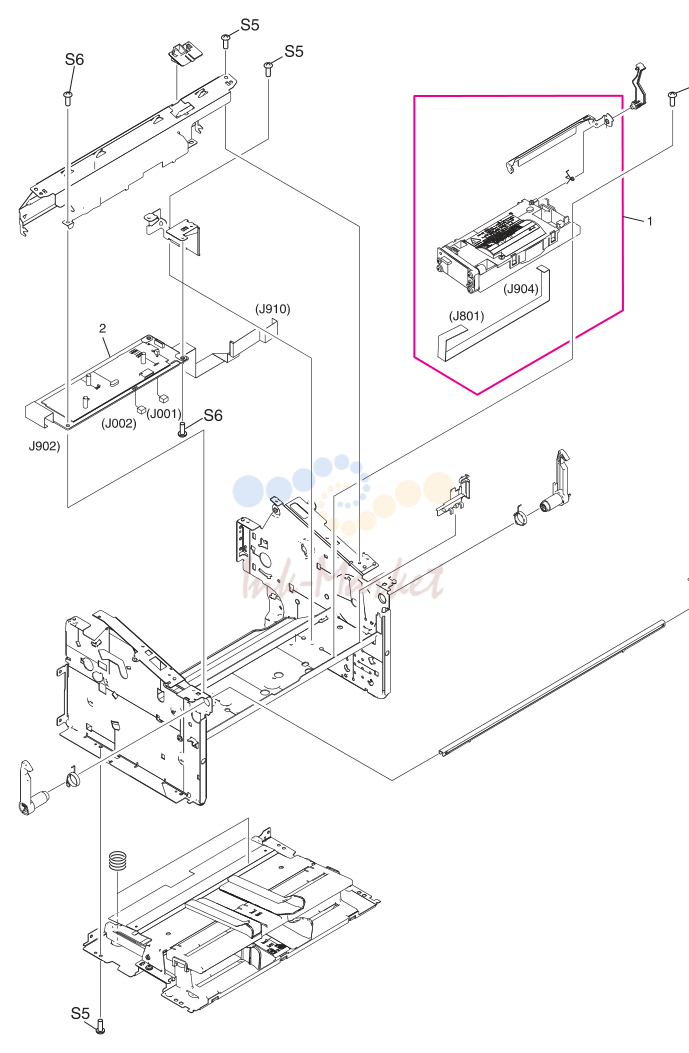

9. Figure 7-13. Internal components 2 of 2 (LJ 3015/3020/3030 printer base)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Bushing RC1-1953-000CN | ||
| 2 | Link, coupling lower RC1-2485-000CN | ||
| 3 | Link, coupling top RC1-2494-000CN | ||
| 4 | Speaker assembly RM1-0915-000CN |
