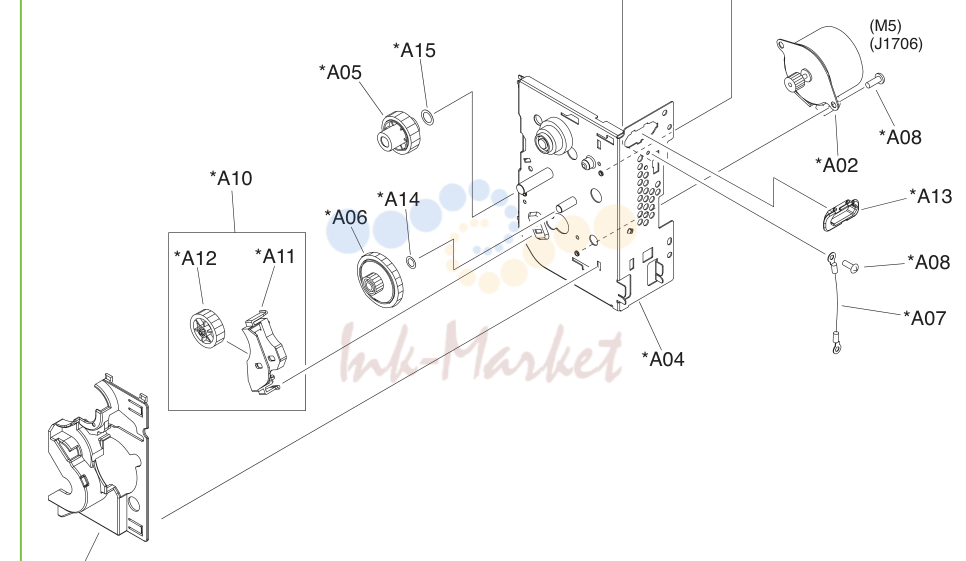

- 11. Figure 9-11 Printer multi-purpose-drive assembly

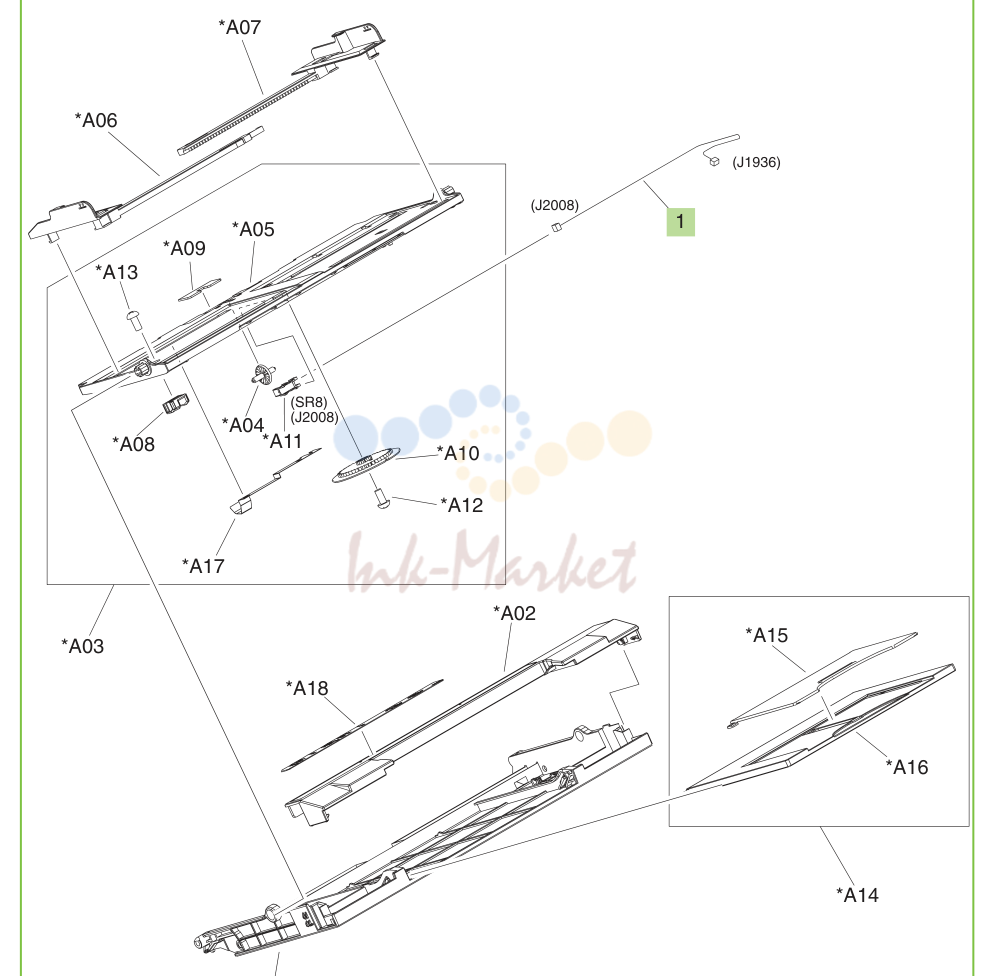

- 12. Figure 9-16 Printer multi-purpose-tray assembly

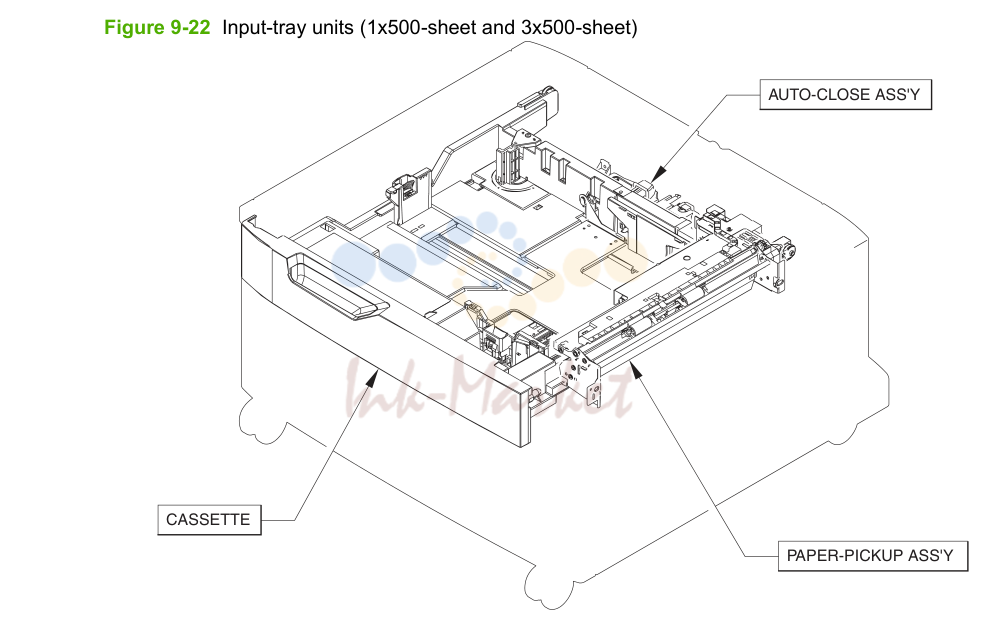

- 13. Input-accessory devices

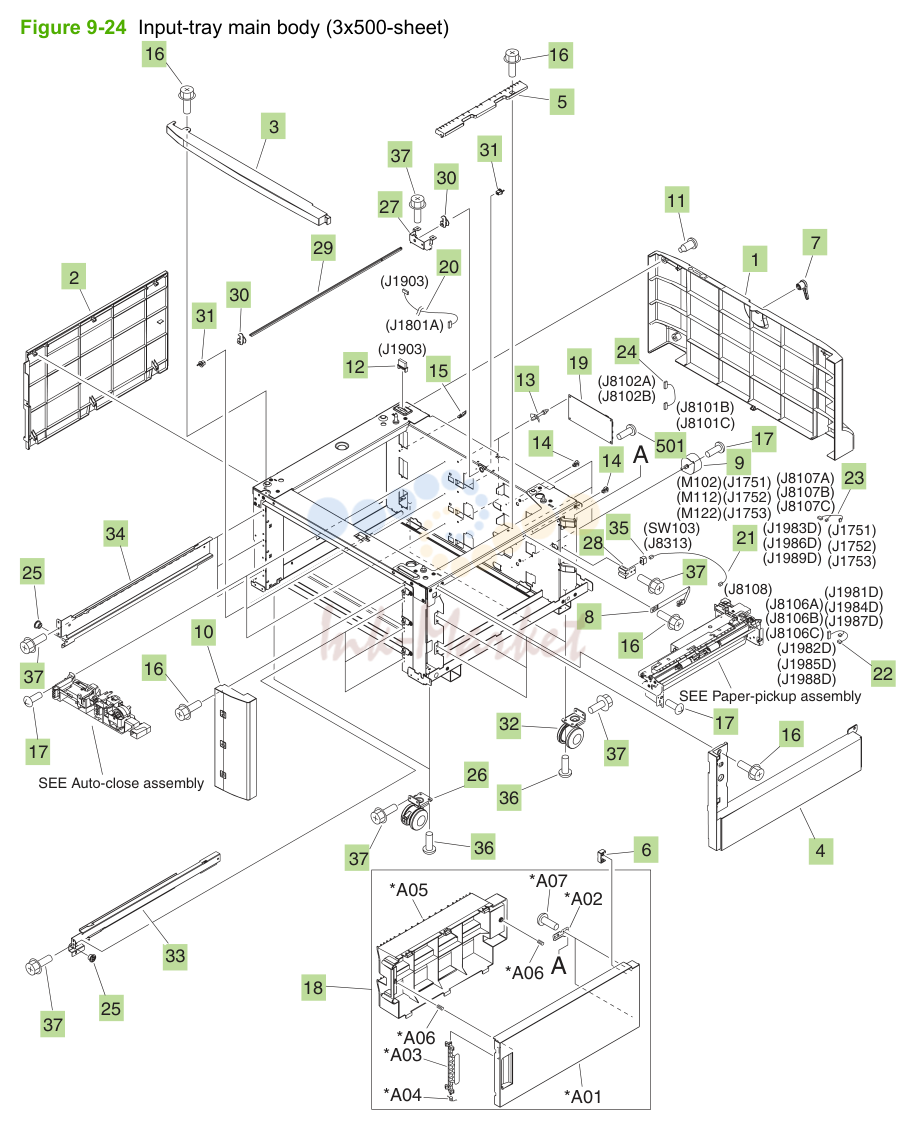

- 14. Figure 9-24 Input-tray main body (3x500-sheet)

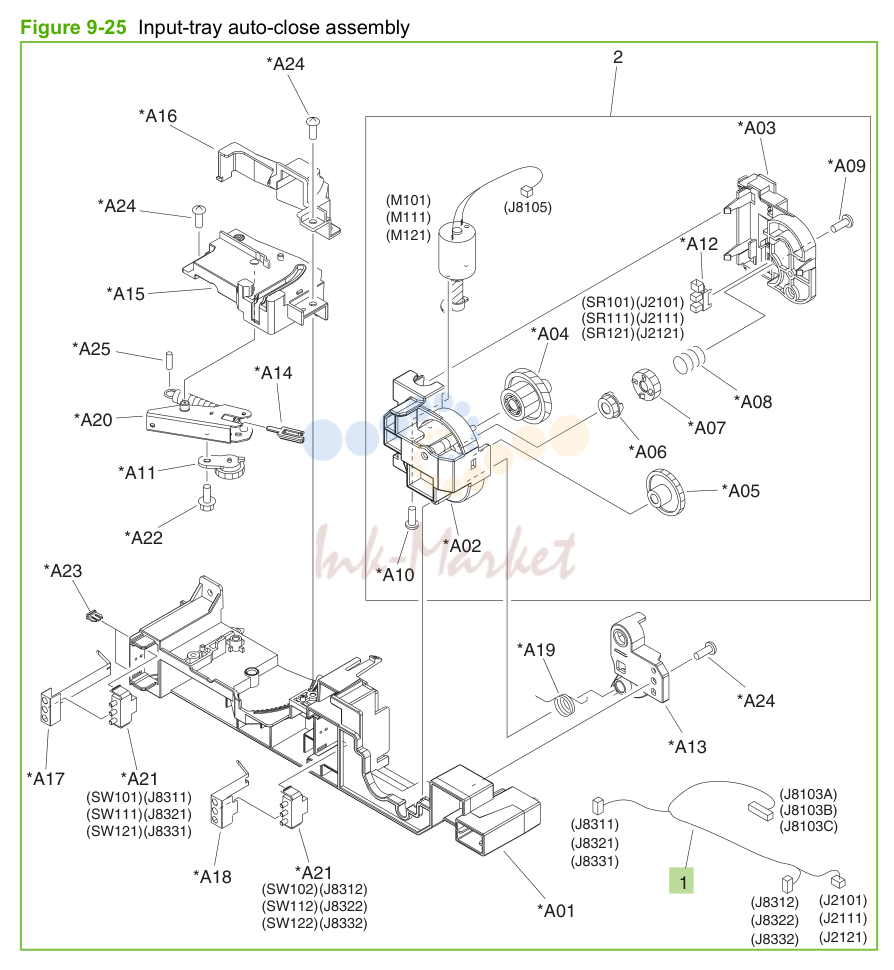

- 15. Figure 9-25 Input-tray auto-close assembly

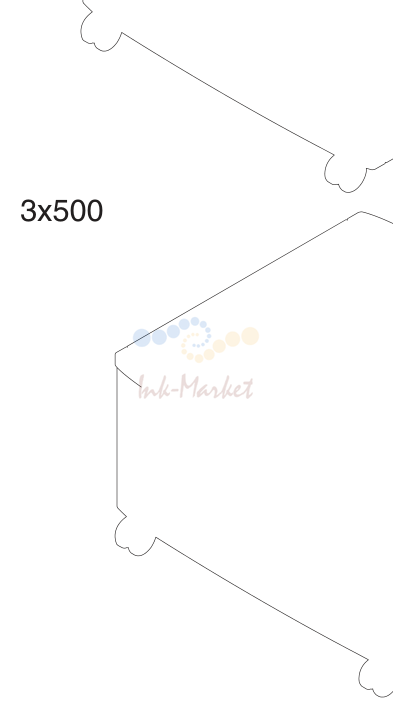

- 16. Figure 9-28 Input-tray PCA assembly

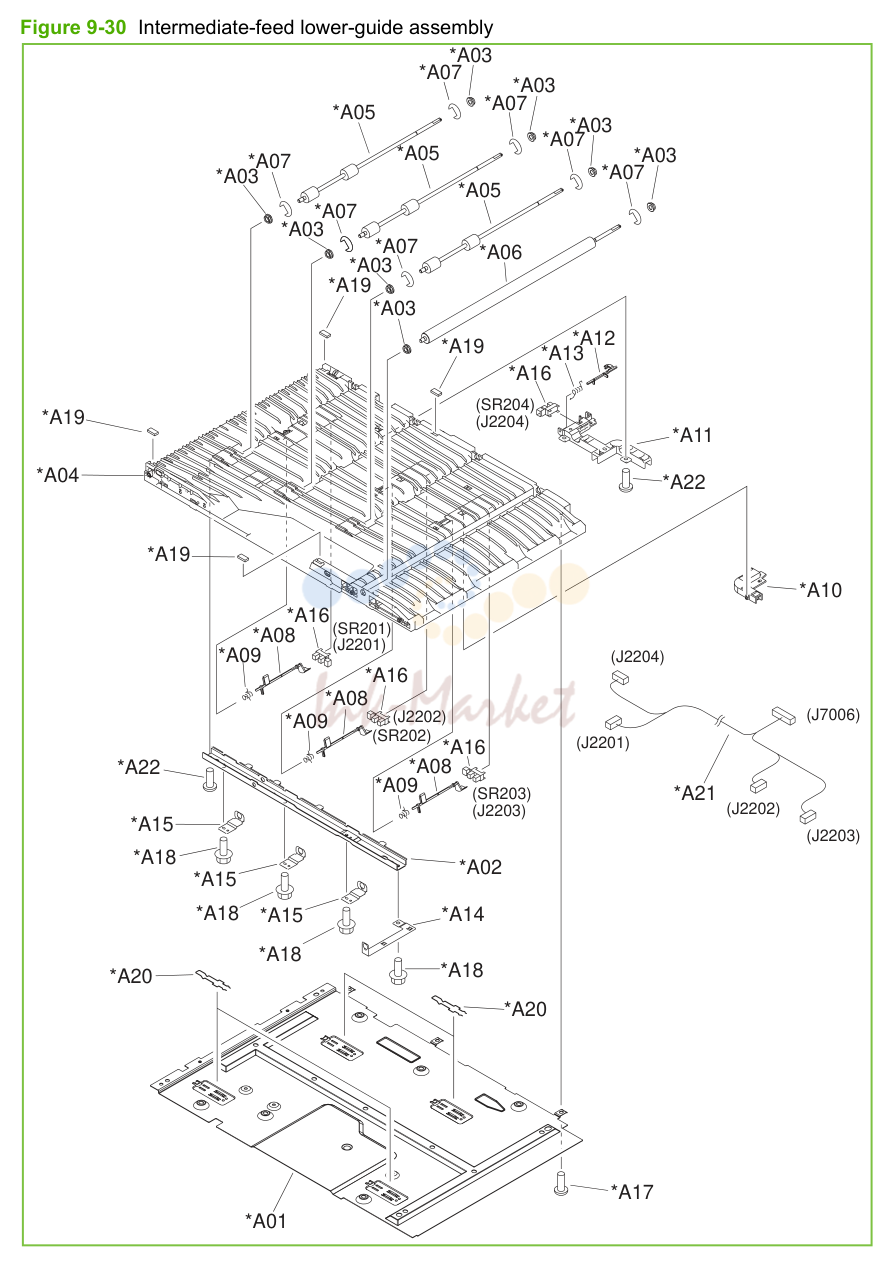

- 17. Figure 9-30 Intermediate-feed lower-guide assembly

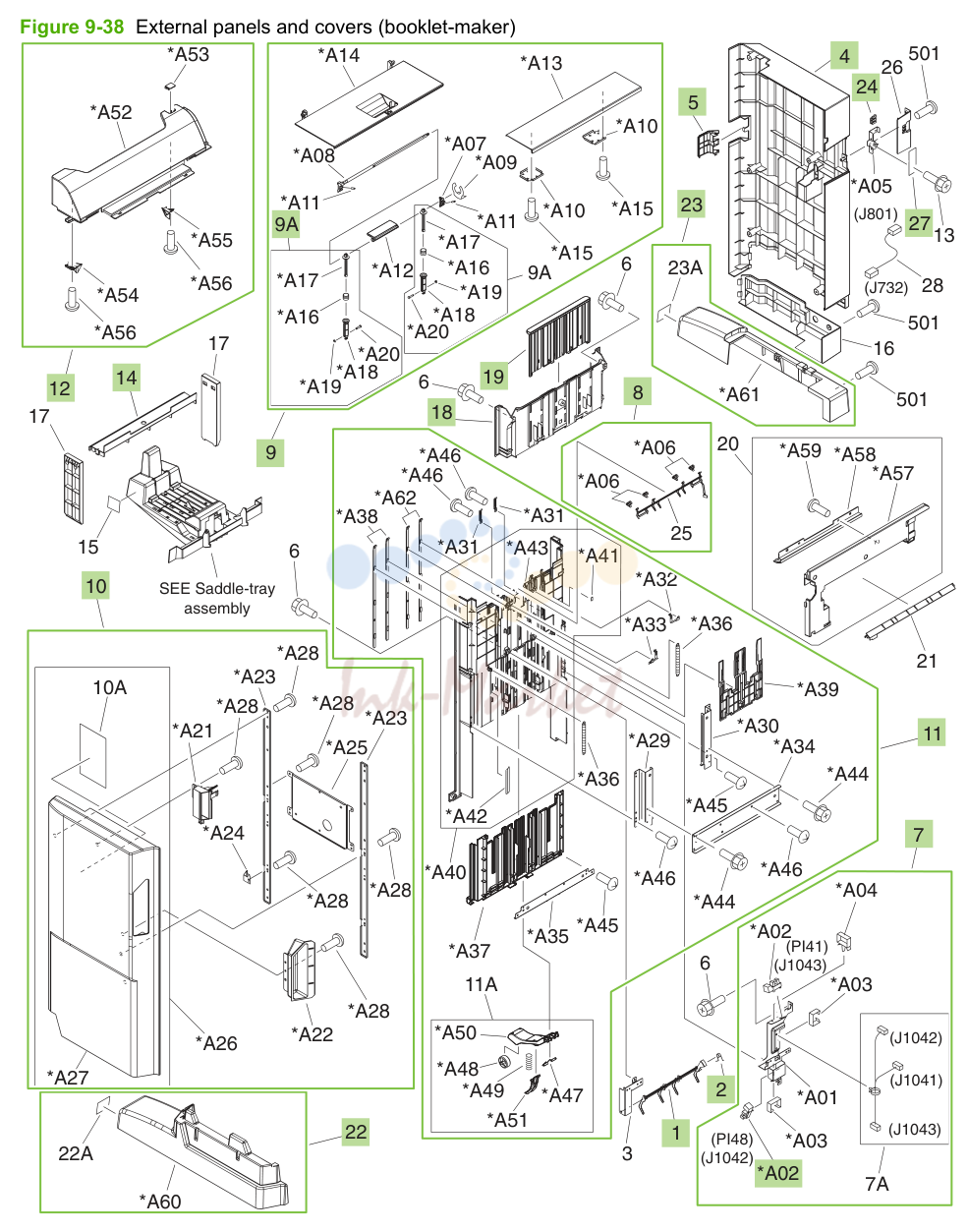

- 18. Figure 9-38 External panels and covers (booklet-maker)

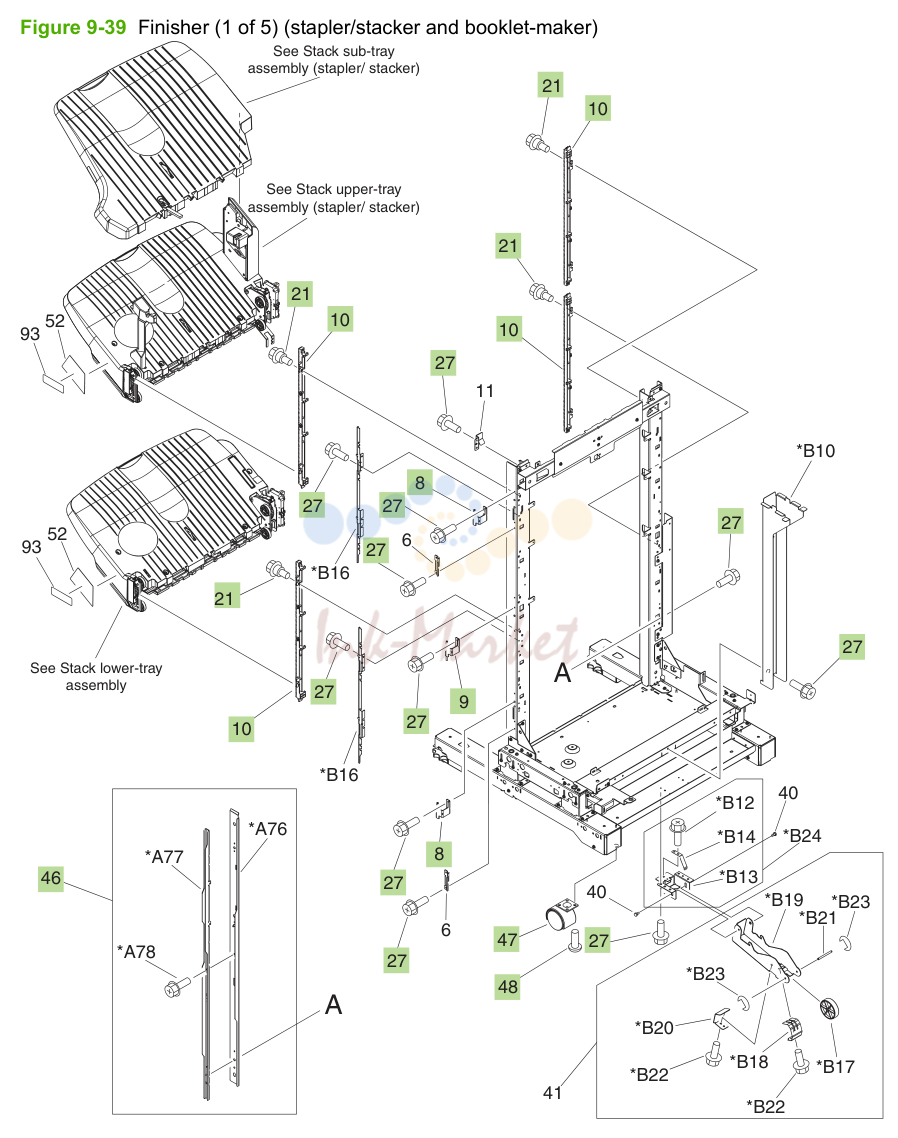

- 19. Figure 9-39 Finisher (1 of 5) (stapler/stacker and booklet-maker)

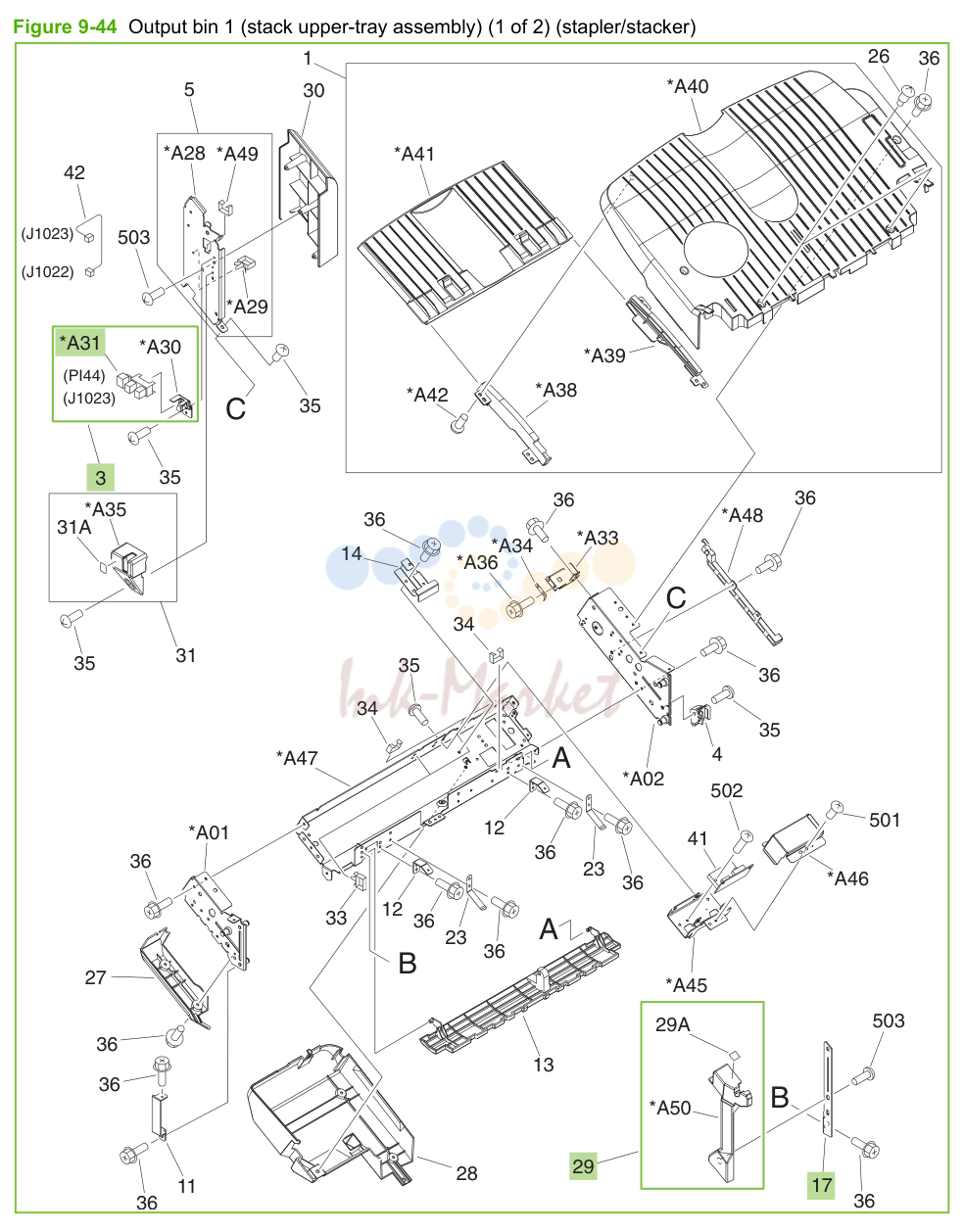

- 20. Figure 9-44 Output bin 1 (stack upper-tray assembly) (1 of 2) (stapler/stacker)

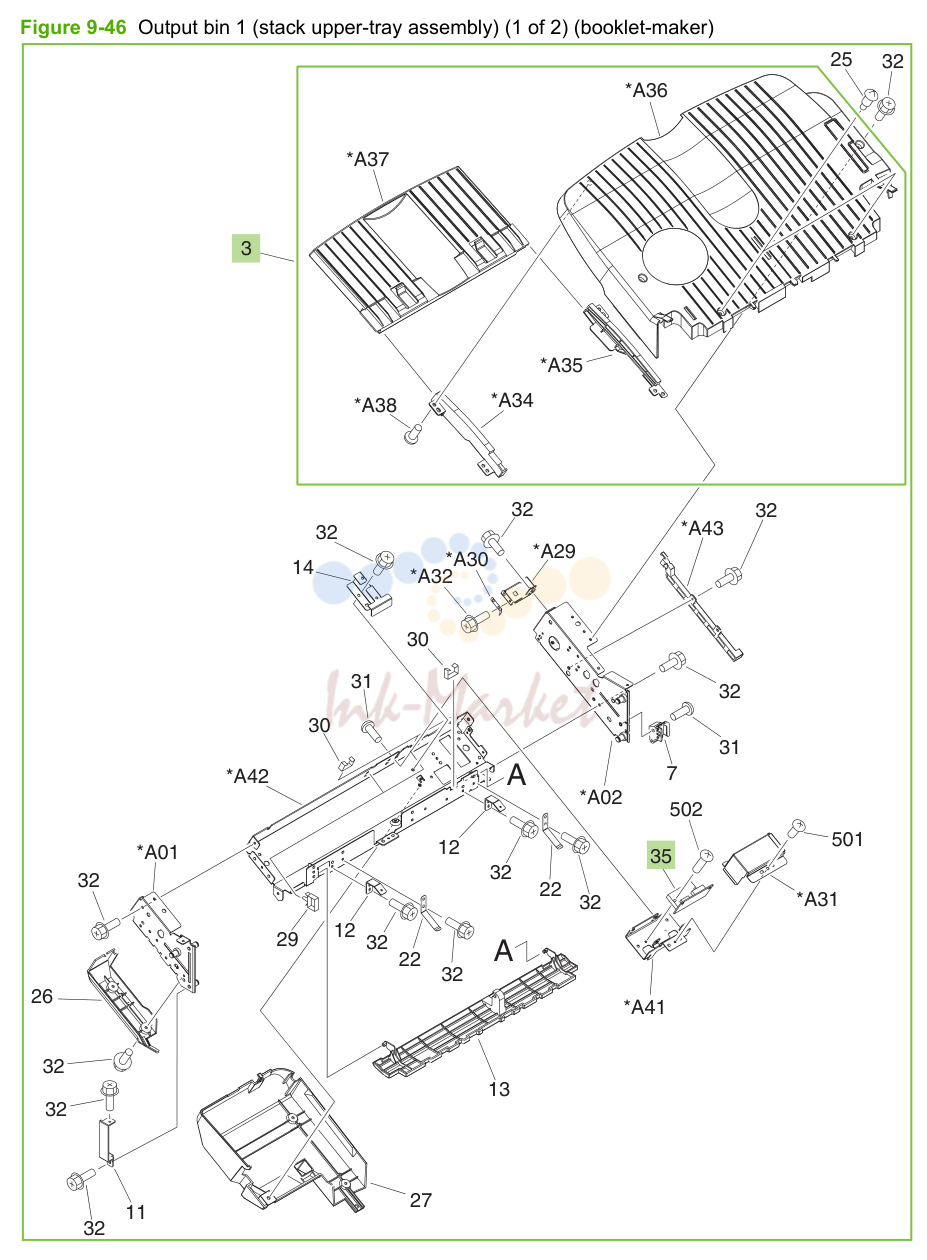

- 21. Figure 9-46 Output bin 1 (stack upper-tray assembly) (1 of 2) (booklet-maker)

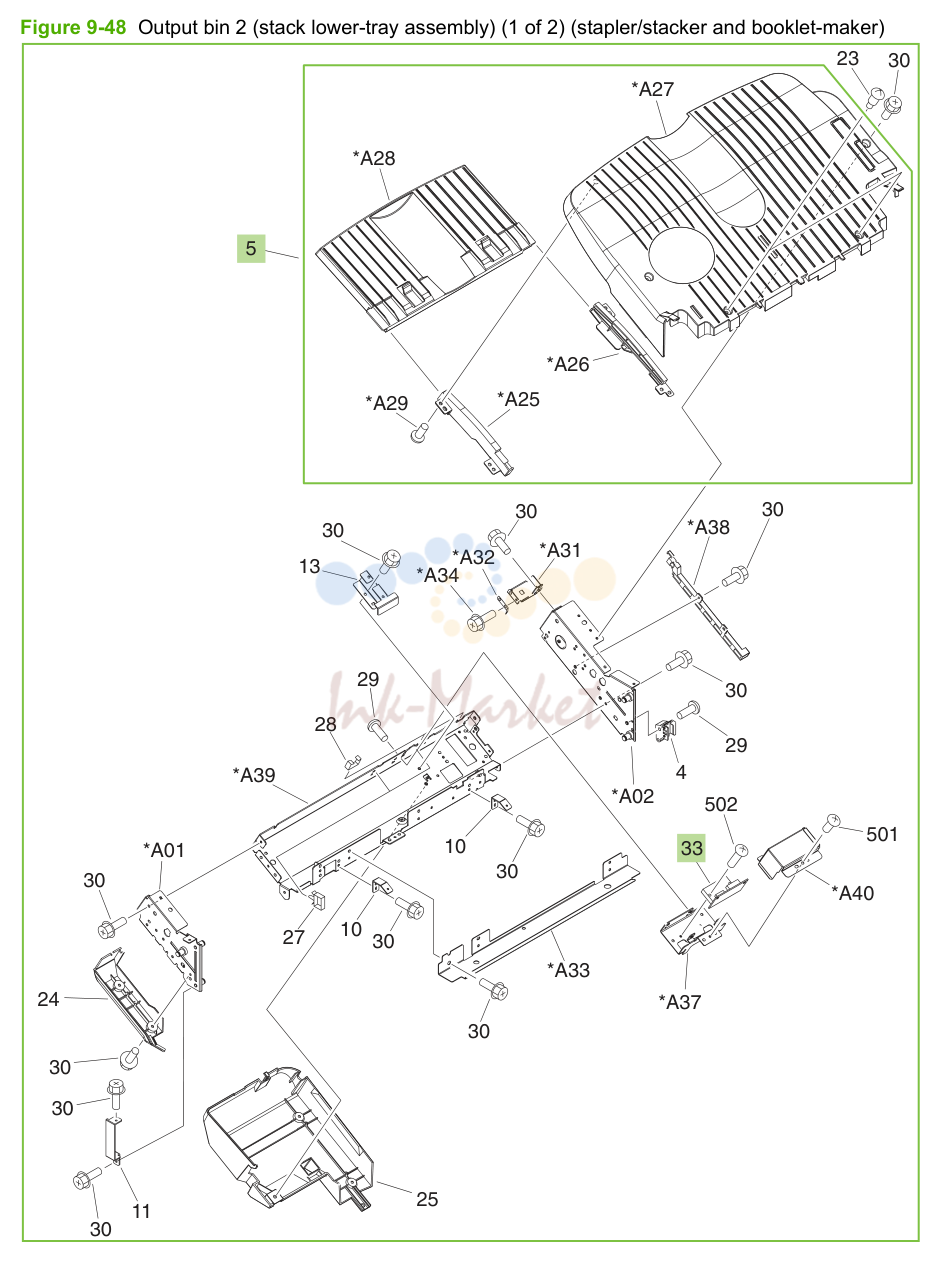

- 22. Figure 9-48 Output bin 2 (stack lower-tray assembly) (1 of 2) (stapler/stacker and booklet-maker)

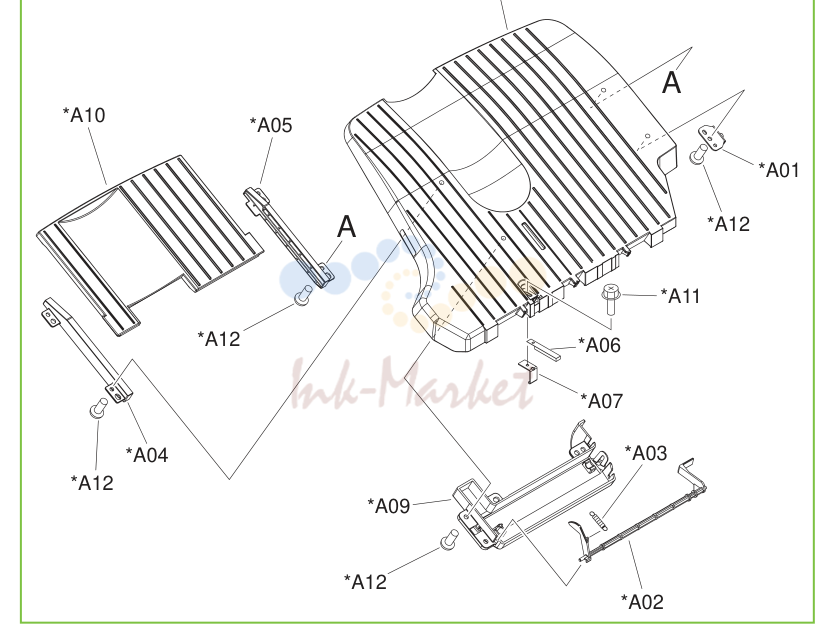

- 23. Figure 9-50 Top output bin (stack sub-tray assembly) (stapler/stacker)

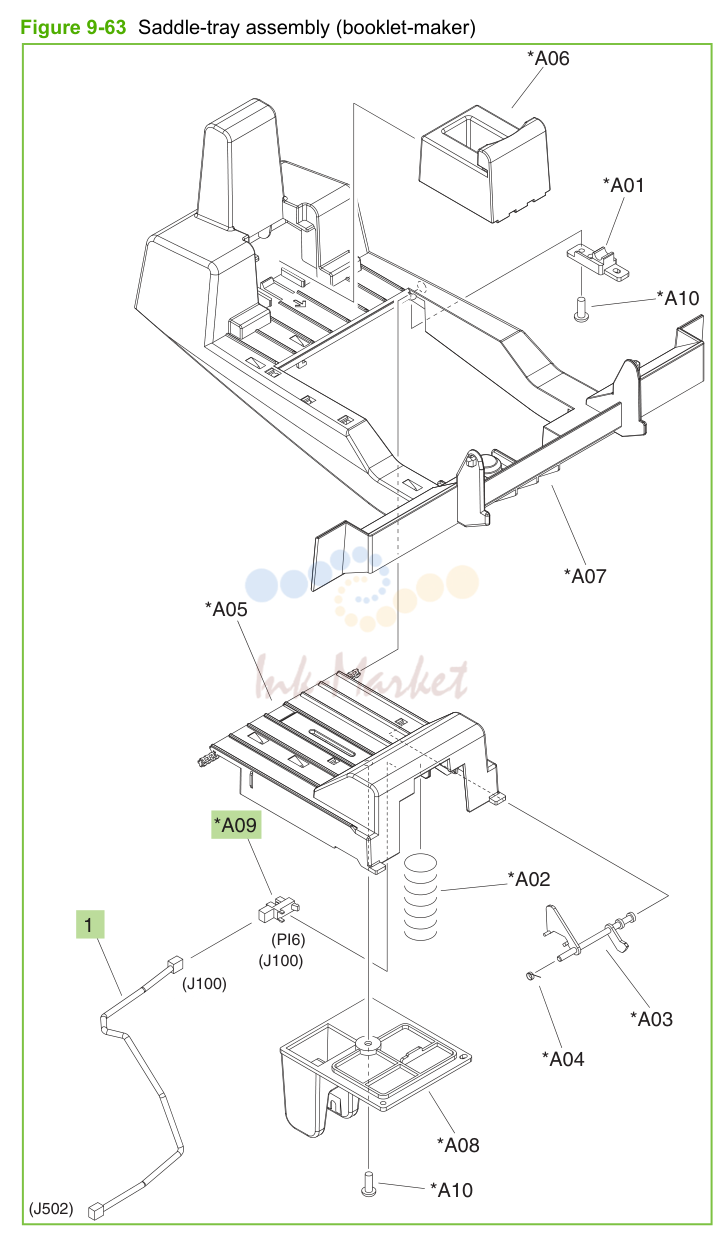

- 24. Figure 9-63 Saddle-tray assembly (booklet-maker)

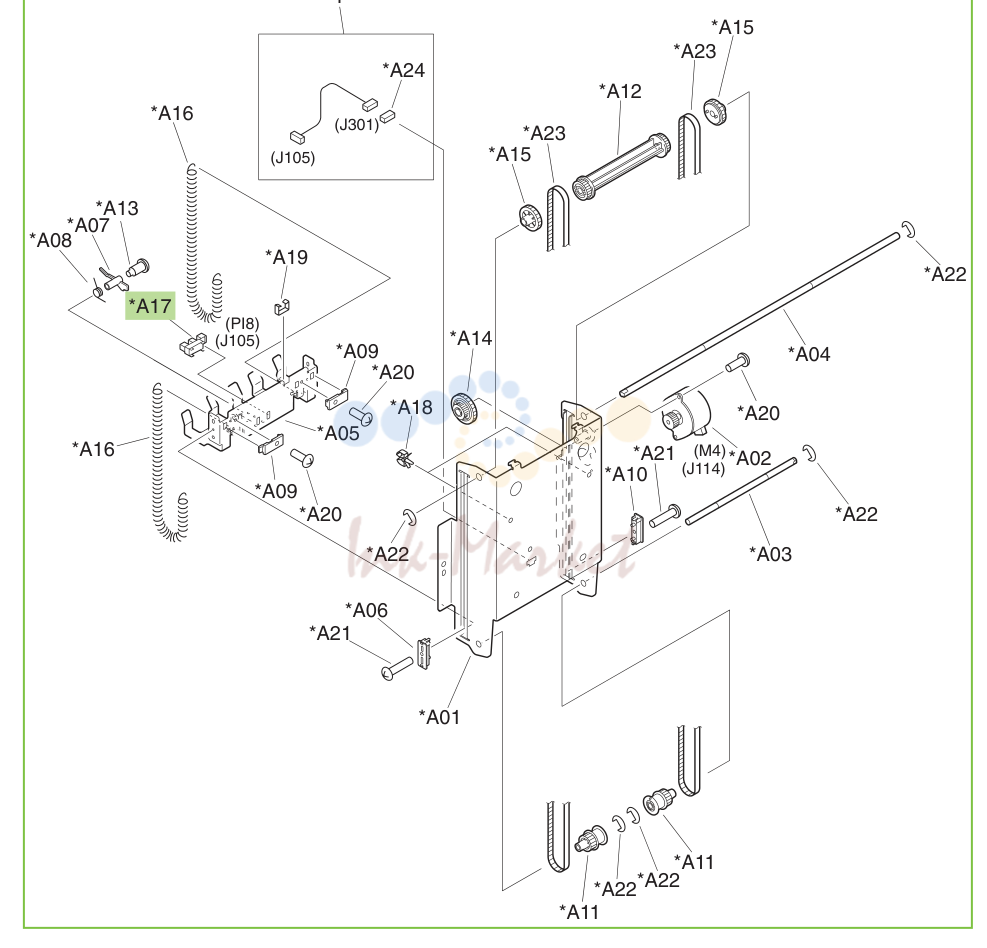

- 25. Figure 9-69 Inner side-plate assembly (booklet-maker)

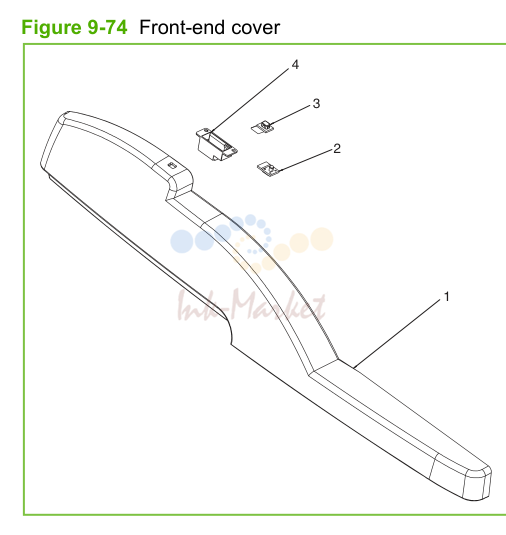

- 26. Figure 9-74 Front-end cover

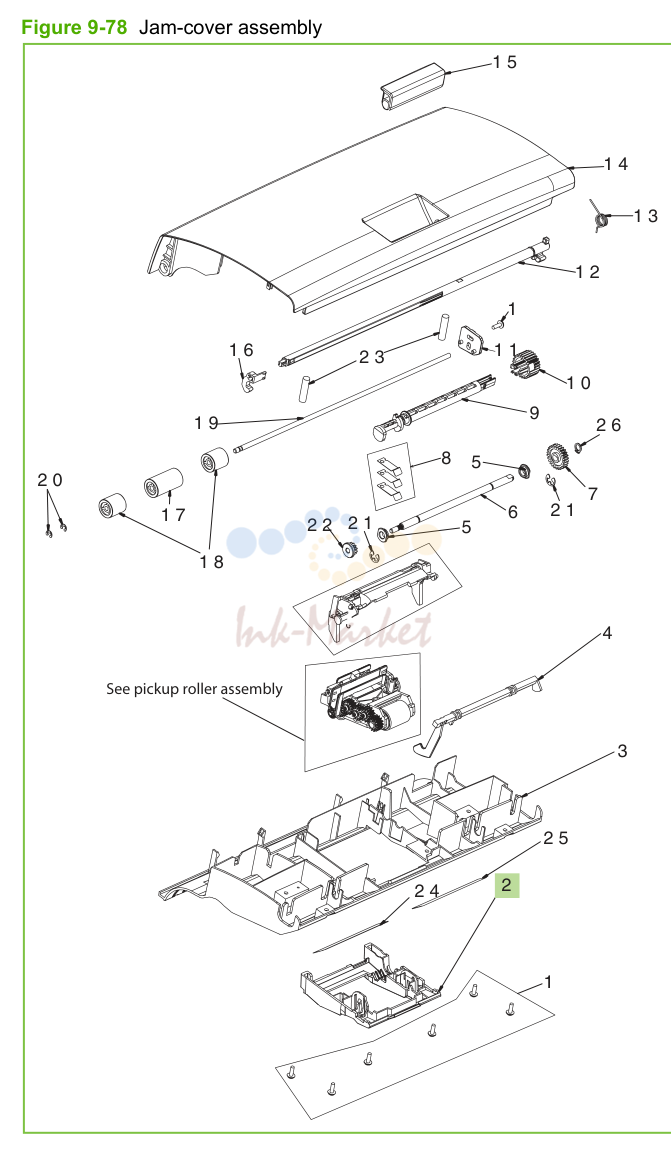

- 27. Figure 9-78 Jam-cover assembly

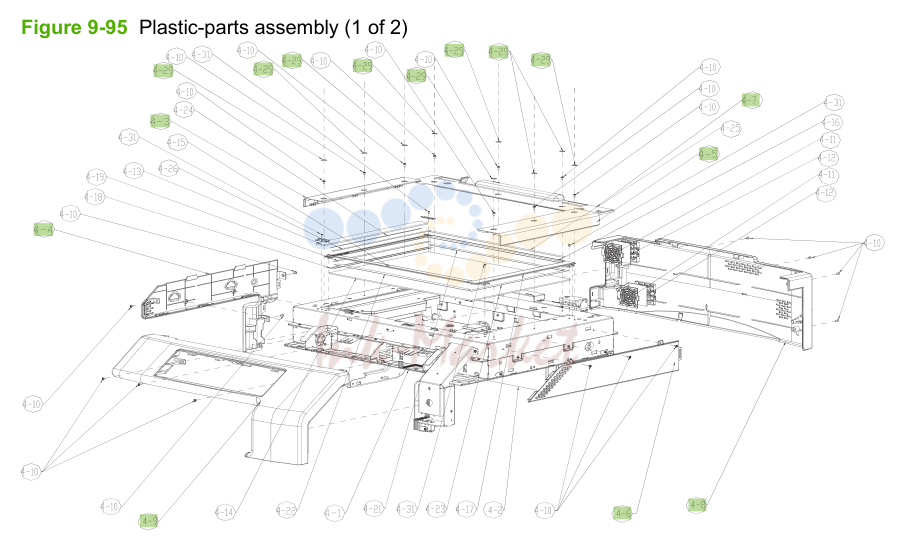

- 28. Figure 9-95 Plastic-parts assembly (1 of 2)

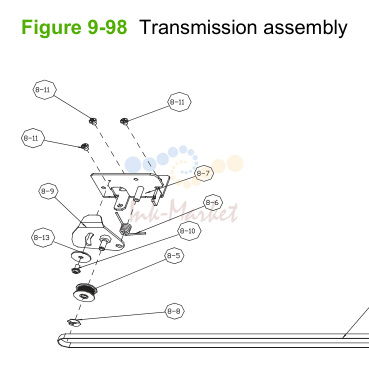

- 29. Figure 9-98 Transmission assembly

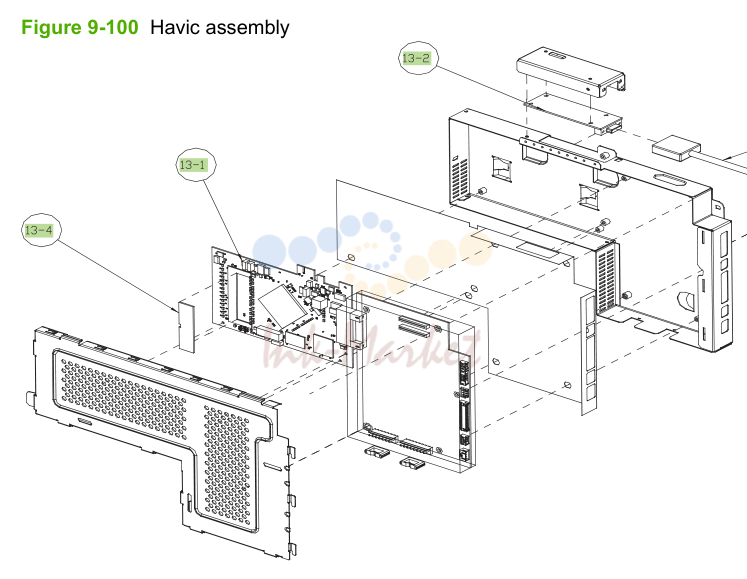

- 30. Figure 9-100 Havic assembly

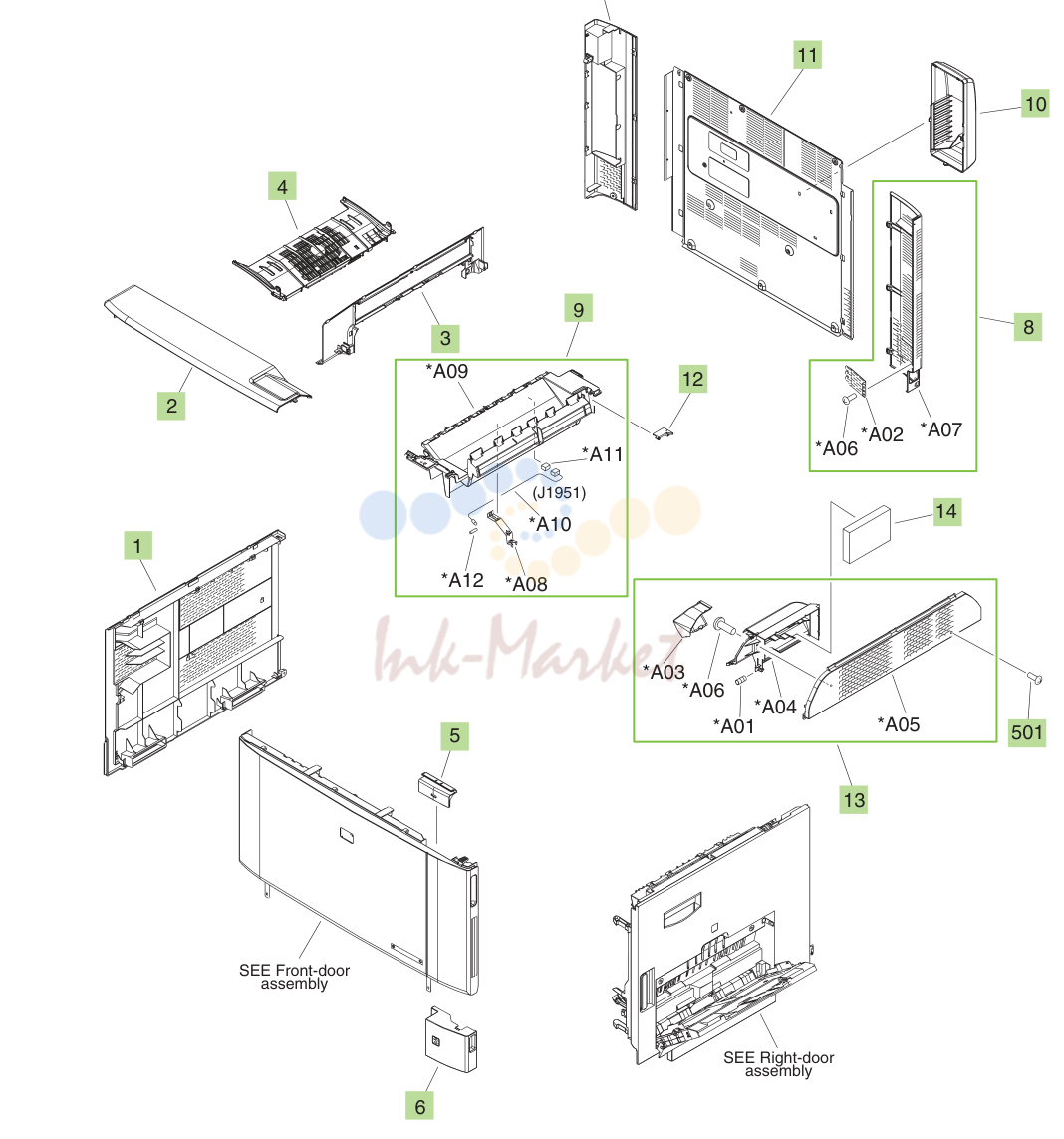

1. Printer
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Cover, left RC1-9336-000CN | ||
| 2 | Cover, front, upper RC1-9350-000CN | ||
| 3 | Cover, paper-delivery RC1-9351-000CN | ||
| 4 | Duplexing-tray lower assembly RC1-5949-000CN | ||
| 5 | Front internal small-cover assembly RC1-5953-000CN | ||
| 6 | Right-lower cover assembly RL1-1280-000CN | ||
| 7 | Cover, rear-left RC1-9344-000CN | ||
| 8 | Rear-right cover assembly RM1-4415-000CN | ||
| 9 | Face-down end-tray assembly RM1-3340-000CN | ||
| 10 | Fixing-fan cover assembly RM1-5950-000CN | ||
| 11 | Cover, rear RL1-1210-000CN | ||
| 12 | Cover, face-down drive RC1-9360-000CN | ||
| 13 | Switchback-cover assembly RM1-4408-000CN | ||
| 14 | Filter unit, air RC1-9313-000CN | ||
| 501 | Screw, tapping, truss-head, M4X10 XB4-7401-005CN |

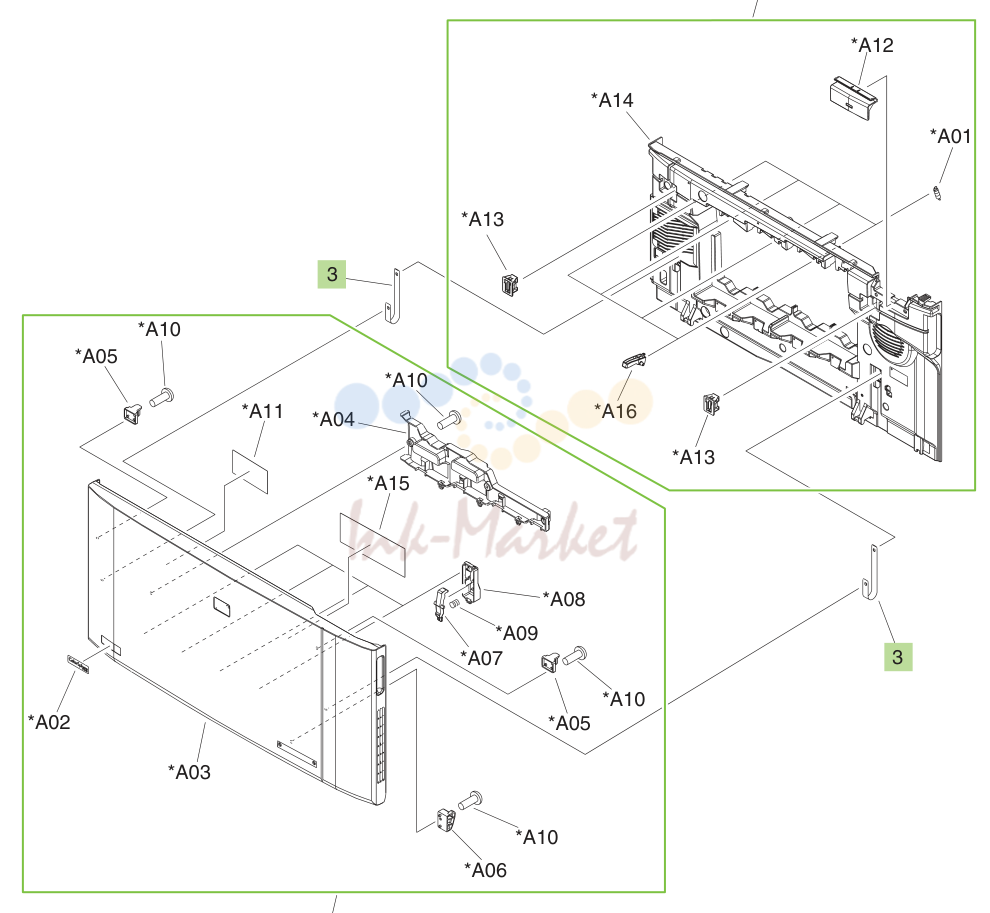

2. Figure 9-2 Printer front-door assembly
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Front-cover assembly RM1-3357-000CN | ||
| 2 | Front internal-cover assembly RM1-4404-000CN | ||
| 3 | Band, door RC1-9043-000CN |

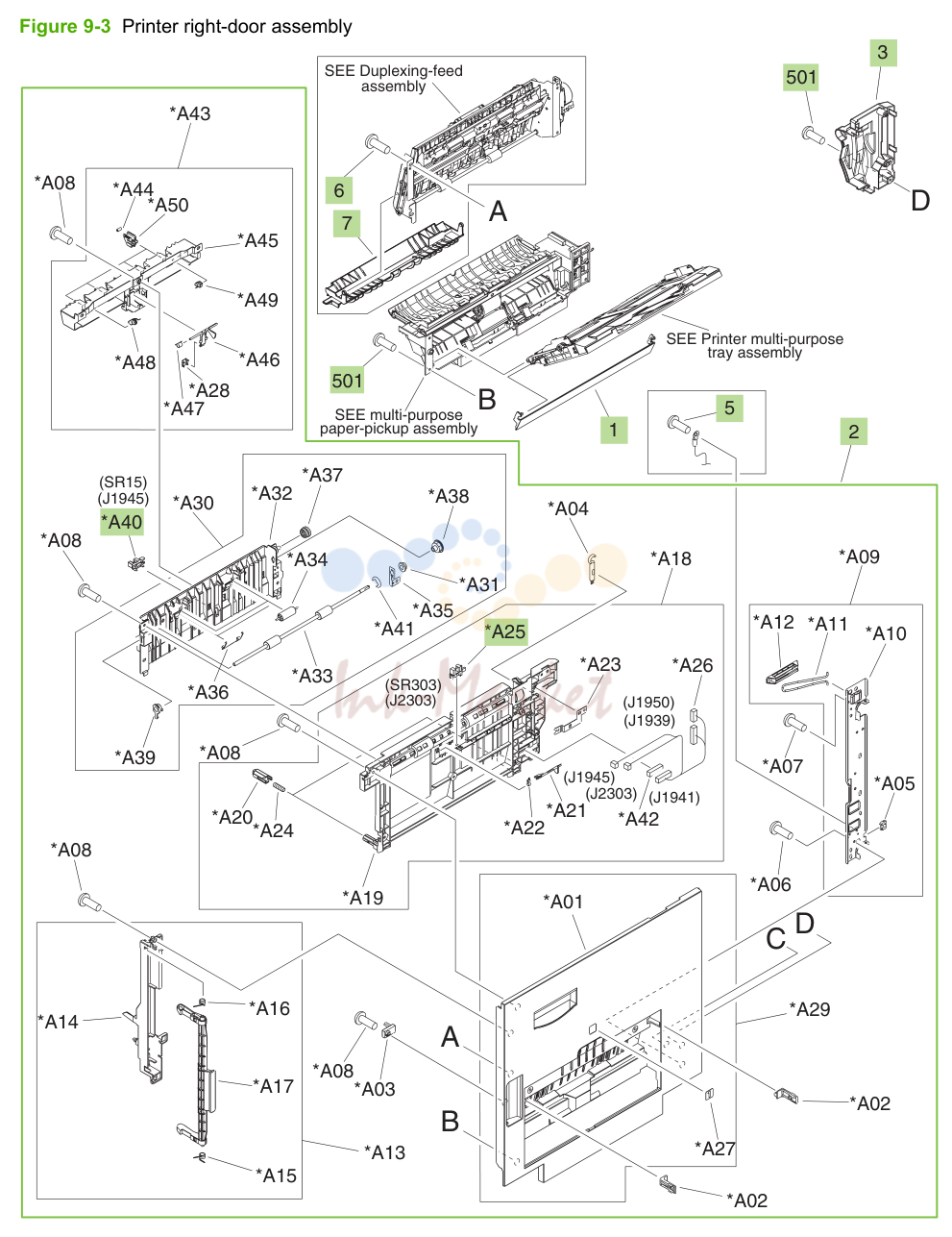

3. Figure 9-3 Printer right-door assembly
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Cover, multi-purpose blanking RC1-8527-000CN | ||
| 2 | Right-door sub-assembly RM1-3333-000CN | ||
| 3 | Cover, motor RC1-9511-000CN | ||
| 5 | Screw, RS, M3X6 XA9-1495-000CN | ||
| 6 | Screw, with washer, M4X12 XA9-1422-000CN | ||
| 7 | Guide, duplexing-feed, upper RL1-1335-000CN | ||
| 501 | Screw, tapping, truss-head, M4X10 XB4-7401-005CN |

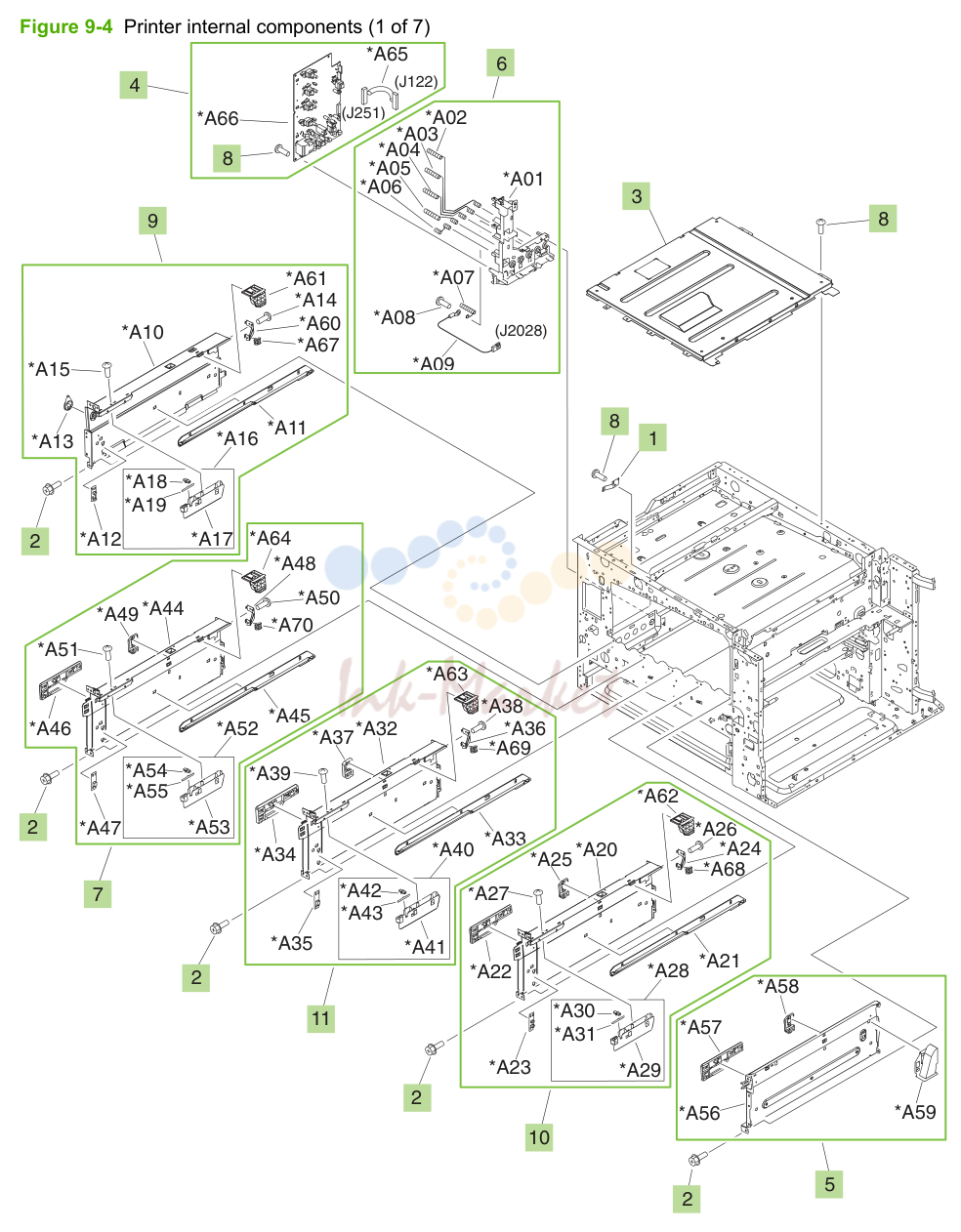

4. Figure 9-4 Printer internal components (1 of 7)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Spring, leaf RC1-9233-000CN | ||
| 2 | Screw, RS, M3x8 XA9-1504-000CN | ||
| 3 | Top-cover assembly RL1-1284-000CN | ||
| 4 | High-voltage transfer B PCA assembly RM1-5475-000CN | ||
| 5 | Right-side wall assembly RM1-3239-000CN | ||
| 6 | Transfer contact-holder assembly RM1-3230-000CN | ||
| 7 | Partition-plate assembly, cyan RM1-3238-000CN | ||
| 8 | Screw, RS, M3x6 XA9-1495-000CN | ||
| 9 | Left-side wall assembly RM1-3233-000CN | ||
| 10 | Partition-plate assembly, yellow RM1-3235-000CN | ||
| 11 | Partition-plate assembly, magenta RM1-3237-000CN |

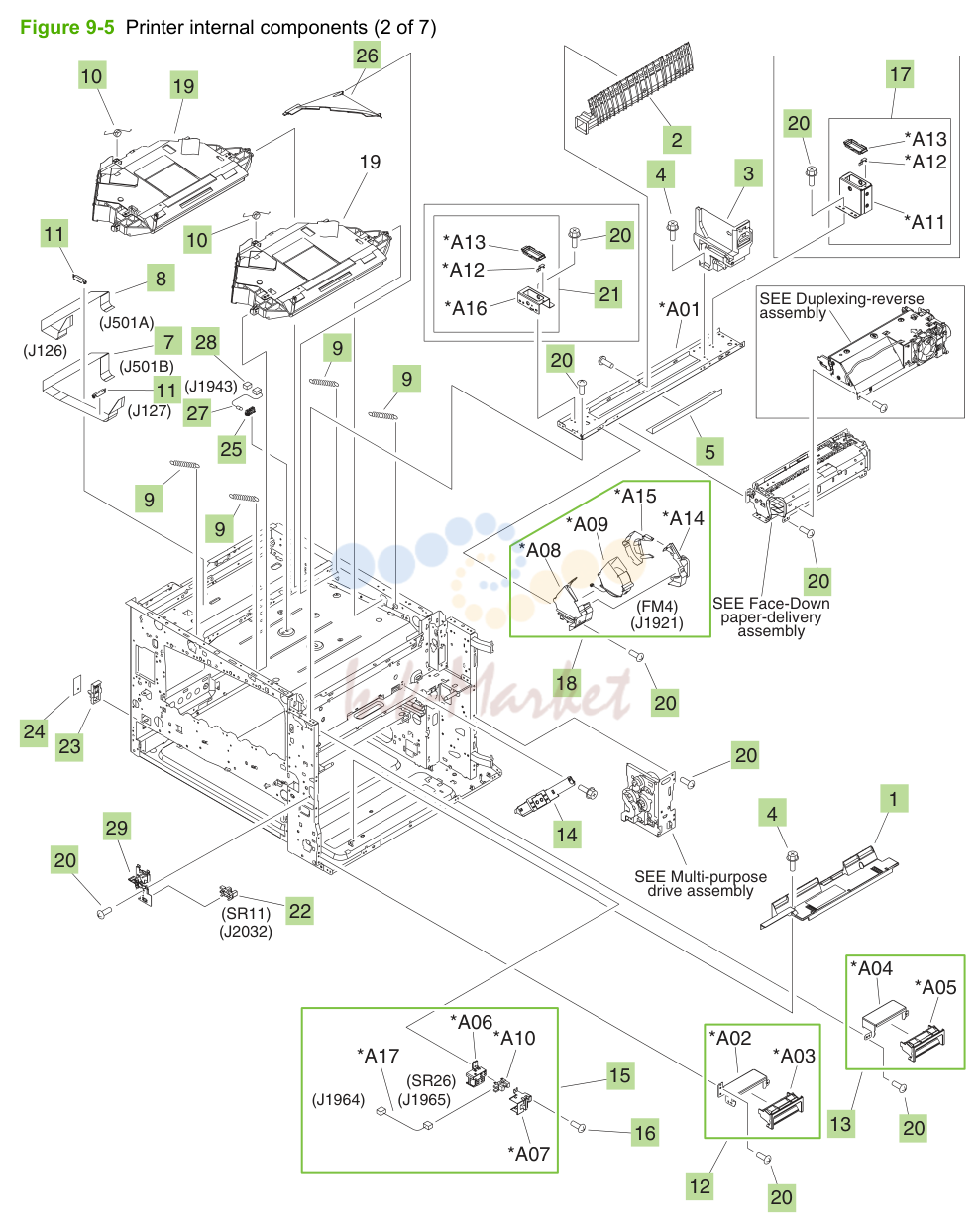

5. Figure 9-5 Printer internal components (2 of 7)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Guide, multi-purpose, right RL1-1283-000CN | ||
| 2 | Guide, face-down inner RC1-8959-000CN | ||
| 3 | Rail, reverse, rear RC1-9206-000CN | ||
| 4 | Screw, RS, M3x8 XA9-1504-000CN | ||
| 5 | Sheet, fixing-crossmember RC1-9232-000CN | ||
| 7 | Cable, laser flexible flat RK2-1354-000CN | ||
| 8 | Cable, laser flexible flat RK2-1355-000CN | ||
| 9 | Spring, tension RU5-2822-000CN | ||
| 10 | Spring, torsion RU5-2825-000CN | ||
| 11 | Clamp, FFC WT2-5912-000CN | ||
| 12 | Grip-support front assembly RM1-3225-000CN | ||
| 13 | Grip-support rear assembly RM1-3226-000CN | ||
| 14 | Thermopile case assembly RM1-3232-000CN | ||
| 15 | Photosensor assembly RM1-3250-000CN | ||
| 16 | Screw, RS, M3x8 XA9-1449-000CN | ||
| 17 | Reader rear-guide assembly RM1-4399-000CN | ||
| 18 | Fan assembly RM1-3364-000CN | ||
| 19 | Scanner assembly kit with 1 scanner assembly and service Q3931-67907 | ||
| 20 | Screw, RS, M3x6 XA9-1495-000CN | ||
| 21 | Reader front-guide assembly RM1-4398-000CN | ||
| 22 | Photo interrupter, TLP1243 WG8-5696-000CN | ||
| 23 | Holder, environment-sensor RC1-9324-000CN | ||
| 24 | Sensor unit, humidity RK2-2376-000CN | ||
| 25 | Holder, scanner-thermistor RC1-9260-000CN | ||
| 26 | Duct, scanner RC1-9334-000CN | ||
| 27 | Thermistor unit RK2-1363-000CN | ||
| 28 | Connector, snap-tight VS1-7177-002CN | ||
| 29 | Interlock-switch assembly RM1-3589-000CN |

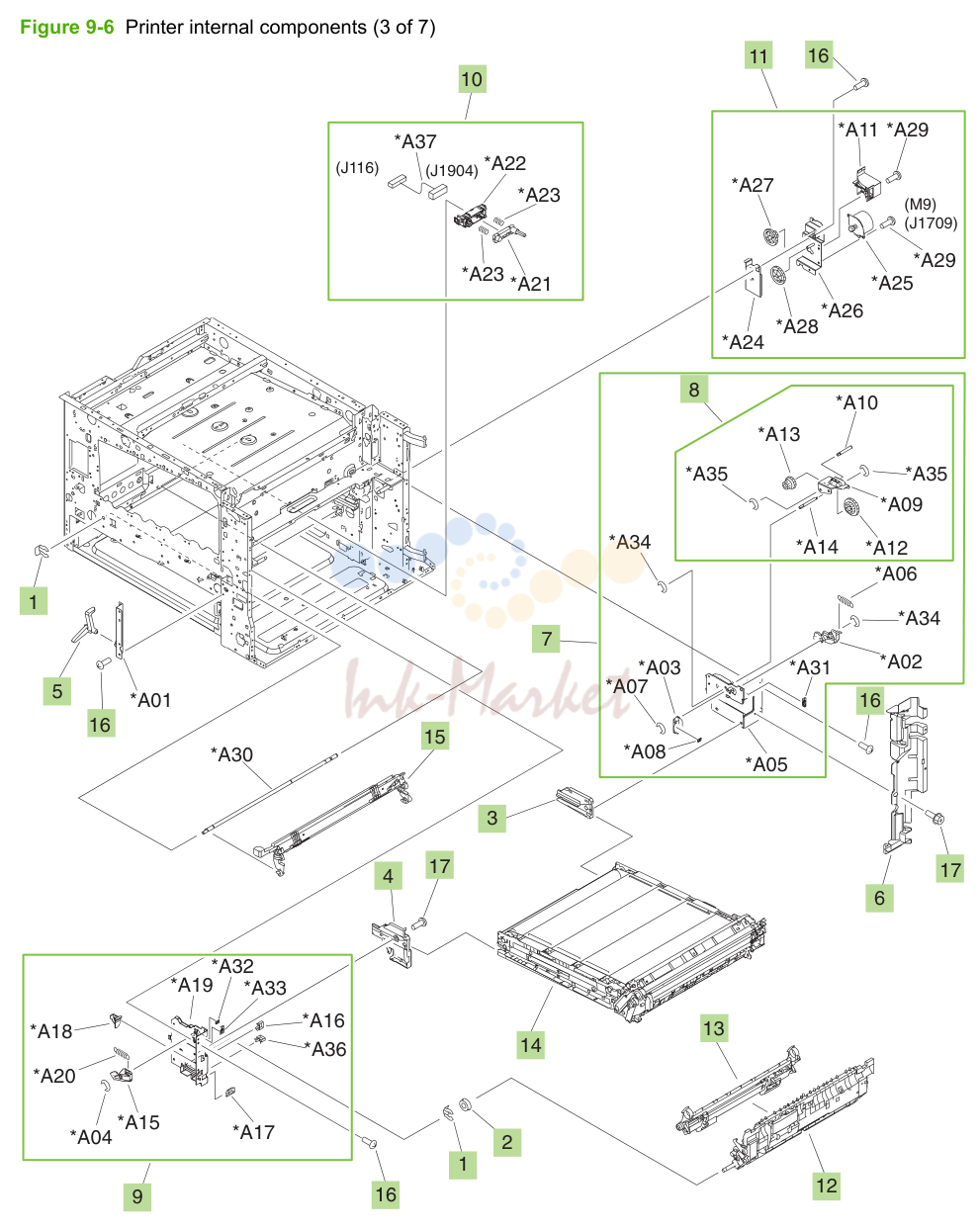

6. Figure 9-6 Printer internal components (3 of 7)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Retainer RC1-8511-000CN | ||
| 2 | Bushing RC1-8734-000CN | ||
| 3 | Guide, intermediate transfer belt (ITB)-entrance, rear RC1-9186-000CN | ||
| 4 | Guide, intermediate transfer belt (ITB)-entrance, front RC1-9185-000CN | ||
| 5 | Arm, 1st-estrangement RC1-9189-000CN | ||
| 6 | Cover, internal, right RC1-9348-000CN | ||
| 7 | Intermediate transfer belt (ITB) lock-support rear assembly RM1-3215-000CN | ||
| 9 | Intermediate transfer belt (ITB) lock-support front assembly RM1-3228-000CN | ||
| 10 | Intermediate transfer belt (ITB)-drawer assembly RM1-3240-000CN | ||
| 11 | Intermediate transfer belt (ITB) estrangement-drive assembly RM1-3280-000CN | ||
| 12 | Registration 2nd-transfer assembly kit with service document Q3931-67909 | ||
| 13 | 2nd-transfer-roller запросить цену → | assembly kit Q3931-67910 | |
| 14 | Intermediate transfer belt (ITB) assembly kit Q3931-67908 | ||
| 15 | Color-plane-registration (CPR) sensor assembly RM1-3258-000CN | ||
| 16 | Screw, RS, M3x6 XA9-1495-000CN | ||
| 17 | Screw, RS, M3x8 XA9-1504-000CN |

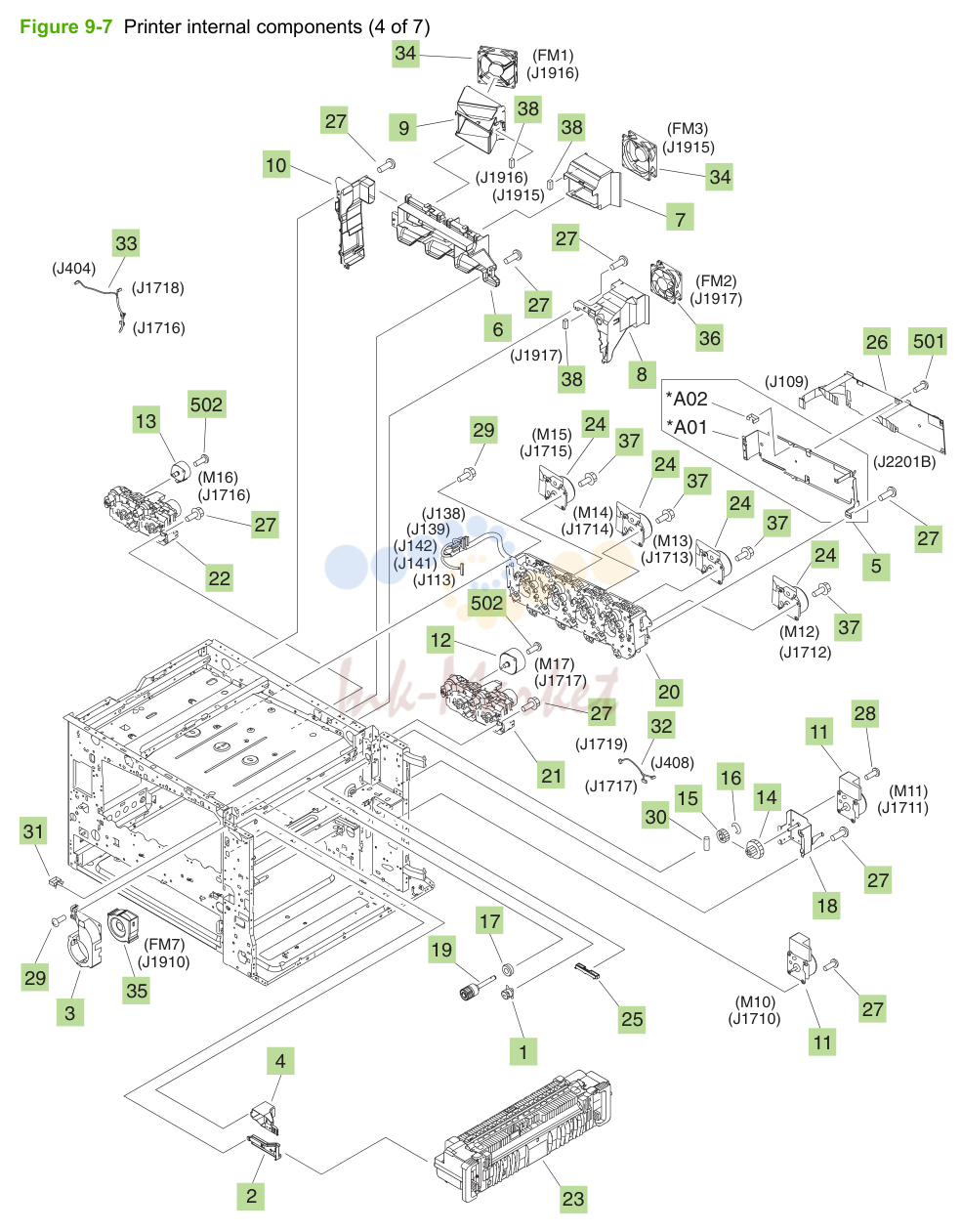

7. Figure 9-7 Printer internal components (4 of 7)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Damper, gear RC1-8925-000CN | ||
| 2 | Rail, fixing, front RC1-8931-000CN | ||
| 3 | Duct, air RC1-8961-000CN | ||
| 4 | Duct, face-down joint RC1-8964-000CN | ||
| 5 | Tag PCA-holder assembly RM1-4402-000CN | ||
| 6 | Duct, cartridge RC1-9276-000CN | ||
| 7 | Holder, cartridge-fan RC1-9277-000CN | ||
| 8 | Holder, fixing-fan RC1-9278-000CN | ||
| 9 | Holder, scanner-fan RC1-9279-000CN | ||
| 10 | Duct, scanner-fan RC1-9309-000CN | ||
| 11 | DC motor assembly RM1-4519-000CN | ||
| 12 | Motor, stepping, DC RK2-1366-000CN | ||
| 13 | Motor, stepping, DC RK2-1370-000CN | ||
| 14 | Gear, 83T/25T RU5-0790-000CN | ||
| 15 | Gear, 34T RU5-0791-000CN | ||
| 16 | Ring, E XD9-0234-000CN | ||
| 17 | Bearing, ball XG9-0586-000CN | ||
| 18 | Plate, fixing-motor RL1-1216-000CN | ||
| 19 | Fixing one-way gear assembly RM1-3247-000CN | ||
| 20 | Main drive-unit kit Q3931-67911 | ||
| 21 | Toner-cartridge drive-assembly kit with service document Q3931-67912 | ||
| 22 | Toner-cartridge drive-assembly kit with service document Q3931-67913 | ||
| 23 | Fixing assembly kit, 110-127V, with air filter (air filter is Ref 14 in Q3931-67914 | ||
| 23 | Fixing assembly kit, 220-240V, with air filter (air filter is Ref 14 in Q3931-67915 | ||
| 24 | Drum-motor assembly RM1-3286-000CN | ||
| 25 | Rail, fixing, rear RC1-8939-000CN | ||
| 26 | Memory-tag PCA assembly RM1-3585-000CN | ||
| 27 | Screw, RS, M3x6 XA9-1495-000CN | ||
| 28 | Screw, RS, M3x6 XA9-1495-000CN | ||
| 29 | Screw, RS, M3x8 XA9-1504-000CN | ||
| 30 | Pin, dowel XD9-0240-000CN | ||
| 31 | Saddle, wire WT2-5694-000CN | ||
| 32 | Toner-motor cable RM1-3383-000CN | ||
| 33 | Toner-motor cable RM1-3385-000CN | ||
| 34 | Fan RK2-1377-000CN | ||
| 35 | Fan RK2-1382-000CN | ||
| 36 | Fan RK2-1378-000CN | ||
| 37 | Screw, TP, M3x6 XA9-1159-000CN | ||
| 38 | Connector, snap-tight VS1-7177-003CN | ||
| 501 | Screw, with washer, M3x6 XB2-8300-607CN | ||
| 502 | Screw, machined, truss-head, M3x4 XB1-2300-407CN | ||
| 886 | Chapter 9 Parts and diagrams ENWW |

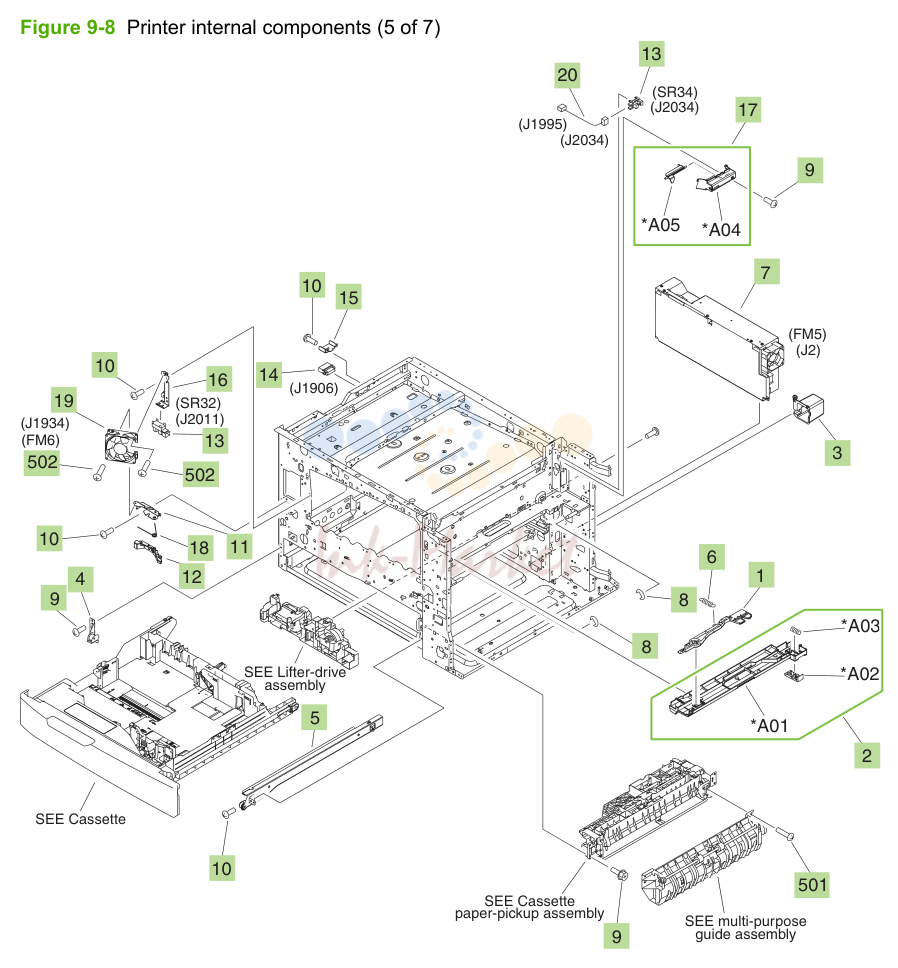

8. Figure 9-8 Printer internal components (5 of 7)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Lever, paper-sensing RC1-8928-000CN | ||
| 2 | Intermediate transfer belt (ITB) duct assembly RM1-4401-000CN | ||
| 3 | Cover, cassette back-end RC1-9201-000CN | ||
| 4 | Rail, left, top RL1-1213-000CN | ||
| 5 | Rail, cassette, right RL1-1215-000CN | ||
| 6 | Spring, tension RU5-2796-000CN | ||
| 7 | Low-voltage power-supply assembly RM1-3594-000CN | ||
| 8 | Ring, E XD9-0234-000CN | ||
| 9 | Screw, RS, M3x8 XA9-1504-000CN | ||
| 10 | Screw, RS, M3x6 XA9-1495-000CN | ||
| 11 | Plate, fan-fixing, front RC1-9190-000CN | ||
| 12 | Lever, door-interlock shutter RC1-9220-000CN | ||
| 13 | Photo interrupter, TLP1243 WG8-5696-000CN | ||
| 14 | Connector, drawer VS1-7258-000CN | ||
| 15 | Plate, drawer-guard RC1-9235-000CN | ||
| 16 | Plate, sensor, front RC1-9246-000CN | ||
| 17 | Guide-sensor assembly RM1-4400-000CN | ||
| 18 | Spring, torsion RC1-9244-000CN | ||
| 19 | Fan RK2-1378-000CN | ||
| 20 | Cable, fixing open-sensor RM1-5029-000CN | ||
| 501 | Screw, tapping, truss-head, M4x10 XB4-7401-005CN | ||
| 502 | Screw, TP, M3x30 XB6-7303-005CN |

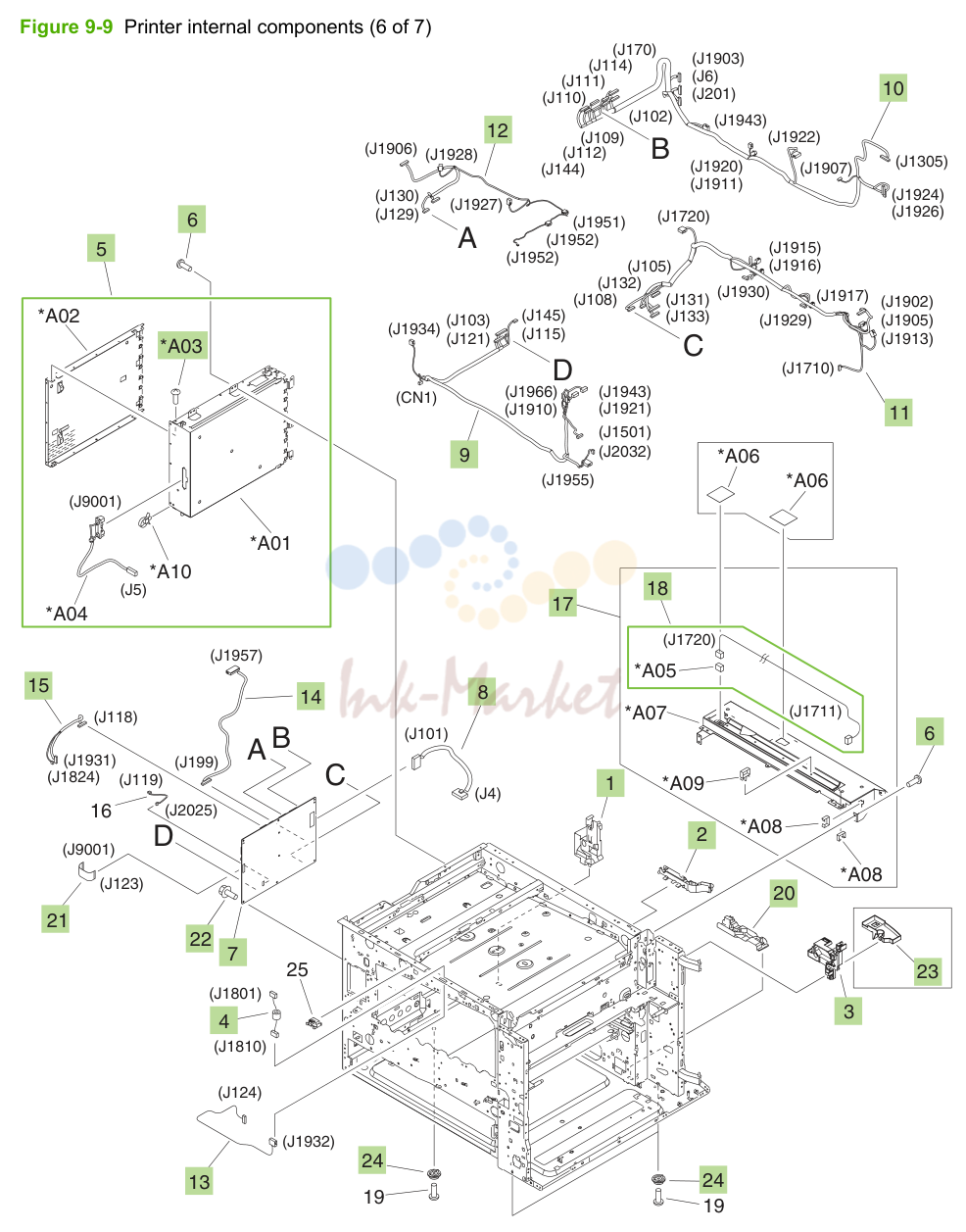

9. Figure 9-9 Printer internal components (6 of 7)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Guide, cable, C RC1-9308-000CN | ||
| 2 | Guide, cable, D RC1-9312-000CN | ||
| 3 | Guide, cable, E RC1-9318-000CN | ||
| 4 | Panel cable RM1-3389-000CN | ||
| 5 | Formatter-case assembly RM1-3253-000CN | ||
| 6 | Screw, RS, M3x6 XA9-1495-000CN | ||
| 7 | DC-controller PCA assembly RM1-6642-000CN | ||
| 8 | DC-controller power cable RM1-3610-000CN | ||
| 9 | Front cable RM1-3617-000CN | ||
| 10 | Rear-lower cable RM1-3618-000CN | ||
| 11 | Rear-upper cable RM1-3619-000CN | ||
| 12 | Scanner-joint cable RM1-3620-000CN | ||
| 13 | Panel-joint cable RM1-3622-000CN | ||
| 14 | Interface-joint cable RM1-3623-000CN | ||
| 15 | Color-plane-registration (CPR)-joint cable RM1-3624-000CN | ||
| 16 | Waste-toner-sensor cable RM1-3640-000CN | ||
| 17 | Rear-cover-mount plate assembly RM1-3354-000CN | ||
| 18 | Fixing-motor cable RM1-3217-000CN | ||
| 20 | Guide, cable, B RC1-9307-000CN | ||
| 21 | Cable, flexible flat RK2-1356-000CN | ||
| 22 | Screw, RS, M3x8 XA9-1449-000CN | ||
| 23 | Tray, screw RC1-9256-000CN | ||
| 24 | Foot, rubber RC1-9208-000CN |

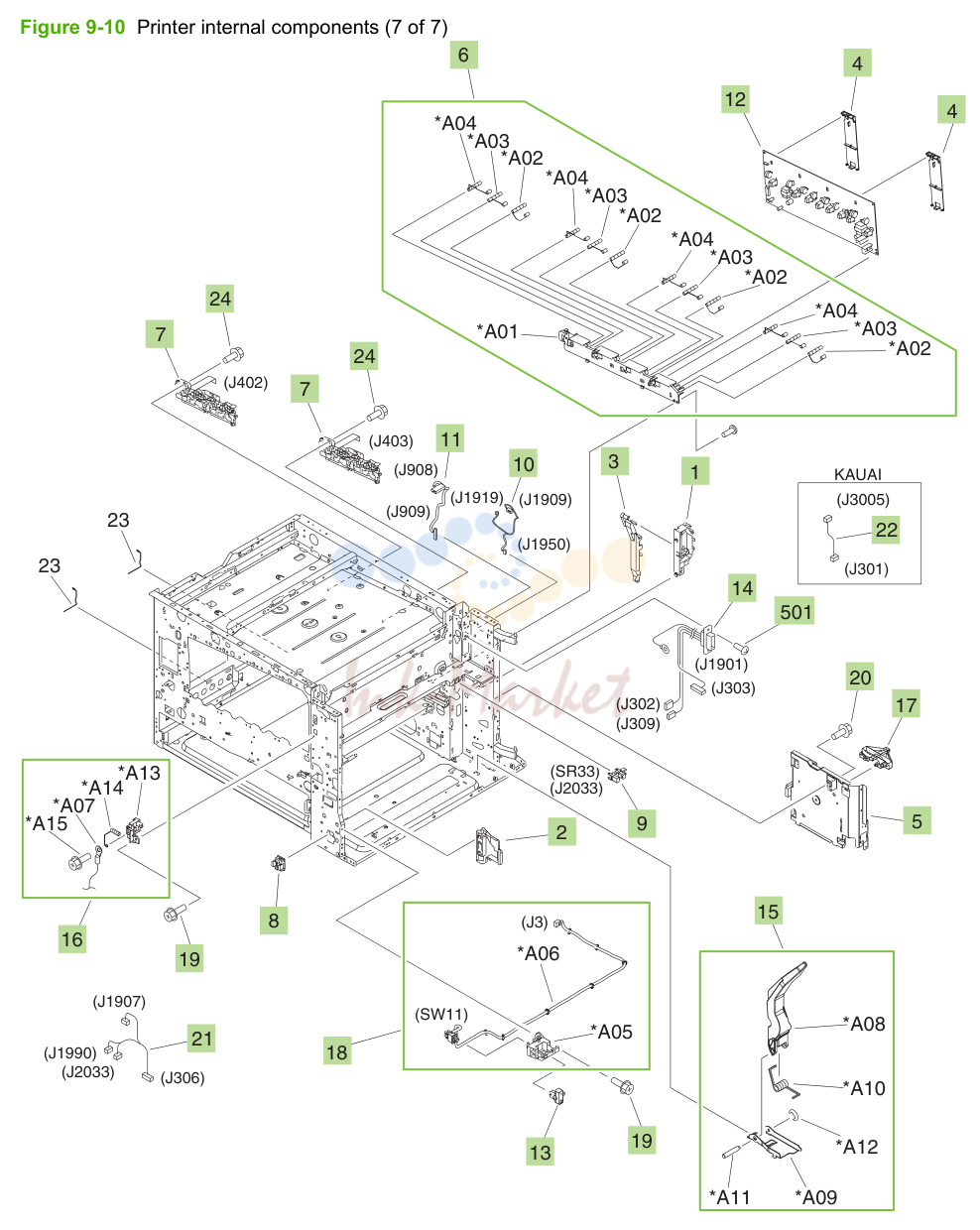

10. Figure 9-10 Printer internal components (7 of 7)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Guide, cable, A RC1-9306-000CN | ||
| 2 | Cover, main-switch RC1-9211-000CN | ||
| 3 | Guide, cable, F RC1-9323-000CN | ||
| 4 | Plate, high-voltage transmission (HVT-A) guard RC1-9326-000CN | ||
| 5 | Fixing power-supply assembly RM1-3218-000CN | ||
| 6 | Cartridge contact-holder assembly RM1-3254-000CN | ||
| 7 | Cartridge-interface assembly kit with service document Q3931-67917 | ||
| 8 | Holder, high-voltage-connector RC1-9328-000CN | ||
| 9 | Photo interrupter, TLP1243 WG8-5696-000CN | ||
| 10 | Face-down unit-1 cable RM1-3390-000CN | ||
| 11 | Face-down unit-2 cable RM1-3391-000CN | ||
| 12 | High-voltage-transfer A PCA assembly RM1-3582-000CN | ||
| 13 | Button, main-switch RC1-9300-000CN | ||
| 14 | Fixing-joint cable RM1-3612-000CN | ||
| 15 | T2 guide-arm assembly RM1-4411-000CN | ||
| 16 | Fixing-bias cable assembly RM1-4409-000CN | ||
| 17 | Guide, fixing-cable RC1-9332-000CN | ||
| 18 | Main switch-holder assembly RM1-3252-000CN | ||
| 19 | Screw, RS, M3x8 XA9-1504-000CN | ||
| 20 | Screw, RS, M3x6 XA9-1495-000CN | ||
| 21 | Cable TP/T2 open-sensor RM1-5030-000CN | ||
| 22 | Cable, MFP AC RM1-3599-000CN | ||
| 24 | Screw, RS, M13x12 XA9-1801-000CN | ||
| 501 | Screw, machined, truss-head, M4x8 XB1-2400-805CN |
11. Figure 9-11 Printer multi-purpose-drive assembly
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 2 | Guide, multi-purpose, upper RC1-8526-000CN | ||
| 3 | Retainer RC1-8511-000CN | ||
| 5 | Limiter, torque RC1-8519-000CN |
12. Figure 9-16 Printer multi-purpose-tray assembly
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Fixing power-supply assembly RM1-3218-000CN | ||
| 2 | DC controller PCA assembly RM1-6642-000CN | ||
| 3 | High-voltage-transfer A PCA assembly RM1-3582-000CN | ||
| 4 | High-voltage-transfer B PCA assembly RM1-5475-000CN | ||
| 5 | Memory-tag PCA assembly RM1-3585-000CN | ||
| 6 | Low-voltage power-supply assembly RM1-3594-000CN |
13. Input-accessory devices
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 37 | SEE Paper-pickup | ||
| 25 | assembly | ||
| 918 | Chapter 9 Parts and diagrams ENWW | ||
| 1 | Cover, rear RC1-9871-000CN | ||
| 2 | Cover, left RC1-9872-000CN | ||
| 3 | Cover, front-upper RC1-9873-000CN | ||
| 4 | Cover, right-lower RC1-9874-000CN | ||
| 5 | Guide, paper-feed roller RC1-9881-000CN | ||
| 6 | Stopper, right-door RC1-9882-000CN | ||
| 7 | Lever, lock RC1-9883-000CN | ||
| 8 | Tape, door RC1-9884-000CN | ||
| 9 | Motor, stepping, DC RK2-1331-000CN | ||
| 10 | Cover, right-front RL1-1322-000CN | ||
| 11 | Screw, stepped RS5-9099-000CN | ||
| 12 | Connector, drawer VS1-7257-012CN | ||
| 13 | Support, PCA VT2-0001-008CN | ||
| 14 | Saddle, wire WT2-5694-000CN | ||
| 15 | Clamp, cable WT2-5738-000CN | ||
| 16 | Screw, RS, M4x8 XA9-1448-000CN | ||
| 14 | Screw, TP, M3x6 XA9-1469-000CN | ||
| 15 | Right-door assembly RM1-3538-000CN | ||
| 19 | Paper-feed PCA assembly RM1-3569-000CN | ||
| 20 | Cable, pickup-option drawer RM1-3571-000CN | ||
| 21 | Cable, pickup-option door switch RM1-3572-000CN | ||
| 22 | Cable, option-sensor PCA connect RM1-3574-000CN | ||
| 23 | Cable, paper-pickup option RM1-3575-000CN | ||
| 24 | Stock-box assembly RM1-3539-000CN | ||
| 25 | Roller, rail RC1-9231-000CN | ||
| 26 | Caster, double-lock, front RC1-9896-000CN | ||
| 27 | Support, lock-shaft RC1-9900-000CN | ||
| 28 | Plate, switch-cover RC1-9901-000CN | ||
| 29 | Shaft, lock RC1-9912-000CN | ||
| 30 | Arm, lock RC1-9913-000CN | ||
| 31 | Bushing RC1-9915-000CN | ||
| 32 | Caster, rear RC1-9917-000CN | ||
| 33 | Rail, cassette, right RL1-1310-000CN | ||
| 34 | Rail, cassette, left RL1-1311-000CN | ||
| 35 | Switch, button WC2-5512-000CN | ||
| 36 | Screw, with washer, M5x12 XA9-0912-000CN | ||
| 37 | Screw, RS, M4x8 XA9-1448-000CN | ||
| 38 | Door, stock RC1-9921-000CN | ||
| 501 | Screw, with washer, M3x6 XB2-8300-607CN | ||
| 502 | Screw, tapping, pan-head, M4x10 XB4-7401-006CN | ||
| 920 | Chapter 9 Parts and diagrams ENWW |
14. Figure 9-24 Input-tray main body (3x500-sheet)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Cover, rear RC1-9871-000CN | ||
| 2 | Cover, left RC1-9872-000CN | ||
| 3 | Cover, front-upper RC1-9873-000CN | ||
| 4 | Cover, right-lower RC1-9874-000CN | ||
| 5 | Guide, paper-feed roller RC1-9881-000CN | ||
| 6 | Stopper, right-door RC1-9882-000CN | ||
| 7 | Lever, lock RC1-9883-000CN | ||
| 8 | Tape, door RC1-9884-000CN | ||
| 9 | Motor, stepping, DC RK2-1331-000CN | ||
| 10 | Cover, right-front RL1-1321-000CN | ||
| 11 | Screw, stepped RS5-9099-000CN | ||
| 12 | Connector, drawer VS1-7257-012CN | ||
| 13 | Support, PCA VT2-001-008CN | ||
| 14 | Saddle, wire WT2-5694-000CN | ||
| 15 | Clamp, cable WT2-5738-000CN | ||
| 16 | Screw, RS, M4x8 XA9-1448-000CN | ||
| 17 | Screw, TP, M3x6 XA9-1469-000CN | ||
| 18 | Right-door assembly RM1-3537-000CN | ||
| 19 | Paper-feed PCA assembly RM1-3569-000CN | ||
| 20 | Cable, paper-pickup-option drawer RM1-3571-000CN | ||
| 21 | Cable, pickup-option door switch RM1-3572-000CN | ||
| 22 | Cable, option-sensor PCA connect RM1-3574-000CN | ||
| 23 | Cable, paper-pickup option RM1-3575-000CN | ||
| 24 | Cable, pickup-option PCA connect RM1-3573-000CN | ||
| 25 | Roller, rail RC1-9231-000CN | ||
| 26 | Caster, double-lock, front RC1-9896-000CN | ||
| 27 | Support, lock-shaft RC1-9900-000CN | ||
| 28 | Plate, switch-cover RC1-9901-000CN | ||
| 29 | Shaft, lock RC1-9912-000CN | ||
| 30 | Arm, lock RC1-9913-000CN | ||
| 31 | Bushing RC1-9915-000CN | ||
| 32 | Caster, rear RC1-9917-000CN | ||
| 33 | Rail, cassette, right RL1-1310-000CN | ||
| 34 | Rail, cassette, left RL1-1311-000CN | ||
| 35 | Switch, button WC2-5512-000CN | ||
| 36 | Screw, with washer, M5x12 XA9-0912-000CN | ||
| 37 | Screw, RS, M4x8 XA9-1448-000CN | ||
| 501 | Screw, with washer, M3x6 XB2-8300-607CN | ||
| 924 | Chapter 9 Parts and diagrams ENWW |
15. Figure 9-25 Input-tray auto-close assembly
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 12 | Roller, paper-pickup RL1-1289-000CN | ||
| 29 | Paper feed-roller assembly RM1-0037-020CN | ||
| 31 | Option paper-sensor PCA assembly RM1-3570-000CN |
16. Figure 9-28 Input-tray PCA assembly
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 4 | assembly | ||
| 503 | 5 SEE left-assist | ||
| 934 | Chapter 9 Parts and diagrams ENWW | ||
| 1 | Intermediate paper-transfer unit (IPTU)-driver PCA assembly RM1-3559-000CN | ||
| 2 | Motor, stepping, DC RK2-1320-000CN | ||
| 3 | Flange, pulley RC1-9620-000CN | ||
| 4 | Cable, drawer RM1-3561-000CN | ||
| 5 | Cover, assist, right RC1-9706-000CN | ||
| 6 | Plate, assist-arm cap RC1-9695-000CN | ||
| 7 | Cover, rear-upper RC1-9703-000CN | ||
| 8 | Belt, paper-feed, cogged RC1-9674-000CN | ||
| 9 | Pulley/gear, 22T RU5-0868-000CN | ||
| 10 | Screw, M4x14 XA9-1292-000CN | ||
| 11 | Cable, drawer RM1-3560-000CN | ||
| 12 | Screw, RS M3x8 XA9-1500-000CN | ||
| 13 | Side-cover assembly RM1-3683-000CN | ||
| 14 | Drive-belt assembly RM1-3684-000CN | ||
| 15 | Fin-lock assembly RM1-3685-000CN | ||
| 16 | Arm, auxiliary RL1-1272-000CN | ||
| 17 | Screw, B, M4x8 XA9-1277-000CN | ||
| 18 | Cable, motor RM1-3563-000CN | ||
| 19 | Cable, motor RM1-3564-000CN | ||
| 20 | Guide, cable, 2 RC1-9688-000CN | ||
| 21 | Bushing RC1-4585-000CN | ||
| 22 | Fan assembly RM1-4394-000CN | ||
| 23 | Sheet, blanking RC1-9687-000CN | ||
| 24 | Cover, assist, left RC1-9705-000CN | ||
| 501 | Screw, machined, truss-head, M3x4 XB1-2300-407CN | ||
| 502 | Screw, with washer, M3x6 XB2-8300-607CN |
17. Figure 9-30 Intermediate-feed lower-guide assembly
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Flag, paper-sensing sensor FC5-5004-000CN | ||
| 2 | Spring, torsion FC5-5005-000CN | ||
| 4 | Cover, rear RC2-1278-000CN | ||
| 5 | Cover, tray-connector RC2-1279-000CN | ||
| 6 | Paper-face sensor assembly 4G3-0934-000CN | ||
| 7 | Paper-face sensing assembly 4G3-1624-000CN | ||
| 9 | Top-door (upper-cover) assembly RM1-4121-000CN | ||
| 10 | Front-door assembly RM1-4134-000CN | ||
| 11 | Lower height-guide assembly RM1-4135-000CN | ||
| 12 | Left upper-cover assembly RM1-4179-000CN | ||
| 14 | Panel, height, upper RC2-1283-000CN | ||
| 16 | Cover, option-slide RC2-1347-000CN | ||
| 18 | Flag, paper-face sensing, upper FC5-4162-000CN | ||
| 21 | Cover, front-lower RL1-1717-000CN | ||
| 22 | Cover, rear-lower RL1-1718-000CN | ||
| 23 | LED-PCA assembly RM1-4141-000CN |
18. Figure 9-38 External panels and covers (booklet-maker)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Flag, paper-sensing sensor FC5-5004-000CN | ||
| 2 | Spring, torsion FC5-5005-000CN | ||
| 4 | Cover, rear RC2-1278-000CN | ||
| 5 | Cover, tray-connector RC2-1279-000CN | ||
| 7 | Paper-face sensor assembly 4G3-0934-000CN | ||
| 8 | Paper-face sensing assembly 4G3-1624-000CN | ||
| 9 | Top-door (upper-cover) assembly RM1-4121-000CN | ||
| 10 | Front-door assembly RM1-4122-000CN | ||
| 11 | Middle-height cover assembly RM1-4119-000CN | ||
| 12 | Left-upper cover assembly RM1-4129-000CN | ||
| 14 | Cover, left-lower RC2-1280-000CN | ||
| 18 | Panel, height, upper RC2-1283-000CN | ||
| 19 | Guide, side-wall RC2-1284-000CN | ||
| 22 | Cover, front-lower RL1-1717-000CN | ||
| 23 | Cover, rear-lower RL1-1718-000CN | ||
| 24 | Window, LED RC2-1734-000CN | ||
| 27 | LED-PCA assembly RM1-4141-000CN |
19. Figure 9-39 Finisher (1 of 5) (stapler/stacker and booklet-maker)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 3 | Limiter, torque FC5-3657-000CN | ||
| 8 | Hinge, front-door, 1 FC5-4991-030CN | ||
| 9 | Hinge, front-door, 2 FC5-4992-030CN | ||
| 10 | Rack, rail FC5-5436-000CN | ||
| 16 | Gear, 30T FU5-0428-000CN | ||
| 17 | Gear, 40T FU5-0454-000CN | ||
| 19 | Gear, 29T FU5-2399-000CN | ||
| 20 | Pulley, 20T FU5-3086-000CN | ||
| 21 | Screw, RS stepped, M3 FU9-9059-000CN | ||
| 23 | Cover, internal, lower (stapler/stacker only) RC2-1351-000CN | ||
| 27 | Screw, RS, M3x8 XA9-1386-000CN | ||
| 28 | Ring, E XD9-0136-000CN | ||
| 29 | Belt, timing, cogged XF2-1607-860CN | ||
| 30 | Belt, timing XF2-1608-840CN | ||
| 31 | Belt, timing, cogged XF9-0748-000CN | ||
| 33 | Upper-cover lock assembly 4G3-0210-000CN | ||
| 34 | Screw, RS, M4x8 (booklet-maker only) XA9-0732-000CN | ||
| 35 | Stack-ejection motor assembly 4G3-0769-000CN | ||
| 36 | Cable, solenoid FG3-2892-000CN | ||
| 37 | Shutter H.P. sensor assembly FM2-1401-000CN | ||
| 38 | Upper-crossmember assembly RM1-4180-000CN | ||
| 42 | Press-motor assembly FM2-1409-000CN | ||
| 43 | Sensor/switch assembly FM2-1417-000CN | ||
| 44 | Swing-press shaft assembly FM2-1423-000CN | ||
| 46 | Area-sensor flag assembly RM1-4107-000CN | ||
| 47 | Caster, universal RC2-1315-000CN | ||
| 48 | Screw, with washer, M5x12 XA9-0912-000CN | ||
| 49 | Inner-cover assembly RM1-4123-000CN | ||
| 51 | Cable-mount lattice assembly RM1-4128-000CN | ||
| 59 | Sheet, entrance-guide FC5-5542-000CN | ||
| 60 | Solenoid FL2-0821-000CN | ||
| 69 | Pin XD3-2200-102CN | ||
| 70 | Pin, dowel XD3-2200-142CN | ||
| 71 | Ring, E XD9-0136-000CN | ||
| 75 | Entrance-sensor flag assembly FM2-0718-000CN | ||
| 79 | Plate, hinge-stop (booklet-maker only) 4A3-4715-000CN | ||
| 80 | Knob (booklet-maker only) FB3-7881-000CN | ||
| 86 | Cover, internal, lower (booklet-maker only) RL1-1477-000CN | ||
| 87 | Plate, grounding (booklet-maker only) 4A3-1955-000CN | ||
| 88 | Clutch, electromagnetic 4H3-0370-000CN | ||
| 91 | Plate, grounding (booklet-maker only) RC2-1356-000CN | ||
| 92 | Flexible-cable mount assembly FM2-0720-000CN | ||
| 501 | Pin XD3-2200-102CN | ||
| 503 | Screw, TP, M3x6 (booklet-maker only) XB6-7300-607CN | ||
| 960 | Chapter 9 Parts and diagrams ENWW |
20. Figure 9-44 Output bin 1 (stack upper-tray assembly) (1 of 2) (stapler/stacker)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 3 | Option-sensor assembly FM2-1708-000CN | ||
| 17 | Plate, option-tray, front FC5-6978-000CN | ||
| 20 | Gear, 44T FU5-0435-000CN | ||
| 29 | Cover, option-tray, front RL1-2210-000CN | ||
| 32 | Roller, tray-guide RU5-6035-000CN | ||
| 40 | Area-sensor PCA assembly 4G1-1498-000CN | ||
| 44 | Paper-sensor assembly FM2-0707-000CN | ||
| 45 | Area-sensor holder assembly FM2-0709-000CN |
21. Figure 9-46 Output bin 1 (stack upper-tray assembly) (1 of 2) (booklet-maker)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 2 | Ring, E XD9-0137-000CN | ||
| 3 | Stack-tray assembly RM1-4104-000CN | ||
| 5 | Approach-switch assembly FM2-0710-000CN | ||
| 8 | Roller, tray-guide FC5-4221-000CN | ||
| 19 | Gear, 44T FU5-0435-000CN | ||
| 20 | Gear, 17T FU5-0457-000CN | ||
| 28 | Roller, tray-guide RU5-6035-000CN | ||
| 34 | Area-sensor PCA assembly 4G1-1498-000CN | ||
| 35 | Tray-driver PCA assembly FG3-2887-000CN | ||
| 37 | Paper-sensor assembly FM2-0707-000CN | ||
| 38 | Area-sensor holder assembly FM2-0709-000CN | ||
| 503 | Pin, dowel XD3-2300-142CN |
22. Figure 9-48 Output bin 2 (stack lower-tray assembly) (1 of 2) (stapler/stacker and booklet-maker)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 5 | Stack-tray assembly RM1-4104-000CN | ||
| 7 | Area-sensor holder assembly FM2-0709-000CN | ||
| 8 | Roller, tray-guide FC5-4221-000CN | ||
| 12 | Paper-sensor assembly FM2-0707-000CN | ||
| 18 | Gear, 44T FU5-0435-000CN | ||
| 19 | Gear, 17T FU5-0457-000CN | ||
| 20 | Bushing FU5-1169-000CN | ||
| 26 | Roller, tray-guide RU5-6035-000CN | ||
| 32 | Area-sensor PCA assembly 4G1-1498-000CN | ||
| 33 | Tray-driver PCA assembly FG3-2887-000CN | ||
| 503 | Pin, dowel XD3-2300-142CN |
23. Figure 9-50 Top output bin (stack sub-tray assembly) (stapler/stacker)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 2 | Arm, adjustment, front 4A3-1763-000CN | ||
| 3 | Arm, adjustment, rear 4A3-1764-000CN | ||
| 4 | Plate, rotation 4A3-1779-000CN | ||
| 6 | Lever, stopper 4A3-1782-000CN | ||
| 7 | Roller, folding 4A3-1783-000CN | ||
| 14 | Gear, 50T 4S3-0171-000CN | ||
| 15 | Bearing, ball, 6902ZZNR 4S3-1050-000CN | ||
| 16 | Spring, tension 4S3-2116-000CN | ||
| 17 | Spring, tension 4S3-2117-000CN | ||
| 21 | Flag, roller FB3-7925-030CN | ||
| 23 | Deflector FB3-7928-020CN | ||
| 24 | Rack, rear FB3-7934-000CN | ||
| 27 | Rack, front FB3-7967-000CN | ||
| 28 | Holder, roller, 2 FB3-7973-000CN | ||
| 29 | Flag, sensor FB3-7979-000CN | ||
| 30 | Spring, torsion FB3-7980-000CN | ||
| 33 | Deflector FB5-2697-000CN | ||
| 34 | Flag, sensor FB5-5937-020CN | ||
| 35 | Claw, latch, right FC5-5021-000CN | ||
| 41 | Pulley, 30T FS5-3576-000CN | ||
| 42 | Pulley, 39T FS5-3577-000CN | ||
| 48 | Gear, 16T/33T FS6-0822-000CN | ||
| 49 | Gear, 16T FS6-0823-000CN | ||
| 50 | Gear, 16T/56T FS6-0829-000CN | ||
| 51 | Gear, 16T FS6-0830-000CN | ||
| 53 | Spring, tension FS6-2582-000CN | ||
| 58 | Photo interrupter, TLP1242 WG8-5593-000CN | ||
| 69 | Belt, timing XF2-3837-340CN | ||
| 70 | Cable, saddle-unit 4G1-2283-000CN | ||
| 76 | Guide-motor assembly 4G3-0725-000CN | ||
| 77 | Plate, tension FF5-5805-040 | ||
| 82 | Rear-end sensor assembly FM2-0763-000CN | ||
| 84 | Delivery-switch mount assembly FM2-1639-000CN | ||
| 87 | Upper delivery-guide assembly RM1-4131-000CN | ||
| 88 | Saddle-controller PCA assembly RM1-4140-000CN | ||
| 91 | Saddle paper-delivery assembly RM1-4130-000CN | ||
| 92 | Motor-mount assembly 4G3-0670-000CN | ||
| 93 | Saddle-guide assembly FM2-0756-000CN | ||
| 94 | Inner side-plate assembly 4G3-0671-000CN | ||
| 95 | Saddle-stapler assembly RM1-4178-000CN | ||
| 505 | Ring, C, external XD2-3100-152CN | ||
| 506 | Pin, dowel XD3-2300-202CN | ||
| 994 | Chapter 9 Parts and diagrams ENWW |
24. Figure 9-63 Saddle-tray assembly (booklet-maker)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 3 | Motor, stepping 4K1-1103-000CN | ||
| 8 | Pulley, 32T/gear, 16T FS6-0814-000CN | ||
| 9 | Pulley, 16T/gear, 32T FS6-0815-000CN | ||
| 11 | Photo interrupter, TLP1242 WG8-5593-000CN |
25. Figure 9-69 Inner side-plate assembly (booklet-maker)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | End cover (cap) back Q3938-67945 | ||
| 2 | Cable, ADF to scanner Q3938-67948 | ||
| 3 | PCA motor assembly Q7829-67903 | ||
| 4 | Tray-input assembly Q3938-67950 | ||
| 5 | Reflector foam (white backing) Q7829-67909 |
26. Figure 9-74 Front-end cover
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 2 | Diverter Q3938-67953 | ||
| 3 | Photo interrupter with connector Q7829-67914 | ||
| 32 | Float assembly Q7829-67917 |
27. Figure 9-78 Jam-cover assembly
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 2-5 | Rod Q3938-67911 | ||
| 2-9 | Flat cable, 28, 940, A Q3938-67912 | ||
| 2-10 | Flat cable, 28, 970, B Q3938-67913 | ||
| 2-11 | Sensor base Q3938-67914 | ||
| 2-13 | Rubber glass guide Q3938-67915 |
28. Figure 9-95 Plastic-parts assembly (1 of 2)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 4-3 | Upper-left cover Q3938-67920 | ||
| 4-4 | Lower-left cover Q3938-67921 | ||
| 4-5 | Upper-right cover Q3938-67922 | ||
| 4-6 | Lower-right cover Q3938-67923 | ||
| 4-7 | Top cover Q3938-67924 | ||
| 4-8 | Rear cover Q3938-67925 | ||
| 4-9 | Front cover Q3938-67926 | ||
| 4-29 | Screw covers Q3938-67927 |
29. Figure 9-98 Transmission assembly
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 9-3 | Scanner controller board (SCB) fan Q3938-67937 | ||
| 9-4 | Scanner fan Q3938-67938 | ||
| 9-6 | Control-panel fan Q3938-67939 |
30. Figure 9-100 Havic assembly
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 13-1 | Copy processor board (CPB) Q3938-67940 | ||
| 13-2 | SCUID board Q3938-67941 | ||
| 13-3 | PCIe cable Q3938-67942 | ||
| 13-4 | 512 MB image scanner memory DIMM Q7559A (module only) or |
