Hewlett Packard 4514-6xx MS510 MS610 M1145 M3150 — каталог запчастей со схемами
Содержание
1. Assembly 1: Covers

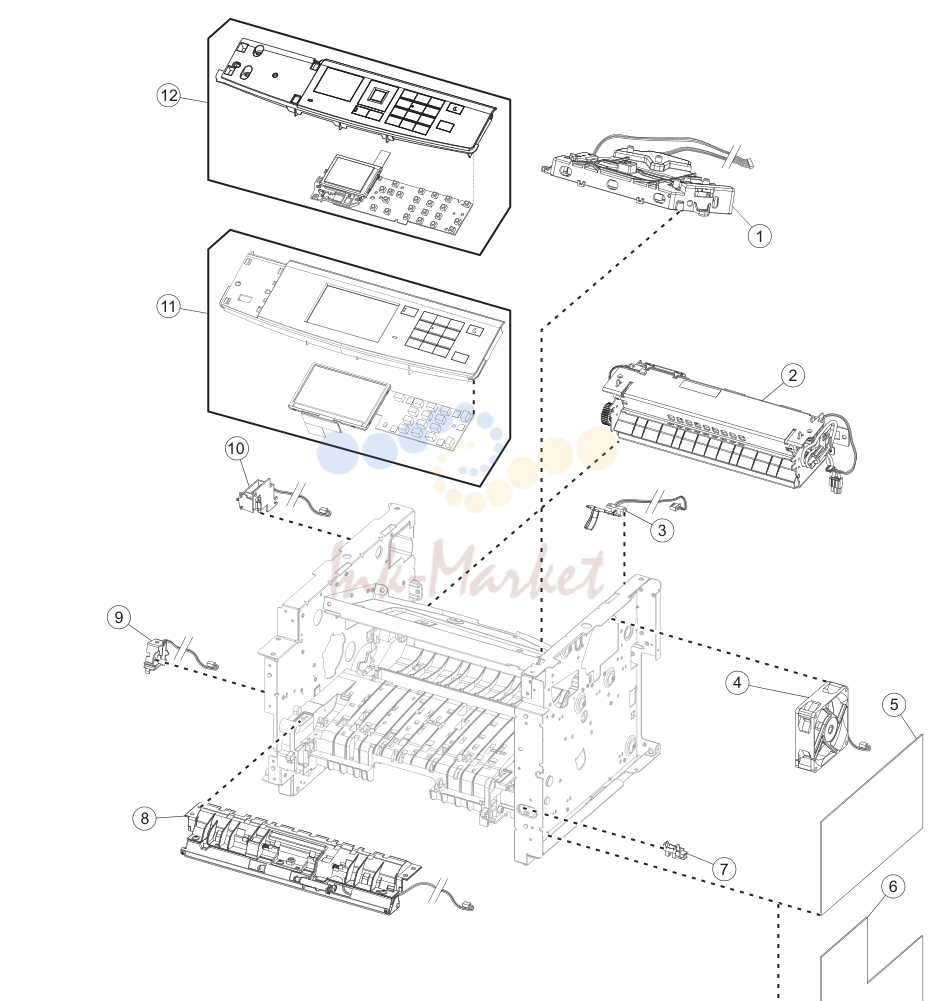

2. Assembly 2: Electronics 1
| № | Артикул | Альт. артикул | Описание |
|---|
| 1 | 40X8081 | | 1 1 Laser scanning unit “Laser scanning unit (LSU) removal” |
| 2 | 40X8343 запросить цену → | | 1 1 Fuser, 100 V “Fuser removal” on page |
| 2 | 40X8023 запросить цену → | | 1 1 Fuser, 110 V “Fuser removal” on page |
| 2 | 40X8024 ✓ в наличии | | 1 1 Fuser, 220 V “Fuser removal” on page |
| 3 | 40X8050 ✓ в наличии | | 1 1 Narrow media/bin full sensor “Narrow media/bin full sensor |
| 4 | 40X8276 запросить цену → | | 1 1 Cooling fan (MS510dn, MS610dn) “Cooling fan removals” on page |
| 4 | 40X8274 | | 1 1 Cooling fan (MS610de) “Cooling fan removals” on page |
| 5 | 40X8029 | | 1 1 Controller board (MS510dn) “Controller board removals” on |
| 5 | 40X8030 запросить цену → | | 1 1 Controller board (MS610dn) “Controller board removals” on |
| 6 | 40X8388 запросить цену → | | 1 1 Controller board (MS610de) “Controller board removals” on |
| 7 | 40X7592 | | 1 1 Tray present sensor “Tray present sensor removal” on |
| 8 | 40X8280 запросить цену → | | 1 1 Front input guide “Front input guide removal” on |
| 9 | 40X8300 | | 1 1 MPF solenoid “MPF solenoid removal” on |
| 10 | 40X8301 ✓ в наличии | | 1 1 Reverse solenoid “Reverse solenoid removal” on |
| 11 | 40X8285 запросить цену → | | 1 1 Control panel assembly (MS610de) “Control panel assembly removals” |
| 12 | 40X8292 | | 1 1 Control panel assembly (MS510dn) “Control panel assembly removals” |
| 12 | 40X8284 запросить цену → | | 1 1 Control panel assembly (MS610dn) “Control panel assembly removals” |

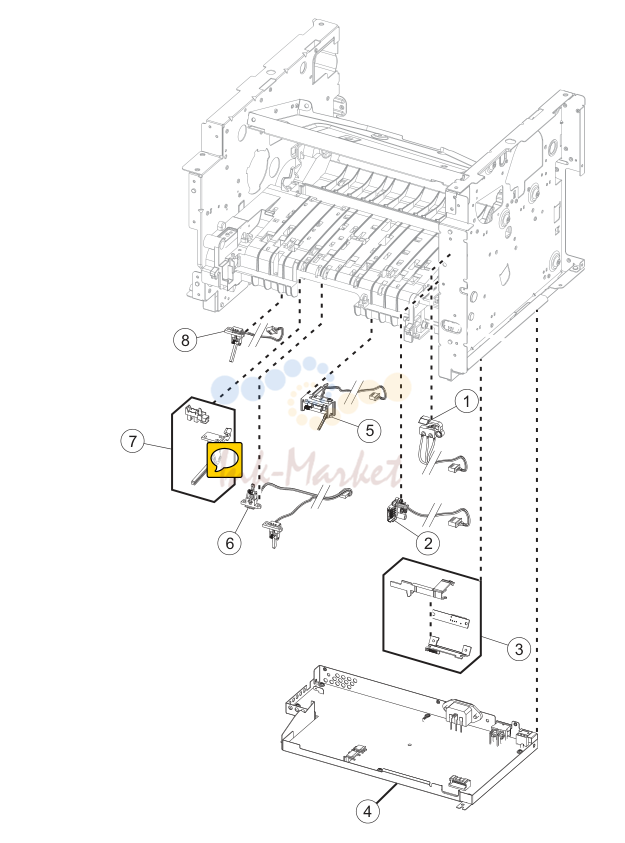

3. Assembly 3: Electronics 2
| № | Артикул | Альт. артикул | Описание |
|---|
| 1 | 40X8048 | | 1 1 Front door sensor “Front door sensor removal” on |
| 2 | 40X8266 ✓ в наличии | | 1 1 Cartridge smart chip contact “Toner cartridge smart chip contact |
| 3 | 40X8046 запросить цену → | | 1 1 Toner density sensor “Toner density sensor removal” on |
| 4 | 40X7797 запросить цену → | | 1 1 Power supply, 100 V/110 V “Power supply removal” on page |
| 4 | 40X7798 | | 1 1 Power supply, 220 V “Power supply removal” on page |
| 5 | 40X8045 | | 1 1 Trailing edge sensor “Trailing edge sensor removal” on |
| 6 | 40X8043 ✓ в наличии | | 1 1 Duplex sensor and input sensor “Duplex sensor and input sensor |
| 7 | 40X7592 | | 1 1 Media present sensor “Media present sensor removal” on |
| 8 | 40X8044 | | 1 1 Index sensor “Index sensor removal” on page |

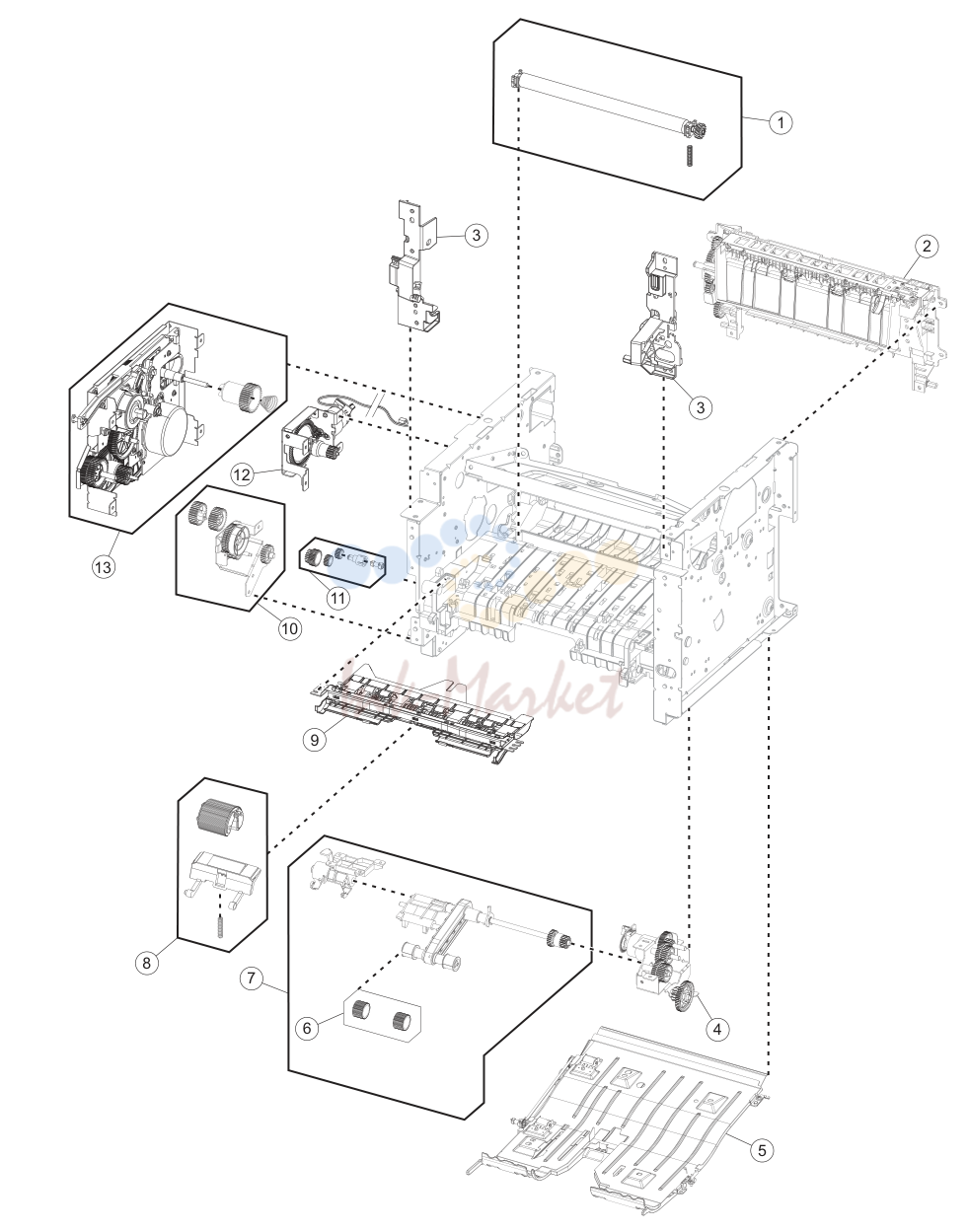

4. Assembly 4: Frame
| № | Артикул | Альт. артикул | Описание |
|---|
| 1 | 40X8393 ✓ в наличии | | 1 1 Transfer roll “Transfer roll removal” on page |
| 2 | 40X8298 запросить цену → | | 1 1 Redrive assembly (MS510dn) “Redrive assembly removal” on |
| 2 | 40X8437 запросить цену → | | 1 1 Redrive assembly (MS610dn) “Redrive assembly removal” on |
| 2 | 40X8438 | | 1 1 Redrive assembly (MS610de) “Redrive assembly removal” on |
| 3 | 40X8299 запросить цену → | | 1 1 Front mounts “Left front mount removal” on |
| 4 | 40X8084 | | 1 1 Pick/Lift motor gearbox “Pick/Lift motor gearbox removal” on |
| 5 | 40X8275 | | 1 1 Duplex assembly “Duplex removal” on page |
| 6 | 40X8297 запросить цену → | | 2 2 Pick tire N/A |
| 7 | 40X8261 запросить цену → | | 1 1 ACM assembly “ACM assembly removal” on |
| 8 | 40X8295 | | 2 2 MPF pick roller and separator pad “MPF pick roller removal” on |
| 9 | 40X8279 | | 1 1 Jam access cover “Jam access cover removal” on |
| 10 | 40X8777 запросить цену → | | 1 1 MPF gearbox “MPF gearbox removal” on page |
| 11 | 40X8277 | | 1 1 Duplex gear assembly “Duplex gear assembly removal” on |
| 12 | 40X8083 | | 1 1 Cartridge gearbox “Cartridge gearbox removal” on |
| 13 | 40X8085 | | 1 1 Main drive gearbox “Main drive gearbox removal” on |

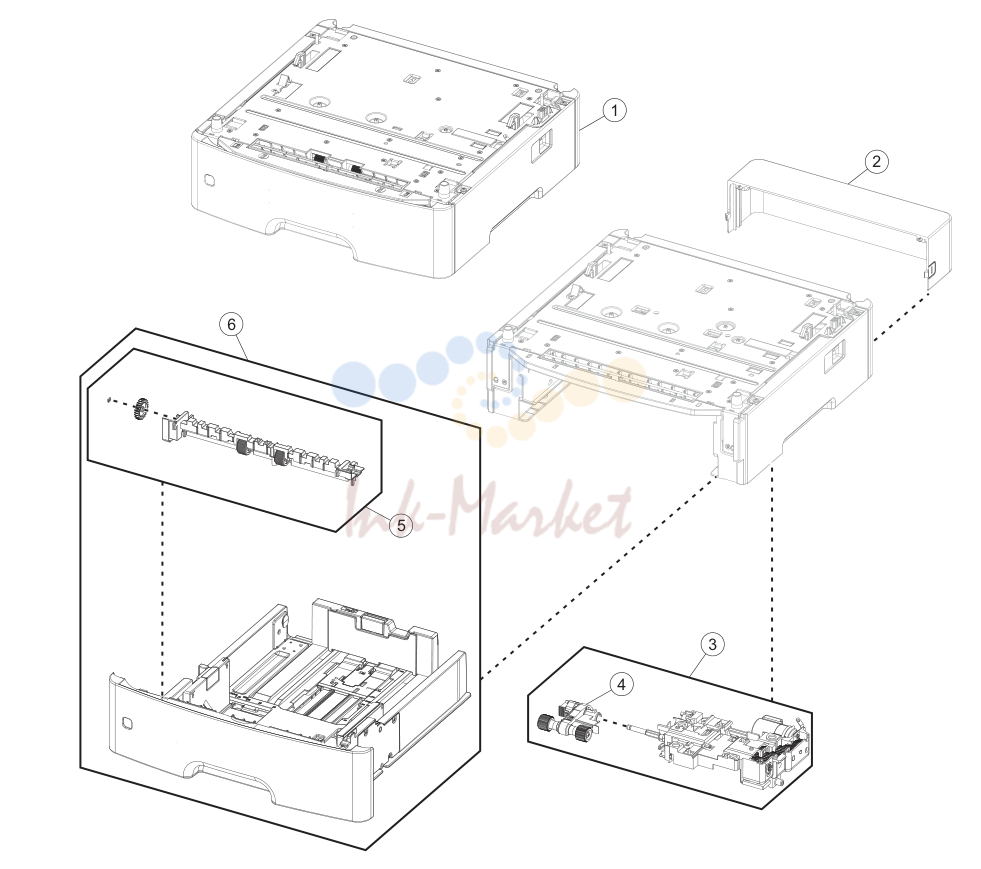

5. Assembly 5: Option trays
| № | Артикул | Альт. артикул | Описание |
|---|
| 1 | 40X8287 запросить цену → | | 1 1 250-sheet tray N/A |
| 1 | 40X8286 запросить цену → | | 1 1 550-sheet tray N/A |
| 2 | 40X8520 запросить цену → | | 1 1 Dust cover, 250-sheet tray “Dust cover removal” on page |
| 2 | 40X8521 запросить цену → | | 1 1 Dust cover, 550-sheet tray “Dust cover removal” on page |
| 3 | 40X8262 запросить цену → | | 1 1 ACM assembly “ACM assembly removal” on page |
| 4 | 40X8443 ✓ в наличии | | 1 1 Pick roller assembly “Pick roller removal” on page |
| 5 | 40X8444 | | 1 1 Separator roll assembly “Separator roll assembly removal” on page |
| 6 | 40X8305 запросить цену → | | 1 1 250-sheet tray insert N/A |
| 6 | 40X8086 запросить цену → | | 1 1 550-sheet tray insert N/A |
