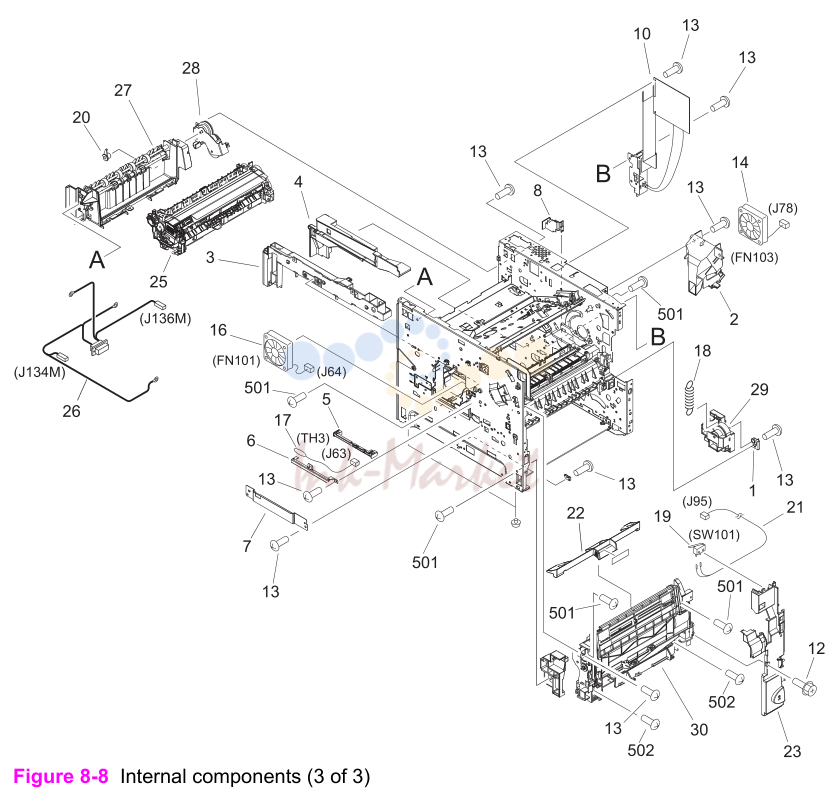

- 6. Figure 8-8 Internal components (3 of 3)

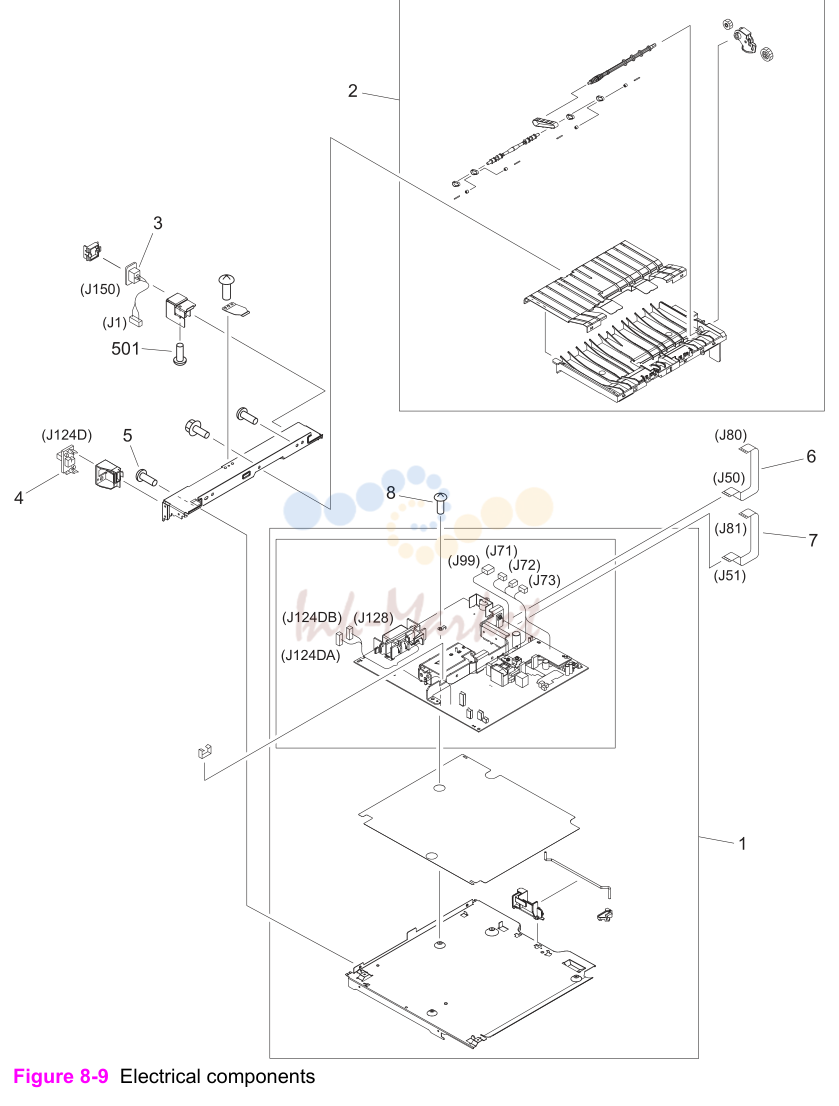

- 7. Figure 8-9 Electrical components

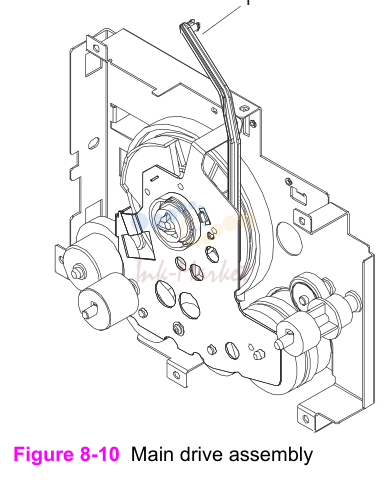

- 8. Figure 8-10 Main drive assembly

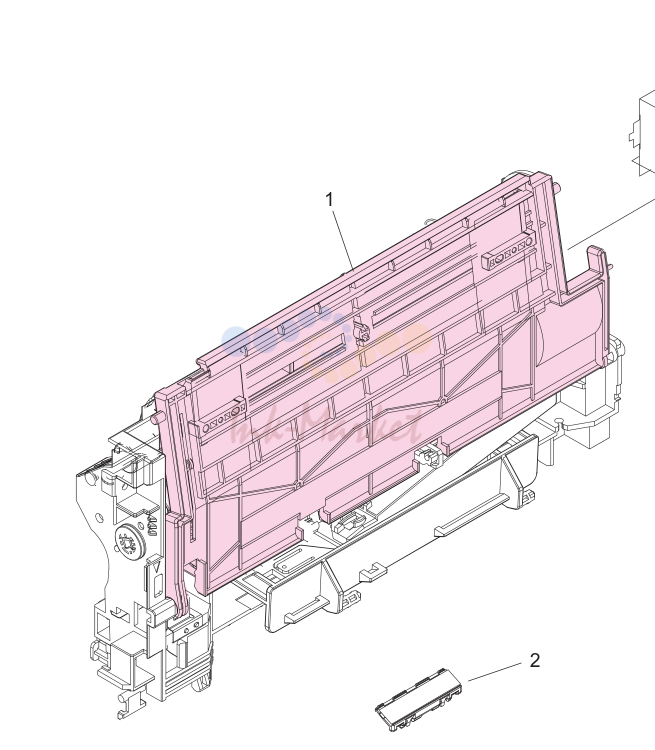

- 9. Figure 8-12 Tray 1 pickup assembly

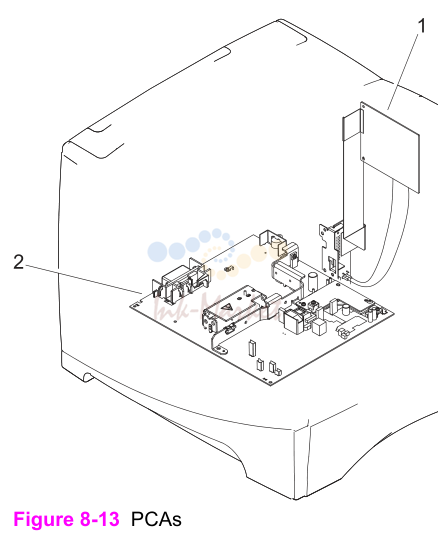

- 10. Figure 8-13 PCAs

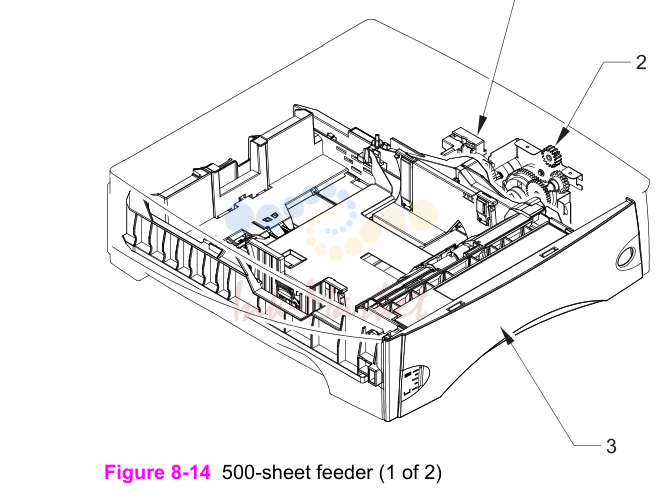

- 11. Accessories

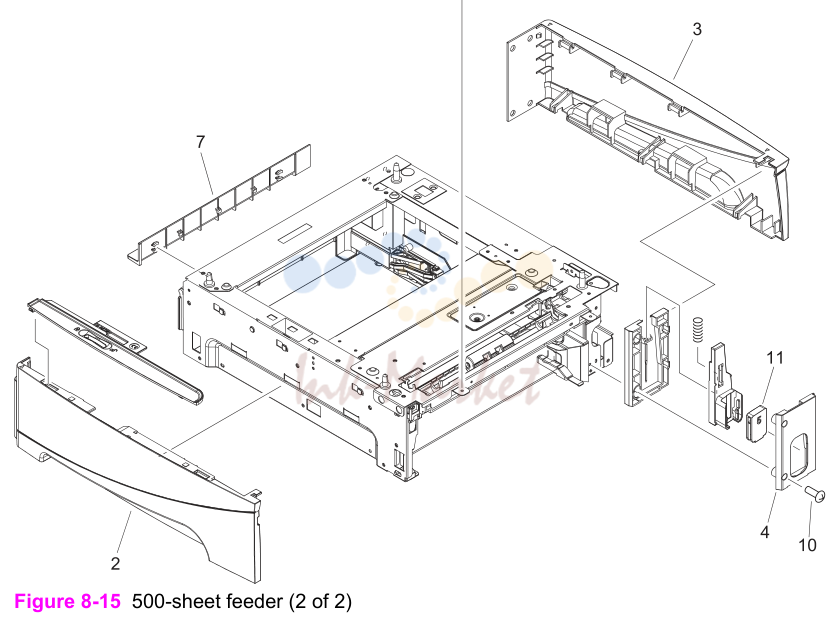

- 12. Figure 8-15 500-sheet feeder (2 of 2)

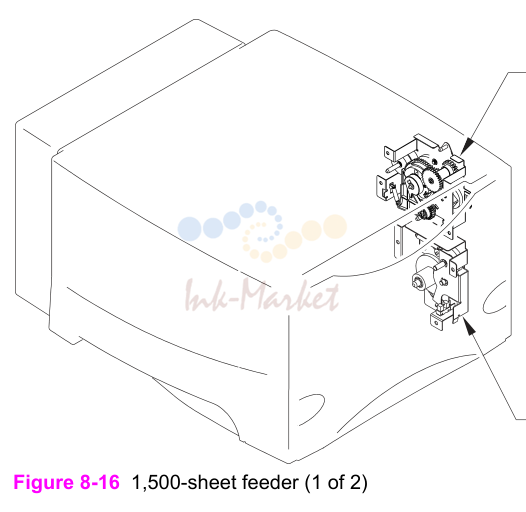

- 13. Figure 8-16 1,500-sheet feeder (1 of 2)

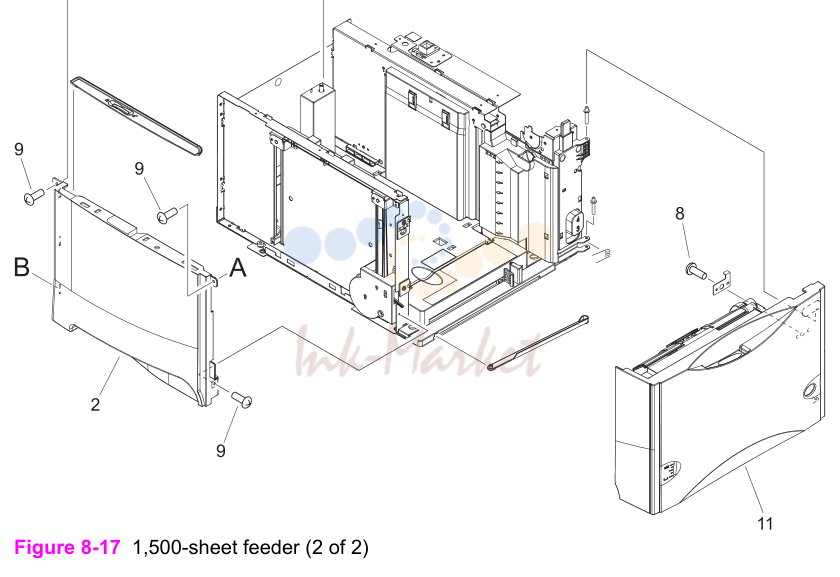

- 14. Figure 8-17 1,500-sheet feeder (2 of 2)

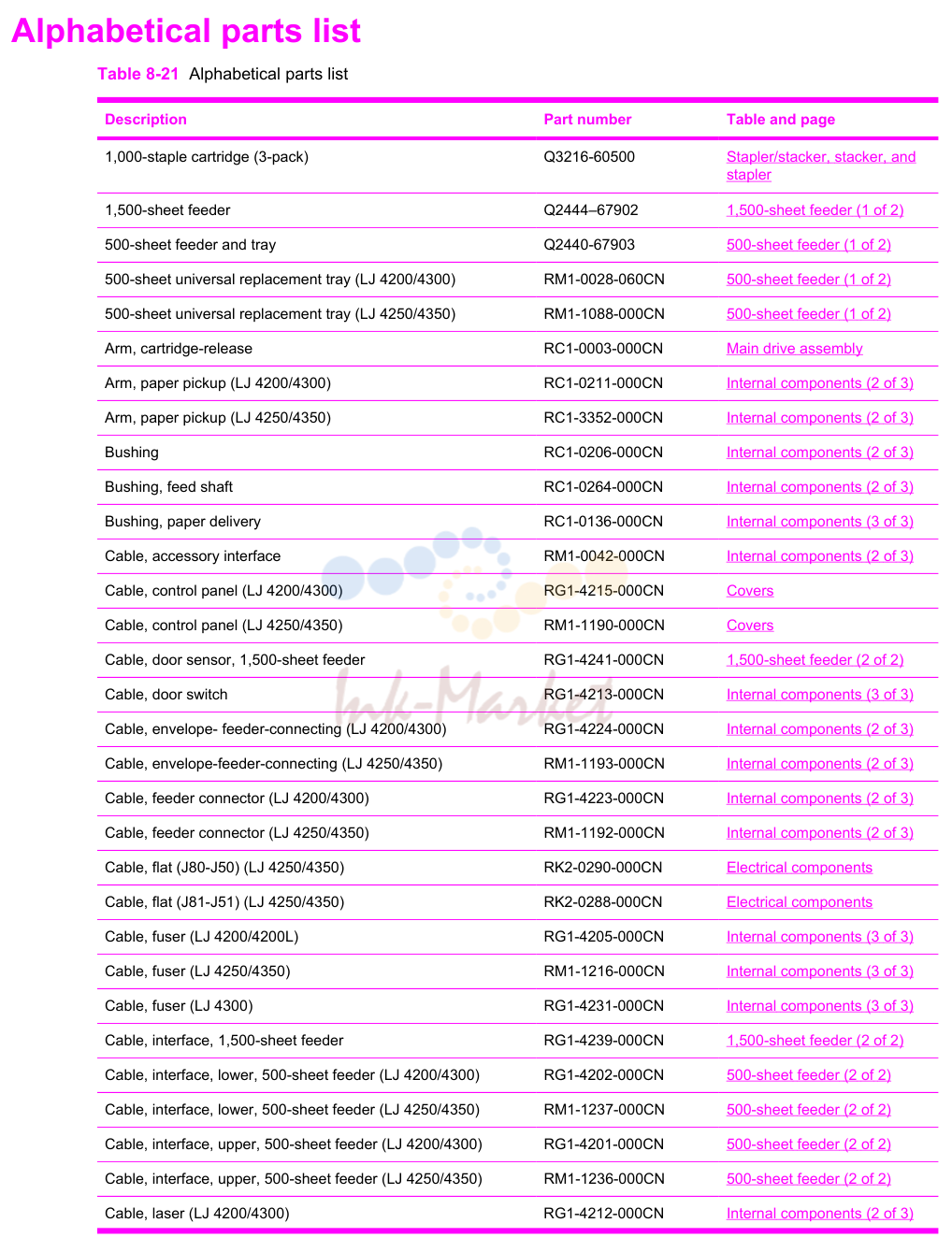

- 15. Alphabetical parts list

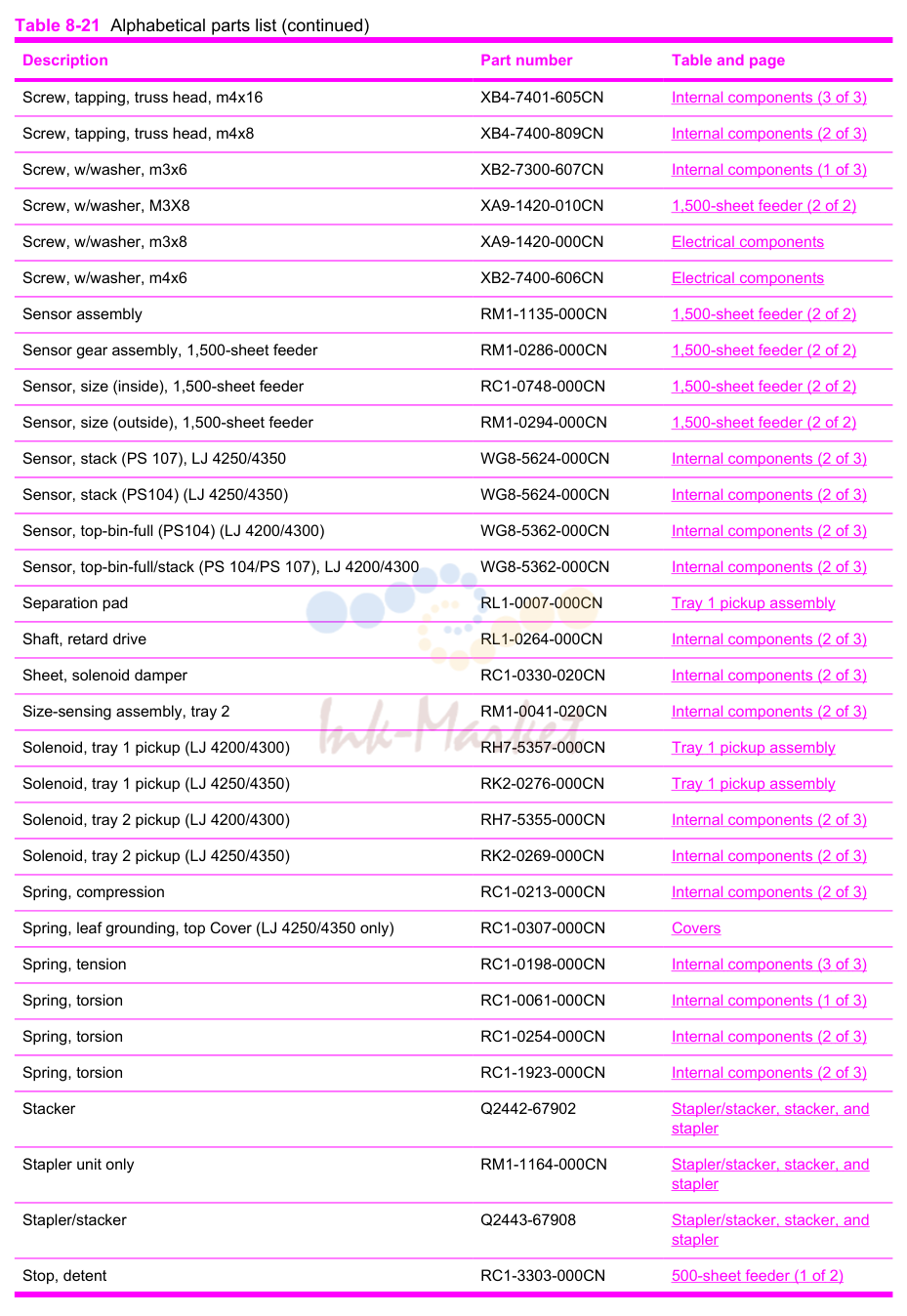

- 16. Table 8-21 Alphabetical parts list (continued)

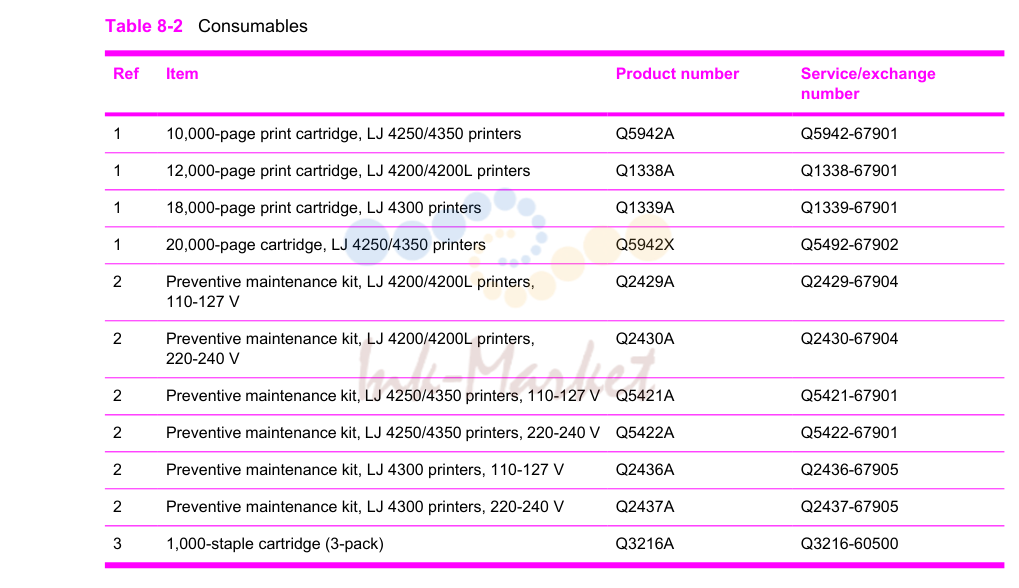

1. Consumables and accessories
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 10,000-page print cartridge, LJ 4250/4350 printers Q5942A Q5942-67901 | ||
| 1 | 12,000-page print cartridge, LJ 4200/4200L printers Q1338A Q1338-67901 | ||
| 1 | 18,000-page print cartridge, LJ 4300 printers Q1339A Q1339-67901 | ||
| 1 | 20,000-page cartridge, LJ 4250/4350 printers Q5942X Q5492-67902 | ||
| 2 | Preventive maintenance kit, LJ 4200/4200L printers, Q2429A Q2429-67904 | ||
| 2 | Preventive maintenance kit, LJ 4200/4200L printers, Q2430A Q2430-67904 | ||
| 2 | Preventive maintenance kit, LJ 4250/4350 printers, 110-127 V Q5421A Q5421-67901 | ||
| 2 | Preventive maintenance kit, LJ 4250/4350 printers, 220-240 V Q5422A Q5422-67901 | ||
| 2 | Preventive maintenance kit, LJ 4300 printers, 110-127 V Q2436A Q2436-67905 | ||
| 2 | Preventive maintenance kit, LJ 4300 printers, 220-240 V Q2437A Q2437-67905 | ||
| 3 | 1,000-staple cartridge (3-pack) Q3216A Q3216-60500 |
2. Accessories
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | 500-sheet запросить цену → | tray and feeder Q2240B Q2440-67903 | |
| 2 | 1,500-sheet tray and feeder Q2444B Q2444-67902 | ||
| 3 | Duplexer Q2439B Q2439-67902 | ||
| 4 | 75-sheet запросить цену → | envelope feeder Q2438B Q2438-67902 | |
| 5 | 500-sheet запросить цену → | stapler/stacker Q2443B Q2443-67908 | |
| 6 | 500-sheet запросить цену → | stacker Q2442B Q2442-67902 | |

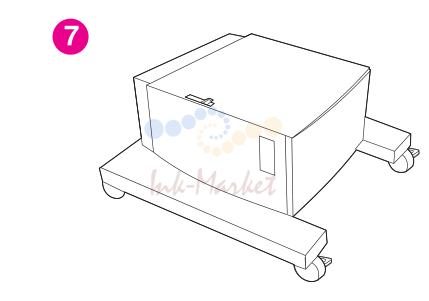

| 7 | Printer stand Q2445B Q2445-60102 | ||
| 1 | Firmware DIMM (LJ 4200, base model) Q2453-67925 | ||
| 1 | Firmware DIMM (LJ 4200, all models except for base model) Q2453-67906 | ||
| 1 | Firmware DIMM (LJ 4200L) Q2453-67932 | ||
| 1 | Firmware DIMM (LJ 4300) Q2453-67915 | ||
| 1 | SDRAM DIMM, 8 MB (LJ 4200/4300) C7842-67901 | ||
| 1 | SDRAM DIMM, 16 MB (LJ 4200/4300) C7843-67901 | ||
| 1 | SDRAM DIMM, 32 MB (LJ 4200/4300) C7845-67901 | ||
| 1 | SDRAM DIMM, 64 MB (LJ 4200/4300) Q1887-67901 | ||
| 1 | SDRAM DIMM, 128 MB (LJ 4200/4300) C9121-67901 | ||
| 1 | 100-pin запросить цену → | DDR DIMM, 48 MB (LJ 4250/4350) Q6007-67951 | |
| 1 | 100-pin запросить цену → | DDR DIMM, 64 MB (LJ 4250/4350) Q2625-67951 | |
| 1 | 100-pin запросить цену → | DDR DIMM, 80 MB (LJ 4250/4350) Q6008-67951 | |
| 1 | 100-pin запросить цену → | DDR DIMM, 96 MB (LJ 4250/4350) Q6009-67951 | |
| 1 | 100-pin запросить цену → | DDR DIMM, 128 MB (LJ 4250/4350) Q2626A Q2626-67951 | |
| 1 | 100-pin запросить цену → | DDR DIMM, 256 MB (LJ 4250/4350) Q2627A Q2627-67951 | |
| 1 | 100-pin запросить цену → | DDR DIMM, 512 MB (LJ 4250/4350) Q2628A Q2628-67951 | |
| 1 | Font DIMM, Korean language (LJ 4200/4300) D4838A | ||
| 1 | Font DIMM, Simplified Chinese language (LJ 4200/4300) C4293A | ||
| 1 | Font DIMM, Traditional Chinese language (LJ 4200/4300) C4292A | ||
| 2 | EIO hard disk, 20 GB J6073-61001 | ||
| 450 | 8 Parts and diagrams | ||
| 1 | HP Jetdirect 615n Fast Ethernet internal print server (for J6057A J6057-69001 | ||
| 1 | HP Jetdirect 620n Fast Ethernet internal print server for J7934A J7934-61001/J7934-69001 | ||
| 1 | HP Jetdirect 625n Gigabit internal print server for J7960A J7960-61001 | ||
| 1 | HP Jetdirect 680n 802.11b wireless Ethernet internal print J6058A J6058-61201 | ||
| 1 | HP bt1300 Bluetooth wireless printer adapter J6072A J6072-61001/J6072-69001 | ||
| 2 | IEEE_1284 запросить цену → | parallel cable, 2-meter (6.6 feet) C2950A 5063-1256 | |
| 2 | IEEE_1284 запросить цену → | parallel cable, 3-meter (9.9 feet) C2951A 5063-1257 | |
| 3 | USB cable, 2-meter (6.6 feet) C6518A | ||
| 4 | Power cord, 2-meter (6.6 feet), with 90-degree C13 8120-5301 | ||
| 5 | Power cord, 2-meter (6.6 feet), with straight C13 receptacle 8121-0740 | ||
| 452 | 8 Parts and diagrams | ||
| 1 | 500-sheet запросить цену → | universal replacement tray See Figure 8-14 500-sheet feeder (1 of 2). | |
| 2 | Feed roller assembly See Figure 8-11 Feed roller assembly. | ||
| 3 | Registration assembly See Figure 8-6 Internal components (1 of 3). | ||
| 454 | 8 Parts and diagrams | ||
| 4 | Power-supply assembly See Figure 8-9 Electrical components. | ||
| 5 | Delivery assembly See Figure 8-8 Internal components (3 of 3). | ||
| 6 | Fuser assembly See Figure 8-8 Internal components (3 of 3). | ||
| 7 | Tray 1 pickup assembly See Figure 8-12 Tray 1 pickup assembly. | ||
| 8 | Duplexing-pendulum assembly See Figure 8-8 Internal components (3 of 3). | ||
| 9 | Main-drive assembly See Figure 8-10 Main drive assembly | ||
| 10 | Paper-pickup-drive assembly See Figure 8-7 Internal components (2 of 3). | ||
| 11 | Lifter-drive assembly See Figure 8-8 Internal components (3 of 3). | ||
| 456 | 8 Parts and diagrams |

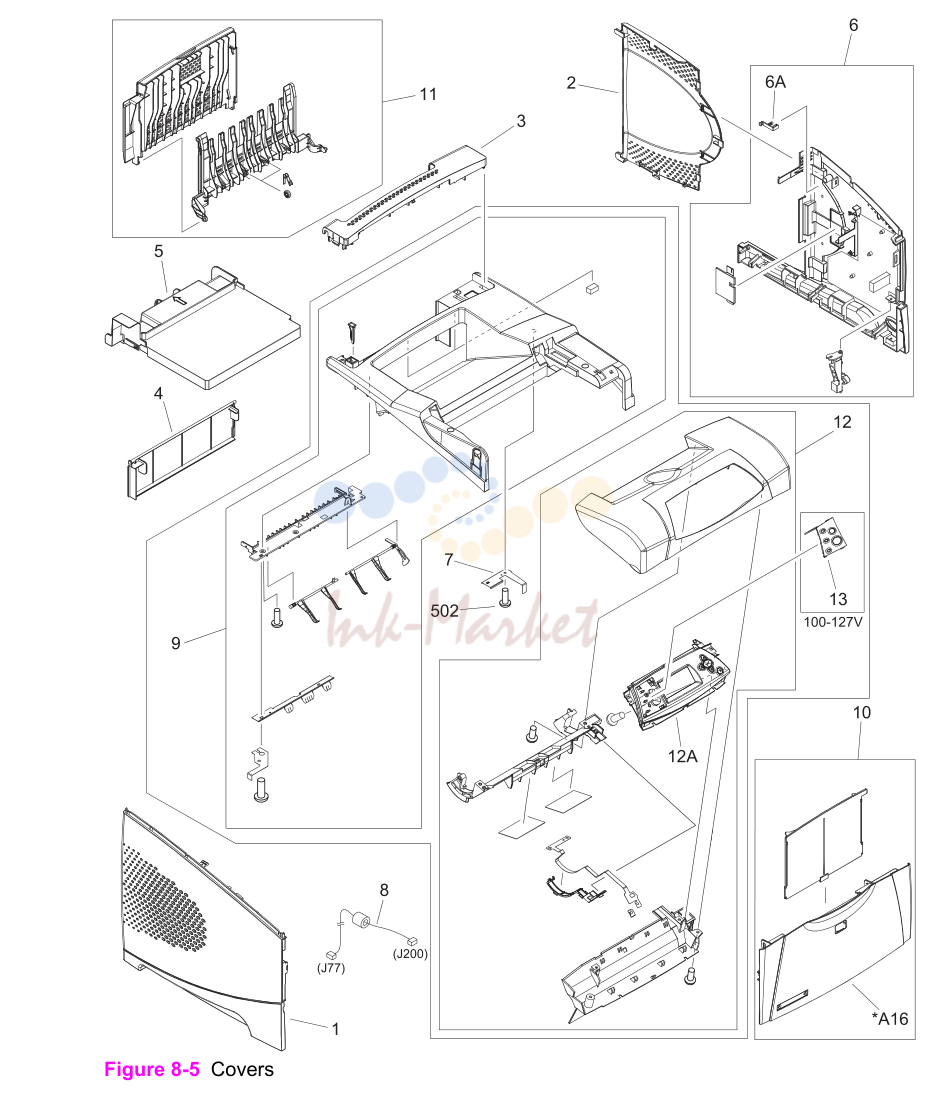

3. Covers
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Cover, left (LJ 4200/4300) RC1-0287-020CN | ||
| 1 | Cover, left (LJ 4250/4350) RM1-1077-000CN | ||
| 2 | Cover, formatter RC1-0288-000CN | ||
| 3 | Cover, paper-handling RC1-0289-000CN | ||
| 4 | Cover, legal (LJ 4200/4300) RC1-0290-000CN | ||
| 4 | Cover, legal (LJ 4250/4350) RC1-3282-000CN | ||
| 5 | Cover, duplexing (LJ 4200/4300) RC1-0291-000CN | ||
| 5 | Cover, duplexing (LJ 4250/4350) RC1-3280-000CN | ||
| 6 | Cover assembly, right (LJ 4200/4300) RM1-0046-000CN | ||
| 6 | Cover assembly, right (LJ 4250/4350) RM1-1076-000CN | ||
| 7 | Spring, leaf grounding, top Cover (LJ 4250/4350 only) RC1-0307-000CN | ||
| 8 | Cable, control panel (LJ 4200/4300) RG1-4215-000CN | ||
| 8 | Cable, control panel (LJ 4250/4350) RM1-1190-000CN | ||
| 9 | Cover assembly, top(LJ 4200/4300) RM1-0049-000CN | ||
| 9 | Cover assembly, top (LJ 4250/4350) RM1-1081-000CN | ||
| 10 | Cover assembly, front RM1-0050-030CN | ||
| 11 | Cover, rear output bin RM1-0027-020CN | ||
| 12 | Cover, cartridge door (LJ 4200) RM1-0047-020CN | ||
| 12 | Cover, cartridge door (LJ 4300) RM1-0114-020CN | ||
| 12 | Cover, cartridge door (LJ 4250/4350) RM1-1080-000CN | ||
| 13 | Overlay, control panel, Turkish (LJ 4200/4300) Q2431-40021 | ||
| 13 | Overlay, control panel, Hebrew (LJ 4200/4300) Q2431-40022 | ||
| 13 | Overlay, control panel, Greek (LJ 4200/4300) Q2431-40023 | ||
| 13 | Overlay, control panel, EN/FR/DE/IT (LJ 4200/4300) Q2431-60107 | ||
| 13 | Overlay, control panel, EN/CS/HU/PL (LJ 4200/4300) Q2431-60108 | ||
| 13 | Overlay, control panel, NO/SW/FI (LJ 4200/4300) Q2431-60109 | ||
| 13 | Overlay, control panel, IT/ES/PT/SP (LJ 4200/4300) Q2431-60110 | ||
| 13 | Overlay, control panel, EN/RU (LJ 4200/4300) Q2431-60111 | ||
| 13 | Overlay, control panel, EN/AR (LJ 4200/4300) Q2431-60112 | ||
| 13 | Overlay, control panel, EN/FR/DE/NL (LJ 4200/4300) Q2431-60113 | ||
| 13 | Overlay, control panel, EN (LJ 4250/4350) RC1-3356-000CN | ||
| 13 | Overlay, control panel, EN/FR/DE/IT (LJ 4250/4350) Q5400-60102 | ||
| 13 | Overlay, control panel, CS/HU/PL/EL (LJ 4250/4350) Q5400-60103 | ||
| 13 | Overlay, control panel, NO/SV/FI (LJ 4250/4350) Q5400-60104 | ||
| 13 | Overlay, control panel, ES/PT/IT (LJ 4250/4350) Q5400-60105 | ||
| 13 | Overlay, control panel, EN/RU/TR (LJ 4250/4350) Q5400-60106 | ||
| 13 | Overlay, control panel, EN/AR (LJ 4250/4350) Q5400-60107 | ||
| 13 | Overlay, control panel, EN/DE/FR/NL (LJ 4250/4350) Q5400-60108 | ||
| 13 | Overlay, control panel, FR (LJ 4250/4350) Q5400-60109 | ||
| 13 | Overlay, control panel, AR (LJ 4250/4350) Q5400-60111 | ||
| 502 | Screw, tapping, pan head, m4x10 XB4-7401-007CN n | ||
| 460 | 8 Parts and diagrams |

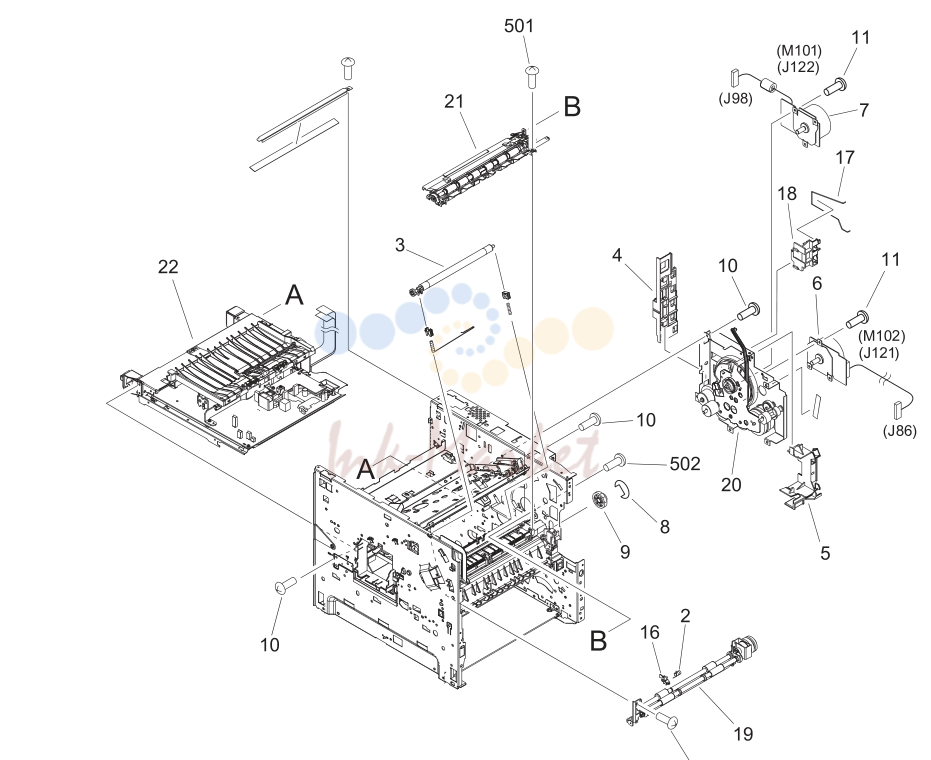

4. Internal components
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 2 | Spring, torsion RC1-0061-000CN | ||
| 3 | Transfer roller, LJ 4200/4300 RM1-0699-020CN | ||
| 3 | Transfer roller, LJ 4250/4350 RM1-1110-000CN | ||
| 4 | Guide, flat cable RC1-0269-020CN | ||
| 5 | Guide, flat cable RC1-0270-020CN | ||
| 6 | Motor, print cartridge (M102), 8-pin (LJ 4250/4350) RK2-0274-000CN | ||
| 6 | Motor, print cartridge (M102), 8-pin (LJ 4300) RH7-1576-020CN | ||
| 7 | Motor, main (M101), 10-pin (LJ4200/4300) RH7-1570-000CN | ||
| 7 | Motor, main (M101), 10-pin (LJ4250/4350) RK2-0272-000CN | ||
| 8 | E-ring XD9-0232-000CN | ||
| 9 | Gear, 14t/30t RU5-0015-000CN | ||
| 10 | Screw, s, m3x8 XA9-1500-000CN | ||
| 11 | Screw, tapping, m3x6 XA9-1503-000CN | ||
| 16 | Flag, paper feed sensor RC1-0060-000CN | ||
| 17 | Rod, fan 2 (LJ 4300) RC1-0341-000CN | ||
| 17 | Rod, fan 2 (LJ 4250/4350) RC1-3339-000CN | ||
| 18 | Guide, dc controller (LJ 4200/4300) RC1-0271-000CN | ||
| 18 | Guide, dc controller (LJ 4250/4350) RC1-3340-000CN | ||
| 19 | Feed roller assembly (also see Figure 8-11 Feed roller assembly) RM1-0012-020CN | ||
| 20 | Main drive assembly (LJ 4200/4300) (also see Figure 8-10 RM1-0001-030CN | ||
| 20 | Main drive assembly (LJ 4250/4350) (also see Figure 8-10 RM1-1066-000CN | ||
| 21 | Registration assembly RM1-0011-060CN | ||
| 22 | Power-supply assembly, 110-127 V (LJ 4200) (also see Figure RM1-0019-050CN | ||
| 8-9 | Electrical components) | ||
| 22 | Power-supply assembly, 220-240 V (LJ 4200) (also see Figure RM1-0020-000CN | ||
| 8-9 | Electrical components) | ||
| 22 | Power-supply assembly, 110-127 V (LJ 4250/4350) (also see RM1-1070-000CN | ||
| 22 | Power-supply assembly, 220-240 V (LJ 4250/4350) (also see RM1-1071-000CN | ||
| 22 | Power-supply assembly, 110-127 V (LJ 4300) (also see Figure RM1-0107-000CN | ||
| 8-9 | Electrical components) | ||
| 22 | Power-supply assembly, 220-240 V (LJ 4300) (also see Figure RM1-0108-000CN | ||
| 8-9 | Electrical components) | ||
| 501 | Screw, tapping, pan head, m4x10 XB4-7401-007CN | ||
| 502 | Screw, w/washer, m3x6 XB2-7300-607CN | ||
| 464 | 8 Parts and diagrams |

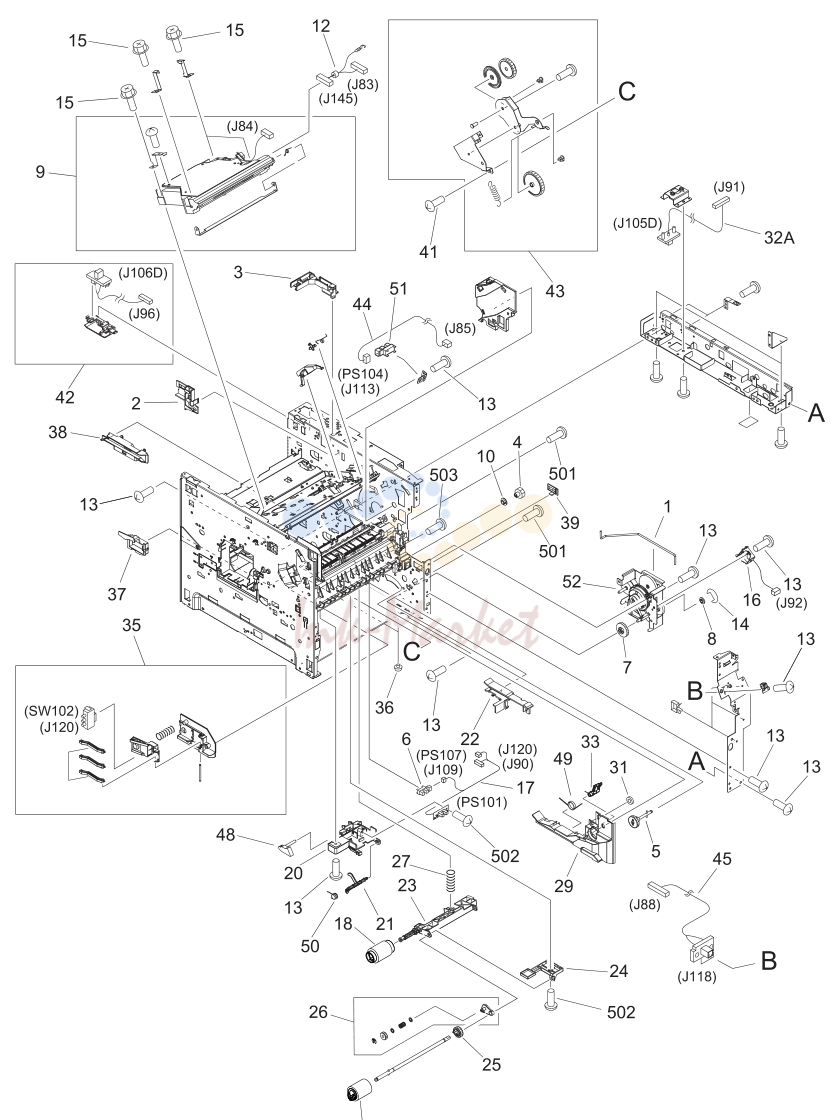

5. Figure 8-7 Internal components (2 of 3)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Rod, switch RC1-0268-000CN | ||
| 2 | Guide, scanner cable RC1-0340-020CN | ||
| 3 | Guide, scanner cable RC1-0385-000CN | ||
| 4 | Gear, 18t RU5-0045-020CN | ||
| 5 | Shaft, retard drive RL1-0264-000CN | ||
| 6 | Sensor, top-bin-full/stack (PS 104/PS 107), LJ 4200/4300 WG8-5362-000CN | ||
| 6 | Sensor, stack (PS 107), LJ 4250/4350 WG8-5624-000CN | ||
| 7 | Gear, 23t RU5-0040-000CN | ||
| 8 | Bushing RC1-0206-000CN | ||
| 9 | Laser/scanner assembly (LJ 4200) RM1-0045-000CN | ||
| 9 | Laser/scanner assembly (LJ 4250/4350) RM1-1067-000CN | ||
| 9 | Laser/scanner assembly (LJ 4300) RM1-0113-000CN | ||
| 10 | Bushing, feed shaft RC1-0264-000CN | ||
| 12 | Cable, laser (LJ 4200/4300) RG1-4212-000CN | ||
| 12 | Cable, laser (LJ 4250/4350) RM1-1198-000CN | ||
| 13 | Screw, s, m3x8 XA9-1500-000CN | ||
| 14 | E-ring XD9-0232-000CN | ||
| 15 | Screw, rs, m3x10 XA9-1559-000CN | ||
| 16 | Solenoid, tray 2 pickup (LJ 4200/4300) RH7-5355-000CN | ||
| 16 | Solenoid, tray 2 pickup (LJ 4250/4350) RK2-0269-000CN | ||
| 17 | Pickup-sensor cable assembly (LJ4200/4300) RG1-4221-000CN | ||
| 17 | Pickup-sensor cable assembly (LJ4250/4350) RM1-1181-000CN | ||
| 18 | Roller, paper-pickup RM1-0036-000CN | ||
| 19 | Roller, paper-feed RM1-0037-020CN | ||
| 20 | Holder, paper sensing RC1-0208-030CN | ||
| 21 | Flag, paper sensing RC1-0209-000CN | ||
| 22 | Guide, power-supply, front RC1-0243-000CN | ||
| 23 | Arm, paper pickup (LJ 4200/4300) RC1-0211-000CN | ||
| 23 | Arm, paper pickup (LJ 4250/4350) RC1-3352-000CN | ||
| 24 | Holder, paper pickup arm RC1-0212-000CN | ||
| 25 | Gear, 23t RC1-0371-000CN | ||
| 26 | Plate, swing RL1-0013-000CN | ||
| 27 | Spring, compression RC1-0213-000CN | ||
| 29 | Guide, tray 2 RC1-0153-030CN | ||
| 31 | Sheet, solenoid damper RC1-0330-020CN | ||
| 33 | Kicker assembly RL1-0015-000CN | ||
| 35 | Size-sensing assembly, tray 2 RM1-0041-020CN | ||
| 36 | Foot RB1-8107-000CN | ||
| 37 | Guard, right-edge RC1-0242-000CN | ||
| 38 | Guide, ECU, rear RC1-0244-000CN | ||
| 39 | Guard, left-edge RC1-0247-000CN | ||
| 41 | Screw, tapping, m3x6 XA9-1503-000CN | ||
| 42 | Cable, accessory interface RM1-0042-000CN | ||
| 43 | Swing plate assembly RM1-0043-020CN | ||
| 44 | Cable, sensor, top-bin-full (LJ 4200/4300) RG1-4214-000CN | ||
| 44 | Cable, sensor, top-bin-full (LJ 4250/4350) RM1-1189-000CN | ||
| 45 | Cable, envelope- feeder-connecting (LJ 4200/4300) RG1-4224-000CN | ||
| 45 | Cable, envelope-feeder-connecting (LJ 4250/4350) RM1-1193-000CN | ||
| 49 | Spring, torsion RC1-0254-000CN | ||
| 50 | Spring, torsion RC1-1923-000CN | ||
| 51 | Sensor, top-bin-full (PS104) (LJ 4200/4300) WG8-5362-000CN | ||
| 51 | Sensor, stack (PS104) (LJ 4250/4350) WG8-5624-000CN | ||
| 52 | Pickup drive assembly RM1-0034-040CN | ||
| 501 | Screw, tapping, pan head, m4x10 XB4-7401-007CN | ||
| 502 | Screw, tapping, truss head, m3x8 XB4-7300-809CN | ||
| 503 | Screw, tapping, truss head, m4x8 XB4-7400-809CN | ||
| 468 | 8 Parts and diagrams |
6. Figure 8-8 Internal components (3 of 3)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Support, lifter-drive assembly RC1-0200-020CN | ||
| 2 | Duct, fan 2 (right side) (LJ 4300) RC1-0272-000CN | ||
| 2 | Duct, fan 2 (right side) (LJ 4250/4350) RC1-3338-000CN | ||
| 3 | Guide, left RC1-0273-000CN | ||
| 4 | Guide, right RC1-0274-020CN | ||
| 5 | Holder, thermistor (plastic) RC1-0342-020CN | ||
| 6 | Holder, thermistor (metal) RC1-0343-020CN | ||
| 7 | Cover, fan connector RC1-0344-020CN | ||
| 8 | Guide, connecting cable RC1-0386-000CN | ||
| 10 | Dc controller (LJ 4200) RG1-4236-040CN | ||
| 10 | Dc controller (LJ 4250/4350) RM1-1108-000CN | ||
| 10 | Dc controller (LJ 4300) RG1-4237-040CN | ||
| 12 | Screw, rs, m3x10 XA9-1559-000CN | ||
| 13 | Screw, s, m3x8 XA9-1500-000CN | ||
| 14 | Fan, right (LJ 4300) RH7-1577-000CN | ||
| 14 | Fan, right (LJ 4250/4350) RK2-0280-000CN | ||
| 16 | Fan, left (LJ 4200/4300) RH7-1573-000CN | ||
| 16 | Fan, left (LJ 4250/4350) RK2-0278-000CN | ||
| 17 | Thermistor (LJ 4200/4300) RH7-7116-000CN | ||
| 17 | Thermistor (LJ 4250/4350) RK2-0359-000CN | ||
| 18 | Spring, tension RC1-0198-000CN | ||
| 19 | Microswitch, top cover WC4-5139-000CN | ||
| 20 | Bushing, paper delivery RC1-0136-000CN | ||
| 21 | Cable, door switch RG1-4213-000CN | ||
| 22 | Cover, envelope RC1-0320-000CN | ||
| 23 | Cover, inner front, right RC1-0019-000CN | ||
| 25 | Fuser, 110-127 V (LJ 4200) RM1-0013-140CN | ||
| 25 | Fuser, 110-127 V (LJ 4300) RM1-0101-200CN | ||
| 25 | Fuser, 110-127 V (LJ 4250/4350) RM1-1082-000CN | ||
| 25 | Fuser, 220-240 V (LJ 4200) RM1-0014-140CN | ||
| 25 | Fuser, 220-240 V (LJ 4300) RM1-0102-200CN | ||
| 25 | Fuser, 220-240 V (LJ 4250/4350) RM1-1083-000CN | ||
| 26 | Cable, fuser (LJ 4200/4200L) RG1-4205-000CN | ||
| 26 | Cable, fuser (LJ 4250/4350) RM1-1216-000CN | ||
| 26 | Cable, fuser (LJ 4300) RG1-4231-000CN | ||
| 27 | Paper-delivery assembly RM1-0026-040CN | ||
| 28 | Duplexing-pendulum assembly RM1-0002-020CN | ||
| 29 | Lifter-drive assembly (LJ 4200/4300) RM1-0033-020CN | ||
| 29 | Lifter-drive assembly (LJ 4250/4350) RM1-1074-000CN | ||
| 30 | Tray 1 pickup assembly (LJ 4200/4300) (also see Figure 8-12 RM1-0004-060CN | ||
| 30 | Tray 1 pickup assembly (LJ 4250/4350) (also see Figure 8-12 RM1-1097-000CN | ||
| 501 | Screw, tapping, pan head, m4x10 XB4-7401-007CN | ||
| 502 | Screw, tapping, truss head, m4x16 XB4-7401-605CN | ||
| 472 | 8 Parts and diagrams |
7. Figure 8-9 Electrical components
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Power-supply assembly, 110-127 V (LJ 4200) RM1-0019-050CN | ||
| 1 | Power-supply assembly, 220-240 V (LJ 4200) RM1-0020-000CN | ||
| 1 | Power-supply assembly, 110-127 V (LJ 4250/4350) RM1-1070-000CN | ||
| 1 | Power-supply assembly, 220-240 V (LJ 4250/4350) RM1-1071-000CN | ||
| 1 | Power-supply assembly, 110-127 V (LJ 4300) RM1-0107-000CN | ||
| 1 | Power-supply assembly, 220-240 V (LJ 4300) RM1-0108-000CN | ||
| 2 | Feed assembly RM1-0025-040CN | ||
| 3 | Cable, power-supply inlet, 110-127 V (LJ 4200/4300) RG1-4209-000CN | ||
| 3 | Cable, power-supply inlet, 110-127 V (LJ 4250/4350) RM1-1218-000CN | ||
| 3 | Cable, power-supply inlet, 220-240 V (LJ 4200/4300) RG1-4230-000CN | ||
| 3 | Cable, power-supply inlet, 220-240 V (LJ 4250/4350) RM1-1219-000CN | ||
| 4 | Connector, duplexer (LJ 4200/4300) RG1-4222-000CN | ||
| 4 | Connector, duplexer (LJ 4250/4350) VS1-7333-006CN | ||
| 5 | Screw, s, m3x8 XA9-1500-000CN | ||
| 6 | Cable, flat (J80-J50) (LJ 4250/4350) RK2-0290-000CN | ||
| 7 | Cable, flat (J81-J51) (LJ 4250/4350) RK2-0288-000CN | ||
| 8 | Screw, w/washer, m3x8 XA9-1420-000CN | ||
| 501 | Screw, w/washer, m4x6 XB2-7400-606CN |
8. Figure 8-10 Main drive assembly
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Clutch (CL101) (LJ 4200/4300) RH7-5358-000CN | ||
| 1 | Clutch (CL101) (LJ 4250/4350) RK2-0349-000CN | ||
| 2 | Gear, 30t RU5-0050-000CN | ||
| 3 | E-ring (LJ4200/4300) XD9-0137-000CN | ||
| 3 | E-ring (LJ4250/4350) XD9-0234-010CN |
9. Figure 8-12 Tray 1 pickup assembly
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Tray 1 RM1-0005-020CN | ||
| 2 | Separation pad RL1-0007-000CN | ||
| 3 | Solenoid, tray 1 pickup (LJ 4200/4300) RH7-5357-000CN | ||
| 3 | Solenoid, tray 1 pickup (LJ 4250/4350) RK2-0276-000CN | ||
| 4 | Roller, pickup RL1-0019-000CN |
10. Figure 8-13 PCAs
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Dc controller (LJ 4200) RG1-4236-040CN | ||
| 1 | Dc controller (LJ 4250/4350) RM1-1108-000CN | ||
| 1 | Dc controller (LJ 4300) RG1-4237-040CN |
11. Accessories
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Lifter-drive assembly, 500-sheet feeder RM1-1094-000CN | ||
| 2 | Paper-pickup-drive assembly, 500-sheet feeder RM1-0056-000CN | ||
| 3 | 500-sheet запросить цену → | universal replacement tray (LJ 4200/4300) RM1-0028-060CN | |
| 3 | 500-sheet запросить цену → | universal replacement tray (LJ 4250/4350) RM1-1088-000CN |
12. Figure 8-15 500-sheet feeder (2 of 2)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Cover, front upper, 500-sheet feeder RC1-0486-020CN | ||
| 2 | Cover, left, 500-sheet tray RC1-0487-020CN | ||
| 3 | Cover, right, 500-sheet tray RC1-0488-020CN | ||
| 4 | Cover, number-display plate, 500-sheet tray RC1-0500-000CN | ||
| 7 | Cover, legal RC1-0509-000CN | ||
| 11 | Number, display, optional feeder (LJ 4250/4350) RC1-3304-000CN |
13. Figure 8-16 1,500-sheet feeder (1 of 2)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Paper-pickup assembly, 1,500-sheet feeder RM1-1134-000CN | ||
| 2 | Cover assembly, front, 1,500-sheet feeder RM1-0273-070CN | ||
| 3 | Pickup drive assembly, 1,500-sheet feeder RM1-1133-000CN | ||
| 4 | Lifter-drive assembly, 1,500-sheet feeder RM1-1136-000CN |
14. Figure 8-17 1,500-sheet feeder (2 of 2)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 1 | Cover, right, 1,500-sheet feeder RC1-0661-000CN | ||
| 2 | Cover, left, 1,500-sheet feeder RC1-0662-000CN | ||
| 3 | Cover, rear, 1,500-sheet feeder RC1-0663-000CN | ||
| 8 | Screw, B, M4X8 XA9-1523-010CN | ||
| 9 | Screw, w/washer, M3X8 XA9-1420-010CN | ||
| 11 | Cover assembly, front, 1,500-sheet feeder RM1-0273-070CN | ||
| 1 | Stapler unit only RM1-1164-000CN | ||
| 2 | 1,000-staple cartridge (3-pack) Q3216-60500 | ||
| 3 | Stacker Q2442-67902 | ||
| 4 | Stapler/stacker Q2443-67908 | ||
| 5 | Output bin (fits stapler, stapler/stacker, or stacker) RM1-0248-000CN |
15. Alphabetical parts list
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 8-9 | Electrical components) | ||
| 8-9 | Electrical components) | ||
| 8-9 | Electrical components) | ||
| 500 | 8 Parts and diagrams |
16. Table 8-21 Alphabetical parts list (continued)
| № | Артикул | Альт. артикул | Описание |
|---|---|---|---|
| 8-9 | Electrical components) | ||
| 8-9 | Electrical components) | ||
| 508 | 8 Parts and diagrams |
