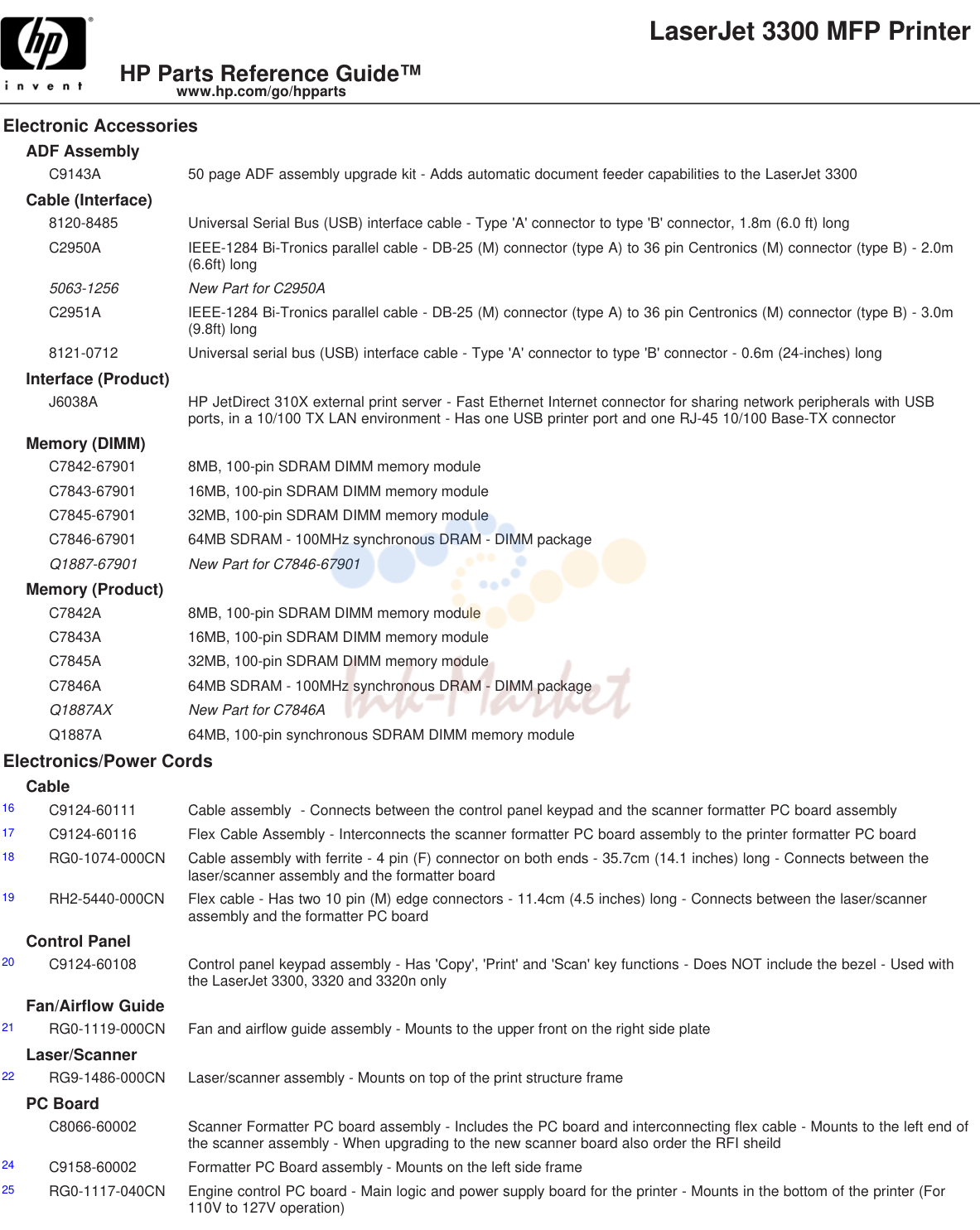

1. LaserJet 3300 MFP Printer

1. LaserJet 3300 MFP Printer

№АртикулАльт. артикулОписание
16C9124-60111 запросить цену →Cable assembly - Connects between the control panel keypad and the scanner formatter PC board assembly
17C9124-60116 запросить цену →Flex Cable Assembly - Interconnects the scanner formatter PC board assembly to the printer formatter PC board
18RG0-1074-000CN запросить цену →Cable assembly with ferrite - 4 pin (F) connector on both ends - 35.7cm (14.1 inches) long - Connects between the
19RH2-5440-000CN запросить цену →Flex cable - Has two 10 pin (M) edge connectors - 11.4cm (4.5 inches) long - Connects between the laser/scanner
20C9124-60108 запросить цену →Control panel keypad assembly - Has 'Copy', 'Print' and 'Scan' key functions - Does NOT include the bezel - Used with
21RG0-1119-000CN запросить цену →Fan and airflow guide assembly - Mounts to the upper front on the right side plate
22RG9-1486-000CN запросить цену →Laser/scanner assembly - Mounts on top of the print structure frame
24C9158-60002 запросить цену →Formatter PC Board assembly - Mounts on the left side frame
25RG0-1117-040CN запросить цену →Engine control PC board - Main logic and power supply board for the printer - Mounts in the bottom of the printer (For
26RG0-1118-050CN запросить цену →Engine control PC board - Main logic and power supply board for the printer - Mounts in the bottom of the printer (For
34RG0-1072-000CN запросить цену →Paper sensor PC board - Small board with optical flag sensor (Flag not included) - For sensing leading edge of paper -
35RG0-1082-000CN запросить цену →Delivery sensor PC board - Small board with optical flag sensor (Flag not included) - For sensing paper output - Mounts
37RH7-5315-000CN запросить цену →24VDCSolenoid - Engages the pick-up roller gear/clutch assembly - Mounts on the right side plate assembly
38C9124-60113 запросить цену →Speaker assembly - Includes the speaker and cable - Mounts in the lower part of the control panel support chassis
39RA0-1035-000CN запросить цену →Torsion spring - Provides high voltage connection to the toner cartridge (developing cylinder) - Mounts between the
40RA0-1200-000CN запросить цену →Torsion spring - Provides high voltage connection to the toner cartridge (primary charging roller) - Mounts behind the
41C9124-40017 запросить цену →Control panel bezel - Oval shaped plastic piece with cutouts for the control function keys (Korean) - For the LaserJet
42C9124-40018 запросить цену →Control panel bezel - Oval shaped plastic piece with cutouts for the control function keys (Simplified Chinese) - For the
43C9124-40019 запросить цену →Control panel bezel - Oval shaped plastic piece with cutouts for the control function keys (Thai) - For the LaserJet
44C9124-40020 запросить цену →Control panel bezel - Oval shaped plastic piece with cutouts for the control function keys (Greek) - For the LaserJet
45C9124-40021 запросить цену →Control panel bezel - Oval shaped plastic piece with cutouts for the control function keys (Turkish) - For the LaserJet
46C9124-40022 запросить цену →Control panel bezel - Oval shaped plastic piece with cutouts for the control function keys (Portuguese) - For the LaserJet
47C9124-40023 запросить цену →Control panel bezel - Oval shaped plastic piece with cutouts for the control function keys (French) - For the LaserJet
48C9124-40024 запросить цену →Control panel bezel - Oval shaped plastic piece with cutouts for the control function keys (German) - For the LaserJet
49C9124-40025 запросить цену →Control panel bezel - Oval shaped plastic piece with cutouts for the control function keys (Spanish) - For the LaserJet
50C9124-40026 запросить цену →Control panel bezel - Oval shaped plastic piece with cutouts for the control function keys (Dutch) - For the LaserJet
51C9124-40027 запросить цену →Control panel bezel - Oval shaped plastic piece with cutouts for the control function keys (Norwegian) - For the LaserJet
52C9124-40028 запросить цену →Control panel bezel - Oval shaped plastic piece with cutouts for the control function keys (Swedish) - For the LaserJet
53C9124-40029 запросить цену →Control panel bezel - Oval shaped plastic piece with cutouts for the control function keys (Hebrew) - For the LaserJet
54C9124-40030 запросить цену →Control panel bezel - Oval shaped plastic piece with cutouts for the control function keys (Finnish) - For the LaserJet
55C9124-40031 запросить цену →Control panel bezel - Oval shaped plastic piece with cutouts for the control function keys (Danish) - For the LaserJet
56C9124-40032 запросить цену →Control panel bezel - Oval shaped plastic piece with cutouts for the control function keys (Italian) - For the LaserJet
57C9124-40033 запросить цену →Control panel bezel - Oval shaped plastic piece with cutouts for the control function keys (Russian) - For the LaserJet
58C9124-40034 запросить цену →Control panel bezel - Oval shaped plastic piece with cutouts for the control function keys (Czech) - For the LaserJet
59C9124-40035 запросить цену →Control panel bezel - Oval shaped plastic piece with cutouts for the control function keys (Hungarian) - For the LaserJet
60C9124-40036 запросить цену →Control panel bezel - Oval shaped plastic piece with cutouts for the control function keys (Polish) - For the LaserJet
61C9124-40037 запросить цену →Control panel bezel - Oval shaped plastic piece with cutouts for the control function keys (Arabic) - For the LaserJet
62C9124-40038 запросить цену →Control panel bezel - Oval shaped plastic piece with cutouts for the control function keys (English) - For the LaserJet
63C9124-40039 запросить цену →Control panel bezel - Oval shaped plastic piece with cutouts for the control function keys (Traditional Chinese) - For the
64C9124-40002 запросить цену →Left scanner cover - Mounts on the left end of the scanner assembly - Covers the scanner formatter PC board
65C9124-40003 запросить цену →Right scanner cover - Mounts on the right side of the scanner assembly
66C9124-60117 запросить цену →Document Cover (or Lid) - Lift-up plastic lid that covers the scanner glass - Used with LaserJet models that did not come
67RA0-1450-020CN запросить цену →Front cover - Lower front of printer - With opening for inserting the paper input tray assembly
68RF0-1100-000CN запросить цену →Top cover assembly - Has face-down paper output tray molded into it - Mounts to top of printer - Provides mounting
69RG0-1114-000CN запросить цену →Rear cover assembly - Includes rear cover and fold down face-up (or straight through) paper output tray (tray is NOT
70RG0-1116-000CN запросить цену →Right side cover assembly - Has molded-in air intake louvers
71RG0-1113-000CN запросить цену →Left side door assembly - Includes the left side door and hinge - Provides access to connect the printer interface cables
72RG0-1115-040CN запросить цену →Toner cartridge door - Fold down door used when accessing the toner cartridge - Mounts to the top of the front cover
73RA0-1003-000CN запросить цену →Rubber foot - Used for the rear feet on the bottom of printer - Mounts on the front bottom frame of the paper pick-up
74RA0-1197-000CN запросить цену →Rubber foot - Used for the front feet on the bottom of the printer - Mounts on the bottom of the right and left side plate
757121-8043 запросить цену →Jewel - Rectangular silver plastic piece with the HP logo - Mounts to the toner cartridge door
76RA0-1127-000CN запросить цену →Support pan (case) for the print engine controller board - Metal pan which also acts as part of the bottom of the printer
770515-4330 запросить цену →Pan head plastite screw with washer - M3.0 x 1.27, 9.1mm long, Number 2 Phillips - Used to secure the scanner side
780515-4331 запросить цену →Pan head plastite screw with washer - M4.0 x 1.75, 13.1mm long, Number 2 Phillips - For securing the scanner to the
79RY7-5082-000CN запросить цену →Screw kit - Includes nine bags of different size screws - This is a complete set of screws for the Printer portion of the
80C9124-40006 запросить цену →Support Chassis - Curved plastic piece that supports the control panel keypad - Mounts to the front of the scanner
81RA0-1470-000CN запросить цену →Support frame - Curved plastic support piece - Mounts on the bottom left side of the printer (below the left side door)
82RA0-1104-000CN запросить цену →Roller bushing/retainer - Mounts on the right end of the face-up output roller and retains it in the fusing assembly
83RG9-1493-000CN запросить цену →Fusing assembly - Bonds toner to paper with heat (For 100V to 120V operation) - Mounts in the upper rear of the printer
84RG9-1494-000CN запросить цену →Fusing assembly - Bonds toner to paper with heat (For 220V to 240V operation) - Mounts in the upper rear of the printer
85RA0-1088-000CN запросить цену →29 tooth gear - Mounts on the end of the pressure roller - Largest of the three gears on the fusing assembly
86RA0-1089-000CN запросить цену →17 tooth gear - Mounts on the end of the face-up output roller - Center gear of three gears on the fusing assembly
87RF0-1003-000CN запросить цену →Face-up (straight through) output roller - Metal shaft with two rollers - Mounts in the fusing assembly behind the pressure
88RG0-1010-000CN запросить цену →Output roller assembly - Includes face-down delivery roller, 4 spring-loaded presure rollers, support frame, and drive
89RG0-1082-000CN запросить цену →Delivery sensor PC board - Small board with optical flag sensor (Flag not included) - For sensing paper output - Mounts
95RA0-1446-000CN запросить цену →Left side fuser bracket (L-shaped) - Provides mounting support for the fusing assembly - Mounts to the upper rear corner
96RA0-1447-000CN запросить цену →Right side fuser bracket (L-shaped) - Provides mounting support for the fusing assembly - Mounts to the upper rear
97WT2-5694-000CN запросить цену →Snap-in cable clamp - Secures the drive motor cable from the controller PC board to the metal support pan
98RA0-1176-000CN запросить цену →69 tooth gear - Large gear with ribs and six small holes - Mounts on on a rod in the upper rear corner of the right side
99RA0-1172-000CN запросить цену →17 tooth gear assembly - Includes the 17 tooth gear mounted on a black plastic bracket - Mounts to the right side plate
100RG0-1020-000CN запросить цену →Gear/clutch assembly (Solenoid activiated) - Includes the two gear bodies and internal spring - Drives the pickup roller in
101RA0-1181-000CN запросить цену →Guide - For the shutter lever on the laser/scanner assembly - Mounts on the metal support bracket for the laser/scanner
102RA0-1451-000CN запросить цену →Front guide assembly - Ribbed plastic piece that runs the width of the printer - Mounts to the front of the left and right
103RA0-1182-000CN запросить цену →Shutter lever - Spring loaded lever - Mounts to the top of the laser/scanner assembly
104RA0-1457-000CN запросить цену →Connecting link - Connects between the sliding linkage on the left and right side plates and the toner cartridge access
105RH7-1473-000CN запросить цену →Stepper motor assembly - Drives all rollers amd fusing assembly via the gear train on the right side plate - Mounts on
106RG0-1001-040CN запросить цену →Right side plate assembly - Includes the right side plate, drive motor, most all drive gears, and cam levers - Does not
107RG0-1002-060CN запросить цену →Left plate assembly - Left side of internal printer mechanism - Plate that the formatter PC board mounts to
1080515-2908 запросить цену →Pan head machine screw with washer - M3.0 x 0.5, 6mm long, Number 2 Phillips - Used to Mount the printer formatter
109C9124-00003 запросить цену →RFI shield - Metal plate that covers the formatter PC board - Mounts on the left side plate
110RA0-1128-000CN запросить цену →Printed circuit board spacer - Mounts between the print engine control board and the metal support pan (six used)
111RA0-1169-000CN запросить цену →Compression spring - Provides tension for the shutter lever - Mounts between the shutter lever and the laser/scanner
112RA0-1212-000CN запросить цену →Tensoin spring - Provides tension for lever - Mounts on the lower front on the right side plate
113RA0-1173-000CN запросить цену →Mounting support - Metal piece that supports the paper pick-up solenoid (SL001) - Mounts on the right side plate
114RA0-1444-000CN запросить цену →Front cover support (L-shaped) - Mounts on the upper left corner of the left side plate
115RA0-1452-000CN запросить цену →Front cover support (L-shaped) - Mounts on the upper right corner of the right side plate
116RG9-1493-000CN запросить цену →Fusing assembly - Bonds toner to paper with heat (For 100V to 120V operation) - Mounts in the upper rear of the printer
117RG9-1494-000CN запросить цену →Fusing assembly - Bonds toner to paper with heat (For 220V to 240V operation) - Mounts in the upper rear of the printer
118RG9-1486-000CN запросить цену →Laser/scanner assembly - Mounts on top of the print structure frame
119RG0-1120-000CN запросить цену →Paper pick-up assembly - Includes the pick-up roller, paper feed roller assembly, separation pad, plastic housing and
120RF0-1008-000CN запросить цену →Paper Pick-up Roller ('D' shaped roller) - Picks up media from the paper input tray - Clips in the holder on the paper pick
121RG9-1483-000CN запросить цену →Transfer roller assembly - Transfers static charge to the media being printed on - Mounts in the top rear of the paper
122RA0-1003-000CN запросить цену →Rubber foot - Used for the rear feet on the bottom of printer - Mounts on the front bottom frame of the paper pick-up
123RY7-5081-000CN запросить цену →Gear/clutch assembly kit - Includes 19-tooth/31-tooth double-gear body, ratcheted shaft piece and spring - For driving
124RA0-1072-000CN запросить цену →Grounding Plate - L-shaped, spring steel - Mounts on the left end of the paper pickup assembly
125RF0-1014-000CN запросить цену →Separation pad assembly - Mounts on a spring loaded arm in the paper pick-up assembly
126RG0-1120-000CN запросить цену →Paper pick-up assembly - Includes the pick-up roller, paper feed roller assembly, separation pad, plastic housing and
127RG0-1124-000CN запросить цену →Paper lift plate assembly (Priority input tray) - Plastic plate assembly that includes the two blue paper width adjusters -
128RG0-1005-000CN запросить цену →Paper feed roller assembly - Includes feed roller, feed roller base assembly, retainer bushings, paper input leading edge
129RG0-1072-000CN запросить цену →Paper sensor PC board - Small board with optical flag sensor (Flag not included) - For sensing leading edge of paper -
130RG0-1007-000CN запросить цену →Paper pick-up shaft assembly - Includes the shaft, the two cams, pick-up roller holder, and end cap - Mounts in the
131RA0-1035-000CN запросить цену →Torsion spring - Provides high voltage connection to the toner cartridge (developing cylinder) - Mounts between the
132RA0-1200-000CN запросить цену →Torsion spring - Provides high voltage connection to the toner cartridge (primary charging roller) - Mounts behind the
133RG0-1122-000CN запросить цену →Paper tray cover assembly - Includes clear plastic cover with blue width adjustment guides for 'priority' paper input -
134RG0-1121-000CN запросить цену →Printer input paper tray assembly - Includes bottom tray, blue paper length adjustment lever, and extension arm (also
151C9124-40002 запросить цену →Left scanner cover - Mounts on the left end of the scanner assembly - Covers the scanner formatter PC board
152C9124-40003 запросить цену →Right scanner cover - Mounts on the right side of the scanner assembly
153C9124-60117 запросить цену →Document Cover (or Lid) - Lift-up plastic lid that covers the scanner glass - Used with LaserJet models that did not come
154C7296-00014 запросить цену →ADF glass window - Small glass window that mounts on the left end of the flatbed scanner assembly - Stationary
156C9124-40005 запросить цену →Retainer frame (U-shaped) - Retains the small piece of glass that is used with the ADF assembly - Mounts on the left
157C9124-60103 запросить цену →Flatbed scanner assembly - Mounts to the top of the printer
1580515-4257 запросить цену →Pan head taptite screw with washer - M3.0 x 0.5, 6mm long, Number 2 Phillips - The single black screw (of the three
1590515-4330 запросить цену →Pan head plastite screw with washer - M3.0 x 1.27, 9.1mm long, Number 2 Phillips - Used to secure the scanner side
1600515-4331 запросить цену →Pan head plastite screw with washer - M4.0 x 1.75, 13.1mm long, Number 2 Phillips - For securing the scanner to the
